BEFORE USING THE REFRIGERATOR
Your new appliance is a combined ventilated, no-frost
fridge-freezer exclusively for domestic use.
The great advantage of this appliance is that the
refrigerator and freezer compartments are ventilated,
therefore there is no ice or frost formation on the walls,
thanks to the process described below. The cold is
produced by an evaporator and distributed to the single
compartments by means of a fan.
The air, after circulating in the compartments, is
absorbed again by the evaporator, which also retains
any humidity in the air. This prevents frost from forming
on the compartment walls, as in traditional appliances,
therefore
The humidity absorbed by the evaporator is
transformed into water, which is automatically routed
to a container located on the compressor, from where
it evaporates. The ventilated refrigeration system
guarantees optimal food storage, maintaining the
original characteristics longer.
there is no need to defrost the appliance.
To get the most out of your new appliance, read the
user handbook thoroughly. The handbook contains a
description of the appliance and useful tips for storing
food.
Keep this handbook
1.After unpacking the appliance, check for damage and
make sure that the doors shut properly.
Any damage must be reported to your dealer within
24 hours after delivery of the appliance.
2.Wait at least two hours without moving the
appliance before switching on. This will give the
refrigerant circuit time to settle and operate
efficiently.
3.Installation of the appliance and electrical
connections must be carried out by a qualified
electrician, in accordance with the manufacturer's
instructions and local regulations.
for future consultation.
SAFEGUARDING THE ENVIRONMENT
1.Packing
The packaging material is entirely recyclable, and
marked with the recycling symbol. Follow local
regulations for scrapping.
Keep the packaging materials (plastic bags, polystyrene
parts, etc.) out of reach of children, as they are
potentially dangerous.
2.Appliance
The appliance is made using recyclable materials.
Disposal must be carried out in accordance with local
environmental regulations for waste disposal.
Make the appliance unusable by cutting off the power
cord. The appliance must be delivered to an authorized
collection centre for the recovery of refrigerant gas.
Information:
This appliance does not contain CFCs (replaced with
R134a) or HFCs (replaced with R600a-Isobutane).
For more information, refer to the identification data
plate affixed to the appliance.
14
Page 3
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
•
Use the
storing fresh food and beverages and use the freezer
compartment only for storing frozen food, freezing
fresh food and making ice cubes.
•
Do not cover or obstruct the air vents of the
appliance.
•
Do not store liquids in glass containers in the freezer
compartment - danger of bursting.
•
Do not eat ice cubes or ice lollies immediately after
taking them out of the freezer compartment - risk of
“cold” burns.
•
Do not allow children to play or hide inside the
appliance - risk of becoming trapped and suffocating.
•
Do not ingest the contents (non-toxic) of the ice
packs (if provided).
refrigerator compartment
only for
• Before any cleaning or maintenance operatio n,
unplug the appliance from the mains or
disconnect the electrical power supply.
•
The power cable may only be replaced by an
authorised person.
•
After installation, make sure that the refrigerator
does not stand on the power cable.
Declaration of conformity
This appliance is intended to come into contact with
foodstuffs and conforms to D.L. 108 of 25.01.1992
(European Directive 89/109/EEC).
Information
Appliances with Isobutane (R600a).
Isobutane is a natural gas with low environmental
impact. Caution is required, however, since isobutane
is flammable. Therefore, it is essential to ensure that
refrigerant pipelines are not damaged.
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
The refrigerator compartment is designed for the storage
of fresh food and beverages.
Defrosting of the refrigerator compartment is completely
automatic.
The refrigerator can operate at ambient temperatures between
+16°C and +38°C. Optimal performance is obtained at
temperatures between +16°C and +32°C.
Switching on the appliance
•
Plug in the appliance.
•
The appliance will switch on automatically.
•
The inside light switches on when the refrigerator door is
opened.
To adjust the temperature, follow the instructions in the
accompanying chart.
Important:
•
There is no need to adjust the thermostat knob as the
temperature is factory set to ensure the correct storage
temperature for fresh foods at ambient temperatures
between +20°C and +25°C.
•
After being switched on, the refrigerator needs approximately
2 hours to reach the correct temperature to store a typical
volume of food in the refrigerator compartment.
To switch off the appliance
•
In models without the “COOL” compartment, air distribution
in the lower part of the refrigerator can be adjusted by means
of the regulator
(4)
, turn the knob
.
(2)
to
OFF
.
Fig. 1
15
Page 4
How to use the refrigerator compartment

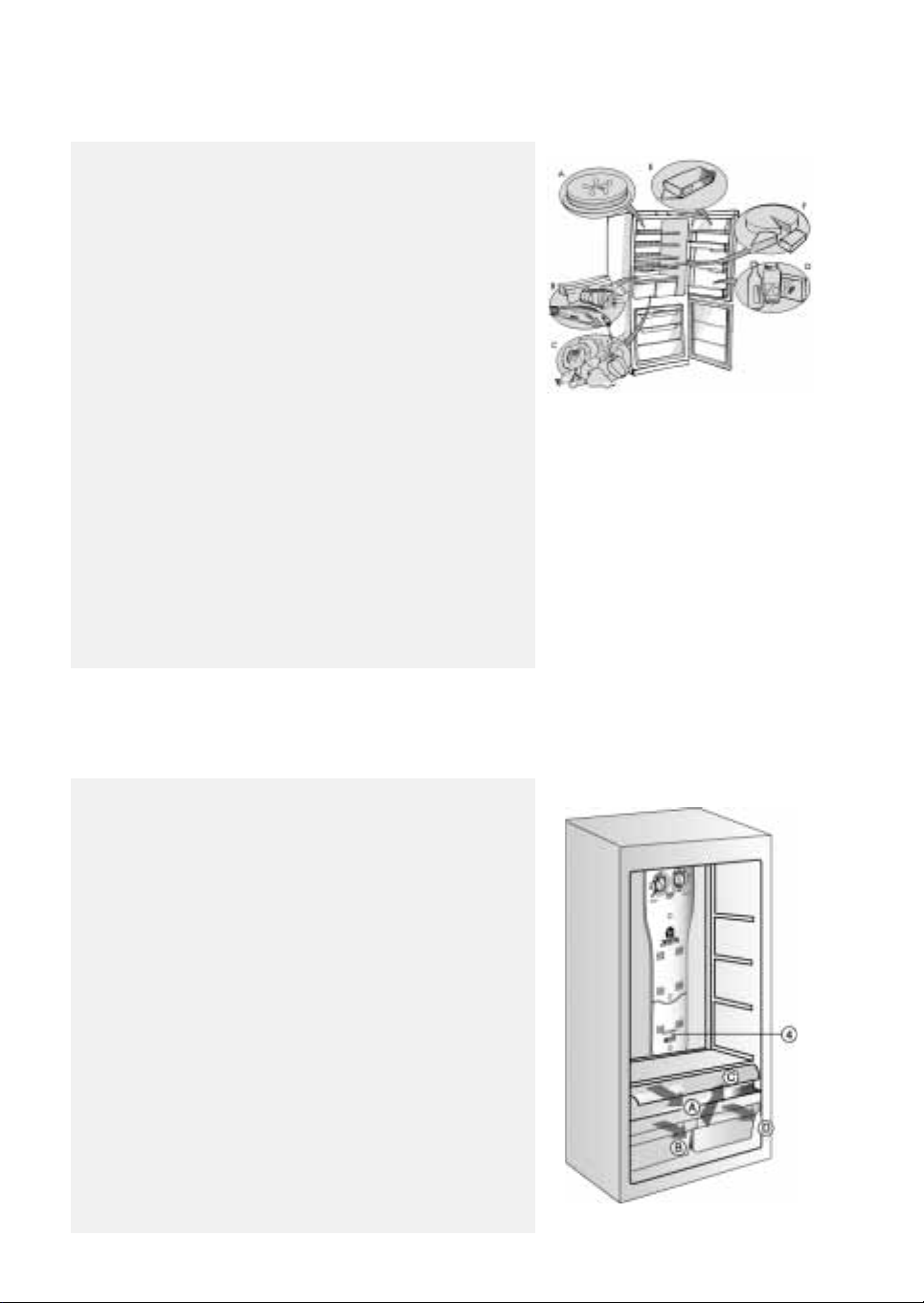

Position the food as shown in the figure.
A. Cooked food
B. Fish, meat
C. Fruit and vegetables
D. Bottles
E. Butter
F. Dairy products, cheese
To maintain the vitamins, aroma, substance and freshness of the
food to be stored, it is advisable to wrap food in aluminium foil,
cling film or place it in special freezer containers with lids. This
will prevent odours from mixing.
Important
Since appliance internal temperature is to all intents and
purposes uniform thanks to the new ventilated system
(MULTI-FLOW Fig.1)
nonetheless, we recommend to arrange the food as shown in
Fig. 2
paying attention not to obstruct the air vents
so that air can circulate.
Do not place hot food in the refrigerator.
, foods can be arranged on any shelf;
(5) Fig. 1
Fig. 2
,
HOW TO OPERATE THE “COOL”
COMPARTMENT (DEPENDING ON MODEL)
The appliance is equipped with a “COOL” compartment
To adjust the temperature, use the adjustment button
•
Towards position (+) for cooler temperatures.
•
Towards position (-) for less cool temperatures.
REMOVING THE DRAWER OF THE FRESH FOOD
COMPARTMENT
•
It is possible to remove the basket of the
Compartment
as illustrated in the figure.
Fresh Food
(4)
16
Page 5
HOW TO OPERATE THE FREEZER
COMPARTMENT
The freezer compartment, marked with the symbol,
can be used for freezing fresh and cooked food, making ice
cubes and storing frozen food.
How to switch on the freezer compartment
•
When the appliance is plugged in, the freezer compartment
switches on automatically.
Important:
•
There is no need to adjust the thermostat knob as the
temperature is factory set to ensure the correct storage
temperature for frozen foods in the freezer compartment at
ambient temperatures between +20°C and +25°C.
•
After switching on, the freezer compartment takes
approximately 3 hours to reach a suitable temperature for
frozen food storage.
To adjust the temperature, follow the instructions in the
accompanying chart.
How to freeze fresh food
You can use the freezer compartment to freeze food.
The amount of fresh food that can be frozen in 24 hours, at an
ambient temperature of + 25°C, is indicated on the data plate.
How to proceed:

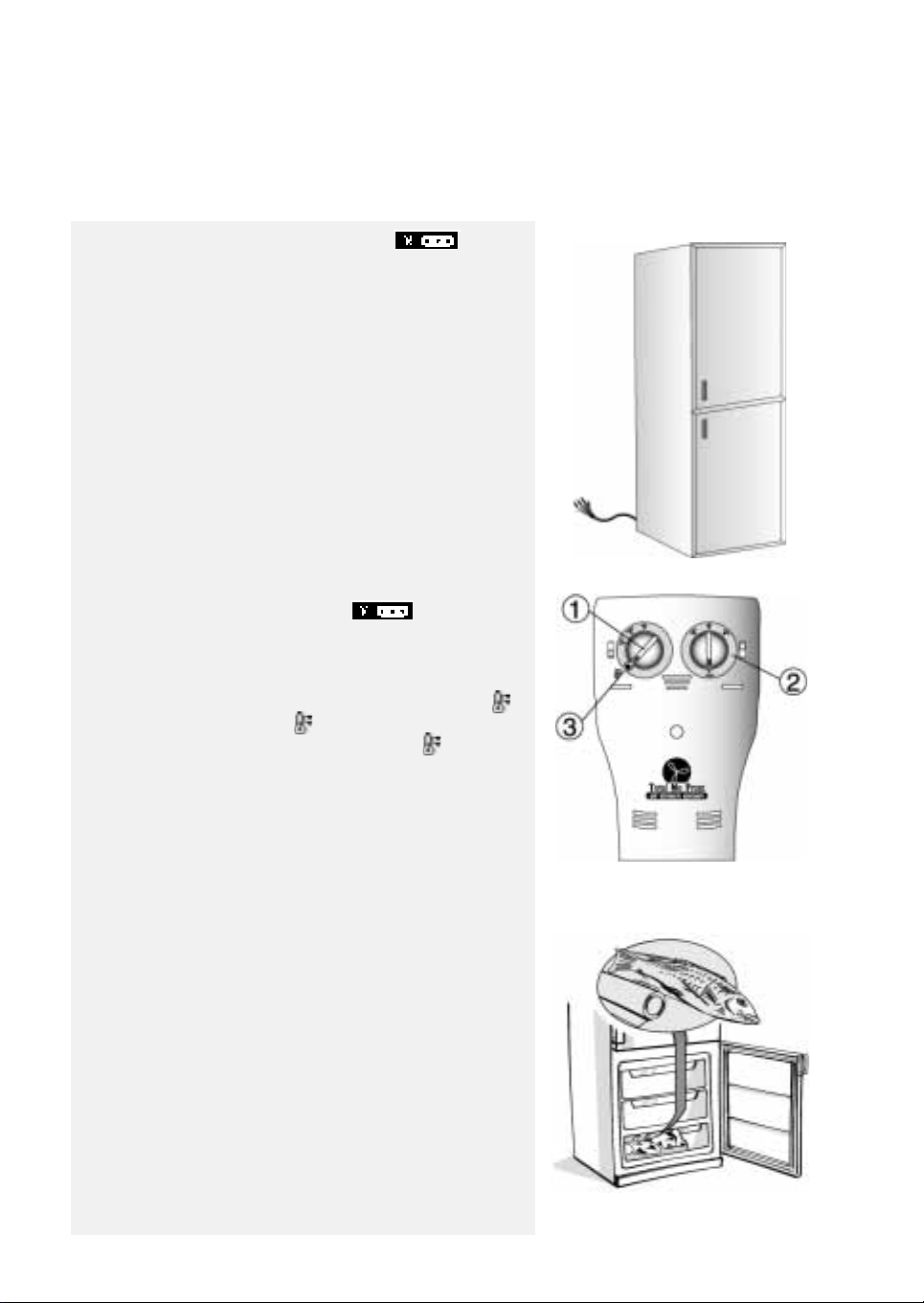

1.
24 hours before freezing fresh food, turn the knob
When turning from Max to , the knob is slightly stiff and
YELLOW indicator (3)
the
simultaneously.
2.
Wrap and seal the food in aluminium foil, cling film, air and
water-tight plastic bags, polythene containers with lids,
freezer containers.
3.
Place food in the drawer, leaving enough space for air to
circulate around packs.
4.
For more efficient freezing, set the knob
the fast freeze function for the next 24 hours.
5.
When freezing is complete, turn the knob
original position.
Note:
•
In the event of a power failure, the freezer compartment
maintains the correct storage temperature for about 13/14
hours.
•
In models with one or two ice packs, this temperature can be
maintained for about 18/24 hours.
•
Do not open the freezer compartment door during a power
failure.
near the symbol lights up
(2)
(1)
to .
to “Max” and use
(1)
back to its
17
Page 6
Important:
The table alongside shows the recommended maximum
storage time for frozen fresh foods.
When purchasing frozen food products:
•
Ensure that the packaging is not damaged (frozen food in
damaged packaging may have deteriorated). If the package is
swollen or has damp patches, it may not have been stored
under optimal conditions and defrosting may have already
begun.
•
When shopping, leave frozen food purchases until last and
transport the products in a thermally insulated cool bag.
•
Place the items in the freezer compartment as soon as you get
home.
Important:
•
Do not place hot food in the freezer.
•
Wrap foods in aluminium foil or cling film or place them in
specific containers.
•
Ensure all packs placed in the freezer have a label indicating
the date of freezing and content.
•
If food has defrosted even partially, do not re-freeze it.
Consume within 24 hours.
•
Avoid, or reduce temperature variations to the minimum.
•
Respect the best-before date on the package.
•
Always observe the storage information on the package.

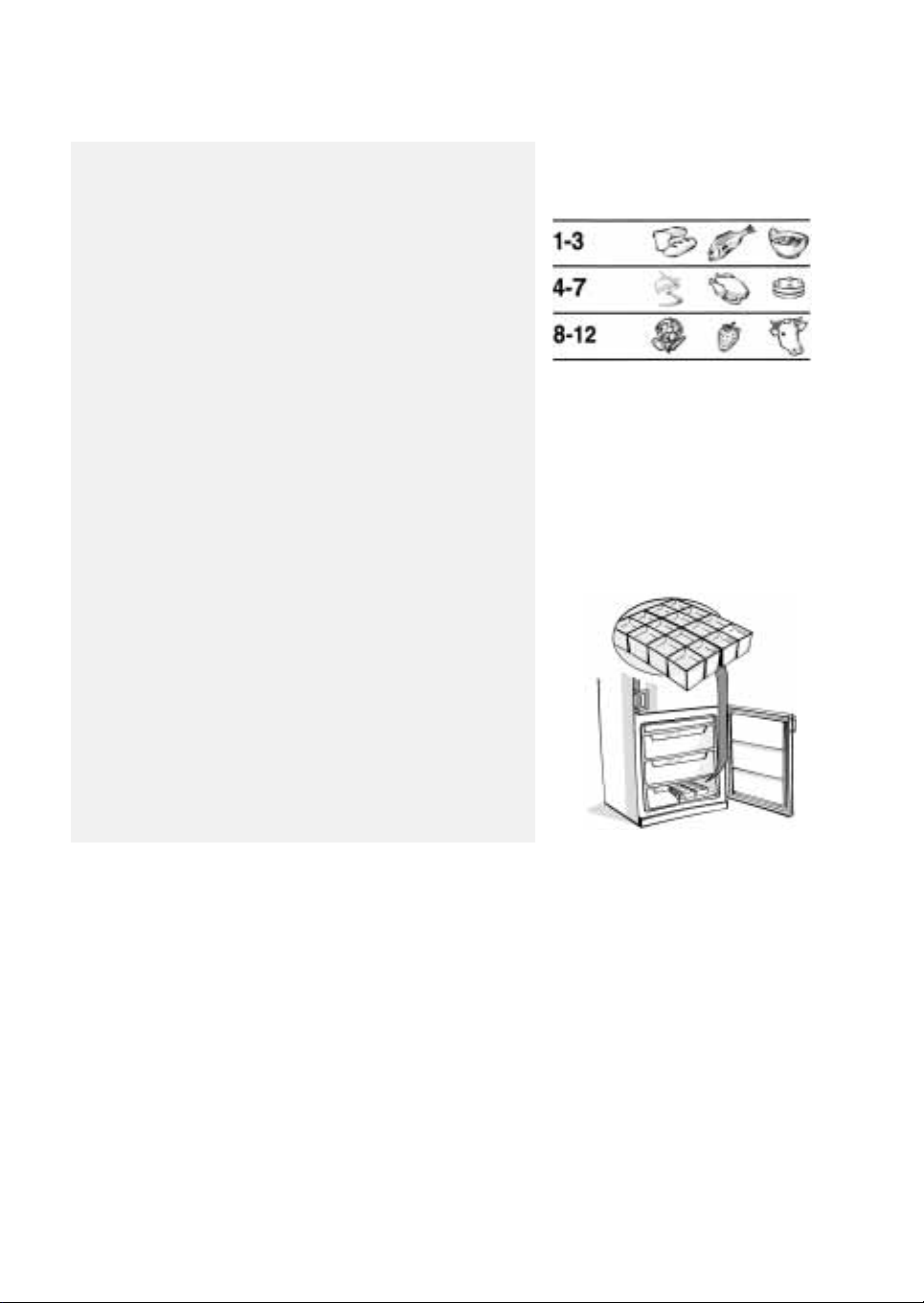

Making ice cubes
•
Fill the ice cube tray 3/4 with water, cover it with the lid if
supplied and place it at the bottom of the freezer
compartment. To speed up the ice making process, place the
tray on the bottom of the first drawer (as shown in the figure)
and not on the ice pack rack (if provided).
•
If the tray sticks to the bottom of the compartment, do not
use pointed or sharp instruments to detach it.
MONTHS FOOD
18
Page 7
WHEN YOU HEAR THESE NOISES
..your appliance is alive!!!
CARE AND MAINTENANCE
Before carrying out any cleaning operations, unplug the
appliance.
•
Clean the inside of the freezer compartment when defrosting .
•
Periodically clean the inside of the refrigerator compartment
with a sponge dampened in warm water and/or neutral
detergent. Rinse the interior and dry with a soft cloth. Do not
use abrasive products.
•
Clean the outside with a damp cloth. Do not use abrasive
products, scourers, stain-removers (e.g. acetone,
trichloroethylene) or vinegar.
•
Both refrigerator and freezer compartments are provided
with an automatic defrosting function (no frost system).

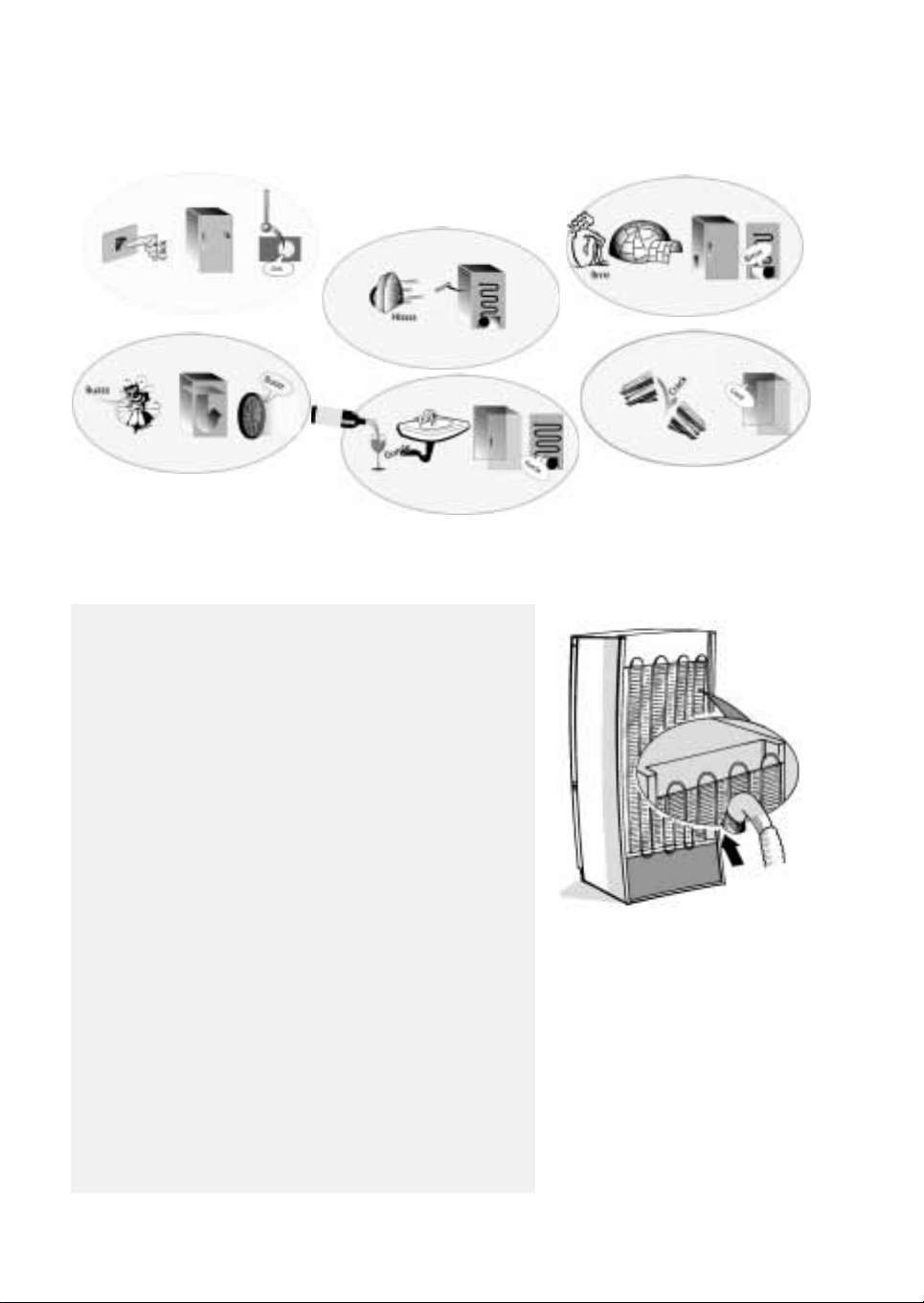

• Periodically clean the condenser (radiator) at the rear
of the appliance and the plinth with a vacuum cleaner
or brush.
Prolonged disuse
1.
Empty the refrigerator and freezer compartments
2.
Unplug the appliance
3.
Clean and dry both refrigerator and freezer compartments
4.
Leave the doors open to prevent formation of unpleasant
odours.
19
Page 8
TROUBLESHOOTING GUIDE
1. The appliance is not working.
•
Is there a power failure?
•
Is the plug properly inserted in the socket?
•
Is the double-pole switch on?
•
Has the fuse blown?
•
Is the power cord in perfect condition?
•
Is the thermostat set to
2. Temperature inside the compartments is not
low enough.
•
Are the doors closed properly?
•
Is the appliance installed near a heat source?
•
Is the thermostat setting correct?
•
Are the air circulation grilles blocked?
•
Is the condenser clean?
3. Temperature inside the refrigerator
compartment is too low.
•
Is the thermostat setting correct?
•
(Stop)?
AFTER-SALES SERVICE
Before contacting After-Sales Service:
1.
See if you can solve the problem yourself with the
help of the Troubleshooting guide.
2.
Switch the appliance on again to see if the problem
has been solved. If it has not, disconnect the
appliance from the power supply and wait for about
an hour before switching on again.
3.
If the problem persists after this course of action,
contact After-sales Service.
4. The appliance is excessively noisy.
•
Is the appliance in contact with other furniture or
objects?
•
Are the pipes at the back touching or vibrating?
5. The inside light is not working.
Perform the checks for problem 1, and then:
•
Disconnect the appliance from the mains power
supply.
•
Remove the bulb cover.
•
Check the bulb and if necessary replace it. Some
models are equipped with a special bulb, which
does not unscrew. Pull towards the inside of the
appliance. This bulb is available only from our
After-sales Service. Replace using maximum 15W
bulb.
Notes:
• The front edge of the appliance may be hot.
This prevents the formation of condensation
and is not a defect.
Specify:
•
the nature of the problem,
•
the model,
•
the Service number (the number after the word
SERVICE on the data plate on the inside of the
appliance),
•
your full address,
•
your telephone number and area code.
20
Note:
The direction of door opening can be changed.
If this operation is performed by After-sales
Service it is not covered by the warranty.
Page 9
INSTALLATION
•

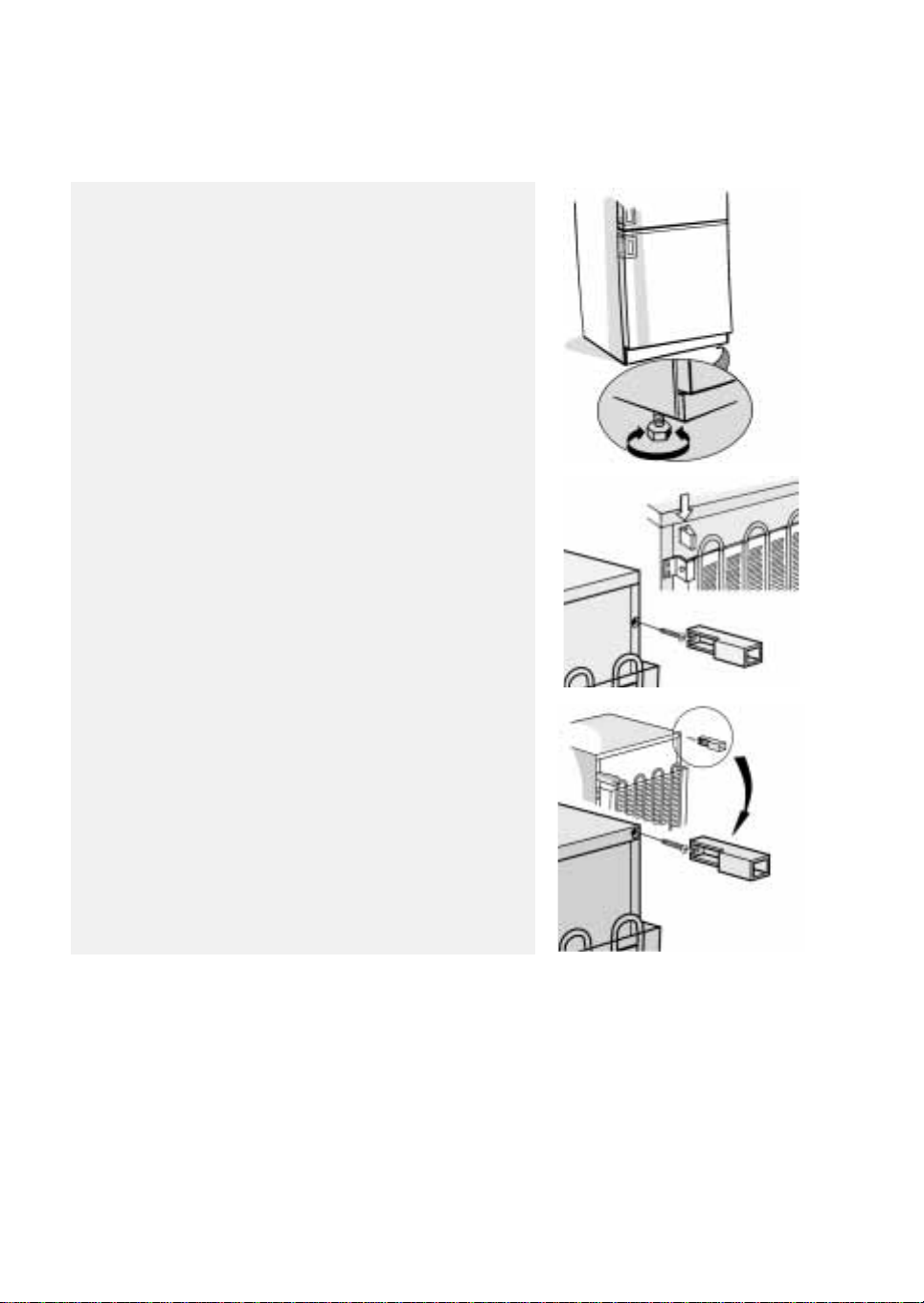

Install the appliance away from heat sources.
•
Install the appliance in a dry, well-ventilated place.
•
Ensure that the appliance is level. Adjust the front feet if
necessary.
•
Leave at least 5 cm clearance above the appliance.
•
Fit the spacers (if supplied) on the upper part of the
condenser at the rear of the appliance. For models without
spacer walls, the distance between the unit and the wall must
be at least 4.5 cm.
•
Clean the inside (see the chapter “Care and Maintenance”).
•
Fit the accessories supplied.
Electrical Connection
•
Electrical connections must be made in accordance with local
regulations.
•
Ensure that the voltage indicated on the appliance data plate
corresponds to the domestic supply voltage.
• Regulations require that the appliance is earthed. The
Manufacturer declines all liabilities for injury to persons
or damage to property resulting from failure to observe
these regulations.
•
If the plug and socket are not of the same type, have the
socket replaced by a qualified electrician.
•
Do not use extension cables, multiple sockets or adapters.
21
Page 10
ELECTRICAL CONNECTION
1) For Great Britain only
Warning - this appliance must be earthed
Fuse replacement
If the mains lead of this appliance is fitted with a BS 1363A 13amp
fused plug, to change a fuse in this type of plug use an A.S.T.A.
approved fuse to BS 1362 type and proceed as follows:
1.

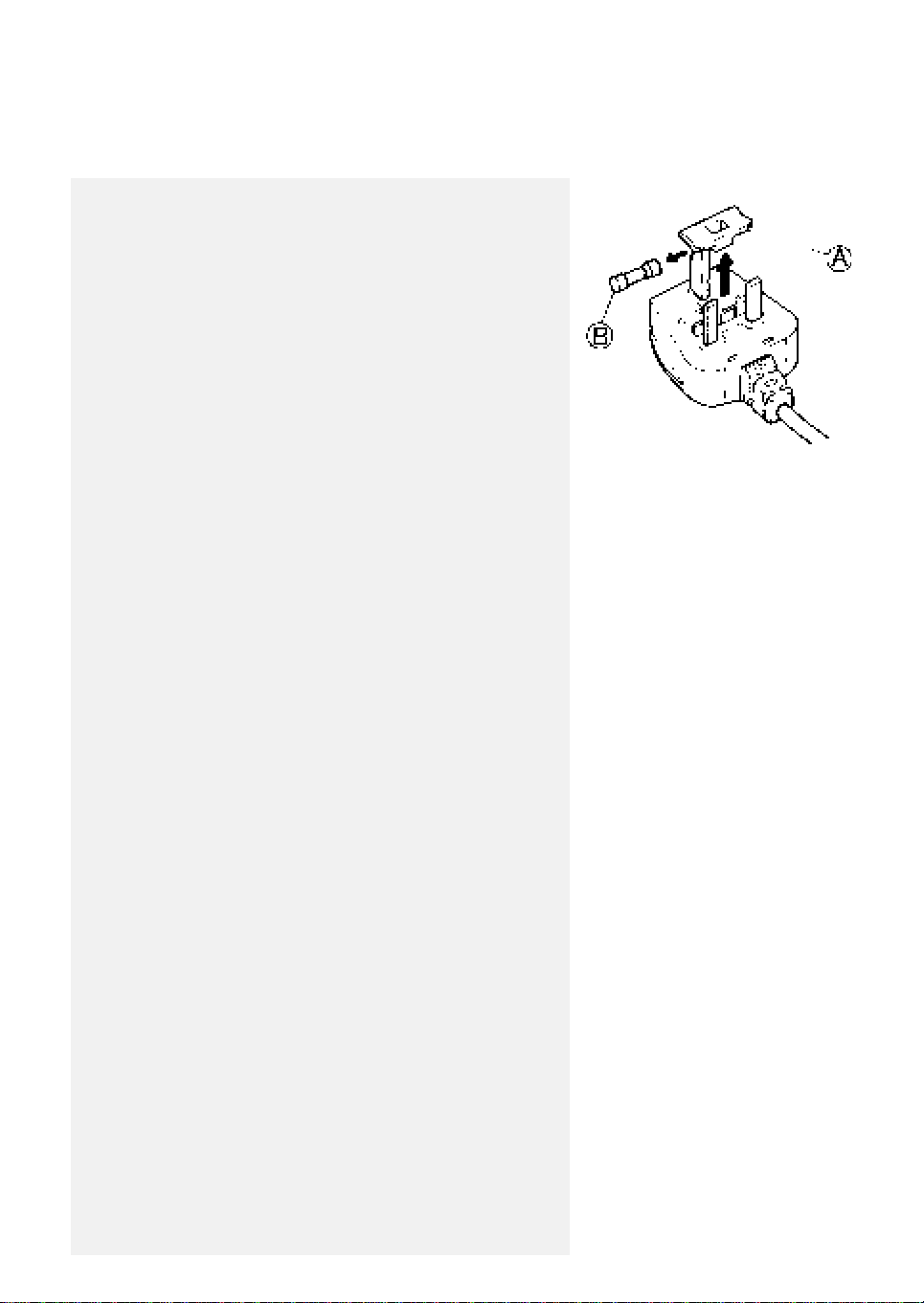

Remove the fuse cover (A) and fuse (B).
2.
Fit replacement 13A fuse into fuse cover.
3.
Refit both into plug.
Important:
The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.
Correct replacement are identified by the colour insert or the colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical
store.
2) For the Republic of Ireland only
The information given in respect of Great Britain will frequently
apply, but a third type of plug and socket is also used, the
2-pin, side earth type.
3) Socket outlet / plug (valid for both countries)
If the fitted plug is not suitable for your socket outlet, plea se conta ct
Whirlpool Service for further instruction. Please do not attempt to
change plug yourself. This procedure needs to be carried out by a
qualified Whirlpool technician in compliance with the manufacture s
instructions and current standard safety regulations.
22
Loading...
