Whirlpool AKP 124/IX INSTALLATION
AKP 124
GB
PRC
To p
shelf
Bottom
shelf
1. Cooking time selector knob
2. Function selector knob
3. Thermostat knob
4. Red thermostat led
Wire Shelf: Grill Pan Set”:
1 2
Control panel
1.
Cooling fan (not visible)
2.
Grill element (can be lowered)
3.
Rear oven lamp
4.
Circular heating element (not visible)
5.
Fan
6.
Oven door
7.
ACCESSORIES
CONTROL PANEL

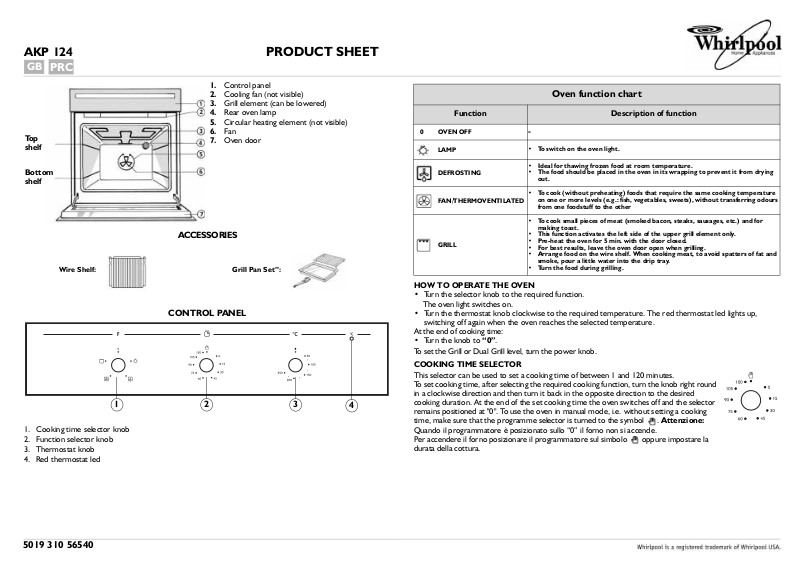

PRODUCT SHEET
3
4
Oven function chart
Function Description of function
0 OVEN OFF
LAMP
DEFROSTING
FAN/THERMOVENTILATED
GRILL
HOW TO OPERATE THE OVEN
• Turn the selector knob to the required function.
The oven light switches on.
• Turn the thermostat knob clockwise to the required temperature. The red thermostat led lights up,
switching off again when the oven reaches the selected temperature.
At the end of cooking time:
• Turn the knob to
“0”
.
To set the Grill or Dual Grill level, turn the power knob.
COOKING TIME SELECTOR
This selector can be used to set a cooking time of between 1 and 120 minutes.
To set cooking time, after selecting the required cooking function, turn the knob right round
in a clockwise direction and then turn it back in the opposite direction to the desired
cooking duration. At the end of the set cooking time the oven switches off and the selector
remains positioned at "0". To use the oven in manual mode, i.e. without setting a cooking
time, make sure that the programme selector is turned to the symbol .
Quando il programmatore è posizionato sullo “0” il forno non si accende.
Per accendere il forno posizionare il programmatore sul simbolo oppure impostare la
durata della cottura.
-
• To switch on the oven light.
• Ideal for thawing frozen food at room temperature.
• The food should be placed in the oven in its wrapping to prevent it from drying
out.
• To cook (without preheating) foods that require the same cooking temperature
on one or more levels (e.g.: fish, vegetables, sweets), without transferring odours
from one foodstuff to the other
• To cook small pieces of meat (smoked bacon, steaks, sausages, etc.) and for
making toast.
• This function activates the left side of the upper grill element only.
• Pre-heat the oven for 5 min. with the door closed.
• For best results, leave the oven door open when grilling.
• Arrange food on the wire shelf. When cooking meat, to avoid spatters of fat and
smoke, pour a little water into the drip tray.
• Turn the food during grilling.
Attenzione:
5019 310 56540
COOKING TABLES
FOOD Function Pre heating
MEAT
Lamb, Kid, Mutton
Veal, Beef, Pork
Chicken, Rabbit, Duck
Tu r k e y
(kg.3-5)
Goose
(2 Kg)
(1 kg)
FISH
Gilt-head, Bass, Tuna, Salmon,
Peppers, Tomatoes, Roast
SWEETS, PASTRIES, ETC.
Choux buns, Sweet sponge rolls
Savoury pies, Filled fruit pies,
Lasagna, potatoes au gratin,
Cod
FISH
(<1 kg - steaks)
Swordfish, Tuna
VEGETABLES
potatoes
Leavened cakes
Filled pies (with cheese)
Ta rt s
Apple strudel, Crèpes
Biscuits, Sponge rings,
Shortbread
e.g. Pineapple, Peach
cannelloni, pasta timbales
Bread
pizza
Vol -au-v ents
Soufflés
Level
(from the bottom)
X 2 200 100 - 110
X 2 200 90 - 110
- 2 190 70 - 80
X 2 200 170 - 180
X 2 200 100 - 130
- 2 190 60 - 80
- 2 190 50 - 60
- 2 190 50 - 60
X 2 180 40 - 50
- 2 180 60 - 90
X 2 180 40 - 50
X 1-3 190 50 - 60
X 1-3 180 30 - 40
X 1-3 180 35 - 45
X 2 190 45 - 55
X 2 190 40 - 50
X 1-3 210 30 - 40
X 1-3 210 20 - 30
X 1-3 200 30 - 40
X 2 190 50 - 60
Temperature
(°C)
Cooking time
min.
COOKING TABLE FOR GRILL FUNCTION
FOOD Function Pre heating
Toasted ham and cheese
sandwich
Steak
Cutlets
Sausages
Chops
Fish (steaks)
Chicken legs
Kebabs
Spare ribs
1/2 chicken
Note: Cooking times and temperatures are for guidance only.
X 3-4 200-225 10 - 15
X 3-4 200-225 30 - 40
X 3-4 200-225 30 - 40
X 3 200-225 30 - 40
X 3 200-225 30 - 40
X 3 200-225 30 - 40
X 3 200-225 40 - 50
X 3 200-225 40 - 50
X 3 200-225 40 - 50
X 3 200-225 40 - 50
Level
(from the bottom)
Te m p e r a t u r e
(°C)
Cooking time
min.
