Page 1

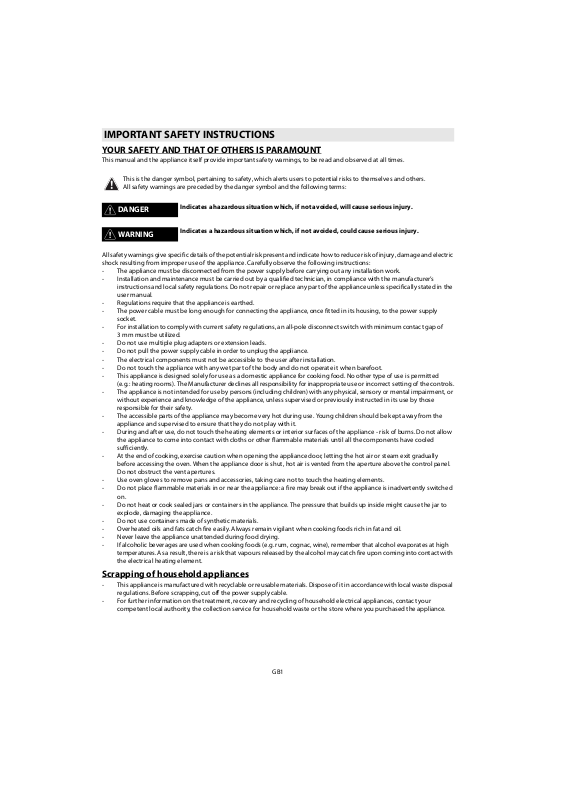

IMPORTANT SAFETY INSTRUCTIONS
YOUR SAFETY AND THAT OF OTHERS IS PARAMOUNT
This manual and the appliance itself provide important safety warnings, to be read and observed at all times.
This is the danger symbol, pertaining to safety, which alerts users to potential risks to themselves and others.
All safety warnings are preceded by the danger symbol and the following terms:
DANGER
WARNING
All safety warnings give specific details of the potential risk present and indicate how to reduce risk of injury, damage and electric
shock resulting from improper use of the appliance. Carefully observe the following instructions:
- The appliance must be disconnected from the power supply before carrying out any installation work.
- Installation and maintenance must be carried out by a qualified technician, in compliance with the manufacturer’s
instructions and local safety regulations. Do not repair or replace any part of the appliance unless specifically stated in the
user manual.
- Regulations require that the appliance is earthed.
- The power cable must be long enough for connecting the appliance, once fitted in its housing, to the power supply
socket.
- For installation to comply with current safety regulations, an all-pole disconnect switch with minimum contact gap of
3 mm must be utilized.
- Do not use multiple plug adapters or extension leads.
- Do not pull the power supply cable in order to unplug the appliance.
- The electrical components must not be accessible to the user after installation.
- Do not touch the appliance with any wet part of the body and do not operate it when barefoot.
- This appliance is designed solely for use as a domestic appliance for cooking food. No other type of use is permitted
(e.g.: heating rooms). The Manufacturer declines all responsibility for inappropriate use or incorrect setting of the controls.
- The appliance is not intended for use by persons (including children) with any physical, sensory or mental impairment, or
without experience and knowledge of the appliance, unless supervised or previously instructed in its use by those
responsible for their safety.
- The accessible parts of the appliance may become very hot during use. Young children should be kept away from the
appliance and supervised to ensure that they do not play with it.
- During and after use, do not touch the heating elements or interior surfaces of the appliance - risk of burns. Do not allow
the appliance to come into contact with cloths or other flammable materials until all the components have cooled
sufficiently.
- At the end of cooking, exercise caution when opening the appliance door, letting the hot air or steam exit gradually
before accessing the oven. When the appliance door is shut, hot air is vented from the aperture above the control panel.
Do not obstruct the vent apertures.
- Use oven gloves to remove pans and accessories, taking care not to touch the heating elements.
- Do not place flammable materials in or near the appliance: a fire may break out if the appliance is inadvertently switched
on.
- Do not heat or cook sealed jars or containers in the appliance. The pressure that builds up inside might cause the jar to
explode, damaging the appliance.
- Do not use containers made of synthetic materials.
- Overheated oils and fats catch fire easily. Always remain vigilant when cooking foods rich in fat and oil.
- Never leave the appliance unattended during food drying.
- If alcoholic beverages are used when cooking foods (e.g. rum, cognac, wine), remember that alcohol evaporates at high
temperatures. As a result, there is a risk that vapours released by the alcohol may catch fire upon coming into contact with
the electrical heating element.
Indicates a hazardous situation which, if not avoided, will cause serious injury.
Indicates a hazardous situation which, if not avoided, could cause serious injury.
Scrapping of household appliances
- This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal
regulations. Before scrapping, cut off the power supply cable.
- For further information on the treatment, recovery and recycling of household electrical appliances, contact your
competent local authority, the collection service for household waste or the store where you purchased the appliance.
GB1
Page 2
INSTALLATION
After unpacking the oven, make sure that it has not been damaged during transport and that the oven door closes properly. In
the event of problems, contact the dealer or your nearest After-sales Service. To prevent any damage, only remove the oven
from its polystyrene foam base at the time of installation.
PREPARING THE HOUSING UNIT
• Kitchen units in contact with the oven must be heat resistant (min 90°C).
• Carry out all cabinet cutting work before fitting the oven in the housing and carefully remove all wood chips and sawdust.
• After installation, the bottom of the oven must no longer be accessible.
• For correct appliance operation, do not obstruct the minimum gap between the worktop and the upper edge of the oven.
ELECTRICAL CONNECTION
Make sure the power voltage specified on the appliance dataplate is the same as the mains voltage. The dataplate is on the front
edge of the oven (visible when the door is open).
• Power cable replacement (see table below) must be carried out by a qualified electrician. Contact an authorized service
centre.
Power supply cables table
N° of conductors Type of cable
1N+
2+ ~
2N+ ~
3N+ ~
3+ ~
• Do not connect the oven to the power supply before connecting the oven and cooktop.
~
H05 RR-F 3 x 4 mm
H05 RR-F 3 x 4 mm
H05 RR-F 4 x 2.5 mm
H05 RR-F 5 x 1.5 mm
H05 RR-F 4 x 2.5 mm
2
2
2
2
2
GENERAL RECOMMENDATIONS
Before use:
- Remove cardboard protection pieces, protective film and adhesive labels from accessories.
- Remove the accessories from the oven and heat it at 200° for about an hour to eliminate the smell and fumes from the
insulating materials and protective grease.
During use:
- Do not place heavy objects on the door as they could damage it.
- Do not cling to the door or hang anything from the handle.
- Do not cover the inside of the oven with aluminium foil.
- Never pour water into the inside of a hot oven; this could damage the enamel coating.
- Never drag pots or pans across the bottom of the oven as this could damage the enamel coating.
- Make sure that the electrical cables of other appliances do not touch hot parts of the oven or become trapped in the door.
- Do not expose the oven to atmospheric agents.
SAFEGUARDING THE ENVIRONMENT
Disposal of packing material
The packing material is 100% recyclable and is marked with the recycle symbol ( ). The various parts of the packing must
therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.
Scrapping the product
- This appliance is marked in compliance with European Directive 2002/96/EC, Waste Electrical and Electronic Equipment
(WEEE).
- By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
- The symbol on the product or on the accompanying documentation indicates that it should not be treated as
domestic waste but must be taken to an appropriate collection centre for the recycling of electrical and electronic
equipment.
GB2
Page 3
Energy saving
- Only pre-heat the oven if specified in the cooking table or your recipe.
- Use dark lacquered or enamelled baking moulds as they absorb heat far better.
- Switch the oven off 10/15 minutes before the set cooking time. Food requiring prolonged cooking will continue to cook even
once the oven is switched off.
DECLARATION OF CONFORMITY
- This oven, which is intended to come into contact with foodstuffs, complies with European Regulation ( ) n.1935/2004
and has been designed, manufactured and sold in conformity with the safety requirements of the “Low Voltage” directive
2006/95/CE (which replaces 73/23/CEE and subsequent amendments), the protection requirements of “EMC” 2004/108/
CE.
TROUBLESHOOTING GUIDE
The oven does not work:
• Check for the presence of mains electrical power and if the oven is connected to the electrical supply.
• Turn off the oven and restart it to see if the fault persists.
AFTER-SALES SERVICE
Before calling the After-Sales Service:
1. See if you can solve the problem yourself with the help of the suggestions given in the “Troubleshooting guide“.
2. Switch the appliance off and back on again it to see if the fault persists.
If after the above checks the fault still occurs, get in touch with the nearest After-sales Service.
Always specify:
• a brief description of the fault;
• the type and exact model of the oven;
• the service number (number after the word Service on the rating plate), located on the right hand edge of the oven cavity
(visible when the oven door is open). The service number is also indicated on the guarantee booklet;
• your full address;
•your telephone number.
If any repairs are required, please contact an authorised After-sales Service (to guarantee that original spare parts will be used
and repairs carried out correctly).
CLEANING
WARNING
Oven exterior
IMPORTANT: do not use corrosive or abrasive detergents. If any of these products accidentally comes into contact with
the appliance, clean immediately with a damp cloth.
• Clean the surfaces with a damp cloth. If it is very dirty, add a few drops of washing up detergent to the water. Finish off
with a dry cloth.
Oven interior
IMPORTANT: do not use abrasive sponges or metallic scrapers or scourers. Over time, these can ruin enamelled surfaces
and the oven door glass.
• After every use, allow the oven to cool then clean it preferably while it is still warm in order to remove built-up dirt and
stains caused by food residues (e.g. food with a high sugar content).
• Use proprietary oven detergents and follow the manufacturer’s instructions to the letter.
• Clean the door glass with a suitable liquid detergent. The oven door can be removed to facilitate cleaning (see
MAINTENANCE).
• The top heating element of the grill (see MAINTENANCE) can be lowered (some models only) to clean the roof of the oven.
N.B.: during prolonged cooking of foods with a high water content (e.g. pizza, vegetables, etc.) condensation may form
on the inside of the door and around the seal. When the oven is cold, dry the inside of the door with a cloth or sponge.
- Never use steam cleaning equipment.
- Only clean the oven when it is cool to the touch.
- Disconnect the appliance from the power supply.
GB3
Page 4
Accessories:
• Soak the accessories in water with washing up detergent immediately after use, handling them with oven gloves if still
hot.
• Food residues can be easily removed using a brush or sponge.
Cleaning the rear wall and catalytic side panels of the oven (if present):
IMPORTANT: do not use corrosive or abrasive detergents, coarse brushes, pot scourers or oven sprays which could
damage the catalytic surface and ruin its self-cleaning properties.
• Operate the oven empty with the fan-assisted function at 200°C for about one hour
• Next, leave the appliance to cool down before removing any food residue with a sponge.
MAINTENANCE
WARNING
- Use safety gloves.
- Ensure the oven is cold before carrying out the following operations.
- Disconnect the oven from the power supply.
REMOVING THE DOOR
To remove the door:
1. Open the door fully.
2. Lift the catches and push them forwards as far as they will go (Fig. 1).
3. Close the door as far as it will go (A), lift it up (B) and turn it (C) until it is released (D) (Fig. 2).
To refit the door:
1. Insert the hinges in their seats.
2. Open the door fully.
3. Lower the two catches.
4. Close the door.
Fig. 1 Fig. 2
MOVING THE TOP HEATING ELEMENT (SOME MODELS ONLY)
1. Remove the side accessory holder grilles (Fig. 3).
2. Pull the heating element out a little (Fig. 4) and lower it (Fig. 5).
3. To reposition the heating element, lift it up, pulling it slightly towards you, making sure it comes to rest on the lateral
supports.
Fig. 3 Fig. 4 Fig. 5
GB4
Page 5
REPLACING THE OVEN LAMP
To replace the rear lamp (if present):
1. Disconnect the oven from the power supply.
2. Unscrew the lamp cover (Fig. 6), replace the lamp (see note for lamp type) and screw the lamp cover back on.
3. Reconnect the oven to the power supply.
To replace the side lamp (if present):
1. Disconnect the oven from the power supply.
2. Remove the side accessory holder grilles, if present (Fig. 3).
3. Use a screwdriver to prise off the lamp cover (Fig. 7).
4. Replace the lamp (see note for lamp type) (Fig. 8).
5. Reposition the lamp cover, pushing it on firmly until it snaps into place (Fig. 9).
6. Refit the side accessory holder grilles.
7. Reconnect the oven to the power supply.
Fig. 6 Fig. 7 Fig. 8 Fig. 9
N.B.:
- Only use 25-40W/230V type E-14, T300°C incandescent lamps, or 20-40W/230 V type G9, T300°C halogen lamps.
- Lamps are available from our After-sales Service.
IMPORTANT:
- If using halogen lamps, do not handle with bare hands since fingerprints can damage them.
- Do not use the oven until the lamp cover has been repositioned.
GB5
Page 6
INSTRUCTIONS FOR OVEN USE
FOR ELECTRICAL CONNECTION, SEE THE PARAGRAPH ON INSTALLATION
1. Control panel
2. Upper heating element/grill
3. Cooling fan (not visible)
4. Dataplate (not to be removed)
5. Lamp
6. Fan
7. Turnspit (if present)
8. Lower heating element (not visible)
9. Door
10. Position of shelves (the number of shelves is indicated on the front of the oven)
11. Rear wall
N.B.:
- During cooking, the cooling fan may switch on at intervals in order to minimise energy consumption.
- At the end of cooking, after the oven has been switched off, the cooling fan may continue to run for a while.
- When the oven door is opened during cooking, the heating elements switch off.
ACCESSORIES SUPPLIED
Fig. A Fig. B Fig. C
A. WIRE SHELF (n. 1): the wire shelf can be used to grill food or as a support for pans, cake tins and other ovenproof cooking
receptacles.
B. DRIP TRAY (n. 1): the drip tray is designed to be positioned under the wire shelf in order to collect fat or as an oven tray
for cooking meat, fish, vegetables, focaccia, etc.
C. BAKING TRAY (n. 1): for cooking all bread and pastry products, but also roasts, fish en papillotte, etc.
ACCESSORIES NOT SUPPLIED
Other accessories can be purchased separately from the After-sales Service.
GB18
Page 7
INSERTING WIRE SHELVES AND OTHER ACCESSORIES IN THE OVEN
The wire shelf and other accessories are provided with a locking mechanism to prevent their unintentional removal.
Fig. 1
1. Insert the wire shelf horizontally, with the raised part “A” upwards (Fig. 1).
2. Angle the wire shelf when it reaches the locking position “B” (Fig. 2).
Fig. 2 Fig. 3
3. Return the wire shelf to the horizontal position and push it in fully to “C” (Fig. 3).
4. To remove the wire shelf proceed in reverse order.
The other accessories, like the drip tray and baking tray, are inserted in exactly the same way. The protrusion on the flat surface
enables the accessories to lock in place.
CONTROL PANEL DESCRIPTION
3 5 6 84 1 27
1. FUNCTION SELECTOR KNOB: On/off and function selector knob
2. THERMOSTAT KNOB: selecting the temperature
3. CONTROL KNOB FOR FRONT LEFT HOTPLATE 0 1 ... 10 *
4. CONTROL KNOB FOR REAR LEFT HOTPLATE 0 1 ... 10 *
5. CONTROL KNOB FOR REAR RIGHT HOTPLATE 0 1 ... 10 *
6. CONTROL KNOB FOR FRONT RIGHT HOTPLATE 0 1 ... 10 *
N.B.: the knobs are retractable. Press the knobs in the middle and they pop up.
7. THERMOSTAT LED
8. COOKTOP “ON” INDICATOR LIGHT
* The multizone function can only be switched on for the double and triple hotplates of the cooktop. (See cooktop functions
table).
OVEN OPERATION
• Turn the selector knob to the required function.
The oven light switches on.
• Turn the thermostat knob clockwise to the required temperature.
The thermostat led lights up, switching off again when the oven reaches the selected temperature.
At the end of cooking, turn the knobs to “0”.
COOKTOP OPERATION
The oven control panel features 4 adjustable knobs for cooktop operation. The cooktop control knobs are marked with a
numerical scale corresponding to different power settings, and a series of function symbols.
• Turn the control knob of the relevant hotplate clockwise to the desired power setting (see the instructions supplied with
the cooktop).
GB19
Page 8
COOKTOP FUNCTIONS TABLE (depending on model)
COOKTOP CONTROL KNOBS
To allow dough to rise, to soften butter taken from the fridge, to keep baby bottles or food warm,
also for making yoghurt, melting chocolate, etc.
GENTLE HEAT
This function is only available when the residual heat indicator is on. For this function, make sure
the residual heat indicator of the desired hotplate is on. Turn the knob to . To deselect the
function, change the position of the knob.
HEAT MAINTENANCE
FAST BOIL
MULTIZONE
To maintain a constant temperature of 60° until the end of cooking. To select this function, turn
the knob to .
This function is used to bring water to the boil rapidly and remains on for a preset time. At the
end of the preset time, the cooktop automatically returns to the maximum power setting. This
function can be selected even during cooking. Important: Before selecting this function, make
sure the pot is positioned on the selected hotplate in order to avoid any damage to the cooktop
surface. The stated performance values for this function are those guaranteed for all glass
ceramic cooktops. For this function, place the pot on the selected hotplate and turn the knob
to . To deselect, change the position of the knob.
The multizone symbol, featured on the knobs, can only be switched on for those hotplates of the
cooktop equipped with double or triple zone function. These functions extend the heating area
of the cooktop in order to allow the use of large, oval or rectangular pots or cooking receptacles.
To switch on the dual zone (if available), turn the knob to and wait until the residual heat
indicator for the hotplate begins to flash. To switch on the triple zone function (if available), wait
until the LED begins flashing quickly. Select the power setting required by turning the knob anticlockwise. The residual heat indicator remains on to indicate that the cooktop is in use. To
deselect, turn the knob to“0”.
GB20
Page 9
OVEN FUNCTION DESCRIPTION TABLE
FUNCTIONS KNOB
OFF To stop cooking and switch off the oven.
LAMP To switch the oven interior light on/off.
CONVENTIONAL
CONVECTION BAKE
GRILL
TURBO GRILL
DEFROSTING
TURBOFAN
FORCED AIR
BOTTOM HEATING
ELEMENT + FAN
To cook any kind of dish on one shelf only. Use the 2nd shelf. Preheat the oven to the required
temperature. The thermostat led turns off when the oven is ready and food can be placed in it.
To cook meat and pies with liquid filling (savoury or sweet) on a single shelf, and pizzas on one
or two shelves. This function delivers an even, golden, crisp top and base. When cooking on two
levels, switch the position of the dishes halfway through cooking to cook food more evenly. Use
the 2nd shelf to cook on one shelf only. To cook on two shelves, use the 1st and 3rd shelves.
Preheat the oven to the required temperature and place the food in it when the set temperature
is reached.
To grill steak, kebabs and sausages; to cook vegetables au gratin and toast bread. Place food on
the 4th shelf. When grilling meat, use the drip tray to collect the cooking juices. Position it on the
3rd shelf, adding approx. half a litre of water. Preheat the oven for 3 - 5 min. During cooking the
oven door must remain closed.
To roast large joints of meat (legs, roast beef, chickens). Position the food on the middle shelves.
Use the drip tray to collect the cooking juices. Position it on the 1st/2nd shelf, adding approx.
half a litre of water. It is advisable to turn the meat over during cooking for more even browning.
The oven does not have to be preheated. During cooking the oven door must remain closed.
To speed up defrosting of food. Place food on the middle shelf. Leave food in its packaging in
order to prevent it from drying out on the outside.
For food with a crisp base and soft top. Ideal for cooking cakes with liquid filling and no
precooked base (e.g. tarts, plum cakes, ricotta cakes as well as pizzas with abundant topping) on
a single shelf. Place food on the 2nd shelf. Preheat the oven before cooking.
This function is also ideal for frozen convenience foods (e.g. pizzas, chips, strudel, lasagna).
Follow the instructions on the product packaging.
To cook a variety of food requiring the same cooking temperature on a maximum of two shelves
at the same time (e.g.: fish, vegetables, cakes). This function can be used to cook different foods
without odours being transferred from one food to another. Use the 2nd shelf to cook on one
shelf only. To cook on two shelves, use the 1st and 3rd shelves, preheating the oven first.
To finish cooking food with a very liquid consistency and to obtain crisp, golden bases. Also
useful for thickening sauces. Place food on the 2nd shelf. The oven does not have to be
preheated.
BOTTOM HEATING
For browning the base of dishes at the end of cooking. Place food on the 1st/ 2nd shelf. This
function can also be used for slow cooking, e.g. meat or vegetable stews; in this case, use the
2nd shelf. The oven does not have to be preheated.
GB21
Page 10
COOKING TABLE
Recipe
Leavened cakes
Filled pies (cheesecake,
strudel, apple pie)
Biscuits/Tartlets
Choux buns
Function Preheating Shelf
(from bottom)
Ye s 2 150-175 35-90 Cake tin on wire shelf
Ye s 1-3 150-170 30-90
Ye s 2 150-190 30-85
Ye s 1-3 150-190 35-90
Ye s 2 160-175 20-45 Drip tray / baking tray
Ye s 1-3 150-175 20-45
Ye s 2 175-200 30-40 Drip tray / baking tray
Ye s 1-3 170-190 35-45
Temperature
(°C)
Time
(min)
Accessories
Shelf 3: cake tin on wire shelf
Shelf 1: cake tin on wire shelf
Drip tray/ baking tray or cake
tin on wire shelf
Shelf 3: cake tin on wire shelf
Shelf 1: cake tin on wire shelf
Shelf 3: grill
Shelf 1: drip tray / baking tray
Shelf 3: oven tray on wire shelf
Shelf 1: drip tray / baking tray
Meringues
Bread / Pizza / Focaccia
Frozen pizza
Savoury pies (vegetable
pie, quiche)
Ye s 2 100 110-150 Drip tray / baking tray
Shelf 3: oven tray on wire shelf
Ye s 1-3 100 130-150
Shelf 1: drip tray / baking tray
Ye s 2 225-250 12-50 Drip tray / baking tray
Shelf 3: oven tray on wire shelf
Ye s 1-3 225-250 25-50
Shelf 1: drip tray / baking tray
Ye s 2 250 10-15
Ye s 1-3 250 10-20
Ye s 2 175-200 40-50 Cake tin on wire shelf
Ye s 1-3 175-190 55-65
Shelf 2: drip tray / baking tray
or wire shelf
Shelf 3: oven tray on wire shelf
Shelf 1: drip tray / baking tray
Shelf 3: cake tin on wire shelf
Shelf 1: cake tin on wire shelf
Vols-au-vent / Puff pastry
crackers
Lasagne / Baked pasta /
Cannelloni / Flans
Lamb / Veal / Beef / Pork
1Kg
Ye s 2 175-200 20-30 Drip tray / baking tray
Shelf 3: oven tray on wire shelf
Ye s 1-3 175-200 25-45
Shelf 1: drip tray / baking tray
Ye s 2 200 45-55 Oven tray on wire shelf
Ye s 2 200 80-110
Drip tray or oven tray on wire
shelf
GB22
Page 11
Recipe
Function Preheating Shelf
(from bottom)
Temperature
(°C)
Time
(min)
Accessories
Chicken / Rabbit / Duck 1 Kg Ye s 2 200 50-100
Turkey / Goose 3 Kg Ye s 1/2 200 80-130
Baked fish / en papillote
(fillet, whole)
Stuffed vegetables
(tomatoes, courgettes,
aubergines)
To as t Ye s 4 200 3-5 Wire shelf
Fish fillets / steaks Ye s 4 200 20-30
Sausages / Kebabs / Spare
ribs / Hamburgers
Roast chicken 1-1.3 Kg - 2 200 55-70
Ye s 2 175-200 40-60
Ye s 2 175-200 50-60 Oven tray on wire shelf
Ye s 4 200 30-40
Drip tray or oven tray on wire
shelf
Drip tray or oven tray on wire
shelf
Drip tray or oven tray on wire
shelf
Shelf 3: wire tray (turn food
halfway through cooking)
Shelf 2: drip tray with water
Shelf 4: wire shelf (turn food
halfway through cooking)
Shelf 3: drip tray with water
Shelf 2: wire shelf (turn food
two thirds of the way through
cooking if necessary)
Shelf 1: drip tray with water
Oven tray on wire shelf (turn
Roast Beef rare 1 Kg - 2 200 35-45
Leg of lamb / Shanks - 2 200 60-90
Roast potatoes - 2 200 45-55
Vegetable gratin - 2 200 20-30 Oven tray on wire shelf
Lasagna & Meat Ye s 1-3 200 50-100
Meat & Potatoes Ye s 1-3 200 45-100
food two thirds of the way
through cooking if necessary)
Drip tray or oven tray on wire
shelf (turn food two thirds of
the way through cooking if
necessary)
Drip-tray / baking tray (if
necessary, turn food two thirds
of the way through cooking)
Shelf 3: oven tray on wire shelf
Shelf 1: drip tray or oven tray
on wire shelf
Shelf 3: oven tray on wire shelf
Shelf 1: drip tray or oven tray
on wire shelf
Fish & Vegetables Ye s 1-3 175 30-50
GB23
Shelf 3: oven tray on wire shelf
Shelf 1: drip tray or oven tray
on wire shelf
Page 12
RECOMMENDED USE AND TIPS
How to read the cooking table
The table indicates the best function to use for any given food, to be cooked on one or more shelves at the same time. Cooking
times start from the moment food is placed in the oven, excluding pre-heating (where required). Cooking temperatures and
times are purely for guidance and will depend on the amount of food and type of accessory used. Use the lowest recommended
values to begin with and, if the food is not cooked enough, then move on to higher values. Use the accessories supplied and
preferably dark coloured metal cake tins and oven trays. You can also use pans and accessories in pyrex or stoneware, but bear
in mind that cooking times will be slightly longer. To obtain best results, carefully follow the advice given in the cooking table
for the choice of accessories (supplied) to be placed on the various shelves.
Cooking different foods at the same time
Using the “CONVECTION BAKE” function, you can cook different foods which require the same cooking temperature at the same
time (for example: fish and vegetables), using different shelves. Remove the food which requires less cooking time and leave
food which requires longer cooking time in the oven.
Desserts
- Cook delicate desserts with the conventional function on one shelf only. Use dark coloured metal cake tins and always
position them on the wire shelf supplied. To cook on more than one shelf, select the forced air function and stagger the
position of the cake tins on the shelves, aiding optimum circulation of the hot air.
- To check whether a raising cake is cooked, insert a wooden toothpick into the centre of the cake. If the toothpick comes
out clean, the cake is ready.
- If using non-stick cake tins, do not butter the edges as the cake may not rise evenly around the edges.
- If the cake “sinks” during cooking, set a lower temperature the next time, perhaps reducing the amount of liquid in the
mixture and mixing more gently.
- For sweets with moist fillings (cheesecake or fruit pies) use the “CONVECTION BAKE” function. If the base of the cake is
soggy, lower the shelf and sprinkle the bottom of the cake with breadcrumbs or biscuit crumbs before adding the filling.
Meat
- Use any kind of oven tray or pyrex dish suited to the size of the piece of meat being cooked. For roast joints, it is best to
add some stock to the bottom of the pan, basting the meat during cooking for added flavour. When the roast is ready, let
it rest in the oven for another 10-15 minutes, or wrap it in aluminium foil.
- When you want to grill meat, choose cuts with an even thickness all over in order to achieve uniform cooking results. Very
thick pieces of meat require longer cooking times. To prevent the meat from burning on the outside, lower the position of
the wire shelf, keeping the food farther away from the grill. Turn the meat two thirds of the way through cooking.
To collect the cooking juices it is advisable to place a drip-tray with half a litre of water directly under the grill on which the meat
is placed. Top-up when necessary.
Turnspit (only in some models)
Use this accessory to evenly roast large pieces of meat and poultry. Place the meat on the rotisserie rod, tying it with string if
chicken, and check that it is secure before inserting the rod in the seat located on the front wall of the oven and resting it on the
respective support. To prevent smoke and to collect cooking juices, it is advisable to place a drip-tray with half a litre of water on
the first level. The rod has a plastic handle which must be removed before starting to cook, and used at the end of cooking to
avoid burns when taking the food out of the oven.
Pizza
Lightly grease the trays to ensure the pizza has a crispy base. Scatter the mozzarella over the pizza two thirds of the way through
cooking.
GB24
Loading...
