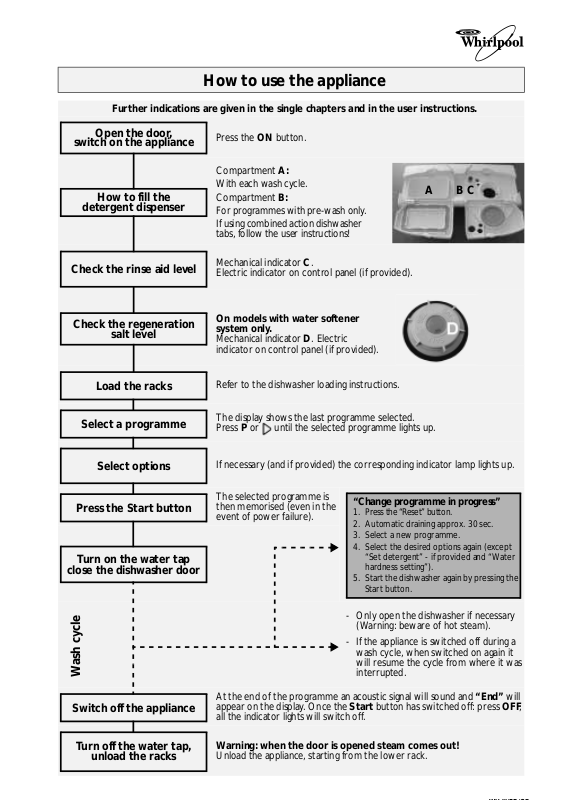

How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Open the door, switch on the appliance
How to fill the detergent dispenser
Check the rinse aid level
Check the regeneration salt level
Load the racks
Select a programme
Select options
Press the Start button
Turn on the water tap close the dishwasher door
Wash cycle
Switch off the appliance
Turn off the water tap, unload the racks
Press the ON button.
Compartment A:
With each wash cycle.
A B C
Compartment B:
For programmes with pre-wash only.
If using combined action dishwasher tabs, follow the user instructions!
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener system only.
Mechanical indicator D. Electric indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
The display shows the last programme selected.
Press P or
until the selected programme lights up.
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is then memorised (even in the event of power failure).
“Change programme in progress”
1.Press the “Reset” button.
2.Automatic draining approx. 30 sec.
3.Select a new programme.
4.Select the desired options again (except “Set detergent” - if provided and “Water hardness setting”).
5.Start the dishwasher again by pressing the Start button.
-Only open the dishwasher if necessary (Warning: beware of hot steam).
-If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted.
At the end of the programme an acoustic signal will sound and “End” will appear on the display. Once the Start button has switched off: press OFF, all the indicator lights will switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
Dishwasher loading instructions and racks provided
depending on the model
Upper rack:
Crockery holder (A):
Depending on the position, for long-handles utensils, cups and plates.
Glass holder (B):
Long-stemmed glasses.
Long-handled utensils (e.g. carving forks, knives) must be arranged with the sharp end facing in towards the appliance.
Half Load:
Load the upper rack (see description of Options). Place the cutlery basket (C), if provided, in the upper rack.
Rack height adjustment (also when loaded):
Pull the two rack handles Lower adjustment: (D) outwards and lower
the rack.
Pull the two rack handles
Upper adjustment: (D) upwards until the rack clicks into place (factory
setting).
The rack must be level on both sides.
B
A
C D
D
Removing the top rack to provide clearance for large items of crockery in the bottom rack:
Open the rack guide retainers (E) on the right and left and remove the top rack.
When the upper rack is in place the retainers must always be closed.
Lower rack:
Depending on the model with fixed or tilting plate holders (F).
Half Load:
Load the lower rack (see description of Options).
Greater washing power, particularly for plates and saucepans.
Cutlery basket (G):
Grid (H) to keep items separate.
Sharp knives and forks that might cause injury must be placed in the cutlery basket with the sharp end facing downwards.
Retainer |
Retainer |
open |
closed |
E E
F |
F |
|
|
H
G |
C |
Only use dishwasher-proof crockery and dishes. Do not use the appliance for items not suitable for washing in a dishwasher, for example wooden items, aluminium, tin, hand-decorated crockery (unglazed), silver cutlery.
