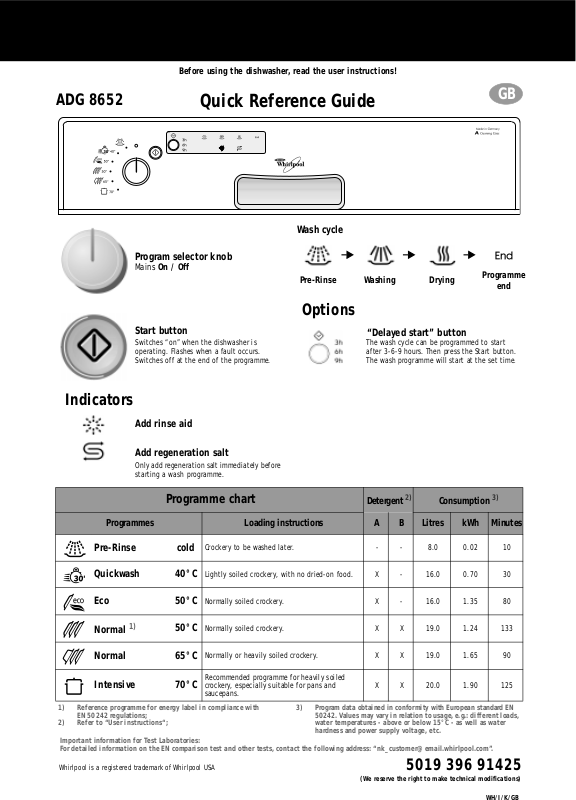

Before using the dishwasher, read the user instructions!
ADG 8652
Indicators
Quick Reference Guide
Program selector knob
On / Off
Mains
Start button
Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.
Wash cycle
Pre-Rinse Washing Drying
Options
“Delayed start” button
The wash cycle can be programmed to start
after 3-6-9 hours. Then press the Start button.
The wash programme will start at the set time
GB
Programme
end
.
Add rinse aid
Add regeneration salt
Only add regener ation sa lt immedi ately before
starting a wash programme.
Programme chart
Detergent
2)
Consumption
Programmes Loading instructions A B Litres kWh Minutes
Pre-Rinse cold
Quickwash 40°C
Eco 50°C
Normal
1)
Normal 65°C
Intensive 70°C
1) Reference programme for energy label in compliance with
EN 50242 regulations;
2) Refer to “User instructions“;
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “[email protected]”.
Whirlpool is a registered trademark of Whirlpool USA
Crockery to be washed later. - - 8.0 0.02 10
Lightly soiled crock e ry, with n o dried-on food. X - 16.0 0.70 30
Normally soiled crockery. X - 16.0 1.35 80
Normally soiled crockery. X X 19.0 1.24 133
50°C
Normally or heavily soiled crockery. X X 19.0 1.65 90
Recommended programme for heavily soiled
crockery, especially suitable for pans and
saucepans.
3) Program data obtained in conformity with European standard EN
50242. Values may v ary in relation to usage, e .g.: different loads,
water temperatures - above or below 15°C - as well as water
hardness and power supply voltage, etc.
X X 20.0 1.90 125
5019 396 91425
(We reserve the right to make technical modifications)
3)
WH/I/K/GB
Page 2
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
How to fill the detergent
dispenser
Check the rinse aid level
Check the regeneration
salt level
Load the racks
Close the dishwasher door,
turn on the water tap
Select a programme
Automatic start by turning the programme selector knob (in case of
retractable knob, first press the knob to access it).
Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.
Mechanical indicator C.
Electric indicator on control panel (if provided).
On models with water softener
system only.
Mechanical indicator D. Electric
indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
Select the desired programme.
The corresponding indicator lamp comes on.
ABC
Select options
Press the Start button
Wa sh cycle
Switch off the appliance
Turn off the water tap,
unload the racks
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is
then memorised (even in the
event of power failure).
Only after the START button has switched off: Access the knob (in case of
retractable knob, press and then release the knob).
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
“Change programme”
Press the START button for 2 se c. un til
the Start indicator lamp switch es o ff;
Select another programme and
press the START button again.
- Only open the dishwasher if necessary
(Warning: beware of hot steam).
- If the appliance is switche d o ff d urin g a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.
WH/II/K/GB
Page 3

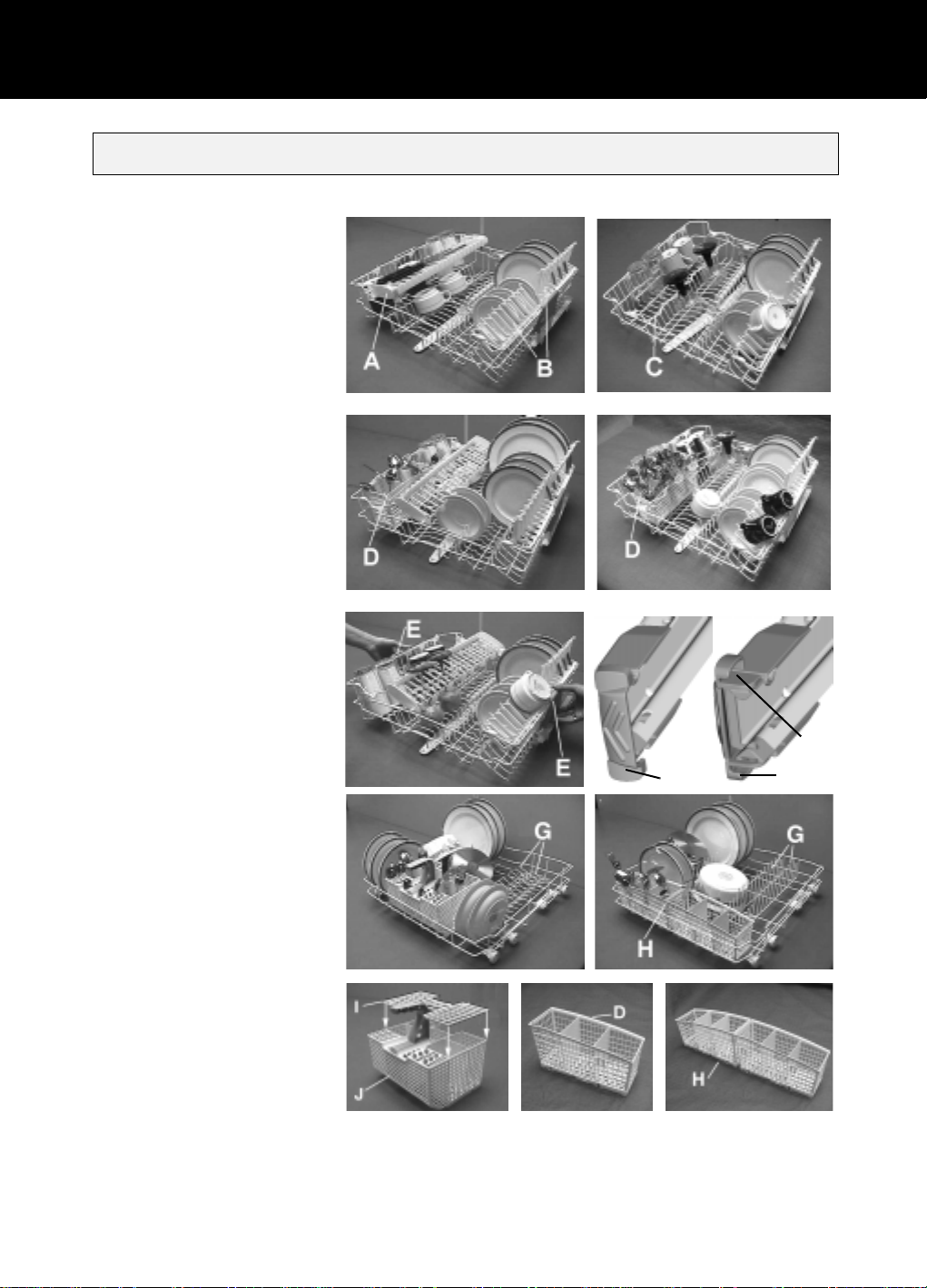

Dishwasher loading instructions and racks provided
Upper rack:
Multi-purpose support (A):
Depending on the position, f or lon ghandles utensils, cups and glasses . M ay
be used in three different positi on s.
Crockery holders (B):
Depending on the positi on, for ex ample
plates, cups and long-st emm ed glasses.
Revolving glass support (C):
Depending on the positi on, for ex ample
small or long-stemmed glasses .
Half Load:
Load the upper rack
Place the cutlery basket (D) in the
upper rack.
only
Rack height adjustment
(also when loaded):
Lower adjustment:
•
two
rack handles outwards (E)
and lower the rack.
Upper adjustment:
•
handles (E) upwards until the rack
clicks into place (Factory setting).
The rack must be level on both
sides.
Removing the top rack to provide
clearance for large items of
crockery in the bottom rack:
Open the rack guide retainers (F) on
the right an d l eft an d r e m ove the top
rack.
When the upper rack is in place the
retainers must always be closed.
1)
2)
.
pull out the
two
pull the
depending on the model
Retainer
closed
F
Retainer
F
open
Lower rack:
Depending on the m odel with fix ed or
tilting plate holders (G).
Half Load:
Load the lower rack
Greater washing power, particularly
for plates and saucepans.
Cutlery basket (J) or (H):
Some models ar e provided with a gri d
(I) that can be fitted onto the cutlery
basket to keep items separated.
Cutlery basket (D) for appliances with
half load only.
Sharp knives and forks that might
cause injury must be placed in the
cutlery basket with the handles
positioned upwards.
Only use dishwasher-proof crockery and dishes . Do not use the appliance for items not suitable for w ashing in a dishwasher ,
for example wooden items , aluminium, plastic utensils , tin, hand-decora ted cr ock ery (unglazed), silv er cutlery.
Spare parts which are sold separately:
1)
Multi-purpose support (A) - N. AMH 369 series.
2)
Revolving glass support (C) - N. WGH 1000 series.
only
.
Page 4
What to do if...
If a fault occurs, before contacting our After-Sales Service, make the following checks to try and remedy the problem
(* see also the corresponding chapter in the user instructions).
Problem Cause Remedy
The appliance is not
• No water supply. • Open the tap.
working
If crockery is not
• The appliance does not load
sufficient water.
• There is a power failure. • Insert the plug into the mains socket.
• Starting the selected programme. • The programme can be set to “0” to start.
• Insufficient rinse aid. • Increase dosage *.
• Clean the water supply tap filter.
• Ensure there are no kinks in the water hose.
• P ress the Start button.
• Close the door.
• Check the domestic circuit fuse.
perfectly dry
• Residual water in cavities. • Load crockery at an angle.
If crockery is not
perfectly clean
Sandy or grainy residues
Colour of plastic parts
faded
• The water jet does not reach
the crockery.
• Insufficient detergent. • Follow recommended detergent dosage.
• Unsuitable programme. • Select a more intense wash cycle.
• Spray arms blocked. • The spray arms must be able to turn freely.
• Spray arm nozzles clogged. • Remove any impurities obstructing the water flow *.
• Incorrect detergent/detergent too old. • Use a good quality detergent.
• Clogged filters. • Check filters regularly/if necessary clean *.
• Filters incorrectly assembled. • Insert the filter correctly *.
• Tomato/carrot juice,... • Depending on the material, if necessary use a
• Arrange crockery so that items do not touch each
other.
Load crockery upside down.
detergent with a greater whitening power.
Deposits on crockery
• removable • Streaks on the crockery/glasses. • Increase the rinse aid dosag e *.
• Streaks on glasses. • Reduce the rinse aid dosage *.
• Layer of salt on crockery/glasses. • Close the salt container lid properly *.
• not removable • Insufficient water softening,
Opaque glasses/ glasses
calcium deposits.
• Cannot be washed in the dishwasher. • Use suitable glasses.
• Change water hardness setting, if necessary add
salt *.
not sparkling
Rust on cutlery
Identifying appliance
faults
• Not made of stainless steel. • Use suitable cutlery.
• The START indi cator lamp flashes. • Ensure that the filter assembly is not clogged and
if necessary clean it *.
Start the programme again. Press th e Start button for
2 seconds, until the Start indicator lamp switches off.
Select a new programme and press the Start button
again.
• Indicator F... (if provided). • Call the After-Sales Service.
If after carrying out the above checks the malfunction persists or appears again, turn the appliance off and turn off the
water supply tap, then call our After-Sales Service (see guarantee).
Before contacting our After-Sales Service, take note of the following:
• The nature of the fault.
• The appliance type and model.
• The service cod e (the numb er indi cated on the adh esive ratin g plate)
inside the door on the righ t-hand side.
WH/IV/GB
