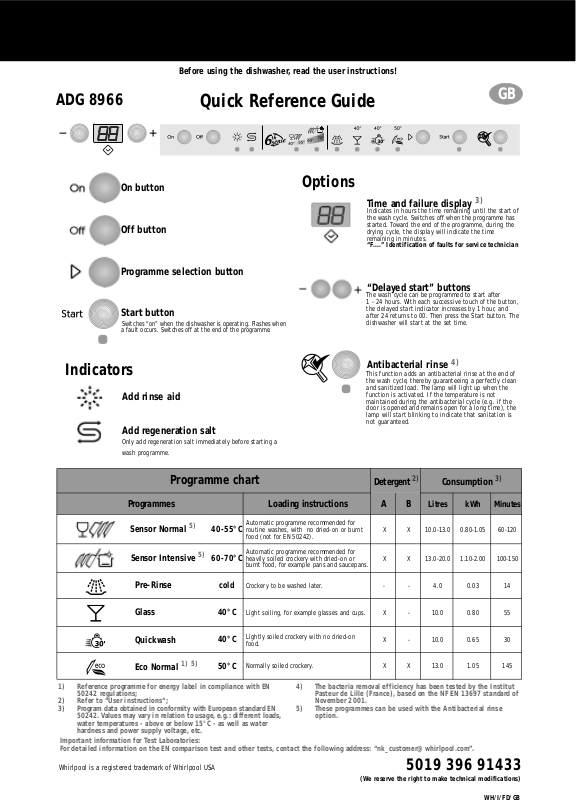

Before using the dishwasher, read the user instructions!
ADG 8966 |
Quick Reference Guide |
GB |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
On button |
Options |
||||||
|
|
|
|
|
|
|
Time and failure display 3) |
|
|
|
|
|
|
|
Indicates in hours the time remaining until the start of |
|
|
|
|
|
|
|
the wash cycle. Switches off when the programme has |
Off button |
|
started. Toward the end of the programme, during the |
|||||
|
drying cycle, the display will indicate the time |
||||||
|
|
|
|
|
|
|
remaining in minutes. |
|
|
|
|
|
|
|
“F....” Identification of faults for service technician |
Programme selection button |
|
|
|||||
|
|
|
|
|
|
|
“Delayed start” buttons |
Start button
Switches “on” when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.
Indicators
Add rinse aid
The wash cycle can be programmed to start after
1 - 24 hours. With each successive touch of the button, the delayed start indicator increases by 1 hour, and after 24 returns to 00. Then press the Start button. The dishwasher will start at the set time.
Antibacterial rinse 4)
This function adds an antibacterial rinse at the end of the wash cycle, thereby guaranteeing a perfectly clean and sanitized load. The lamp will light up when the function is activated. If the temperature is not maintained during the antibacterial cycle (e.g. if the door is opened and remains open for a long time), the lamp will start blinking to indicate that sanitation is not guaranteed.
Add regeneration salt
Only add regeneration salt immediately before starting a wash programme.
Programme chart |
Detergent 2) |
Consumption 3) |
||||||
Programmes |
|
Loading instructions |
A |
B |
Litres |
kWh |
Minutes |
|
|
|
|
|
|
|
|
|
|
Sensor Normal 5) |
40-55°C |
Automatic programme recommended for |
|
|
|
|
|
|
routine washes, with no dried-on or burnt |
X |
X |
10.0-13.0 |
0.80-1.05 |
60-120 |
|||
|
|
food (not for EN 50242). |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Sensor Intensive 5) |
60-70°C |
Automatic programme recommended for |
|
|
|
|
|
|
heavily soiled crockery with dried-on or |
X |
X |
13.0-20.0 |
1.10-2.00 |
100-150 |
|||
|
|
burnt food, for example pans and saucepans. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pre-Rinse |
cold |
Crockery to be washed later. |
- |
- |
4.0 |
0.03 |
14 |
|
|
|
|
|
|
|
|
|
|
Glass |
40°C |
Light soiling, for example glasses and cups. |
X |
- |
10.0 |
0.80 |
55 |
|
|
|
|
|
|
|
|
|
|
Quickwash |
40°C |
Lightly soiled crockery with no dried-on |
X |
- |
10.0 |
0.65 |
30 |
|
food. |
||||||||
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
Eco Normal 1) 5) |
50°C |
Normally soiled crockery. |
X |
X |
13.0 |
1.05 |
145 |
|
|
|
|
|
|
|
|
|
|
1)Reference programme for energy label in compliance with EN 50242 regulations;
2)Refer to “User instructions“;
3)Program data obtained in conformity with European standard EN 50242. Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15°C - as well as water hardness and power supply voltage, etc.
4)The bacteria removal efficiency has been tested by the Institut Pasteur de Lille (France), based on the NF EN 13697 standard of November 2001.
5)These programmes can be used with the Antibacterial rinse option.
Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “nk_customer@whirlpool.com”.
Whirlpool is a registered trademark of Whirlpool USA |
5019 396 91433 |
|
(We reserve the right to make technical modifications) |
WH/I/FD/GB
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Open the door, switch on the appliance
How to fill the detergent dispenser
Check the rinse aid level
Check the regeneration salt level
Load the racks
Select a programme
Select options
Press the Start button
Press the ON button.
Large compartment A: |
|
|
|
|
|
|
With each wash cycle. |
|
|
A |
B C |
||
Small compartment B: |
|
|
|
|
|
|
For programmes with pre-wash only. |
|
|
|
|
|
|
|
|
|
|
|
|
|
Mechanical indicator C. |
|
|
|
|
||
Electric indicator on control panel (if provided). |
|
|
|
|
||
On models with water softener system only. |
|
|
|
|
|
|
|
|
|
|
|
||
Mechanical indicator D. Electric indicator |
|
|
|
|
|
|
on control panel (if provided). |
|
|
|
|
|
|
|
|
|
|
|
|
|
Refer to the dishwasher loading instructions.
The last programme selected will light up.
Press the
button until the desired programme lights up.
If necessary (and if provided)
the corresponding indicator lamp lights up.
The selected programme is then |
“Change programme” |
|
|
Press the START button for 2 sec. until |
|
|
||
memorised (even in the event |
|
the Start indicator lamp switches off; |
of power failure). |
|
Select another programme and |
|
|
|
|
|
press the START button again. |
Turn on the water tap close the dishwasher door
Wash cycle
Switch off the appliance
Turn off the water tap, unload the racks
-Only open the dishwasher if necessary (Warning: beware of hot steam).
- If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted.
At the end of the programme an acoustic signal will sound.
Only after the START button has switched off: press the OFF button. All the indicator lamps switch off.
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
WH/II/FD/GB
