Before using the dishwasher, read the user instructions!

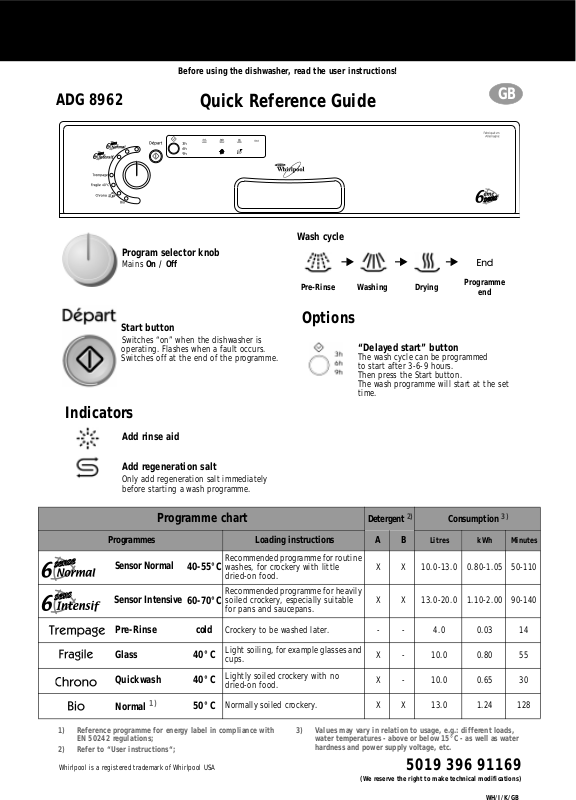

ADG 8962 |
Quick Reference Guide |
GB |
|
Program selector knob
Mains On / Off
Start button
Switches “on” when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.
Wash cycle
Pre-Rinse Washing Drying
Programme
end
Options
“Delayed start” button
The wash cycle can be programmed to start after 3-6-9 hours.
Then press the Start button.
The wash programme will start at the set time.
Indicators
Add rinse aid
Add regeneration salt
Only add regeneration salt immediately before starting a wash programme.
Programme chart |
Detergent 2) |
Consumption 3) |
|
|||||
Programmes |
|
Loading instructions |
A |
B |
Litres |
kWh |
|
Minutes |
|
|
|
|
|
|
|
|
|
Sensor Normal |
40-55°C |
Recommended programme for routine |
|
|
|
|
|
|
washes, for crockery with little |
X |
X |
10.0-13.0 |
0.80-1.05 |
|
50-110 |
||
|
|
dried-on food. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Sensor Intensive 60-70°C |
Recommended programme for heavily |
|
|
|
|
|
|
|
soiled crockery, especially suitable |
X |
X |
13.0-20.0 |
1.10-2.00 |
|
90-140 |
||
|
|
for pans and saucepans. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Pre-Rinse |
cold |
Crockery to be washed later. |
- |
- |
4.0 |
0.03 |
|
14 |
|
|
|
|
|
|
|
|
|
Glass |
40°C |
Light soiling, for example glasses and |
X |
- |
10.0 |
0.80 |
|
55 |
cups. |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Quickwash |
40°C |
Lightly soiled crockery with no |
X |
- |
10.0 |
0.65 |
|
30 |
dried-on food. |
|
|||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Normal 1) |
50°C |
Normally soiled crockery. |
X |
X |
13.0 |
1.24 |
|
128 |
|
|
|
|
|
|
|
|
|
1)Reference programme for energy label in compliance with EN 50242 regulations;
2)Refer to “User instructions“;
3)Values may vary in relation to usage, e.g.: different loads, water temperatures - above or below 15°C - as well as water hardness and power supply voltage, etc.
Whirlpool is a registered trademark of Whirlpool USA |
5019 396 91169 |
|
(We reserve the right to make technical modifications) |
WH/I/K/GB
How to use the appliance
Further indications are given in the single chapters and in the user instructions.
Switch on the appliance
How to fill the detergent
Check the rinse aid level
Check the regeneration salt level
Load the racks
Close the dishwasher door, turn on the water tap
Select a programme
Select options
Press the Start button
Wash cycle
Switch off the appliance
Turn off the water tap, unload the racks
Automatic start by turning the programme selector knob (in case of retractable knob, first press the knob to access it).
Large compartment A: |
|
|
C |
With each wash cycle. |
A |
B |
|
Small compartment B: |
|
|
|
For programmes with pre-wash only. |
|
|
|
Mechanical indicator lamp C.
Electric indicator on control panel (if provided).
On models with water softener system only.
Mechanical indicator lamp D. Electric indicator on control panel (if provided).
Refer to the dishwasher loading instructions.
Select the desired programme.
The corresponding indicator lamp comes on.
If necessary (and if provided) the corresponding indicator lamp lights up.
The selected programme is then memorised (even in the event of power failure).
“Change programme”
Press the START button for 2 sec. until the Start indicator lamp switches off;
Select another programme and press the START button again.
-Only open the dishwasher if necessary (Warning: beware of hot steam).
-If the appliance is switched off during a wash cycle, when switched on again it will resume the cycle from where it was interrupted.
Only after the START button has switched off: Access the knob (in case of retractable knob, press and then release the knob).
Warning: when the door is opened steam comes out!
Unload the appliance, starting from the lower rack.
WH/II/K/GB
