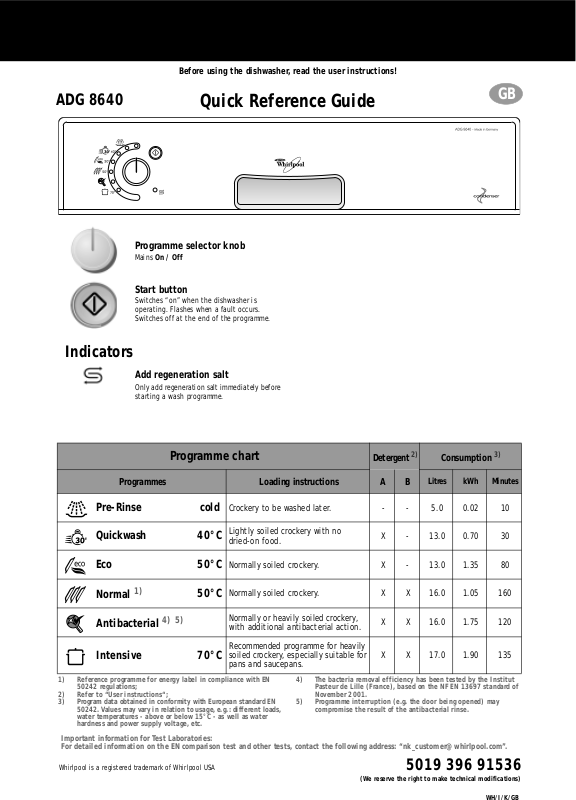

Whirlpool ADG 8640 Quick Reference Guide

Before using the dishwasher, read the user instructions!

ADG 8640

Indicators

Quick Reference Guide

Programme selector knob

On / Off

Mains

Start button

Switches “on” when the dishwasher is
operating. Flashes when a fault occurs.
Switches off at the end of the programme.

Add regeneration salt

Only add regener ation s alt immedi ately befor e
starting a wash programme.

GB

Programme chart

Detergent

Programmes Loading instructions A B

Pre-Rinse cold

Quickwash 40°C

Eco 50°C

Normal

Antibacterial

1)

4) 5)

Intensive 70°C

1) Reference programme for energy label in compliance with EN
50242 regulations;

2) Refer to “User instructions“;

3) Program data obtained in conformity with European standard EN

50242. V alues may vary in r elation to usage , e .g.: different loads,
water temperatures - above or below 15°C - as well as water
hardness and power supply voltage, etc.

Important information for Test Laboratories:
For detailed information on the EN comparison test and other tests, contact the following address: “[e-mail]”.

Whirlpool is a registered trademark of Whirlpool USA

Crockery to be washed later. - - 5.0 0.02 10

Lightly soiled crockery with no
dried-on food.

Normally soiled crockery. X - 13.0 1.35 80

Normally soiled crockery. X X 16.0 1.05 160

50°C

Normally or heavily soiled crockery,
with additional antibacterial action.

Recommended programme for heavily
soiled crockery, especi ally suitable for
pans and saucepans.

4) The bacteria removal efficiency has been tested by the Institut
Pasteur de Lille ( France), based on the NF EN 13697 standard of
November 2001.

5) Programme interruption (e.g. the door being opened) may
compromise the result of the antibacterial rinse.

(We reserve the right to make technical modifications)

2)

Consumption

Litres kWh Minutes

X - 13.0 0.70 30

X X 16.0 1.75 120

X X 17.0 1.90 135

5019 396 91536

3)

WH/I/K/GB

How to use the appliance

Further indications are given in the single chapters and in the user instructions.

Switch on the appliance

How to fill the

detergent dispenser

Check the rinse aid level

Check the regeneration

salt level

Load the racks

Close the dishwasher door,

turn on the water tap

Select a programme

Automatic start by turning the programme selector knob (in case of
retractable knob, first press the knob to access it).

Large compartment A:
With each wash cycle.
Small compartment B:
For programmes with pre-wash only.

Mechanical indi cator C.
Electric indicator on control panel (if provided).

On models with water softener
system only.

Mechanical indicator D. Electric
indicator on control panel (if provided).

Refer to the dishwasher loading instructions.

Select the desired programme.
The corresponding indicator lamp comes on.

ABC

Select options

Press the Start button

Wa sh cycle

Switch off the appliance

Turn off the water tap,

unload the racks

If necessary (and if provided) the corresponding indicator lamp lights up.

The selected programme is
then memorised (even in the
event of power failure).

Only after the START button has switched off: Access the knob (in case of
retractable knob, press and then release the knob).

Warning: when the door is opened steam comes out!

Unload the appliance, starting from the lower rack.

“Change programme”

Press the START button for 2 sec. un til
the Start indicator lamp switches o ff;

Select another programme and
press the START button again.

- Only open the dishwasher if necessary
(Warning: beware of hot steam).

- If the appliance is switched o ff d urin g a
wash cycle, when switched on again it
will resume the cycle from where it was
interrupted.

WH/II/K/GB
