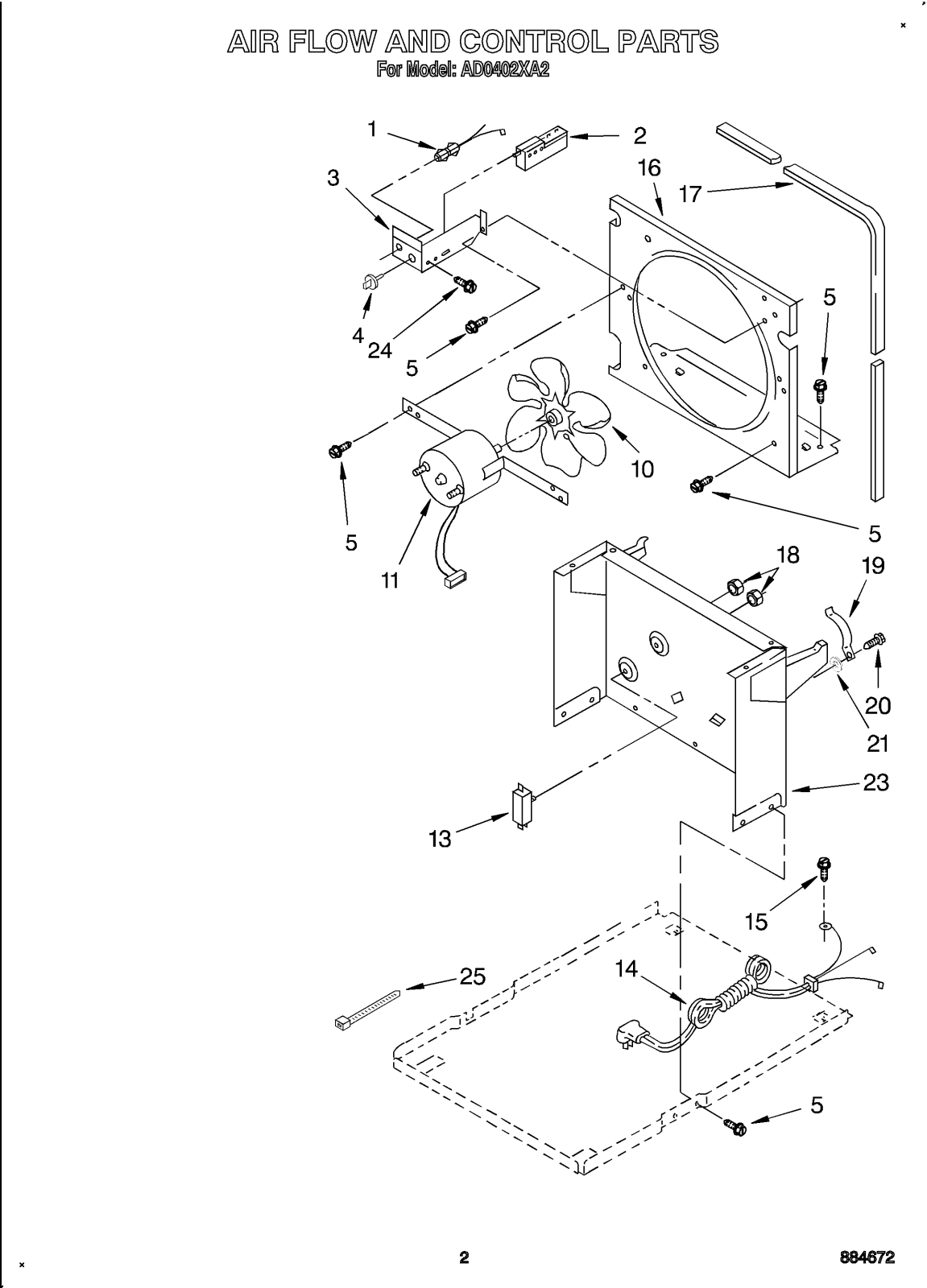

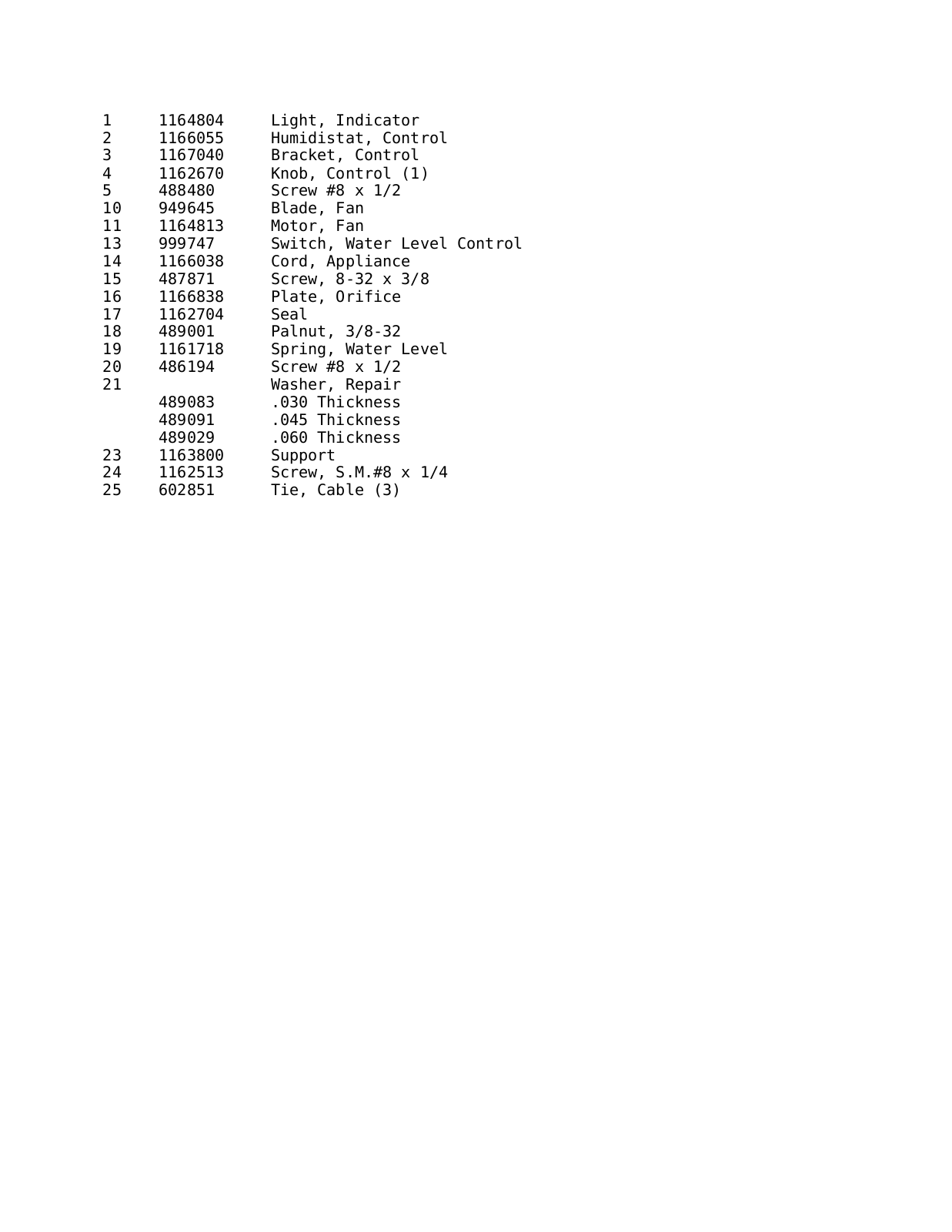

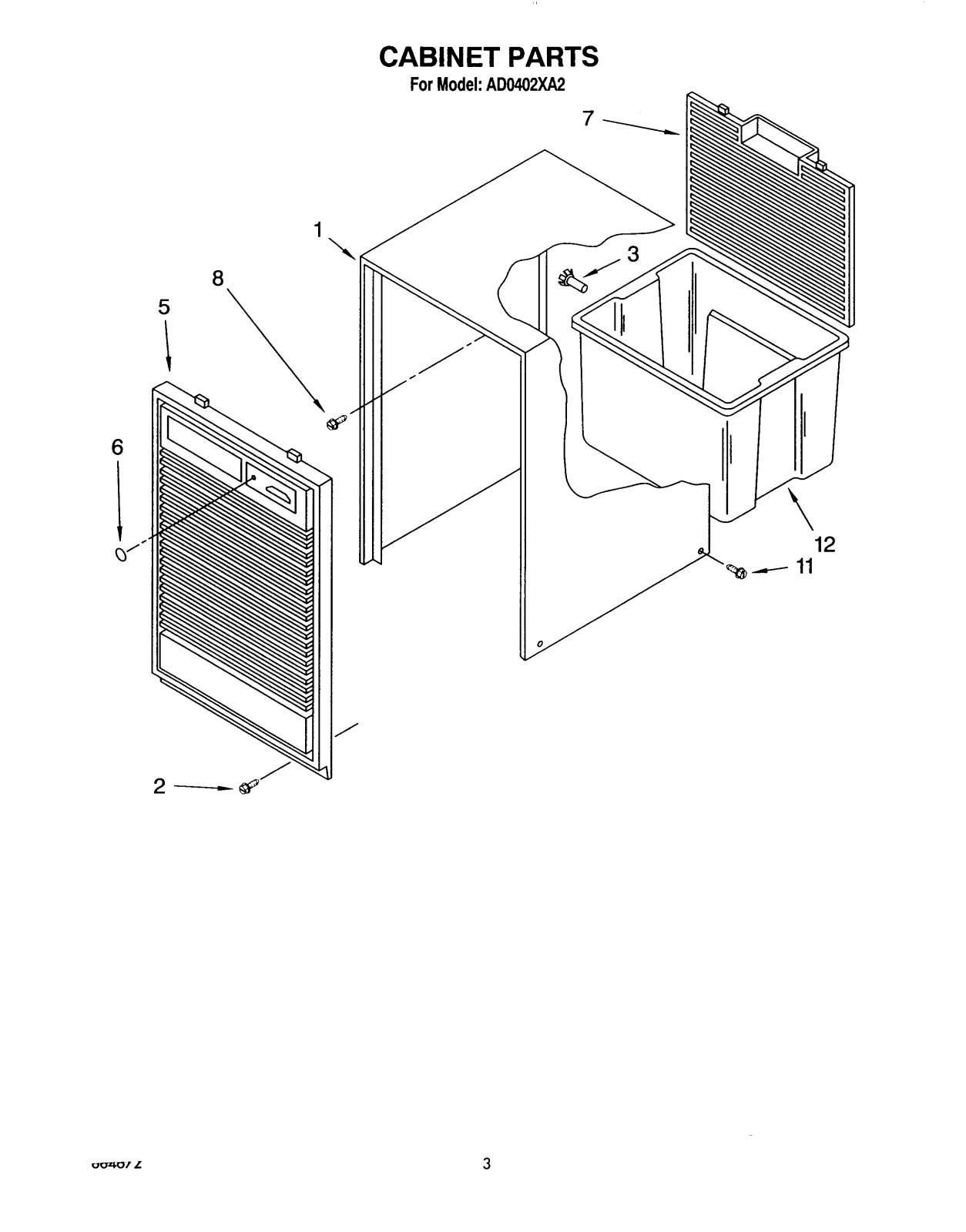

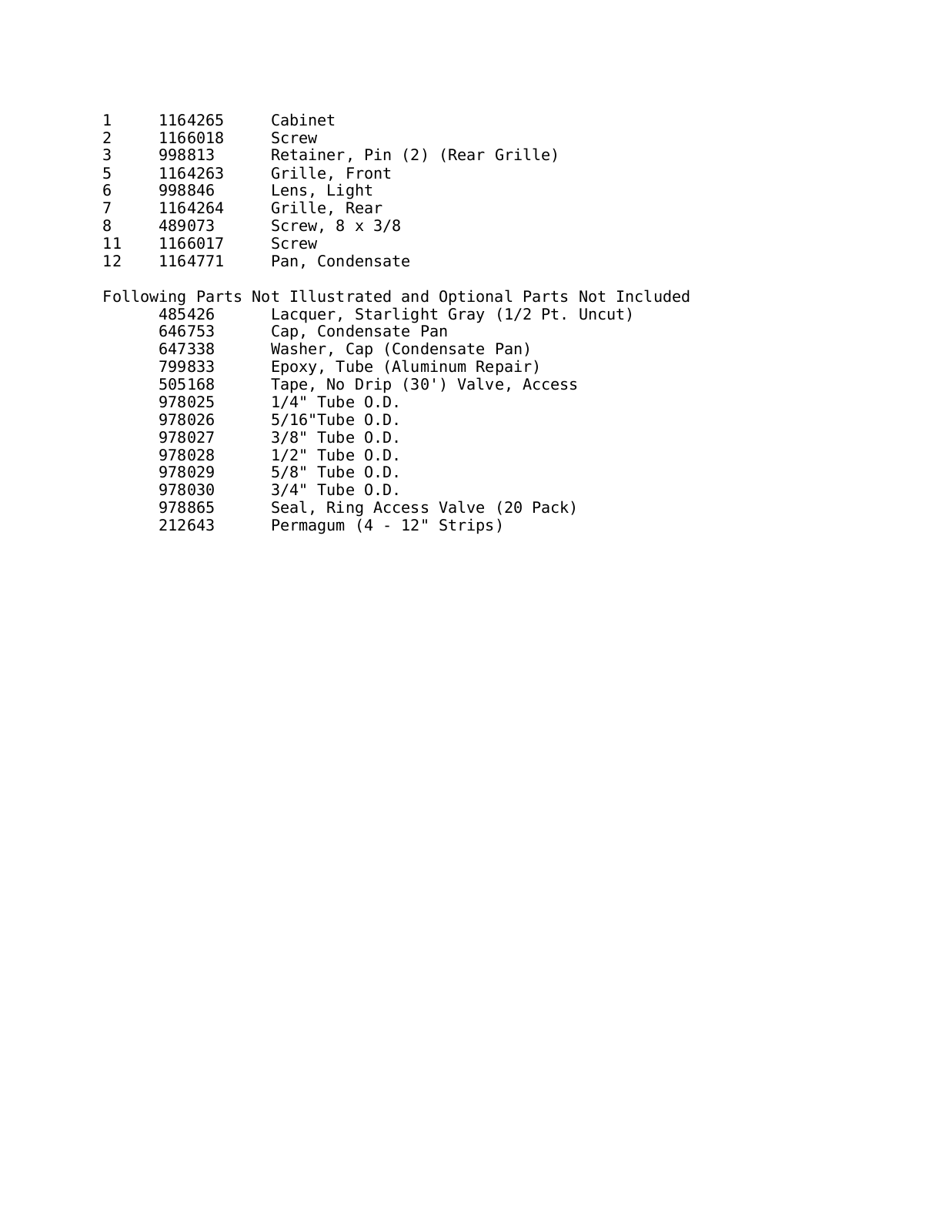

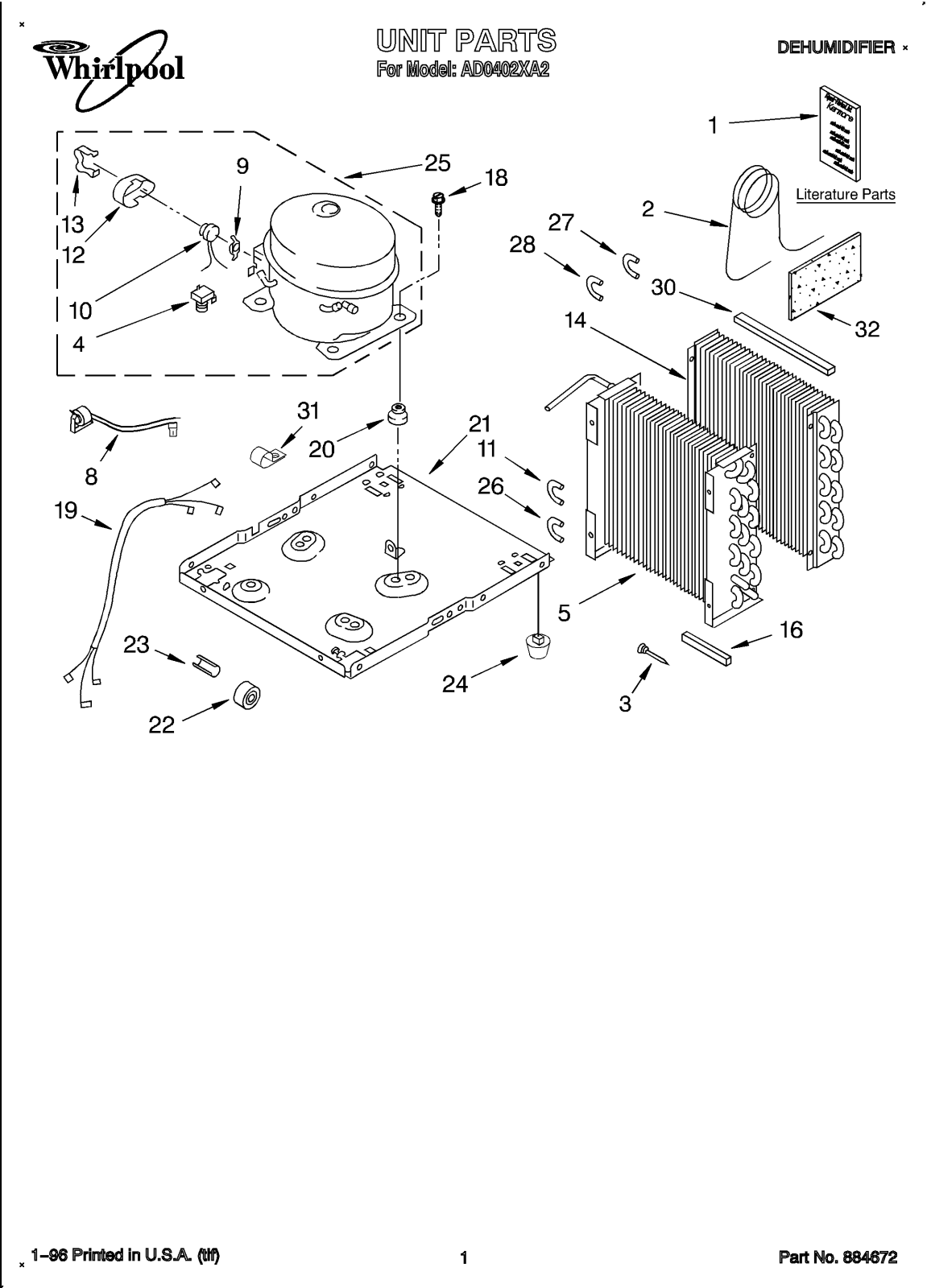

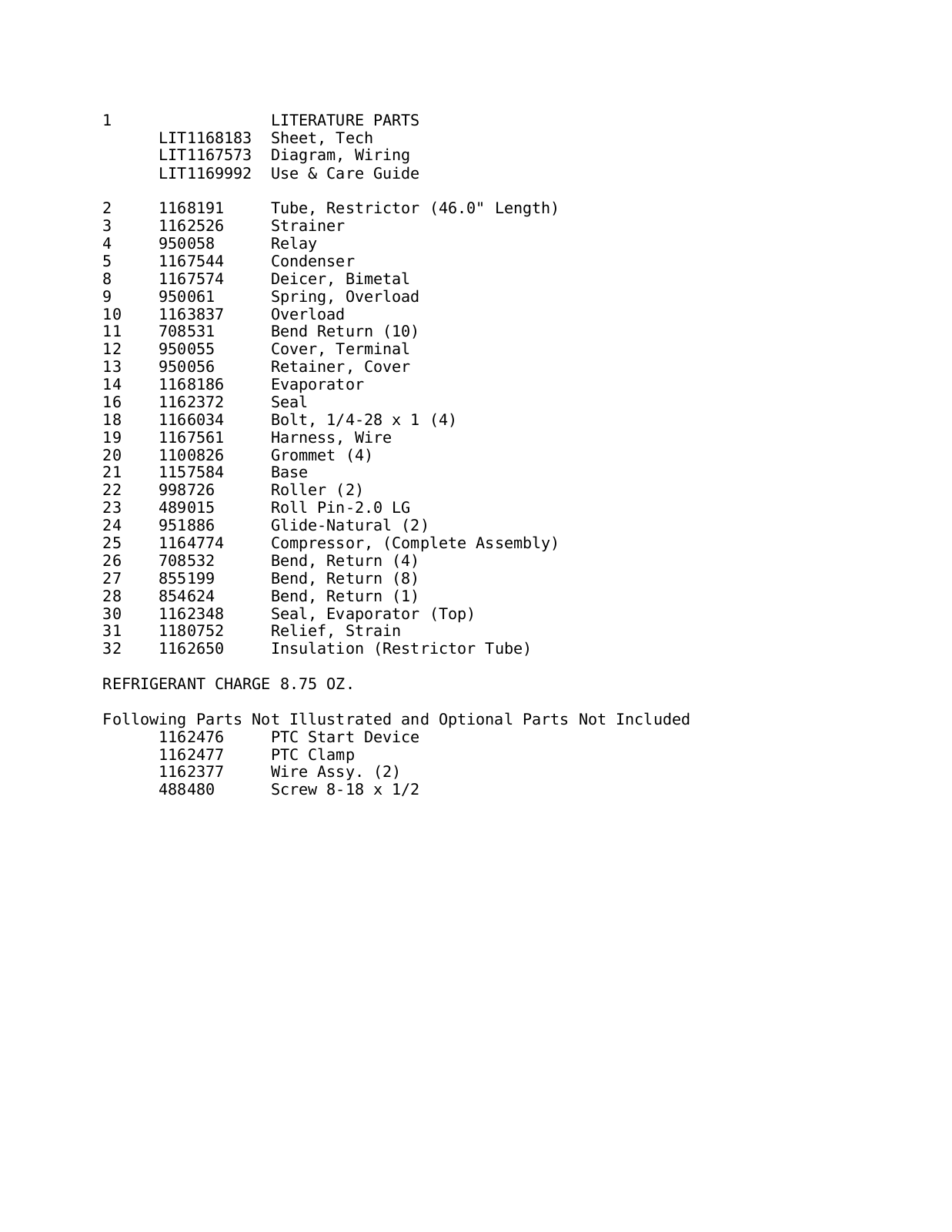

1 LITERATURE PARTS

LIT1168183 Sheet, Tech
LIT1167573 Diagram, Wiring
LIT1169992 Use & Care Guide

2 1168191 Tube, Restrictor (46.0" Length)
3 1162526 Strainer
4 950058 Relay
5 1167544 Condenser
8 1167574 Deicer, Bimetal
9 950061 Spring, Overload
10 1163837 Overload
11 708531 Bend Return (10)
12 950055 Cover, Terminal
13 950056 Retainer, Cover
14 1168186 Evaporator
16 1162372 Seal
18 1166034 Bolt, 1/4-28x1(4)
19 1167561 Harness, Wire
20 1100826 Grommet (4)
21 1157584 Base
22 998726 Roller (2)
23 489015 Roll Pin-2.0 LG
24 951886 Glide-Natural (2)
25 1164774 Compressor, (Complete Assembly)
26 708532 Bend, Return (4)
27 855199 Bend, Return (8)
28 854624 Bend, Return (1)
30 1162348 Seal, Evaporator (Top)
31 1180752 Relief, Strain
32 1162650 Insulation (Restrictor Tube)

REFRIGERANT CHARGE 8.75 OZ.

Following Parts Not Illustrated and Optional Parts Not Included

1162476 PTC Start Device
1162477 PTC Clamp
1162377 Wire Assy. (2)
488480 Screw 8-18 x 1/2
