Welch Allyn ABCs of Spot LXI Vital Signs Device Quick Reference Guide
A

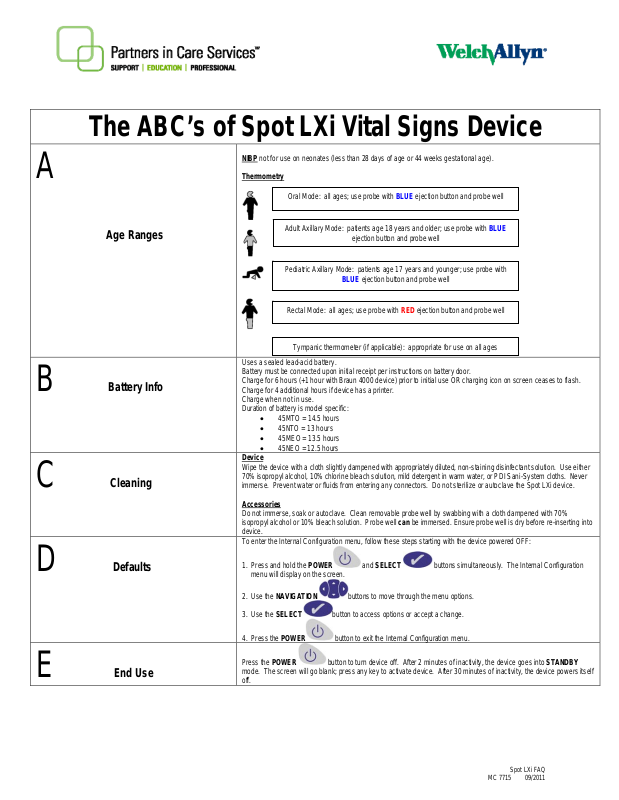

The ABC’s of Spot LXi Vital Signs Device
A
NIBP not for use on neonates (less than 28 days of age or 44 weeks gestational age).
Thermometry
Oral Mode: all ages; use probe with BLUE ejection button and probe well
Age Ranges
B Battery Info
C Cleaning
Uses a sealed lead-acid battery.
Battery must be connected upon initial receipt per instructions on battery door.
Charge for 6 hours (+1 hour with Braun 4000 device) prior to initial use OR charging icon on screen ceases to flash.
Charge for 4 additional hours if device has a printer.
Charge when not in use.
Duration of battery is model specific:
Device
Wipe the device with a cloth slightly dampened with appropriately diluted, non-staining disinfectant solution. Use either
70% isopropyl alcohol, 10% chlorine bleach solution, mild detergent in warm water, or PDI Sani-System cloths. Never
immerse. Prevent water or fluids from entering any connectors. Do not sterilize or autoclave the Spot LXi device.
Accessories
Do not immerse, soak or autoclave. Clean removable probe well by swabbing with a cloth dampened with 70%
isopropyl alcohol or 10% bleach solution. Probe well can be immersed. Ensure probe well is dry before re-inserting into
device.
To enter the Internal Configuration menu, follow these steps starting with the device powered OFF:
dult Axillary Mode: patients age 18 years and older; use probe with BLUE
Pediatric Axillary Mode: patients age 17 years and younger; use probe with
Rectal Mode: all ages; use probe with RED ejection button and probe well
Tympanic thermometer (if applicable): appropriate for use on all ages
45MTO = 14.5 hours
45NTO = 13 hours
45MEO = 13.5 hours
45NEO = 12.5 hours
ejection button and probe well
BLUE ejection button and probe well
D Defaults
E End Use
1. Press and hold the POWER and SELECT buttons simultaneously. The Internal Configuration
menu will display on the screen.
2. Use the NAVIGATION
3. Use the SELECT
4. Press the POWER
Press the POWER button to turn device off. After 2 minutes of inactivity, the device goes into STANDBY
mode. The screen will go blank; press any key to activate device. After 30 minutes of inactivity, the device powers itself
off.
buttons to move through the menu options.
button to access options or accept a change.
button to exit the Internal Configuration menu.
Spot LXi FAQ
MC 7715 09/2011
