Weider PRO 3750 User Manual

USER'S MANUAL
QUESTIONS?
As a manufacturer, we are committed to providing complete customer satisfaction. If you have questions, or if there are missing or damaged parts, we will guarantee complete satisfac­tion through direct assistance from our factory.
TO AVOID UNNECESSARY DELAYS, PLEASE CALL DIRECT TO OUR TOLL-FREE CUSTOMER HOT LINE. The trained techni­cians on our customer hot line will provide immediate assis­tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
Model No. WESY26330 Serial No.
Write the serial number in the space above for future reference.
CAUTION
Read all precautions and instruc­tions in this manual before using this equipment. Save this manual for future reference.
Serial Number Decal (Under Seat)
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
TROUBLESHOOTING AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
Note: APART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of this manual. Remove the PART IDENTIFICATION CHART and the PART LIST/EXPLODED DRAWING before beginning assembly.
WEIDER is a registered trademark of ICON Health & Fitness, Inc.
IMPORTANT PRECAUTIONS
3
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the weight system.
1. Read all instructions in this manual and in the accompanying literature before using the weight system.
2. It is the responsibility of the owner to ensure that all users of the weight system are ade­quately informed of all precautions.
3. The weight system is intended for home use only. Do not use the weight system in any commercial, rental, or institutional setting.
4. Use the weight system only on a level sur­face. Cover the floor beneath the weight sys­tem to protect the floor.
5. Make sure all parts are properly tightened each time the weight system is used. Replace any worn parts immediately.
6. Keep children under 12 and pets away from the weight system at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection.
9. The weight system is designed to support a a maximum user weight of 300 pounds.
10. Always stand on the foot plate when per­forming an exercise that could cause the weight system to tip.
11. Never release the press arm, butterfly arms, leg lever, press plate, lat bar, ab strap, or handle while weights are raised; the weights will fall with great force.
12. Always disconnect the lat bar from the
weight system when performing an exercise that does not use the lat bar.
13. Make sure that the cables remain on the pul­leys at all times. If the cables bind while you are exercising, stop immediately and make sure that the cables are on all of the pulleys.
14. If you feel pain or dizziness at any time while exercising, stop immediately and begin cool­ing down.
15. The decals shown here have been attached to the weight system in the locations shown on page 4. If a decal is missing or illegible, please call toll-free 1-800-999-3756 to order a free replacement decal. Apply the decal in the location shown.
WARNING:
Before beginning this or any exercise program, consult your physician. This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.
• Misuse of this product may result in serious injury.
WARNING
!
• Read user’s manual and follow all warnings and operating instruc­tions prior to use.
• Replace label if damaged, illegible, or removed.
• Do not allow children on or around machine.
Keep hands and fingers clear of this area.
• Keep clear of this area.
Decal 3
Decal 1
Decal 2
4
BEFORE YOU BEGIN
ASSEMBLED DIMENSIONS: Height: 78 in. Width: 64 in. Length: 70 in.
Foot Plate
Low Pulley Station
High Pulley Station
Lat Bar
Leg Lever
Butterfly Arms
Press Arm
Weight Stacks
Backrests
Leg Press
Plate
Ab Pulley Station
Thank you for selecting the versatile WEIDER®PRO 3750 weight system. The weight system offers a selec­tion of weight stations designed to develop every major muscle group of the body. Whether your goal is to tone your body, build dramatic muscle size and strength, or improve your cardiovascular system, the weight system will help you to achieve the specific results you want.
For your benefit, read this manual carefully before using the weight system. If you have additional
questions, please call our Customer Service
Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number is WESY26330. The serial number can be found on a decal attached to the weight system (see the front cover of this manual).
Before reading further, please review the drawing below and familiarize yourself with the parts that are labeled.
Decal1
Decal 2
Decal 3
Decal 3
5
ASSEMBLY
Make sure you have the following tools:
• Two (2) adjustable wrenches
• One (1) standard screwdriver
• One (1) phillips screwdriver
• One (1) rubber mallet
•You will also need grease or petroleum jelly, a small amount of soapy water, and clear tape or masking tape.
Note: Assembly will be more convenient if you have a socket set, a set of open-end or closed-end wrenches, or a set of ratchet wrenches.
How to Identify Parts
To help you identify the small parts used in assembly, we have included a PART IDENTIFICATION CHART in the center of this manual. Place the chart on the floor and use it to easily identify parts during each assembly step. Note: Some small parts may have
been pre-attached. If a part is not in the parts bag, check to see if it has been pre-attached.
How to Orient Parts
As you assemble the weight system, make sure that all parts are oriented exactly as shown in the draw­ings.
Tightening Parts
Tighten all parts as you assemble them, unless instructed to do otherwise.
Questions?
If you have questions after reading the assembly instructions, please call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time.
Assembly Requires Two Persons
For your convenience and safety, assemble the weight system with the help of another person.
Set Aside Enough Time
Due to the many features of the weight system, the assembly process will require several hours. By setting aside plenty of time and by deciding to make the task enjoyable, assembly will go smoothly. You may want to assemble the weight system over a couple of evenings.
Select a Location for the Weight System
Because of its weight and size, the weight system should be assembled in the location where it will be used. Make sure that there is enough room to walk around the weight system as you assemble it.
How to Unpack the Box
To make assembly as easy as possible, we have divided the assembly process into four stages. The parts needed for each stage are found in individual bags. Important: Wait until you begin each stage to open the parts bag for that stage. Place all parts of the weight system in a cleared area and remove the packing materials. Do not dispose of the packing materials until assembly is completed.
Make Assembly Easier for Yourself
Everything in this manual is designed to ensure that the weight system can be assem­bled successfully by anyone. Before begin-
ning assembly, make sure to read the information on this page; this brief intro­duction will save you much more time than it takes to read it.
The Four Stages of the Assembly Process
Frame Assembly—You will begin by assembling
the base and the uprights that form the skeleton of the weight system.
Arm Assembly—During this stage you will assemble the arms and the leg lever.
Cable Assembly—During this stage you will attach the cables and pulleys that connect the arms to the weights.
Seat Assembly—During the final stage you will assemble the seats and the backrests.
1.
Locate and open the parts bags labeled “FRAME ASSEMBLY BAG ONE” and “FRAME ASSEMBLY BAG TWO.”
Press two 2” Square Outer Caps (58) onto the Weight Base (14) in the indicated locations. Press a 2” Square Inner Cap (56) into the end of the Weight Base.
Insert six 5/16” x 2 1/2” Carriage Bolts (49) up through the Press Base (13) and the Weight Base (14).
Attach the Press Base (13) to the Weight Base (14) with two 5/16” x 2 3/4” Bolts (55), two 5/16” Washers (20), and two 5/16” Nylon Locknuts (40). Do not tighten the Locknuts
yet.
2. Slide the Ab Upright (1) onto the indicated 5/16” x 2 1/2” Carriage Bolts (49) in the Weight Base (14). Hand tighten two 5/16” Nylon Locknuts (40) onto the Carriage Bolts.
Do not tighten the Locknuts yet.
Slide the Leg Press Upright (4) onto the indi­cated 5/16” x 2 1/2” Carriage Bolts (49) in the Press Base (13). Hand tighten two 5/16” Nylon Locknuts (40) onto the Carriage Bolts.
Do not tighten the Locknuts yet.
3. Press a 2” Square Inner Cap (56) into each end of the Top Frame (2). Press a 2” Square Inner Cap (56) into each side of the Butterfly Frame (3). Press two 1” Inner Caps (98) into the top of the Butterfly Frame.
Attach the Butterfly Frame (3) to the Top Frame (2) with a 5/16” x 3” Bolt (92) and a 5/16” Nylon Jamnut (91). Make sure that the Bolt is on the side shown. Finish attaching the Butterfly Frame (3) to the Top Frame (2) with a 5/16” x 2 3/4” Bolt (55), a 5/16” Washer (20), and a 5/16” Nylon Locknut (40). Do not
tighten the Locknut and Jamnut yet.
2
3
FRAME ASSEMBLY
6
1
4
40
40
49
49
13
2
3
14
55
40
20
56
56
56
56
92
98
91
1
56
58
58
55
20
49
40
49
13
14
Before you begin this step, make sure that you have read all of the information on page 5. This brief introduction will save you much more time than it takes to read it.
4. Slide the Front Seat Frame (8) onto the indi­cated 5/16” x 2 1/2” Carriage Bolts (49) in the Press Base (13). Hand tighten two 5/16” Nylon Locknuts (40) onto the Carriage Bolts.
Do not tighten the Locknuts yet.
Attach the other end of the Front Seat Frame (8) to the Leg Press Upright (4) with two 5/16” x 2 3/4” Bolts (55), two 5/16” Washers (20), and two 5/16” Nylon Locknuts (40). Do not
tighten the Locknuts yet.
Press a 2” Square Inner Cap (56) into the Front Seat Frame (8).
5. Insert two Weight Guides (23) into one of the brackets on the Weight Base (14). Attach the lower ends of the Weight Guides with a 5/16” x 6” Bolt (67), two 1/2” x 3/4” Spacers (69), and a 5/16” Nylon Locknut (40). Do not over-
tighten the Locknut.
Attach the other Weight Guides (23) in the same manner.
6. Slide a Weight Bumper (27) onto each of the Weight Guides (23).
Slide eight Weights (90) onto each set of Weight Guides (23). Be sure that the pin
grooves are on the indicated side of each stack of Weights.
7. Press a Weight Tube Bumper (26) into each Weight Tube (25).
Insert a Weight Tube (25) into each stack of Weights (90). Be sure that the pins on the
Weight Tubes are in the pin grooves in the upper Weights.
7
6
7
FRAME ASSEMBLY
90
90
Pin
Grooves
27
27
23
23
26
25
Pin
Grooves
90
90
5
67
69
23
23
40
14
4
55
20
49
40
56
8
40
4
13
8. Lubricate the insides of the indicated holes in the Top Weights (24). Slide a Top Weight onto each set of Weight Guides (23).
9. Attach the Top Frame (2) to the Ab Upright (1) with two 5/16” x 2 3/4” Bolts (55), two 5/16” Washers (20), and two 5/16” Nylon Locknuts (40). Do not tighten the Locknuts yet.
Attach the Butterfly Frame (3) to the Leg Press Upright (4) with two 5/16” x 2 3/4” Bolts (55), two 5/16” Washers (20), and two 5/16” Nylon Locknuts (40). Do not tighten the
Locknuts yet.
10. Attach the upper ends of one set of Weight Guides (23) to the Top Frame (2) with a 5/16” x 6” Bolt (67), two 1/2” x 3/4” Spacers (69), and a 5/16” Nylon Locknut (40).
Attach the upper ends of the other set of Weight Guides (23) to the Top Frame (2) in the same manner.
Before continuing, firmly tighten all the 5/16” Nylon Locknuts (40) and the 5/16” Nylon Jamnut (91) used in steps 1–10.
8
10
8
FRAME ASSEMBLY
23
Lubricate
Lubricate
23
23
69
40
67
67
40
2
69
24
23
9
55
55
20
20
40
40
4
3
2
1
11. Press a 1 3/4” Square Inner Cap (48) into the Adjustment Tube (10).
Attach the Leg Press Plate (11) to the Adjustment Tube (10) with a 5/16” x 2 1/2” Bolt (39), two 5/16” Washers (20), and a 5/16” Nylon Locknut (40). Be sure that the Leg
Press Plate and Adjustment Tube are ori­ented as shown.
12. Attach the Adjustment Tube (10) to the Leg Press Arm (9) with the Lock Pin (73). Be sure
the Leg Press Plate (11) is oriented as shown.
Press two 2” Square Inner Caps (56) into the Leg Press Arm (9).
13. Locate and open the parts bag labeled
“ARM ASSEMBLY.”
Attach the Leg Press Bumper (53) to the Front Seat Frame (8) with the 1” Tap Screw (72).
Lubricate the 3/8” x 3 1/4” Bolt (71) with grease. Attach the Leg Press Arm (9) to the Press Base (13) with the Bolt and a 3/8” Nylon Locknut (42).
14. Press a 1” x 7/8” Plastic Bushing (54) onto each welded spacer on the Press Frame (12). Slide the Press Frame onto the Press Base (13) so that the Plastic Bushings are aligned with the indicated tube. Note: This will be a
tight fit. Make sure that the high hole is on the side shown.
Lubricate the 3/8” x 8” Bolt (52) with grease. Attach the Press Frame (12) to the Press Base (13) with the Bolt and a 3/8” Nylon Locknut (42).
14
11
12
13
9
ARM ASSEMBLY
20
40
39
Angle
10
48
11
56
56
42
Lubricate
71
53
72
13
54
42
12
13
11
9
9
8
10
73
Lubricate
52
Tube
Welded
Spacers
High Hole
FRAME ASSEMBLY
10
15. Attach a Press Arm (7) to one side of the Press Frame (12) with two 5/16” x 2 1/2” Bolts (39) and two 5/16” Nylon Locknuts (40).
Attach the other Press Arm (7) to the Press Frame (12) in the same manner.
16. Press a 1” Round Inner Cap (70) into one of the Press Arms (7). Press a 1 3/4” Square Inner Cap (48) into the Press Arm.
Repeat this step for the other Press Arm (not shown).
17. Lubricate both axles on the Butterfly Frame (3). Refer to the drawing and identify the Right Fly
Arm (5) and the Left Fly Arm (6). Press a 1 3/4” Square Inner Cap (48) into the
upper end of the Left Fly Arm (6). Slide the Left Fly Arm onto the indicated axle. Note: Do
not to confuse the Left Fly Arm with the Right Fly Arm (5). Make sure that the upper end of the Left Fly Arm is behind the indi­cated bracket on the Butterfly Frame (3).
IMPORTANT NOTE: Before assembling the 1” Retainers (45) used in this step, be sure that you thoroughly understand the step. The Retainers can be assembled only once. If they must be removed, you will need to order new Retainers.
Tap two 1” Retainers (45) and a 1” Round Outer Cap (46) onto the axle. Be sure that
the teeth on the Retainers bend toward the Round Outer Cap, as shown in the inset drawing.
Attach the Right Fly Arm (5) in the same manner.
15
16
17
ARM ASSEMBLY
39
7
70
40
48
12
7
7
3
Lubricate Axle
Axle
6
5
45
48
46
Bracket
45
46
11
18. Press a 1 3/4” Square Inner Cap (48) into the lower end of the Left Fly Arm (6). Wet the lower end of the Left Fly Arm with soapy water. Slide a 10” Pad (22) onto the Left Fly Arm.
Repeat this step with the Right Fly Arm (5).
19. Locate and open the parts bags labeled “CABLE ASSEMBLY” and “PULLEYS.”
During steps 19 through 50, refer to the CABLE DIAGRAMS on pages 26 and 27 of this manual to verify proper cable routing. Before beginning this section, fully unwind the five cables and identify the cables by compar­ing the lengths and the ends. The approxi­mate length of each cable, in inches, is listed after the key number in the drawing.
IMPORTANT: While assembling the cables, do not overtighten the bolts and locknuts attaching the pulleys; the pulleys must be able to turn freely.
20. Identify the Butterfly Cable (89)—this is the second shortest Cable. Attach one end of
the Butterfly Cable to the Right Fly Arm (5) with a 5/16” x 1” Shoulder Bolt (51) and a 5/16” Nylon Jamnut (91).
20
18
19
CABLE ASSEMBLY ARM ASSEMBLY
5
6
48
22
88—239”
91
5
51
89
86—110”
85—101”
89—82”
87—72”
12
21. Wrap the Butterfly Cable (89) around a 3 1/2” Pulley (82) as shown. Attach the Pulley and a Cable Trap (80) to the bracket on the Leg Press Upright (4) with a 3/8” x 2” Bolt (50) and a 3/8” Nylon Locknut (42). The Cable
Trap must be oriented to hold the Cable in the groove of the Pulley.
22. Locate one of the preassembled pairs of Pulley Plates (31) and 3 1/2” Pulleys (82).
Route the Butterfly Cable (89) under the indi­cated 3 1/2” Pulley (82). The end of the Pulley Plates (31) with two holes should be down­ward. Refer to the inset drawing. Make sure
that the Cable is between the Cable Trap (80) and the Pulley, and that the Cable Trap is positioned to hold the Cable in place.
Tighten the 3/8” x 2” Bolt (50) and the 3/8” Nylon Locknut (not shown).
23. Wrap the Butterfly Cable (89) around a 3 1/2” Pulley (82) as shown. Attach the Pulley and a Cable Trap (80) to the other side of the bracket on the Leg Press Upright (4) with a 3/8” x 2” Bolt (50) and a 3/8” Nylon Locknut (42). The
Cable Trap must be oriented to hold the Cable in the groove of the Pulley.
24. Note: The Left Fly Arm (6) is shown removed for easier part identification.
Attach the Butterfly Cable (89) to the Left Fly Arm (6) with a 5/16” x 1” Shoulder Bolt (51) and a 5/16” Nylon Jamnut (91).
24
21
22
23
CABLE ASSEMBLY
6
End with
two holes
should be
down
82
31
4
89
82
50
80
4
42
89
82
50
80
89
89
50
80
91
51
89
42
13
25. Identify the Rear Cable (87)—this is the shortest Cable. Slide the Rear Cable onto
the 5/16” x 3” Bolt (92). Thread another 5/16” Nylon Jamnut (91) onto the Bolt, but do not
fully tighten it. Leave enough room between the two Jamnuts for the Cable to pivot.
26. See the inset drawing. Attach a 3 1/2” Pulley (82) and a Cable Trap (80) to the upper hole in a Large “U”-bracket (84) with a 3/8” x 2” Bolt (50) and a 3/8” Nylon Locknut (42). Be
sure that the Cable Trap is inside the Large “U”-bracket. Note: This may come pre-assembled.
Route the Rear Cable (87) through the Large “U”-bracket (84) and the 3 1/2” Pulley (82).
Make sure that the Cable is in the groove of the Pulley and that the Cable and Pulley move smoothly.
27. Wrap the Rear Cable (87) around a 3 1/2” Pulley (82). Attach the Pulley to the Top Frame (2) with a 3/8” x 2” Bolt (50) and a 3/8” Nylon Locknut (42). The Cable must be
routed from the direction shown.
28. Attach the Rear Cable (87) to a Small “U”­bracket (32) with a 1/4” Nylon Locknut (44) and a 1/4” Washer (37). Do not completely
tighten the Locknut; it should be threaded onto the end of the Cable only a couple of turns, as shown in the inset drawing.
Attach the Small “U”-bracket (32) to the indi­cated Weight Tube (25) with a 5/16” x 1 3/4” Bolt (68) and a 5/16” Nylon Locknut (40).
28
25
26
27
CABLE ASSEMBLY
92
91
87
87
80
42
84
50
82
82
82
50
42
37
44
25
32
68
2
87
84
87
87
40
87
44
32
37
14
29. Identify the Press Cable (88)—this is the longest Cable. Attach the end of the Press
Cable to the Large “U”-bracket (84) with a 1/4” Nylon Locknut (44) and a 1/4” Washer (37). Do not completely tighten the
Locknut. It should be threaded onto the end of the Cable so only a couple of threads are showing above the Locknut, as shown in the inset drawing.
30. Wrap the Press Cable (88) around a 3 1/2” Pulley (82). Attach the Pulley and a Cable Trap (80) to the indicated bracket on the Press Base (13) with a 3/8” x 2” Bolt (50) and a 3/8” Nylon Locknut (42). Be sure that the
Cable Trap is turned to hold the Cable in place.
31. Wrap the Press Cable (88) around a 3 1/2” Pulley (82). Attach the Pulley and a Cable Trap (80) to the other bracket on the Press Base (13) with a 3/8” x 2” Bolt (50) and a 3/8” Nylon Locknut (42). Be sure that the Cable
Trap is turned to hold the Cable in place.
29
30
31
CABLE ASSEMBLY
88
37
84
44
88
50
13
82
80
42
50
88
82
80
42
13
44
37
84
88
15

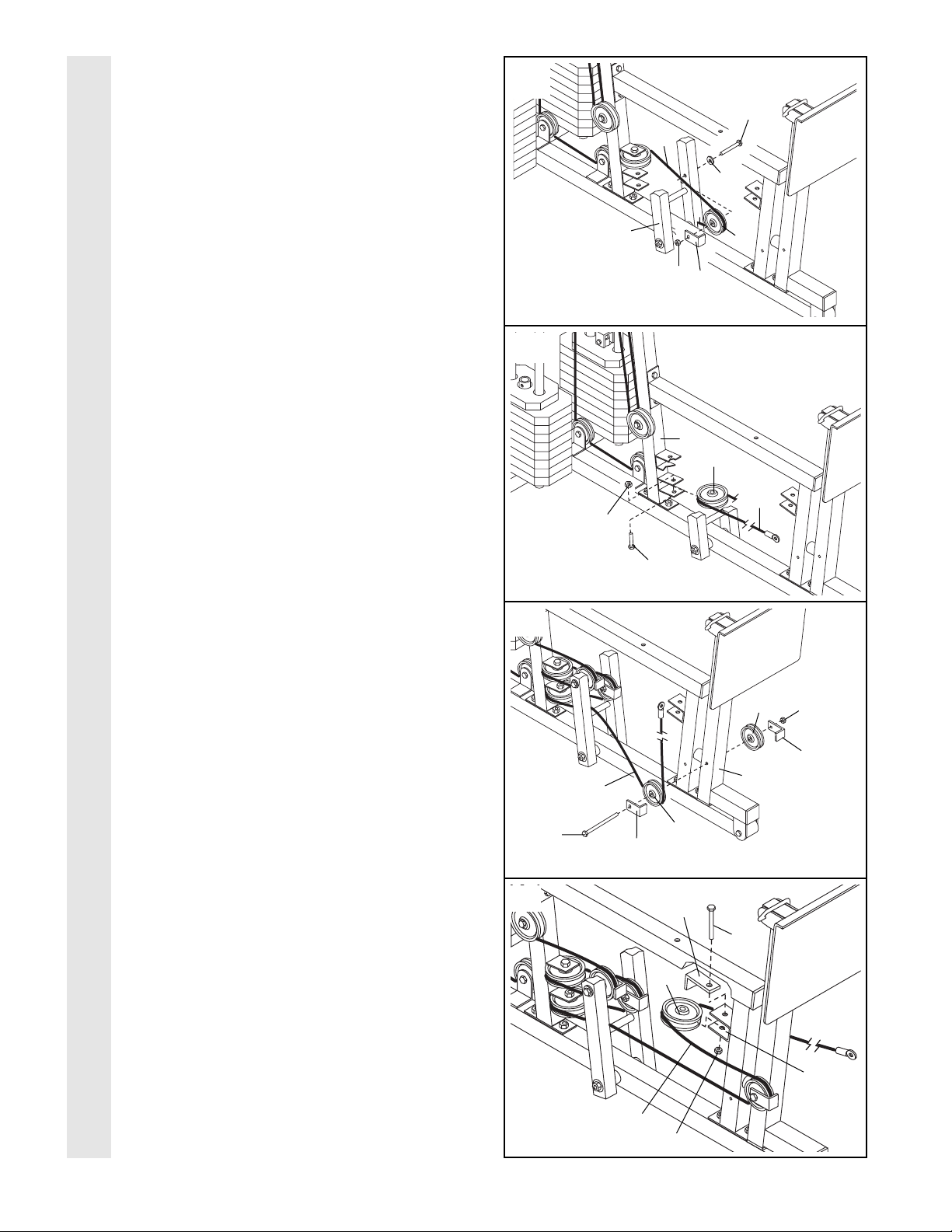

32. Route the Press Cable (88) over the indicated 3 1/2” Pulley (82) attached to the Pulley Plates (31). The Cable must be routed from
the direction shown.
Refer to the inset drawing. Make sure that the Press Cable (88) is between the Cable Trap (80) and the 3 1/2” Pulley (82), and that the Cable Trap is positioned to hold the Cable in place.
Tighten the 3/8” x 2” Bolt (50) and the 3/8” Nylon Locknut (not shown).
33. Route the Press Cable (88) around a 3 1/2” Pulley (82). Attach the Pulley and a Cable Trap (80) to the Leg Press Upright (4) with a 3/8” x 3 3/4” Bolt (76), a 3/8” Washer (38) and a 3/8” Nylon Jamnut (43). Make sure that the
Cable Trap is turned to hold the Cable in place.
34. Route the Press Cable (88) over a 3 1/2” Pulley (82). Attach the Pulley and a Cable Trap (80) to the indicated hole in the Press Frame (12) with a 3/8” x 3 1/2” Bolt (66), a 3/8” Washer (38), and the 3/8” Nylon Locknut (42).
35. Wrap the Press Cable (88) around a “V”-pul­ley (81). Attach the “V”-pulley to the upper bracket on the Leg Press Upright (4) with a 3/8” x 2 1/4” Bolt (97) and a 3/8” Nylon Jamnut (43).
33
34
35
CABLE ASSEMBLY
32
31
82
50
88
80
88
82
88
66
38
88
12
82
80
42
88
81
4
97
43
38
43
4
80
76
16
36. Route the Press Cable (88) over a 3 1/2” Pulley (82). Attach the Pulley and a Cable Trap (80) to the indicated hole in the Press Frame (12) with a 3/8” x 3 1/2” Bolt (66), a 3/8” Washer (38), and the 3/8” Nylon Locknut (42).
37. Wrap the Press Cable (88) around a “V”-pul­ley (81). Attach the “V”-pulley to the lower bracket on the Leg Press Upright (4) with a 3/8” x 2 1/4” Bolt (97) and a 3/8” Nylon Jamnut (43).
38. Wrap the Press Cable (88) around a 3 1/2” Pulley (82). Attach the Pulley and a Cable Trap (80) to the Leg Press Arm (9) with the 3/8” x 5” Bolt (74).
Slide another 3 1/2” Pulley (82) with a Cable Trap (80) onto the 3/8” x 5” Bolt (74). Hand tighten a 3/8” Nylon Locknut (42) onto the Bolt. Do not tighten the Locknut until com-
pleting step 40.
39. Wrap the Press Cable (88) around a “V”-pul­ley (81). Attach the “V”-pulley and a Large Cable Trap (83) to the bracket on the Front Seat Frame (8) with a 3/8” x 2 1/2” Bolt (65) and a 3/8” Nylon Locknut (42). Make sure
that the Large Cable Trap is turned to hold the Cable in place and that the Cable and Pulley move smoothly.
39
36
37
38
CABLE ASSEMBLY
83
65
81
88
42
8
88
42
80
38
12
82
66
42
82
82
9
80
80
74
88
88
81
4
97
43
17
40. Note: The 3 1/2” Pulley (82) used in this step was attached in step 38. It is shown removed for easier part identification.
Route the Press Cable (88) around the 3 1/2” Pulley (82). Be sure that the Cable Trap (80)
is turned to hold the Cable in place and that the Cable is routed as shown. Tighten
the 3/8” x 5” Bolt (74) and the 3/8” Nylon Locknut (42).
41. Slide a 5/16” Washer (20) onto a 5/16” x 2 3/4” Bolt (55). Insert the Bolt into the Front Seat Frame (8). Fully tighten a 5/16” Nylon Jamnut (91) onto the Bolt. Slide the end of the Press Cable (88) onto the Bolt. Thread another 5/16” Nylon Jamnut onto the Bolt, but do not
fully tighten it. Leave enough room between the two Jamnuts for the Cable to pivot.
42. Identify the High Cable (85)—this is the shortest remaining cable. Wrap the High
Cable around a 3 1/2” Pulley (82). Attach the Pulley to the Top Frame (2) with a 3/8” x 3 3/4” Bolt (76), a 3/8” Washer (38), and a 3/8” Nylon Locknut (42). Make sure that the end
of the Cable with the ball is on the indicat­ed side of the Pulley and that the Cable is between the Pulley and the post.
43. Wrap the High Cable (85) around a 3 1/2” Pulley (82). Attach the Pulley and a Cable Trap (80) to the Top Frame (2) with a 3/8” x 3 3/4” Bolt (76), a 3/8” Washer (38), and a 3/8” Nylon Jamnut (43). Make sure that the
Cable Trap is positioned to hold the Cable in place.
43
41
42
CABLE ASSEMBLY
42
38
2
76
82
85
Post
85
80
38
76
2
82
43
40
9
82
42
80
88
91
8
88
20
55
74
18

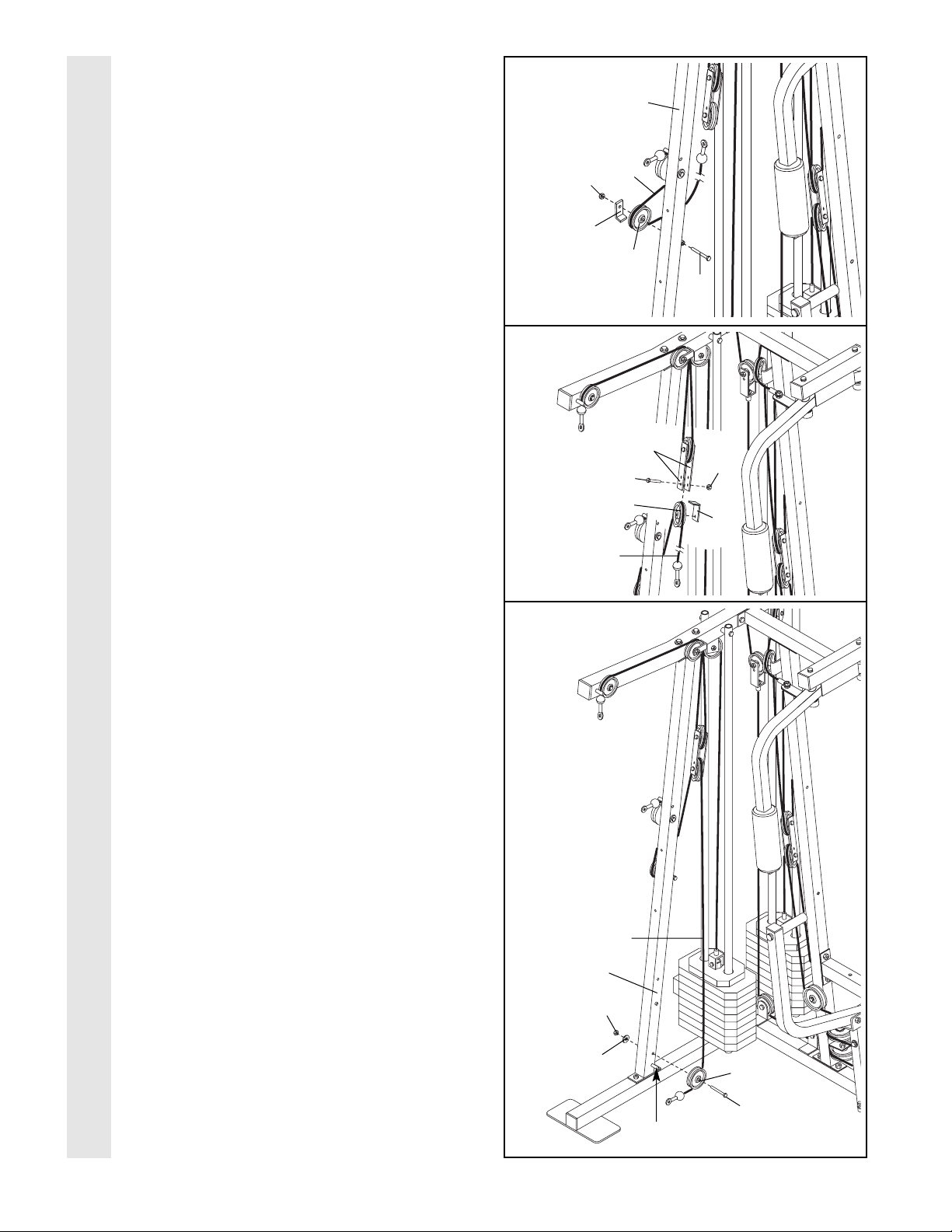

44. Locate the remaining preassembled pair of Pulley Plates (31) and 3 1/2” Pulleys (82).
Route the High Cable (85) under the indicated 3 1/2” Pulley (82). The end of the Pulley Plates (31) with two holes should be down­ward. Refer to the inset drawing. Be sure
that the Cable is between the Cable Trap (80) and the Pulley, and that the Cable Trap is positioned to hold the Cable in place.
Tighten the 3/8” x 2” Bolt (50) and the 3/8” Nylon Locknut (not shown).
45. Wrap the High Cable (85) around a 3 1/2” Pulley (82). Attach the Pulley to the Top Frame (2) with a 3/8” x 2” Bolt (50) and a 3/8” Nylon Locknut (42). The Cable must be
routed from the direction shown.
46. Attach the High Cable (85) to a Small “U”­bracket (32) with a 1/4” Nylon Locknut (44) and a 1/4” Washer (37). Do not completely
tighten the Locknut. It should be threaded onto the end of the Cable only a couple of turns, as shown in the inset drawing.
Attach the Small “U”-bracket (32) to the indi­cated Weight Tube (25) with a 5/16” x 1 3/4” Bolt (68) and a 5/16” Nylon Locknut (40).
47. Locate the Low Cable (86). Wrap the Low Cable over a 3 1/2” Pulley (82). Attach the Pulley and both Pulley Covers (94) to the Ab Upright (1) with the 3/8” x 4” Bolt (95), two 3/8” Washers (38), and a 3/8” Nylon Locknut (42). Do not overtighten the Locknut; the
Pulley should turn easily. Make sure that the Cable is between the Pulley and the post, and that the Pulley Covers are turned so the wide tabs are on the indicated side.
47
44
45
46
CABLE ASSEMBLY
85
85
80
50
31
42
Post
1
86
Wide
tabs
must be
on this
side
38
38
95
94
94
82
End with two
holes should
be down
50
82
2
42
32
68
85 40
37
44
25
85
44
32
37
82
85
19
48. Wrap the Low Cable (86) around a 3 1/2” Pulley (82). Attach the Pulley and a Cable Trap (80) to the Ab Upright (1) with the 3/8” x 3 3/4” Bolt (76) and a 3/8” Nylon Locknut (42).
Be sure that the Cable Trap is in the indi­cated position.
49. Remove the indicated 3/8” x 2” Bolt (50), the 3/8” Nylon Locknut (42), the 3 1/2” Pulley (82), and the Cable Trap (80) from the indicat­ed Pulley Plates (31). Wrap the Low Cable (86) over the Pulley. Reattach the Pulley and the Cable Trap to the lowest hole in the Pulley Plates with the Bolt and the Locknut.
Make sure that the Cable Trap is turned to hold the Cable in place.
50. Wrap the Low Cable (86) around a 3 1/2” Pulley (82). Attach the Pulley to the Ab Upright (1) with the 3/8” x 3 3/4” Bolt (76), a 3/8” Washer (38), and a 3/8” Nylon Locknut (42). The ball on the Cable must be on the
indicated side of the Pulley. Make sure that the Cable and Pulley move smoothly and that the Cable is between the Pulley and the post.
48
49
50
CABLE ASSEMBLY
42
31
42
82
80
50
80
82
86
76
1
42
38
82
76
Post
86
1
86

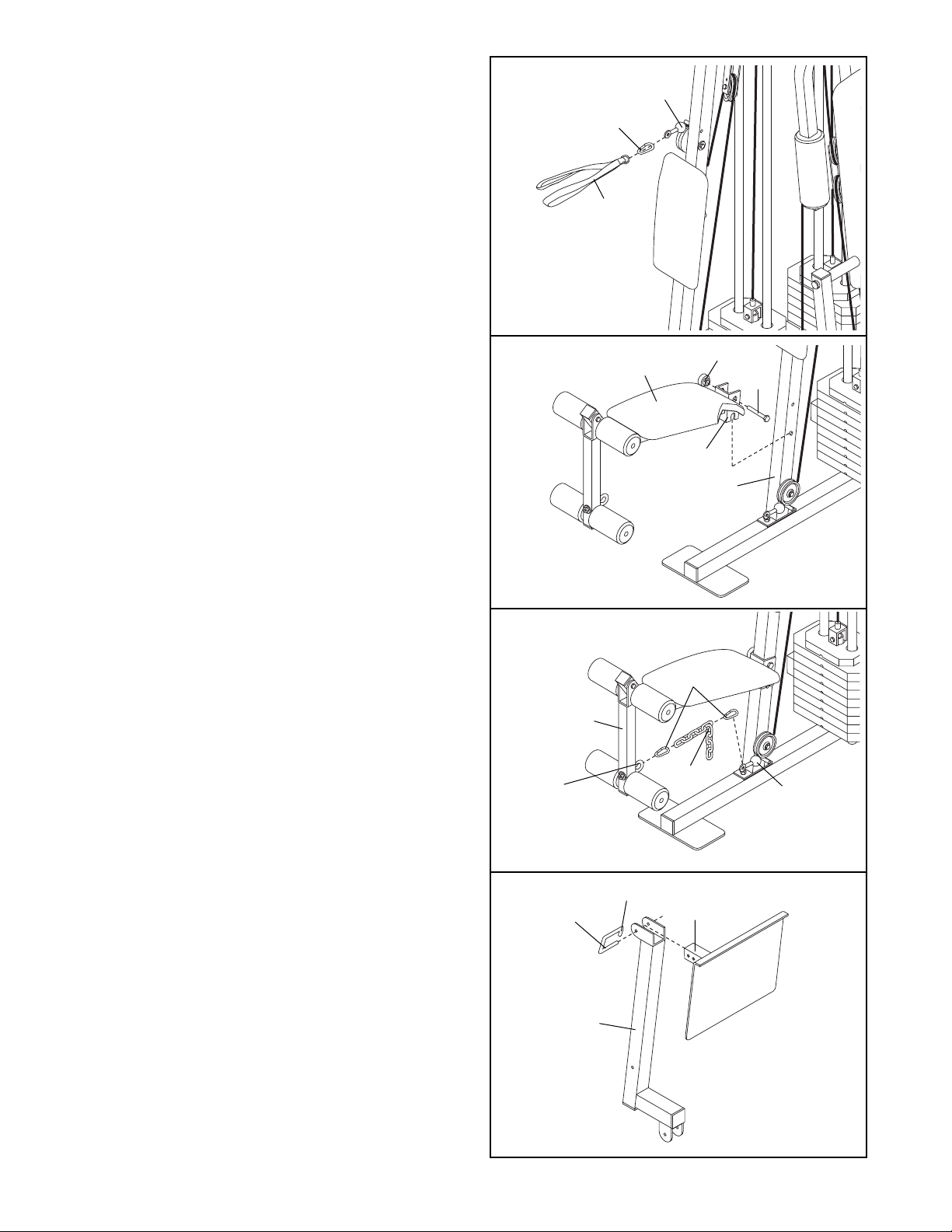

51. Locate and open the parts bag labeled
“SEAT ASSEMBLY.”
Attach the Small Backrest (18) to the Ab Upright (1) with two 1/4” x 2 1/2” Machine Screws (64) and two 1/4” Washers (37).
52. Press a 1 1/2” Square Inner Cap (57) into the Rear Seat Frame (16).
Insert a 1/4” x 2” Carriage Bolt (61) through the center hole in a Seat Plate (41). Attach the Seat Plate to the Seat (17) with two 1/4” x 3/4” Screws (59).
Insert the 1/4” x 2” Carriage Bolt (61) through the indicated hole in the Rear Seat Frame (16). Tighten a 1/4” Nylon Locknut (44) and a 1/4” Washer (37) onto the Carriage Bolt.
Attach the other end of the Seat (17) to the Rear Seat Frame (16) with a 1/4” Washer (37) and a 1/4” x 2” Machine Screw (63).
53. Press a 1 1/2” Square Inner Cap (57) into the Leg Lever (15).
Lubricate the 5/16” x 2 1/4” Bolt (62) with grease. Attach the Leg Lever (15) to the Rear Seat Frame (16) with the Bolt and a 5/16” Nylon Locknut (40). Do not overtighten the
Locknut; the Leg Lever must pivot freely.
Insert the 3/8” x 2” Eyebolt (79) into the Leg Lever (15) from the direction shown. Tighten a 3/8” Nylon Locknut (42) and a 3/8” Washer (38) onto the Eyebolt.
54. Rest the slot in the Rear Seat Frame (16) on the indicated post in the Ab Upright (1). Attach the Rear Seat Frame to the Ab Upright with a 5/16” x 2 3/4” Carriage Bolt (77) and the Seat Knob (30).
54
51
52
53
20
SEAT ASSEMBL Y
Slot
44
63
17
16
57
41
61
59
1
18
Post
1
77
16
30
16
Lubricate
62
57
42
38
40
15
79
37
64
37
55
56
57
SEAT ASSEMBL Y
21
58. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in ADJUSTMENTS, beginning on the following page.
Before using the weight system, pull each cable a few times to be sure that the cables move smoothly over the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPOR-
TANT: If the cables are not properly installed, they may be damaged when heavy weight is used. See the CABLE DIAGRAMS on page 26 and 27 of this manual for proper cable routing. If there is any slack in the cables, you will need to remove the slack by tightening the cables. See TROUBLESHOOTING AND MAINTENANCE on page 25.
55. Press two 3/4” Round Inner Caps (78) into each Pad Tube (28).
Insert a Pad Tube (28) into the Rear Seat Frame (16). Slide two Foam Pads (29) onto the ends of the Pad Tube.
Insert the other Pad Tube (28) into the Leg Lever (15). Slide two Foam Pads (29) onto the ends of the Pad Tube.
56. Attach the Large Backrest (19) to the Leg Press Upright (4) with two 1/4” x 2 1/2” Machine Screws (64) and two 1/4” Washers (37).
57. Insert a 1/4” x 2 1/2” Carriage Bolt (60) through the center hole in a Seat Plate (41). Attach the Seat Plate to the Seat (17) with two 1/4” x 3/4” Screws (59).
Insert the 1/4” x 2 1/2” Carriage Bolt (60) through the indicated hole in the Front Seat Frame (8). Tighten a 1/4” Nylon Locknut (44) with a 1/4” Washer (37) onto the Carriage Bolt.
Attach the other end of the Seat (17) to the Front Seat Frame (8) with a 1/4” Washer (37) and a 1/4” x 2 1/2” Machine Screw (64).
37
4
19
64
17
59
60
8
37
44
41
64
16
15
78
29
28
78
29
22
ADJUSTMENTS
The instructions below describe how each part of the weight system can be adjusted. Refer to the exercise guide accompanying this manual to see how the weight system should be set up for each exercise. IMPOR-
TANT: When attaching the lat bar or nylon strap, make sure that the attachments are in the correct start­ing position for the exercise to be performed. If there is any slack in the cables or chain as an exercise is performed, the effectiveness of the exercise will be reduced.
96
85
33
34
36
93
93
90

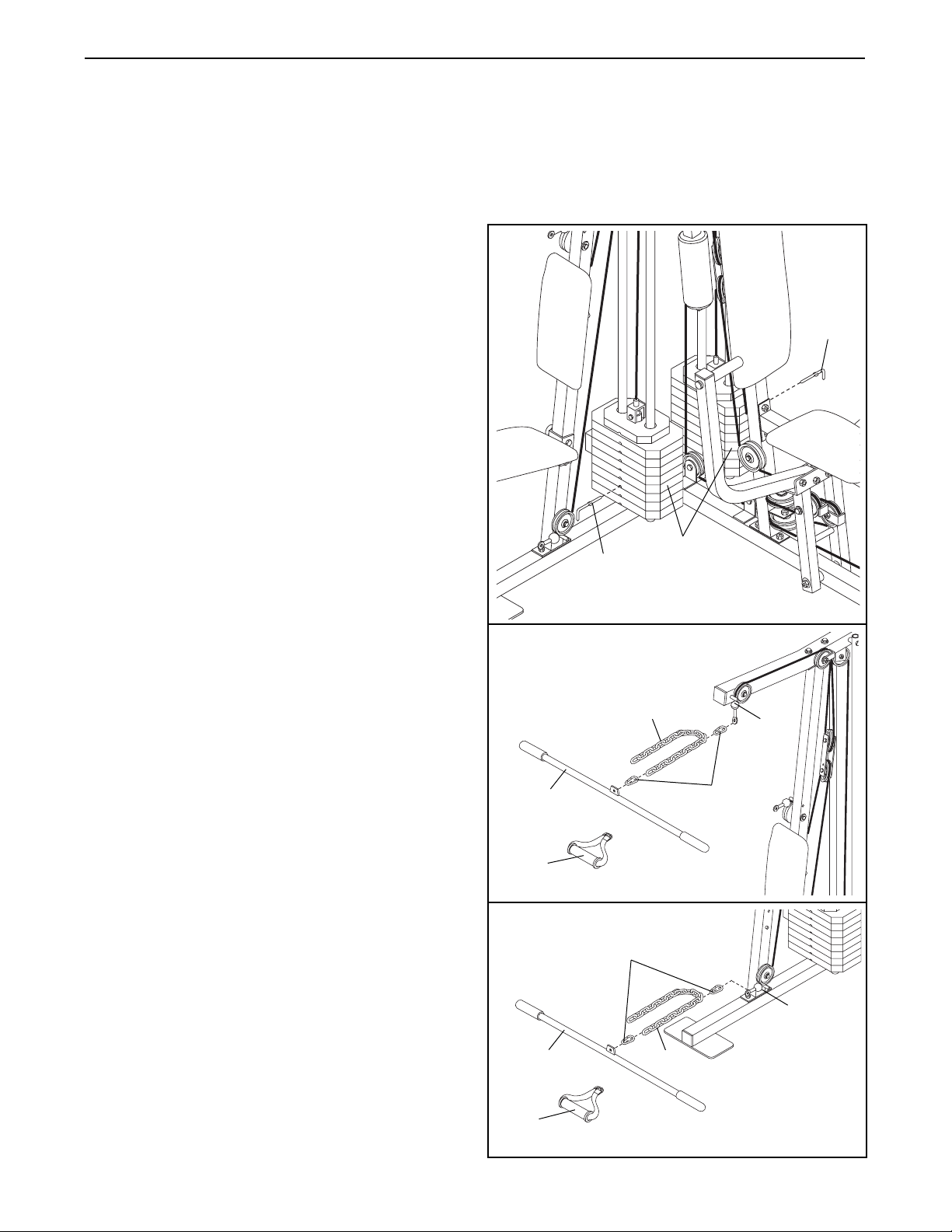

CHANGING THE WEIGHT SETTING
The weight system features two weight stacks. One weight stack is connected to the ab, upper, and lower pulley stations. The other weight stack is connected to the fly and press arms, and the leg press.
To change the weight setting of either weight stack, insert a Weight Pin (93) under the desired Weight (90). Insert the Weight Pin until the bent end of the Weight Pin is touching the Weights, and turn the bent end downward. The weight setting of either weight stack can be changed from 6.5 pounds to 106.5 pounds, in increments of 12.5 pounds. Note: Due to
the cables and pulleys, the amount of resistance at each exercise station may vary from the weight setting. Use the WEIGHT RESISTANCE CHART on page 24 to find the approximate amount of resis­tance at each weight station.
ATTACHING THE LAT BAR OR HANDLE TO THE HIGH PULLEY STATION
Attach the Lat Bar (36) to the High Cable (85) with a Cable Clip (33). For some exercises, the Chain (34) should be attached between the Lat Bar and the High Cable with two Cable Clips. Adjust the length of the
Chain between the Lat Bar and the High Cable so the Lat Bar is in the correct starting position for the exercise to be performed.
The Handle (96) can be attached in the same man­ner.
ATTACHING THE LAT BAR OR HANDLE TO THE LOW PULLEY STATION
Attach the Lat Bar (36) to the Low Cable (86) with a Cable Clip (33). For some exercises, the Chain (34) should be attached between the Lat Bar and the Low Cable with two Cable Clips. Adjust the length of the
Chain between the Lat Bar and the Low Cable so the Lat Bar is in the correct starting position for the exercise to be performed.
The Handle (96) can be attached in the same man­ner.
96
86
33
34
36
23
ATTACHING THE AB STRAP TO THE AB PULLEY STATION
Attach the Ab Strap (35) to the Low Cable (86) at the ab pulley station with a Cable Clip (33).
ATTACHING AND REMOVING THE SEAT
To attach the Seat (17), set the bracket on the Rear Seat Frame (16) onto the pins on the Ab Upright (1). Attach the Rear Seat Frame to the Ab Upright with the 5/16” x 2 3/4” Carriage Bolt (77) and the Seat Knob (30).
For some exercises, the Seat (17) must be removed. First, be sure that the chain is not attached to the leg lever (see ATTACHING THE LEG LEVER TO THE LOW PULLEY STATION below). Next, remove the Seat Knob (30) and the 5/16” x 2 3/4” Carriage Bolt (77) from the Rear Seat Frame (16). Lift the Rear Seat Frame off the Ab Upright (1).
ATTACHING THE LEG LEVER TO THE LOW PULLEY STATION
To use the Leg Lever (15), the seat must be attached to the front upright (see ATTACHING AND REMOVING THE SEAT above).
Attach one end of the Chain (34) to the Low Cable (86) with a Cable Clip (33). Attach the other end of the Chain to the 3/8” x 2” Eyebolt (79) with another Cable Clip.
ADJUSTING THE LEG PRESS PLATE
Remove the Lock Pin (73) from the Adjustment Tube (10).
Align the holes in the Leg Press Arm (9) with the desired set of holes in the Adjustment Tube (10). Re­insert the Lock Pin (73) through the holes in the Leg Press Arm and the holes in the Adjustment Tube.
Make sure that the hook on the Lock Pin is clipped in place on the Adjustment Tube.
17
30
1
15
79
86
10
9
73
Hook
33
34
77
16
86
33
35
24
WEIGHT RESISTANCE CHART
This chart shows the approximate weight resistance at each weight station. “Top” refers to the 6.5 lb. top weight. The other numbers refer to the 12.5 lb. weight plates. The butterfly arm resistance listed is the resistance for each butterfly arm.
WEIGHT PRESS BUTTERFLY LEG HIGH LOW LEG AB
ARM ARM LEVER PULLEY PULLEY PRESS PULLEY
PLATES (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.) (lbs.)
Top 27 20 9 10 10 52 10
153371824249425 2795033404114140 3 101 65 38 53 53 180 53 4 125 83 48 66 63 228 68 5 148 103 58 80 80 263 83 6 175 120 68 96 91 310 96 7 205 143 76 107 101 358 110 8 240 173 90 123 120 410 124
The actual resistance at each weight station may vary due to differences in individual weight plates, as well as friction between the cables, pulleys, and weight guides.
TROUBLESHOOTING AND MAINTENANCE
Inspect and tighten all parts each time the weight system is used. Replace any worn parts immediately. The weight system can be cleaned using a damp cloth and mild non-abrasive detergent. Do not use solvents.

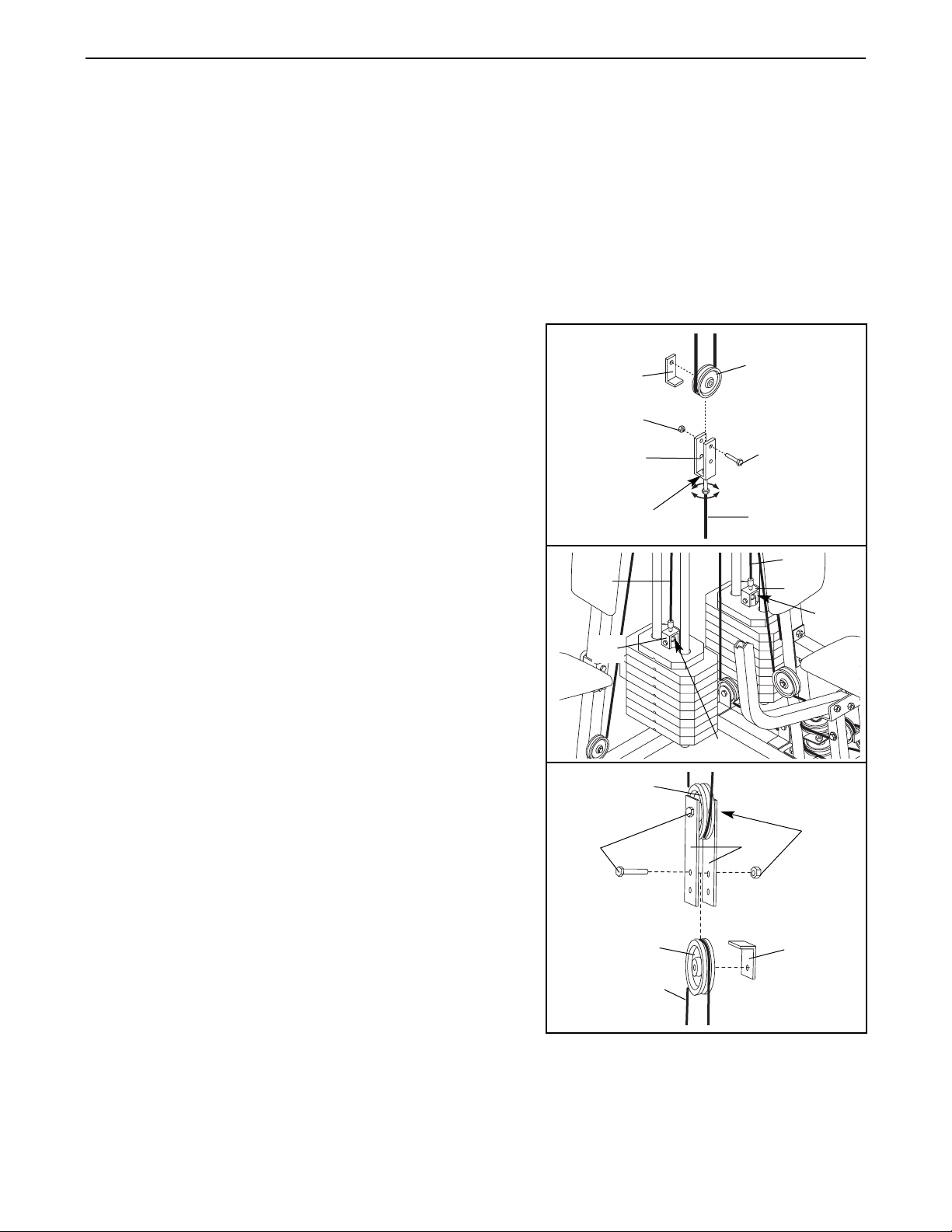

TIGHTENING THE CABLES
Woven cable, the type of cable used on the weight system, can stretch slightly when it is first used. If there is slack in the cables before resistance is felt, the cables should be tightened. If any slack is felt when using the weight stack closest to the ab upright, both the High Cable (85) and the Low Cable (86) will need to be tight­ened. If any slack is felt when using the other weight stack, the Rear Cable (87), the Press Cable (88), and the Butterfly Cable (89) will need to be tightened.
To tighten the cables, first insert the weight pin into the mid­dle of the weight stack. Slack can be removed from these cables several ways:
See drawing 1. Tighten the 1/4” Nylon Locknut (44) that connects the end of the Press Cable (88) to the Large “U”-bracket (84).
See drawing 1. Remove the 3/8” Nylon Locknut (42) and the 3/8” x 2” Bolt (50) from the Cable Trap (80), 3 1/2” Pulley (82), and Large “U”-bracket (84). Reattach the Pulley and Cable Trap to the other hole in the Large “U”­bracket. Make sure that the Cable Trap is in the proper
position and that the Cable and Pulley move smooth­ly.
See drawing 2. Tighten the 1/4” Nylon Locknut (44) that connects the end of the High Cable (85) to the Small “U”­bracket (32).
The Rear Cable (87) can be tightened in the same manner.
See Drawing 3. If you feel additional slack while using the weight system, the Low Cable (86) and the Press Cable (88) can be tightened further.
Remove the 3/8” x 2” Bolts (50), the 3/8” Nylon Locknuts (42), the 3 1/3” Pulleys (82), and the Cable Traps (80) from the Pulley Plates (31). Reattach the upper Pulley without the Cable Trap. Reattach the lower Pulley to the higher hole in the Pulley Plates without the Cable Trap. Keep the Cable Traps for future use. Make sure that the
Cable and Pulley move smoothly.
Do not overtighten the cables. If the cables are overtight­ened, the top weight will be lifted off the weight stack.
If a cable tends to slip off the pulleys often, it may have become twisted. Remove the cable and re-install it.
If the cables need to be replaced, see ORDERING REPLACEMENT PARTS on the back cover of this manual.
84
32
32
80
82
44
44
44
88
42
87
85
86, 88
82
82
31
80
42
50
2
3
1
50
25
26
CABLE DIAGRAMS
The cable diagrams on this page and the next page show the proper routing of the High Cable (85), the Low Cable (86), the Rear Cable (87), the Press Cable (88), and the Butterfly Cable (89). Use the diagrams to be sure that the cables have been assembled correctly. The starting and ending points of each cable have been labeled. The numbers show the proper route for each cable. IMPORTANT: If the cables have not been correctly rout-
ed, the weight system will not function properly and damage may occur.
Low Cable (86)
Butterfly Cable (89)
Press Cable (88)
2
4
1—Right Fly Arm
3
5—Left Fly Arm
2
3
4—Low Pulley
1—Long “U” Bracket
8
9
7
6
3
Leg Press—13
Ab Pulley—1
4
5
2
10
12
11
27
High Cable (85) Rear Cable (87)
Weight Stack—5
High Pulley—1
2
2
3
3
1—Top Frame
4—Weight Stack
4
3/8" Nylon Jamnut (43)
3/8" x 2" Eyebolt (79)
5/16" x 1 3/4" Bolt (68)
3/8" x 2" Bolt (50)
5/16" x 2 1/4" Bolt (62)
1/4" Washer (37)
5/16" Washer (20)
3/8" Washer (38)
1/4" Nylon Locknut (44)
5/16" Nylon Locknut (40)
5/16" Nylon Jamnut (91)
3/8" Nylon Locknut (42)
1/4" x 2 1/2" Machine Screw (64)
1/4" x 2" Machine Screw (63)
"V" Pulley (81)
(Not shown to scale)
3 1/2" Pulley (82)
(Not shown to scale)
1" Retainer (45)
3/8" x 2 1/4" Bolt (97)
1/4" x 2" Carriage Bolt (61)
5/16" x 1" Shoulder Bolt (51)
1/4" x 3/4" Screw (59)
1" Tap Screw (72)
PART IDENTIFICATION CHART—Model No. WESY26330 R1103A
1" x 7/8" Plastic Bushing (54)
1 1/8" x 2 1/2" Plastic Bushing (47)
1" Inner Cap (98)
1/2" x 3/4" Spacer (69)
1" Round Inner Cap (70)
1 1/2" Square Inner Cap (57)
1" Round Outer Cap (46)
3/4" Round Inner Cap (78)
1 3/4" Square Inner Cap (48)
2" Square Inner Cap (56)2" Square Outer Cap (58)
5/16" x 2 1/2" Bolt (39)
3/8" x 2 1/2" Bolt (65)
1/4" x 2 1/2" Carriage Bolt (60)
5/16" x 2 1/2" Carriage Bolt (49)
5/16" x 2 3/4" Bolt (55)
5/16" x 2 3/4" Carriage Bolt (77)
5/16" x 3" Bolt (92)
3/8" x 5" Bolt (74)
5/16" x 6" Bolt (67)
3/8" x 8" Bolt (52)
3/8" x 3 1/4" Bolt (71)
3/8" x 3 1/2" Bolt (66)
3/8" x 3 3/4" Bolt (76)
3/8" x 4" Bolt (95)
Cable Clip (33)
PART LIST—Model No. WESY26330 R1103A
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice.
Key No. Qt y. Description
11Ab Upright 21Top Frame 31Butterfly Frame 41Leg Press Upright 51Right Fly Arm 61Left Fly Arm 72Press Arm 81Front Seat Frame
91Leg Press Arm 10 1 Adjustment Tube 11 1 Leg Press Plate 12 1 Press Frame 13 1 Press Base 14 1 Weight Base 15 1 Leg Lever 16 1 Rear Seat Frame 17 2 Seat 18 1 Small Backrest 19 1 Large Backrest 20 12 5/16” Washer 21 4 5” Plastic Grip 22 2 10” Pad 23 4 Weight Guide 24 2 Top Weight 25 2 Weight Tube 26 2 Weight Tube Bumper 27 4 Weight Bumper 28 2 Pad Tube 29 4 Foam Pad 30 1 Seat Knob 31 4 Pulley Plate 32 2 Small “U”-bracket 33 4 Cable Clip 34 1 Chain 35 1 Ab Strap 36 1 Lat Bar 37 11 1/4” Washer 38 9 3/8” Washer 39 5 5/16” x 2 1/2” Bolt 40 27 5/16” Nylon Locknut 41 2 Seat Plate 42 22 3/8” Nylon Locknut 43 4 3/8” Nylon Jamnut 44 5 1/4” Nylon Locknut 45 4 1” Retainer 46 2 1” Round Outer Cap 47 2 1 1/8” x 2 1/2” Plastic Bushing 48 7 1 3/4” Square Inner Cap 49 6 5/16” x 2 1/2” Carriage Bolt 50 11 3/8” x 2” Bolt
Key No. Qt y. Description
51 2 5/16” x 1” Shoulder Bolt 52 1 3/8” x 8” Bolt 53 1 Leg Press Bumper 54 2 1” x 7/8” Plastic Bushing 55 10 5/16” x 2 3/4” Bolt 56 8 2” Square Inner Cap 57 2 1 1/2” Square Inner Cap 58 2 2” Square Outer Cap 59 4 1/4” x 3/4” Screw 60 1 1/4” x 2 1/2” Carriage Bolt 61 1 1/4” x 2” Carriage Bolt 62 1 5/16” x 2 1/4” Bolt 63 1 1/4” x 2” Machine Screw 64 5 1/4” x 2 1/2” Machine Screw 65 1 3/8” x 2 1/2” Bolt 66 2 3/8” x 3 1/2” Bolt 67 4 5/16” x 6” Bolt 68 2 5/16” x 1 3/4” Bolt 69 8 1/2” x 3/4” Spacer 70 2 1” Round Inner Cap 71 1 3/8” x 3 1/4” Bolt 72 1 1” Tap Screw 73 1 Lock Pin 74 1 3/8” x 5” Bolt 75 2 Press Bushing 76 5 3/8” x 3 3/4” Bolt 77 1 5/16” x 2 3/4” Carriage Bolt 78 4 3/4” Round Inner Cap 79 1 3/8” x 2” Eyebolt 80 16 Cable Trap 81 3 “V”-pulley 82 21 3 1/2” Pulley 83 1 Large Cable Trap 84 1 Large “U”-bracket 85 1 High Cable 86 1 Low Cable 87 1 Rear Cable 88 1 Press Cable 89 1 Butterfly Cable 90 16 Weight 91 6 5/16” Nylon Jamnut 92 1 5/16” x 3” Bolt 93 2 Weight Pin 94 2 Pulley Cover 95 1 3/8” x 4” Bolt 96 1 Handle 97 2 3/8” x 2 1/4” Bolt 98 2 1” Inner Cap
#1User’s Manual #1Exercise Guide
EXPLODED DRAWING—Model No. WESY26330 R1103A
40 20
10
48
70
48
22
6
47
51
47
89
51
56
3
20
55
92
56
40
55
67
69
56
91
91
55
20
50
42
87
20 40
42
38
76
55
38
42
45
91
48
89
50
80
82
98
82
80
50
82
40
69
40
82
43
80
50
82
76
2
56
48
46
45
46
5
91
19
4
40
50
50
37
42 42
50
64
31
44
37
84
42
67
85
42
88
23
37
40
44
32
87
68
23
80
22
48
20
37
64
82
80
24
40
44
37
32
85
68
42
31
40
50
1
94
82
94
38
42
7
73
21
17
43
38
20
82
55
69
25
26
24
67
82
95
38
80
42
86
60
41
40
21
48
43
97
40
80
76
40
40
25
64
37
76
82
18
37
40
39
70
81
40
43
93
90
26
67
64
30
17
57
20
91
56
91
8 37
59
44
65
83
66
64
38
66
7
97
90
93
69
77
86
42
41
59
61
29
78
11
42
39
80
9
82
72
88
53
40
82
42
80
42
81
82
54
38
12
80
42
82
80
82
21
58
27
20
55
27
58
76
82
40
29
40
38
37
63
28
16
37
44
62
15
40
29
78
56
42
71
82
56
80
74
20
55
52
40
50
96
36
35
34
33
14
20
55
78
29
28
79
57 38 42
75
49
13
49
21
49
56
ORDERING REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be pre­pared to give the following information:
1. The MODEL NUMBER of the product (WESY26330)
2. The NAME of the product (WEIDER
®
PRO 3750 weight system)
3. The SERIAL NUMBER of the product (see the front cover of this manual)
4. The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING attached at the center of this manual)
Part No. 203698 R1103A Printed in Canada © 2003 ICON Health & Fitness, Inc.
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur­chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim­ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, mis­use, improper or abnormal usage or repairs not provided by an ICON authorized service center; products used for commercial or rental purposes; or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con­nection with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci­dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Loading...
