Model No. WESY39243
Visit our website at
www.weiderfitness.com
new products, prizes,
fitness tips, and much more!
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing or damaged parts, we
will guarantee complete satisfaction through direct assistance from our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLLFREE CUSTOMER HOT LINE.
The trained technicians on our
customer hot line will provide
immediate assistance, free of
charge.
CUSTOMER HOT LINE:
1-877-992-5999
Mon.–Fri., 6 a.m.–6 p.m. MST
USER’S MANUAL
CAUTION
Read all precautions and instructions in this manual before
using this equipment. Save this
manual for future reference.
TABLE OF CONTENTS
Keep hands and
fingers clear of
this area.
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE
ASSEMBL
ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
CABLE DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached in the center of
this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before beginning assembly.
YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
WARNING DECAL PLACEMENT
The decals shown here have been
placed on the resistance system. If a
decal is missing or illegible, please call
our Customer Service Department tollfree at 1-877-992-5999, Monday through
Friday, 6 a.m. until 6 p.m. Mountain
Time, to order a free replacement decal.
Apply the decal in the location shown.
MAX by WEIDER is a trademark of ICON IP
2
, Inc.
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of serious injury, read the following important precautions
before using the resistance system.
1. Read all instructions in this manual before
using the resistance system. Use the resist
ance system only as described in this manual.
2. It is the responsibility of the owner to ensure
that all users of the resistance system are
adequately informed of all precautions.
3. The resistance system is intended for home
use only. Do not use the resistance system in
any commercial, rental, or institutional setting.
4. Use the resistance system only on a level
surface. Cover the floor beneath the resistance system to protect the floor.
5. Make sure that all parts are properly tightened each time the resistance system is
used. Replace any worn parts immediately.
6. Keep children under 12 and pets away from
the resistance system at all times.
7. Keep hands and feet away from moving parts.
8. Always wear athletic shoes for foot protection while exercising.
9. The top frame is not designed to be used for
pull-up exercises. Do not hang on the top
frame.
10. The resistance system is designed to support a maximum user weight of 300 pounds.
-
12. The resistance system is designed to be
used with the included resistance, and the
resistance included with a MAX by WEIDER
Power Pak. Do not use the resistance system
with any other type of resistance.
13. When adding resistance, both ends of the
resistance bars must rest under the two “U”channels. Add and remove resistance bars
from the “U”-channels one resistance bar at
a time.
14. Keep clear of the area around the “U”-channels while the resistance system is in use.
Do not add or remove resistance bars from
the “U”-channels while the end of the long
cable is pulled out.
15. Always adjust the resistance bar assembly to
the horizontal position and make sure the
fulcrum knob is secure before using the
resistance system.
16. Make sure the rings on the resistance bars
are pushed against the tray before using the
resistance system.
17. Always disconnect the lat bar from the short
cables when performing an exercise that
does not require it.
18. Make sure the storage knob is in place and
fully tightened each time the resistance sys
tem is used.
™
-
Make sure that the cables remain on the pul
11. Pull on the low pulley cable only while sitting
on the bench or standing on the base plate.
Pull on the high pulley cables only while sit
ting on the bench, with the seat in one of the
three positions closest to the upright base,
or while standing on the base plate.
19.
leys at all times. If the cables bind as you are
-
exercising, stop immediately and make sure
that the cables are on the pulleys.
20. If you feel pain or dizziness while exercising,
stop immediately and begin cooling down.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
3
-
BEFORE YOU BEGIN
Thank you for selecting the innovative MAX by WEI-
™
ULTRA resistance system. The resistance sys-
DER
tem offers a selection of stations designed to develop
every major muscle group of the body
goal is to tone your body, build dramatic muscle size
and strength, or improve your cardiovascular system,
the resistance system will help you to achieve the specific results you want.
For your benefit, read this manual carefully before
using the resistance system. If you have questions
ASSEMBLED
DIMENSIONS:
Height: 82 in.
Width: 66 in.
Depth: 80 in.
Fulcrum Knob
. Whether your
after reading this manual, please call our Customer
Service Department toll-free at 1-877-992-5999,
Monday through Friday, 6 a.m. until 6 p.m. Mountain
ime (excluding holidays). To help us assist you, please
T
note the product model number and serial number
before calling. The model number is WESY39243. The
serial number can be found on a decal attached to the
resistance system (see the front cover of this manual).
Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
Top Frame
Lat Tower
High Pulley
Resistance Bars
Upright
Storage Knob
Backrest
Seat Knob
Leg Lever
“U”-Channel
Foot Plate
Low Pulley
Base Plate
Seat
Lat Bar
4
ASSEMBLY
Make Things Easier for Yourself
This manual is designed to ensure that the resistance system can be assembled successfully by
most people. However, it is important to realize
that the versatile resistance system has many
parts and that the assembly process will take
time. Most people find that by setting aside plenty
of time, assembly will go smoothly.
Before beginning assembly, carefully read the
following information and instructions:
Assembly requires two persons.
•
• Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
• For help identifying small parts, use the PART
IDENTIFICATION CHART. Note: Some small
parts may have been pre-attached for shipping. If
a part is not in the parts bag, check to see if it
has been pre-attached.
• Tighten all parts as you assemble them, unless
instructed to do otherwise.
• As you assemble the resistance system, make
sure all parts are oriented as shown in the drawings.
The included Allen wrenches and the following tools (not included) are required for assembly:
• Two adjustable wrenches
• One rubber mallet
• One standard screwdriver
• One Phillips screwdriver
• Lubricant, such as grease or petroleum jelly,
and soapy water.
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
1.
Before beginning assembly, make sure that
you have read and understand the information in the box above.
Press two 2” Square Inner Caps (98) into the
Base (1).
Attach two Plastic Feet (53) and two Large Plastic
Feet (102) to the Base (1) with four #8 x 3/4” Tec
Screws (60).
Attach the Upright (3) to the Base (1) with two
3/8” x 2 3/4” Carriage Bolts (83), two 3/8” x 2 3/4”
Bolts (64), and four 3/8” Nylon Locknuts (76) as
shown.
plete if the Upright and Base are tipped on
their sides.
Note: This step will be easier to com
1
3
64
76
-
53
76
1
53
60
98
76
102
60
83
98
102
60
5
2. Attach a Wheel (31) to the outside of the Base (1)
with a 3/8” x 4 1/4” Bolt (81), three 3/8” Washers
(75), and a 3/8” Nylon Locknut (76).
tighten the Locknut; the Wheel must be able
to turn easily
Attach the other Wheel (not shown) in the
same manner.
.
Do not over
2
-
76
75
75
81
31
1
3. Press a 1 1/2” x 2 1/2” Inner Cap (41) into each
end of the Cross Tube (11).
Orient the Cross Tube (11) as shown, with the
welded tubes at the bottom. Attach the Foot Plate
(23) and the Cross
two 3/8” x 5 1/2” Carriage Bolts (73), two 3/8”
Washers (75), and two 3/8” Nuts (47). Do not
insert a bolt into the top hole in the Foot Plate
yet.
4. Press two 2 1/4” Round Outer Caps (27) onto the
ends of the Front Leg (6).
Orient the Bench Rail (5) as shown. Slide the Rail
Bracket (105) into the indicated end of the Bench
Rail, and align the holes in the Bracket with the
holes in the Bench Rail.
Orient the Front Leg (6) as shown. Attach the
Front Leg to the Bench Rail (5) with the Rail
Bracket (105), four 5/16” x 1” Button Screws (46),
and four 5/16” Split Washers (52).
Tube to the Upright (3) with
3
23
73
4
105
52
27
46
3
5
46
6
41
Holes
52
27
75
11
Welded
47
41
Tube

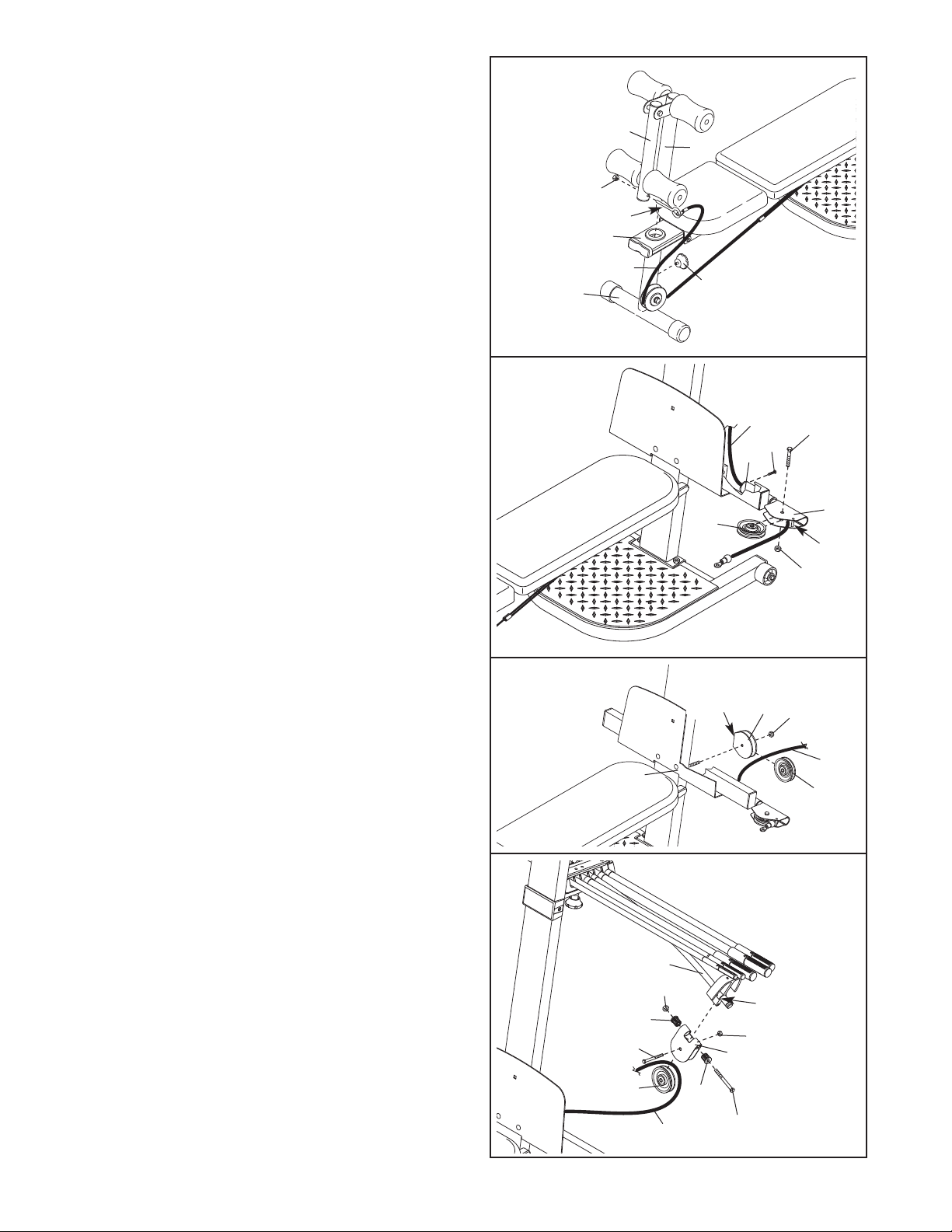

5. See the inset drawing. Snap the Seat Knob (45)
into the Seat Carriage (12) and attach it with two
M6 x 16mm Screws (82) and two M6 Black Nylon
Locknuts (69). Make sure the slot in the Knob
is aligned with the slot in the Seat Carriage.
Orient the Seat (13) and the Seat Backing (9) as
shown.
the Seat Carriage (12) with four M6 x 16mm
Screws (82).
Attach the Seat and the Seat Backing to
5
13
Round
End
12
82
82
9
12
Slot
45
82
69
6
6. Pull the Seat Knob (45, not shown) out as far as
it will go, and slide the Seat Carriage (12) onto
the Bench Rail (5). Engage the Seat Knob into
the third hole from the end of the Bench Rail.
6
45
Third
Hole
See the inset drawing. Thread the Hook (104)
into the bottom of the Bench Rail (5). Do not
overtighten the Hook, or the Bench Rail will
be difficult to assemble in step 7.
Press the two Rail Inner Caps (99), with the wide
ends on the top or bottom (as indicated), into the
ends of the Bench Rail (5). Attach the Caps with
four #8 x 3/4” Screws (62).
Locate the Leg Lever Cable (32), which has three
ends connected in the middle with a bracket.
Route the end of the Cable with the eyebolt under
a “V”-pulley (92). Attach the “V”-pulley to the
Front Leg (6) with a 3/8” x 4 1/4” Bolt (81) and a
3/8” Nylon Locknut (76).
ends of the Cable onto the Hook (104).
7. Attach the Bench Rail (5) to the Upright (3) with a
3/8” x 5 1/2” Bolt (66), a 3/4” Spacer (17), a 7/8”
Spacer (106), and a 3/8” Nylon Locknut (76).
Fully tighten the Storage Knob (30) into the
Upright and the Bench Rail.
Slide the other two
99
Wide
End
7
62
76
Eyebolt
5
12
62
32
92
6
Wide
End
62
104
81
76
99
62
5
30
3
8. Attach the Lat Tower (4) to the Upright (3) with
four 3/8” x 1” Button Screws (87) and four 3/8”
Split Washers (103).
ower (4)
Attach the Name Plate (89) to the Lat
with two #8 x 3/4” Screws (62).
T
17
5
106
8
4
87
62
89
62
3
103
66
87
7
9. Press two 1 1/2” Round Inner Caps (38) into the
ends of the Top Frame (10).
Attach two Eyebolts (34) to the Top Frame (10)
with two 5/16” W
Locknuts (65). Do not overtighten the Locknuts;
the Eyebolts must be able to rotate freely.
Attach the Top Frame (10) to the Lat Tower (4)
with two 3/8” x 3” Button Screws (70), two 3/8”
Washers (75), and the Top Frame Cover (93).
Make sure that the Eyebolts (34) are oriented
as shown in the inset drawing. If they are not,
turn the Top Frame around and reattach it.
ashers (59) and two 5/16” Nylon
9
Side View
10
34
59
38
65
34
70
75
93
10
4
34
65
59
38
4
10. Attach the two 10-pound Short Resistance Bar
Caps (20) to the 10-pound Center Resistance Bar
(44) with two M4 x 12mm Flat Head Screws (85).
Using ten M4 x 12mm Flat Head Screws (85),
attach the two 10-pound Resistance Bar Caps
(101) to the 10-pound Removable Resistance Bar
(67), the two 20-pound Resistance Bar Caps (88)
to the 20-pound Removable Resistance Bar (36),
the four 80-pound Resistance Bar Caps (100) to
the two 80-pound Resistance Bars (95), and the
two 40-pound Resistance Bar Caps (79) to the
40-pound Resistance Bar (96).
Locate the Fulcrum (18) on the Lat Tower (4) (see
1.
1
ray (35) onto the
the inset drawing). Slide the
rods on the Fulcrum.
ented as shown in the drawing.
Make sure the Tray is ori-
T
10
1
96
95
79
36
67
44
85
85
1
72
85
101
20
86
Edges
85
85
100
88
up
Set the Resistance Bars into the Tray (35) in the
following order: the 10-pound Removable
Resistance Bar
Resistance Bar
(95), the 10-pound Center Resistance Bar (44), an
80-pound Resistance Bar (95), and the 40-pound
Resistance Bar
rings are on the side shown and the arrows
point toward the Tray.
Attach the Cover Plate (72), with the edges up, to
the Tray (35) with two 5/16” x 3/4” Button Screws
(86).
(67), the 20-pound Removable
(36), an 80-pound
(96).
Make sure the indicated
Resistance Bar
8
Rings on
this side
4
18
35
18
Rods
67
96
44
95
95
36
12. Press two 1” Square Inner Caps (54) into the indicated end of the Backrest Frame (15).
12
Attach a Plastic Foot (53) to the Backrest Frame
(15) with a #8 x 3/4” Screw (62).
Orient the Backrest (14) and the Backrest
Backing (8) as shown. Attach the Backrest and
the Backrest Backing to the Backrest Frame (15)
with four M6 x 45mm Screws (58).
13. Insert the rod on the Backrest Frame (15) into the
slot in the Seat Carriage (12). Hold the Backrest
Frame vertically over the Seat Carriage and
slide the rod into the slot, as shown in the
inset drawing.
13
54
14
8
15
58
58
53
62
Press two 2” Round Inner Caps (57) into the top
14.
and bottom of the Leg Developer (19). Press two
1 3/4” Round Inner Caps (56) into the top and
bottom of the Leg Lever (7).
Lubricate a 3/8” x 2 3/4” Bolt (64) with grease.
Attach the Leg Lever (7) to the Leg Developer
(19) with the Bolt and a 3/8” Nylon Locknut (76).
Do not overtighten the Locknut; the Leg Lever
must be able to pivot easily.
Slide two Foam Pads (26) onto the tubes on the
Leg Lever (7). Press two 1 1/4” Round Inner
Caps (78) into the tubes. Repeat with the tube
on the Leg Developer (19).
14
Rod
15
26
78
12
56
Tube
56
76
7
19
15
Rod
Tube
Slot
12
57
64
Lubricate
57
78
9
15. Slide the Leg Developer (19) into the Bench Rail
(5). Align the hole in the Leg Developer with a
hole in the Front Leg (6).
(42) into the hole in the Leg Developer.
Connect the eyebolt on the Leg Lever Cable (32)
to the indicated side of the Leg Lever (7) with a
5/16” Nylon Locknut (65).
Tighten the Bench Knob
15
65
Eyebolt
5
6
7
19
32
42
16. Locate the Long Cable (80). Insert one end of
the Cable through the welded tube on the indicated end of the Cross Tube (11) and then through a
Swivel Arm (22). If necessary, use the tip of a
screwdriver to pull the end of the Cable out of the
Swivel Arm. Make sure the Cable is on the indi-
cated side of the welded rod in the Swivel Arm.
Insert the Swivel Arm (22) into the welded tube
on the Cross Tube (11). Secure the Swivel Arm
with a #8 x 3/8” Screw (107).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Swivel Arm
(22) with a 3/8” x 1 1/2” Button Bolt (71) and a
3/8” Nylon Locknut (76).
17. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a Pulley Guard (29) to
the indicated 3/8” x 5 1/2” Carriage Bolt (73) with
a 3/8” Nylon Locknut (76). Make sure the flat
edge of the Pulley Guard is on the side shown.
16
17
73
28
Flat
Edge
11
80
107
29
71
22
Rod
76
76
80
28
18. Attach a Pulley Housing (94) to the indicated “U”channel on the 10-pound Center Resistance Bar
(44) with a 3/8” x 4” Button Bolt (24), two Pivot
Bushings (74), and a 3/8” Nylon Locknut (76).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Pulley
Housing (94) with a 3/8” x 1 1/2” Button Bolt (71)
and a 3/8” Nylon Locknut (76).
10
18
71
28
74
44
76
80
“U”-Channel
76
94
74
24
19. Wrap the Long Cable (80) under a 90mm Pulley
(28) as shown. Attach the Pulley and a Pulley
Guard (29) to the Upright (3) with a 3/8” x 4 1/2”
Button Bolt (40) and a 3/8” Nylon Locknut (76).
sure the flat edge of the Pulley Guard is
Make
on the bottom.
19
40
3
28
76
29
80
Flat
Edge
20. Attach a Pulley Housing (94) to the indicated “U”channel on the 10-pound Center Resistance Bar
(44) with a 3/8” x 4” Button Bolt (24), two Pivot
Bushings (74), and a 3/8” Nylon Locknut (76).
Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley inside of the Pulley
Housing (94) with a 3/8” x 1 1/2” Button Bolt (71)
and a 3/8 Nylon Locknut (76).
21. Wrap the Long Cable (80) around a 90mm Pulley
(28). Attach the Pulley and a Pulley Guard (29) to
the indicated 3/8” x 5 1/2” Carriage Bolt (73) with
a 3/8” Nylon Locknut (76). Make sure the flat
edge of the Pulley Guard is on the side
shown.

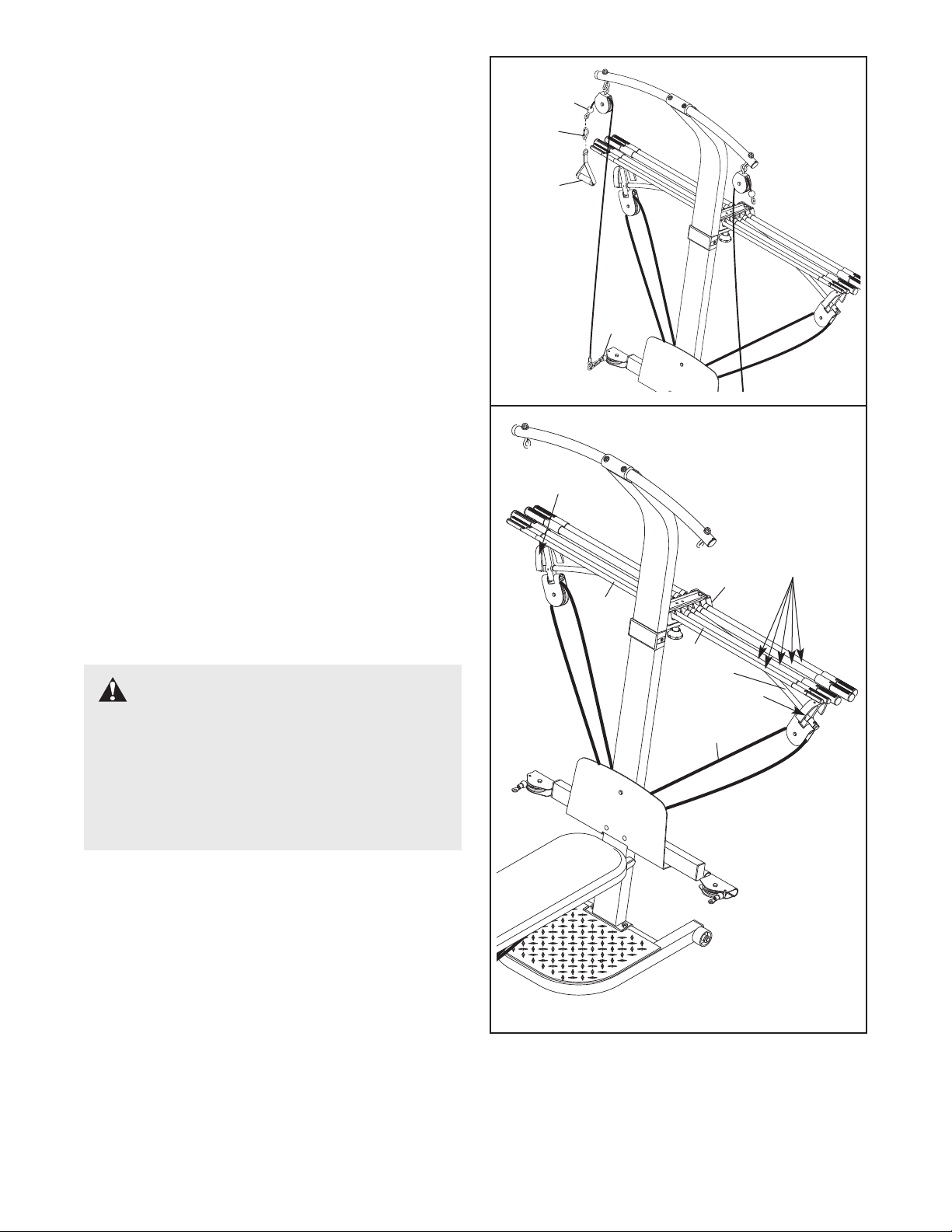

22. Make sure there are no Resistance Bar (not
shown) under the “U”-channels on the 10-pound
Center Resistance Bar (not shown). Have a second person pull on the Long Cable (80) to create
slack in the Cable.
20
21
22
24
80
28
44
74
94
71
Flat
Edge
74
76
76
28
80
29
76
73
Insert the end of the Long Cable (80) through the
welded tube on the indicated end of the Cross
Tube (11) and then through the remaining Swivel
Arm (22). Make sure the Cable is on the indicat
ed side of the welded rod in the Swivel
Insert the Swivel Arm (22) into the welded tube
ube (11). Secure the Swivel Arm
on the Cross
with a #8 x 3/8” Screw (107).
Wrap the Long Cable (80) around a 90mm Pulley
Attach the Pulley inside of the Swivel
(28).
(22) with a 3/8” x 1 1/2” Button Bolt (71) and a
3/8” Nylon Locknut (76).
T
Arm.
Arm
71
107
-
80
Rod
28
22
11
76
11
23. Locate the two Short Cables (33). Wrap one of
the Cables around a 90mm Pulley (28). Attach
the Pulley to a High Pulley Housing (21) with a
3/8” x 1 1/2” Button Bolt (71) and a 3/8” Nylon
Locknut (76).
Repeat this step with the other Short Cable
(33).
24.
Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENTS, beginning on the following page.
Before using the resistance system, pull the long cable a few times to be sure that it moves smoothly over
the pulleys. If the cable does not move smoothly, find and correct the problem. IMPORTANT: If the cables
are not properly installed, they may be damaged when heavy resistance is used. See the CABLE
DIAGRAM on page 16 for proper cable routing.
23
76
21
71
28
33
12
ADJUSTMENTS
This section explains how to adjust the resistance system. See the EXERCISE GUIDELINES on page 17 for
important information about how to get the most benefit from your exercise program. Also, refer to the accompanying exercise guide
Make sure all parts are properly tightened each time the resistance system is used. Replace worn parts immediately. The resistance system can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use
solvents. The resistance bars can be cleaned with a vinyl and rubber protectant, available at an automotive or
department store.
ATTACHING THE HIGH PULLEYS AND LEG LEVER
To use a high pulley, slide the hook on the High
Pulley Housing (21) onto an Eyebolt (34). Attach the
end of the Short Cable (33) without the ball to the end
of the Long Cable (80) with a Cable Clip (51). Attach
the other high pulley in the same manner.
to see the correct form for each exercise.
Ball
34
21
To use the Leg Lever (not shown), attach the two
ends of the Leg Lever Cable (32) to the ends of the
Long Cable (80) with two Cable Clips (51).
Remove the high pulleys, and detach the Leg Lever
Cable (32), when not in use. Store the ends of the
Leg Lever Cable on the Hook (104) under the Bench
Rail (not shown).
ADJUSTING THE SEA
The Seat (13) can be secured in any of five positions
on the Bench Rail (5). To move the Seat, pull the
Seat Knob (45) out as far as it will go, and slide the
Seat to the desired position. Engage the Seat Knob
into an adjustment hole in the Bench Rail.
T
33
80
51
32
104
51
14
13
o perform row exercises, the leg press strap must be
T
attached to the long cable (see ATTACHING THE
ACCESSORIES, on page 14), and the Seat Carriage
(12) must be able to roll along the Bench Rail (5).
First, remove the Backrest (14) from the Seat
Carriage (see ADJUSTING THE BACKREST on page
Then, pull the Seat Knob (45) out as far as it will
15).
go, and turn the Knob so that the pin rests at the end
of the “L”-shaped slot (see the inset drawing).
13
12
5
12
45
Pin
“L”-Slot
ATTACHING THE ACCESSORIES
o attach a Short Handle (49) to a high pulley, first
T
attach the high pulley to the resistance system (see
TTACHING THE HIGH PULLEYS AND LEG LEVER
A
on page 13). Then, attach the Short Handle to the
Short Cable (33) with a Cable Clip (51).
The Long Handles (not shown) and the Ankle Strap
(not shown) can be attached to the Long Cable (80)
with Cable Clips (51). Attach the Leg Press Strap (not
shown) to both ends of the Long Cable, or the Lat Bar
(not shown) to the Short Cables (33), with two Cable
Clips.
ADJUSTING THE RESISTANCE
To add resistance, hold a “U”-channel on the 10pound Center Resistance Bar (44) firmly and push
the end of a resistance bar under it. Repeat with the
other end of the resistance bar. If more resistance is
needed, add one resistance bar at a time.
33
51
49
80
“U”-Channel
Note: When adding resistance, always start with the
heaviest resistance bar to be used, and finish with the
lightest resistance bar. When removing resistance
bars from the “U”-channels, start with the lightest
resistance bar and finish with the heaviest.
WARNING: When adding resist-
ance, make sure that both ends of the resistance bar rest under the two “U”-channels. The
rings on the Removable Resistance Bars (36,
67) must be pushed against the T
not add or remove resistance bars from the
“U”-channels while an end of the Long Cable
(80) is pulled out.
Note: The resistance system uses progressive resistance. As the resistance bars begin to bend, the
amount of resistance will increase gradually. As the
resistance bars bend further, the resistance will
increase rapidly.
Additional resistance can be added to the resistance
system. To purchase more resistance, call our
Customer Service Department toll-free at
1-877-992-5999 and asking for model number
WEMC0642 (100-Pound Power Pak) or WEMC0942
(200-Pound Power Pak).
ray (35). Do
67
35
36
44
“U”-Channel
80
Resistance
Bars
14
ADJUSTING THE BACKREST
The Backrest (14) can be used in a level position or
one of three inclined positions. To use the Backrest in a
level position, secure the Seat Carriage (12) at the hole
in the Bench Rail (5) closest to the Leg Developer (19)
(see ADJUSTING THE SEAT on page 13).
To use the Backrest (14) in an inclined position,
secure the Seat Frame (12) at one of the three
adjustment holes on the Upright (3) side of the Bench
Rail (5). Rest the Backrest against the Upright (3).
For row exercises and for using the Leg Lever (7),
remove the Backrest (14) from the Seat Carriage
(12). Hold the Backrest vertically over the Seat (13)
and lift the rod out of the slot in the Seat Carriage
(see the inset drawing). To use the Leg Lever (7),
secure the Seat Carriage (12) at the second hole
from the Leg Developer.
STORING THE RESISTANCE SYSTEM
Rod
15
3
Slot
12
13
19
7
14
5
12
To store the resistance system, slide the ends of the
Leg Lever Cable (32) onto the Hook (104). Be sure
the Seat (13) is in the position closest to the Front
Leg (6) (see ADJUSTING THE SEAT on page 13).
Next, remove the Storage Knob (30) from the Upright
(3). Lift the Front Leg toward the Top Frame (10), and
tighten the Storage Knob into the side of the Upright
and the Bench Rail. Remove all of the resistance
bars from the “U”-channels on the 10-pound Center
Resistance Bar (44) (see ADJUSTING THE
RESISTANCE on page 14). Finally, loosen the
Fulcrum Knob (43) and pull it out as far as it will go.
Turn the resistance bar assembly vertically and
engage the Fulcrum Knob into the fulcrum on the Lat
ower (4).
T
cally will prolong the life of the resistance bars.
o move the resistance system, place the toe of your
T
shoe on the end of the Base (1) and hold the resistance system in the indicated area. Tilt the resistance
system back onto the Wheels (31) and roll it to the
new location.
or Leg Lever (7) pinch your hands when you tilt
the system back.
Note: Storing the resistance bars verti
Be careful not to let the Front Leg (6)
-
Resistance
“U”-Channel
13
6
7
Bar
32
10
“U”-Channel
44
43
3
80
30
31
1
Stored Position
WARNING: Make sure that all of
resistance bars
the
channels before moving the resistance bar
assembly to the stored position.
Make sure that the resistance bar assembly is
in the horizontal position and that the Storage
Knob (30) is in place and fully tightened each
time the resistance system is used.
are removed from the “U”-
Hold in
this area
104
15
USING THE REMOVABLE RESISTANCE BARS
The Removable Resistance Bars (36, 67) can be used
to exercise apart from the resistance system, as shown
in the video or on the exercise guide. To remove a
Resistance Bar, pull it out of the Tray (35).
o replace the Removable Resistance Bars (36, 67),
T
slide them into the Tray (35) from the side shown, so
that the arrows on the rings point toward the Tray.
Make sure the rings are pushed against the Tray.
ADJUSTING THE LEG DEVELOPER
To adjust the height of the Leg Developer (19),
remove the Bench Knob (42) from the Front Leg (6).
Align the hole in the Leg Developer with one of the
holes in the Front Leg. Retighten the Knob into the
Front Leg and Leg Developer.
67
36
35
Rings
19
5
6
42
CABLE DIAGRAM
The cable diagram shows the proper routing of the
Long Cable (80). Use the diagram to make sure that
the cable has been assembled correctly. If the cable
has not been correctly routed, the resistance system
will not function properly and damage may occur. The
numbers show the correct route for the cable.
Long Cable (80)
5
6
7
4
3
2
1
16
EXERCISE GUIDELINES
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
o increase the size and strength of your muscles,
T
push them close to their maximum capacity. Your muscles will continually adapt and grow as you progressively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of resistance used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of resistance for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.
Toning
You can tone your muscles by pushing them to a moderate percentage of their capacity. Select a moderate
amount of resistance and increase the number of repetitions in each set. Complete as many sets of 15 to
20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by completing more sets rather than by using high amounts of
resistance.
Weight Loss
To lose weight, use a low amount of resistance and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross T
Cross training is an efficient way to get a complete and
well-balanced fitness program. An example of a balanced program is:
• Plan strength training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an elliptical or
exercise cycle, on Tuesday and Thursday.
• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exercise will reshape and strengthen your body, plus develop your heart and lungs.
raining
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the exact length of time for each workout,
as well as the number of repetitions or sets completed,
is an individual matter. It is important to avoid overdoing it during the first few months of your exercise program. You should progress at your own pace and be
sensitive to your body’s signals. If you experience pain
or dizziness at any time while exercising, stop immediately and begin cooling down. Find out what is wrong
before continuing. Remember that adequate rest and a
proper diet are important factors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and delivering more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercises. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany
ing this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. Refer to the muscle chart on the
next page to find the names of the muscles.
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
-
17
Rest for a short period of time after each set. The
N
O
P
Q
R
S
T
U
W
V
M
L
J
G
F
H
I
K
E
C
D
B
A
MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Rectus Abdominus (stomach)
M. Adductor (inner thigh)
N. Trapezius (upper back)
O. Rhomboideus (upper back)
P. Deltoid (shoulder)
Q. Triceps (back of arm)
R. Latissimus Dorsi (mid back)
S. Spinae Erectors (lower back)
T. Gluteus Medius (hip)
U. Gluteus Maximus (buttocks)
V. Hamstring (back of leg)
W. Gastrocnemius (back of calf)
ideal resting periods are:
Rest for three minutes after each set for a muscle
•
building workout.
Rest for one minute after each set for a toning work-
•
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. The
chart on page 19 of this manual can be photocopied
and used to schedule and record your workouts. List
the date, the exercises performed, the resistance
used, and the numbers of sets and repetitions completed. Record your weight and key body measurements at the end of every month. Remember, the key
to achieving the greatest results is to make exercise a
regular and enjoyable part of your everyday life.
18
MONDAY
Date:
/ /
EXERCISE RESISTANCE SETS REPS
TUESDAY
Date:
/ /
WEDNESDAY
Date:
/ /
THURSDAY
Date:
/ /
AEROBIC EXERCISE
EXERCISE RESISTANCE SETS REPS
AEROBIC EXERCISE
FRIDAY
Date:
/ /
EXERCISE RESISTANCE SETS REPS
Make photocopies of this page for scheduling and recording your workouts.
19
M6 Black Nylon
Locknut (69)
M4 x 12mm Flat
Head Screw (85)
M6 x 45mm Screw (58)
3/8” Washer (75)
#8 x 3/4” Screw (62)
#8 x 3/4” Tec Screw (60)
#8 x 3/8” Screw (107)
M6 x 16mm Screw (82)
5/16” x 1” Button Bolt (46)
3/8” x 1” Button Bolt (87)
3/8” Nylon Locknut (76)
3/8” Nut (47)
5/16” Nylon Locknut (65)
3/8” x 1 1/2” Button Bolt (71)
3/8” x 3” Button Screw (70)
3/8” x 4” Button Bolt (24)
3/8” x 4 1/2” Button Bolt (40)
3/8” x 2 3/4” Carriage Bolt (83)
3/8” x 5 1/2” Carriage Bolt (73)
3/8” x 2 3/4” Bolt (64)
3/8” x 4 1/4” Bolt (81)
3/8” x 5 1/2” Bolt (66)
5/16” Washer (59)
3/8” Split Washer (103)
5/16” Split Washer (52)
1 1/2” x 2 1/2” Inner Cap (41)
1” Square Inner Cap (54)
2” Square Inner Cap (54)
2 1/4” Round Outer Cap (27)
2” Round Inner Cap (57)
1 3/4” Round
Inner Cap (56)
1 1/2” Round Inner Cap (38)
3/4” Spacer (17)
7/8” Spacer (106)
1 1/4” Round Inner Cap (78)
PART IDENTIFICATION CHART
Refer to the drawings below to identify small parts used in assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on the reverse side of this page. Important: Some
parts may have been pre-assembled for shipping purposes. If you cannot find a part in the parts bags,
check to see if it has been pre-assembled.
PART LIST—Model No. WESY39243 R0904A
Key No. Qty. Description Key No. Qty. Description
1 1 Base
2 1 Base Plate
3 1 Upright
4
5 1 Bench Rail
6 1 Front Leg
7 1 Leg Lever
8 1 Backrest Backing
9 1 Seat Backing
10 1 Top Frame
11 1 Cross Tube
12 1 Seat Carriage
13 1 Seat
14 1 Backrest
15 1 Backrest Frame
16 1 Backrest Cap
17 1 3/4” Spacer
18 1 Fulcrum
19 1 Leg Developer
20 2 10-pound Short Resistance Bar
21 2 High Pulley Housing
22 2 Swivel Arm
23 1 Foot Plate
24 2 3/8” x 4” Button Bolt
25 4 Arm Bushing
26 4 Foam Pad
27 2 2 1/4” Round Outer Cap
28 9 90mm Pulley
29 3 Pulley Guard
30 1 Storage Knob
31 2 Wheel
32 1 Leg Lever Cable
33 2 Short Cable
34 2 Eyebolt
35 1 Tray
36 1 20-pound Removable Resistance
37 2 Fulcrum Bushing
38
39
40 1 3/8” x 4 1/2” Button Bolt
41
42 1 Bench Knob
43 1 Fulcrum Knob
44 1 10-pound Center Resistance Bar
45 1 Seat Knob
46 4 5/16” x 1” Button Screw
47
48 1 Leg Press Strap
49
50 1 Ankle Strap
51
52 4 5/16” Split Washer
53 3 Plastic Foot
54 2 1” Square Inner Cap
55
56
57
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of the user’s manual for information about ordering replacement parts.
1 Lat Tower
Cap
Bar
2
1
2
2
2
4 Cable Clip
1
2
2
1 1/2” Round Inner Cap
Bench Rail Bracket
1 1/2” x 2 1/2” Inner Cap
3/8” Nut
Short Handle
45mm Round Inner Bushing
1 3/4” Round Inner Cap
2” Round Inner Cap
58 4 M6 x 45mm Screw
59 2 5/16” Washer
60 4 #8 x 3/4” Tec Screw
61
62 11 #8 x 3/4” Screw
63 6 M6 Zinc Nylon Locknut
64 3 3/8” x 2 3/4” Bolt
65 3 5/16” Nylon Locknut
66 1 3/8” x 5 1/2” Bolt
67 1 10-pound Removable Resistance
68 2 Long Handle
69 2 M6 Black Nylon Locknut
70 2 3/8” x 3” Button Screw
71 6 3/8” x 1 1/2” Button Bolt
72 1 Cover Plate
73 2 3/8” x 5 1/2” Carriage Bolt
74 4 Pivot Bushing
75 10 3/8” Washer
76 20 3/8” Nylon Locknut
77 6 M6 Shoulder Bolt
78 4 1 1/4” Round Inner Cap
79 2 40-pound Resistance Bar Cap
80 1 Long Cable
81 3 3/8” x 4 1/4” Bolt
82 12 M6 x 16mm Screw
83 2 3/8” x 2 3/4” Carriage Bolt
84 1 Fulcrum Endcap
85 12 M4 x 12mm Flat Head Screw
86 2 5/16” x 3/4” Button Screw
87 4 3/8” x 1” Button Screw
88 2 20-pound Resistance Bar Cap
89 1 Name Plate
90 6 11mm Spacer
91 1 Retainer Ring
92 1 “V”-pulley
93 1 Top Frame Cover
94 2 Pulley Housing
95 2 80-pound Resistance Bar
96
97
98 2 2” Square Inner Cap
99
100 4 80-pound Resistance Bar Cap
101 2 10-pound Resistance Bar Cap
102 2 Large Plastic Foot
103 4 3/8” Split Washer
104 1 Hook
105
106 1 7/8” Spacer
107
108 1 Lat Bar
109
# 1 User’s Manual
# 1 Exercise Guide
# 1 Exercise Decal
#
#
6 Seat Wheel
Bar
1
1
2
1
2
2 Hand Grip
1
1
40-pound Resistance Bar
Storage Knob Bracket
Rail Inner Cap
Rail Bracket
#8 x 3/8” Screw
Allen W
Large
Small Allen Wrench
rench
79
100
85
85
100
79
20
88
101
85
85
67
36
44
95
96
85
101
88
20
85
85
100
23
16
108
109
109
57
19
7
76
56
78
78
78
78
64
56
65
57
32
35
91
37
37
18
43
28
24
74
74
94
71
76
76
51
84
28
74
76
74
71
24
94
76
49
68
50
22
71
41
80
25
25
11
41
80
75
75
25
47
107
71
28
22
28
76
76
107
2
26
26
26
26
30
21
71
28
33
76
21
71
28
33
76
27
27
6
81
92
42
46
46
76
52
52
60
53
53
60
83
83
62
1
75
81
31
98
75
76
75
98
31
75
81
62
60
102
60
102
86
72
93
70
65
59
38
34
10
65
59
38
34
89
62
62
4
87
87
3
76
76
28
28
29
28
29
76
66
75
29
76
64
103
103
76
73
40
48
62
62
62
62
55
99
105
99
14
8
15
54
58
58
62
58
53
62
13
45
12
63
63
63
63
63
63
61
77
61
61
61
90
82
82
82
90
90
90
69
61
77
77
77
77
9
82
104
97
82
106
5
17
39
82
82
EXPLODED DRAWING—Model No. WESY39243 R0904A
ORDERING REPLACEMENT PARTS
To order replacement parts, simply call our Customer Service Department toll-free at 1-877-992-5999, Monday
through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you, please be prepared to give the following information:
• The MODEL NUMBER of the product (WESY39243)
• The NAME of the product (MAX by WEIDER
• The SERIAL NUMBER of the product (see the front cover of this manual)
• The KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and EXPLODED DRAWING in the
center of this manual)
™
ULTRA resistance system)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions. ICON warrants the resistance bar for the lifetime of the product, and all other parts for five (5) years from the date of purchase. Shipping of the resistance bars is not
covered. Labor is covered for one (1) year. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of
its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by
ICON. This warranty does not extend to any product or damage to a product caused by or attributable to
freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized
service center; products used for commercial or rental purposes; or products used as store display models.
No other warranty beyond that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connec
tion with the use or performance of the product or damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or
consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 219945 R0904A Printed in USA © 2004 ICON IP, Inc.
-
Loading...
