VIZIO® VW46L FHDTV20A User Manual

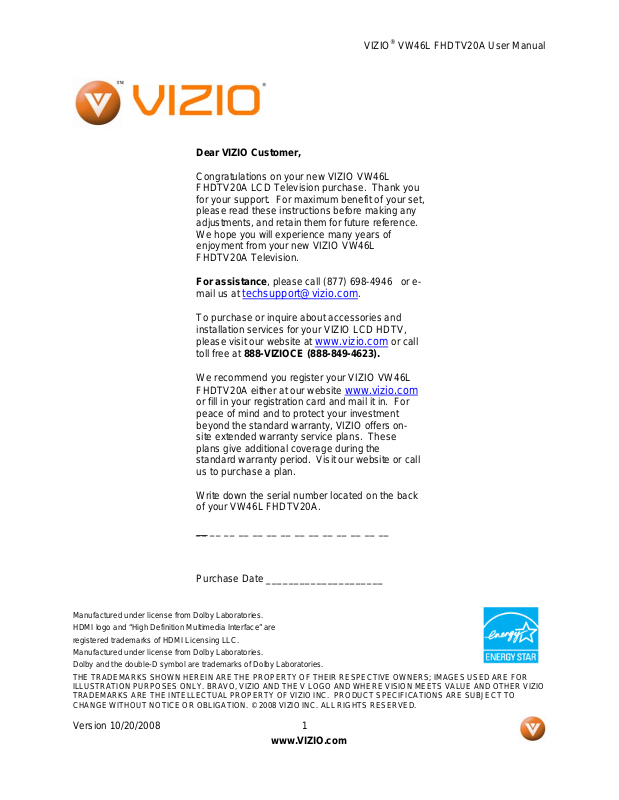

Dear VIZIO Customer,
Congratulations on your new VIZIO VW46L
FHDTV20A LCD Television purchase. Thank you
for your support. For maximum benefit of your set,
please read these instructions before making any
adjustments, and retain them for future reference.
We hope you will experience many years of
enjoyment from your new VIZIO VW46L
FHDTV20A Television.
For assistance, please call (877) 698-4946 or email us at
techsupport@vizio.com.
To purchase or inquire about accessories and
installation services for your VIZIO LCD HDTV,
please visit our website at
www.vizio.com or call
toll free at 888-VIZIOCE (888-849-4623).
We recommend you register your VIZIO VW46L
FHDTV20A either at our website
www.vizio.com
or fill in your registration card and mail it in. For
peace of mind and to protect your investment
beyond the standard warranty, VIZIO offers onsite extended warranty service plans. These
plans give additional coverage during the
standard warranty period. Visit our website or call
us to purchase a plan.
Write down the serial number located on the back
of your VW46L FHDTV20A.
__
__ __ __ __ __ __ __ __ __ __ __ __ __
Purchase Date _____________________
Manufactured under license from Dolby Laboratories.
HDMI logo and “High Definition Multimedia Interface” are
registered trademarks of HDMI Licensing LLC.
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
THE TRADEMARKS SHOWN HEREIN ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS; IMAGES USED ARE FOR
ILLUSTRATION PURPOSES ONLY. BRAVO, VIZIO AND THE V LOGO AND WHERE VISION MEETS VALUE AND OTHER VIZIO
TRADEMARKS ARE THE INTELLECTUAL PROPERTY OF VIZIO INC. PRODUCT SPECIFICATIONS ARE SUBJECT TO
CHANGE WITHOUT NOTICE OR OBLIGATION. © 2008 VIZIO INC. ALL RIGHTS RESERVED.
Version 10/20/2008 1
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
Important Safety Instructions
This product is designed and manufactured to operate within defined design limits, and misuse
may result in electric shock or fire. To prevent the product from being damaged, the following
rules should be observed for the installation, use and maintenance of the product. Read the
following safety instructions before operating the display. Keep these instructions in a safe place
for future reference.
• To reduce the risk of electric shock or component damage, switch off t he power before connecting other co mponents to the VW46L
FHDTV20A.
• Unplug the power cord before cleaning the VW46L FHDTV20A LCD. A damp cloth is sufficient for cleaning the VW46L FHDTV20A. Do
not use a liquid or a spray cleaner for cleaning the product. Do not use abrasive cleaners.
• Always use the accessories recommended by the manufacturer to insure compatibility.
• When moving the VW46L FHDTV20A from an area of low temperature to an area of high temperature, condensation may form on the
housing. Do not turn on the VW46L FHDTV20A immediately after this to avoid causing fire, electric shock or component damage.
• Do not place the VW46L FHDTV20A on an uns table cart, stand, or table. If the VW46L FHDTV2 0A falls, it can injure a person and
cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the VW46L
FHDTV20A.
• A distance of at least 3 feet should be maintained between the VW46L FHDTV20A and any heat source, i.e. radiator, heater, oven,
amplifier etc. Do not install the product close to smoke. Operating the product close to smoke or moisture may cause fire or electric
shock.
• Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable operation of the VW46L
FHDTV20A and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the VW46L FHDTV20A
in a bookcase or cabinet unless proper ventilation is provided.
• Never push any object into the slot on the VW46L FHDTV20A cabinet. Do not place any objects on the top of the product. It could short
circuit parts causing a fire or electric shock. Never spill liquids on the VW46L FHDTV20A.
• The VW46L FHDTV20A should be operated only from the type of power source indicated on the label. If you are not sure of the type of
power supplied to your home, consult your dealer or local power company.
• The power cable must be replaced when using different voltage from that specified in the User Manual. For more information, contact
your dealer.
• The VW46L FHDTV20A is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only
into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire
plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely.
Do not defeat the safety purpose of the grounded plug.
• When connected to a power outlet, power is always into your HDTV. To totally disconnect the power,
unplug the power cord.
• Use only with the cart, stand, tripod, bracket or table specified by manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
accompanying the appliance.
• Do not overload power st rips and extension cords. Overloading can result in fi re or electric shock.
• The wall socket shall be installed near the equipment and shall be easily accessible.
• Only the marked power source can be used for the product. Any power source other than the specified one
may cause fire or electric shock.
• Do not touch the power cord during lightning. To avoid electric shock, avoid handling the power cord during electrical storms.
• Unplug the unit during a lightning storm or when it will not be used for long period of time. This will protect the VW46L FHDTV20A from
damage due to power surges.
• Do not attempt to repair or service the product yourself. Opening or removing the back cover may expose you to high voltages, the risk
of electric shock, and other hazards. If repair is required, please contact your dealer and refer all servicing to qualified service personnel.
• Keep the product away from moisture. Do not expose this appliance to rain or moisture. If water penetrates into the product, unplug
the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
• Do not use the product if any abnormality occurs. If any smoke or odor becomes apparent, unplug the power cord and contact your
dealer immediately. Do not try to repair the product yourself.
• Avoid using dropped or damaged appliances. If the product is dropped and the housing is damaged, the internal components may
function abnormally. Unplug the power cord immediately and contact your dealer for repair. Continued use of the product may cause
fire or electric shock.
• Do not install the product in an area with heavy dust or high humidity. Operating the product in environments with heavy dust or high
humidity may cause fire or electric shock.
• Follow instructions for moving the product. Ensure that the power connector and any other cables are unplugged before moving the
product.
• The lightning flash with arrowhead symbol , within an equilat eral triangle, is intended to a lert the user to the
presence of not isolated dangerous voltage within the inside of the product that may be sufficient magnitude to
constitute a risk of electric shock to persons.
• The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and servicing instructions in the literature
Version 10/20/2008 2
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
• Hold the power connector when removing the power cable. Pulling the power cable itself may damage the wires inside the cable and
cause fire or electric shock. When the product will not be used for an extended period of time, unplug the power connector.
• To reduce risk of electric shock, do not touch the connector with wet hands.
• Insert batteries in accordance with instructions. Incorrect polarities may cause damage and leakage of the batteries, operator injury
and contamination the remote controller.
• If any of the following occurs please contact the dealer:
• Operating environment. Temperature: 5˚C ~ 35˚C, Humidity: 20% ~ 80% non-condensing, Altitude: 0 ~ 6500ft (0 ~ 2000m)
o The power connector fails or frays.
o Liquid sprays or any object drops into the VW46L FHDTV20A.
o The Display is exposed to rain or other moisture.
o The Display is dropped or damaged in any way.
o The performance of the Display changes substantially.
Television Antenna Connection Protection
External Television Antenna Grounding
If an outside antenna/satellite dish or cable system is to be connected to the TV, make sure that the
antenna or cable system is electrically grounded to provide some protection against voltage surges and
static charges.
Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides information with regard to proper
grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge
unit, size of the grounding conductors, location of antenna discharge unit, connection to grounding
electrodes, and requirements of the grounding electrode.
Lightning Protection
For added protection of the TV during
a lightning storm or when it is left
unattended or unused for long periods
of time, unplug the TV from the wall
outlet and disconnect the antenna or
cable system.
Power Lines
Do not locate the antenna near
overhead light or power circuits, or
where it could fall into such power
lines or circuits.
Remember, the screen of the
coaxial cable is intended to be
connected to earth in the building
installation.
FCC Bulletin for New TV Owners
After February 17, 2009, a television receiver with only an analog broadcast tuner will require a
converter box to receive full power over-the-air broadcasts with an antenna because of the
Nation's transition to digital broadcasting. Analog-only TVs should continue to work as before to
receive low power, Class A or translator television stations and with cable and satellite TV
services, gaming consoles, VCRs, DVD players, and similar products.
Information about the DTV transition is available from http://www.DTV.gov or this manufacturer at
877 MY VIZIO (877-698-4946), and from http://www.dtv2009.gov or 1-888-DTV-2009 for information
about subsidized coupons for digital-to-analog converter boxes.
Your VIZIO TV comes with a built-in tuner capable of processing digital broadcasts, making it
easier for you, the end user, to receive this type of signal without the need of an extra converter
box.
Version 10/20/2008 3
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
Opening the Package
Your VIZIO VW46L FHDTV20A and its accompanying accessories are carefully packed in a cardboard
carton that has been designed to protect it from transportation damage. Now you have opened the carton
check that the VW46L FHDTV20A is in good condition and that all of the accessories are included.
The VW46L FHDTV20A weighs approximately 61lbs and about 45” wide x 30” tall we strongly advise that
you have at least 2 people to unpack and install the HDTV.
The glass surface can easily be scratched or broken so please handle the product gently and never place
the HDTV with the glass facing downwards on a surface without protective padding.
IMPORTANT: Save the carton and packing material for future shipping.
Package Contents
VIZIO VW46L FHDTV20A

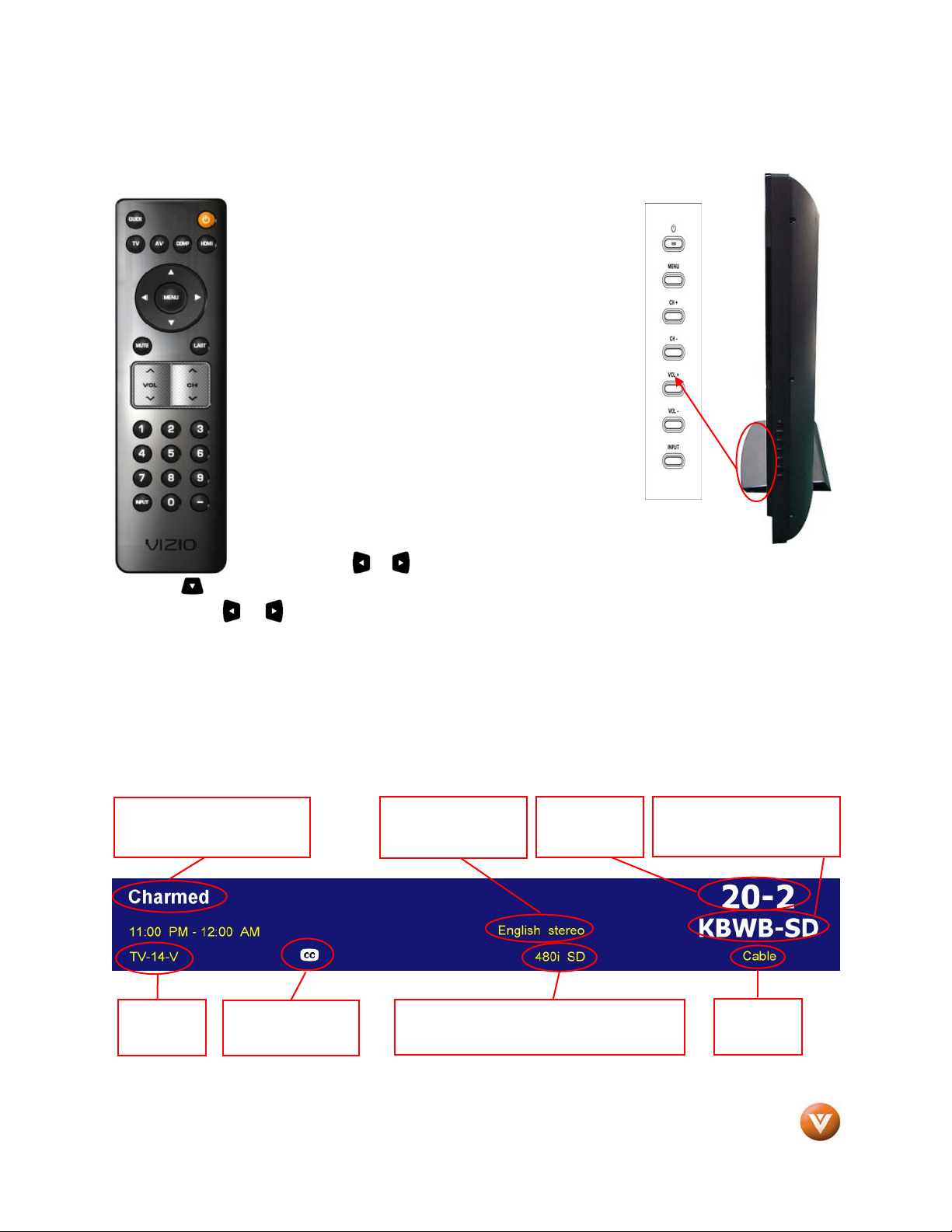

VIZIO Remote Control VR2
Power Cord
This User Manual
Quick Setup Guide
Registration Card
VIP Services Brochure
2 (Double A) Batteries for the Remote Control
Safety Strap
IMPOTANT: Do not apply pressure or throw any object into the screen display area which may
compromise the integrity of the display. The manufacturer’s warranty does not cover user abuse
or improper installations.
Version 10/20/2008 4
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
Additional Certified Accessories for the VIZIO
VW46L FHDTV20A are sold separately
Wall Mounts
High Definition Cables
Extra or replacement Remote
VIZIO also offers Installation Services and Extended Warranty Services for your VIZIO VW46L
FHDTV20A
To purchase or inquire about additional accessories and services for your VIZIO product, visit our web
site at www.VIZIO.com
Installation Preparation
Please read this user manual carefully before installing your VIZIO HDTV.
The power consumption of the TV is about 130W (Avg), please use the power cord designated for TV.
When an extension cord is required, use one with the correct power rating. The cord must be grounded
and the grounding feature must not be defeated.
The TV should be installed on a flat surface to avoid tipping. For proper ventilation, you must allow space
between the back of the TV and the wall. If you would like to mount your TV on the wall, please see
below ‘Preparing Your LCD HDTV for Wall Mounting’ for additional information. Avoid installing the TV in
places with high humidity, dust or smoke so as not to shorten the service life of the electronic components.
Install the TV in landscape orientation; any 90˚ clockwise or counter-clockwise installation may induce
poor ventilation and excessive component damage.
VIZIO offers professional installation services. Please contact VIZIO for more information on these
services at 888-VIZIOCE (888-849-4623) or www.VIZIO.com
or call us toll free at 888-VIZIOCE (888-849-4623)
.
Attaching the Safety Strap
For when the VW46L FHDTV20A is not mounted on the wall with a Wall Mount, a Safety Strap has been
included to attach the HDTV to the wall to reduce the chance of the HDTV being pulled over. The Safety
Strap should be used with common sense practice such as ensuring that children (or adults) do not climb
up, grabbing the top of the HDTV and pulling it onto themselves.
Fix one end of the strap to the wall. If you have a drywall finish it is
preferable to fix it to a stud if it is a drywall finish, using a washer
underneath the screw head. If you have a solid wall you should use a lag
bolt, again using a washer under the nut.
Fix the other end of the Safety Strap to
one of the upper wall mounting holes on
the back of the HDTV, using a washer
under the screw head.
Version 10/20/2008 5
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
Preparing Your LCD HDTV for Wall Mounting
The VIZIO VW46L FHDTV20A can either be kept on the stand base or mounted on the wall for viewing.
If you choose to mount the VW46L FHDTV20A on the wall, please follow the instructions below for
removing the stand base.
To remove the stand base
1. Unplug all of the cables and cords
from your VW46L FHDTV20A.
2. Place the VW46L FHDTV20A face
down on a soft and flat surface
(blanket, foam, cloth, etc) to prevent
any damage to the TV.
3. Remove the eight (8) screws holding
the base to the TV.
4. Carefully remove the stand base.
Note: The specs for these screws are self-tapping 4mm, 20mm long.
5. Now, the VW46L FHDTV20A can fit
securely to a mount (sold separately)
by utilizing the mounting holes in the
center of the back panel of the TV.
Please make sure to read the
instructions of your specific mount to
properly hang the VW46L
FHDTV20A.
The pitch of the mounting holes is 600mm
horizontally and 200mm vertically.
The screw type required is metric M8,
1.25mm pitch. The length of the screws will
depend on the thickness plate being attach to
the TV set; our brackets come with different
length screws.
To find the perfect mount for the VIZIO VW46L FHDTV20A, browse VIZIO’s certified mount selection at
www.VIZIO.com
or call directly 888-VIZIOCE (888-849-4623).
Version 10/20/2008 6
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
Table of Contents
Chapter 1 Basic Controls and Connections .................................................................. 9
1.1 Front Panel .......................................................................................................................................................... 9
1.2 Right Side Panel Controls ................................................................................................................................... 9
1.3 Rear Panel Connections ................................................................................................................................... 10
1.4 VIZIO Remote Control ....................................................................................................................................... 11
1.4.1 Insertion of Batteries in the Remote Control .............................................................................................. 12
1.4.2 Remote Control Range .............................................................................................................................. 12
1.4.3 VIZIO Remote Control Precautions ........................................................................................................... 12
Chapter 2 Connecting Equipment .................................................................................. 13
2.1 Which Video Connection Should I Use? ............................................................................................................ 13
2.2 Connecting Coaxial (RF) ................................................................................................................................... 14
2.2.1 Using Your Antenna or Digital Cable for DTV /TV ..................................................................................... 14
2.2.2 Using the Antenna or Cable through your VCR ......................................................................................... 14
2.3 Connecting Your HDTV Set-Top Box ................................................................................................................ 15
2.3.1 Using HDMI ............................................................................................................................................... 15
2.3.2 Using Component Video ............................................................................................................................ 17
2.4 Connecting Your Basic Set-Top Box ................................................................................................................. 18
2.4.1 Using Composite Video ............................................................................................................................. 18
2.4.2 Using Coax (RF) ........................................................................................................................................ 18
2.5 Connecting Your DVD Player ............................................................................................................................ 19
2.5.1 Using HDMI ............................................................................................................................................... 19
2.5.2 Using Component Video ............................................................................................................................ 21
2.5.2 Using S-Video (AV) .................................................................................................................................... 22
2.5.3 Using Composite (AV) Video ..................................................................................................................... 22
2.6 Connecting Your VCR or Video Camera ........................................................................................................... 23

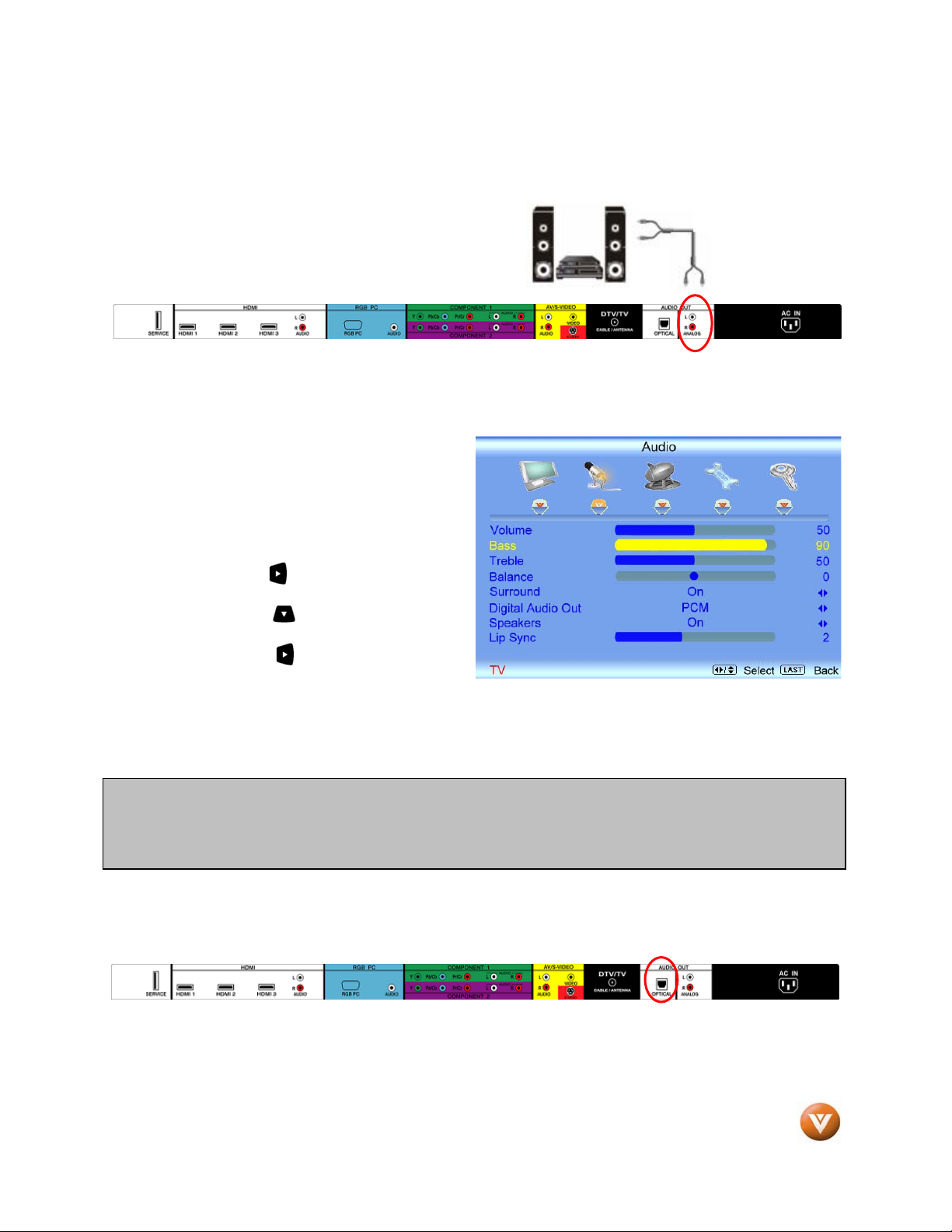

2.7 Connecting an external Receiver/Amp .............................................................................................................. 24
2.7.1 Optical Output of Audio received with HD Programs ................................................................................. 24

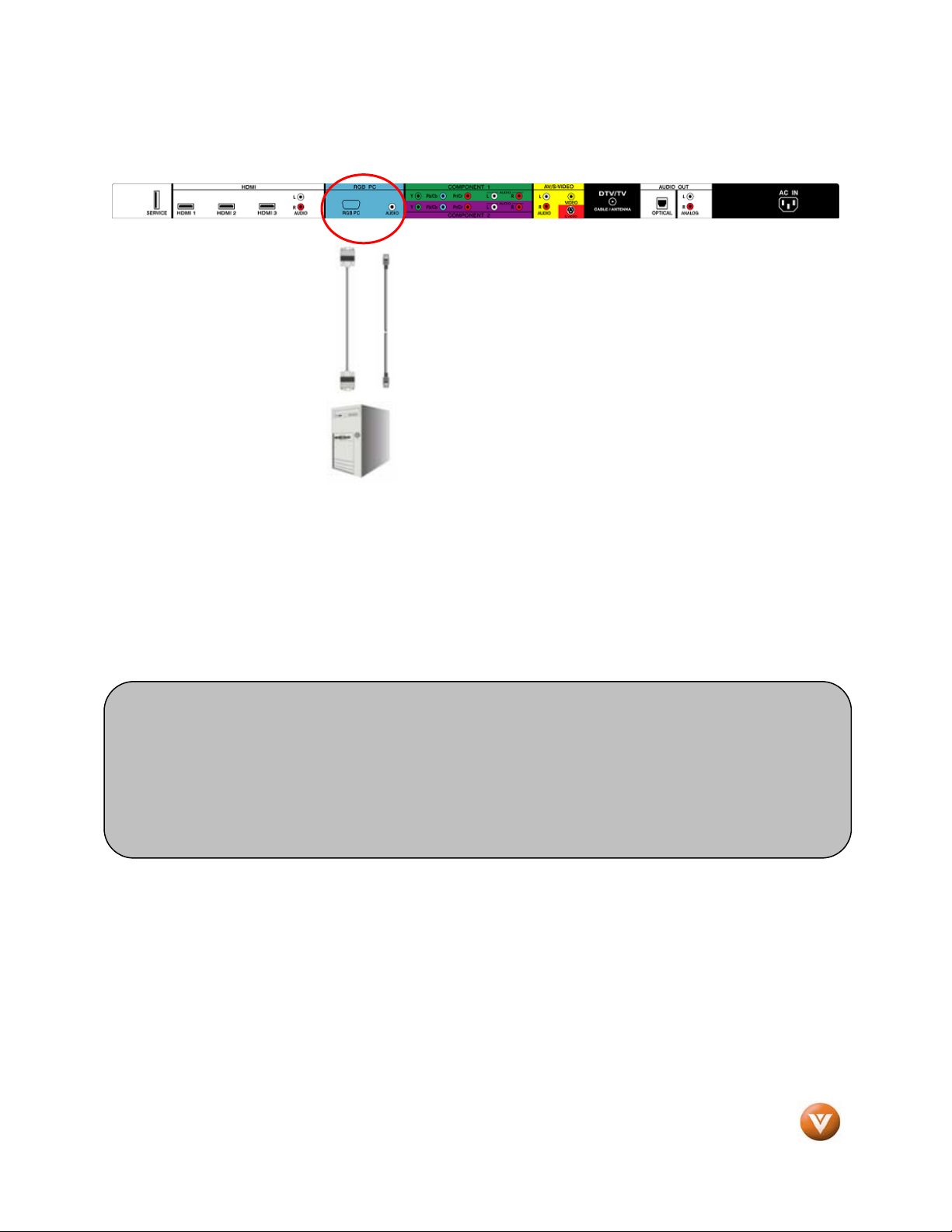

2.8 Connecting a PC Computer .............................................................................................................................. 25
2.8.1 Preset PC Resolutions ............................................................................................................................... 26
2.8.2 Resolution (1920x1080) through RGB (15-Pin VGA) Input ........................................................................ 26
Chapter 3 Setting Up to Watch Television ................................................................... 27

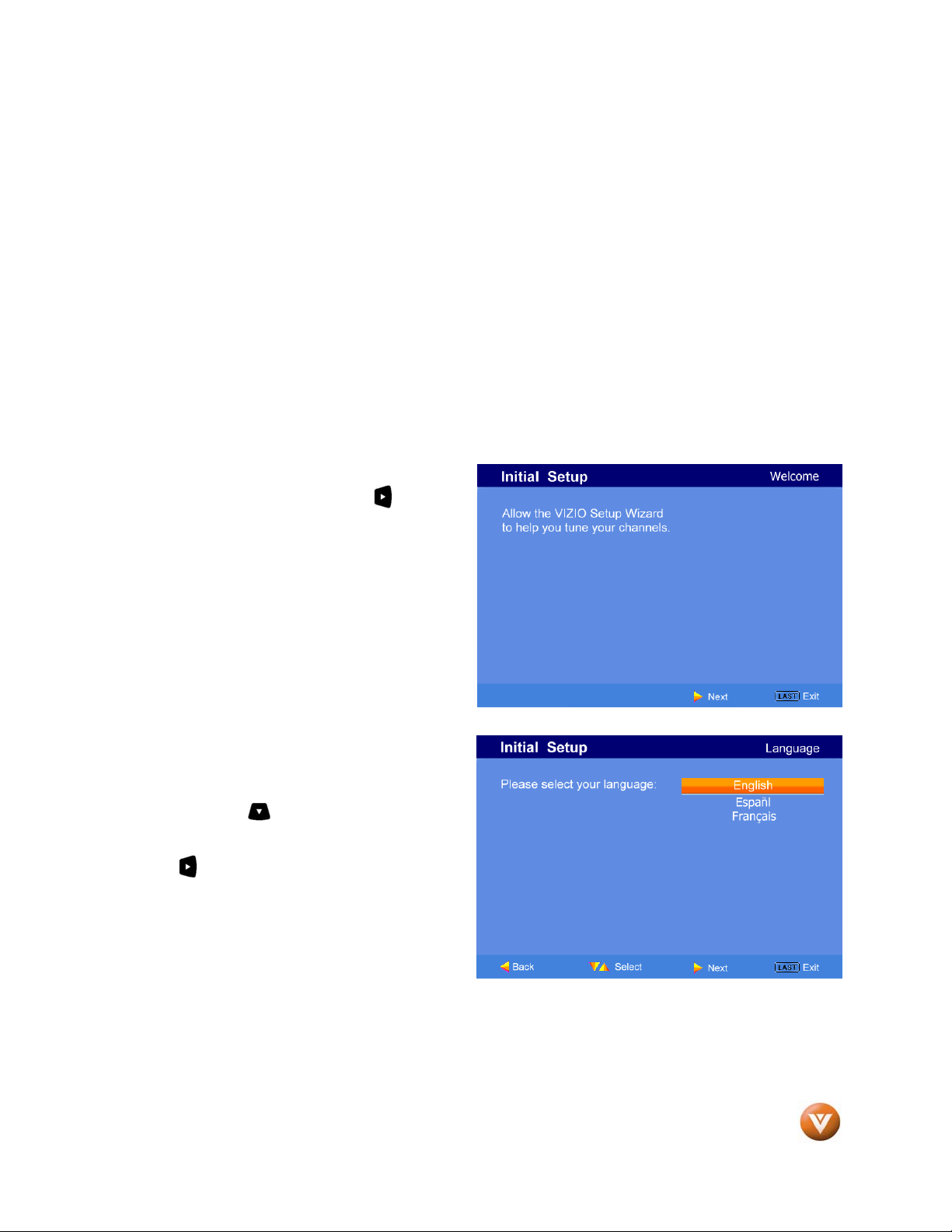

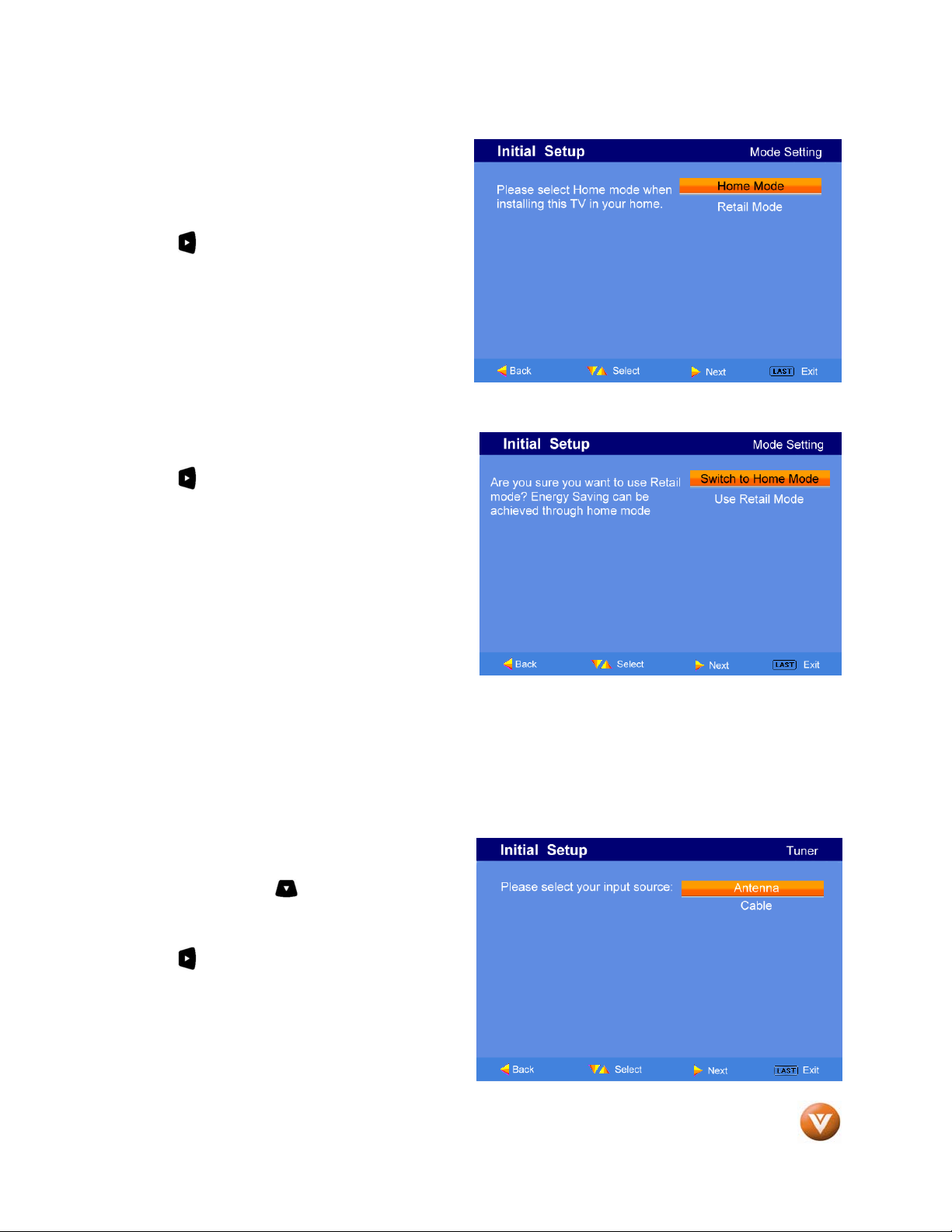

3.1 Basic LCD HDTV Start Up ................................................................................................................................ 27
3.2 Watching a TV Program .................................................................................................................................... 33
3.3 Adjusting Basic HDTV Settings ......................................................................................................................... 34
3.4 Program Information .......................................................................................................................................... 34
Chapter 4 Advanced Adjustment of HDTV ................................................................... 35

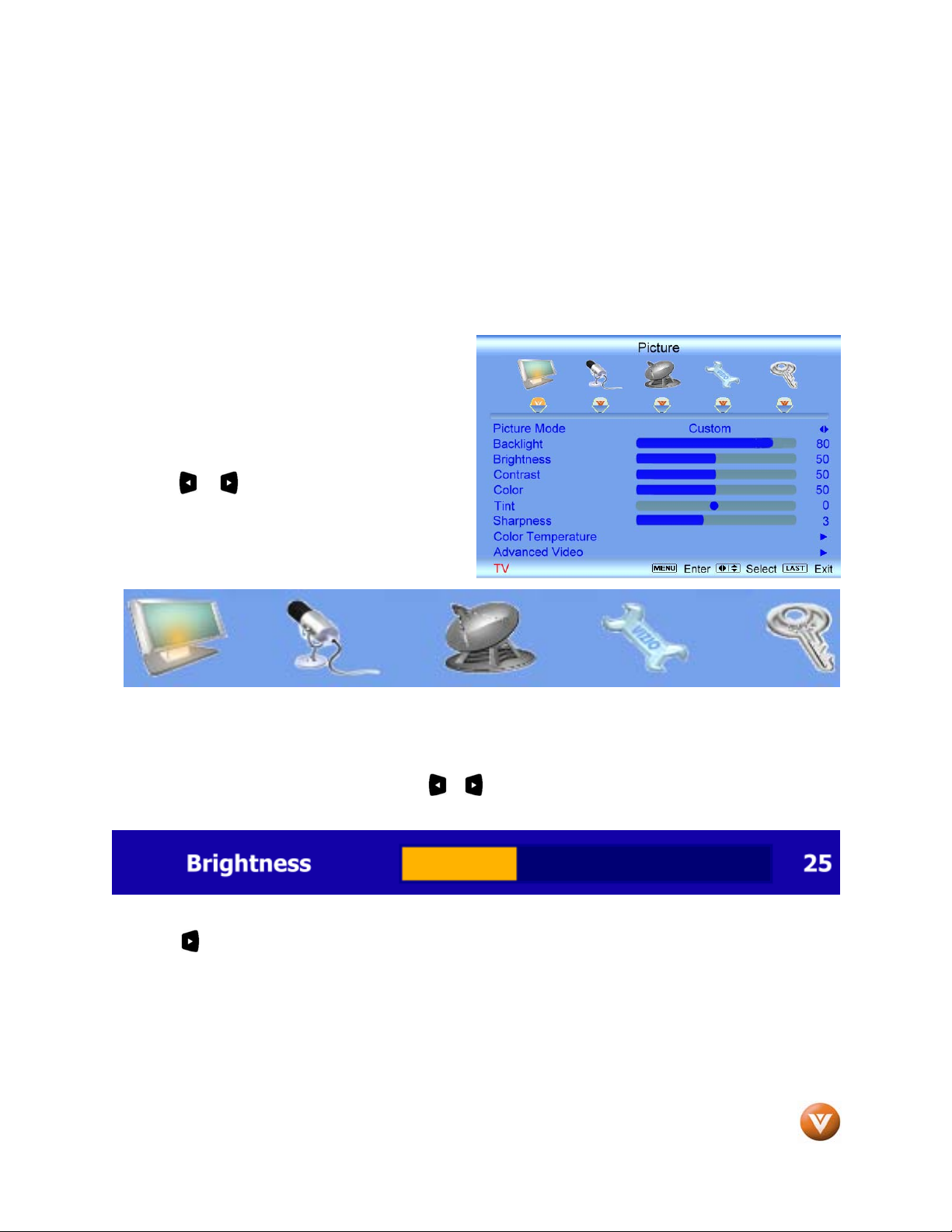

4.1 Using the On Screen Display (OSD) ................................................................................................................. 35

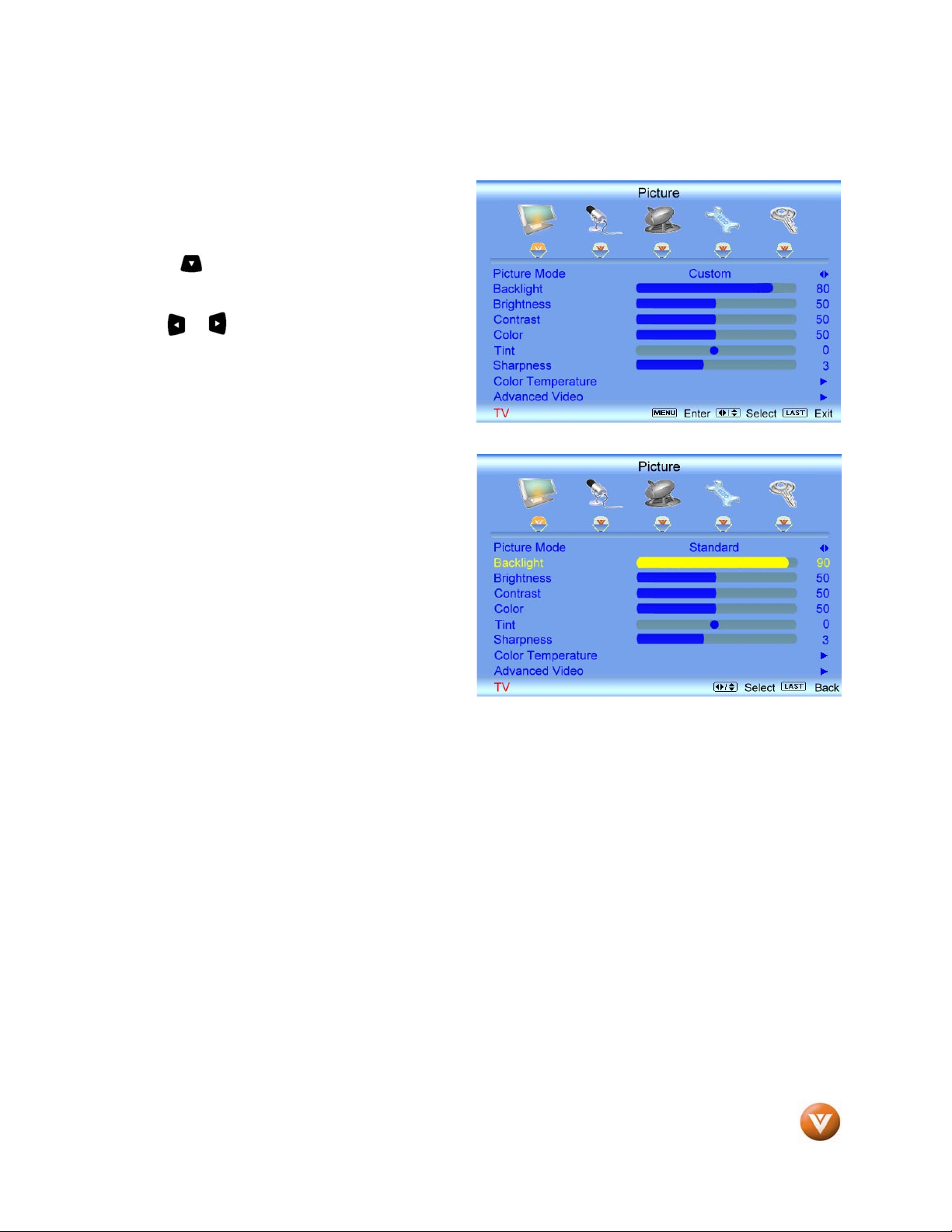

4.2 DTV / TV Input Picture Adjustment .................................................................................................................... 36
4.2.1 Picture Mode ............................................................................................................................................. 36

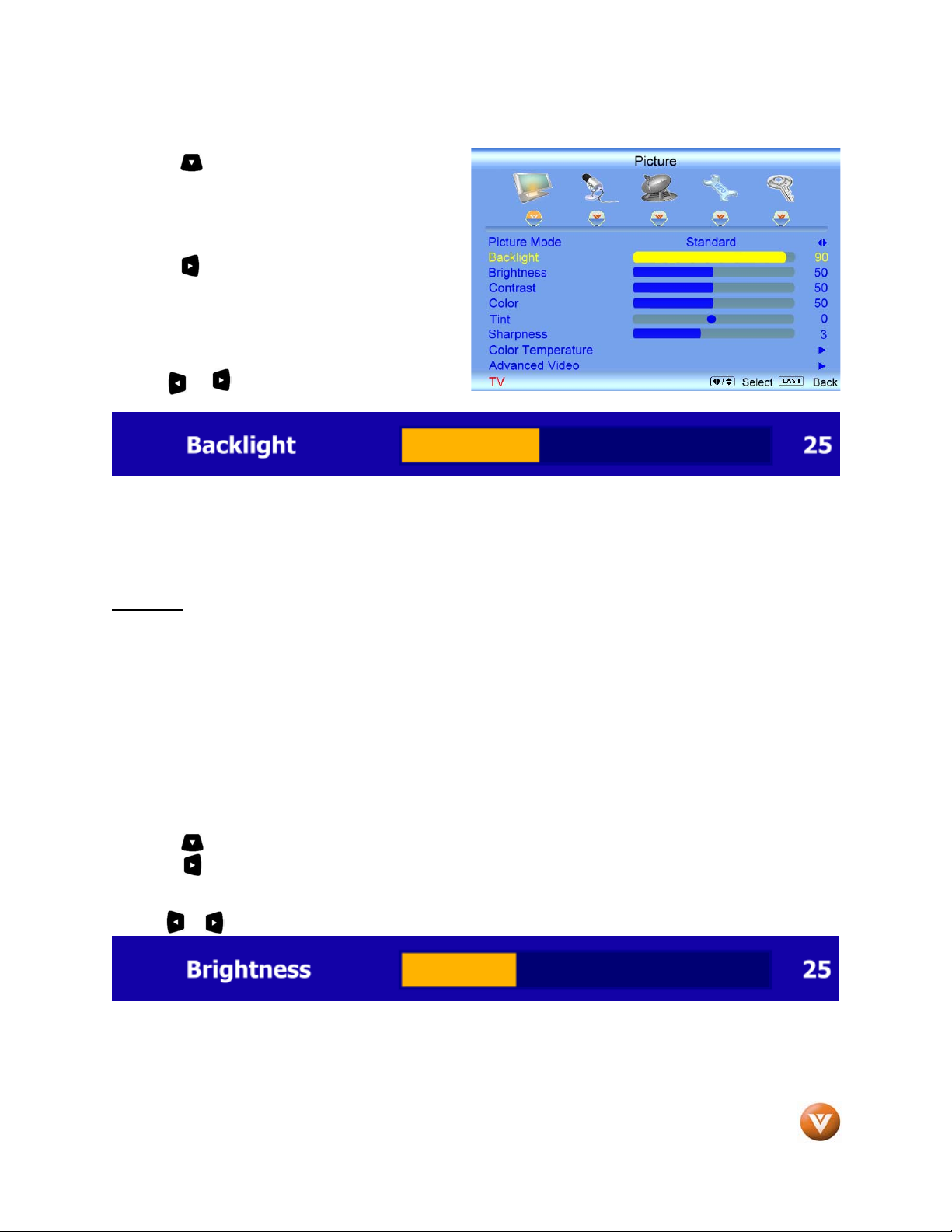

4.2.2 Backlight .................................................................................................................................................... 37

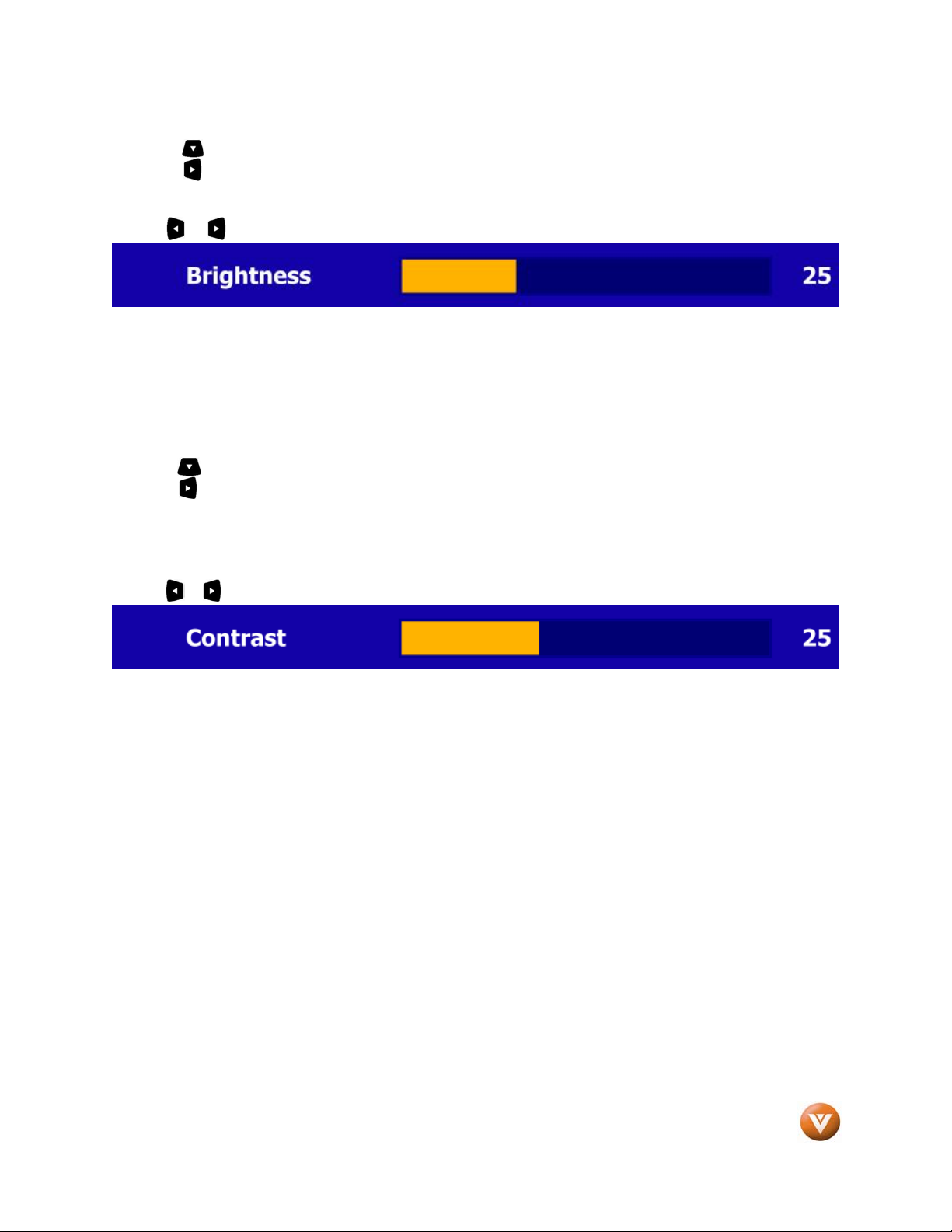

4.2.3 Brightness .................................................................................................................................................. 37

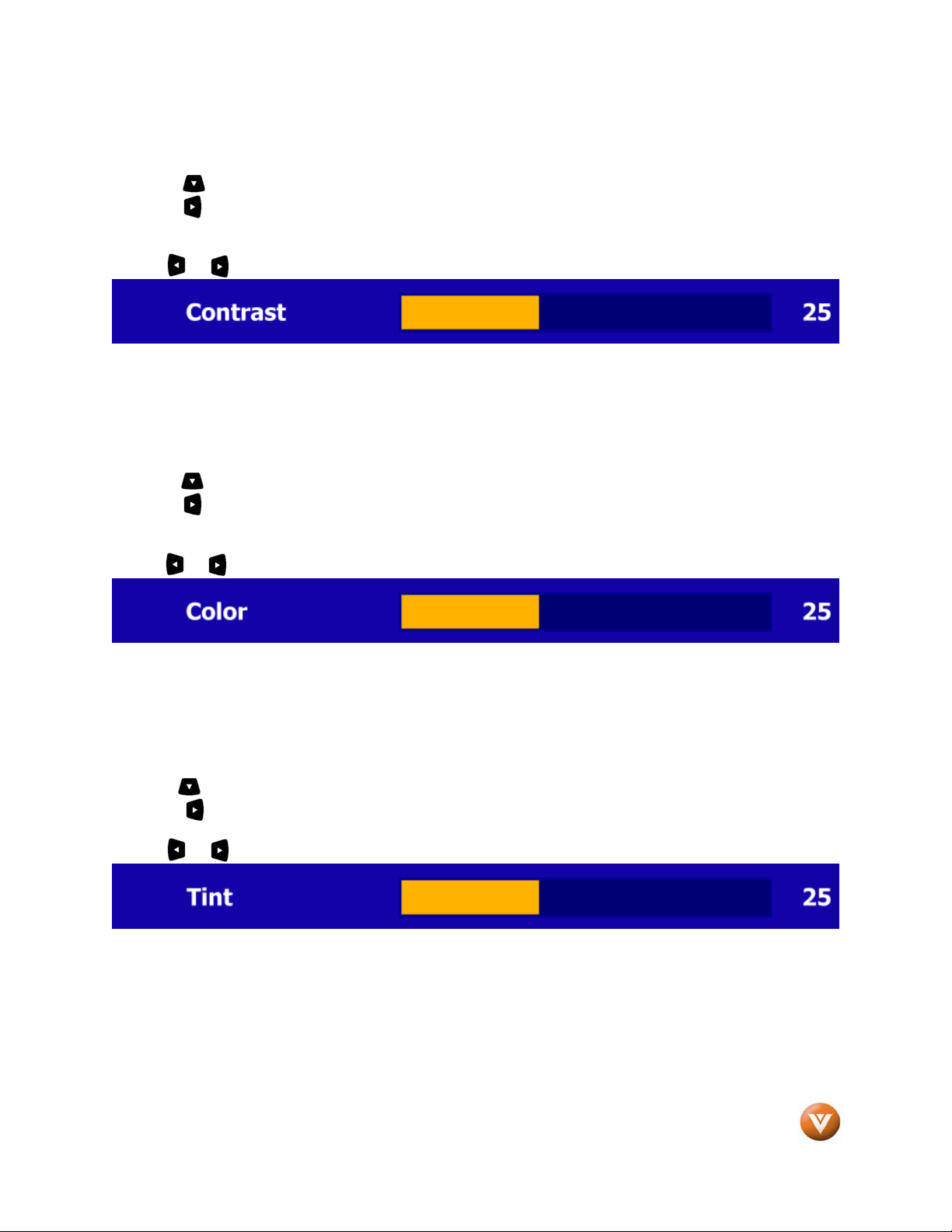

4.2.4 Contrast ..................................................................................................................................................... 38
4.2.5 Color .......................................................................................................................................................... 38
4.2.6 Tint ............................................................................................................................................................. 38

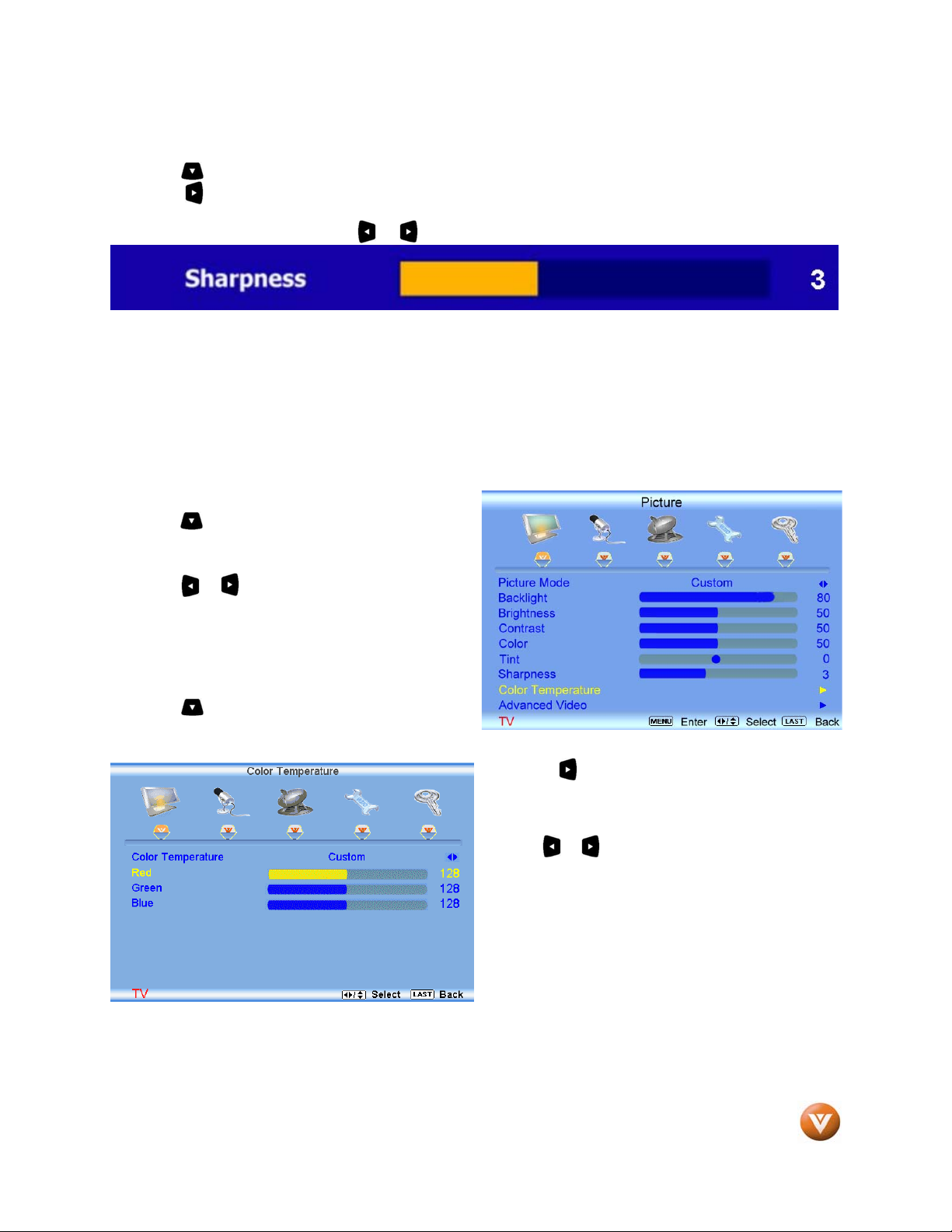

4.2.7 Sharpness ................................................................................................................................................. 39

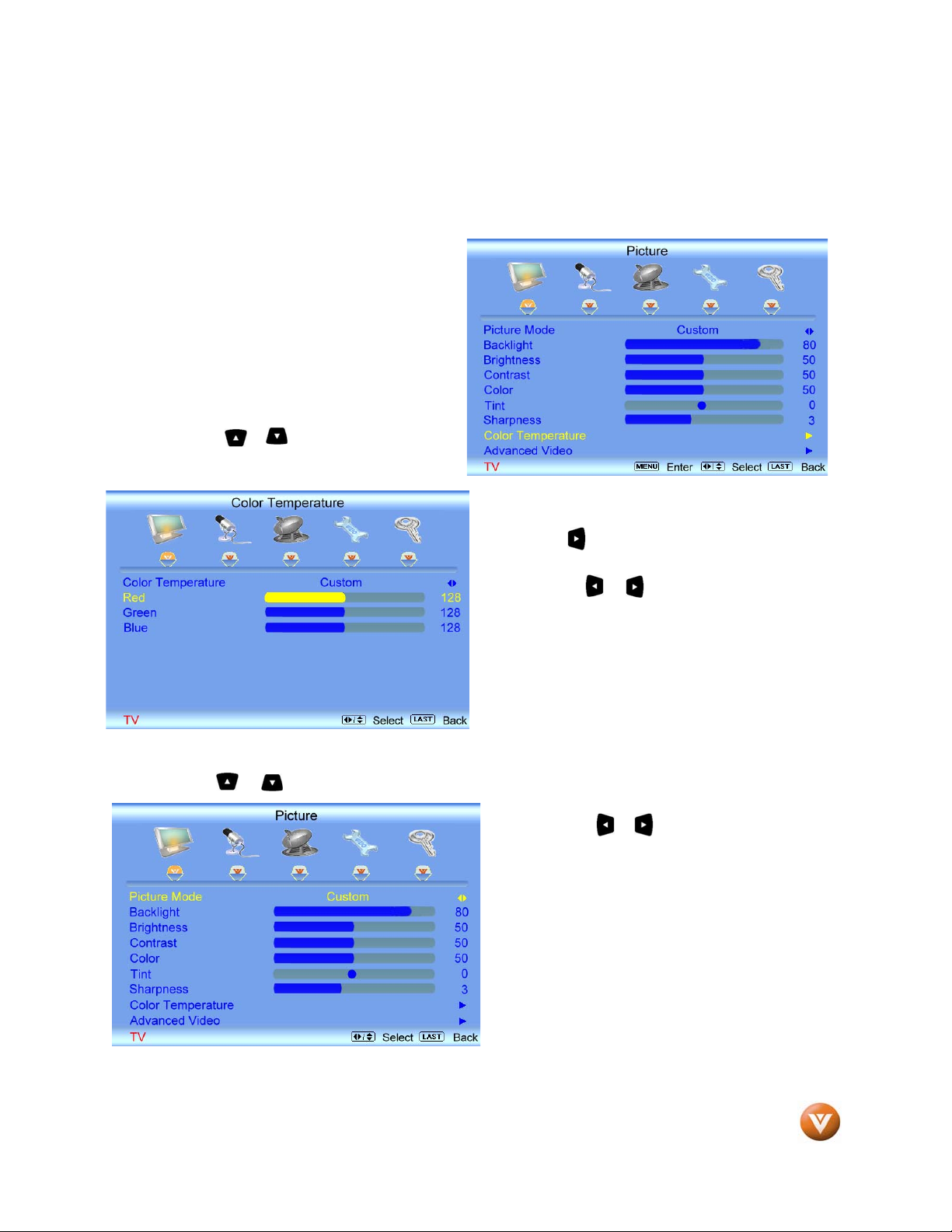

4.2.8 Color Temperature..................................................................................................................................... 39

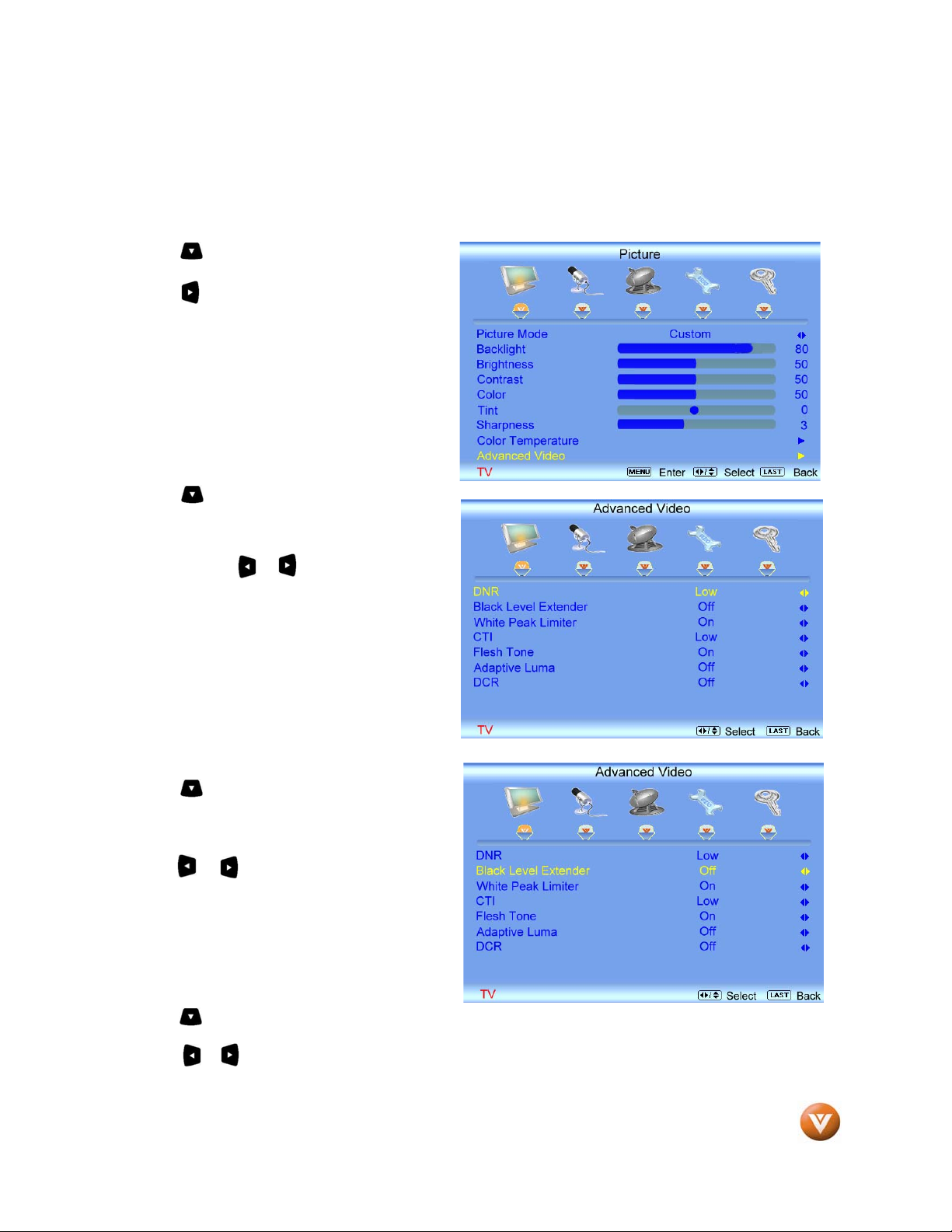

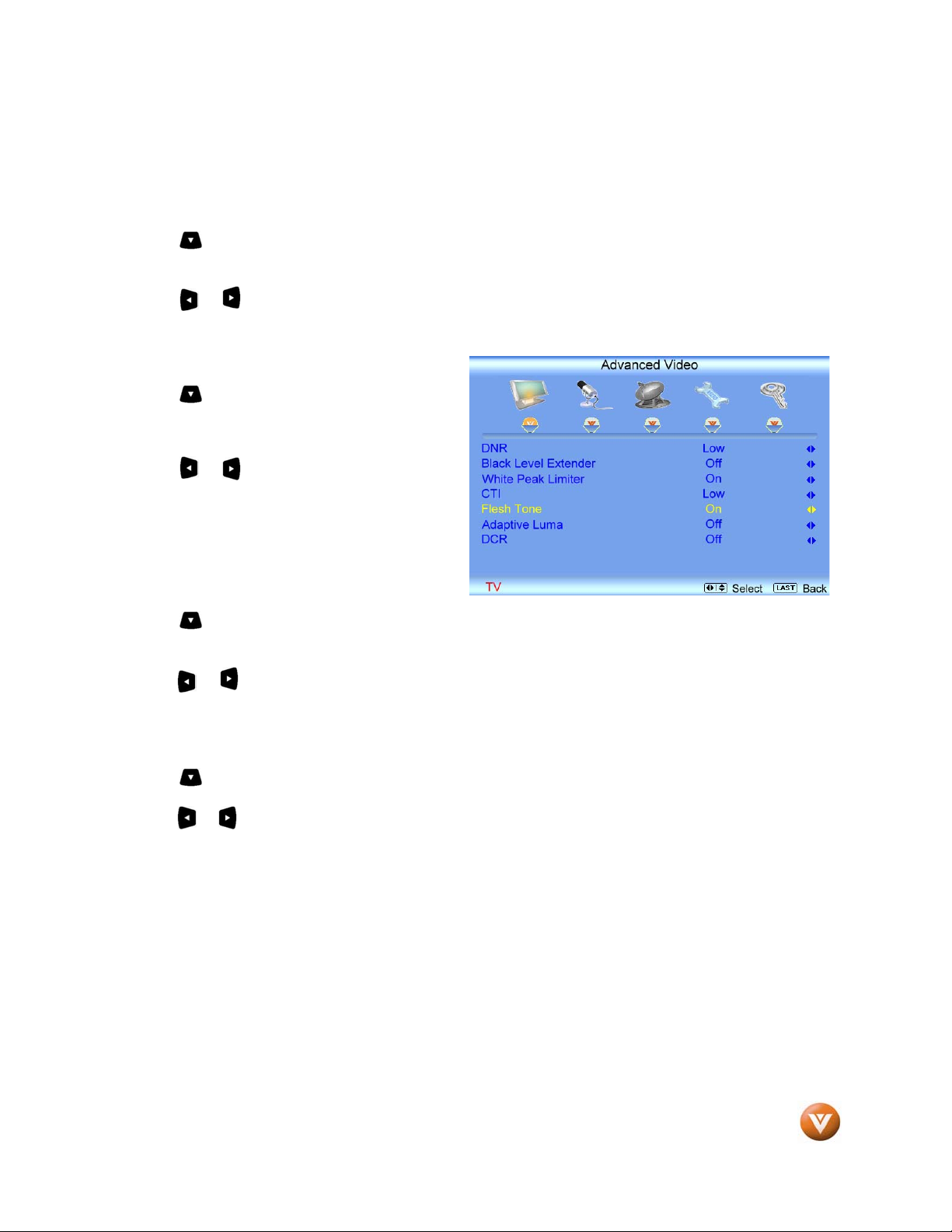

4.2.9 Advanced Video ........................................................................................................................................ 40

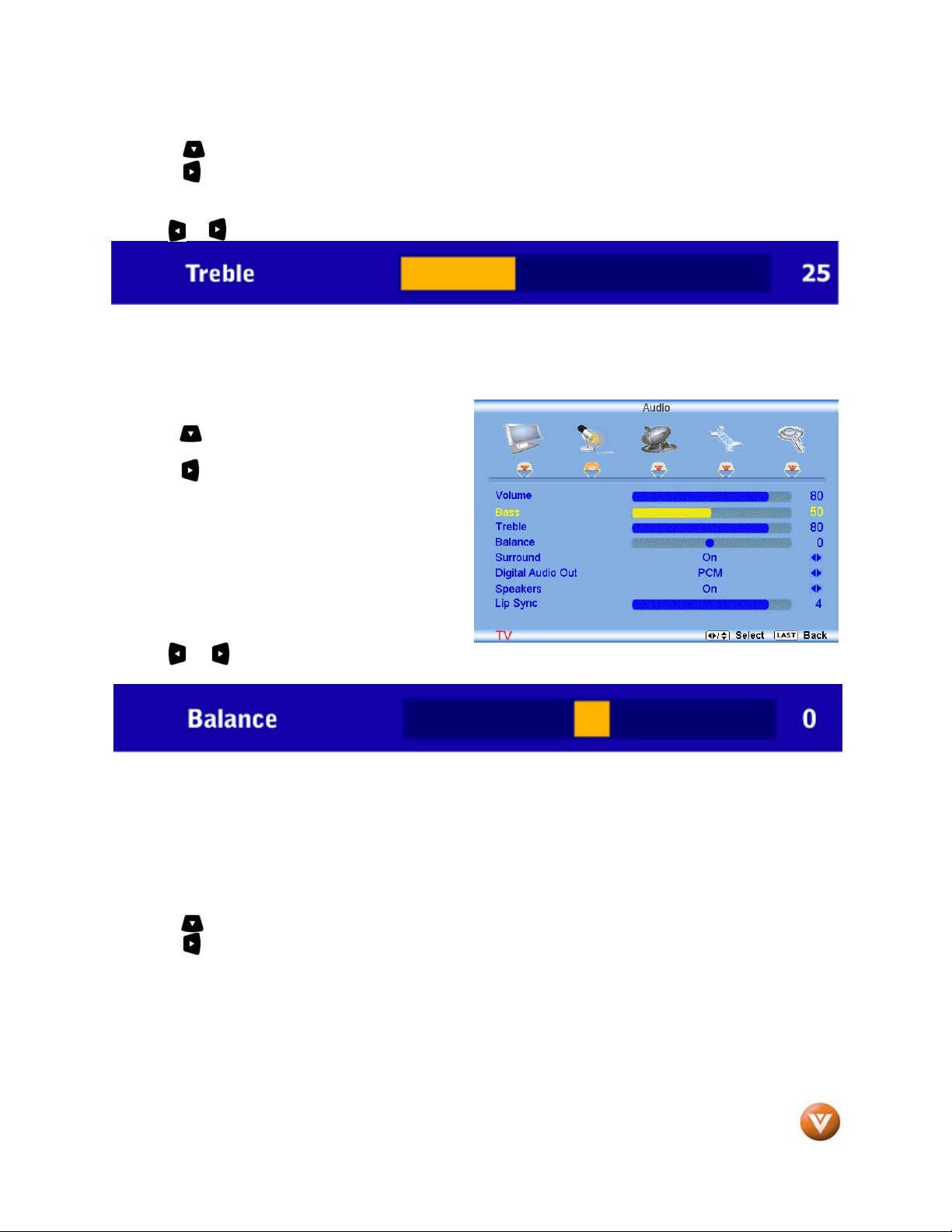

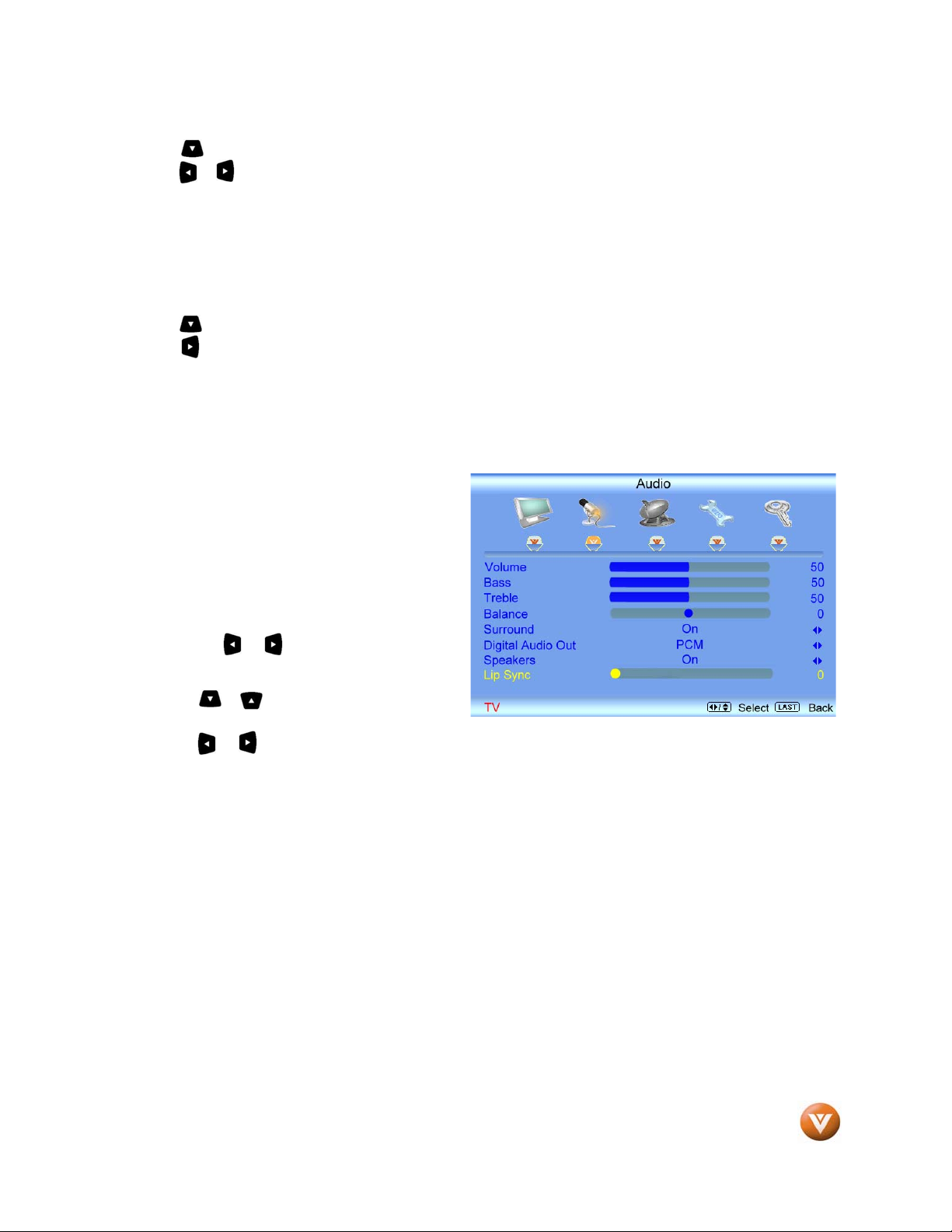

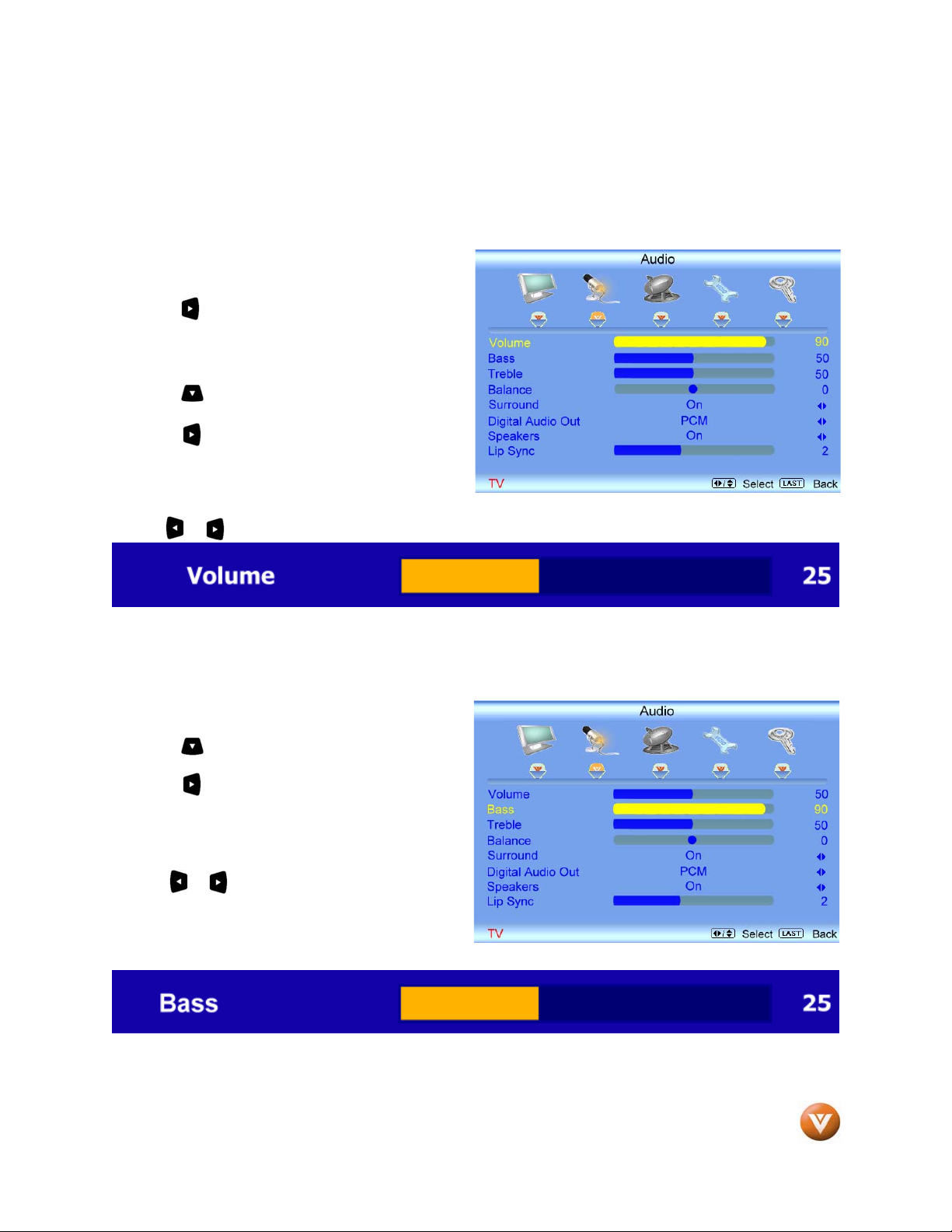

4.3 DTV / TV Input Audio Adjustment...................................................................................................................... 42
4.3.1 Volume ...................................................................................................................................................... 42
4.3.2 Bass ........................................................................................................................................................... 42
4.3.3 Treble ........................................................................................................................................................ 43
4.3.4 Balance ...................................................................................................................................................... 43
4.3.5 Surround .................................................................................................................................................... 43
4.3.6 Digital Audio Out ........................................................................................................................................ 44
4.3.7 Speakers ................................................................................................................................................... 44
4.3.8 Lip Sync ..................................................................................................................................................... 44

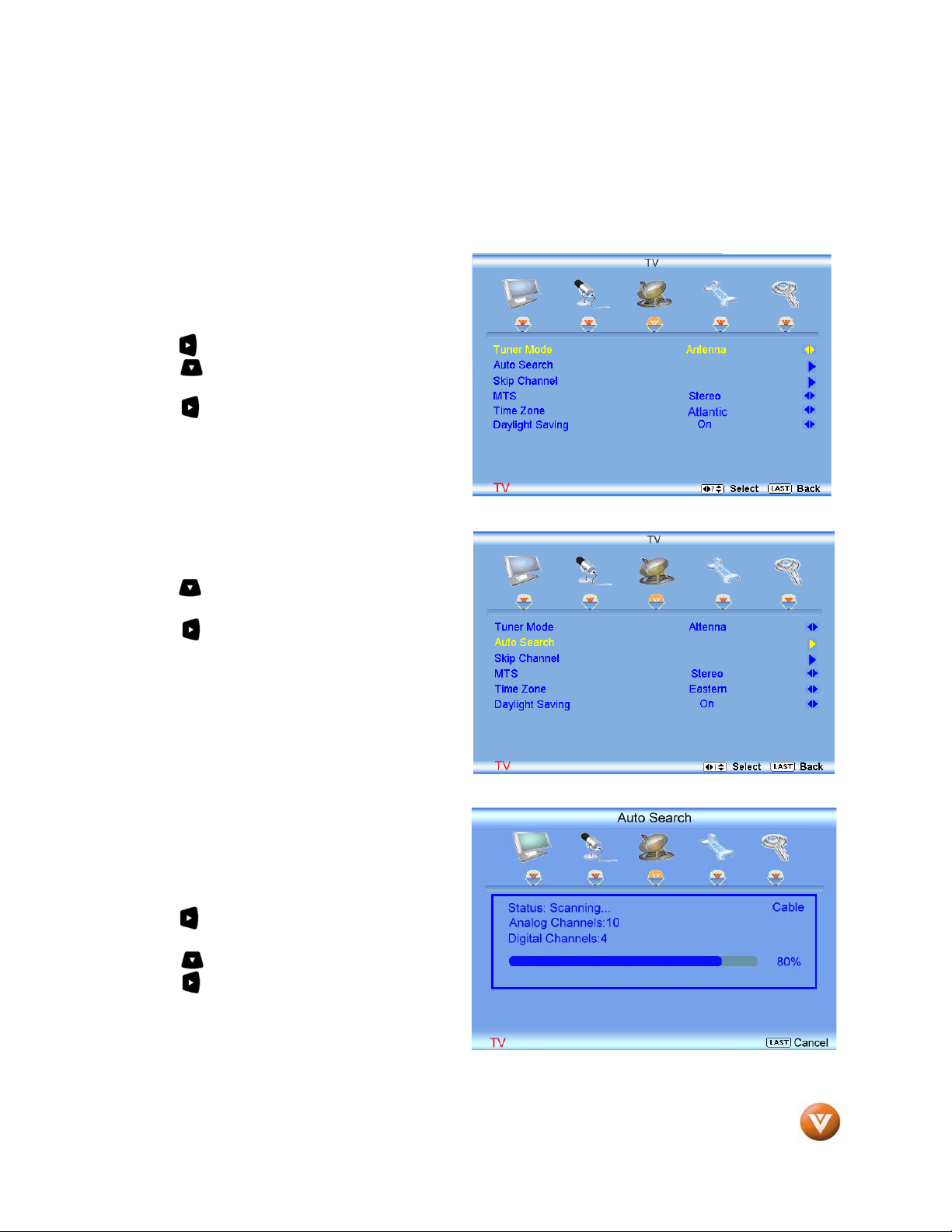

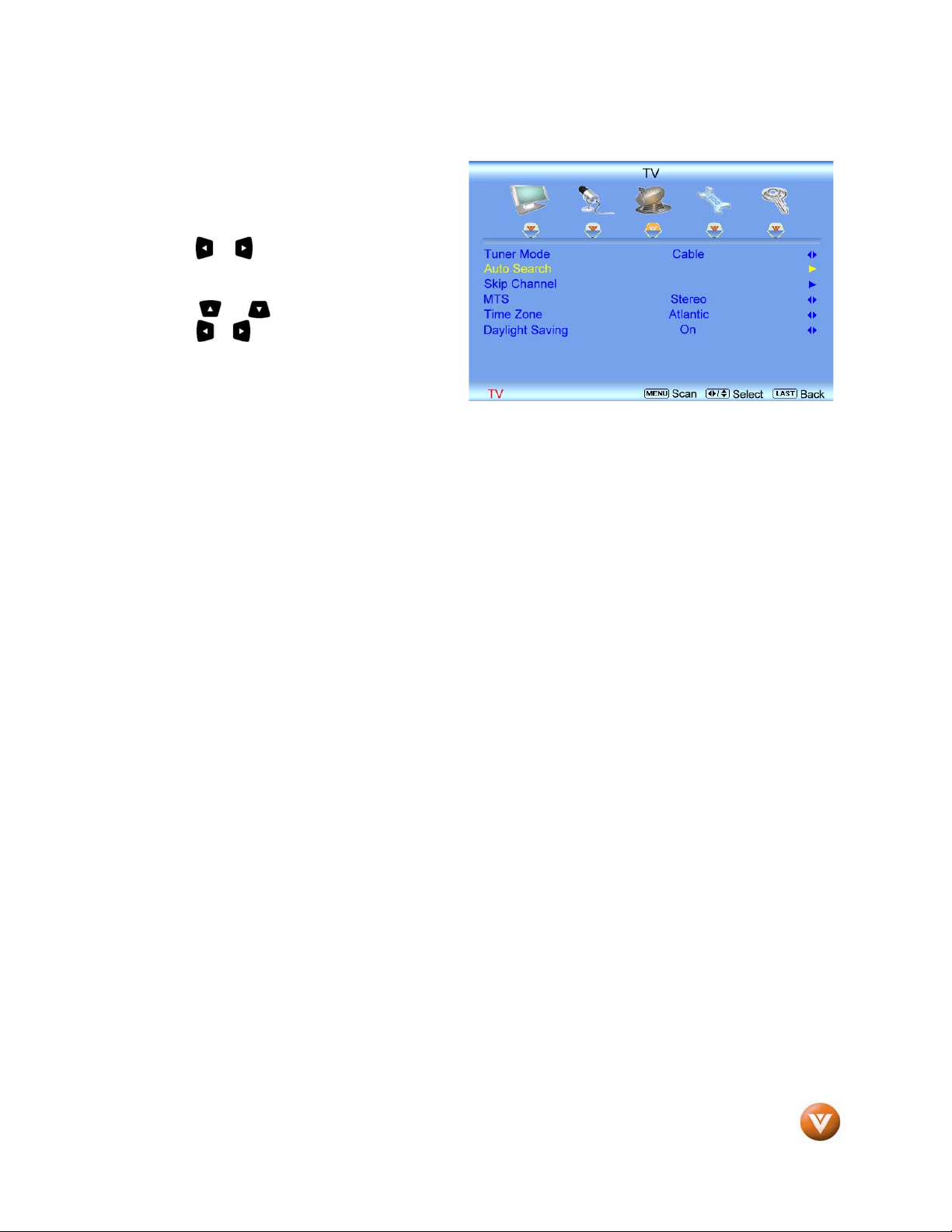

4.4 DTV / TV Tuner Setup ....................................................................................................................................... 45
Version 10/20/2008 7
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual

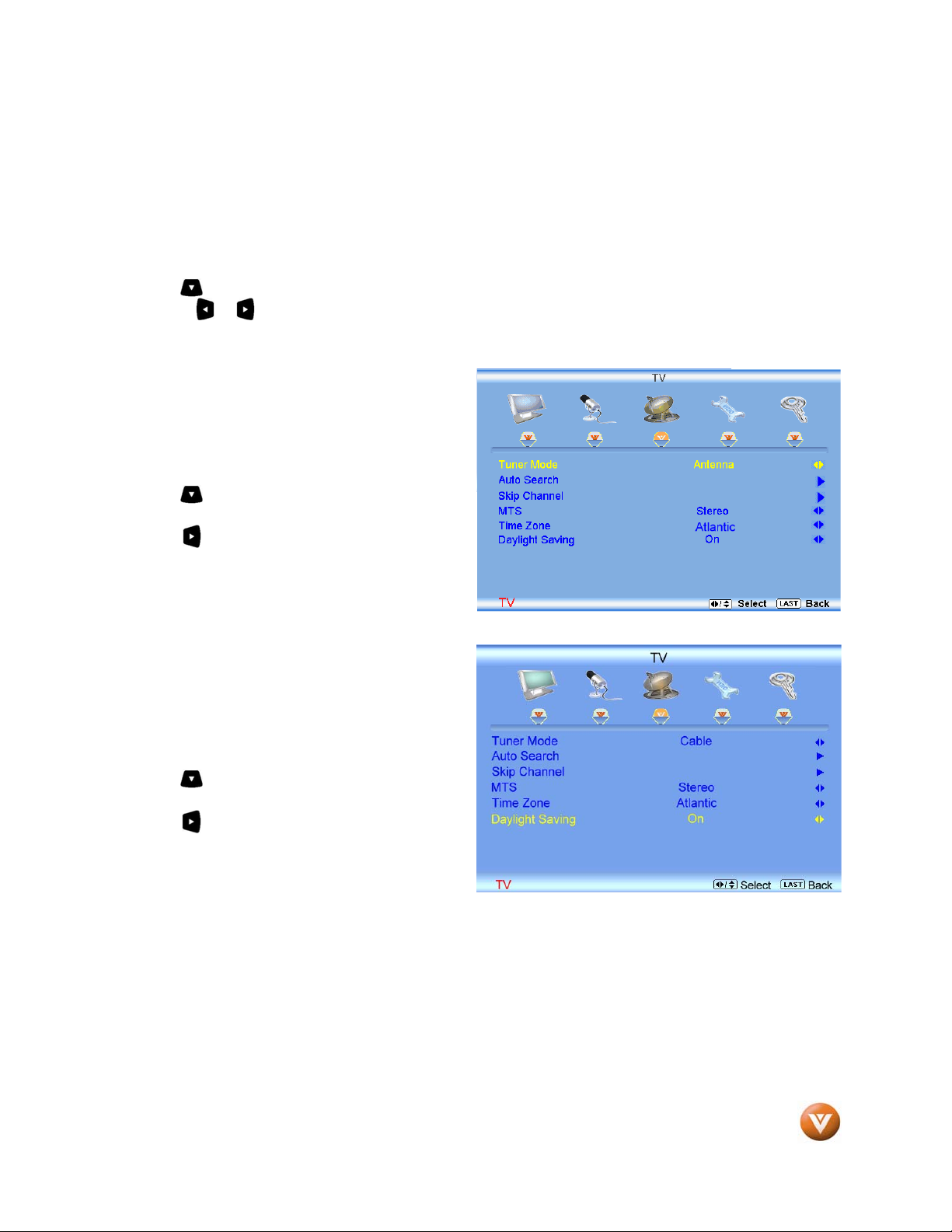

4.4.1 Tuner Mode ............................................................................................................................................... 45
4.4.2 Auto Search ............................................................................................................................................... 45
4.4.3 Skip Channel ............................................................................................................................................. 45
4.4.4 MTS ........................................................................................................................................................... 46
4.4.5 Time Zone ................................................................................................................................................. 46
4.4.6 Daylight Saving .......................................................................................................................................... 46

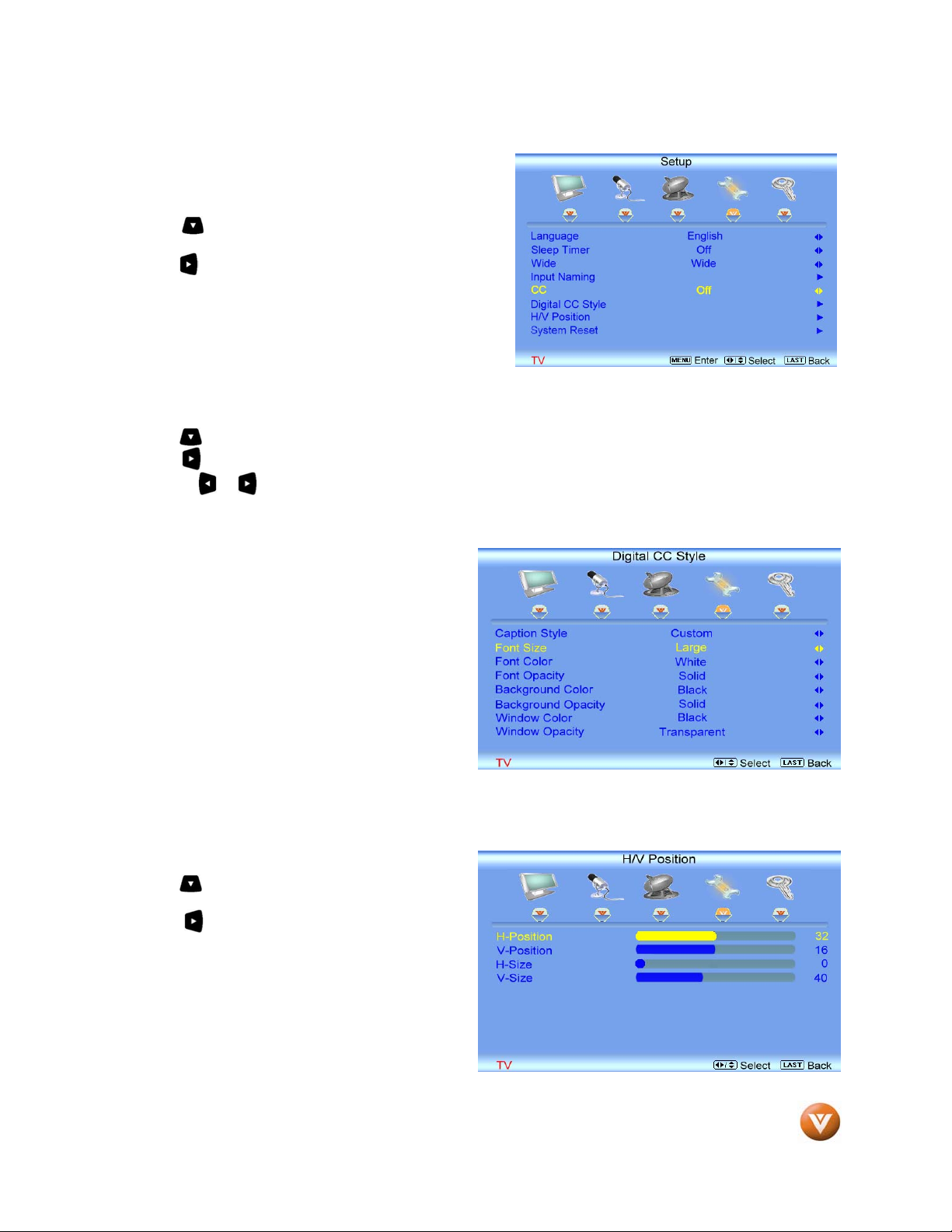

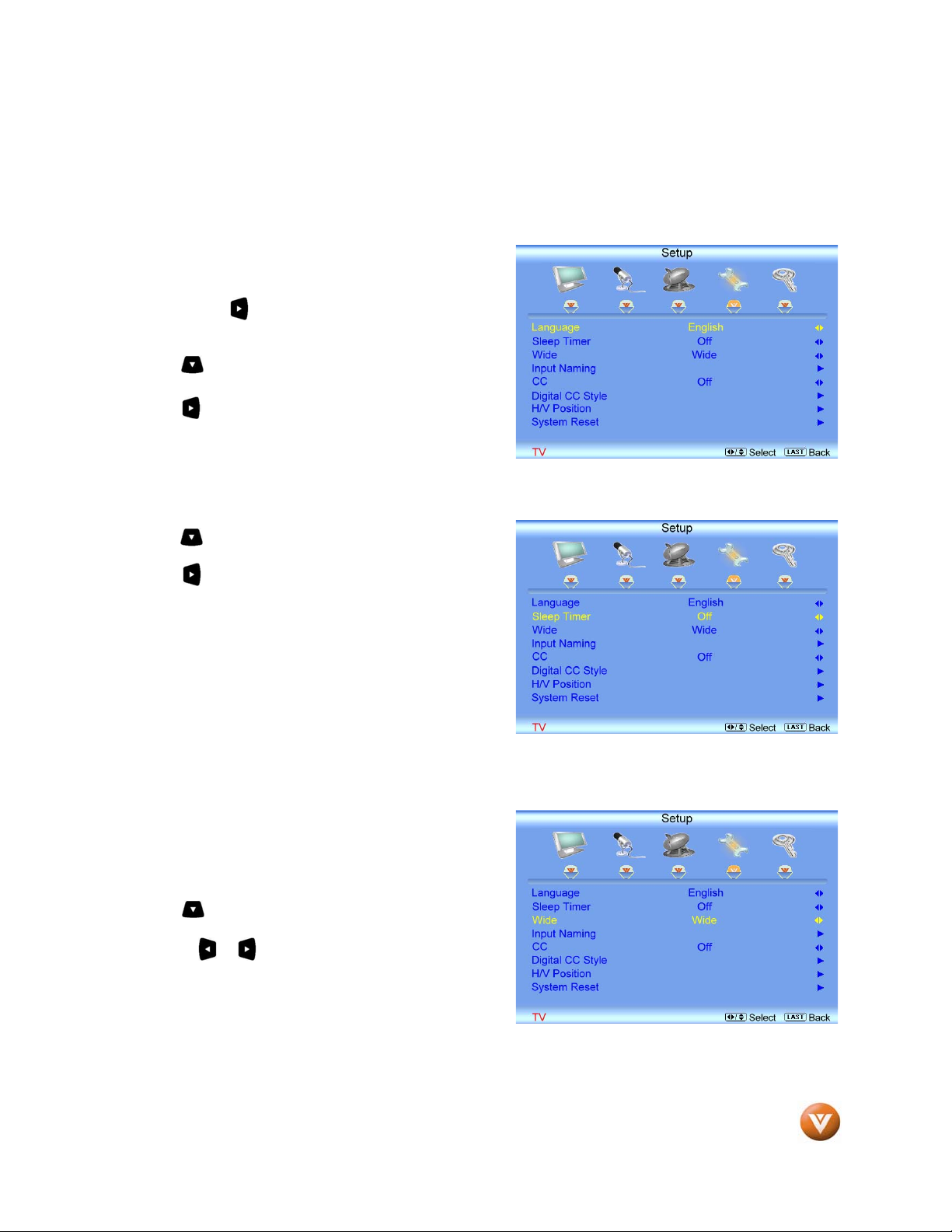

4.5 DTV / TV Input Setup ........................................................................................................................................ 47
4.5.1 Language ................................................................................................................................................... 47
4.5.2 Sleep Timer ............................................................................................................................................... 47
4.5.3 Wide .......................................................................................................................................................... 47

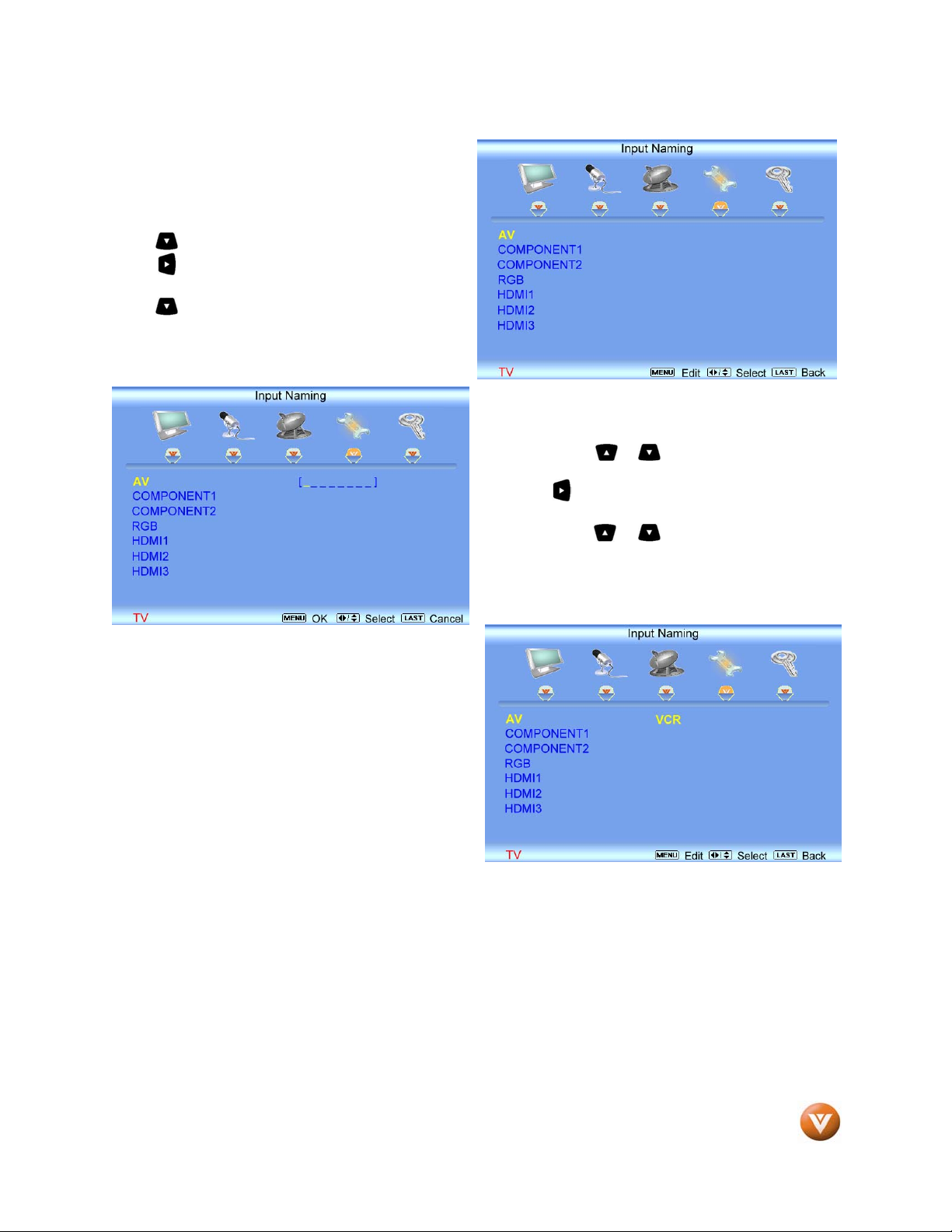

4.5.4 Input Naming ............................................................................................................................................. 48
4.5.5 Closed Caption (CC) .................................................................................................................................. 49
4.5.6 Digital Closed Caption Style (Digital CC Style) .......................................................................................... 49
4.5.7 H/V Position ............................................................................................................................................... 49

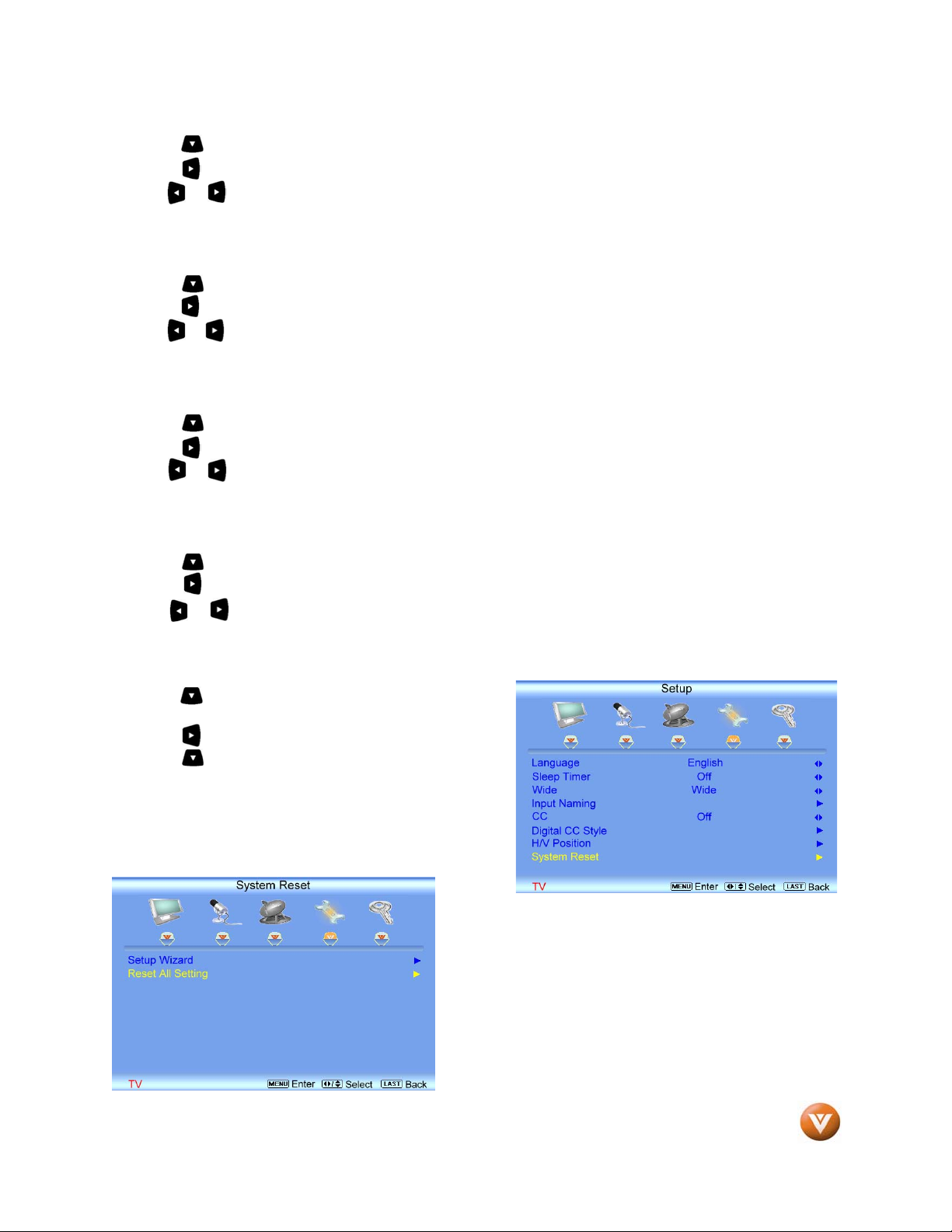

4.5.8 System Reset ............................................................................................................................................ 50

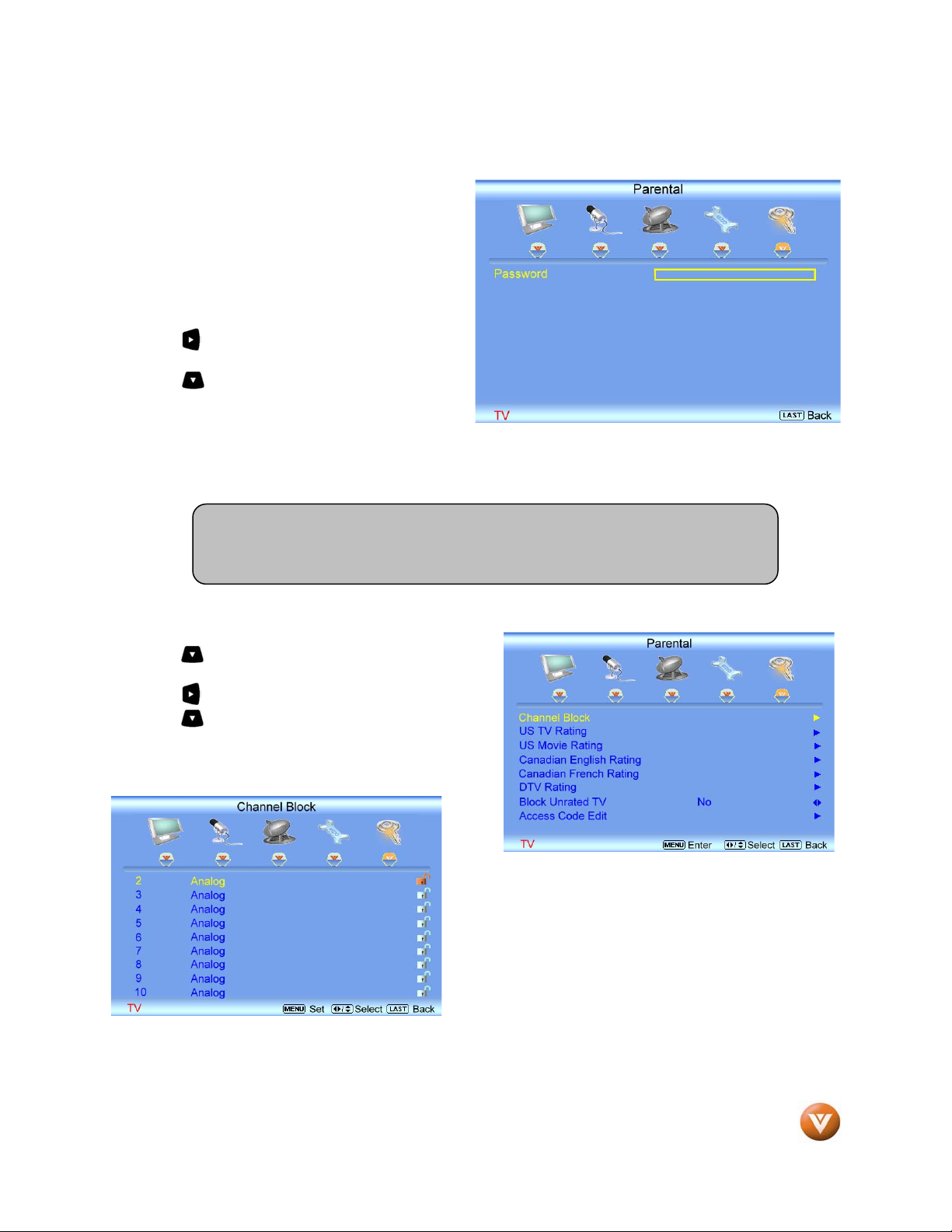

4.6 DTV / TV Input Parental Control ........................................................................................................................ 51
4.6.1 Channel Block ........................................................................................................................................... 51

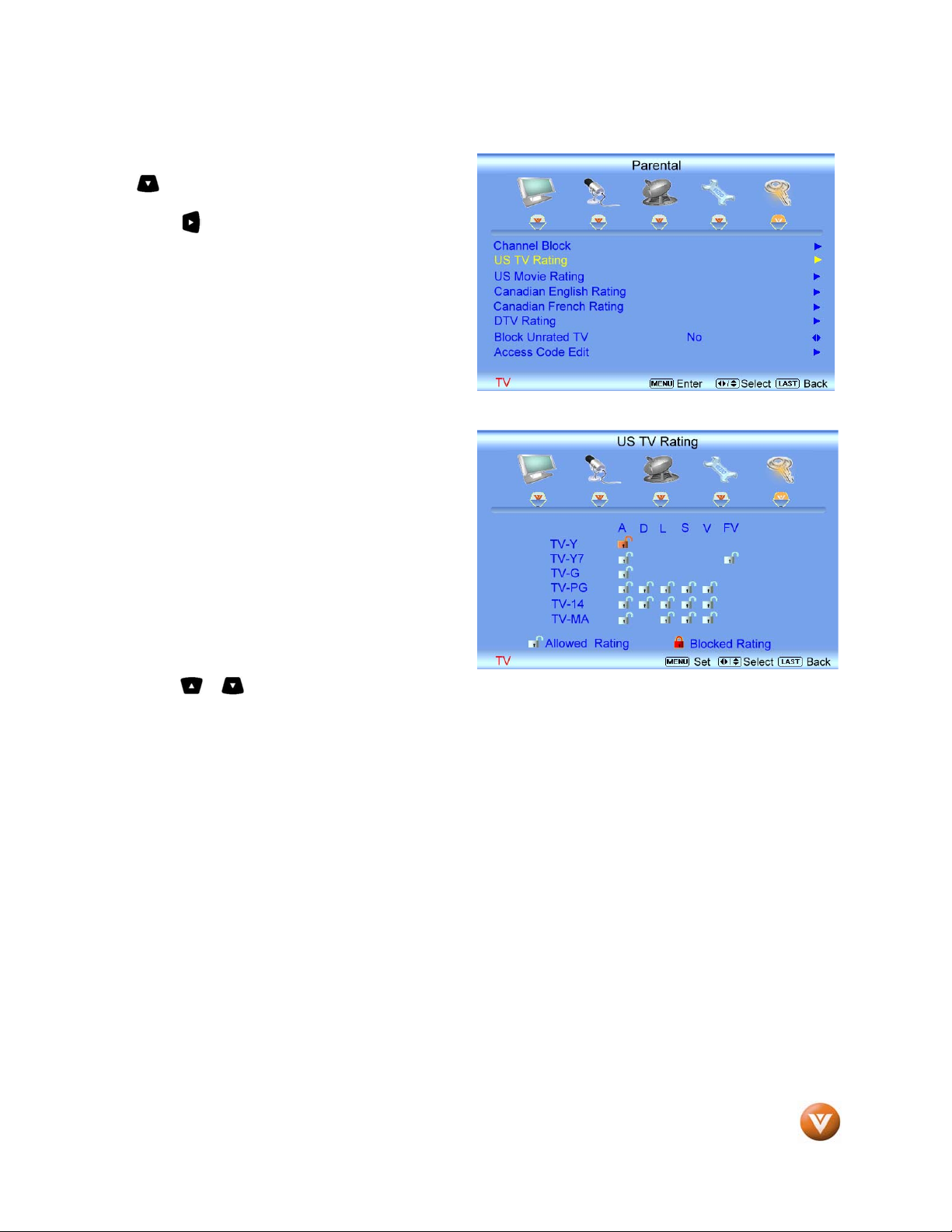

4.6.2 US TV Rating ............................................................................................................................................. 52

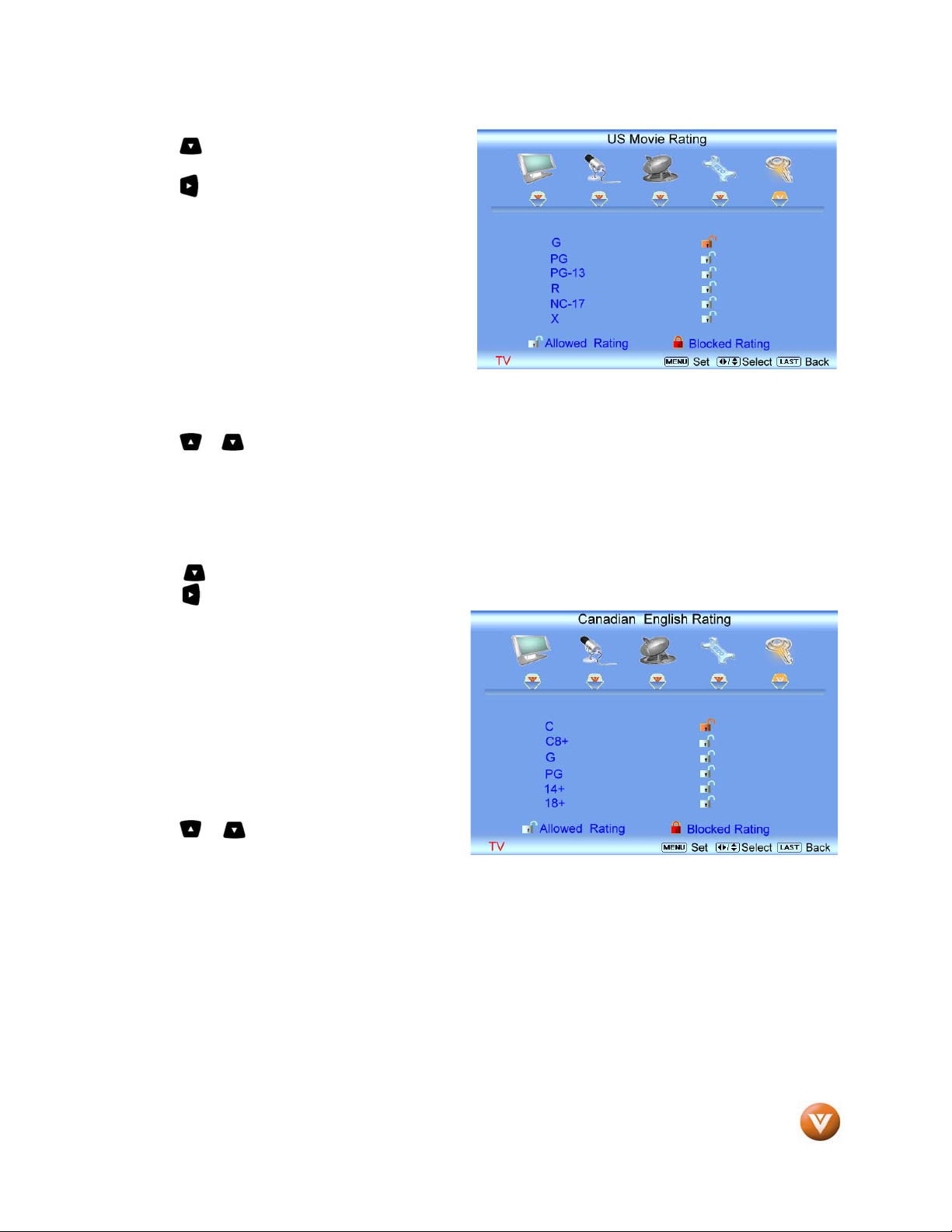

4.6.3 US Movie Rating ........................................................................................................................................ 53
4.6.4 Canadian English Rating ........................................................................................................................... 53

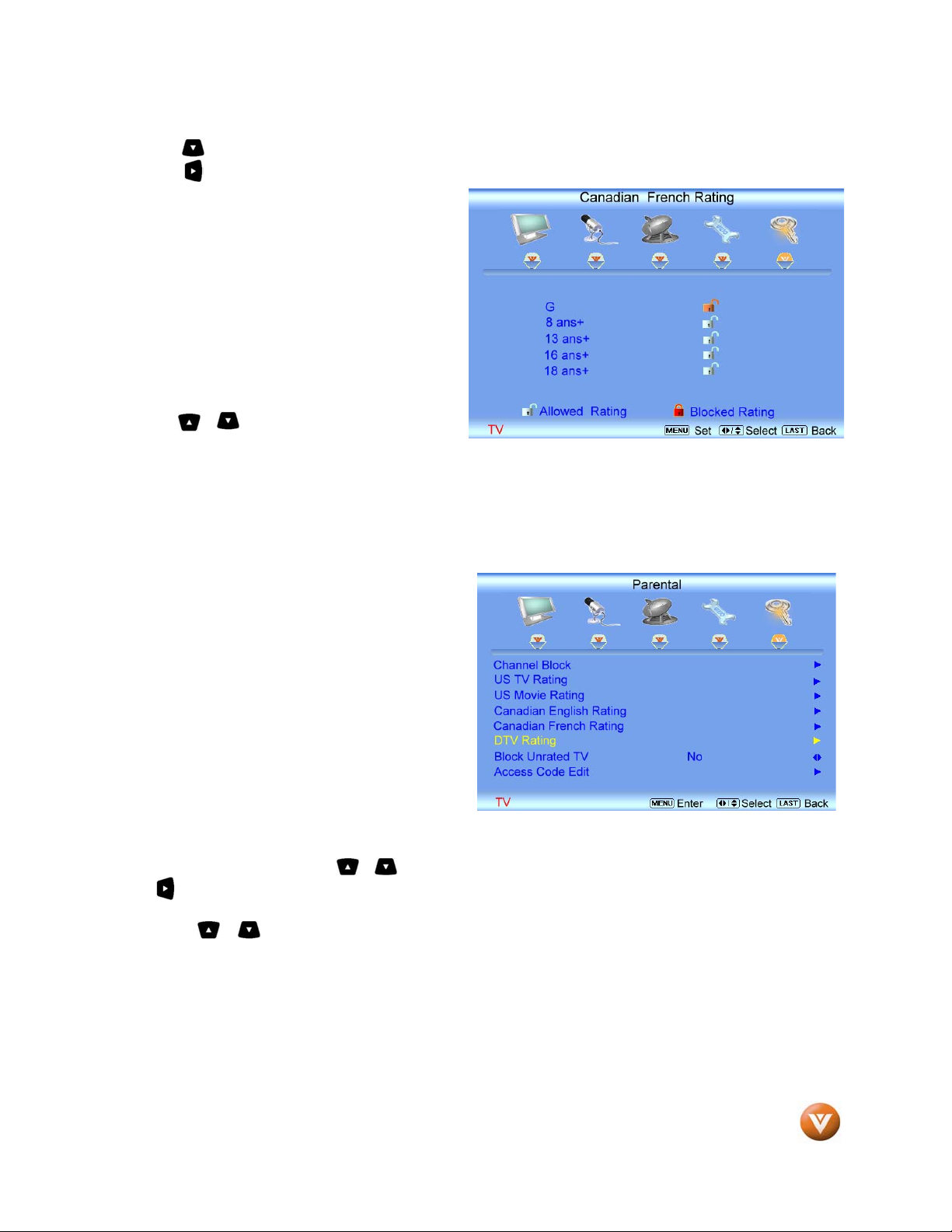

4.6.5 Canadian French Rating ............................................................................................................................ 54
4.6.6 DTV Rating ................................................................................................................................................ 54

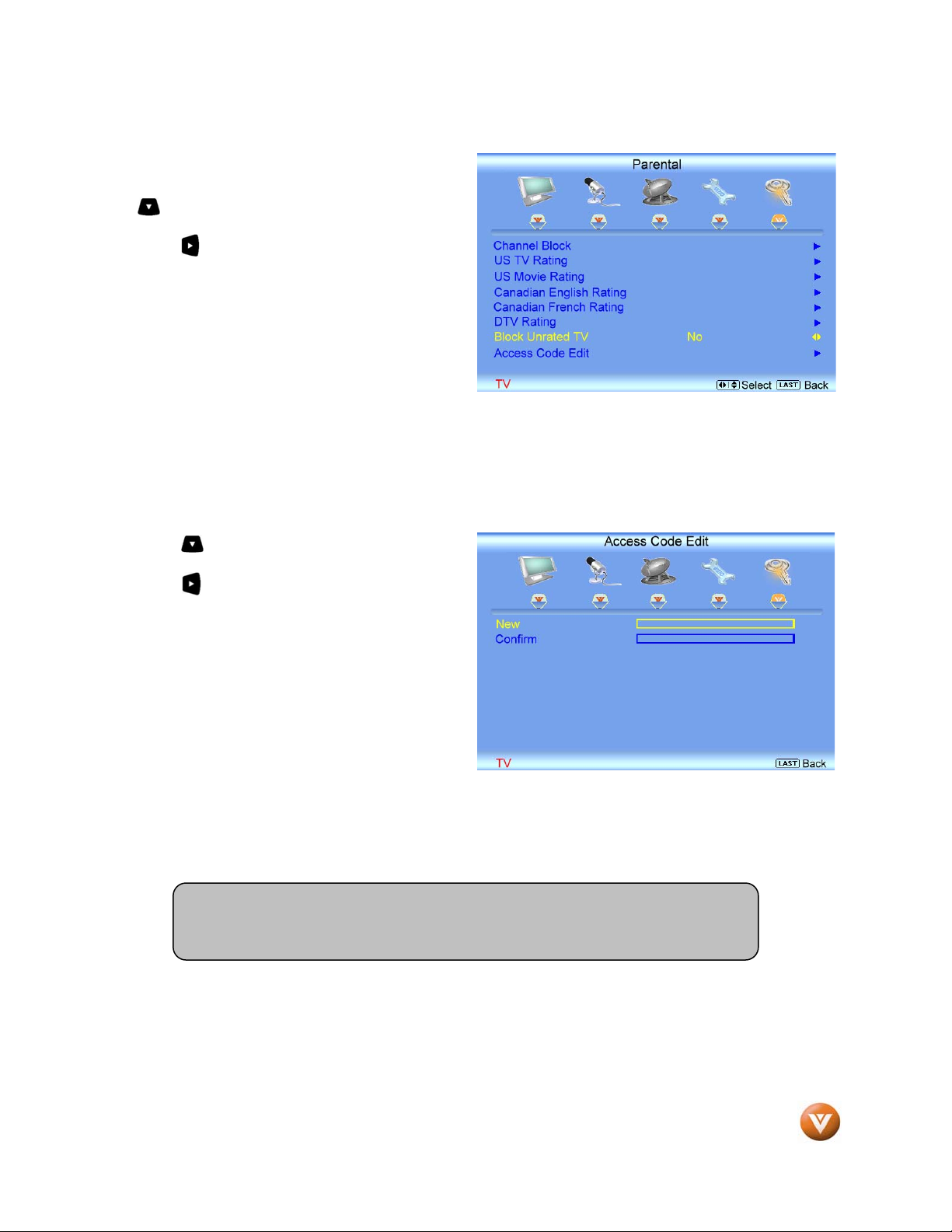

4.6.7 Block Unrated Programming ...................................................................................................................... 55
4.6.8 Change the Password ............................................................................................................................... 55

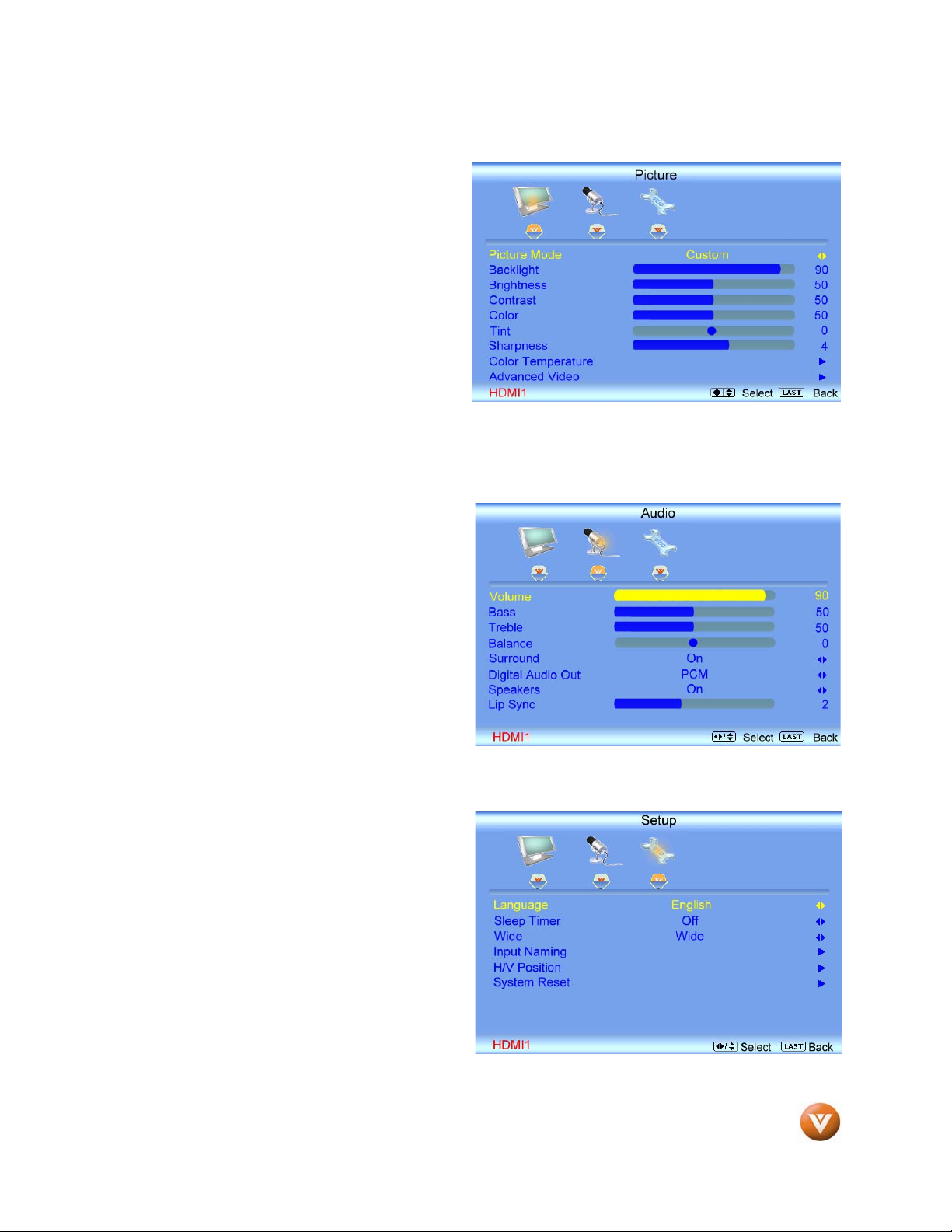

4.7 HDMI Input Picture Adjustment ......................................................................................................................... 56
4.8 HDMI Input Audio Adjustment ........................................................................................................................... 56
4.9 HDMI Input Setup .............................................................................................................................................. 56

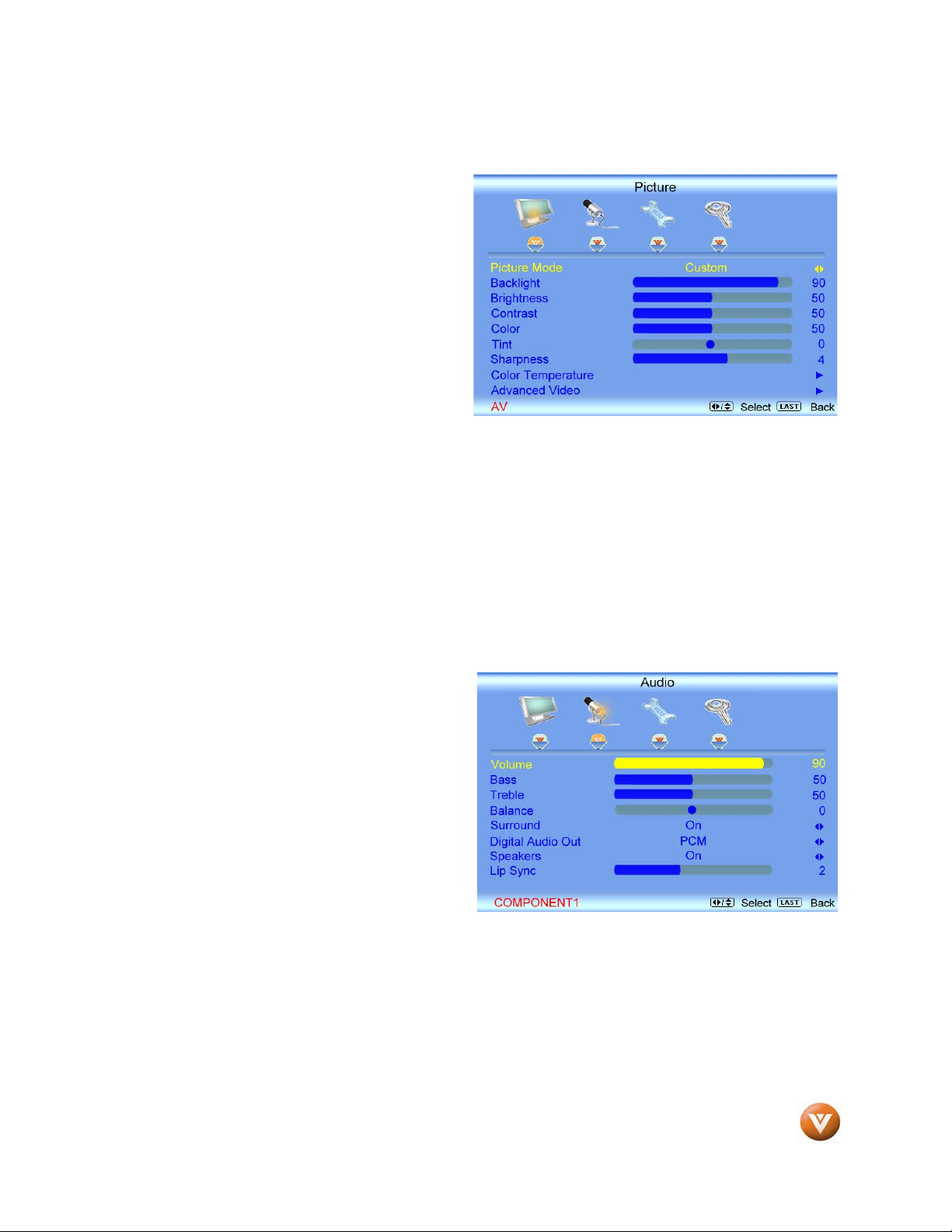

4.10 Video Input Picture Adjustment ....................................................................................................................... 57
4.11 Video Input Audio Adjustment ......................................................................................................................... 57
4.12 Video Input Setup ............................................................................................................................................ 58
4.13 Video Input Parental Control ........................................................................................................................... 58

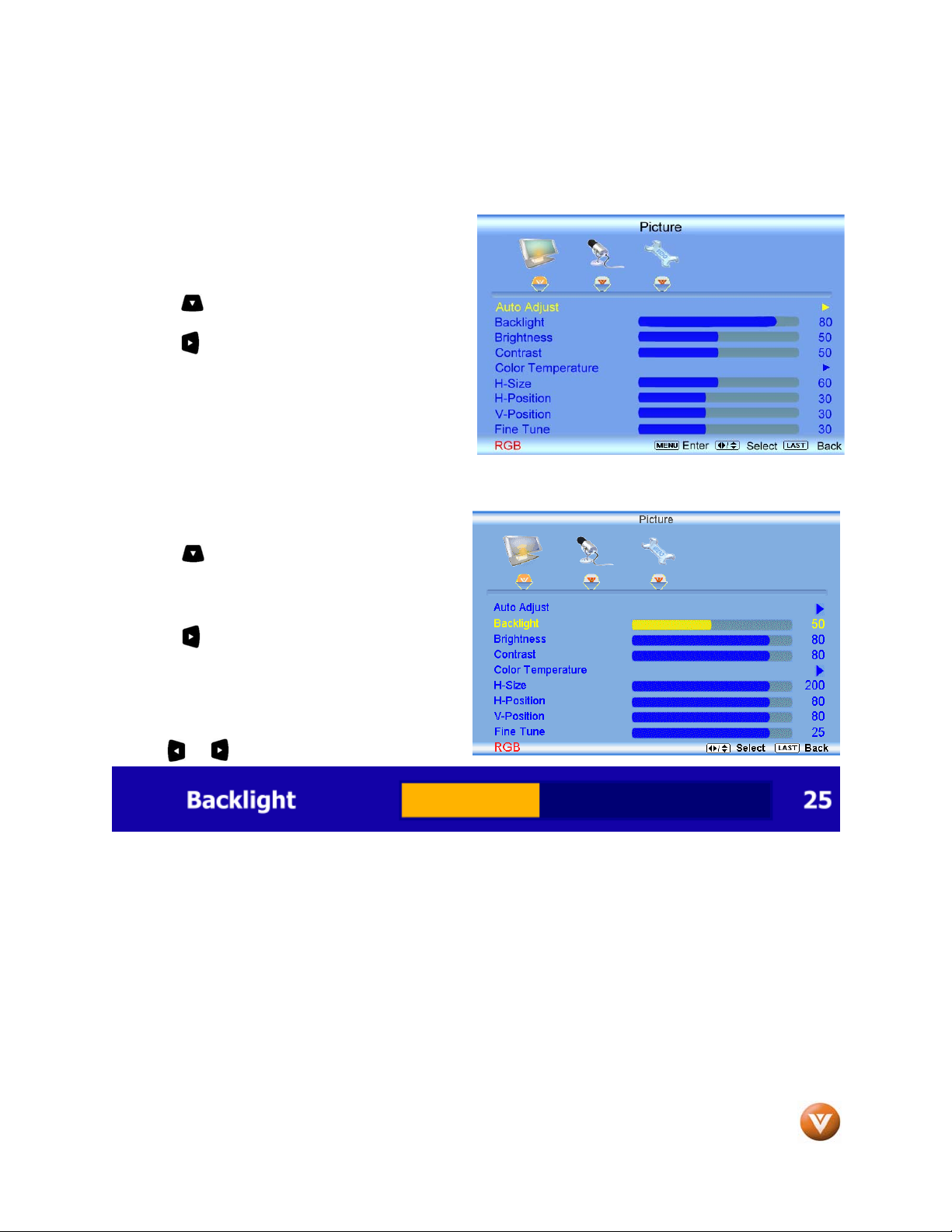

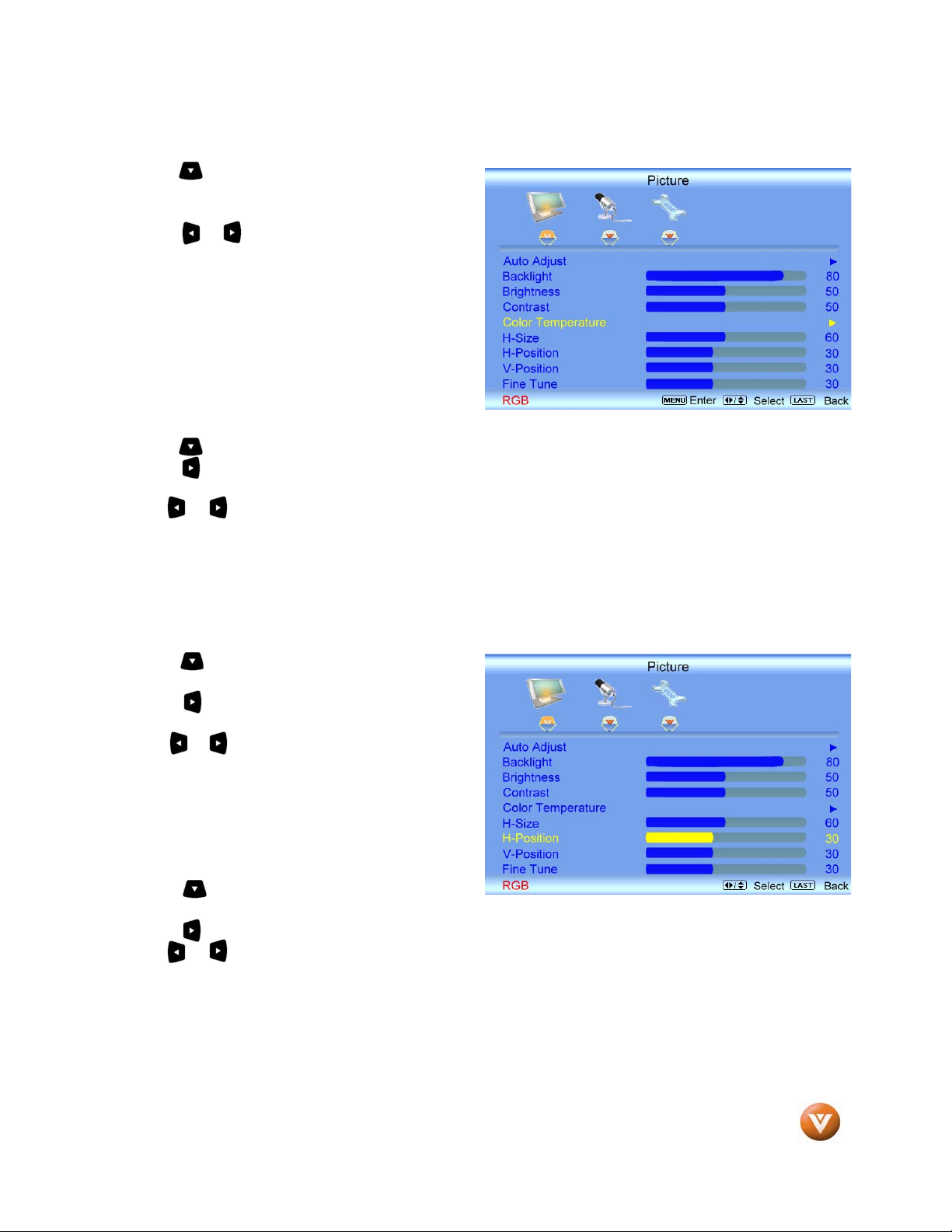

4.14 PC Input Picture Adjustment ........................................................................................................................... 59
4.14.1 Auto Adjust .............................................................................................................................................. 59
4.14.2 Backlight .................................................................................................................................................. 59
4.14.3 Brightness ................................................................................................................................................ 60
4.14.4 Contrast ................................................................................................................................................... 60
4.14.5 Color Temperature ................................................................................................................................... 61
4.14.6 H-SIZE ..................................................................................................................................................... 61
4.14.7 H-Position ................................................................................................................................................ 61
4.14.8 V-Position ................................................................................................................................................ 62
4.14.9 Fine Tune ................................................................................................................................................ 62
4.15 PC Input Audio Adjustment ............................................................................................................................. 62
4.16 PC Input Setup ................................................................................................................................................ 62
4.17 Understanding Viewing Features .................................................................................................................... 63

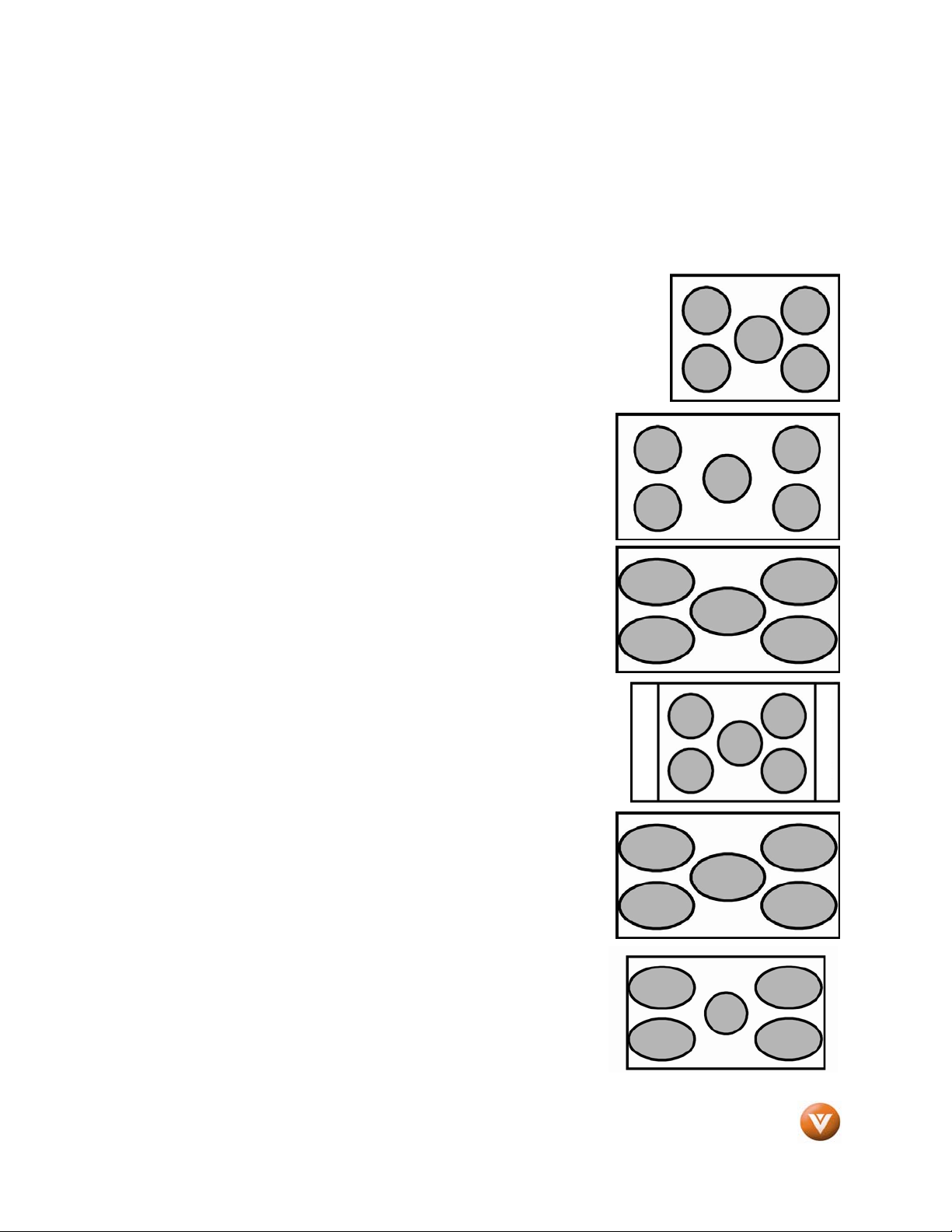

4.17.1 Viewing Modes ........................................................................................................................................ 63
4.17.2 Using a Cable or Satellite Remote ........................................................................................................... 64
Chapter 5 Maintenance and Troubleshooting ............................................................. 64
5.1 Maintenance ...................................................................................................................................................... 64
5.2 Troubleshooting Guide ...................................................................................................................................... 65
5.3 Telephone & Technical Support ........................................................................................................................ 66
5.4 Compliance ....................................................................................................................................................... 67
5.5 FCC Class B Radio Interference Statement ...................................................................................................... 67
Chapter 6 Miscellaneous Information ........................................................................... 68
6.1 Specifications .................................................................................................................................................... 68
6.2 Glossary – Standard Definitions ........................................................................................................................ 69
6.3 Index ................................................................................................................................................................. 70
Version 10/20/2008 8
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
Chapter 1 Basic Controls and Connections
1.1 Front Panel
Power ‘VIZIO’ light – The VIZIO name lights white when
powered on and orange when powered off.
Remote Control Sensor – This is the window through which all
of the remote control signals pass to the sensor. Point the
remote control directly at this window for the best response to
the remote signal.
1.2 Right Side Panel Controls
POWER ( ) – Switch the VW46L FHDTV20A on by pressing the button once. Press the button again
to turn the TV off.
MENU – This button activates the On Screen Display (OSD).
Pressing it a second time will select the first option or feature of
the OSD. If an option or feature which requires the display of
the slide bar is selected, pressing this button will toggle
between displaying the slide bar and the last OSD menu.
CHANNEL +/- – Use these buttons to step up or down the TV
channels. While the OSD is active, these buttons function as
up and down controls in the OSD menus.
VOLUME +/- – Use these buttons to increase or decrease to
the speaker volume. While the OSD is active, these buttons
function as left and right controls in the OSD menus.

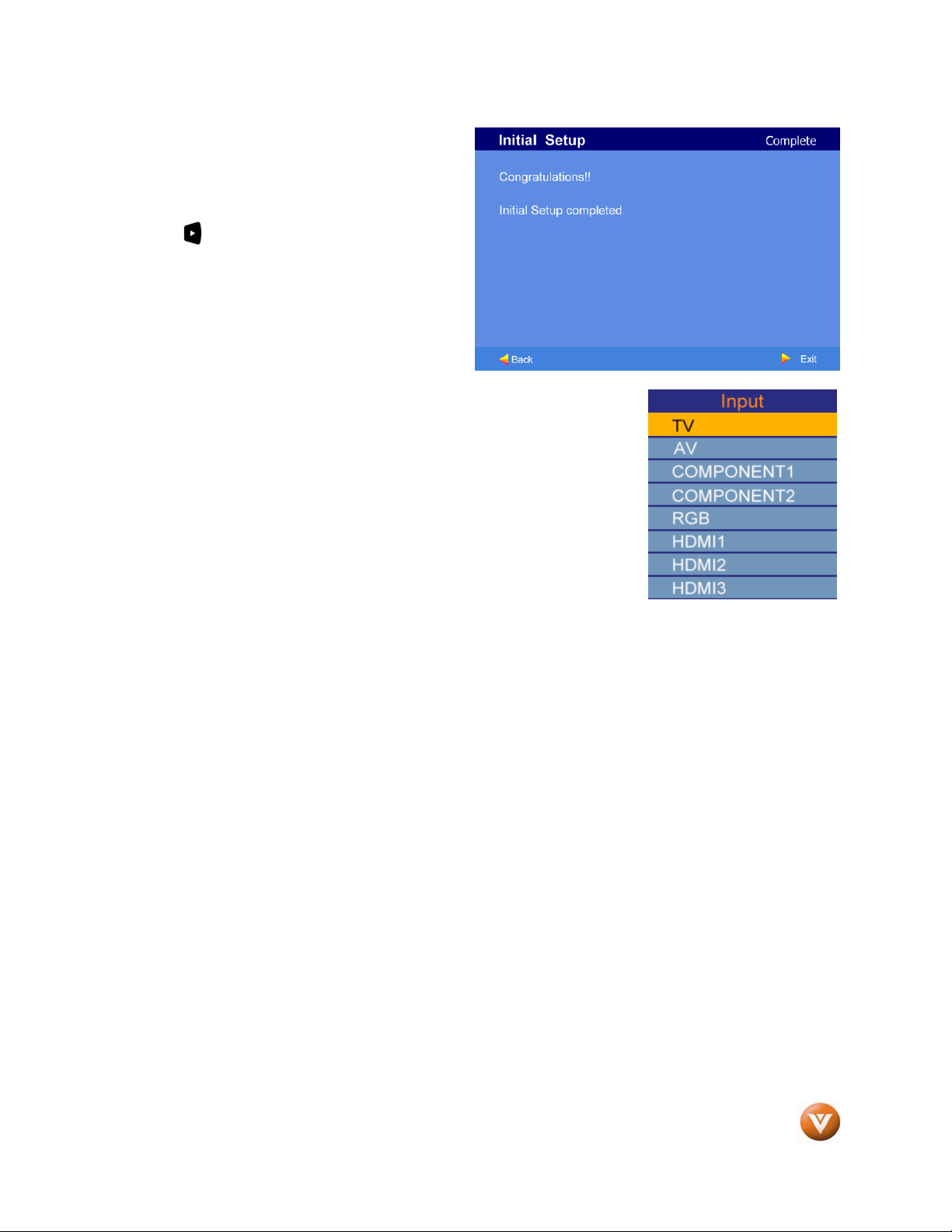

INPUT (ENTER) – Repeated
pressing of this buttons steps
through the input sources in
the following sequence: TV, AV
(S-Video), Component1,
Component2, RGB, HDMI1,
HDMI2, and HDMI3. Once you
have stepped through the
entire sequence, you will return
to the beginning. When the
OSD is on, if a sub-menu is
active, pressing this button will
return to the previous menu
level.
Version 10/20/2008 9
www.VIZIO.com
1.3 Rear Panel Connections
VIZIO® VW46L FHDTV20A User Manual
1 3
2
1. SERVICE – This custom communication port is for factory service only. Use of this input for
any purpose other than factory authorized service will void the manufacturer’s
warranty of this equipment.
2. HDMI 1 – Connect the primary source for digital video such as a DVD multimedia player or
set top box through this all digital connector. The white color band on the rear of the TV
indicates this connection.
3. HDMI 2 – Connect a secondary source for digital video such as a DVD multimedia player or
set top box through this all digital connector. The white color band on the rear of the TV
indicates this connection.
4. HDMI 3 – Connect a third source for digital video such as a DVD multimedia player or set top
box through this all digital connector. The white color band on the rear of the TV indicates
this connection. For users who want to connect to a DVI enabled device, use a DVI-HDMI
cable and connect the Analog Audio output of the device to the L+R AUDIO here. . Your
VIZIO Certified HDMI and HDMI-DVI cables are available for purchase from www.VIZIO.com
or by calling 888-VIZIOCE (888-849-4623).
5. RGB PC – Connect the video and audio from a computer here. The blue color band on the
rear of the TV indicates this connection. A cable with a 1/8” mini plug stereo connector at the
end connecting to the TV is needed if sound is also transmitted with this signal.
6. COMPONENT 1 (YPb/CbPr/Cr with Audio L/R) – Connect the primary source for
component video devices such as a DVD Player or set top box here. From left to right, use
green for Y, blue for Pb (or Cb), red for Pr (or Cr), white for left audio and red for right audio
inputs. The green color band on the rear of the TV indicates this connection.
7. COMPONENT 2 (YPb/CbPr/Cr with Audio L/R) – Connect the secondary source for
component video devices such as a DVD Player or set top box here. From left to right, use
green for Y, blue for Pb (or Cb), red for Pr (or Cr), white for left audio and red for right audio
inputs. The purple color band on the rear of the TV indicates this connection.
8. AV/S-VIDEO IN – Connect a source for composite or S-video image devices, such as a VCR
or video game. Use the white and red connectors to connect the external audio from the
same source, if S-Video is connected; such signal will take priority over the input. The yellow
and red color band on the rear of the TV indicates this connection.
9. DTV/TV – Connect to an antenna or digital cable (no Cable Box) for Digital TV.*
10. OPTICAL AUDIO OUT –When an audio signal is associated with an input which is selected
for viewing, the audio associated with the programming will be available on this SPDIF
Optical connector for connection to your home theatre system. The white color band on the
rear of the TV indicates this connection.
11. ANALOG AUDIO OUT – Connect the audio from the LCD HDTV to an external device, such
as a home theatre system, external amplifier or stereo. Speakers cannot be connected
directly to here. The white color band on the rear of the TV indicates this connection
12. AC IN – Plug-in the supplied AC Power Cord here.
* For digital TV stations in your area visit www.antennaweb.org
4
5
6
7
8
.
9
10
11
12
Version 10/20/2008 10
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
1.4 VIZIO Remote Control
GUIDE – This button displays program information. Press this button once when in TV mode and the
information of the program being viewed is shown.
POWER – Press this button to turn the TV on from the Standby mode. Press it again to return to the
Standby mode.
HDMI – Press this button to select the HDMI input. By pressing it repeatedly you will go through the three
(HDMI 1, HDMI 2 and HDMI 3) inputs in sequence.
MUTE – This button turns the sound on and off.
TV – Press this button to select TV.
COMPONENT – Press this button to select the Component (YPbPr)
input. By pressing this button repeatedly you will be switching from
Component 1 to Component 2 and vice versa.
LAST – This button recalls the previously viewed channel. If the OnScreen Display (OSD) menu is being used, this button will allow you to
get back to previous menu screen or out to your program when you
press it repeatedly.
AV – Press this button to select AV (either Composite or S-Video) input.
MENU – Use this button for the On-Screen Display (OSD) menu. When
it is used within a menu selection, pressing this key will help you to
make the selection of the feature to be adjusted after it has been
highlighted.
-These labeled buttons are used to navigate the OSD
menu. When navigating the OSD menu, the arrows control the direction
up and down or left and right. They will also be used as value settings
when the slide bar is shown on the screen and option settings to turn a
feature off or on.
hen
NUMBER BUTTON PAD – Use these buttons to select a channel or
enter a password.
INPUT – This button allows the user to
cycle through the inputs. Repeatedly
pressing of this button will step you
through the input sources in the
following sequence: TV, AV (S-VIDEO),
Component1, Component2, RGB,
HDMI1, HDMI2, and HDMI3. Once you
have stepped through the entire
sequence, you will return to the
beginning.
- (DASH) – When selecting a digital
channel directly use this button for the
separation of main and sub-channels.
For example, channel 28-2 would be
selected by the button sequence 2 8
ENTER 2.
Version 10/20/2008 11
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
1.4.1 Insertion of Batteries in the Remote Control
Insert two AA batteries into the remote control. Make sure that you match the (+) and (-) symbols on the
batteries with the (+) and (-) symbols inside the battery compartment. Re-attach the battery cover.
Precautionary Tips for Inserting the Batteries:
Only use the specified AA batteries.
Do not mix new and old batteries. This may result in cracking or leakage
that may pose a fire risk or lead to personal injury.
Inserting the batteries incorrectly may also result in cracking or leakage
that may pose a fire risk or lead to personal injury.
Dispose of the batteries in accordance with local laws and regulations.
Keep the batteries away from children and pets.
1.4.2 Remote Control Range
Point the remote control at the remote control sensor to transmit the commands.
Do not place any obstacles between the remote control and the receiver window.
The effective range of the remote control is approximately 30 feet (10 meters) from the front of the
receiver window, 30° to the left and right, 20° up and down.
1.4.3 VIZIO Remote Control Precautions
The remote control should be kept dry and away from heat sources. Avoid humidity.
If the TV responds erratically to the remote control or does not respond at all, check the batteries. If the
batteries are low or exhausted, replace them with fresh batteries.
When not using the remote control for a long period of time, remove the batteries.
Do not take the batteries apart, heat them, or throw them into a fire.
Do not subject the remote control to undue physical stress, such as striking or dro pping it.
Do not attempt to clean the remote control with a volatile solvent. Wipe it with a clean, damp cloth.
Version 10/20/2008 12
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
Chapter 2 Connecting Equipment
2.1 Which Video Connection Should I Use?
The VIZIO VW46L FHDTV20A has six different ways to connect your video equipment from a basic
connection to the most advanced for digital displays.
Connection
Quality
(type)
Best
(digital)
Best
(digital)
- - - - - - - - -
- - Good
(analog)
Best
(analog)
Better
(analog)
Connector
Rear
Panel
Color
Description
Codes
HDMI (High-Definition Multimedia Interface) - It is the first
and only industry-supported, uncompressed, all-digital
White
Black
Blue
Green
and
Purple
audio/video interface. HDMI provides an interface between
any audio/video source, such as a set-top box, DVD player,
or A/V receiver and an audio and/or video monitor, such as
a digital television (DTV), over a single cable.
DTV Coaxial RF. When used for MPEG2 encoded bit
streams from ATSC broadcast programming, this input
takes advantage of the High Definition content.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
TV Coaxial RF. This is the connection for standard NT SC
TV using antenna or cable.
RGB PC (VGA) – This video input has separate red, green
and blue color components. The signal carries horizo ntal
and vertical sync information on the green signal. This is
most commonly used for PC input.
Component - The video signal is separated into three
signals, one containing the black-and-white information and
the other two containing the color information. This
enhancement over S-Video takes advantage of the
superior picture provided by progressive scan DV D players
and HDTV formats.
Good
(analog)
Yellow
and
Red
AV/S-Video – 1. Composite: The complete video signal is
carried through this single (yellow) pin connector. This is
the most commonly used video connection. 2. S-Video:
The video signal is separated into two signals, one
containing the black-and-white information and the other
containing the color information. Separating the color in this
way avoids ‘cross color’ effects where closely spaced black
and white lines are erroneously displayed in color. It also
enables text to be displayed more sharply.
Note: For more info refer to the Quick Start Guide
Version 10/20/2008 13
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
2.2 Connecting Coaxial (RF)
2.2.1 Using Your Antenna or Digital Cable for DTV /TV
1. Turn off the power to the HDTV.
2. Connect the coaxial (RF) connector from your
antenna or digital cable (out-of-the-wall, not from
the Cable Box) to the DTV/TV CABLE/ANTENNA
connector.
3. Turn on the power to the HDTV.
4. Select DTV using the INPUT button on the remote
or side of the HDTV, or directly by pressing the TV
button on the Remote Control.
Note:
a) Not all digital TV broadcasts are High Definition (HD). Refer to the
program guides, or consult your cable, satellite or TV station operator.
b) Digital broadcasts are not available in all areas. Refer to
www.antennaweb.org
c) Make sure the antenna and coaxial cable are correctly grounded.
d) For Professional antenna installation contact us at www.VIZIO.com
call 1-888-VIZIOCE (1-888-849-4623).
for detailed information.
or
2.2.2 Using the Antenna or Cable through your VCR
1. Turn off the power to the HDTV and VCR.
2. Connect the “Output to TV”, “RF Out” or “Antenna
Out” connector on the rear of your VCR to the
DTV/TV CABLE/ANTENNA connector at the rear
of the HDTV.
3. Turn on the power to the HDTV and VCR.
4. Select TV using the INPUT button on the remote
or side of the HDTV, or directly by pressing the
TV button on the Remote Control.
Version 10/20/2008 14
Note: If you have an off-air antenna or cable TV, connect
it to the “Antenna In” connector on the rear of your VCR.
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
2.3 Connecting Your HDTV Set-Top Box
2.3.1 Using HDMI
HDTV Set-Top Boxes that have a HDMI digital interface should be connected to the HDMI input of the
LCD HDTV for optimal results.
Connecting your HDTV Set-Top Box (Best):
Note: To maintain the display quality, use a VIZIO certified HDMI cable. Length is
available up to 10 meters. See www.VIZIO.com or call 1-888-VIZIOCE (1-888-849-4623 )
for details.
1. Turn off the power to the HDTV and HDTV Set-Top Box.
2. Connect a HDMI cable to the HDMI output of your HDTV Set-Top Box and the other end to
the HDMI Input (white color area) at the rear of the HDTV.
3. Turn on the power to the HDTV and HDTV Set-Top Box.
4. Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by
pressing the HDMI button on the Remote Control.
5. If HDMI 1 is been used, you can use either HDMI 2 or HDMI 3; follow the above steps (1
through 3) and then select the desired input number in step 4.
Note:
a) The HDMI input on the HDTV supports High-bandwidth Digital Content Protection
(HDCP). HDCP encrypts the transmission between the video source and the
digital display for added security and protection.
b) Refer to your HDTV Set-Top Box user manual for more information about the
video output requirements of the product or consult your cable or satellite operator.
Version 10/20/2008 15
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
For HDTV Set-Top Boxes with DVI:
1. Turn off the power to the HDTV and HDTV Set-Top Box.
2. Using a HDMI-DVI cable, connect the DVI end to your HDTV Set-Top Box and the HDMI end
to the HDMI Input (white color area) at the rear of the HDTV.
3. Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the DVI output on your HDTV Set-Top Box and connect the other
end to the audio connectors associated with the HDMI input (white area) at the rear of the
HDTV.
4. Turn on the power to the HDTV and HDTV Set-Top Box.
5. Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by
pressing the HDMI button on the Remote Control.
Note:
a) The HDMI input on the HDTV supports High-bandwidth Digital Content Protection
(HDCP). HDCP encrypts the transmission between the video source and the
digital display for added security and protection.
b) Refer to your HDTV Set-Top Box user manual for more information about the
video output requirements of the product or consult your cable or satellite
operator.
c) All three HDMI inputs can be used with the audio (right and left) inputs as long as
the input (HDMI) number matches the connection.
Version 10/20/2008 16
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
2.3.2 Using Component Video
Connecting your HDTV Set-Top Box (Better):
1. Turn off the power to the HDTV and HDTV Set-Top Box.
2. Connect the Y (green color) connector on your HDTV Set-Top Box to the corresponding Y
(green color) connector in the Component 1 group (green color area - row of connectors
nearest to you when viewing from the rear of the TV) at the rear of the HDTV.
3. Connect the Pb (blue color) connector on your HDTV Set-Top Box to the corresponding Pb
(blue color) connector in the Component 1 group (green color area - row of connectors
nearest to you when viewing from the rear of the TV) at the rear of the HDTV.
4. Connect the Pr (red color) connector on your HDTV Set-Top Box to the corresponding Pr (red
color) connector in the Component 1 group (green color area - row of connectors nearest to
you when viewing from the rear of the TV) at the rear of the HDTV.
5. Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the Component output on your HDTV Set-Top Box and connect
the other end to the audio connectors associated with the Component 1 input (green color
area) at the rear of the HDTV.
6. Turn on the power to the HDTV and HDTV Set-Top Box.
7. Select Component 1 using the INPUT button on the remote or side of the HDTV, or directly
by pressing the Component button on the Remote Control.
Note:
Refer to your HDTV Set-Top Box user manual for more information about the
video output requirements of the product or consult your cable or satellite operator.
Version 10/20/2008 17
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
2.4 Connecting Your Basic Set-Top Box
2.4.1 Using Composite Video
1. Turn off the power to the HDTV and Set-Top
Box.
2. Using the AV Cable, connect the Video
(yellow color) connector on your Set-Top Box
to the corresponding Video (yellow color)
connector in the AV/S-Video group
(yellow/red color area) at the rear of the
HDTV.
3. Using the white and red connectors, connect the cable to the audio output connectors
associated with the Video output on your Set-Top Box and connect the other end to the audio
connectors associated with the AV/S-Video input (yellow/red color area) at the rear of the
HDTV.
4. Turn on the power to the HDTV and Set-Top Box.
5. Select AV using the INPUT button on the remote or side of the HDTV, or directly by pressing
the AV button on the Remote Control.
2.4.2 Using Coax (RF)
1. Turn off the power to the HDTV and Set-Top Box.
2. Using a Coax (RF) cable, connect one end to the TV
OUT (RF) on your Set Top Box and the other end to
the DTV/TV input at the rear of the HDTV.
3. Turn on the power to the HDTV and Set-Top Box.
4. Select TV using the INPUT button on the remote or side of the HDTV, or directly by pressing
the TV button on the Remote Control.
5. The most common channels; in which the TV must be at, are either channel3 or channel 4.
Please contact your signal provider to verify what channel the TV must be at.
Note: Refer to your Set Top Box user manual for more information
about selecting the video or RF output of the product.
Version 10/20/2008 18
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
2.5 Connecting Your DVD Player
You have several options for connecting your DVD player to your VW46L FHDTV20A; HDMI, Compone nt,
AV (S-Video or Composite) inputs. Based on your configuration, you can decide which option is right for
you.
2.5.1 Using HDMI
DVD players that have a digital interface such as HDMI (High Definition Multimedia Interface) should be
connected to the HDMI input of the VIZIO VW46L FHDTV20A for optimal results.
Note: To maintain the display quality, use a VIZIO certified HDMI cable. Length is available up to
10 meters. See www.VIZIO.com
Connecting your DVD Player (Best):
1. Turn off the power to the HDTV and DVD player.
2. Connect a HDMI cable to the HDMI output of your DVD player and the other end to the HDMI
Input (white color area) at the rear of the HDTV.
3. Turn on the power to the HDTV and DVD player.
4. Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by
pressing the HDMI button on the Remote Control.
5. If HDMI 1 input is already being used, please select either HDMI 2 or HDMI3 and follow
Steps 1through 4.
or call 1-888-VIZIOCE (1-888-849-4623) for details.
Note: Refer to your DVD player user manual for more information about
the video output requirements of the product.
Version 10/20/2008 19
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
For DVD Players with DVI:
1. Turn off the HDTV and DVD player.
2. Using a HDMI-DVI cable, connect the DVI end to your DVD player and the HDMI end to the
HDMI Input (white color area) at the rear of the HDTV.
3. Connect an audio cable (white and red connectors) to the audio output connectors
associated with the DVI output of the DVD player and connect the other end to the audio
connectors by the HDMI input (white area) at the rear of the HDTV.
4. Turn on the power to the HDTV and your DVD player.
5. Select HDMI using the INPUT button on the remote or side of the HDTV, or directly by
pressing the HDMI button on the Remote.
Note: Refer to your DVD player user manual for more information about
the video output requirements of the product.
Version 10/20/2008 20
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
2.5.2 Using Component Video
Connecting your DVD Player (Better)
1. Turn off the power to the HDTV and DVD player.
2. Connect the Y (green color) connector on your DVD player to the corresponding Y (green
color) connector in the Component 1 group (green color area - row of connectors nearest to
you when viewing from the rear of the TV) at the rear of the HDTV.
3. Connect the Pb (blue color) connector on your DVD player to the corresponding Pb (blue
color) connector in the Component 1 group (green color area - row of connectors nearest to
you when viewing from the rear of the TV) at the rear of the HDTV.
4. Connect the Pr (red color) connector on your DVD player to the corresponding Pr (red color)
connector in the Component 1 group (green color area - row of connectors nearest to you
when viewing from the rear of the TV) at the rear of the HDTV.
5. Using an audio cable (white and red connectors), connect the cable to the audio output
connectors associated with the Component output on your DVD player and connect the other
end to the audio connectors associated with the Component 1 input (green color area) at the
rear of the HDTV.
6. Turn on the power to the HDTV and DVD player.
7. Select Component using the INPUT button on the remote or side of the HDTV, or directly by
pressing the Component button on the Remote Control.
8. If Component 1 is already being used or you decide to use Component 2; please make the
cable connections and follow the steps 1 through 7 to have the DVD player playing through
your TV.
Note: Refer to your DVD player user manual for more
information about the video output requirements of the product.
Version 10/20/2008 21
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
2.5.2 Using S-Video (AV)
Connecting your DVD Player (Good):
1. Turn off the power to the HDTV and DVD
player.
2. Connect the S-Video jack on the rear of your
DVD player to the S-Video jack in the AV/SVideo group on the back of the HDTV.
3. Connect an audio cable (white and red connectors) to the audio output connectors
associated with the S-Video output on your DVD player and connect the other end to the
audio connectors associated with the AV/S-Video input on the rear of the HDTV.
4. Turn on the power to the HDTV and DVD player.
5. Select AV using the INPUT button on the remote or side of the HDTV, or directly by pressing
the AV button on the Remote Control.
2.5.3 Using Composite (AV) Video
Connecting your DVD Player (Good):
1. Turn off the power to the HDTV and DVD
player.
2. Connect the Video (yellow/red color area)
connector on your DVD player to the Video
(yellow color) connector in the AV/S-Video
group (yellow/red color area).
3. Connect the R (red color) and L (white
color) audio connectors on your DVD
player to the corresponding R (red color)
and L (white color) audio input connectors
in the AV/S-Video group (yellow/red color area).
4. Turn on the power to the HDTV and DVD Player.
5. Select AV using the INPUT button on the remote or side of the HDTV, or directly by pressing
the AV button on the Remote Control.
Note:
a) Refer to your DVD player user manual for more information
about the video output requirements of the product.
Version 10/20/2008 22
www.VIZIO.com
VIZIO® VW46L FHDTV20A User Manual
2.6 Connecting Your VCR or Video Camera
1. Turn off the HDTV and VCR or Video Camera.
2. Connect the S-Video jack on the rear of your
VCR or Video Camera to the S-Video jack in
the AV/S-Video group on the rear side of the
HDTV.
3. Connect an audio cable (white and red connectors) cable to the audio output connectors
associated with the S-Video output on your VCR or Video Camera and connect the other end
to the audio connectors associated with the AV input on the side of the HDTV.
4. Turn on the power to the HDTV and VCR or Video Camera.
5. Select AV using the INPUT button on the remote or side of the HDTV, or directly by pressing
the AV button on the Remote Control.
Note: Refer to your VCR or Video Camera user manual for more
information about the video output requirements of the product.
Version 10/20/2008 23
www.VIZIO.com
Loading...
