Weed Eater BV2000LE TYPE 2, BV1850LE TYPE 2 Owner’s Manual

(_ Trademark
Instruction Manual
Manual de Instrucciones
Manuel d'lnstructions
BV200 / BV1650 / BV1800
BV1850 / BV2000
IMPORTANT MANUAL - Do not throw away
LE Series /
WARNING:
Read and follow all Safety Rules and Operating Instructions before using this product. Failure to do so can result in serious injury.
ADVERTENOIA:
Lea el manual de instrucciones y siga todas las advertencias e instrucciones de seguridad. El no hacerlo puede resultar en lesiones
graves. AVERTISSEMENT:
Veuillez life le manuel d'instructions et bien respecter tousles avertissements et toutes les instructions de securit& Tout defaut
de le faire pourrait entraTner des blessures graves. Electrolux Home Products, Inc.
1030 Stevens Creek Road
Augusta, GA 30907
[_ The Elecbolux Group. The worid's No. t choice.
K_TCHEN, CLEANING aND ou"r_R APPLES COMStNE_
Copyright t_2005 Electrolux Home Products, inc. 530165752 8/17/05
_WARNING: Failure to follow all
Safety Rules and Precautions can result in serious injury.
KNOW YOUR UNIT
Read your instruction manual carefully until you compietely understand and can follow
all warnings and safety rules before operat- ing the unit.
Restrict unit to users who understand and will follow all warnings and safety rules in
this manual.
WARNING: Inspect area before start-
ing unit. Remove all debris and hard objects such as rocks, glass, wire, etc. that can rico-
chet, be thrown, or otherwise cause injury or damage during operation.
Use your unit as a blower for:
Sweeping debris or grass clippings from
driveways, sidewalks, patios, etc.
Blowing grass clippings, straw, or leaves into
piles, around joints, or between bricks.
Use your unit as a vacuum for:
Picking up dry material such as leaves,
grass, small twigs, and bits of paper.
For best results during vacuum use, operate
your unit at high speed.
Move slowly back and forth over the mate-
rial as you vacuum. Avoid forcing the unit into a pile of debris as this can clog the unit.
Keep the vacuum tube about an inch above
the ground for best results.
PLAN AHEAD
Always wear eye protection when operat- ing, servicing, or performing maintenance
on unit. Wearing eye protection will help to prevent rocks or debris from being blown or ricocheting into eyes and face which can
result in blindness and/or serious injury. Eye protection should be marked Z87.
Always wear foot protection. Do not go barefoot or wear sandals.
Always wear respirator or face mask when working with unit in dusty environments.
Secure hair above shoulder length. Secure or remove jewelry, loose clothing, or cloth-
ing with loosely hanging straps, ties, tas- sels, etc. They can be caught in moving
parts.
Do not operate unit when you are tired, ill, up- set, or if you are under the influence of alco-
hol, drugs, or medication.
Keep children, bystanders, and animals away from work area a minimum of 30 feet
(10 meters) when starting or operating unit. Do not point the blower nozzle in the direc- tion of people or pets.
HANDLE FUEL WITH CAUTION, IT IS HIGHLY FLAMMABLE
Eliminate all sources of sparks or flame (in- cluding smoking, open flames, or work that can cause sparks) in the areas where fuel is
mixed, poured, or stored.
Mix and pour fuel in an outdoor area; store fuel in a cool, dry, welt ventilated place; use
an approved, marked container for all fuel purposes.
Do not smoke while handling fuel or while operating the unit.
Make sure the unit is properly assembled and in good operating condition.
Do not fill fuel tank while engine is hot or running.
Avoid spilling fuel or oil. Wipe up fuel spills before starting engine.
Move at least 10 feet (3 meters) away from fuel and fueling site before starting engine.
Always store gasoline in a container ap- proved for flammable liquids.
OPERATE YOUR UNIT SAFELY
,_,WARNING: Stop the engine before
opening the vacuum inlet door. The engine
must be stopped and the impeller blades no longer turning to avoid serious injury from the rotating blades.
Inspect unit before each use for worn, loose, missing, or damaged parts. Do not
use until unit is in proper working order.
Keep outside surfaces free of oil and fuel.
Never start or run engine inside a closed room, building or other unventilated area.
Breathing exhaust fumes can kill.
To avoid static electricity shock, do not wear rubber gloves or any other insulated
gloves while operating unit.
Do not set unit on any surface except a clean, hard area while engine is running.
Debris such as gravel, sand, dust, grass, etc. could be picked up by the air intake and
thrown out through discharge opening, damaging unit, property, or causing serious injury to bystanders or operator.
Avoid dangerous environments. Do not use in unventilated areas or where explosive
vapors or carbon monoxide build up could be present.
Do not overreach or use from unstable sur- faces such as ladders, trees, steep slopes, rooftops, etc. Keep firm footing and balance
at all times.
Never place objects inside the blower tubes; always direct the blowing debris away from people, animals, glass, and soiid
objects such as trees, automobiles, walls, etc. The force of air can cause rocks, dirt, or sticks to be thrown or to ricochet which can
hurt people or animals, break glass, or cause other damage.
Never run unit without the proper equip-
ment attached. When using your unit as a blower, always install blower tubes. When
using your unit as avacuum, always install
vacuum tubes and vacuum bag assembly.
Make sure vacuum bag assembly is com- pletely zipped.
Check air intake opening, blower tubes,
vacuum tubes, and elbow tube frequently,
always with engine stopped and spark
-2-
plug disconnected. Keep vents and dis-
charge tubes free of debris which can ac- cumulate and restrict proper air flow.
Never place any object in the air intake opening as this could restrict proper air flow
and cause damage to the unit.
Never use for spreading chemicals, fertil-
izers, or other substances which may con-
tain toxic materials.
To avoid spreading fire, do not use near
leaf or brush fires, fireplaces, barbecue pits, ashtrays, etc.
Use only for jobs explained in this manual.
MAINTAIN YOUR UNIT PROPERLY
Have all maintenance other than the rec-
ommended procedures described in the in- struction manual performed by an autho-
rized service dealer.
Disconnect spark plug before performing
maintenance except for carburetor adjust- ments.
Use only recommended Weed Eater ® re-
placement parts; use of any other parts may void your warranty and cause damage
to your unit.
Empty fuel tank before storing the unit. Use
up fuel left in carburetor by starting engine and letting it run until it stops.
Do not use any accessory or attachment
other than those recommended by manufac- turer for use with your unit.
Do not store the unit or fuel in a closed area
where fuel vapors can reach sparks or an open flame from hot water heaters, electric
motors or switches, furnaces, etc.
Store in a dry area out of reach of children.
SPECIAL NOTICE: Exposure to vibra- tions through prolonged use of gasoline pow-
ered hand tools could cause blood vessel or
nerve damage in the fingers, hands, and
joints of people prone to circulation disorders or abnormal swelling. Prolonged use in cold
weather has been linked to blood vessel dam- age in otherwise healthy people. If symptoms occur such as numbness, pain, loss of
strength, change in skin color or texture, or
loss of feeling in the fingers, hands, or joints,
discontinue the use of this tool and seek
medical attention. An antivibration system
does not guarantee the avoidance of these
problems. Users who operate power tools on
a continual and regular basis must monitor closely their physical condition and the condi- tion of this tool.
SPECIAL NOTICE: For users on U.S. For- est Land and in some states, including Cali-
fornia (Public Resources Codes 4442 and
4443), idaho, Maine, Minnesota, New Jersey, Oregon, and Washington: Certain internal
combustion engines operated on forest,
brush, and/or grass covered land in the above
areas are required to be equipped with a spark arresting screen, maintained in effec-
tive working order, orthe engine must be con- structed, equipped, and maintained for the
prevention of fire. Check with your state or lo- cal authorities for regulations pertaining to these requirements. Failure to follow these
requirements is a violation of the law. This unit
is not factory equipped with a spark arresting screen; however, a spark arresting screen is
available as an optional part. if a spark arrest-
ing screen is required in your area, contact your authorized service dealer for the correct
kit. The spark arresting screen, blower tubes, and nozzles must be assembled to unit to be
in full compliance with regulations.
WARNING: Stop engine and be sure
the impeller blades have stopped turning be- fore opening the vacuum inlet door or at-
tempting to insert or remove the vacuum or blower tubes. The rotating blades can cause
serious injury. Always disconnect the spark plug before performing maintenance or ac-
cessing movable parts.
_bWARNING: If you receive your unit
assembled, check each step to insure your unit is properly assembled and all fasteners
are secure. Follow all safety information in the manual and on the unit.
A standard screwdriver is required for as- sembly.

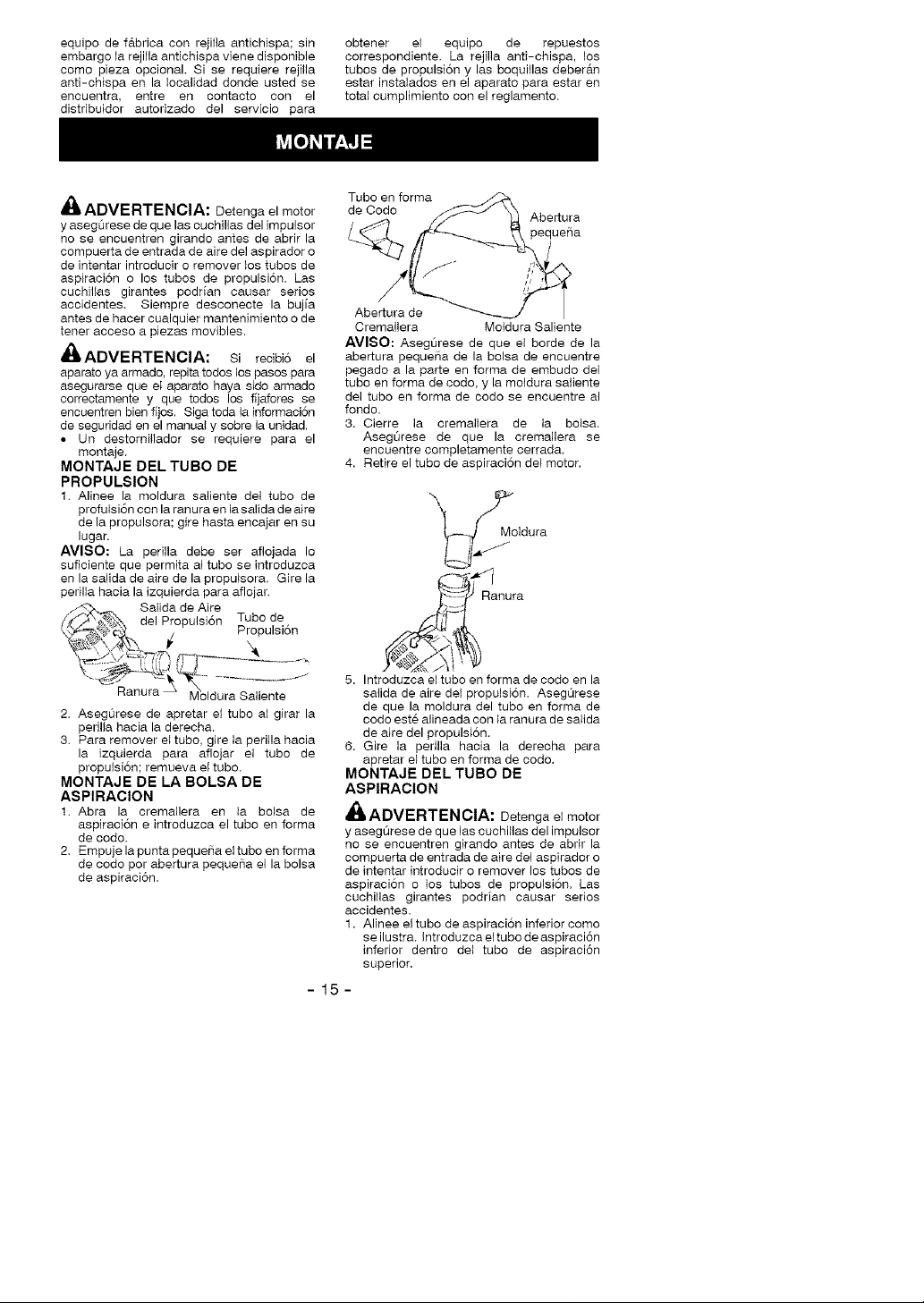

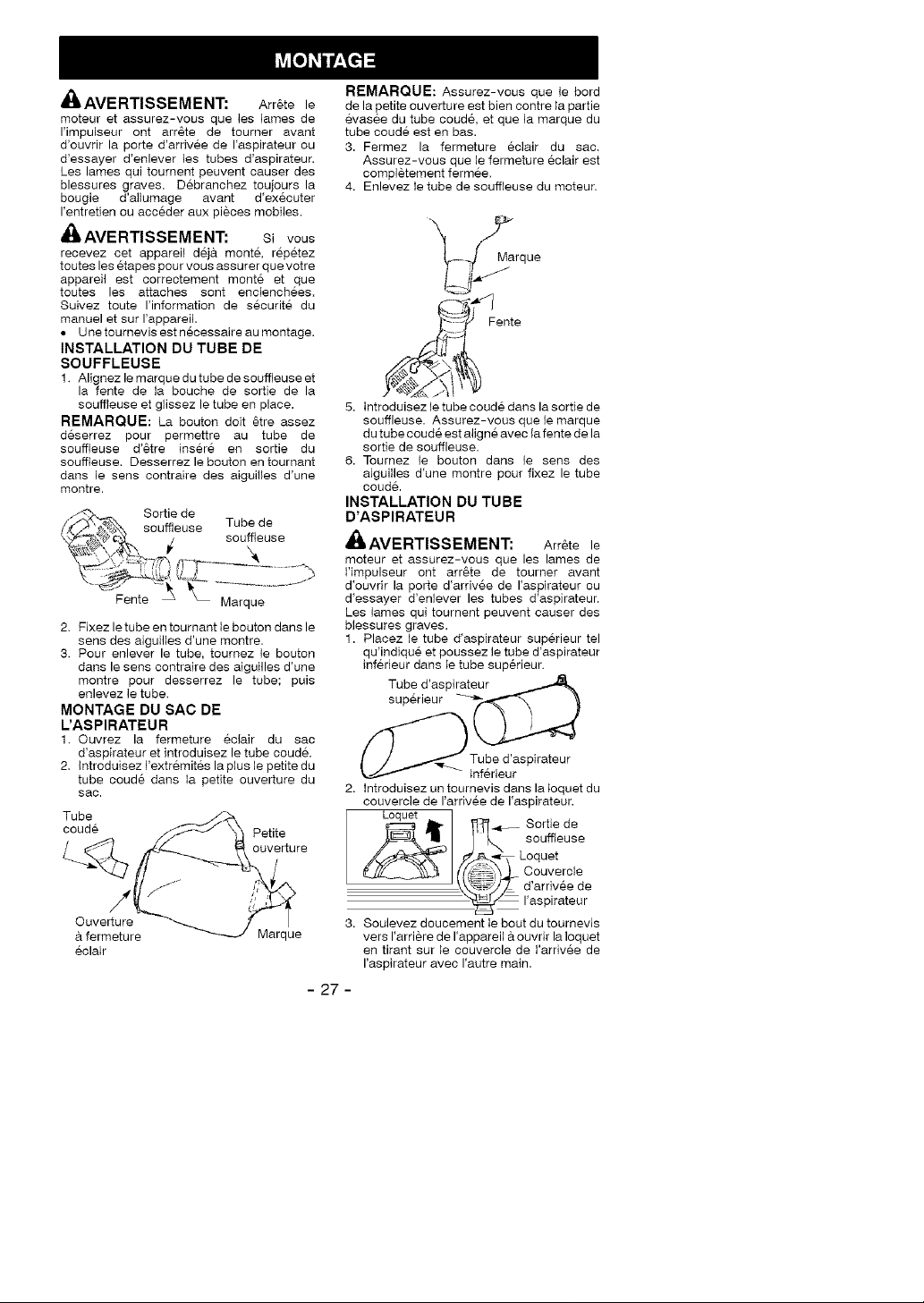

BLOWER TUBE ASSEMBLY
1. Align the rib on the blower tube with the groove in the blower outlet; slide the tube
into place.
NOTE: Knob must be loose enough to allow blower tube to be inserted in blower outlet.
Loosen knob by turning counterclockwise.
/<-,_ Blower
/_'/_,_ Outlet Blower
_' _U'_'t_ / Tube
Groove _ _ Rib
2. Secure the tube by turning the knob clock- wise.
3. To remove the tube. turn the knob counter-
clockwise to loosen the tube; remove the
tube.
VACUUM BAG ASSEMBLY
1. Open the zipper on the vacuum bag and insert the elbow tube.
2. Push the small end of the elbow tube through the small opening in the bag.
-3-
Elbow Tube
Zipper Opening Rib
NOTE: Make sure edge ofthe small opening
is flush against the flared area of the elbow tube. and the rib on the elbow tube is on the bottom.
3. Closethe zipper on the bag. Make sure the zipper is closed completely.
4. Remove blower tube from engine.
5. Insert the elbow tube into the blower outlet.
Make sure elbow tube rib is aligned with
the blower outlet groove.
6. Turn knob clockwise to secure elbow tube.
VACUUM TUBE ASSEMBLY
Small Opening
/,
Rib
roove
WARNING: Stop engh_e and be sure
the impeller blades have stopped turning be- fore opening the vacuum inlet door or at-
tempting to insert or remove the vacuum or blower tubes. The rotating blades can cause
serious h_jury.
1. Align the lower vacuum tube as shown. Push lower vacuum tube into upper vacu- um tube.
3. Gently tilt the handle of the screwdriver to- ward the back of the unit to release the
latch while pulling up on the vacuum inlet cover with your other hand.
4. Hold the vacuum inlet cover open until up-
per vacuum tube is installed.
Vacuum inlet _
Retaining Post Xl_, ' ;i_f_
5. Place the hooks of the upper vaeuum tube
on the retaining posts of the unit.
6. Pivot the tube until it is secured to the
blower unit by the vacuum inlet latch.
PIVOT
HOW TO CONVERT UNIT FROM
VACUUM USE TO BLOWER USE
1. Remove the vacuum tubes by inserting the tip of a screwdriver into the latch area
of the vacuum inlet.
2. Gently tilt handle of screwdriver toward the back of the unit to release the latch
while pulling up on the upper vacuum tube with your other hand.
inlet Cover
Latch Area
Latch
Hook Post
Lower Vacuum Tube
2. Insert the tip of a screwdriver into the latch area of the vacuum inlet.
Outlet
Latch Area Vacuum
L__ _ Blower
Inlet Cover
3. Remove the vacuum bag.
4. Close the vacuum inlet cover and make sure it is latched closed.
5. Reinstall the btower tube (see BLOWER
TUBE ASSEMBLY).
-4-
SHOULDER STRAP ADJUSTMENT
1 Hold the unit as shown with the muffler side
facing away from your body and clothes.
2. Pass the shoulder strap over your head and onto your right shoulder.
3. Extend your left arm toward the rear of the vacuum bag.
4. Adjust shoulder strap until the vacuum
bag/shoulder strap seam lies between
your thumb and index finger.
5. Make sure air flows freely from the elbow tube into bag. If bag is kinked, the unit will
not operate properly.

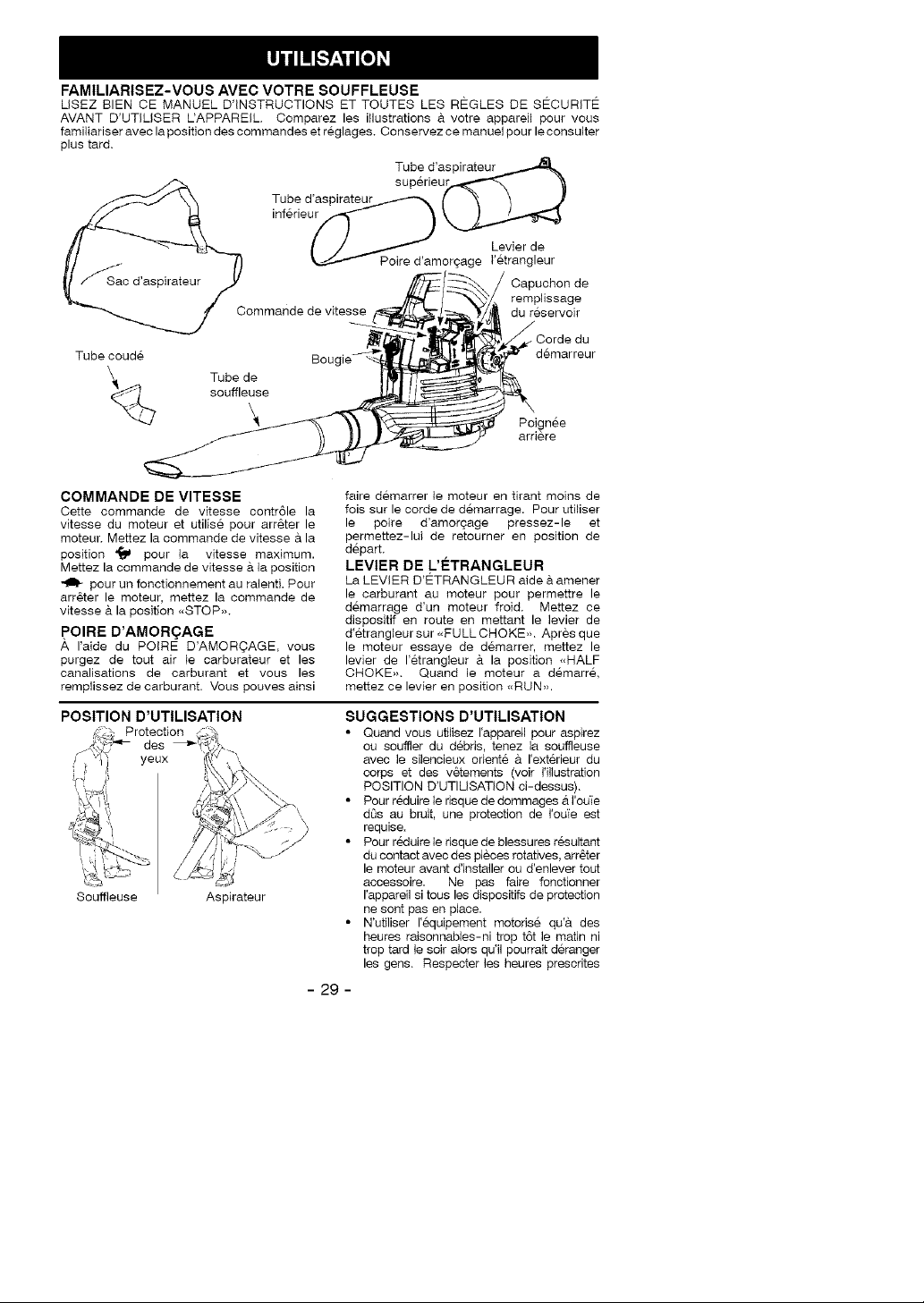

KNOW YOUR BLOWER READTHIS INSTRUCTION MANUALAND SAFETYRULESBEFOREOPERATINGYOUR UNIT
Compare the illustrations with your unit to familiarize yourself with the location of the various controls and adjustments. Save this manual for future reference.
Vacuum Tube
Lower Vacuum T_
Throttle Lever
Upper
Primer Button
Choke Lever
Fuel Mix
Elbow Tube
Tube Blower
\
THROTTLE LEVER
The THROTTLE LEVER is used to select the desired engine speed and to stop the engine.
Movethethrottlelevertothe 4"_ positionfor full speed operation. Move the throttle lever
tothe _ positionfor idlespeed. To stopthe engine, move the throttle lever to the STOP
position.
PRIMER BUTTON
The PRIMER BUTTON removes air from the carburetor and fuel lines and fills them with fuel. This allows you to start the engine with fewer
pulls on the starter rope. Activate primer button by pressing itand allowing it to return to its origi-
nal position.
CHOKE LEVER
The CHOKE he_ps to supply fuel to the engine to aid in cold starting. Activate the choke by
moving the choke lever to the FULL CHOKE position. After engine attempts to start, move the
choke lever to the HALF CHOKE position. Once engine starts, move choke lever to the
RUN position.
-5-
Rope
Rear Handle
OPERATING POSITION
Protection
Blower Vacuum
OPERATING TIPS
While vacuuming or Mowing debris, hold
the unit with the muffler side facing away from your body and ctothes (see OPERAT-
ING POSITION illustration above).
To reduce the risk of hearing loss
associated with sound level(s), hearing protection is required.
To reduce the risk of injury associated with
contacting rotating parts, stop the engine be- fore installing or removing attachments. Do
not operate without guard(s) in place.
Operate power equipment only at reasonable
hours-not early in the morning or late at night when people might be disturbed. Comply with times listed in Iocat ordinances. Usual recom-
mendations are 9:00 a.m. to 5:00 p.m., Monday though Saturday.
To reduce noise levels, timit the number of
pieces of equipment used at any one time.
To reduce noise levels, operate power
Mowers at the lowest possible throttle speed to do the job.
Use rakes and brooms to loosen debris be-
fore blowing.
In dusty conditions, slightly dampen sur-
faces or use a mister attachment when wa- ter is available.
Conserve water by using power blowers
instead of hoses for many lawn and garden applications, including areas such as gutters,
screens, patios, grills, porches, and gardens.
Watch out for children, pets, open windows,
or freshly washed cars. Blow debris away safely.
Use the full blower nozzIe extension so the
air stream can work close to the ground.
After using blowers and other equipment,
CLEAN UP! Dispose of debris in trash re- ceptacles.

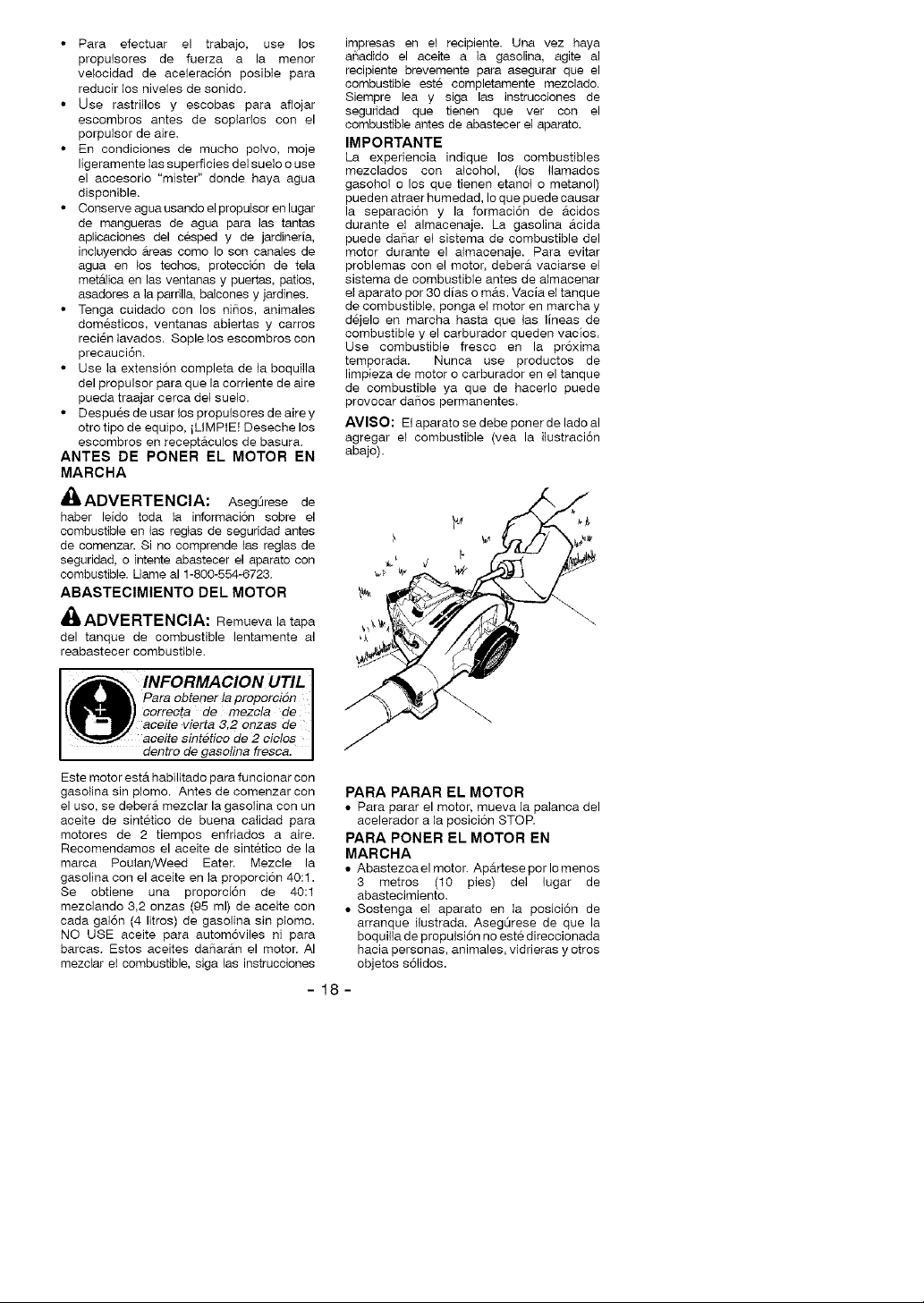

BEFORE STARTING ENGINE
_WARNING: Be sure to read the fuel
information in the safety rules before you be- gin. If you do not understand the safety rules,
do not attempt to fuel your unit. Call
1-800-554-6723.
FUELING ENGINE
_, WARNING: Remove fuel cap slowly
when refueling.
HELPFUL TiP I
\ To obtain the correct oitmix I J ratio, pour 3.2 ounce s of
'2-cycle synthetic oil into I
one gallon of fresh gas. I
This engine is certified to operate on unleaded gasoline. Before operation, gasoline must be
mixed with a good quality synthetic 2-cycle
air-cooled engine oil designed to be mixed at a
ratio of 40:1. Poulan/Weed Eater brand
synthetic oil is recommended. Mix gasoline and oil at a ratio of 40:1. A 40:1 ratio is obtained by
mixing 3.2 ounces (95 ml) of oil with 1 gallon (4 liters) of unleaded gasoline. DO NOT USE
automotive oil or boat oil. These oils will cause engine damage. When mixing fuel, follow
instructions printed on container. Once oil is added to gasoline, shake container momentarily to assure that the fuel is thoroughly mixed.
Always read and foltow the safety rules retating to fuet before fueling your unit.
IMPORTANT
Experience indicates that alcohol blended fuels (called gasohol or using ethanoi or
methanol) can attract moisture which leads to separation and formation of acids during
storage. Acidic gas can damage the fuel system of an enginewhile in storage. Toavoid engine problems, empty the fuel system
before storage for 30 days or longer. Drain the gas tank, start the engine and let it run until the
fuel lines and carburetor are empty. Use fresh fuel next season. Never use engine or carburetor cleaner products in the fuel tank or
permanent damage may occur.
NOTE: Unit must be placed on its side when adding fuet (see illustration below).
J
TO STOP THE ENGINE
To stop the engine, move the throttle lever
to the STOP position.
BEFORE STARTING THE ENGINE
'_,WARNING: You MUST make sure
the tubes are secure before using the unit.
Fuel engine. Move at least 10 feet (3 me-
ters) away from the fueling site.
-6-

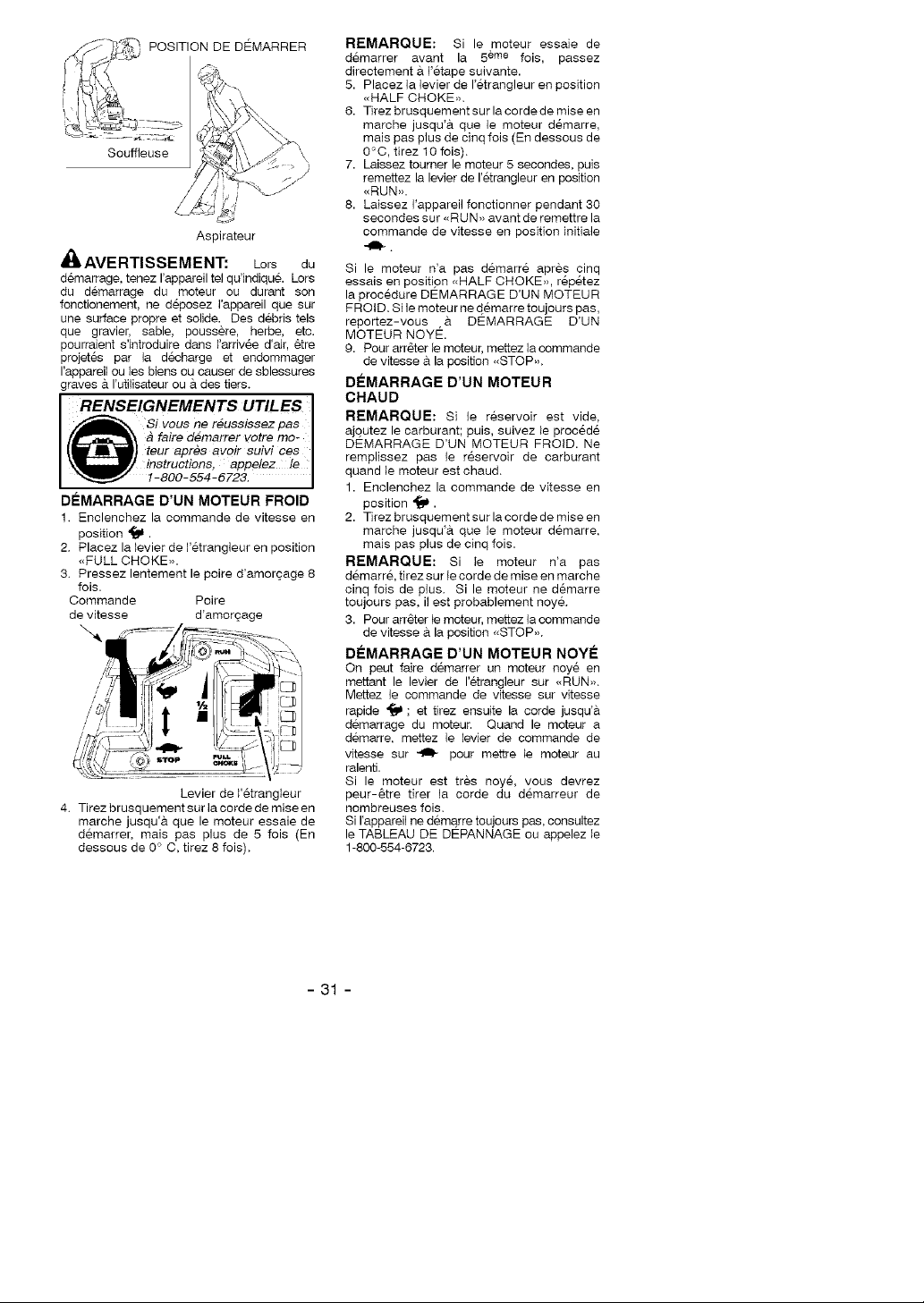

HoId the unit in the starting position as
shown. Make sure the blower end is di-
rected away from people, animals, glass,
and solid objects.
Blower
Z_
r=WARNING: When starting engine,
hold the unit as illustrated. Do not set unit on any surface except a clean, hard area when starting
engine or while engine is running. Debris such as gravel, sand, dust, grass, etc. could be
picked up by the air intake and thrown out through the discharge opening, damaging the
unit or property, or causing serious injury to by- standers or the operator.
STARTING POSITION
/
Vacuum
HELPFUL TIP
!f your engine still does not
start after foflowing these instructions, ptease catl
1-800-554-6728.
STARTING A COLD ENGINE
1. Move throttle lever to the '_ position.
2. Move choke lever to the FULL CHOKE position.
3. Slowly press the primer button 8 times.
Throttle Lever Primer Button
/
4. Pull starter rope sharply until engine at- tempts to run, but no more than 5 pulls (be-
low 30 _ F, 8 pulls).
NOTE: If engine attempts to start before the
5th pull, go to next step immediately.
5. Move the choke lever to the HALF
CHOKE position.
6. Pull the starter rope sharply until the en- gine runs, but no more than 5 pulis (below 30 _ F, 10 pulls).
7. After a 5 second warm-up, move the
choke lever to the RUN position.
8. Allow the unit to run for 30 more seconds
\
at the RUN position before moving the throttle tever to the _ position.
If engine has not started after 5 pulls (at HALF
CHOKE), repeat STARTING A COLD ENGINE
procedure. If engine still does not start, proceed
to STARTING A FLOODED ENGINE.
9. To stop the engine, move the throttle lever to the STOP position.
STARTING A WARM ENGINE
NOTE: If fuel tank is empty, add fuel; then,
follow STARTING A COLD ENGINE proce- dure. Do not fill fueI tank while engine is hot.
1. Move throttle lever to the '_ position.
2. Pull starter rope sharply until engine runs,
but no more than 5 pulis. NOTE: If engine has not started, pull starter rope 5 more pulis. If engine still does not run, it is probably flooded.
3. To stop the engine, move the throttle lever to the STOP position.
STARTING A FLOODED ENGINE
Rooded engines can be started by placing the
choke lever in the RUN position. Move throttle
lever to the fast position 4"_ ; then, pull rope
until engine starts. After engine starts, move the throttle lever to the slow position "4111"to allow
engine to idle. Starting could require pulling the starter rope
many times depending on how badly the unit is
flooded.
If unit still doesn't start refer to the TROUBLE-
SHOOTING TABLE or call 1-800-554-6723.
Choke Lever
-7-
,_,WARNING: Avoid touching muffler
unless engine and muffler are cold, A hot muffler can cause serious burns.
_i WARNING: Stop engine and be sure
the impeller blades have stopped turning be- fore opening the vacuum inlet door or at-
tempting to insert or remove the vacuum or blower tubes. The rotating blades can cause
serious injury, Always disconnect the spark plug before performing maintenance or ac-
cessing movable parts.
HELPFUL TIP
IMPORTANT: Have all
repairs other than the rec- ommended maintenance
described in the instruction manual performed by an
If any dealer other than an authorized Service dealer performs work on the
product, Electrolux Home Products, Inc.; may not pay for repairs under war-
ranty. It is your responsibility to maintain and perform general maintenance.
GENERAL RECOMMENDATIONS The warranty on this unit does not cover items
that have been subjected to operator abuse or negligence, To receive full value from the
warranty, the operator must maintain unit as instructed in this manual, Various adjust-
ments will need to be made periodically to properly mah_tain your unit, CHECK FOR LOOSE
FASTENERS AND PARTS
Spark Plug Boot
Air Filter
Housing Screws
Muffler CHECK FOR DAMAGED OR WORN
PARTS
Contact an authorized service dealer for re- placement of damaged or worn parts,
Fuel Tank - Do not use unit iffuel tank shows signs of damage or leaks.
Vacuum Bag - Do not use vacuum bag if it is torn or damaged.
INSPECT AND CLEAN UNIT AND
DECALS
After each use, inspect complete unit for loose or damaged parts. Clean the unit and decals using a damp cloth with a mild deter-
gent.
Wipe off unit with a clean dry cloth.
authorized service dealer.
CLEAN AIR FILTER
:__Z_ Air Filter S_J_ cover
"Y/' _I
Cleaning the air filter:
A dirty air filter decreases engine perform- ance and increases fuel consumption and
harmful emissions, Always clean or replace
air filter after every 5 hours of operation or yearly, whichever comes first.
1. Clean the cover and the area around it to keep debris from falling into the carburetor
chamber when the cover is removed,
2. Remove parts as illustrated. NOTE: Do not clean filter in gasoline or other
flammable solvent. Doing so can create a fire
hazard or produce harmful evaporative emis-
sions.
3. Wash the filter in soap and water.
4. Allow filter to dry.
5. Apply a few drops of oil to the filter;
squeeze filter to distribute oil.
6. Replace parts.
REPLACE SPARK PLUG
Replace spark plug each year to ensure the
engine starts easier and runs better. Set spark plug gap at 0.025 inch (0.6 mm). Igni-
tion timing is fixed, nonadjustable.
1. Twist. then pull off spark plug boot.
2. Remove spark plug from cylinder and dis-
card.
3. Replace with Champion RCJ-6Y spark
plug and tighten securely with a 3/4 inch (19 ram) socket wrench.
4. Reinstall the spark plug boot.
REPLACE FUEL FILTER
To replace fuel filter, drain unit by running it dry of fuel. then remove fuel cap/retainer assem-
bly from tank. Pull filter from tank and remove itfrom the fuel line. Install new fuel filter on fuel
line; reinstall parts.
Screws
-8-
Fuel Filter
CHECK MUFFLER MOUNTING
SCREWS
Once each year, ensure muffler mounting screws are secure and tightened properly to
prevent damage.
st_epsWaAeRre_alNG_e:Perforrn the following
Allow engine to cool, and secure the unit before storing or transporting.
Store unit and fuel in aweII ventilated area where fuel vapors cannot reach sparks or
open flames from water heaters, electric motors or switches, furnaces, etc.
Store unit with all guards in place. Position unit so that any sharp object cannot acci-
dentally cause injury.
Store unit and fuel well out of the reach of children.
SEASONAL STORAGE
Prepare unit for storage at end of season or if
it will not be used for 30 days or more.
If your unit is to be stored for a period of time:
Clean the entire unit before lengthy stor- age.
Store in a clean dry area.
Lightly oi] external metal surfaces.
FUEL SYSTEM
Under FUELING ENGINE in the OPERA- TION section of this manual, see message la- beled iMPORTANT regarding the use of ga-
sohol in your engine.
Fue] stabilizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage. Add stabilizer to gasoline in fuel
tank or fuel storage container. Follow the mix instructions found on stabilizer container. Run
engine at least 5 minutes after adding stabilizer.
Mounting
1. Loosen and remove the 2 screws from the rnuffter cover.
2. Remove the muffler cover.
3. Tighten the 2 muffler mounting screws se- curely.
4. Reinstall muffler cover and 2 screws.
Tighten securely.
CARBURETOR ADJUSTMENTS
There is no screw for idle adjustment on your
blower. The throttle lever is used to contro]
engine speed. The throttle lever can be
placed in one of four positions: STOP, IDLE
or ,,_lp, FULLTHROTTLE or _, and one
intermittent position. If your engine will not run properly or you require further assistance,
contact an authorized service dealer or call
1-800-554-6723.
HELPFUL TIP I
/lt_ ofl mixture, the oil will sePa- I
M_ rate from the gas. I WL_AIF'_I.I We recommend that you _ shake the gas car? weekly I
ENGINE
Remove spark plug and pour 1 teaspoon of
40:1,2-cycle engine oil (air cooled) through the spark plug opening, Slowly pull the
starter rope 8 to 10 times to distribute oil.
Replace spark plug with new one of recom-
mended type and heat range.
Clean air filter.
Check entire unit for loose screws, nuts,
and bolts. Replace any damaged, broken, or worn parts.
At the beginning of the next season, use
only fresh fuel having the proper gasoline to oil ratio.
OTHER
Do not store gasoline from one season to
another,
Replace your gasoline can if it starts to rust,
During storage of your gaa/ I
to insure proper blending of I the gas and oil. I
-9-
TROUBLESHOOTING TABLE
_WA R NING: Always stop unit and disconnect spark p_ugbefore perfomqing any of the
recommended remedies below other than remedies that require operation of the unit.
TROUBLE CAUSE REMEDY
Engine will not 1. Engine flooded. 1. See "Starting a Flooded Engine" start, in Operation section.
Engh_e will not 1. Fuel not reaching 1. Check for dirty fuel filter; replace. idle properly, carburetor. Check for kinked or sp}it fuel line;
Engine will not accelerate,
lacks power, or dies under a
load.
Engine smokes excessively.
Engine runs hot.
2. Fuel tank empty. 2. Fill tank with correct fuel mixture.
3. Spark plug not firing. 3. Install new spark plug.
4. Fuel not reaching 4. Check for dirty fuel filter; replace. carburetor. Check for kinked or split fuel line;
5. Compression low. 5. Contact an authorized service dealer.
2. Carburetor requires 2. Contact an authorized service dealer. adjustment.
3. Crankshaft seals worn. 3.
4. Compression low. 4.
1. Air filter dirty. 1.
2. Fuel not reaching 2. carburetor.
3. Spark plug fouled.
4. Carburetor requires adjustment.
5. Carbon build up.
6. Compression low.
1. Choke partially on.
2. Fuel mixture incorrect.
3. Air filter dirty.
4. Carburetor requires adjustment.
1. Fuel mixture incorrect.
2. Spark plug incorrect.
3. Carburetor requires adjustment.
4. Carbon build up.
repair or replace.
repair or replace.
Contact an authorized service dealer Contact an authorized service dealer.
Clean or replace air filter. Check for dirty fuel filter; replace.
Check for kinked or split fuel line; repair or replace.
3,
Clean or replace spark plug and re-gap.
4.
Contact an authorized service dealer.
5. Contact an authorized service dealer.
6. Contact an authodzed service dealer.
1. Adjust choke.
2. Empty fuel tank and refill with correct fuel mixture.
3. Clean or replace air filter.
4. Contact an authorized service dealer.
1. See "Fueling Engine" in Operation section.
2. Replace with correct spark plug.
3. Contact an authodzed service dealer.
4. Contact an authodzed service dealer.
-10-
ELECTROLUX HOME PRODUCTS, INC., warrants to the original purchaser that each new
Weed Eater ® brand gasoline tool or attach- ment is free from defects in material and work-
manship and agrees to repair or replace under this warranty any defective gasoline product or attachment as follows from the original date of
purchase: 2 YEARS- Parts and Labor, when used for household purposes.
90 DAYS - Parts and Labor, when used for commercial, professional, or income producing
purposes. 30 DAYS - Parts and Labor, if used for rental purposes.
This warranty is not transferable and does not cover damage or liability caused by improper
handling, improper maintenance, or the use of accessories and/or attachments not specifically
recommended by ELECTROLUX HOME PRODUCTS, INC., for this tool Additionally, this warranty does not cover tune-ups, spark
plugs, filters, starter ropes, starter springs, cut- ting line, or rotating head parts that will wear and
require replacement with reasonable use during the warranty period. This warranty does not
cover predelivery setup or normal adjustments explained in the instruction manual.
THIS WARRANTY GIVES YOU SPECIFIC
LEGAL RIGHTS, AND YOU MAY HAVE
OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
NO CLAIMS FOR CONSEQUENTIAL OR OTHER DAMAGES WILL BE ALLOWED, AND THERE ARE NO OTHER EXPRESS
WARRANTIES EXCEPT THOSE EX-
PRESSLY STIPULATED HEREIN. SOME STATES DO NOT ALLOW LIMITA-
TIONS ON HOW LONG AN IMPLIED WAR-
RANTY LASTS OR THE EXCLUSION OR
LIMITATIONS OF INCIDENTAL OR CONSE- QUENTIAL DAMAGES, SO THE ABOVE
LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU.
ELECTROLUX HOME PRODUCTS, INC.,
policy is to continuously improve its products. Therefore, ELECTROLUX HOME PROD-
UCTS, INC., reserves the right to change, mod-
ify, or discontinue models, designs, specifica- tions, and accessories of all products at any
time without notice or obligation to any pur- chaser.
YOUR WARRANTY RIGHTS AND OBUGA- TIONS: The U.S. Environmental Protection
Agency/California Air Resources Board and
ELECTROLUX HOME PRODUCTS, INC., are
pleased to explain the emissions control system warranty on your year 2005 and later small off-
road engine, in California, all small off-roed en- gines must be designed, built, and equipped to meet the State's stringent anti-smog standards.
ELECTROLUX HOME PRODUCTS, INC.,
must warrant the emission control system on your small off-road engine for the periods of
time listed below provided there has been no abuse, neglect, or improper maintenance of
your small off-road engine engine. Your emis- sion control system includes parts such as the
carburetor and the ignition system. Where a warrantable condition exists, ELECTROLUX
HOME PRODUCTS, INC., will repair your small
off-road engine engine at no cost to you. Ex- penses covered under warranty include diagno-
sis, parts and labor. MANUFACTURER'S WARRANTY COVERAGE: if any emissions
related part on your engine (as listed under
Emissions Control Warranty Parts List) is defec-
tive or a defect in the materials or workmanship of the engine causes the failure of such an emis-
sion related part, the part will be repaired or re- placed by ELECTROLUX HOME PROD-
UCTS, INC. OWNER'S WARRANTY RE- SPONSIBILITIES: As the small off-road en-
gine engine owner, you are responsible for the performance of the required maintenance listed
in your instruction manual. ELECTROLUX
HOME PRODUCTS, iNC., recommends that
you retain all receipts covering maintenance on
your small o_-road engine, but ELECTROLUX
HOME PRODUCTS, INC., cannot deny war-
ranty solely for the lack of receipts or for your failure to ensure the performance of all sched-
uled maintenance. As the small off-road en- gine engine owner, you should be aware that
ELECTROLUX HOME PRODUCTS, INC.,
may deny you warranty coverage if your small off-road engine engine or a part of it has failed due to abuse, neglect, improper maintenance,
unapproved modifications, or the use of parts
not made or approved by the original equipment
manufacturer. You are responsible for present-
ing your small off-road engine to an ELECTRO-
LUX HOME PRODUCTS, INC., authorized re-
pair center as soon as a problem exists. War-
ranty repairs should be completed in a reason- able amount of time, not to exceed 30 days. if you have any questions regarding your warran-
ty rights and responsibilities, you should contact your nearest authorized service center or call
ELECTROLUX HOME PRODUCTS, INC., at
1-800-554-6723. WARRANTY COM-
MENCEMENT DATE: The warranty period be- gins on the date the small off-road engine is
purchased. LENGTH OF COVERAGE: This warranty shall be for a period of two years from
the initial date of purchase. WHAT IS COV-
ERED: REPAIR OR REPLACEMENT OF
PARTS. Repair or replacement of any war-
ranted part will be performed at no charge to the owner at an approved ELECTROLUX HOME
PRODUCTS, iNC,, servicing center, if you
have any questions regarding your warranty
rights and resbonsibiiifies, you should contact your nearest authorized service center or call
-11 -
Loading...
+ 25 hidden pages
