Wavetek ANT-20, ANT-20E Operating Manual

ANT-20, ANT-20E Advanced Network Tester

Broadband Analyzer/Generator

BN 3035/90.80 Software Version 7.20 Operating Manual

BN 3035/98.32

Please direct all enquiries to your local Wavetek Wandel Goltermann sales company. The addresses are given at the end of this handbook.

Copyrights

This product or parts of it are based upon Recommendations and/or Standards of the Standardization Sector of the International Telecommunication Union - ITU-T and/or of the European Telecommunications Standards Institute ETSI. These Recommendations and Standards are subject to copyrights of these organizations. Without written permission of the ITU-T and/or ETSI it is not permitted to copy ITU-T Recommendations or ETSI standards or parts thereof and/or make them available to third parties.

Wavetek Wandel Goltermann Eningen GmbH & Co.

Author: MDD/TD Translator: John Nutley

Order no.: BN 3035/98.32 Edition: 06/00.07 (V 7.20)

Previous edition: 05/00.04 (V 7.10)

Subject to change without notice Our normal guarantee and delivery terms apply

Printed in Germany

ANT-20/ANT-20E Broadband Analyzer/Generator

Contents

Introduction

1 Main applications of the Broadband Analyzer/Generator . . . . . . . .I-1

2 Application concept. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I-2

3 Test applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I-5

3.1 ATM performance analysis . . . . . . . . . . . . . . . . . . . . . . . . . . .I-5

3.2 Traffic management tests . . . . . . . . . . . . . . . . . . . . . . . . . . . .I-5

3.3 UNI signaling tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I-6

3.4 Analysis of ATM signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I-6

3.5 Other fields of application . . . . . . . . . . . . . . . . . . . . . . . . . . . .I-6

4 Using and setting up the Broadband Analyzer/Generator . . . . . . . .I-7

5 Overview: Virtual Instruments, “VIs” . . . . . . . . . . . . . . . . . . . . . . . . .I-8

6 Often used terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .I-9

Operation

1 ATM Test Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-1

1.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-1

1.2 “ATM Test Control” window layout and commands. . . . . . . .O-2

1.3 Important dialog windows . . . . . . . . . . . . . . . . . . . . . . . . . . .O-4

2 ATM Test Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-7

2.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-7

2.2 “ATM Test Results” main window layout and commands . . .O-7

2.3 Results window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-9

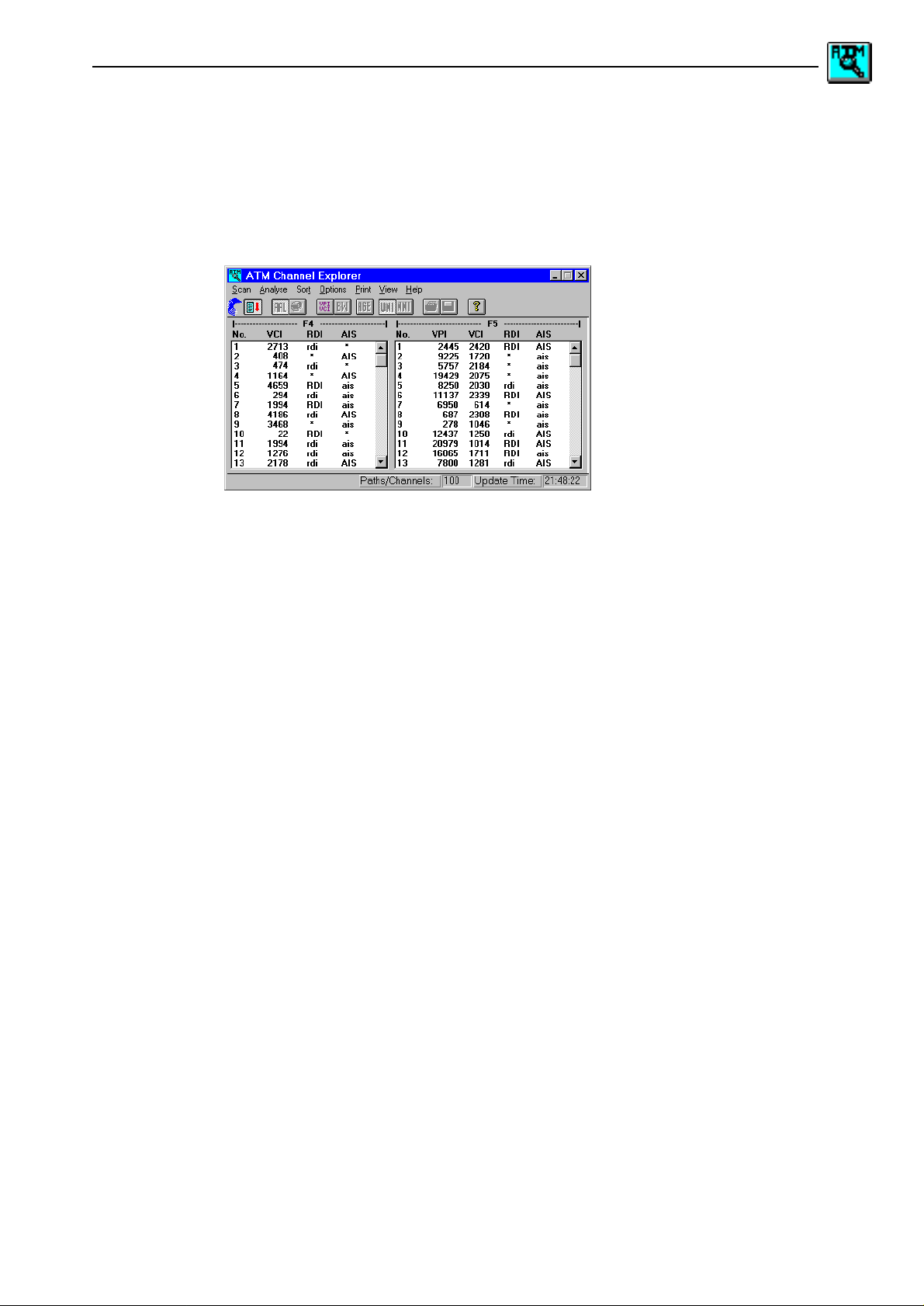

3 ATM Channel Explorer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-11

3.1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-11

3.2 “ATM Channel Explorer” window lay out and commands . .O-12

3.3 Results window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-14

Broadband Analyzer/Generator ANT-20/ANT-20E

4 Port configurations (topologies) and

Instrument Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . O-16

4.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-16

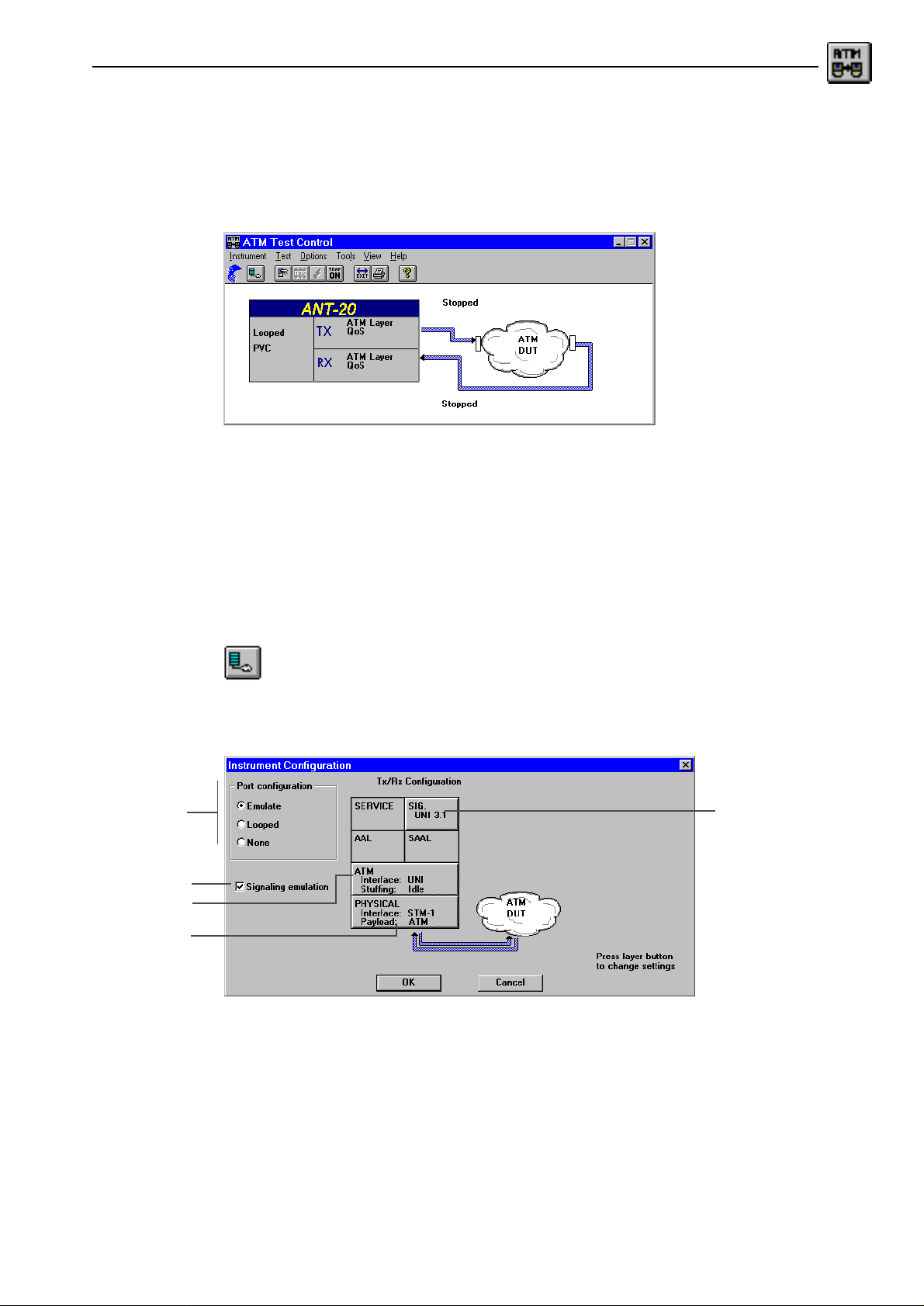

4.2 The “Instrument Configuration” dialog . . . . . . . . . . . . . . . .O-16

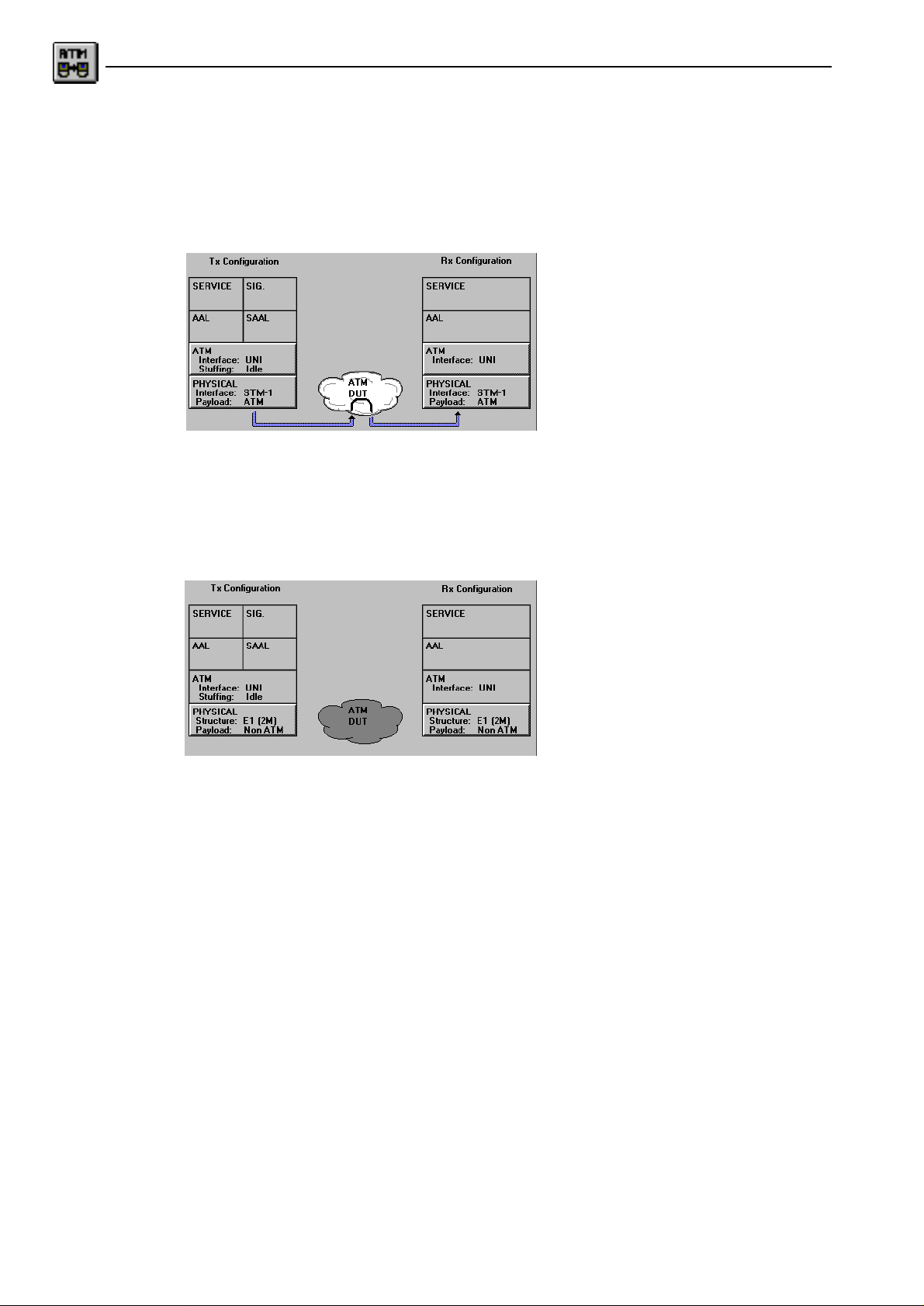

4.3 Port configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-17

4.4 Tx/Rx Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-19

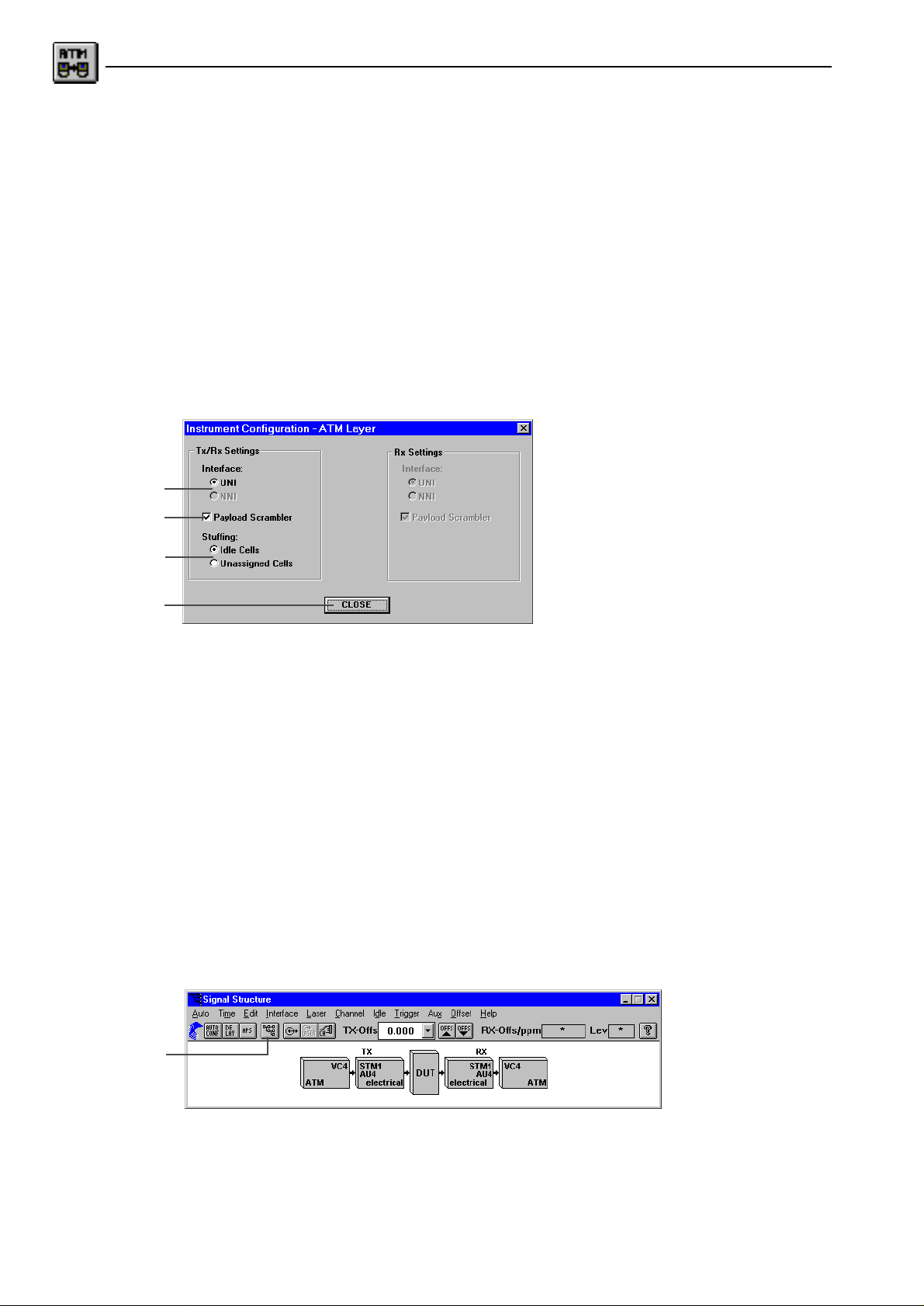

4.4.1 The “ATM Layer” dialog . . . . . . . . . . . . . . . . . . . . . . . . . . .O-19

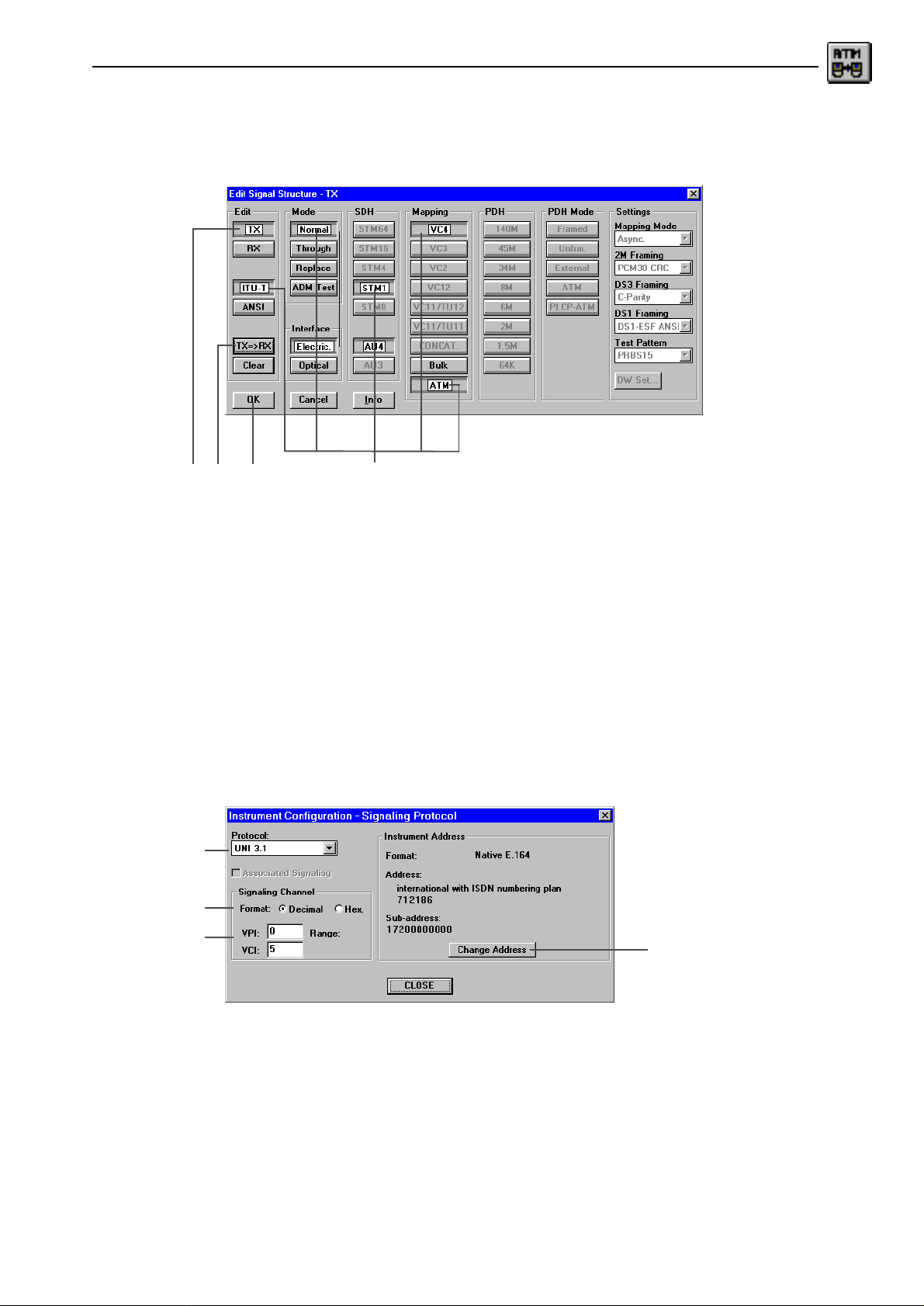

4.4.2 “Edit Signal Structure”. . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-21

4.5 Signaling emulation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-21

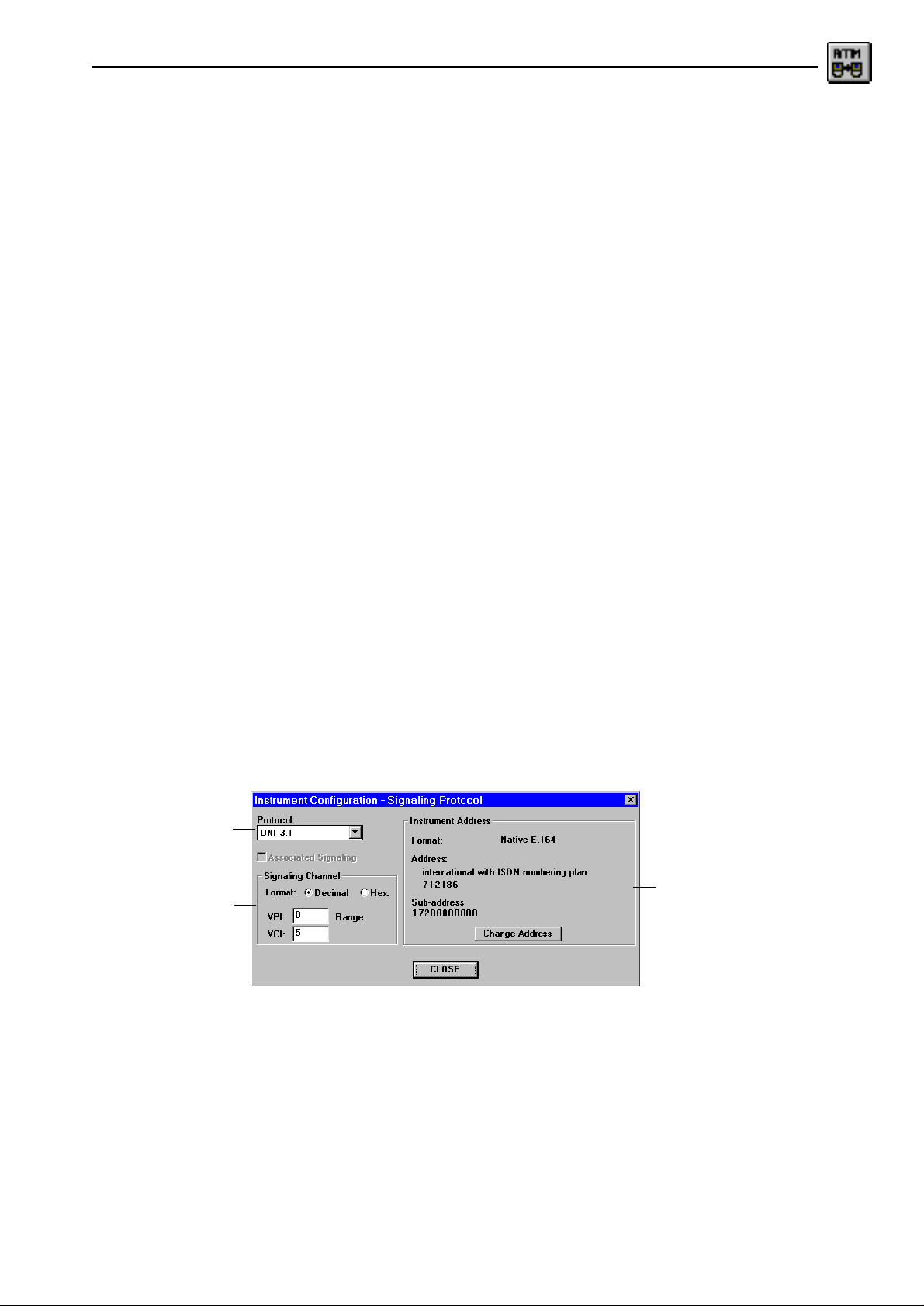

4.5.1 The “Signaling Protocol” dialog. . . . . . . . . . . . . . . . . . . . . .O-21

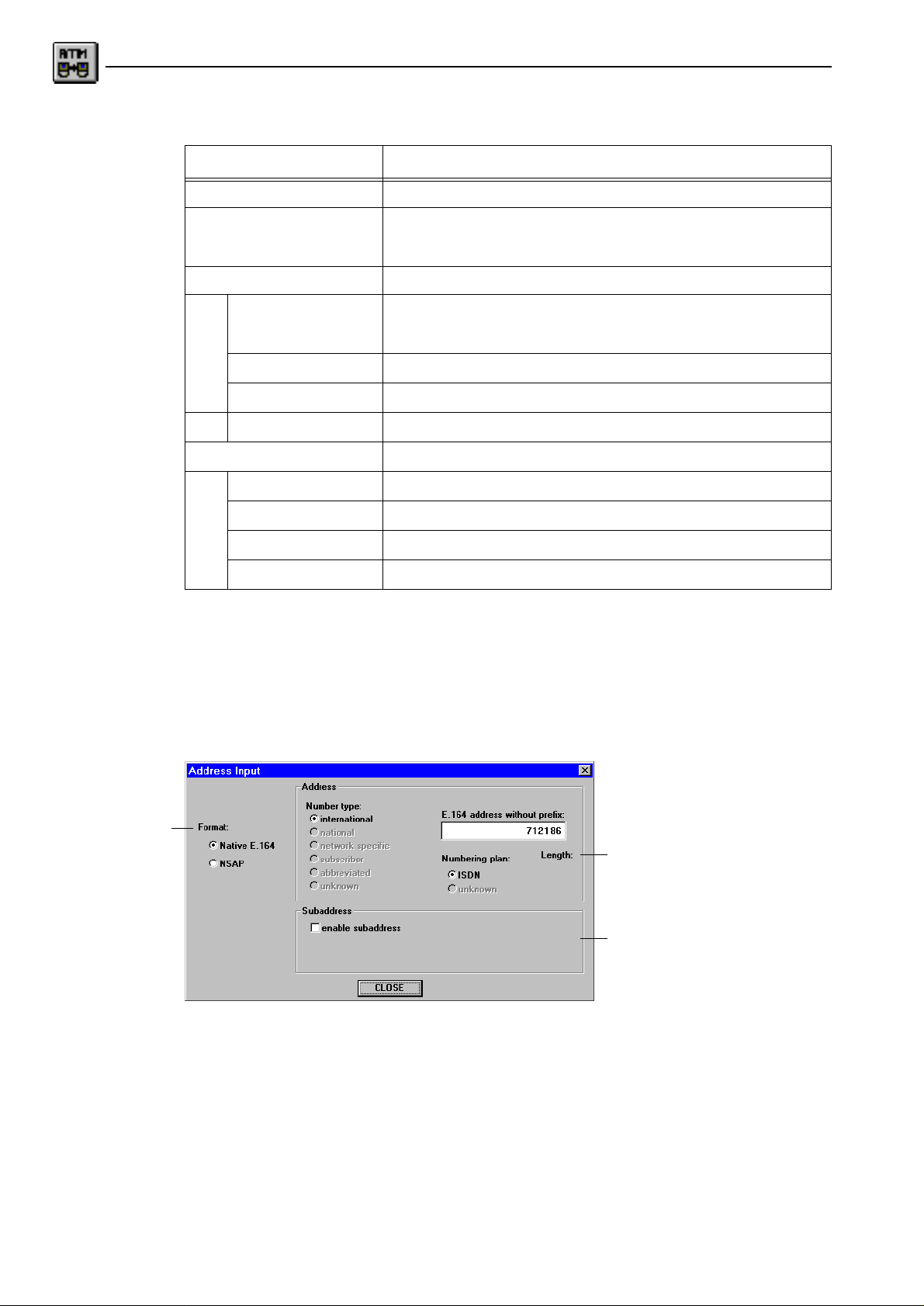

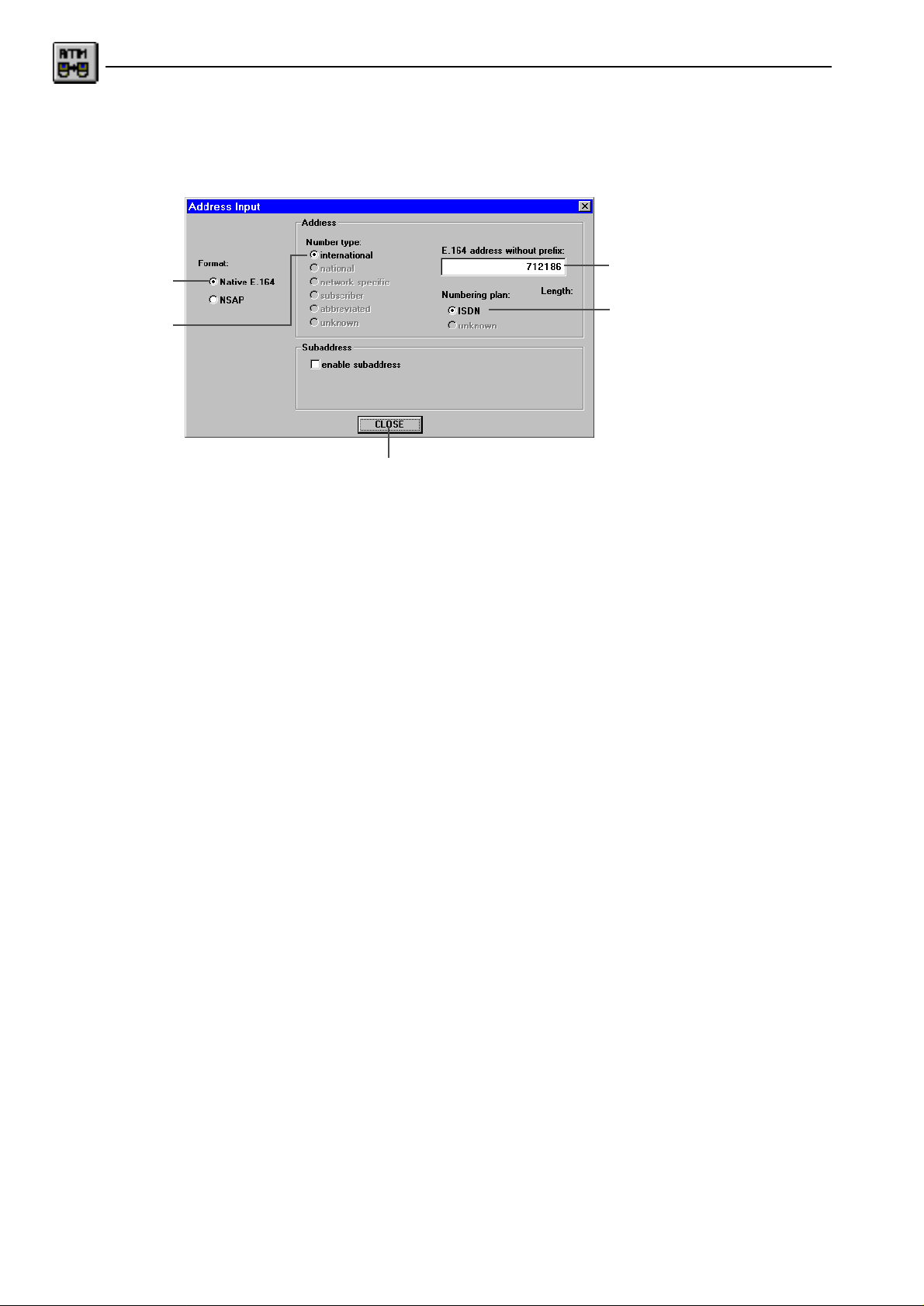

4.5.2 The “Address Input” dialog . . . . . . . . . . . . . . . . . . . . . . . . .O-22

5 Test Types . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-25

5.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-25

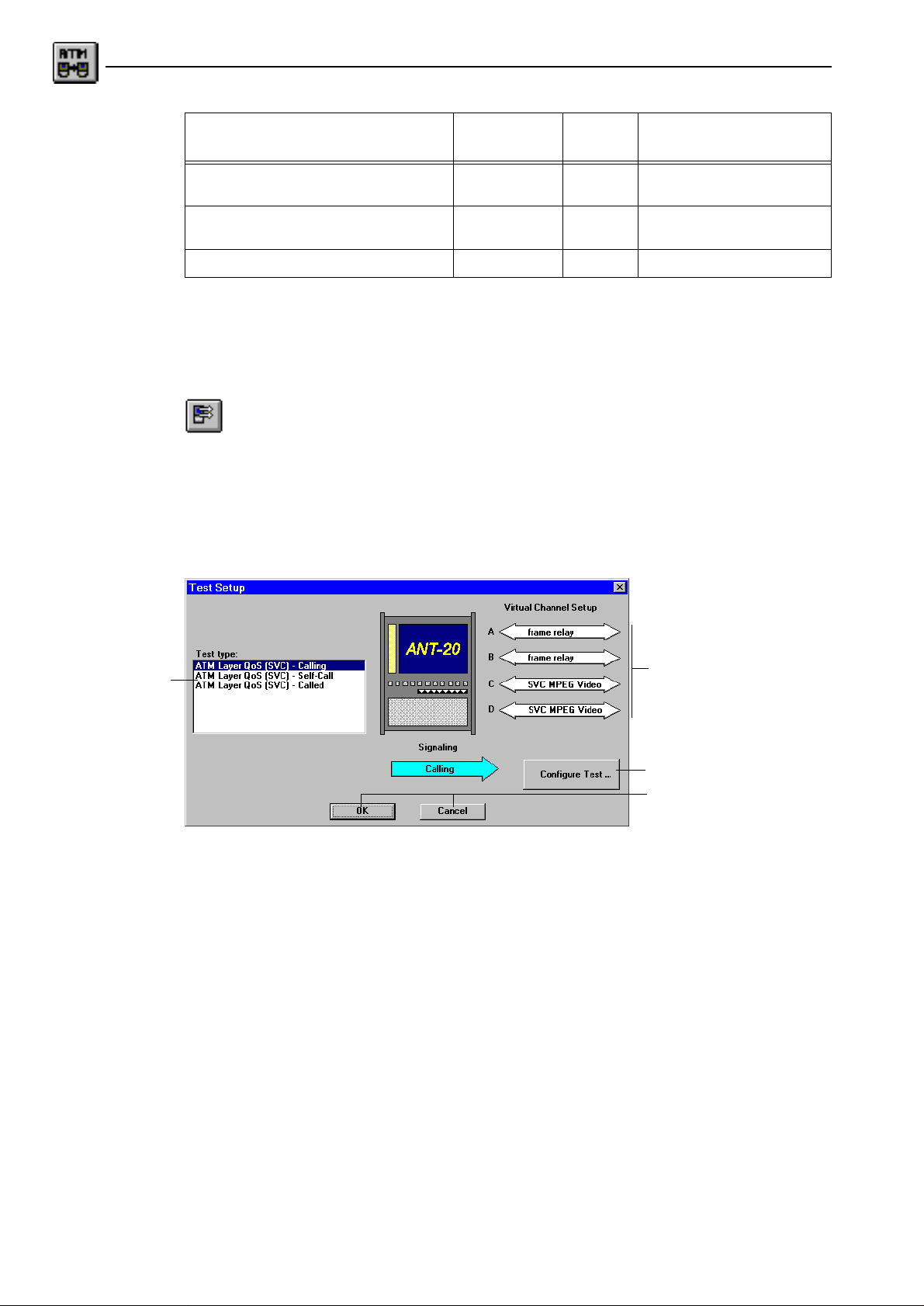

5.2 The “Test Setup” dialog: Setting the Test Type . . . . . . . . .O-26

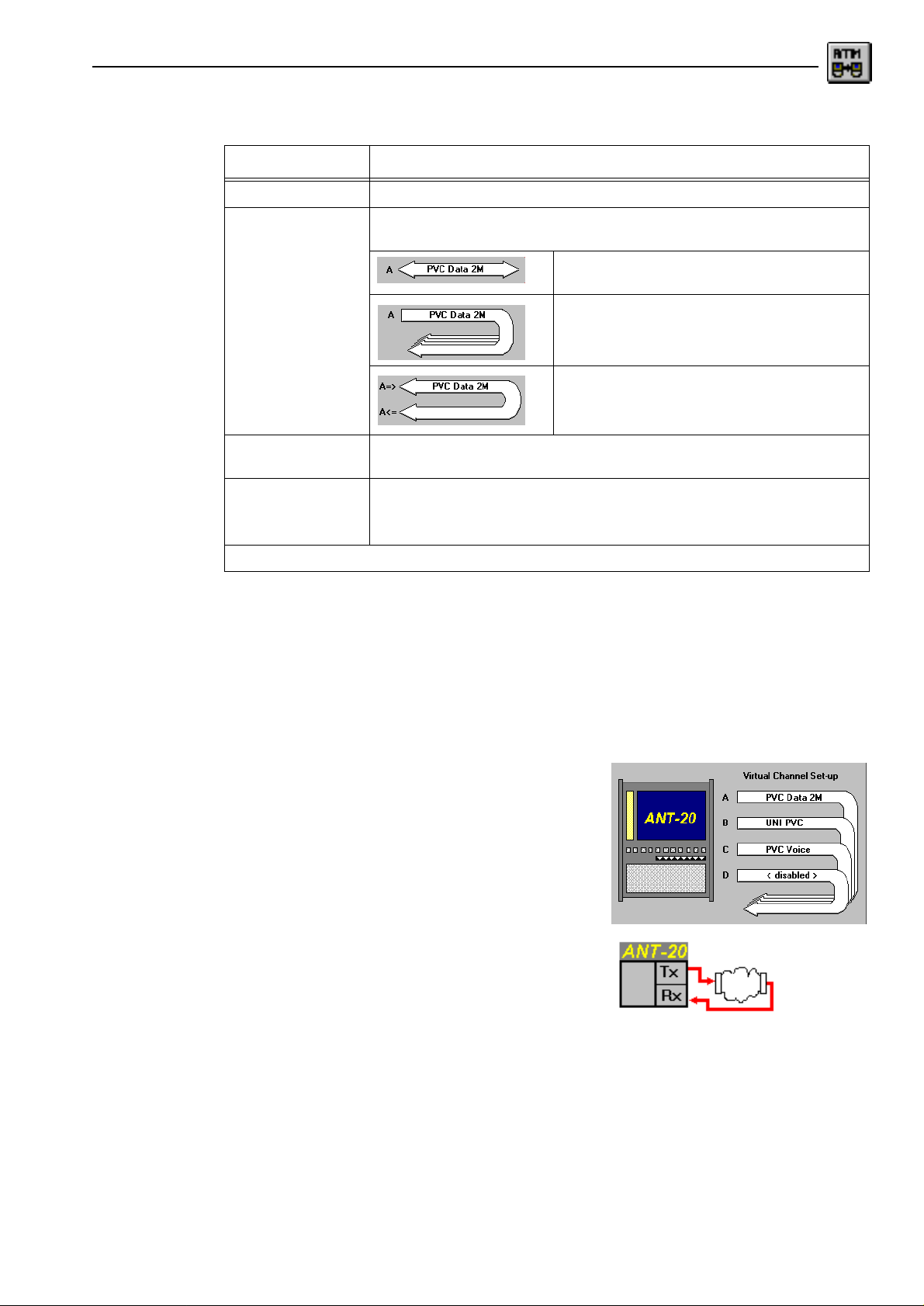

5.3 The “ATM Layer QoS - Looped Topology” test type. . . . . .O-27

5.4 The “ATM Layer QoS (PVC) - Point-to-point” test type. . . .O-28

5.5 The “ATM Layer QoS (PVC) - Looped” test type . . . . . . . .O-29

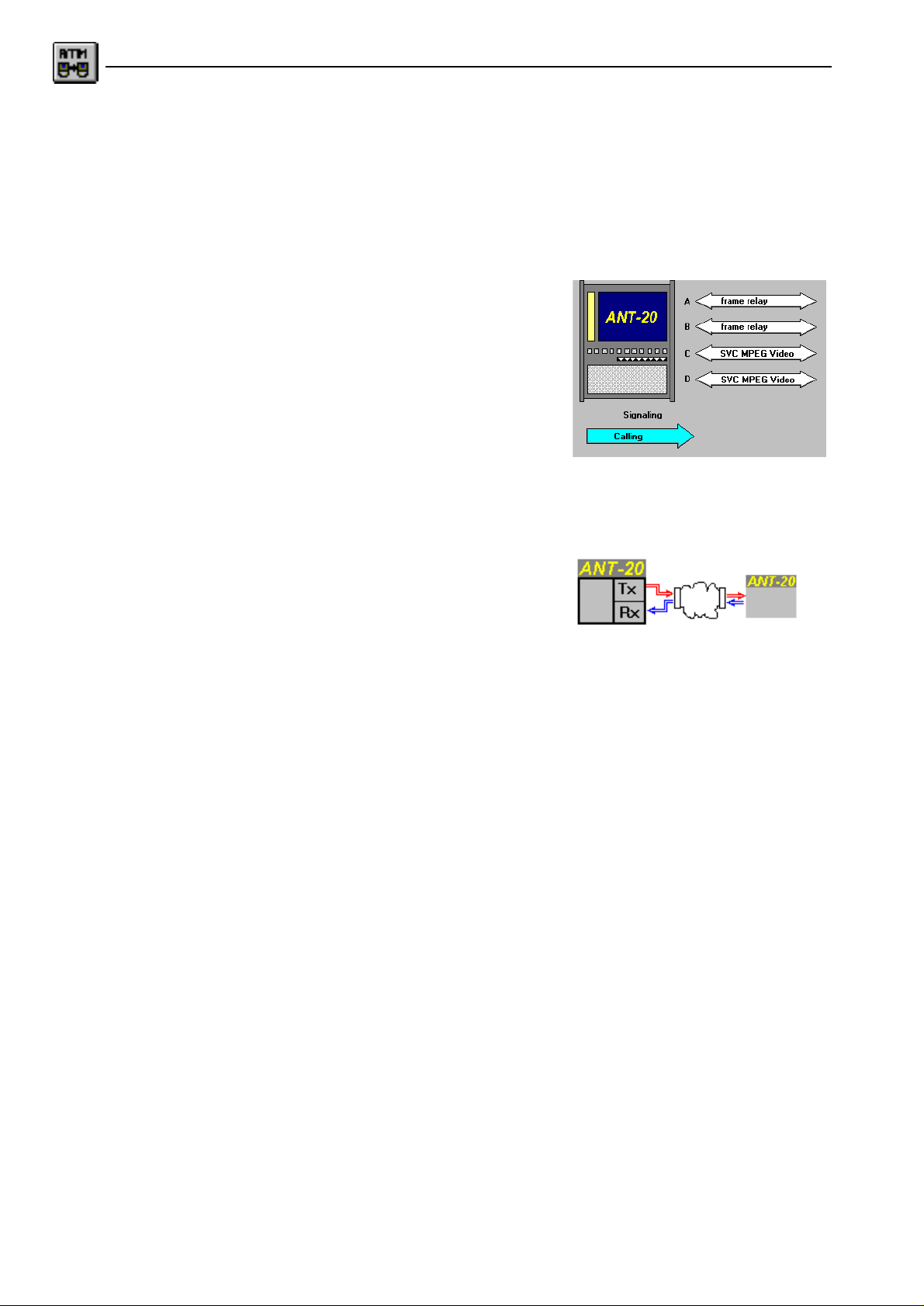

5.6 The “ATM Layer QoS (SVC) - Calling” test type. . . . . . . . . O-30

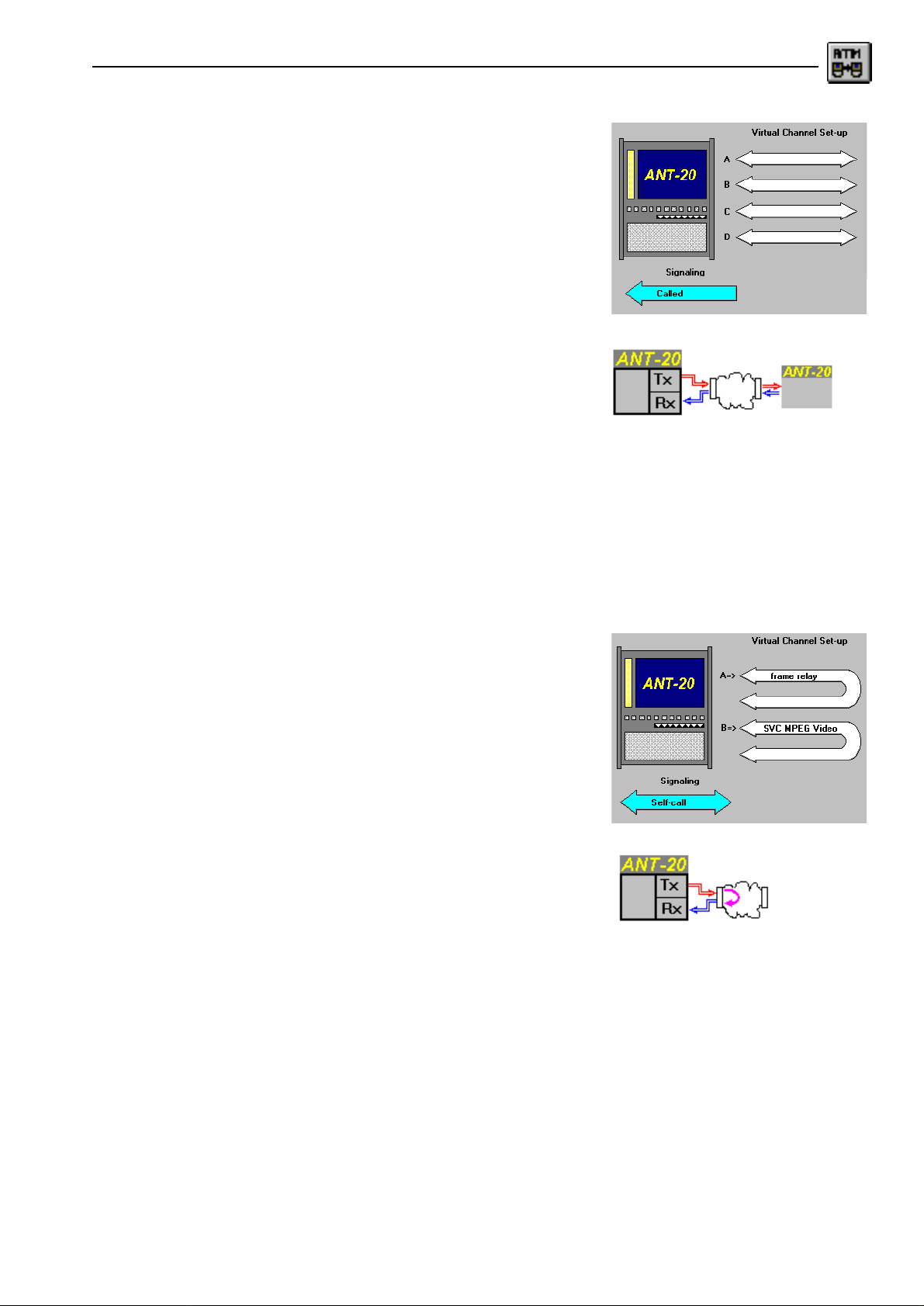

5.7 The “ATM Layer QoS (SVC) - Called” test type . . . . . . . . .O-30

5.8 The “ATM Layer QoS (SVC) - Self Call” test type. . . . . . . .O-31

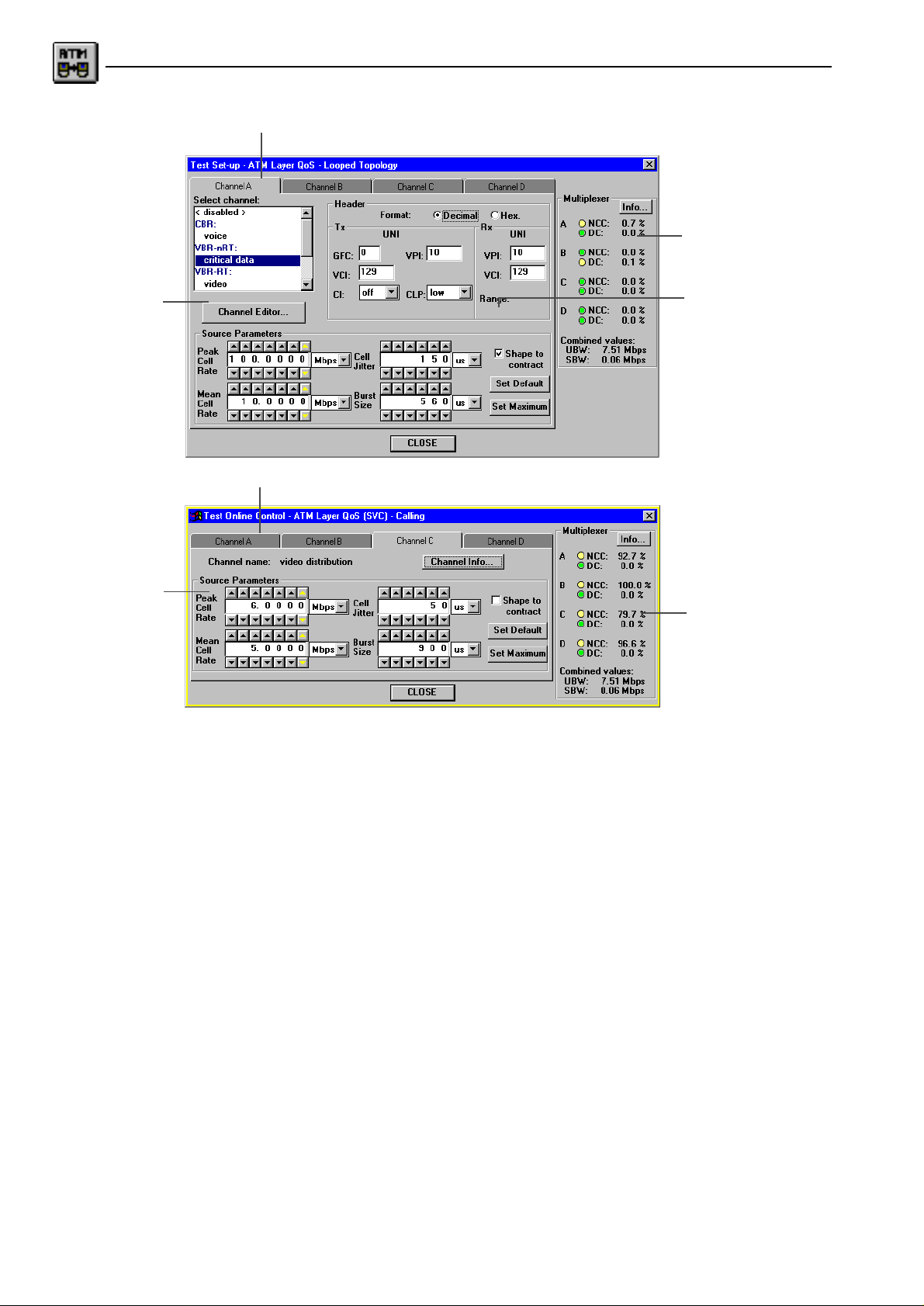

5.9 The “Test Setup <...>” dialog: Configure test type . . . . . . .O-32

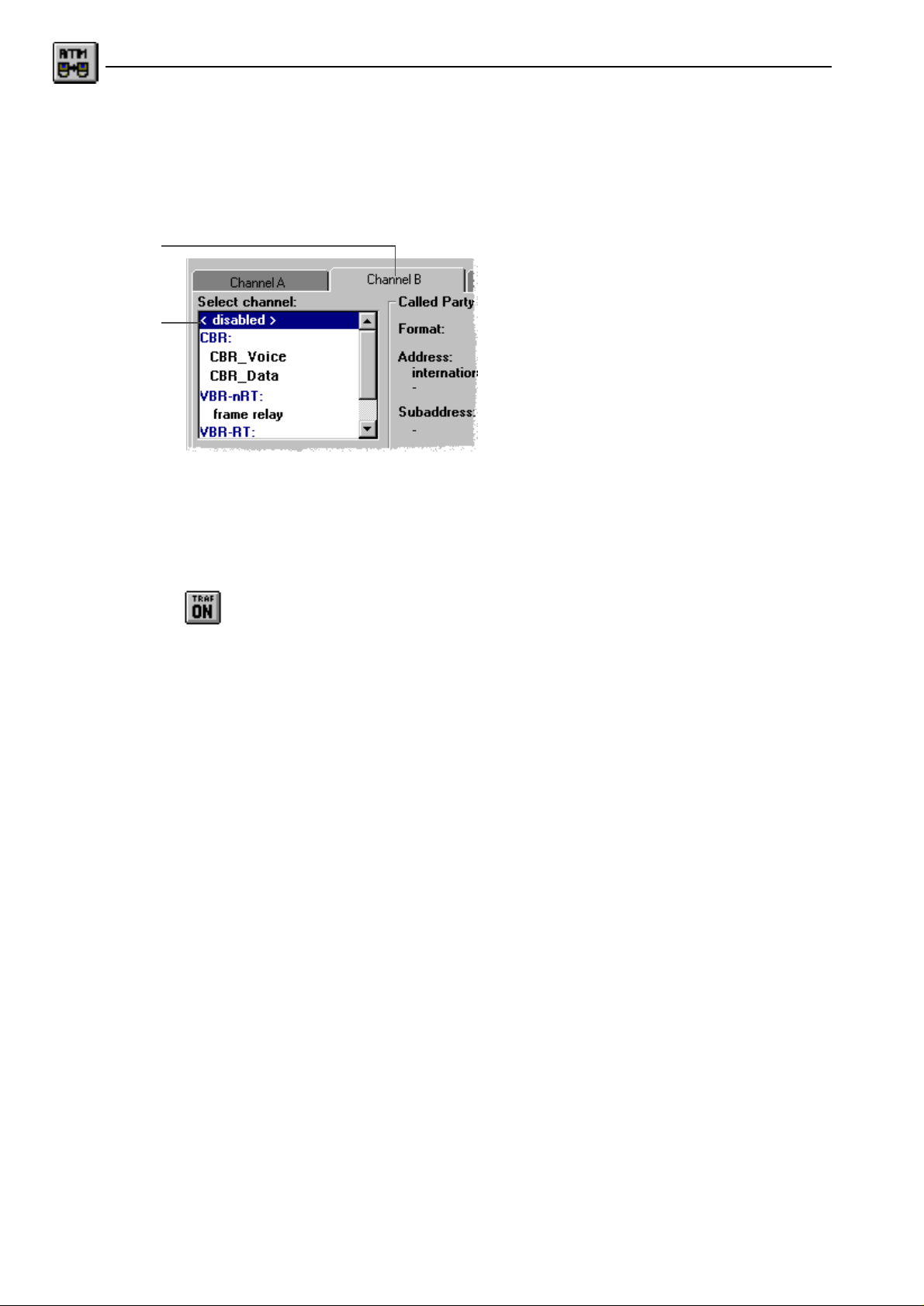

5.9.1 Select channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-33

5.9.2 Header . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-34

5.9.3 Called party address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-35

5.9.4 Own instrument address. . . . . . . . . . . . . . . . . . . . . . . . . . .O-35

5.9.5 Source parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-36

5.9.6 Multiplexer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-37

5.9.7 Channel labeling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-37

6 Defining Virtual Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-38

6.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .O-38

6.2 The “Channel Editor” dialog . . . . . . . . . . . . . . . . . . . . . . . .O-38

6.3 Parameter display and modificatio n (index cards) . . . . . . . O-4 0

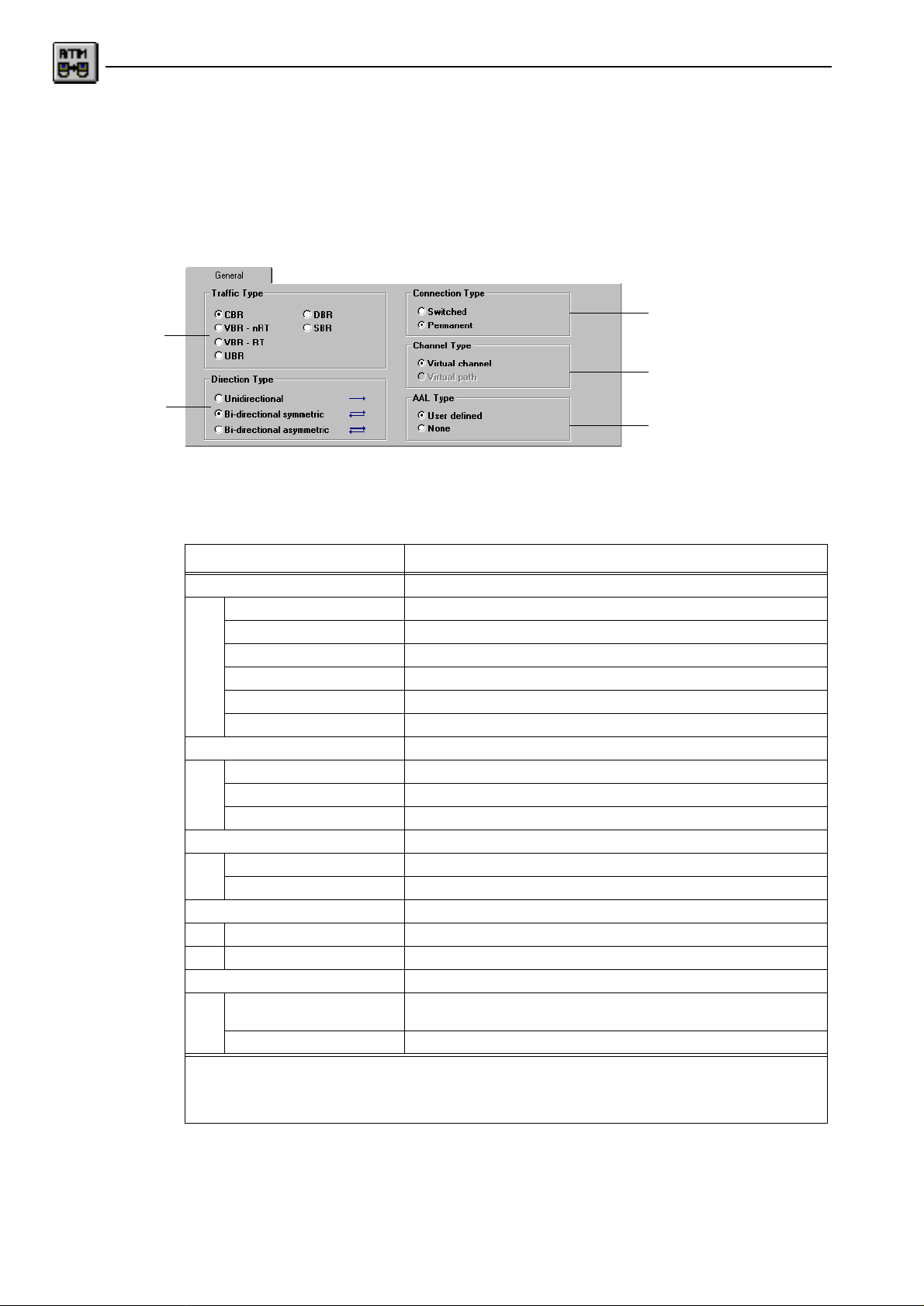

6.3.1 The “General” index card . . . . . . . . . . . . . . . . . . . . . . . . . .O-40

ANT-20/ANT-20E Broadband Analyzer/Generator

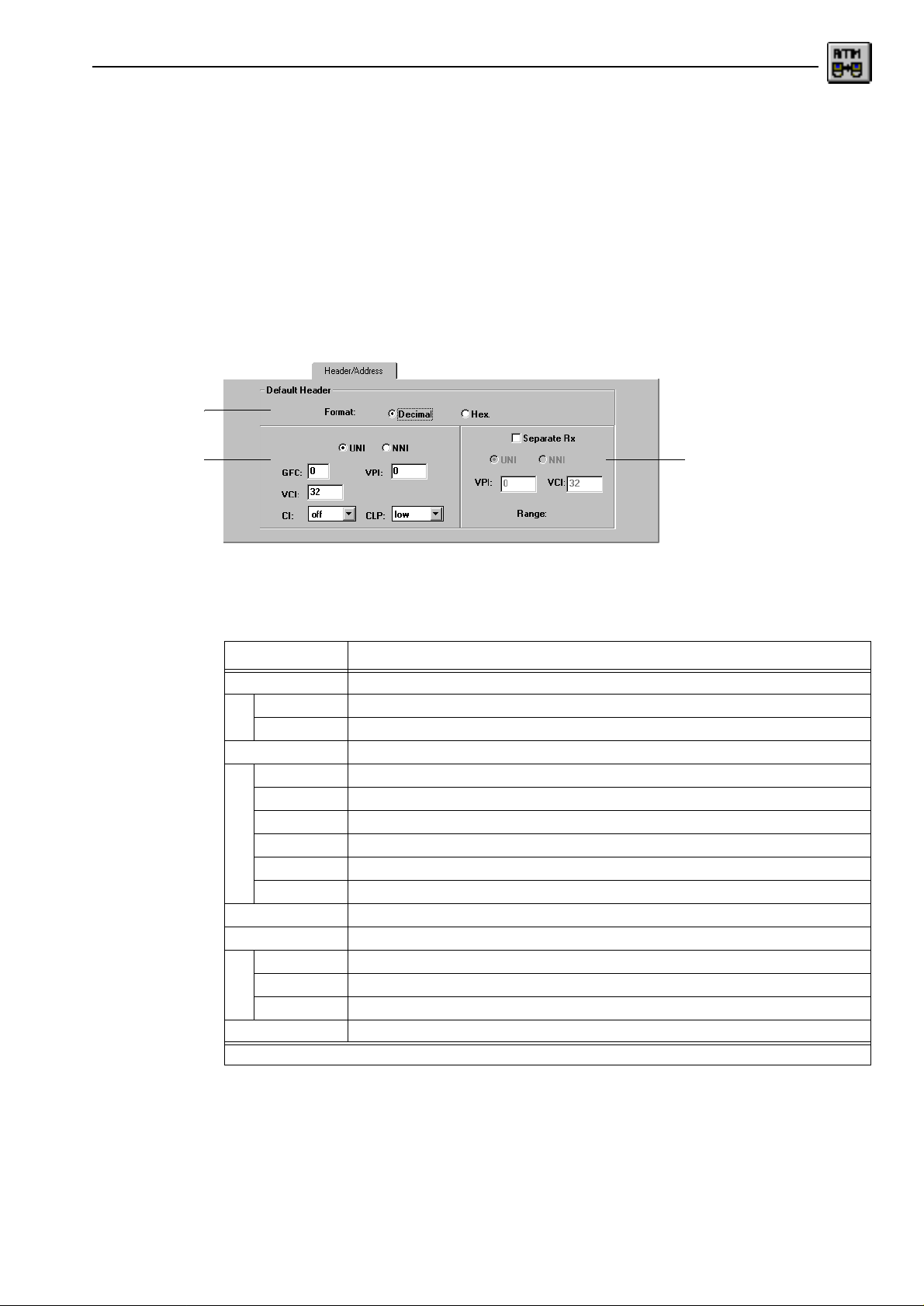

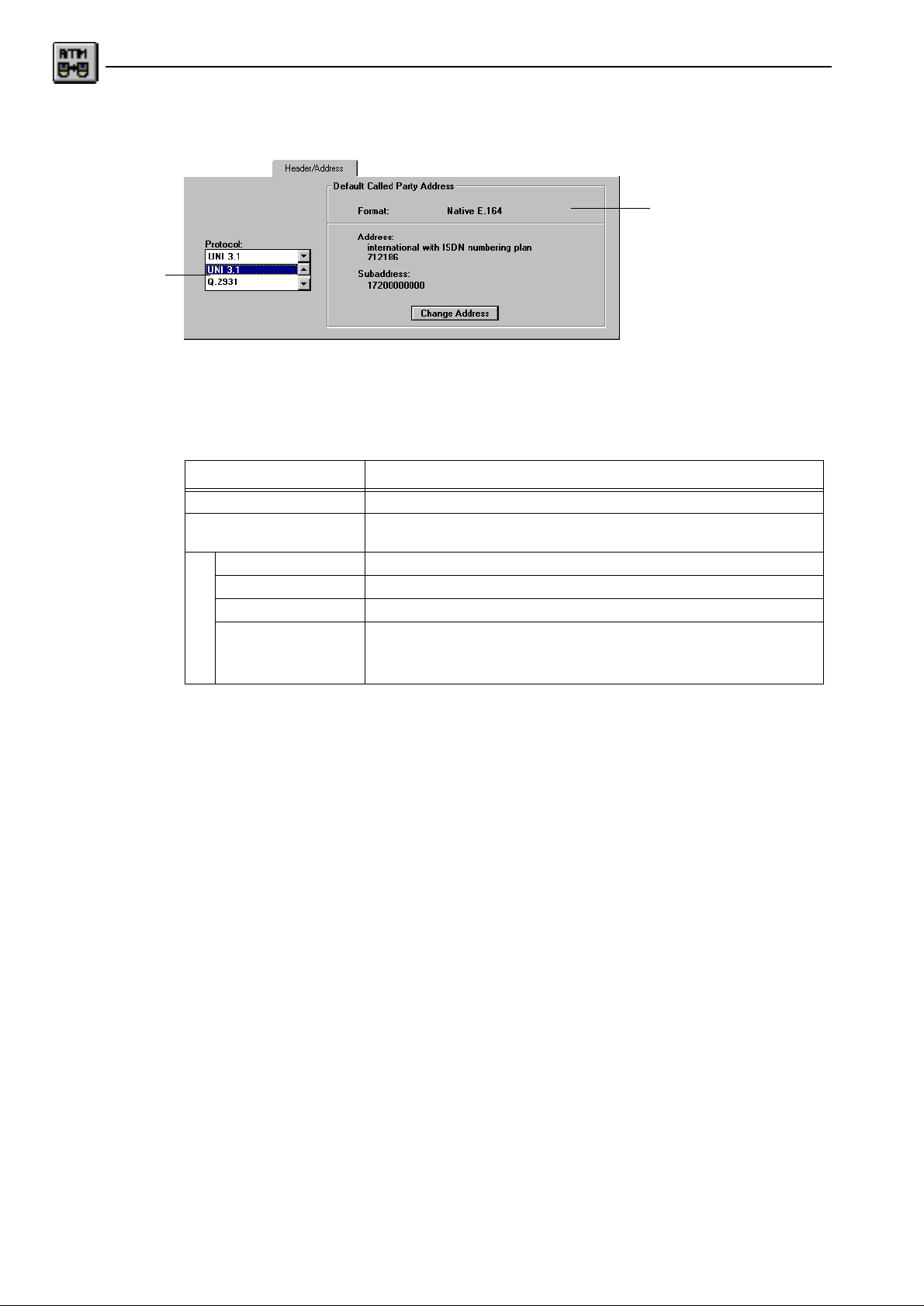

6.3.2 The “Header/Address” index card. . . . . . . . . . . . . . . . . . . .O-41

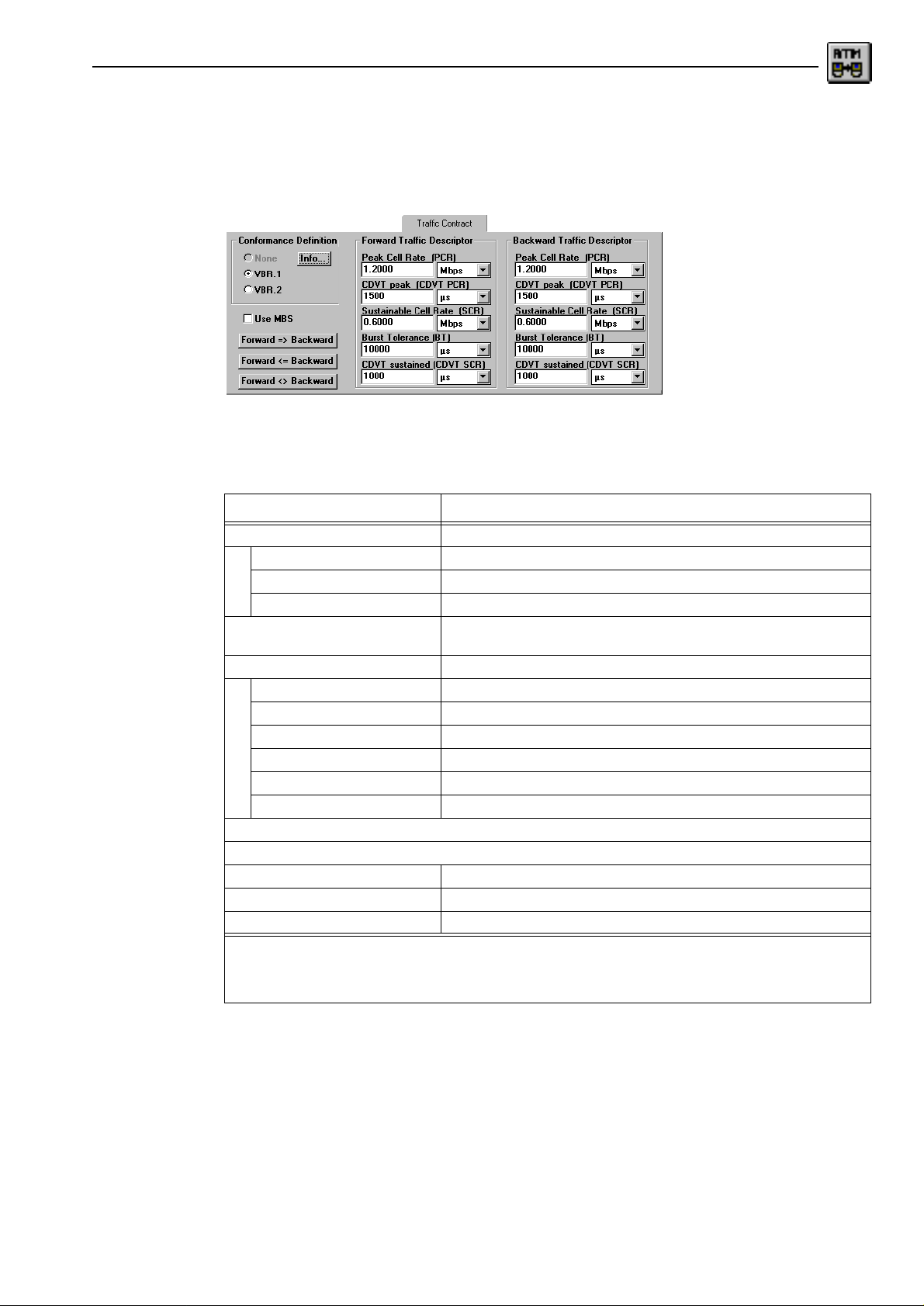

6.3.3 The “Traffic Contract” index card. . . . . . . . . . . . . . . . . . . . .O-43

6.3.4 The “Traffic Contract” index card (continued) . . . . . . . . . . .O-44

6.3.5 The “Traffic Source” index card. . . . . . . . . . . . . . . . . . . . . .O-45

Application Guide

1 The Application Manager. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-1

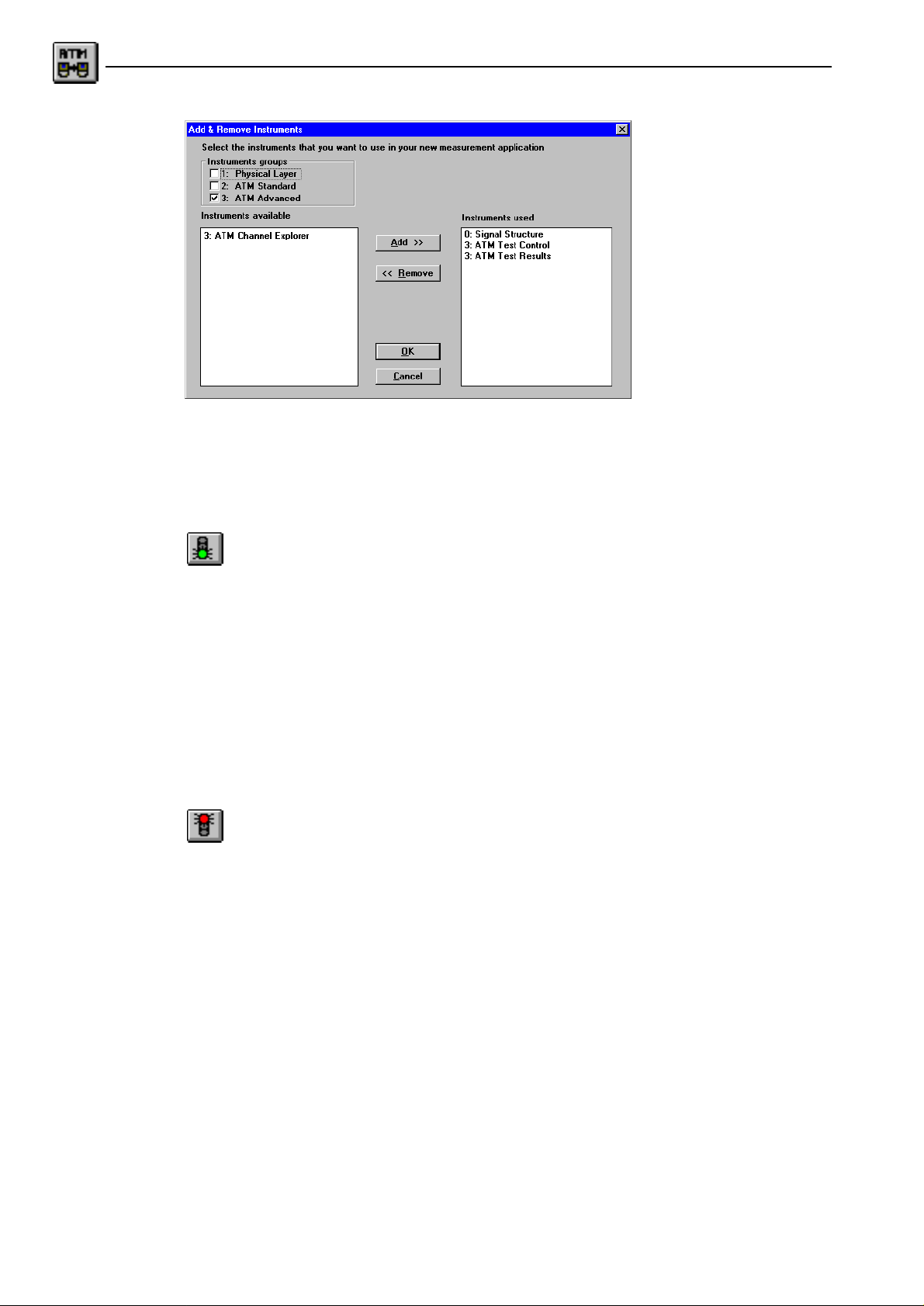

1.1 Selecting the Instruments for ATM Applications . . . . . . . . . .A-1

1.2 Starting and Stopping the Measurement. . . . . . . . . . . . . . . .A-2

2 ATM Layer Quality of Service Measurements (SVC). . . . . . . . . . . .A-3

2.1 Overview: Basic operating sequence . . . . . . . . . . . . . . . . . .A-3

2.2 Test setup and description . . . . . . . . . . . . . . . . . . . . . . . . . .A-4

2.3 Application settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-4

2.3.1 Configuring the Instrument: “ATM Test Control” VI. . . . . . . . A-5

2.3.2 Selecting the Test Type: “ATM Test Control” VI . . . . . . . . . .A-9

2.3.3 Configuring the Test Type: “ATM Test Control” VI . . . . . . .A-10

2.4 Enabling and Disabling Test Tra ffic:

“ATM Test Control” VI. . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-12

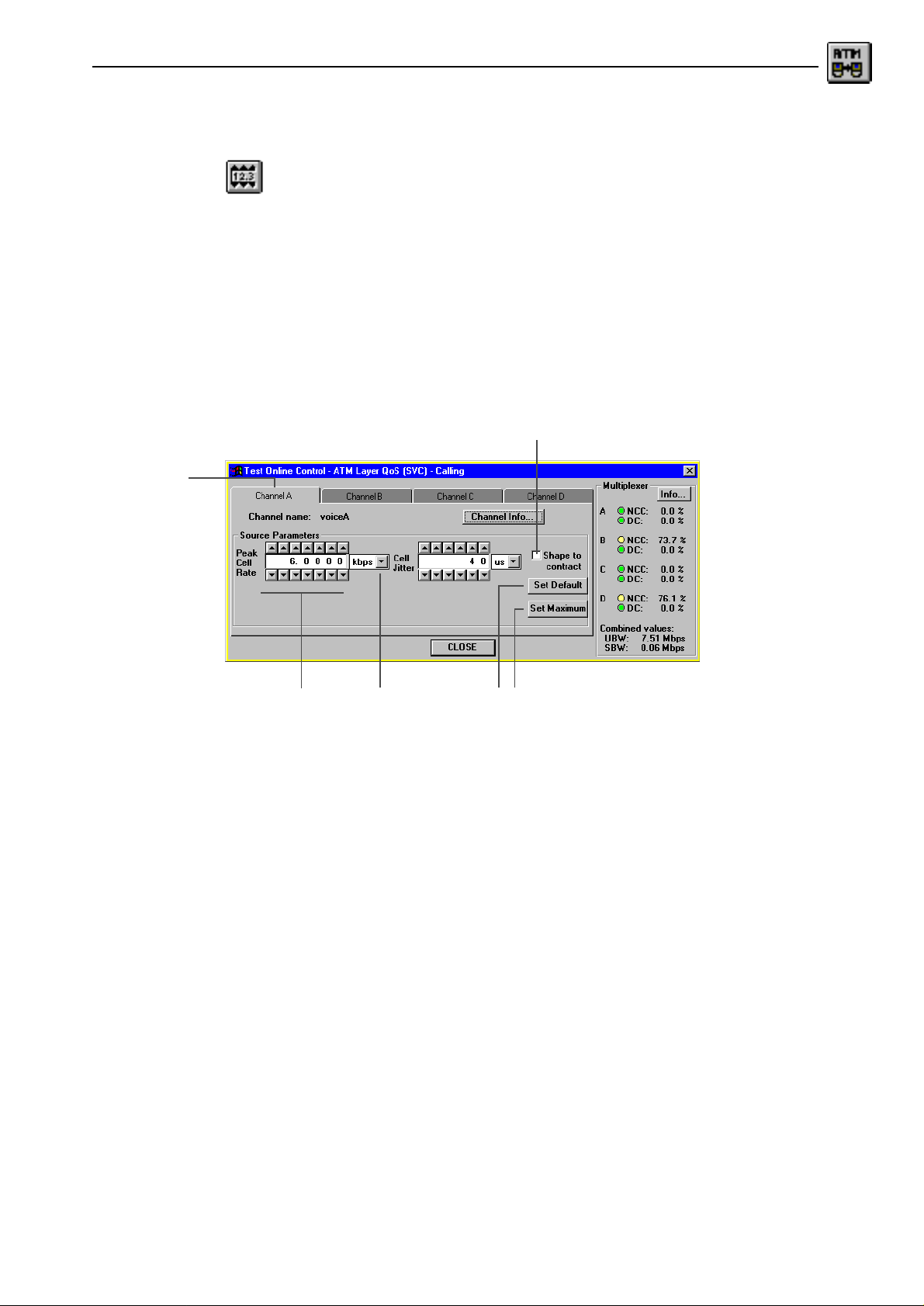

2.5 Editing Test Parameters “On-Line”:

“ATM Test Control” VI. . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-13

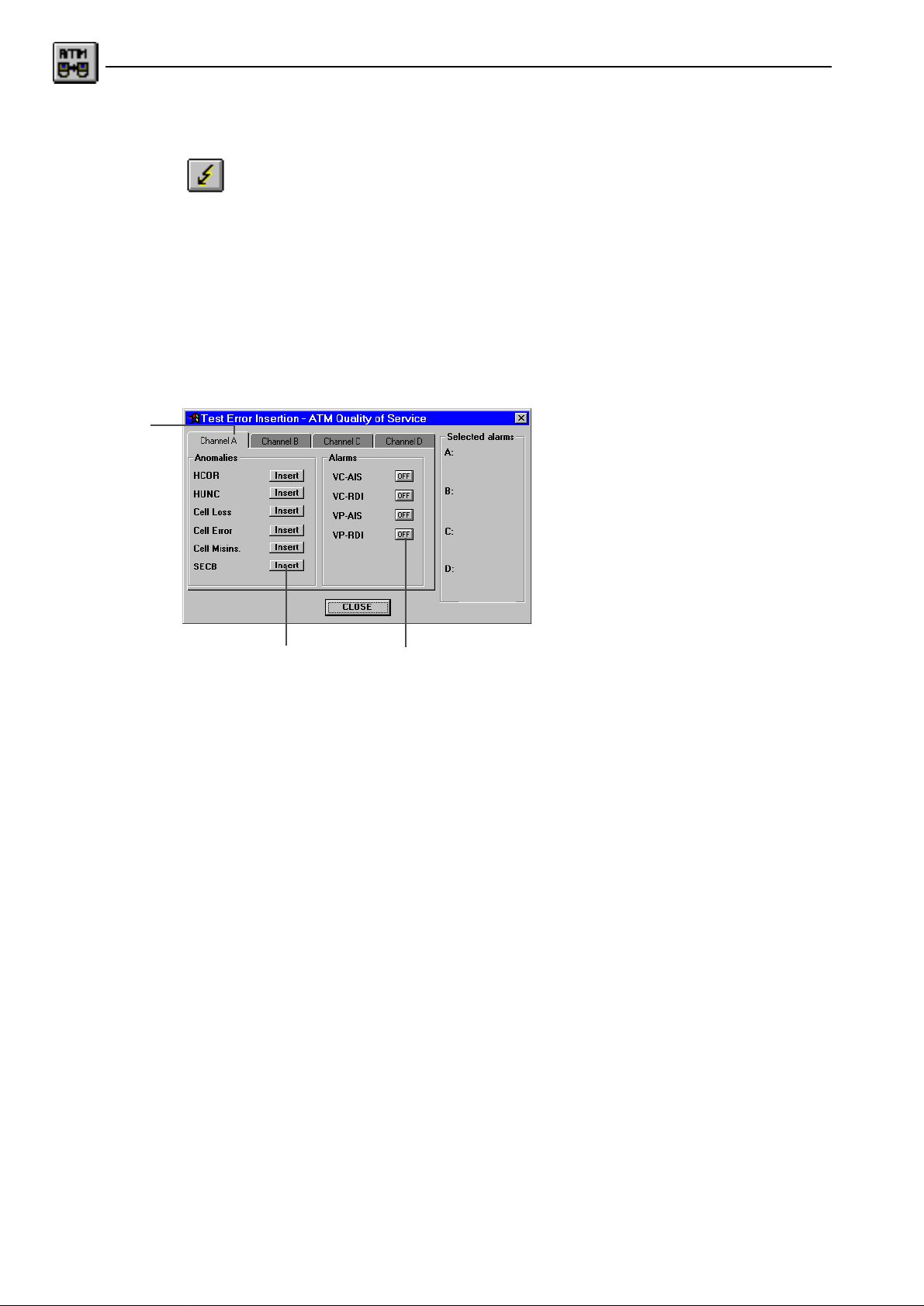

2.6 Inserting Errors: “ATM Test Control” VI. . . . . . . . . . . . . . . .A-14

2.7 Displaying the Results: “ATM Test Results” VI . . . . . . . . . .A-15

2.7.1 Preparing to Record Results. . . . . . . . . . . . . . . . . . . . . . . .A-15

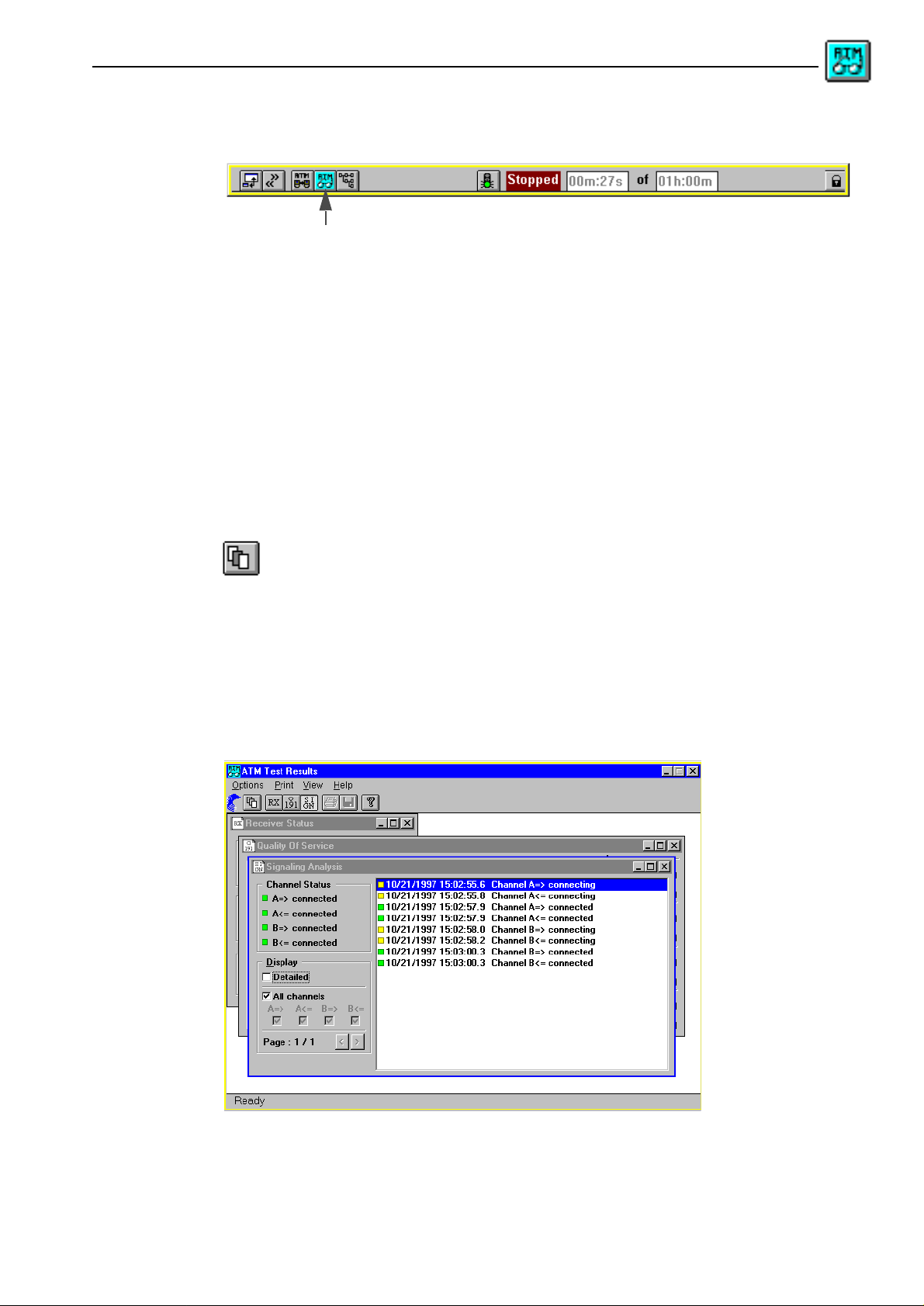

2.7.2 Displaying the Signaling Analysis . . . . . . . . . . . . . . . . . . . .A-16

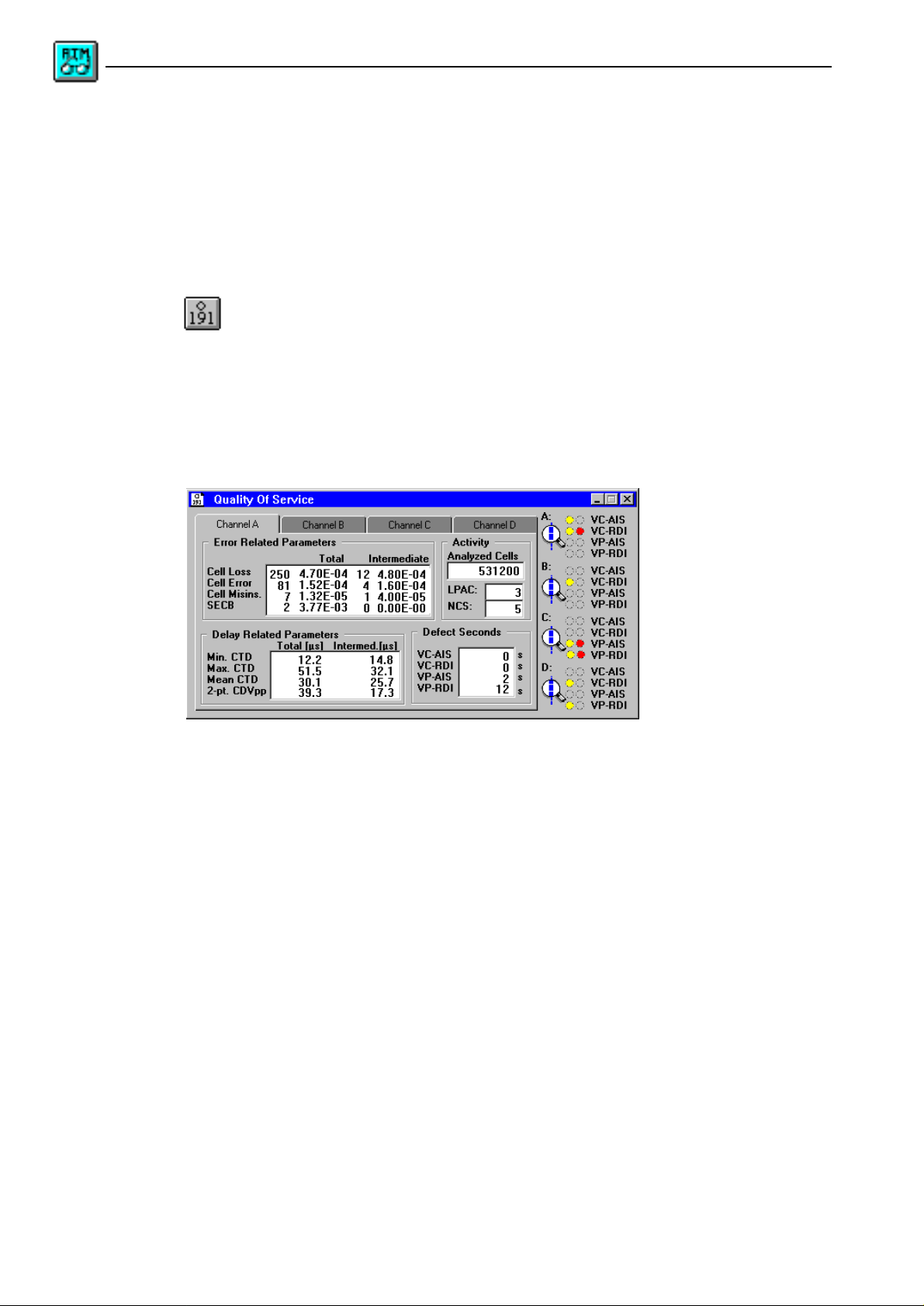

2.7.3 The “Quality Of Service” window. . . . . . . . . . . . . . . . . . . . .A-18

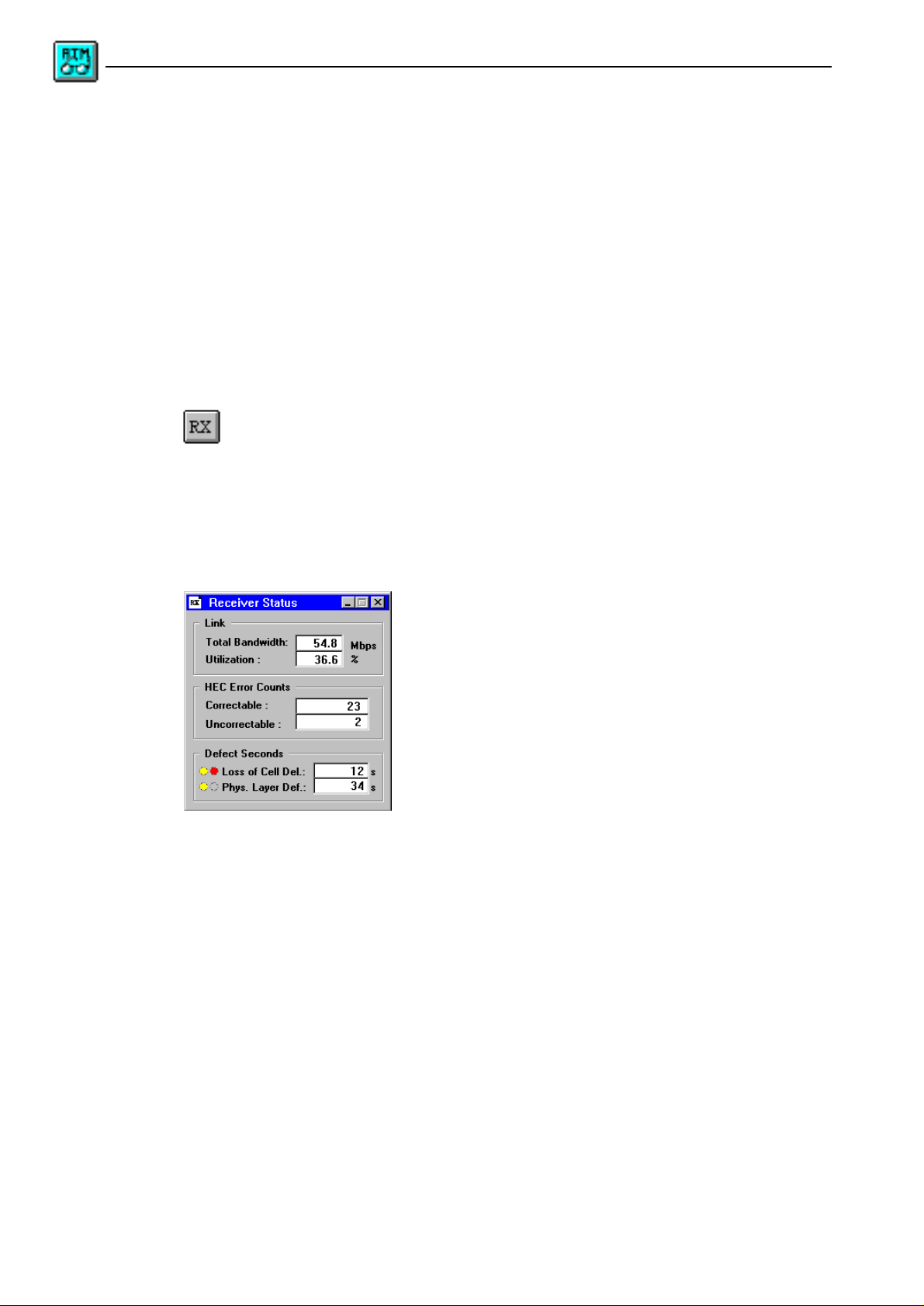

2.7.4 The “Receiver Status” window . . . . . . . . . . . . . . . . . . . . . .A-20

3 Detecting and analyzing ATM channels (Channel Explorer) . . . .A-22

3.1 Overview: Basic operating sequence . . . . . . . . . . . . . . . . .A-22

3.2 Test setup and description . . . . . . . . . . . . . . . . . . . . . . . . .A-23

3.3 Application settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-23

3.4 Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .A-24

3.4.1 “Activity” Scan:

Detect and Display Active ATM Channels. . . . . . . . . . . . . .A-24

3.4.2 Analyzing the AAL types of active ATM channels. . . . . . . .A-25

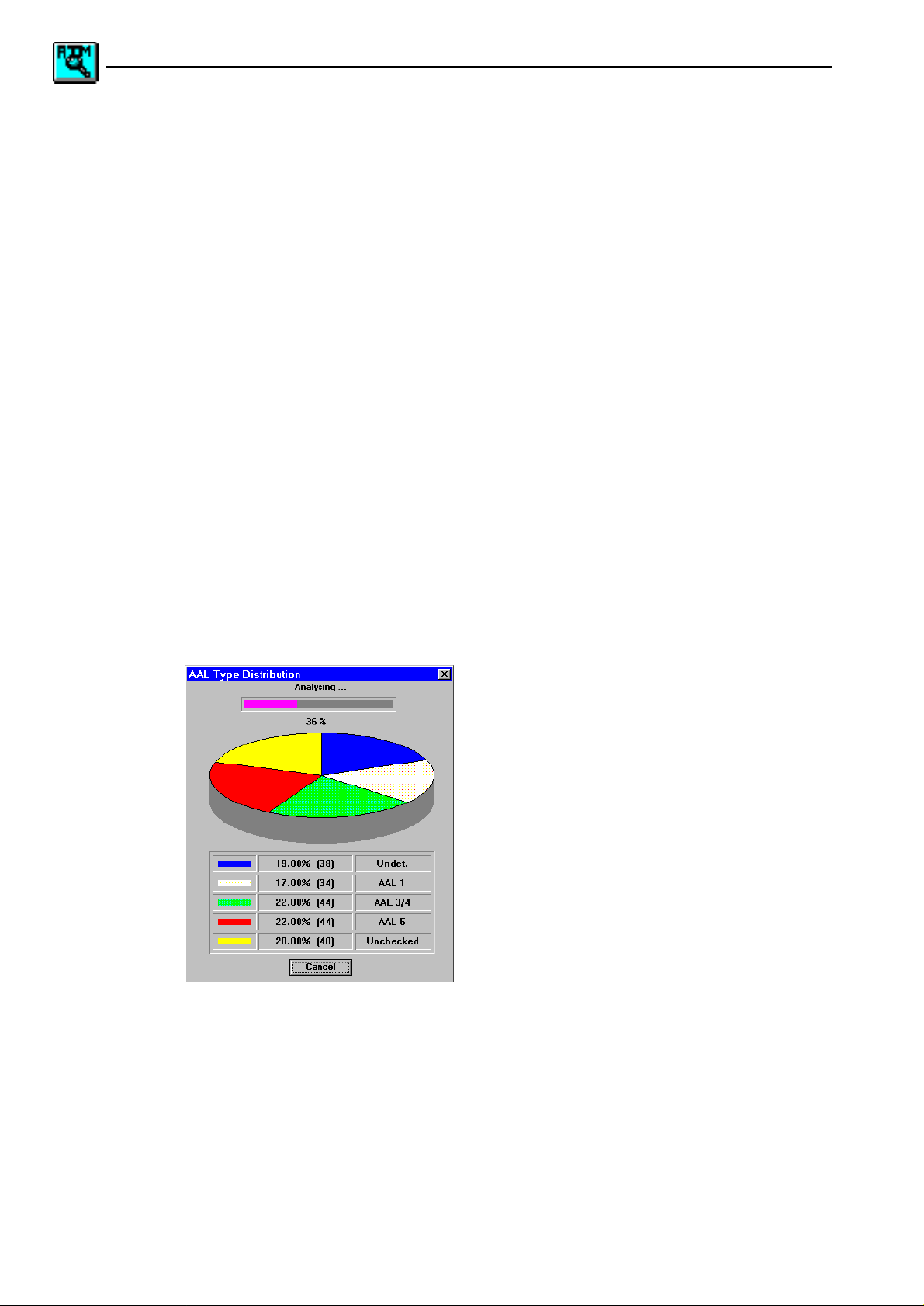

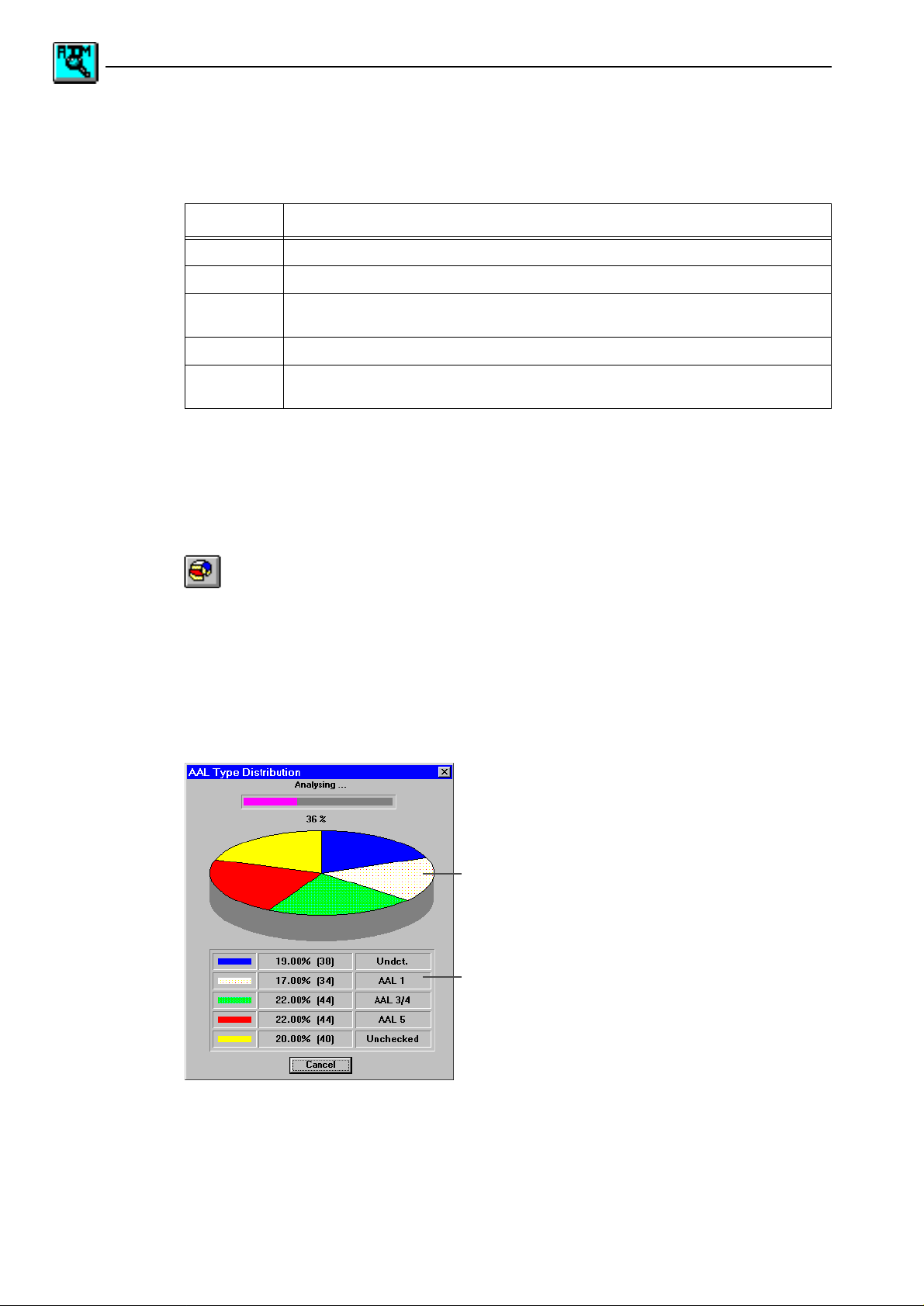

3.4.3 Displaying the AAL Type Distribution . . . . . . . . . . . . . . . . .A-26

iii

Broadband Analyzer/Generator ANT-20/ANT-20E

3.4.4 Trouble Scan: Detecting and displaying

ATM Channels where alarms are present . . . . . . . . . . . . . A-27

3.5 Selecting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-29

3.6 Sorting Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-30

Technical Background

1 ATM Traffic Generation and Multiplexing . . . . . . . . . . . . . . . . . . .TB-1

1.1 Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .TB-1

1.2 Generator Principle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB-2

1.3 Source Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB-2

1.3.1 “Constant Bit Rate” source model. . . . . . . . . . . . . . . . . . . . TB-3

1.3.2 “On-Off” source model . . . . . . . . . . . . . . . . . . . . . . . . . . . .TB-4

1.4 Traffic Control and Multiplexing Method . . . . . . . . . . . . . . . TB-5

1.5 Traffic Shaper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB-8

2 Testing Switched Virtual Circuits (SVCs) . . . . . . . . . . . . . . . . . . .TB-9

2.1 General features of the signaling

(Software version 6.5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB-9

2.2 Interoperability with other instruments . . . . . . . . . . . . . . . . TB-9

2.3 Starting and stopping signa ling, generating test traffic. . . TB-10

2.4 “Calling” mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB-10

2.5 “Called” mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB-13

2.6 “Self Call” mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TB-15

Specifications “ATM Layer”

1 Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-1

1.1 Scrambling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-1

1.2 Fill Cells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-1

1.3 Cell Header. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-1

1.4 General Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-2

1.4.1 Error Insertion (Anomalies). . . . . . . . . . . . . . . . . . . . . . . . . . S-2

1.4.2 Alarm Generation (Defects) . . . . . . . . . . . . . . . . . . . . . . . . . S-2

1.5 Functions for

ATM Layer Quality of Service Measurements . . . . . . . . . . . S-3

1.5.1 General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-3

1.5.2 Error Insertion (Anomalies). . . . . . . . . . . . . . . . . . . . . . . . . . S-3

1.5.3 Alarm Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S-3

ANT-20/ANT-20E Broadband Analyzer/Generator

1.5.4 Test Cell Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-3

1.6 Source Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-4

1.6.1 Constant Bit Rate Model . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-4

1.6.2 “On-Off” Model . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-4

1.7 Traffic Shaper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-5

1.7.1 Traffic Shaper for CBR, UBR and DBR Traffic Contracts . . . S-5

1.7.2 Traffic Shaper for VBR and SBR Traffic Contracts. . . . . . . .S-6

2 Receiver. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-7

2.1 Descrambling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-7

2.2 General Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-7

2.2.1 Error Measurements (Anomalies) . . . . . . . . . . . . . . . . . . . . .S-7

2.2.2 Alarm Detection (Defects). . . . . . . . . . . . . . . . . . . . . . . . . . .S-7

2.2.3 Receiver Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-7

2.3 ATM Layer Quality of Service Measurements. . . . . . . . . . . . S-8

2.3.1 General Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-8

2.3.2 Error Related Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . .S-8

2.3.3 Delay Related Parameters . . . . . . . . . . . . . . . . . . . . . . . . . .S-8

2.3.4 Alarm Detection (Defects). . . . . . . . . . . . . . . . . . . . . . . . . . .S-9

2.3.5 Other Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-9

2.4 Channel Explorer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-10

2.4.1 Activity Scan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-10

2.4.2 Trouble Scan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-10

2.4.3 AAL analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-11

3 Signaling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-12

3.1 Traffic Contracts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-12

3.2 Signaling Analysis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S-12

Index

Broadband Analyzer/Generator ANT-20/ANT-20E

Notes:

ANT-20/ANT-20E Broadband Analyzer/Generator

Introduction

1 Main applications of the Broadband Analyzer/Generator

ATM is set to change the landscape in WANs and LANs in the coming years. Practically all network operators view ATM as a key technology in enabling them to provide the required high quality standard in future serv i ces.

With the Broadband Analyzer/Generator the right tool is provided to you for performing ATM tests in a simply, reliably manner and with highest accuracy.

The tester is particularly suitable for

• commissioning,

• acceptance testing and

• in-service testing of ATM services, switches and networks.

This means that your network management is enhanced to provide performance tests that

guarantee the best possible “Quality of Service”. A special feature, the real-time function supports the test, which also allows you to optimize the ATM traffic management.

Both SVCs (Switched Virtual Circuits) and PVCs (Permanent Virtual Circuits) are tested precisely.

Testing of different ATM service categories will be supported directly by the Broadband Analyzer/Generator.

A TM traffic contracts can be analyzed in detail and can therefore be guaranteed by means of an acceptance test. The figure below shows the relationship between the ATM Forum and ITU-T service categories, their traffic descriptions and the minimum guarantee corresponding to the appropriate traffic contract.

Service

2 Application concept

The Broadband Analyzer/Generator in the ANT-20/ANT-20E is an ATM tester that is equipped with integrated interfaces. This ensures that the necessary interface is easily accessible when you are on the move.

Fig. I-2 Comprehensive choice of interfaces for the ANT-20/ANT-20E

The Broadband Analyzer/Generator operates in “Emulate” mode for an UNI interface for most test applications. This configuration provides the test instrument with characteristics that are similar to those of an ATM terminal. This configuration also allows signaling emulation to enable you to make performance measurements using ATM switched virtual circuits. The function is also used for testing the major characteristics of ATM switches.

ATM tests on SVCs can be performed faster and more effectively since you no longer need to be concerned with setting up and clearing down the connection.

I-2 Introduction

ANT-20/ANT-20E Broadband Analyzer/Generator

The diagram below illustrates the steps that the Broadband Analyzer/Generator performs automatically, when a self-call was initiated:

1. Test circuit set up

2. Performance analysis over the test circ uit

Fig. I-3 Automatic test sequence for switched virtual circuits

The receiver of the Broadband Analyzer/Generator can be used separately for troubleshooting

or analysis. The ANT-20/ANT-20E can be used with a “T” connector or optical power splitter for this monitor type operating mode.

Fig. I-4 ANT-20/ANT-20E monitor function

Introduction I-3

Broadband Analyzer/Generator ANT-20/ANT-20E

All test applications are supported by a practical application and channel database. In the simplest scenario, an application is called up and started directly.

With the ATM channel editor a comfortable tool for the extension and handling of the ATM channel database is available.

The results must be recorded, not just for acceptance tests. All the virtual instruments of the Broadband Analyzer/Generator include a print function to allow you to produce hard copies that can be used for presentations.

The Broadband Analyzer/Generator is particularly suitable for end to end or Multicall test applications. The concept allows new connections, network nodes or network terminations to be

tested simply and reliably on the customer’s premises. These tests can also be automated if they are performed using signaling and SVCs.

Fig. I-5 Multicall applications using the Broadband Analyzer/Generator

Several Broadband Analyzer/Generators are calling a “Call-server” OMC: Operation & Maintenance Center

I-4 Introduction

ANT-20/ANT-20E Broadband Analyzer/Generator

3 Test applications

3.1 ATM performance analysis

The basic version of the tester supports analysis of the ATM layer “Quality of Service”. Measurements are performed in conformance with ITU-T Recommendation O.191, “SPECIFICATIONS OF MEASURING EQUIPMENT; Equipment to Assess ATM Layer Cell Transfer Performance”.

This standard describes the currently most reliable ATM measurement method. It basically defines test cell formats and evaluation algorithms such as a 4-byte sequence number, the timestamp and a CRC16 check per cell.

By these definitions, test results in accordance to O.191 were registered, which can be compared directly.

The following quality parameters are reliably and unambiguously determined from the test cell data using the measurement algorithm:

• Error-related network performance parameters – CER, Cell Error Ratio – CLR, Cell Loss Ratio – SECBR, Severely Errored Cell Block Ratio – CMR, Cell Misinsertion Rate

• Availability-related network performance parameters – LPAC, Loss of Performance Assessment Capability

• Delay-related network performance parameters – CTD, Cell Transfer Delay – CDV, Cell Delay Variation

Using this measurement method, particularly precise long term measurements are possible which allow evidence of the constant high quality of a connection to be obtained.

3.2 Traffic management tests

Various test functions assist you in testing the ATM traffic management functions or to optimize their settings.

In particular, the tester supports the following:

• Definition and agreement of the ATM traffic contract for ATM circuits

• Checking the contract guarantees: Cell rates, cell losses, cell delay

• Tests using the “leaky bucket” algorithm (GCRA, generic cell rate algorithm)

• Simulations with traffic shaping

• Compliance and conformance simulations with ATM circuits and ATM sources

• Tests in connection with connection admission control

• Tests of UPC (usage parameter control) functions

• Analysis of cell loss priority control

• Tagging tests

• Explicit forward congestion analysis

In preparation:

• AAL-5 frame discard testing

Introduction I-5

Broadband Analyzer/Generator ANT-20/ANT-20E

3.3 UNI signaling tests

The “Signaling Emulation” function allows you to test the signaling characteristics of UNIs. Signaling emulation provides a rapid “go/no go” assessment of the following:

• Is it possible to set up a connection?

• What address format is supported?

• Which contract parameters can be negotiated?

• Which service categories can be used?

• Does the signaling process operate without problems?

3.4 Analysis of ATM signals

The ATM Channel Explorer is used to analyze ATM signals. This tool, for example can perform rapid diagnostics by finding the active ATM channels and displaying their bandwidth and AAL distributions. A further application is the detection of defects and anomalies in the ATM signal.

3.5 Other fields of application

The range of applications for the Broadband Analyzer/Generator is very wide and includes the following fields:

• Function tests for ATM network elements and modules

• Performance management

• Remote-controlled measurement of demand

• ATM network monitoring

• Acceptance tests

• Commissioning of ATM network nodes and ATM connections

• Commissioning of new ATM services

I-6 Introduction

ANT-20/ANT-20E Broadband Analyzer/Generator

4 Using and setting up the Broadband Analyzer/Generator

The Broadband Analyzer/Generator is a flexible test concept for performing tests on the various protocol layers.

The diagram shows the points of access that the ATM tester can use within the layer model. It also shows the modular structure of the Windows user interface in conjunction with the generator and receiver hardware.

Fig. I-6 Hardware and software structure of the Broadband Analyzer/Generator

The modern operating concept and the user interface have been developed to allow you to perform tests simply and reliably. The number of operating steps needed has been reduced to a minimum:

1. Select the required instrument configuration

2. Select the test type

3. Select and edit the default test parameters where necessary

4. Start the measurement

The generator produces a test data stream in accordance with the selected test type and the analyzer outputs the test results in optimized form.

If one of the pre-defined applications in the Application Manager matches your test requirements exactly, it can be started immediately. This also applies to any applications that will be defined or modified by yourself. Own applications are easily made by storing instrument settings once with the Application Manager.

The stock of applications you create, together with the universal channel database allows the ATM tester to be rapidly adapted to new, complex test situations.

Introduction I-7

Broadband Analyzer/Generator ANT-20/ANT-20E

5 Overview: Virtual Instruments, “VIs”

To make it easier to locate and operate the large number of instrument functions, a user interface was developed for the ANT-20 family of instruments that makes use of the concept of

virtual instruments or “VIs”. The VIs are designed so that each has a clearly defined set of tasks. By selecting specific VIs, tools or “applications” can be developed and tailored to perform particular measurement tasks. The VIs for the Broadband Analyzer/Generator are summarized briefly below.

Virtual instrument Protocol

Icon Name

ATM Test Control

ATM Test Results

ATM Channel Explorer

Table I-1 Virtual instruments for the Broadband Analyzer/Generator

layer

Physical

•••

Function

ATM

Higher

Configure the test connection, signaling emulation and protocol layers for ATM measurements. Define measurement modes and virtual channels. Control traffic generation. Insert errors in the ATM and higher layers.

Display and outpu t the results o f the A TM me asurements made.

Characterize ATM traffic at the standard interfaces and trace alarms in the ATM layer (up to 1000 channels). Perform AAL layer analysis.

I-8 Introduction

ANT-20/ANT-20E Broadband Analyzer/Generator

6 Often used terminology

Application

An application consists of a suitable collection of virtual instruments (VIs for short) used to solve a measurement task. In this way applications can be defined e.g. for physical layer or ATM layer measurements.

Applications are configured and managed in the “ANT20 - <Application Title>” window (Application Manager VI).

If an application is saved, the parameter settings for the VIs used will also be saved. In the same way, the measurement results are also saved with the application. When the application is loaded, the test equipment is automatically set to the same settings as

when the application was last used.

Test type

The “test type” is a concept used for ATM measurements. Test types are used to simply and quickly configure the instrument and prevent operating errors, particularly if signaling emulation is being used.

A test type consists of a measurement mode (only “ATM-Layer QoS” is available in this software version) and a “connection mode”.

When a test type is selected, the instrument is pre-set for performing the measurement. A setup dialog is provided for each test type so that you can make settings that are specific to the test you want to perform.

The settings for all test types used are saved within an application. When an application is loaded, the last test type used in the application will automatically be activated.

Example test types:

• ATM Layer QoS (PVC) - Point-to-point

• ATM Layer QoS ( SVC) - Calling

• ATM Layer QoS ( SVC) - Self-Call

Connection mode

The “connection mode” indicates the way that the virtual connection is switched through the ATM layer.

Example connection modes:

• For permanent virtual connections (PVC): – Point-to-point – Looped

• For switched virtual connections SVC): – Calling (switched point-to-point connection with calling instrument) – Called (switched point-to-point connection with called instrument) – Self-Call (switched connection with self-call)

Introduction I-9

Broadband Analyzer/Generator ANT-20/ANT-20E

Port configuration

The Port configuration (topology) describes the way in which the test equipment is connected to the device under test on the physical layer.

Example topologies:

• Emulate

• Looped (between generator and receiver)

• Monitor (not yet supported)

Traffic type

The traffic type indicates the type of traffic contract. This term is defined by the ATM Forum. The

ITU equivalent term is “broadband bearer capability”. A traffic type must be specified for each virtual channel defined in the Channel Editor of the

“ATM Test Control” VI. Example traffic types:

• CBR (constant bit rate)

• VBR-nRT (variable bit rate, non real time)

• DBR (deterministic bit rate)

• SBR (statistical bit rate)

The CBR and DBR traffic types are identical in most respects. This is also true of the VBR-nRT and SBR traffic types.

Switched Virtual Circuit (SVC)

• Forward is the direction from the “calling” device to the “called” device.

• Backward is the direction from the “called” device to the “calling” device.

Permanent Virtual Circuit (PVC)

• Forward is the send direction of the device.

• Backward is the receiving direction of the device

Device means: ANT-20/ANT-20E.

I-10 Introduction

ANT-20/ANT-20E Broadband Analyzer/Generator

Operation

1 ATM Test Control

1.1 Introduction

Task

The “ATM Test Control” VI is used to select a test type and to configure the instrument for the selected test type. You can also control the running of the test from this VI if the selected test type allows for manual control (“Test - Online Control” dialog). Each test type generally includes configuration of the generator and the receiver.

The instrument configuration covers selection of the port configuration (topology), setting the various protocol layers, in particular the ATM layer and higher layers, as well as selection of the type of connection, i.e. “permanent” or “switched”.

The “test types” available for selection are used to structure measurement types and connection modes. These are arranged according to protocol layers, with only the ATM layer being supported at present. Only those test types that are possible and practicable with the selected instrument configuration are available for selection.

On-line control allows relevant test parameters to be altered during the traffic generation. This is particularly useful for traffic parameters such as the peak cell rate or mean cell rate, allowing rapid assessment of the effects of these parameters on the behavior of the device under test. On-line control also allows errors (anomalies and defects) to be inserted into the test cell stream.

The “A TM Test Control” VI is normally used together with the “A TM Test Results” VI. The latter displays the test results as determined by the selected test type and corresponding instrument configuration.

The settings made for a certain test type are saved within an “application” and are set again automatically when the test is called up again. Bit error measurements in the physical layer are not supported by the “ATM Test Control” VI.

Requirements

✓ The “Signal Structure” VI must also be loaded when performing ATM measurements. This is

used to control and configure the physical layer, e.g. select the bit rate, frame type, etc. The instrument can also be configured for bit error measurements in the physical layer with the “Signal Structure” VI. If the “ATM Test Control” VI is loaded, the “Signal Structure” VI can only be accessed via the “Instrument Configuration” dialog of the “ATM Test Control” VI.

✓ To perform detailed tests in the physical layer, the “Anomaly/Defect Insertion” and “Anomaly/

Defect Analyzer” VIs should also be loaded. The “Anomaly/Defect Insertion” VI allows insertion of a wide range of anomalies and defects in the physical layer. The “Anomaly/ Defect Analyzer” VI provides corresponding analysis of the anomalies and defects in the physical layer.

Operation O-1

Broadband Analyzer/Generator ANT-20/ANT-20E

Restrictions

The following virtual instruments cannot be used within a single application at the same time as

the “ATM Test Control” VI: “ATM Signal Structure”, “ATM Background Generator” and “ATM Traffic Analyzer”

1.2 “ATM Test Control” window layout and commands

The “ATM Test Control” main window appears after the VI is loaded. It basically consists of a menu bar, toolbar and workspace containing the current configuration diagram. Most functions can be executed via menu commands (text) or via the icons in the toolbar.

When you select a menu command or an icon, a dialog window for making further settings may appear in the foreground.

Menu bar and toolbar

Configuration diagram/ workspace

Fig. O-1 “ATM Test Control” main window

The “ATM Test Control” main window essentially consists of

• the menu bar and pull-down menus,

• the toolbar and

• the workspace with configuration diagram.

Menu bar

The menu bar contains a range of pull-down menus for selecting the following commands or groups of commands:

Instrument Configure instrument Test Select test type, set test parameters (on-line, off-line),

insert errors and control traffic enable

Options Select optional settings Tools Define, handle and print out virtual channels View Customize the application window Help Use on-line help

O-2 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

Toolbar

The toolbar buttons provide direct access to the more important functions of the VI. Meanings of icons, from left to right (equivalent menu command shown in brackets):

Icon Meaning

Configure instrument (Instrument - Configuration ...)

Select test type, set test parameters (Test - Setup ...)

Alter source parameters “on-line”(Test - Online Control ...)

Insert errors (Test - Error Insertion ...)

Enable test traffic (Test - Traffic Enable)

Define and handle virtual channels (Tools - Channel Editor ...)

Print list of virtual channels (Tools - Print Channel List ...)

Open on-line help (Help - Contents)

Table O-1 Meanings of icons

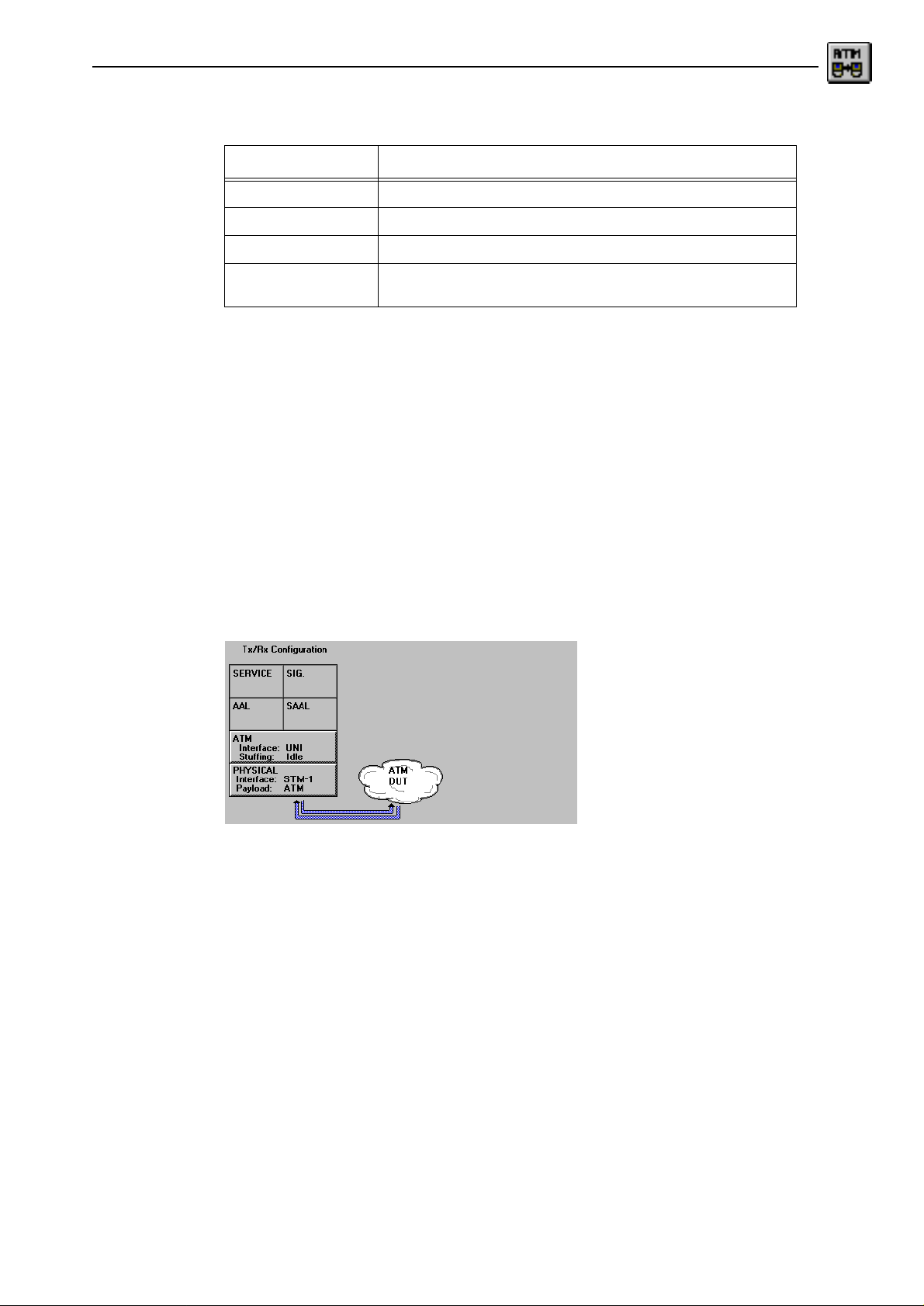

Configuration diagram

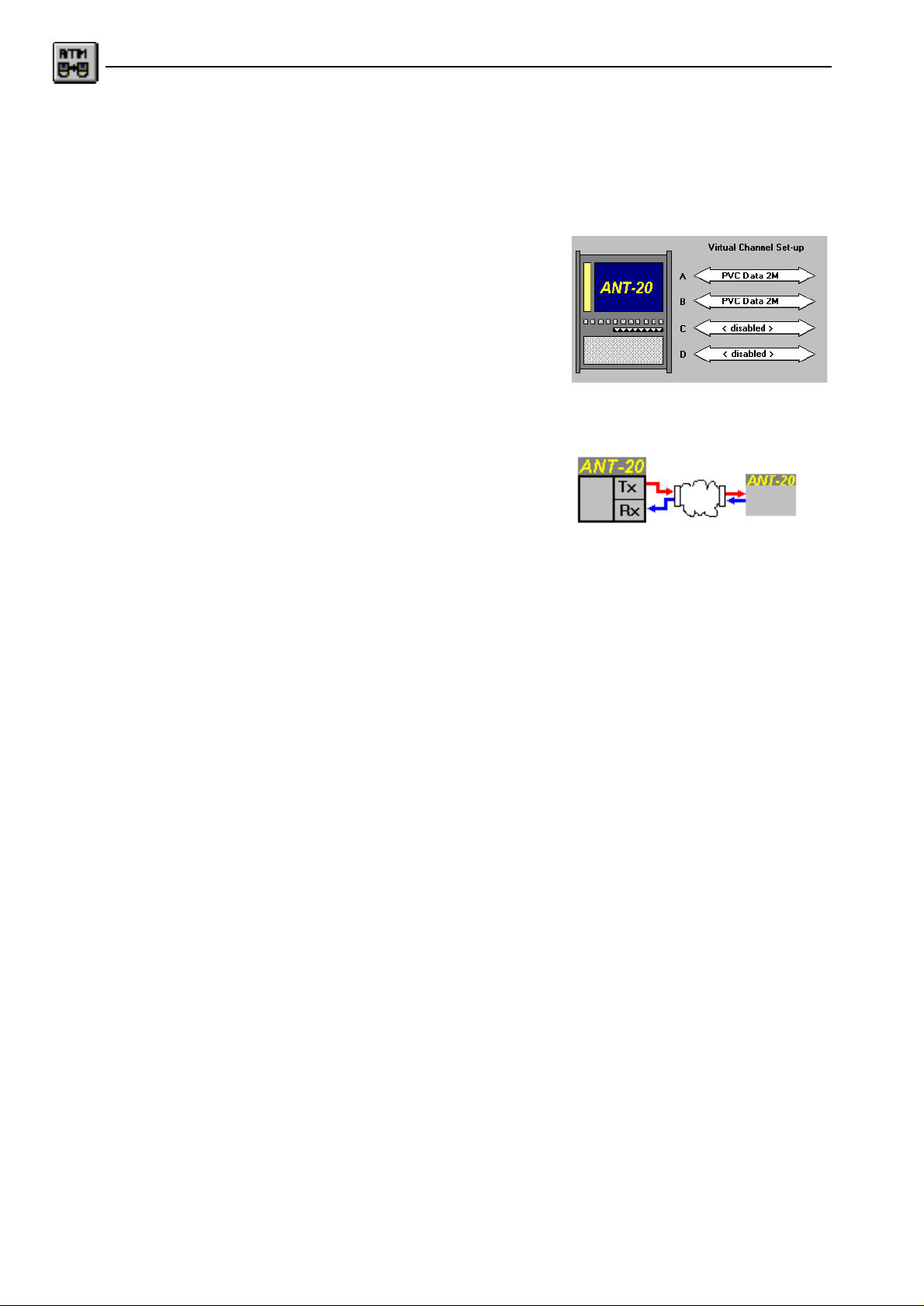

The main window workspace always displays a pictogram of the actual measurement configuration. If the configuration requires a second instrument, this will also be shown. Further information describes the configuration and the instrument status in detail:

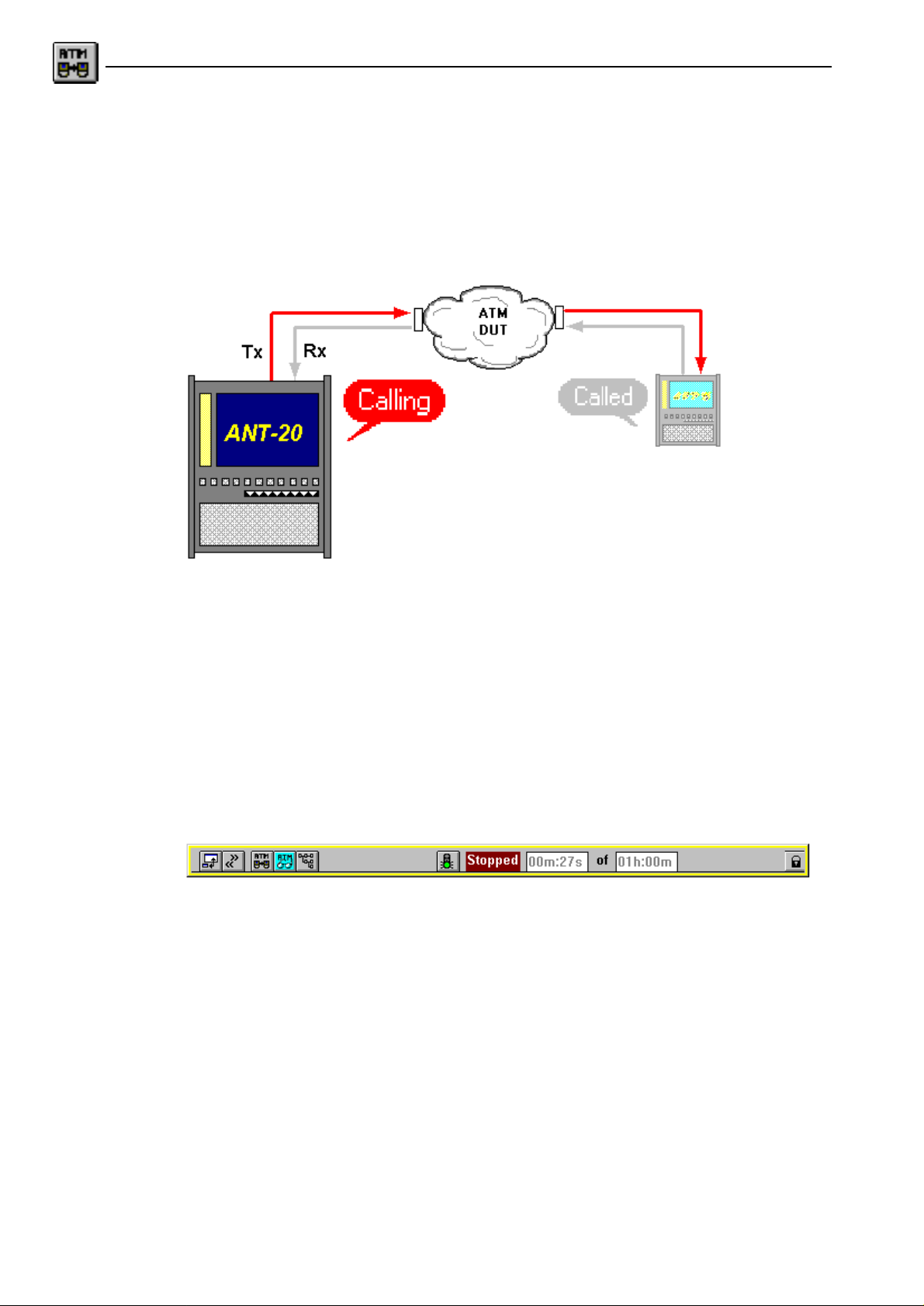

Fig. O-2 Display of “Port configuration” (Main window “ATM Test Control” VI),

Example: “Emulate” and switched virtual circuit (SVC)

Operation O-3

Broadband Analyzer/Generator ANT-20/ANT-20E

1.3 Important dialog windows

The “Instrument Configuration” dialog

The “Instrument Configuration” dialog is used to set the port configuration or topology for the measurement task and to match the instrument to the protocol layers used. You can also select whether permanent (PVC) or switched (SVC) virtual connections are to be tested. If switched virtual connections are selected, you can also configure the signaling emulation and set the ATM address of the instrument in this dialog.

The dialog shows the selected configuration in graphical form along with push buttons that open further dialogs for a given layer. This is also the case for the physical layer; the “Signal Structure” VI is opened when the “PHYSICAL” button is clicked, assuming that the “Signal Structure” VI has been loaded in the current application; see Sec. 4.4,Page O-19.

Fig. O-3 “Instrument Configuration” dialog

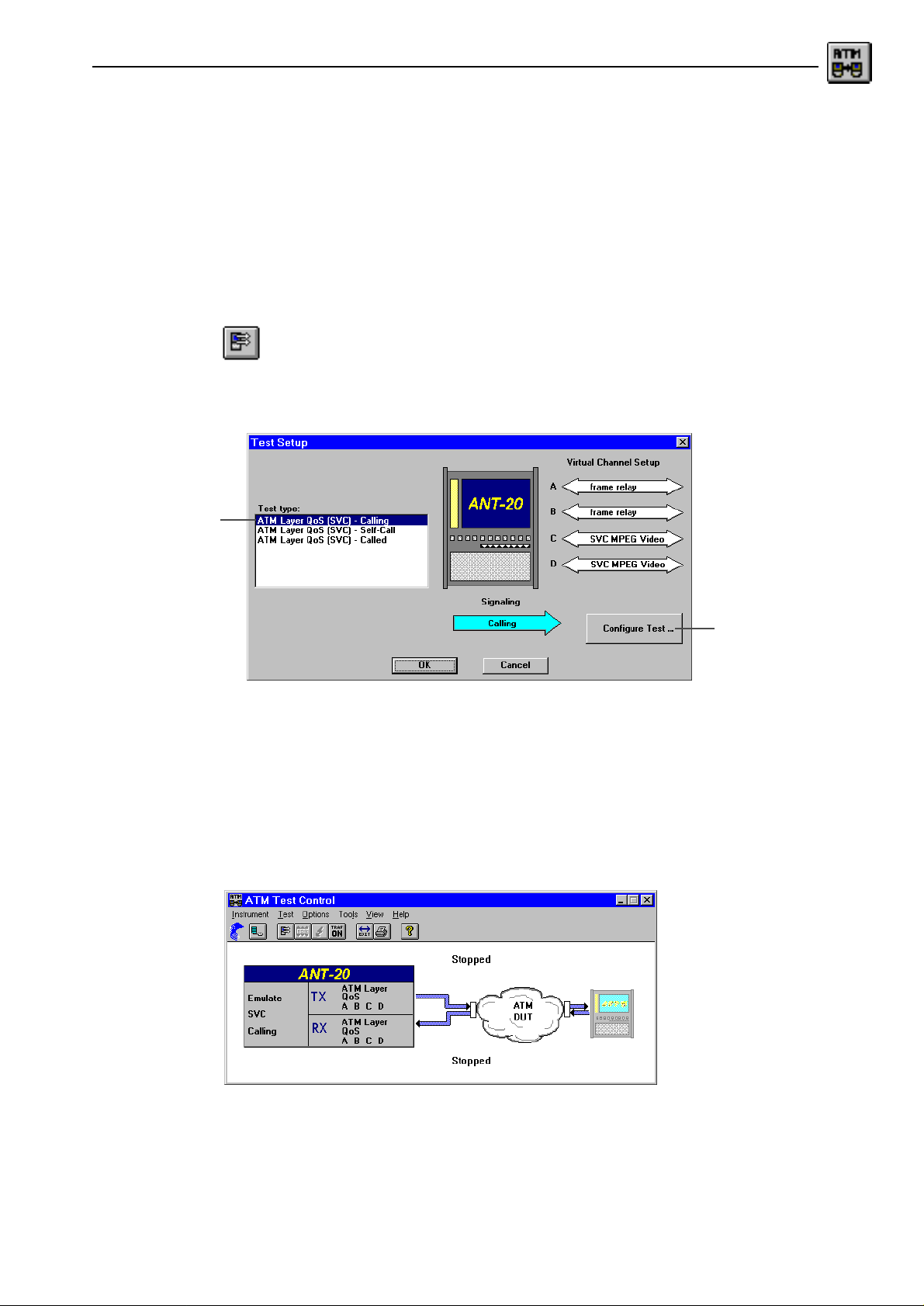

The “Test Setup” dialog

The “Test Setup” dialog is used to select the appropriate test type for your measurement task. Depending on the requirements and modifications with respect to the default setup, further dialog windows can be called up to configure your test type.

Fig. O-4 “Test Setup” dialog with available test types

O-4 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

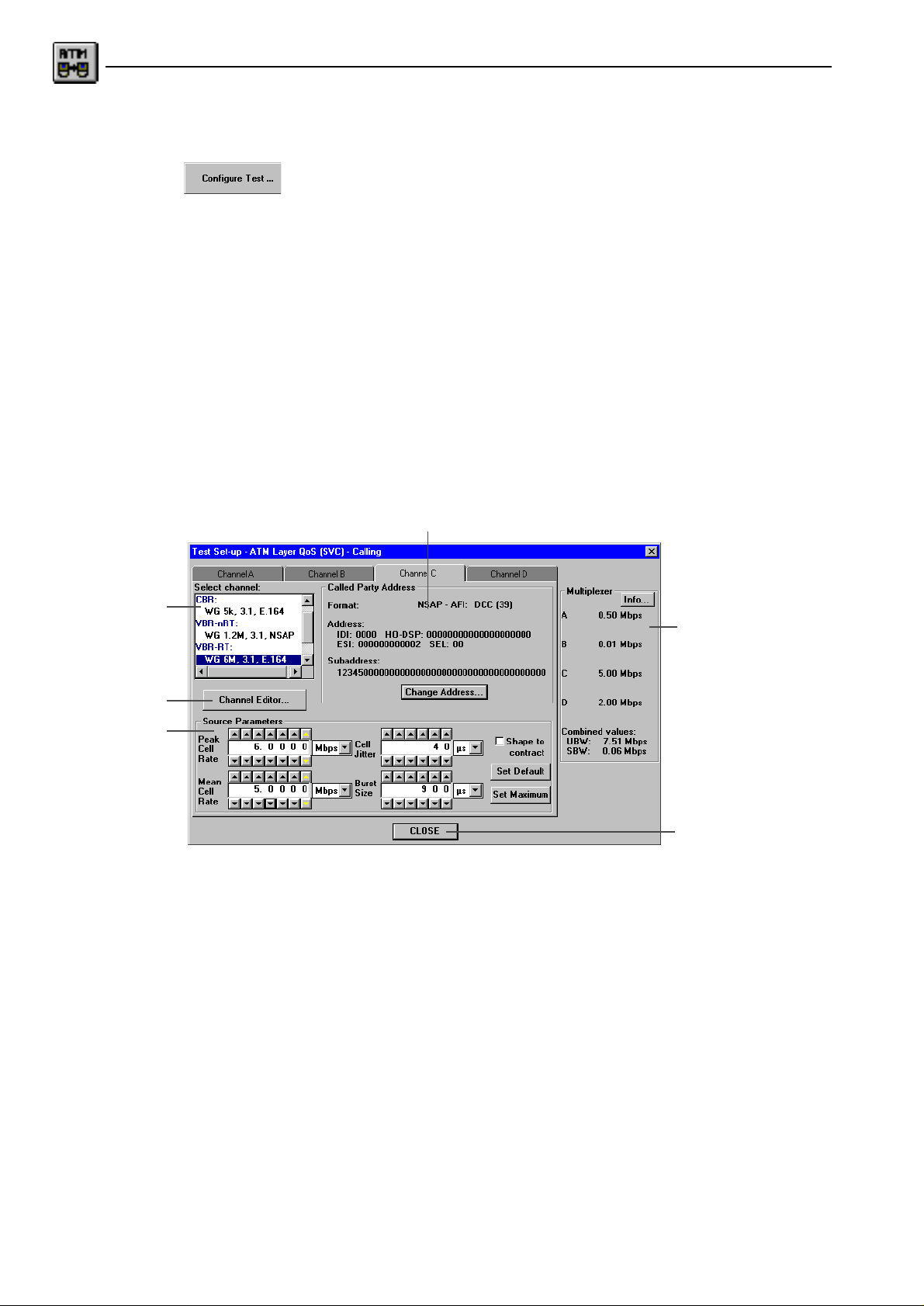

The extended “Test Setup” dialog

The “Test Setup <...>” dialog is used to configure the test type and to match it to your measurement task (see Sec. 5.9).

Fig. O-5 The extended “Test Setup <...>” dialog

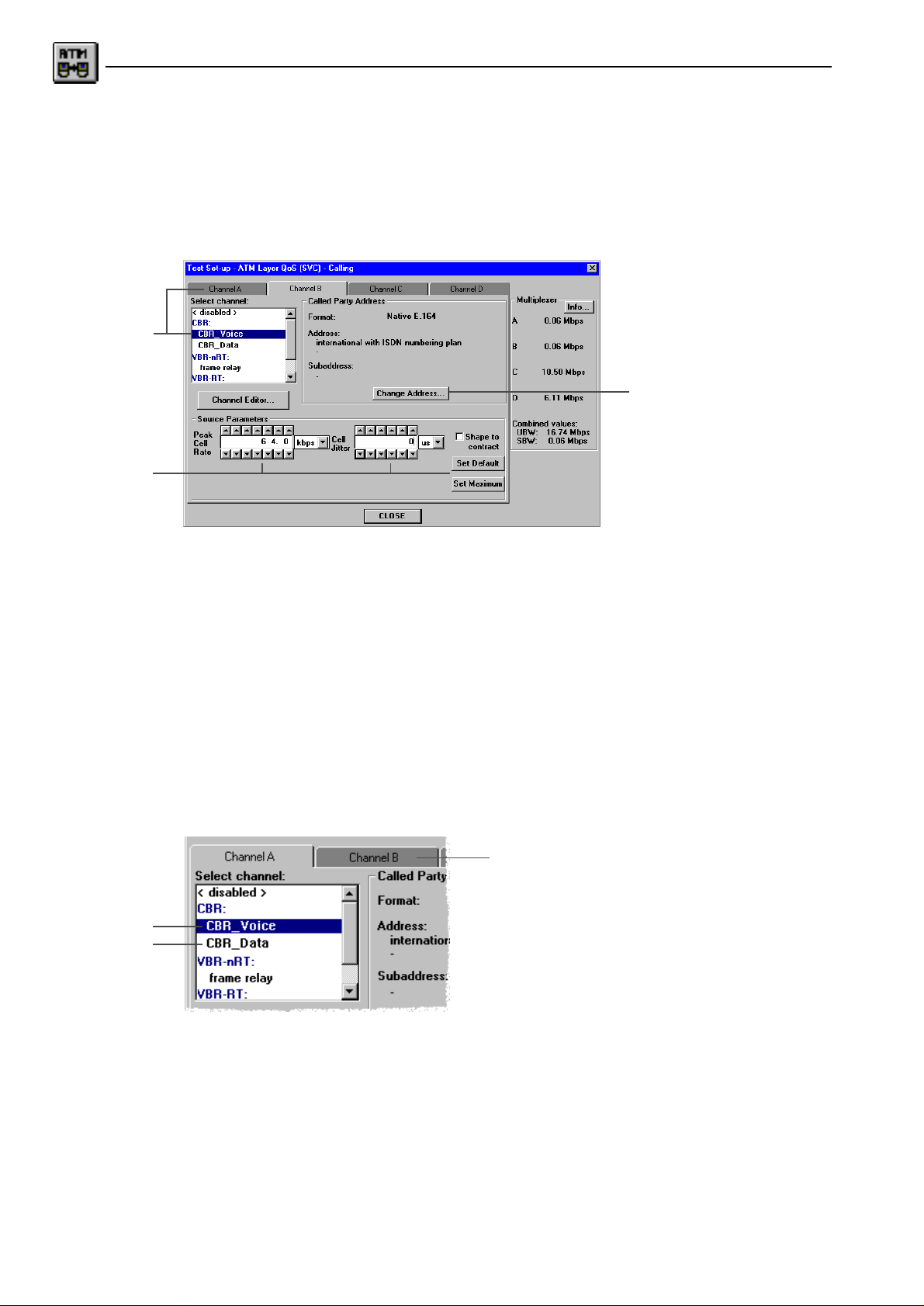

The “Channel Editor” dialog

The Channel Editor is used to define virtual channels and save them in a database; Sec. 6,Page O-38. Push buttons and a list box in the dialog window header are used for defining and handling the channels. When first used, the list contains a range of default virtual channels for the usual types of traffic (CBR, VBR, etc.). These channels can be saved under a new name and edited individually.

Fig. O-6 The “Channel Editor” dialog

Operation O-5

Broadband Analyzer/Generator ANT-20/ANT-20E

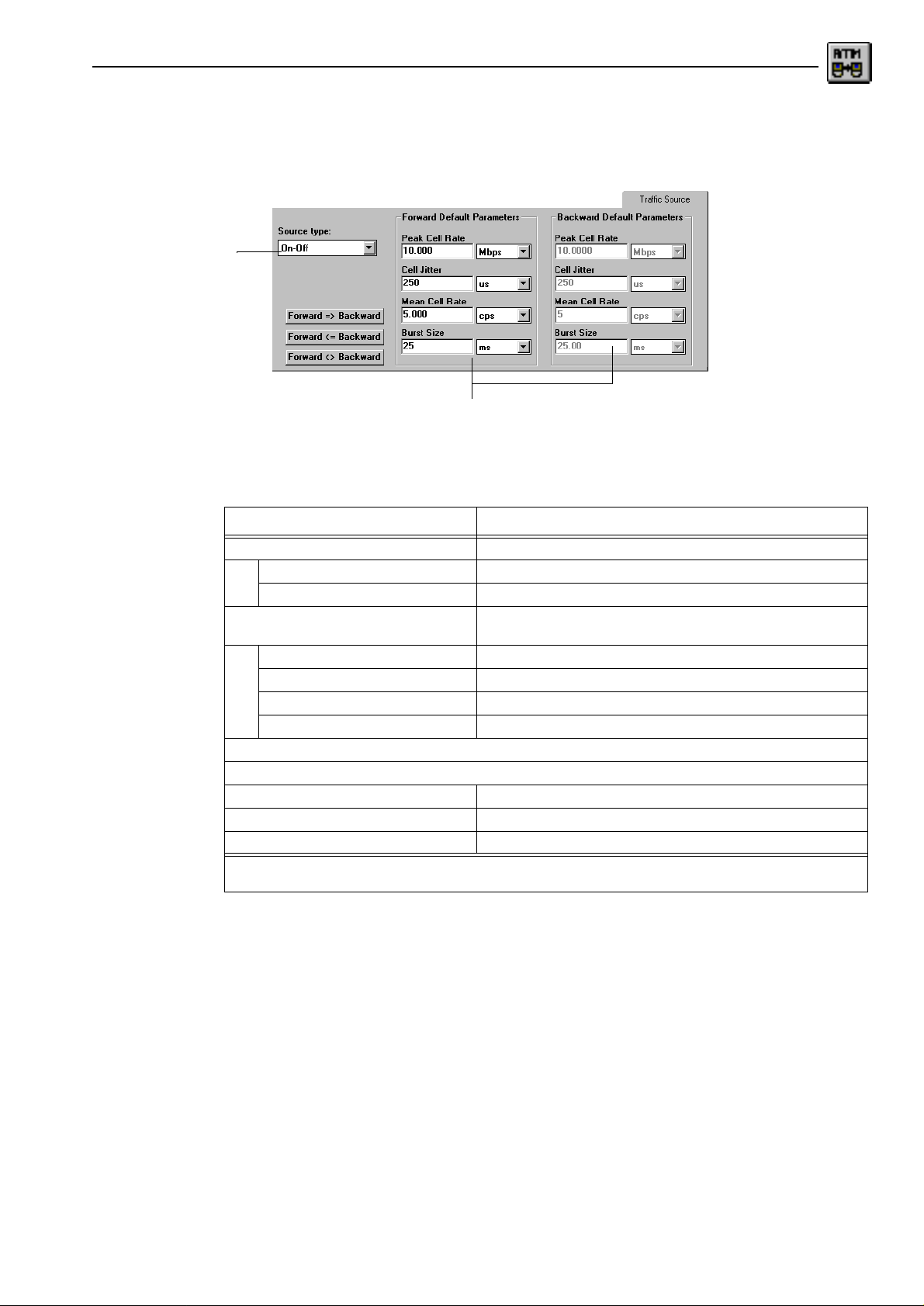

The “Test Online Control - <...>” dialog

The source parameters of interest for your measurement task can be altered using the “Test Online Control - <...>” dialog as the test cell stream is being generated while a measurement is running. Any changes made become effective immediately. The channels (A, B, etc.) are controlled from separate index cards.

Fig. O-7 The “Test Online Control <...>” dialog

The “Test Error Insertion <...>” dialog

The “Test - Error Insertion” dialog is used to insert test-specific errors (anomalies and defects) into the test cell stream. The channels (A, B, etc.) are controlled from separate index cards.

Fig. O-8 The “Test Error Insertion <...>” dialog

O-6 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

2 ATM Test Results

2.1 Introduction

Task

The “ATM Test Results” VI is used to display the results of measurements performed using the “A TM Test Control” VI. The results windows are configured depending on the active “Test type” set in the “ATM Test Control” VI. The following results windows may appear in the workspace of the “ATM Test Results” main window:

• “Receiver Status” window; this gives an overview of the overall receiver status.

• “Quality of Service” window; this displays the ITU-T O.191 QoS performance parameters.

The results from a maximum of four test channels are displayed: Cell Error Ratio, Cell Loss Ratio, Cell Misinsertion Rate, Mean Cell Transfer Delay, etc.

• “Signaling Analysis” window; this displays the results of signaling analysis.

Requirements

✓ The “ATM Test Results” VI is primarily intended for use with the “ATM Test Control” VI.

Restrictions

The following virtual instruments cannot be used within a single application at the same time as the “ATM Test Results” VI: “ATM Signal Structure”, “ATM Background Generator” and “ATM Traffic Analyzer”.

Tip: Detailed analysis of the physical layer is performed using the “Anomaly/Defect Analyzer”

VI which can be used at the same time as the “ATM Test Results” VI.

2.2 “ATM Test Results” main window layout and commands

The “ATM Test Results” main window appears after the VI is loaded. The display area contains separate windows for the receiver status, QoS results and signaling analysis.

The commands for selecting and arranging the results windows and for outputting data are found in the menu bar. The main commands are also available as icon buttons in the toolbar.

The “ATM Test Results” main window essentially consists of

• the menu bar and pull-down menus,

• the toolbar and

• the workspace with results window.

Operation O-7

Broadband Analyzer/Generator ANT-20/ANT-20E

Menu bar and toolbar

Result window/

workspace

Fig. O-9 “ATM Test Results” main window

Menu bar

The menu bar contains a range of pulldown menus for selecting the following commands or groups of commands:

Options Select optional settings for the record file for signaling measurements. Print Print out or export the results. View Customize the application window. Help Use on-line help.

Toolbar

The toolbar buttons provide direct access to the more important functions of the VI: Functions for arranging the results windows, for printing out and exporting the results. Other functions for customizing the screen display are found in the menu bar.

Meanings of icons, from left to right (equivalent menu command shown in brackets):

Icon Meaning

Cascade the results windows (View - Cascade)

Display rece iver status (View - Receiver Status)

Display Quality of Service parameters (View - Quality Of Service)

Display signaling events (View - Signaling Analysis)

Table O-2 Meaning of icons

O-8 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

Icon Meaning

Print results (Print - Print ...)

Export results (Print - Export ...)

Open on-line help (Help - Content s)

Table O-2 Meaning of icons

2.3 Results window

After the measurement has been started, the measurement data are written continuously to the display fields of the individual windows.

After the VI is loaded, the workspace contains the following result windows in their default configuration:

“Receiver Status”

The “Receiver Status” results window gives a quick overview of the status of the receiver. This window is always displayed in the workspace, regardless of the current type of test.

(continue)

Fig. O-10 “Receiver Status” results window

“Quality Of Service”

The “Quality Of Service” results window (Fig. 11, Page 2-10) shows the ITU-T O.191 QoS performance parameters. The index cards of the window show detailed, channel-specific results. The right-hand section of the window is always visible and shows the alarm states for all channels.

The VI displays the QoS performance parameters of up to four permanent virtual circuits (PVC) or switched virtual circuits (SVC) simultaneously.

Operation O-9

Broadband Analyzer/Generator ANT-20/ANT-20E

Fig. O-11 “Quality Of Service” results window

“Signaling Analysis”

A record of the signaling is made and displayed in the “Signaling Analysis” window for each measurement on switched virtual circuits (SVC). The record is saved in a Log File. If the “Log QoS Parameters” option is activated, the results for the QoS parameters are also saved in the log file when the circuit is teared down. The results of “ATM Layer QoS (SVC) <...>” type measurements can be recorded completely in this way. This is particularly useful if an instrument is operated in “Called” mode without supervision over a long period of time.

Fig. O-12 “Signaling Analysis” results window

O-10 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

3 ATM Channel Explorer

3.1 Introduction

Task

The “ATM Channel Explorer” VI is a tool for observing and interactively analysing activity on an ATM Link. The Channel Explorer provides various types of “Scans” and “Analyses” for this purpose.

The selection of the Scan type determines the criteria that the instrument uses to investigate the data stream that is present. Channels that match the corresponding criteria are recorded in the VI database and displayed in a list of results.

“Activity” Scan

“Activity” Scan registers all existing virtual channels up to a maximum count of 1000. Important attributes of the channels are determined, such as VPI/VCI value and various bandwidth informations. The channels recorded in the database can be subjected to various analyses, such as AAL type analysis.

“Trouble” Scan

“Trouble” Scan registers all virtual paths (VPs) and virtual channels (VCs) where an alarm state (AIS or RDI) is present, up to a maximum count of 1000. VP (F4) and VC (F5) layer results are listed separately.

Requirements

✓ To operate the “ATM Channel Explorer” VI, the “Signal Structure” VI must also be loaded so

that the instrument can be matched to the physical layer. The receiver of the instrument must be configured for ATM operation to operate the Channel Explorer.

Restrictions

The following virtual instruments cannot be used at the same time as the “ATM Channel Explorer” VI within an application (applies to ANT-20 only): “ATM Signal Structure”, “ATM Background Generator” and “ATM Traffic Analyzer”.

The Channel Explorer can only be used if no other measurements have been started with the Application Manager and no test traffic is enabled.

Operation O-11

Broadband Analyzer/Generator ANT-20/ANT-20E

3.2 “ATM Channel Explorer” window layout and commands

The “ATM Channel Explorer” main window with the result list appears after the VI is loaded. The commands for configuring and starting the Scan functions are found in the menu bar. In

addition, there are commands to perform analyses, to sort the output and to output results. The main commands are also available as icon buttons in the toolbar.

Menu bar and toolbar

Results window

e.g. Scan “Activity”

Fig. O-13 “ATM Channel Explorer” main window with results list

The “ATM Channel Explorer” main window essentially consists of

• the menu bar and pull-down menus,

• the toolbar and

• the workspace with results window.

Menu bar

The menu bar contains a few simple pulldown menus for selecting the following commands or groups of commands:

Scan Select Scan type, start and stop Scan. Analyse Select Analysis type and perform analysis. Sort Select sort criterion. Options Select ATM interface. Print Print out or export the Scan results. View Customise the application window. Help Use on-line help.

O-12 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

Toolbar

The toolbar buttons provide direct access to the more important functions of the VI:

• Triggering the Scan function

• Triggering AAL analysis

• Sorting

• Preselecting the interface

• Printing and exporting the results.

Meanings of icons, from left to right (equivalent menu command shown in brackets):

Icon Meaning

Start and stop Scan (Scan - Start)

Analyse AAL type in the active channel (Analyse - AAL Type)

Display AAL Type Distribution as a pie chart (Analyse - AAL Type Distribution)

Sort channels by VPI/VCI values (Sort - VPI/VCI)

Sort channels by bandwidth (load) (Sort - Bandwidth)

Delete inactive channels (Options - Aging)

Select UNI (Options - UNI)

Select NNI (Options - NNI)

Print results (Print - Print ...)

Export results (Print - Export ...)

Open on-line help (Help - Contents)

Table O-3 Meanings of icons

Operation O-13

Broadband Analyzer/Generator ANT-20/ANT-20E

3.3 Results window

After the Scan has been triggered, the results are saved in the result memory and displayed in the appropriate results window according to the selected Scan type. The results memory can store up to 1000 channels per Scan. The results window can only show about 10 channels at once. The scroll bar at the side of the window can be used to view the remaining channels.

The order of the channels can be changed according to the Sort criterion selected in the “Sort” menu. The “Print” menu commands allow you to print out and to export the data to other programs for further processing.

Scan - Activity

The “Scan - Activity” investigates for active channels. The instrument detects every active channel and enters it in the results list. The results list is expanded until no new channels are detected or the maximum number of 1000 channels is reached. Each line corresponds to a channel. The columns in the results list contain the specific attributes of the channel.

Analyse - AAL Type

Detects and displays the AAL types for the active ATM channels.

Analyse - AAL Type Distribution

Determines and displays the distribution of active ATM channels according to AAL type. The “AAL Type Distribution” window appears showing the current distribution of active channels according to AAL type:

• Dynamic overview as a pie-chart display

• Quantitative display as a table of percentage values

Fig. O-14 “AAL Type Distribution” results window

O-14 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

Scan - Trouble

“Scan - Trouble” checks for channels that are in an alarm state. The instrument detects every alarm message cell and enters the corresponding channel in the results list. There are two results windows corresponding to the error management hierarchy:

• F4 window: OAM Flow 4 (VP level)

• F5 window: OAM Flow 5 (VC level)

Fig. O-15 “Scan - Trouble” results display

Operation O-15

Broadband Analyzer/Generator ANT-20/ANT-20E

4 Port configurations (topologies) and

Instrument Configuration

VI: ATM Test Control

4.1 Overview

To simplify the basic setting of the instrument for ATM measurements, all the fundamental

settings are made from a central dialog. This “Instrument Configuration” dialog handles the following:

• Selecting the topology (port configuration)

• Configuring the physical layer

• Configuring the ATM layer

• Enabling and configuring signaling emulation

4.2 The “Instrument Configuration” dialog

Port configuration (topology)

Signaling for switched virtual circuits

The “Instrument Configuration” dialog is used to set the port configuration or topology for the measurement task and to match the instrument to the protocol layers used. You can also select whether permanent (PVC) or switched (SVC) virtual circuits are to be tested. If switched virtual connections are selected, you can also configure the signaling emulation and set the ATM address of the instrument in this dialog.

Configuration:

Signaling Protocol layers

Fig. O-16 The “Instrument Configuration” dialog; e.g. with “Emulate” topology and Signaling

O-16 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

The dialog contains the following sections:

Section Meaning

Port configuration Set the topology (Sec. 4.3,Page O-17) Tx/Rx Configuration Match the instrument to the protocol layers (Sec. 4.4, Page O-19) Signaling emulation Activate the signaling emulation Buttons Confirm configuratio n for all layers and closes the dialog

Table O-4 “Instrument Conf igu r ati on” dia log sect ion s

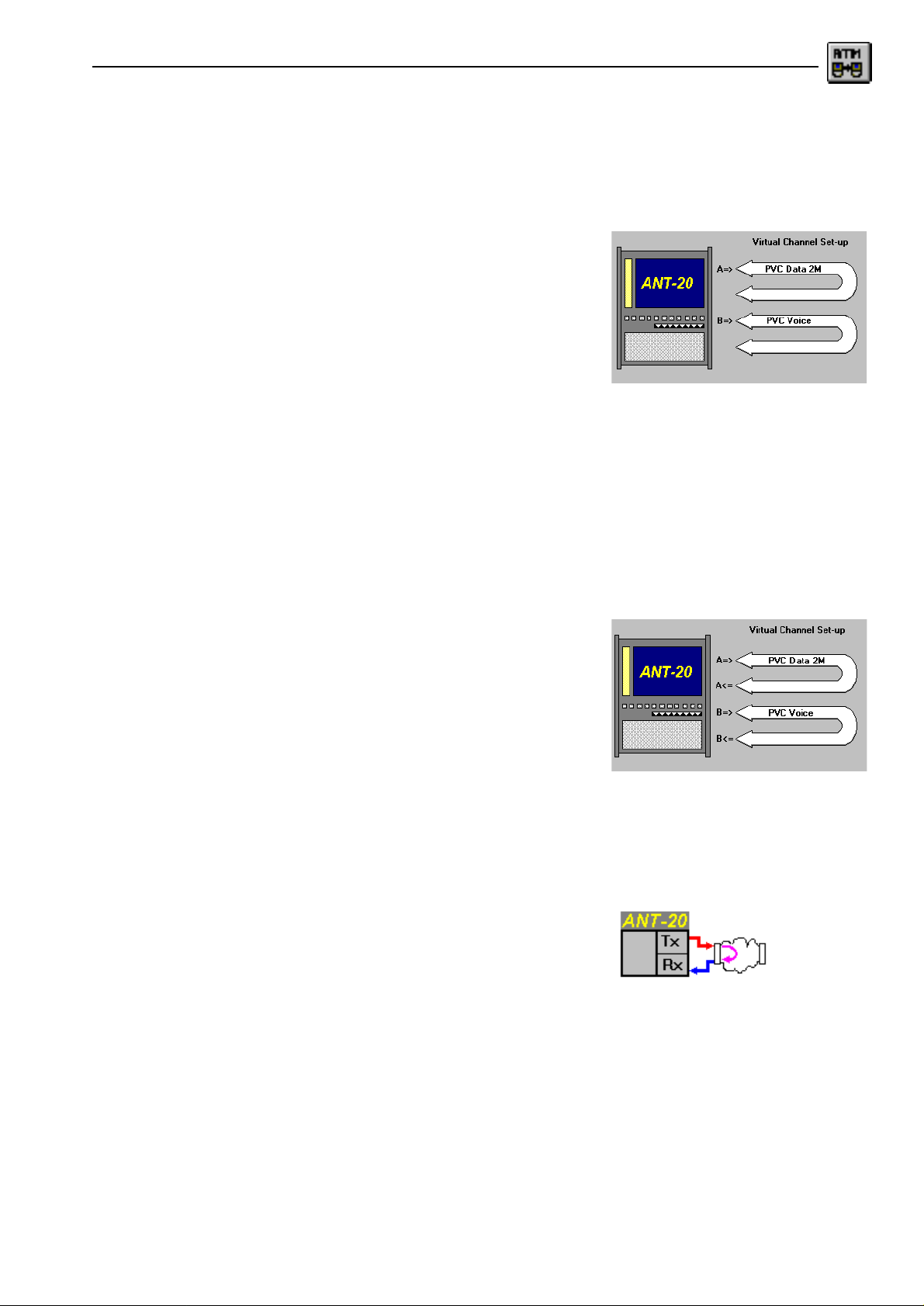

4.3 Port configuration

The radio buttons in the “Port configuration” field are used to set the way in which the instrument is connected to the device under test (ATM DUT). The following topologies can be selected:

Emulate

The instrument's generator and receiver are connected to the same port of the device under test. This topology allows emulation with permanent or switched virtual connections. The “Emulate” topology must be used if signaling emulation is to be used. “Emulate” can only be selected if the physical layer bit rate and mapping are the same for the generator and the receiver and if an ATM mapping is selected.

Cancel configuration settings

Fig. O-17 Dialog display, if “Emulate” topo logy is selected

Operation O-17

Broadband Analyzer/Generator ANT-20/ANT-20E

Looped

The instrument's generator and receiver are connected to different ports, with the Tx signal looped back to the receiver. Using this topology, it is possible to configure the physical layer for different bit rates or mappings for the generator and receiver. An ATM mapping must, however, be selected for the Tx and Rx sides.

Fig. O-18 Dialog display, if “Looped” topology is selected

Disabled

Pseudo-topology indicating that ATM operation is disabled.

Fig. O-19 Dialog display, if “Disabled” option is selected

O-18 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

4.4 Tx/Rx Configuration

The buttons in the “Tx/Rx configuration” field are used to configure the individual protocol layers for the Tx and Rx sides of the instrument.

The buttons have the following meanings:

Button Meaning

SERVICE SIG AAL SAAL ATM PHYSICAL

1 Actually not implemented. 2 For Emulate topology with signaling emulation. 3 This button is present for both Tx and Rx for Looped topology. It is only present once for Emulate topology.

Configure the ATM service layer Configure the signaling protocol (Sec.4.5.1,Page O-21) Configure the ATM adaptation layer Configure the signaling AAL Configure the ATM layer (Sec. 4.4.1,Page O-19) Configure the physical layer (Sec. 4.4.2,Page O-21)

Table O-5 Meaning of action buttons

Note: The most important layer-specific settings are shown on each button area.

Buttons for non-relevant layers are disabled.

4.4.1 The “ATM Layer” dialog

This sub dialog is used to configure the ATM layer.

Fig. O-20 The “ATM Layer” sub dialog (“Emulate” topology)

Operation O-19

Broadband Analyzer/Generator ANT-20/ANT-20E

The buttons and check boxes have the following meanings:

Radio buttons/Check boxes Meaning

Tx/(Rx) Settings (a) Generator (receiver) side parameters

Interface Interface type

Payload Scrambler Activate/deactivate payload scrambler Stuffing Type of stuffing cells

Rx Settings (b) Receiver parameters

Interface Interface type

Payload Scrambler Activate/deactivate payload scrambler

CLOSE (c) Action button to confirm settings and return to main dialog.

1 In Emulate topology, the Tx settings are also set for the receiver.

Table O-6 Meaning of buttons and check boxes (“ATM Layer” sub dialog)

“UNI” option: User-Network Interface “NNI” option: Network-Node Interface

“Idle cells” option “Unassigned cells” option

“UNI” option: User-Network Interface “NNI” option: Network-Node Interface

Additional buttons for “Looped” topology:

Button Meaning

Tx => Rx Copy Tx settings to the receiver Tx <= Rx Copy Rx settings to the generator

Table O-7 Additional buttons (“ATM Layer” sub dialog)

O-20 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

4.4.2 “Edit Signal Structure”

The “PHYSICAL” button brings the “Signal Structure” VI to the front if it was previously loaded using the Application Manager. The relevant parameters such as physical interface, bit rate, frame structure or mapping, etc. are set from this VI.

This button is provided for both Tx and Rx sides in “Looped” topology. The buttons both perform the same action.

When the “ATM Test Control” VI has been opened, settings in the “Signal Structure” VI can only be made via the mentioned “PHYSICAL” button. Direct opening of the “Signal Structure” VI by the Application Manager will cause disabling most of the edit boxes. This avoids undesired effects during instrument settings.

Note: Overhead bytes of the physical frame can be configured with the separate “Overhead

Generator” VI.

4.5 Signaling emulation

The check box activates signaling emulation.

Check box checked: Allow switched virtual connections (SVC).

Check box unchecked: Only allow permanent virtual connections (PVC). Note: Signaling can only be activated if “Emulate” topology has been selected.

To configure the signaling, open the “Instrument configuration - Signaling Protocol” dialog using the “SIG”-button.

4.5.1 The “Signaling Protocol” dialog

This dialog is used to configure the signaling and to set the instrument ATM address (own call address). You should normally always enter an instrument address. This address is used as the called address in self-c all mo de.

Fig. O-21 The “Signaling Protocol” sub dialog

Operation O-21

Broadband Analyzer/Generator ANT-20/ANT-20E

The buttons and check boxes have the following meanings:

Button/Check Box Meaning

Protocol (a) Combo box with protocol types: UNI 3.0, UNI 3.1, Q.2931 Associated Signaling Check box for selecting “Associated Signaling”. This requires that the

Signaling Channel (b) Header value for the signaling channel.

Decimal, Hex. Input format

VPI Virtual path identifier VCI Virtual channel identifier Range Display field for VPI/VCI range of values

Instrument Address (c) Address display and button for changing the instrument address

Format Format display (e.g. Native E.164) Address Address display (various formats) Sub-address Sub-address display (if required) Change Address Enter own instrument address

Table O-8 Meaning of edit and check boxes (“Signaling Protocol” dialog)

4.5.2 The “Address Input” dialog

Q.2931 protocol is selected. With “Associated Signaling”, the user channels are in the same virtual path (VP) as the signaling channel.

Decimal” option: Decimal input “Hex” option: Hexadecimal input

Accessed using the “Change Address” button. The dialog is used to set the instrument address (own call address ) .

Fig. O-22 The “Address Input” sub dialog

O-22 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

The buttons and check boxes have the following meanings:

Button/Check Box Meaning

Format (a) Address format

Native E.164 Option for E.164 format

NSAP Option for NSAP-format Address (b) Change address for “Native E.164” format or “NSAP” format Subaddress (c) Change sub-address

Table O-9 Parts of “Address Input” dialog

The “Address Input - Native E.164” box

Button/Check Box Meaning Button for

Number type: Type of address

international - int ernational national

network specific subscriber abbreviated unknown

- national

- network-specific

- subscriber-specific

- abbreviated

- unknown

Numbering plan: Type of numbering plan

ISDN - ISDN standard plan unknown

- unknown plan

Check Box for

E.164 address without prefix

edit box for address (without 0 prefix)

Length - Maximum number of characters

1 Not always available, depends on protocol. 2 Decimal.

Table O-10 Parts of “Address Input” dialog

Operation O-23

Broadband Analyzer/Generator ANT-20/ANT-20E

The “Address Input - NSAP” box (not displayed)

Button/Check Box Meaning Radio buttons for

AFI

Edit boxes for

IDI HO-DSP

ESI

SEL

Display field

ICD - International Code Designator DCC - Data Country Code E.164 - Public network code number, as per E.164 E.191 - Public network code number (for Q.2931 only), as per E.191

Type of address (Authority and Format Identifier)

Initial Domain Identifier High Order Specific Part End System Identifier Selector

Length Number of characters for the selected edit box e.g. 4 for ICD-IDI

1 NSAP address: AFI (2 characters) + IDI + HO-DSP + ESI + SEL (length = 40). 2 Hexadecimal.

Table O-11 Parts of “Address Input” dialog

The “Sub-address” box (NSAP)

This box is used to set a sub-address.

Box Meaning

Enable Subaddress Enables sub-address Subaddress

Length Number of characters (40)

1 Hexadecimal

Table O-12 Parts of “Address Input” dialog

Edit box for sub-address (hexadecimal string)

O-24 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

5 Test Types

5.1 Overview

“Test types” serve to structure the measurement modes and the so-called connection modes. A “test type” comprises a measurement mode and a connection mode. The connection mode defines how the virtual ATM connection is switched.

To allow precise line-up of traffic contracts, facilities must be provided to allow virtual connections to be switched between two or more test instruments. Some test types are designed for such configurations involving several test instruments. Software version 6.5 initially only provides support for the “A TM-layer Quality of Service” measurement mode; the following connection modes are possible:

Connection Mode Meaning

For PVCs

Point-to-Point The virtual connection is a point-to-point connection between two or more

instruments.

Looped The virtual connection is a looped-back point-to-point connection. The loop-

For SVCs

Calling The virtual connection is a point-to-point connection between two or more

Called The virtual connection is a point-to-point connection between two or more

Self-Call The virtual connecti on is a loop ed-back po int-to-poin t connect ion in th e ATM

Table O-13

Possible connection modes

back can be either in the ATM layer or in the physical layer.

instruments . The instrument initiates the call (calling instrument).

instruments. T he instrument takes the call (called instrument)

layer. The instrument generates a se lf-call.

The test type is selected in the “Test Setup” dialog of the “ATM Test Control” VI. The configuration of the instrument determines which of the test types will be available for selection. Only those test types that are possible and meaningful for the given configuration setting are displayed for selection.

The table below indicates the test types that can be selected:

Test type Signaling

activated

ATM Layer QoS - Looped Topology No Looped Only test type available for

Topology Notes

Looped topology.

ATM Layer QoS (PVC) - Point-to-point No Emulate Two instruments required. ATM Layer QoS (PVC) - Looped No Emulate -

Table O-14 Übersich t der wählbaren Test types

Operation O-25

Broadband Analyzer/Generator ANT-20/ANT-20E

Test type Signaling

ATM Layer QoS (SVC) - Calling Yes Emulate Two instruments required.

ATM Layer QoS (SVC) - Called Yes Emulate Two instruments required.

ATM Layer QoS (SVC) - Self Call Yes Emulate Only possible on UNI.

Table O-14 Übersicht der wählbaren Test types

activated

(continue)

5.2 The “Test Setup” dialog: Settin g the Test Type

The “Test Setup” dialog (see Fig. 23) is used to select the appropriate test type (a) for your measurement task. Click the “Configure Test” button (c) to configure the test. The extended “Test Setup <...>” dialog win dow open s.

The “Virtual Channel Setup” box displays the current virtual connection mode as a pictogram with the channel names as specified in the Channel Editor.

Topology Notes

Only possible on UNI.

Fig. O-23 The “Test Setup” dialog with available test types,

e.g. with types for switched virtual circuits (SVCs)

c d

O-26 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

The “Test Setup” dialog consists of the following sections:

Section Meaning

Test type (a) List of test types, depends on the actual instrument configuration. Virtual Channel

Setup (b)

Configure Test (c) Button for opening the “Test Setup - <...>” dialog to configure the test.

Action buttons(d) OK: Confirm the selected test type and/or parameter settings in the

1 Names as specified in the Channel Editor

Table O-15 “Test Setup” dialog sections

Display of current virtual connection mode as a pic togram with t he channel

names

(Sec. 5.9,Page O-32)

“Test Setup - <...>” dialog and return to the main window. Cancel: Cancel the settings

“Point-to-point”, “Calling” or “Called” connection mode

“Looped” topology

“Looped” or “Self-Call” connection mode

5.3 The “ATM Layer QoS - Looped Topology” test type

This test type is intended for ATM layer QoS measurements in Looped topology. This means that the transmitter and receiver are connected to different ports of the device under test (DUT), with the Tx signal looped back to the receiver.

Characteristics

• Measurement of permanent virtual connections (PVC)

• Up to four virtual channels possible

• Cell delay measurements are possible

• Unidirectional or bi-directional channels can be

tested. The parameters for the backward direction are ignored for bi-directional channels..

Basic instrument settings

• “Looped” topology

The pictogram shown opposite appears in the workspace of the VI.

Operation O-27

Broadband Analyzer/Generator ANT-20/ANT-20E

5.4 The “ATM Layer QoS (PVC) - Point-to-point” test type

This test type is intended for ATM layer QoS measurements with permanent virtual connections where channels are to be tested from end to end in both directions. This test is particularly effective in determining adherence to traffic contracts. Two test instruments are required.

Characteristics

• Measurement of permanent virtual connections (PVC)

• Up to four virtual channels possible

• Cell delay measurements are not possible

• Bi-directional, symmetrical or asymmetric channels

can be test ed.

Basic instrument settings

• “Emulate” topology

• Signaling emulation “off”

The pictogram shown opposite appears in the workspace of the VI.

Tip: Configurations using more than two test

instruments are also possible.

O-28 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

5.5 The “ATM Layer QoS (PVC) - Looped” test type

This test type is intended for ATM layer QoS measurements with permanent virtual connections where the virtual channels are to be looped back in the DUT either in the physical layer or in the ATM layer.

Loop-back in the physical layer

If you select unidirectional channels in the extended

“Test Setup <...>” dialog, this corresponds to a loop-back in the DUT in the physical layer.

Tip: Only virtual channels with symmetrical

bandwidth can be used with this method.

Characteristics

• Measurement of permanent virtual connections (PVC)

• Up to two virtual channels possible

• Cell delay measurements are possible

• Bi-directional, symmetrical channels can be tested.

From the point of view of the DUT, the channels are bi-directional and symmetrical; from the test instrument point of view, the connection is a unidirectional loop.

Loop-back in the ATM layer

If you select bi-directional channels in the extended “Test Setup <...>” dialog, this corresponds to a loop-back in the DUT in the ATM layer.

Characteristics

• Measurement of permanent virtual connections (PVC)

• Up to two virtual channels possible

• Cell delay measurements are possible

• Bi-directional, symmetrical or asymmetric

channels can be tested.

Basic instrument settings

• “Emulate” topology

• Signaling emulation “off”

The pictogram shown opposite appears in the workspace of the VI.

Operation O-29

Broadband Analyzer/Generator ANT-20/ANT-20E

5.6 The “ATM Layer QoS (SVC) - Calling” test type

This test type is intended for ATM layer QoS measurements with switched virtual connections where channels are to be tested from end to end in both directions. Two test instruments are needed for the test, one acting as calling party and the other as called party. The instrument configured with this test type is the calling party.

This test is particularly effective in determining adherence to traffic contracts.

Characteristics

• Measurement of switched virtual connections (SVC)

• Up to four virtual channels possible

• Cell delay measurements are not possible

• Bi-directional, symmetrical or asymmetric channels

can be test ed.

Basic instrument settings

• “Emulate” topology

• Signaling emulation “on”

The pictogram shown opposite appears in the workspace of the VI.

Tip: Configurations using more than two test

instruments are also possible.

5.7 The “ATM Layer QoS (SVC) - Called” test type

This test is particularly effective in determining adherence to traffic contracts. When the instrument accepts the call, it automatically configures its transmitter according to the

contract parameters contained in the incoming Setup Message. The instrument then starts generating traffic (if traffic generation has been enabled by the user) and measuring the QoS parameters. Traffic generation ceases after the call is cleared down.

The instrument can be called as often as is required, but it can accept a maximum of four calls at one time. The calls can come from different (ANT-20) instruments at the far end operating in

“Calling” mode. The signaling processes and connection states are saved in a log file and displayed in the “ATM

Test Results”. The measured QoS parameters can also be saved optionally in the log file.

O-30 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

Characteristics

• Measurement of switched virtual connections (SVC)

• Up to four virtual channels possible

• Cell delay measurements are not possible

• Bi-directional, symmetrical or asymmetric channels

can be tested.

Basic instrument settings

• “Emulate” topology

• Signaling emulation “on”

The pictogram shown opposite appears in the workspace of the VI.

Tip: Configurations using more than two test

instruments are also possible.

5.8 The “ATM Layer QoS (SVC) - Self Call” test type

This test type is intended for ATM layer QoS measurements with switched virtual connections. It is a self call, with the connection being looped back in the DUT in the ATM layer.

Characteristics

• Measurement of switched virtual connections (SVC)

• Up to two virtual channels possible

• Cell delay measurements are possible

• Bi-directional, symmetrical or asymmetric channels

can be tested.

Basic instrument settings

• “Emulate” topology

• Signaling emulation “on”

The pictogram shown opposite appears in the workspace of the VI.

Operation O-31

Broadband Analyzer/Generator ANT-20/ANT-20E

5.9 The “Test Set up <...>” dialog: Configure test type

The extended “Test Setup <...>” dialog is used to configure the test type and to match it to your measurement task. The test channels are represented here by index cards, e.g. “Channel A”, “Channel B”, etc. The index card labels are determined by the selected test type.

Virtual channels that you define in the “Channel Editor” are shown in a selection list. You can assign certain virtual channels from this stock of channels to the test channels A, B, etc. When you assign a virtual channel to a test channel in this way, all the corresponding parameters will be assigned to the test channel on the current index card in a single step. The first time that you open the dialog, the edit boxes on the index cards will be empty as no assignment has yet been made. This status is indicated in the selection list by the item <disabled>.

As a large number of parameters are required for complete definition of a channel (contract parameters, source parameters, etc.) only the most important parameters are shown on the index cards. You can overwrite these parameter values directly, without altering the standard definition of the channel in the “Channel Editor”. To view all the parameters for the virtual channel, call up the “Channel Editor” by clicking on the “Channel Editor” button.

b c

Fig. O-24 Extended “Test Setup <...>” dialog

O-32 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

The “Test Setup <...>” dialog may include the following sections:

Section Meaning

Select channel (a) Select pre-defined test channels (see Sec. 5.9.1) Channel Editor ... (b) Push button: Open the Channel Edit or Source Parameters (c) Set the source parameters

Header (d)

- or -

Called party address

- or -

Own instrument address Multiplexer (e) Display field: Information about the ATM traffic multiplexer CLOSE (f) Push button: Confirm the settings and returns to the

1 Input for PVCs 2 Input for SVCs in “Calling” mode

3 For SVCs in “Self Call” mode

Table O-16 Section of the dialog “Test Setup <...>”

Set the cell header parameters Display / set the called party address Display field: Own instrument address

“Test Setup” dialog.

Certain relationships exist between parameters which depend on the current configuration. This means that the choice of parameters will not always be the same. To preserve clarity, the index cards only include the parameters that are relevant to the actual configuration or test type. Parameters that cannot be edited, and which are for information only, are grayed out. In particular,

• all index cards are empty in “Called” mode

• the index cards for the backward path are empty in “Self-Call” mode

• the index card for the backward path for the “A TM Layer QoS (PVC) - Looped” test type does

not include a “Selected channel” box.

Parameter settings can only be made if the test traffic is disabled (“Test - Traffic Enable” must be deactivated).

5.9.1 Select channel

The “Select channel” list box contains a selection of virtual channel types that can be used to rapidly configure the test channels. The list is arranged in order of traffic type.

To preserve clarity, only those channel types that can be used with the current instrument configuration are shown in the list box, e.g. if a test type for permanent virtual connections (PVC) has been selected, no channels will be listed which are defined as switched virtual connections (SVC).

Fig. O-25 List box with pre-selected virtual channel types

Operation O-33

Broadband Analyzer/Generator ANT-20/ANT-20E

5.9.2 Header

The items in the list are arranged in alphabetical order of traffic type. The following traffic types are available:

Disabled No test channel assigned; test channel is disabled CBR Constant bit rate traffic VBR-RT Real-time variable bit rate traffic VBR-nRT Non real-time variable bit rate traffic DBR Deterministic bit rate traffic SBR Statistical bit rate traffic UBR Unspecified bit rate traffic

The “Header” field is used to define the test cell header for permanent virtual connections (PVC). Generally, the header values for the Tx and Rx sides are set separately.

The edit boxes and radio buttons have the following meanings:

Button/Box Meaning

Format Radio buttons for selecting the VPI/VCI format

Decimal Input and display of the numerical values for Tx and Rx as decimal numbers Hex. Input and display of the numerical values for Tx and Rx as hexa decimal numbers

Tx Tx side header values

UNI/NNI Display indicating the inter face to which the paramet ers apply GFC Generic Flow Control (for UNI only)

VPI

VCI CI Congestion Indicator CLP Cell Loss Priority (High = 1, Low = 0)

Rx Rx side header values

UNI/NNI Display indicating the inter face to which the paramet ers apply

VPI

VCI

Range Display of range of values for GFC, VPI, VCI

1 A particular VCI/VPI combination can only be assigned once on the Tx or Rx side. This is checked before the test

traffic is enabled. The allowed ranges for the VPI value differ for UNI and NNI.

Virtual Path Identifier Virtual Channel Identifier (Kennziffer des virtuellen Kanals)

Virtual Path Identifier Virtual Channel Identifier

Table O-17 Edit boxes and radio buttons of “Header” field

O-34 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

5.9.3 Called party address

This field is used to display and set the ATM address of the called party (in “Calling” mode).

Section Meaning

Called Party Address Address display and action button for changing the called address.

Format Format type display (e.g. Native E.164) Address Address display (various formats) Subaddress Sub-address display (if required) Change Address Change address

• for “Native E.164” format (Sec. 4.5.1, Page O-21)

• for “NSAP” format (Sec. 4.5.2, Page O-22)

Table O-18 “Called party address” dialog sections

5.9.4 Own instrument address

This field is used to display the instrument's own ATM address as set in the instrument configuration. This address is used as the call address in self-call mode.

The display fields have the following meanings:

Section Meaning

Own instrument Address Own instrument Address

Format Format type display (e.g. Native E.164) Address Address display (various formats) Sub-address Sub-address display (if needed)

Table O-19 “Own instrument address” dialog sections

Operation O-35

Broadband Analyzer/Generator ANT-20/ANT-20E

5.9.5 Source parameters

The “Source Parameters” field is used to set the source parameters. These determine the load conditions for the channel (Peak Cell Rate, Mean Cell Rate) and the jitter and burst characteristics. When you select a test channel, the source parameters will be initialized with the default values pre-defined in the “Channel Editor”.

Each source parameter has its own increment / decrement buttons for entering the parameters. The units are selected from the adjacent list boxes.

The “Source Parameters” field consists of the following sections:

Section Meaning

Peak Cell Rate Peak cell rate (load) in Mbps, kbps or cps (cells/s). Mean Cell Rate Cell Jitter Cell jitter in ms or µs. Burst Size Shape to contract

Mean cell rate (load) in Mbps, kbps or cps (cells/s).

Burst size in ms or µs.

Check box: Activate traffic shaper.

Set Default Push button: Sets the source parameters to the pre-defined values on the

Set Maximum

1 Not always available; depends on source type 2 Not always available; depends on conformance definition

Table O-20 Source Parameters

“Traff ic Source” (Chan nel Editor) index card. Push button: Sets the source parameters to their maximum possible values.

These are determined by the traffic contract.

With regard to the generated cell rate, the traffic generator has a high resolution range (for low cell rates) and a low resolution range (for high cell rates). If the low resolution range is active, the arrow keys for the lowest value digit of the increment / decrement keypad are highlighted in yellow.

The source parameters are interdependent, i.e. you cannot set a mean cell rate that is higher than the peak cell rate. Cell jitter and burst size are limited by the characteristics of the traffic generator. If a parameter value cannot be set as required, this may be due to the set values of other parameters. It is a good idea to set the parameters in the following order:

• Mean and peak cell rates

• Burst size

• Cell jitter

The maximum values for burst size and cell jitter are limited and depend on the settings of other parameters. Where appropriate, the burst size and cell jitter settings will be reduced automatically by the instrument.

O-36 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

5.9.6 Multiplexer

The entries made in the “Multiplexer” field have the character of a preview (traffic prediction) since the generator is not yet active during the setup. This makes it possible to set up the generator exactly before starting the measure men t.

5.9.7 Channel labeling

• Looped and

• Self Call

Connection Modes, the instrument generates traffic on up to two channels in both directions. The channels are then labeled as follows on the index cards and in the Multiplexer field:

Channel A => Channel A, forward direction Channel A <= Channel A, backward direction Channel B => Channel B, forward direction Channel B <= Channel B, backward direction

In the other Connection Modes, the instrument generates traffic on up to four channels in one direction. The channels are labeled as follows:

Channel A Channel A Channel B Channel B Channel C Channel C Channel D Channel D

Operation O-37

Broadband Analyzer/Generator ANT-20/ANT-20E

6 Defining Virtual Channels

VI: ATM Test Control

6.1 Overview

Virtual channel

The term “virtual channel” is central to ATM technology. A virtual channel is basically characterized by

• The type of virtual connection: switched (SVC) or permanent (PVC)

• The direction: unidirectional or bi-directional

• The virtual channel number (VPI/VCI) for permanent virtual connections or the ATM address

for switched virtual connections

• The traffic contract which is basically defined by the “Conformance Definition”, the “Traffic Descriptor” and the “Quality of Service” class

• The AAL type

• For a measurement task it is usually also necessary to assign the channel to a traffic source

which is defined by the source type and the source parameters.

As can be seen, a large number of parameters are used to fully define a virtual channel. The “Channel Editor” tool in the “ATM Test Control” VI has been provided to keep operations involving virtual channels as simple as possible.

The “Channel Editor” allows you to define, modify and copy channels. Each channel definition can be assigned a user-defined name.

Database

A channel database is included in the “Channel Editor”. This database is used to exchange channel definitions between applications and instruments.

One database is available per instrument. When a channel is used in an application, a copy of the channel is saved with the application. Each time the application is loaded, the instrument checks that the copy is identical to the channel definition in the database, or if the channel is still present in the database. If differences are found, the “Channel Import” dialog is displayed. This allows you to remove any inconsistencies between the application and the database. As a copy of each channel used is present in the application, the channels will automatically be exported when an application is exported to another instrument. These channels can be included into the database of the other instrument when the application is started there for the first time.

6.2 The “Channel Editor” dialog

The Channel Editor is used to define virtual channels and save them in a database. Push buttons and a list box in the dialog window header are used for defining and handling the channels. When first used, the list contains a range of default virtual channels for the usual types of traffic (CBR, VBR, etc.). These channels can be saved under a new name and edited individually.

Access to the various parameter groups is by means of index cards.

O-38 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

Fig. O-26 The “Channel Editor” dialog

The dialog contains the following sections:

Section Meaning

Header (a)

ChannelList box

Save New Creates a new virtual channel. Delete Deletes the marked virtual channel from the database.

Check

Index cards (b)

General Header/Address Traffic Contract

Traffic Contract (con't) Traffic Source

Buttons (c)

Help CLOSE

1 Arranged in alphabetical order 2 Not available for write-protected virtual channels with names beginning with “W&G...”

3 A check is made to see if the channel can be assigned to a test channel in the current instrument configuration.

Saves the virtual channel in the database under the current name

Checks the channel for consistency with the current configuration.

For entering general channel parameters For entering header information or addresses For entering main traffic contract parameters For entering further traffic contract parameters For entering source parameters

Push button: Calls up on-line Help. Push button: Closes the dialog.

listing all saved virtual channels.

Table O-21 Sections of the “Channel Editor” dialog

Operation O-39

Broadband Analyzer/Generator ANT-20/ANT-20E

6.3 Parameter display and modification (index cards)

6.3.1 The “General” index card

This index card defines the general parameters for the virtual channel selected in the “Channel” list box.

Fig. O-27 The “General” index card (Channel Editor)

The radio buttons have the following meanings:

Button Meaning

Traffic Type (a) Available traffic types (type of traffic contract)

CBR • constant bit rate VBR - nRT • variable bit rate (non real time) VBR - RT • variable bit rate (real time) CBR • unspecified bit rate UBR • deterministic bit rate SBR • statistic al bit rate

Direction type (b) Available channels (forward / backward)

Unidirectional Bi-directional sym. Bi-directional asym. • bidirectional (asymmetric)

Connection type (c) Available connection types

Switched • switched virtual connections (SVC) Permanent • permanent virtual connection (PVC)

Channel type (d) Available channel types

Virtual channel • virtual channel Virtual path • virtual path (not yet supported)

AAL Type (e)

1 For PVCs only 2 Forward and backward parameters are identical (see “Traffic Contract”, “Traffic Contract (con´t)” and “Traffic

Source” index cards)

3 Only with switched connections

User defined • Setup message contains the inf orm atio n e lem en t “Use r defined

None • Setup message contains no AAL information element.

• unidirectional

• bidirectional (symmetrical)

Channel assignement to Adaptation Layer

AAL”.

Table O-22 Radio buttons of the “General” index card

O-40 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

6.3.2 The “Header/Address” index card

This index card defines the default header values or the default ATM address of the selected channel, depending on whether a permanent (PVC) or a switched (SVC) channel is selected:

• PVC: Set default header

• SVC: Set default Called Party Address

You can overwrite the default values during configuration of the test type (in the “Test Setup” dialog) to match them to your measurement task.

Default Header

Fig. O-28 The “Header/Address” index card when using permanent virtual circuits: Default Header

The radio buttons and edit boxes have the following meanings:

Button/Box Meaning

Format (a) Radio buttons for selecting the VPI/VCI format.

Decimal Tx and Rx numerical values entered and displayed as decimal numbers Hex. Tx and Rx numerical values entered and displayed as hexadecimal numbers

(b) Tx (Rx) side header values

UNI/NNI Input of interface type GFC Generic Flow Control (for UNI only)

VPI

VCI CI Congestion Indicator

CLP Cell Loss Priority (High = 1, Low = 0) (c) Rx side header values Separate Rx Check box for setting Rx side separately

UNI/NNI Input of interface type

VPI

VCI Range Range of values for GFC, VPI, VCI

1 If “Separate Rx” is not activated, the Tx values will be used

Virtual Path Identifier Virtual Channel Identifier

Table O-23 Radio buttons and edit boxes of the “Header/Address” index card

Operation O-41

Broadband Analyzer/Generator ANT-20/ANT-20E

Default Called Party Address

Fig. O-29 The “Header/Address” index card when using switched virtual circuits: Default Called Party

Address

The sections have the following meanings:

Button/Box Meaning

Protocol (a) Combo box with protocol types UNI 3.0, UNI 3.1, Q.2931 Default Called Party

Address (b)

Format Format type display (e.g. Native E.164) Address Address display (various formats) Subaddress Sub-address display (if needed) Change Address Push button: Input address

Address display and action button for editing the default called party address of the channel.

• for “Native E.164” format (Sec. 4.5.2, Page O-22)

• for “NSAP” format (Sec. 4.5.2, Page O -22)

Table O-24 Display fields and other operating elements of the “Header/Address” index card

You can only assign a channel in the “Test Setup” dialog if the set signaling protocol is compatible with the actual instrument configuration; i.e. it is not possible to assign a channel defined for Q.2931 if the instrument is configured for UNI 3.1.

O-42 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

6.3.3 The “Traffic Contract” index card

This index card defines the channel traffic contract parameters. The possible entries depend on the selected traffic type. The index card contains the following sections:

Fig. O-30 The “Traffic Contract” index card (Channel Editor)

The index card contains the following sections:

Section Meaning

Conformance Definition: Radio button for selecting the conformance definition

None

- No conformance definition

CBR.1, VBR.1 ... - Conformance definition, selection depends on traffic type Info - Information window for conformance definition

Use MBS Activates / deactivates entry of maximum burst size parameter (in

cells) instead of burst tolerance.

Forward/Backward Traffic Des. Contract parameters for forward / backward direction

Peak Cell Rate - Peak cell rate CDVT peak - Cell dela y variation tolerance, referred to the peak cell rate Sustainable Cell Rate Burst Tolerance Maximum Burst Size CDVT sustained

Additional action buttons for bi-directional asymmetric channels

- Sustainable cell rate

- Burst-tolerance

- Cell delay variation tolerance, referred to the sustainable cell ra te

Forward => Backward Copies the forward parameters to the backward direction Forward <= Backward Copies the backward parameters to the forward direction Forward<> Backward Exchanges the forward and backward direction parameters

1 For PVC only (SVC always require conformance definition) 2 Not always available, depends on traffic type

This box is only available instead of “Burst Tolerance” if “Use MBS” is activated.

3 4 See “General” index card; the buttons only affect the relevant index card.

Table O-25 Sections of the “Traffic Contract” index card (Channel Editor)

Operation O-43

Broadband Analyzer/Generator ANT-20/ANT-20E

6.3.4 The “Traffic Contract” index card (continued)

This index card defines the extended part of the contract parameters for the channel. The possible entries depend on the selected connection type (PVC, SVC).

Fig. O-31 The “Traffic Contract (con’t)” index card (Channel Editor)

The index card contains the following sections:

Section Meaning

Conformance Definition

CBR.1 Display of selected conformance definition.

Forward/Backward QoS Parameters Quality of Service class for forward / backward direction

Class 0 - Unspecified Class 0: No quality of service specified Class 1 Class 2 Class 3 Class 4

1 1 1

Additional action buttons for bi-directional asymmetric channels

Class 1 Class 2 Class 3 Class 4

1 For SVC only 2 See “General” index card; the buttons only affect the relevant index card

Table O-26 Sections of the “Traffic Contract (con’t)” index card (Channel Editor)

O-44 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

6.3.5 The “Traffic Source” index card

This index card is used to set the default source parameters for the channel.

Fig. O-32 The “Traffic Source” index card (Channel Editor)

The index card contains the following sections:

Section Meaning

Source type (a) Source type

On-Off - On / off source Constant bit rate - Constant bit rate source

Forward/Backward Default

Source parameters for forward / backward direction

Parameters (b)

Peak Cell Rate - Peak cell rate Cell Jitter - Cell delay variation tolerance, referred to the peak cell rate Mean Cell Rate Burst Size

Additional action buttons for bi-directional asymmetric channels

- Sustainable cell rate

- Burst-tolerance

1 Not always available, depends on source type 2 See “General” index card; the buttons only affect the relevant index card

Table O-27 The sections of the “Traffic Source” index card (Channel Editor)

Operation O-45

Broadband Analyzer/Generator ANT-20/ANT-20E

Notes:

O-46 Operation

ANT-20/ANT-20E Broadband Analyzer/Generator

Application Guide

1 The Application Manager

Starting point

The instrument has been started. After booting up, the “Application Manager” appears on the screen (“ANT20 - <Application Title>” window). The “Application Title” window is the central control for the instrument. It is used to control and manage the measurement applications and the results that they generate, and to control the measurement sequence. Remember that the various virtual instruments (VIs) can be selected and the desired maximum measurement time can be set from here.

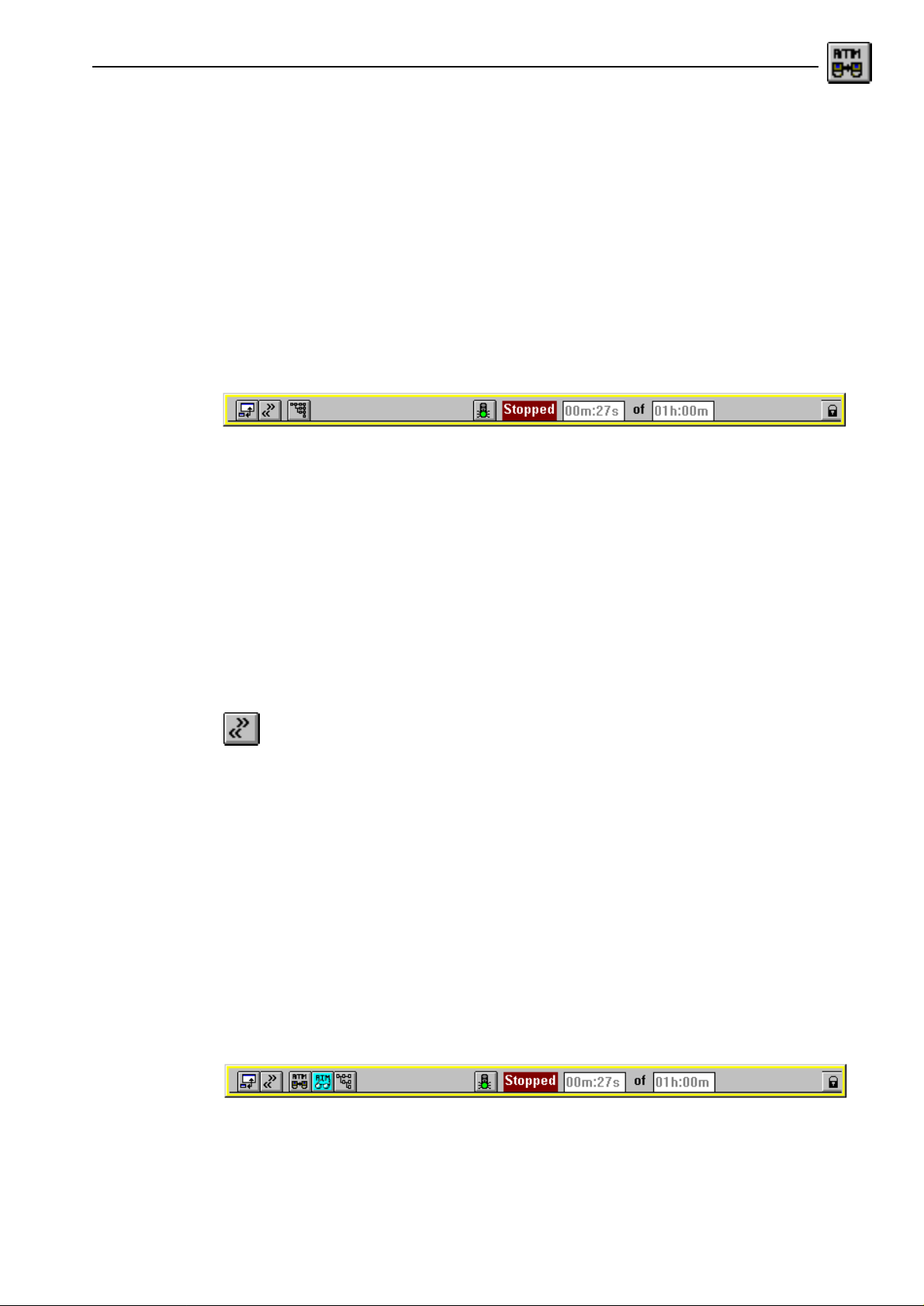

Fig. A-1 The “ANT20 <Application Title>” window as “Minibar”

1.1 Selecting the Instruments for ATM Applications

An ATM application consists of at least the following VIs in addition to the “Signal Structure” VI:

• ATM Test Control and ATM Test Results, or

• ATM Channel Explorer, or

• all three of the above instruments.

The “Signal Structure” VI is needed for making interface settings or measurements on the physical layer (offset, level). It does not have to be saved along with the other VIs if this information is not required or if the interface characteristics do not need to be altered.

To select the instruments for your application

1. Click the above icon in the “Toolbar” of the Application Manager. The “Add & Remove Instruments” dialog window opens.

2. Click on the check box(es) in the “Instrument group” section, which no VI(s) shall be loaded from. Consequently deactivate the “Physical Layer” (1) and “ATM Standard” (2) options for your ATM applications. The “Instruments available” list box will contain a reduced, more clearly arranged selection of “ATM Advanced” instruments.

3. Select the first VI (e.g. AT M Test Control) from the “Instruments available” list box.

4. Click the “Add>>” button. The “ATM Test Control” VI is placed in the “Instruments used” list box.

5. Select the other VIs required as per steps 3 and 4.

6. Click the OK button. The main windows of the three VIs are displayed on the screen and the corresponding buttons are displayed in the Application Manager (Minibar).

Fig. A-2 Application Manager after selection of VIs

Application Guide A-1

Broadband Analyzer/Generator ANT-20/ANT-20E

Fig. A-3 “Add & Remove Instruments” dialog after adding the desired virtual instruments

(Preselection: ATM Advanced)

1.2 Starting and Stopping the Measurement

✓ Before starting the measurement, the traffic button in the Application Manager is set to

“green”.

Starting the measurement

⇒ Click on the traffic signal button.

– The measurement will be carried out with the parameters, set in the “Measurement

Settings” dialog (Application manager) – The traffic button display will change from “green” to “red” – The status display will change from <Stopped> to <Running>. – The measurement will be stopped automatically after the Gate time run down.

A measurement can also be stopped manually.

Stopping a measurement manually

⇒ Click on the traffic signal button again.

The measurement will be stopped.

A-2 Application Guide

ANT-20/ANT-20E Broadband Analyzer/Generator

2 ATM Layer Quality of Service Measurements (SVC)

2.1 Overview: Basic operating sequence

The following section lists all the necessary steps, from loading the application, basic configuration settings via defining the test traffic to the results display. Further information on

the operating sequences is found in the corresponding sub-sections (see the “More” column). Please note the settings that apply to more than one VI. The VI icons used in the Application Manager are shown in the left-hand column as an aid to orientation.

VI Operating step More information

1. Select the virtual instruments for the ATM application (ATM Test Control, ATM Test Results, Signal Structure)

2. Configure instrument

Set topology, physical layer, ATM layer and, where appropriate, signaling.

3. Select test type

4. Configure test type

Set test type,traffic type, source parameters, call address.

5. Enable/disable test traffic

6. Prepare results recording

• Arrange results windows

• Activate Log-file if necessary

7. Start measurement Sec. 1.2,Page A-2

8. Displaying and recording results “online”

• Signaling informations

• QoS Performance parameters

• Receiver status

9. Change test parameters “on-line”

Alter source parameters and observe ef fects in the “A TM Test Resul ts” window.

10. Insert errors

Insert errors and observe effects in the “ATM Test Results” window.

Sec. 1.1,Page A-1

Sec. 2.3.1,Page A-5

Sec. 2.3.2,Page A-9 Sec. 2.3.3,Page A-10

Sec. 2.4,Page A-12 Sec. 2.7.1,Page A-15

Sec. 2.7,Page A-15

Sec. 2.5,Page A-13

Sec. 2.6,Page A-14

11. Stop measurement Sec. 1.2,Page A-2

12. Final results

• evaluate

• store

• export

• print

Table A-1 Overview: ATM Layer Quality of Service Measurement (SVC)

see “ATM Test Results” on-line help

Application Guide A-3

Broadband Analyzer/Generator ANT-20/ANT-20E

2.2 Test setup and description

Chapter 2 takes you step by step through the procedure for ATM layer QoS tests. The procedure is based on a configuration with terminal emulation and signaling, to allow switched virtual connections (SVCs) to be tested. The example selection of an end-to-end measurement requires the use of a second instrument. The operating steps described apply to the left-hand

instrument in “Calling” mode.

Fig. A-4 Test setup for switched point-to-point connection

2.3 Application settings

VIs required

• ATM Test Control

• ATM Test Results

• Signal Structure ⇒ Add the VIs required to the list of VIs used in the Application Manager.

The Application Manager should include at least the following instruments (see Fig. A-5):

Fig. A-5 “Application Manager” (Minibar) with ATM-Instruments

A-4 Application Guide

ANT-20/ANT-20E Broadband Analyzer/Generator

2.3.1 Configuring the Instrument: “ATM Test Control” VI

⇒ Click on the icon button of the “ATM Test Control” VI in the minibar (Application Manager)

(see Fig. A-5). The “ATM Test Control” main window appears on top (see Fig. A-6).

Fig. A-6 “ATM Test Control” main windows with last setting

The “ATM Test Control” VI is used to configure the instrument and to select a test type and its configuration (see Sec. 2.3.2).

The instrument configuration covers the selection of the connection configuration (topology), settings for the various protocol layers - in particular of the ATM and higher layers - and the selection of the connection type (“permanent” or “switched”).

To configure the instrument

⇒ Click this icon button

The “Instrument Configuration” dialog window opens.

B C

Fig. A-7 The “Instrument Configuration” dialog

Application Guide A-5

Broadband Analyzer/Generator ANT-20/ANT-20E

A) To set the topology

⇒ Select the “Emulate” option in the “Port configuration” field to allow activation of signaling

emulation.

“Emulate” can only be selected if the physical layer is set to the same bit rate and mapping for both generator and receiver; see D.

B) To enable signaling emulation

⇒ Check the “Signaling emulation” check box.

A check appears in the check box.

C) To configure the ATM layer

1. Click the “ATM” button. The “Instrument Configuration - ATM Layer” dialog window opens.

Fig. A-8 The “Instrument Configuration - ATM Layer” sub dialog

2. Select the interface corresponding to the actual measurement connection of the instrument by means of the “Interface” option buttons. If signaling is used, only the UNI interface type for terminal equipment is available.

3. Check the “Payload Scrambler” check box if the test cell payload is to be scrambled.

4. Select the type of justification cells using the “Stuffing” option buttons: – “Idle Cells” or “Unassigned Cells”.

5. Click the CLOSE button to confirm the configuration of the ATM layer; this returns you to the “Instrument Configuration” dialog.

D) To configure the physical layer: VI “Signal Structure”

Example: STM-1, C-4 mapping ✓ The “Instrument Configuration” dialog is open.

⇒ Click the “PHYSICAL” button.

The VI “Signal Structure” opens.

Fig. A-9 The “Signal Structure” main window

A-6 Application Guide

ANT-20/ANT-20E Broadband Analyzer/Generator

1. Click the toolbar icon or the “Edit - Signal Structure...” menu command

The “Edit Signal Structure” dialog window of the “Signal Structure” VI opens. The signal structure is set column by column using the corresponding buttons.

2. 4. 3.5. Fig. A-10 The “Signal Structure” window and “Edit Signal Structure - TX” dialog

2. Click the “TX” button to configure the transmitting side.

3. Set the signal structure, e.g. “ITU-T”, “Normal”, “STM-1”, “AU4”, “VC4” and “ATM” by clicking

the appropriate buttons.

4. Click the “TX=>RX” button.

This sets the receiving side to the same settings as the transmitting side.

5. Confirm the input by clicking “OK”. this returns you to the “Instrument Configuration” dialog.

E) To configure the signaling

✓ The “Instrument Configuration” dialog is open.

1. Click the “SIG” button.

The “Instrument Configuration - Signaling Protocol” dialog window opens.

Fig. A-11 The “Instrument Configuration - Signaling Protocol” sub dialog

2. Select the required item, e.g. “Q.2931” in the “Protocol” list box.

3. Select the input format, e.g. “Decimal” using the option buttons.

4. Edit the VPI and VCI values in the entry boxes.

The available range is shown under “Range”.

Application Guide A-7

Broadband Analyzer/Generator ANT-20/ANT-20E

Option “Change own address”

5. Click the “Change Address” button if you want to alter the address of the instrument. The “Address Input” dialog window opens.

Fig. A-12 The “Address Input” dialog

6. Select the address format, e.g. Native E.164.

7. Select the type of code number, e.g. International.

8. Select the type of numbering plan, e.g. ISDN.

9. Set the address or dialling number (without 0 prefix). The maximum number of digits is shown under “Length”.

10.Click the CLOSE button to confirm the address. This returns you to the “Signaling Protocol” or “Instrument Configuration” window.

A-8 Application Guide

ANT-20/ANT-20E Broadband Analyzer/Generator

2.3.2 Selecting the Test Type: “ATM Test Control” VI

The “Test types” available for selection are used to structure the measurement and connection types or so-called “Connection modes”. They are arranged according to protocol layers, with only the ATM layer currently supported. Only those test types that are possible and meaningful for the selected instrument configuration are available for selection.

To select and configure the test type required for your measurement task

✓ The instrument is configured for Emulate topology with switched virtual connections (SVCs). ✓ The “ATM Test Control” main window is open.

⇒ Click on this icon button or select the “Test - Setup...” menu command.

The “Test Setup” dialog window opens.

Fig. A-13 The “Test Setup” dialog

1. Select the desired test type from the “Test type” list box, e.g. “ATM Layer QoS (SVC) - Calling”

2. Click the “Configure Test” button. The “Test Setup <...>” dialog window opens (see Sec. 2.3.3). – or – Click the OK button if the pre-defined test type is to be used. This returns you to the main window.

Fig. A-14 The “ATM Test Control” main window

Application Guide A-9

Broadband Analyzer/Generator ANT-20/ANT-20E

2.3.3 Configuring the Test Type: “ATM Test Control” VI

To configure the test type required for your measurement task

✓ The “Test Setup” dialog window is open.

⇒ Click the “Configure Test” button.

The “Test Setup <...>” dialog window opens.

Fig. A-15 The “Test Setup - ATM Layer Qos (SVC) - Calling” dialog

A) To assign virtual channels to your test type

✓ The first index card for “Channel A” has been selected

1. In the “Select channel” list, mark the virtual channel that you want

first

to assign to the

test channel: e.g. with the designation “CBR_Voice” (constant bit rate voice traffic). The corresponding parameter values are shown on the index card.

2. Click on the index card for the

second

channel, e.g. “Channel B”.

The index card moves to the front.

3. In the “Select channel” list, select the virtual channel that you want to assign to the second test channel e.g. with the designation “CBR_Data” (constant bit rate data traffic). The corresponding parameter values are shown on the index card.

Fig. A-16 Assigning virtual channels to your test type

Note:

• The “Select channel” list contains just a few standard channels when it is first opened.

• Virtual channels can be used more than once, i.e. on more than one index card.

A-10 Application Guide

ANT-20/ANT-20E Broadband Analyzer/Generator

B) Entering the address of the called instrument

✓ The “Test - Setup <...>” dialog is open. ✓ The instrument is configured for SVCs.

1. Click the “Change Address” button. The “Address Input” dialog window opens.

Fig. A-17 The “Address Input” dialog

2. Select the address format, e.g. Native E.164.

3. Select the type of code number, e.g. International.

4. Select the type of numbering plan, e.g. ISDN.

5. Set the address or dialling number (without 0 prefix). The maximum number of digits is shown under “Length”.

6. Click the CLOSE button to confirm the address. This returns you to the “Test - Setup <...>” window.

C) Changing the source parameters, e.g. Peak Cell Rate

a) Click the arrow key to increase the parameter value in decades.

– or –

b) Click the arrow key to decrease the parameter value in decades. c) Open the list box if the units are to be changed, and select the appropriate list entry (e.g.

kbps).

Fig. A-18 Changing the source parameter

Application Guide A-11

Broadband Analyzer/Generator ANT-20/ANT-20E

Removing a test channel, if necessary

1. Click on the index card of the channel that you want to remove, e.g. “Channel B”. The index card showing the current channel and traffic type will move to the front.

2. Click on “<disabled>” in the “Select channel” list. “Channel B” will be removed from the current test traffic.

Fig. A-19 Removing test channel

2.4 Enabling and Disabling Test Traffic: “ATM Test Control” VI

✓ The “ATM Test Control” main window is open.

To enable the test cell stream

⇒ Click the above icon in the “Toolbar” .

– or –

⇒ Select the “Test - Traffic Enable” menu command.

Test traffic will be enabled.

To disable the test cell stream

⇒ Click the above icon in the “Toolbar” again.

– or –

⇒ Select the “Test - Traffic Enable” menu command again.

Test traffic will be disabled.

Note: Test traffic:

– For SVC: Only after the connection is set up – For PVC: Immediately after clicking the “TRAF ON” button.

A-12 Application Guide
