Waves Audio NLS Non-Linear Summer User Guide

WAVES
NLS
NON-LINEAR
SUMMER
USER GUIDE

Table of Contents

Chapter 1 – Introduction..................................................................... 3
1.1 Welcome..................................................................................................................3
1.2 Product Overview....................................................................................................3
1.3 Concepts and Terminology......................................................................................4
1.4 Components............................................................................................................7
Chapter 2 – Quick Start Guide ........................................................... 8
Chapter 3 – Interface and Controls .................................................. 10
3.1 NLS Channel Interface..........................................................................................10
3.2 NLS Channel Controls...........................................................................................11

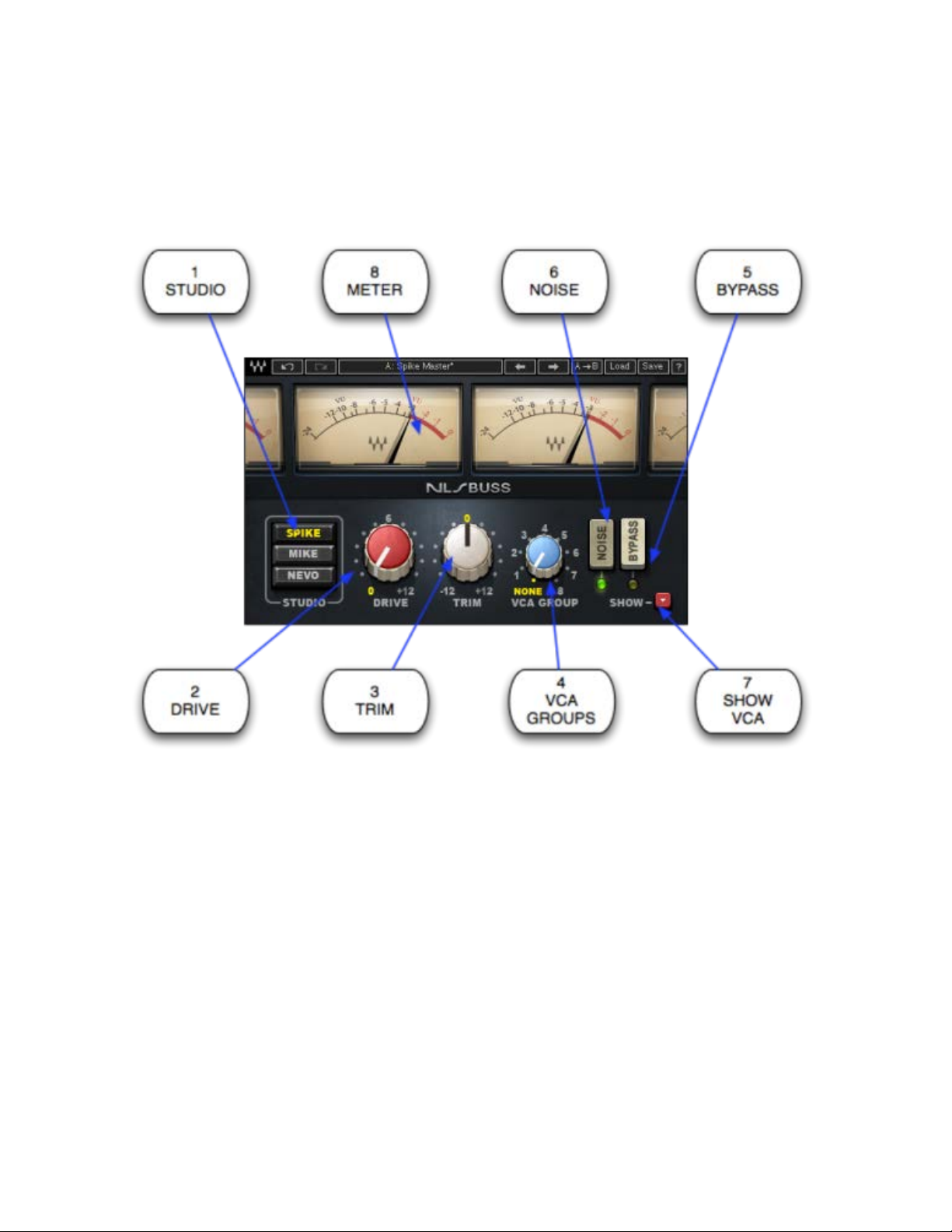

3.3 NLS Buss Interface................................................................................................13
3.4 NLS Buss Controls................................................................................................14
3.5 NLS VCA Groups Console Interface.....................................................................16
3.6 NLS - VCA Group Console Controls .....................................................................17
Chapter 4 – The WaveSystem ......................................................... 20
4.1 The WaveSystem Toolbar.....................................................................................20
4.2 Preset Handling.....................................................................................................20
4.3 Interface Controls..................................................................................................23
4.4 Waves Preferences (Pro Tools only).....................................................................25
Waves NLS
User Guide
2

Chapter 1 – Introduction

1.1 Welcome

Thank you for choosing Waves! In order to get the most out of your Waves processor, please take the time to read through this manual.
In conjunction, we also suggest you become familiar with www.wavesupport.net you will find an extensive Answer Base, the latest Tech Specs, detailed Installation guides, new Software Updates, and current information on Authorization and Registration.
By signing up at www.wavesupport.net your registered products, reminders when updates are available, and information on your authorization status.
, you will receive personalized information on
. There

1.2 Product Overview

Waves, together with three of today’s leading producer/engineers, brings you the analog summing sound of three legendary consoles
The SSL 4000G belonging to Mark ‘Spike’ Stent (Radiohead, Björk, Muse,
Maroon 5, Madonna).
The EMI TG12345 Mk 4 desk owned by Mike Hedges (The Cure, Siouxsie and
the Banshees, Dido, Faithless, Manic Street Preachers, U2), heard on such timeless recordings as Pink Floyd’s The Dark Side of the Moon.
The Neve 5116 console custom-made for Yoad Nevo (Bryan Adams, Pet Shop
Boys, Sugababes, Goldfrapp, Air).
In all, Waves meticulously modeled over 100 individual channels, analyzing and emulating the distinctive color, character, and behavior of each and every input and summing bus amp.
One of the great things about the digital environment is also one of its greatest drawbacks: Its linearity, while utterly transparent, often results in sterile tracks that lack warmth and harmonic depth. NLS delivers the richness and complexity that only analog gear has been able to provide—until now.
Waves NLS
User Guide
3

1.3 Concepts and Terminology

Analog Console Summing
Ever since the dawn of the digital audio revolution, engineers the world over have tried to replicate the sound of analog summing, in the box. Many top engineers add an analog hardware console or summing box to their setup, and route multitrack audio from the DAW to the analog device, and back again as stereo, in order to get analog summing coloration.
With that in mind, Waves began exploring the mysteries of analog summing with the help of Mark ‘Spike’ Stent, who generously lent us his SSL 4000G desk. Our research suggested that its individual channel preamps, working together with one another in conjunction with the master buss preamp, are responsible for its indefinable yet highly desirable sound. Furthermore, we concluded that perceived depth and image—what we’ve come to know as ‘non-linearity’—are the result of minor differences in frequency response, harmonic distortion and noise between the channels.
Analog Character
Analog devices produce electrical artifacts that affect frequency response, add harmonics, cause signal clipping and increase noise. These artifacts, which sound engineers often consider the ‘character’ of a particular device, result from a combination of factors such as component grade, technology type (i.e., vacuum tubes vs. transistors), power supply specifications, equipment casing and other variables. Waves modeled these artifacts for each individual console channel.
Frequency Response Depending on the circuit, input signal frequency response varies. Some circuits cut frequencies; others boost them. This behavior is part of the overall device character, and should not be confused with user-adjustable EQ.
Harmonics (THD/Total Harmonic Distortion) THD is low-level distortion based on the levels of the odd and even harmonics of an input signal, usually at a level much lower than the fundamental level. Normally, each
Waves NLS
User Guide
4
harmonic is at a lower level than its predecessor
, creating a natural decay. THD balance
and decay are circuit dependent, and thus differ from device to device.
Clipping Clipping is high-level distortion that adds harmonics to the input signal at a level that is very close to the fundamental level, with each harmonic remaining at a level close to its predecessor. Clipping occurs when a device such as a preamp is fed with a signal too strong for it to handle, and the device ‘chops’ the waveform to fit its power limitations. For example, when a sine wave is driven hot into a preamp, it almost becomes a square wave.
Noise Noise occurs in analog devices due to the interaction between the power supply and the device’s electrical and magnetic shielding properties, resulting in random low level signals. The noise level defines the dynamic depth of the usable signal, what we call Signal-to-Noise Ratio or SNR. For example, in a 16-bit audio file, the noise level is -95 dBFS, which translates into 95 dB of depth. In an analog console, where noise is set at about -80 dBu and the clipping point is 20 dBu, the depth is 100 dB.
Session Setup
Since analog console coloration is created by the console’s individual channel and buss amplifiers, the NLS includes both Channel and Buss components. To faithfully reproduce the DAW to analog console (and back again) signal chain and workflow, we recommend using the NLS in one of two following session setup configurations.
1. As a virtual summing box or summing console: The NLS Channel is inserted on the last insert of the DAW audio tracks, like a direct out routed to an analog console. The NLS Buss is placed on the first insert of the master track (or any other buss), just as the stereo return would be routed from the analog console back to the DAW.
2. To simulate console preamp coloration: The NLS Channel is placed on the first insert of your DAW audio tracks, and the NLS Buss can then be inserted at any point on the buss or master track.
Waves NLS
User Guide
5
The NLS automatically ensures channel variation by loading a different channel model for each instance of the NLS Chann
el component, chosen from the pool of 32 modeled
channels per console.
VCA Groups
In the analog world, VCA is an acronym for Voltage Controlled Amplifier. On many analog consoles, there is a physical distance between channels that makes it difficult to move them simultaneously. Therefore, many consoles are equipped with VCA group faders which are used to control the output amplifiers of multiple channels.
In the NLS plugin, VCA stands for Virtual Control Aggregator which, similar to its analog counterpart, provides simultaneous control over multiple NLS Channel instances. For easy access, the NLS VCA Groups Console can be opened from any NLS instance. Each NLS instance must be assigned, from within its GUI, to a VCA Group. Please note:
VCA Group Consoles do not process your signal in any way; rather, they serve as remote control surfaces for groups of NLS instances.
Presets
There are 32 channels and master buss presets per Studio console. User presets are comprised of two parts: one for the Channel or Buss section, and one for the VCA Groups Console section. Each section may be loaded independently using the Waves preset system; they may not be loaded independently using your host’s preset system.
NLS Channel components open different modeled presets for each instance. However, if a channel instance is duplicated, the same model will be duplicated as well. Therefore, we recommend that each NLS Channel instance is opened directly from your DAW drop­down menu, or using the shortcuts described below.
Please note: When loading a Waves preset file, the first preset inside the file will not be loaded automatically; it must be loaded manually from the Load menu.
Waves NLS
User Guide
6

1.4 Components

WaveShell technology enables us to split Waves processors into smaller plugins, which we call components. Having a choice of components for a particular processor gives you the flexibility to choose the configuration best suited to your material.
Waves NLS includes two components each in two channel configurations:
NLS Channel Mono NLS Channel Stereo NLS Buss Mono NLS Buss Stereo
All NLS components have IRXUVDPSOHVRI latency.
Waves NLS
User Guide
7

Chapter 2 – Quick Start Guide

As a starting point, we recommend using the NLS in one of the two configurations described above.
Quick Start
Open the NLS Channel at the last insert point on every track. Open the NLS Buss on your master or other buss.
VCA Group Usage
By default, all NLS instances are assigned to VCA Group 1. For global control over all NLS instances in the session, open the VCA Group Console
via one of the Channel or Buss instances.
Set the VCA Group Drive which affects all instances in the group. Set the VCA Group Trim, if required. Select the VCA Group Studio setting. Selecting INDIV leaves each NLS instance with
its selected Studio setting; selecting SPIKE, MIKE or NEVO changes all NLS instances in the group to the selected Studio.
Set the VCA Group Noise, if required.
Advanced VCA Group Usage
Set all NLS Channel instances on drum tracks (for example) to VCA 1. Set all NLS Channel instances on guitar tracks (for example) to VCA 2. Set all NLS Channel instances on vocal tracks (for example) to VCA 3, and so on. Set all NLS Buss instances to VCA 8. Open the VCA Groups Console. Using the VCA Tab, rename the groups according to their assignments by
double-clicking on the text field, typing the new name, and clicking Enter: Grp1 renamed to Drums (for example), Grp 2 renamed to Guitars (for example), etc.
Open the VCA Groups Console in the Master track NLS instance, and turn on
Auto, enabling VCA write/read automation.
Use the VCA Groups Console as your main stem control.
Waves NLS
User Guide
8
