VTech VT 1930c User Manual

INTRODUCTION
Congratulations! You have purchased one of the most sophisticated cordless telephones on the market! The VTech VT 1930c has been designed to offer a new standard in cordless telephone technology.
Unlike most other cordless phones, the VTech VT 1930c digitizes your voice using advanced ADPCM digital voice coding to provide noise and distortion free performance. In most conditions, you will not be able to tell you are using a cordless phone. Gone are the annoyances of static, interference and having to listen to other peopleÕs conversations on your cordless phone.
The VTech VT 1930c scrambles your voice before it transmits it. This allows you the security of knowing that no one can tune in and eavesdrop on your conversations.
The VTech VT 1930c decodes and displays name and/or number Caller ID (CID) information where available and when subscribed to. The alpha­numeric display can show both the name and number of the calling party. Up to 24 name characters or 11 phone number digits can be displayed.
The VTech VT 1930c also provides a two-way Intercom/Handset locator function.
The VTech VT 1930c uses special memory in both the base and handset which is not susceptible to power failures. This provides permanent storage of all memory dial numbers, Caller ID (CID) information as well as the base and handset security codes.
When an optional battery pack is installed in the base unit, the VTech VT 1930c uses this battery pack to provide operational backup in case of power failure. In this way you have access to Handset functions during a total power outage. Calls can still be placed and received on the Handset without interruption. Up to 5 hours backup will be possible with a fully charged battery pack in the base unit.
The VTech VT 1930c informs you when another extension is currently in use on the same phone line. The phone will also alert you when you are Out of Range, even when you're not using the phone!
With the VTech VT 1930c, the user can easily answer a call by pressing any key other than the OFF, MUTE or VOLUME Keys. In addition, the handset keypad and display illuminate while the handset rings to signal an incoming call. This is very useful in a dark environment.
1
INTRODUCTION
Special Features
¥ 900 MHz Operation. ¥ Fully Digital Link between Handset
and Base .
¥ Digitally-Scrambled V oice Commu-
nication.
¥ Alphanumeric Call Waiting Caller
ID.
¥ 2 row by 12 character 5x7 dot
matrix alphanumeric display.
¥ 50 Caller ID (CID) memory loca-
tions.
¥ Speakerphone with second keypad
in Base Unit. ¥ Backlit display on the handset. ¥ Backlit handset keypad. ¥ 21 location Programmable Memory
for 20 Digit Phone Number. ¥ 10 Channel Operation with auto
channel selection. ¥ Out-of-Range indication while the
handset is in use or in standby
mode. ¥ Removable handset battery pack. ¥ Spare battery charger in the base
unit. ¥ Battery back-up in case of power
failure (with optional spare battery
pack installed in base). ¥ Face up or Face down Handset
charging.
¥ Easy answer - When the phone
rings, simply press any key other than OFF, MUTE, or the Volume Keys on the handset to answer.
¥ Auto hang up when returning the
handset to the base cradle. ¥ Extension in use indicator. ¥ Message waiting indicator for use
with voicemail service. ¥ Auto line drop from HOLD when an
extension phone is picked up. ¥ Multi-level REDIAL; stores last 5
numbers dialed. ¥ 24 Bit Digital Security Code. ¥ Tone and Pulse Dialling. ¥ Low Battery Detect and Warning
indicator. ¥ Up to 7 hours continuous talk time
or 7 days standby time. ¥ Volume Adjust on Handset and
Base Unit. ¥ HOLD, FLASH and MUTE. ¥ Hearing-Aid Compatible Receiver. ¥ Detachable power supply. ¥ Non-volatile storage of security
code, Caller ID and memory dial
records. This manual is designed to make you familiar with the VTech VT 1930c. We strongly recommend you read the manual before using your phone.
2
INTRODUCTION
Parts Check List
1. Handset
2. Base Unit
3. Wall mounting bracket
4. AC power adapter
5. Belt clip
6. Battery pack
7. Telephone line cord
FLASH
PAUSE
PHONE
OFF
HOLD
3
1
2
a
b
c
6
5
4
m
g
j
k
i
l
o
h
n
9
8
7
p
w
z
q
s
t
x
r
y
u
v
0
#
o
t
r
o
p
e
e
n
*
CID REDIAL
MEM/PGM
INT.COM
MUTE
CLR/DEL
To purchase replacement battery packs, call VTECH Communications at 1-800-595-9511. In Canada, call VTECH Electronics at 1-800-267-
7377.
VT 1930c
2
3
DEF
ABC
1
4
GHI
6
5
MNO
JKL
7
PQRS
9
8
WXYZ
TUV
#
oper
TONE
0
*
SPARE BATT
CHARGING
HS IN-USE
POWER
MEM Q.MEM REDIAL
HOLD FLASH MUTE
SP.PHONEINT.COM
VOL
WALL MOUNTING
BRACKET
HANDSET
AC POWER ADAPTOR
TELEPHONE LINE CORD
DIGITAL
CORDLESS
BASE UNIT
3
900MHz
BATTERY PACK
BELT CLIP
FCC and IC Regulations
This equipment complies with Parts 15 and 68 of the Federal Communications Commission (FCC) rules for the United States. It also complies with regula­tions RSS210 and CS-03 of Industry and Science Canada. Operation is subject to the following two conditions: (1) this device may not cause interfer­ence, and (2) this device must accept any interference, including interfer­ence that may cause undesired opera­tion of the device.
A label is located on the underside of the base unit containing either the FCC registration number and Ringer Equiva­lence Number (REN) or the Industry Canada (IC) registration number and Load Number. You must, upon request, provide this information to your local telephone company.
This equipment is compatible with inductively coupled hearing aids.
Should you experience trouble with this telephone equipment, please contact:
FCC Part 15
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliances could void the userÕs authority to operate the equipment.
The equipment has been tested and found to comply with part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment gener­ates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter­ference to radio communications. However, there is no guarantee that interference will not occur in a particu­lar installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures:
VTECH COMMUNICATIONS
SERVICE DEPT. at 1-800-595-9511. In Canada, call VTECH Electronics at 1-800-267-7377.
For repair/warranty information. The telephone company may ask you to disconnect this equipment from the line network until the problem has been corrected.
- Reorient or relocate the receiving
antenna.
- Increase the separation between
the equipment and receiver.
- Connect the equipment into an
outlet or on a circuit different from
that to which the receiver is con-
nected.
- Consult the dealer or an experi-
enced radio/TV technician for help .
4
FCC and IC Regulations
This equipment may not be used on
FCC Part 68
The FCC requires that you connect your cordless telephone to the nation­wide telephone network through a modular telephone jack (USOC RJ11C, RJ11W or RJ14).
Your telephone company may discon­tinue your service if your equipment causes harm to the telephone network. They will notify you in advance of disconnection, if possible. During notification, you will be informed of your right to file a complaint with the FCC.
Occasionally, your telephone com­pany may make changes in its facili­ties, equipment, operation, or proce­dures that could affect the operation of your equipment. If so, you will be given advance notice of the change to give you an opportunity to maintain uninterrupted service.
The base unit contains no user serv­iceable parts. The handset contains a user replaceable battery pack.
If it is determined that your telephone equipment is malfunctioning, the FCC requires that it not be used and that it be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents or by others who may be authorized by the FCC. For repair procedures, follow the instructions outlined under the VTECH Limited Warranty.
coin service provided by the phone company or Party Lines.
The REN is useful in determining the number of devices you may connect to your telephone line and still enable the devices to ring when you receive a call. The general rule is that the REN value should not exceed 5.0A total; however, contact your local telephone company for the specific number in your area.
IC (Industry Canada) This telephone is registered for use in Canada.
Notice:The REN assigned to this
Notice:The Industry Canada label
device denotes the number of devices you may connect to the telephone loop, which is used by the device to prevent overloading, The termination on a loop may consist of any combination of devices subjected only to the requirement that the sum of the REN does not exceed five (5.0)
identifies certified equipment. This certification means that the equipment meets certain telecommunications network protective, operational and safety requirements. The Department does not guarantee the equipment will operate to the user's satisfaction.
5
FCC and IC Regulations
Before installing this equipment, users should ensure that it is permissible to be connected to the facilities of the local telecommunications company. The equipment must also be installed using an acceptable method of connection. The customer should be aware that compliance with the above conditions may not prevent degradation of services in some situations.
Repairs to certified equipment should be made by an authorized Canadian maintenance facility designated by the supplier. Any repairs or alterations made by the user to this equipment, or equipment malfunctions, may give the telecommunications company cause to request the user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of the power utility, telephone lines and internal metallic water pipe system, if present, are connected together. This precaution may be particularly important in rural areas.
Caution: Users should not attempt to
make such connections themselves, but should contact the appropriate electrical inspection authority, or electrician, as appropriate.
Your VTech VT 1930c is designed to operate at the maximum power al­lowed by the FCC and IC. This means your handset and base unit can communicate only over a certain distance - which will depend on the location of the base unit and handset, weather, and the construction and layout of your home or office.
6
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water (for example, near a bath tub, kitchen sink, or swimming pool).
5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation. To protect it from overheating, these openings must not be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation where proper ventilation is not provided.
7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it.
9. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product.
10.To reduce the risk of electric shock, do not disassemble this product, but take it to a VTech authorized service facility . Opening or removing cabinet parts other than specified access doors may expose you to dangerous voltages or other risks. Incorrect reassembling can cause electric shock when the appliance is subsequently used.
11.Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.
7
IMPORTANT SAFETY INSTRUCTIONS
12.Unplug this product from the wall outlet and refer servicing to a VTech authorized service facility under the following conditions:
A. When the power supply cord or
plug is damaged or frayed.
B. If liquid has been spilled into
the product.
C. If the product has been exposed
to rain or water.
D. If the product does not operate
normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, because improper adjustment of other controls may result in damage and will often require extensive work by a VTech authorized technician to restore the product to normal operation.
E. If the product has been dropped
and the cabinet has been damaged.
F. If the product exhibits a distinct
change in performance.
13.Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lighting.
14.Do not use the telephone to report a gas leak in the vicinity of the leak.
VTECH COMMUNICATIONS
SERVICE DEPT. at 1-800-595-9511. In Canada, call VTECH Electronics at 1-800-267-7377.
SA VE THESE INSTRUCTIONS
8
REPLACING THE BA TTER Y P A CK
Charging The Handset Battery Pack
The handset of your VTech VT 1930c cordless telephone is powered by a rechargeable battery pack. It charges automatically whenever the handset is in the base. You should charge the battery pack for 16 hours when you first receive your phone. YouÕll know the battery pack needs charging when:
¥Ê The phone emits a warning tone
when you press the PHONE key.
¥ The low battery message is
displayed:
¥ The handset seems completely
dead, the display is clear and the handset does not beep when you press the keys.
To Charge The Battery Pack
To charge the battery pack, place the handset in the base unit. The CHARGING indicator will light to show the handset is seated properly and the battery pack is charging. It is recommended that the battery pack be charged for at least 16 hours initially and 8 hours for maintenance charging. You can use your telephone before that with diminished capacity, but it is best to charge the battery pack fully. It will take several recharge cycles to maximize the charge capacity of your battery pack. The maximum battery life between charges is 7 hours of continuous talk time or 7 days of stand­by.
Alternatively, if you have purchased a spare battery pack and it has been charging in the base unit, simply exchange the drained handset battery pack with the fully charged replace­ment battery pack from the base charger. Place the drained handset battery pack into the base charger to recharge.
The base spare battery charger does NOT charge a battery pack as quickly as the handset battery charger. A full charge requires 24 hour when using the spare battery charger.
It's Impossible To Overcharge The Battery Pack
The battery pack can be recharged many times, but if you get a low battery message even after 16 hours of charging in the base cradle (or 24 hours in the base spare battery charger), the battery pack(s) should be replaced.
To purchase replacement battery packs, call VTECH Communications at 1-800-595-9511. In Canada, call VTECH Electronics at 1-800-267-
7377.
A Word About Rechargeable Batter­ies
Your Nicad battery pack recharges whenever the Handset is returned to the Base Unit cradle. You may return the Handset to its cradle whenever you're not using the phone.
However, to battery pack, do not return your
1930c
for recharging until the LOW BATTERY message is displayed.
maximize
Handset to the Base Unit cradle
the life of your
VT
9
REPLACING THE BA TTER Y P ACK
To Replace The Handset Battery Pack Follow The Steps Below:
1. Remove the battery case cover by pressing on the ridged lines and sliding downward.
PRESS and SLIDE DOWNWARD
5. If the new battery pack is not already charged, place the hand­set in the cradle of the base unit to allow it to charge for 16 hours.
REPLACE THE BATTERY COVER
2. Discard the old battery pack. DonÕt put the old battery pack in a trash compactor or a fire - it could burst.
3. Place the new battery pack in its housing with the metal contacts facing down.
PLACE THE NEW BATTERY PACK INTO THE BATTER Y COMPAR TMENT
PLEASE NOTE THE CORRECT POSITION OF THE BATTERY PACK WHEN CHANGING BATTERY
4. Replace the battery case cover by sliding the cover upwards.
CAUTION:
To Reduce the Risk of Fire or Injury to parsons, read and Follow the Instructions
1. Use only VTECH rechargeable battery pack.
2. Do not dispose of the battery in a fire. The cell may explode.
IMPORTANT:
Do not dispose of this battery into household garbage. For information on recycling or proper disposal, con­sult your local solid waste collection or disposal organization.
3. Do not open or mutilate the battery. Released electrolyte is corrosive and may cause damage to the eyes or skin. It may be toxic if swallowed.
4. Exercise care in handling batteries in order not to short the battery with conducting materials such as
10
REPLACING THE BA TTER Y P A CK
rings, bracelets, and keys. The battery or conductor may overheat and cause burns.
To purchase replacement battery packs, call VTECH Communication at1-800-595-9511. In Canada, call VTECH Electronics at 1-800-267-
7377.
Spare Battery Charger
The VT 1930c has a built-in spare Battery Charger, which is located in the cradle of the Base Unit.
NOTE:
In order to benefit from this feature, you must obtain an optional Spare Battery from an authorized VTech dealer, or by contacting VTech Customer Serv­ice at 1-800-595-9511 in U.S. and 1­800-267-7277 in Canada.
Installation
Remove the Spare Battery charger cover by pressing the release tab and lifting up.
VT 1930c
2
3
DEF
ABC
1
4
GHI
6
5
MNO
JKL
7
PQRS
9
8
WXYZ
TUV
#
oper
TONE
0
*
SPARE BATT
CHARGING
HS IN-USE
POWER
MEM Q.MEM REDIAL
HOLD FLASH MUTE
SP.PHONEINT.COM
VOL
DIGITAL
900MHz
CORDLESS
Place a battery pack in the Spare Battery charger. Make sure the metal charging contacts on the underside of the battery pack are aligned with the charging contacts in the Spare Battery charger.
VT 1930c
2
3
DEF
ABC
1
4
GHI
6
5
MNO
JKL
7
PQRS
9
8
WXYZ
TUV
#
oper
TONE
0
*
SPARE BATT
CHARGING
HS IN-USE
POWER
MEM Q.MEM REDIAL
HOLD FLASH MUTE
SP.PHONEINT.COM
VOL
DIGITAL
900MHz
CORDLESS
Power Backup
When a Spare Battery pack is installed in the Base Unit, the VTech VT 1930c uses this battery pack to provide operational backup in case of a power failure. If you have a fully charged battery pack in the Spare Battery pack charger and there is a power outage, you will still be able to place and receive calls on the Handset for up to five hours.
Note:
During Power Backup mode the Base Unit telephone functions are not oper­able. In addition, Caller ID (CID) information may not be reliable.
Replacing a Drained Handset battery
The Spare battery pack can also be used to replace a drained Handset battery pack to ensure uninterrupted use. Be sure to put the drained battery pack in the Spare Battery charger for recharging.
Please note that the Spare Battery compartment charges at a slower rate than a battery pack charging in the Handset. It takes 24 hours to fully charge a battery pack in the Spare Battery charger.
11
GETTING STARTED
U
0
Setting Up Your VTech VT 1930 c
Choose an area near an electrical outlet and a telephone wall jack.
AC Power Adapter
Plug the AC power adapter into an electrical outlet and the DC connecter to the back of the base unit.
TELEPHONE WALL JACK
AC OUTLET
TEL. LINE9V DC
CAUTION: Use only CLASS 2 9V DC POWER SUPPLY included with your phone.
Handset Ringer
The handset ringer is programmed ON as the factory default setting. Refer to PROGRAMMING THE RINGER for more information.
RINGER
PULSE TONE
ON OFF
TONE PULSE SWITCH
BASE RINGER ON/OFF SWITCH
Charge the handset battery pack before use. The battery pack recharges automatically whenever the handset is in the base unit. The batteries must be charged for 16 hours before using your phone for the first time.
1
4
GHI
7
PQRS
TONE
*
POWER
MEM
DIGITAL
CORDLESS
HOLD
INT.COM
CHARGE THE HANDSET BATTERY PACK FOR 16 HOURS BEFORE USING
HS IN-
9
Setting the Tone/Pulse Switch
The TONE/PULSE switch is located on the bottom of the base unit and is factory set to TONE. If you have touch tone service, do not change the switch setting. If you have rotary (Pulse) service, set the switch to PULSE.
Connect Telephone Line Cord
Plug one end of the telephone cord into a wall jack and the other end into the back of the Base Unit.
12
GETTING STARTED
M
9
Check for a dial tone. After the battery pack is charged, rotate the Base Unit antenna to an upright position. Pick up the Handset and press PHONE "HANDSET ON" will appear on the display, and you will hear a dial tone. If not, see ÔIN CASE OF DIFFICULTYÕ.
Fill in the telephone number card on the base unit.
VT 1930c
1
4
GHI
7
PQRS
TONE
*
HS
DIGITAL
CORDLESS
POWER
MEM
HOLD
INT.CO
FILL IN THE TELEPHONE NUMBER CARD
CAUTION:
1. Never install telephone wiring during a lightning storm.
2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations.
3. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface.
4. Use caution when installing or modifying telephone lines.
13

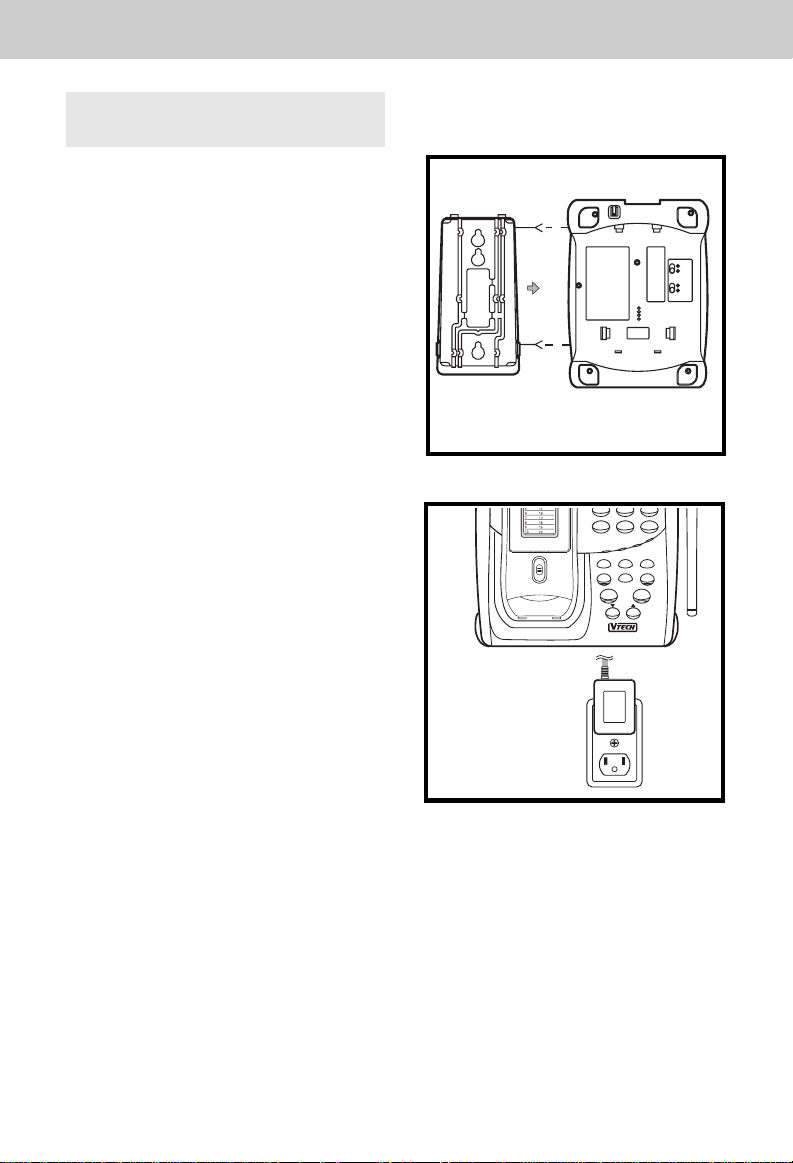

WALL MOUNTING
7
9
8
The Wall Mounting bracket is de­signed to fit on standard Wall Mounting plates.
1. Choose a spot near an electrical outlet and a telephone jack.
Your phone requires a modular telephone jack and a standard electrical outlet (120v AC). The power cord is six feet long; make sure there is an electrical outlet within reach of the base. The outlet should not be controlled by a wall switch. If the switch is ever turned off, the phone will not operate.
2. Position the wall mounting bracket on the base.
Line up the tabs on the wall mounting adapter with the holes on the bottom of the base (Figure
1). Snap the wall mounting br ack et firmly in place.
3. Mount the base on the wall.
Position the base so the mounting studs will fit into the holes on the bottom of the base. Position the power cord to extend down the wall the phone is to be mounted on. Slide the base down on the mounting studs until it locks into place.
4. Connect the telephone line cord.
The telephone line cord has a snap-in plug at each end. Insert one of the plugs into the jack on the back of the base. Insert the other end of the plug into the wall jack.
located on the back of the Base Unit .
Figure 1
PQRS
WXYZ
TUV
#
oper
TONE
0
*
SPARE BATT
CHARGING
HS IN-USE
POWER
MEM Q.MEM REDIAL
HOLD FLASH MUTE
SP.PHONEINT.COM
VOL
DIGITAL
900MHz
CORDLESS
Figure 2
PULSE TONE
ON OFF
RINGER
5. Plug the AC adapter into an electrical outlet and the DC connecter into the power jack
14
EXAMPLES OF THE HANDSET DISPLAY
Handset Display Messages
PHONE ON is displayed when the phone is in use.
After pressing a volume key, this displays the current volume setting.
This display warns of a low battery condition. The handset typically operates for at least 5 minutes after the low battery indication first appears.
This message is displayed when the base/handset is on hold.
This message is displayed when the live telephone line is not connected to the base unit.
This message is displayed when the handset microphone has been muted.
This message is displayed when the handset ringer has been programmed off.
This message is displayed when the Base Unit pages the handset.
This display warns that the handset has lost communication with the base unit and is attempting to reestablish a link by scanning all channels.
15

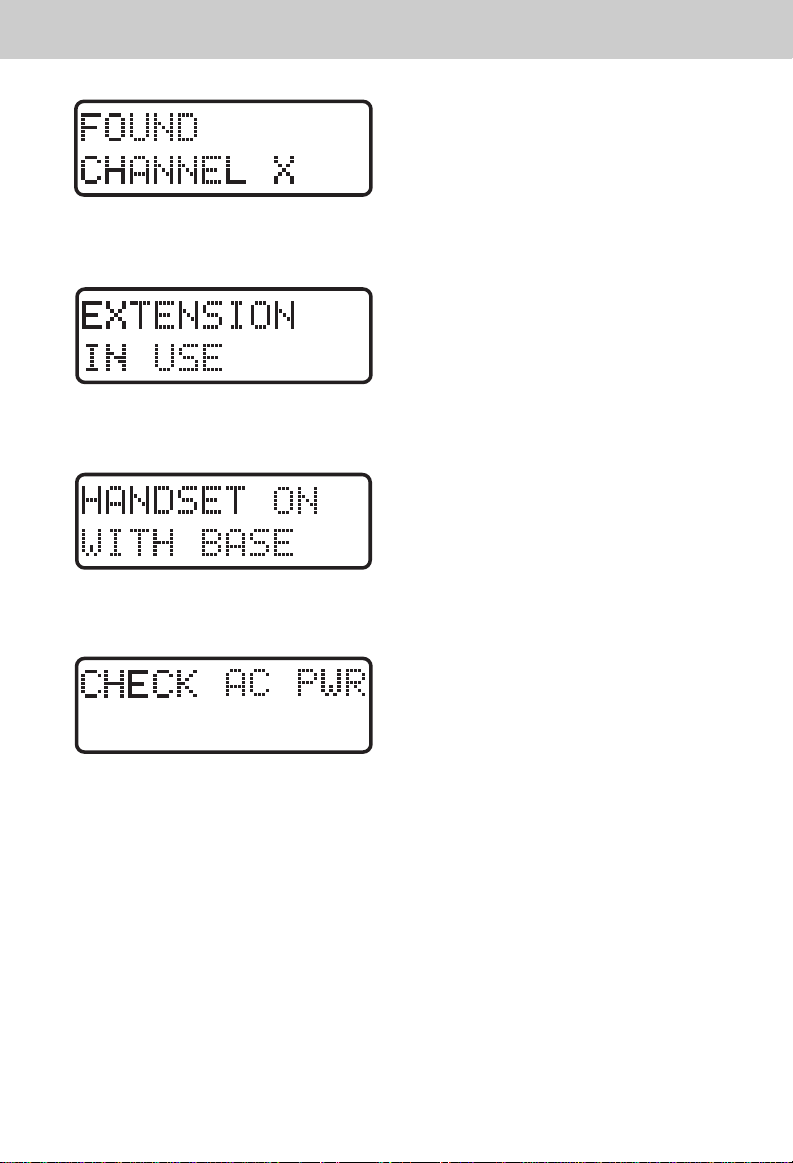

THE LCD DISPLAY-EXAMPLES
This display is confirms that a commu­nication link has been established with the Base.
This message is displayed while in OFF mode, if another phone is currently using the same line.
This message is displayed when both the handset and base unit are on a call together.
This display warns when an AC power failure has occurred and power is being supplied by an optional spare battery pack.
16
BASE UNIT FUNCTION KEYS
Speakerphone Key
Press this key to either initiate or answer a call from the Base Unit Speaker. Press it again to terminate your call.
Volume Key
Press the appropriate key to raise or lower the Speakerphone volume level. Holding down the key will continuously raise or lower the volume. There are a total of 8 volume levels.
Base Ringer ON/OFF Switch
Located on the bottom of the Base Unit, this switch controls the Base Unit ringer. It has no effect on the Handset ringer.
TONE/PULSE Switch
Located on the bottom of the Base Unit, set this switch consistent with your local phone system. In most cases, the appropriate setting is
TONE(TT).
MEM Key
Press this key to enter Memory (Speed) Dialing Mode.
QUICK MEM (Q.MEM) Key
Press this key to dial the contents of memory location #00. The Base speakerphone can be either ON or OFF to use this feature.
REDIAL Key
Press this key to redial the last number you dialed from the Base Unit. This feature is independent of the Handset redial feature.
HOLD Key
Press this key to place your Speakerphone call on hold. Press either HOLD or SPEAKER PHONE to return to the call.
With a Speakerphone call on HOLD, picking up an extension phone, or activating the VT 1930c Handset will turn the Speakerphone OFF.
FLASH Key
During a Speakerphone call, press this key to flash the line. The feature is commonly used in conjunction with Call Waiting.
MUTE Key
Press this key to mute the Base Unit microphone during a Speakerphone call. Press MUTE again to return to the 2-way conversation.
Intercom (INT.COM) Key
Press this key to Page the Handset. The Handset will ring 5 times. The Handset user can respond by pressing INT.COM . The Handset and Base Unit have now entered 2-way INTERCOM mode.
Press INT.COM to terminate INTER- COM mode.
This feature is also useful as a Handset locator in the event it is misplaced.
17
THE HANDSET LAYOUT
ANTENNA
VOLUME UP & DOWN
BATTERY COMPARTMENT
FLASH
PHONE
1
4
g
h
7
p
q
t
o
n
*
MEM/PGM
INT.COM
i
s
r
e
PAUSE
HOLD
2
a
b
c
5
j
k
l
8
t
u
v
0
o
r
p
e
CID REDIAL
CLR/DEL
MUTE
DISPLAY HOLD
OFF
3
6
m
o
n
9
w
z
x
y
#
OFF KEY PHONE KEY
DIALING KEYS (0-9) TONE (Temporary Tone)
REDIAL CALLER ID (CID)
MUTE CLEAR/DELETE (CLR/DEL) KEY
INTERCOM (INT.COM) KEY MEMORY/PROGRAM
(MEM/PGM) KEY CHARGING CONTACTS
18
THE BASE UNIT LAYOUT
PULSE
RINGER
TONE
ON OFF
AC POWER JACK
PHONE CORD JACK
TONE/PULSE SWITCH
BASE RINGER ON/OFF SWITCH
TEL. LINE9V DC
VT 1930c
2
ABC
1
4
GHI
5
JKL
7
PQRS
8
TUV
oper
TONE
0
*
CHARGING
HS IN-USE
POWER
MEM Q.MEM REDIAL
HOLD FLASH MUTE
VOL
DIGITAL
900MHz
CORDLESS
SPARE BATT
SP.PHONEINT.COM
ANTENNA
MEMORY
3
DEF
6
MNO
9
WXYZ
#
DIALING CARD
POWER INDICATOR HS IN-USE INDICATOR CHARGING INDICATOR SPARE BATT INDICATOR
MEM KEY Q.MEM KEY REDIAL KEY FLASH KEY
MUTE KEY HOLD KEY SPEAKERPHONE KEY INTERCOM KEY
VOLUME UP KEY VOLUME DOWN KEY
CHARGING CONTACTS SPARE BATTERY
CHARGING COMPARTMENT
19
BASE UNIT FEATURES
Power Indicator
Glows when the power supply is plugged in and power is applied to the Base Unit.
HS In Use Indicator
Glows when the Handset has been activated.
Charging Indicator
Glows when the Handset is placed in the Base Unit cradle. If there is no battery pack in the Handset, the
CHARGING LED will flash slowly.
Spare Batt Indicator
Glows when an optional battery pack is installed in the Base Unit charger.
HOLD Indicator
Glows when an active call is placed on HOLD.
MUTE Indicator
Glows when the Base Unit MUTE key is pressed during an active call.
INT.COM Indicator
Glows when the Base Unit is in INTERCOM mode with the Handset.
Speakerphone Indicator
Glows when the Base Unit Speakerphone is active.
Flashes slowly to indicate that an extension phone is in use.
Flashes in cadence with the incoming ring.
20
QUICK REFERENCE GUIDE
Set-Up Adapter
¥ Plug AC adapter into a standard
electrical outlet and Base Unit.
¥ Set TONE/PULSE switch to PULSE
or TONE. The unit is factory set to TONE.
¥ Let the handset battery pack charge
for 16 hours before first use.
¥ Connect telephone line cord to
base unit and telephone jack.
Making Calls ¥ Press the PHONE key. When
HANDSET ONis displayed and
you hear a dial tone, dial the number.
OR
¥ Enter the number to be dialed on
the display and then press the PHONE key.
OR
¥ Press SPKP on the Base Unit,
then dial the number.
Answering Calls
¥ To answer a call, press any key
other than OFF , MUTE , or the Volume Keys. The handset will NOT auto-answer when lifted off the base cradle.
OR
. Press SPKP on the Base Unit.
Hanging Up
¥ Press OFF or place the handset
in the cradle to hang up a call.
To Place A Call On Hold
¥ Press HOLD on the Handset or
Base Unit to place an active call on
HOLD.
. To return to the call on the Hand-
set, press either PHONE or HOLD .
. To return to the call on the
speakerphone, press either HOLD or SPKP .
To Mute A Call
¥ Press MUTE to disable the
Handset or Base Unit microphone.
¥ Press MUTE again to return to
normal two way conversation.
To Page The Handset
¥ To page from the base, press
INT.CO .
¥ To cancel the PAGE either press
INT.CO again on the base or press OFF on the handset.
STORING MEMORY (SPEED) DIAL NUMBERS:
¥ The phone should be OFF . ¥ Enter the number you wish to store
on the display up to a maximum of 20 digits.
FLASH
PAUSE
PHONE
PHONE
MEM/PGM
INT.COM
OFF
HOLD
3
1
2
a
b
c
6
5
4
m
g
j
i
l
k
h
n
9
8
7
p
w
s
t
q
x
r
u
v
0
#
o
t
r
o
e
p
e
n
*
CID REDIAL
MUTE
CLR/DEL
o
z
y

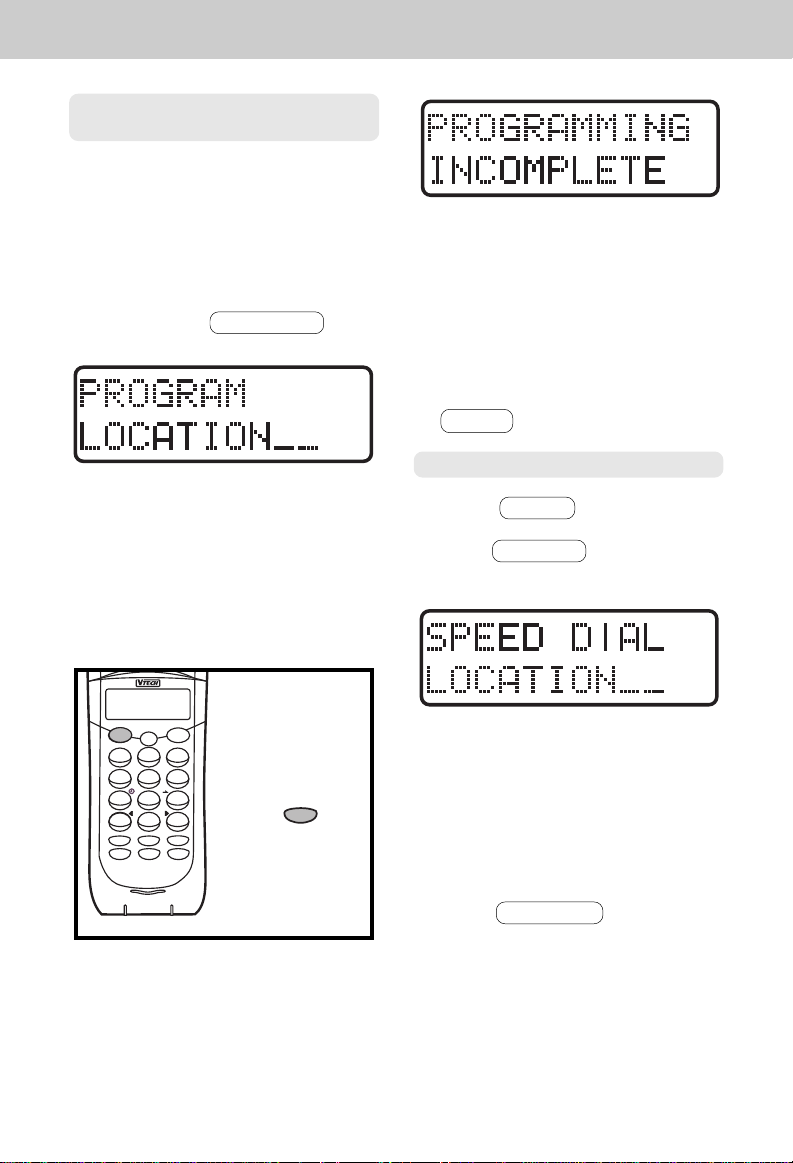

STORING SPEED DIAL NUMBERS
DIAL YOUR PHONE NUMBER
MEM/PGM
PRESS PRESS LOCATION
(00..20)
21
QUICK REFERENCE GUIDE
¥ Press and hold MEM/PROG . The
handset will display PROGRAM LOCATION.
¥ Enter a two digit memory location
(00..20). The unit will store the number, emit a warbled tone to confirm successful programming and exit program mode.
Memory Dialing (speed Dialing):
FLASH
PHONE
PHONE
MEM/PGM
MEM/PGM
INT.COM
PAUSE
HOLD
1
2
a
b
c
5
4
g
j
i
l
k
h
8
7
p
s
t
q
r
u
v
0
o
t
r
o
e
p
e
n
*
CID REDIAL
CLR/DEL

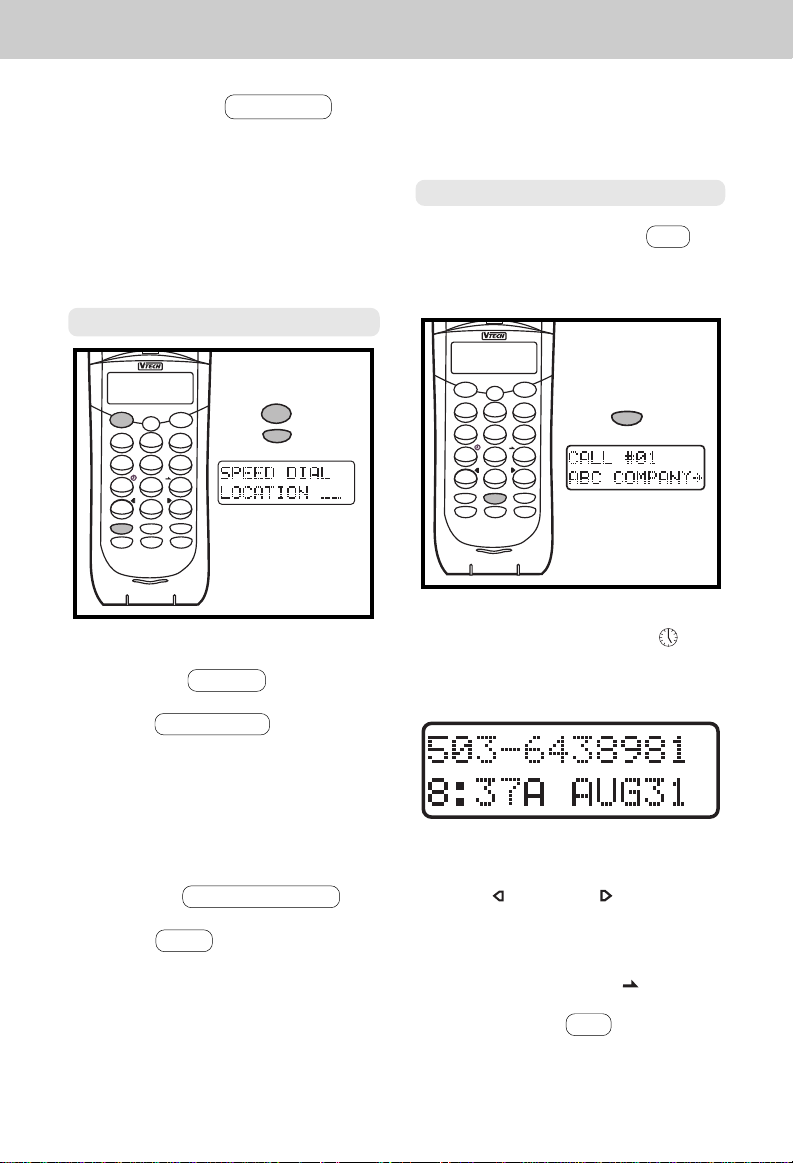

MEMORY DIALING
PRESS
OFF
PRESS
3
YOU WILL SEE
6
m
o
n
9
w
z
x
y
#
ENTER MEMORY LOCATION (00..20)
MUTE
PHONE
MEM/PGM
From the Handset
¥ Press the PHONE key. ¥ Press MEM/PROG .
in memory location 00 can also be dialed simply by pressing the Q.MEM key on the Base Unit.
Caller ID (CID)
¥ To view information stored in Caller
ID (CID) memory, press CID on the handset.
¥ The display will show the most
recent call received.
FLASH
PAUSE
PHONE
MEM/PGM
INT.COM
OFF
HOLD
1
2
a
b
c
5
4
g
j
l
i
k
h
8
7
p
t
s
q
r
u
v
0
o
t
r
o
e
p
e
n
*
CID
CID REDIAL
CLR/DEL
3
6
m
o
n
9
w
z
x
y
#
MUTE
CID - CALLER ID
CID
PRESS YOU WILL SEE
¥ To view the time and date of the
call press and hold the 7 key. The time and date will be shown along with the phone number. For example :
¥ Enter the memory location of the
phone number you wish to dial (01..20). The number will be dialed.
From the Base Unit
. Press the SPEAKER PHONE key. . Press MEM .
. Enter the memory location of the
phone number you wish to dial (00..20). The number will be dialed automatically. The number stored
¥ To view other calls, scroll
backwards and forwards by using the ( ) and ( ) keys.
*
#
¥ To view additional name charac-
ters not shown on the display, press and hold the (9) key.
¥ To exit press OFF .
22
QUICK REFERENCE GUIDE
Using REDIAL
From the Handset: ¥ Press the PHONE key, then
REDIAL to automatically redial
the last number you dialed.
Or
¥ Press REDIAL so that the
number is shown on the display and then press the PHONE key.
From the Base Unit : ¥ Press the SPKP key, then
REDIAL .
HOLD From the Handset :
¥ Press HOLD to put a call on hold. ¥ To return to the call, press HOLD
or the PHONE key.
From the Base Unit : ¥ Press HOLD to put a call on hold.
. To return to the call, press HOLD
or the SPKP key.
23
BASIC OPERATION
Making Calls From the Handset:
Press the PHONE key and wait for dial tone. Then dial the number you want.
Or
Enter the number onto the display first, then press the PHONE key. This will dial the number that is displayed on the display after 2 seconds. See ADVANCED DIALING.
If you make a mistake when dialing, press OFF to hang up, then press the PHONE key to get the dial tone again.
From the Base Unit:
¥ Press the SPKP key and wait for
dial tone. Then dial the number you want.
Disconnecting
To end a call, either place the handset back in the base, press OFF on the handset, or press SPKP on the Base Unit (for speakerphone calls).
to increase or decrease the volume. Holding either key down will continuously change the volume setting. The earpiece volume level indicator on the display will change accordingly. There are four volume levels.
FLASH
You can use your VTech VT 1930c cordless phone with services such as Call Waiting. Simply press the PHONE key to FLASH the line.
REDIAL
To REDIAL the last number you dialed, press the PHONE key, then press REDIAL . The phone will automatically dial the number. The number will be shown on the display.
Clearing The Display
The display can be cleared by pressing and holding the CLR/DEL key down until the display clears.
MUTE
¥ Press MUTE during an active call
to disable the microphone.
¥ Press MUTE again to return to
normal operation.
Answering Calls From the Handset:
Press any key other than OFF , MUTE or the VOLUME keys to answer your call.
From the Base: Press the SPKP key.
VOLUME Controls-Handset
The volume controls for the handset are located on the side of the unit. Press the (up) or (down) keys
Ringer MUTE ¥ Press MUTE during incoming
ringing to disable the ringer for the duration of the call.
HOLD
¥ Press HOLD on the Handset or
Base Unit to place an active call on hold.
¥ To return to the call on the Handset,
press either PHONE or HOLD .
¥ To return to the call on the
Speakerphone, press either HOLD
or SPKP .
24
BASIC OPERATION
With a Handset call an hold, picking up an extension phone, or activating the VT 1930c Speakerphone will turn the Handset OFF.
With a Speakerphone call on hold, picking up an extension phone, or activating the VT 1930c Handset will turn the Speakerphone OFF.
To transfer a call from the Handset to Base Unit Speakerphone first place the Handset call on hold, then press SPKP on the Base Unit.
To transfer a call from the Base Unit Speakerphone to the Handset, first place the Speakerphone call on hold, then press PHONE on the Handset.
25
ADVANCED FUNCTIONS
Call Waiting
CALL WAITING is a subscription service, available from most local telephone service providers. Contact your provider for details. While you are on a call, you will hear an alert signal, warning that a second caller is trying to reach you.
If you subscribe to this service linked with CALLER ID (CID), the name and/ or phone number of the second caller can be displayed on the handset immediately after hearing the CALL WAITING alert. For more details, see
Caller ID (CID).
Switching calls using FLASH
¥ From the Handset: press the
PHONE key to switch to the new call. To switch back press PHONE again.
¥ From the Base Unit: press the
FLASH key to switch to the new call. To switch back press FLASH again.
Message Waiting
Your VT 1930c is capable of detecting a Visual Message Waiting Indication, generated by many phone service providers. If you subscribe to Voicemail service from your local telephone company, and Visual Message Wait­ing Indication is provided, the VT 1930c will display the following data to alert you to new, unplayed messages:
Once you have reviewed your new messages, the MSG. WAITING indi­cation will be cleared from the display.
You can temporarily clear the Mes­sage Waiting screen. With the Hand­set in the OFF mode.
Press and Hold CLR/DEL until the handset displays :
FLASH
PHONE
PHONE
MEM/PGM
INT.COM
PAUSE
OFF
HOLD
1
2
a
b
c
5
4
g
j
i
k
l
h
8
7
p
t
s
q
r
u
v
0
o
t
r
o
e
p
e
n
*
CID REDIAL
CLR/DEL
SWITCHING CALLS
3
TO SWITCH OVER TO
6
THE NEW CALL
m
o
n
PRESS
9
w
z
x
y
#
TO SWITCH BACK TO THE FIRST CALL PRESS AGAIN
MUTE
PHONE
PHONE
Press CLR/DEL to confirm your decision.
Pressing any key other than CLR/DEL will cancel the operation.
26
ADVANCED FUNCTIONS
The MSG. WAITING alert may reap­pear, as long as unplayed messages remain in your Voicemail box.
NOTE:
Message Waiting works in conjunction with Voicemail service from many local phone companies. This is an optional service. You are not required to subscribe to it.
Temporary TONE
If you have rotary (PULSE) telephone service switch is set to PULSE), this feature allows you to temporarily switch to TONE dialing for such purposes as remote access to answering machines, bank-by-phone services, use of calling cards and other special services.
First, dial the call normally. Then activate the Temporary Tone feature by pressing TONE (the key). You can then press the numbers or symbols
*
you need, and your phone will send the proper signals.
Programming The Ringer
The Handset and Base Unit ringers are capable of four different types of ringer tones. The following section detail how to select different ringer types and how to turn off the ringer.
Changing Ringer Types
To program, the Handset must be OFF. To select a different ringer type for the
Handset Ringer do the following: Press and hold: MEM/PGM
The display will show the following:
Press : # The display will show the following:
To end the call, press OFF or place the handset back in the base. If using the speakerphone, press SPKP to end the call. The phone will auto­matically go back to rotary (PULSE) service.
FLASH
PAUSE
PHONE
*
MEM/PGM
INT.COM
HOLD
1
2
a
b
c
5
4
g
j
i
k
l
h
8
7
p
t
s
q
r
u
v
tone
0
o
t
r
o
e
p
e
n
*
CID REDIAL
CLR/DEL
TEMPORARY TONE
OFF
OFF
3
DIAL YOUR NUMBER
6
m
o
n
PRESS
9
w
z
x
y
PRESS THE NUMBERS
#
OR SYMBOLS PRESS
MUTE
tone
*
OFF
Press : 1 The display will show the following:
Press : 1 for ringer type 1
2 for ringer type 2 3 for ringer type 3 4 for ringer type 4 0 for ringer type OFF
Press OFF TO exit.
27
ADVANCED FUNCTIONS
To select a different ringer type for the Base Unit do the following:
Press and hold : MEM/PGM The display will show the following :
Press : # The display will show the following:
Press : 2 The display will show the following:
Press : 1 for ringer type 1
2 for ringer type 2 3 for ringer type 3 4 for ringer type 4
Press OFF TO exit.
28
ADVANCED FUNCTIONS
Clear/Delete (CLR/DEL) Key
The CLEAR and DELETE functions can be accessed separately depending on how long the key is held down. For example, to clear the last digit entered on the display, press the CLR/DEL key for less than 1 second. Press and hold the CLR/DEL key for more than 1 second to completely clear the display.
The delete function is also used to delete Caller ID (CID) records, memory dial records, and Message Waiting indication. See DELETING STORED NUMBERS, and MESSAGE WAITING.
The handset must be OFF to perform a CLEAR or DELETE function.
Advanced Dialing
There are two different ways to dial a number from the Handset.
1. Press the PHONE key and wait for a dial tone. Then dial the number you want either manually, using MEMORY (MEM) dialing, Caller ID (CID) dialing or REDIAL.
2. Enter the number you wish to dial on the display first. Then press the PHONE key. This will dial the number which is displayed on the display after 2 seconds.
NOTE:
The phone will dial any number which is shown on the display. If you do not want to dial the number shown on the display, it can be changed by:
¥ Press and hold CLR/DEL until
the display is cleared, then dial normally.
or
¥ Press OFF and start over.
Multi Level REDIAL
The VTech VT 1930c stores the last five calls dialed in a special REDIAL memory.
With the Handset OFF, press REDIAL The Handset will display the most recent telephone number you dialed:
To view the other phone numbers stored in the special REDIAL memory, press the scroll keys ( ) and
aaa ( )a. Once you have found
#
the number you wish to dial, press PHONE . After a 2 second pause, the number will be dialed.
*
29
MEMORY DIALING
Storing Memory (Speed) Dial numbers
To program a speed dial location, do the following:
¥ With the Handset OFF, enter the
telephone number you wish to store (20 Digits Maximum).
¥ Enter program mode by pressing
and holding MEM/PGM . The display will show the following:
¥ Enter the memory location (00..20)
you wish to store the number in. After the second memory location digit is entered, the unit will emit a warbled tone (a short series of beeps) to confirm successful programming and exit program mode.
FLASH
PAUSE
PHONE
PHONE
MEM/PGM
INT.COM
OFF
HOLD
1
2
a
b
c
5
4
m
g
j
i
l
k
h
8
7
p
w
s
t
q
r
u
v
0
o
t
r
o
e
p
e
n
*
CID REDIAL
MUTE
CLR/DEL
3
6
o
n
9
z
x
y
#
STORING SPEED DIAL NUMBERS
DIAL YOUR PHONE NUMBER
MEM/PGM
PRESS PRESS LOCATION
(00..20)
Unsuccessful programming can result from not correctly completing the programming sequence. If this message appears, simply repeat the programming sequence.
¥ The number stored in memory
location 00 can be accessed by pressing the one touch speed dial
Q.MEM key on the Base Unit.
Dialing From Memory From the Handset
¥ Press PHONE to get a line. ¥ Press MEM/PGM ; y ou're prompted
to enter a speed dial location number:
¥ Enter a 2 digit location number
(00..20).
¥ The number stored in that location
will be displayed and immediately dialed.
Or
¥ Beginning from the OFF mode,
press MEM/PGM followed by a 2 digit location number (00..20).
If programming is unsuccessful the unit will display:
30
MEMORY DIALING
¥ Press MEM/PGM again to exit
memory dial mode and leave the number on the display.
¥ Press PHONE . The number on
the display will be dialed after a 2 second pause.
¥ Note that if digits were on the
display prior to entering memory dial mode, the contents of the speed dial memory will be appended to those digits. For example, if 1503 was on the display and the contents of the memory location is 6438981, then the display would show the following upon e xiting memory dial mode:
Changing Stored Numbers
To change or replace a stored number simply enter the new number on the display and store it in the memory location you wish to change.
Deleting Stored Numbers
¥ Press MEM/PGM . The display will
change to "SPEED DIAL LOCATION_ _".
¥ Press OFF to exit.
NOTE:
Stored numbers are retained in memory even if the base loses its power or the handset battery is removed.
Storing Special Codes
To insert a pause in a phone number, press HOLD at the appropriate point when entering the number . This inserts a 2 second pause. A " P " appears in the display to show the pause. For longer pauses, press HOLD two or more times. Each press makes the pause 2 seconds longer and is treated as a stored digit.
If your phone is connected to a PBX, you can store the PBX access number and a pause before the phone number. For example, to store 9­PAUSE-555-1234 in memory location 08, do the following:
1. Press 9
2. Press HOLD
3. Dial 5551234
4. Press and hold MEM/PGM
5. Enter 08
¥ Enter memory location number
(00..20).

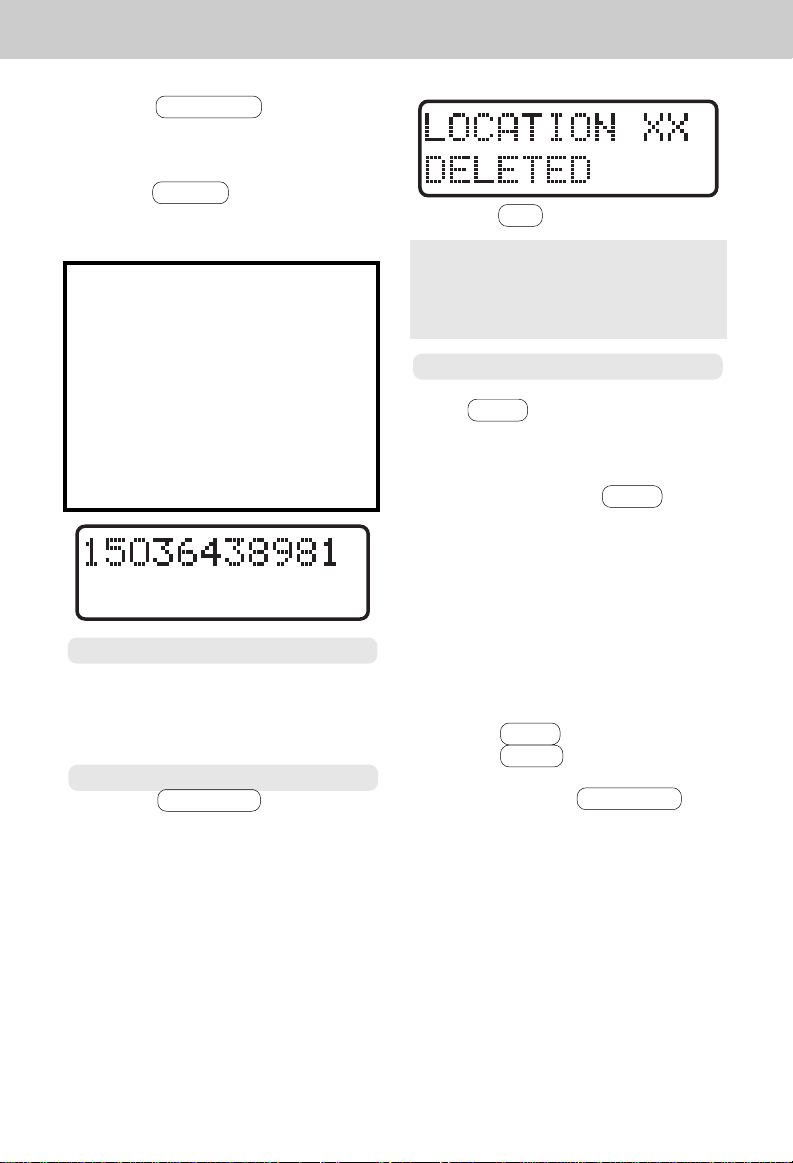

¥ Press CLR/DEL key. The display
will change to "LOCATION XX
DELETED".
31
CALLER ID (CID)
Caller ID (CID)
Your VTech VT 1930c cordless phone is capable of displaying the name and/ or phone number of the person calling, before you answer the phone. Subscription to Caller ID service through your local phone company is required to utilize this feature.
If you subscribe to alphanumeric (name and number) Caller ID service, the calling party's name and phone number (when available) will be displayed on the handset screen while the phone is ringing.
If you subscribe to numeric (number only) Caller ID service, the calling party's phone number (when available) will be displayed on the handset screen while the phone is ringing.
Call Waiting Caller ID (Type II CID)
Your VTech 1930c cordless phone is also capable of displaying Caller ID information in connection with a Call Waiting signal. If you are on a call, and receive a Call Waiting alert signal, the handset will display the name and/or number (when available) of the party trying to reach you. As above, subscription to Call Waiting ID service through your local phone company is required in order to utilize this feature.
NOTE:
You must be in an area where Caller ID (CID) service is available and you must subscribe to it to use this feature.
If you do not subscribe to the Caller ID (CID) service, the phone will still operate normally, except that the Caller ID (CID) information is not received or displayed.
Receiving and Storing Calls
This unit receives and displays all Caller ID (CID) information: the callerÕs telephone number, the caller's name and the exact date and time of the call.
The phone sequentially numbers these call records and retains them in the unitÕs memory for later review. The unit can store up to 50 numbers in its memory.
Once the Caller ID (CID) memory is full, any new call forces a deletion of the oldest call record.
Dialing From Caller ID (CID) Memory NOTE:
Only the last 7 digits of any number are displayed when dialing from Caller ID (CID) memory.
A Word About Caller ID - CID
Due to regional incompatibilities, Caller ID information may not be available for every call you receive. In addition, the calling party may intentionally block their name and phone number from being sent.
For example, when you press and hold the 7 key to view the phone number, you would see the following:
32
CALLER ID (CID)
However, when you dial directly from Caller ID (CID) memory, only the last 7 digits of the received telephone number will be used. Consequently, you would actually dial this:
The VTech VT 1930c was designed to accommodate this situation. If you need to temporarily add a long dlstance prefix and /or area code (such as 1503) before the Caller ID (CID) number, do the following: ¥ Beginning from the standby mode,
key in the necessary digits. Your display will look like this:
¥ Then, to temporarily add the last 7
digits only from a Caller ID (CID) memory, press CID .
¥ Using the ( ) and (#) keys,
scroll through the received calls to locate the number you wish to dial.
*
Special Message Indicators Out of Area Calls
If for any reason the telephone number of the caller is unavailable, or if the caller is outside the Caller ID (CID) service area, the message UNAVAIL­ABLE is displayed.
ÒPrivateÓ Calls
If the caller has exercised the option to block his or her number from being sent, then the display will show
PRIVATE.
Transmission Error
If an error is detected, then the Caller ID (CID) information is incomplete and will not be displayed. TRANSMISSION ERROR will be displayed.
¥ Once you have located the n umber
you wish to dial, simply press PHONE . The last seven digits will be added to the numbers already in the display, and the whole number shown below will be automatically dialed.
The occasional appearance of TRANS- MISSION ERROR on your display does not indicate a problem with your unit or your telephone line. However, if this appears frequently, you may want to notify your telephone com­pany.
33
CALLER ID (CID)
Reviewing Numbers
Calls stored in memory can be reviewed by pressing CID . The display will show the number of the most recent (Call #01). The top line of the display is used to indicate the memory location number and the bottom line of the display shows the name, see below:
There may be additional characters in the name which can not be shown on the current display. Press the ( 9 ) key. This will overwrite the Caller ID (CID) memory location on the top line to show up to a maximum of 15 alpha characters for the duration of the key press. The first 12 alpha characters will be on the top line with up to 3 additional characters on the second line.
Pressing the ( ) key displays the next lower in sequence call record.
*
Likewise, pressing the (#) key displays the next higher in sequence) call record. The higher the call number, the older the call.
To save you time in reviewing call records, you can Òwrap-aroundÓ the call history log. For example, if you press the ( ) key enough to scroll back to the first record, pressing it
*
again will force the display to go to the very end of the call record.
PHONE
MEM/PGM
INT.COM
FLASH
PAUSE
HOLD
1
2
a
b
c
5
4
g
j
i
l
k
h
8
7
7
p
p
s
t
s
q
q
r
r
u
v
0
t
o
o
e
t
n
r
o
e
p
e
n
*
*
CID
CID REDIAL
CLR/DEL
REVIEWING NUMBER
OFF
OFF
3
6
m
o
n
9
9
w
w
z
z
x
x
y
y
#
#
MUTE
CID
PRESS PRESS THE AND KEYS
TO SCROLL PRESS AND HOLD THE 7
KEY TO VERIFY NUMBER
OFF
PRESS TO EXIT
To find out the corresponding phone number as well as the date and time of the call, press and hold the 7 key. The date and time will be shown. Releasing the key will again show the caller's name.
34
CALLER ID (CID)
Deleting Numbers
Pressing the CLR/DEL button deletes the Caller ID (CID) number displayed.
¥ While the phone is in Caller ID
(CID) mode, press the CLR/DEL key once to delete the current call and the display will show:
¥ The older Caller ID (CID) records
will be moved forward by one location .
¥ Press and hold the CLR/DEL key
for more than 2 seconds to delete the entire contents of Caller ID (CID) memory. The display will show the following for a final confirmation, before the entire Caller ID (CID) memory is erased:
¥ Pressing CLR/DEL will confirm
the operation and the display will then show:
¥ The message will remain on the
display for 2 seconds.
¥ Pressing any key other than
CLR/DEL will cancel the opera­tion.
35
ADDITIONAL OPERATING TIPS
Noise Or Interference
Your VTech VT 1930c cordless telephone has auto-channel scan circuitry which will detect excess noise and change the channel of the phone to reduce it. This is done automatically.
Out Of Range When Phone Is On
Since the VTech VT 1930c is a fully digital phone, it does not suffer from noise associated with regular cordless phones. At times you may experience occasional "drop outs", especially at the extreme edges of the phone's range. Simply move closer to the base unit and this will disappear.
Automatic Security Coding
Out Of Range indication
If the handset is moved to a point where the base and handset can no longer communicate, the handset will display CHANNEL SEARCHING and scan all channels in an attempt to re-link with the base.
If you are presently engaged in a phone conversation move closer to the base. If the base unit does not communicate with the handset within 25 seconds of losing contact, it will automatically hang up.
Out Of Range When Phone Is Off
When the phone is OFF, the handset and base still monitor each other to make sure that they can communicate. If the handset is moved out of range, the handset will display CHANNEL SEARCHING. The Handset will scan all channels in an attempt to reestablish communication with the base. This process does not require user intervention; the handset will re-link with the base automatically once it is brought back within range. The unit will then be able to receive and place calls.
36
MAINTENANCE
Taking Care Of Your Telephone
Your VTech VT 1930c cordless telephone contains sophisticated electronic parts, so it must be treated with care.
Avoid rough treatment
Place the handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it.
Avoid water
Your telephone can be damaged if it gets wet. Do not use the handset outdoors in the rain, or handle it with wet hands. Do not install your base unit near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic equipment.
For your own safety, use caution when using electric appliances during storms.
Cleaning your telephone
Your telephone has a durable plastic casing that should retain its luster for many years. Clean it only with a soft cloth slightly dampened with water or a mild soap. Do not use excess water or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when you are wet or standing in water. If your base unit should fall into water,
DO NOT RETRIEVE IT UNTIL YOU UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS FROM THE WALL. Then pull the unit out by
the unplugged cords.
37
IN CASE OF DIFFICULTY
If you have difficulty operating your phone, the suggestions below should solve the problem. If you still have difficulty after trying these suggestions, call VTECH Communications at 1-800-595-9511. In Canada, call VTECH Electronics at 1-800-267-7377.
THE PHONE DOESNÕT WORK AT ALL.
¥ Make sure the Power Cord is
pugged in.
¥ Make sure the telephone line cord
is plugged firmly into the base unit and the telephone wall jack.
¥ Make sure the batteries are
properly charged. If the 'LOW BATTERY' message is shown, the battery pack needs charging.
NO DIAL TONE.
¥ First check all the suggestions
above.
¥ If you still donÕt hear a dial tone,
disconnect the base unit from the telephone jack and connect a different phone. If there is no dial tone on that phone either, the problem is in your wiring or local service. Call your local telephone company.
YOU GET NOISE, STATIC, OR A WEAK SIGNAL EVEN WHEN YOUÕRE NEAR THE BASE UNIT.
¥ Household appliances plugged into
the same circuit as the base unit can sometimes cause interference. Try moving the appliance or the base unit to another outlet.
YOU GET NOISE, STATIC, OR A WEAK SIGNAL WHEN YOUÕRE AWAY FROM THE BASE UNIT.
¥ You may be out of range. Either
move close to the base, or relocate the base unit.
¥ The layout of your home may be
limiting the range. Tr y moving the base unit to another position.
THE HANDSET DOES NOT RING WHEN YOU RECEIVE A CALL.
¥ Make sure you have the handset
ringer activated. To set the r inger, see "PROGRAMMING THE RINGER".
¥ Make sure the telephone line cord
is plugged firmly into the base unit and the telephone jack. Mak e sure the power cord is plugged in.
¥ You may be too far from the base
unit.
¥ You may have too many extension
phones on your telephone line to allow all of them to ring. Try unplugging some of the other phones.
YOU HEAR OTHER CALLS WHILE USING YOUR PHONE.
¥ Disconnect your base unit from the
telephone jack, and plug in a regular telephone. If you still hear other calls, the problem is probably in your wiring or local service. Call your local telephone company.
YOU HEAR NOISE IN THE HANDSET, AND NONE OF THE KEYS OR BUTTONS WORK.
Make sure the power cord is plugged in.
38
IN CASE OF DIFFICULTY
COMMON CURE FOR ELECTRONIC EQUIPMENT
Electronics, like people, can sometimes get confused. If the unit does not seem to be responding normally, then try putting the handset in the cradle. If it does not seem to respond after trying this a few times, do the following (in the order listed):
1. Disconnect the power to the base.
2. Disconnect the handset battery.
3. Wait a few minutes.
4. Connect power to the base.
5. Connect the handset battery.
6. Put the handset in the base.
39
WARRANTY STATEMENT
WARRANTY STATEMENT
WHAT DOES OUR WARRANTY COVER? ¥ Any defect in material or workmanship.
FOR HOW LONG AFTER THE ORIGINAL PURCHASE? ¥ To the original purchaser only - ONE YEAR.
WHAT WILL VTECH DO? ¥ At our option, repair or replace your unit.
HOW DO I SEND MY UNIT, IN OR OUT OF WARRANTY? ¥ Call VTECH Communications customer service for Return Authorization at:
1-800-595-9511
in Canada, call VTECH Electronics at:
1-800-267-7377. ¥ Properly pack your unit. lnclude any cables & accessories which were originally provided with the product. We recommend using the original carton and packing materials. ¥ Include in the package a copy of the sales receipt or other evidence of date of original purchase (if the unit was purchased within the lase twelve months). ¥ Print your name and address, along with a description of the defect, and include this in the package. ¥ Include payment for any service or repair not covered by warranty, as determined by VTECH Communications. ¥ Ship the unit via UPS Insured, or equivalent to:
VTECH COMMUNICATIONS
8770 SW NIMBUS AVENUE
BEAVERTON, OREGON 97008
in Canada, ship the unit via UPS Insured, or equivalent to:
VTECH ELECTRONICS
Suite 200- 7671 Alderbridge Way
Richmond, B.C. V6X 1Z9
VTECH Communications assumes no responsibility for units sent without prior Return Authorizatlon
WHAT DOES OUR WARRANTY NOT COVER? ¥ Batteries
¥ Damage from misuse, neglect, or acts of nature (lightning, floods, power surges, etc.) ¥ Products which may have been modified or incorporated into other products ¥ Products purchased and/or operated outside the USA, its territories, or Canada. ¥ Products serviced by the owner or a service facility not expressly authorized by VTECH Communications ¥ Products purchased more than 12 months form current date ¥ Units purchased in "AS IS" condition, or units purchased as "Distressed Merchandise".
HOW DOES STATE LAW OR PROVINCE LAW RELATE TO THIS WARRANTY? ¥ This warranty gives you specific rights. You may also have other rights which
vary from state to state or from province to province.
.
40
TECHNICAL SPECIFICATIONS
FREQUENCY CONTROL
Crystal Controlled Dual PLL Synthesizer
TRANSMIT FREQUENCY
Handset: 925.05 MHz to 927.75 MHz
( All ten channels within this range)
Base : 902.3 MHz to 905.0 MHz
(All ten channels within this range)
RECEIVE FREQUENCY
Handset : 902.3 MHz to 905.0 MHz
( All ten channels within this range)
Base : 925.05 MHz to 927.75MHz
( All ten channels within this range)
NOMINAL EFFECTIVE RANGE
Maximum power allowed by FCC and IC. Actual operating range may vary according to environmental conditions at the time of use.
WEIGHT
Handset : 250 grams Base : 415 grams
POWER REQUIREMENTS
Handset : Self-contained nickel-
cadmium rechargeable battery supply, 3.6V nominal, 600mAh capacity.
Base: 9VDC @ 500mA
MEMORY
Speed Dial : 21 Memory locations,
20 digits per location.
Caller ID CID : Alphanumeric Display
50 Memory locations
SPECIFICATIONS ARE TYPICAL AND MAY CHANGE WITHOUT NOTICE.
SIZE
Handset: 19 x 6 x 3.5cm (L x W xT)
Maximum (Antenna ex­cluded)
Base : 21.5 x 14.5 x 5cm (L x W
x T) Maximum (Antenna excluded)
41
TABLE OF CONTENTS
Page
INTRODUCTION ............................................................................................................. 1
Special Features ............................................................................................................. 2
Parts Check List .............................................................................................................. 3
FCC AND IC REGULATIONS ......................................................................................... 4
IMPORTANT SAFETY INSTRUCTIONS ......................................................................... 7
REPLACING THE BATTERY PACK .............................................................................. 9
GETTING STARTED ...................................................................................................... 12
WALL MOUNTING ........................................................................................................ 14
EXAMPLES OF THE HANDSET DISPLAY .................................................................. 16
BASE UNIT FUNCTION KEYS ....................................................................................... 17
THE HANDSET LAYOUT ............................................................................................... 18
THE BASE UNIT LAYOUT ............................................................................................. 19
BASE UNIT FEATURES ................................................................................................. 20
QUICK REFERENCE GUIDE ......................................................................................... 21
BASIC OPERATION ...................................................................................................... 24
ADVANCED FUNCTIONS .............................................................................................. 26
Call Waiting .................................................................................................................... 26
Temporary Tone .............................................................................................................. 26
Switching Calls ............................................................................................................... 26
Message Waiting ............................................................................................................ 26
Programming The Ringer ............................................................................................... 27
Changing Ringer Types ................................................................................................ 27
Clear/Delete (CLR/DEL) Key ........................................................................................ 29
Advanced Dialing ........................................................................................................... 29
Multi Level REDIAL ........................................................................................................ 29
MEMORY DIALING ....................................................................................................... 30
Storing Memory Speed Dial Numbers ........................................................................... 30
Dialing From Memory ..................................................................................................... 30
Changing Stored Numbers ............................................................................................. 31
Deleting Stored Numbers ............................................................................................... 31
Storing Special Codes .................................................................................................... 31
CALLER ID (CID) ........................................................................................................... 32
Call Waiting Caller ID (Type ll CID) ............................................................................... 32
A Word About Caller ID - CID ....................................................................................... 32
Receiving and Storing Calls ........................................................................................... 32
Dialing From CALLER ID (CID) Memory ...................................................................... 32
Special Message Indicators/Out Of Area Calls ............................................................. 33
"Private" Calls ................................................................................................................. 33
Transmission Error ......................................................................................................... 33
Reviewing Numbers ...................................................................................................... 34
Deleting Numbers .......................................................................................................... 35
ADDITIONAL OPERATING TIPS .................................................................................... 36
MAINTENACE ............................................................................................................... 37
IN CASE OF DIFFICULTY .............................................................................................. 38
WARRANTY ..................................................................................................................... 40
TECHNICAL SPECIFICATIONS ..................................................................................... 41
VTECH COMMUNICATIONS LTD.
Is a trademark of VTECH COMMUNICATIONS LTD.., a member of THE VTECH GROUP OF COMPANIES.
Distributed in the U.S.A. by VTECH Communications, 8770 SW Nimbus Avenue / Beaverton, Oregon, 97008. Distributed in Canada by VTECH Electronics Canada Ltd., Suite 200 - 7671 Alderbridge Way Richmond, B.C. V6X 1Z9.
Copyright 1998 for VTECH COMMUNICATIONS LTD..
91-4049-12-00 ISSUE 0
Loading...
