VM303
Parent unit
Installation Guide
Check for reception strength and camera angle before drilling the
•
holes.

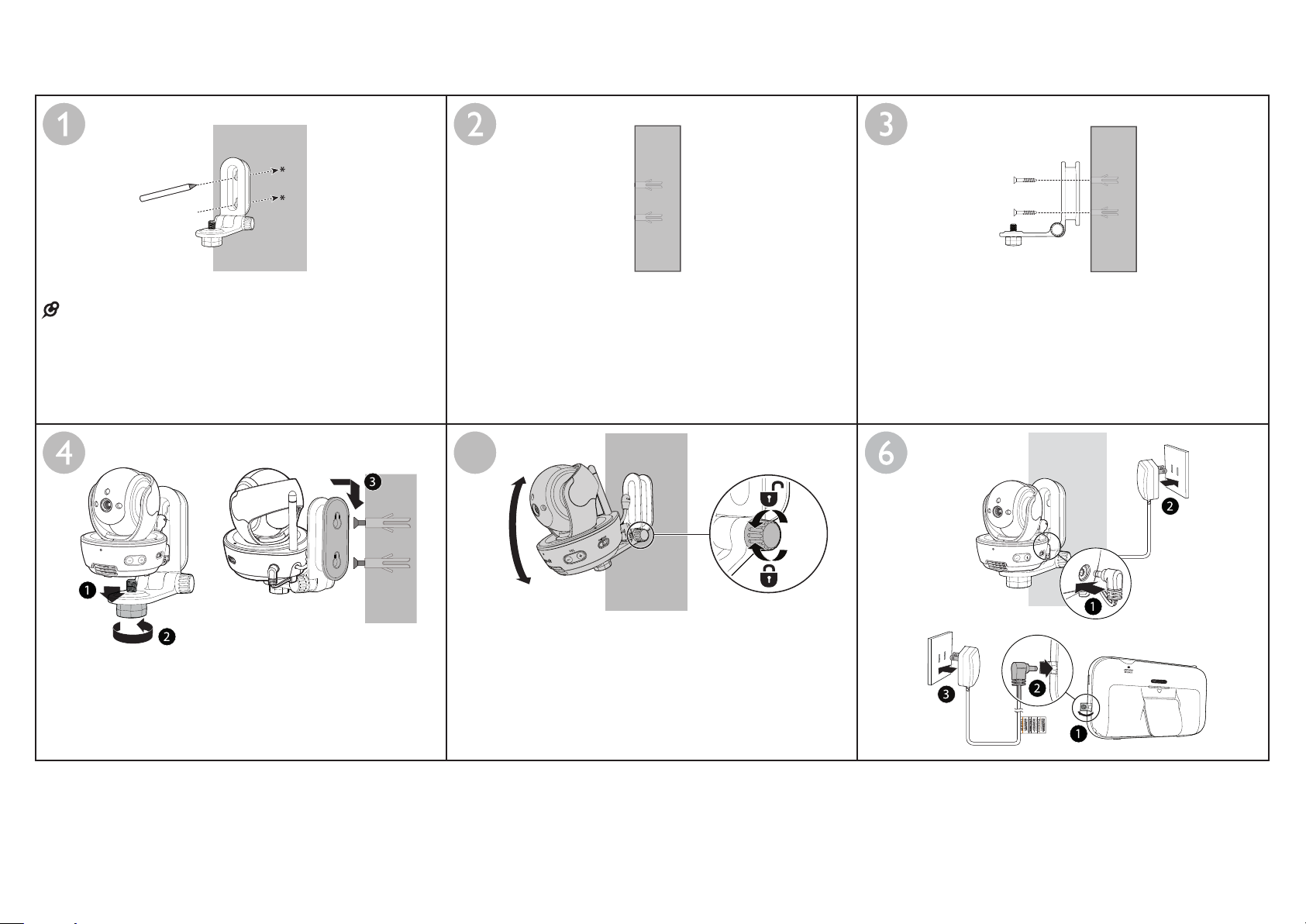

Place the wall mount bracket on a wall and then use a pencil to
mark the top and the bottom holes as shown. Remove the wall
mount bracket and drill two holes in the wall (7/32 inch drill bit).
Parent unit battery
compartment cover
Battery for
parent unit
Parent unit
power adapter
If you drill the holes into a stud, go to step 3.
-OR-
If you drill the holes into an object other than a stud, insert
the wall anchors into the holes. Tap gently on the ends with a
hammer until the wall anchors are flush with the wall.
Baby unit (VM 3 03)
(1 for VM333;
2 for VM333-2 )
Align the wall mount bracket and screws with the holes in the
wall as shown. Tighten the screw in the middle hole first, so that
the wall mount bracket position is fixed. You can tighten the other
screw in the top hole.
Baby unit
power adapter
(1 for VM333;
2 for VM333-2 )
Screws and
wall anchors
(2 for V M333;
4 for VM333-2 )
Wall mo unt
(1 for VM333;
2 for VM333-2 )
Place the baby unit on the wall mount bracket. Tighten the screw
into the threaded socket at the bottom to secure the baby unit.
The default angle of the wall mount bracket is 90 degrees. You
can maximize your baby unit’s viewing angles by tilting the wall
mount bracket.
Hold the baby unit, and then rotate the knob in anticlockwise
direction. This will loosen the joint of the wall mount bracket.
Tilt your baby unit up or down to adjust to your preferred angle.
Then, rotate the knob in clockwise direction to tighten the joint
and secure the angle.
NOTES
5
Alternative method
VO
L
ON/OFF
VO
L
ON/OFF
2
1
Check for reception strength and camera angle before drilling the
•
holes.
Place the wall mount bracket on a wall and then use a pencil to
mark the top and the bottom holes as shown. Remove the wall
mount bracket and drill two holes in the wall (7/32 inch drill bit).
Place the baby unit on the wall mount bracket. Tighten the
screw into the threaded socket at the bottom to secure the baby
unit. Align the holes on the wall mount bracket with the screws
on the wall, and slide the wall mount bracket down until it locks
into place.
If you drill the holes into a stud, go to step 3.
-OR-
If you drill the holes into an object other than a stud, insert
the wall anchors into the holes. Tap gently on the ends with a
hammer until the wall anchors are flush with the wall.
The default angle of the wall mount bracket is 90 degrees. You
can maximize your baby unit’s viewing angles by tilting the wall
mount bracket.
Hold the baby unit, and then rotate the knob in anticlockwise
direction. This will loosen the joint of the wall mount bracket.
Tilt your baby unit up or down to adjust to your preferred angle.
Then, rotate the knob in clockwise direction to tighten the joint
and secure the angle.
Align the wall mount bracket and screws with the holes in the
wall as shown. Tighten the screw in the middle hole first, so that
the wall mount bracket position is fixed. You can tighten the other
screw in the top hole.
