Vtech VM3252-2 User Manual

CAUTION

Go to www.vtechphones.com

> 3ft (1m)

6U]KXOTMUT

to register your product for enhanced warranty support and latest VTech product news.

VM3252-2

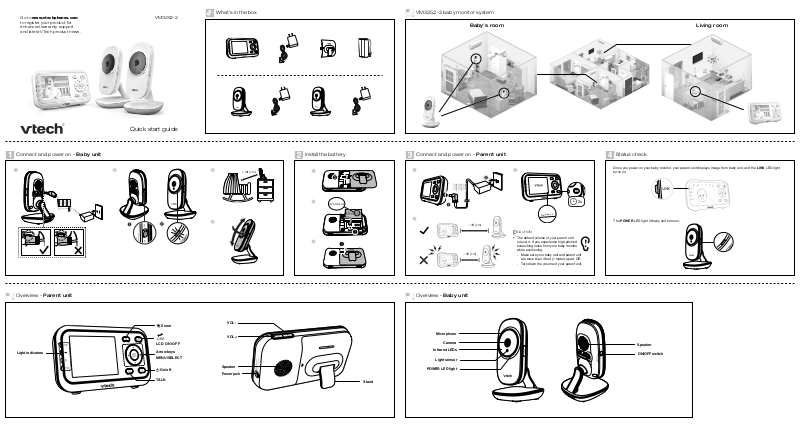

Quick start guide

What’s in the box

VM3252-2 baby monitor system

Baby’s room Living room

Install the battery

THIS SIDE UP

＞3ft (1m)

＜3ft (1m)

Status checkConnect and power on - Baby unit Connect and power on - Parent unit

Once you power on your baby monitor, your parent unit displays image from baby unit, and the LINK LED light turns on.

6U]KXOTMUT

The POWER LED light of baby unit turns on.

• The default volume of your parent unit is level 4. If you experience high-pitched screeching noise from your baby monitor while positioning:

- Make sure your baby unit and parent unit are more than 3 feet (1 meter) apart, OR

- Turn down the volume of your parent unit.

Overview - Parent unit

Light indicators

Zoom

LCD ON /OFF

Arrow keys

MENU/SELECT

On/off

TALK

VOL -

VOL

Speaker

Power jack

Stand

Overview - Baby unit

Microphone

Camera

Infrared LEDs

Light sensor

POWER LED light

Speaker

ON/OFF switch

Basic operation - Parent unit

NOTES

TIP

NOTES

6U]KXOTMULL

Sound activation

Adjust speaker volume

Press VOL - or VOL + to adjust your parent unit speaker volume. It determines the volume of sound transmitted from your baby units.

Change different views - View

Zoom

Press to zoom in or out.

Talk to your baby unit

Press and hold TALK and speak to your parent unit. Your voice is transmitted to the baby unit.

Long press

Change different views - Patrol

Turn off the screen

Press and hold LCD ON/OFF to switch off the screen. You can still hear sound from the selected baby unit.

Long press

Use the menu

Press MENU to enter the main menu, or save a setting.

While in the main menu:

• Press or to scroll among the menu options.

• Press to enter the desired submenu.

• Press MENU to exit the main menu. While in the submenu:

• Press or to scroll among the submenu options.

• Press to enter the desired 2nd level submenu.

• Press SELECT to conﬁrm your selection.

• Press to exit the submenu.

Night vision

Turn off the parent unit

Press and hold to power off your parent unit.

6U]KXOTMULL

Automatically turns on the parent unit screen when the baby unit being viewed detects a sound after the screen is turned off. When no sound is detected within 50 seconds, the screen is automatically turned off to save power.

Basic operation - Baby unit

Press to switch to another camera in SINGLE-CAM mode.

Press .

Mount the baby monitor (optional)

In PATROL mode:

1. Press MENU when the parent unit is idle.

2. Press or to choose , then press .

Press or to switch on or off PATROL mode, then press SELECT to confirm your selection.

10s

The baby unit has infrared LEDs that allow you to see your baby at night or in a dark room. When the baby unit detects low light levels, the infrared LEDs turn on automatically. The images from this baby unit is in black and white, and appears on screen.

• I t is normal if you see a s hort wh ite glare on your parent unit screen as the ba by unit is ad apting t o the dark environment.

• W hen the in frared LEDs are on, th e image is i n black an d white. This is nor mal due to ex ternal light sources.

• Depending on the surroundings and other interfering factors, like lightings, objects, colors and backgrounds, the display resolution may vary. Adjust the baby unit’s angle, or place the baby unit at a higher level to prevent glare and blurry display.

Turn off the baby unit

Slide the ON/OFF switch to OFF to power off your baby unit.

• Check for reception strength and camera angle before drilling the holes.

Use a pencil to mark two holes in parallel. Make sure they are the same distance apart as the mounting holes on the baby unit.

Drill two holes in the wall (7/32 inch drill bit). If you drill the holes into a stud, insert the screws into the holes. Tighten the screws until only 1/4 inch of the screws are exposed.

Align the mounting holes on the baby unit with the screws on the wall. Slide the mounting holes on the baby unit down until it locks into place.
