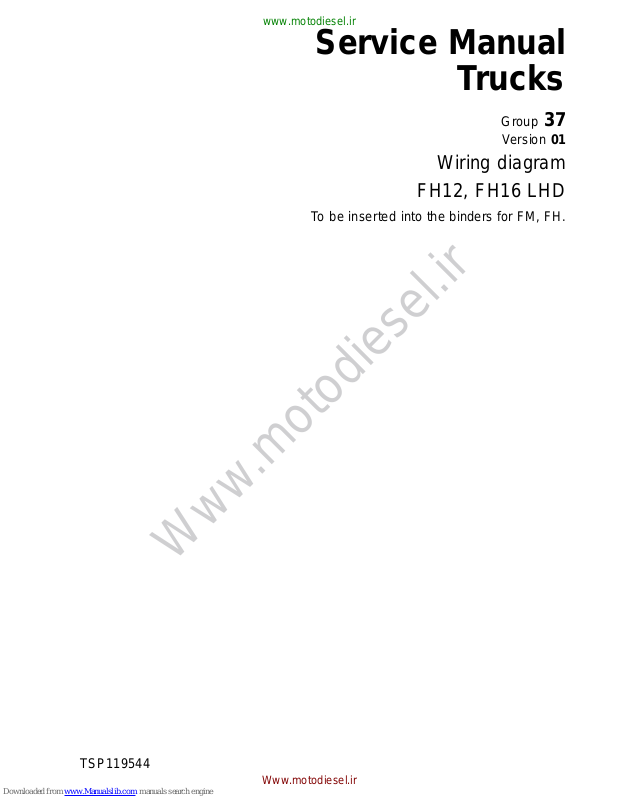

Page 1
Service Manual
Trucks
Group 37
Version 01
Wiring diagram
FH12, FH16 LHD
To be inserted into the binders for FM, FH.
TSP119544
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 2
Foreword
The descriptions and service procedures contained in this manual are based on designs
and methods studies carried out up to September 1998.
The products are under continuous development. Vehicles and components produced
after the above date may therefore have different specifications and repair methods.
When this is judged to have a significant bearing on this manual, supplementary service
bulletins will be issued to cover the changes.
The new edition of this manual will update the changes.
In service procedures where the title incorporates an operation number, this is a
reference to V.S.T. (Volvo Standard Times).
Service procedures which do not include an operation number in the title are for general
information and no reference is made to V.S.T.
The following levels of observations, cautions and warnings are used in this Service
Documentation:
Note: Indicates a situation, handling or circumstance which should be observed.
Important: Indicates a situation, handling or circumstance which should be emphasized
so as not to lead to personal injury or damage to property.
Caution: Indicates a potentially hazardous situation which, if not avoided, may result in
minor or moderate injury or damage to property.
Warning: Indicates a potentially hazardous situation which, if not avoided, could result
in death, serious injury or major damage to property.
Danger: Indicates an imminently hazardous situation which, if not avoided, will result in
death or serious injury.
Volvo Truck Corporation
Göteborg, Sweden
Order number: TSP119544
© 1998 Volvo Truck Corporation, Göteborg, Sweden
All rights reserved. No part of this publication may be reproduced, stored in
retrieval system, or transmitted in any forms by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written
permission of Volvo Truck Corporation.
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 3
Contents
Example of wiring diagram ................................................................... 2
Examples of symbols on wiring diagram ........................................... 3
Component wiring diagram index ....................................................... 5
Component wiring diagrams ................................................................ 7

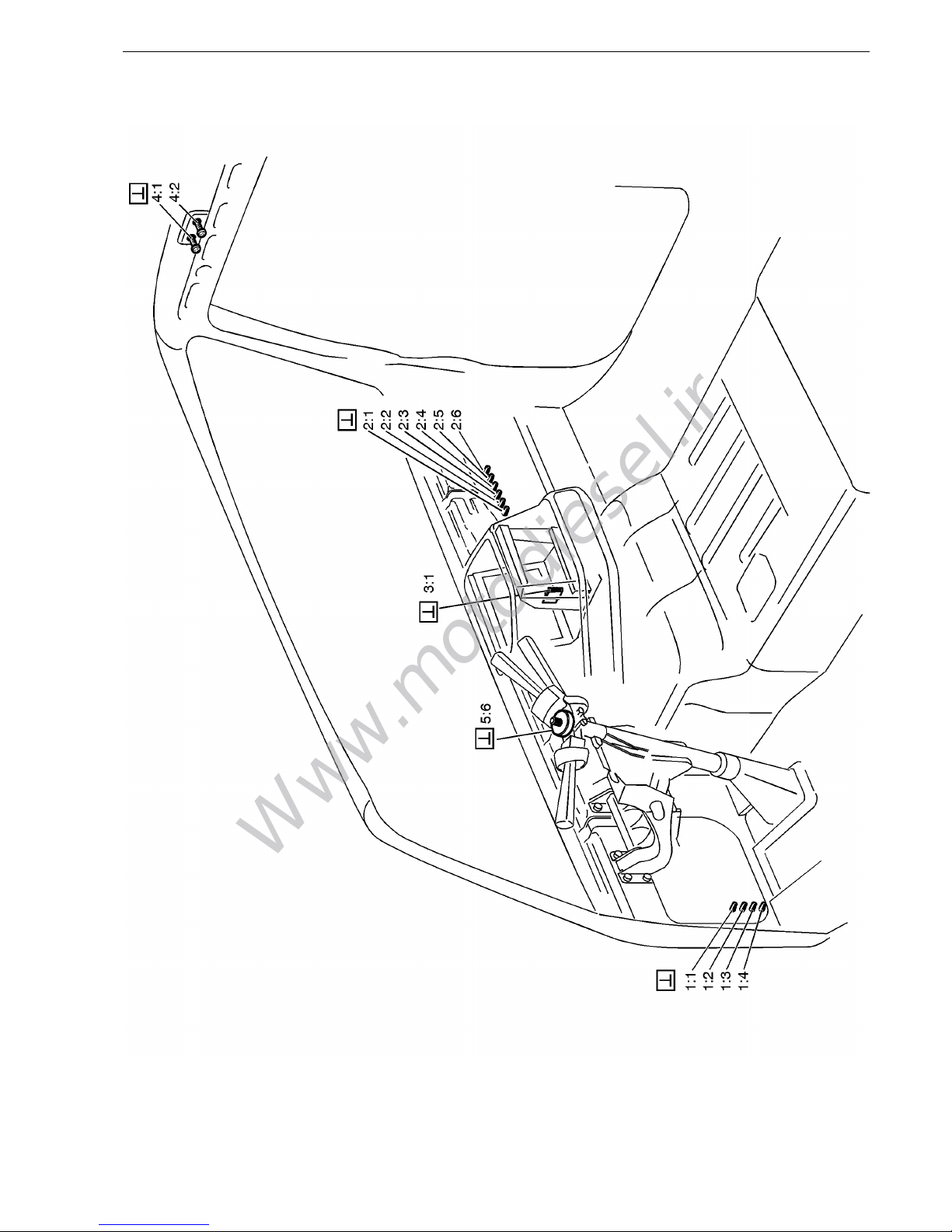

Illustrations index ................................................................................ 48
Illustrations ........................................................................................... 49
Circuit card electrical centre ............................................................ 104
Fuses on circuit card electrical centre ........................................... 105
Relays on circuit card electrical centre .......................................... 106

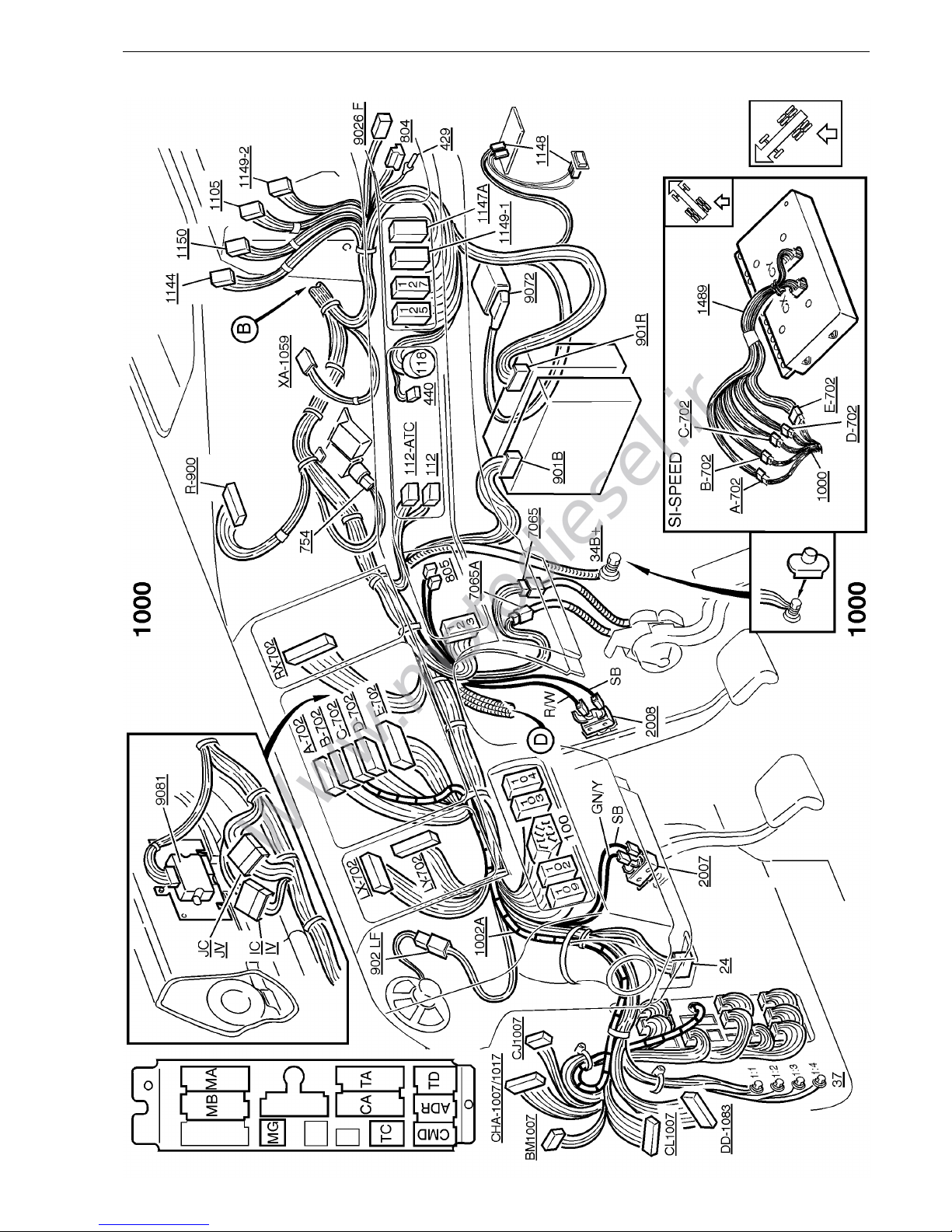

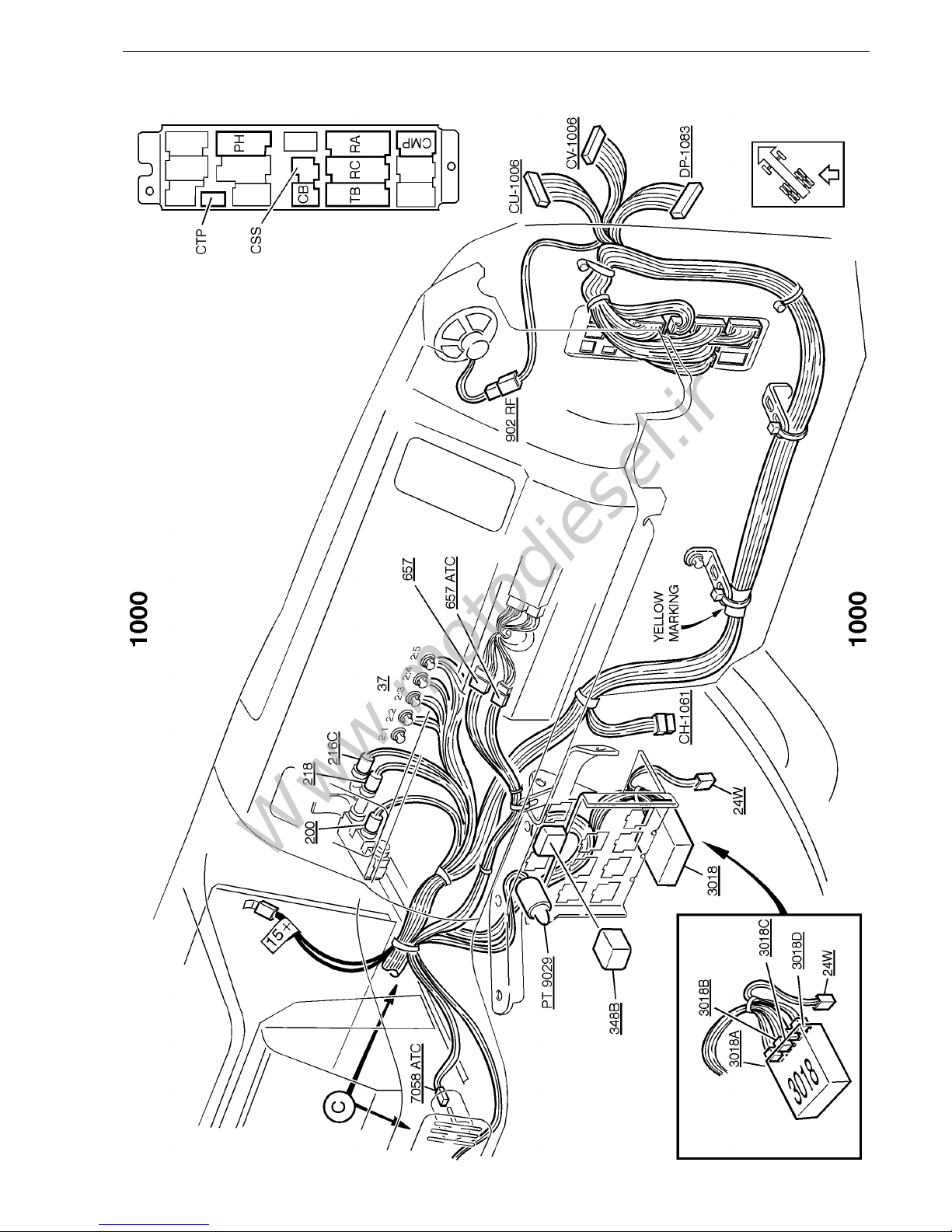

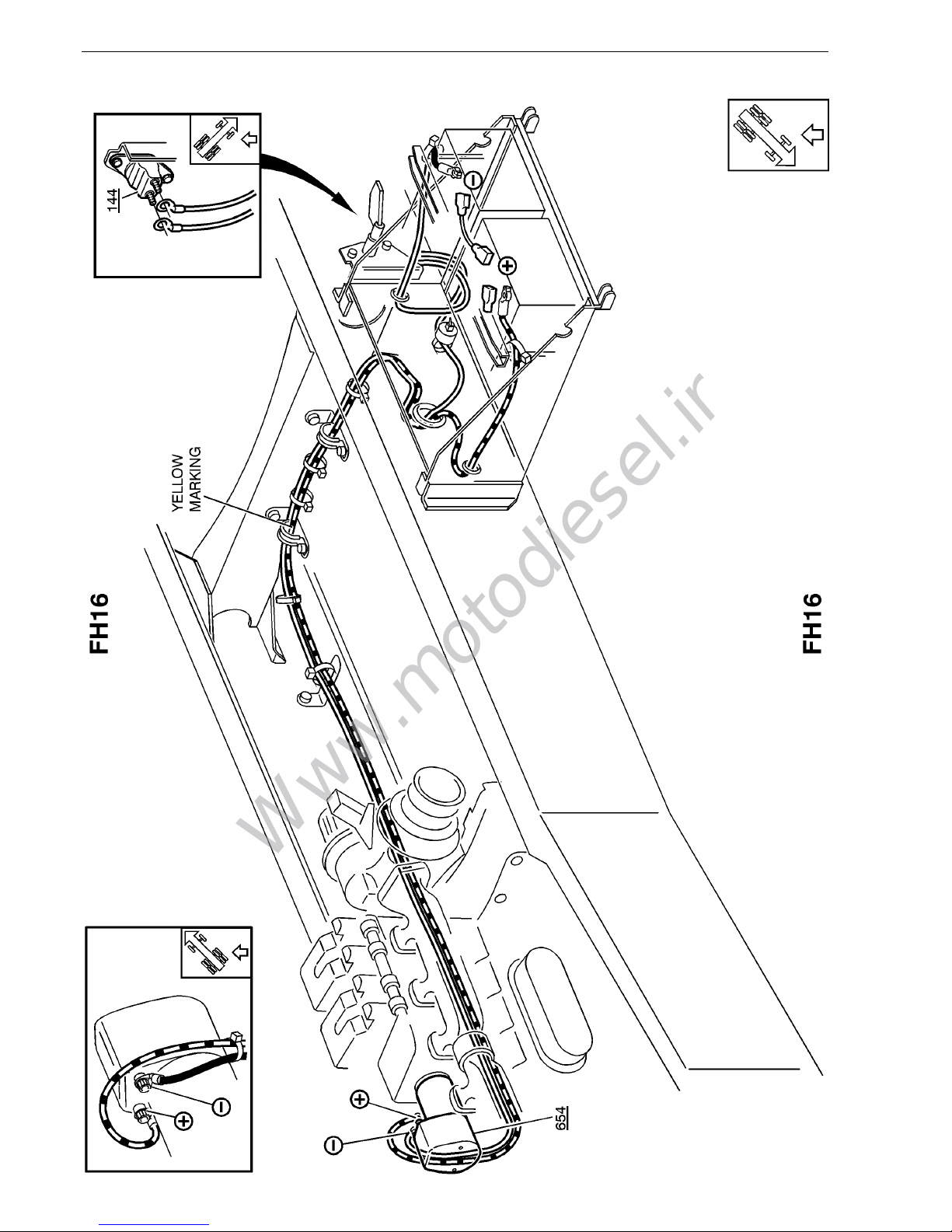

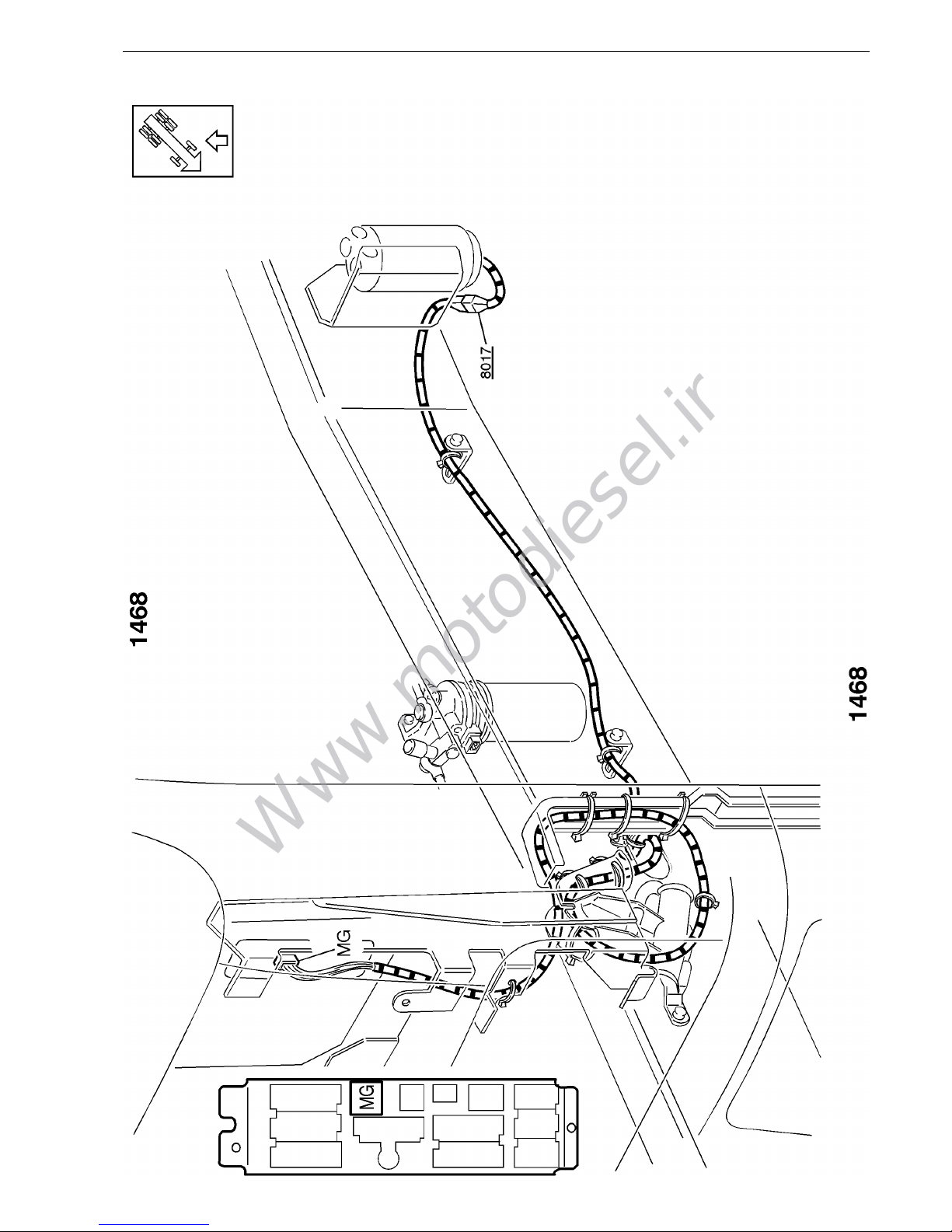

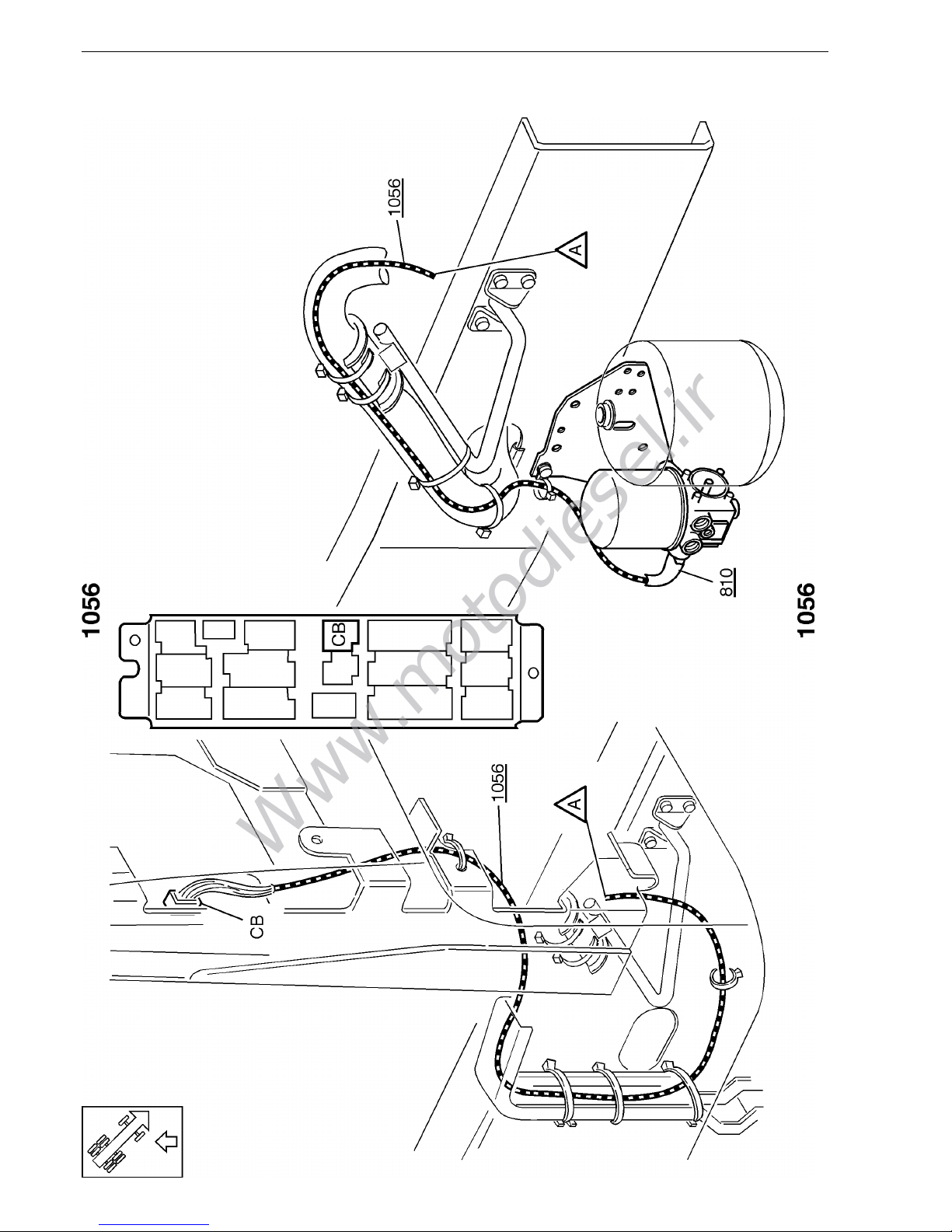

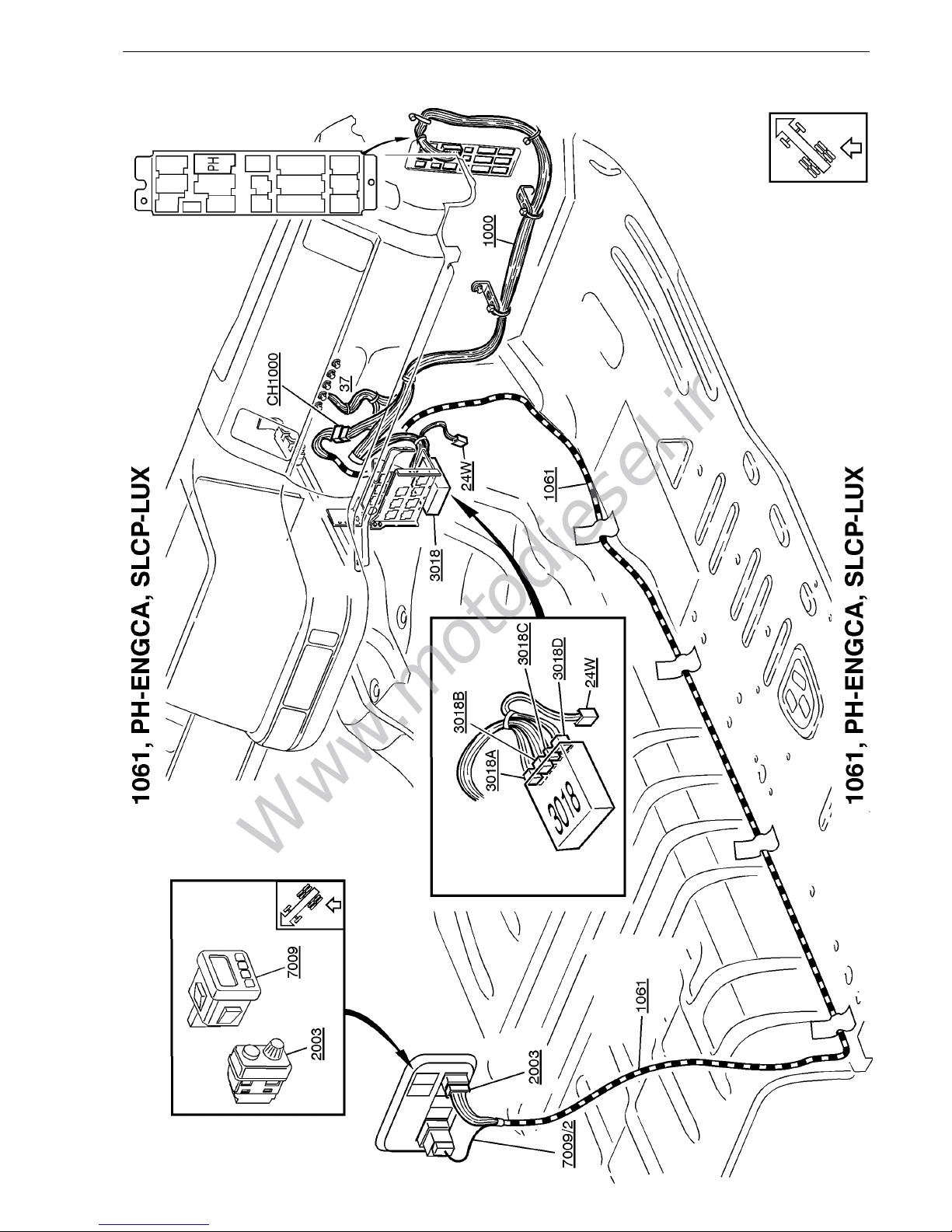

Cable harness illustration index ...................................................... 107
List of connectors ............................................................................. 110
List of components ........................................................................... 117
Abbreviations ..................................................................................... 123
Cable colour code ............................................................................. 124
Feedback
1
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 4
Group 37 Wiring diagram FH12, FH16 LHD Example of wiring diagram

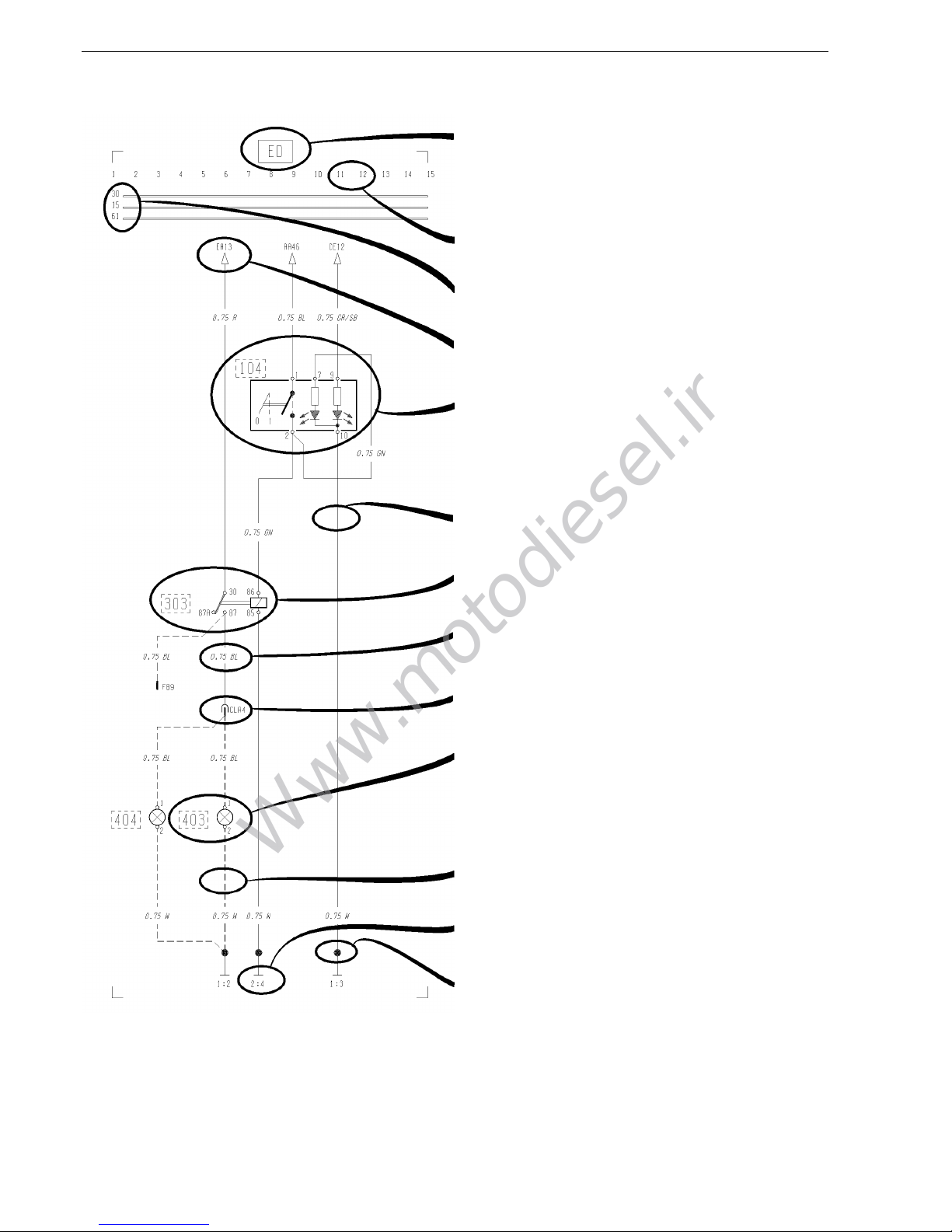

Example of wiring diagram
T3009608
Refer to the list of contents for the designation of the
circuit diagram. If the circuit diagram designation is
boxed in with broken lines this means that the circuit
diagram is not standard on all market or vehicle
models.
Seek column.
30 Voltage battery, kl.30.
15 Voltage with starting key in drive position, kl.15.
61 Voltage when alternator charges, kl.61.
Reference arrow (for circuit diagram EA, seek column
13).
Switch, comp. no. (104).
Single lines, cables.
Relay, comp. no. (303).
Cable area and colour (0.75 mm
2
blue).
Connector (CLA terminal 4).
Bulb, comp. no. (403)
A broken line box round the component number
shows that the component is not standard on all markets or vehicle models.
If the line is broken this means the cable is not standard on all markets or vehicle model.
Earth connection point no: 2. and earth terminal no: 4.
(see diagram Earth Connections).
Joint sleeve.
2
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 5
Group 37 Wiring diagram FH12, FH16 LHD Examples of symbols on wiring diagram

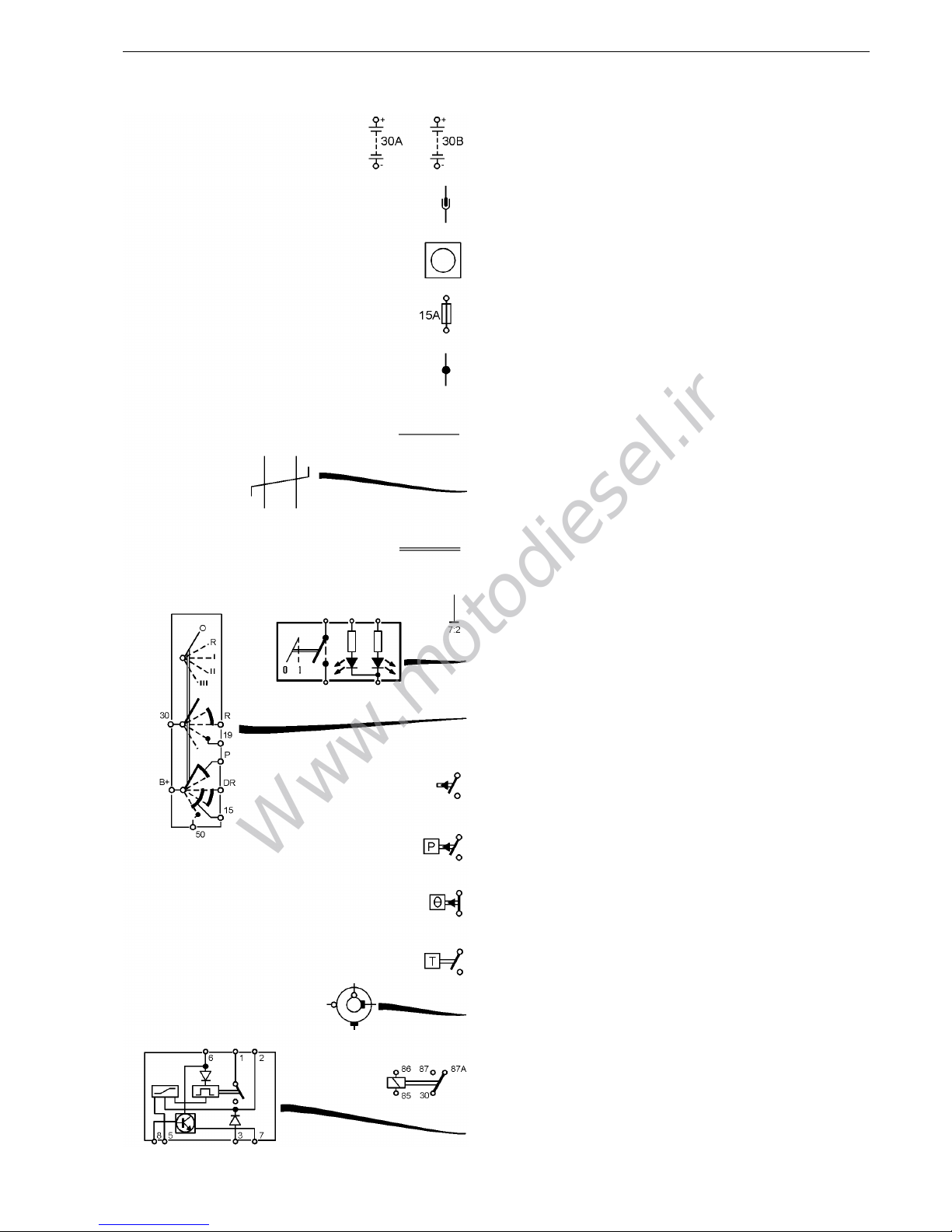

Examples of symbols on wiring diagram
T3009609
Battery
Connector
Junktion
Fuse
Joint sleeve
Cable
Twisted cables
Conductor on circuit card
Earth connection and cable
Switch
Switch, starting switch
Closing contakt
Closing contakt, pressure-regulated
Break contakt, temperature-regulated
Closing contakt, time-regulated
Slip contakt, horn
Relay
Relay with internal circuit diagram
3
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 6

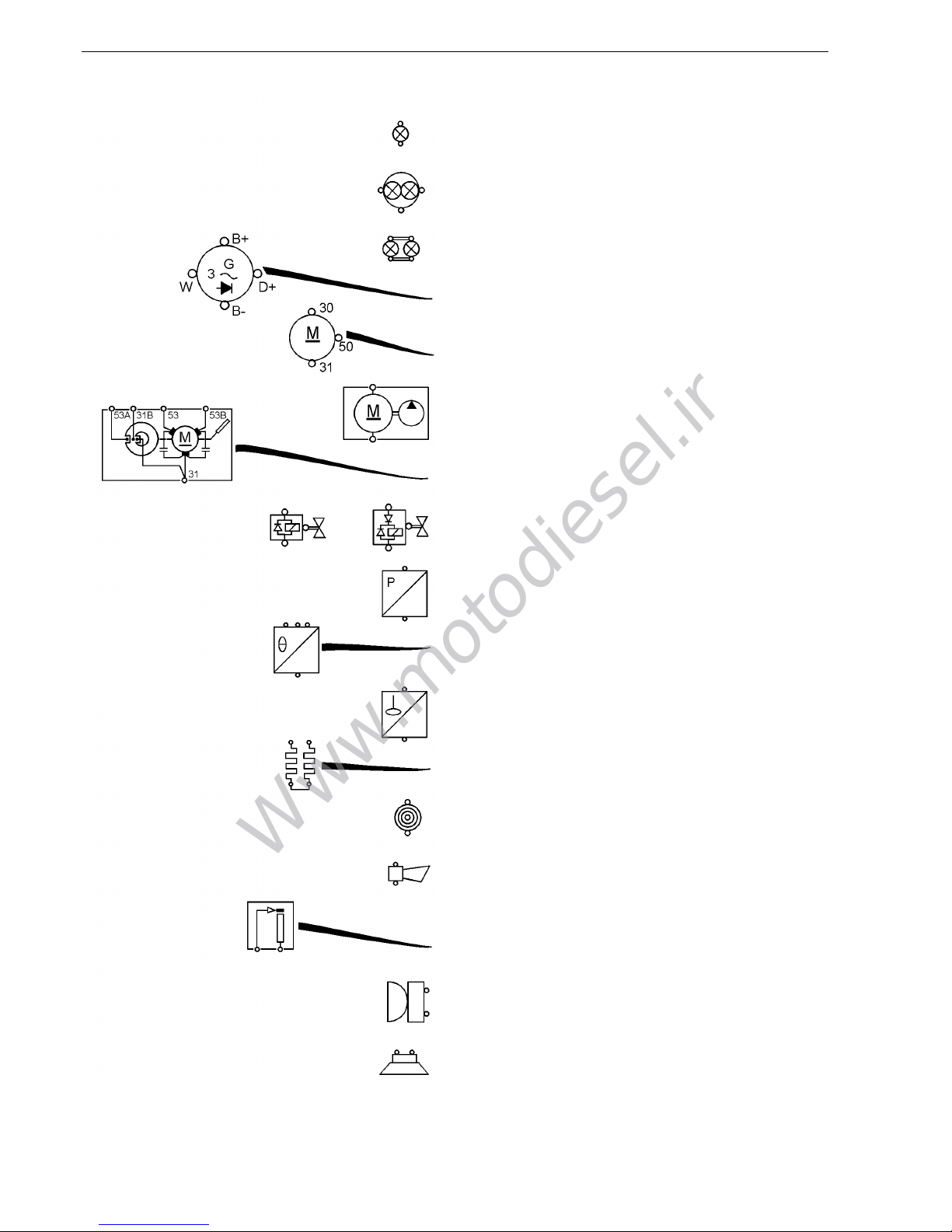

Group 37 Wiring diagram FH12, FH16 LHD Examples of symbols on wiring diagram
T3009610
Bulb
Bulb, full beams and dipped beams
Bulb, tail light
Alternator
Starter motor
Washer motor
Windscreen wiper motor
Solenoid valve with diode
Pressure sensor
Temperature sensor
Level sensor
Starting heater
Cigarette lighter
Horn
Rheostat
Buzzer
Loudspeaker
4
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 7
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagram index
Component wiring diagram index
AA

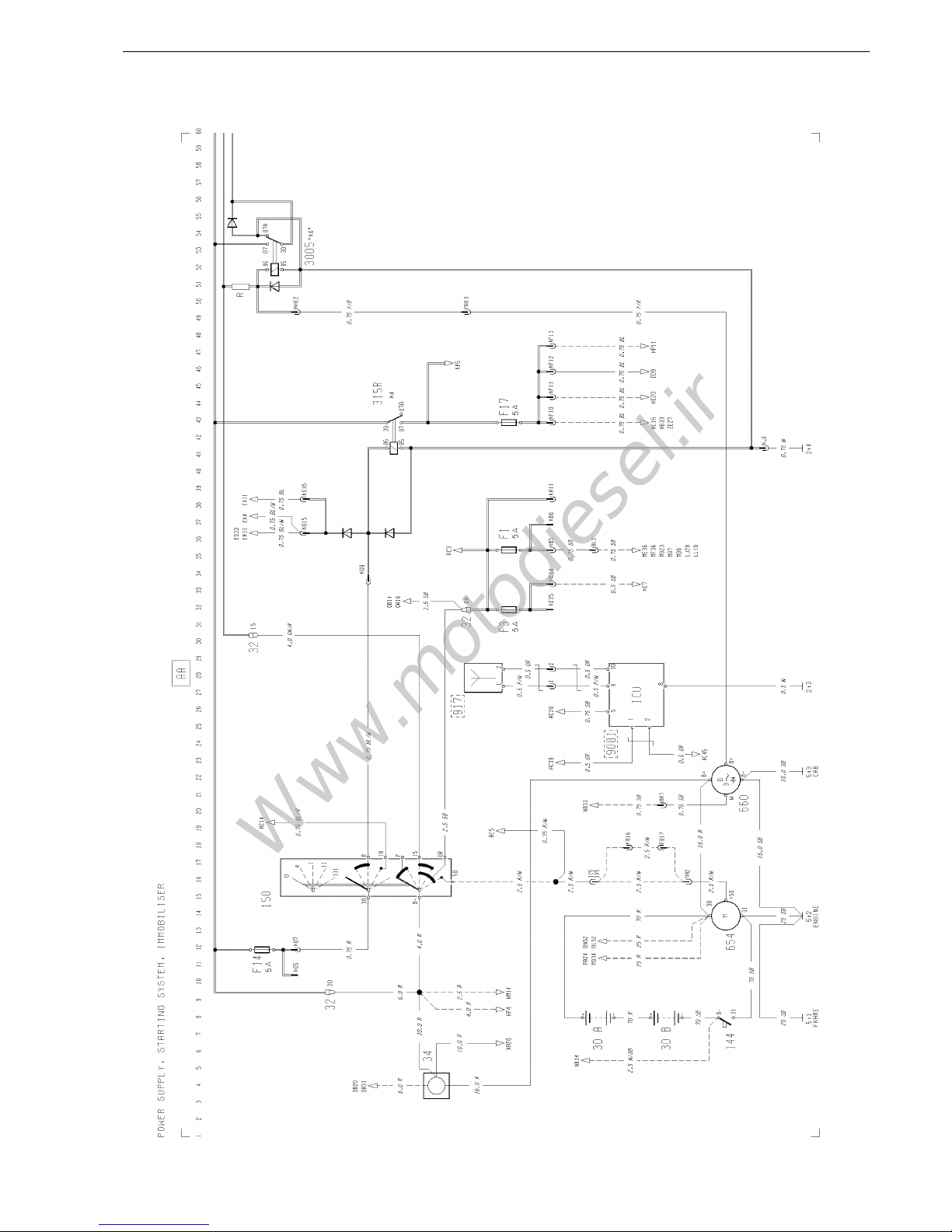

Power supply, starting system, immobiliser .................................................................... page 7
AC

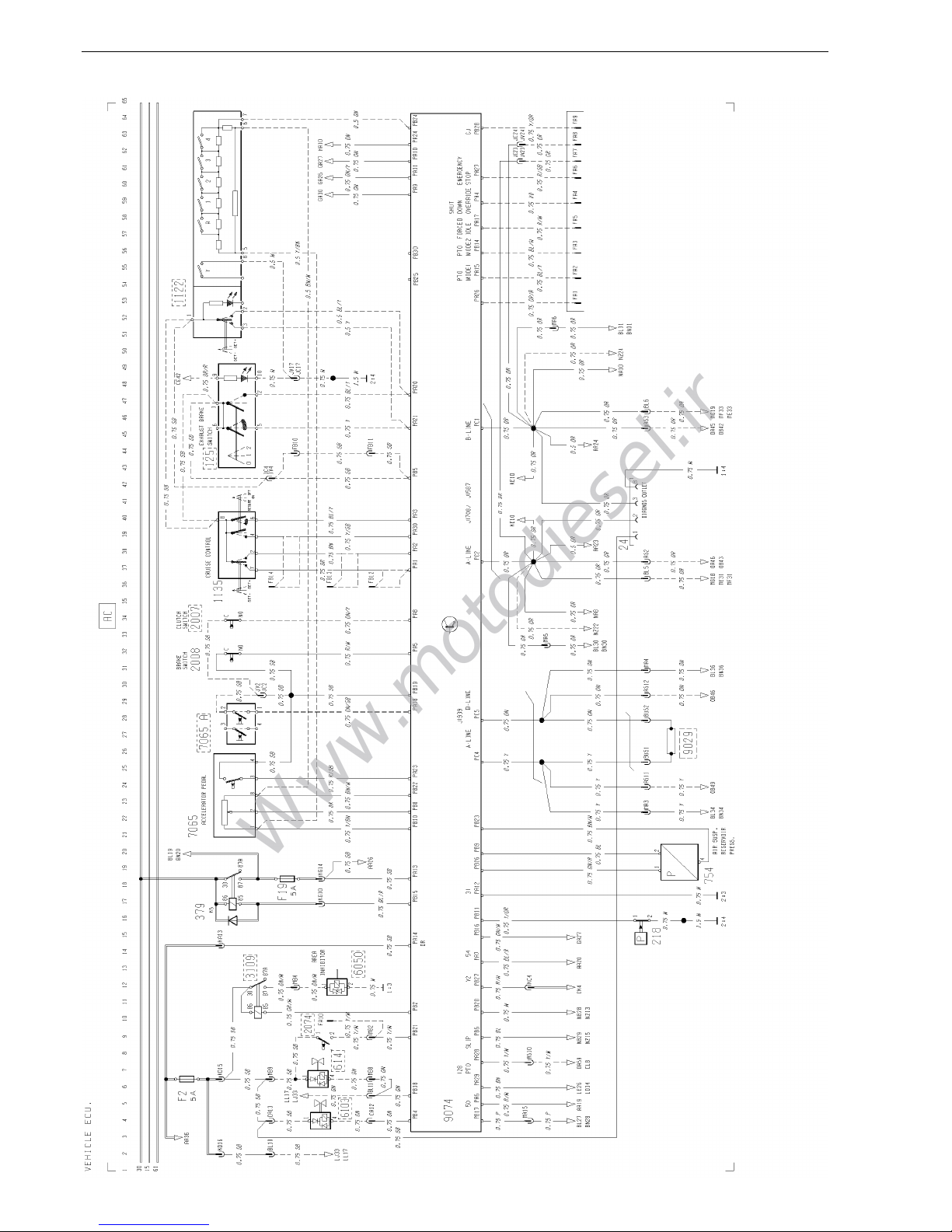

Vehicle ECU .................................................................................................................... page 8
BL

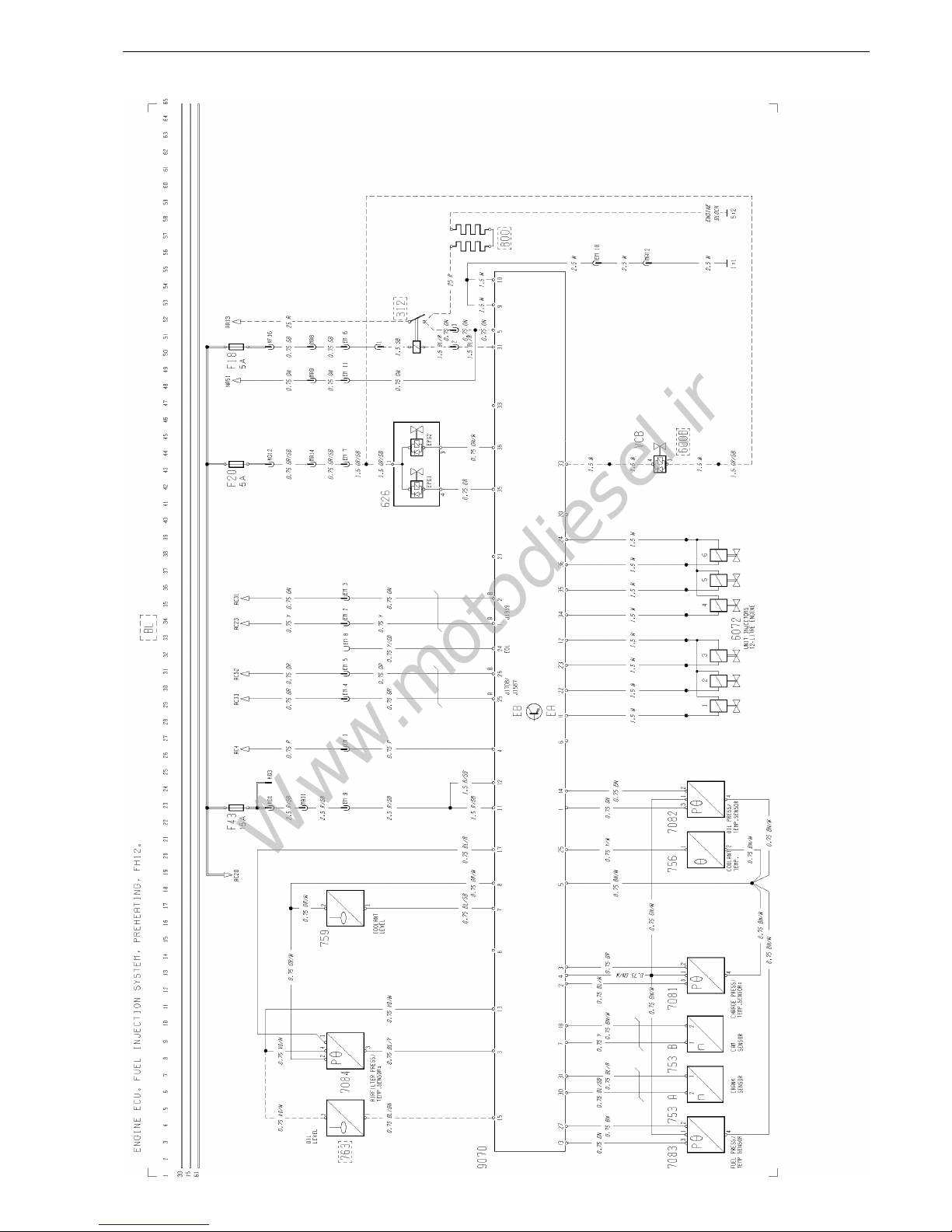

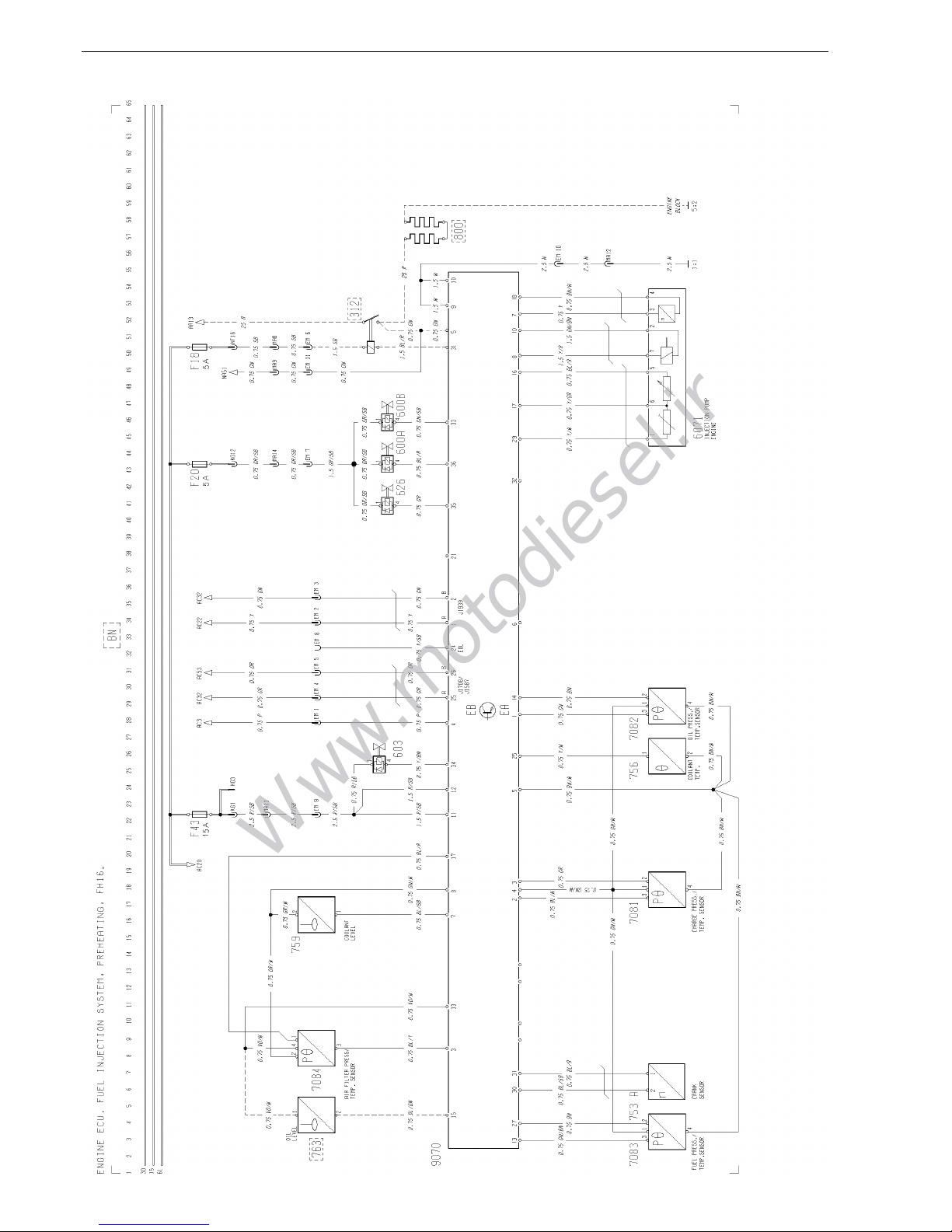

Engine ECU, fuel injection system, preheating, FH12 .................................................... page 9
BN

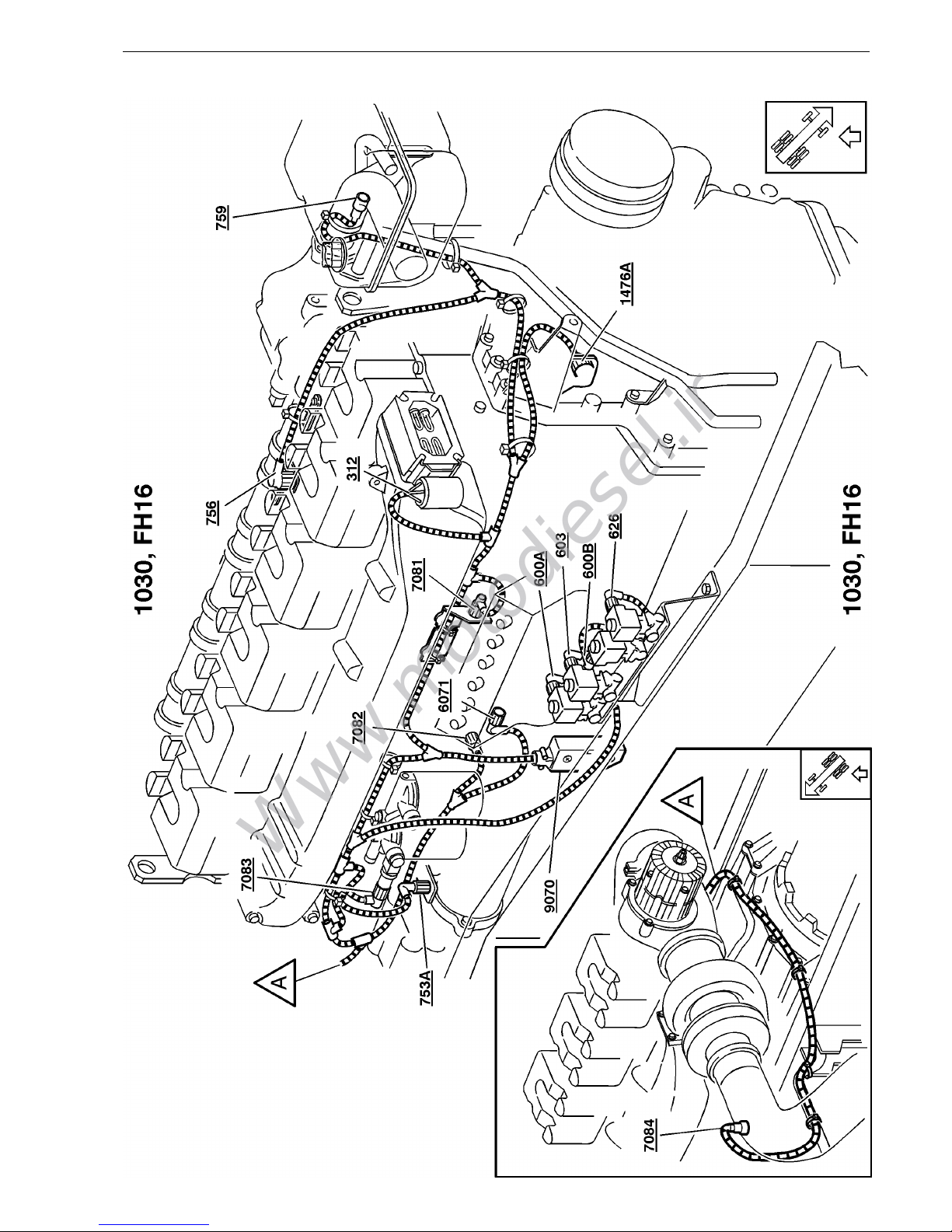

Engine ECU, fuel injection system, preheating, FH16 .................................................... page 10
CE

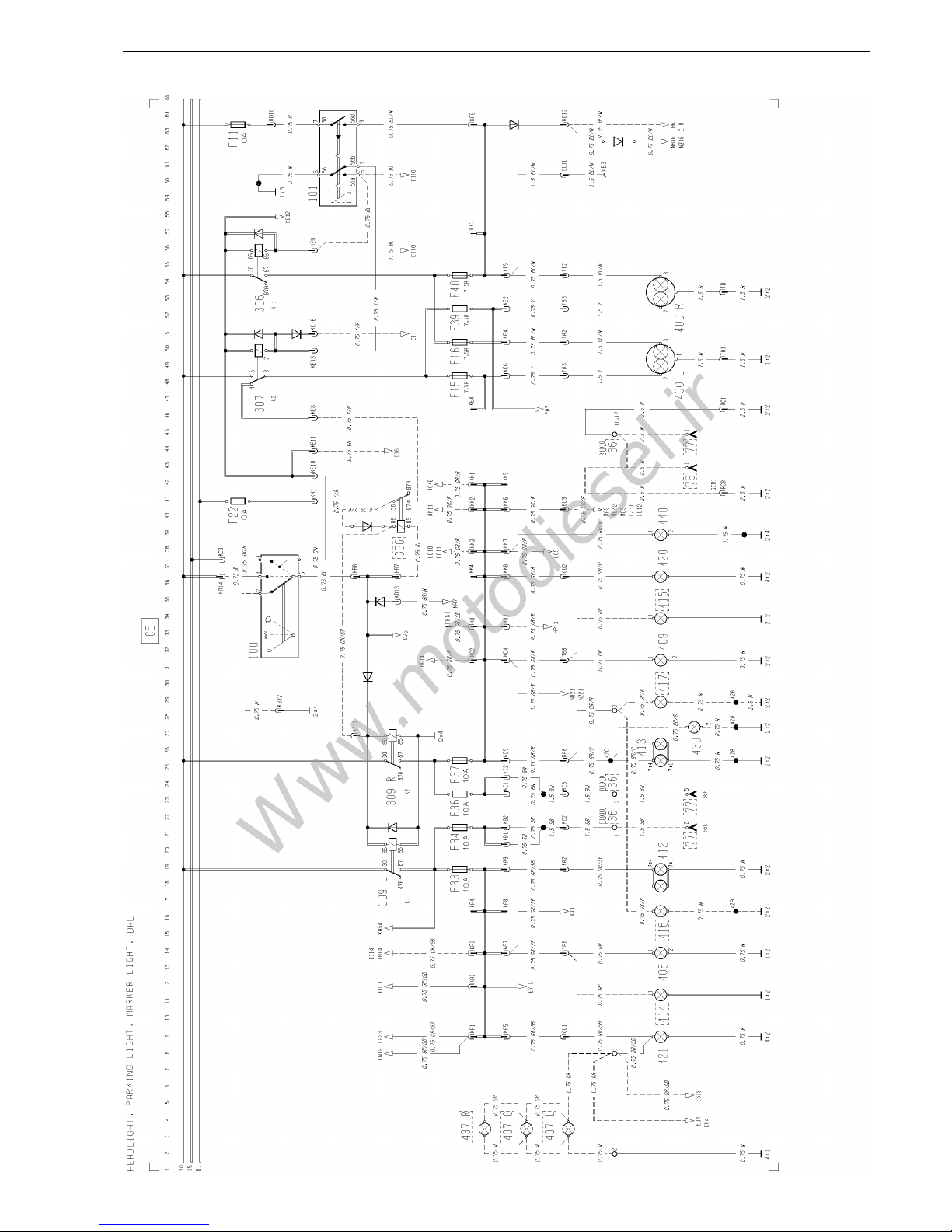

Head light, parking light, marker light, DRL ...................................................................
page 11

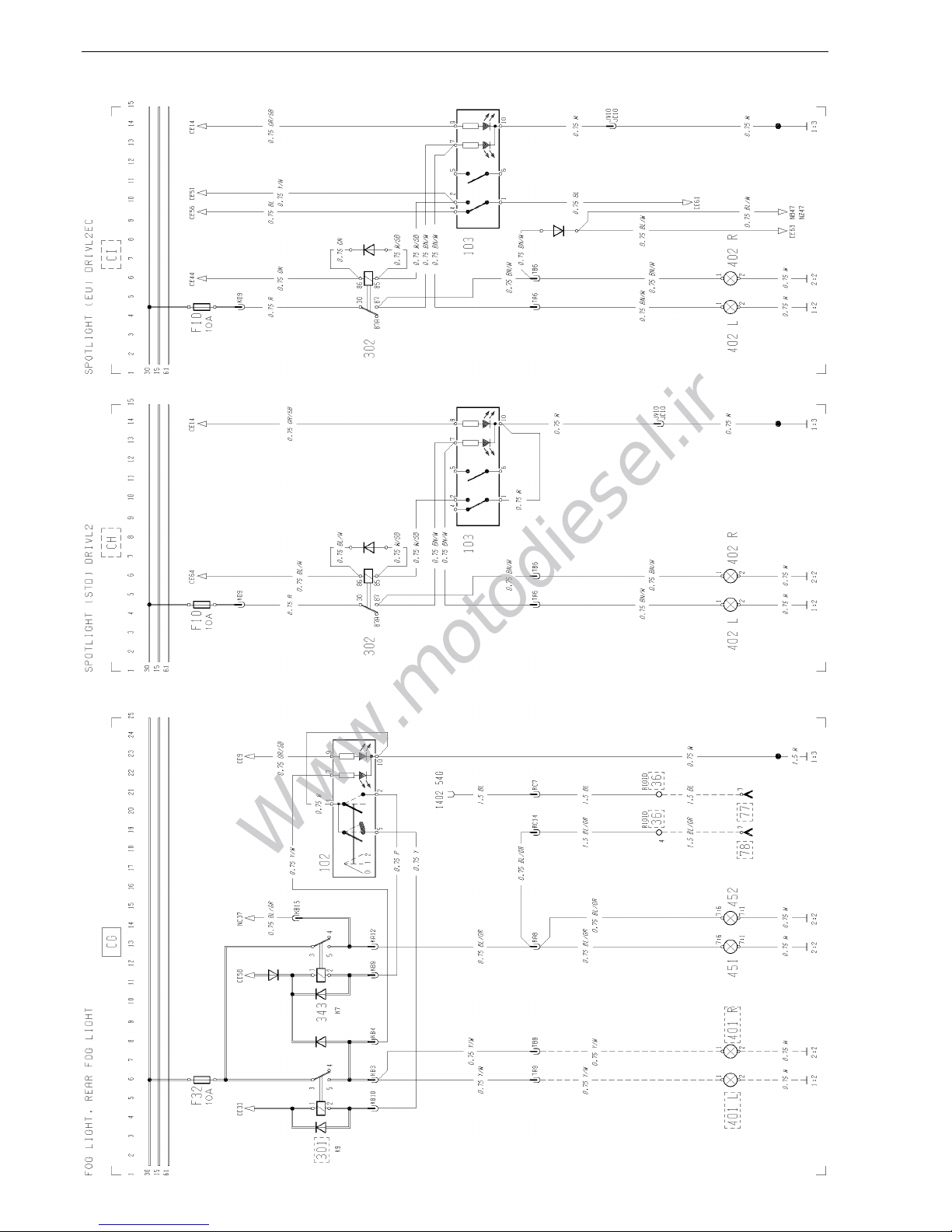

CG
Fog light, rear fog light ....................................................................................................
page 12
CH
Spot light (STD) DRIVL2 .................................................................................................
page 12
CI
Spot light (EU) DRIVL2EC ..............................................................................................
page 12
CK

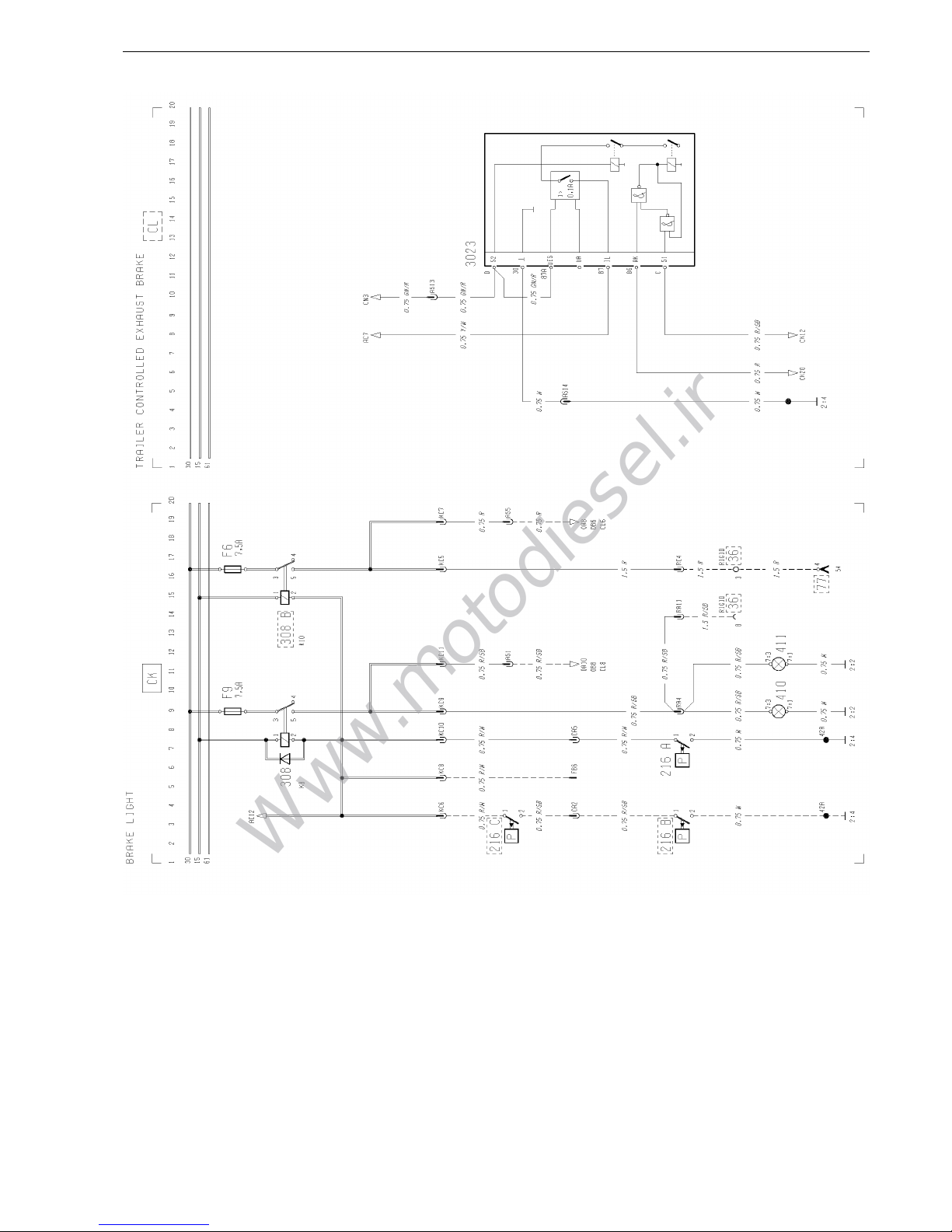

Brake light ........................................................................................................................
page 13
CL
Trailer controlled exhaust brake ......................................................................................
page 13
CN

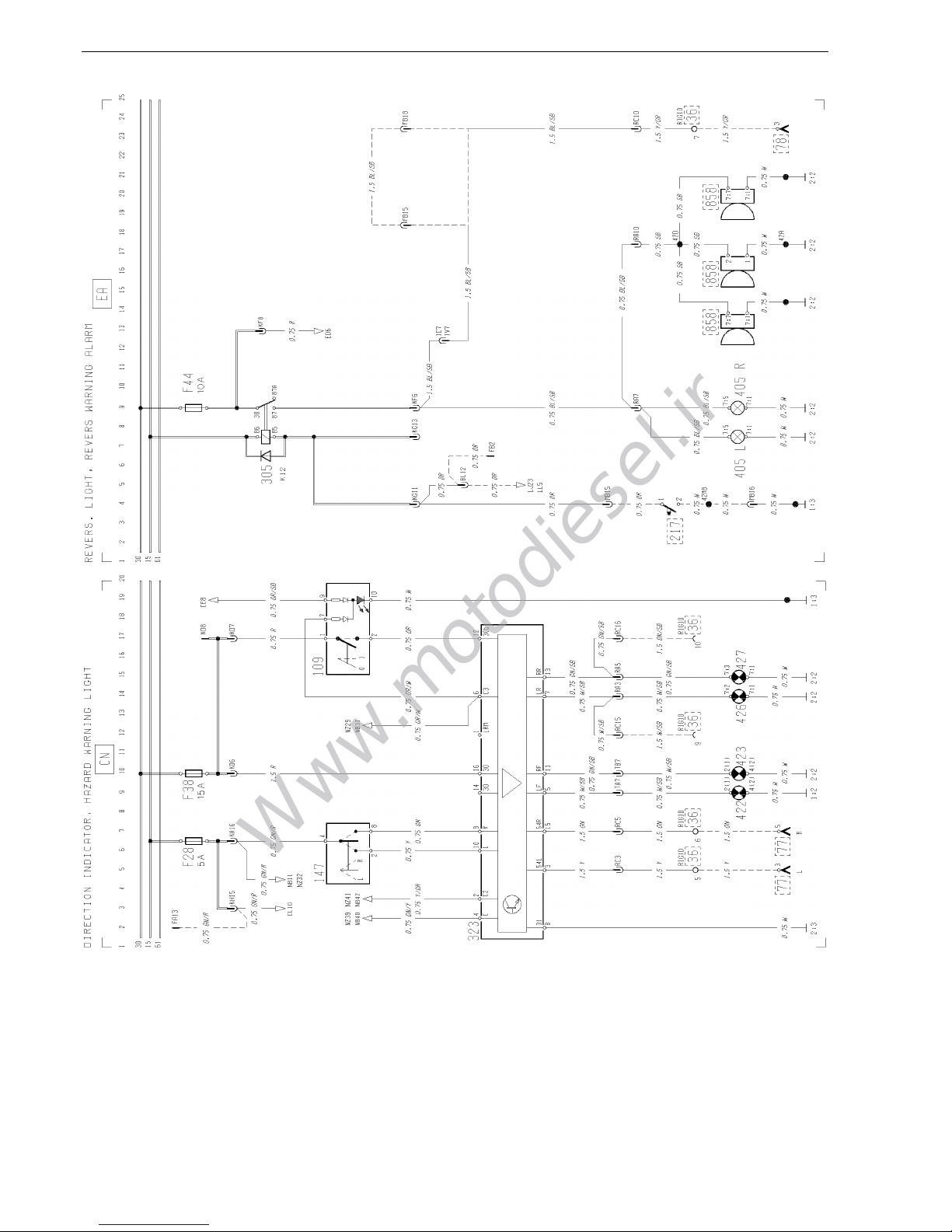

Direction indicator, hazard warning light .........................................................................
page 14
EA
Reversing light, reversing warning alarm ........................................................................
page 14
ED

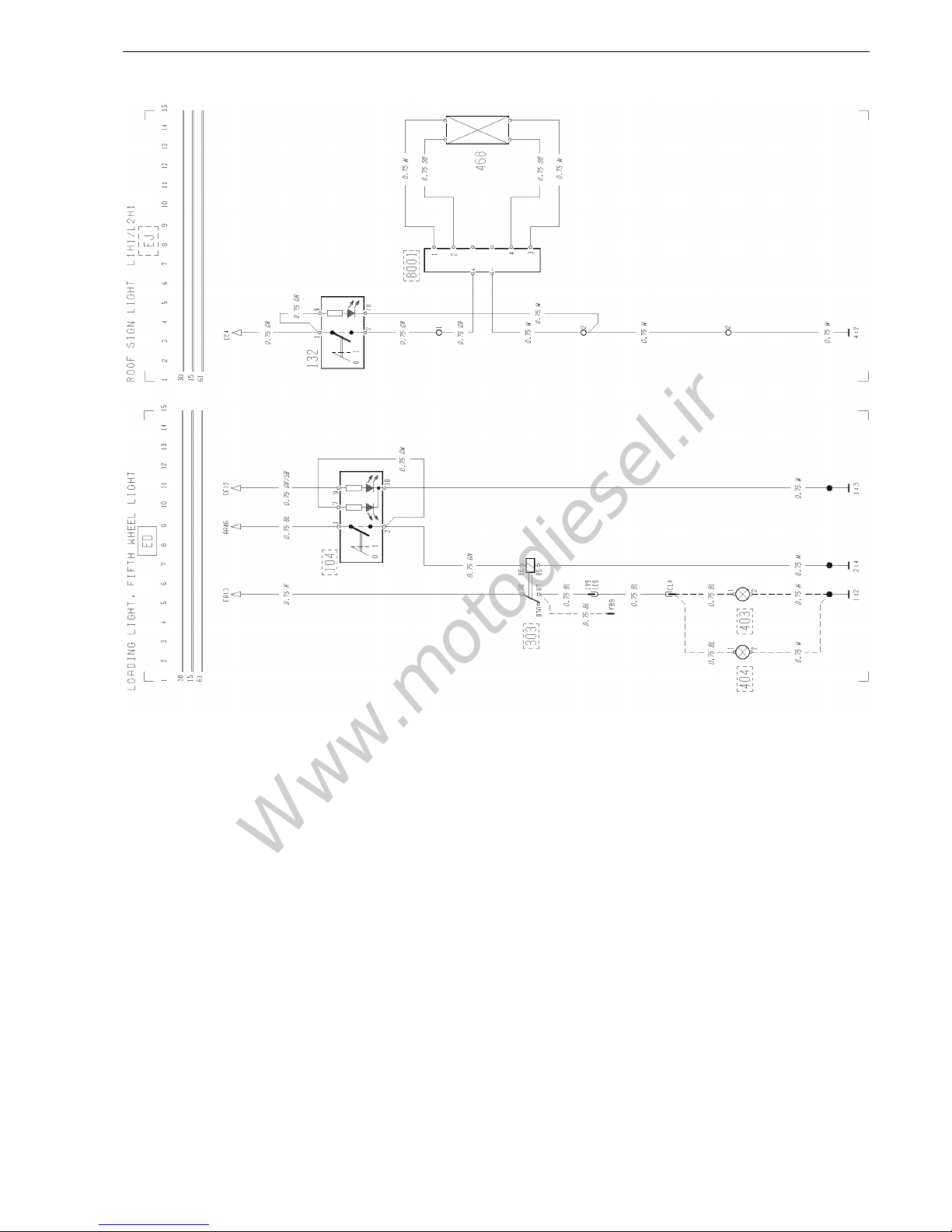

Loading light, fifth wheel light ..........................................................................................
page 15
EJ
Roof sign light, L1H1/L2H1 .............................................................................................
page 15
EK

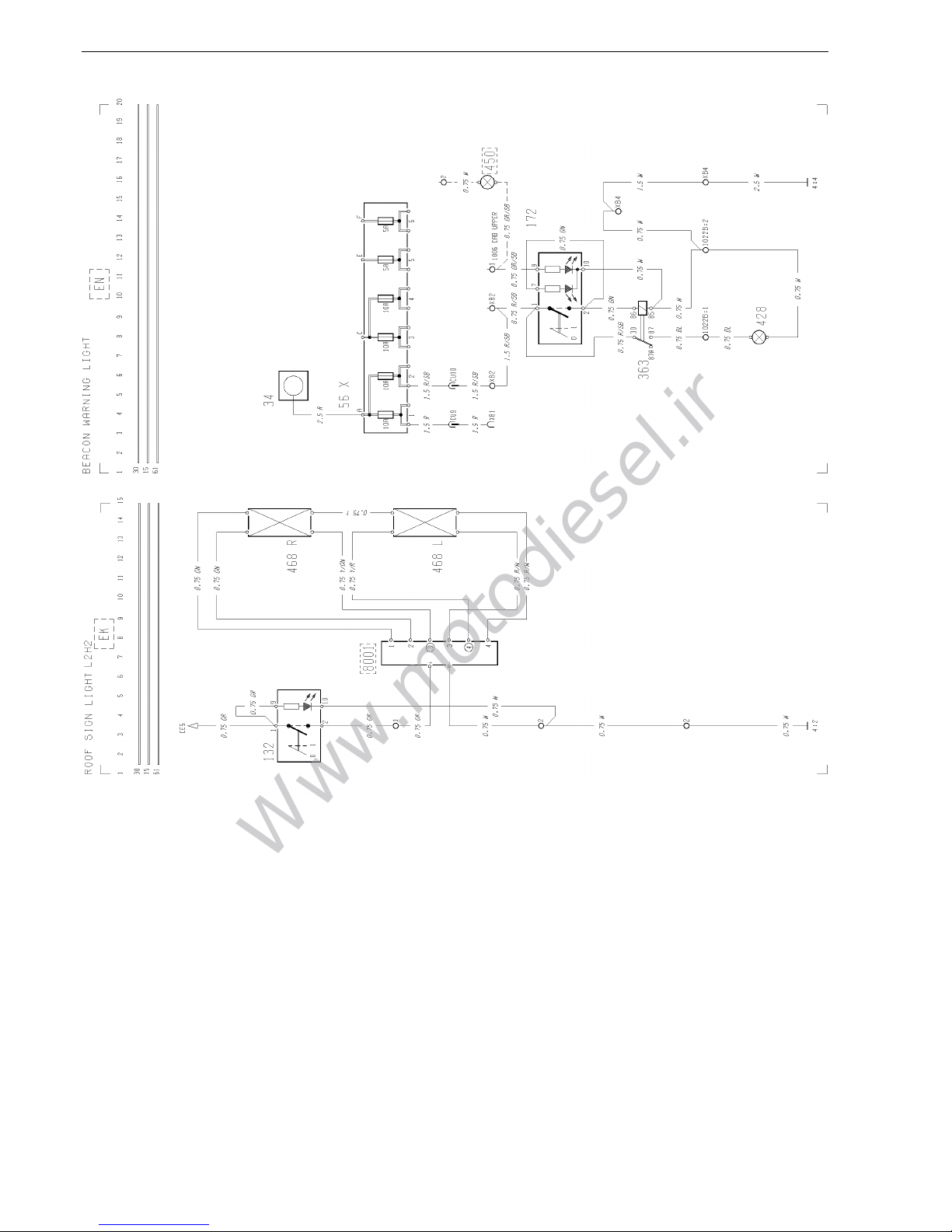

Roof sign light, L2H2 .......................................................................................................
page 16
EN
Beacon warning light .......................................................................................................
page 16
ER

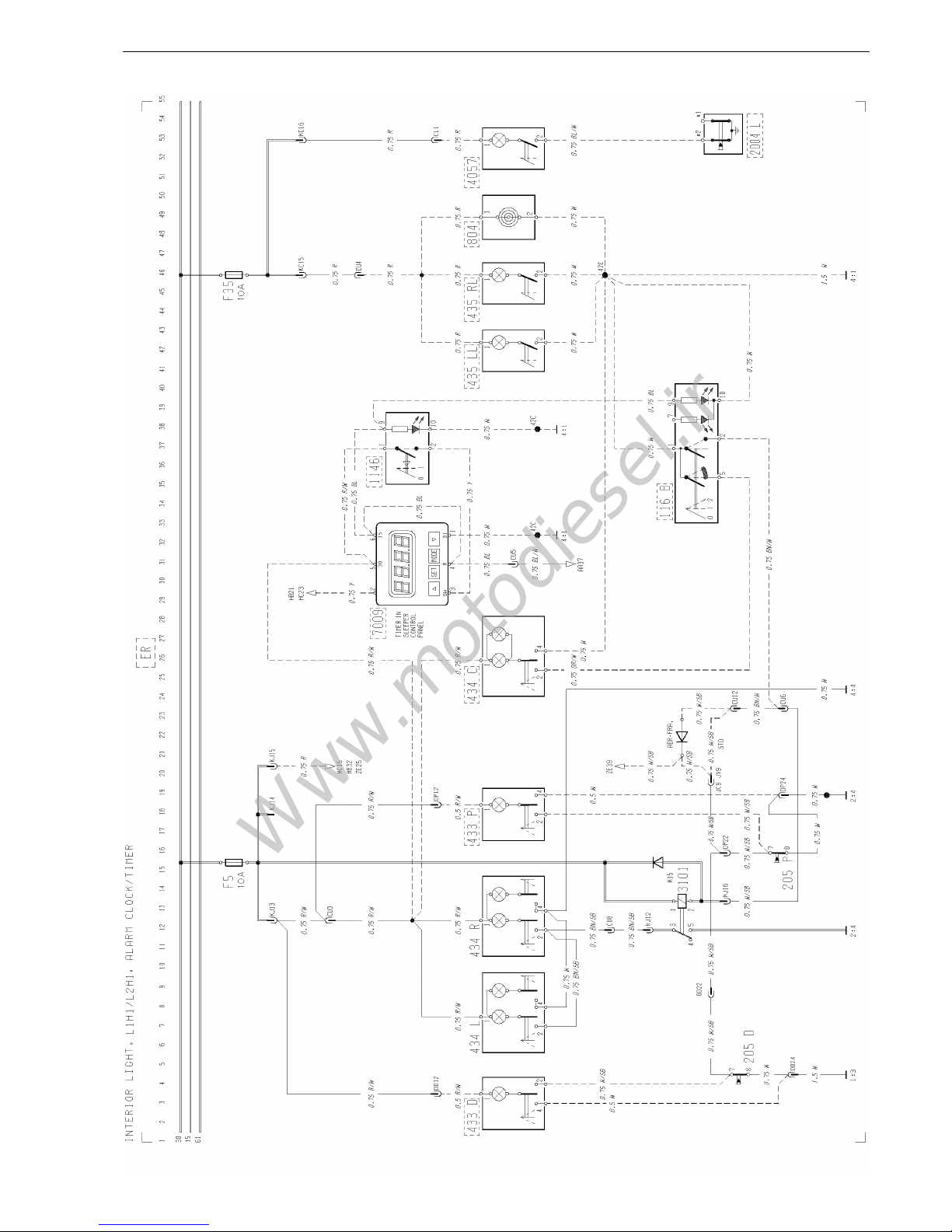

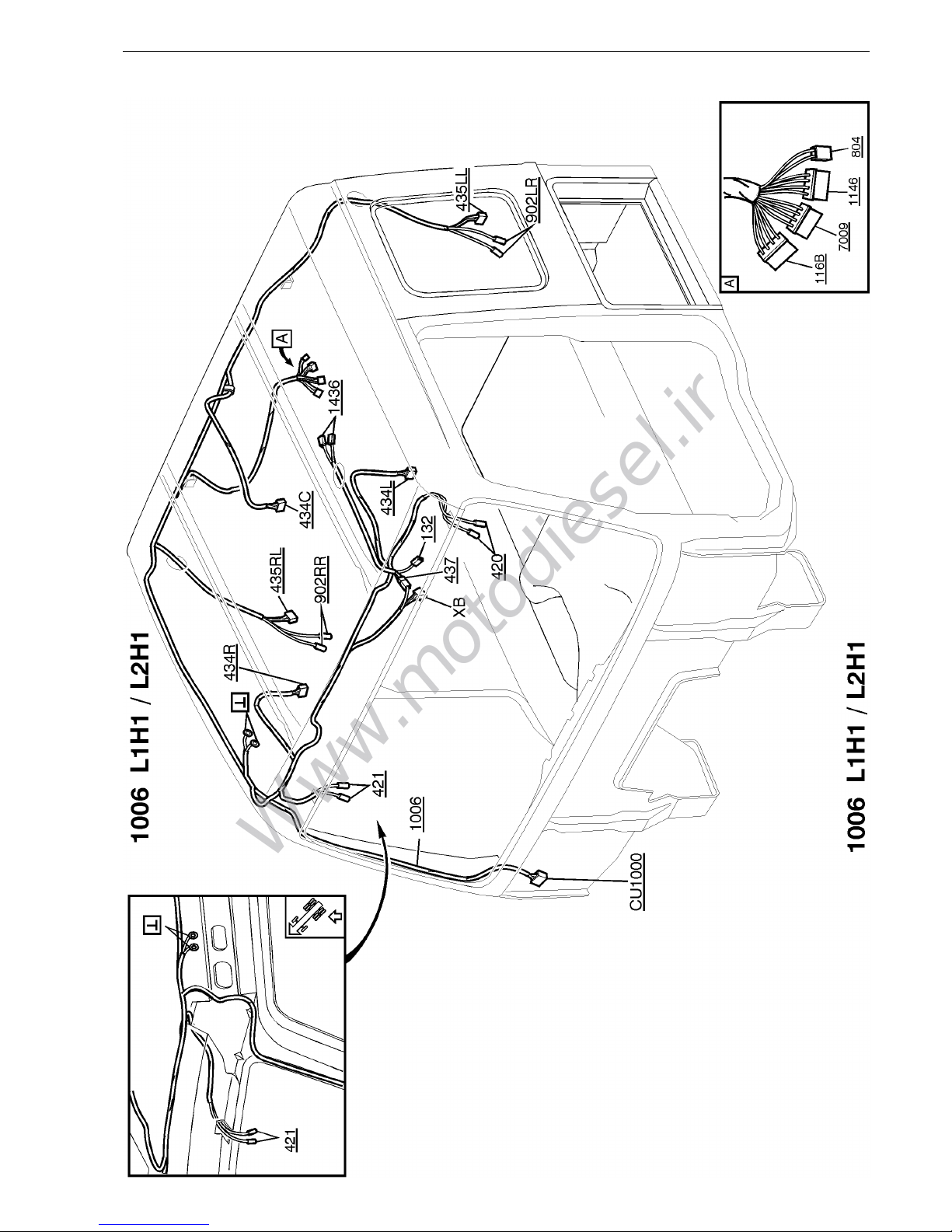

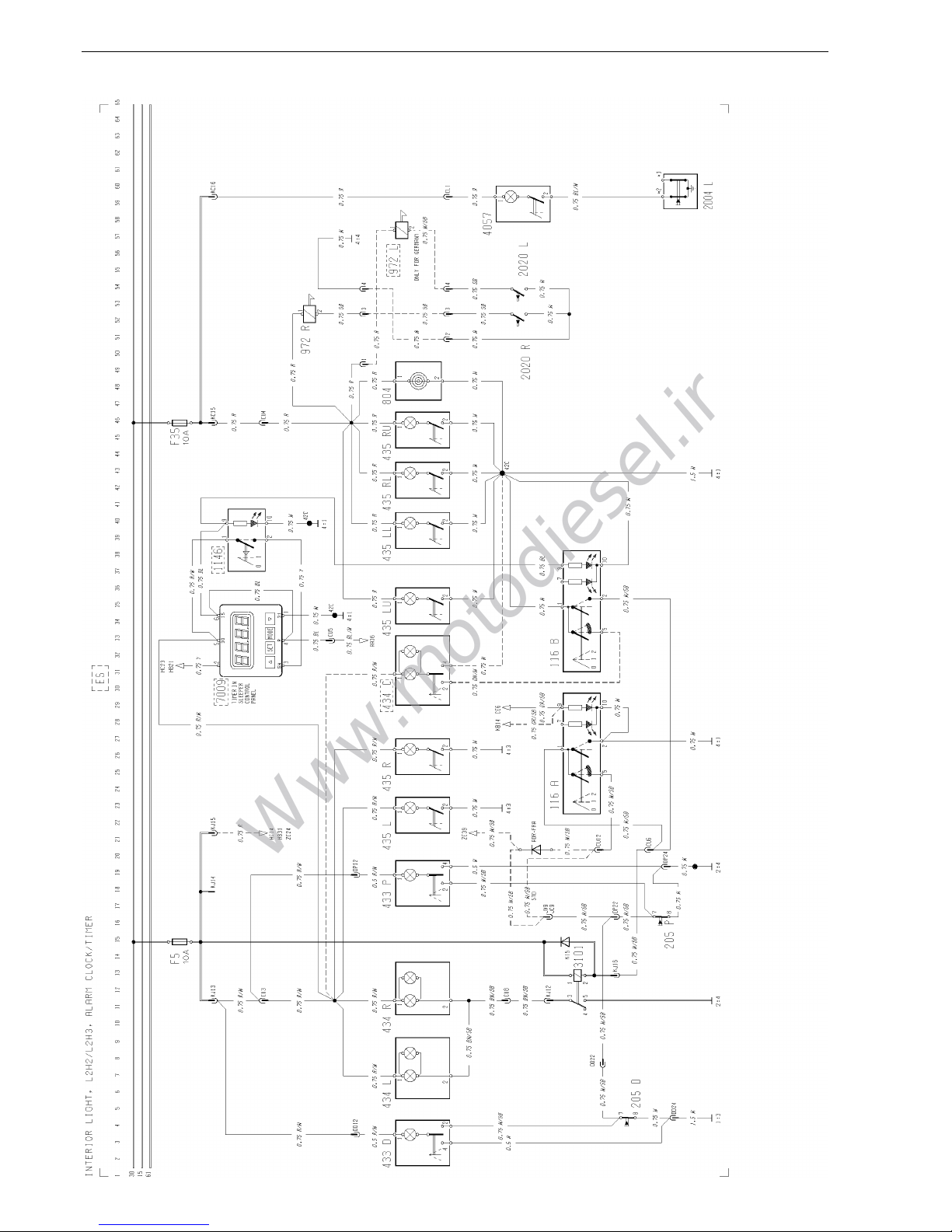

Interior light, L1H1/ L2H1, alarm clock/timer ..................................................................
page 17
ES
Interior light, L2H2/L2H3, alarm clock/timer ....................................................................
page 18
EV

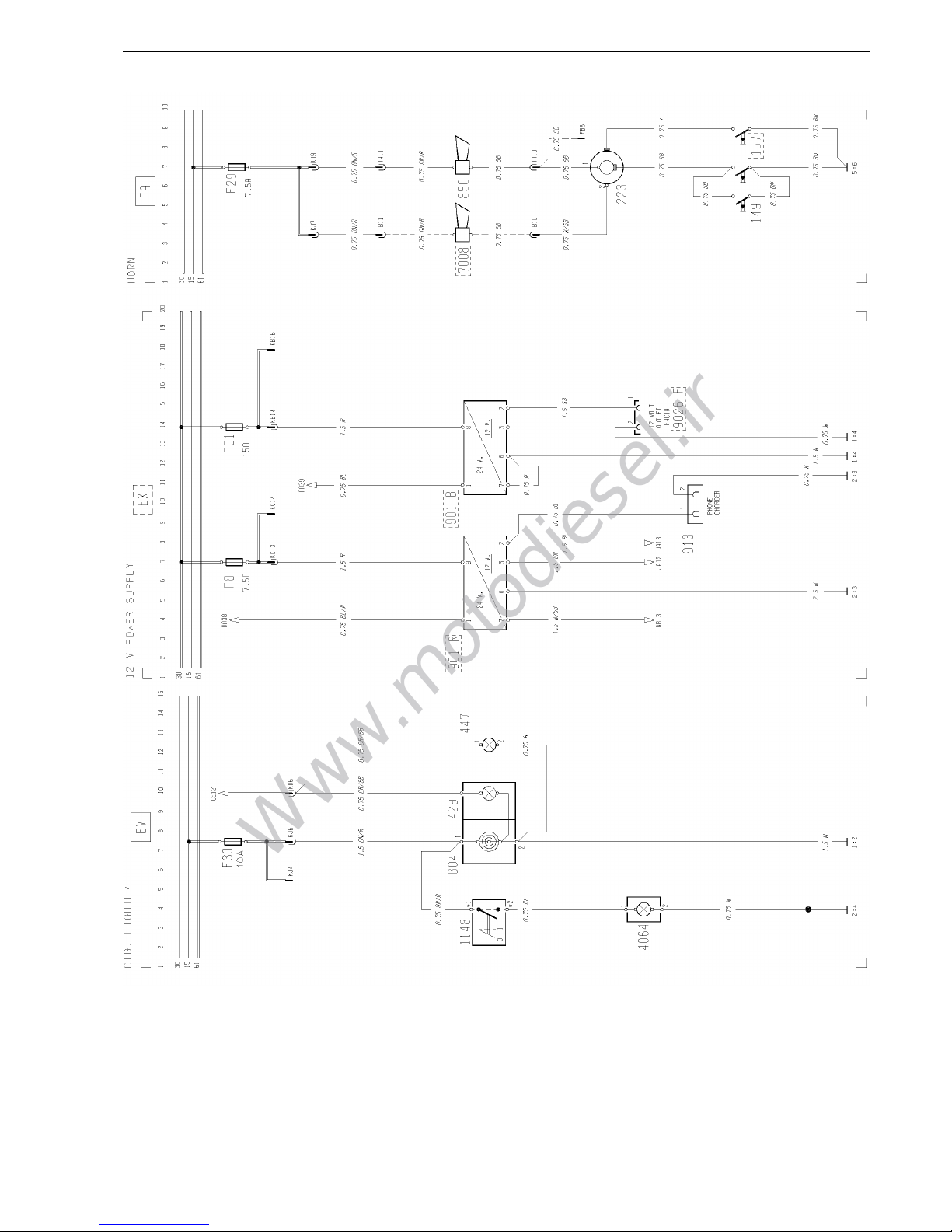

Cigarette lighter ...............................................................................................................
page 19
EX
12 V power supply ...........................................................................................................
page 19
FA
Horn .................................................................................................................................
page 19
GA

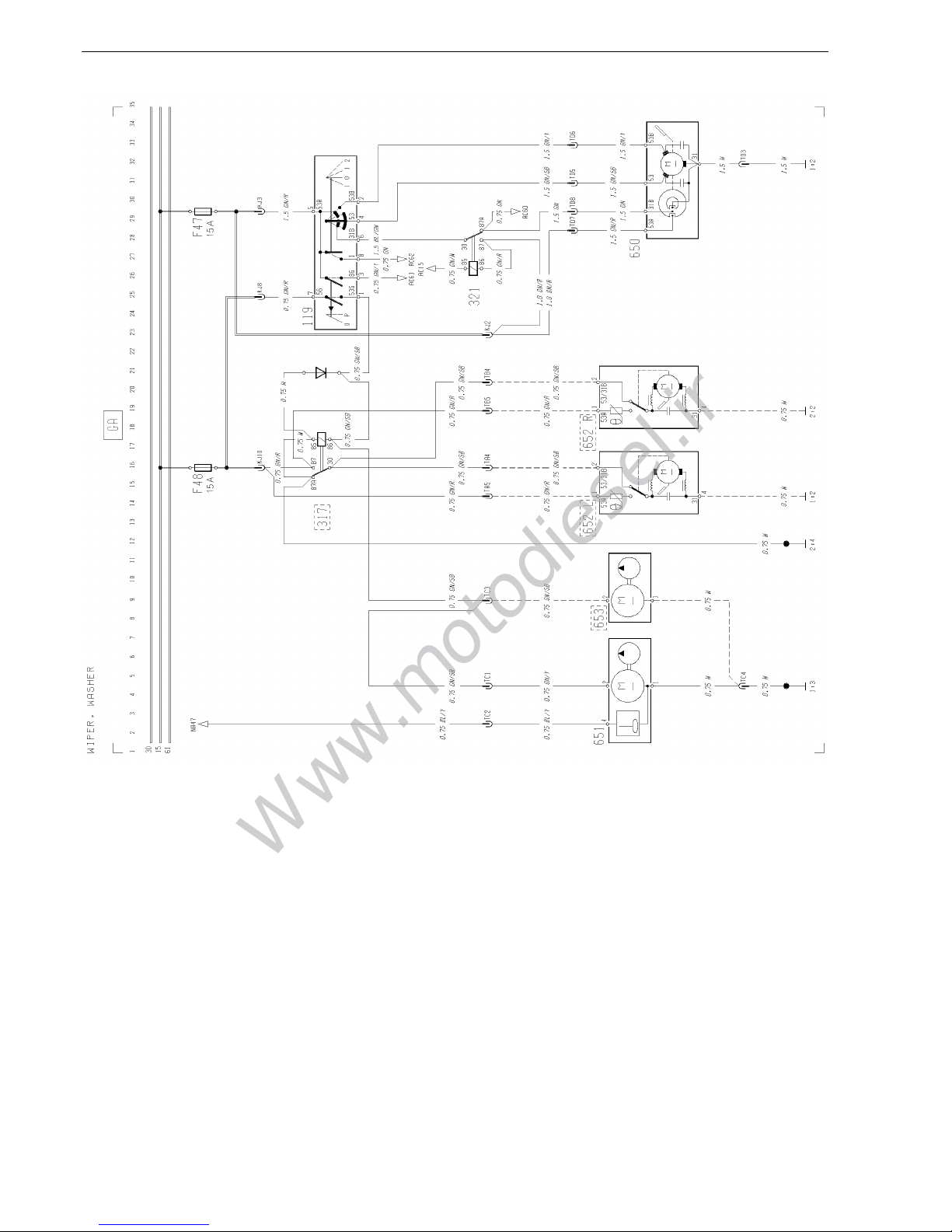

Wiper, washer ..................................................................................................................
page 20
HA

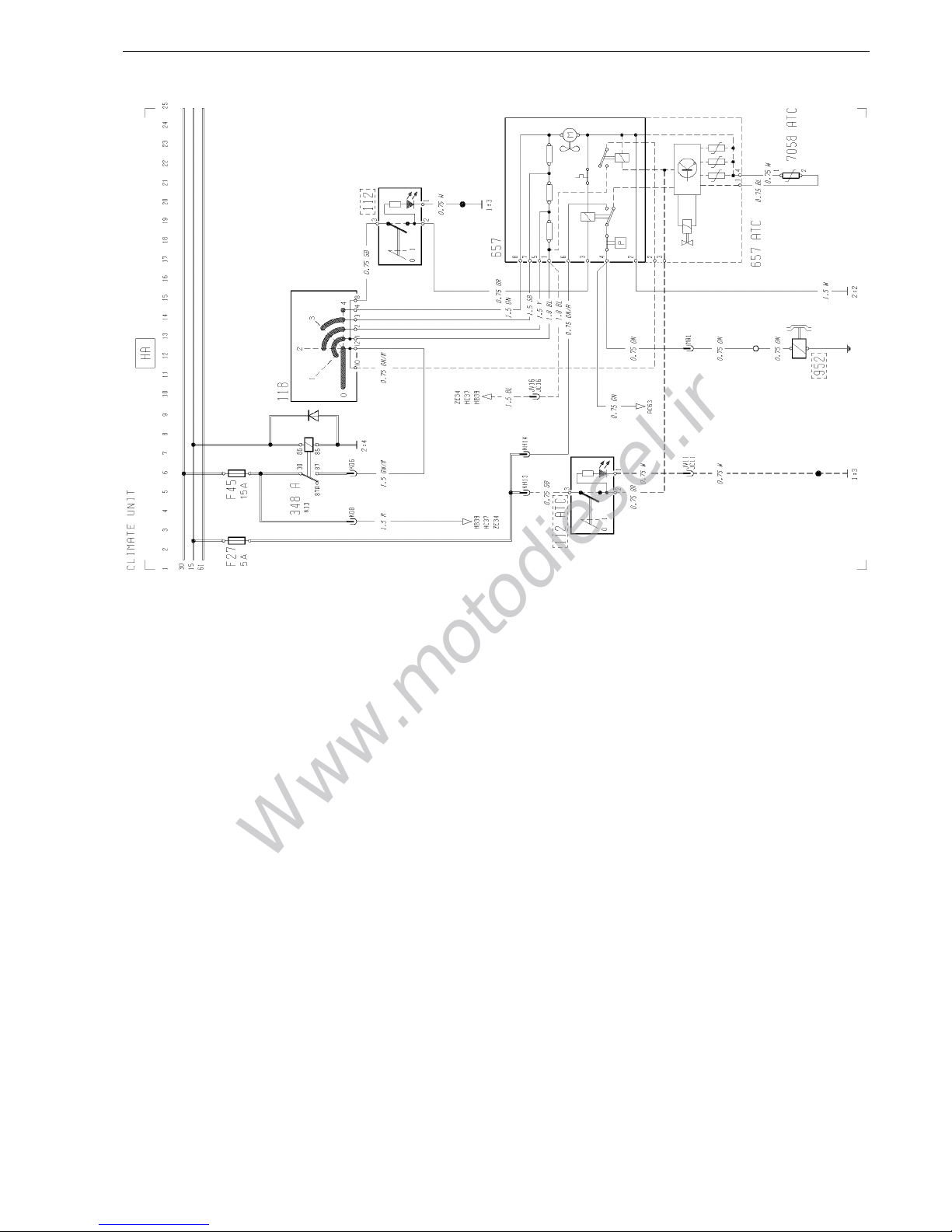

Climate unit .....................................................................................................................
page 21
HB

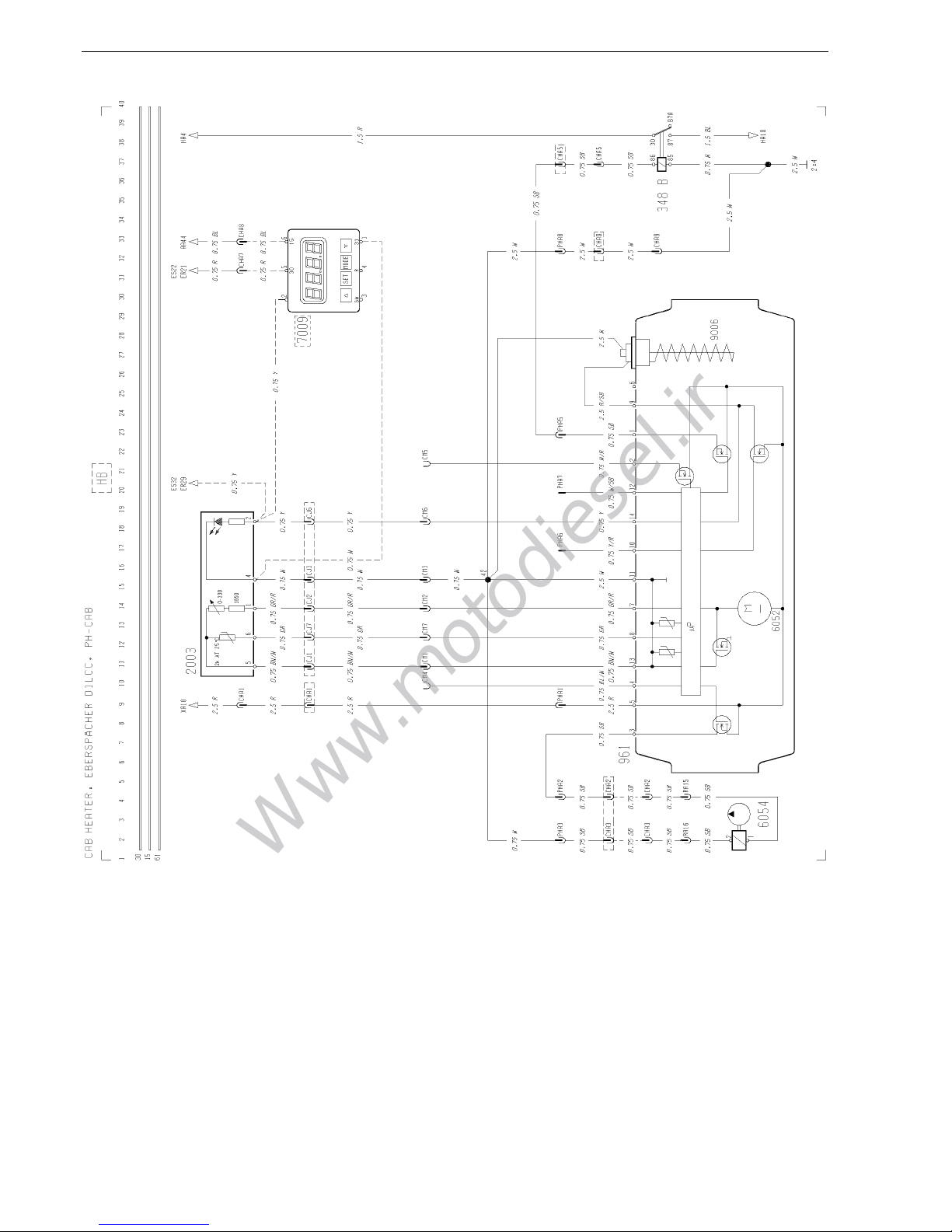

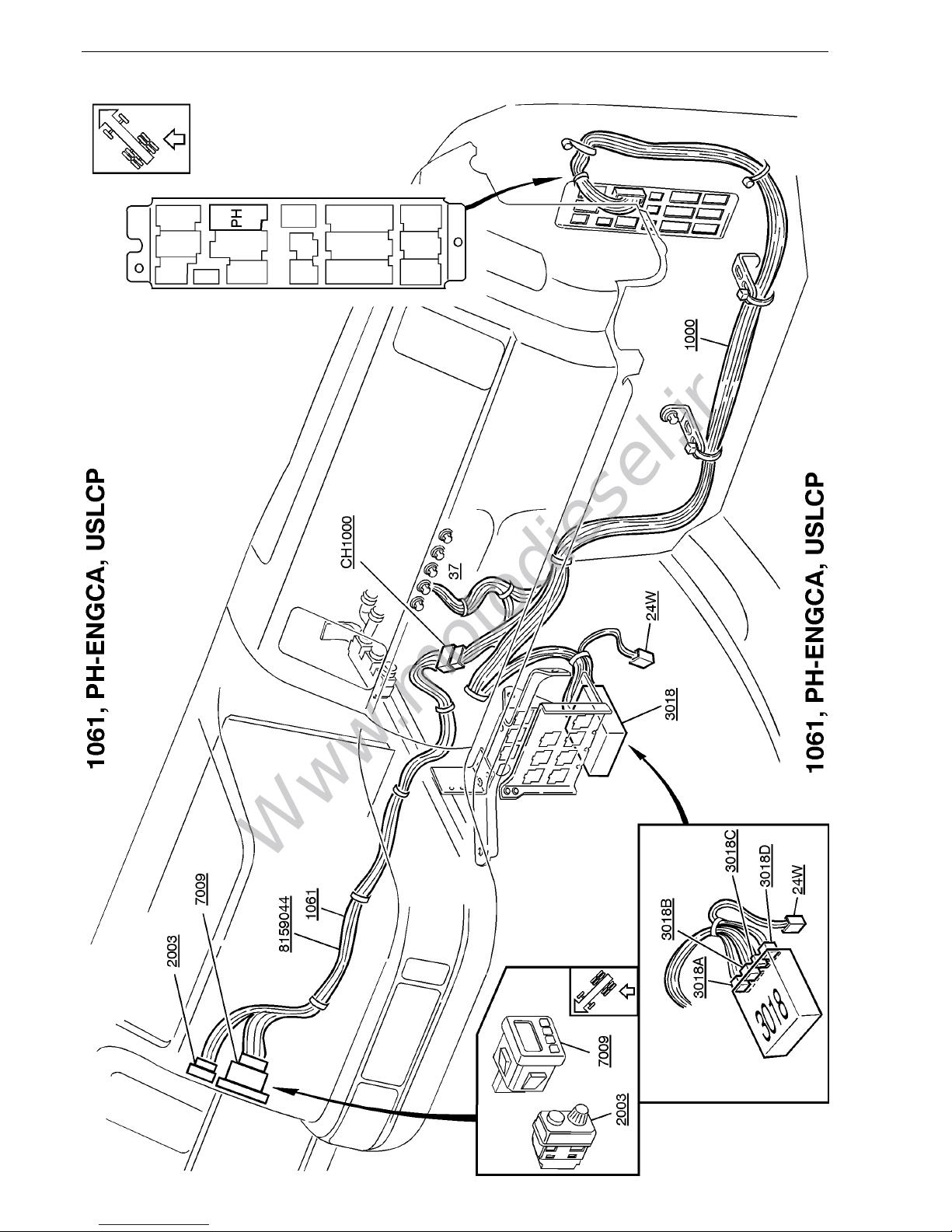

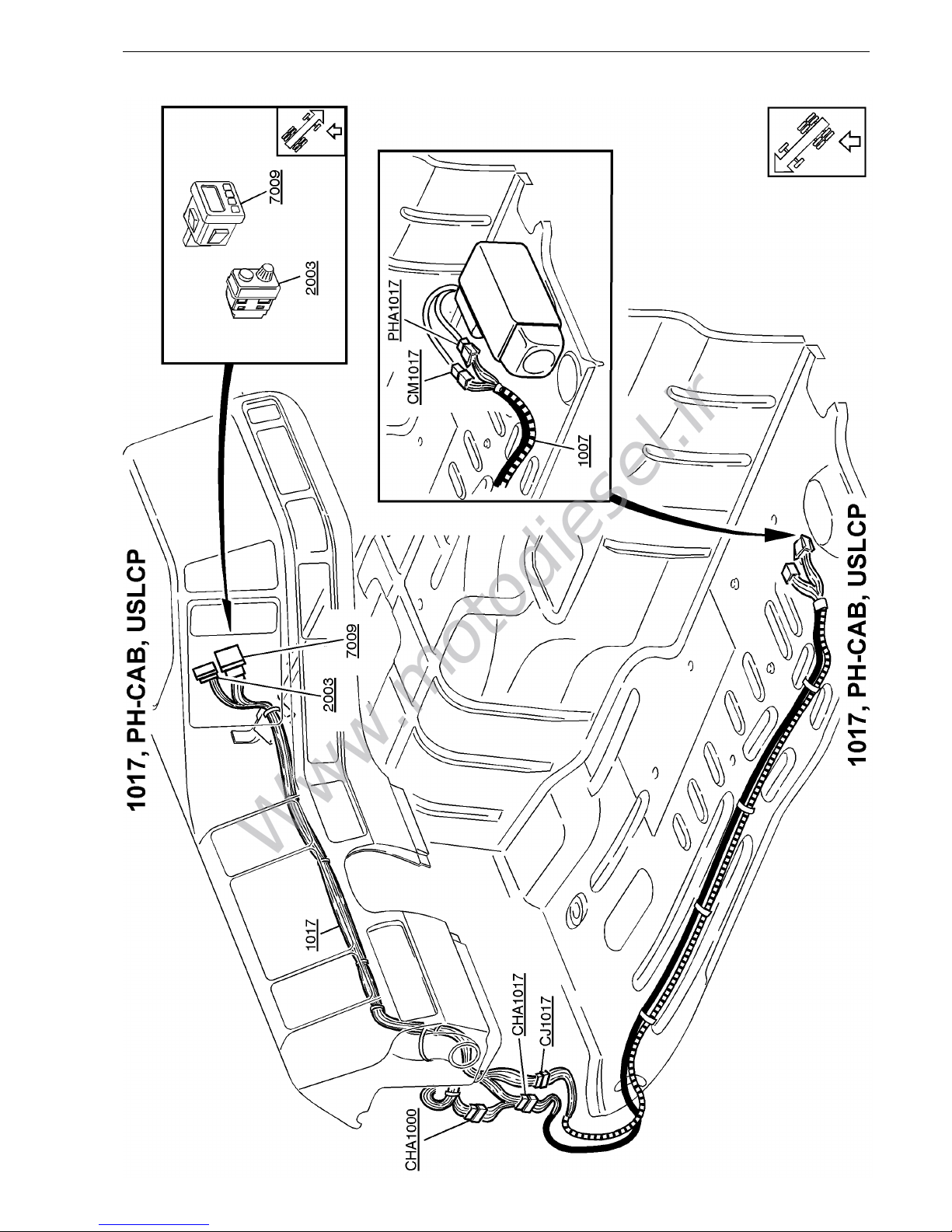

Cab heater, EBERSPÄCHER D1LCC, PH-CAB .............................................................
page 22
HC

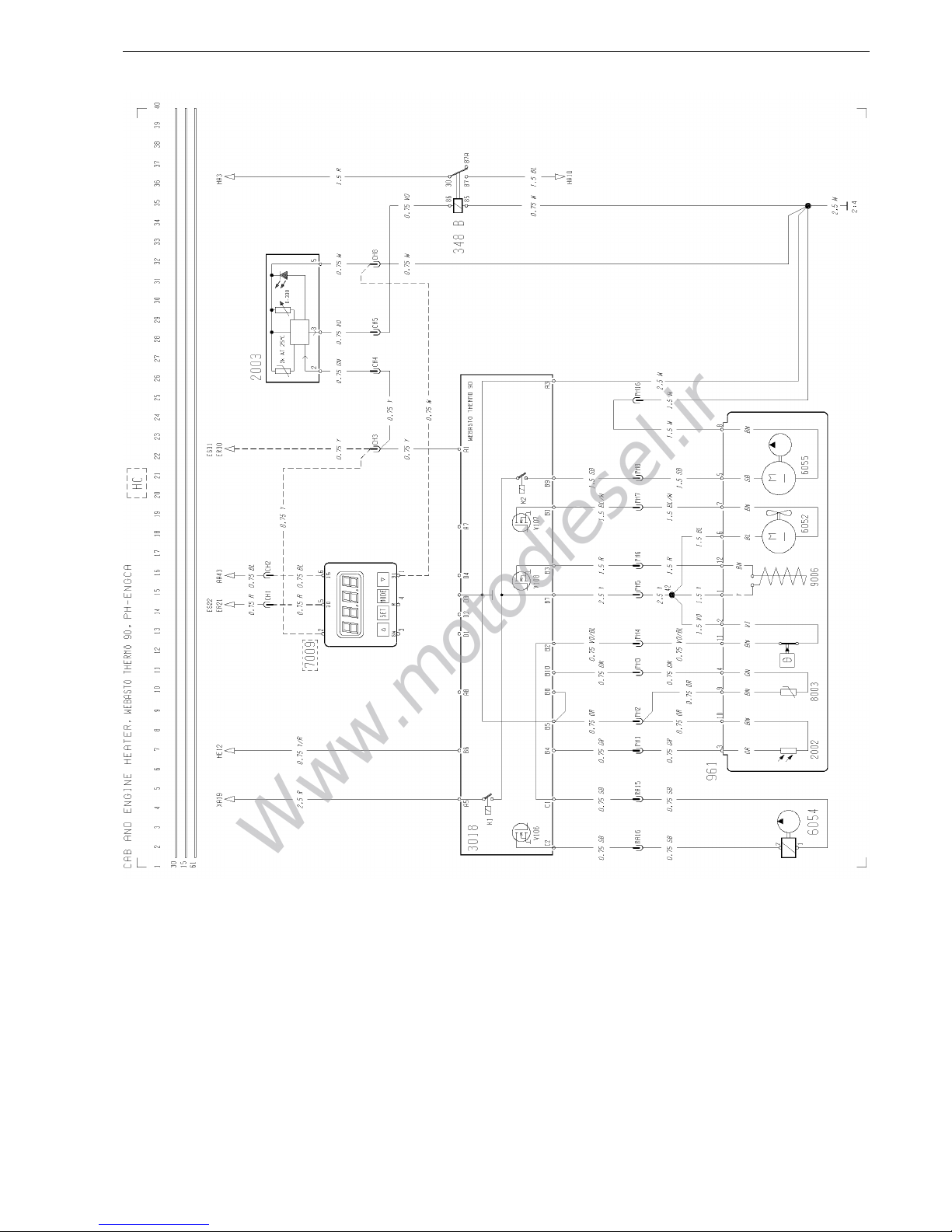

Cab and engine heater, WEBASTO THERMO 90, PH-ENGCA ....................................
page 23

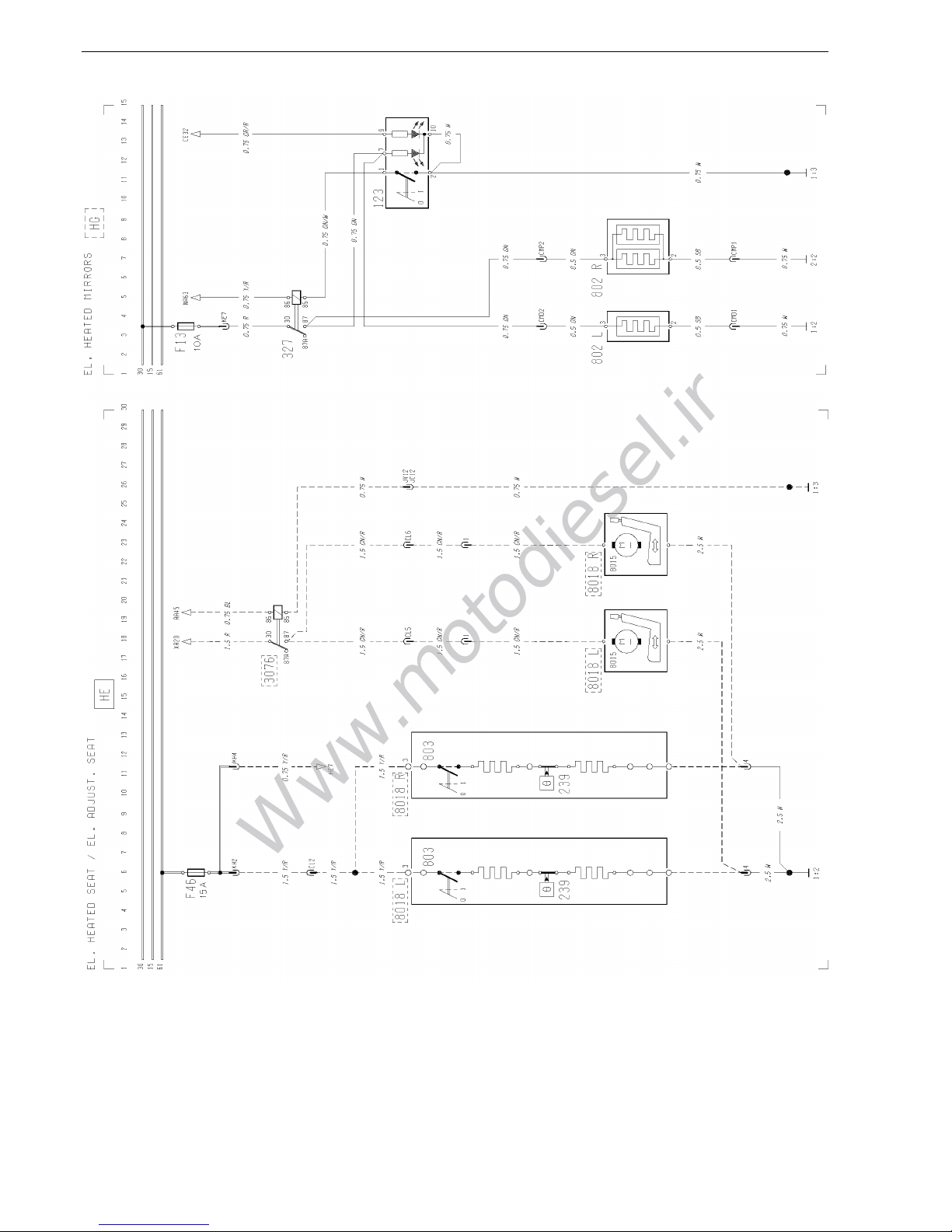

HE
Electrically heated and adjusted seat .............................................................................
page 24
HG
Electrically heated mirrors ...............................................................................................
page 24
HH
Electrically operated mirrors ............................................................................................
page 25
HK

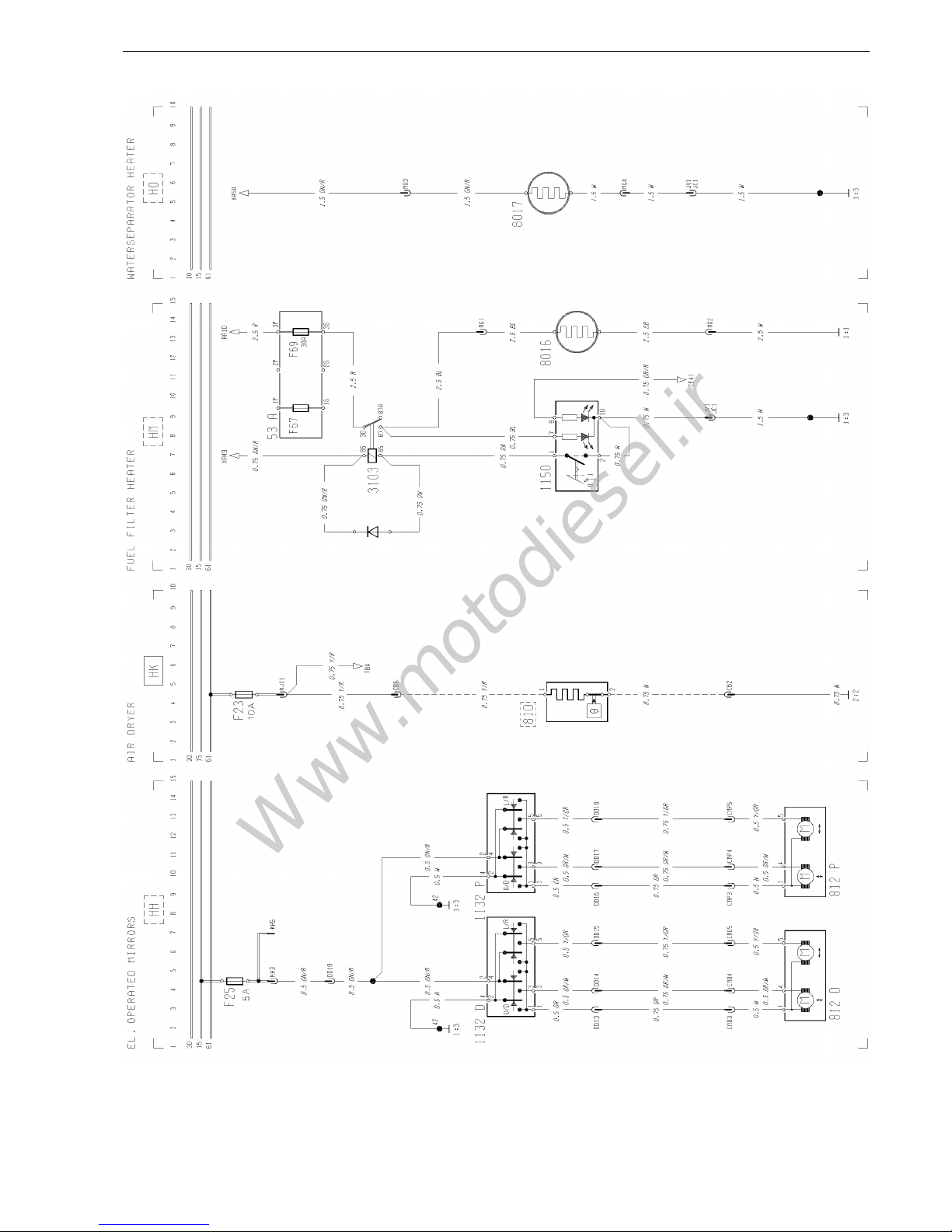

Air dryer ...........................................................................................................................
page 25
HM
Fuel filter heater ..............................................................................................................
page 25
HO
Water separator heater ...................................................................................................
page 25
HP

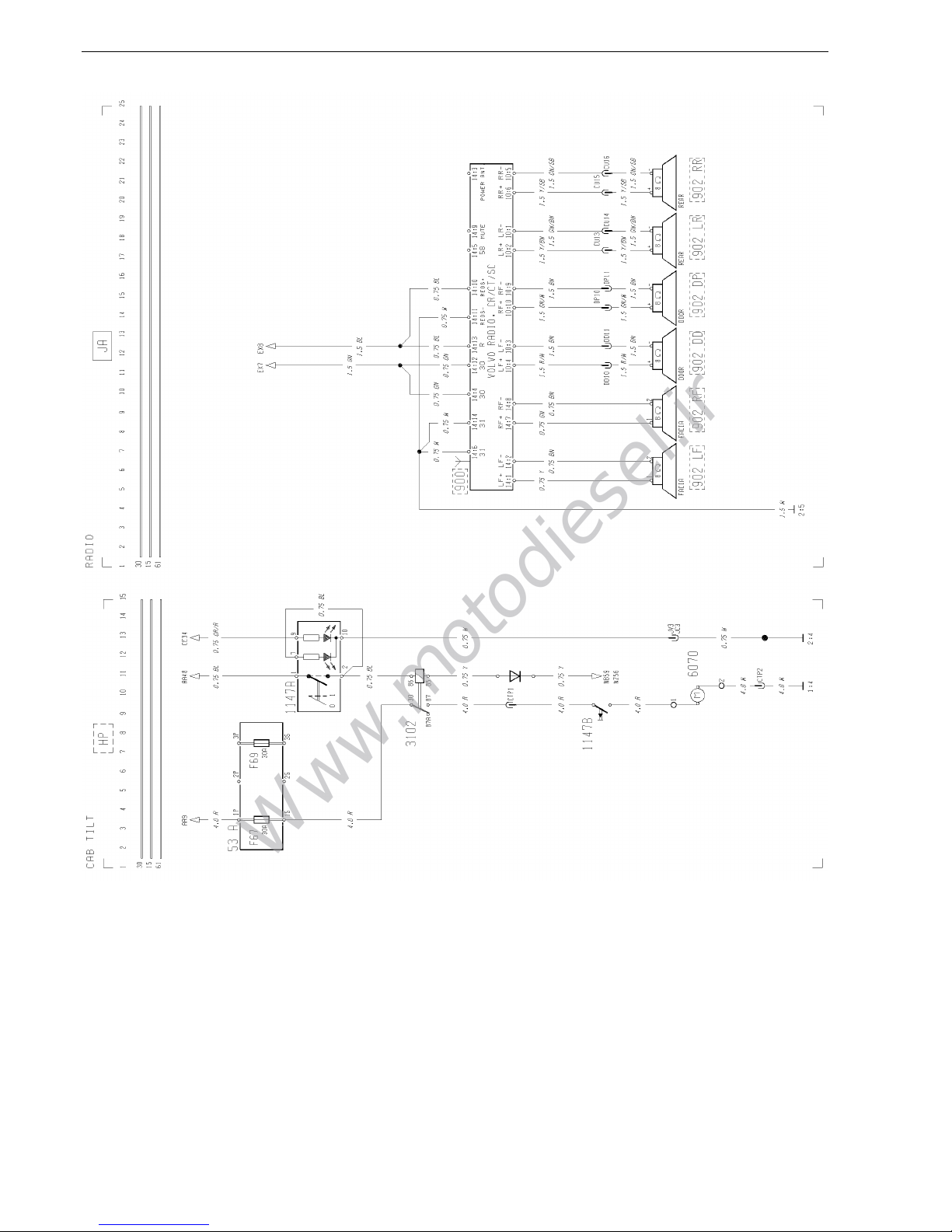

Electrically cab tilt ..........................................................................................................
page 26
JA
Radio ...............................................................................................................................
page 26
KA

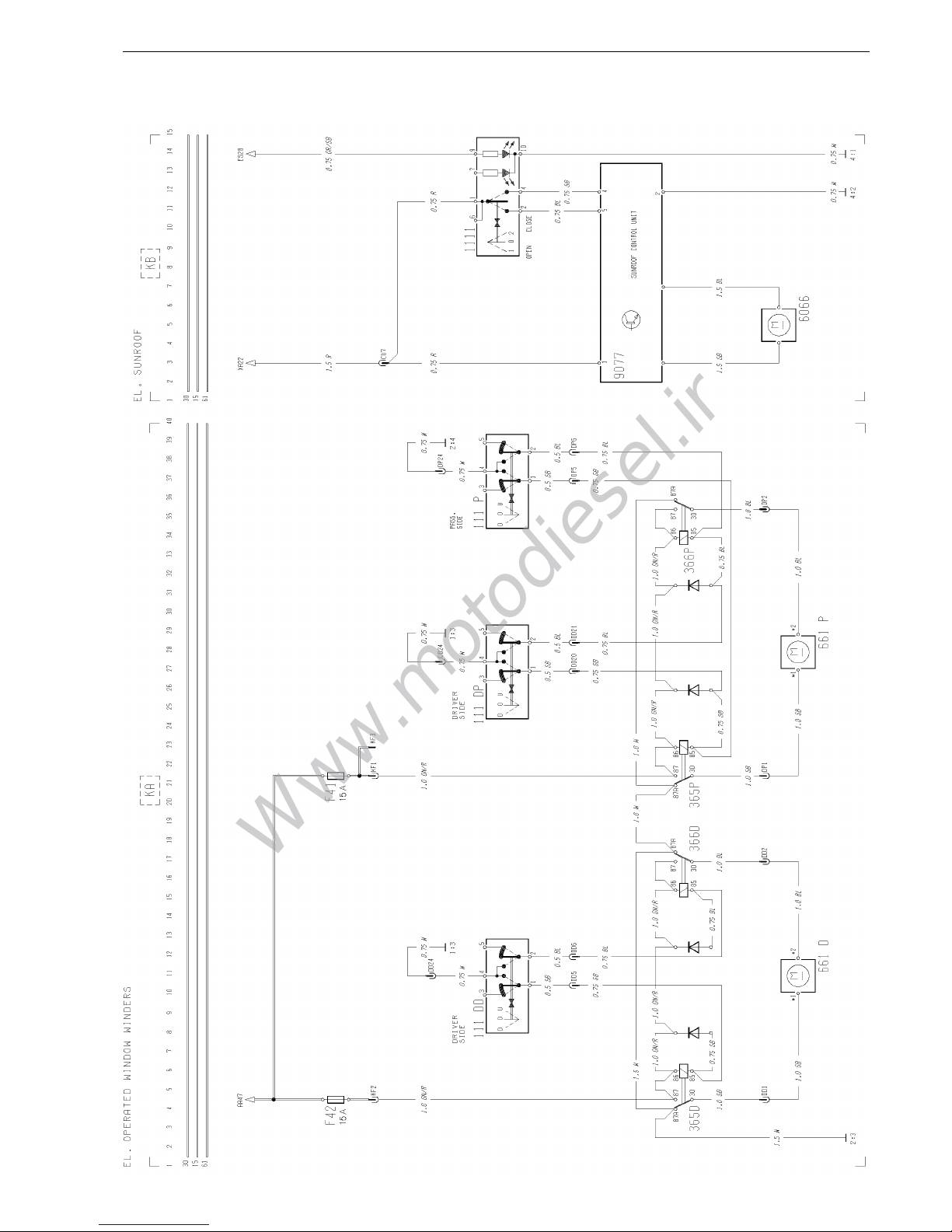

Electrically operated window winders .............................................................................
page 27
5
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 8
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagram index
KB
Electrically sunroof ..........................................................................................................
page 27
KE

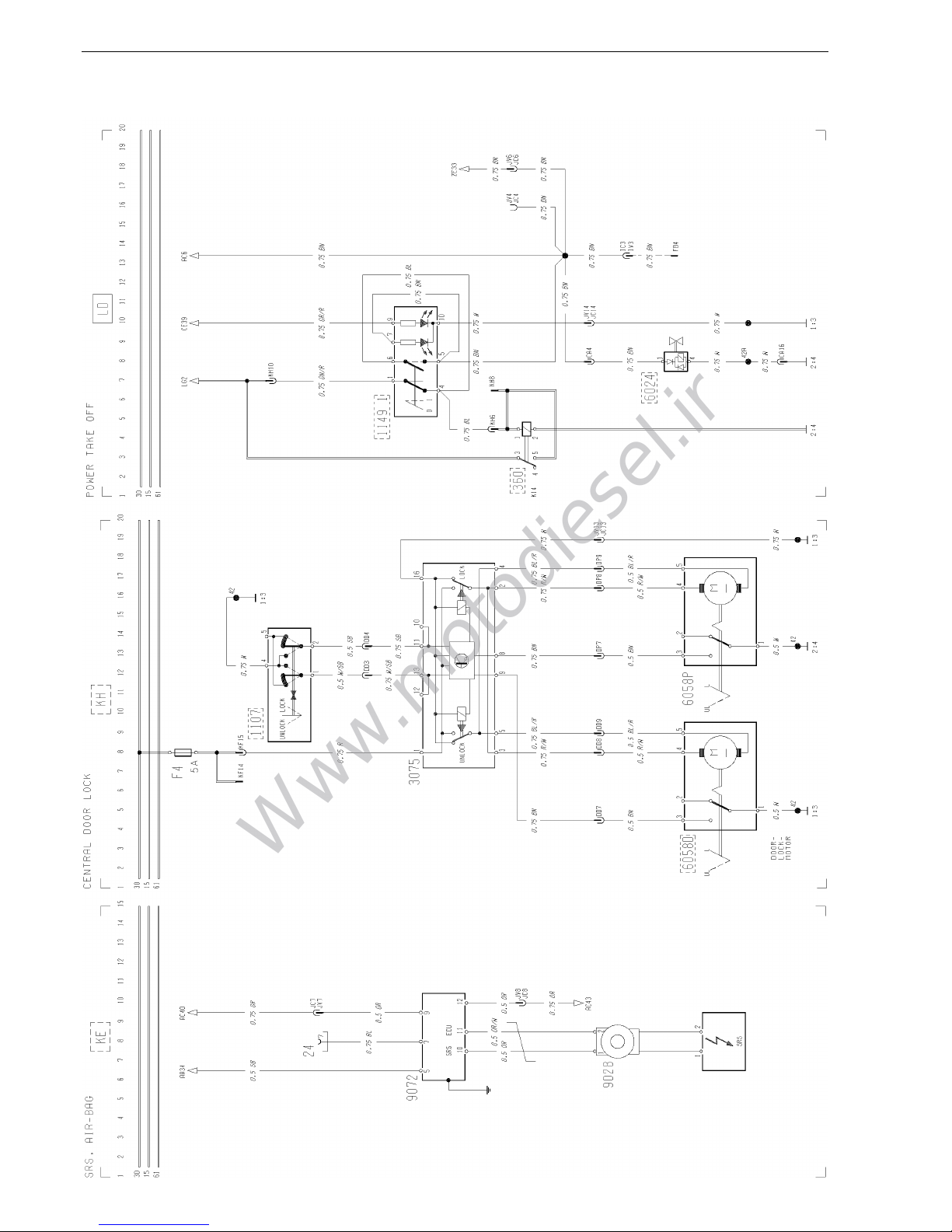

SRS, air-bag ....................................................................................................................
page 28
KH
Central door lock .............................................................................................................
page 28
LD
Power take-off ..................................................................................................................
page 28
LE

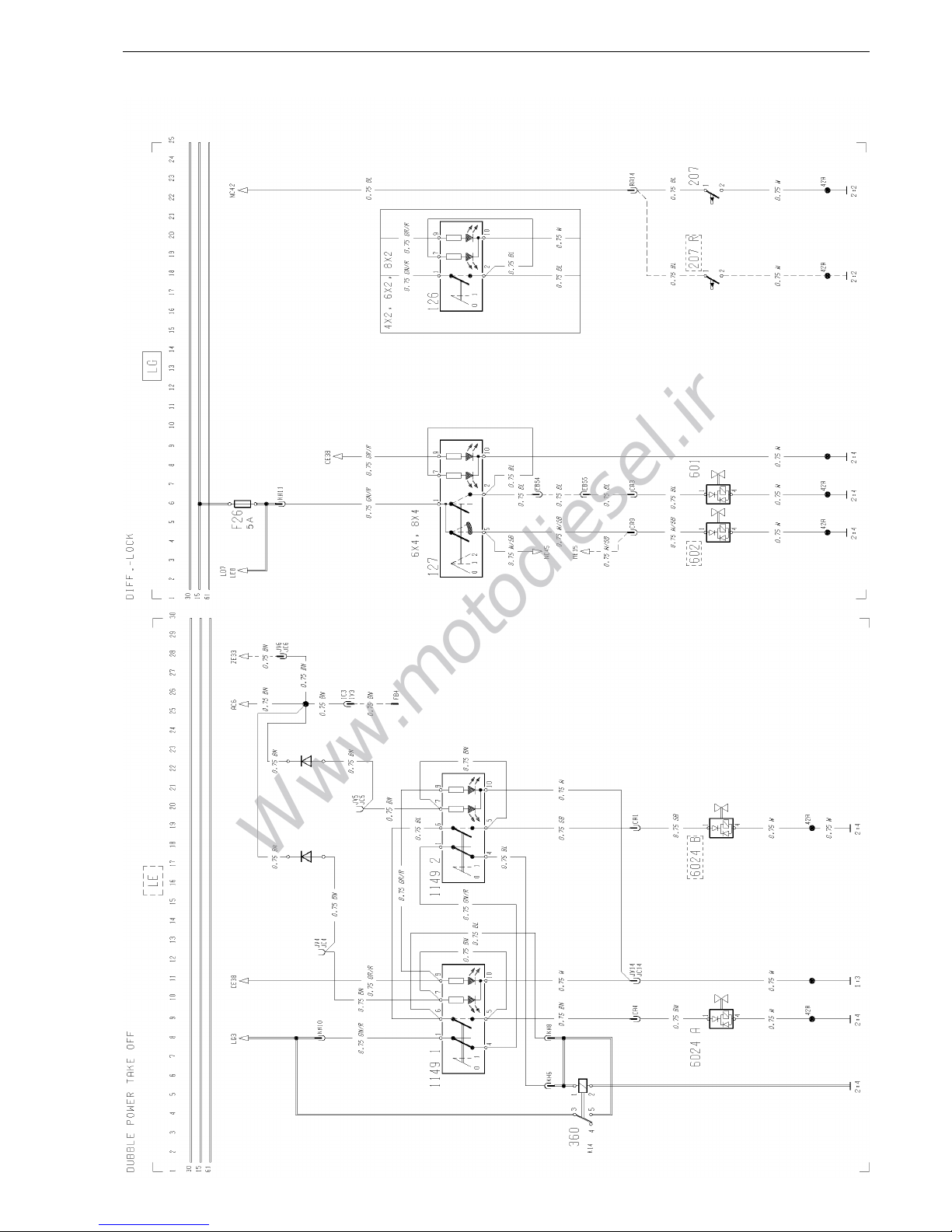

Double power take-off .....................................................................................................
page 29
LG
Differential lock ................................................................................................................
page 29
LJ

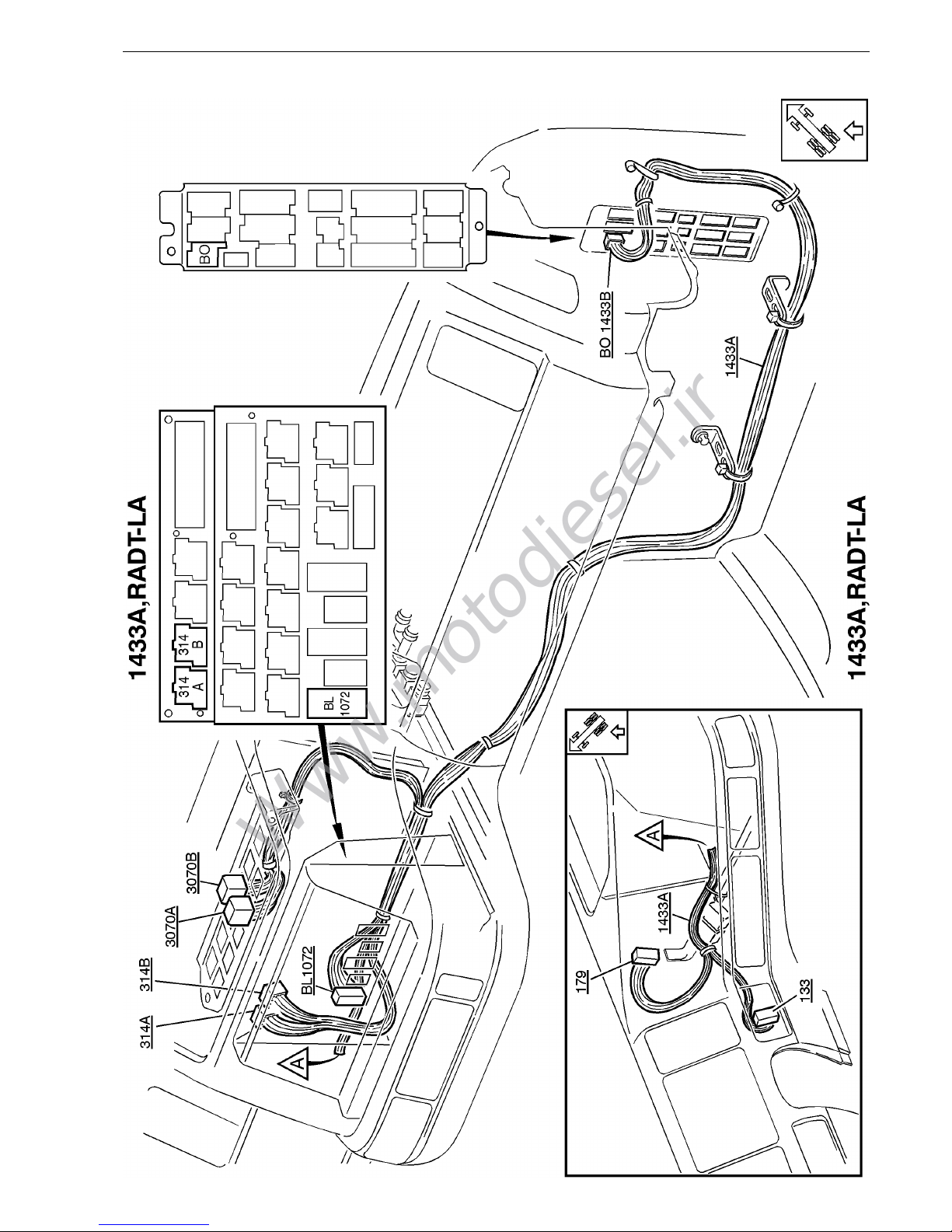

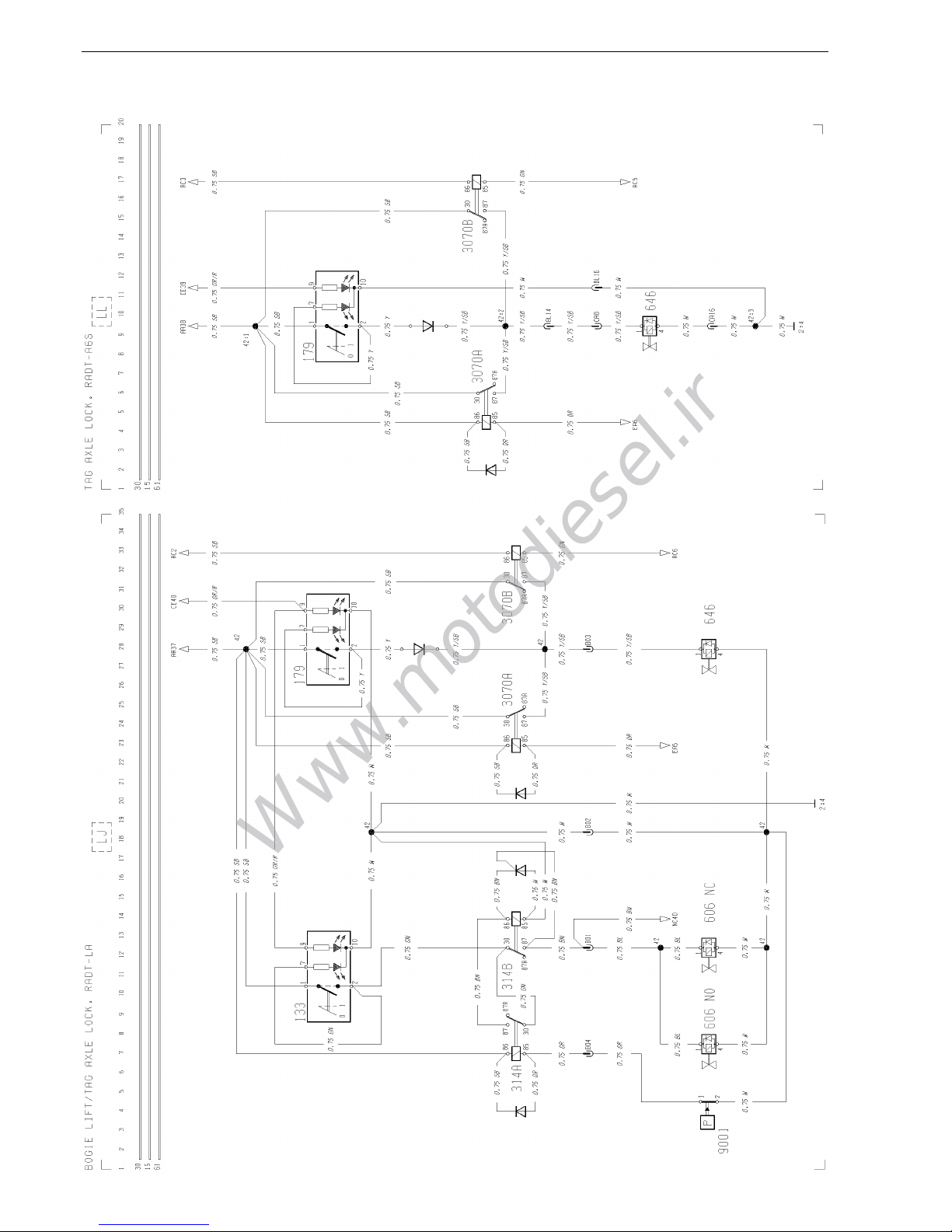

Bogie lift, tag axle lock, RADT-LA ...................................................................................
page 30
LL

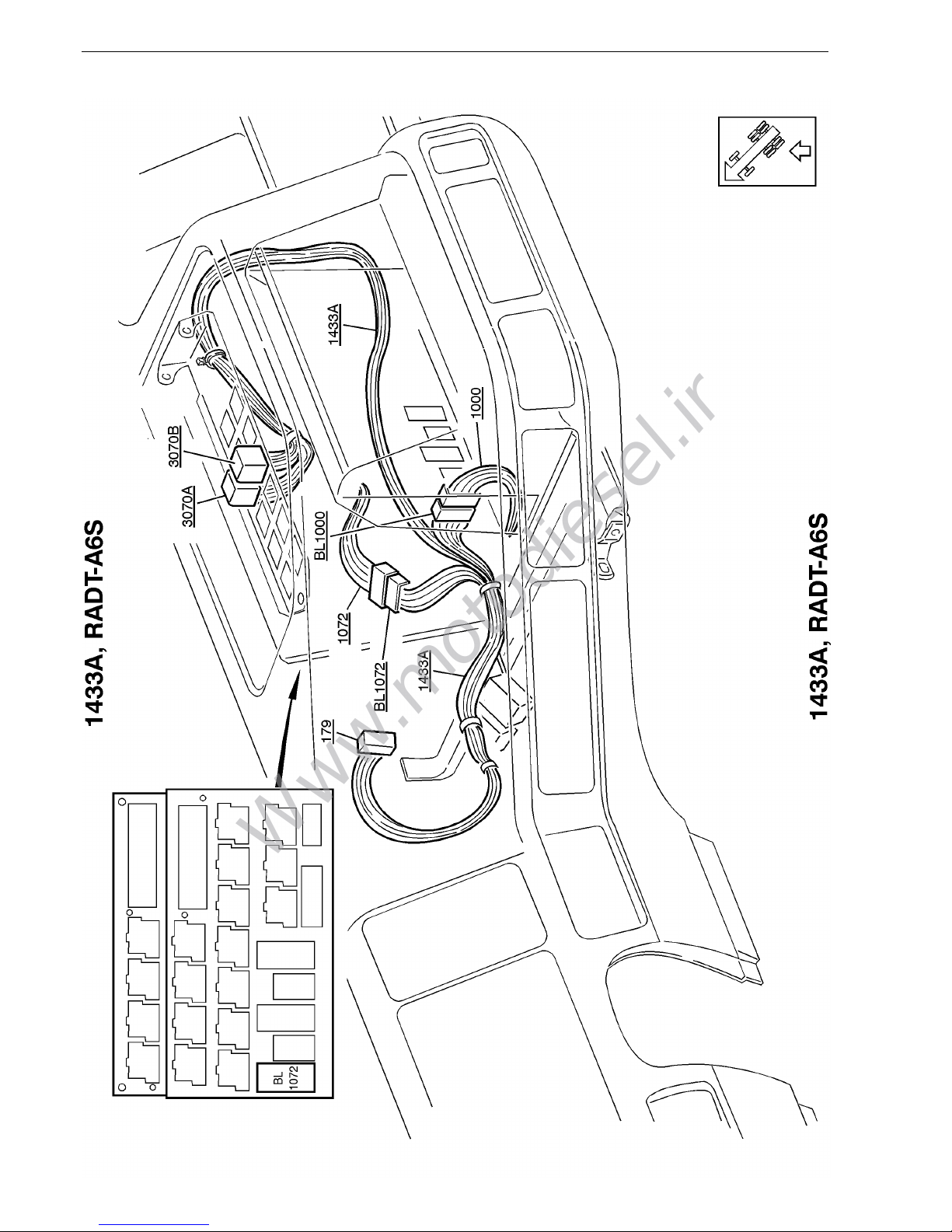

Tag axle lock, RADT-A6S ................................................................................................
page 30
MA

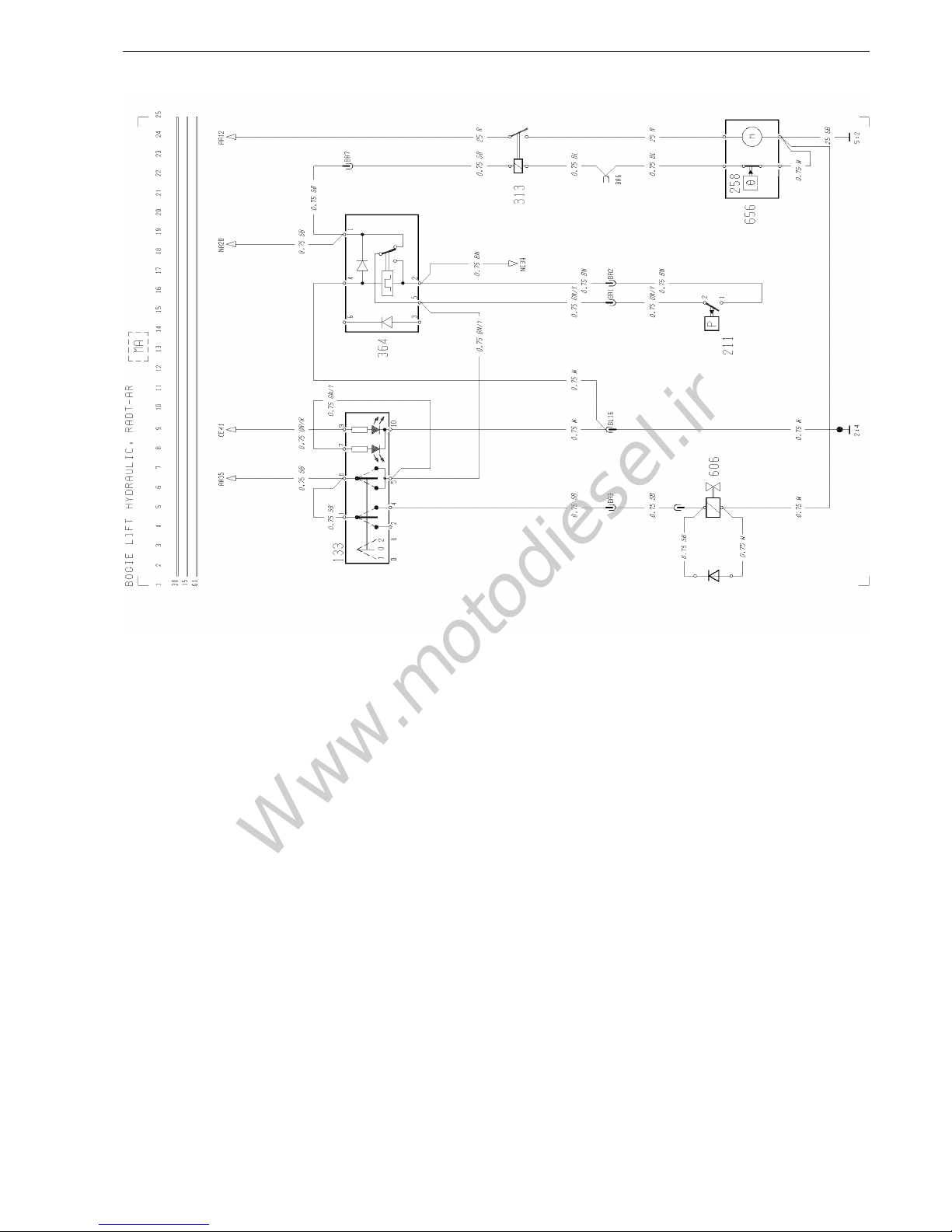

Bogie lift hydraulic, RADT-AR .........................................................................................
page 31
MD

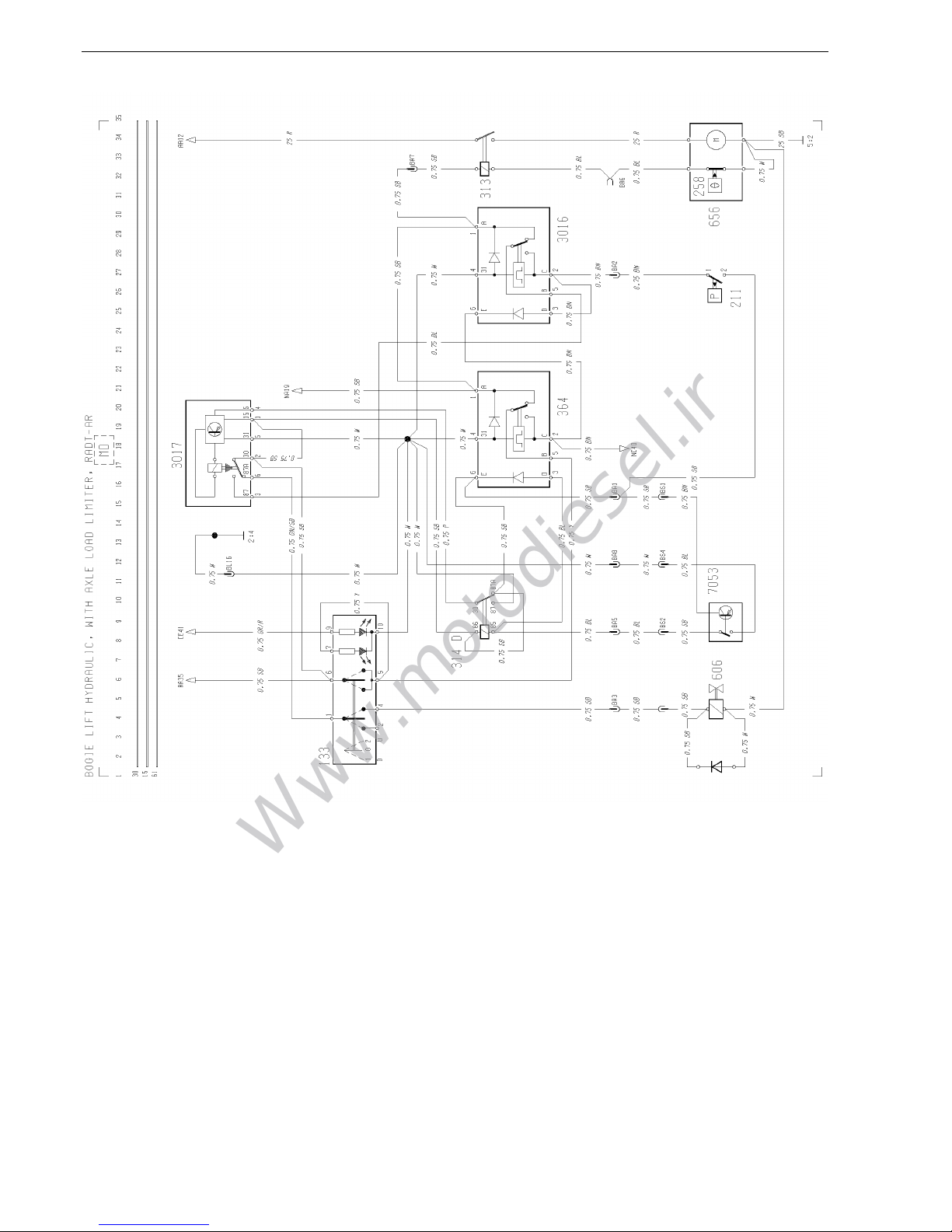

Bogie lift hydraulic, with axle load limiter, RADT-AR ......................................................
page 32
ME

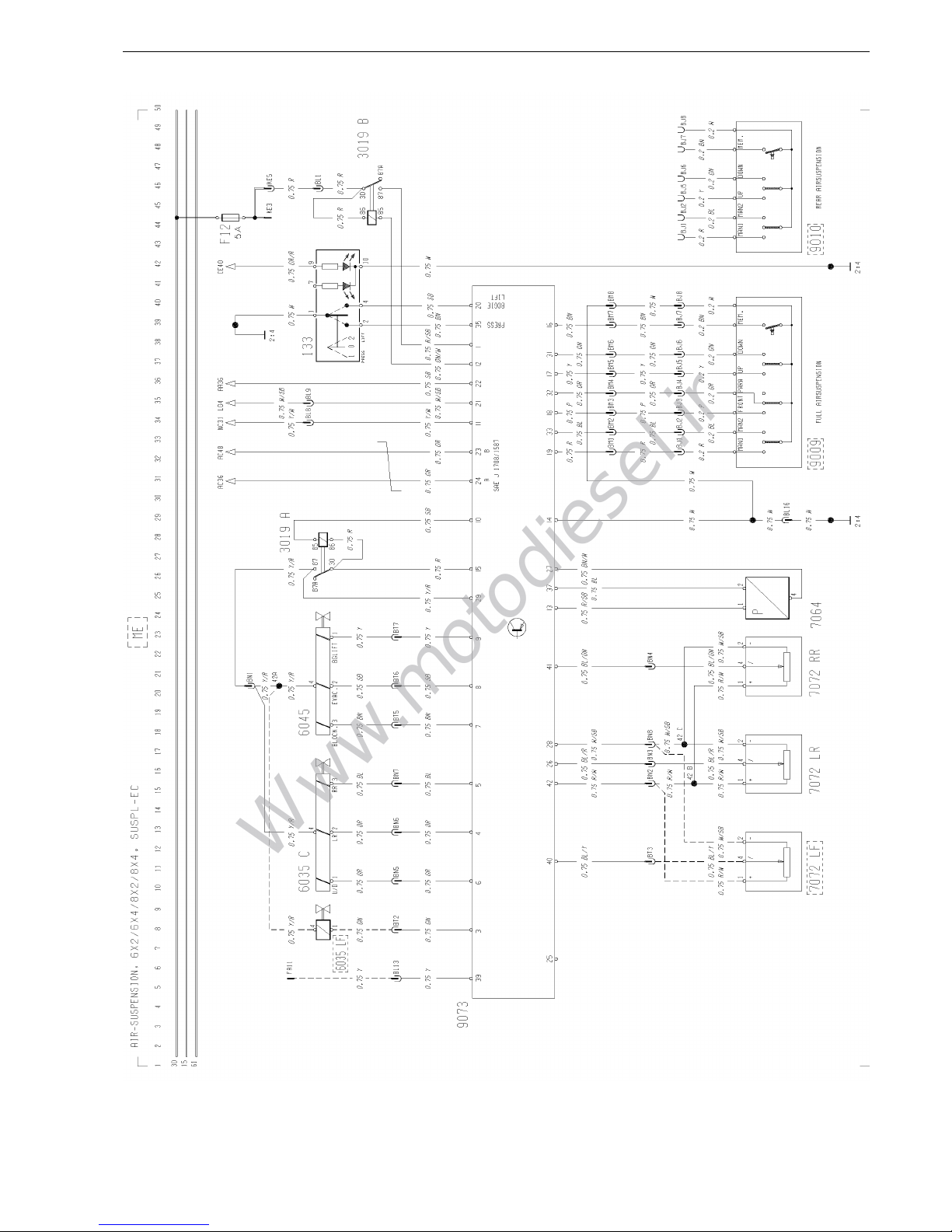

Air suspension, 6x2/6x4/8x2/8x4, SUSPL-EC ................................................................
page 33

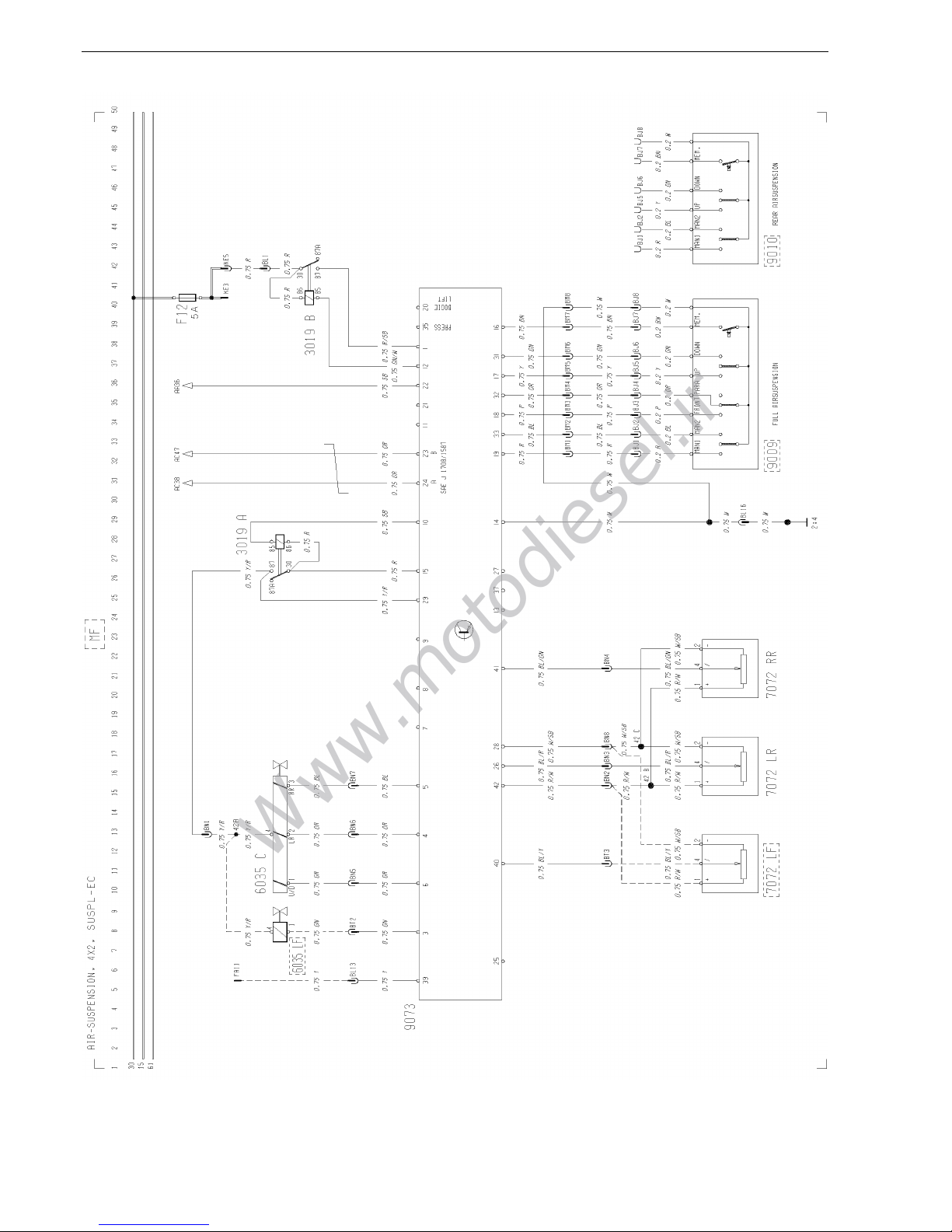

MF
Air suspension, 4x2, SUSPL-EC .....................................................................................
page 34
MG

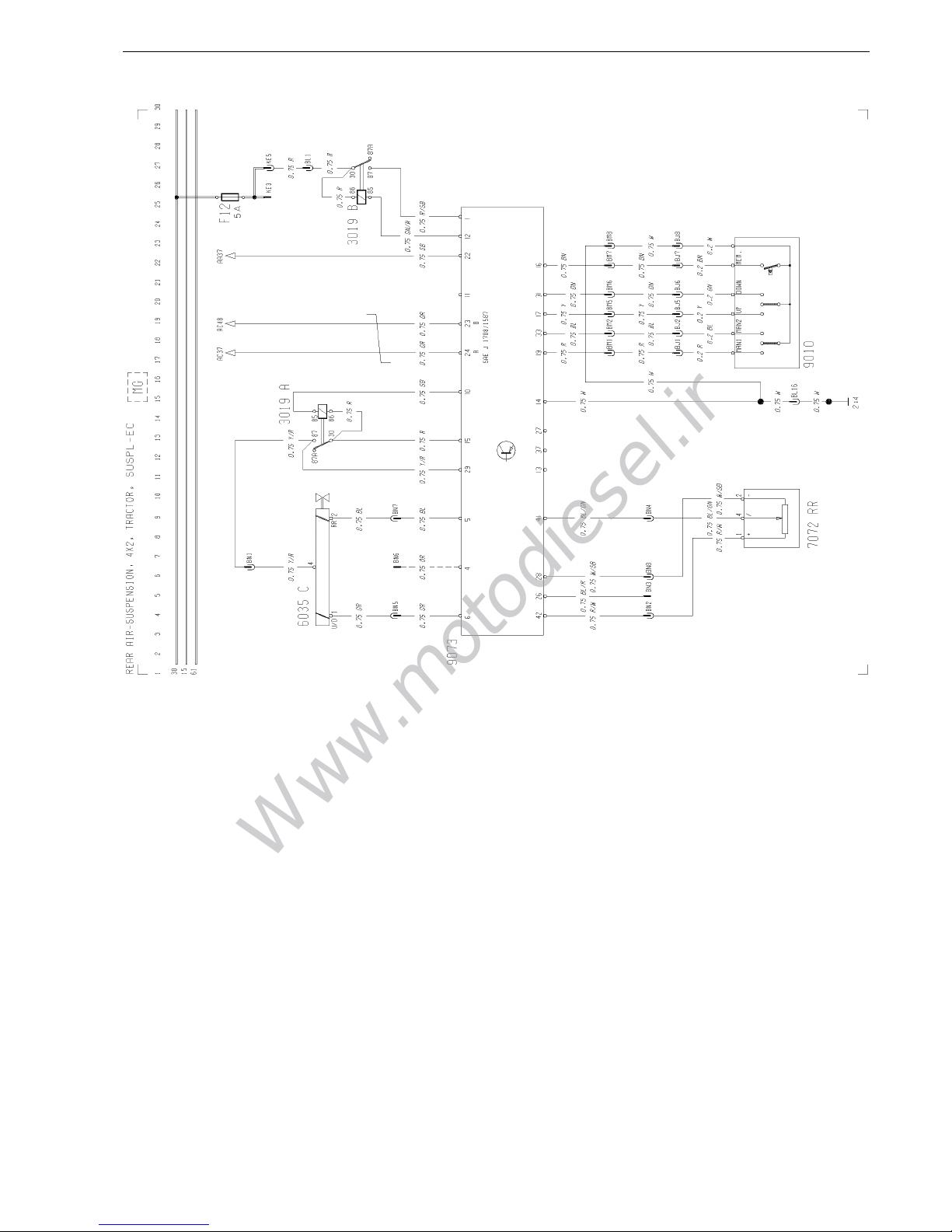

Rear air suspension, 4x2, TRACTOR, SUSPL-EC .........................................................
page 35
NA

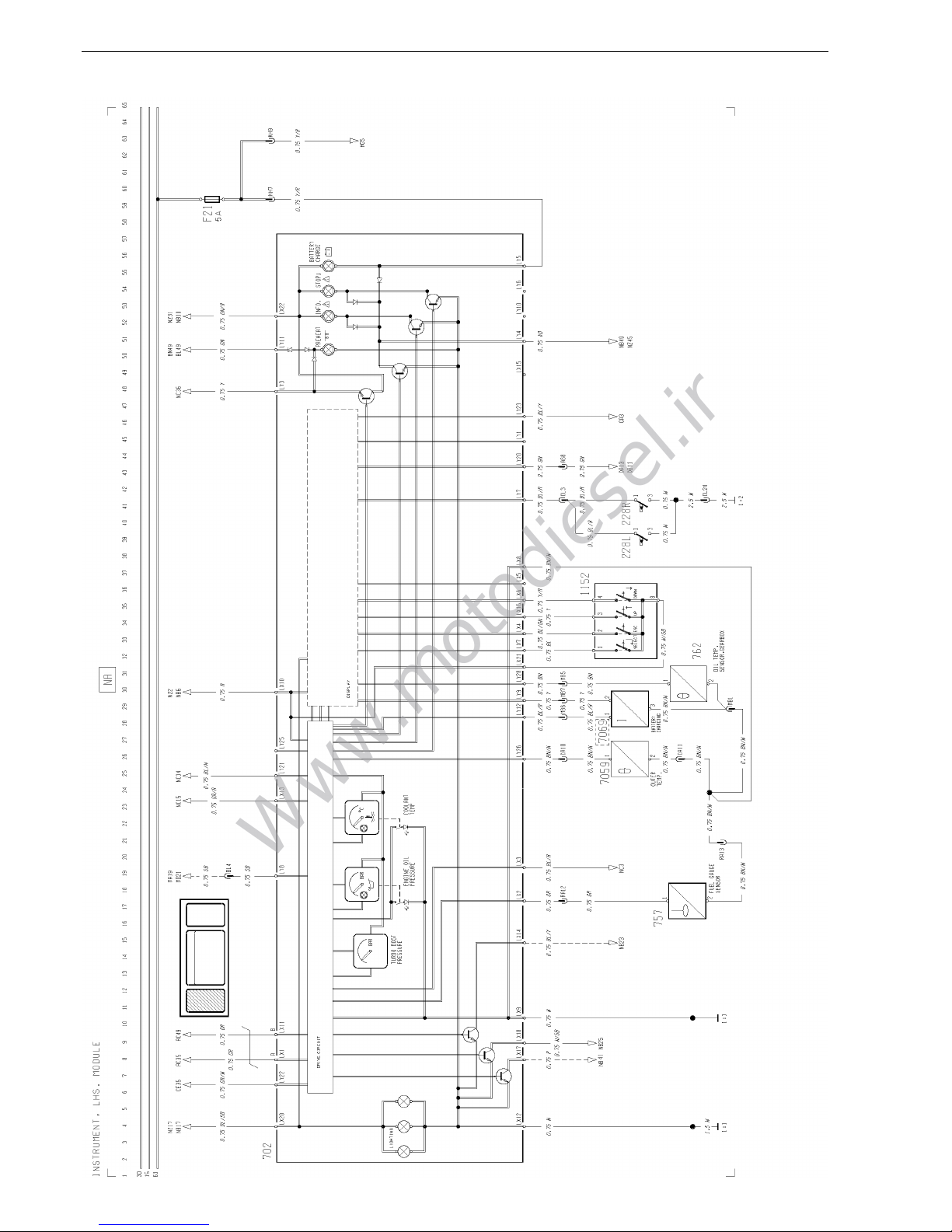

Instrument LHS module ..................................................................................................
page 36
NB

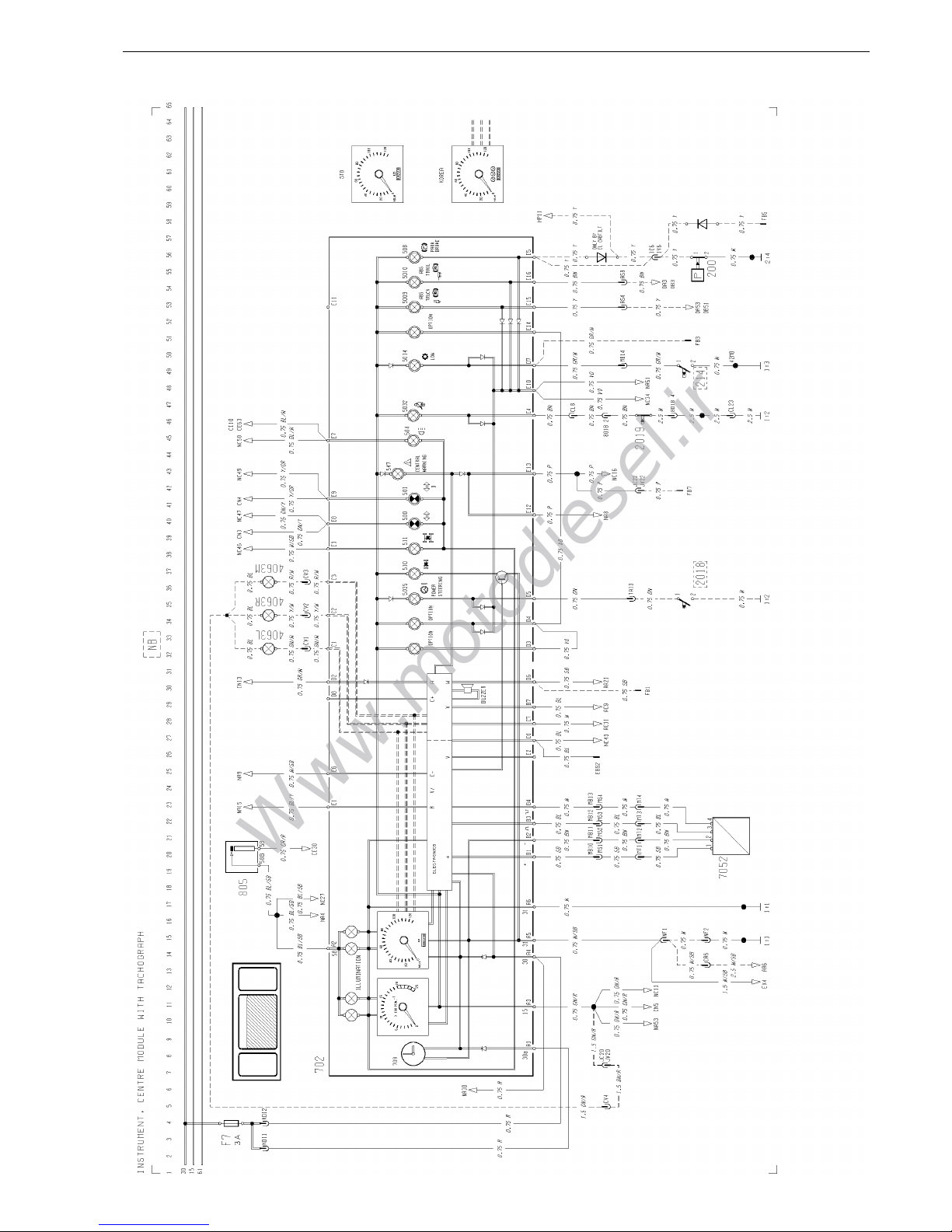

Instrument central module with tachograph ....................................................................
page 37
NC

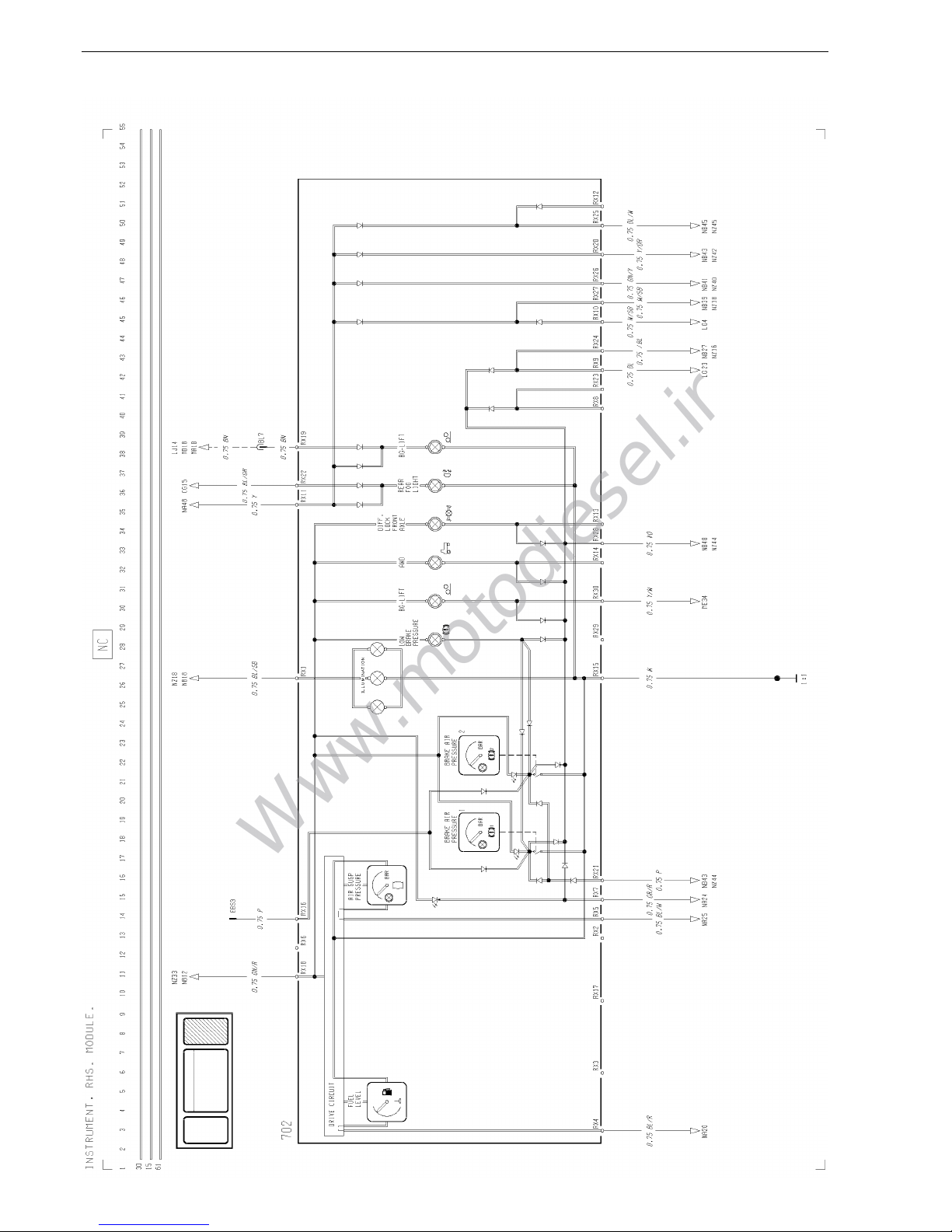

Instrument RHS module ..................................................................................................
page 38

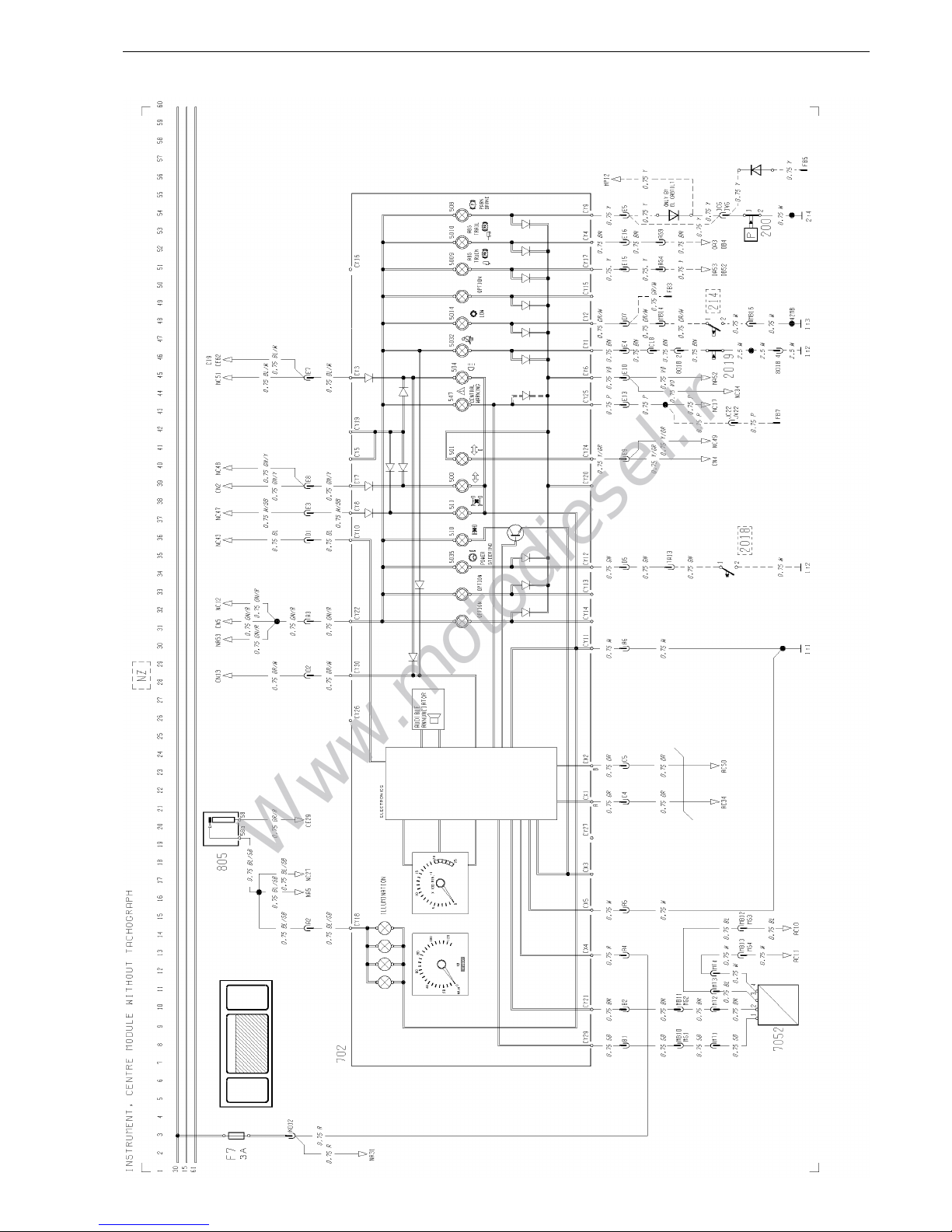

NZ
Instrument central module without tachograph ...............................................................
page 39
OA

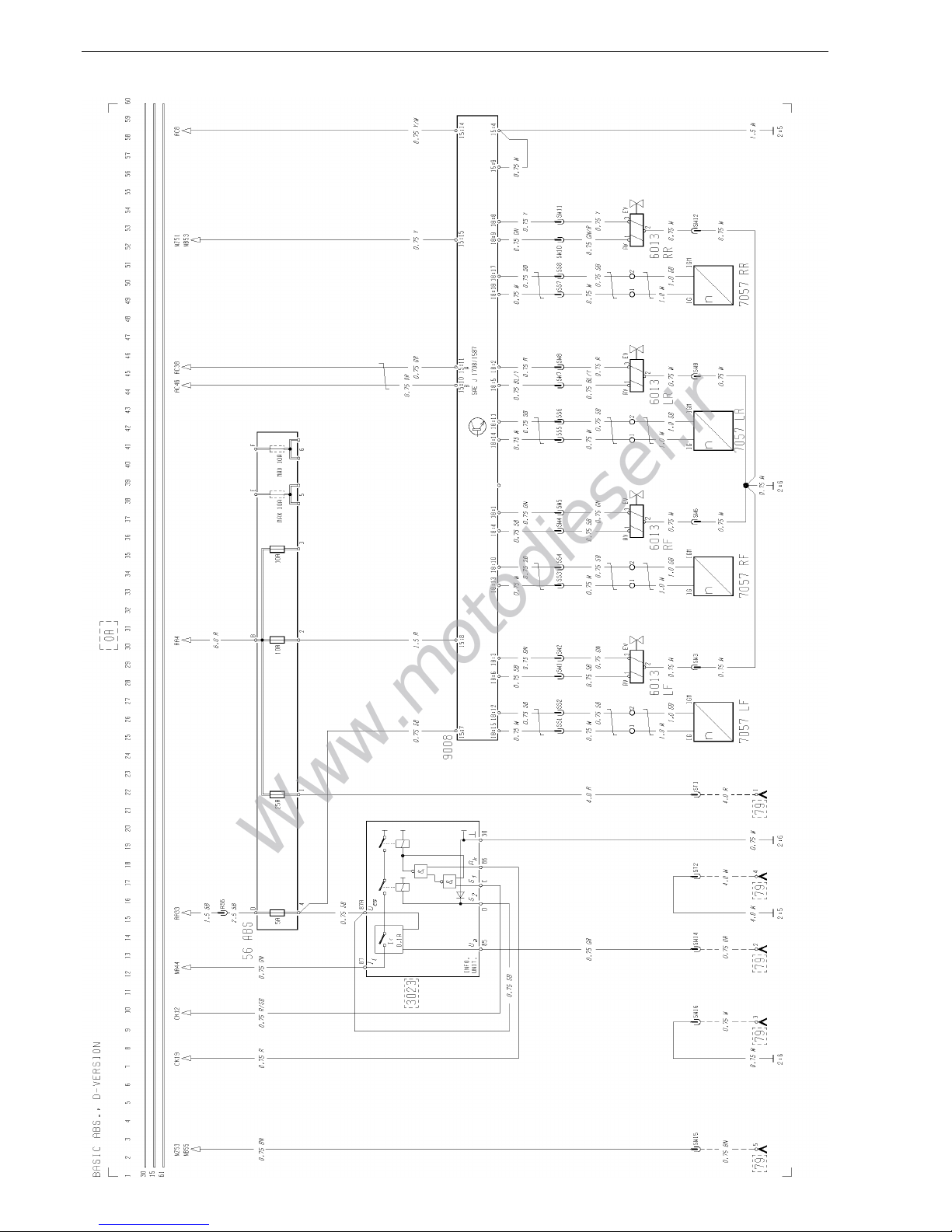

Basic ABS, D-version ......................................................................................................
page 40
OB

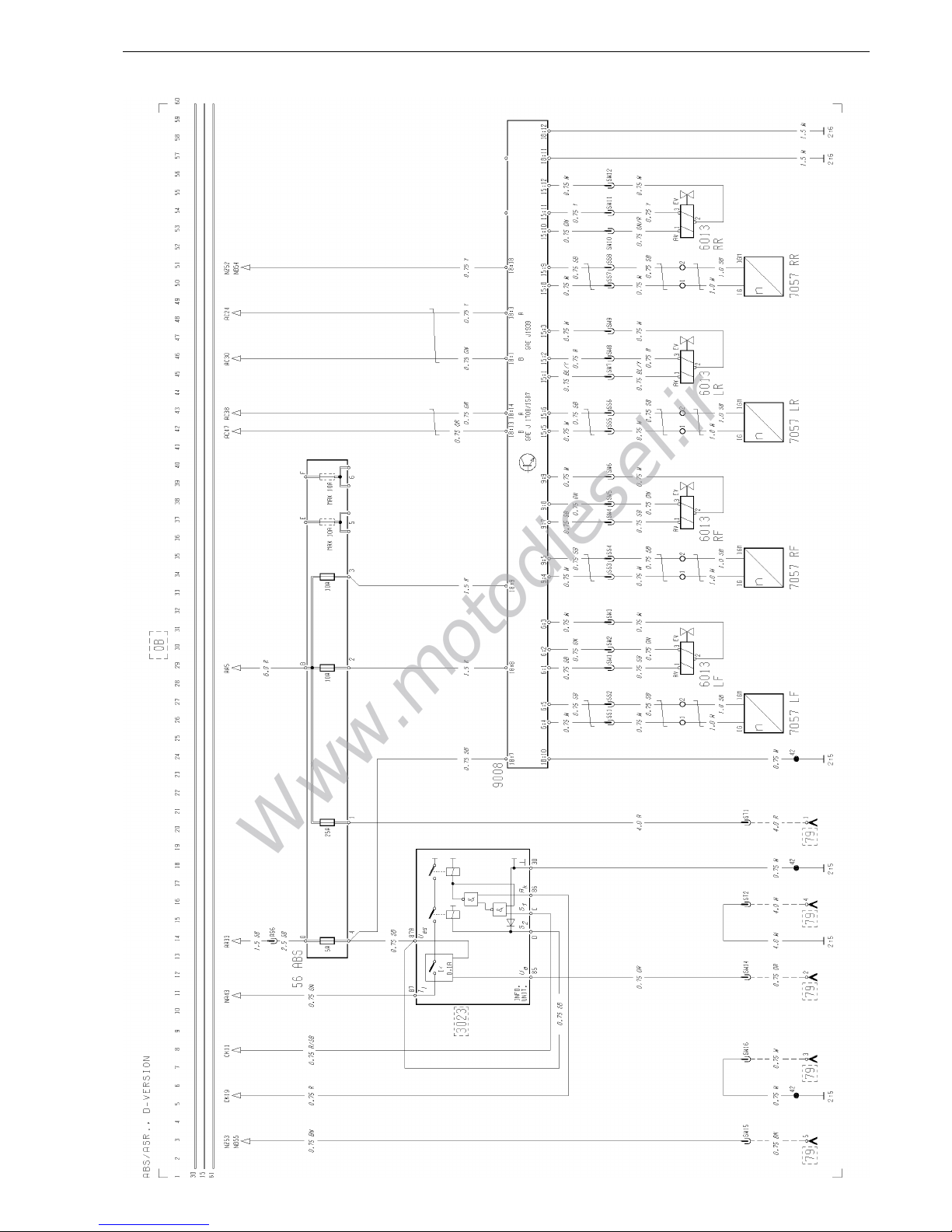

ABS/ASR, D-version ........................................................................................................
page 41
PA

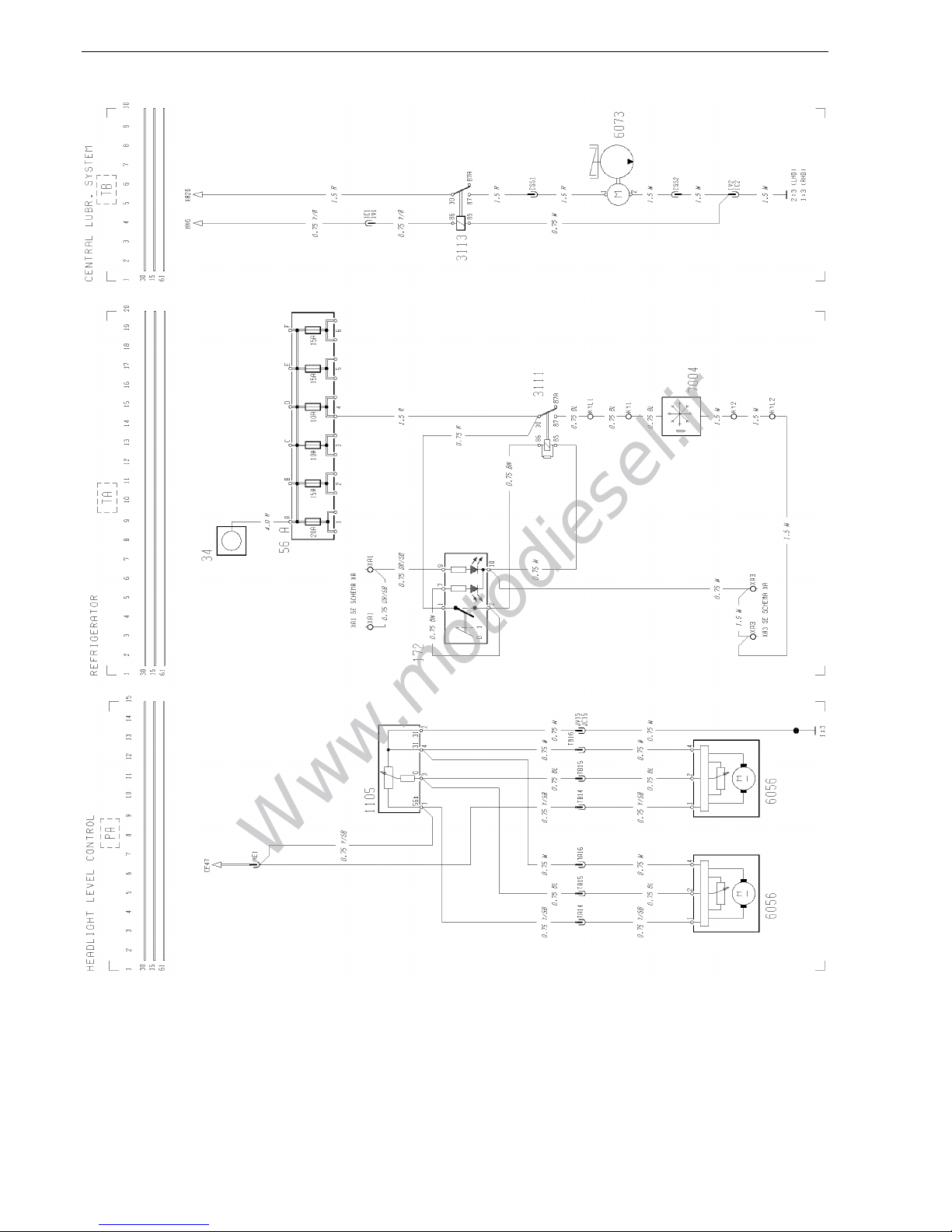

Headlight level control .....................................................................................................
page 42
TA
Refrigerator ......................................................................................................................
page 42
TB
Central lubrication system ...............................................................................................
page 42
XA

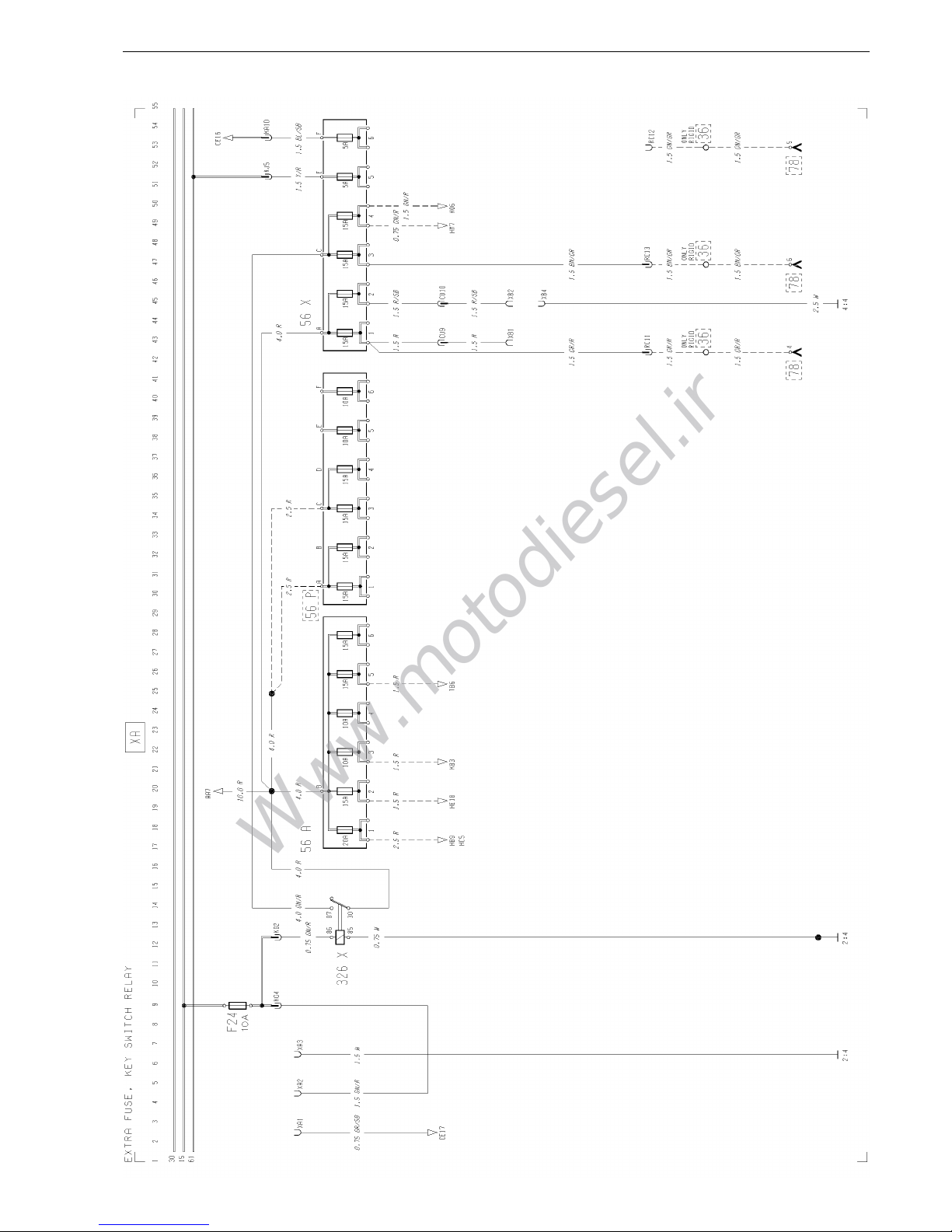

Extra fuses, key switch relay ...........................................................................................
page 43
ZA

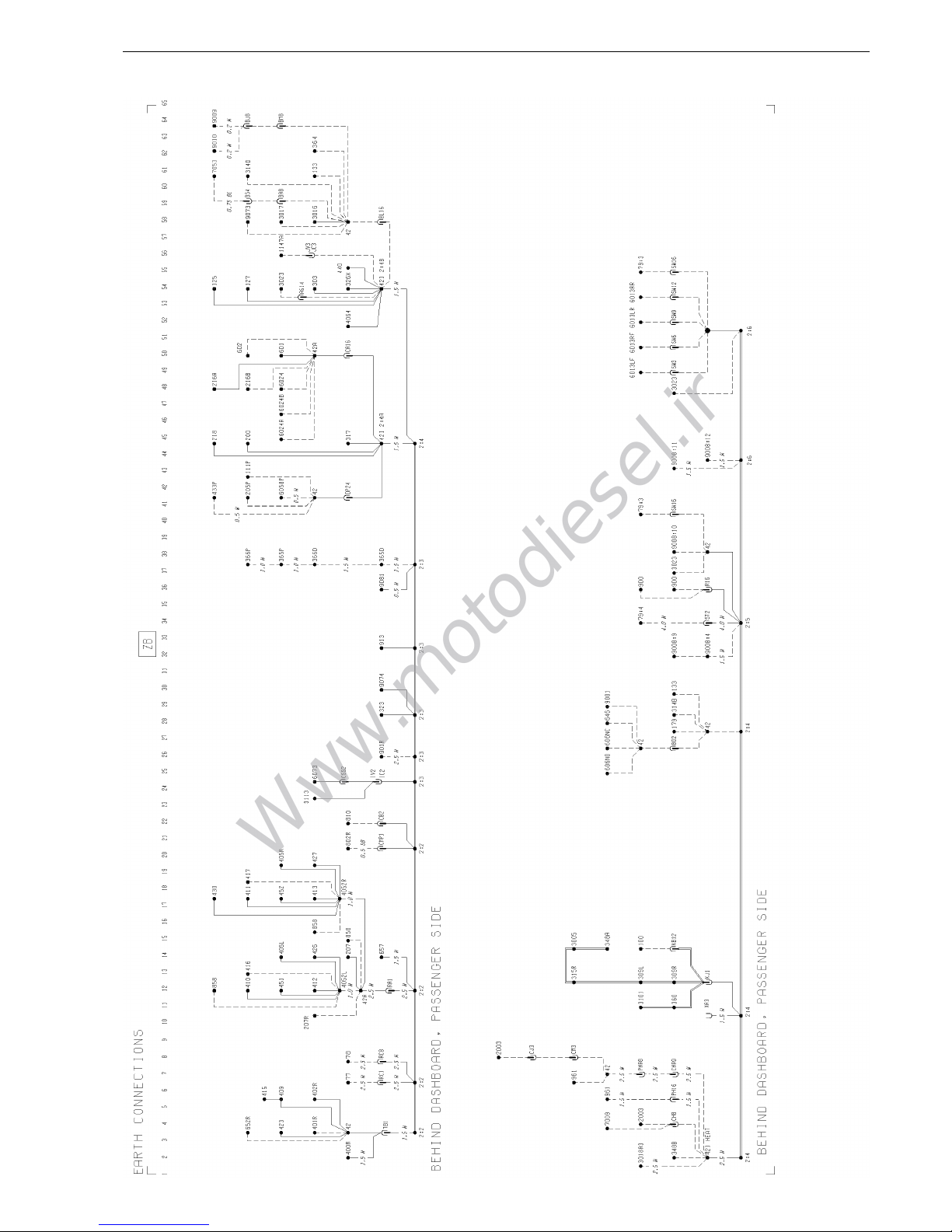

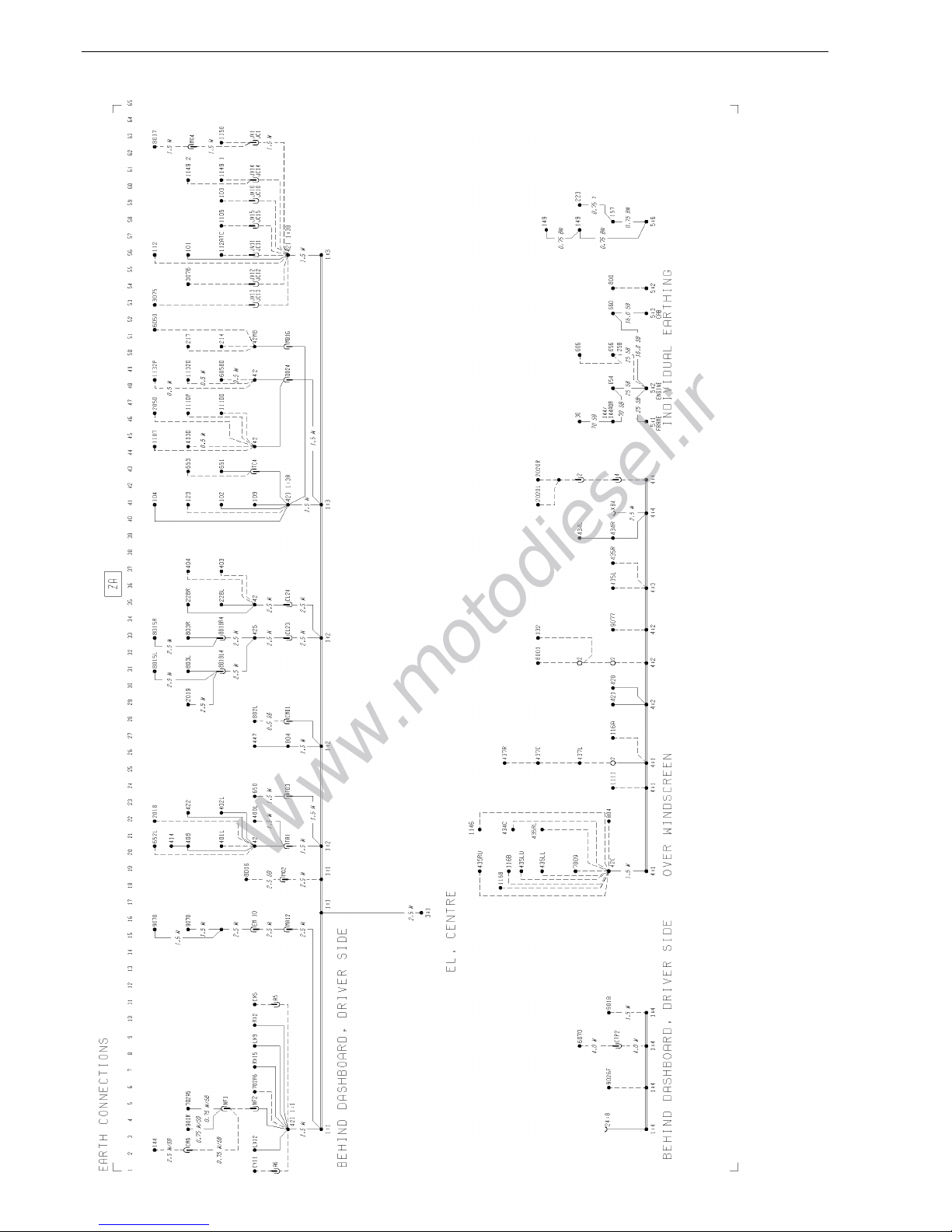

Earth connections ...........................................................................................................
page 44
ZB
Earth connections ...........................................................................................................
page 45

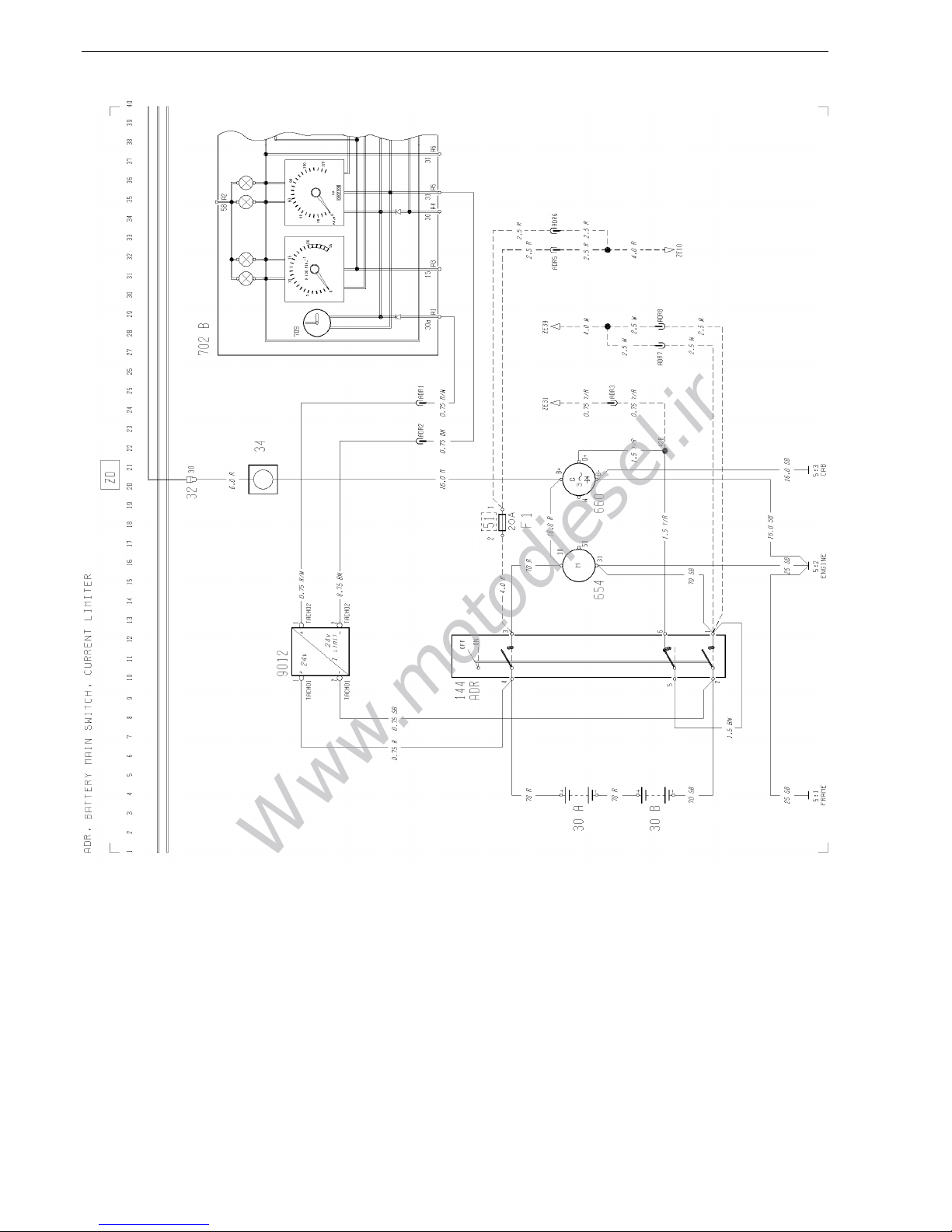

ZD
ADR battery main switch, current limiter .......................................................................
page 46
ZE

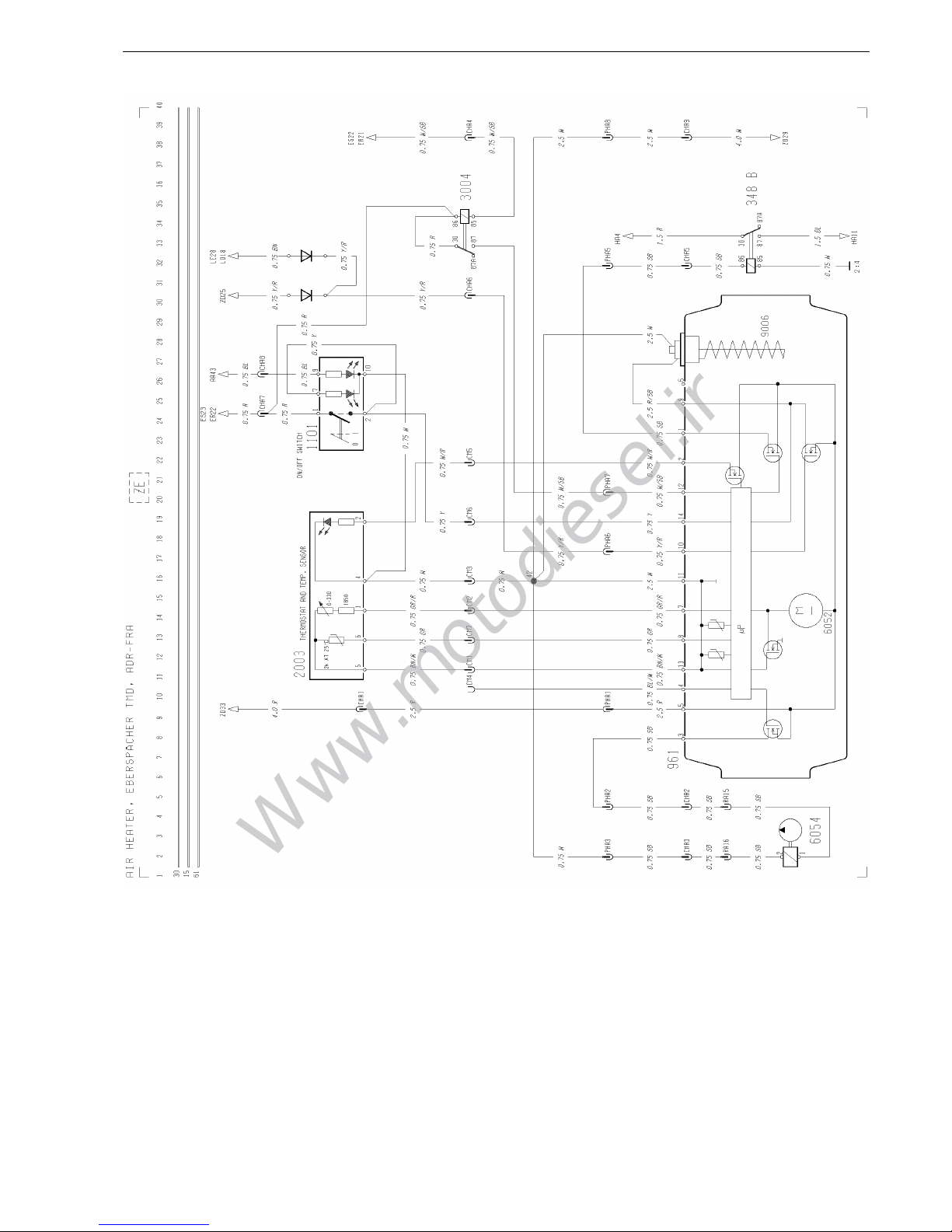

Air heater EBERSPÄCHER TMD, ADR-FRA ..................................................................
page 47
6
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 9
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
Component wiring diagrams
T3010019
7
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 10
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010020
8
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 11
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010021
9
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 12
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010022
10
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 13
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010023
11
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 14
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010024
12
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 15
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010025
13
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 16
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010026
14
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 17
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010027
15
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 18
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010028
16
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 19
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010029
17
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 20
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010030
18
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 21
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010031
19
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 22
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010032
20
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 23
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010033
21
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 24
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010034
22
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 25
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010035
23
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 26
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010036
24
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 27
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010037
25
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 28
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010038
26
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 29
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010039
27
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 30
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010040
28
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 31
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010041
29
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 32
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010042
30
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 33
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010045
31
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 34
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010046
32
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 35
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010047
33
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 36
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010048
34
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 37
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010049
35
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 38
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010050
36
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 39
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010051
37
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 40
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010052
38
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 41
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010053
39
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 42
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010054
40
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 43
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010055
41
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 44
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010057
42
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 45
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010058
43
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 46
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010059
44
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 47
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010060
45
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 48
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010061
46
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 49
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010062
47
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 50
Group 37 Wiring diagram FH12, FH16 LHD Illustrations index
Illustrations index
- Earth connections ................................................................. page 49
- Battery cables ........................................................................ page 50

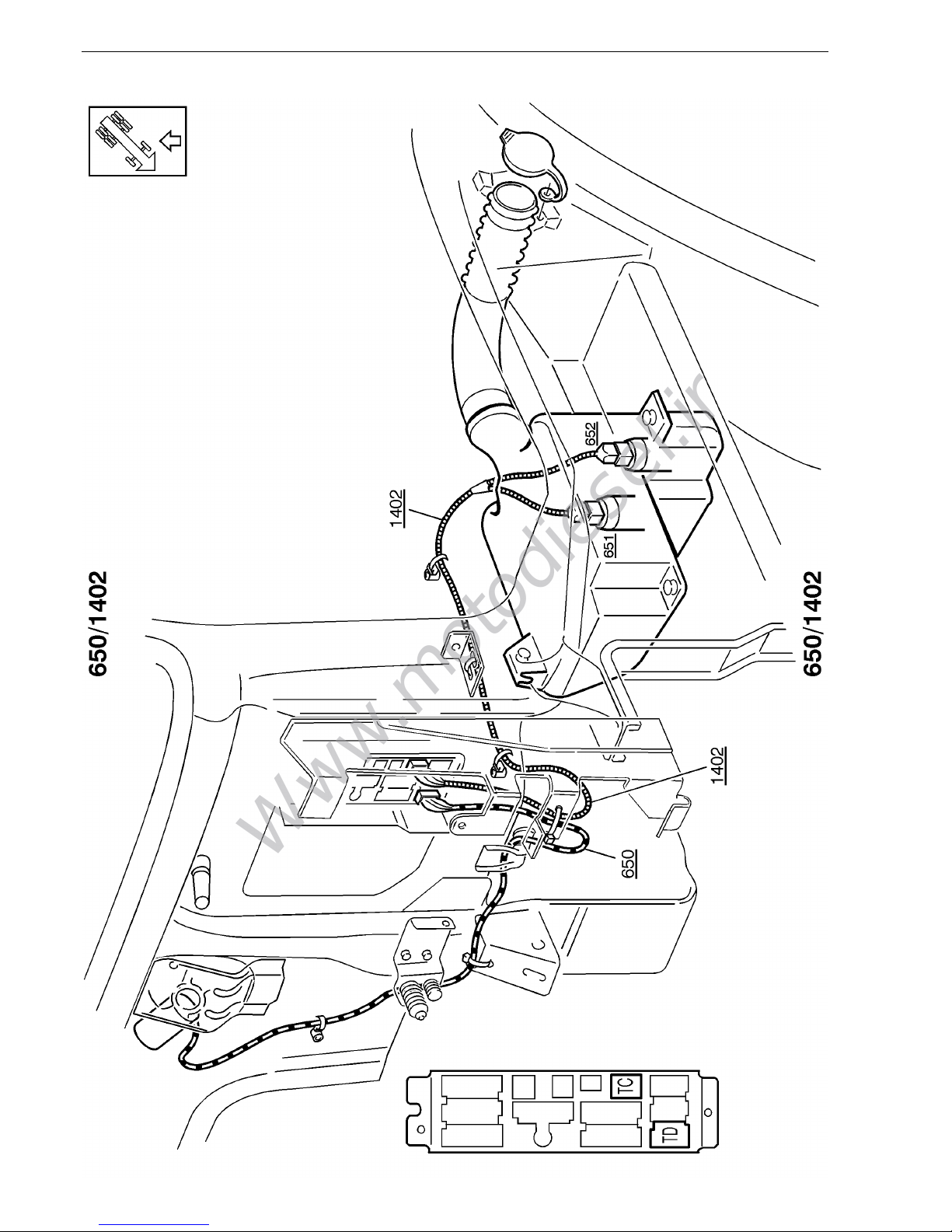

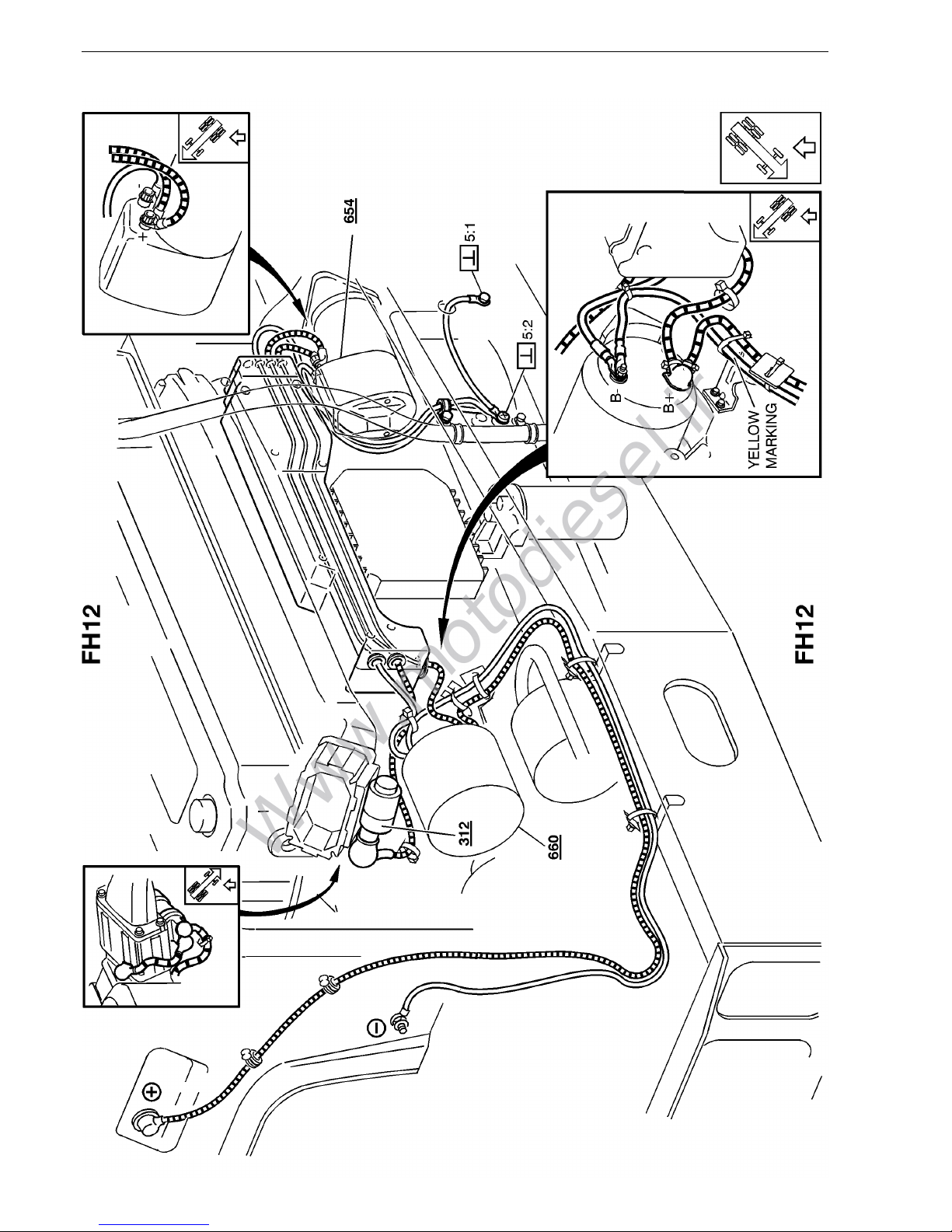

650 Windscreen wiper motor ....................................................... page 88

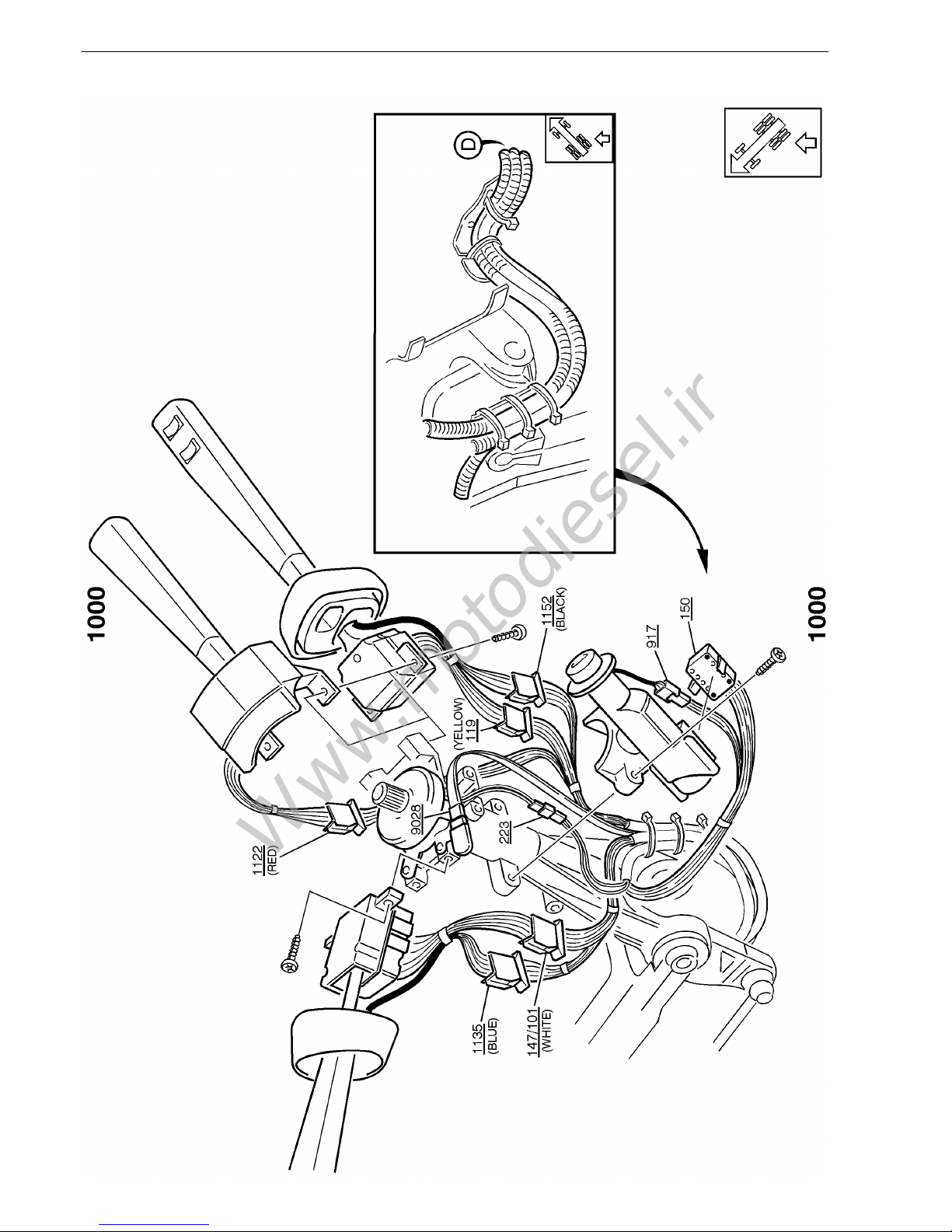

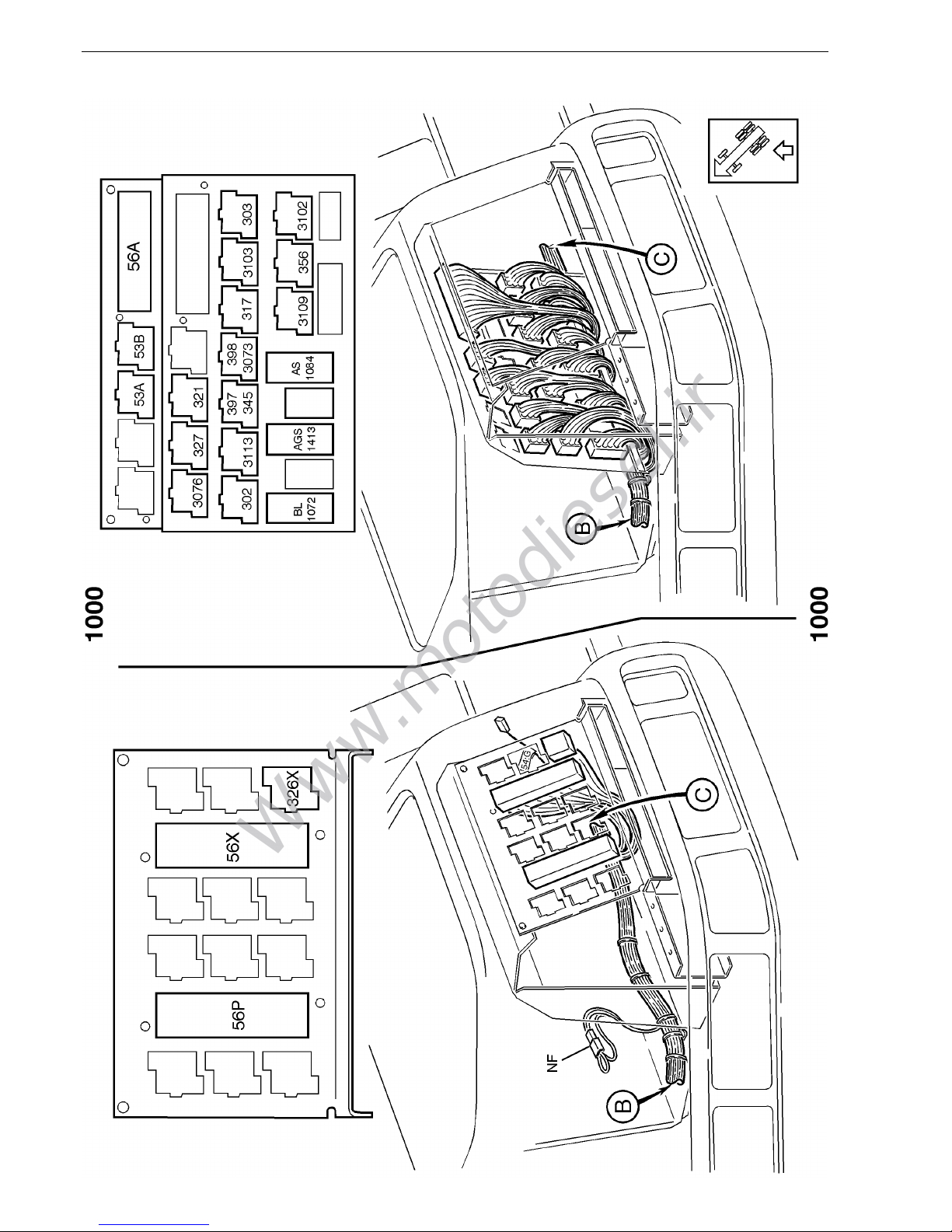

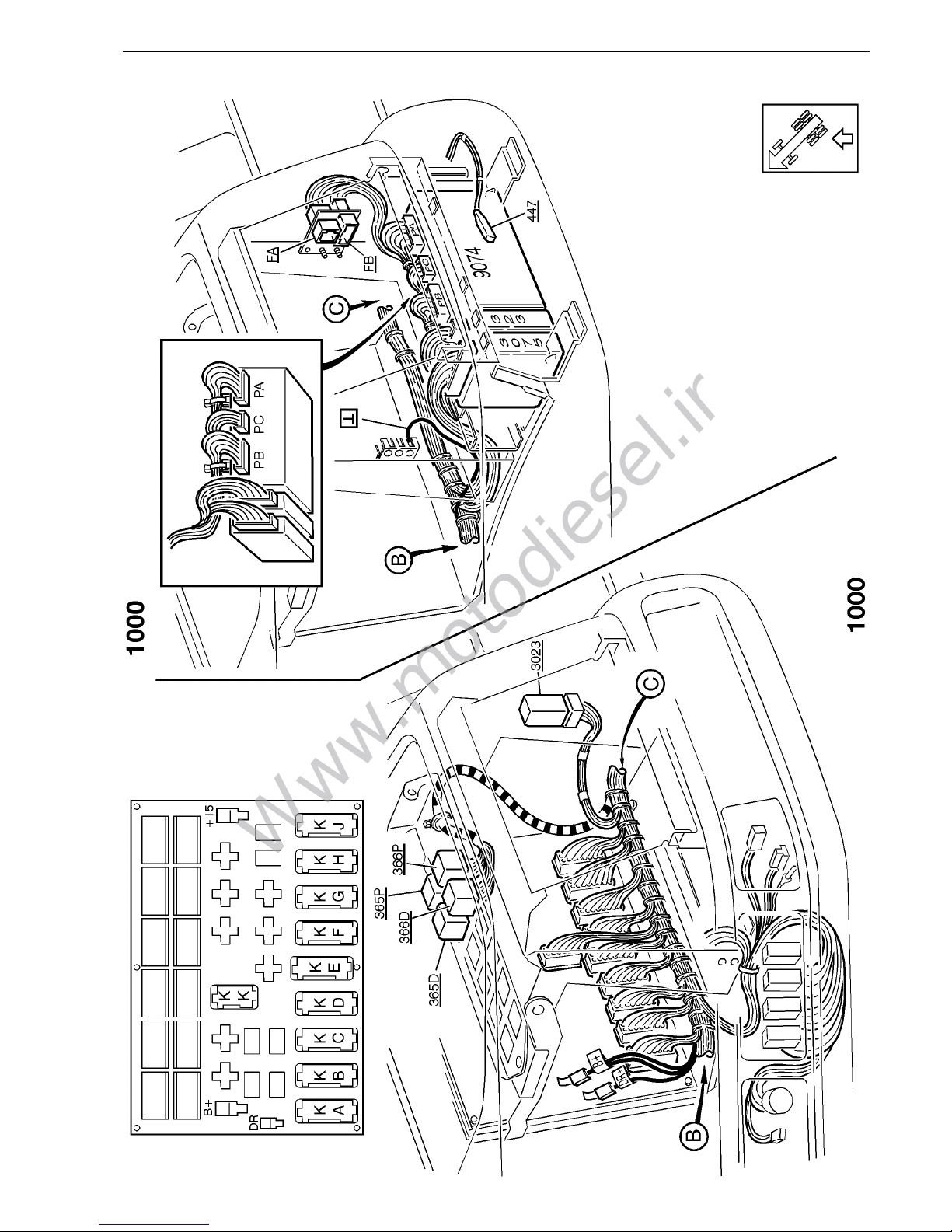

1000 Cable harness, instruments .................................................. page 55
1002 Cable harness, tachograph (CABLE-EC) .............................. page 60

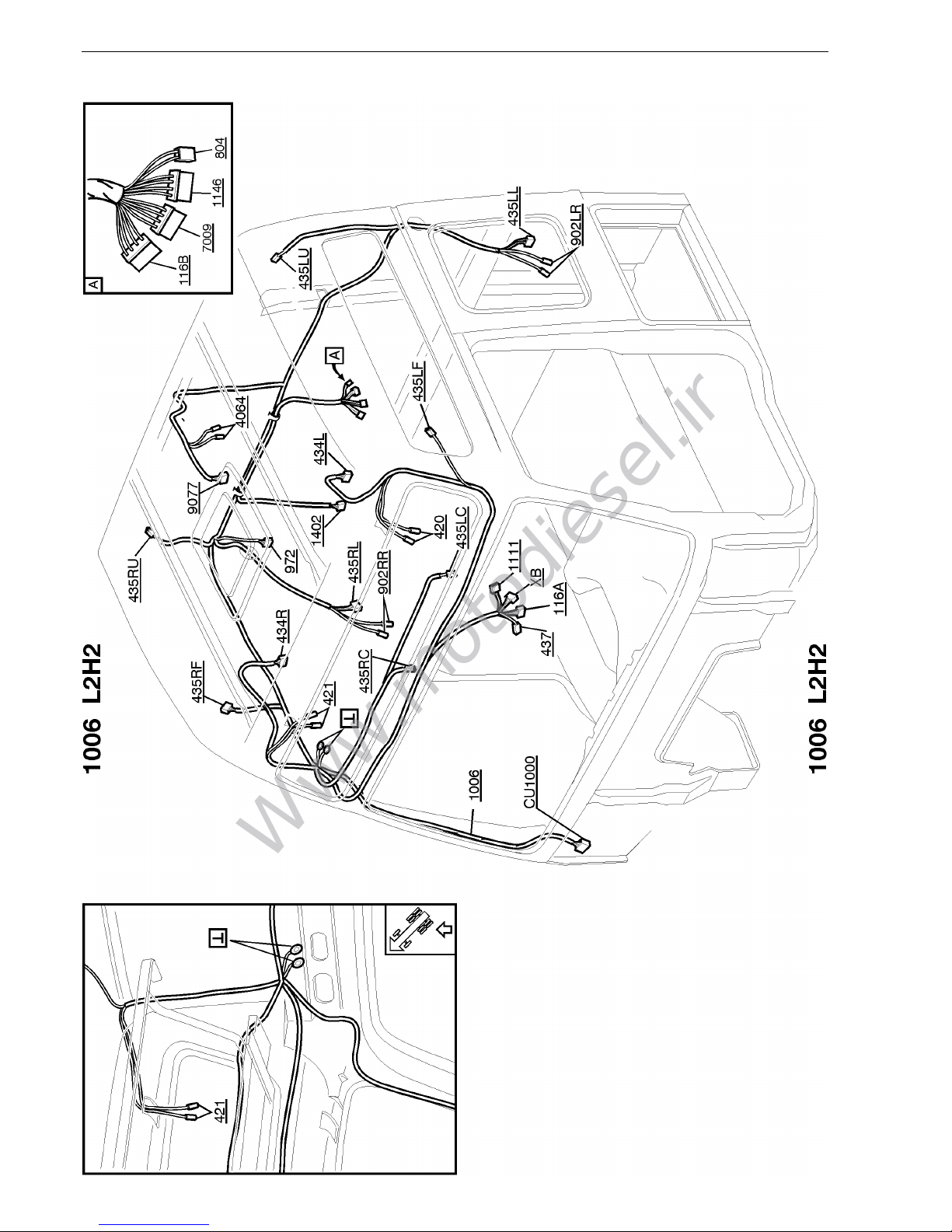

1006 Cable harness, cab, upper .................................................... page 61

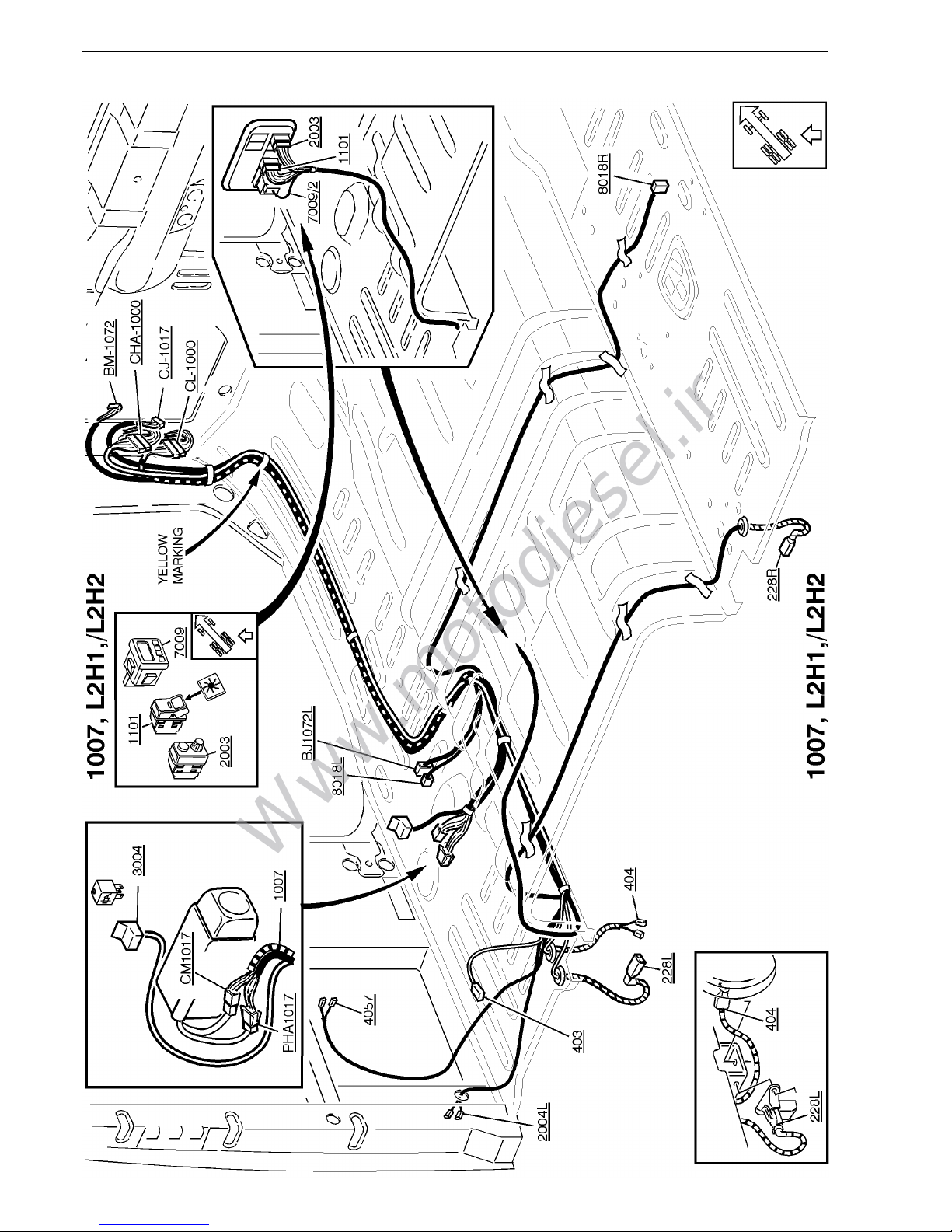

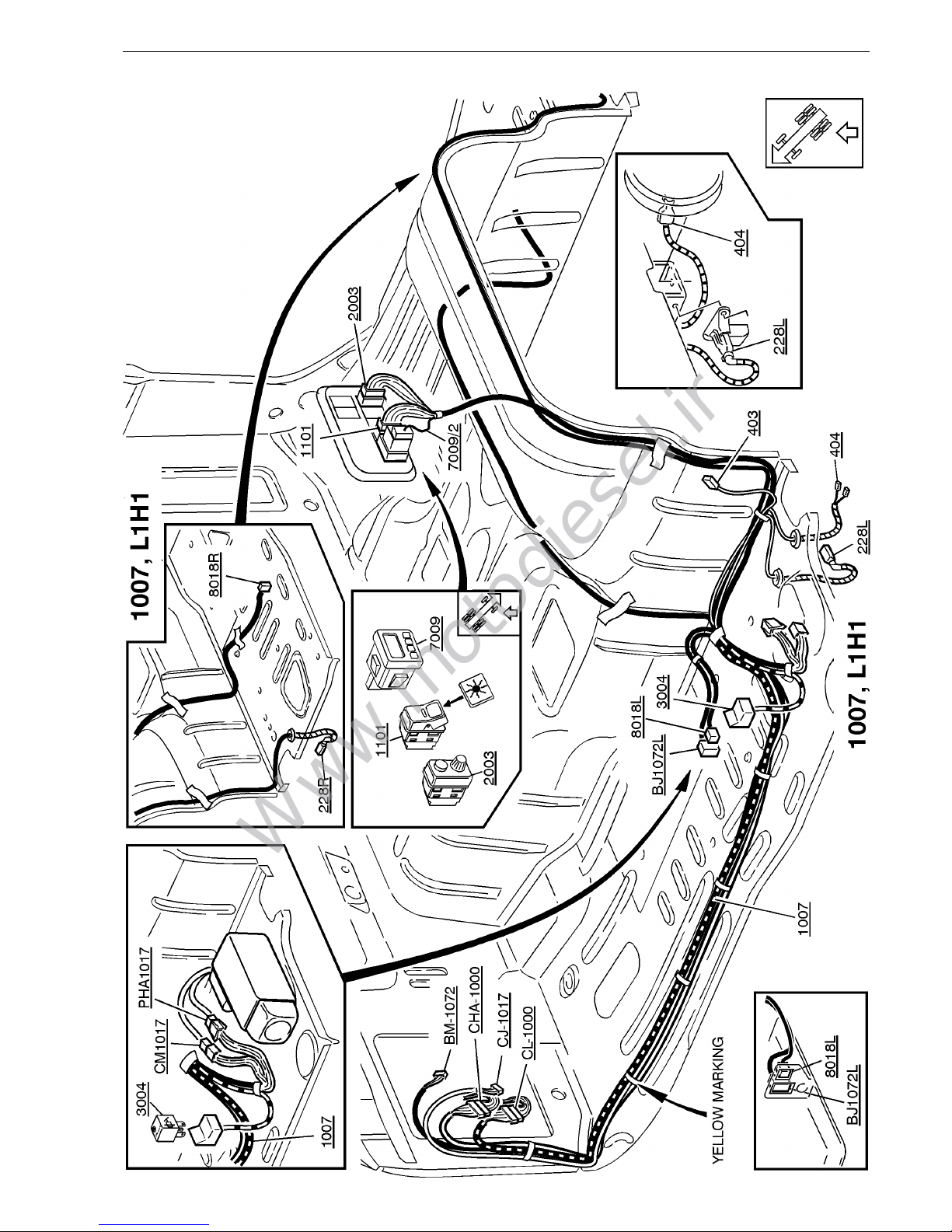

1007 Cable harness, cab, lower ..................................................... page 63
1017 Cable harness, engine/cab heater ........................................ page 65

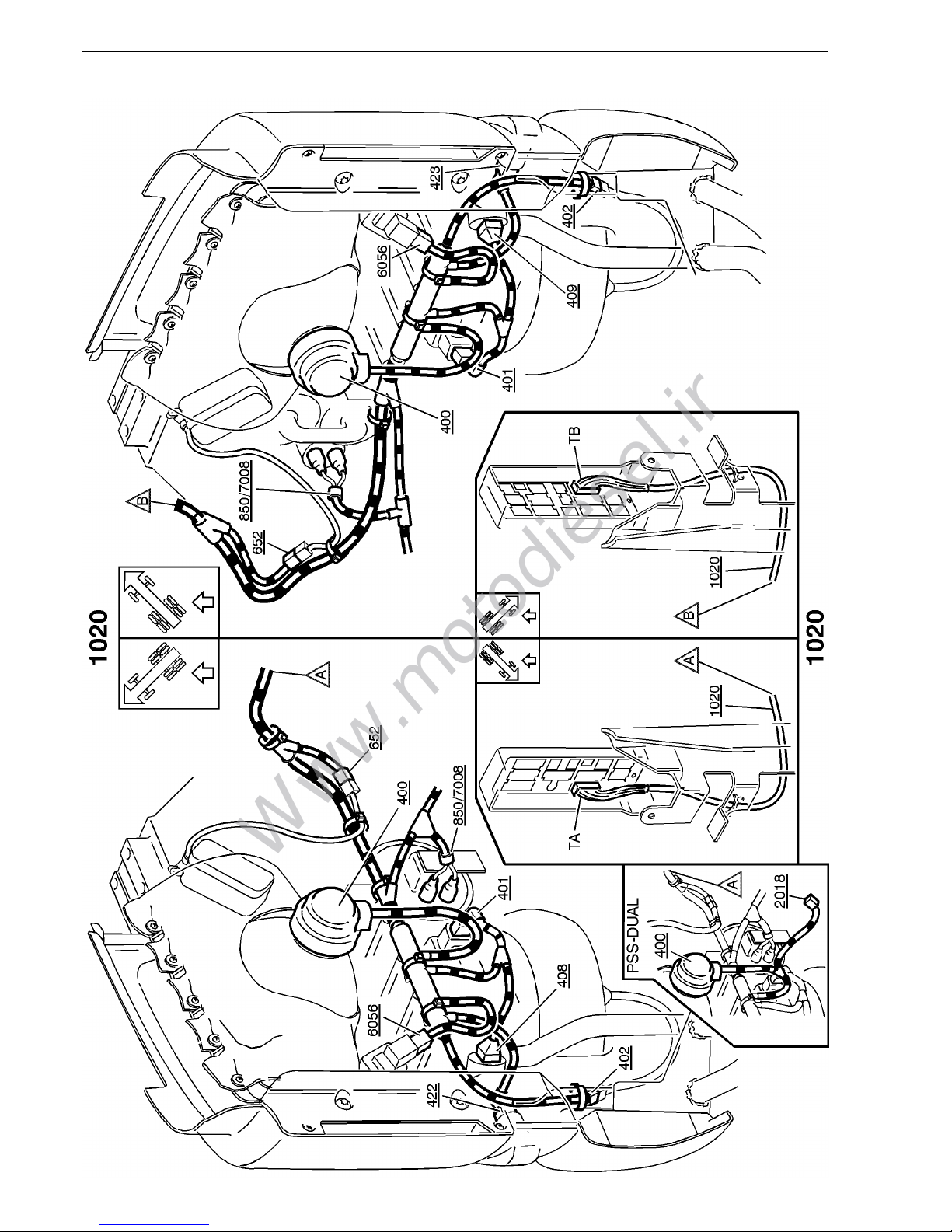

1020 Cable harness, cowl .............................................................. page 66

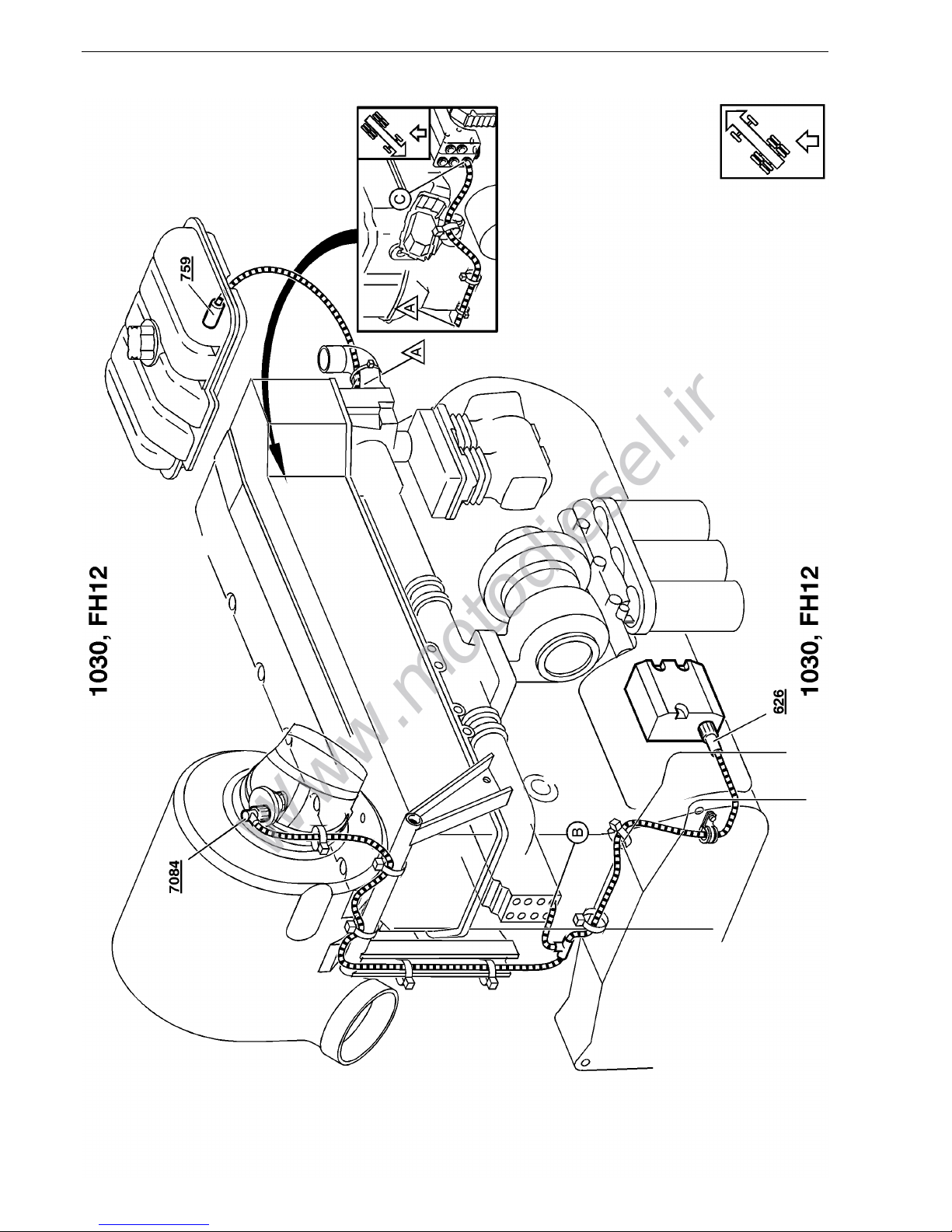

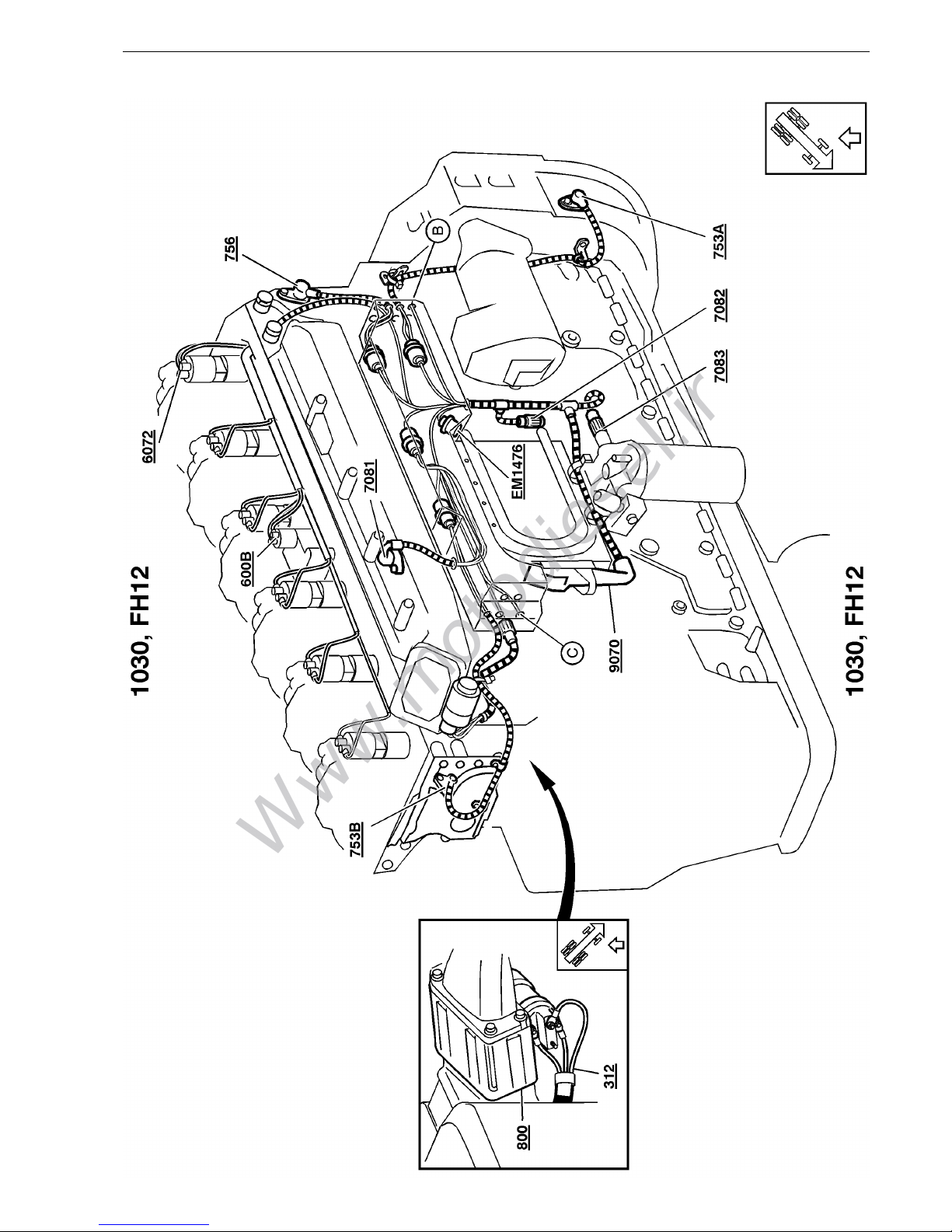

1030 Cable harness, engine .......................................................... page 67

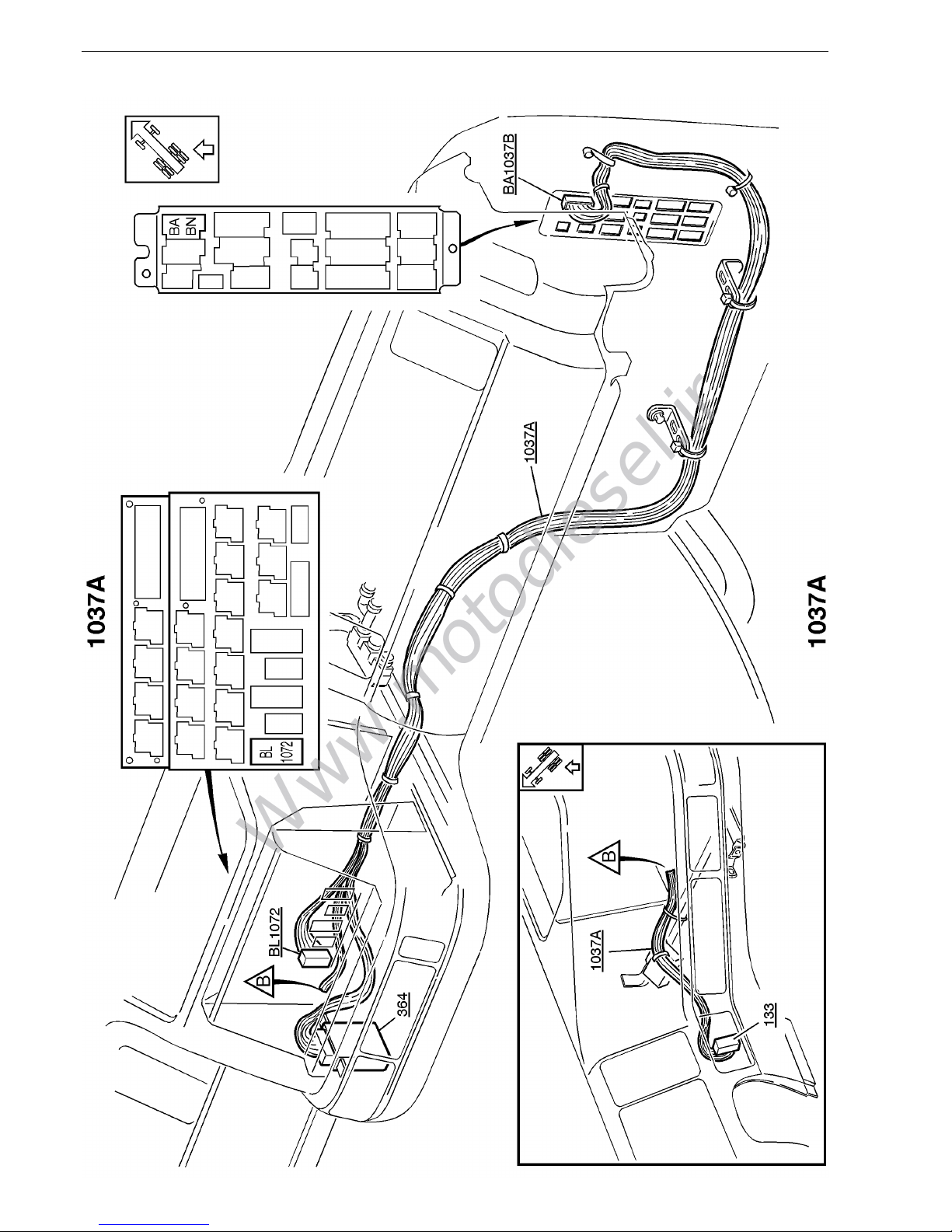

1037 Cable harness, bogie lift ....................................................... page 70

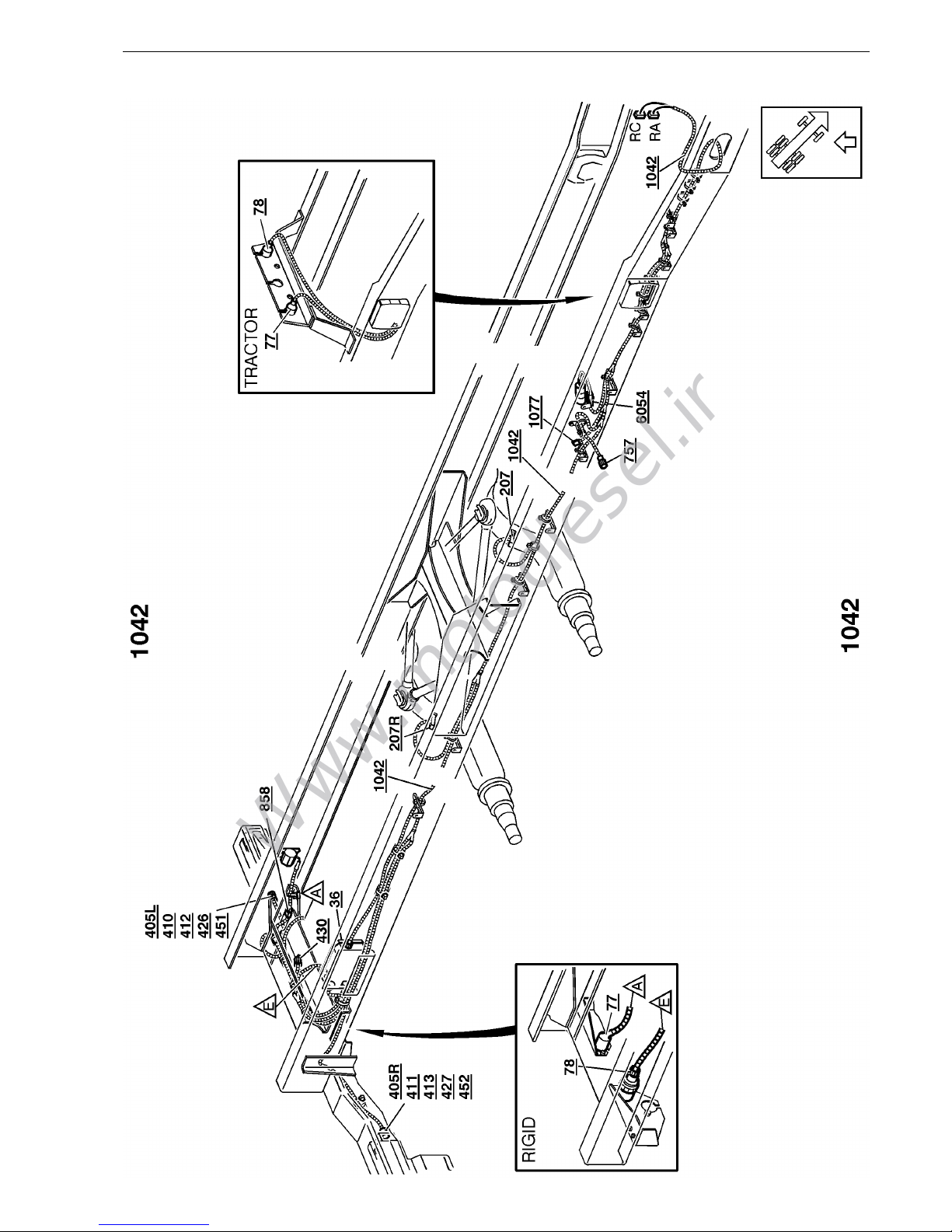

1042 Cable harness, tail lights ....................................................... page 71
1056 Cable harness, air dryer ........................................................ page 72

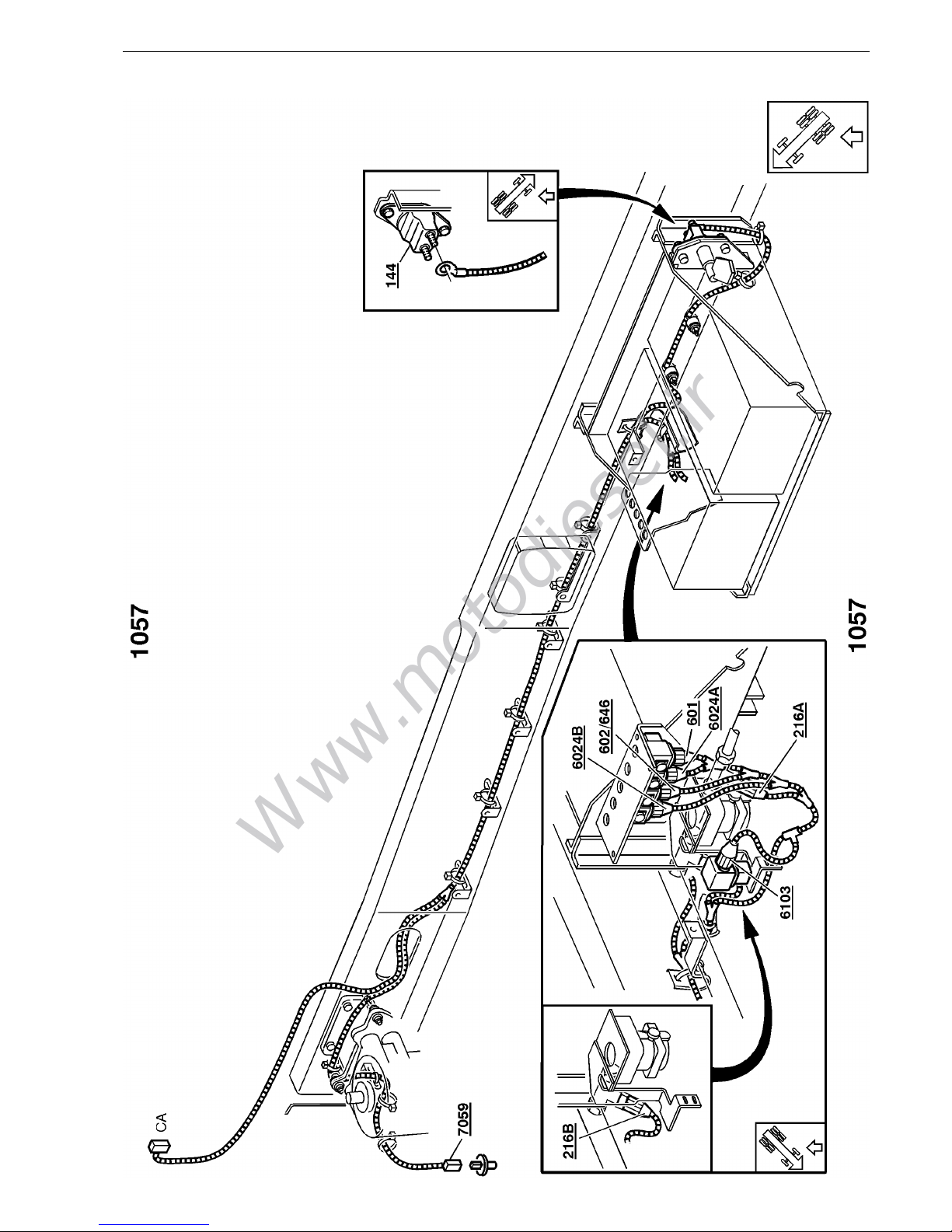

1057 Cable harness, chassis ......................................................... page 73
1061 Cable harness, parking heater, cab ...................................... page 74

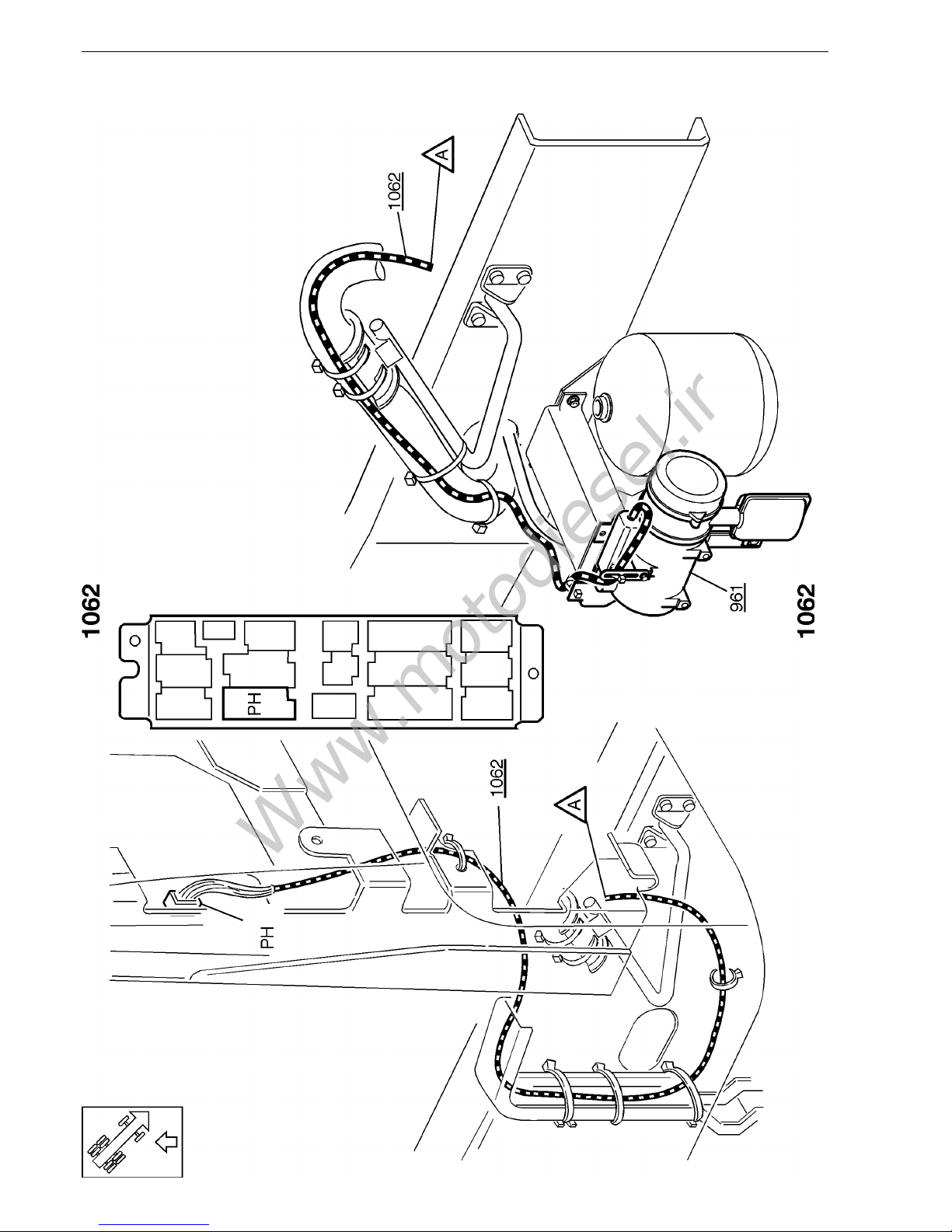

1062 Cable harness, parking heater, frame ................................... page 76

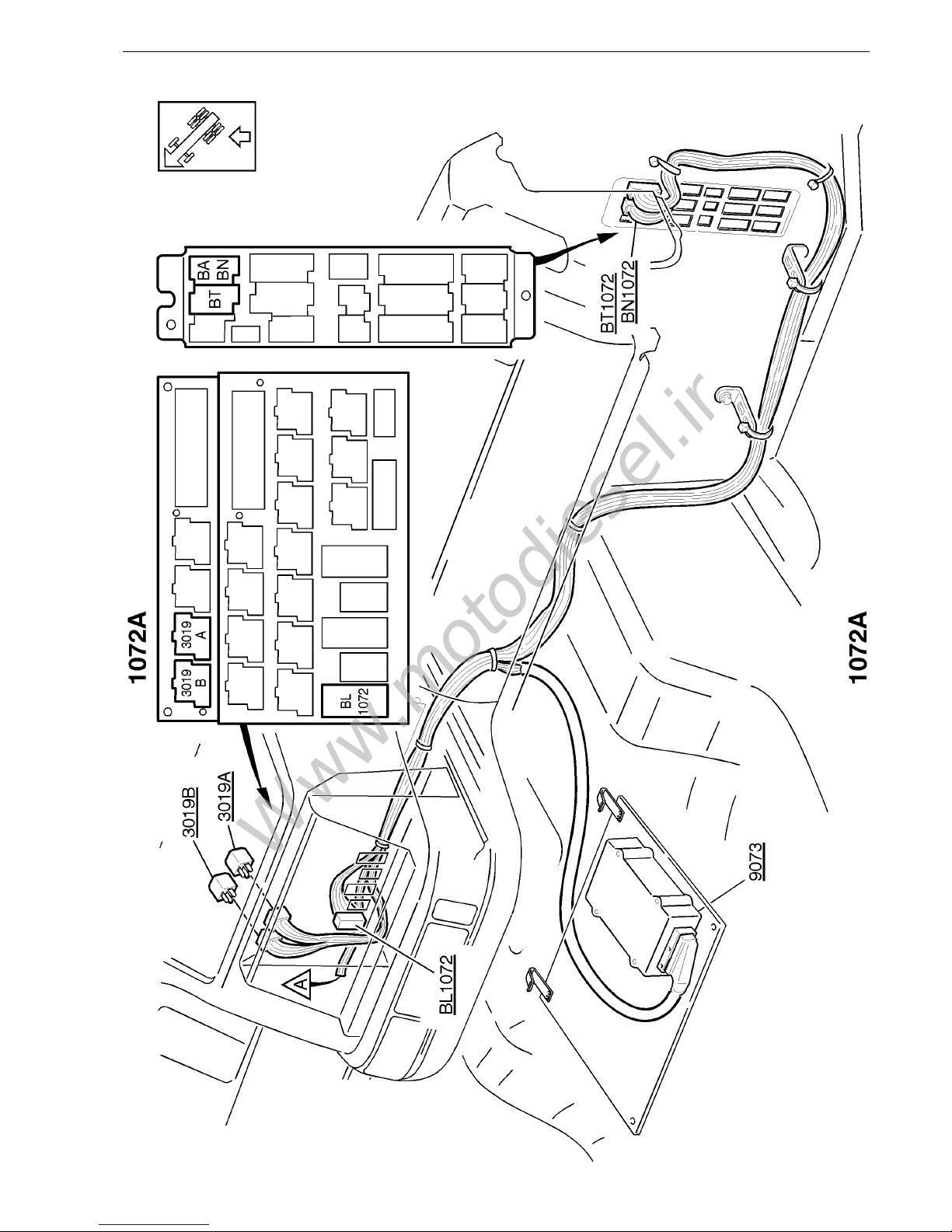

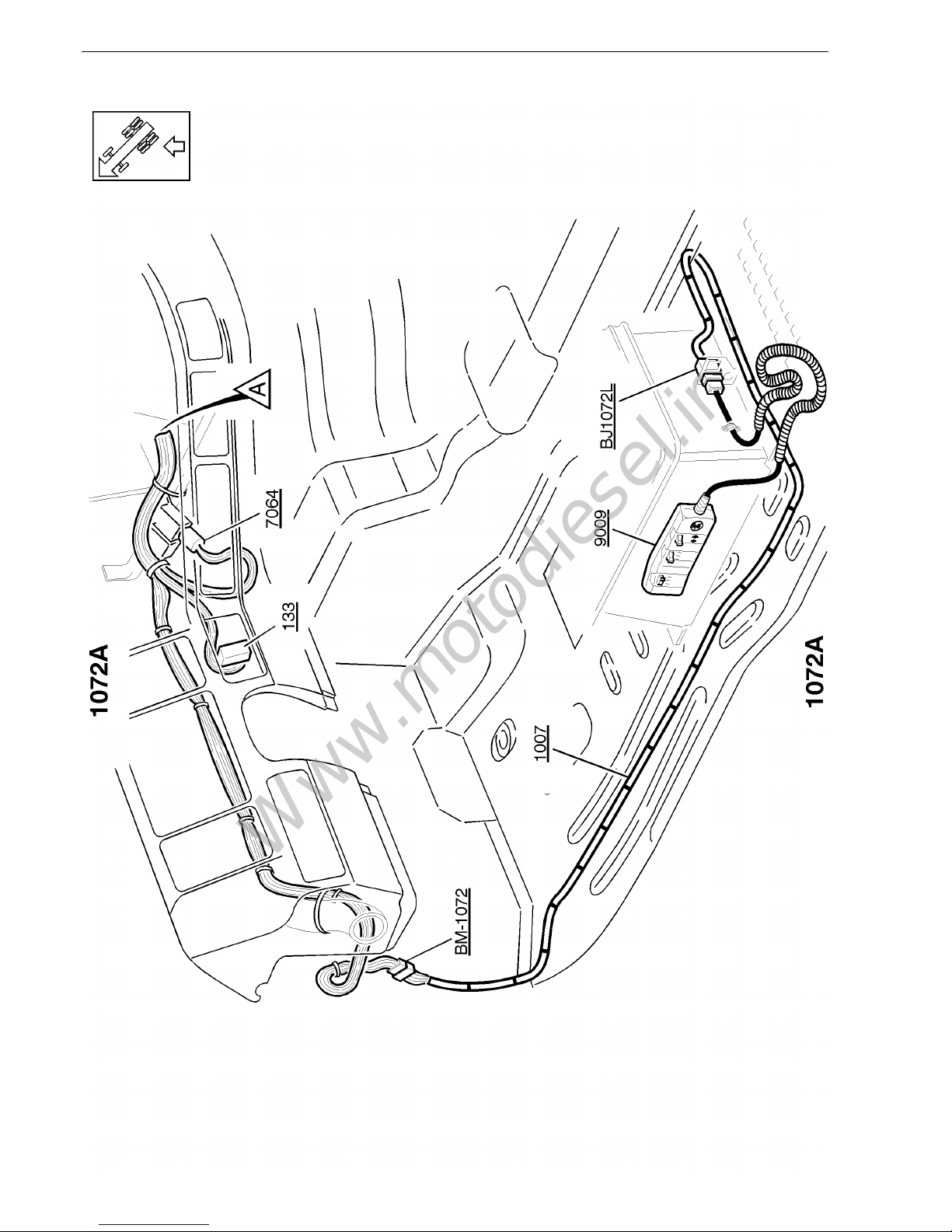

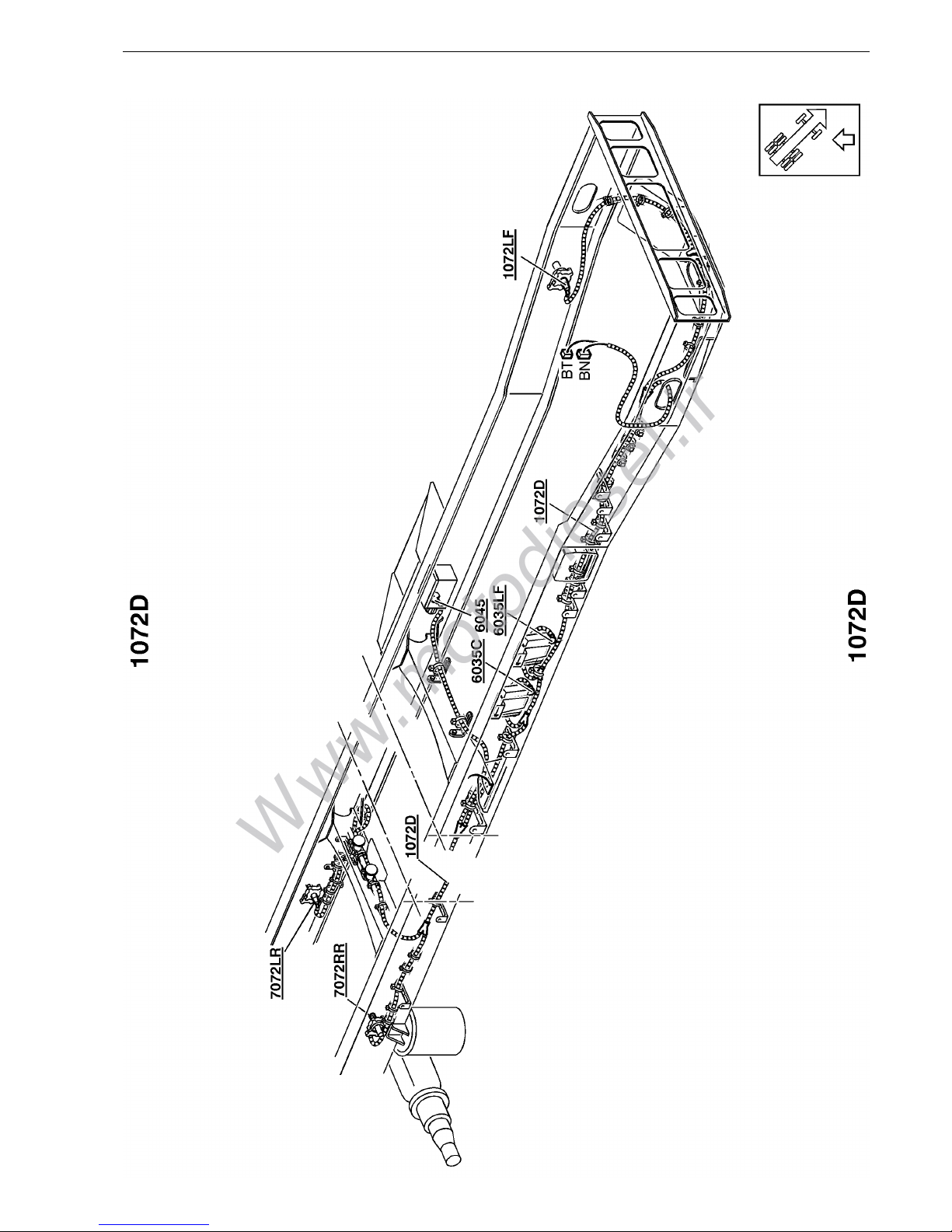

1072 Cable harness, air suspension .............................................. page 77

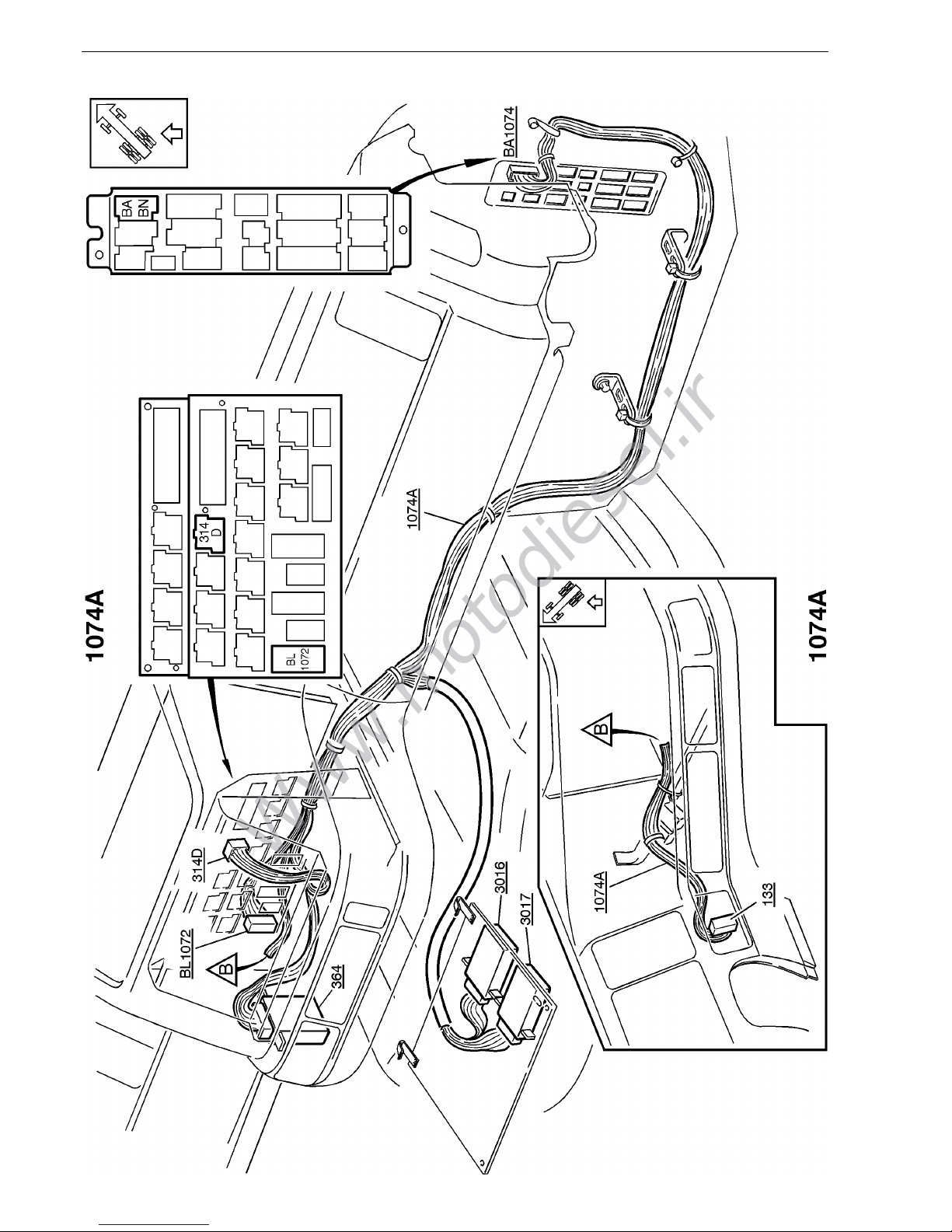

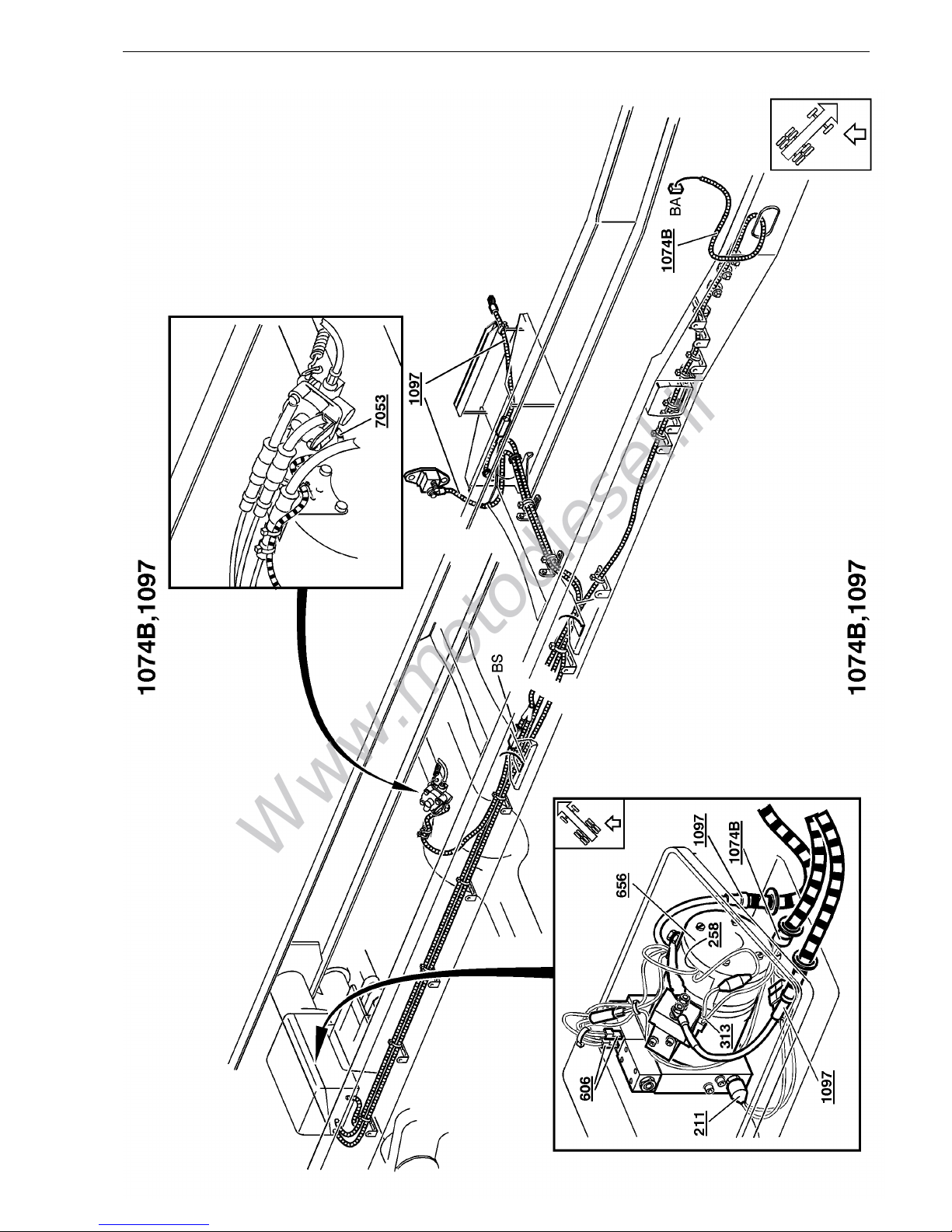

1074 Cable harness, hydralic bogie lift with axle load limiter ........ page 80

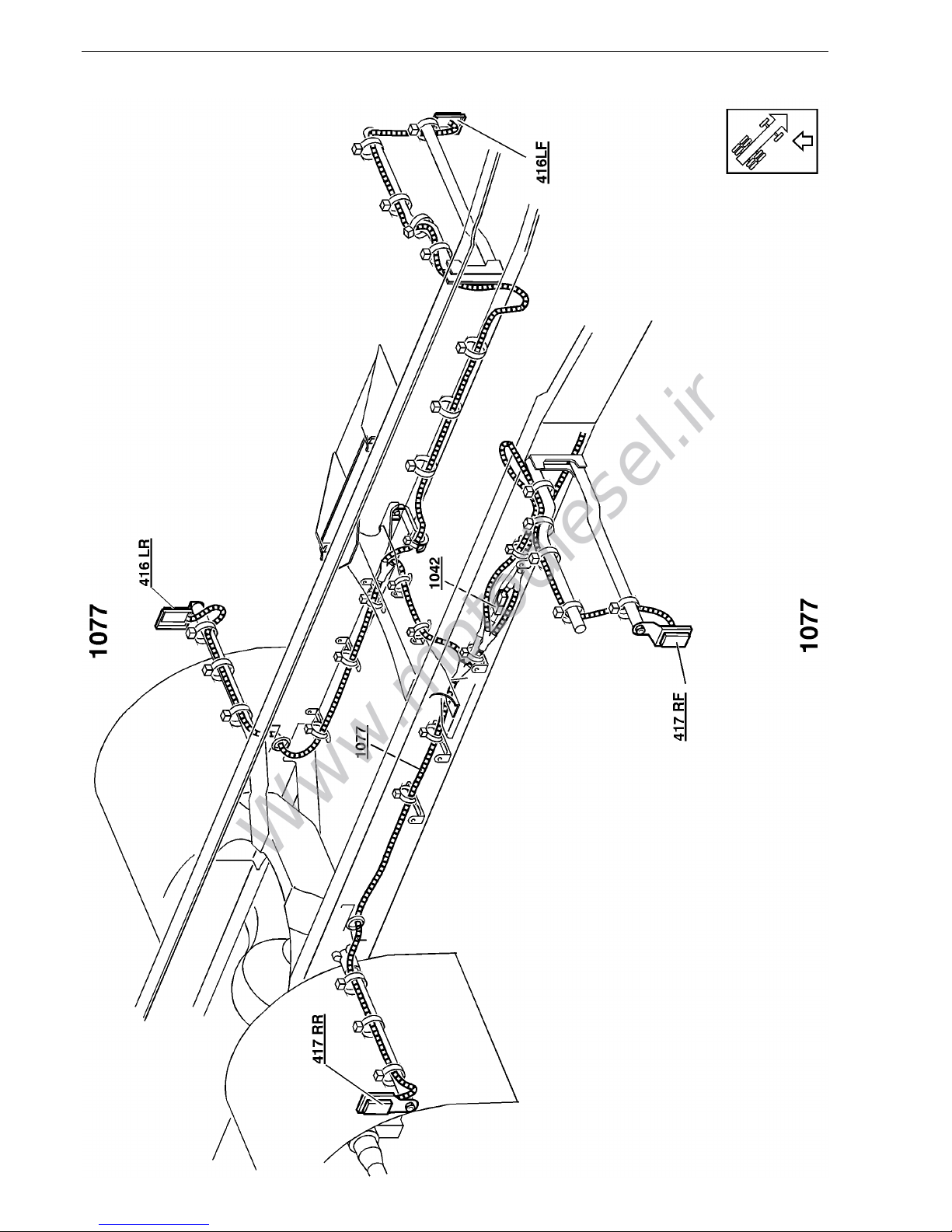

1077 Cable harness, side marking lamp ....................................... page 82

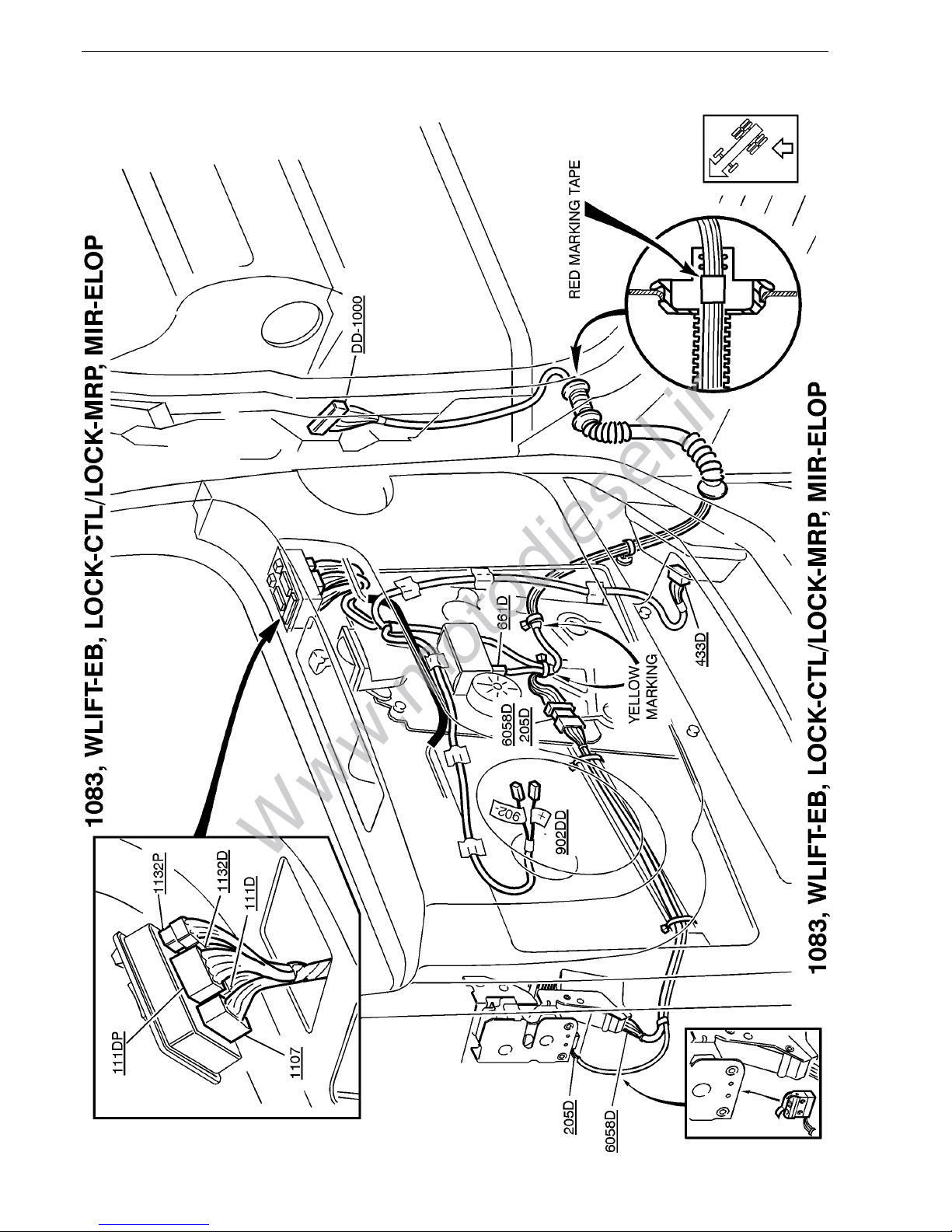

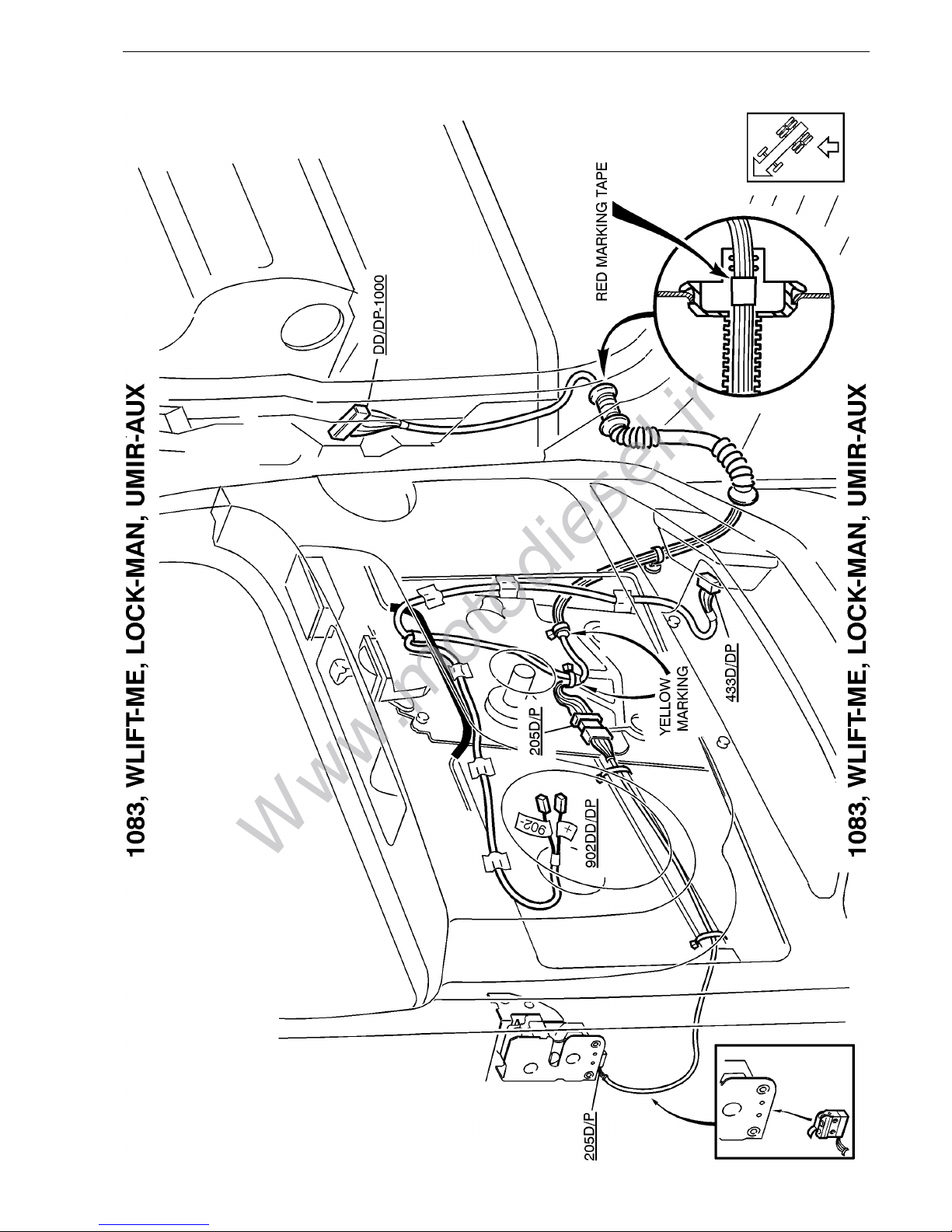

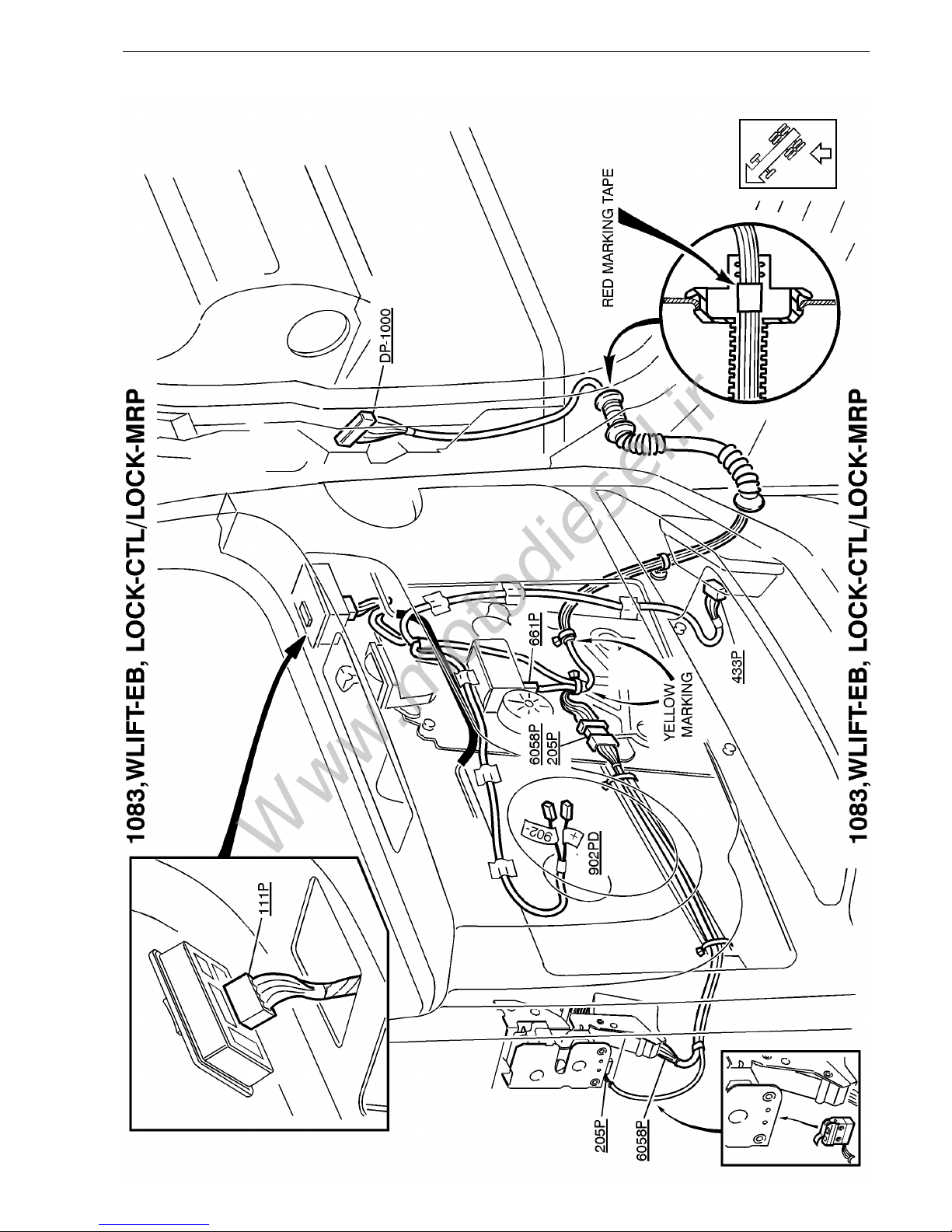

1083 Cable harness, door .............................................................. page 83

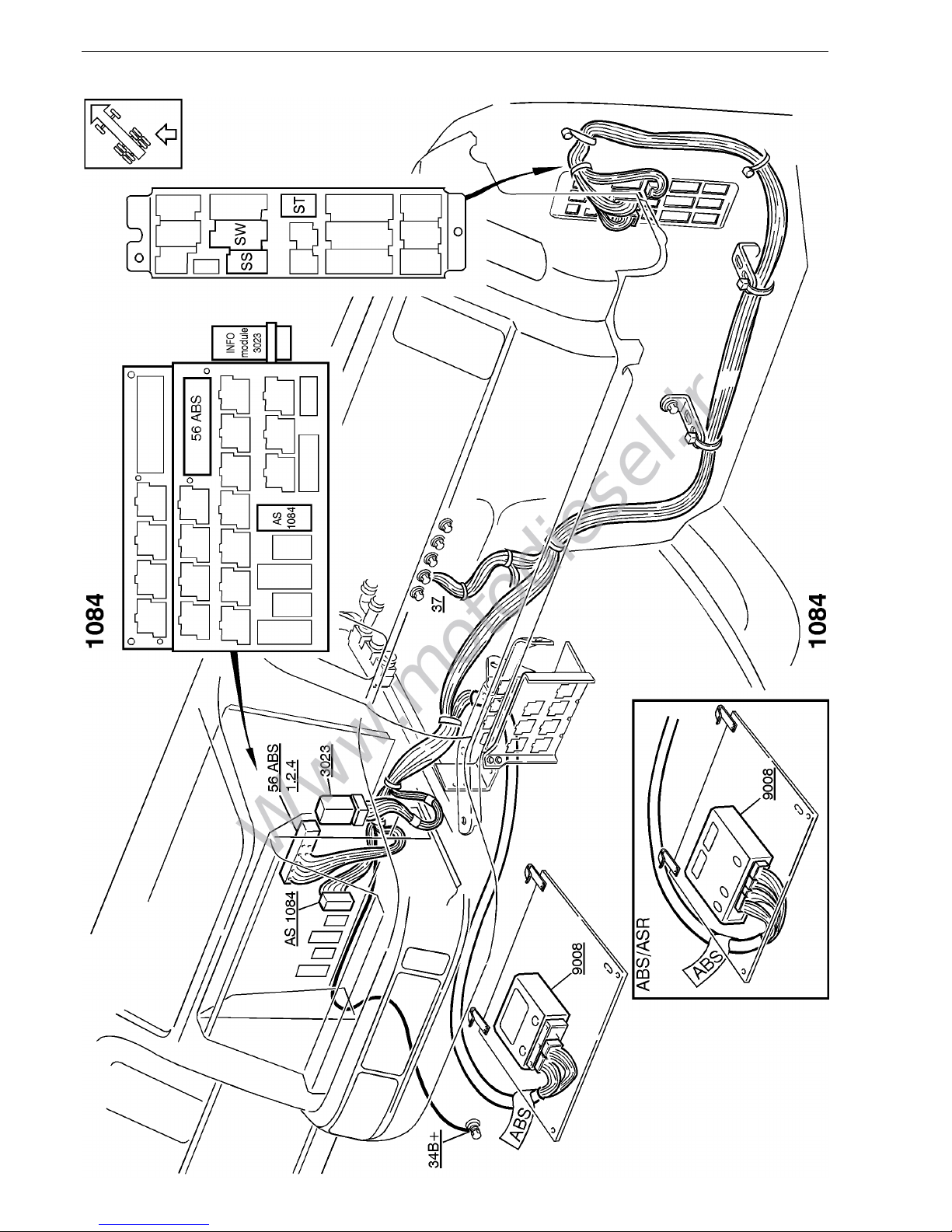

1084 Cable harness, cab, ABS ...................................................... page 86

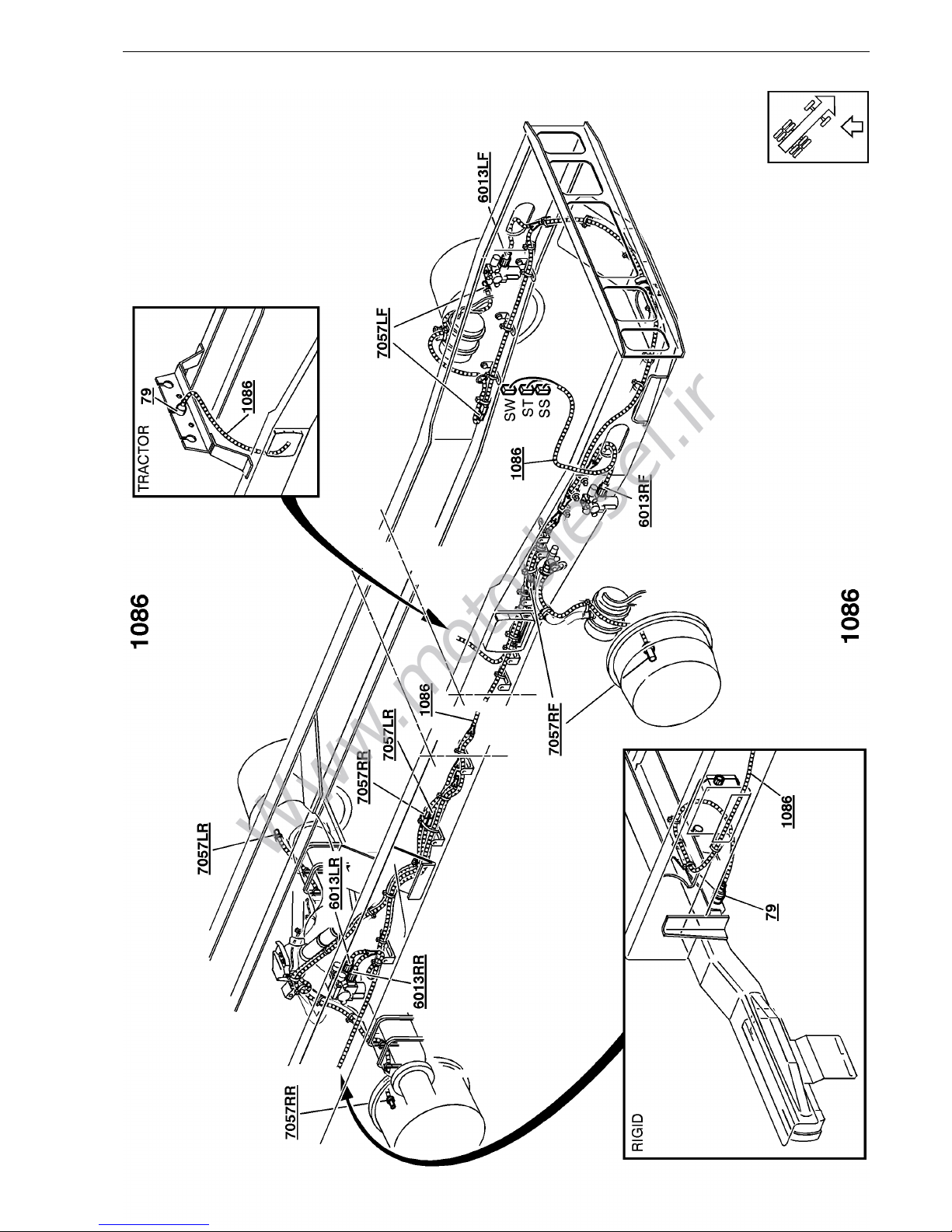

1086 Cable harness, solenoid valve, ABS ..................................... page 87
1097 Cable harness, bogie lift feeder cable .................................. page 81
1402 Cable harness, windscreen washers .................................... page 88

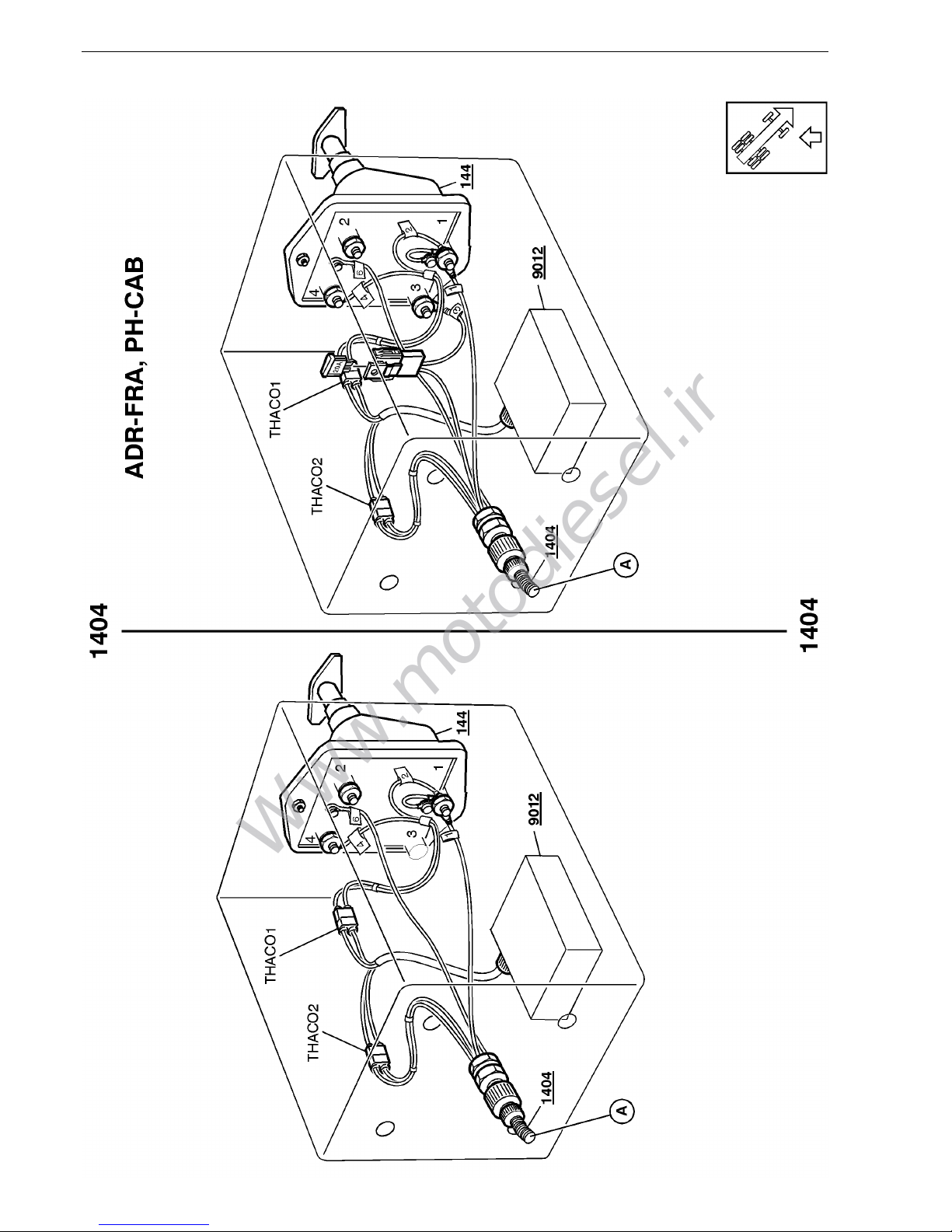

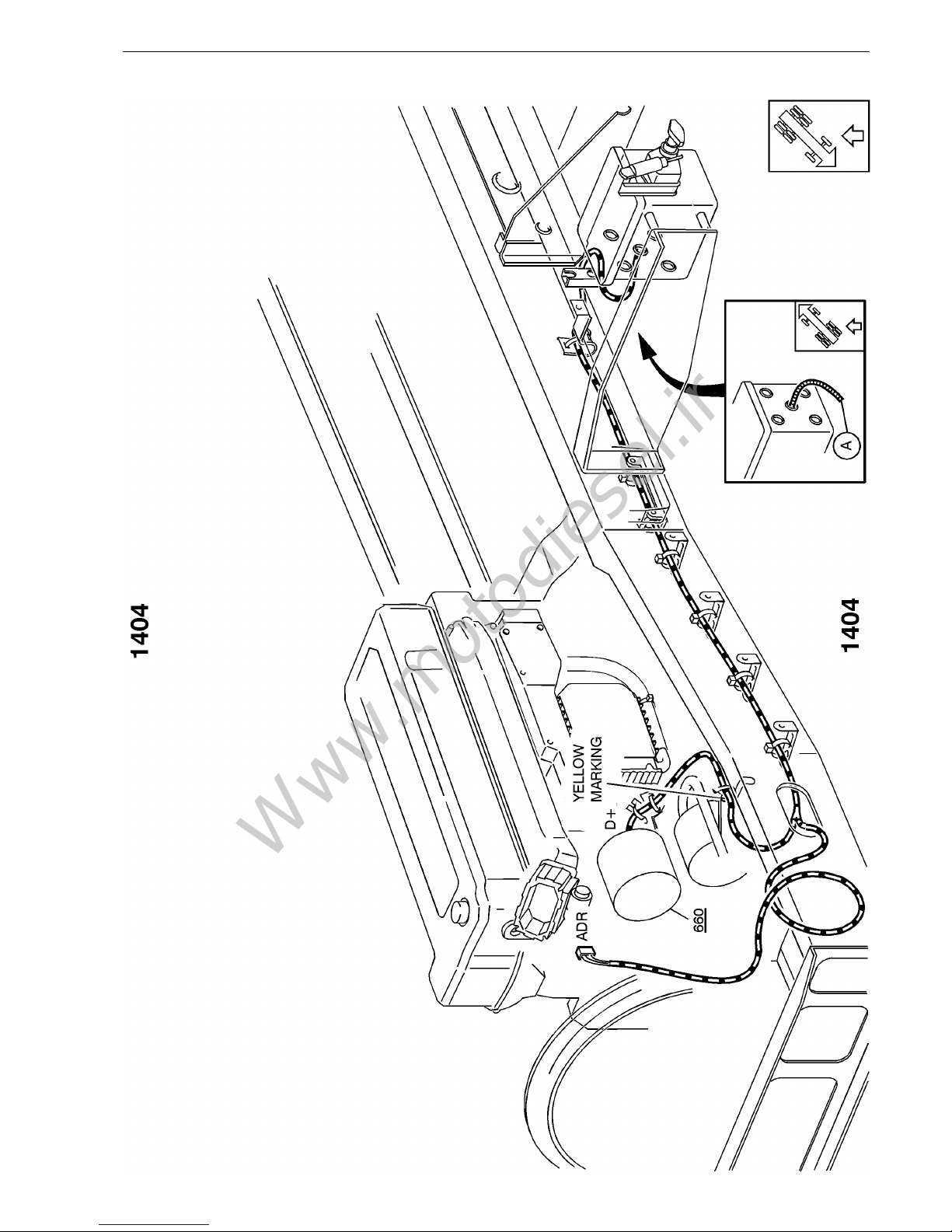

1404 Cable harness, ADR ............................................................. page 89

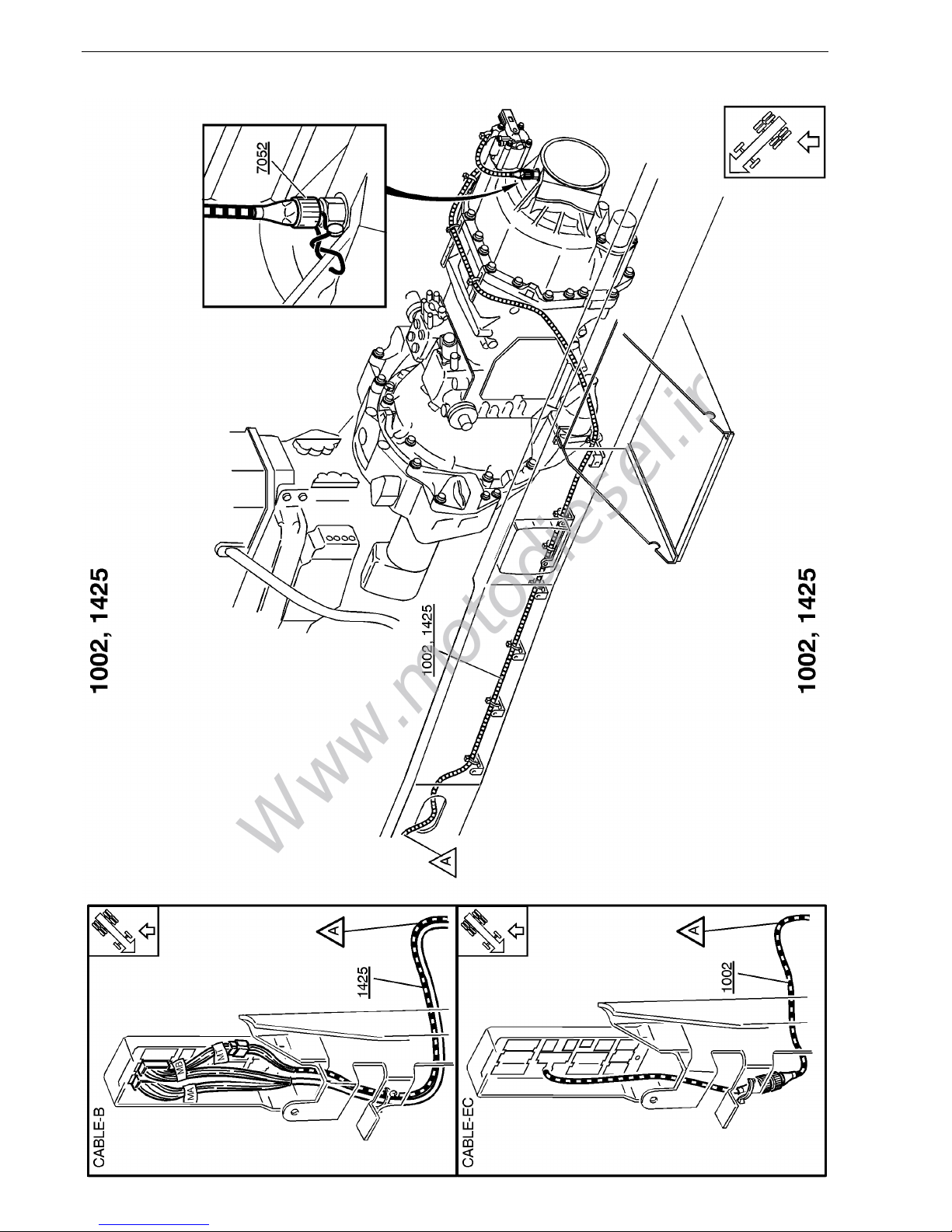

1425 Cable harness, pulse sensor - tachograph (CABLE-B) ........ page 60

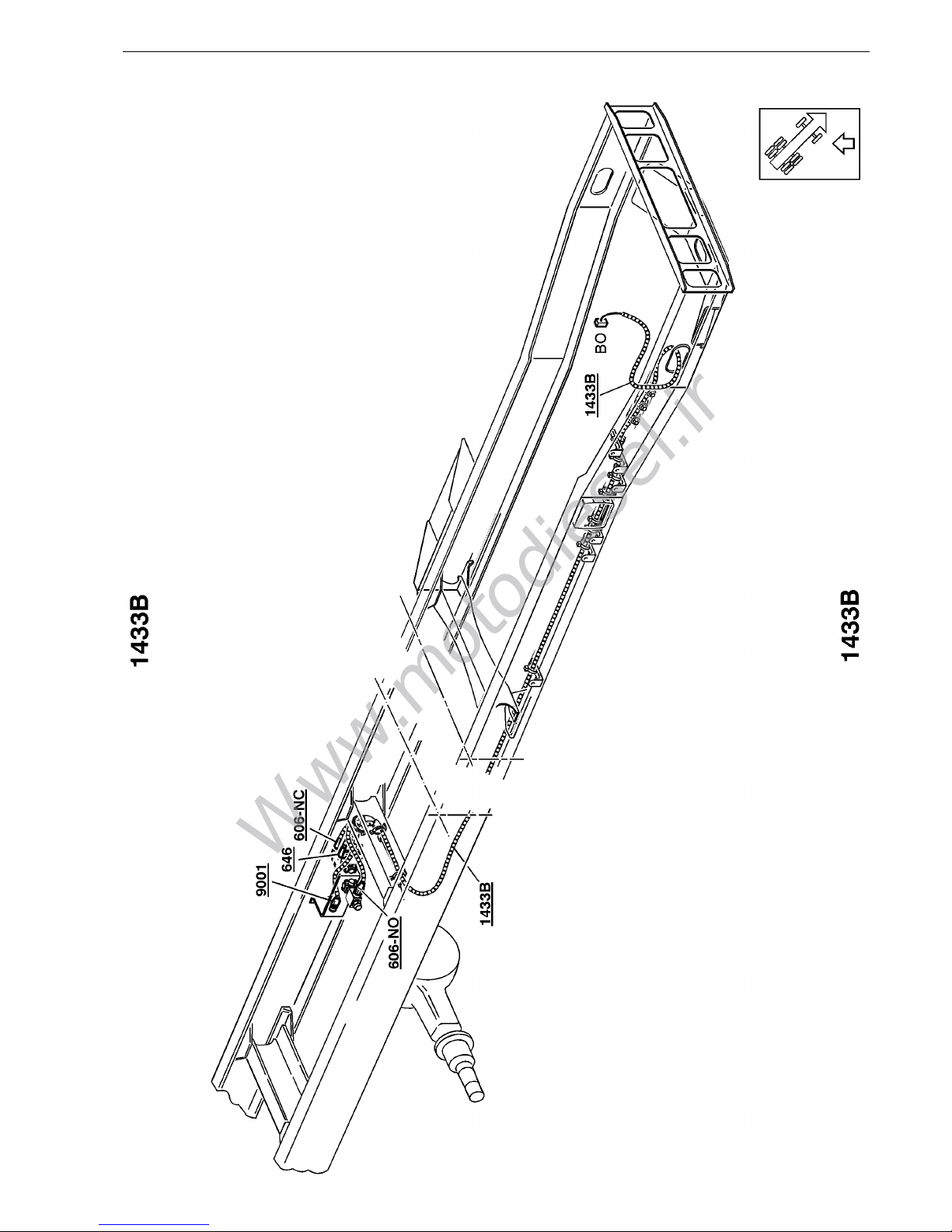

1433 Cable harness, bogie lift - locking, 3rd axle .......................... page 91

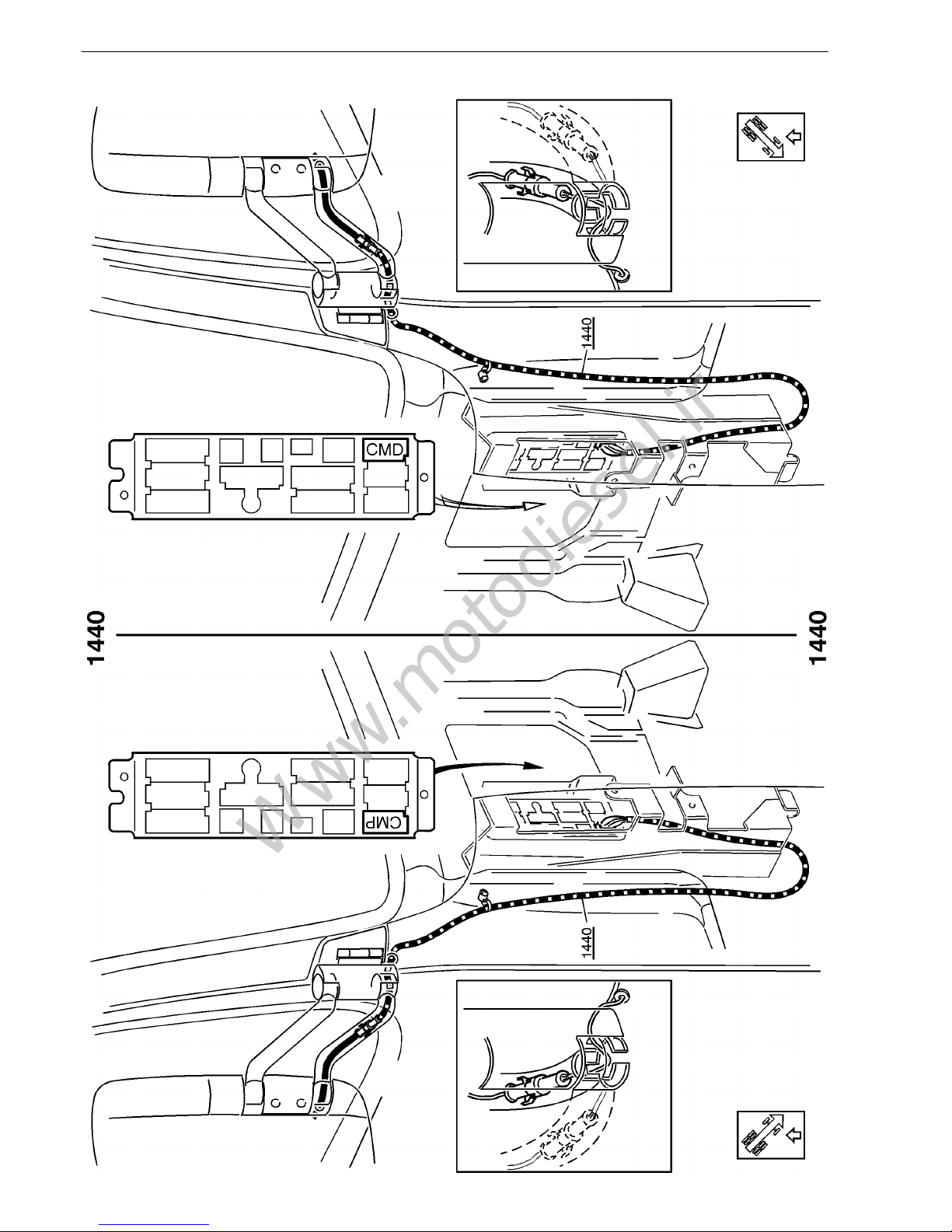

1440 Cable harness, el. operated rearview mirror ........................ page 94

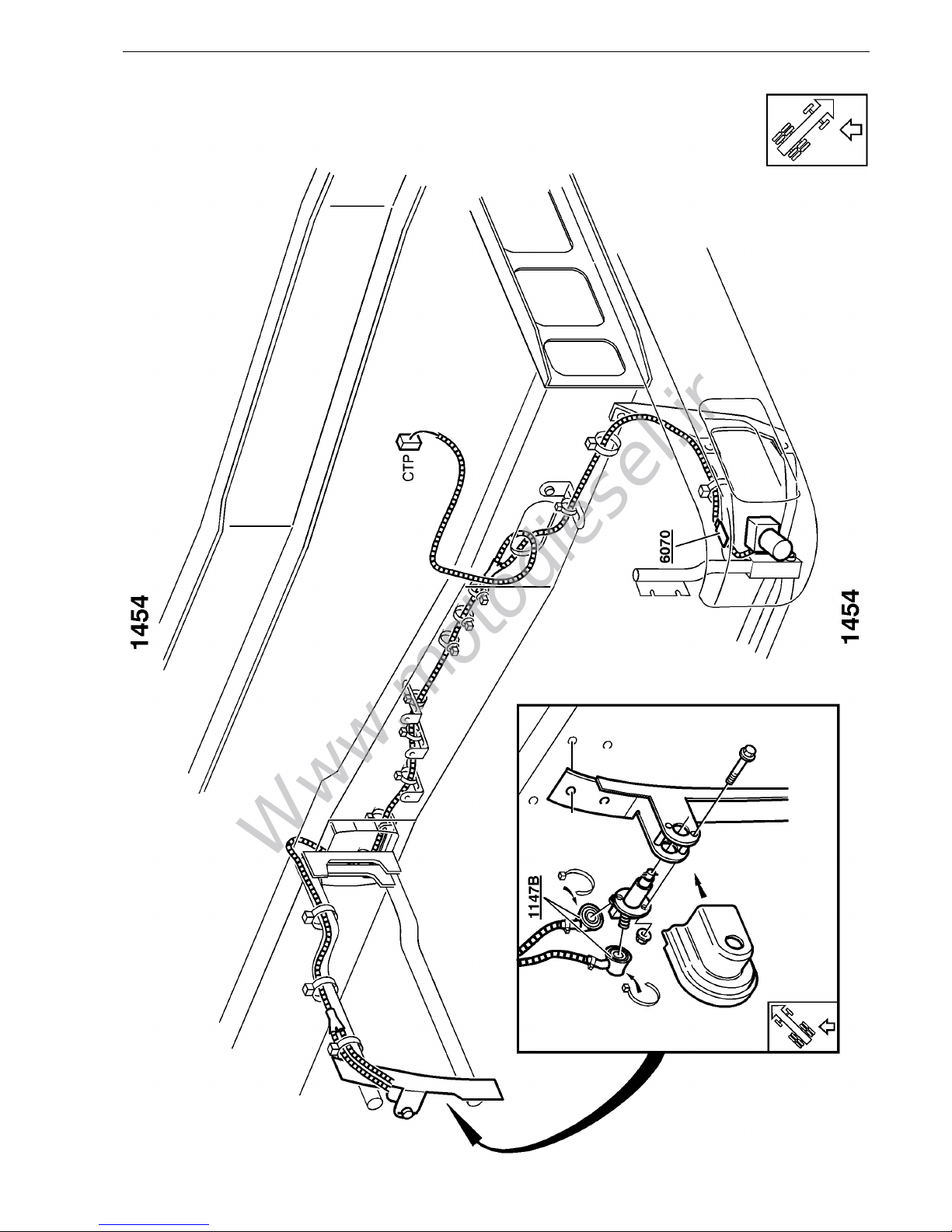

1454 Cable harness, cab tilt pump ................................................ page 95

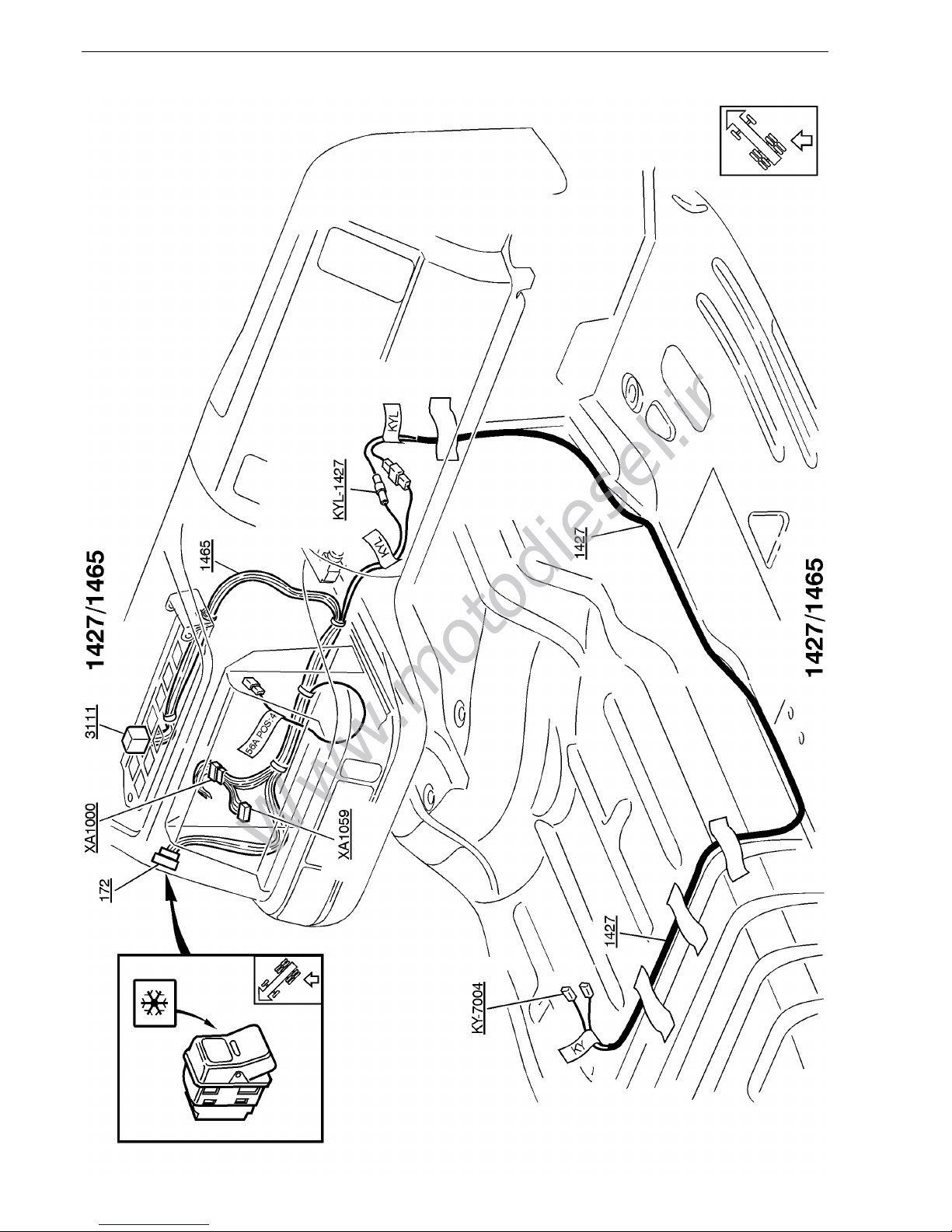

1465 Cable harness, additional accessories ................................. page 96
1468 Cable harness, water separator ............................................ page 97

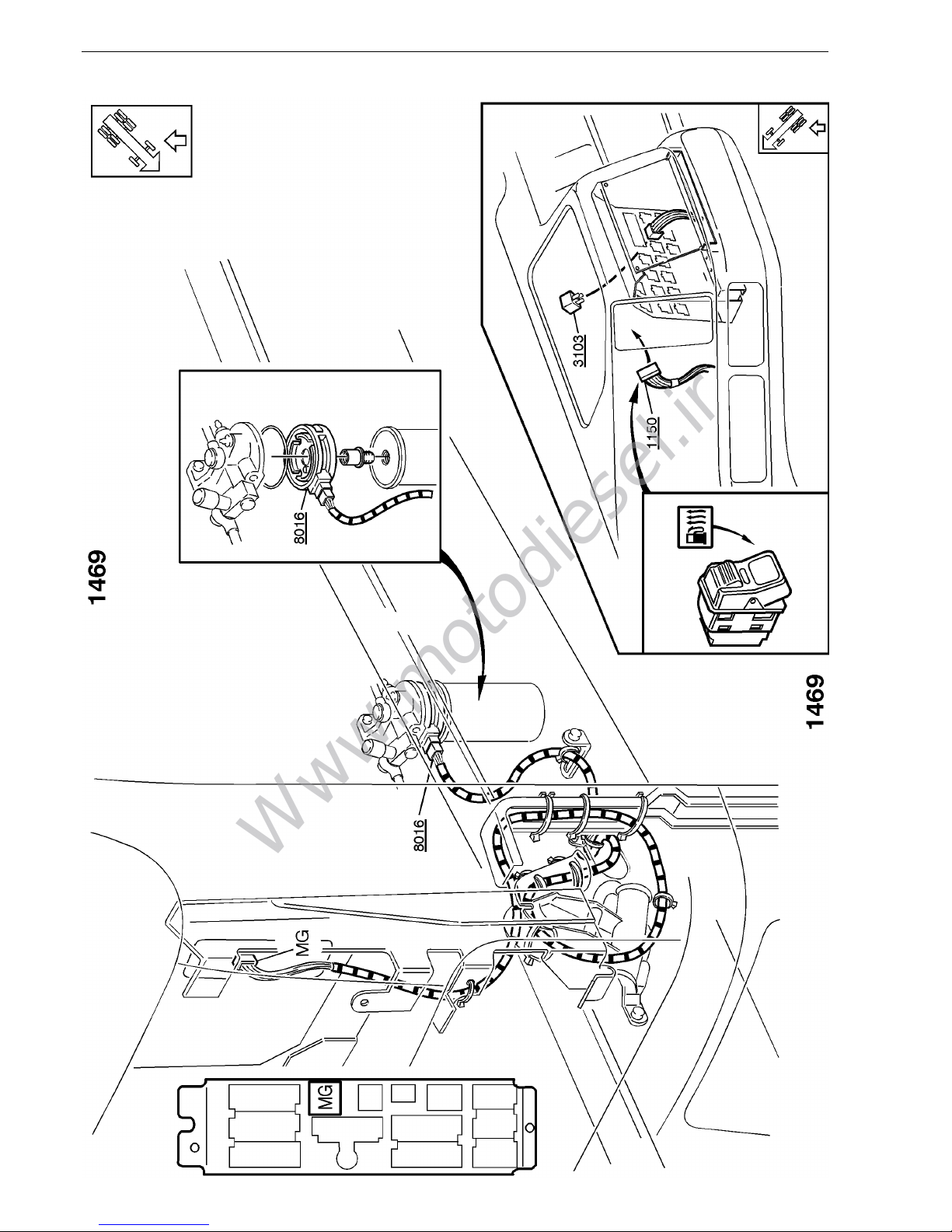

1469 Cable harness, fuel filter heater ............................................ page 98
1476 Cable harness, engine, cab .................................................. page 99
1488 Cable harness, central lubrication system ............................ page 103
1489 Cable harness, adapter, no tachograph ................................ page 55
48
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 51
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
Illustrations
T3010168
49
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 52
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010169
50
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 53
Group 37 Wiring diagram FH12, FH16 LHD Illustrations

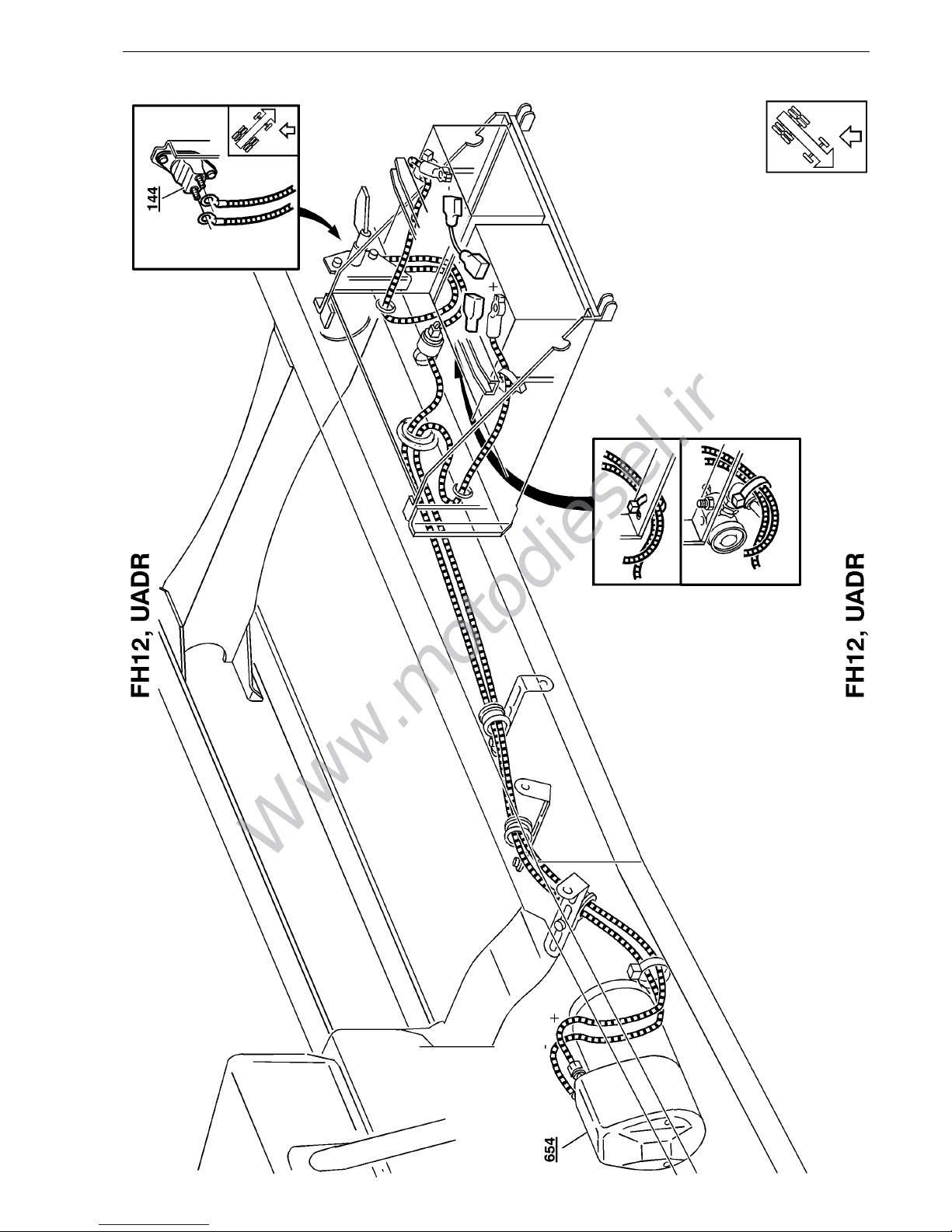

T3010170
51
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 54
Group 37 Wiring diagram FH12, FH16 LHD Illustrations

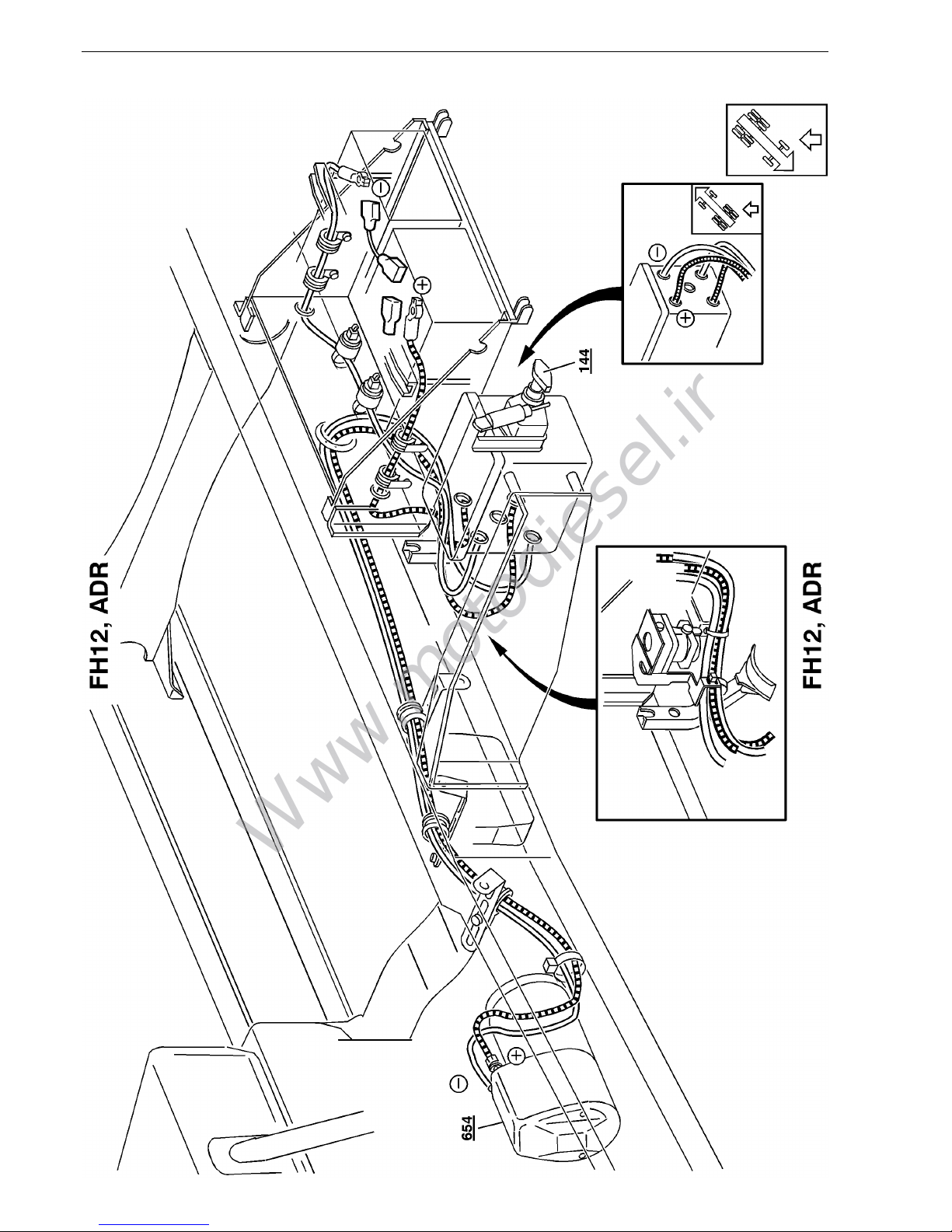

T3010171
52
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 55
Group 37 Wiring diagram FH12, FH16 LHD Illustrations

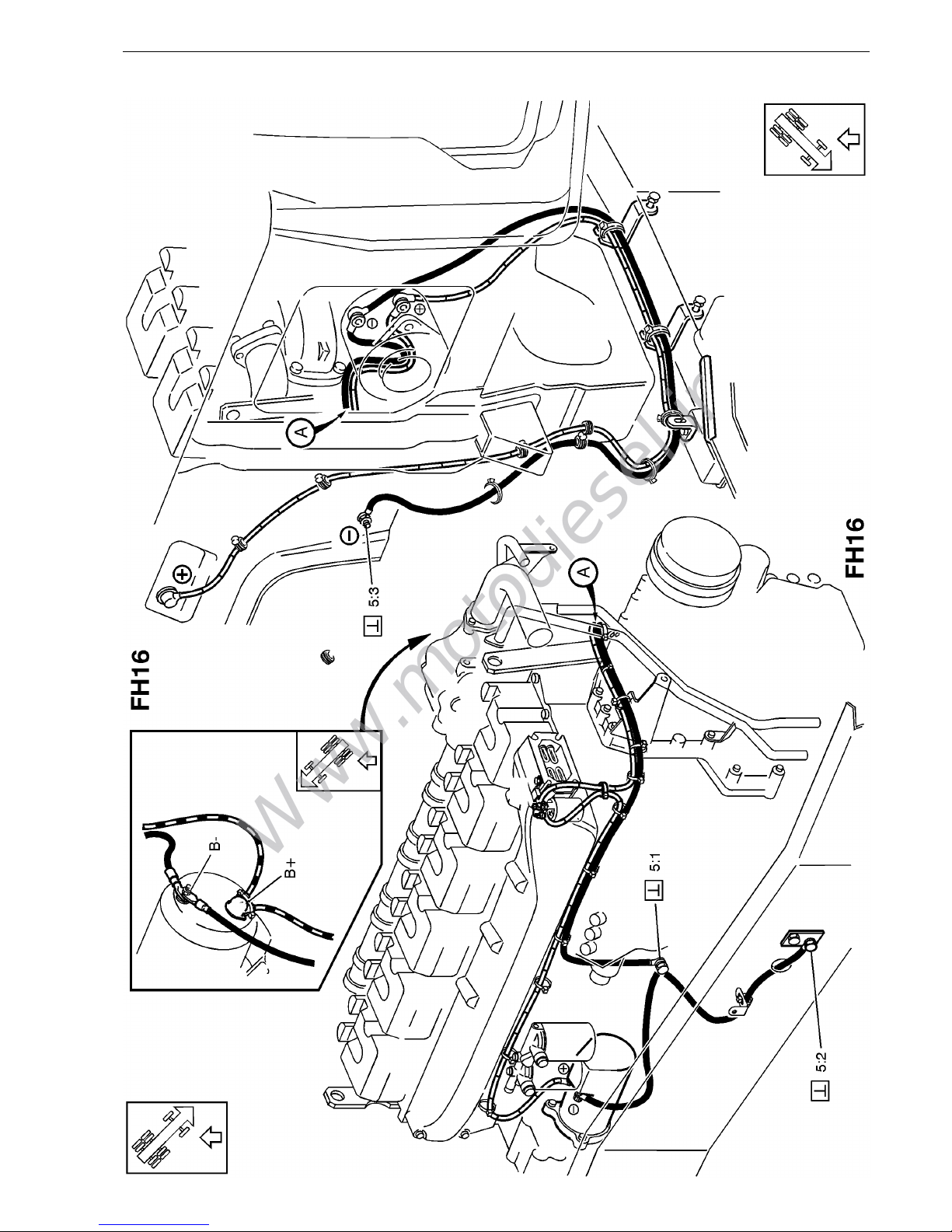

T3010172
53
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 56
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010173
54
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 57
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010175
55
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 58
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009689
56
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 59
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009690
57
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 60
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010814
58
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 61
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010176
59
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 62
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010177
60
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 63
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010816
61
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 64
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009695
62
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 65
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010178
63
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 66
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010179
64
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 67
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010180
65
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 68
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010181
66
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 69
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010183
67
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 70
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010184
68
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 71
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010185
69
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 72
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010966
70
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 73
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009671
71
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 74
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010425
72
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 75
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009679
73
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 76
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010187
74
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 77
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010188
75
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 78
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010189
76
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 79
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010190
77
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 80
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010197
78
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 81
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010191
79
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 82
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010198
80
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 83
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010063
81
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 84
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009670
82
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 85
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010818
83
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 86
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010819
84
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 87
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010820
85
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 88
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010193
86
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 89
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
87
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 90
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010194
88
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 91
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010195
89
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 92
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009905
90
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 93
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010200
91
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 94
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009712
92
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 95
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009676
93
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 96
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010821
94
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 97
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009678
95
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 98
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010201
96
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 99
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010202
97
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Page 100
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010199
98
Www.motodiesel.ir
www.motodiesel.ir
Www.motodiesel.ir
Loading...
