Group 37 Wiring diagram FH12, FH16 LHD Example of wiring diagram
Example of wiring diagram
Refer to the list of contents for the designation of the
circuit diagram. If the circuit diagram designation is
boxed in with broken lines this means that the circuit
diagram is not standard on all market or vehicle
models.
Seek column.
30 Voltage battery, kl.30.
15 Voltage with starting key in drive position, kl.15.
61 Voltage when alternator charges, kl.61.
Reference arrow (for circuit diagram EA, seek column
13).
Switch, comp. no. (104).
Single lines, cables.
Relay, comp. no. (303).
Cable area and colour (0.75 mm
Connector (CLA terminal 4).
Bulb, comp. no. (403)
A broken line box round the component number
shows that the component is not standard on all markets or vehicle models.
If the line is broken this means the cable is not standard on all markets or vehicle model.
Earth connection point no: 2. and earth terminal no: 4.
(see diagram Earth Connections).
2
blue).
Joint sleeve.
T3009608
2
Page 5
Group 37 Wiring diagram FH12, FH16 LHD Examples of symbols on wiring diagram
Examples of symbols on wiring diagram
Battery
Connector
Junktion
Fuse
Joint sleeve
Cable
Twisted cables
Conductor on circuit card
Earth connection and cable
Switch
Switch, starting switch
Closing contakt
Closing contakt, pressure-regulated
Break contakt, temperature-regulated
T3009609
Closing contakt, time-regulated
Slip contakt, horn
Relay
Relay with internal circuit diagram
3
Page 6
Group 37 Wiring diagram FH12, FH16 LHD Examples of symbols on wiring diagram
Bulb
Bulb, full beams and dipped beams
Bulb, tail light
Alternator
Starter motor
Washer motor
Windscreen wiper motor
Solenoid valve with diode
Pressure sensor
Temperature sensor
Level sensor
Starting heater
Cigarette lighter
Horn
Rheostat
Buzzer
Loudspeaker
T3009610
4
Page 7
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagram index
Component wiring diagram index
AA
AC
BL
BN
CE
CG
CH
CI
CK
CL
CN
EA
ED
EJ
Power supply, starting system, immobiliser .................................................................... page 7
Vehicle ECU .................................................................................................................... page 8
Engine ECU, fuel injection system, preheating, FH12 .................................................... page 9
Engine ECU, fuel injection system, preheating, FH16 .................................................... page 10
Head light, parking light, marker light, DRL ...................................................................
Fog light, rear fog light ....................................................................................................
Spot light (STD) DRIVL2 .................................................................................................
Spot light (EU) DRIVL2EC ..............................................................................................
Brake light ........................................................................................................................
Trailer controlled exhaust brake ......................................................................................
Direction indicator, hazard warning light .........................................................................
Reversing light, reversing warning alarm ........................................................................
Loading light, fifth wheel light ..........................................................................................
Roof sign light, L1H1/L2H1 .............................................................................................
page 11
page 12
page 12
page 12
page 13
page 13
page 14
page 14
page 15
page 15
EK
EN
ER
ES
EV
EX
FA
GA
HA
HB
HC
HE
HG
HH
Roof sign light, L2H2 .......................................................................................................
Beacon warning light .......................................................................................................
Interior light, L1H1/ L2H1, alarm clock/timer ..................................................................
Interior light, L2H2/L2H3, alarm clock/timer ....................................................................
Cigarette lighter ...............................................................................................................
12 V power supply ...........................................................................................................
Horn .................................................................................................................................
Wiper, washer ..................................................................................................................
Climate unit .....................................................................................................................
Cab heater, EBERSPÄCHER D1LCC, PH-CAB .............................................................
Cab and engine heater, WEBASTO THERMO 90, PH-ENGCA ....................................
Electrically heated and adjusted seat .............................................................................
Electrically heated mirrors ...............................................................................................
Electrically operated mirrors ............................................................................................
page 16
page 16
page 17
page 18
page 19
page 19
page 19
page 20
page 21
page 22
page 23
page 24
page 24
page 25
HK
HM
HO
HP
JA
KA
Air dryer ...........................................................................................................................
Fuel filter heater ..............................................................................................................
Water separator heater ...................................................................................................
Electrically cab tilt ..........................................................................................................
Radio ...............................................................................................................................
Electrically operated window winders .............................................................................
page 25
page 25
page 25
page 26
page 26
page 27
5
Page 8
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagram index
KB
KE
KH
LD
LE
LG
LJ
LL
MA
MD
ME
MF
MG
NA
Electrically sunroof ..........................................................................................................
SRS, air-bag ....................................................................................................................
Central door lock .............................................................................................................
Power take-off ..................................................................................................................

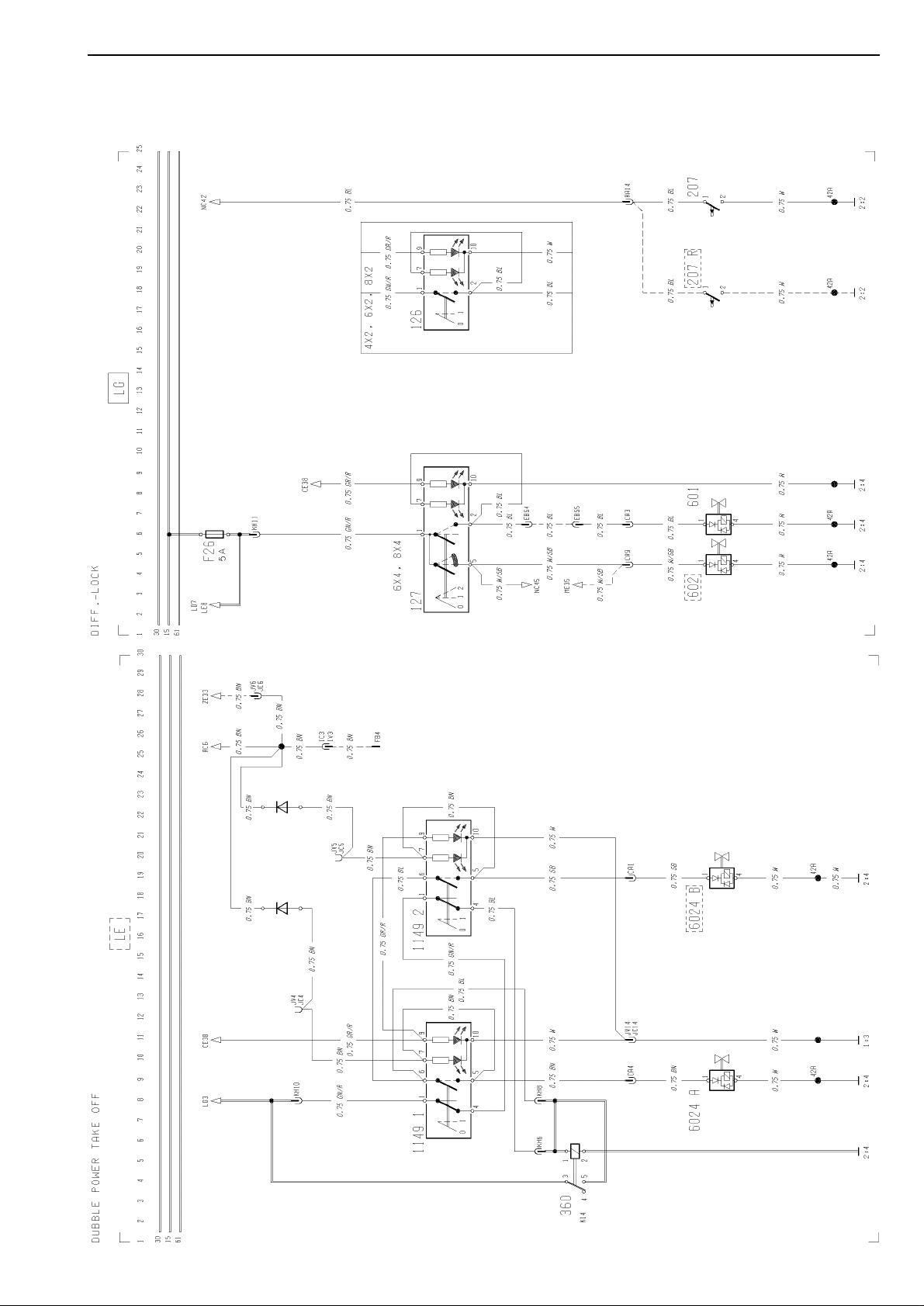

Double power take-off .....................................................................................................
Differential lock ................................................................................................................

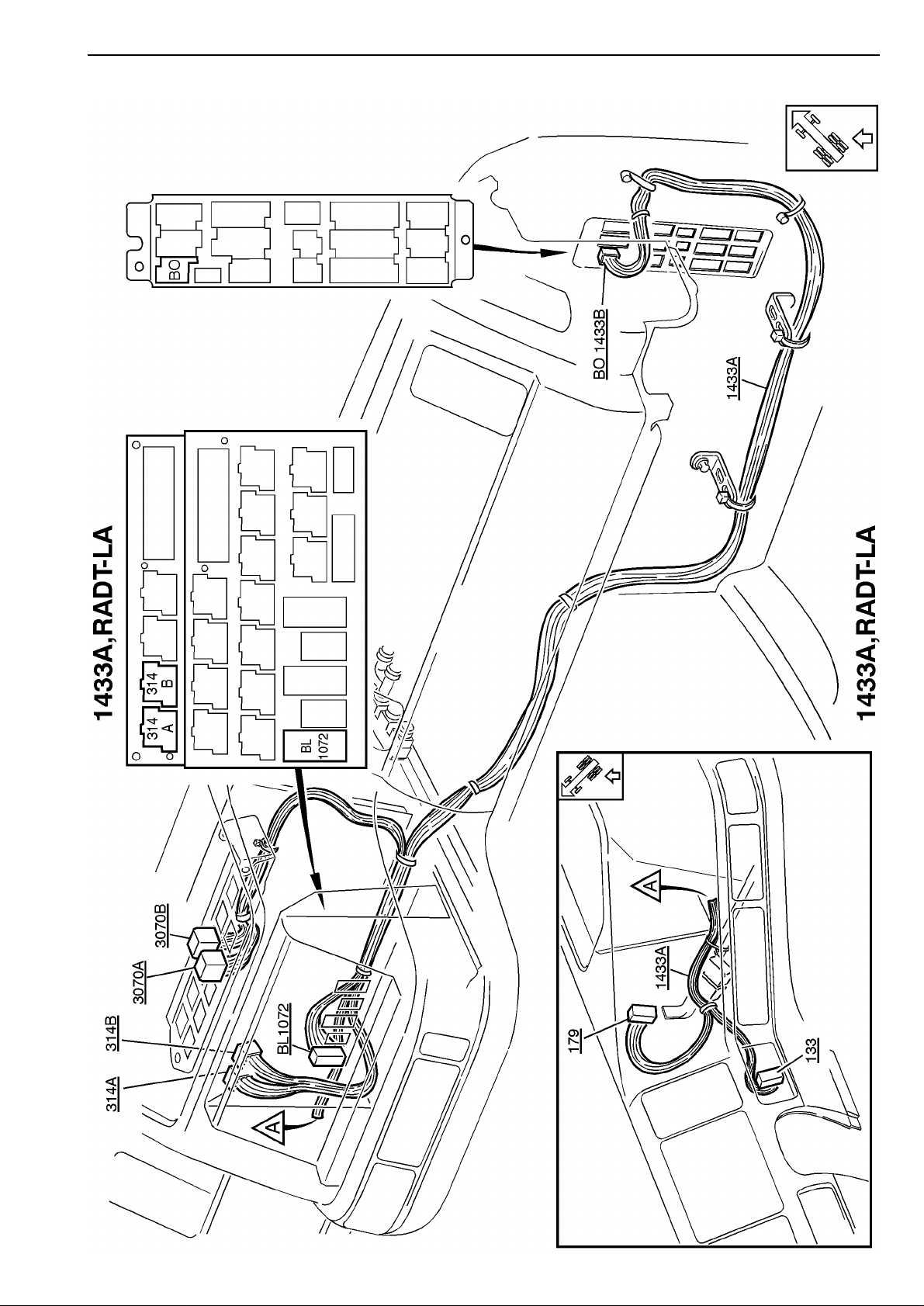

Bogie lift, tag axle lock, RADT-LA ...................................................................................
Tag axle lock, RADT-A6S ................................................................................................

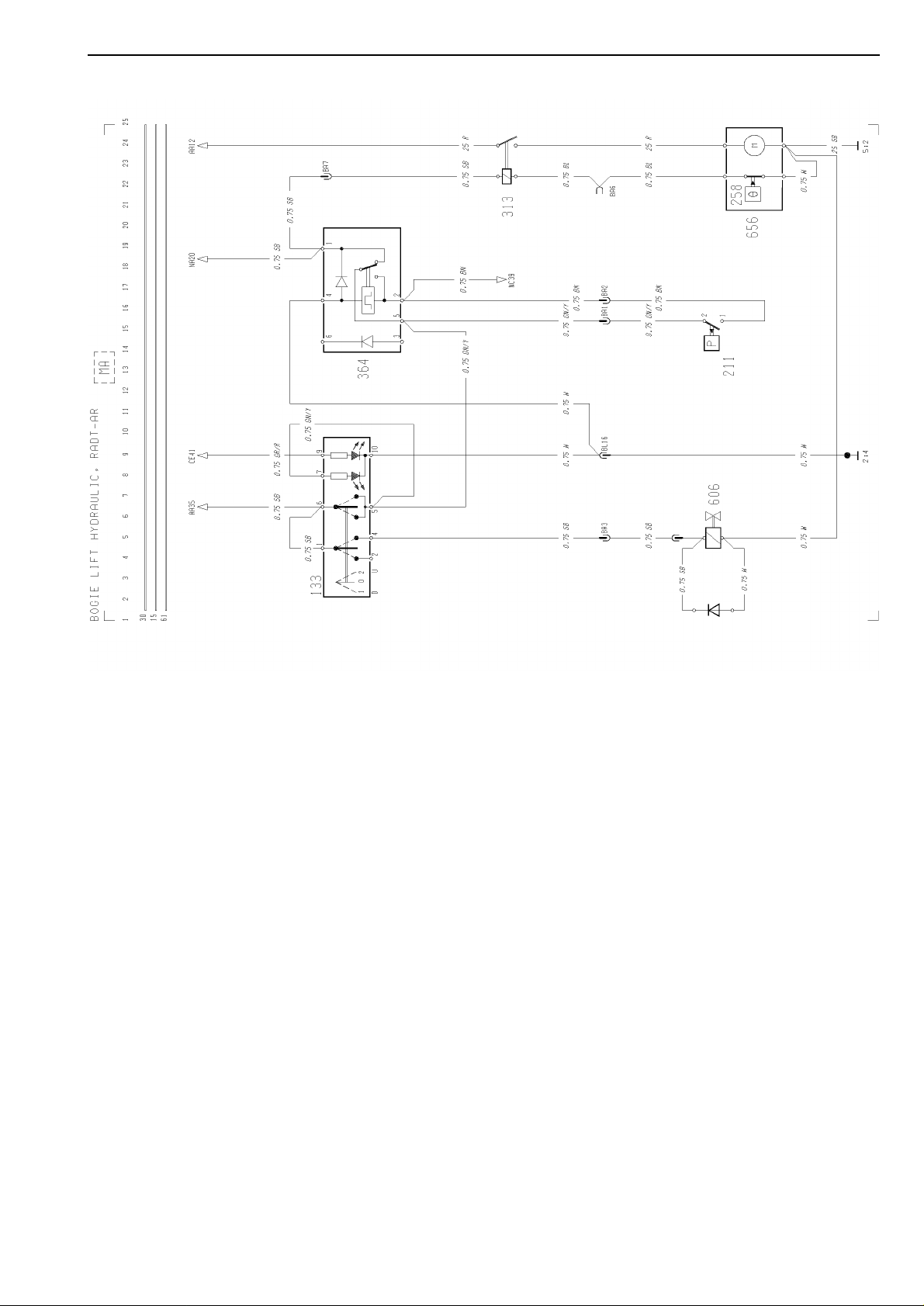

Bogie lift hydraulic, RADT-AR .........................................................................................
Bogie lift hydraulic, with axle load limiter, RADT-AR ......................................................
Air suspension, 6x2/6x4/8x2/8x4, SUSPL-EC ................................................................
Air suspension, 4x2, SUSPL-EC .....................................................................................
Rear air suspension, 4x2, TRACTOR, SUSPL-EC .........................................................
Instrument LHS module ..................................................................................................
page 27
page 28
page 28
page 28
page 29
page 29
page 30
page 30
page 31
page 32
page 33
page 34
page 35
page 36
NB
NC
NZ
OA
OB
PA
TA
TB
XA
ZA
ZB
ZD
ZE
Instrument central module with tachograph ....................................................................
Instrument RHS module ..................................................................................................
Instrument central module without tachograph ...............................................................
Basic ABS, D-version ......................................................................................................
ABS/ASR, D-version ........................................................................................................
Headlight level control .....................................................................................................
Refrigerator ......................................................................................................................
Central lubrication system ...............................................................................................

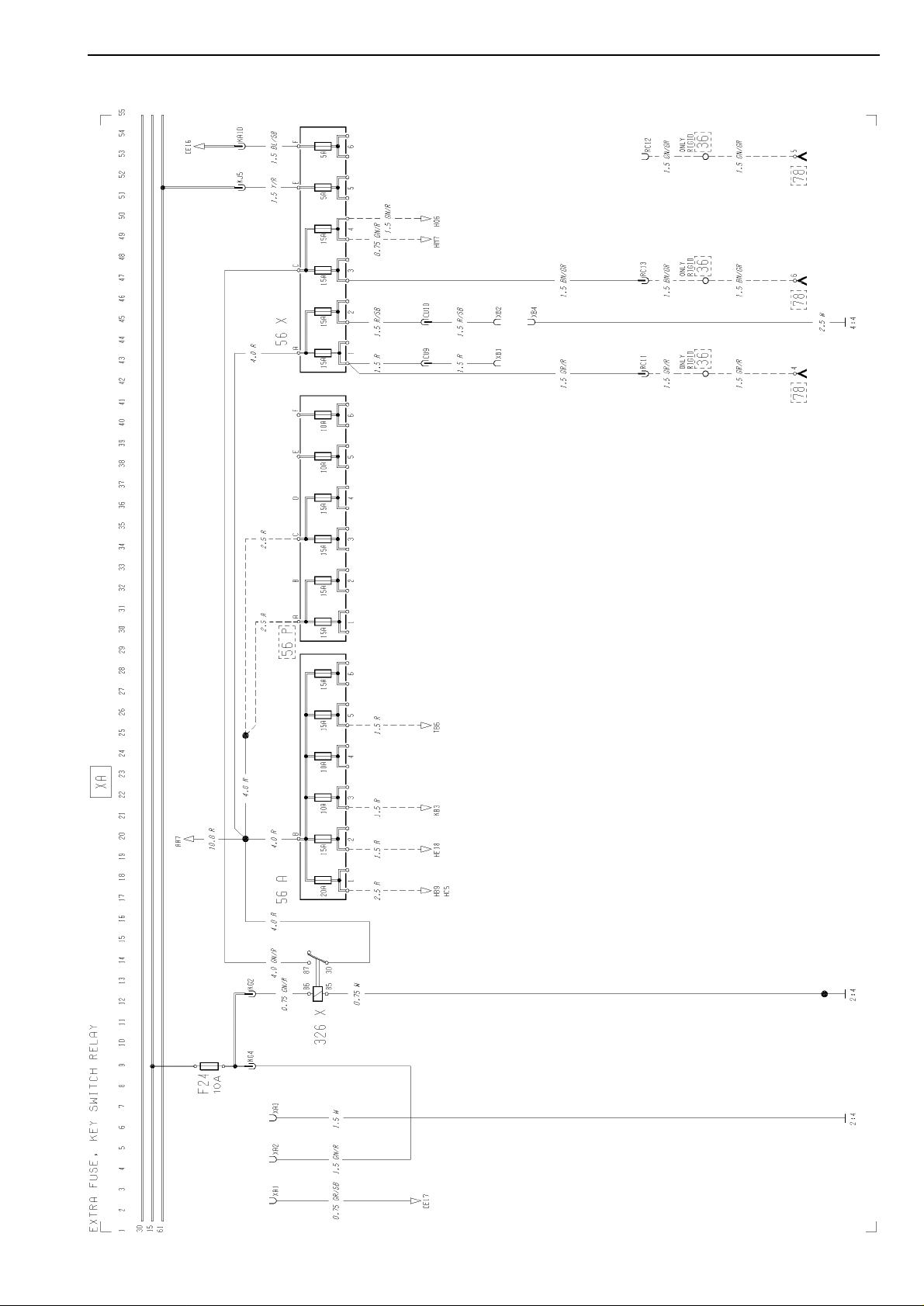

Extra fuses, key switch relay ...........................................................................................

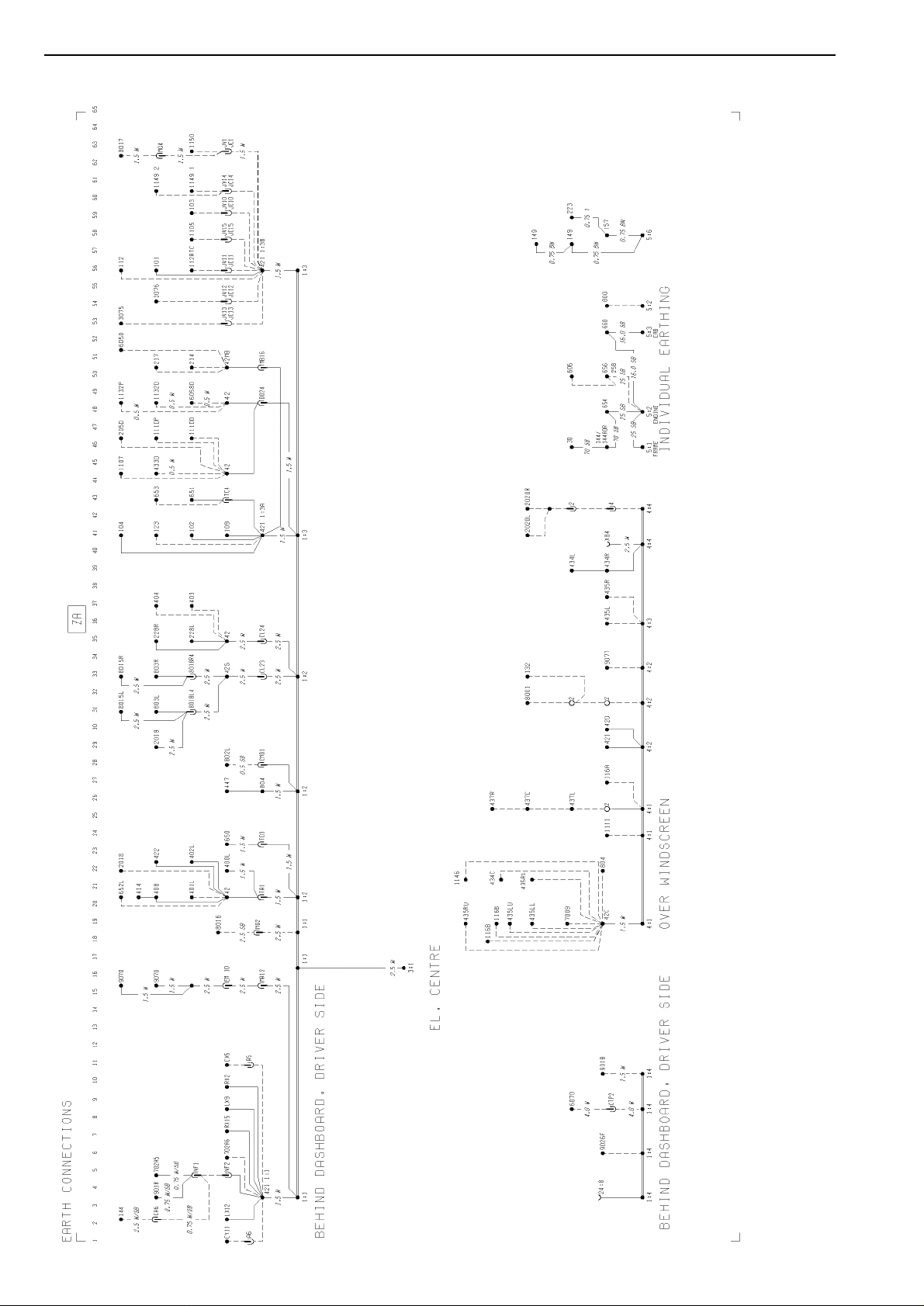

Earth connections ...........................................................................................................
Earth connections ...........................................................................................................
ADR battery main switch, current limiter .......................................................................
Air heater EBERSPÄCHER TMD, ADR-FRA ..................................................................
page 37
page 38
page 39
page 40
page 41
page 42
page 42
page 42
page 43
page 44
page 45
page 46
page 47
6
Page 9
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
Component wiring diagrams
T3010019
7
Page 10
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
8
T3010020
Page 11
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010021
9
Page 12
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
10
T3010022
Page 13
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010023
11
Page 14
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
12
T3010024
Page 15
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010025
13
Page 16
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
14
T3010026
Page 17
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010027
15
Page 18
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
16
T3010028
Page 19
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010029
17
Page 20
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
18
T3010030
Page 21
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010031
19
Page 22
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
20
T3010032
Page 23
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010033
21
Page 24
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
22
T3010034
Page 25
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010035
23
Page 26
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
24
T3010036
Page 27
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010037
25
Page 28
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
26
T3010038
Page 29
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010039
27
Page 30
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
28
T3010040
Page 31
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010041
29
Page 32

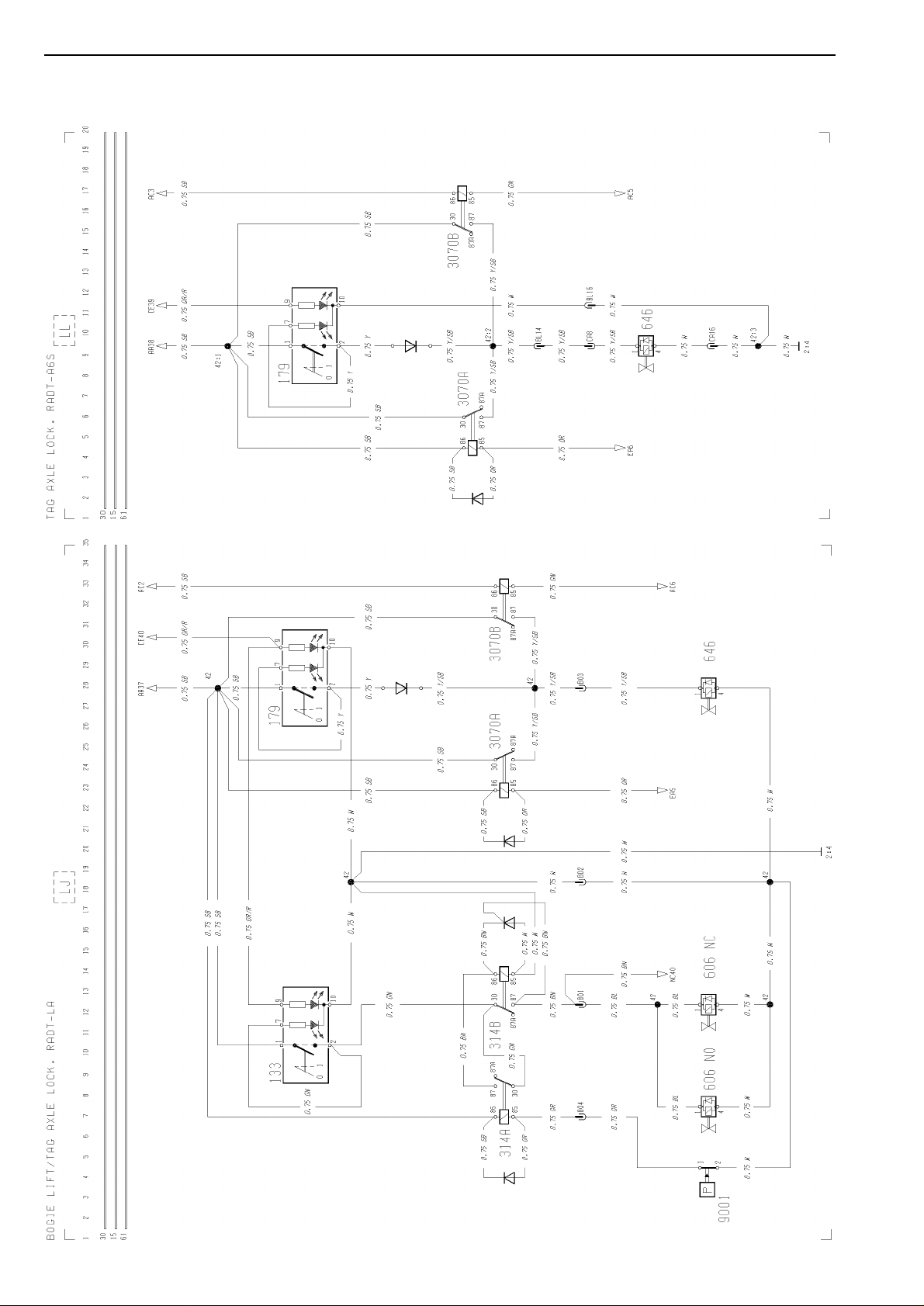

Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
30
T3010042
Page 33
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010045
31
Page 34
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
32
T3010046
Page 35

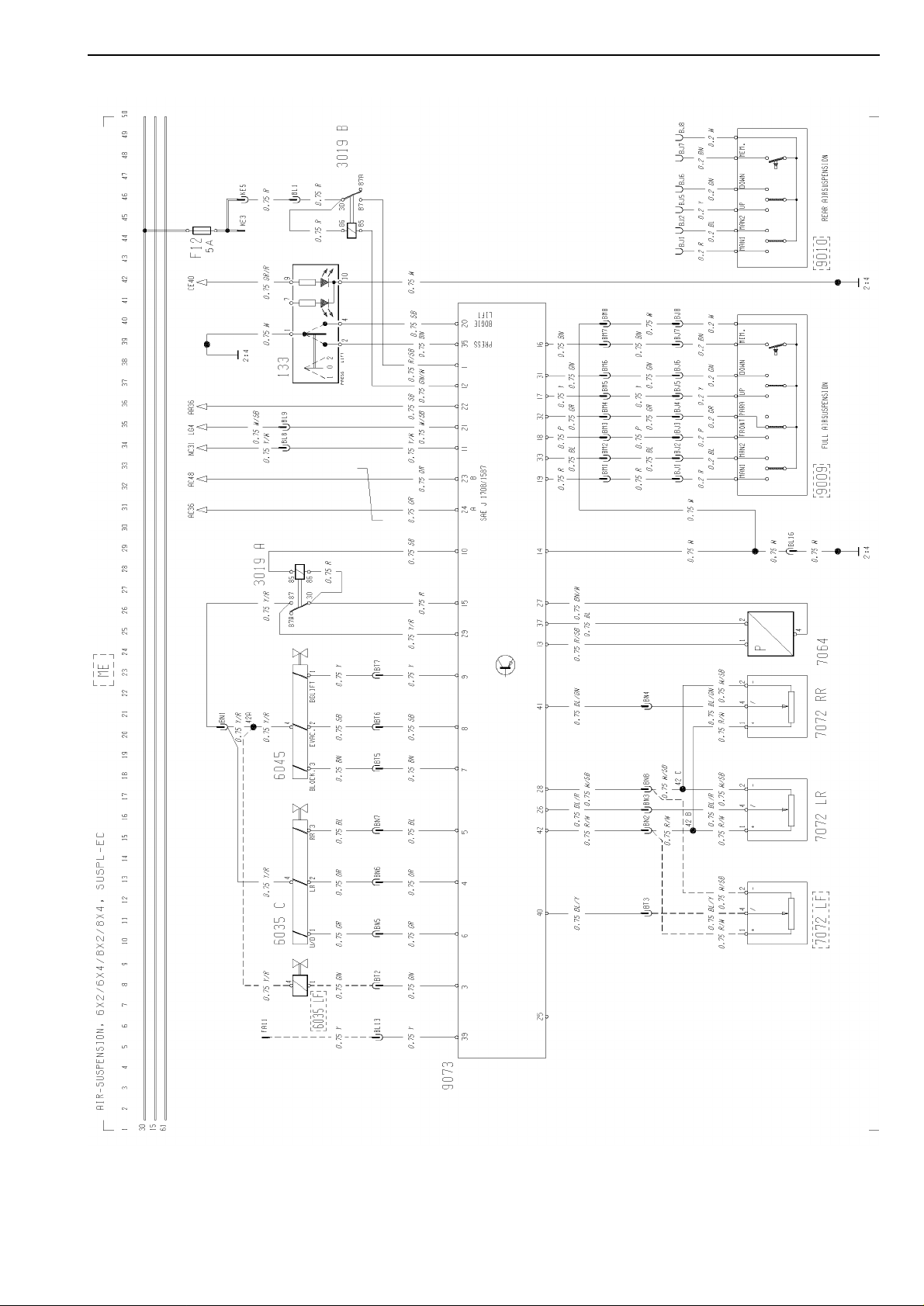

Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010047
33
Page 36

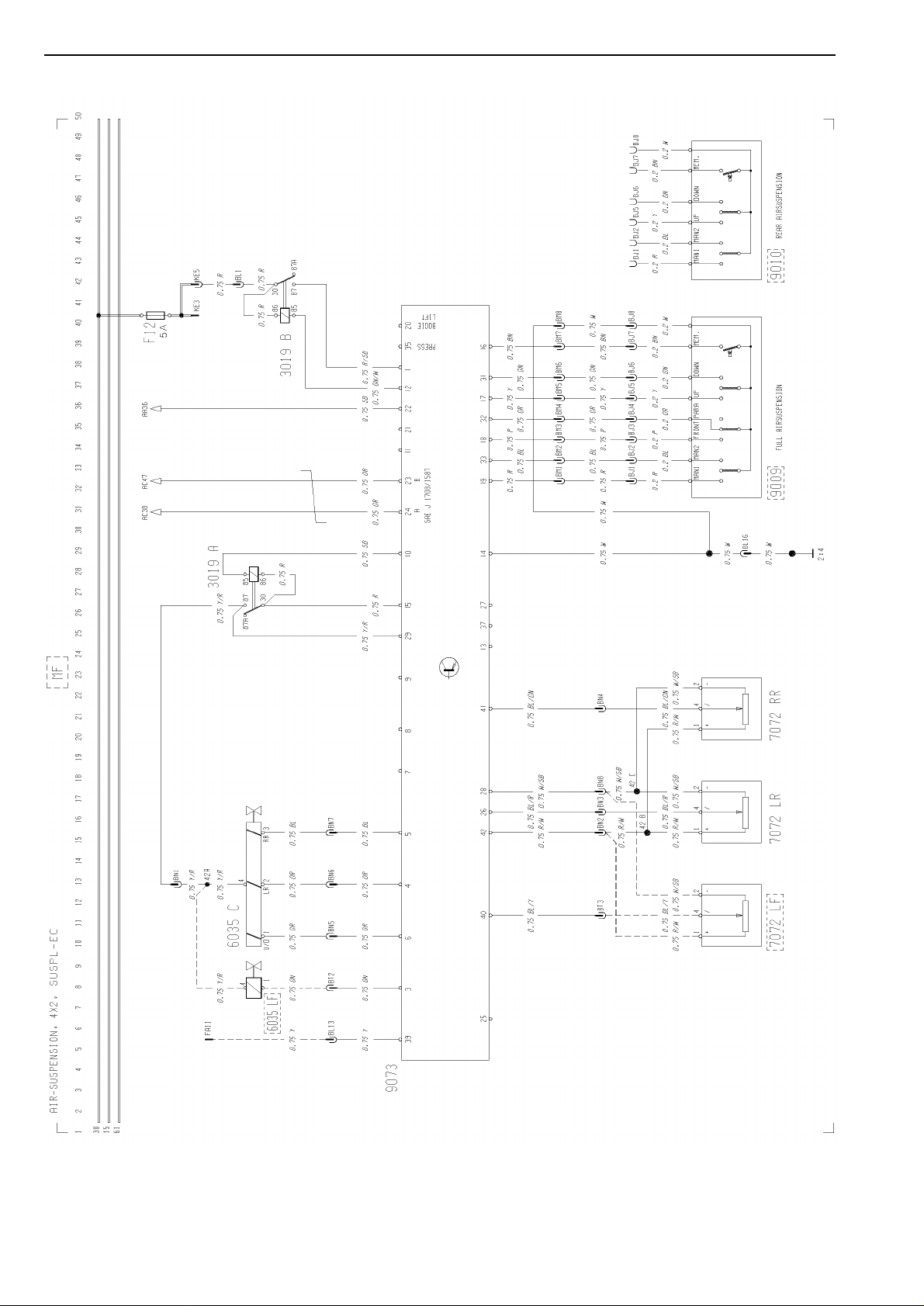

Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
34
T3010048
Page 37
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010049
35
Page 38

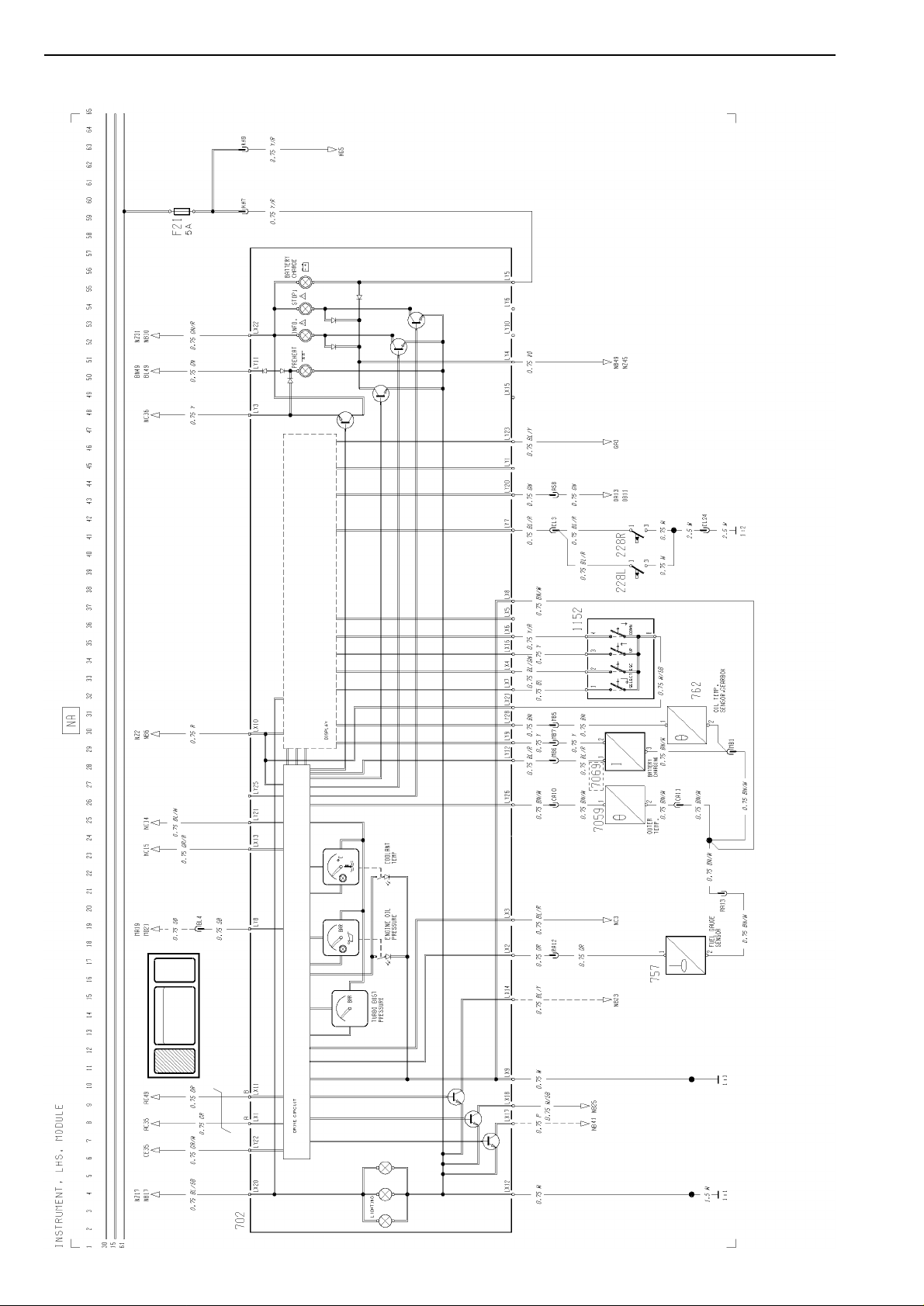

Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
36
T3010050
Page 39

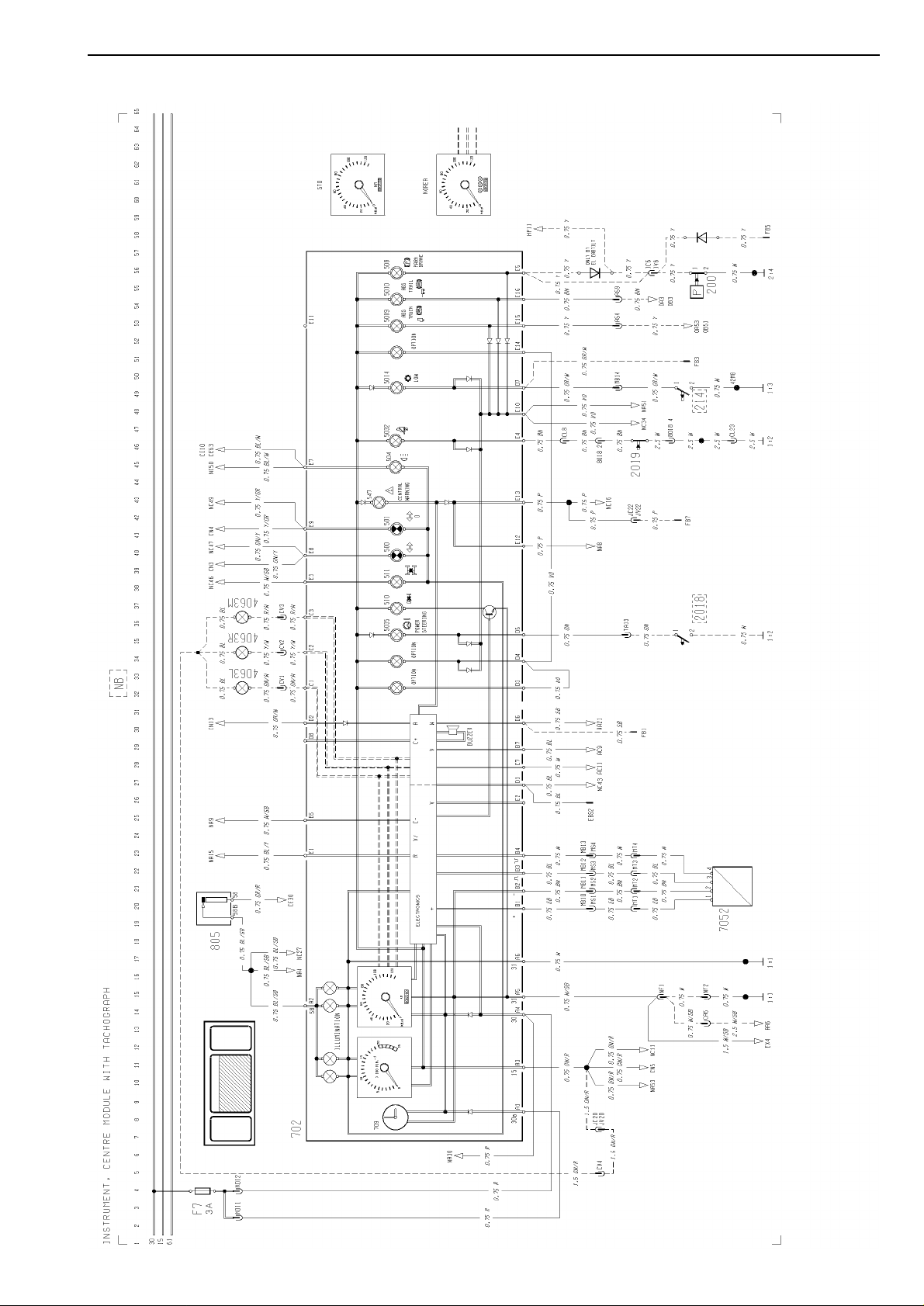

Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010051
37
Page 40

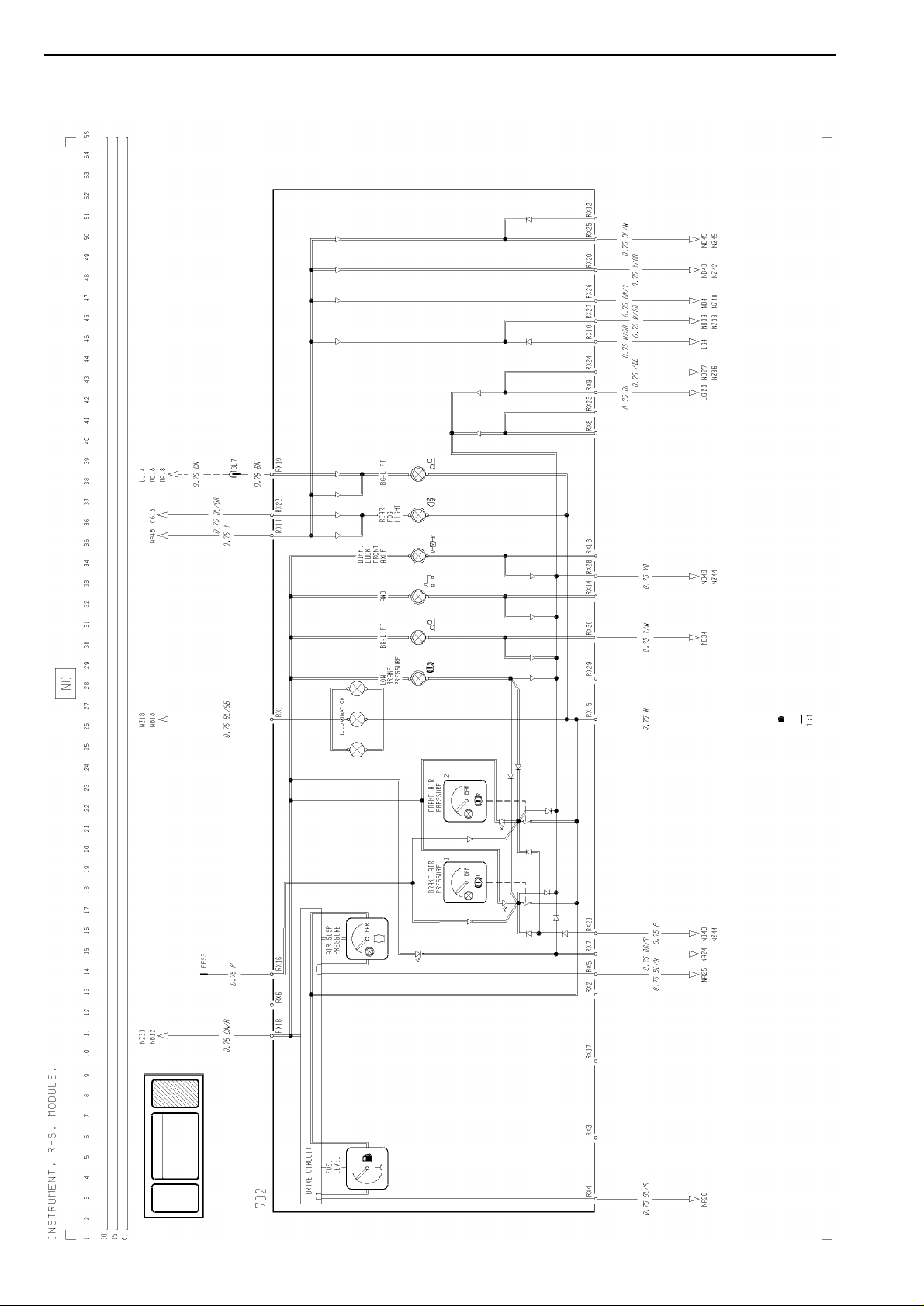

Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
38
T3010052
Page 41

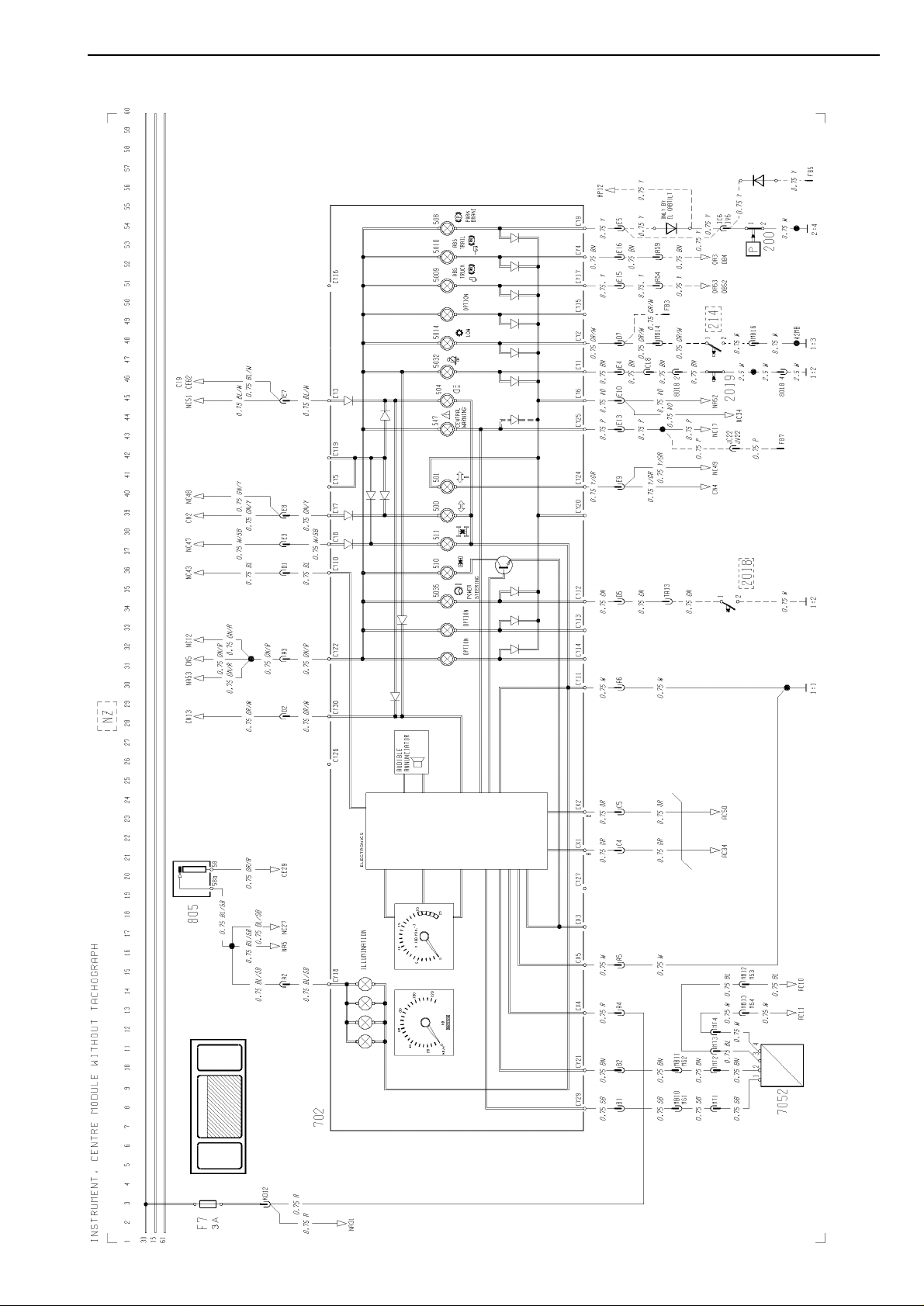

Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010053
39
Page 42

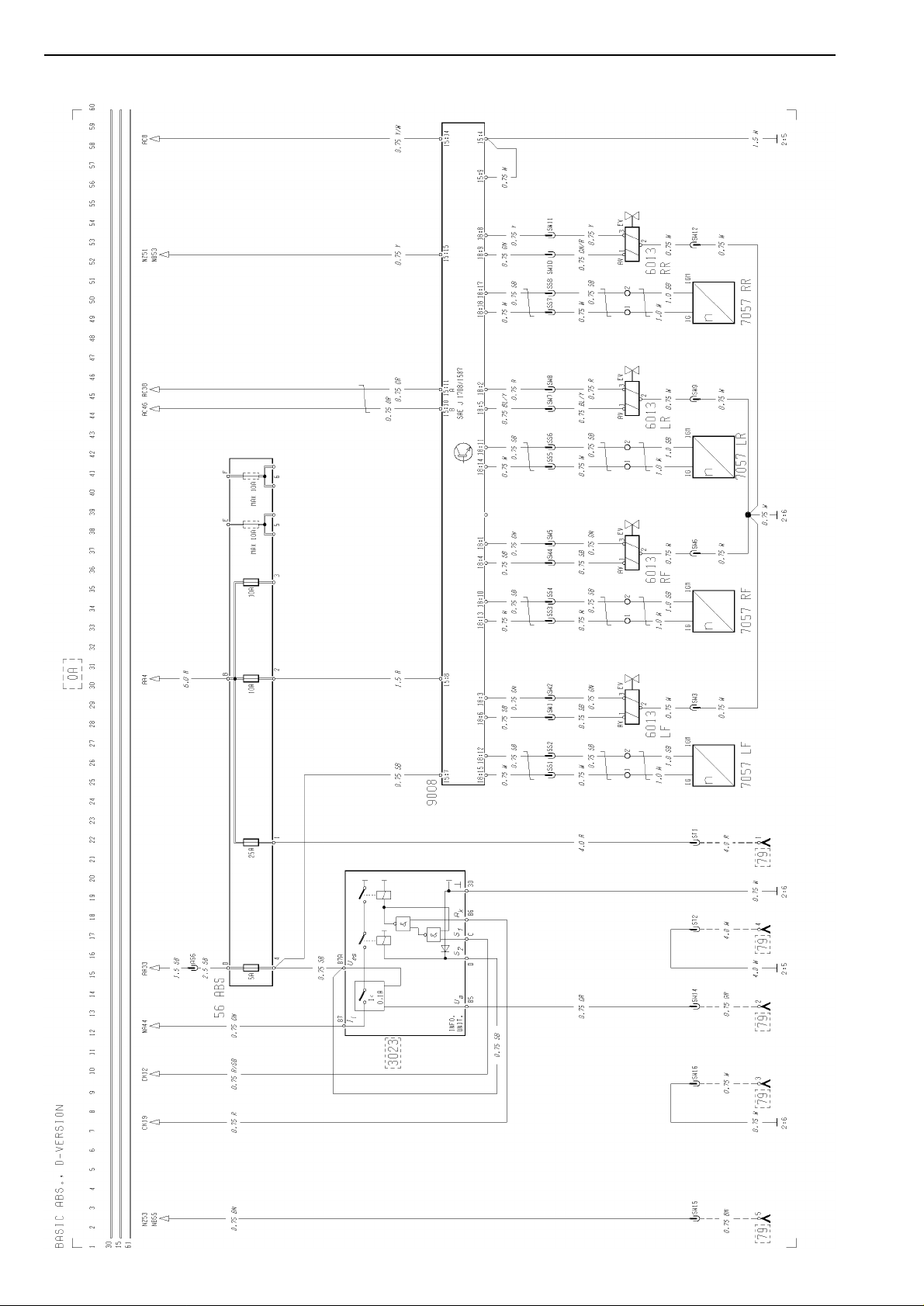

Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
40
T3010054
Page 43

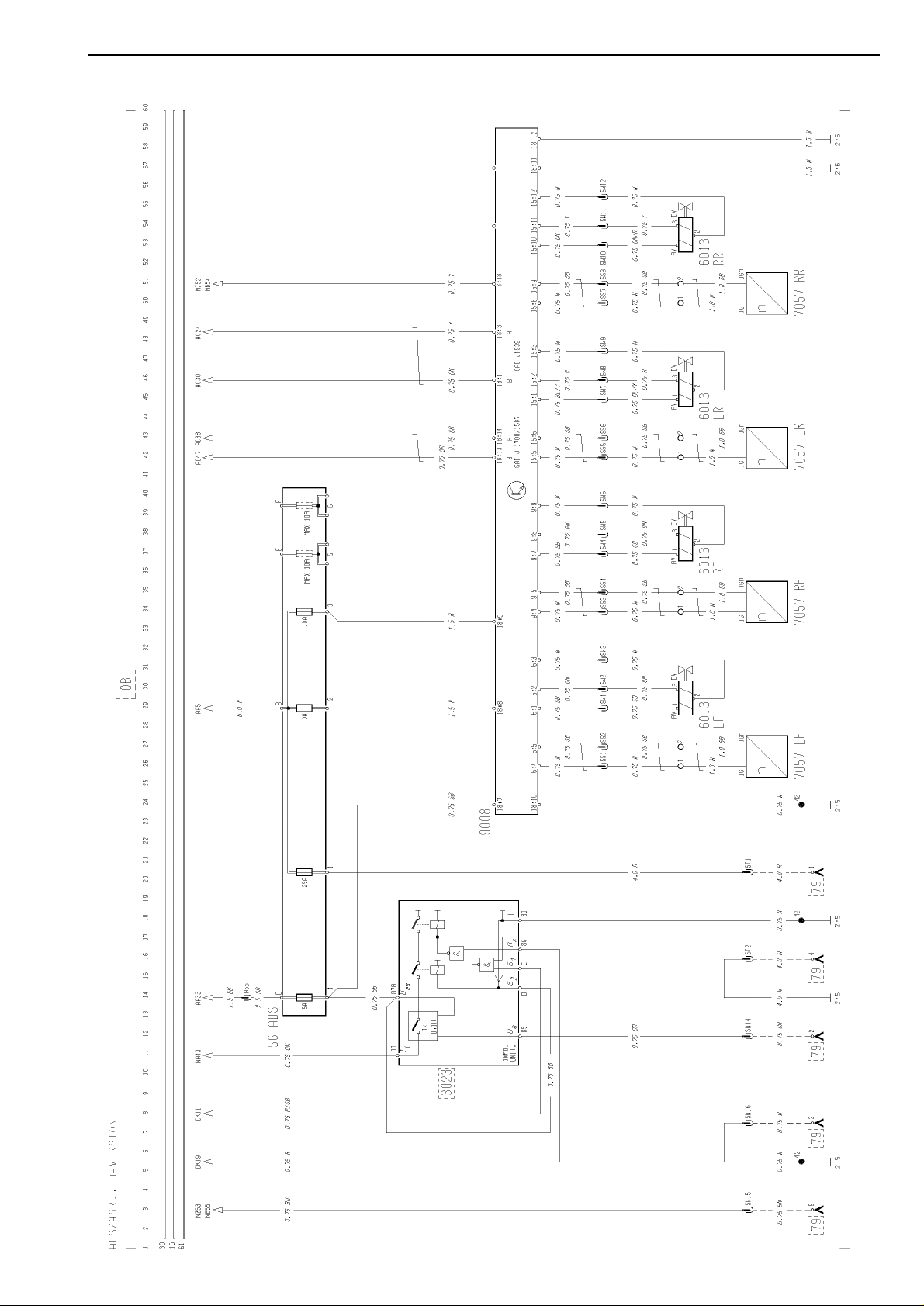

Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010055
41
Page 44

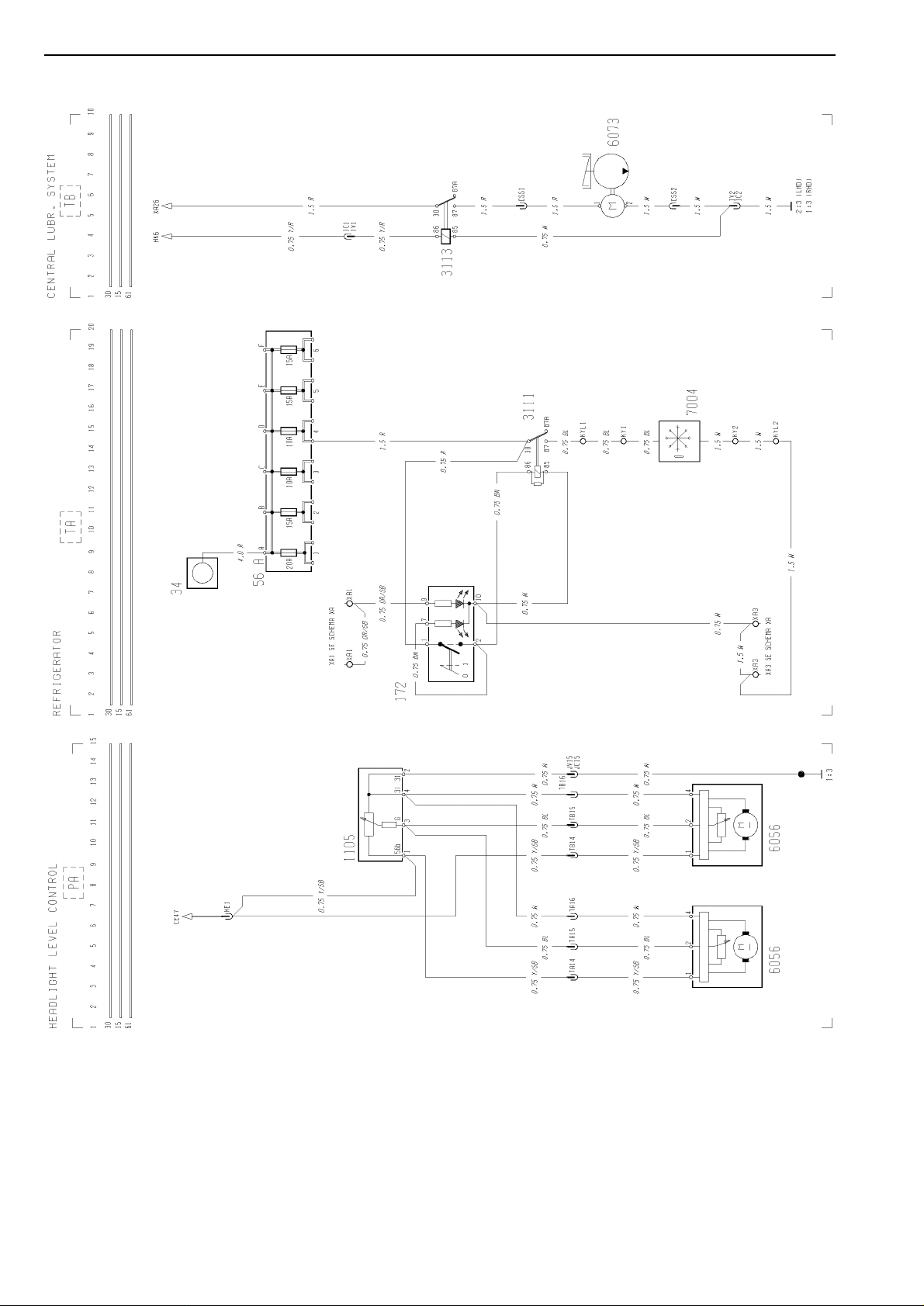

Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
42
T3010057
Page 45
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010058
43
Page 46
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
44
T3010059
Page 47
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010060
45
Page 48

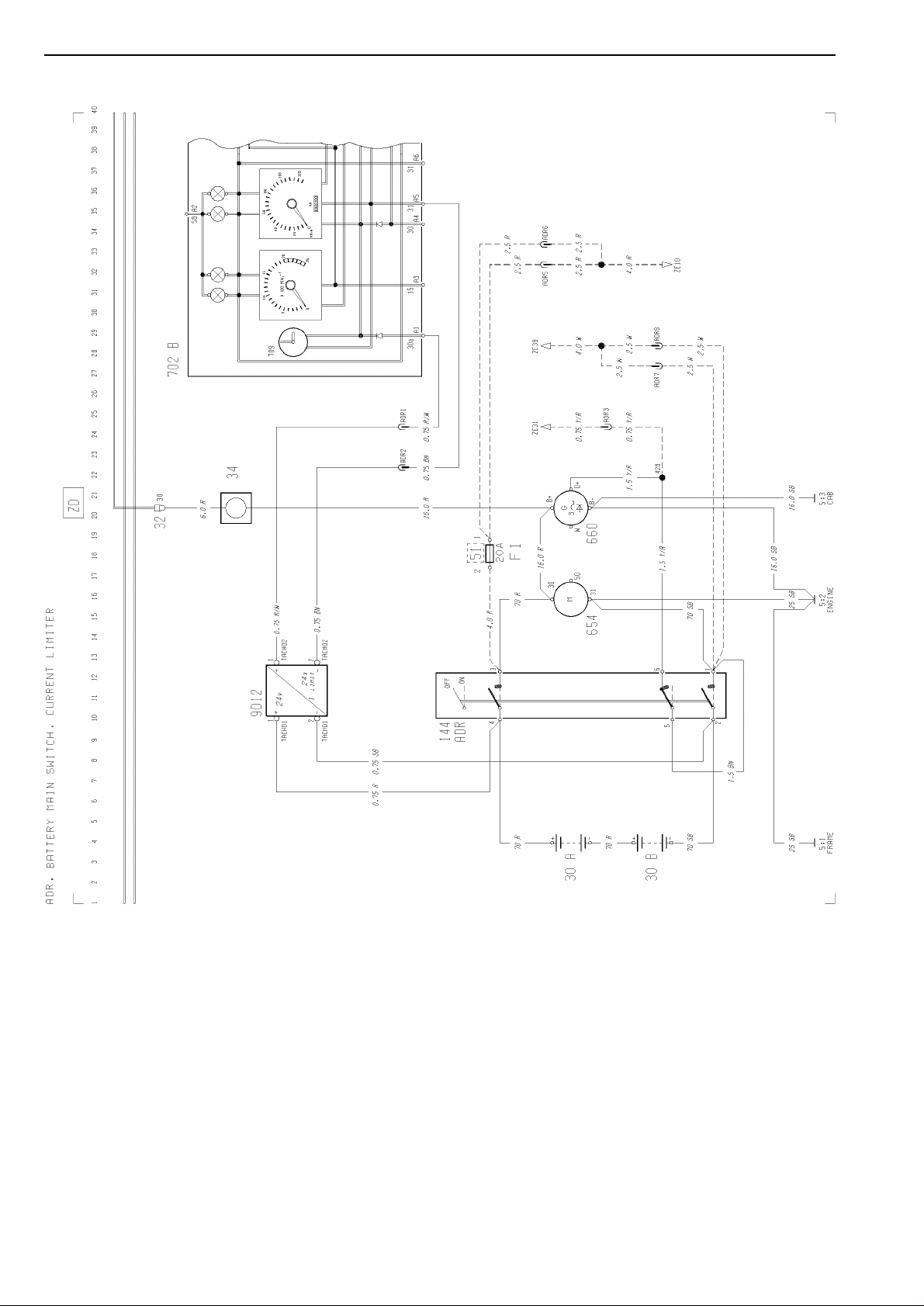

Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
46
T3010061
Page 49
Group 37 Wiring diagram FH12, FH16 LHD Component wiring diagrams
T3010062
47
Page 50
Group 37 Wiring diagram FH12, FH16 LHD Illustrations index
Illustrations index

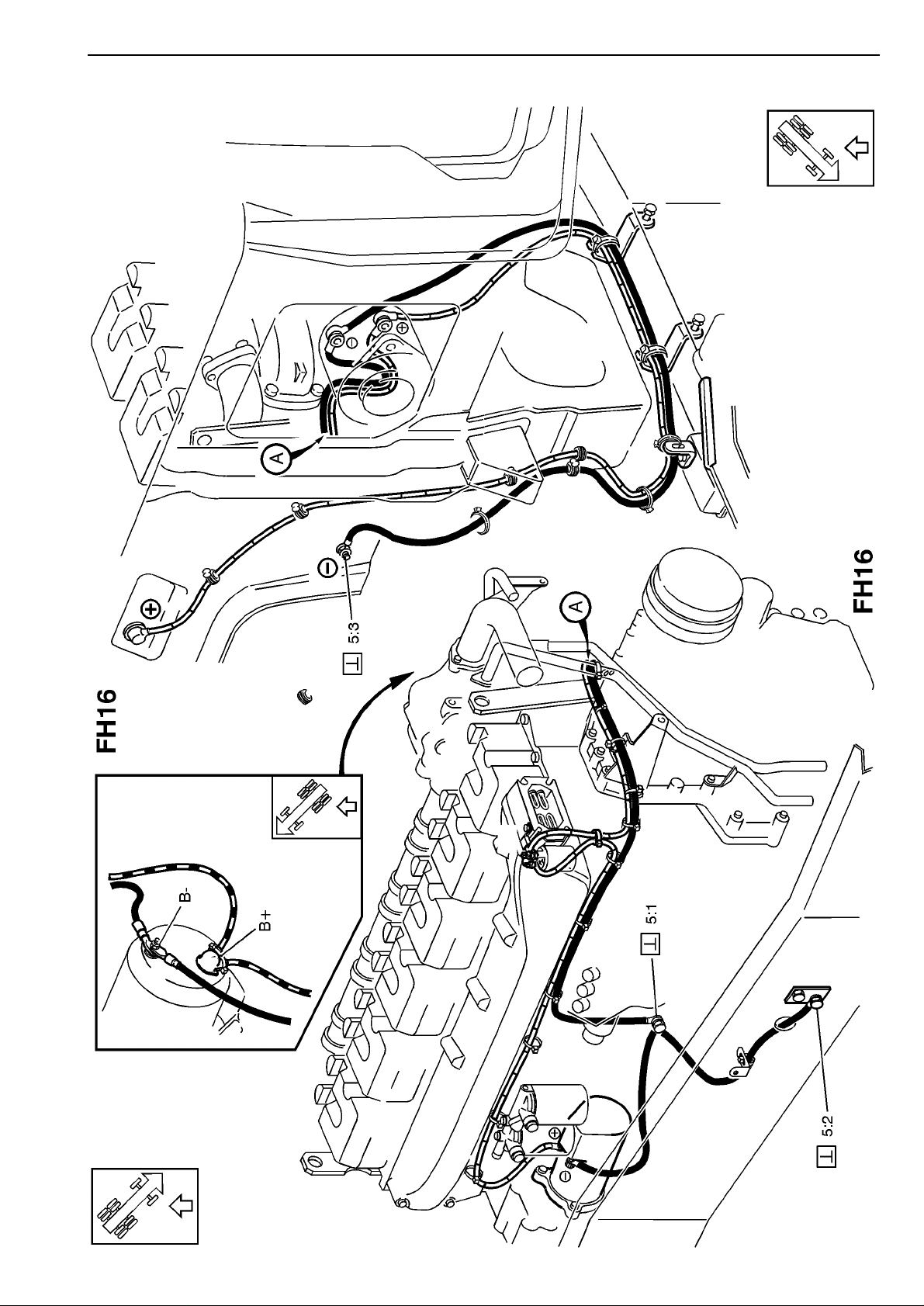

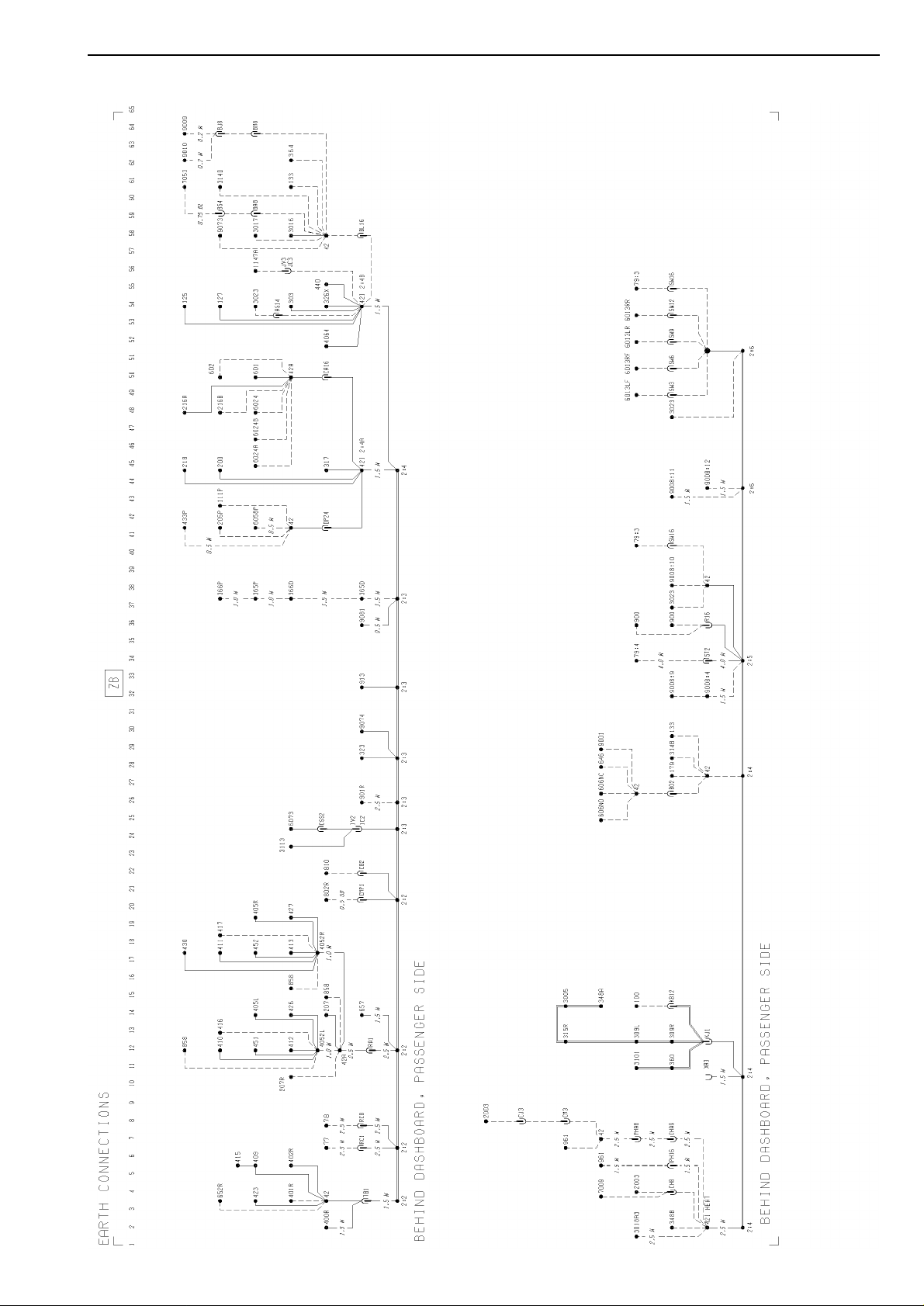

- Earth connections ................................................................. page 49

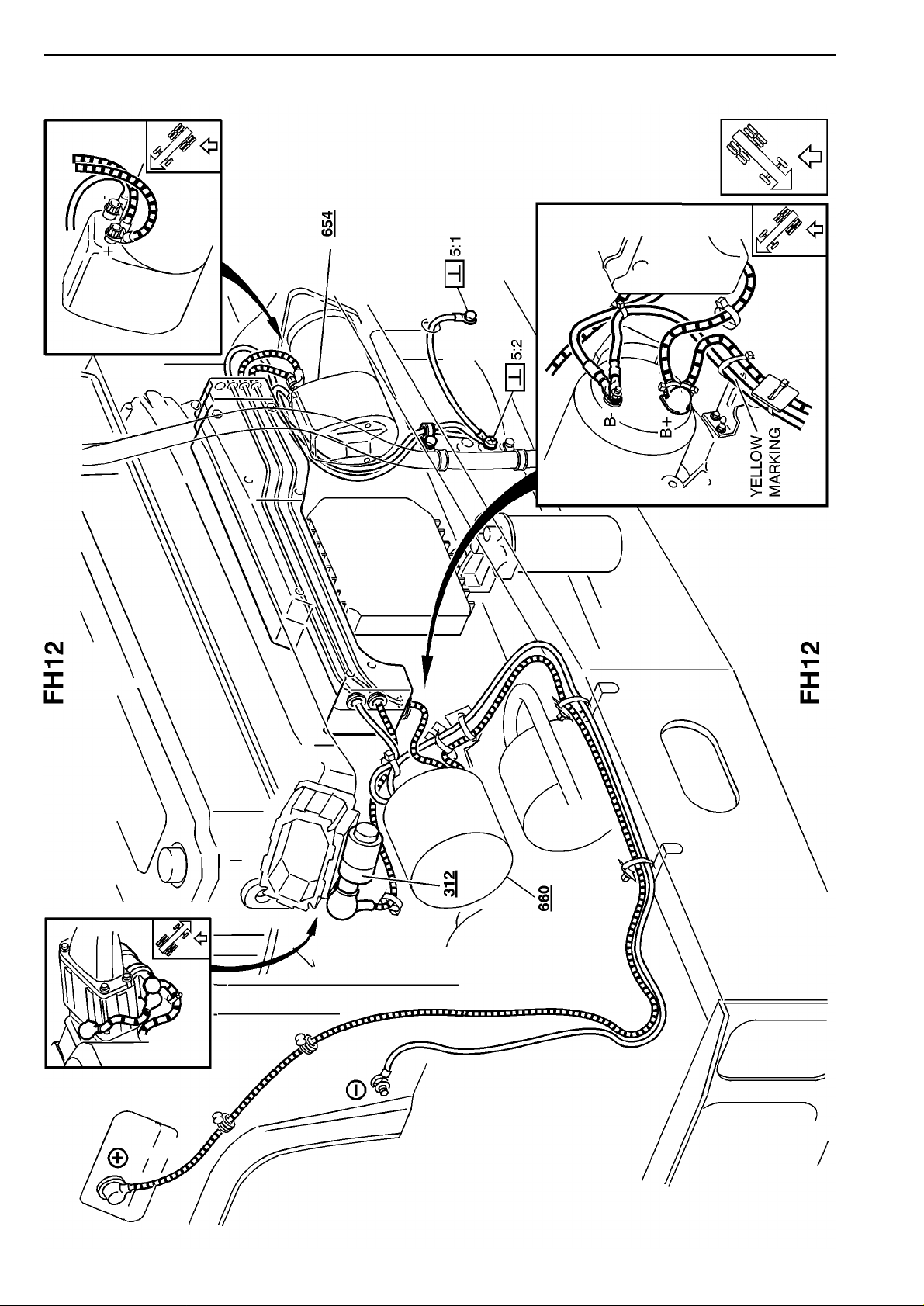

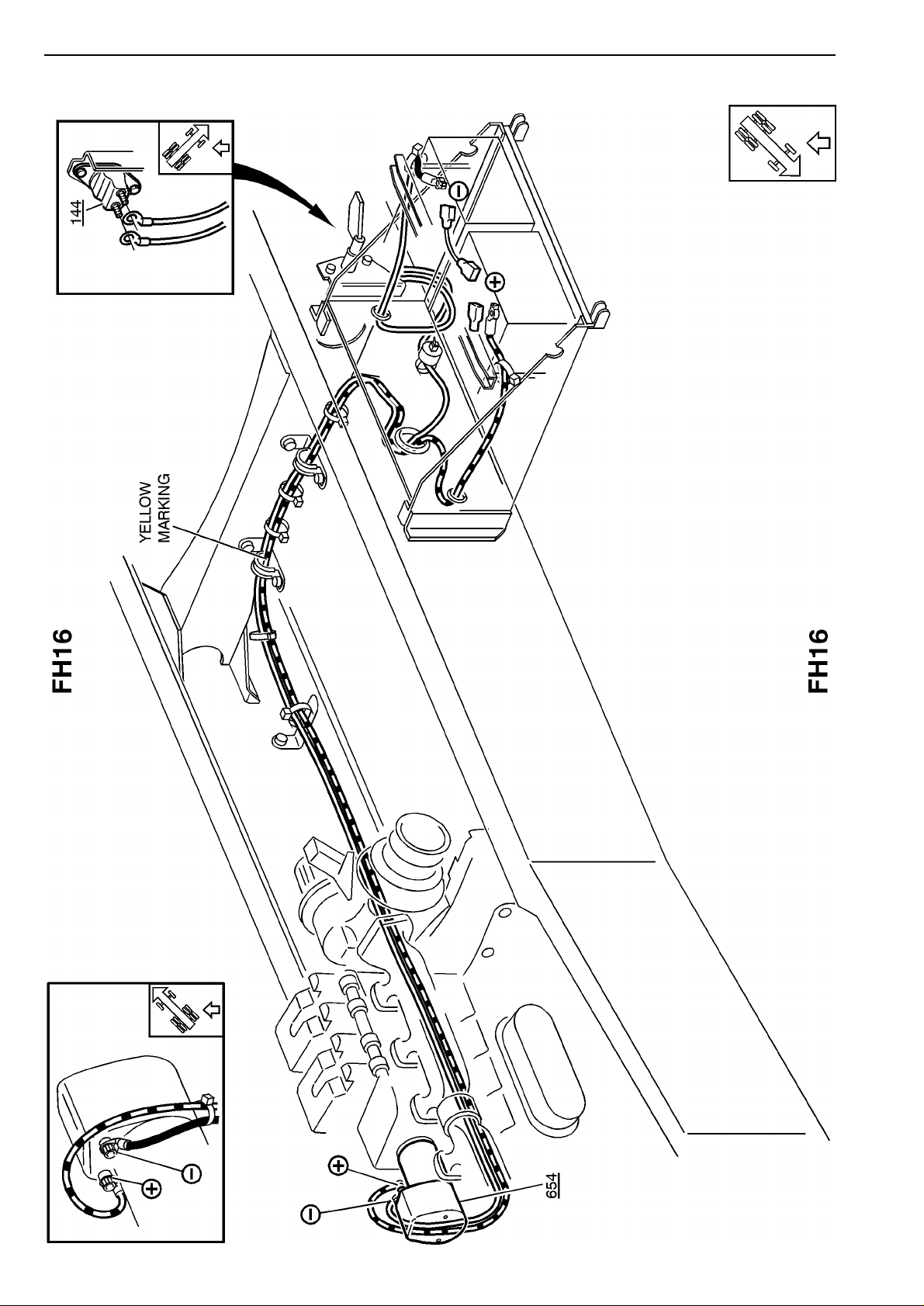

- Battery cables ........................................................................ page 50
650 Windscreen wiper motor ....................................................... page 88

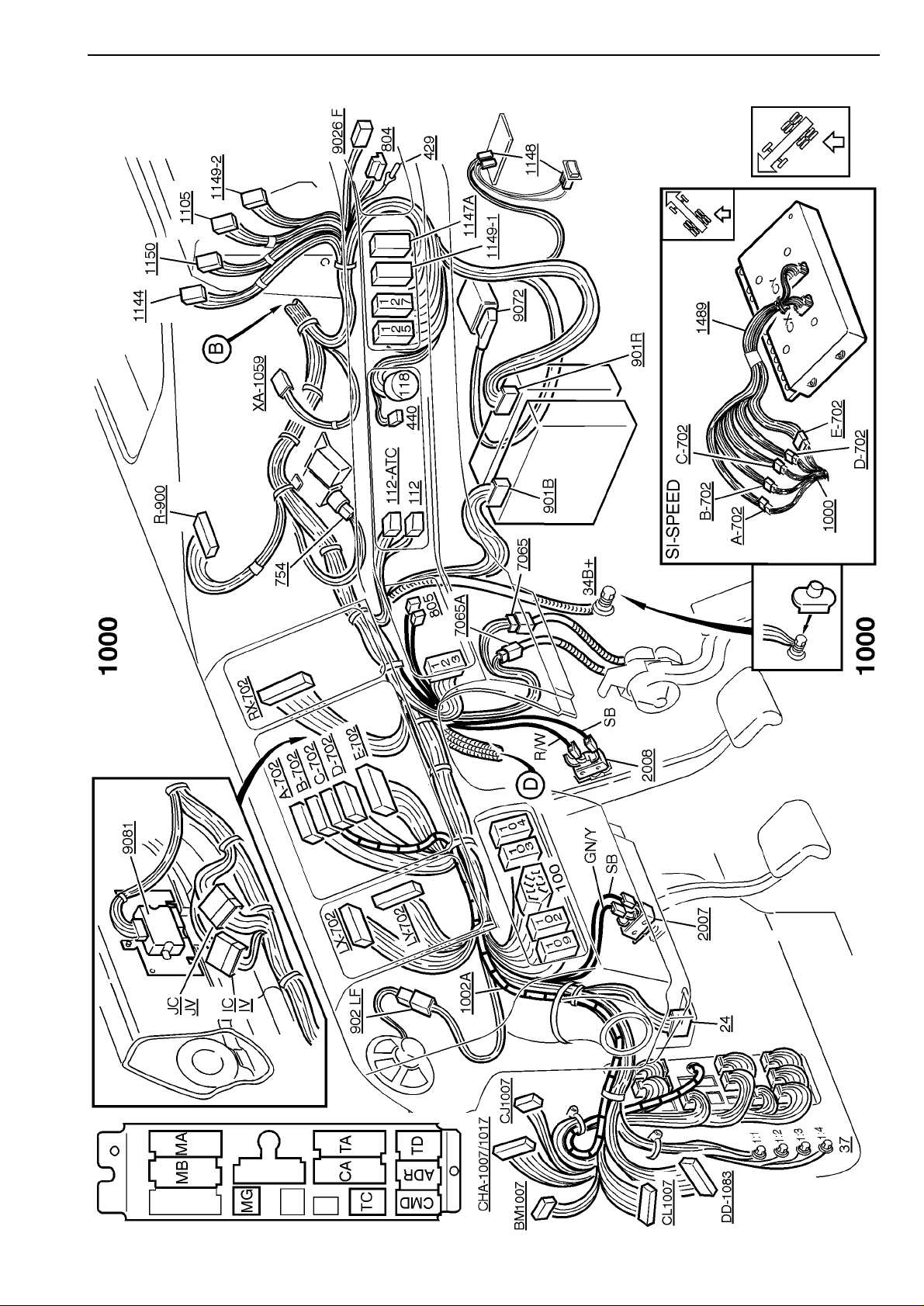

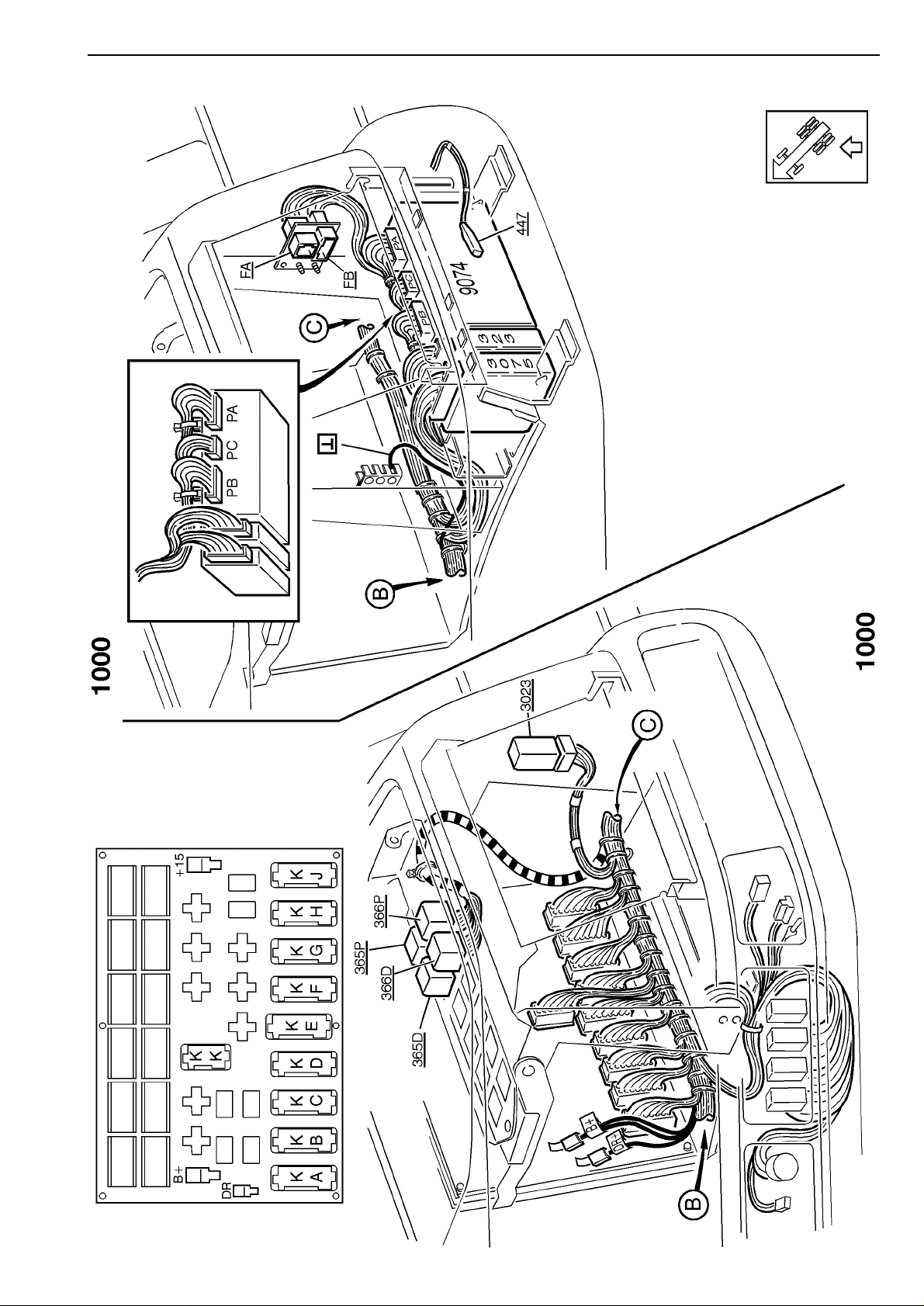

1000 Cable harness, instruments .................................................. page 55
1002 Cable harness, tachograph (CABLE-EC) .............................. page 60

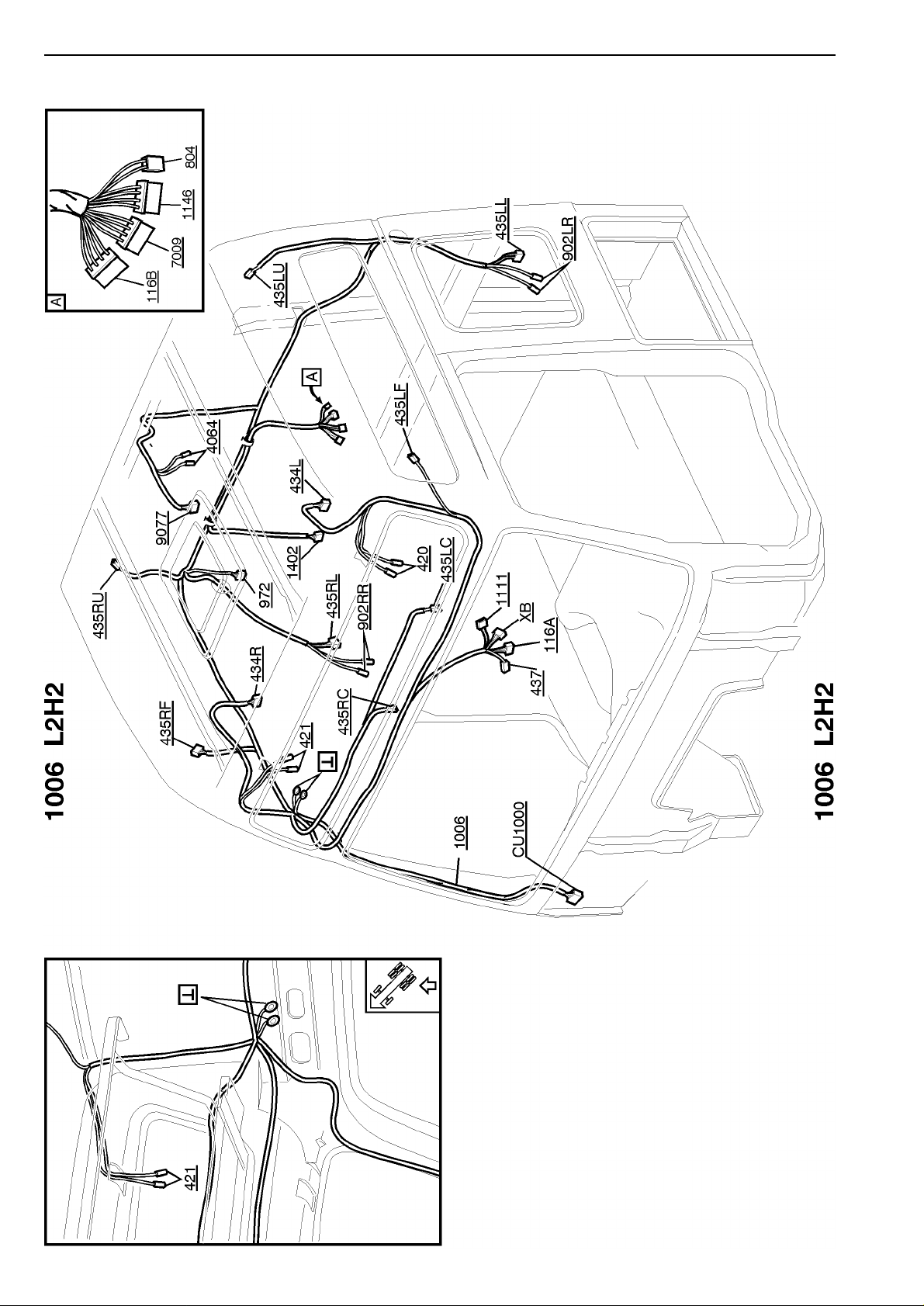

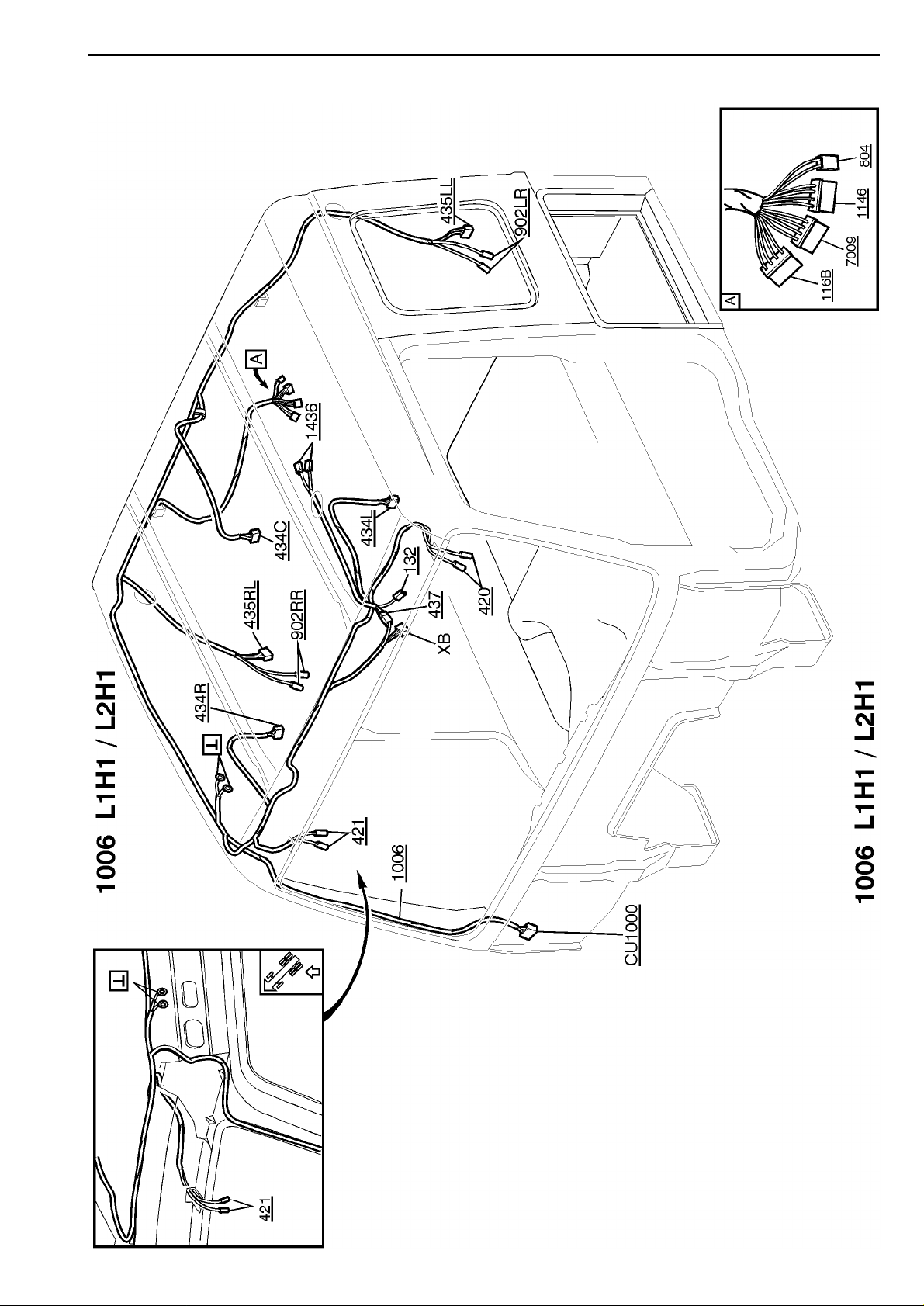

1006 Cable harness, cab, upper .................................................... page 61

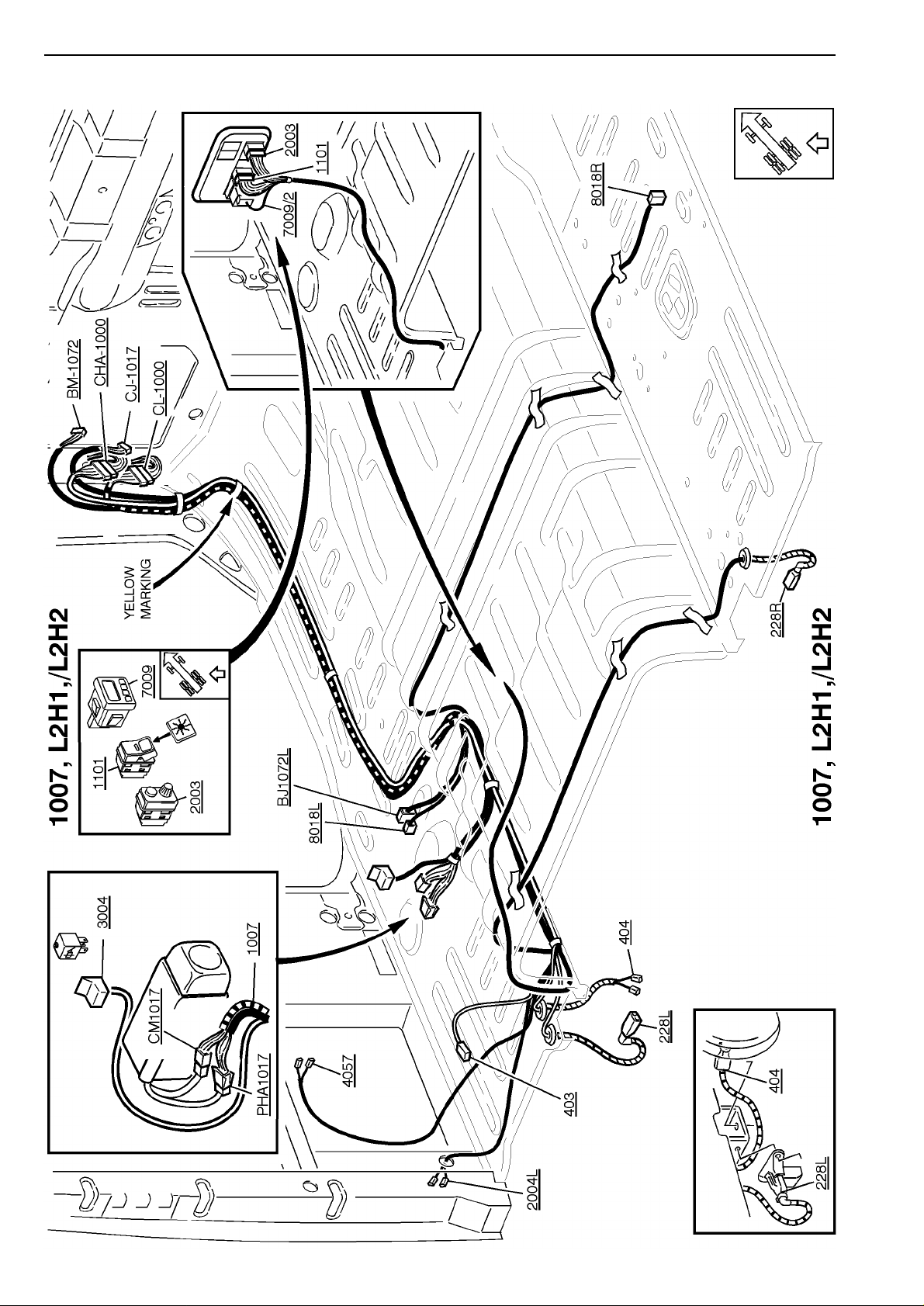

1007 Cable harness, cab, lower ..................................................... page 63
1017 Cable harness, engine/cab heater ........................................ page 65
1020 Cable harness, cowl .............................................................. page 66

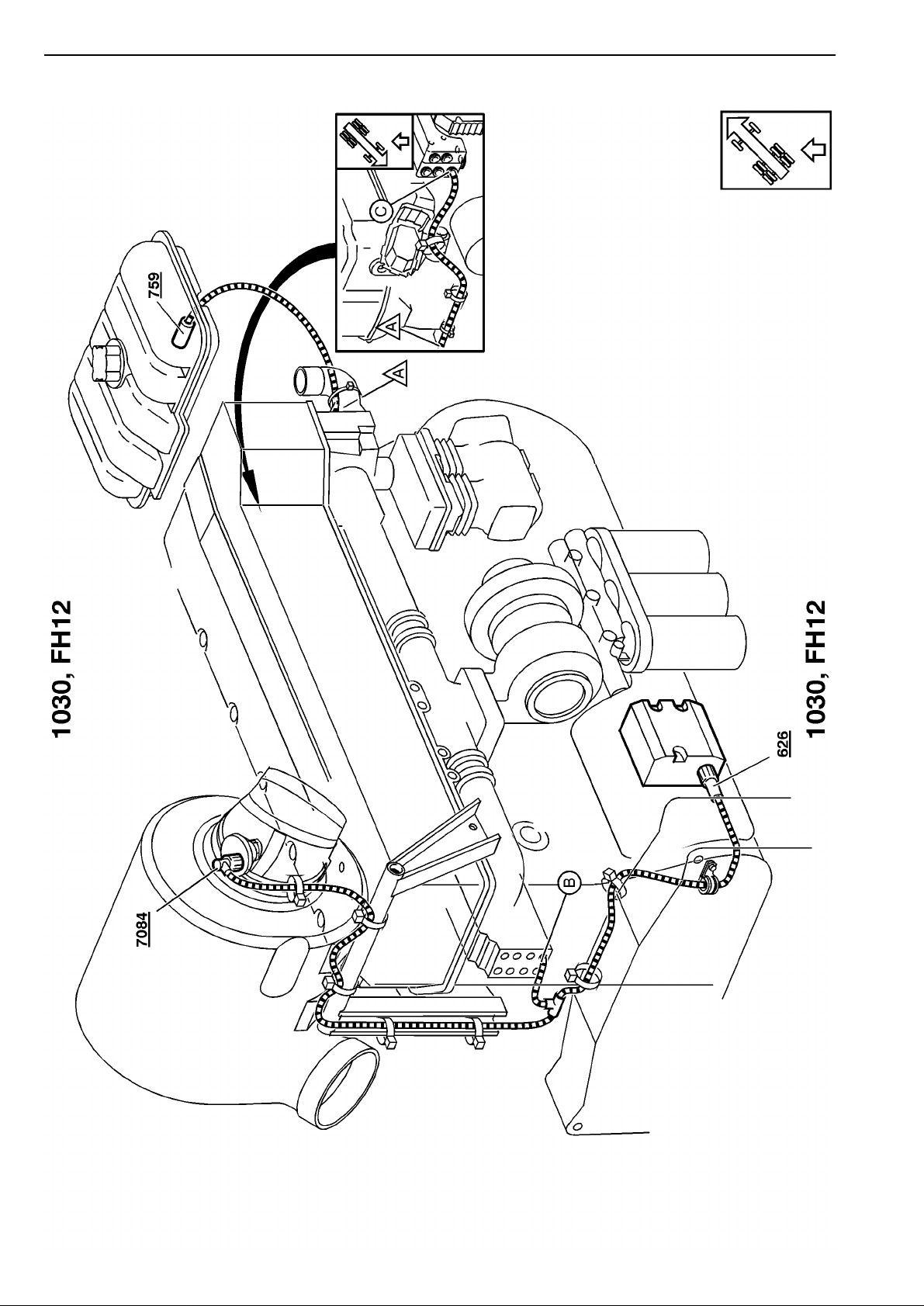

1030 Cable harness, engine .......................................................... page 67
1037 Cable harness, bogie lift ....................................................... page 70

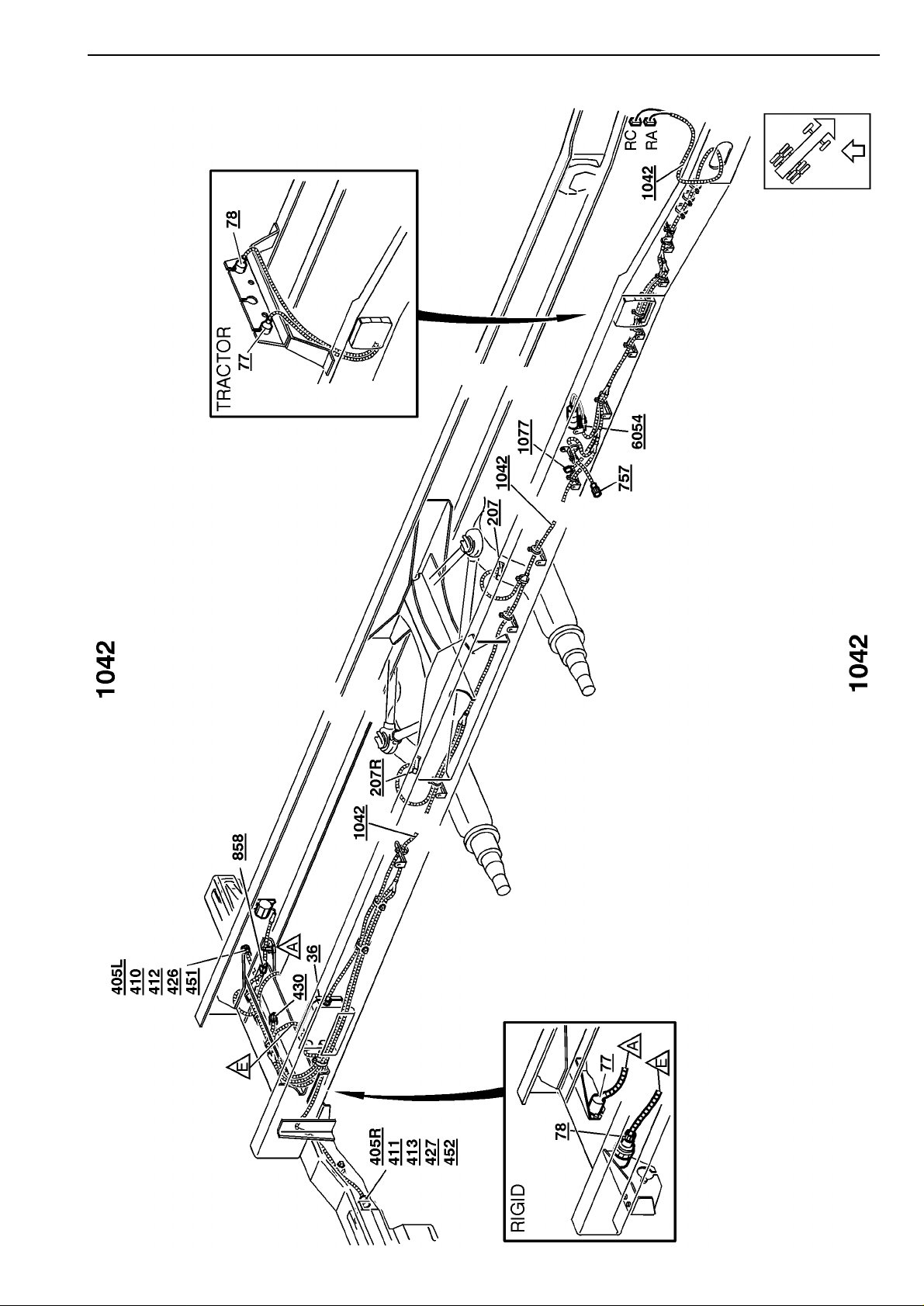

1042 Cable harness, tail lights ....................................................... page 71

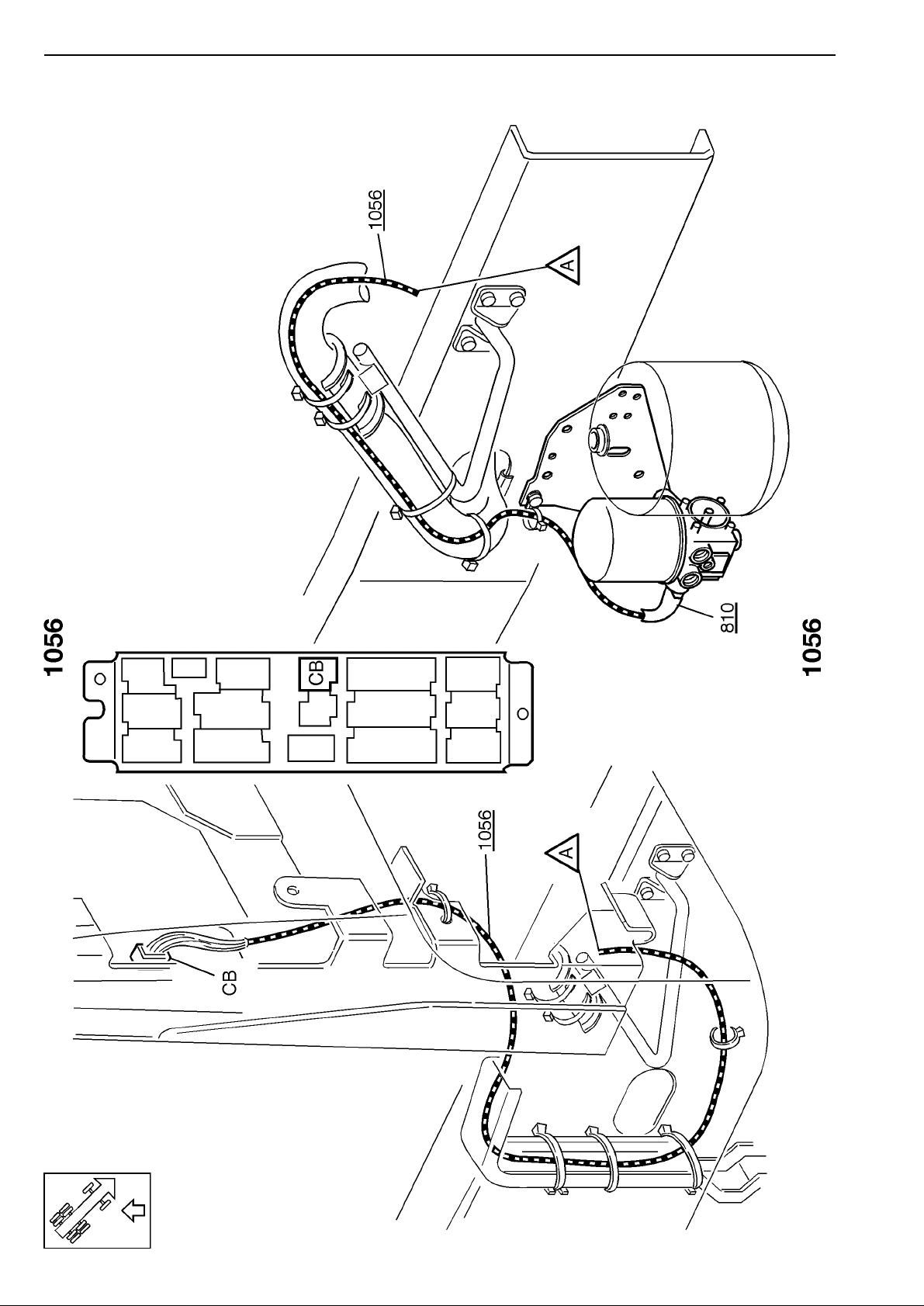

1056 Cable harness, air dryer ........................................................ page 72

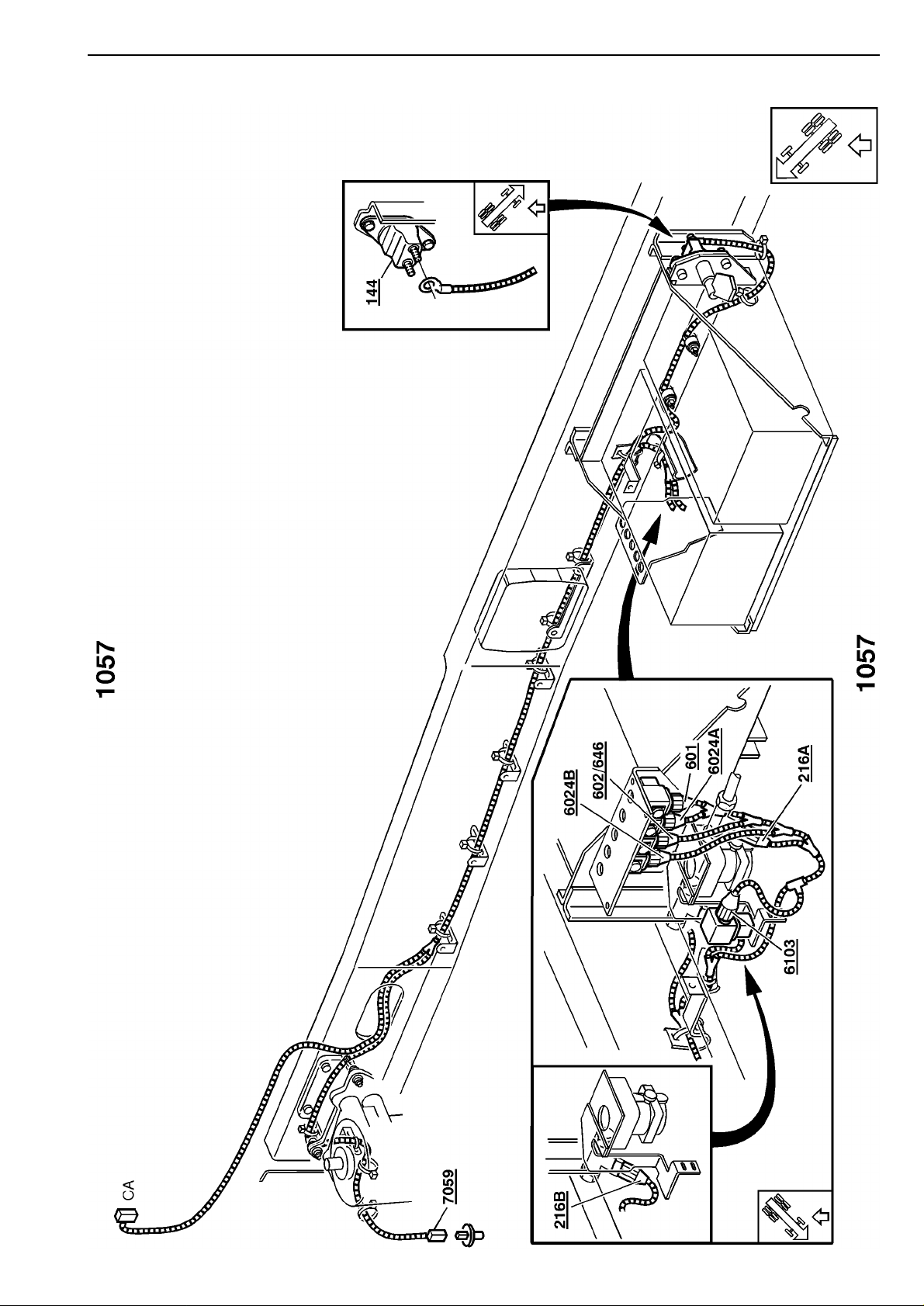

1057 Cable harness, chassis ......................................................... page 73

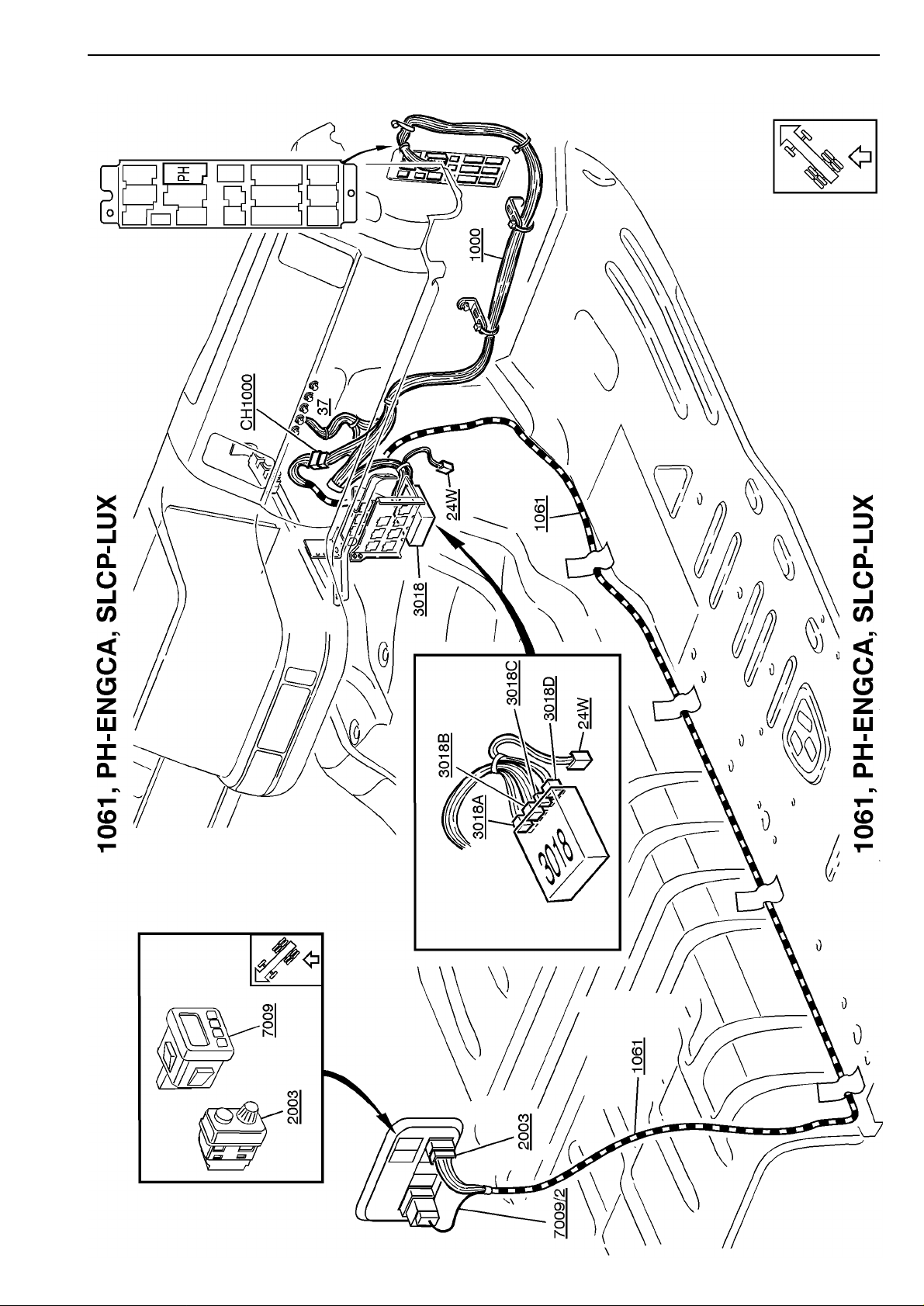

1061 Cable harness, parking heater, cab ...................................... page 74

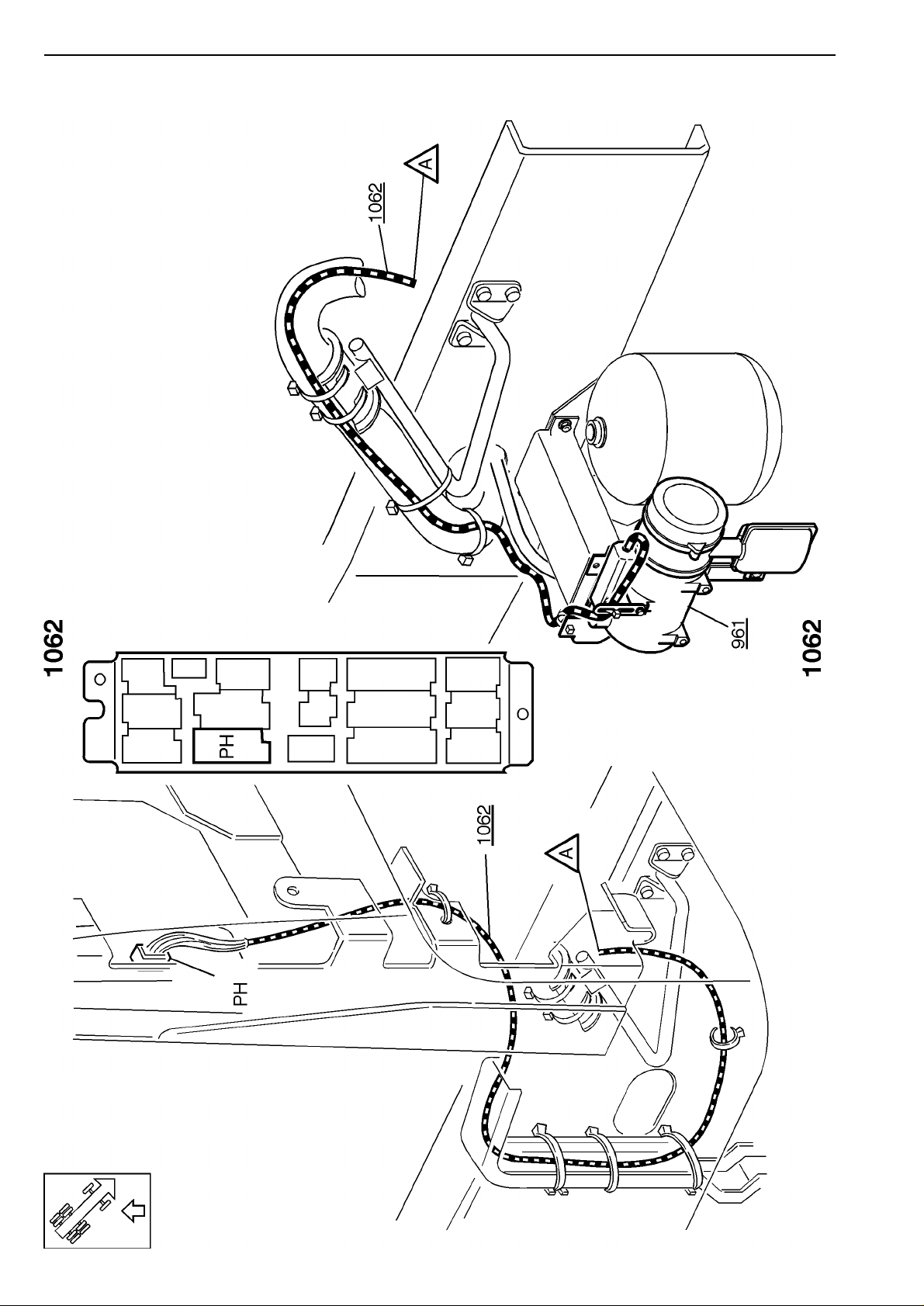

1062 Cable harness, parking heater, frame ................................... page 76

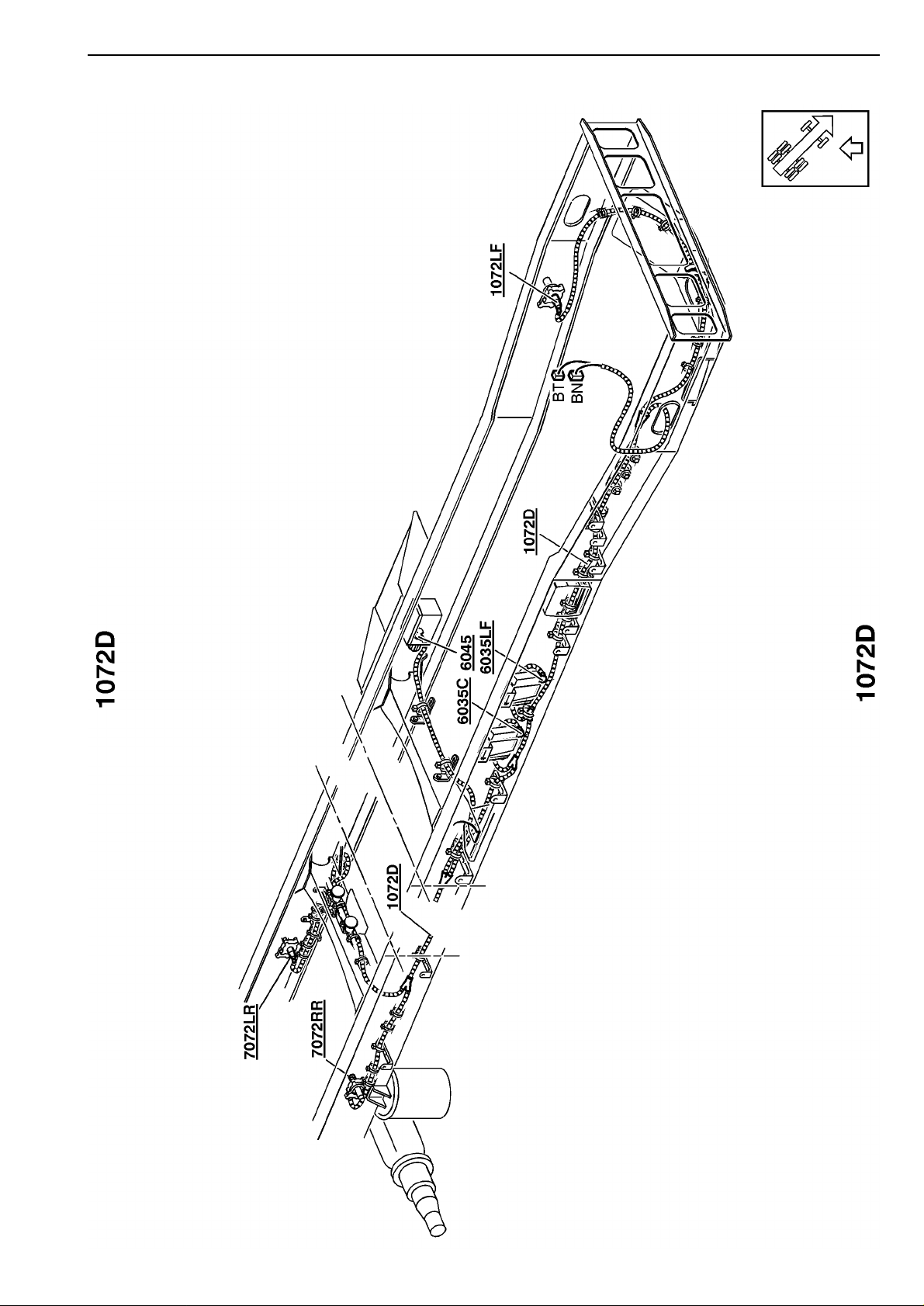

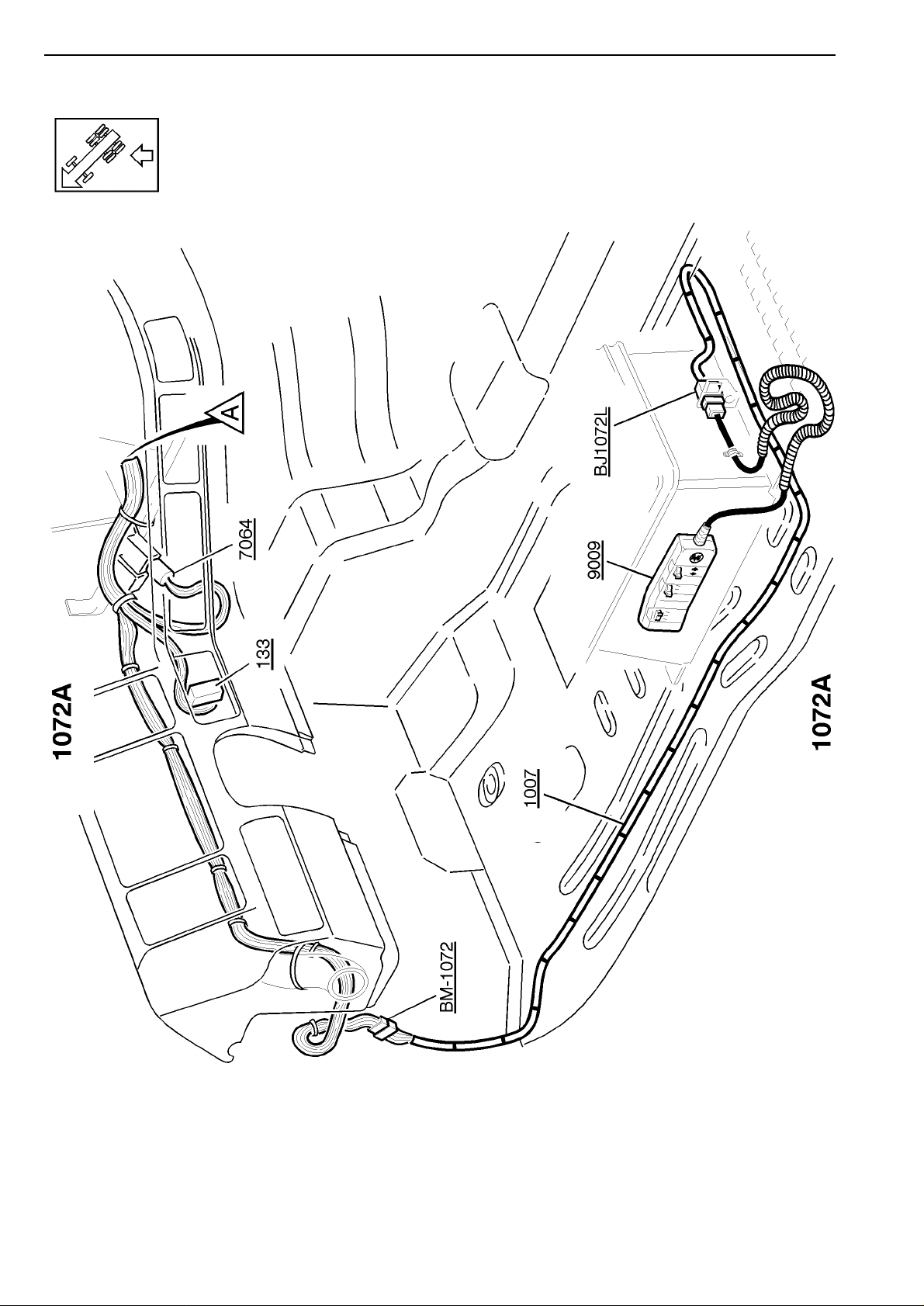

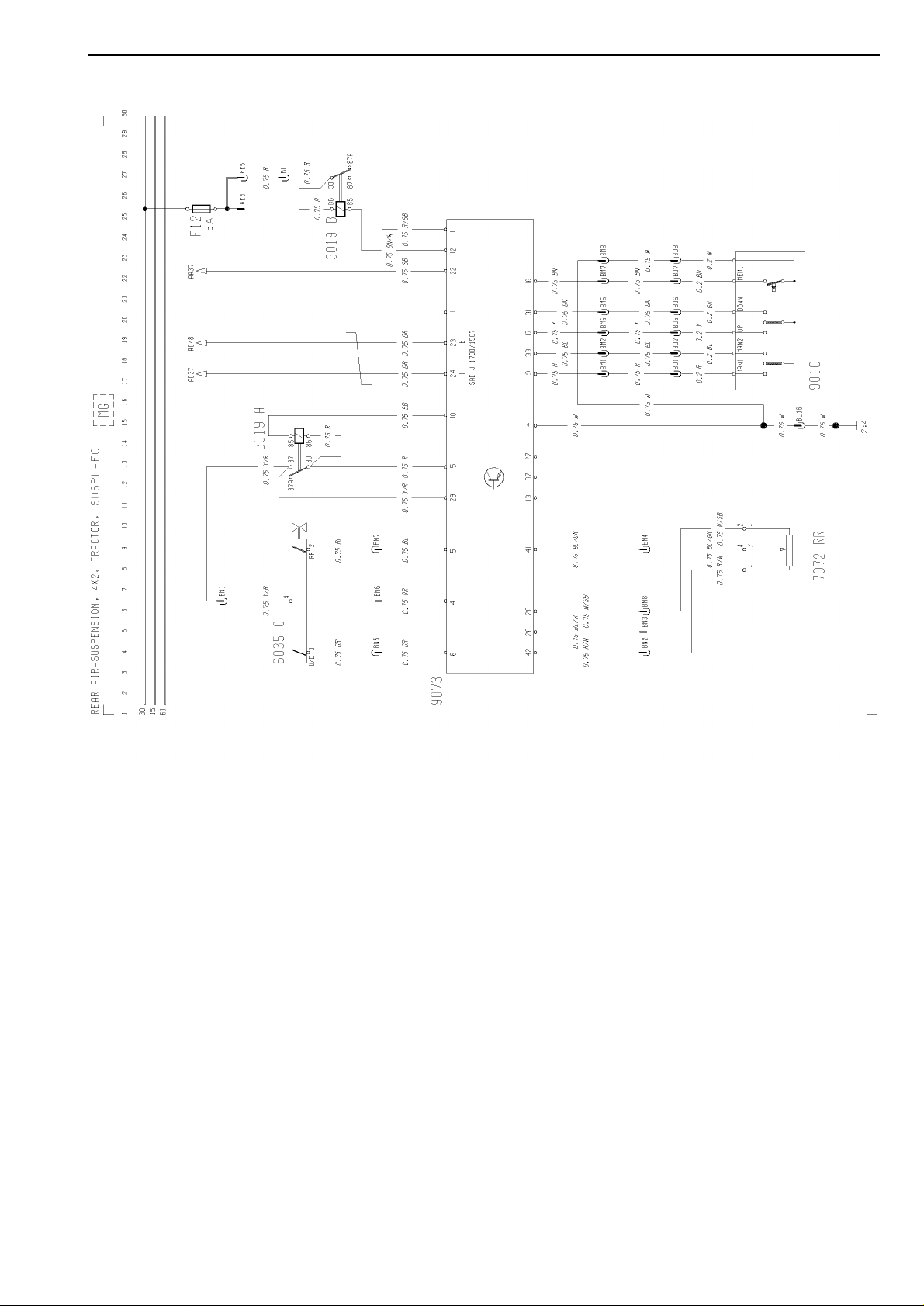

1072 Cable harness, air suspension .............................................. page 77

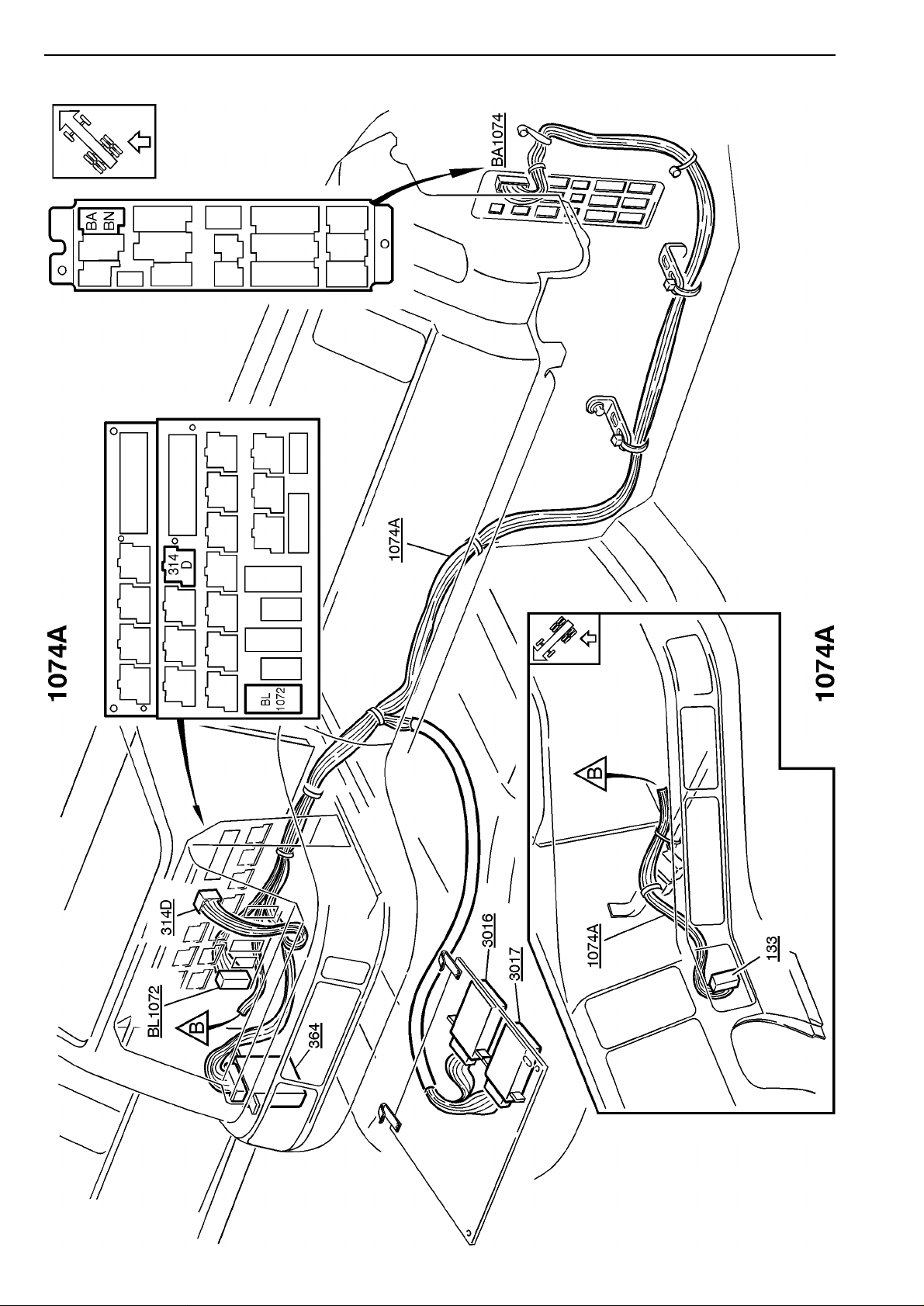

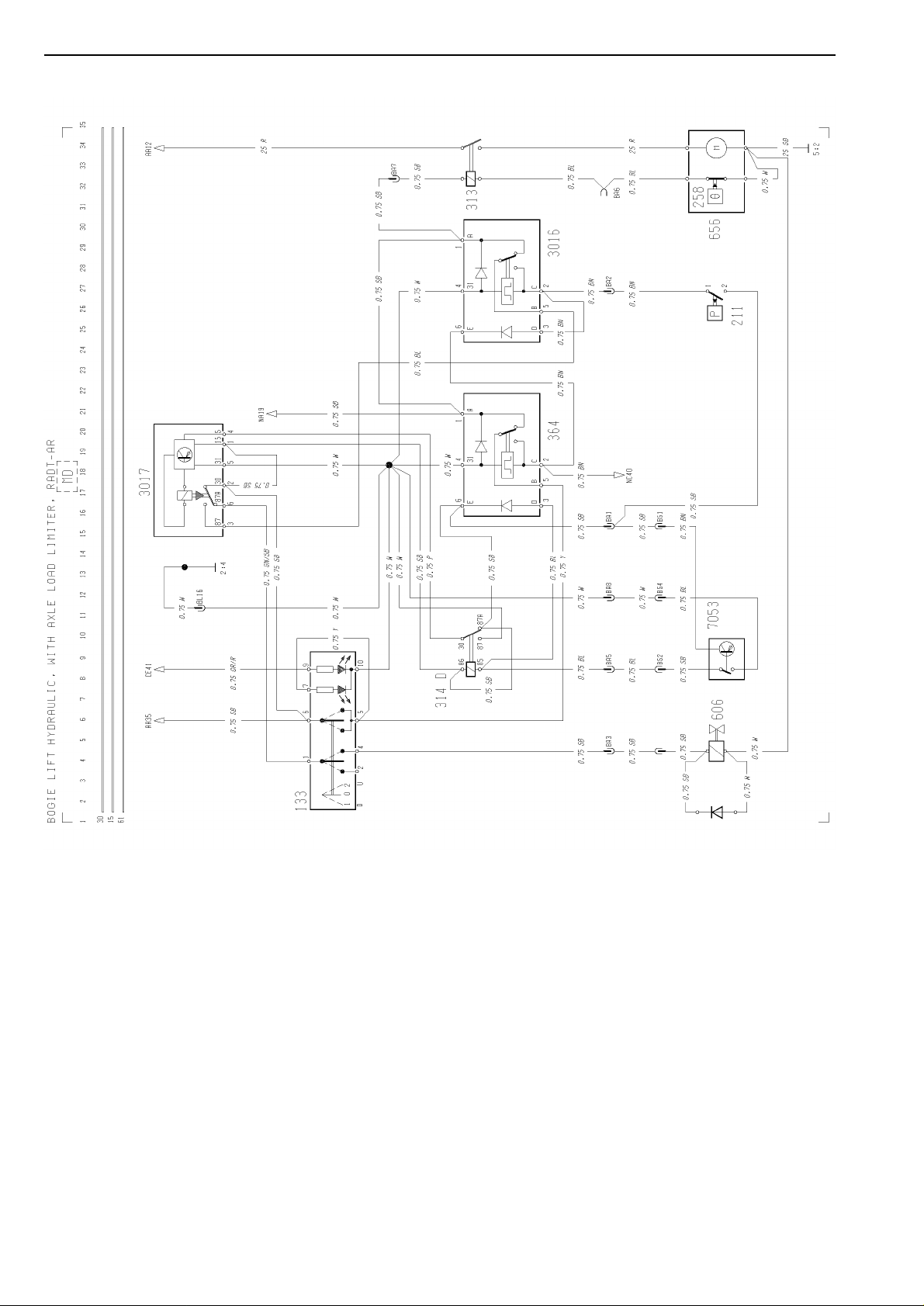

1074 Cable harness, hydralic bogie lift with axle load limiter ........ page 80

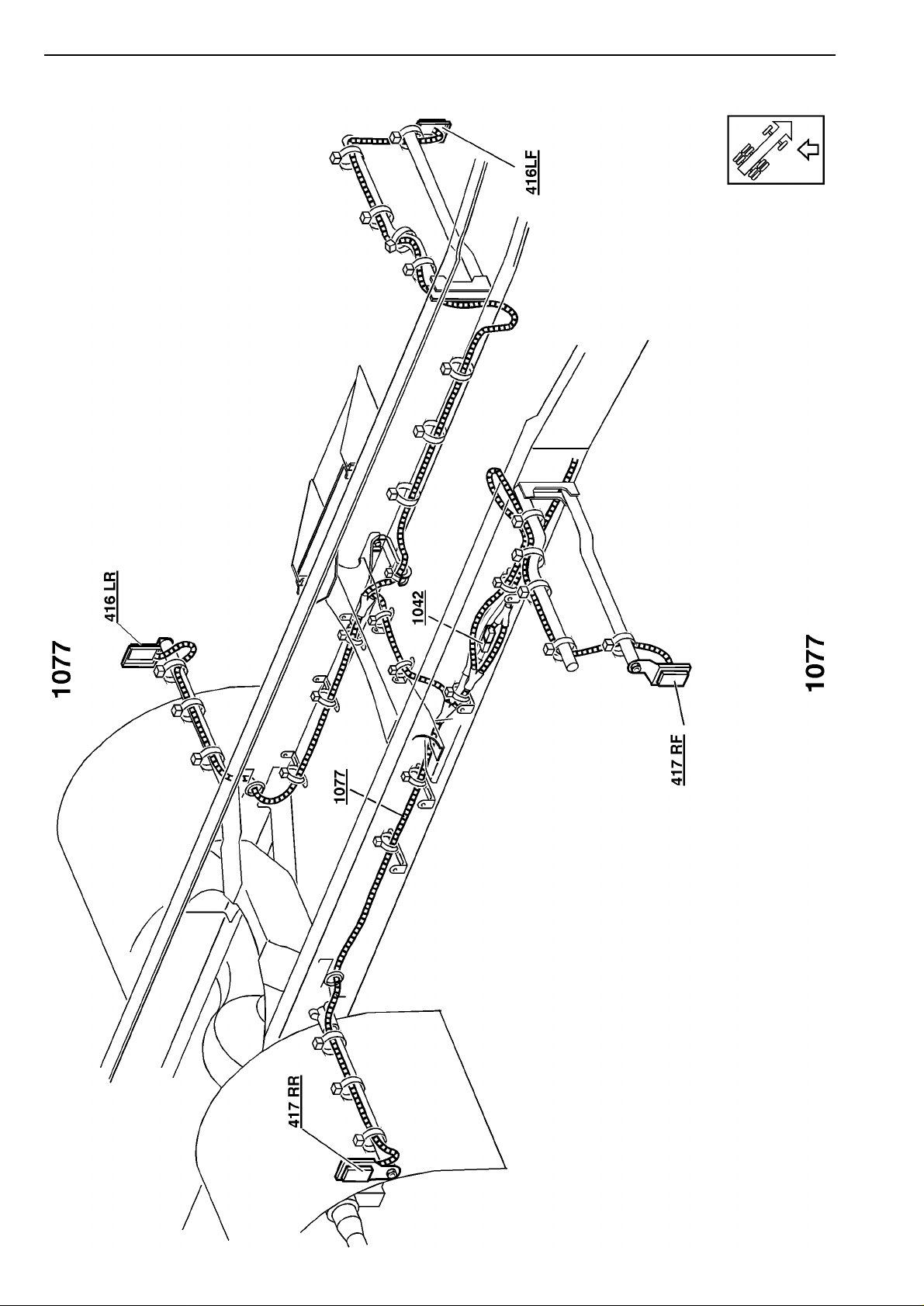

1077 Cable harness, side marking lamp ....................................... page 82

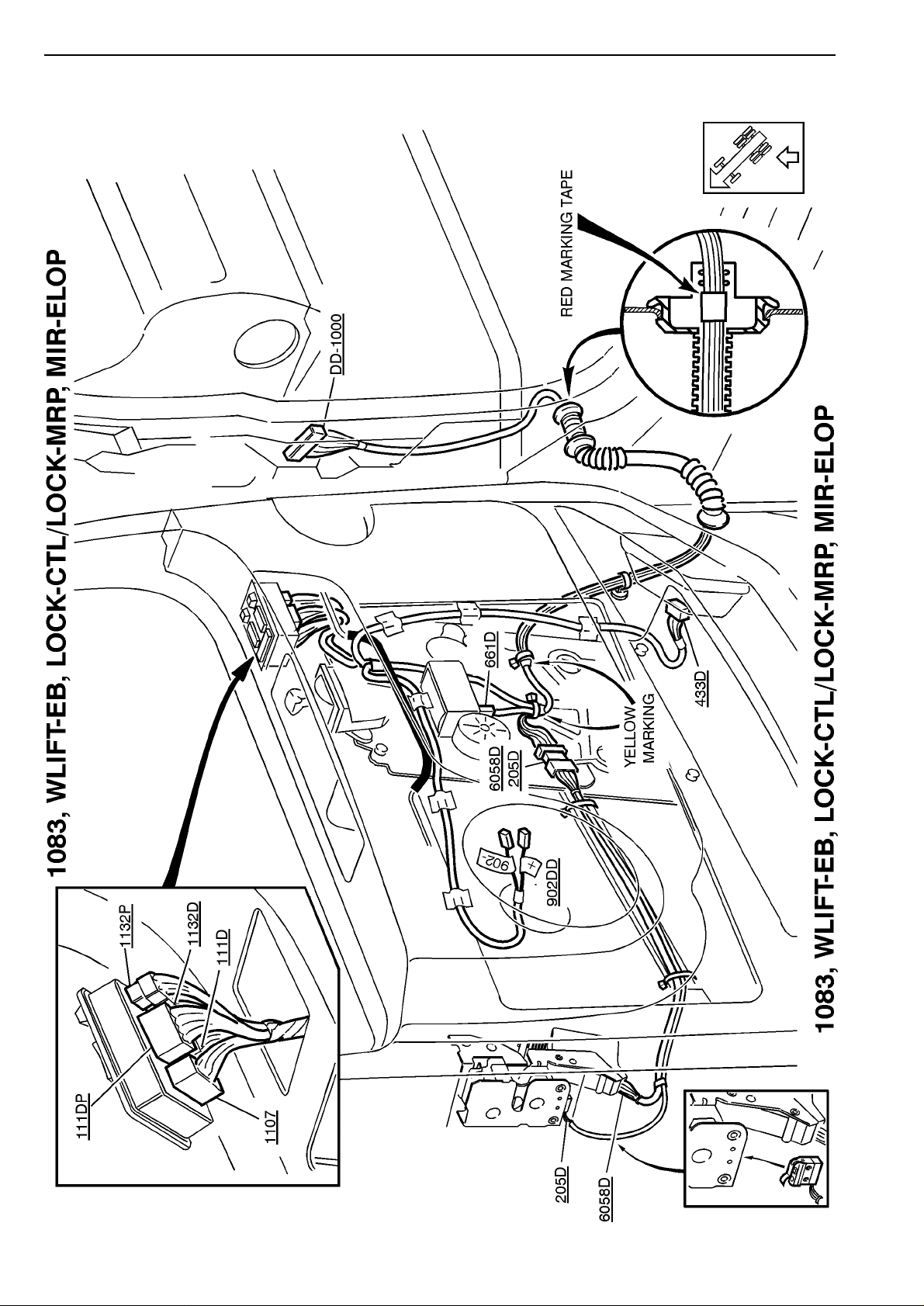

1083 Cable harness, door .............................................................. page 83

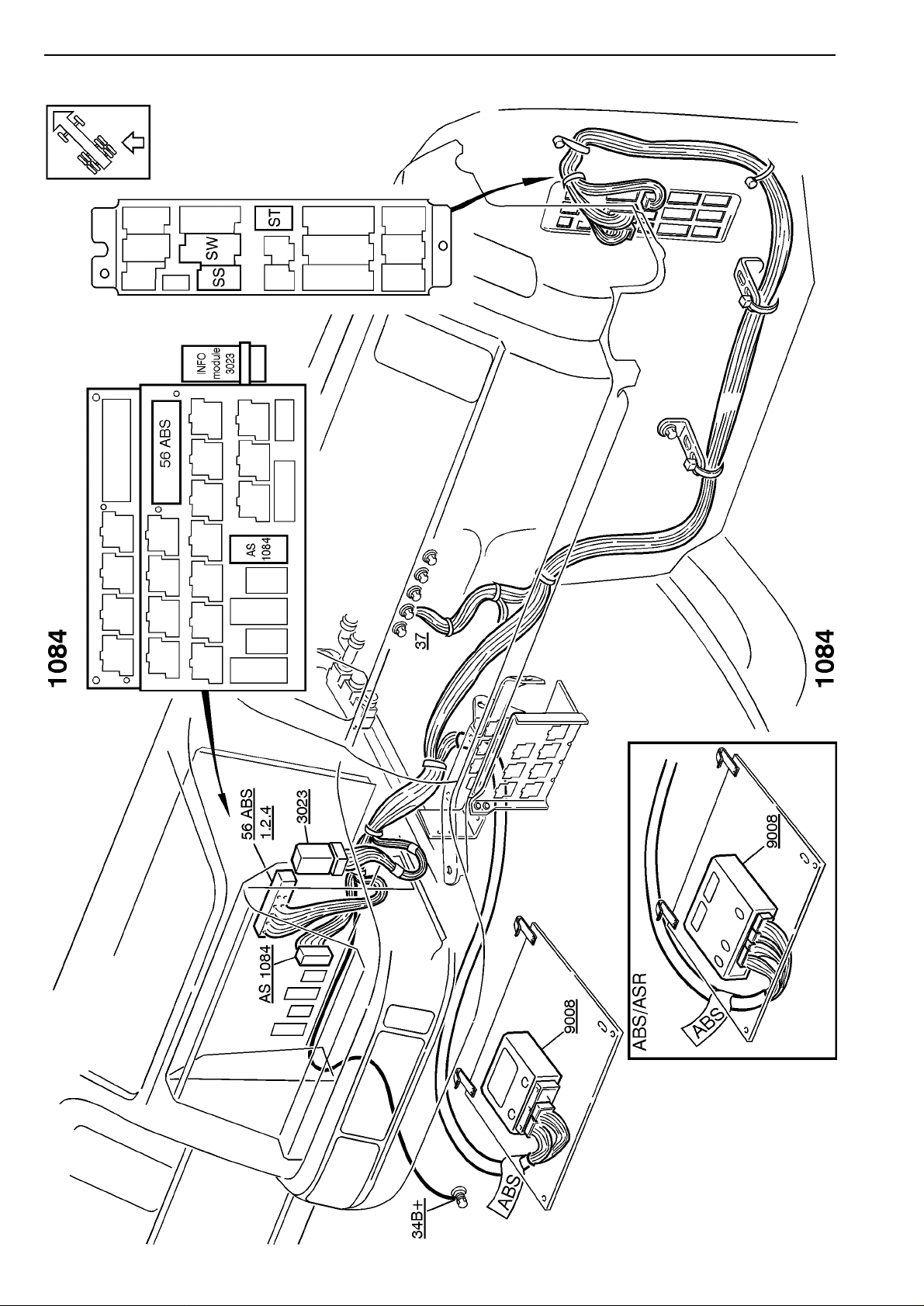

1084 Cable harness, cab, ABS ...................................................... page 86

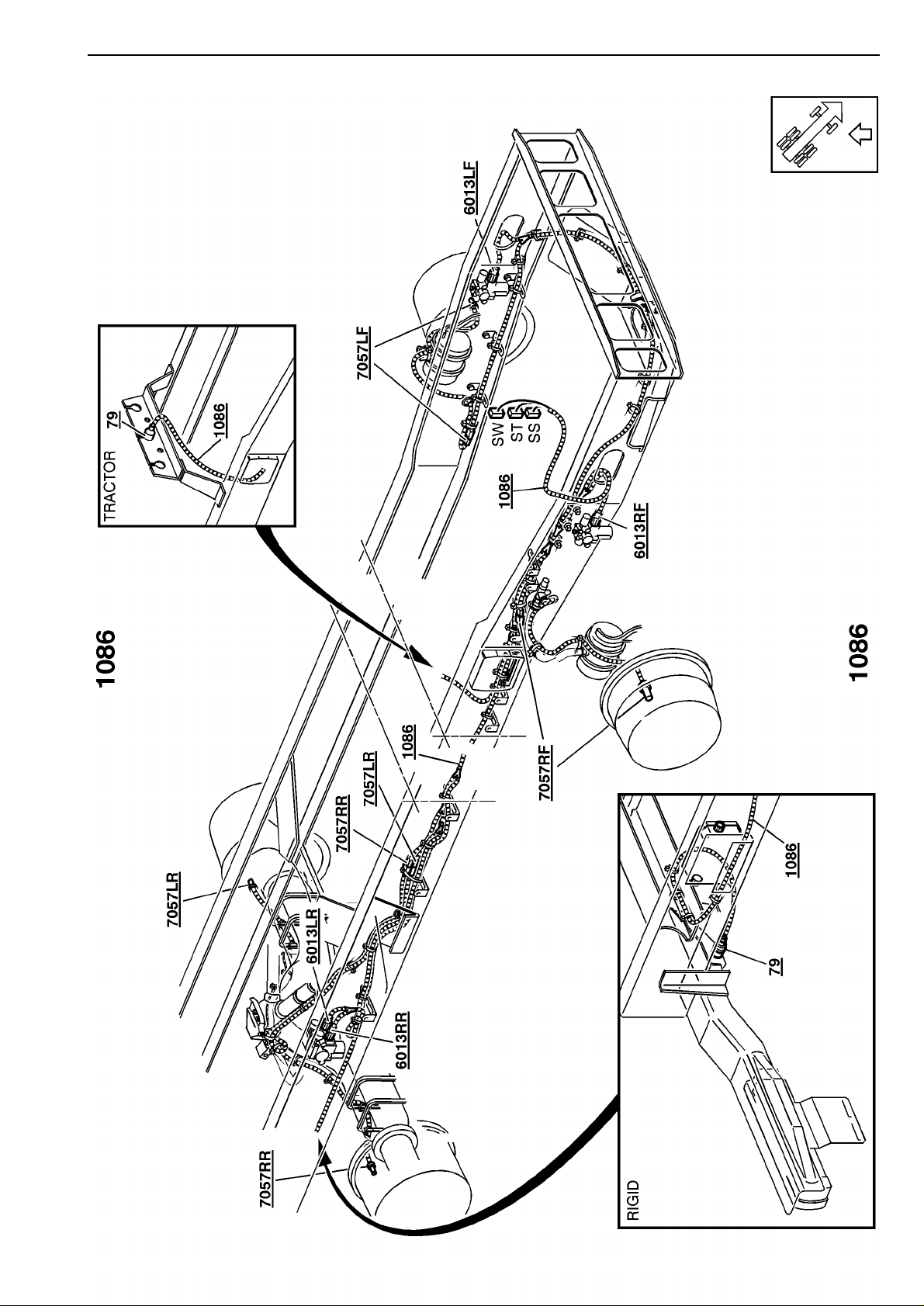

1086 Cable harness, solenoid valve, ABS ..................................... page 87
1097 Cable harness, bogie lift feeder cable .................................. page 81

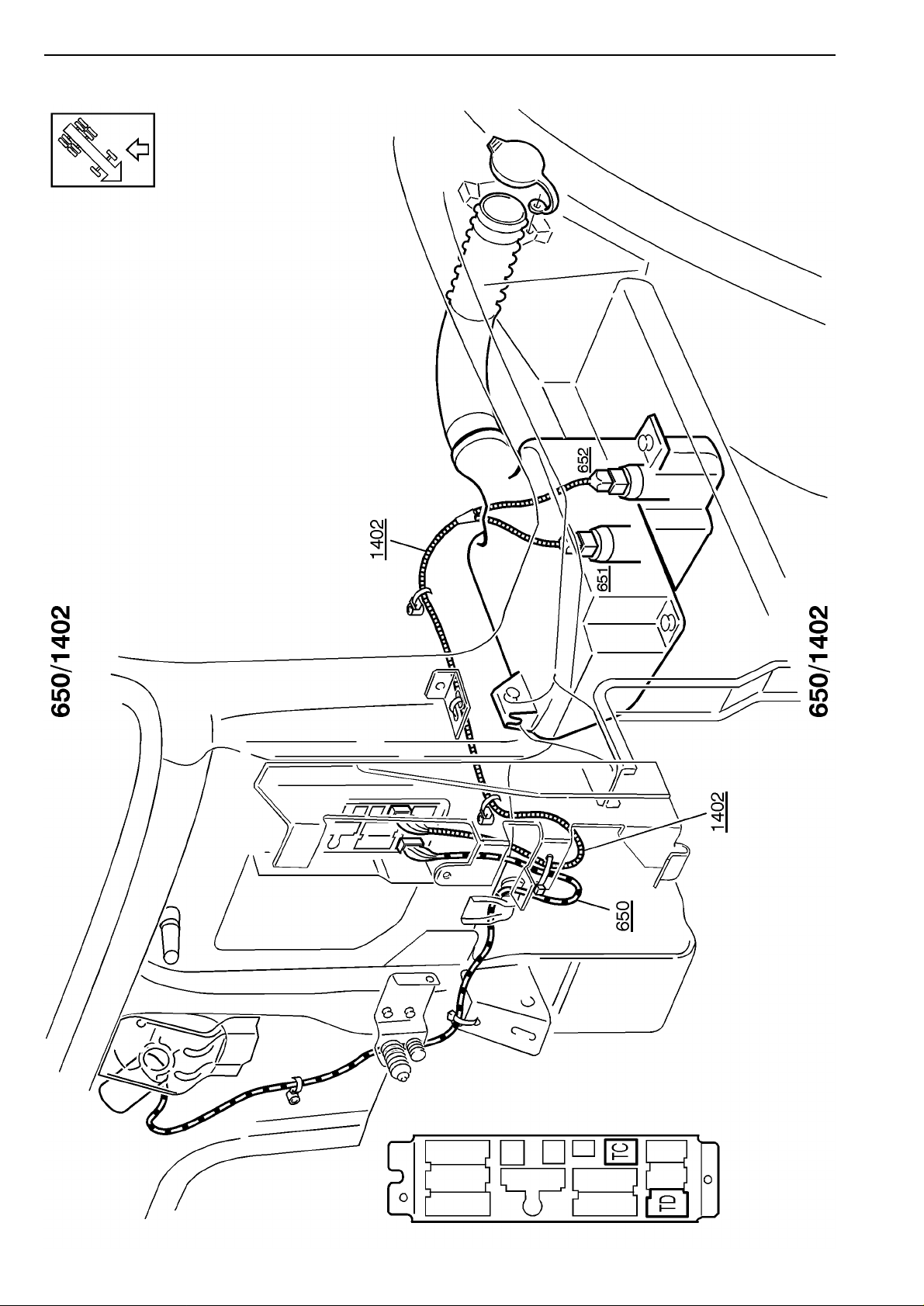

1402 Cable harness, windscreen washers .................................... page 88

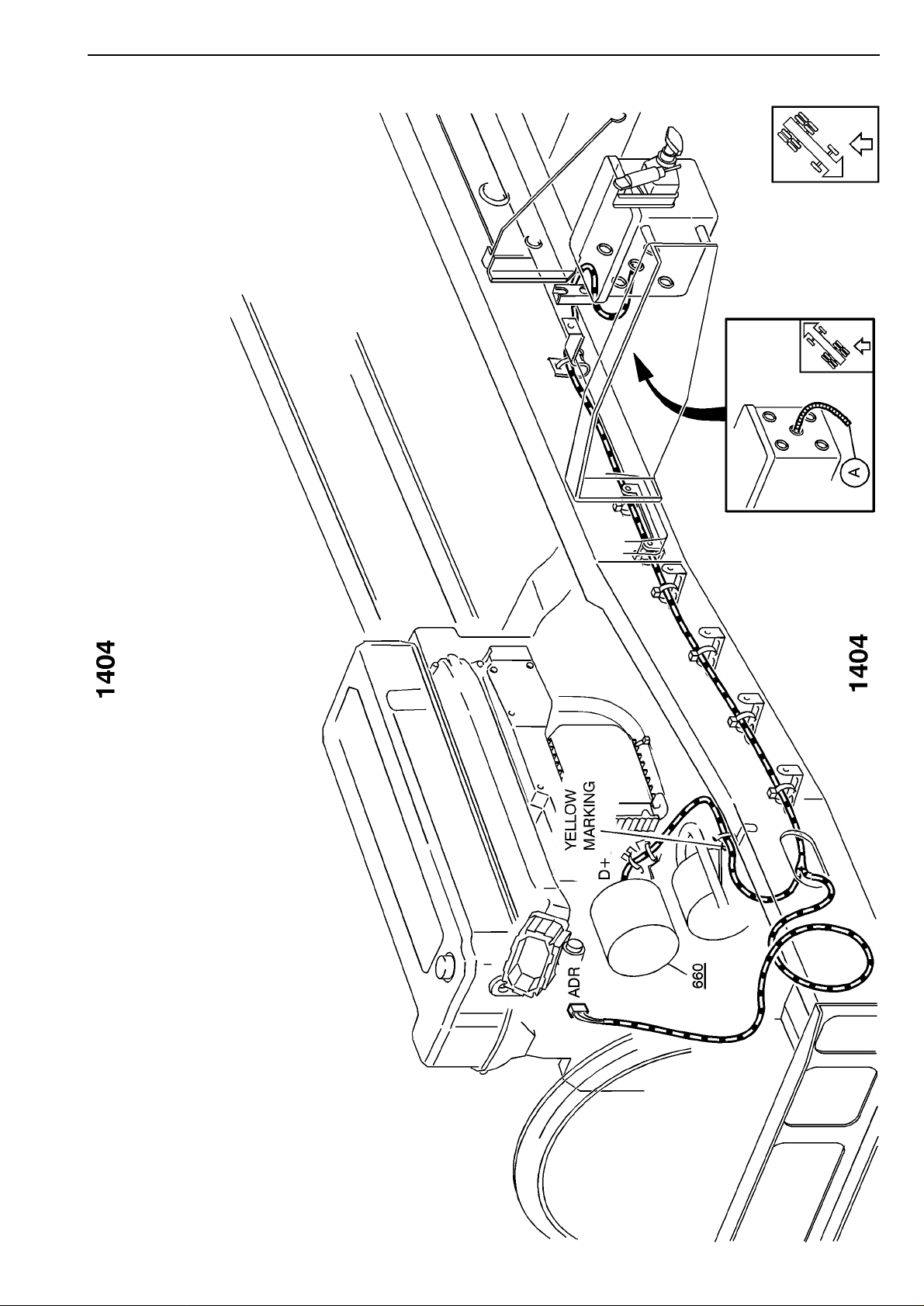

1404 Cable harness, ADR ............................................................. page 89
1425 Cable harness, pulse sensor - tachograph (CABLE-B) ........ page 60

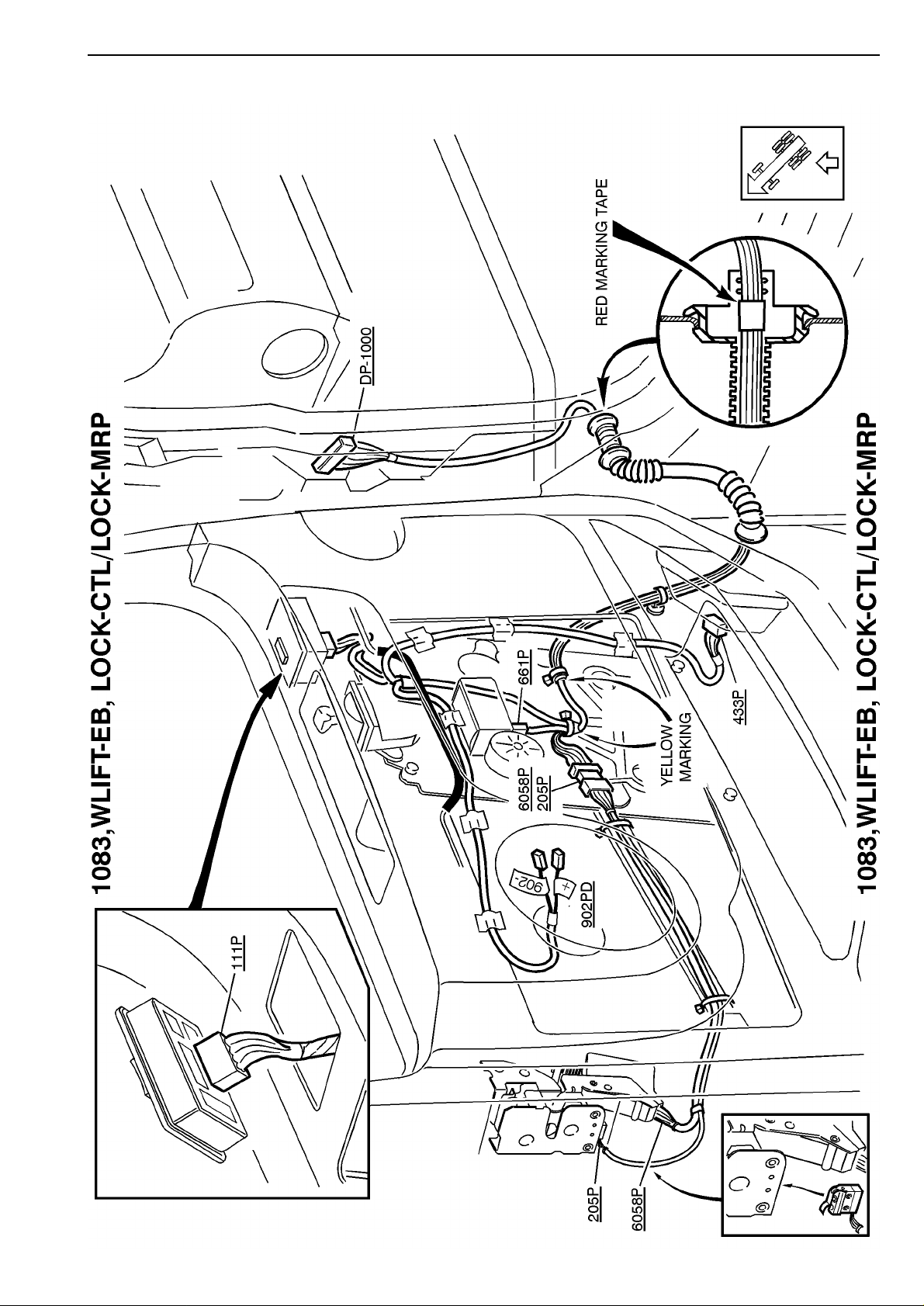

1433 Cable harness, bogie lift - locking, 3rd axle .......................... page 91
1440 Cable harness, el. operated rearview mirror ........................ page 94

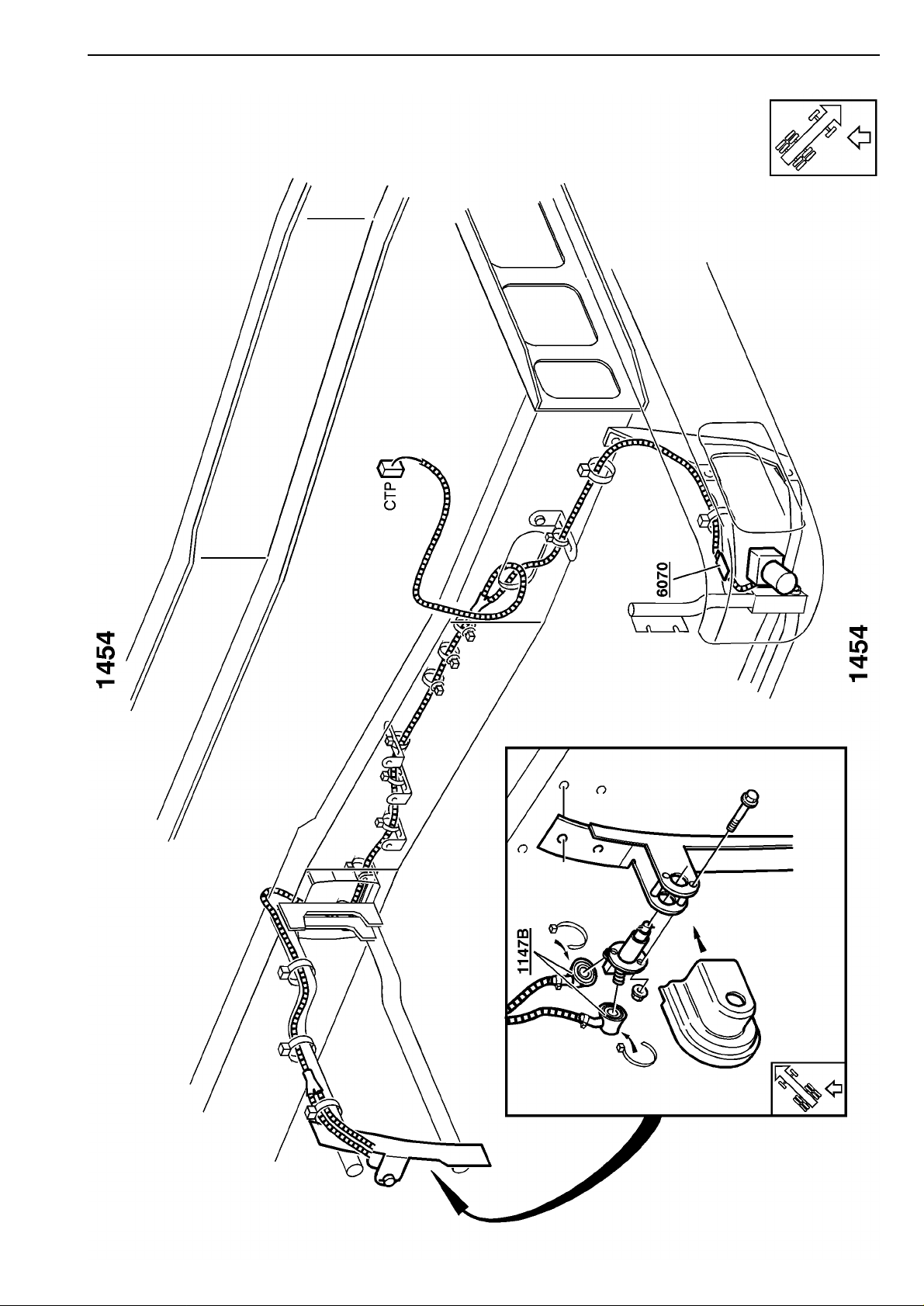

1454 Cable harness, cab tilt pump ................................................ page 95
1465 Cable harness, additional accessories ................................. page 96
1468 Cable harness, water separator ............................................ page 97
1469 Cable harness, fuel filter heater ............................................ page 98
1476 Cable harness, engine, cab .................................................. page 99
1488 Cable harness, central lubrication system ............................ page 103
1489 Cable harness, adapter, no tachograph ................................ page 55
48
Page 51

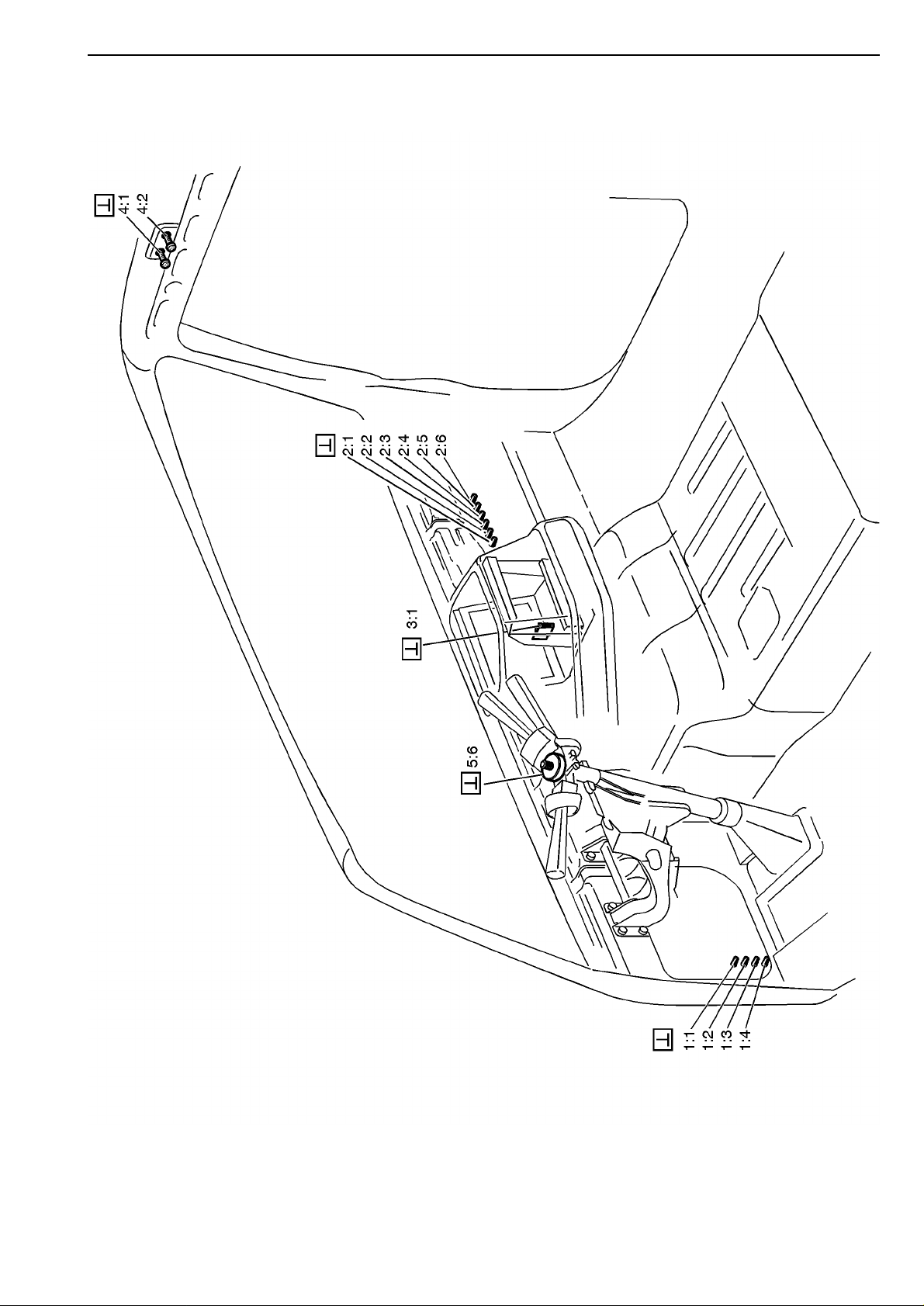

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
Illustrations
T3010168
49
Page 52
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
50
T3010169
Page 53

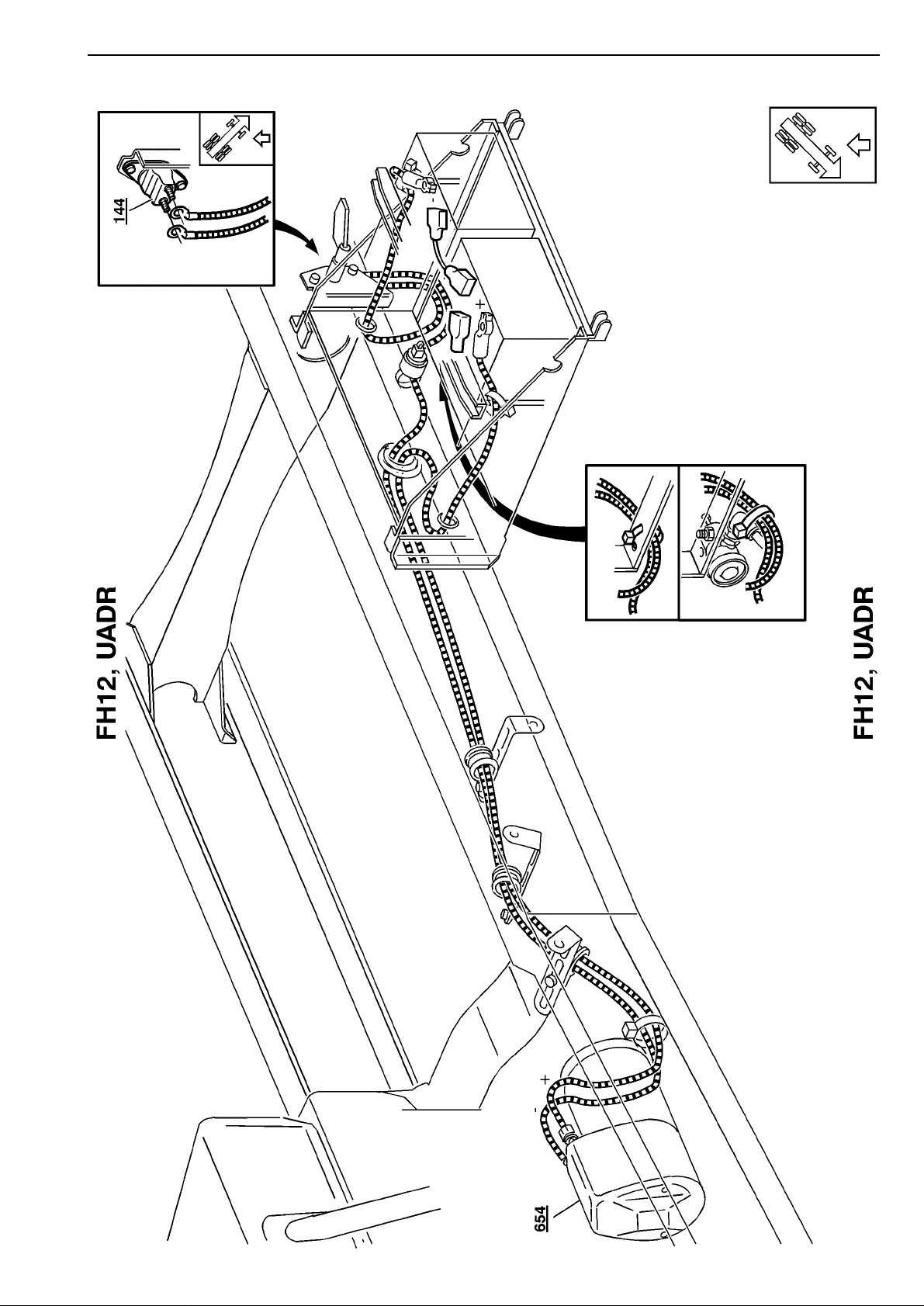

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010170
51
Page 54

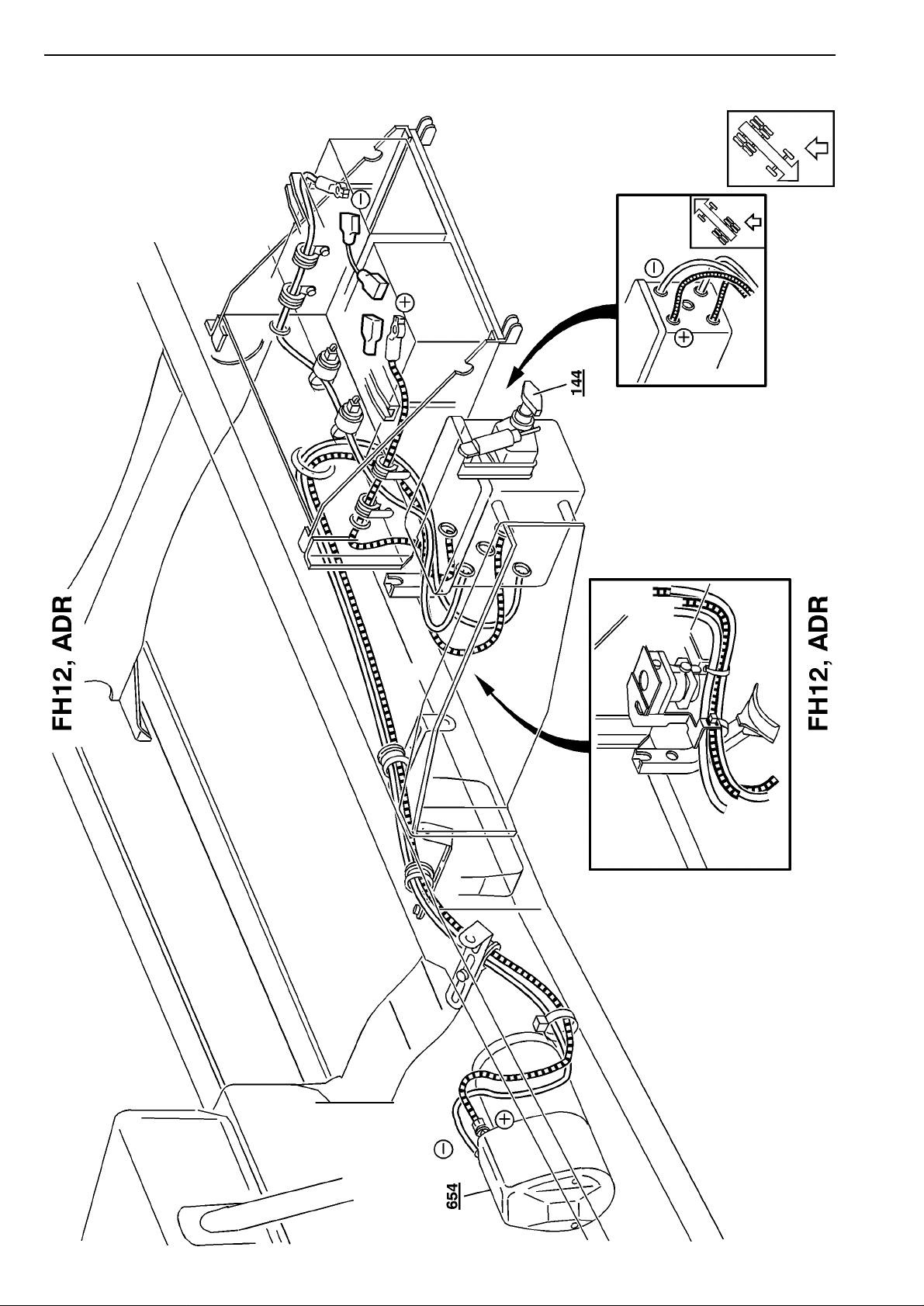

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
52
T3010171
Page 55
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010172
53
Page 56
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
54
T3010173
Page 57
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010175
55
Page 58

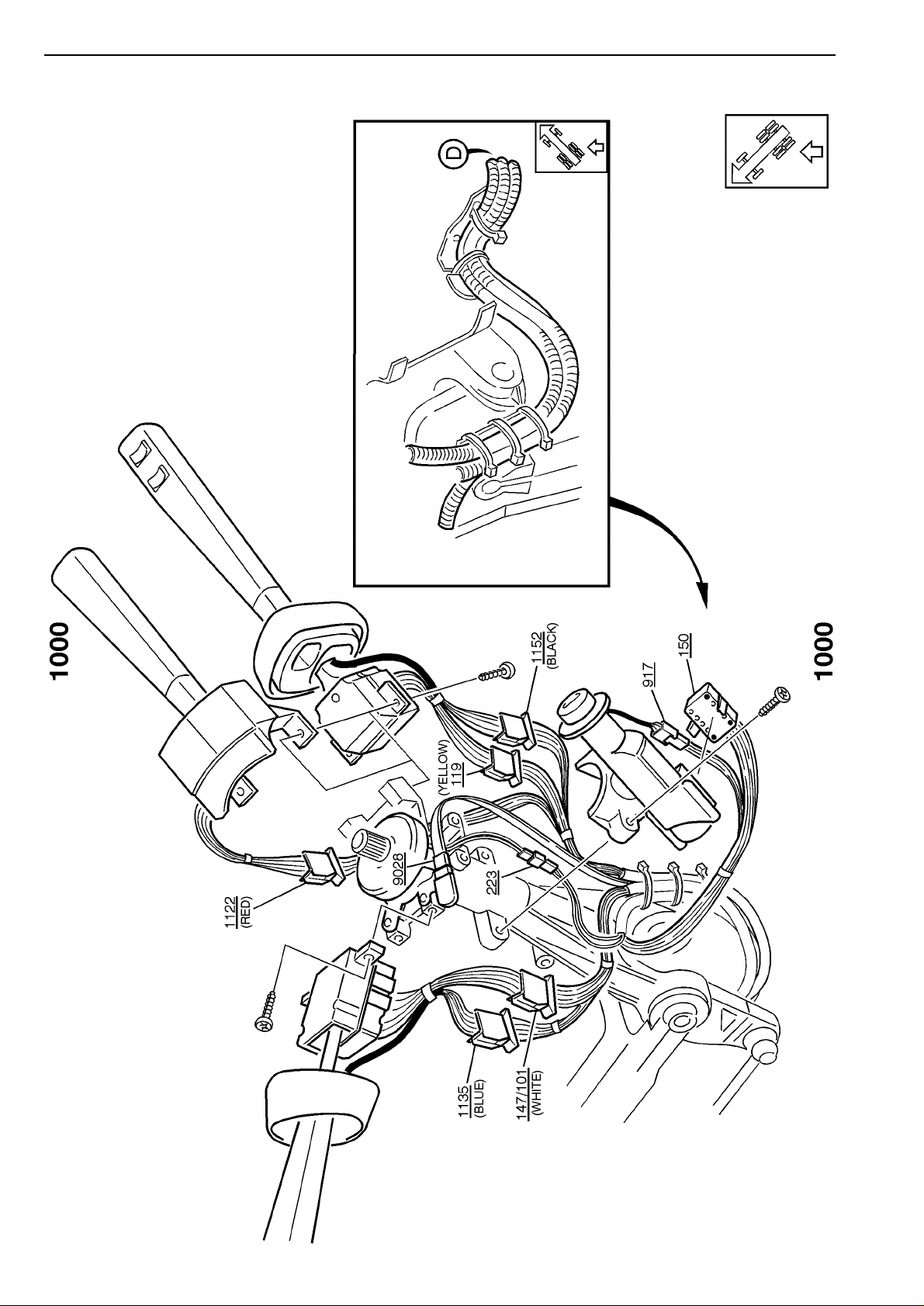

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
56
T3009689
Page 59
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009690
57
Page 60

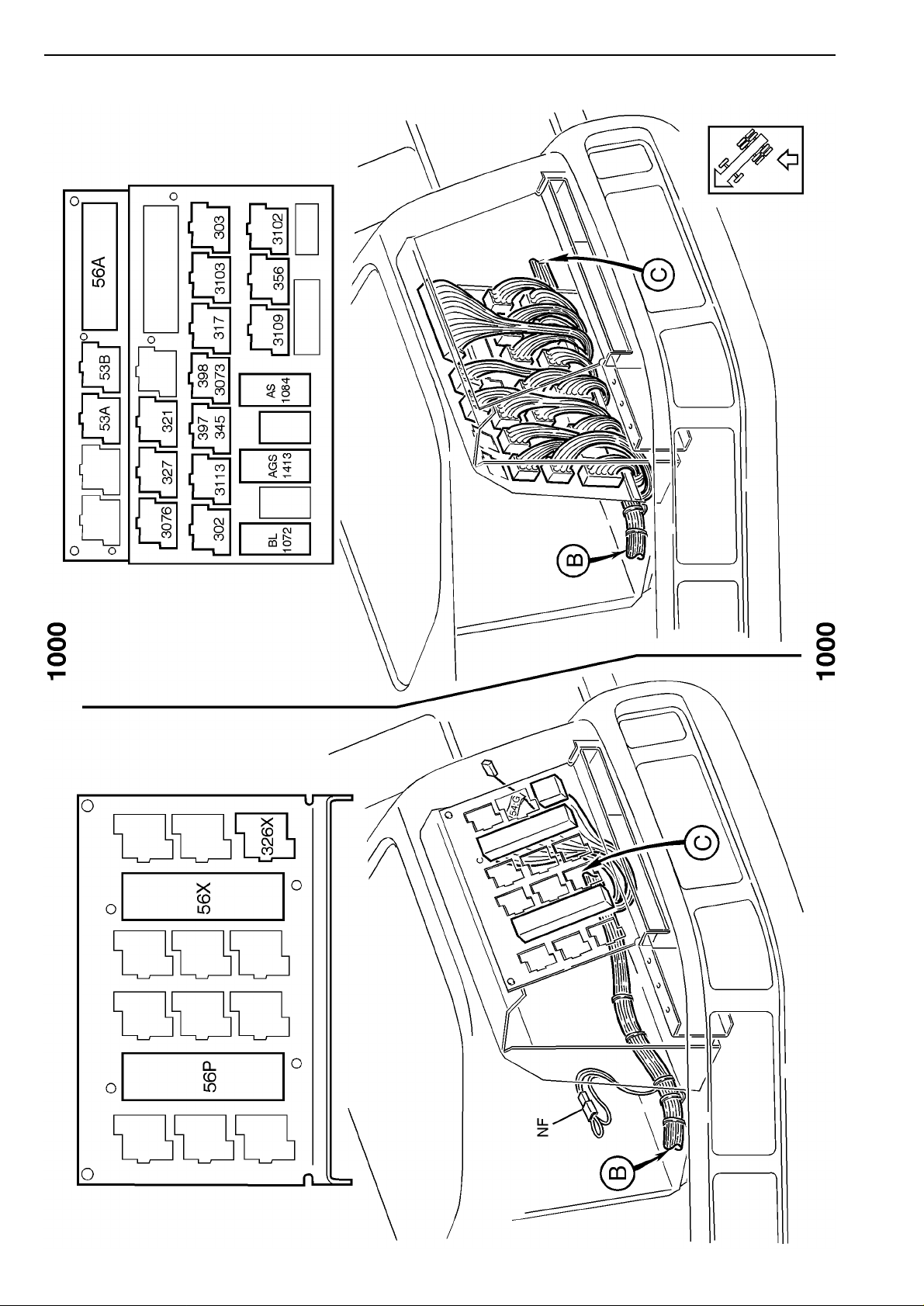

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
58
T3010814
Page 61

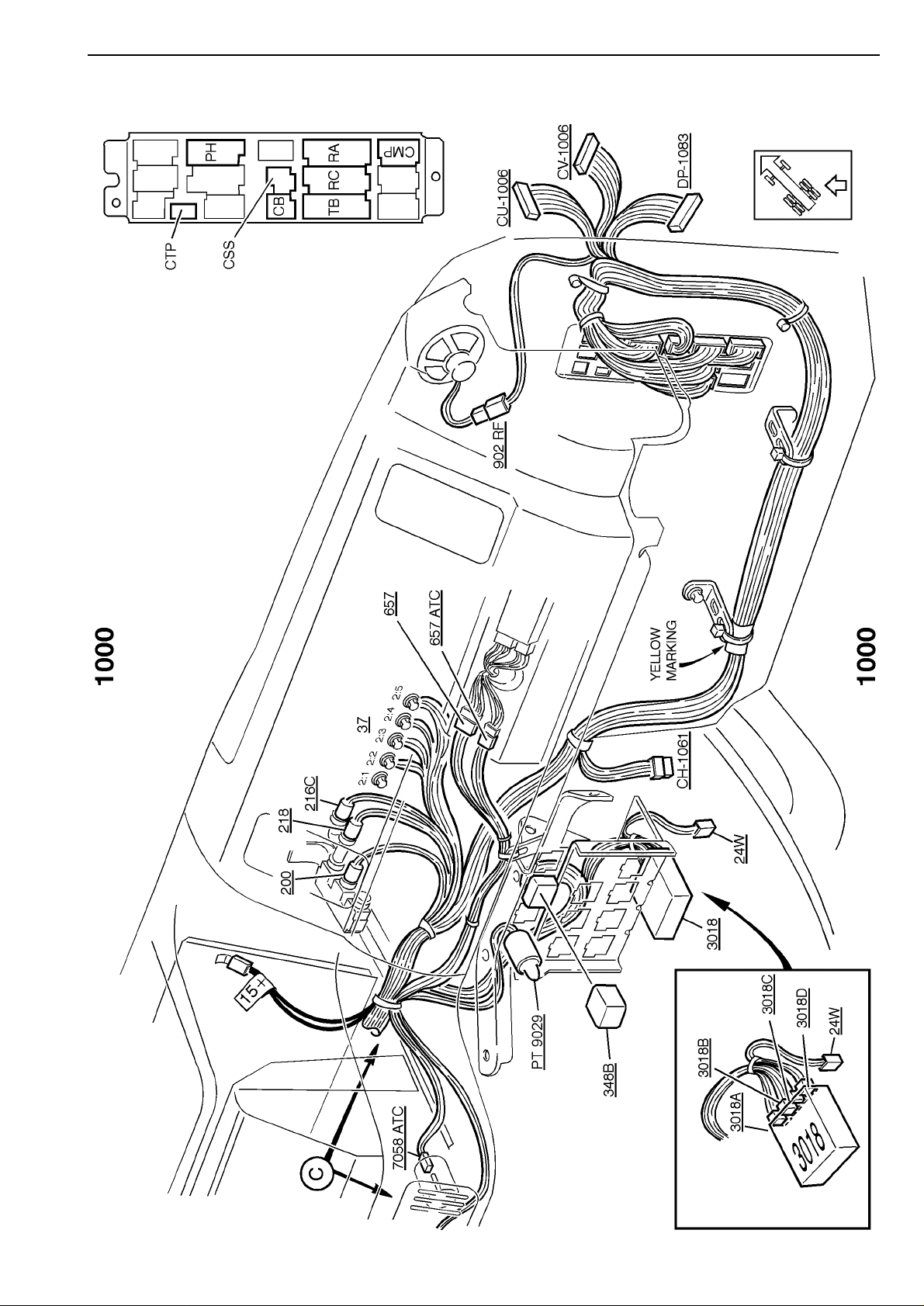

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010176
59
Page 62

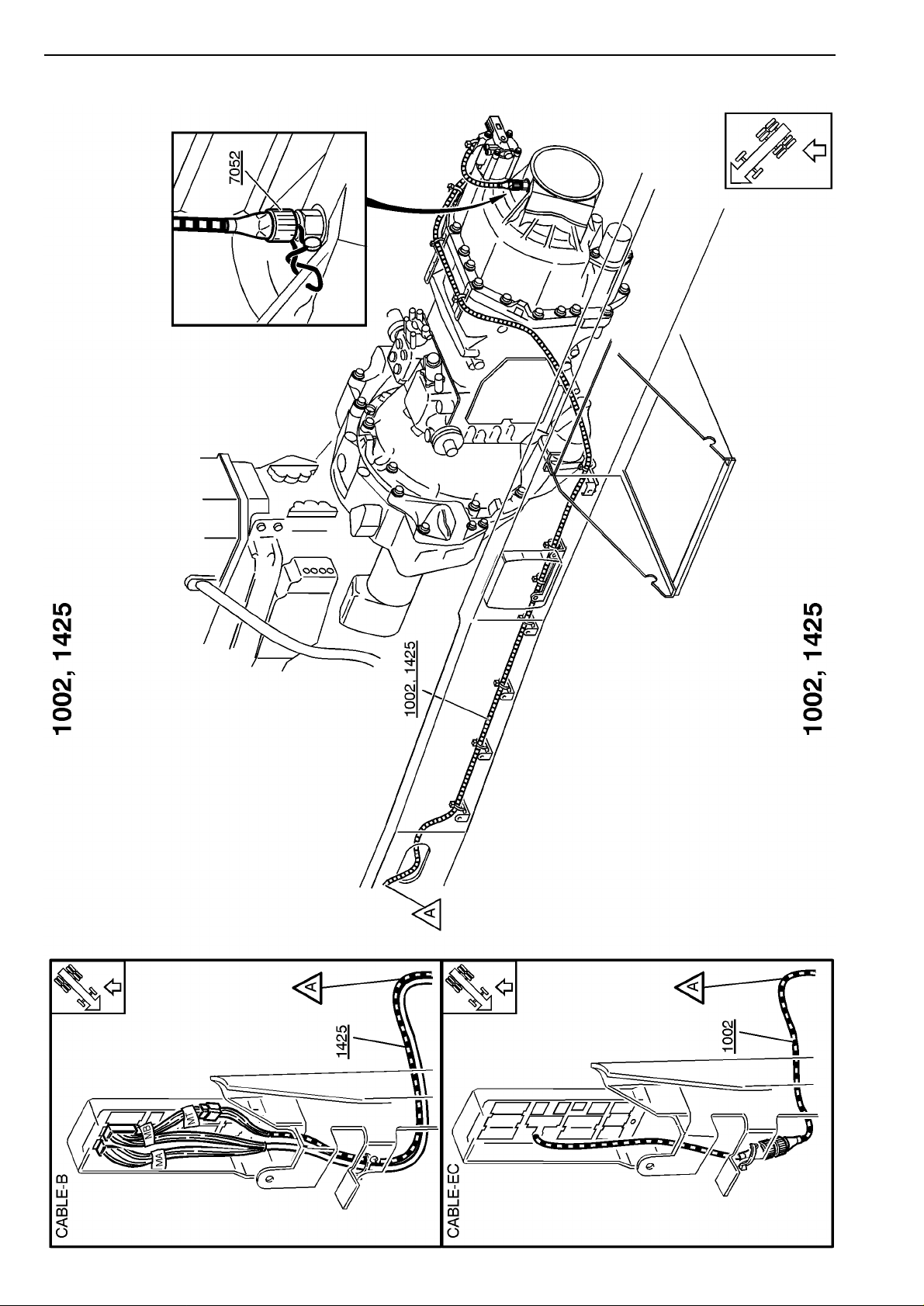

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
60
T3010177
Page 63
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010816
61
Page 64
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
62
T3009695
Page 65

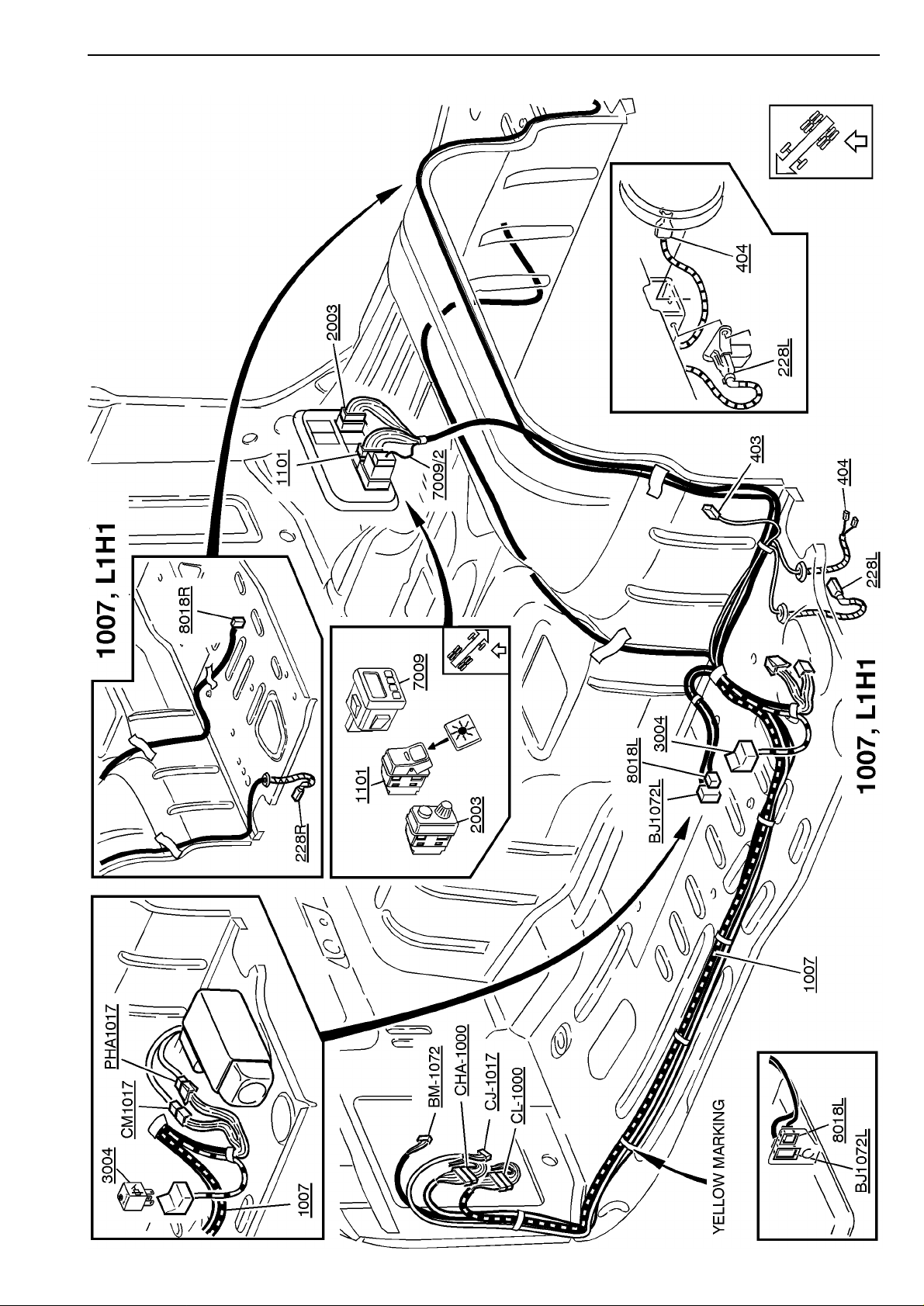

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010178
63
Page 66
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
64
T3010179
Page 67

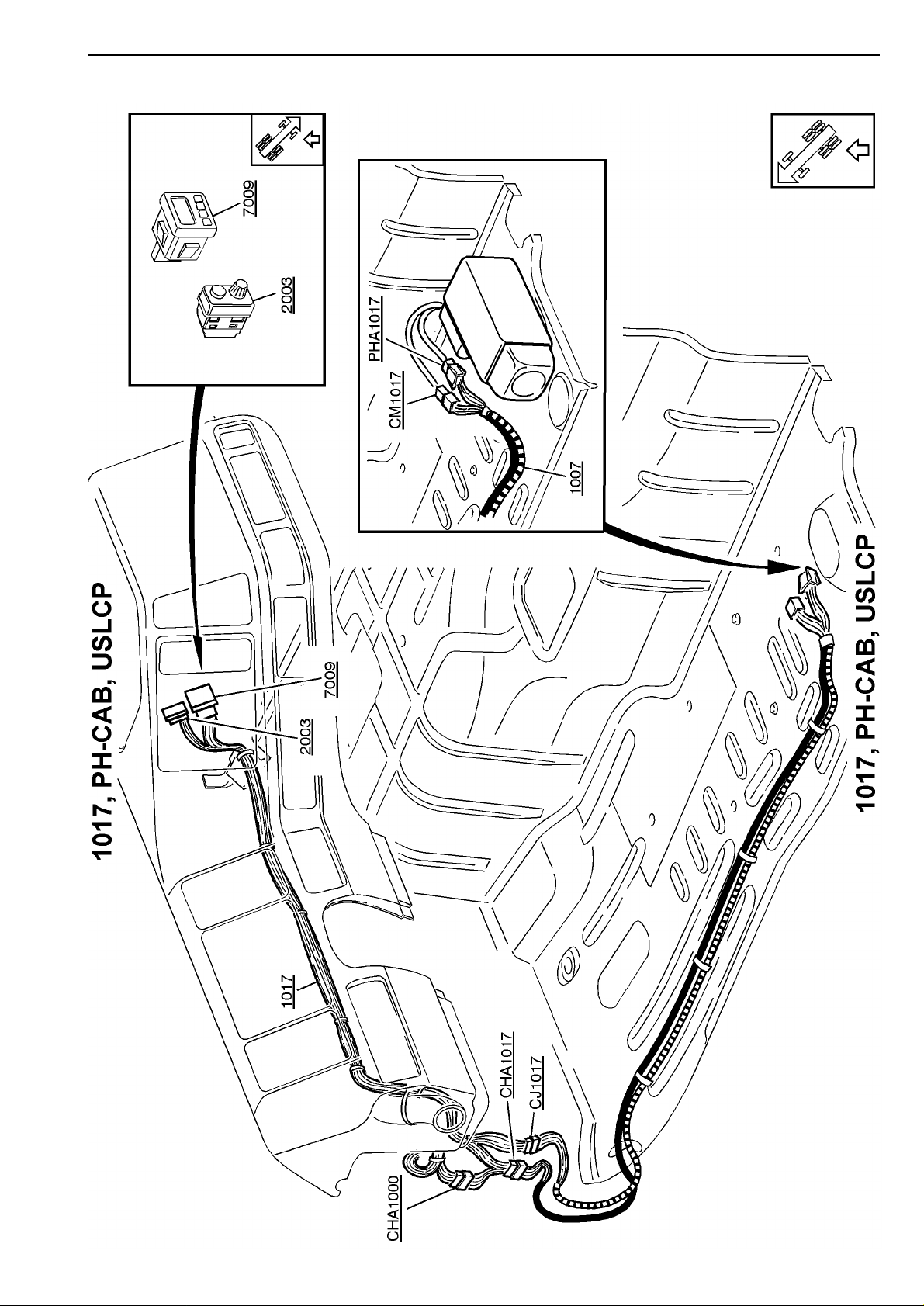

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010180
65
Page 68

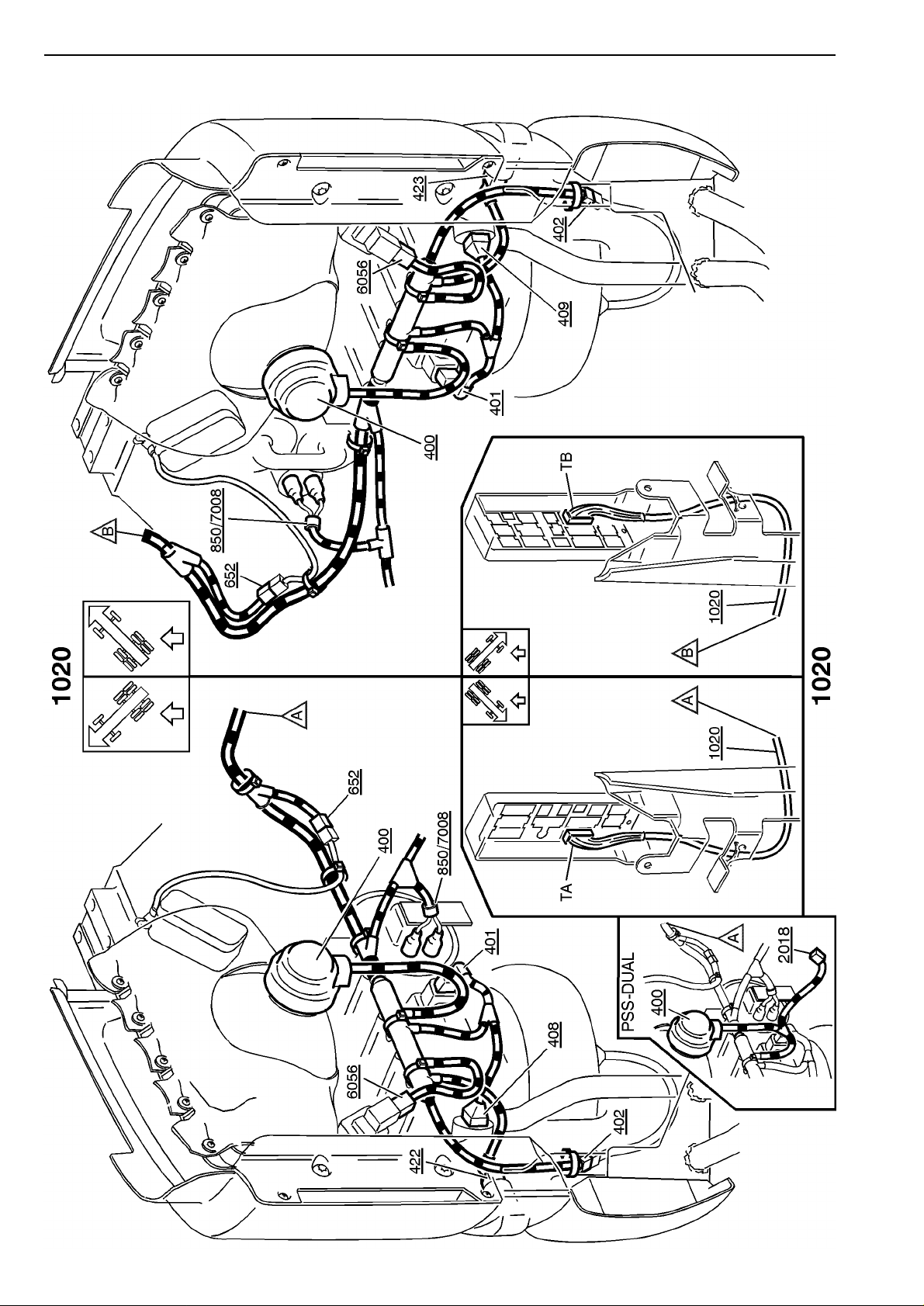

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
66
T3010181
Page 69

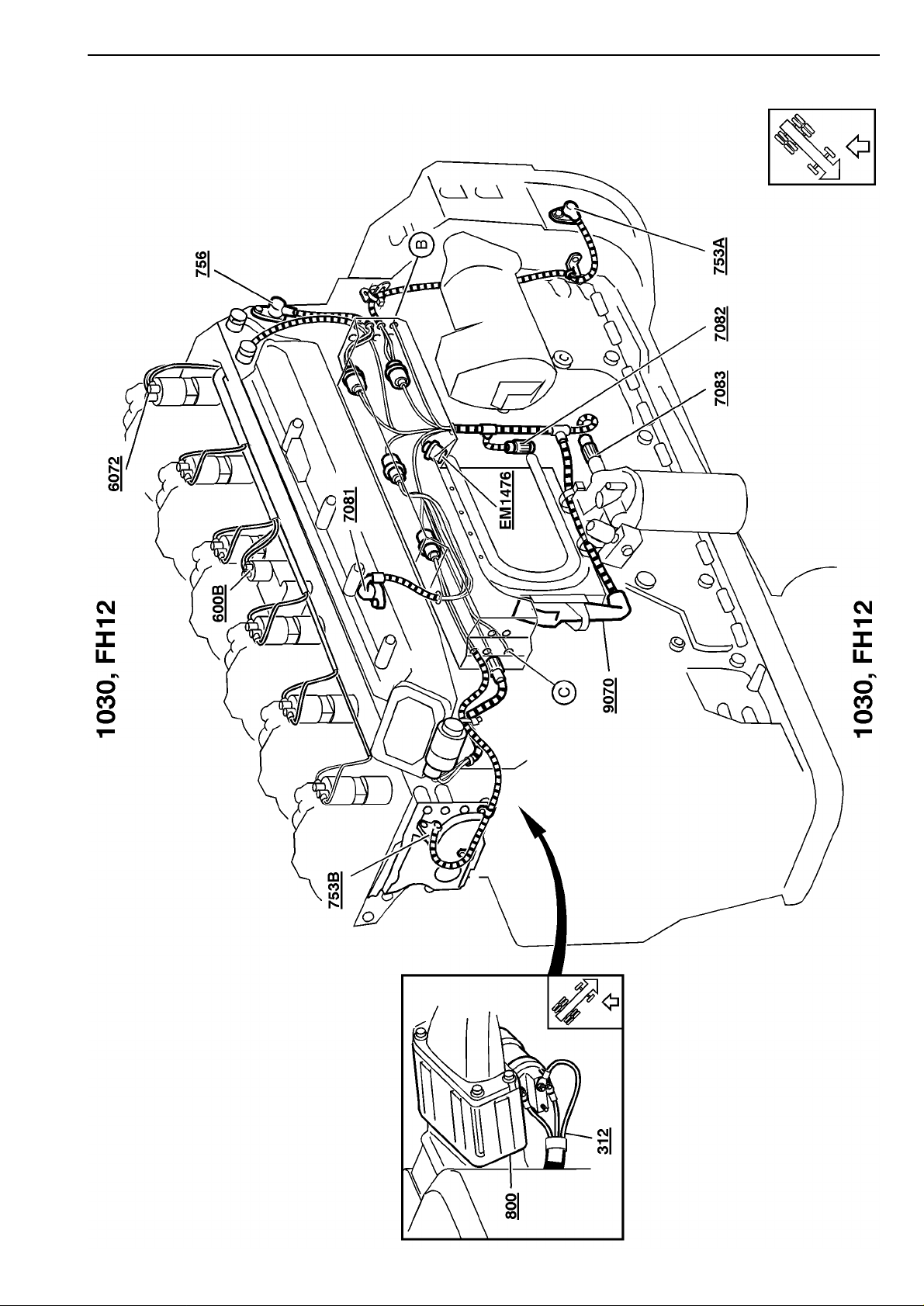

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010183
67
Page 70
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
68
T3010184
Page 71
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010185
69
Page 72

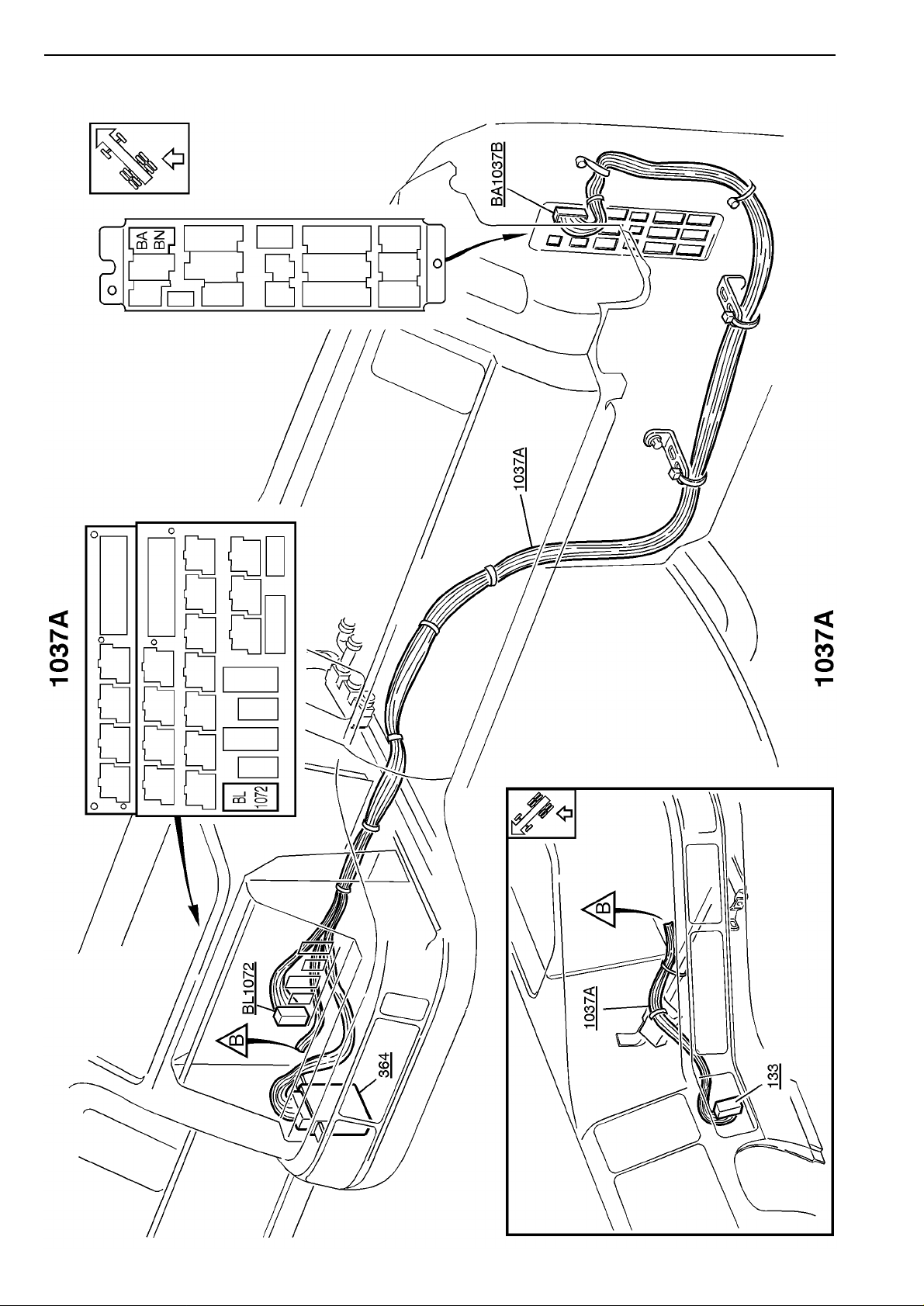

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
70
T3010966
Page 73
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009671
71
Page 74
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
72
T3010425
Page 75
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009679
73
Page 76

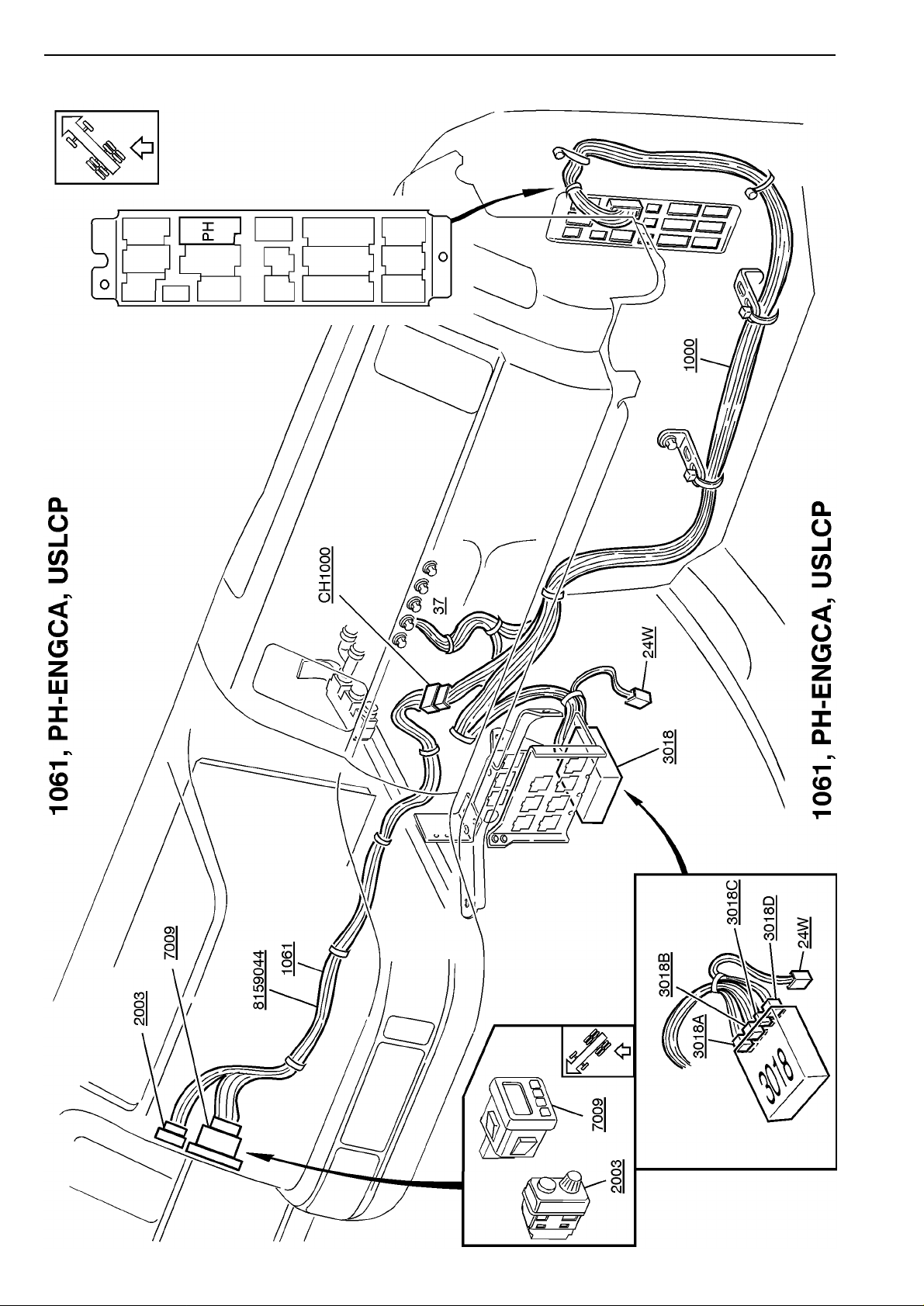

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
74
T3010187
Page 77
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010188
75
Page 78
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
76
T3010189
Page 79
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010190
77
Page 80
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
78
T3010197
Page 81
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010191
79
Page 82
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
80
T3010198
Page 83

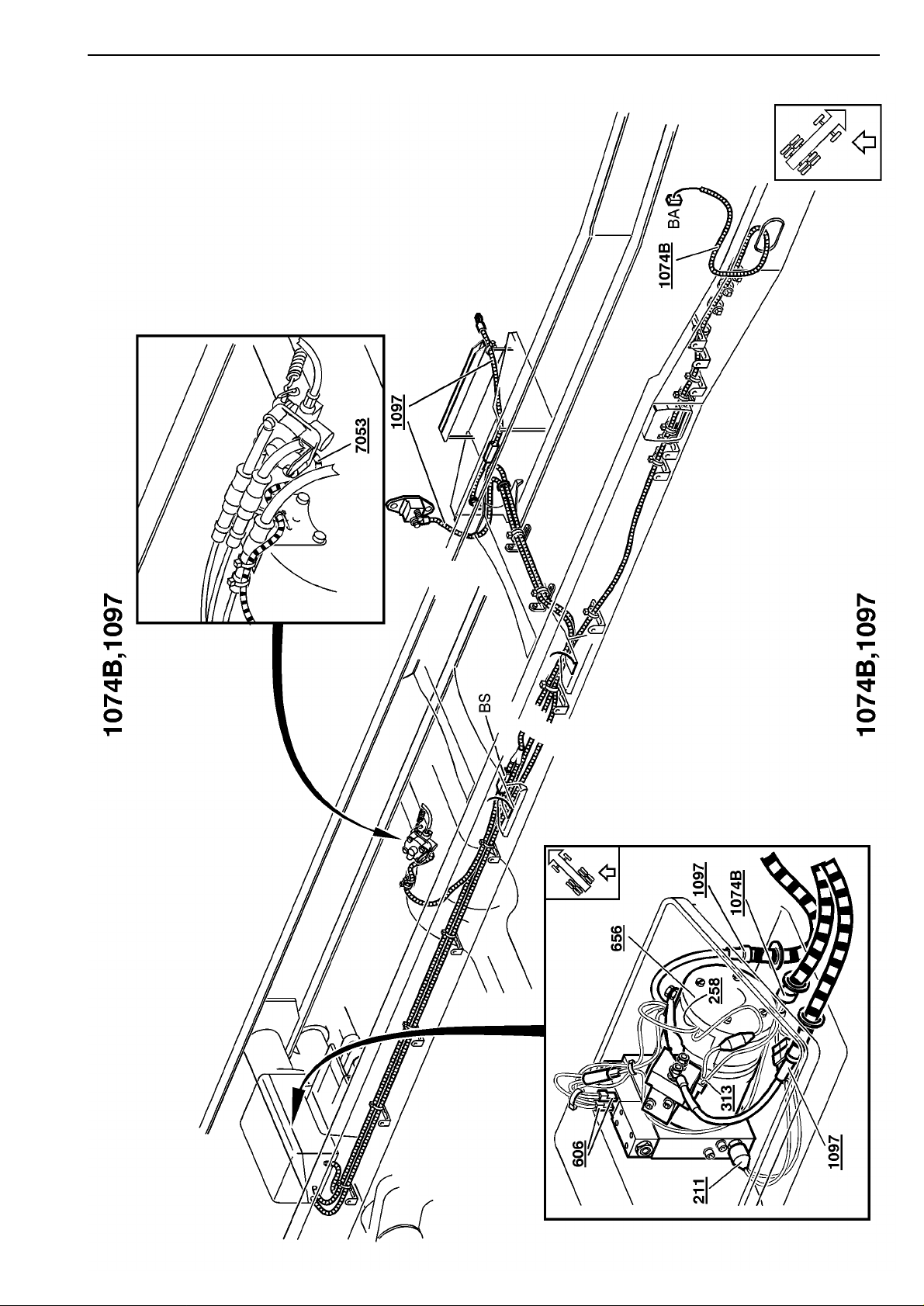

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
81
T3010063
Page 84
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
82
T3009670
Page 85

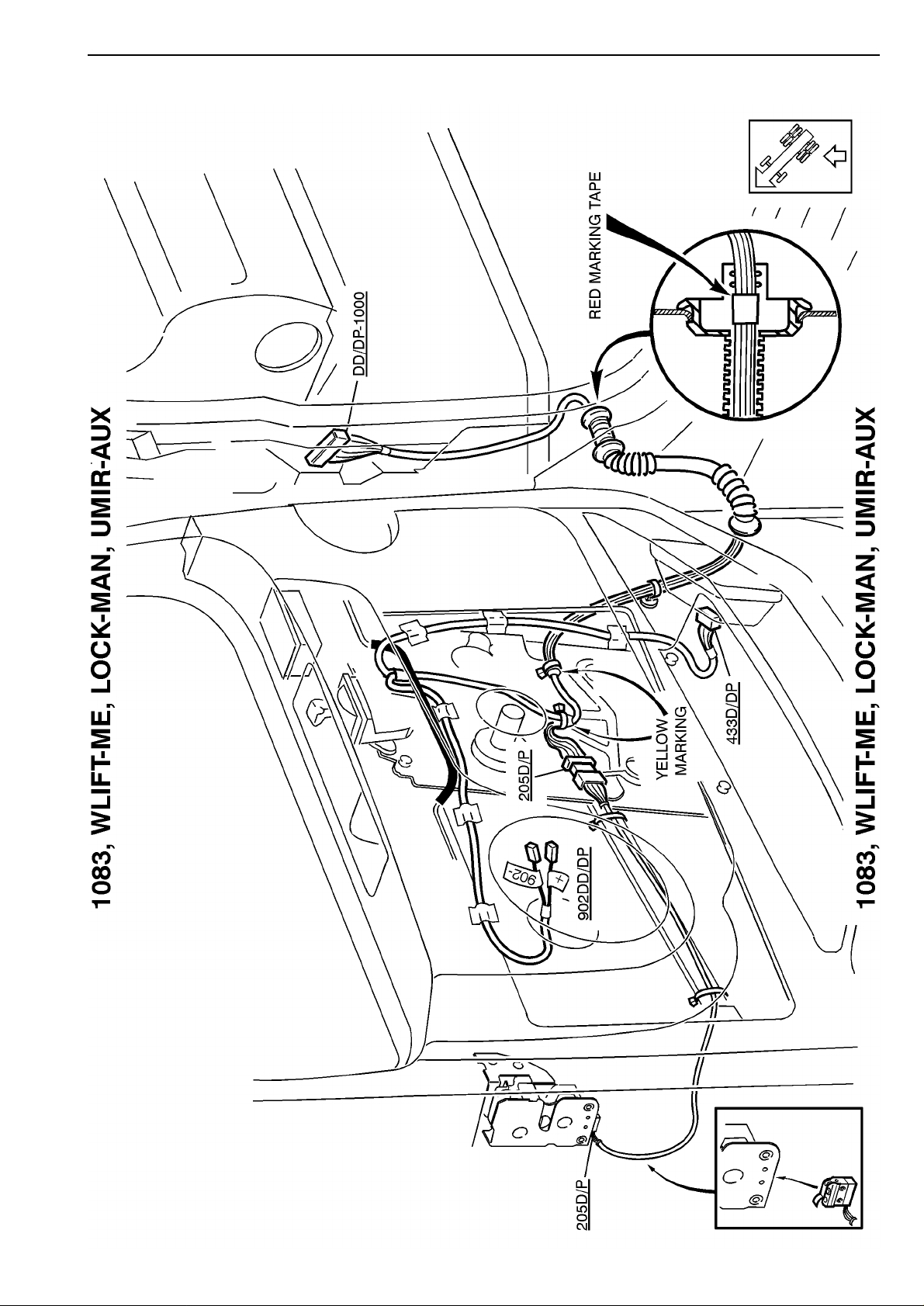

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010818
83
Page 86
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
84
T3010819
Page 87
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010820
85
Page 88
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
86
T3010193
Page 89
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
87
Page 90
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
88
T3010194
Page 91
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010195
89
Page 92

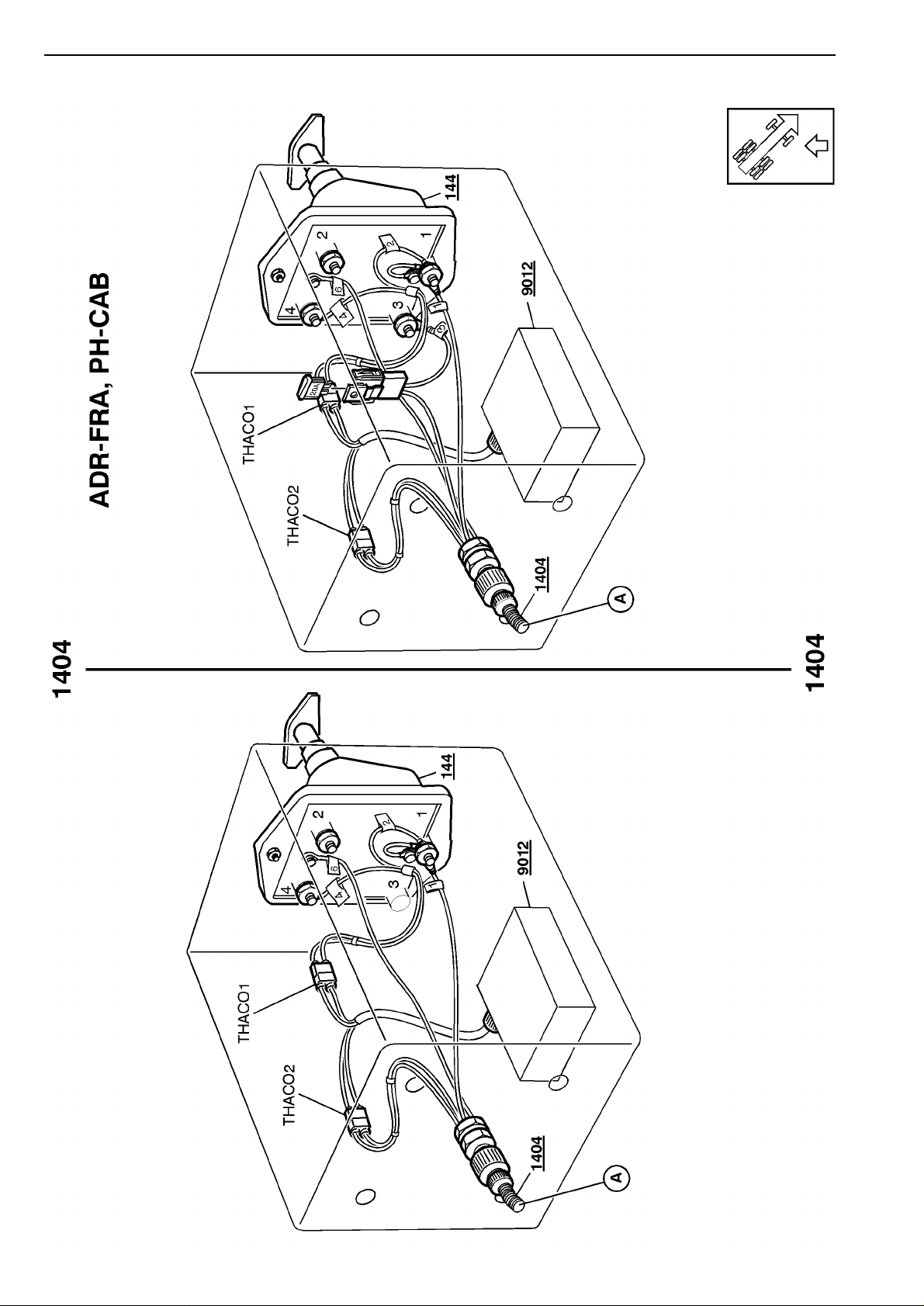

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
90
T3009905
Page 93
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010200
91
Page 94

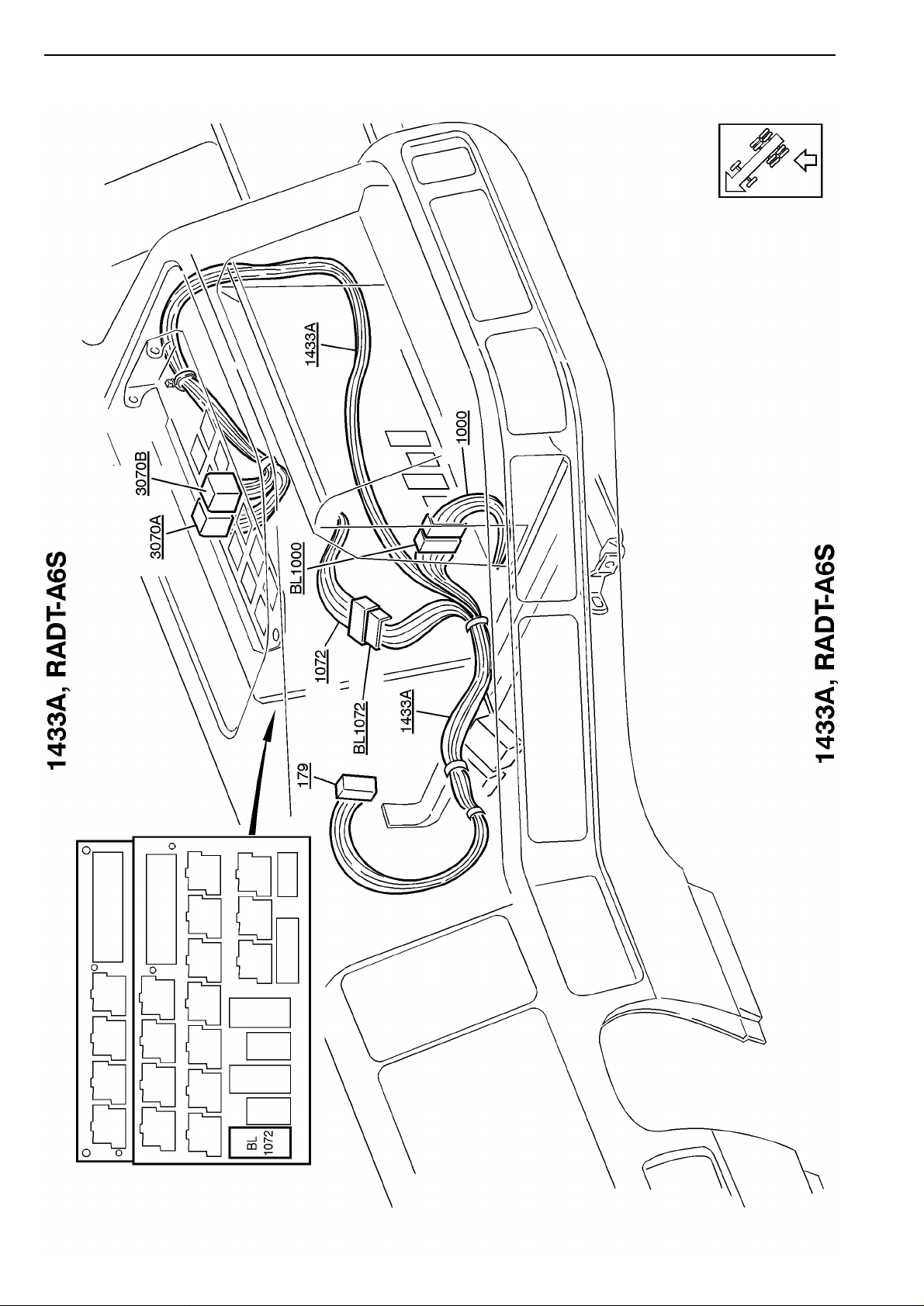

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
92
T3009712
Page 95

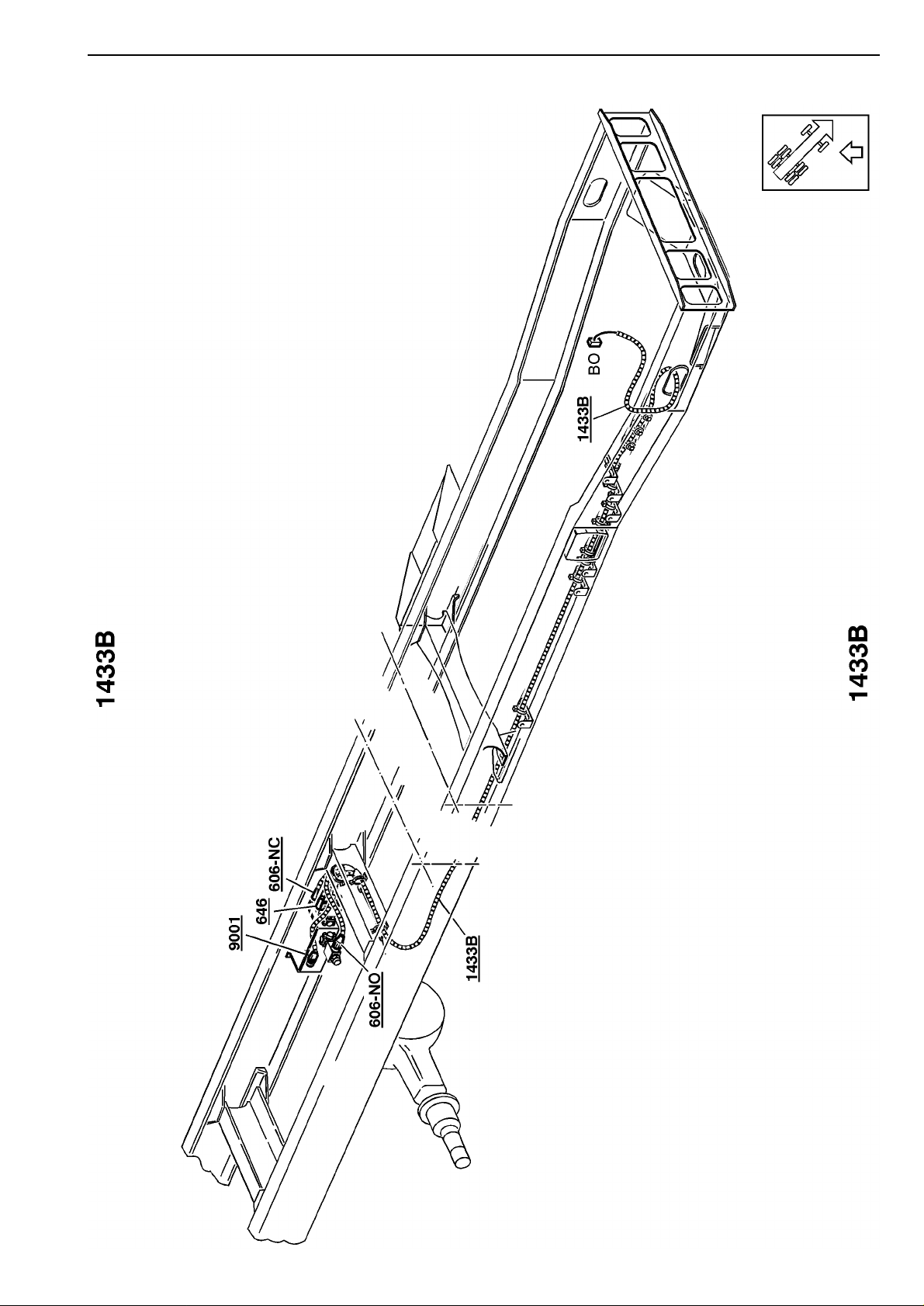

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009676
93
Page 96
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
94
T3010821
Page 97
Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3009678
95
Page 98

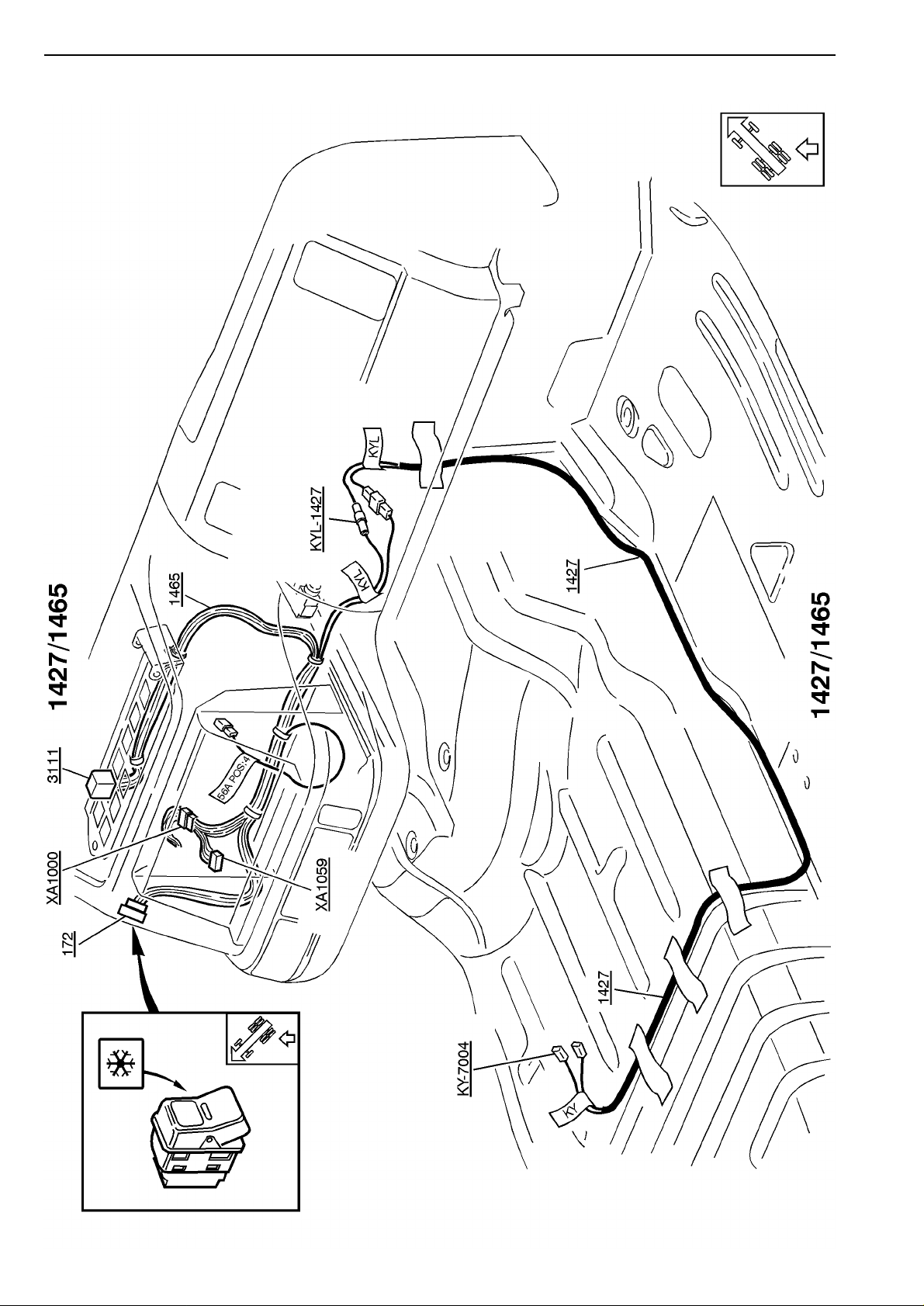

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
96
T3010201
Page 99

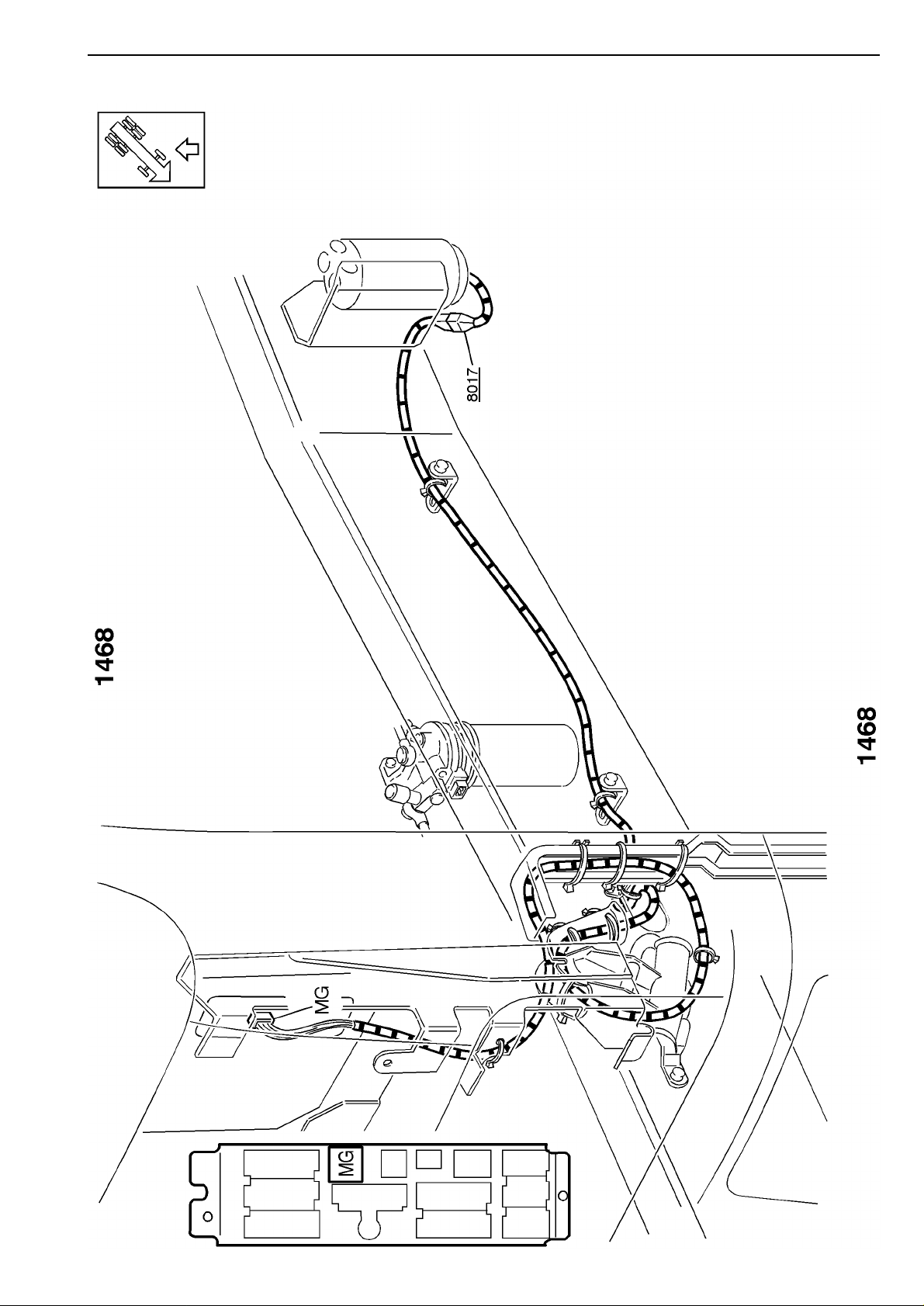

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
T3010202
97
Page 100

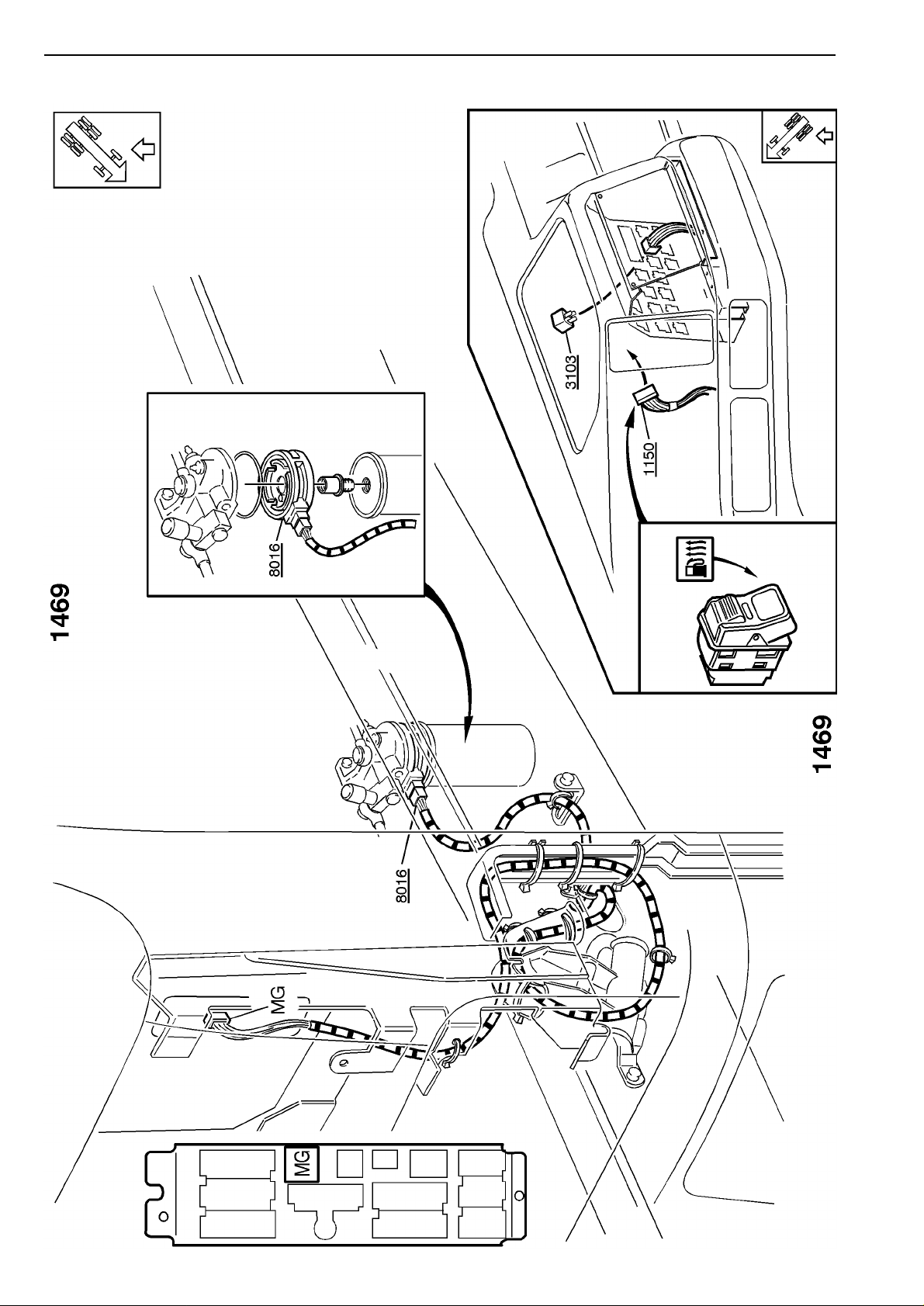

Group 37 Wiring diagram FH12, FH16 LHD Illustrations
98
T3010199
Loading...
