VAS 5054A User Manual

1 General Information

1.1 How to Use This Manual

This manual provides information about the following topics:

 Installing, configuring and operating the VAS 5054A Remote Diagnosis Head  Technical specification of the VAS 5054A (in the Appendix)

The VAS 5054A User Manual is provided in the Help directory on the installation CD of the Volkswagen diagnostic tools. After installation is complete, you can open the User Manual by clicking VAS5054 Manual in the program group of your diagnostic application on the Windows Start menu.

Note

Due to further development of the software, the screenshots included in this document may differ slightly from what you see on screen.

The screenshots are shown in English in this manual. As the Bluetooth software and the diagnostic applications support multiple languages, the user interface during installation in many cases will be displayed in the language of your operating system. If the language version of your operating system is not supported, the user interface will be shown in English.

1.2 Features and Application Areas

The VAS 5054A Remote Diagnosis Head provides Volkswagen diagnostic applications with easy-to-use wireless access to the onboard vehicle systems.

With its compact design, its integrated diagnostic connector and its wireless connection via Bluetooth, the VAS 5054A is the perfect choice for servicing, production and road tests in particular.

Special features:

 Bluetooth and USB interface to the PC  Housing with integrated diagnostic connector  Reliable and efficient handling of diagnostic protocols in the VAS 5054A  Power supplied by vehicle, thus saving notebook battery power during mobile operation  Power management ensures load reduction for the vehicle battery during downtimes  Status display

1.3 Delivery Scope

The Remote Diagnosis Head is supplied in a carrying case containing the following components:

1 VAS 5054A Remote Diagnosis Head 1 USB cable (VAS5054/1) 1 Optional CD with diagnostic application

incl. User Manual for VAS 5054A in PDF format

Optionally available: Recommended VAS5054/2 Bluetooth adapter

VAS 5054A User Manual

1.4 Notes

 Follow the instructions in chapter 3 step by step to ensure proper installation.  Do not open the housing of the VAS 5054A. In case of defect, please return the VAS 5054A

to Softing for servicing. The service address is given in chapter 7.8, Support.

 Use only the accessories supplied with the device.  Keep in mind to disconnect the VAS 5054A from the vehicle's diagnostic connector when

you are finished. The VAS 5054A draws power when connected to the vehicle. It may drain the vehicle's battery if you leave it connected for an extended period of time after the ignition is turned off. Take advantage of the VAS 5054A's power-save features and have the device power off automatically or sound an alarm after a specified period of non-use. For details see chapter 5.

Cleaning and care

 Protect the contacts of the diagnostic connector from dust and dirt. Keep the VAS 5054A in

the carrying case when not in use.

 Make sure the cover for the USB port of the VAS 5054A is closed.  Protect the VAS 5054A from temperatures above 80 °C. For example, do not leave it on the

vehicle's dashboard in direct sunlight.

 Even though the device is protected against splash water, contact with water or corrosive

substances should be avoided.

 Avoid excessive shock.

VAS 5054A User Manual

2 Application and Use of the VAS 5054A

2.1 Properties

The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers. The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system. No cables are needed for vehicle diagnostics using the VAS 5054A.

The range of the wireless Bluetooth connection is 5 to 10 meters, depending on the environment and the type of Bluetooth adapter used on the PC side.

The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.

The following vehicle bus systems are supported:

 K line (ISO9141-2)  High-speed CAN (ISO 11898-2)  Low-speed CAN (ISO 11898-3)  J1850 (SAE J1850)

The vehicle protocols are handled directly in the VAS 5054A. This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is synchonized with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.

2.2 System Requirements

To operate the VAS 5054A, your computer must meet the following system requirements:

 PC, notebook, 100% IBM compatible

 Operating system Windows XP Service Pack 2.

 Installation requires administrator rights.

 The computer must have a Bluetooth interface that supports the Bluetooth Serial Port Profile.

 One free USB port (for special applications such as configuring the VAS 5054A or if wireless

communication is not permitted).

The Windows NT4, Windows 95/98/ME and Windows Vista operating

Note

systems are not supported by the VAS 5054A driver software. To use the VAS 5054A with Windows 2000, see FAQ 1 in the Appendix.

VAS 5054A User Manual

2.3 System Overview

The diagnostic application and the associated Diagnostic Base System are installed on the application PC. The Diagnostic Base System can access the VAS 5054A via Bluetooth or USB.

Access via Bluetooth:

After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A. You need to specify this port when you install the diagnostic application.

Access via USB:

You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.

Bluetooth adapter

Application PC with

diagnostic application

Fig. 2-1 Overview of a Bluetooth connection

VAS 5054A

VAS 5054A User Manual

3 Installation and Setup

To install, please take the following steps which are described in detail further below:

1. Connect the VAS 5054A to the vehicle.

2. Install the Bluetooth adapter on the application PC.

3. Configure the Bluetooth adapter software: Security settings.

4. Set up a connection to the VAS 5054A.

5. Install the application software.

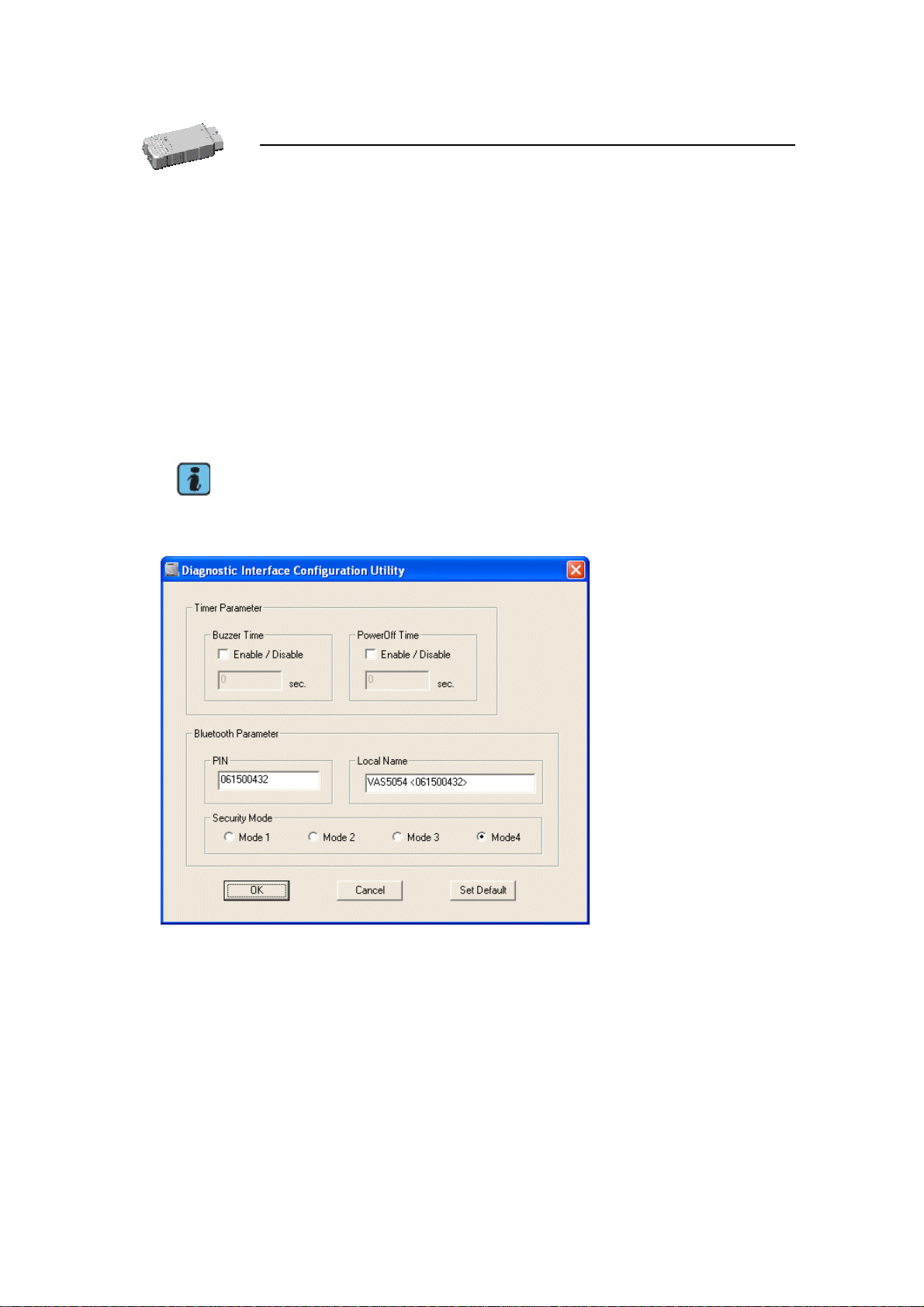

6. Change the PIN for the VAS 5054A.

Note

You need administrator rights to run the setup programs on the application PC.

3.1 Connecting the VAS 5054A to the Vehicle

When you plug the VAS 5054A into the vehicle's diagnostic connector, the VAS 5054A is supplied with power and ready for use. The blue status indicator on the front of the Bluetooth Diagnostic Head flashes every second.

You can connect the VAS 5054A to the application PC or repair shop tester either wirelessly via Bluetooth or by using a USB cable. As soon as a connection to the PC has been established, the status indicator is on continuously. During data exchange via Bluetooth or USB, the status indicator flashes according to data volume.

3.2 Installing the Bluetooth Adapter and Bluetooth Software on the Application PC

To communicate with the VAS 5054A, the application PC must have a Bluetooth adapter installed. Some application PCs (e.g. modern notebooks) feature a built-in Bluetooth interface. If your PC does not have Bluetooth, you need to install a Bluetooth adapter or Bluetooth PC card.

In that case, you can order the VAS 5054A together with a suitable Bluetooth USB adapter (VAS5054/2). The following description of how to configure the Bluetooth software refers to this adapter.

For information on installing and setting up the VAS 5054A using Bluetooth software from other manufacturers, please see FAQ 7 in the Appendix. Please also note the limitations detailed in that section with regard to operating the VAS 5054A with those software versions.

Installing the VAS5054/2 Bluetooth USB adapter

Follow the instructions below if you will be using the Bluetooth software that comes with Windows XP Service Pack 2. You will need a Bluetooth adapter that can be found by Windows XP. New adapter models might not be supported by Windows XP. Therefore, it is recommended to use the VAS5054/2 Bluetooth adapter that is available as an option.

VAS 5054A User Manual

The following instructions apply only when you are installing the recommended Bluetooth adapter, using the Bluetooth software supplied with Windows XP Service Pack 2:

1. Start up Windows XP and log on with a user account with administrator rights.

2. Plug the Bluetooth adapter into a USB port on your computer.

Please always use the same USB port for your Bluetooth USB

Note

adapter. Windows will install other COM ports if you connect the Bluetooth USB adapter to a different USB port. Your diagnostic application will not work in that case.

3. Windows XP SP2 automatically detects the VAS 5054/2 Bluetooth adapter and installs the appropriate drivers.

Fig. 3-1 Windows XP Service Pack 2 automatically detects the Bluetooth adapter

After a while, a message informs you that the adapter has been successfully installed (Fig. 3-2). You can now set up a Bluetooth connection to the VAS 5054A.

Fig. 3-2 Windows XP Service Pack 2 automatically installs the Bluetooth adapter

3.3 Configuring the Bluetooth Security Settings

For security reasons, it is essential to make the following settings in the Bluetooth software in order to prevent unauthorized access to the application PC from the outside.

Open Bluetooth Devices in Control Panel. Go to the Options tab and disable the Allow Bluetooth devices to connect to this computer check box in the Connections section for security reasons. It is recommended to enable the Show the Bluetooth icon in the notification area check box (see Fig. 3-3). The Bluetooth icon is then permanently displayed in the notification area of the taskbar.

VAS 5054A User Manual

Fig. 3-3 Bluetooth software settings of Windows XP Service Pack 2

3.4 Setting up a Connection to the VAS 5054A

1. Open Bluetooth Devices in Control Panel. On the Devices tab, you can search for Bluetooth devices in range. Please note that the VAS 5054A has to be plugged into the vehicle's diagnostic connector for power supply. Click Add…. A dialog box opens. Check the My device is set up and ready to be found box (see Fig. 3-4) and then click Next>.

VAS 5054A User Manual

Fig. 3-4 Confirmation that the VAS5054A is ready

2. The wizard scans the range for Bluetooth devices and displays the devices found (Fig. 3-5). Select your VAS 5054A and click Next>.

If your VAS 5054A is not listed, please make sure that:

 the VAS 5054A is supplied with power from the vehicle's diagnostic

connector (flashing status indicator next to the USB connector on the VAS 5054A),

Note

 the VAS 5054A is within range (the distance between PC and

VAS 5054A should not exceed 10 meters),

 the VAS 5054A is not connected to the PC via USB,  the VAS 5054A is not currently connected to another PC via Bluetooth.

Click Search Again.

VAS 5054A User Manual

Fig. 3-5 Finding Bluetooth devices

3. Enter the passkey (Bluetooth PIN) (Fig. 3-6). The device is delivered with the PIN preset to the serial number given on the device. Confirm your entry with Next>.

Fig. 3-6 Entering the passkey

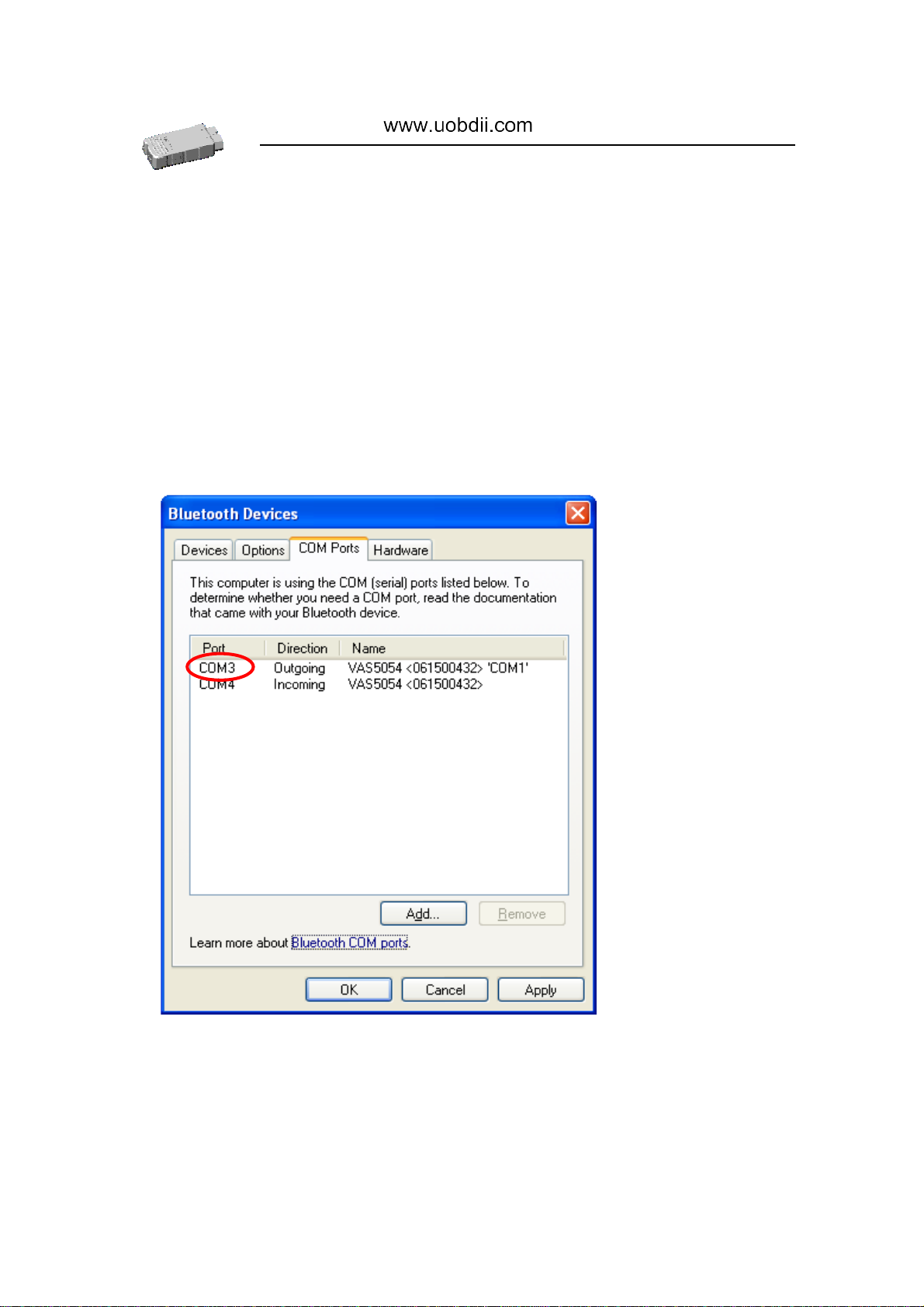

4. A Bluetooth serial port is installed on your PC (in Fig. 3-7: COM3). Please note down the number of the outgoing COM port. Click Finish.

Fig. 3-7 The newly configured COM port is displayed

3.5 Installing the Diagnostic Application

VAS 5054A User Manual

1. Make sure you have logged on with a user account with administrator rights before you start installing. Uninstall previous versions of your diagnostic application. Start the Setup.exe program on the CD that came with your diagnostic application (e.g. VAS 5065). Click Next> to continue installation.

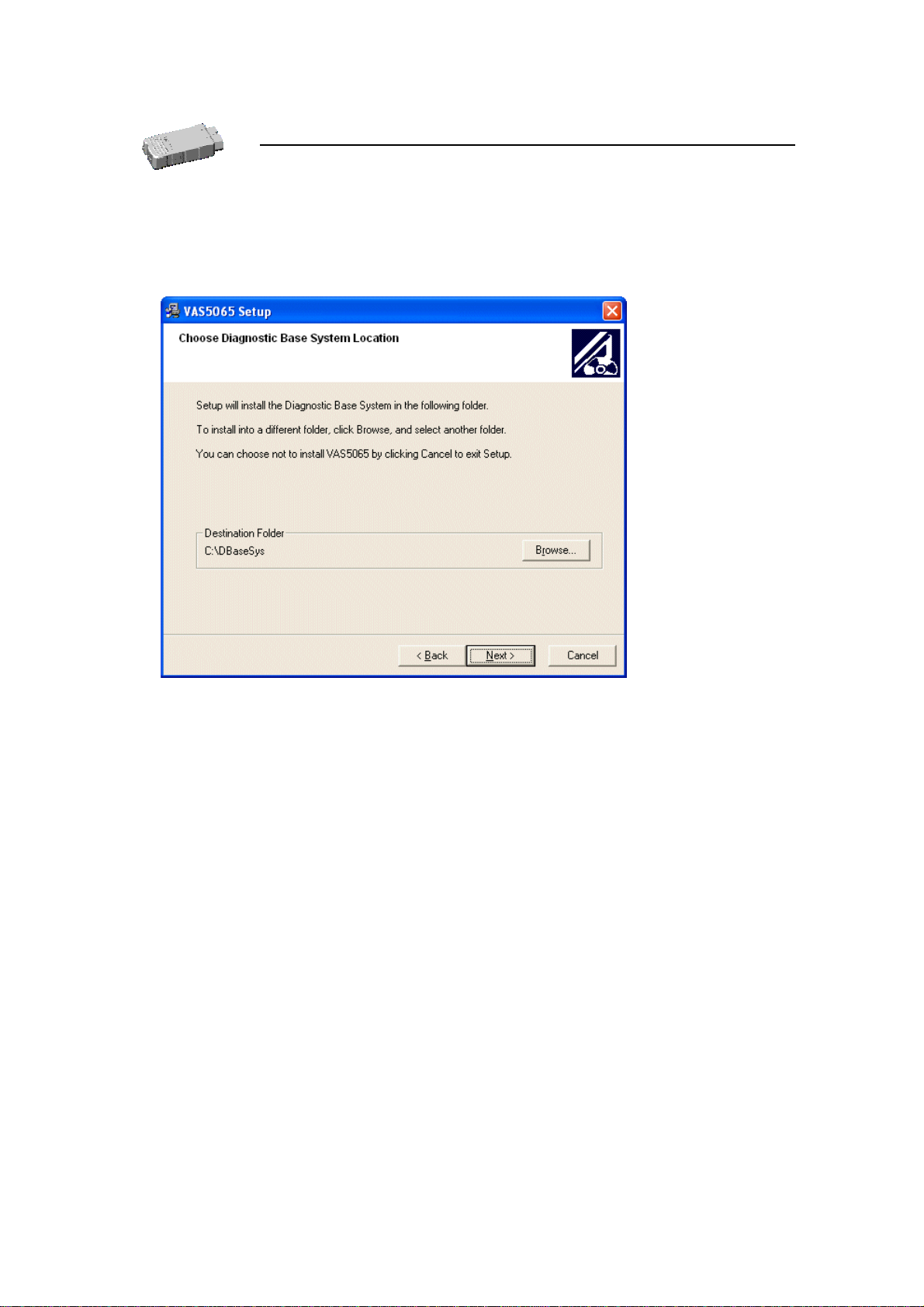

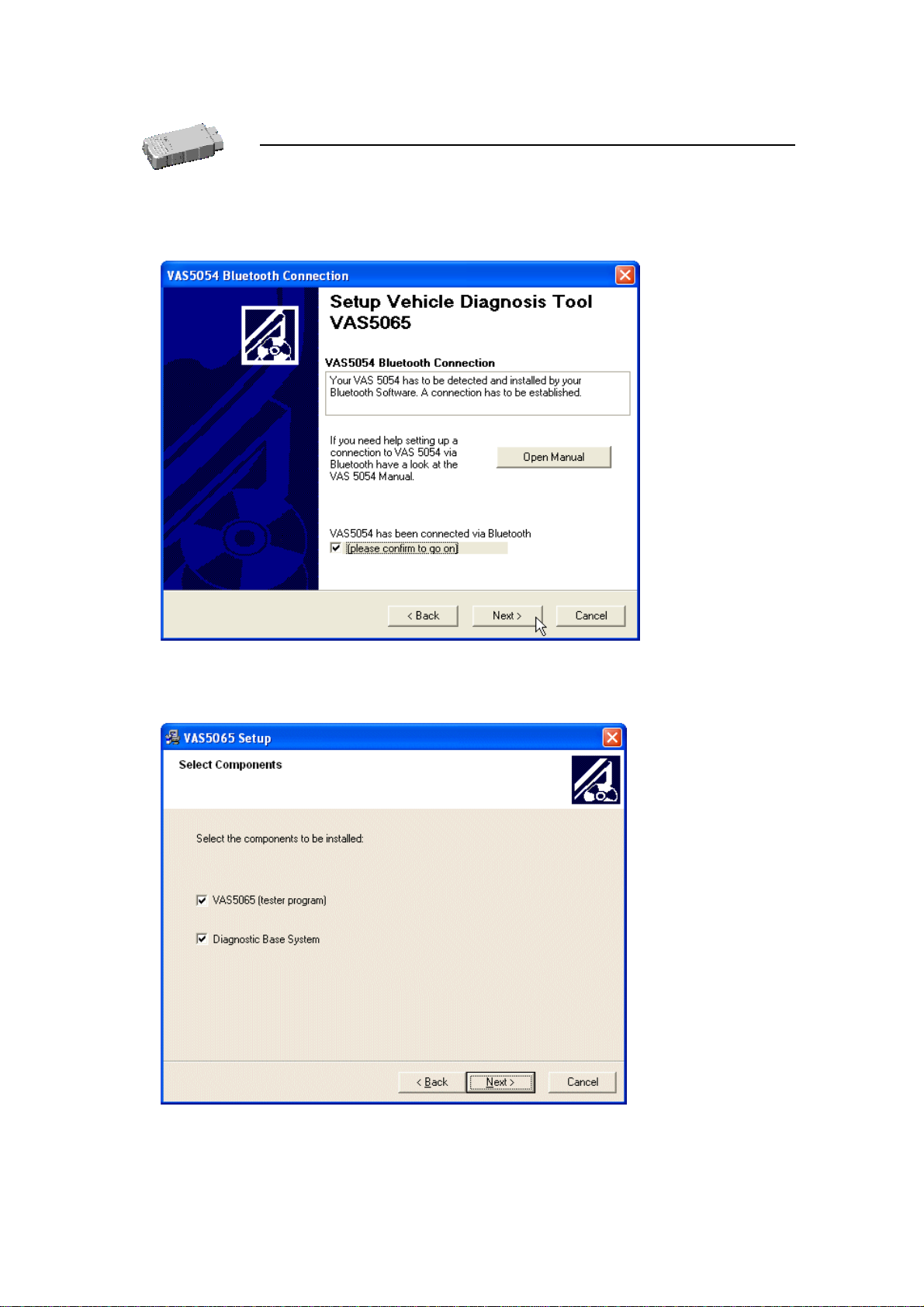

Fig. 3-8 Welcome screen of the setup program of the diagnostic application (here: VAS5065)

2. Select VAS 5054 as the diagnostic interface.

VAS 5054A User Manual

Fig. 3-9 Selecting the diagnostic interface

3. Confirm that Bluetooth has been installed on your system. How to install the Bluetooth adapter is described in section 3.2.

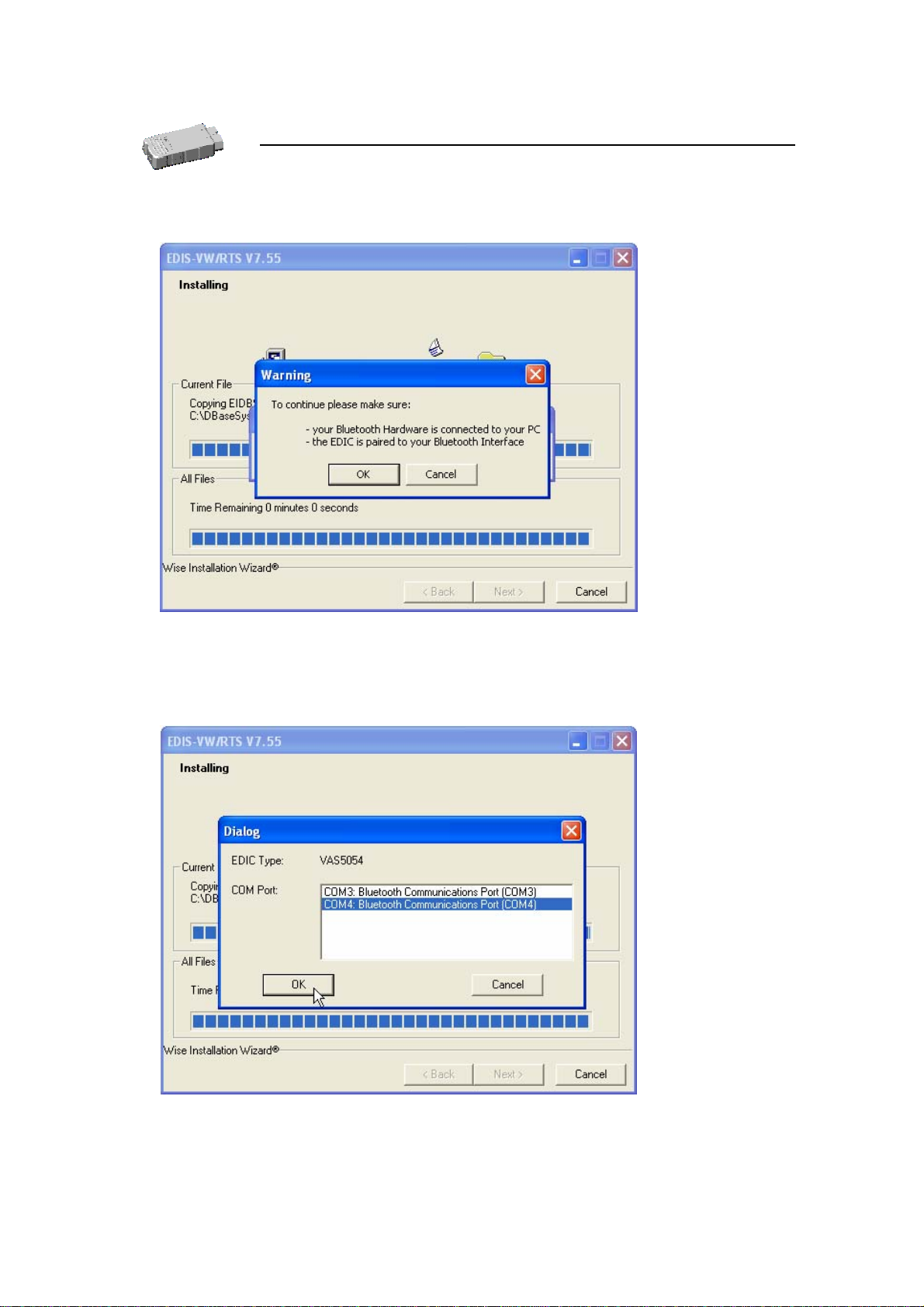

Fig. 3-10 Confirmation that Bluetooth is installed and ready for use
