Vivotek IP7330 User Manual

VIVOTEK
Table of Contents
Overview.......................................................................................................................................................3
Installation ....................................................................................................................................................6
Hardware Installation �������������������������������������������������������������������������������������������������������������������������������6
Accessing the Network Camera ................................................................................................................. 11
Main Page ..................................................................................................................................................16
Client Settings ............................................................................................................................................19
Conguration ..............................................................................................................................................21
Video �����������������������������������������������������������������������������������������������������������������������������������������������������43
Appendix ....................................................................................................................................................78
Technical Specications ���������������������������������������������������������������������������������������������������������������������� 112
2 - User's Manual
VIVOTEK
Overview
VIVOTEK IP7330 is a cost-effective, bullet-style network camera designed for our customers’ needs in outdoor applications� With its weather-proof IP66-rated housing, the camera is shielded from harsh conditions such as rain and dust and provides an all-in-one solution without the need for additional accessories�
By integrating components for day/night functionality such as dual-band lens and built-in IR illuminators with an effective range of up to 10 meters, the camera is able to achieve superior performance in a compact design� The IP7330 also supports tamper detection, which can detect events such as blockage, redirection, and spray-painting, making it an intelligent solution to possible camera obstruction�
Incorporating a number of VIVOTEK’s advanced features, including simultaneous dual streams, dual-codec, 802�3af compliant PoE, and our free standard 16-channel recording software, the IP7330 is the ideal solution for your outdoor surveillance needs�
Read Before Use
The use of surveillance devices may be prohibited by law in your country� The Network Camera
is not only a high-performance web-ready camera but also can be part of a exible surveillance
system� It is the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for its intended use�
It is important to rst verify that all contents received are complete according to the Package
contents listed below� Take notice of the warnings in Quick Installation Guide before the Network Camera is installed; then carefully read and follow the instructions in the Installation chapter to avoid damages due to faulty assembly and installation� This also ensures the product is used properly as intended�
The Network Camera is a network device and its use should be straightforward for those who have basic network knowledge� It is designed for various applications including video sharing,
general security/surveillance, etc. The Conguration chapter suggests ways to best utilize the
Network Camera and ensure proper operations� For the creative and professional developers, the URL Commands of the Network Camera section serves to be a helpful reference to
customize existing homepages or integrating with the current web server.
Package Contents
■ IP7330
■ Liquid Tight Connectors (3 holes, for backup use)
■ Silica Gel
■ Camera Stand
■ Power Adapter
■ RJ45 Female/Female Coupler
■ Quick Installation Guide
■ Warranty Card
■ Software CD
User's Manual - 3
VIVOTEK
Physical Description
Front Panel
Back Panel
Light Sensor
Lens
IR LED
Status LED
Reset Button
Connectors
4 - User's Manual
General I/O Terminal Block
Ethernet 10/100 RJ45 Plug
Power Cord Socket (black)
VIVOTEK
General I/O Terminal Block
This Network Camera provides a general I/O terminal block which is used to connect external input / output devices. The pin denitions are described below.
Hardware Reset
AV24V AC24V
DI
GND
Pin Name AV24V 24V+ AC24V 24V-
DI Digital Iutput
GND Ground
Reset Button
The reset button is used to reset the system or restore the factory default settings� Sometimes resetting the system can return the camera to normal operation� If the system problems remain after reset, restore the factory settings and install again�
Reset: Press and release the reset button with a paper clip or thin object� Wait for the Network Camera to reboot�
Restore: Press on the reset button continuously for over 5 seconds� Note that all settings will be restored to factory default�
User's Manual - 5
VIVOTEK
Installation
Hardware Installation
1. Loose the liquid tight connectors, and then remove the rubber.
2� Loose the back cover� 3� Tear down the aluminum foil vacuum bag and take out the silica gel� Attach the supplied silica
gel to the inner side of the Network Camera� (Please replace the silica gel with a new one if you open the back cover after installation�)
4� Make sure all cable lines are securely connected�
5. Tighten the back cover, rubber and liquid tight connectors.
6� Secure the Network Camera to the wall/ceiling by the supplied camera stand�
2
6
1
Wall mount
5
3
Silica gel
Ceiling mount
Note
If you want to use your own cable lines, please loose two supplied screws and take out the power board� Then be careful to make connections as the illustration below�
Power Cord
Upper Side
Terminal Block (from left to right)
1: AV24V (red) 2: AC24V (red) 3: DI (white) 4: GND (black)
Ethernet Cable
Screws
6 - User's Manual
Bottom Side
VIVOTEK
L
A
N (
Local Area Network)
R
o
u
t
e
r
I
P
a
d
dre
s
s
W
A
N (Wide Area Network )
R
o
u
t
e
r
I
P
a
d
dre
s
s
f
r
o
m
I
S
P
Network Deployment
Setup the Network Camera over the Internet
This section explains how to congure the Network Camera to Internet connection�
1. If you have external devices such as sensors and alarms, make the connection from the
general I/O terminal block�
2� Use the supplied RJ45 female/female coupler to connect the Network Camera to a switch.
Use Category 5 Cross Cable when Network Camera is directly connected to PC�
3� Connect the power cable from the Network Camera to a power outlet�
L I
N
POW
ER
C O
1
K
LL
I
RE
S
ION
CEIVE
1
PARTITIO
2
3
N
4
5
2
AV24V AC24V
DI
GND
AV24V: 24V+ AC24V: 24V­DI : Digital Input GND: Ground
3
There are several ways to set up the Network Camera over the Internet� The rst way is to set up the Network Camera behind a router� The second way is to utilize a static IP� The third way is to use PPPoE�
Internet connection via a router
Before setting up the Network Camera over the Internet, make sure you have a router and follow the steps below�
1� Connect your Network Camera behind a router, the Internet environment is illustrated below�
Regarding how to obtain your IP address, please refer to Software installation on page 10 for
details�
Internet
Cable or DSL Modem
WAN (Wide Area Network ) Router IP address : from ISP
LINK
POWER
COLLISION
RECEIVE
1
2
PARTITION
3
4
5
LAN (Local Area Network) Router IP address : 192.168.0.1
IP address : 192.168.0.3 Subnet mask : 255.255.255.0 Default router : 192.168.0.1
IP address : 192.168.0.2 Subnet mask : 255.255.255.0 Default router : 192.168.0.1
User's Manual - 7
VIVOTEK
2� In this case, if the Local Area Network (LAN) IP address of your Network Camera is 192�168�0�3, please forward the following ports for the Network Camera on the router�
■ HTTP port
■ RTSP port
■ RTP port for audio
■ RTCP port for audio
■ RTP port for video
■ RTCP port for video
If you have changed the port numbers on the Network page, please open the ports accordingly on your router� For information on how to forward ports on the router, please refer to your router’s user’s manual�
3� Find out the public IP address of your router provided by your ISP (Internet Service Provider)�
Use the public IP and the secondary HTTP port to access the Network Camera from the Internet� Please refer to Network Type on page 30 for details�
Internet connection with static IP
Choose this connection type if you are required to use a static IP for the Network Camera.
Please refer to LAN on page 30 for details�
Internet connection via PPPoE (Point-to-Point over Ethernet)
Choose this connection type if you are connected to the Internet via a DSL Line� Please refer to PPPoE on page 31 for details�
Set up the Network Camera through Power over Ethernet (PoE)
When using a PoE-enabled switch
The Network Camera is PoE-compliant, which allows it to be powered via a single Ethernet cable� If your switch/router supports PoE, refer to the following illustration to connect the Network Camera to a PoE-enabled switch/router�
8 - User's Manual
power + data transmission
POWER
LINK
COLLISION
RECEIVE
1
2
PARTITION
3
4
5
PoE Switch
VIVOTEK
When using a non-PoE switch
If your switch/router does not support PoE, use a PoE power injector (optional) to connect the Network Camera and a non-PoE switch/router�
PoE Power Injector
(optional)
POWER
COLLISION
LINK
RECEIVE
1
2
PARTITION
3
4
5
Non-PoE Switch
User's Manual - 9
VIVOTEK
Software Installation
Installation Wizard 2 (IW2), free-bundled software included on the product CD, helps you set up
your Network Camera on the LAN�
1� Install IW2 from the Software Utility directory on the software CD� Double click the IW2 shortcut on your desktop to launch the program�
2� The program will conduct an analysis of your network environment� After your network environment is analyzed, please click Next to continue the program�
3� The program will search for all VIVOTEK network devices on the same LAN�
4� After searching, the main installer window will pop up� Click on the MAC and model name
which matches the product label on your device to connect to the Network Camera via
Internet Explorer.
Network Camera
Model No: IP7330
MAC:0002D1733012
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Pat. 6,930,709
RoHS
Made in Taiwan
0002D1733012
10 - User's Manual
VIVOTEK
Accessing the Network Camera
This chapter explains how to access the Network Camera through web browsers, RTSP players,
3GPP-compatible mobile devices, and VIVOTEK recording software�
Using Web Browsers
Use Installation Wizard 2 (IW2) to access to the Network Cameras installed on the LAN.
If your network environment is not a LAN, follow these steps to access the Network Camera:
1. Launch your web browser (ex. Microsoft
2. Enter the IP address of the Network Camera in the address eld. Press Enter�
3� The live video will be displayed in your web browser�
4. If this is the rst time installing the VIVOTEK network camera, an information bar will pop up
as shown below. Follow the instructions to install the required plug-in on your computer.
®
Internet Explorer, Mozilla Firefox, or Netscape).
NOTE
► For Mozilla Firefox or Netscape users, your browser will use Quick Time to stream the live
video. If you donn’t have Quick Time on your computer, please install it rst, then launch the
web browser�
User's Manual - 11
VIVOTEK
► By default, the Network Camera is not password-protected. To prevent unauthorized access,
it is highly recommended to set a password for the Network Camera� For more information about how to enable password protection, please refer to Security on page 24�
► If you see a dialog box indicating that your security settings prohibit running ActiveX
®
Controls, please enable the ActiveX
Controls for your browser�
®
1� Choose Tools > Internet Options > Security > Custom Level�
2. Look for Download signed ActiveX
®
controls; select Enable or Prompt� Click OK�
3. Refresh your web browser, then install the Active X® control� Follow the instructions to
complete installation�
12 - User's Manual
VIVOTEK

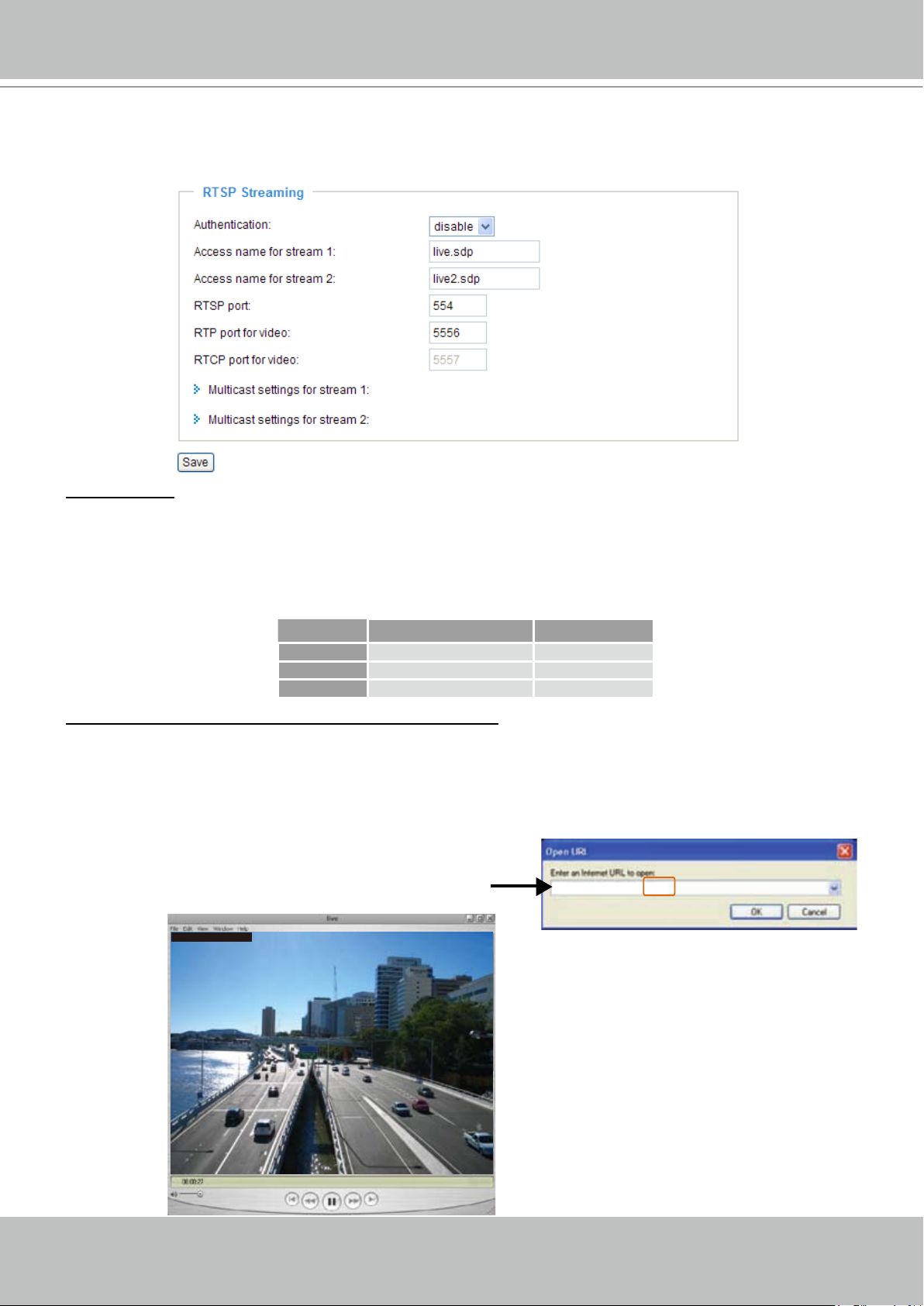

Using RTSP Players
To view the MPEG-4 streaming media using RTSP players, you can use one of the following applications that support RTSP streaming�
Quick Time Player
Real Player
VLC media player 1� Launch a RTSP player�
mpegable Player
2. Choose File > Open URL. A URL dialog box will pop up.
3� The format is rtsp://<ip address>:<rtsp port>/<RTSP streaming access name for stream1 or pvPlayer
stream2>
As most ISPs and players only allow RTSP streaming through port number 554, please set the RTSP port to 554� For more information,
For example:
please refer to RTSP Streaming on page 36�
rtsp://192.168.5.151:554/live.sdp
4� The live video will be displayed in your player�
For more information on how to configure the RTSP access name, please refer to RTSP
Streaming on page 36 for details�
Video 16:38:01 2008/01/03
User's Manual - 13
VIVOTEK
Using 3GPP-compatible Mobile Devices
To view the streaming media through 3GPP-compatible mobile devices, make sure the Network Camera can be accessed over the Internet� For more information on how to set up the Network Camera over the Internet, please refer to Setup the Network Camera over the Internet on page 7�
To utilize this feature, please check the following settings on your Network Camera:
1� Because most players on 3GPP mobile phones do not support RTSP authentication, make sure the authentication mode of RTSP streaming is set to disable� For more information, please refer to RTSP Streaming on page 36�
2. As the the bandwidth on 3G networks is limited, larger video sizes are not available. Please
set the video and audio streaming parameters as listed below�

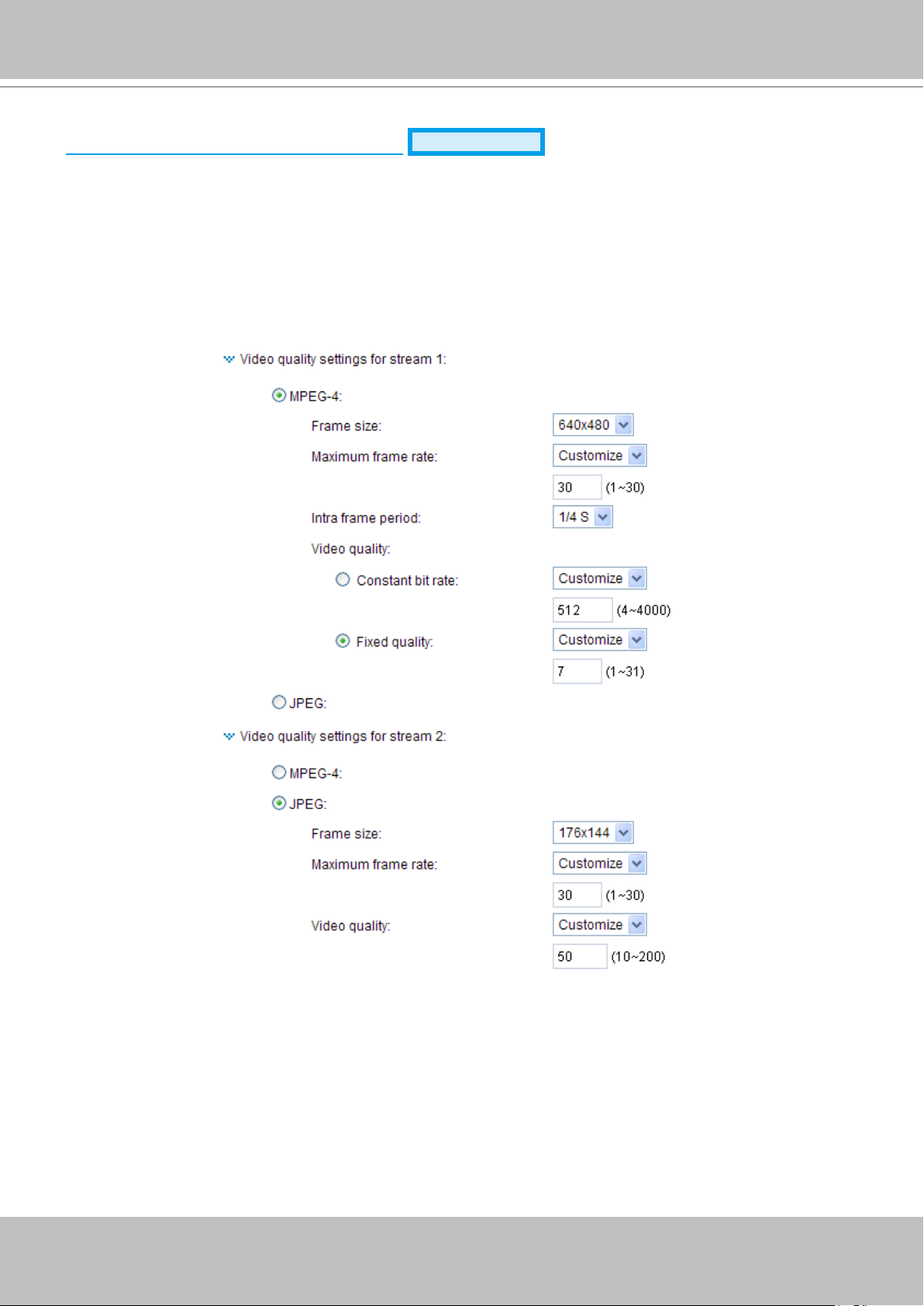

For more information, please refer to Video on page 43�
Video Mode MPEG-4 Frame size 176 x 144 Maximum frame rate 5 fps Intra frame period 1S Video quality (Constant bit rate) 40kbps Audio type (GSM-AMR) 12.2kbps
3� As most ISPs and players only allow RTSP streaming through port number 554, please set
the RTSP port to 554� For more information, please refer to RTSP Streaming on page 36�
4. Launch the player on the 3GPP-compatible mobile device (ex. Real Player).
5� Type the following URL command into the player�
The address format is rtsp://<public ip address of your camera>:<rtsp port>/<RTSP streaming access name for stream1 or stream2>�
For example:
rtsp://192.168.5.151:554/live.sdp
14 - User's Manual
VIVOTEK
Using VIVOTEK Recording Software
The product software CD also contains VIVOTEK’s recording software, allowing simultaneous monitoring and video recording for multiple Network Cameras� Please install the recording software, then launch the program to add the Network Camera to the Channel list� For detailed information about how to use the recording software, please refer to the user’s manual of the software or download the manual from http://www�vivotek�com�
User's Manual - 15
VIVOTEK
Main Page
This chapter explains the layout of the main page. It is composed of the following sections:
VIVOTEK INC� Logo, Host Name, Camera Control Area, Configuration Area, Menu, and Live Video Window�
Logo of VIVOTEK INC.
Camera Control Area
Configuration Area
VIVOTEK INC. Logo
Click this logo to visit the VIVOTEK website�
Host Name
The host name can be customized to t your needs. For more information,
22�
please refer to
Host Name
Live View Window
System on page
Camera Control Area
Video Stream: This Network Cmera supports MJPEG or MPEG-4 dual streams simultaneously. You can select either one for live viewing�
IR Illuminators: Click to turn on the IR LEDs for 20 seconds�
Conguration Area
Client Settings: Click this button to access the client setting page� For more information, please refer to Client Settings on page 19�
Conguration: Click this button to access the conguration page of the Network Camera. It is suggested
that a password be applied to the Network Camera so that only the administrator can configure the Network Camera� For more information, please refer to Conguration on page 21�
Language: Click this button to choose a language for the user interface� Language options are available in: English, Deutsch, Español, Français, Italiano,
16 - User's Manual
日本語
, Português,
簡体中文
, and
繁體中文
�
Live Video Window
■ The following window is displayed when the video mode is set to MPEG-4:
MPEG-4 Protocol and Media Options
VIVOTEK
Video Title
Title and Time
Video 13:32:10 2008/12/22
Time
Video Control Buttons
Video Title: The video title can be congured. For more information, please refer to Video settings on page 43�
MPEG-4 Protocol and Media Options: The transmission protocol and media options for MPEG-4 video streaming. For further conguration, please refer to Client Settings on page 19�
Time: Display the current time. For further conguration, please refer to Video settings on page 43�
Title and Time: The video title and time can be stamped on the streaming video. For further conguration, please refer to Video settings on page 43�
Video Control Buttons: Depending on the Network Camera model and Network Camera conguration, some buttons may not be available�
Snapshot: Click this button to capture and save still images� The captured images will be displayed in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.

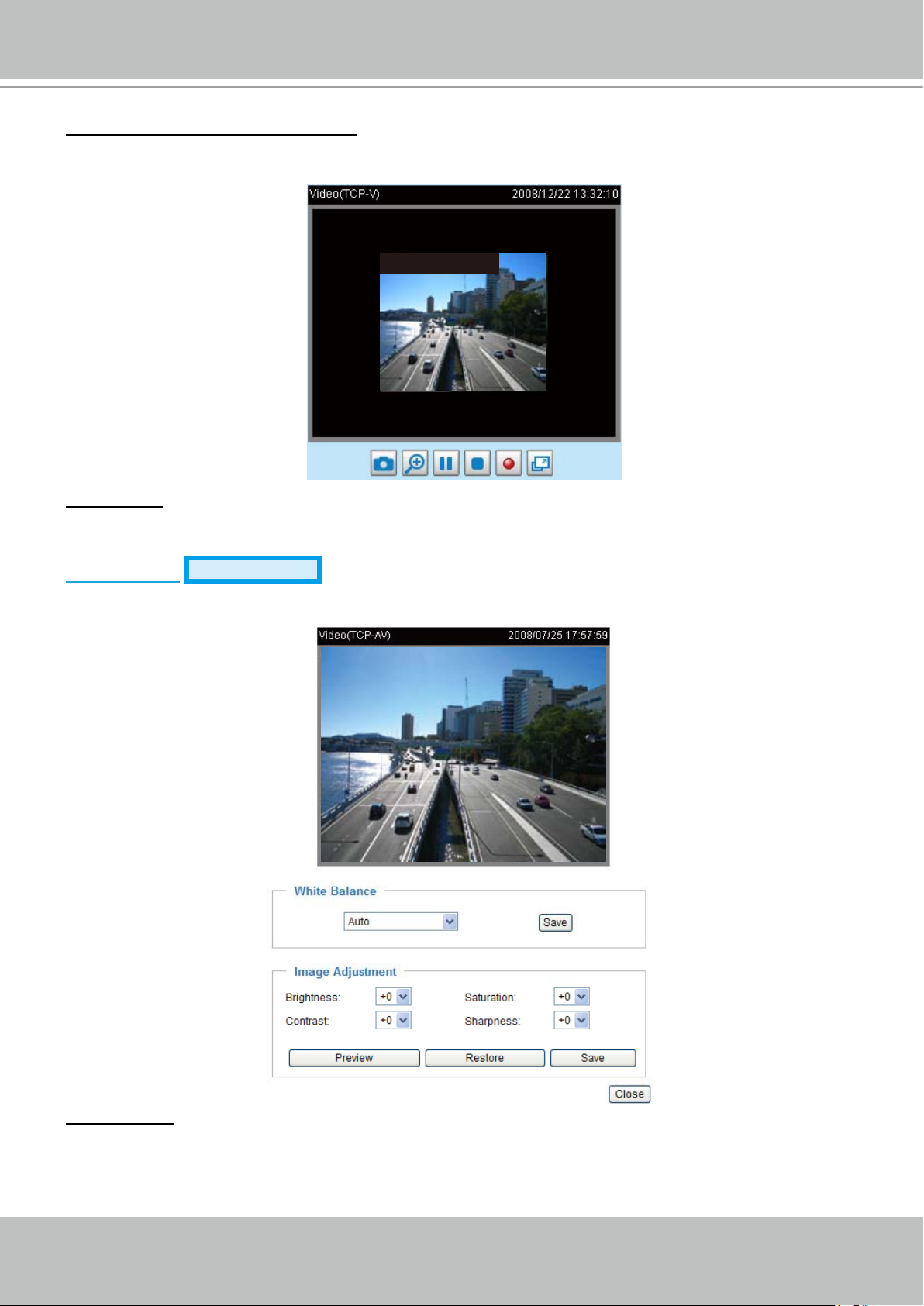

Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation
screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To
move to a different area you want to magnify, drag the navigation screen image�
Pause: Pause the transmission of the streaming media� The button becomes the Resume button after clicking the Pause button�
Stop: Stop the transmission of streaming media� Click the Resume button to continue
transmission�
Start MP4 Recording: Click this button to record video clips in MP4 file format� Press the
Stop MP4 Recording button to end recording. When you exit the web browser, video recording stops accordingly. To specify the storage destination and the le name, please refer to MP4 Saving Options on
page 20 for details�
User's Manual - 17
VIVOTEK
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode�
■ The following window is displayed when the video mode is set to MJPEG:
Video Title
Title and Time
Video 13:41:31 2008/12/22
Time
Video Control Buttons
Video Title: The video title can be congured. For more information, please refer to Video Settings on page 43�
Time: Display the current time� For more information, please refer to
Video Settings on page 43�
Title and Time: The video title and time can be stamped on the streaming video� For more information, please refer to
Video Settings on page 43�
Video Control Buttons: Depending on the Network Camera model and Network Camera conguration, some buttons may not be available�
Snapshot: Click this button to capture and save still images� The captured images will be displayed
in a pop-up window� Right-click the image and choose Save Picture As to save it in JPEG (*.jpg) or BMP
(*.bmp) format.
Digital Zoom: Click and uncheck “Disable digital zoom” to enable the zoom operation. The navigation
screen indicates the part of the image being magnied. To control the zoom level, drag the slider bar. To
move to a different area you want to magnify, drag the navigation screen image�
Start MP4 Recording: Click this button to record video clips in MP4 file format� Press the
Stop MP4 recording button to end recording. When you exit the web browser, video recording stops accordingly. To specify the storage destination and le name, please refer to MP4 Saving Options on
page 20 for details�
Full Screen: Click this button to switch to full screen mode. Press the “Esc” key to switch back to normal
mode�
18 - User's Manual
VIVOTEK
Client Settings
This chapter explains how to select the stream transmission mode and saving options on the local computer. When nished with the settings on this page, click Save on the bottom of the
page to enable the settings�
MPEG-4 Protocol Options
Depending on your network environment, there are four transmission modes for MPEG-4 streaming:
UDP unicast: This protocol allows for better real-time audio and video streams� However, network
packets may be lost due to network burst trafc and images may be broken. Activate the UDP connection when occasions require time-sensitive responses and the video quality is less important. Note that each
unicast client connecting to the server takes up additional bandwidth and the Network Camera allows up to ten simultaneous accesses�
UDP multicast: This protocol allows multicast-enabled routers to forward network packets to all clients
requesting streaming media. This helps to reduce the network transmission load of the Network Camera while serving multiple clients at the same time. Note that to utilize this feature, the Network Camera must
be configured to enable multicast streaming at the same time� For more information, please refer to RTSP Streaming on page 36�
TCP: This protocol guarantees the complete delivery of streaming data and thus provides better video
quality. However, the real-time effect is not as good as that of the UDP protocol.
HTTP: This protocol allows for the same transmission quality as the TCP protocol without needing to open specic ports for streaming under some network environments. Users inside a rewall can utilize
this protocol to allow streaming data through�
User's Manual - 19
VIVOTEK
MP4 Saving Options
Users can record live video as they are watching by clicking Start MP4 Recording on the main page�
Here, you can specify the storage destination and le name.
Folder: Specify the storage destination for the recorded video les.
File name prex: Enter the text that will be appended to the front of the video le name.
Add date and time sufx to the le name: Select this option to append the date and time to the end of the le name.
CLIP_20080108-180853
File name prefix
Date and time suffix
The format is: YYYYMMDD_HHMMSS
20 - User's Manual
VIVOTEK
Conguration
Click Configuration on the main page to enter the camera setting pages� Note that only
Administrators can access the conguration page.
VIVOTEK offers an easy-to-use user interface that helps you set up your network camera with minimal effort� To simplify the setting procedure, two types of user interfaces are available: Advanced Mode for professional users and Basic Mode for entry-level users� Some advanced functions (HTTPS/ Access list/ Homepage layout/ Application/ Recording/ System log/ View parameters) are not displayed in Basic Mode�
If you want to set up advanced functions, please click [Advanced Mode] on the bottom of the
conguration list to quickly switch to Advanced Mode.
In order to simplify the user interface, the detailed information will be hidden unless you click on
the function item. When you click on the rst sub-item, the detailed information for the rst sub-
item will be displayed; when you click on the second sub-item, the detailed information for the
second sub-item will be displayed and that of the rst sub-item will be hidden.
The following is the interface of the Basic Mode and the Advanced Mode:
Basic Mode
Configuration list
Click to switch to Advanced mode
Firmware Version
User's Manual - 21
VIVOTEK
Advanced Mode
Configuration list
Click to switch to Basic mode
Firmware Version
Each function on the conguration list will be explained in the following sections. Those functions that are
displayed only in Advanced Mode are marked with
Advanced Mode
� If you want to set up the advanced
functions, please click [Advanced Mode] on the bottom of the conguration list to quickly switch over.
System
This section explains how to configure the basic settings for the Network Camera, including
host name and system time� It is composed of the following three columns: System, System Time and DI� When completed with the settings on this page, click Save at the bottom of the page to enable the settings�
System
Host name: Enter a desired name for the Network Camera. The text will be displayed at the top of the main page�
22 - User's Manual
VIVOTEK
System Time
Keep current date and time: Select this option to preserve the current date and time of the Network Camera� The Network Camera’s internal real-time clock maintains the date and time even when the system power is turned off�
Sync with computer time: Select this option to synchronize the date and time of the Network Camera with the local computer� The read-only date and time of the PC is displayed when updated�
Manual: The administrator can enter the date and time manually� Note that the date and time format is [yyyy/mm/dd] and [hh:mm:ss]�
Automatic: The Network Time Protocol is a protocol which synchronizes computer clocks by periodically
querying an NTP Server.
NTP server: Assign the IP address or domain name of the time-server. Leaving the text box blank connects the Network Camera to the default time servers�
Update interval: Select to update the time using the NTP server on an hourly, daily, weekly, or monthly basis�
Time zone
Advanced Mode
: Select the appropriate time zone from the list. If you want to upload
Daylight Savings Time rules on the Maintenance page, please refer to Upload / Export Daylight Saving Time Conguration File on page 75 for details�
DI
Digital input: Select High or Low to dene the normal status for the digital input. The Network Camera will report the current status�
User's Manual - 23
VIVOTEK
Security
This section explains how to enable password protection and create multiple accounts.
Root Password
The administrator account name is “root”, which is permanent and can not be deleted. If you want to add more accounts in the Manage User column, please set a password for the “root” account rst.
1. Type the password in both text boxes, then click Save to enable password protection�
2� A window will be prompted for authentication; type the correct user’s name and password in their
respective elds to access the Network Camera.
Manage Privilege
Allow anonymous viewing: If you check this item, any client can access the live stream without entering a User ID and Password�
Advanced mode
Manage User
Administrators can add up to 20 user accounts� 1� Input the new user’s name and password� 2� Select the privilege level for the new user account� Click Add to enable the setting�
Access rights are sorted by user privilege (Administrator, Operator, and Viewer)� Only administrators
can access the Conguration page. Operators cannot access the Conguration page but can use the
URL Commands to get and set the value of parameters� For more information, please refer to URL Commands of the Network Camera on page 78� Viewers access only the main page for live viewing�
Here you also can change a user’s access rights or delete user accounts�
1. Select an existing account to modify.
2� Make necessary changes and click Update or Delete to enable the setting�
24 - User's Manual
VIVOTEK
HTTPS (Hypertext Transfer Protocol over SSL)
Advanced Mode
This section explains how to enable authentication and encrypted communication over SSL (Secure Socket Layer)� It helps protect streaming data transmission over the Internet on higher security level�
Enable HTTPS
Check this item to enable HTTPS communication, then select a connection option: "HTTP & HTTPS"
or "HTTPS only". Note that you have to create and install a certicate rst in the second column before
clicking the Save button�
Create and Install Certicate Method
Before using HTTPS for communication with the Network Camera, a Certicate must be created rst. There are three ways to create and install a certicate:
Create self-signed certificate automatically
1� Select this option�
2. In the rst column, check Enable HTTPS secure connection, then select a connection option: “HTTP
& HTTPS” or “HTTPS only”.
3� Click Save to generate a certicate.
User's Manual - 25
VIVOTEK
https://
4. The Certicate Information will automatically de displayed in the third column as shown below. You can
click Property to view detailed information about the certicate.
5� Click Home to return to the main page� Change the address from “http://” to “https://“ in the address
bar and press Enter on your keyboard� Some Security Alert dialogs will pop up� Click OK or Yes to
enable HTTPS�
https://192.168.5.151/index.html
26 - User's Manual
Create self-signed certificate manually
1� Select this option� 2� Click Create to open a Create Certicate page, then click Save to generate the certicate.
VIVOTEK
3. The Certicate Information will automatically be displayed in the third column as shown below. You
can click Property to see detailed information about the certicate.
Create certificate and install : Select this option if you want to create an ofcial certicate issued by
a CA (Certicate Authority).
1� Select this option� 2� Click Create to open the Create Certicate page, then click Save to generate the certicate.
User's Manual - 27
VIVOTEK
3� If you see the following Information bar, click OK and click on the Information bar on the top of the
page to allow pop-ups�
4. The pop-up window shows an example of a certicate request.
28 - User's Manual
VIVOTEK
5. Look for a trusted certicate authority that issues digital certicates. Enroll the Network Camera. Wait
for the certicate authority to issue a SSL certicate; click Browse... to search for the issued certicate,
then click Upload in the second column�
NOTE
► How do I cancel the HTTPS settings?
1� Uncheck Enable HTTPS secure connection in the rst column and click Save; a warning dialog will
pop up�
2� Click OK to disable HTTPS�
3� The webpage will redirect to a non-HTTPS page automatically�
► If you want to create and install other certificates, please remove the existing one. To remove the
signed certificate, uncheck Enable HTTPS secure connection in the first column and click Save� Then click Remove to erase the certicate.
User's Manual - 29
VIVOTEK
Network
This section explains how to congure a wired network connection for the Network Camera.
Network Type
LAN
Select this option when the Network Camera is deployed on a local area network (LAN) and is intended to be accessed by local computers� The default setting for the Network Type is LAN� Rememer to click Save when you complete the Network setting�
Get IP address automatically: Select this option to obtain an available dynamic IP address assigned by the DHCP server each time the camera is connected to the LAN�
Use xed IP address: Select this option to manually assign a static IP address to the Network Camera�
1. You can make use of VIVOTEK Installation Wizard 2 on the software CD to easily set up the Network
Camera on LAN� Please refer to Software installation on page 10 for details� 2� Enter the static IP, Subnet mask, Default router, and Primary DNS provided by your ISP�
TM

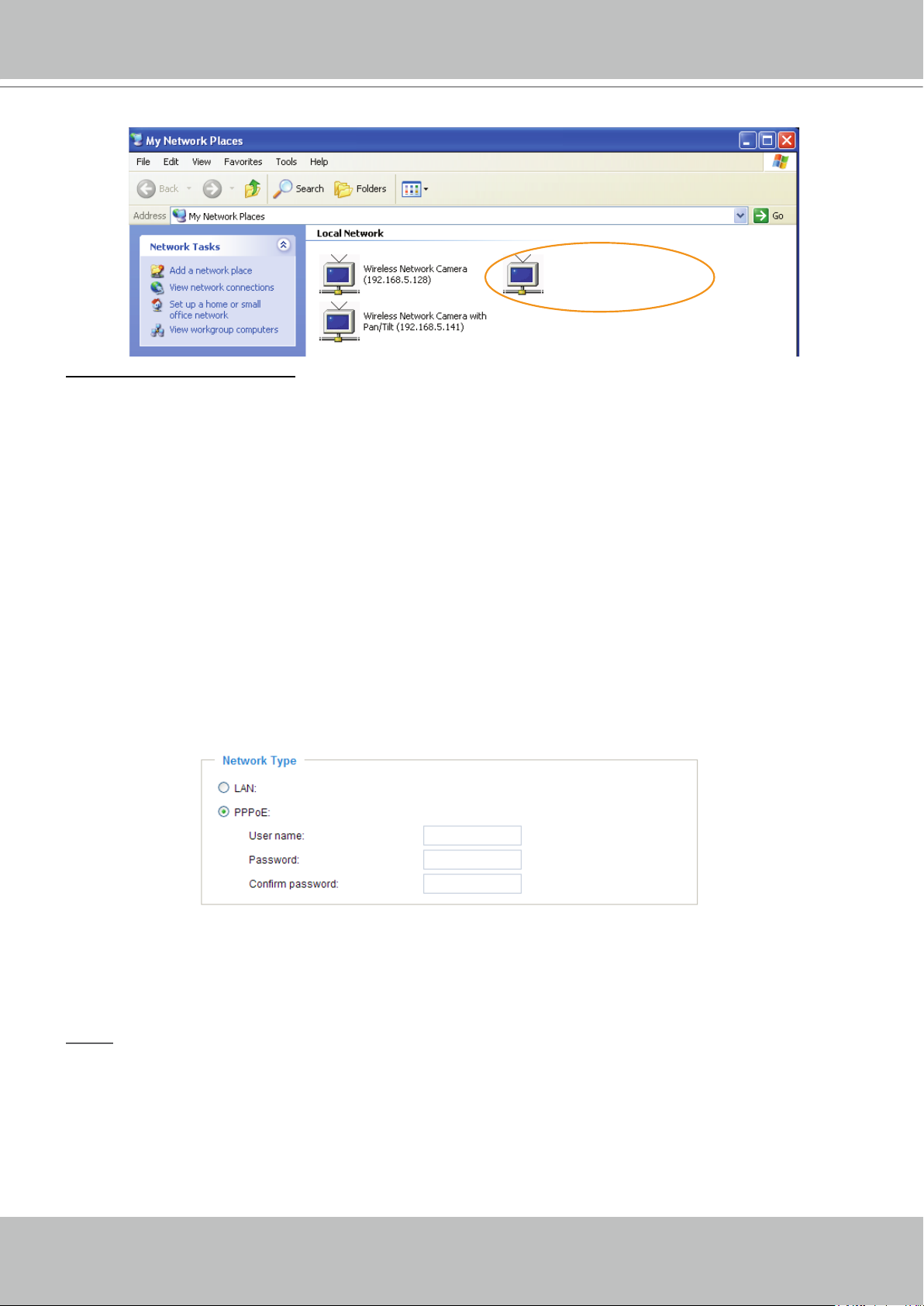

Enable UPnP presentation: Select this option to enable UPnP
presentation for your Network Camera
so that whenever a Network Camera is presented to the LAN, shortcuts of connected Network Cameras
will be listed in My Network Places. You can click the shortcut to link to the web browser. Currently,
TM
UPnP UPnP
30 - User's Manual

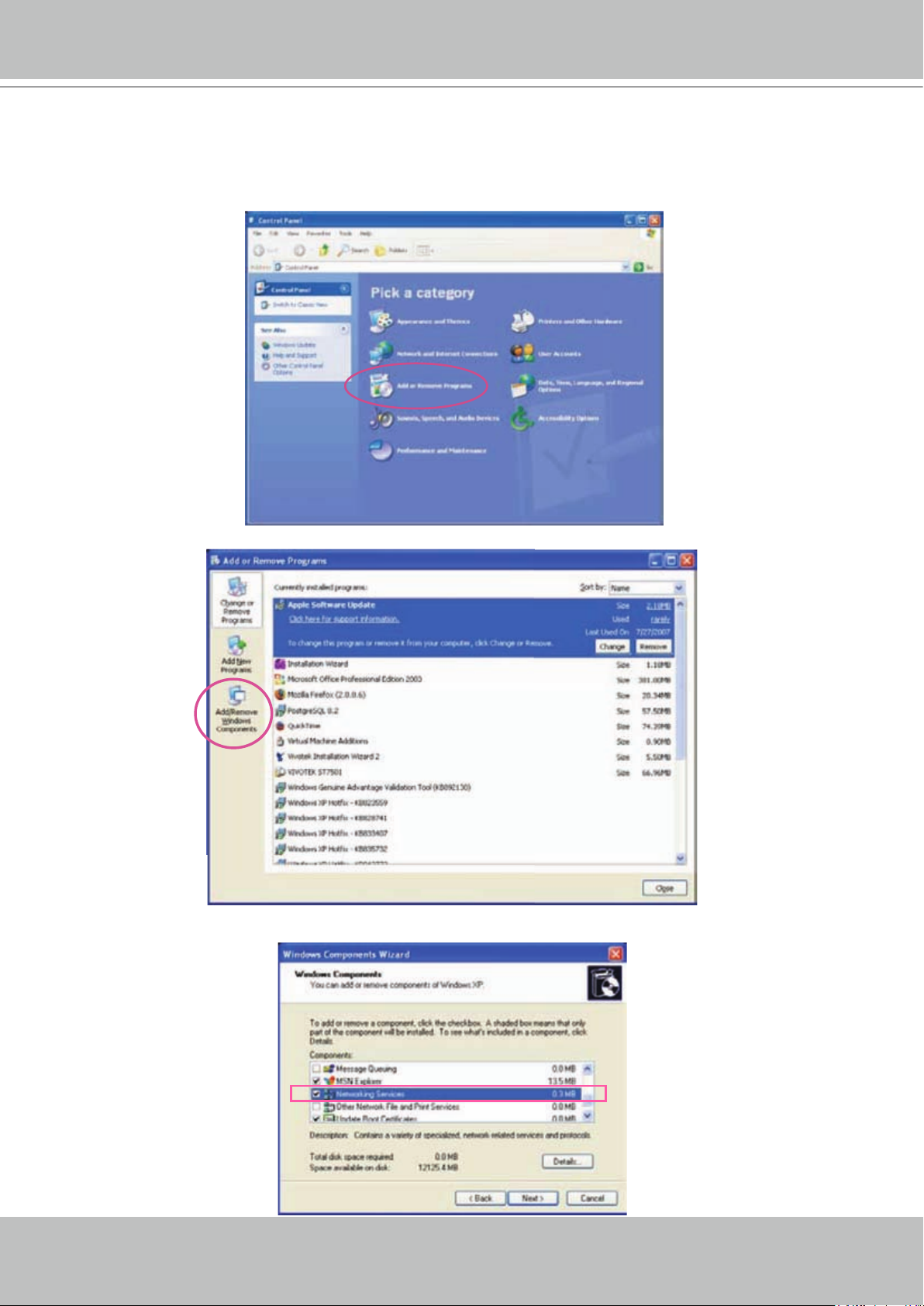

is supported by Windows XP or later. Note that to utilize this feature, please make sure the
TM
component is installed on your computer�
Loading...
+ 84 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
