Before You Use This Product
The use of surveillance devices may be prohibited by law in your country. The
Network Camera is not only a high-performance web-ready camera but also can be
part of a flexible surveillance system. It is the user’s responsibility to ensure that the
operation of such devices is legal before installing this unit for its intended use.
It is important to first verify that all contents received are complete according to the
list in the "Package Contents" chapter. Take notice of the warnings in “Quick
installation guide” before the Network Camera is installed, then carefully read and
follow the instructions in the “Installation” chapter to avoid damages due to faulty
assembly and installation. This also ensures the product is used properly as
intended.
The Network Camera is a network device and its use should be straightforward for
those who have basic network knowledge. The “Troubleshooting” chapter in the
Appendix provides remedies to the most common errors in set up and configuration.
You should consult this chapter first if you run into a system error.
The Network Camera is designed for various applications including video sharing,
general security/surveillance, etc. The “How to Use” chapter suggests ways to best
utilize the Network Camera and ensure proper operations. For the creative and
professional developers, the "URL Commands of The Network Camera " chapter
serves to be a helpful reference to customize existing homepages or integrating with
the current web server.
For paragraphs preceded by the reader should use caution to understand
completely the warnings. Ignoring the warnings may result in serious hazards or
injuries.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
Product Name: Network Camera (IP7135)
Product Name: Network Camera (IP7135)
Release Date: 2007/11/16
Release Date: 2007/11/12
Manual Revision: 2.0
Manual Revision: 2.0
Web Site: www.vivotek.com
Web Site: www.vivotek.com
Email: technical@vivotek.com
Email: technical@vivotek.com
Made in Taiwan. © 2007 VIVOTEK INC. All rights reserved
sales@vivotek.com
sales@vivotek.com
Made in Taiwan. © Copyright 2007 All rights reserved
1 - User's Manual
- 2 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Before You Use This Product
The use of surveillance devices may be prohibited by law in your country. The
Network Camera is not only a high-performance web-ready camera but also can be
part of a flexible surveillance system. It is the user’s responsibility to ensure that the
operation of such devices is legal before installing this unit for its intended use.
It is important to first verify that all contents received are complete according to the
list in the "Package Contents" chapter. Take notice of the warnings in “Quick
installation guide” before the Network Camera is installed, then carefully read and
follow the instructions in the “Installation” chapter to avoid damages due to faulty
assembly and installation. This also ensures the product is used properly as
intended.
The Network Camera is a network device and its use should be straightforward for
those who have basic network knowledge. The “Troubleshooting” chapter in the
Appendix provides remedies to the most common errors in set up and configuration.
You should consult this chapter first if you run into a system error.
The Network Camera is designed for various applications including video sharing,
general security/surveillance, etc. The “How to Use” chapter suggests ways to best
utilize the Network Camera and ensure proper operations. For the creative and
professional developers, the "URL Commands of The Network Camera " chapter
serves to be a helpful reference to customize existing homepages or integrating with
the current web server.
For paragraphs preceded by the reader should use caution to understand
completely the warnings. Ignoring the warnings may result in serious hazards or
injuries.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
User's Manual - 2
- 3 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Table of Contents
Before You Use This Product......................................................................2
Package Contents....................................................................................6
Installation.............................................................................................7
Hardware installation..........................................................................7
Software installation...........................................................................8
Initial Access to the Network Camera....................................................9
Check Network Settings ................................................................9
Add Password to prevent Unauthorized Access..................................9
How to Use ..................................................................................... 10
Authentication............................................................................ 10
Installing plug-in..............................................................................11
Primary user’s capability ................................................................... 12
Main Screen with Camera View.....................................................12
Digital Zoom.............................................................................. 13
Snapshot................................................................................... 13
Client settings............................................................................ 14
Administrator’s capability .................................................................. 17
Fine-tuning for Best Performance.................................................. 17
Opening accounts for new users ...................................................20
Build a security application ..........................................................21
Software revision upgrade ...........................................................22
Definitions in Configuration.....................................................................23
System parameters..........................................................................24
Security settings..............................................................................25
Network settings..............................................................................26
Network type............................................................................. 26
HTTP ........................................................................................27
RTSP Streaming ......................................................................... 27
DDNS............................................................................................. 29
Access List...................................................................................... 30
Audio and Video............................................................................... 31
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
3 - User's Manual
- 4 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
General..................................................................................... 31
Video Settings............................................................................ 31
Video orientation........................................................................31
Audio settings............................................................................32
Image Settings .......................................................................... 33
Email & FTP ....................................................................................34
Email........................................................................................34
FTP ..........................................................................................34
Motion detection ..............................................................................36
Application settings ..........................................................................37
Snapshot................................................................................... 37
Weekly schedule.........................................................................37
Snapshot file name prefix ............................................................37
Send out the snapshot while motion detection ................................37
Sequential operation...................................................................38
Method for sending snapshot........................................................38
System log...................................................................................... 41
Viewing system parameters...............................................................42
Maintenance....................................................................................43
Appendix..............................................................................................44
A. Troubleshooting ........................................................................... 44
Status LED ................................................................................44
Reset and restore....................................................................... 44
B. URL commands of the Network Camera...........................................45
Get server parameter values........................................................45
Set server parameter values ........................................................46
Available parameters on the server ...............................................48
Application page CGI command ....................................................57
Capture single snapshot .............................................................. 60
Account management ................................................................. 61
System logs...............................................................................62
Configuration file........................................................................62
Upgrade firmware.......................................................................63
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
User's Manual - 4
- 5 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
D. Technical specifications ................................................................. 64
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
C
5 - User's Manual
- 6 -
www.vivotek.com
T: 886-2-82455282
F: 886-2-82455532
Package Contents
IP7135
Power adapter
Camera stand
Software CD
Quick installation guide
Warranty card
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
User's Manual - 6
Installation
In this manual, "User" refers to whoever has access to the Network Camera, and
"Administrator" refers to the person who can configure the Network Camera and grant
user access to the camera.
Hardware installation
Please verify that your product package contains all the
accessories listed in the foregoing Package Contents.
Depending on the user’s application, an Ethernet cable
may be needed. The Ethernet cable should meet the specs
of UTP Category 5 and not exceed 100 meters in length.
Upon powering up, the front blue LED will become lighted first and then the device will go
through booting process. During the booting process, both blue and red LEDs will be on
and the Network Camera will standby for getting IP address. After getting IP Address, the
LED will blink blue every second.
The Network Camera will first detect Ethernet. During the process, the red LED of the
Network Camera will flash every second. Operating in either network mode, the blue LED
will flash every second as heartbeat to indicate alive.
Connect the power adapter jack to the Network
Camera before plugging in to the power socket. This will
reduce the risk of accidental electric shock.
- 8 -
www.vivotek.com
To install in Ethernet
Make sure the Ethernet is firmly connected to a switch hub. After attaching the Ethernet
cable plug in the power adapter. If the LED turns out to be steady blue, go to next
paragraph “Software installation”. If the Ethernet is not available, Network Camera will
switch to wireless LAN mode.
Software installation
At the end of the hardware installation, users can use Installation Wizard program
included in the product CDROM to find the location of the Network Camera. There may be
many Network Cameras in the local network. Users can differentiate the Network
Cameras with the serial number. The serial number is printed on the labels on the carton
and the back of the Network Camera body. Please refer to the user’s manual of
Installation Wizard for detail.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
7 - User's Manual
- 8 -
www.vivotek.com
To install in Ethernet
Make sure the Ethernet is firmly connected to a switch hub. After attaching the Ethernet
cable plug in the power adapter. If the LED turns out to be steady blue, go to next
paragraph “Software installation”. If the Ethernet is not available, Network Camera will
switch to wireless LAN mode.
Software installation
At the end of the hardware installation, users can use Installation Wizard program
included in the product CDROM to find the location of the Network Camera. There may be
many Network Cameras in the local network. Users can differentiate the Network
Cameras with the serial number. The serial number is printed on the labels on the carton
and the back of the Network Camera body. Please refer to the user’s manual of
Installation Wizard for detail.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
User's Manual - 8
- 9 -
www.vivotek.com
Once installation is complete, the Administrator should proceed to the next
section "Initial access to the Network Camera" for necessary checks and
configurations.
Initial Access to the Network Camera
Check Network Settings
The Network Camera can be connected either before or immediately after software
installation onto the Local Area Network. The Administrator should complete the
network settings on the configuration page, including the correct subnet mask and IP
address of gateway and DNS. Ask your network administrator or Internet service
provider for the detail information. By default the Network Camera requires the
Administrator to run installation every time it reboots. If the network settings are to
remain unchanged, disable the Install option. Refer to “Network settings” on the
System Configuration page for details. If any setting is entered incorrectly and cannot
proceed to setting up the Network Camera, restore the factory settings following the
steps in the “Troubleshooting” chapter of the Appendix.

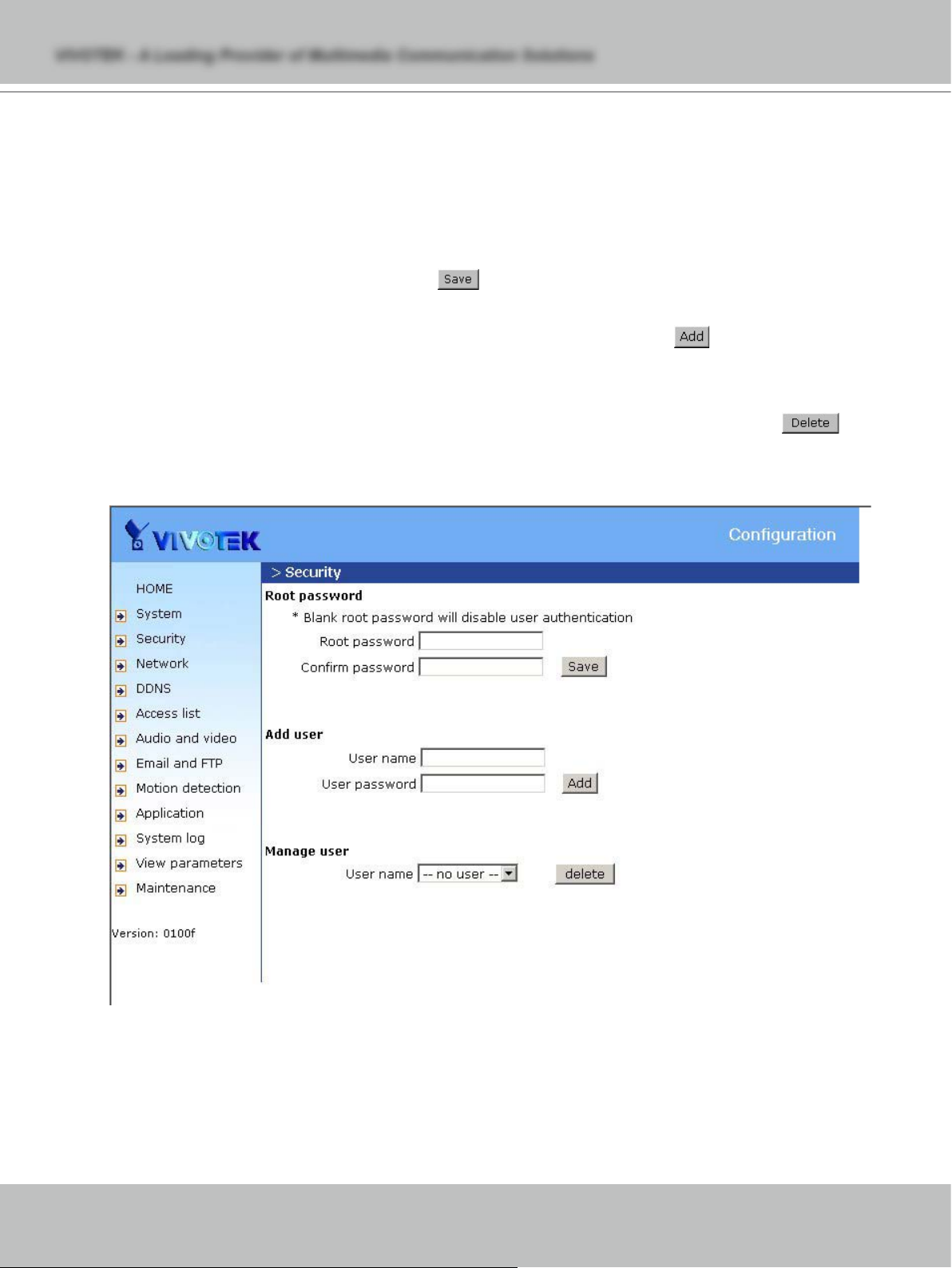

Add Password to prevent Unauthorized Access
The default Administrator’s password is blank and the Network Camera initially will not
ask for any password. The Administrator should immediately implement a new
password as a matter of prudent security practice. Once the Administrator’s password
is saved, the Network Camera will ask for the user’s name and password before each
access. The Administrator can set up a maximum of twenty (20) user accounts. Each
user can access the Network Camera except to perform system configuration. Some
critical functions are exclusive for the Administrator, such as system configuration, user
administration, and software upgrades. The user name for the Administrator is
permanently assigned as “root”. Once the password is changed, the browser will
display an authentication window to ask for the new password. Once the password
is set, there is no provision to recover the Administrator’s password. The
- 10 -
www.vivotek.com
only option is to restore to the original factory default settings.
How to Use
Authentication
After opening the Web browser and typing in the URL of the Network Camera, a
dialogue window pops up to request a username and password. Upon successful
authentication, the following figure is displayed.
The foreground is the login window and the background shows the message if
authentication fails. The user may check the option box to save the password for future
convenience. This option is not available to the Administrator for obvious reason.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
9 - User's Manual
- 10 -
www.vivotek.com
only option is to restore to the original factory default settings.
How to Use
Authentication
After opening the Web browser and typing in the URL of the Network Camera, a
dialogue window pops up to request a username and password. Upon successful
authentication, the following figure is displayed.
The foreground is the login window and the background shows the message if
authentication fails. The user may check the option box to save the password for future
convenience. This option is not available to the Administrator for obvious reason.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
User's Manual - 10
- 11 -
www.vivotek.com
Installing plug-in
For the initial access to the Network Camera in Windows, the web browser may prompt
for permission to install a new plug-in for the Network Camera. Permission request
depends on the Internet security settings of the user’s PC or notebook. If the highest
security level is set, the computer may prohibit any installation and execution attempt.
This plug-in has been registered for certificate and is used to display the video in the
browser. Users may click on
to proceed. If the web browser does not allow the
user to continue to install, check the Internet security option and lower the security
levels or contact your IT or networking supervisor for help.
- 12 -
www.vivotek.com
Primary user’s capability
Main Screen with Camera View
The main page layout has two parts:
Configuration functions: The camera can be configured using these user interfaces.
Camera View: What the camera sees.
Click on the configuration link to the left of the image window to enter the configuration
page.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
11 - User's Manual
- 12 -
www.vivotek.com
Primary user’s capability
Main Screen with Camera View
The main page layout has two parts:
Configuration functions: The camera can be configured using these user interfaces.
Camera View: What the camera sees.
Click on the configuration link to the left of the image window to enter the configuration
page.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
User's Manual - 12
Digital Zoom
Click on the magnifier icon under the camera view then the digital zoom control panel
will be shown. Uncheck “Disable digital zoom” and use the slider control to change the
zoom factors.
Snapshot
Click on “Snapshot”, web browser will pop up a new window to show the snapshot.
Users can point at the snapshot and click the right button of mouse to save it.
1
2
3
- 14 -
www.vivotek.com
Client settings
At the initial access to the “Connection type” page in Windows, the web browser will ask
for a new plug-in installation, the plug-in being the Network Camera. This plug-in has
been registered for certification and can be used to change the parameters at the
client’s site. The user may click on
to install the plug-in. If the web browser
does not allow the user to complete the installation, check the Internet security to
lower the security level or contact your IT or networking supervisor.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
13 - User's Manual
- 14 -
www.vivotek.com
Client settings
At the initial access to the “Connection type” page in Windows, the web browser will ask
for a new plug-in installation, the plug-in being the Network Camera. This plug-in has
been registered for certification and can be used to change the parameters at the
client’s site. The user may click on
to install the plug-in. If the web browser
does not allow the user to complete the installation, check the Internet security to
lower the security level or contact your IT or networking supervisor.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
User's Manual - 14
- 15 -
www.vivotek.com
There are two settings for the client side. One is “Media Options” for users to
determine the type of media to be streaming. The other is “Protocol Options” which
allows choices on connection protocol between client and server. There are two
protocols choices to optimize your usage – UDP and TCP.
The UDP protocol allows for more real-time audio and video streams. However, some
packets may be lost due to network burst traffic and images may be obscured.
The TCP protocol allows for less packet loss and produces a more accurate video
display. The downside with this protocol is that the real-time effect is worse than that
with the UDP protocol.
If no special need is required, UDP protocol is recommended. Generally speaking, the
client’s choice will be in the order of UDP Ш TCP. After the Network Camera is
connected successfully, “Protocol Option” will indicate the selected protocol. The
selected protocol will be recorded in the user's PC and will be used for the next
connection. If the network environment is changed, or the user wants to let the web
browser to detect again, manually select the UDP protocol, save, and return HOME to
- 16 -
www.vivotek.com
re-connect.
<url>
http://<Network Camera>/client.html
<Network Camera> is the domain name or the original IP address of the Network
Camera.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
15 - User's Manual
- 16 -
www.vivotek.com
re-connect.
<url>
http://<Network Camera>/client.html
<Network Camera> is the domain name or the original IP address of the Network
Camera.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
User's Manual - 16
- 17 -
www.vivotek.com
Administrator’s capability
Fine-tuning for Best Performance

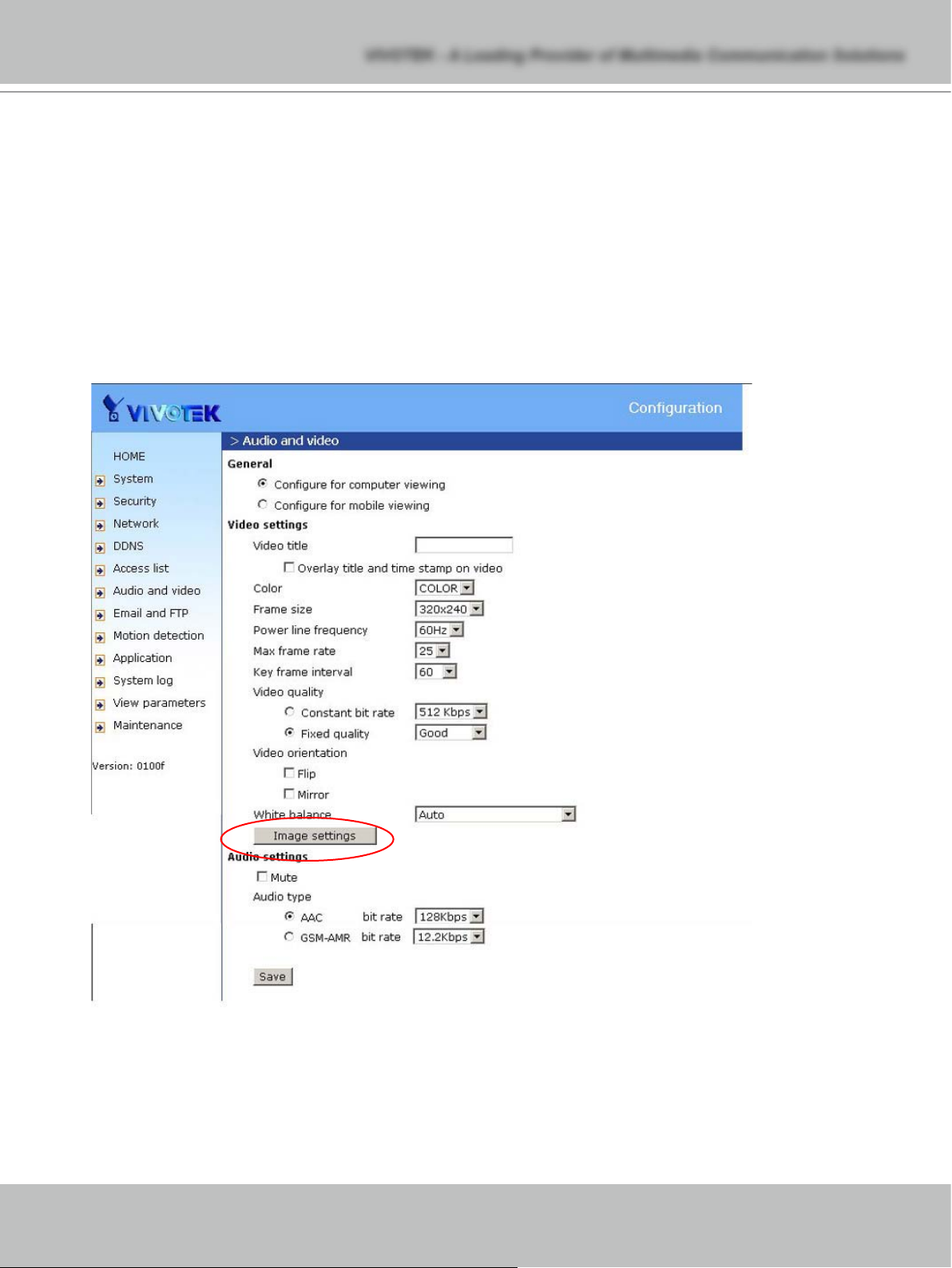

Best performance generally equates to the fastest image refresh rate with the best
video quality, and at the lowest network bandwidth as possible. The three factors,
“Maximum frame rate”, “Constant bit rate”, and “Fix quality” on the Audio and Video
Configuration page, are correlative to allow for achieving the best performance
possible.
For Viewing by Mobile Phone
Most 3GPP cell phone supports media streaming with MPEG4 video and GSM-AMR
- 18 -
www.vivotek.com
audio. Due to the limitation of the bandwidth for 3GPP, only 176x144 video solution will
be supported for cell phone viewing. Select the “Configure for mobile viewing” option
will change the range of other related video settings.
For Best Real-time Video Images
To achieve good real-time visual effect, the network bandwidth should be large enough
to allow a transmission rate of greater than 20 image frames per second. If the
broadband network is over 1 Mbps, set the “Fix bit rate” to 1000Kbps or 1200Kbps, and
set “Fix quality” at the highest quality. The maximum frame rate is 30. If your network
bandwidth is more than 512Kbps, you can fix the bit rate according to your bandwidth
and set the maximum frame rate to 30 fps. If the images vary dramatically in your
environment, you may want to slow the maximum frame rate down to 20 fps in order
to lower the rate of data transmission. This allows for better video quality and the
human eyes cannot readily detect the differences between those of 20, 25, or 30
frames per second. If your network bandwidth is below 512 Kbps, set the “Fix bit rate”
according to your bandwidth and try to get the best performance by fine-tuning with
the “Maximum frame rate”. In a slow network, greater frame rate results in blur images.
Another work-around is to choose “160x120” in the “Size” option for better images.
Video quality performance will vary somewhat due to the number of users viewing on
the network; even when the parameters have initially been finely tuned. Performance
will also suffer due to poor connectivity because of the network’s burst constraint.
Only Quality Images Will Do
To have the best video quality, you should set “Fix quality” at “Detailed” or “Excellent”
and adjust the “Maximum frame rate” to match your network’s bandwidth. If your
network is slow and you receive “broken” pictures, go to the TCP protocol in
“Connection type” and choose a more appropriate mode of transmission. The images
may suffer a time delay due to a slower connection. The delay will also increase with
added number of users.
Somewhere Between Real-time and Clear Images
If you have a broadband network, set “Fix quality” at ”Normal” or better, rather than
setting “Fix bit rate”. You can also fix the bandwidth according to your actual network
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
17 - User's Manual
- 18 -
www.vivotek.com
audio. Due to the limitation of the bandwidth for 3GPP, only 176x144 video solution will
be supported for cell phone viewing. Select the “Configure for mobile viewing” option
will change the range of other related video settings.
For Best Real-time Video Images
To achieve good real-time visual effect, the network bandwidth should be large enough
to allow a transmission rate of greater than 20 image frames per second. If the
broadband network is over 1 Mbps, set the “Fix bit rate” to 1000Kbps or 1200Kbps, and
set “Fix quality” at the highest quality. The maximum frame rate is 30. If your network
bandwidth is more than 512Kbps, you can fix the bit rate according to your bandwidth
and set the maximum frame rate to 30 fps. If the images vary dramatically in your
environment, you may want to slow the maximum frame rate down to 20 fps in order
to lower the rate of data transmission. This allows for better video quality and the
human eyes cannot readily detect the differences between those of 20, 25, or 30
frames per second. If your network bandwidth is below 512 Kbps, set the “Fix bit rate”
according to your bandwidth and try to get the best performance by fine-tuning with
the “Maximum frame rate”. In a slow network, greater frame rate results in blur images.
Another work-around is to choose “160x120” in the “Size” option for better images.
Video quality performance will vary somewhat due to the number of users viewing on
the network; even when the parameters have initially been finely tuned. Performance
will also suffer due to poor connectivity because of the network’s burst constraint.
Only Quality Images Will Do
To have the best video quality, you should set “Fix quality” at “Detailed” or “Excellent”
and adjust the “Maximum frame rate” to match your network’s bandwidth. If your
network is slow and you receive “broken” pictures, go to the TCP protocol in
“Connection type” and choose a more appropriate mode of transmission. The images
may suffer a time delay due to a slower connection. The delay will also increase with
added number of users.
Somewhere Between Real-time and Clear Images
If you have a broadband network, set “Fix quality” at ”Normal” or better, rather than
setting “Fix bit rate”. You can also fix the bandwidth according to your actual network
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
User's Manual - 18
- 19 -
www.vivotek.com
speed and adjust the frame rate. Start from 30 fps down for best results but not below
15 fps. If the image qualities are not improved, select a lower bandwidth setting.
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
19 - User's Manual
Opening accounts for new users
Protect Network Camera by passwords
The Network Camera is shipped without any password by default. That means
everyone can access the Network Camera including the configuration as long as the IP
address is known. It is necessary to assign a password if the Network Camera is
intended to be accessed by others. Type a new word twice in Ϥ
1
to enable protection.
This password is used to identify the administrator. Then add an account with user
name and password for your friends in Ϥ
2
. Network Camera can provide twenty
accounts for your valuable customers or friends. You may delete some users from Ϥ
3
.
1
2
3
VIVOTEK - A Leading Provider of Multimedia Communication Solutions
User's Manual - 20
Loading...
