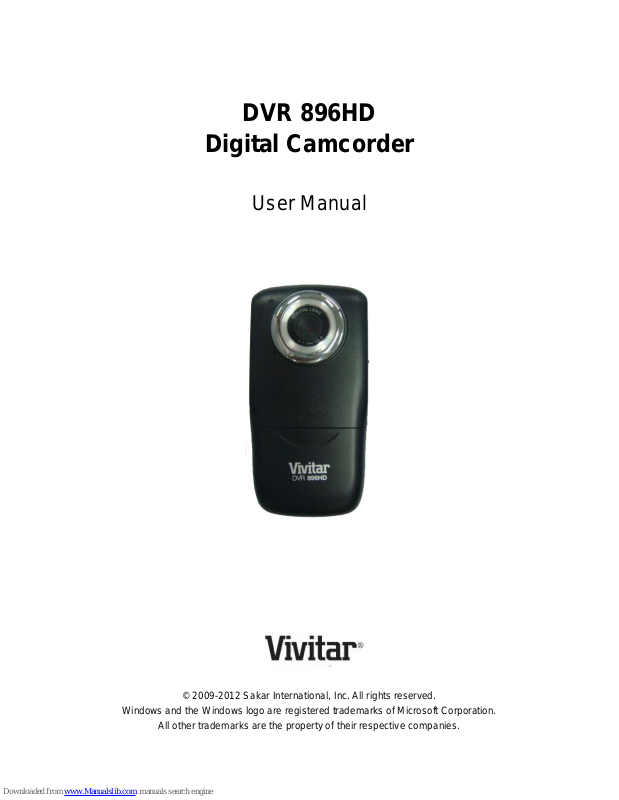

DVR 896HD

Digital Camcorder

User Manual

Windows and the Windows logo are registered trademarks of Microsoft Corporation.

All other trademarks are the property of their respective companies.

Page 2

TABLE OF CONTENTS

Introduction ........................................................................................................................................... 2

What’s Included .................................................................................................................................... 2

Parts of the Camcorder ......................................................................................................................... 3

Initial Camcorder Setup ........................................................................................................................ 4

Main Camcorder Modes ........................................................................................................................ 9

Camcorder Technical Specifications ................................................................................................... 10

Computer System Requirements ........................................................................................................ 11

Powering ON/OFF Your Digital Camcorder ......................................................................................... 12

Changing Camcorder Mode ................................................................................................................ 13

Navigating the Menus ......................................................................................................................... 14

Video Capture Mode ........................................................................................................................... 17

Video Playback Mode ......................................................................................................................... 24

Photo Capture Mode ................................................................................................ ........................... 28

Photo Playback Mode ................................................................................................ ......................... 37

Camcorder Setup Menus .................................................................................................................... 42

Slide Show .......................................................................................................................................... 45

Connecting the Digital Camcorder to a TV or HDTV ........................................................................... 46

Installing the Software ......................................................................................................................... 47

Connecting the Camcorder to the Computer....................................................................................... 48

Getting Photos and Videos from the Camcorder to the Computer ...................................................... 49

Getting Started! ................................................................................................................................... 50

Transferring Images from the Camcorder to the Computer Manually ................................................. 50

Camcorder Maintenance ..................................................................................................................... 52

Sakar Warranty Card .......................................................................................................................... 52

Technical Support ............................................................................................................................... 53

Troubleshooting .................................................................................................................................. 53

Page 3

Introduction

Thank you for purchasing this digital camcorder. Everything you need to take quality digital photos and videos is included with your digital camcorder.

Vivitar makes capturing those special moments as easy as possible. Note:

 Your digital camcorder requires a Micro Memory card (up to 32GB) for normal use. Micro SD

Memory cards are not included and need to be purchased separately.

Important: You must use only a Class 4 Micro SD Memory card or higher.

 This camera is a Plug and Play device. You can download the pictures and videos captured by

your camera without the software by directly accessing the camera’s memory card from your computer. It is recommended however that you install the Vivitar Experience Image Manager Software to enjoy the full Vivitar experience.

Please read this manual carefully first in order to get the most out of your digital camcorder.

What’s Included

1) Digital Camcorder with Built-In USB Connector

2) Lithium Battery

3) TV cable

4) Vivitar Experience Image Manager Software Installation CD

5) AC Charger

Note: Micro SD Memory Card not included.

Page 4

Parts of the Camcorder

1. Power Button

8. LED Light

2. USB Connector

9. HDMI / TV Out

3. USB Control Switch

10. Microphone

4. Shutter/Record Button

11. Micro SD Memory Card Slot

5. Speaker

12. Digital Lens

6. HOME Button

13. Battery Compartment

7. Power Indicator Light

14. LCD Touch Screen

Page 5

Initial Camcorder Setup

INSTALLING AND CHARGING THE BATTERY

To Install the Battery:

1) Slide open the battery compartment cover.

2) Insert the battery properly into your digital camcorder, according to the polarity as shown above.

3) Make sure to insert the lithium battery all the way into the battery compartment.

4) Place the cover on top of the battery and slide back into place to securely close the battery compartment.

To Charge the Battery:

1) Upon first use make sure the battery is fully charged.

2) To charge the battery, insert the battery correctly into the camcorder.

3) Make sure the camcorder is powered off.

4) Proceed with one of the following steps below to charge the battery:

A. Charge the battery using the USB connector and your computer:

Page 6

- Slide the USB switch down to reveal and extend the built-in USB connector.

- Connect the camcorder’s USB connector into the USB port on your computer.

- The charge light turns on when the battery is charging.

- The charge light turns off when the battery is fully charged.

B. Charge the battery using the USB connector and the AC Charger (included):

- Slide the USB switch down to reveal and extend the built-in USB connector.

- Connect the camcorder’s USB connector to the AC Charger and then plug the AC Charger into a power socket.

- The charge light turns on when the battery is charging.

- The charge light turns off when the battery is fully charged.

Note: Some camera features will not work if the battery power level is low. When the battery power is empty the battery icon turns red and ‘Low Battery’ flashes on the LCD screen. The camcorder automatically turns off a few seconds later. The energy status of the power is displayed on LCD as shown below:

Full battery power Medium battery power Low battery power

Page 7

INSTALLING THE MICRO SD MEMORY CARD

IMPORTANT: You must use only a Class 4 SDHC Memory card or higher.

Make sure a Class 4 (or higher) Micro SD card (up to 32GB) has been properly inserted into your camera. Micro SD card not included. To properly install the Micro SD Card:

1) Lift the Micro SD Memory Card cover up and to the side.

2) Push the Micro SD card into the slot in the direction as shown by the SD card icon on the camera. See images below: 1 and 2.

3) Push the Micro SD card until you hear a slight clicking sound. This indicates the memory card has been inserted correctly. See images below: 3 and 4.

4) Place the cover back into place and firmly press on the cover to securely close the Micro SD Memory card slot.

Note:

 After the camcorder is powered on, the Micro SD icon appears on the LCD display. If you

do not see the SD icon on the display, please check if the card was inserted properly.

Page 8

POWERING ON THE CAMERA

Press the POWER button to turn on the camcorder.

After powering the camcorder ON for the first time, the camcorder takes you through the Initial

Camcorder Setup that allows you to select the camcorder’s language, date/time and ViviLink. See

below for details.

SETTING THE CAMCORDER LANGUAGE

1) You will first be prompted to select a language for the camcorder. The Language options appear. Drag up or down to scroll and view the language options.

2) Select the language of your choice and tap SAVE & EXIT to confirm the selection.

3) After selecting a language, you will be asked if you would like to continue with the initial camcorder setup. The following message appears: “Continue with Camera Setup?” Tap “Yes” to continue or “No” to exit the setup.

Note: If you select “No” and decide to leave the camcorder setup, the camcorder will be set to its default settings. These settings can be adjusted at any time manually through the menus of the camcorder.

Page 9

SETTING THE DATE AND TIME

The next step in the initial camcorder setup is to set the date and time on the camcorder.

1) Drag up or down to scroll and adjust the Date and Time options as desired.

2) Set the Date and Time and tap SAVE & EXIT to confirm the setting and move to the next part of the camcorder setup.

SETTING THE VIVILINK DEFAULT OPTION

Once the Date and Time have been set, you will be asked to set the default ViviLink destination for photos and videos taken with your camcorder. The ViviLink technology allows you to quickly and easily upload your camcorder’s photos and videos to the social networks of your choice with the accompanying software application.

1) First you will be asked to choose the default ViviLink social network for Photos. Drag up or down to scroll through and select the ViviLink for Photos option and then tap SAVE & EXIT to confirm your selection.

2) Next you will be asked to choose the default ViviLink social network for Videos. Drag up or down to scroll through and select the ViviLink for Videos option and then tap SAVE & EXIT to confirm your selection.

Congratulations! Your camcorder is now ready to use.

Page 10

Main Camcorder Modes

Video Capture Mode

Use this mode to capture videos with your digital camcorder. This is the default mode when the camcorder is powered ON. To take a video, aim your camcorder as desired and press the Shutter button to start recording. A red, blinking record indicator appears on the LCD screen while the recording is in progress. To stop the recording, press the Shutter button again. The video is automatically saved to your camcorder’s memory card. To access the various menus for the Video Capture Mode, tap MENU on the LCD screen while in the Video Capture Mode.

Photo Capture Mode

Use this mode to capture pictures with your camcorder. After turning on your camcorder, press the HOME button to open the Camcorder Mode options. Tap Camera to enter Photo Capture Mode. To take a picture, aim your camcorder as desired and press the Shutter button. The picture is automatically saved to your camcorder’s memory card. To access the various menus for the Photo Capture Mode, tap MENU on the LCD screen while in the Photo Capture Mode.

Playback Mode (Photos & Videos)

Use this mode to view and manage the videos and photos seen on your camcorder - saved to your Micro SD memory card. After turning on your camcorder, press the HOME button to open the Camcorder Mode options. Tap Playback to enter the Playback Mode for photos

and videos. You can scroll through the photos and videos that you’ve previously taken to

view, edit or delete them as desired. To access the various menus for the Playback Mode for photos and videos, tap MENU on the LCD screen while in the Playback Mode.

Your camcorder has different modes for the various camcorder functions. You can switch modes by pressing the HOME button. The Home menu is shown on the LCD. Tap Camera, Video, or Playback to change your camcorder mode.

Page 11

Camcorder Technical Specifications

Image Sensor

CMOS Sensor

Image Resolution

3264x2448 (8MP 4:3); 3648x2048 (7MP 16:9 HD); 2592x1944 (5MP 4:3); 2048x1536(3MP); 1600x1200 (2MP 4:3); 1920x1080 (2MP 16:9 HD); 640x480 (VGA 4:3)

Video Resolution

1920x1080 (FHD); 1280x720 (HD), 640x480 (VGA), 320x240 (QVGA)

File Format

JPEG (Photo), AVI (Video)

External Memory

Micro SD/MMC 128MB-32GB

LCD Display

2.2 Inch Full Touch Screen

Lens Focus

f=7.0mm

Zoom

4X Digital Zoom

Exposure

-3.0EV ~ +3.0EV

White Level (AWB)

Auto, Daylight, Cloudy, Fluorescent, Incandescent

ISO

Auto, 100, 200, 400

Scene

Auto, Scenery, Portrait, Night Scenery, Night Portrait, High Sensitivity, Beach

Language

English, French, Spanish, Portuguese, German, Italian Russian, Polish, Greek

Self-Timer

2, 5 or 10 second delay, Off

Anti-Shake

Yes

Print Photos

Yes

Multi Shot (Burst)

Yes

Auto Power Off

1 minute, 3 minutes, 5 minutes, Disable (Off)

Interface

USB 2.0 High Speed

System Requirements

Windows XP (SP 3), Vista (SP1) and Windows 7 ; Mac OSX v10.5.x and above

Battery

Li-ion Rechargeable Battery

Working Temperature

0~40C

Page 12

Computer System Requirements

To be able to download photos and videos to your computer using the Vivitar Experience Image Manager Software, you will need the following minimum configuration:

WINDOWS OS

 MICROSOFT® Windows XP with Service Pack 3, Windows Vista with Service Pack 1 or Windows 7  Pentium® 4 processor (or above)

 1 GB RAM, 250 MB available hard disk space

 16-bit Color monitor, 1024 X 768 recommended screen resolution  CD-ROM Drive  QuickTime® 6 or higher  MICROSOFT ® Internet Explorer 7 or higher  Windows Media Player 10 or higher  DirectX 9 or higher

 Internet connection required

MACINTOSH OS

 Intel processor running MACINTOSH OS X v10.5.x or later  1 GB RAM, 250 MB available hard disk space  Display: 1024 x 768 or higher-resolution monitor  QuickTime® 6 or higher  CD-ROM Drive  Internet connection required

Note: Make sure the latest compatible Adobe® Flash® Player is installed on your computer.

Page 13

Powering ON/OFF Your Digital Camcorder

 Make sure the battery is installed properly and fully charged.  Make sure the Micro SD Memory card has been installed properly into your camcorder.

Micro SD Memory Card up to 32GB - SD Card not included.

POWERING THE CAMCORDER ON

Press the Power button to turn your camcorder ON. The camcorder will be in Video Capture Mode to start.

POWERING THE CAMCORDER OFF

While the camcorder is on, you can press the Power button again at any point to turn your camcorder OFF. You will see a “Goodbye” splash screen and then the camcorder will power off completely.

Alternatively, you can press the HOME button and then tap the Power Off icon. Tap ‘Yes’ to select to power off the digital camcorder or ‘No’ to return to the Home Main Menu Screen and continue using your camcorder.

AUTO POWER OFF – POWER SAVING

Your digital camcorder also has an Auto Power Off feature that automatically turns off your camcorder after a specific period of time that your camcorder is left idle. The Auto Power Off time can be set from the Setup/Auto Off menu settings.

Page 14

Changing Camcorder Mode

Your camcorder has three main modes:

1) Video Capture Mode - Use this mode to capture videos with your camcorder.

2) Photo Capture Mode - Use this mode to capture photos with your camcorder.

3) Playback Mode (for photos and videos) - Use this mode to view the photos and videos you

have already taken with your camcorder.

When the digital camcorder is first powered ON, the Video Capture Mode will be active. The icons that appear on the LCD screen are the best default settings so that you can begin to capture and enjoy clear quality videos and photos.

To change the active digital camcorder mode:

 Make sure the digital camcorder is powered ON.  Press the HOME button.  Tap one of the following icons to select the active camcorder mode:

Camera

Video

Playback

When in Video Capture Mode, this icon will display on the top-left corner of the LCD display

When in Photo Capture Mode, this icon will display on the top-left corner of the LCD display

When in Playback Mode, this icon will display on the top-left corner of the LCD display

Page 15

Navigating the Menus

Camera

Tap to enter Photo Capture Mode

Video

Tap to enter Video Capture Mode

Playback

Tap to enter Playback Mode

Setup

Tap to enter Camcorder General Settings

Slide Show

Tap to begin Photo Slide Show

Power Off

Tap to Power off your digital camcorder

You camcorder includes the following menus:

 Home Menus  Camcorder Mode Menus  Camcorder Setup Menus

HOME MENUS

The Home screen menu allows you quick access to the camcorder modes and settings as well as to the photo slide show and the power off features.

1) Press the HOME button.

2) The following menu options appear on the Home screen:

Page 16

CAMCORDER MODE MENUS

Each camcorder mode has a set of menus specific to that mode. To access and use the camcorder mode menus:

1) Enter the Main Menu Screen from Video Capture, Photo Capture or Playback Mode:

 Tap MENU as seen on the bottom left of the LCD touch screen to open the menus for the

current mode.

2) Select a Main Menu Option:

 Drag up or down to scroll and view the Main Menu options.  To select a menu, tap the desired menu icon to open the various options for that menu.

Note: Tap Return to exit the Main Menu screen without selecting a menu, and return to the current mode.

3) Select a Sub-Menu Option:

 Once you have selected the menu option, drag up or down to scroll and highlight the desired

sub-menu option.

 Tap SAVE & EXIT to confirm and select the highlighted option.

4) Return to the Main Menu Screen:

 Once you have confirmed your selection, the Main Menu appears.  Tap another menu icon to select and open the menu item or tap Return to exit and return

to the current mode.

5) The selected option icon appears on the touch LCD screen.

Note:

 Changes made to these options will remain until you decide to change them at a later time or

restore the camcorder’s default factory settings.

 Some menu options are single-use functions that are not remembered by the camcorder and do

not display an icon on the LCD screen.

For more details regarding specific menu options, please refer to the menu information listed for each mode.

Page 17

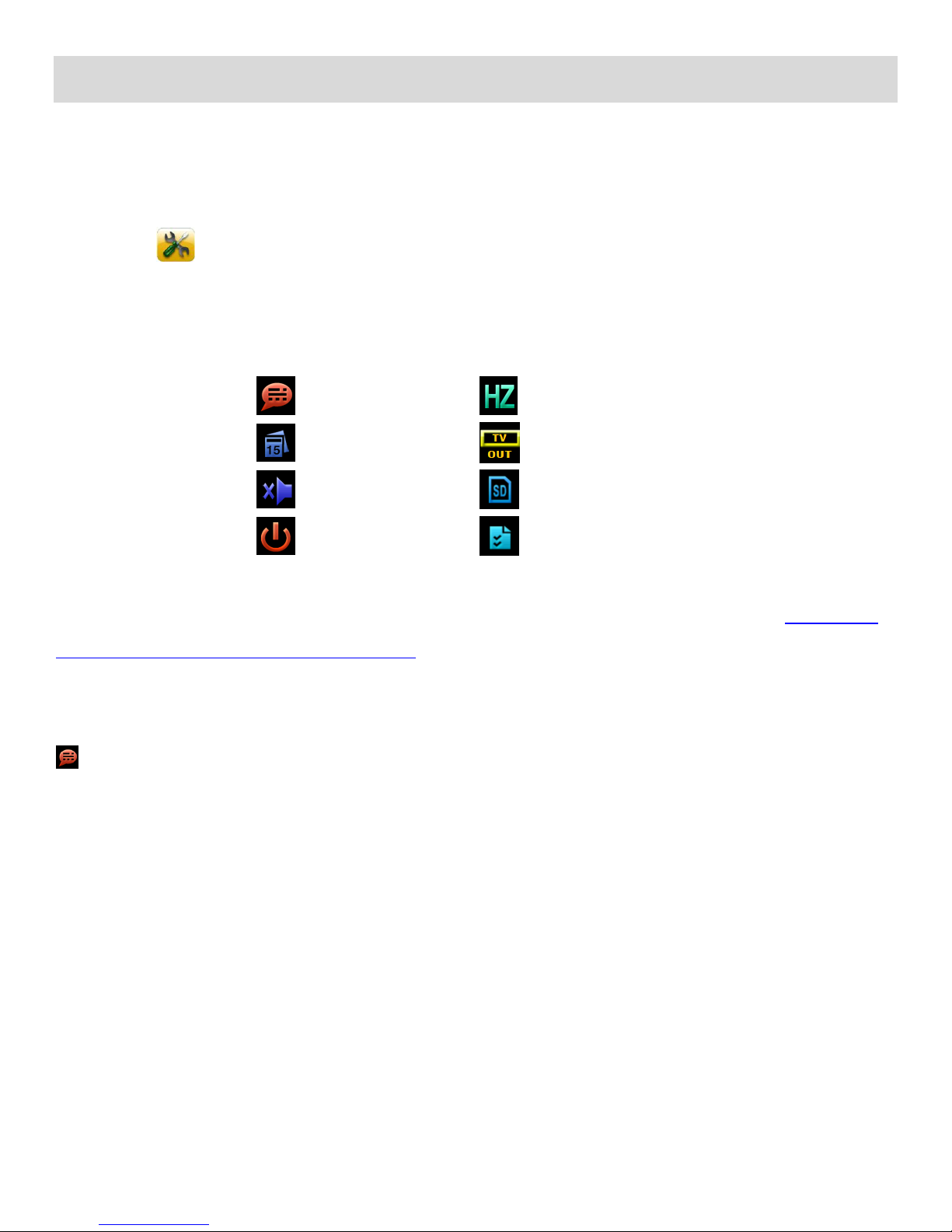

CAMCORDER SETUP MENUS

The general settings for your digital camcorder can easily be changed at any time.

1) Press the HOME button to open the Home Menu options.

2) Tap the Setup icon to enter the menu options for your camcorder general settings.

3) Select a Setup Option:

 Drag up or down to scroll and view the main Setup Menus.  To select a Setup Menu, tap the desired menu icon. The various options for that menu appear.

Note: Tap Return to exit the Setup screen without selecting a menu, and return to the Home Menu screen.

4) Select a Setup Sub-Menu Option:

 Once you have selected the Setup menu option, drag up or down to scroll and highlight the

desired sub-menu option.

 Tap SAVE & EXIT to confirm and select the highlighted option.

5) Return to the Setup Main Menu Screen:

 Once you have confirmed your selection, the Setup Main Menu appears.  Tap another menu icon to select and open the menu item or tap Return to exit and return

to the Home Menu screen.

Note: Changes made to these options will remain until you decide to change them at a later time or restore the camcorder’s default factory settings.

For more details regarding specific camcorder setup menus, please refer to the ‘Camcorder Setup

Menus’ section of this manual.

Page 18

Video Capture Mode

The Video Capture Mode allows you to capture videos with your digital camcorder.

When the camcorder is first powered ON, the camcorder will be in Video Capture Mode.

TAKING A VIDEO

1) While in Video Capture Mode use the LCD display to direct the camcorder at the scene you would like to capture.

2) You can magnify your subject up to 4 times using the digital zoom while capturing your photos and recording your videos. Tap the T (Zoom In) or W (Zoom Out) on the right side of the LCD screen to zoom in and out. The following Digital Zoom Indicator appears on the right side of the LCD screen:

The zoom indicating bar moves up when you Zoom In (T) and moves down when you Zoom Out (W).

3) Press the Shutter button to START the video capture.

4) A red, blinking icon appears at the top of the LCD screen indicating that the recording is in progress. On the top right of the LCD screen, the recording time appears, indicating the amount of elapsed time as the video is being captured.

5) To STOP the video record, press the Shutter button again.

6) The video is automatically saved to the camcorder’s Micro SD memory card.

Page 19

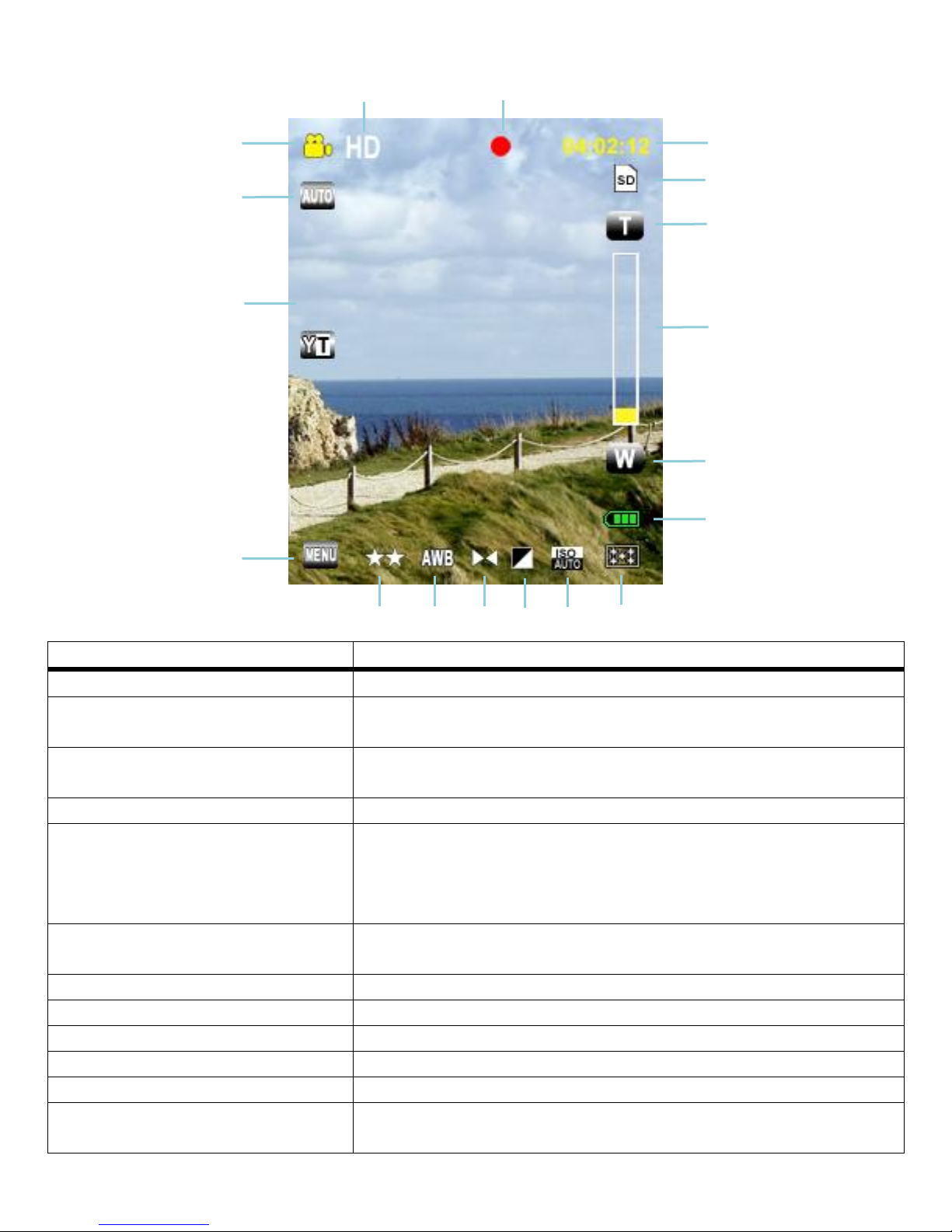

VIDEO CAPTURE MODE: LCD SCREEN ICONS

ICON

FUNCTION

VIDEO CAPTURE MODE

Indicates the Camcorder is in Video Capture Mode

SCENE

Tap to open the Scene Menu options (Auto, Scenery, Night Scenery, Portrait, Night Portrait, Beach, High Sensitivity)

VIVILINK

Tap to open the ViviLink for Videos Menu options (YouTube, Photobucket, Flickr, None)

Tap to open the Video Capture Mode Menus

MEMORY CAPACITY

Standby Mode: Indicates the record time available to capture videos

according to the selected resolution, quality and size of the installed memory card

Record Mode: Displays the elapsed recording time

MEMORY CARD

Indicates the memory card has been properly installed and is recognized by the camcorder

ZOOM IN

Tap to Zoom In

ZOOM INDICATOR

Displays the current, selected zoom (up to 4x Digital Zoom)

ZOOM OUT

Tap to Zoom Out

BATTERY LEVEL

Indicates the current camcorder battery level (Full, Medium, Low)

RESOLUTION

Indicates the selected resolution (FHD, HD, VGA, QVGA)

RECORD INDICATOR

Indicates the video recording is in progress (appears and flashes only while recording)

1 2 3 4 5

6 7 8

Page 20

IMAGE QUALITY

Indicates the selected Image Quality (Super Fine, Fine, Normal)

AWB (WHITE BALANCE)

Indicates the selected White Balance (Auto, Daylight, Cloudy, Fluorescent, Incandescent)

IMAGE SHARPNESS

Indicates the selected Image Sharpness (Sharp, Normal, Soft)

LIGHT EXPOSURE

Indicates the selected Light Exposure (-3.0EV ~ +3.0EV)

ISO

Indicates the selected ISO (Auto, 100, 200, 400)

METERING

Indicates the selected Metering (Center, Multi, Spot)

Scene

Color Effect

Resolution

Sharpness

Quality

Exposure

ViviLink

ISO

White Level

Metering

Auto (Default)

Night Portrait

Scenery

High Sensitivity

Portrait

Beach

Night Scenery

VIDEO CAPTURE MODE: MENUS

While in Video Capture Mode, tap MENU to view the following Video Capture Mode Menu options:

REMINDER:

For details how to access and select the menu options, please refer to the ‘Navigating the Menus:

CAMCORDER MODE MENUS’ section of the user manual.

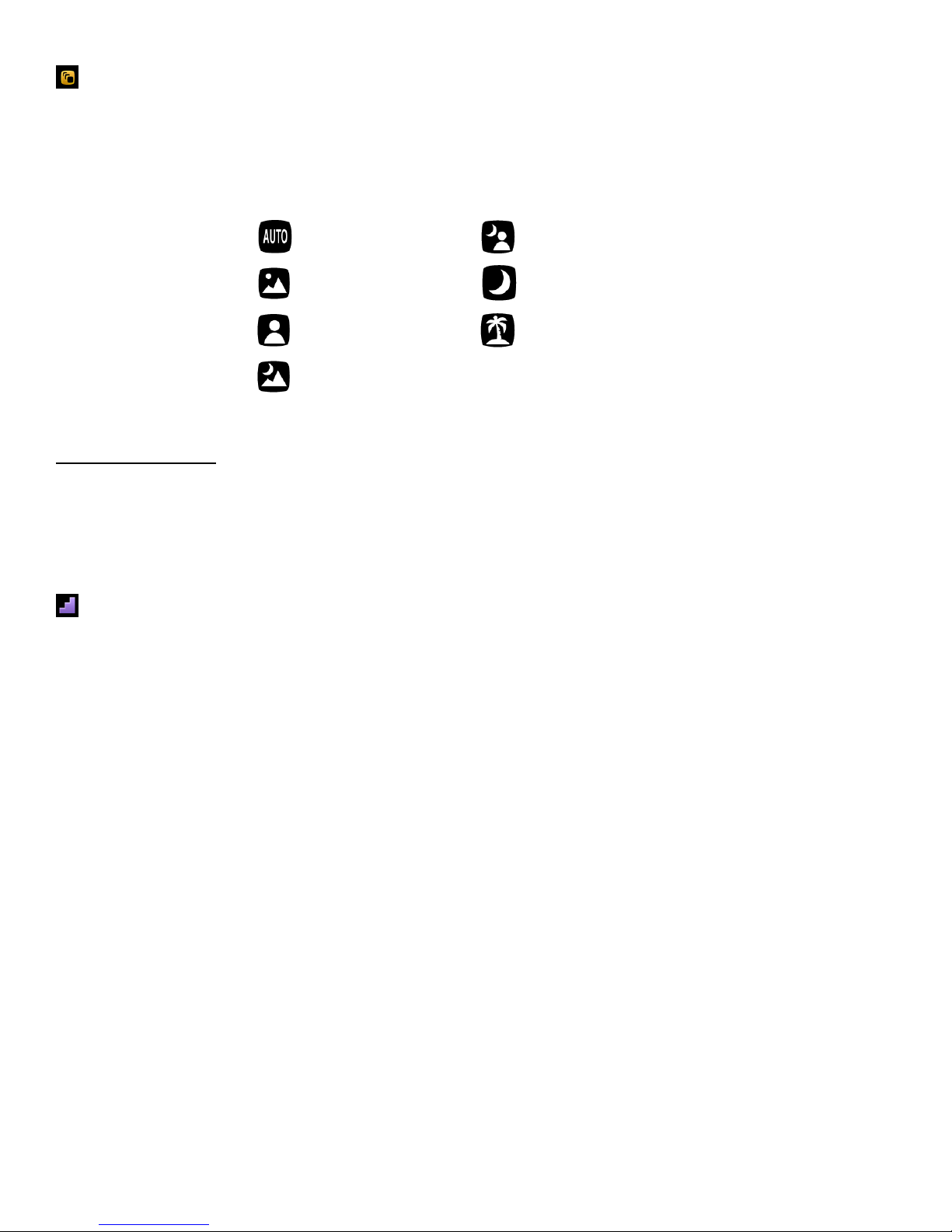

Scene Menu

The Scene Menu allows you to choose scene settings that let your camcorder to adapt properly to your current environment. The Scene Menu Options include:

Page 21

Note:

FHD

1920x1080

1280x720 (Default)

VGA

640x480

QVGA

320x240

Normal

Fine (Default)

Super Fine

QUICK FUNCTION: The selected Scene menu icon appears on the left side of the LCD screen (below the Video Capture Mode icon) during preview/stand-by mode. To quickly access the Scene Menu options and change as desired, simply tap this icon.

Resolution Menu

The Resolution menu allows you to choose the desired size of the images taken by your camcorder. Keep in mind that images with a higher resolution will also take up more of your camcorder’s memory. The Resolution Menu Options include:

Quality Menu

The Quality menu allows you to select the desired quality level of the images taken by your camcorder. Keep in mind that images with a higher image quality level will also take up more memory on your camcorder. The Quality Menu Options include:

ViviLink Menu (for Videos)

Page 22

The ViviLink for Videos Menu Options include:

YouTube

Photobucket

Flickr

None

Auto (Default)

Fluorescent

Daylight

Incandescent

Cloudy

Note:

 QUICK FUNCTION: The selected ViviLink icon appears on the left side of the LCD screen

during preview/stand-by mode. To quickly access the ViviLink Menu options and change as desired, simply tap this icon.

 The ViviLink feature is deactivated by default. A ViviLink destination will only be assigned to a

photo or video if you have selected the desired ViviLink prior to capturing the image. The default selection for ViviLink can be set during the initial camcorder setup or manually set from this menu.

 Once you have captured your image, the selected ViviLink destination icon appears on the

captured image when viewed in Playback Mode. The captured image’s selected ViviLink can be changed using the ViviLink Menu in the Playback Mode.

White Level Menu

Using the White Level feature your camcorder can adjust to the coloring of the captured images depending on the type of light source in the current environment. Properly adjusting the White Level setting to match your current environment allows the camcorder to properly balance the colors in the images that are taken with your camcorder. The White Level Menu Options include:

Page 23

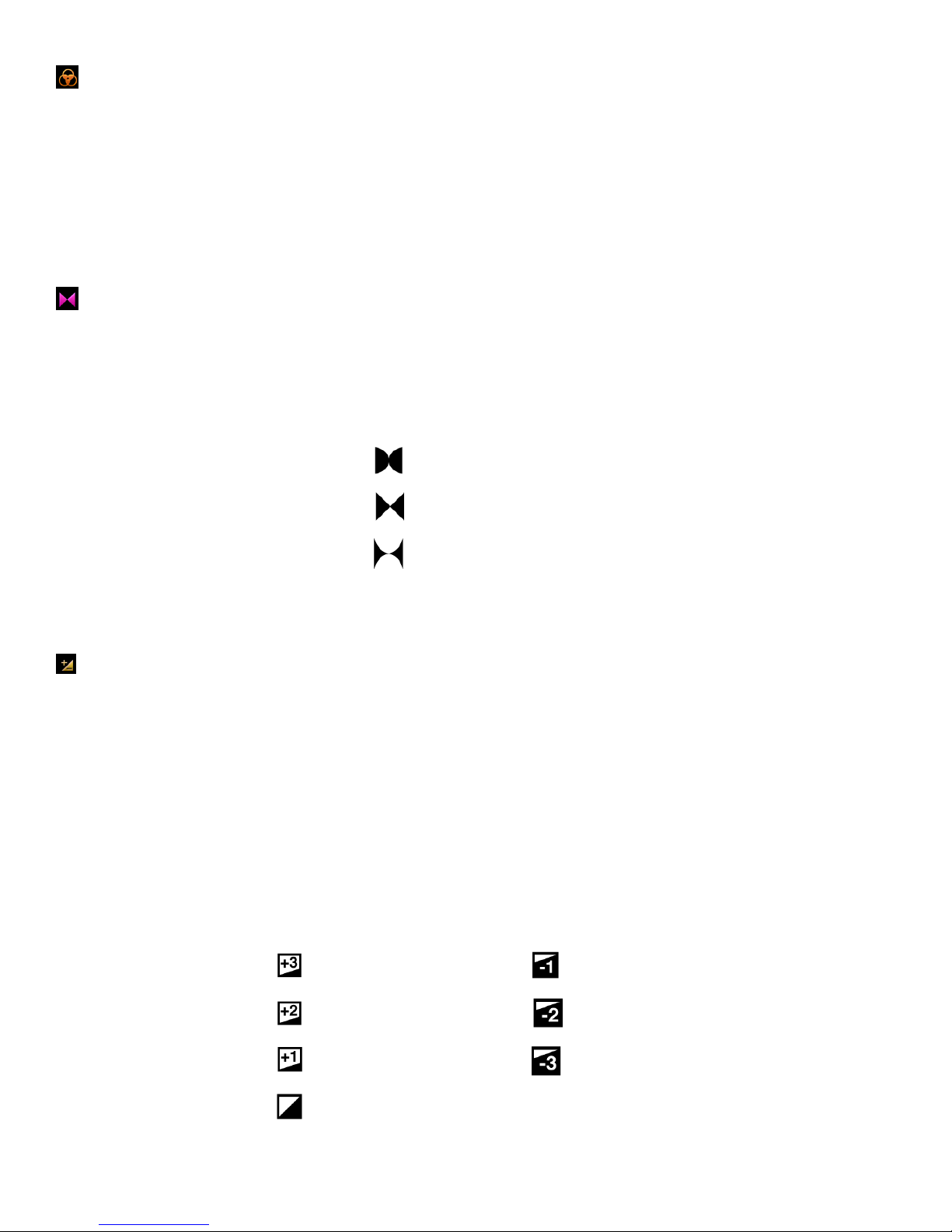

Color Effect Menu

Soft

Normal (Default)

Sharp

+3 Lightest

-1 Dark

+2 Lighter

-2 Darker

+1 Light

-3 Darkest

0 Normal (Default)

You can choose to add a color effect to the images taken with your camcorder. The Color Effect Menu Options include:

Standard (Default), Sepia, Monochrome, Vivid

Sharpness Menu

You can set the level of sharpness in the images taken with your camcorder. The sharpness level dictates if the edges of objects in the image are more or less distinct. The Sharpness Menu Options include:

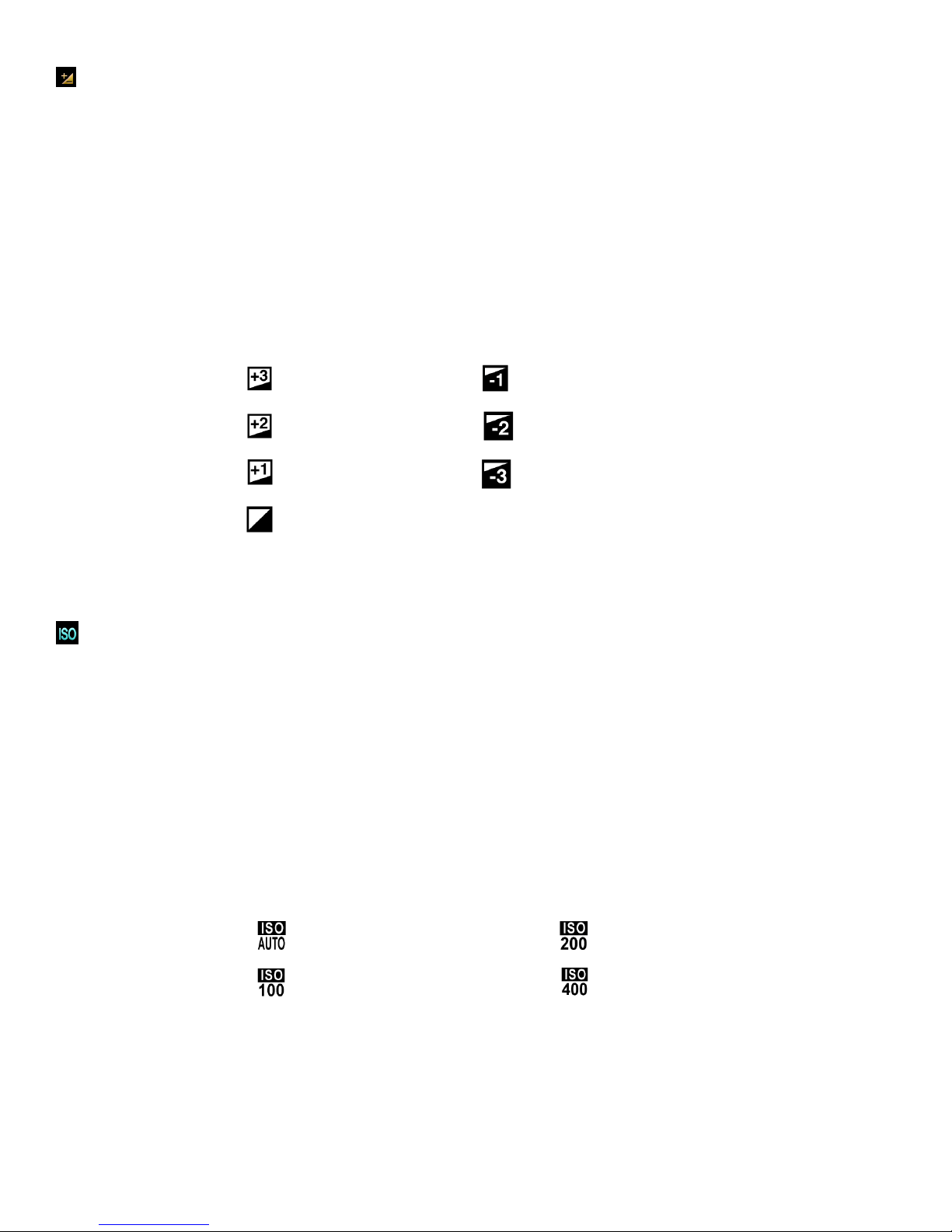

Exposure Menu

The Exposure setting helps you control the amount of light that enters your camcorder’s lens. This setting should be adjusted when the environment is lighter or darker than normal.  When the environment has more light than is needed, reduce the exposure setting (by using the

negative - count) to reduce the amount of light allowed into the lens by your camcorder.

 If the environment has less light (darker) than is needed, increase the exposure setting (by using

the positive + count) to increase the amount of light allowed into the lens by your camcorder.

The Exposure Menu Options include:

Page 24

ISO Menu

ISO Auto (Default)

ISO 200

ISO 100

ISO 400

Center

Multi (Default)

Spot

The ISO menu allows you to set the level of sensitivity that your camcorder has to light in the surrounding environment. When the ISO level is increased, the image sensor in your camcorder will be more sensitive to light and allow you to capture images in lower-light situations. The higher sensitivity to light however, may reduce the quality of the images that are taken. When the ISO is reduced, the image sensor in your camcorder will be less sensitive to light and will optimize the image quality in environments with bright lighting. The ISO Menu Options include:

Metering Menu

The Metering setting will affect how your camcorder focuses when capturing an image. Depending on your selection, the camcorder will be more sensitive to focusing on particular areas in the display and adjust the image color and lighting accordingly. Center – Averages the light metered from the entire frame, but giving greater weight to the subject in the center. Multi – Used in standard conditions the camcorder divides and adjusts the settings of the image into several zones for light metering such as complex light conditions, position of subject, brightness, background, direct light and scenes. Spot – Meters the area within the spot point frame at the center of the LCD to set the exposure on the subject in the center of the monitor. The Metering Menu Options include:

Page 25

Video Playback Mode

The Playback Mode allows you to review and edit photos and videos that you’ve already taken with

you camcorder.

 When you first turn on the camcorder, the camcorder will be in Video Capture Mode by default.  Press the HOME button to open the Camcorder Mode options.

 Tap the Playback icon to enter the Playback Mode for photos and videos.  The latest captured image appears on the LCD screen.

If there are no images stored, a message (No Image) appears.

PLAYING VIDEOS ON YOUR CAMCORDER

1) Select your Video:

 Once in Playback Mode, view each of your captured images by sliding your finger across the

LCD touch screen.

- Slide your finger towards the right to see the next image.

- Slide your finger towards the left to see the previous image. Scroll through the images on your camcorder’s memory card until you find the video you would like to view.

 Each captured image (video and photo) is displayed on the LCD screen.

Videos appear with an ‘AVI’ icon on the top left side of the LCD screen.

2) Play your Selected Video:

 PLAY: Tap the Play icon in the center of the LCD screen to START playing the video.

While the Video is playing, all the icons on the LCD disappear. The elapsed playing time appears on the bottom right of the LCD screen.

 PAUSE: Tap the LCD screen to PAUSE the video and tap again to continue playing and

pausing.

 STOP: To fully STOP the video and restore the icons to the LCD, press the Shutter button.

Page 26

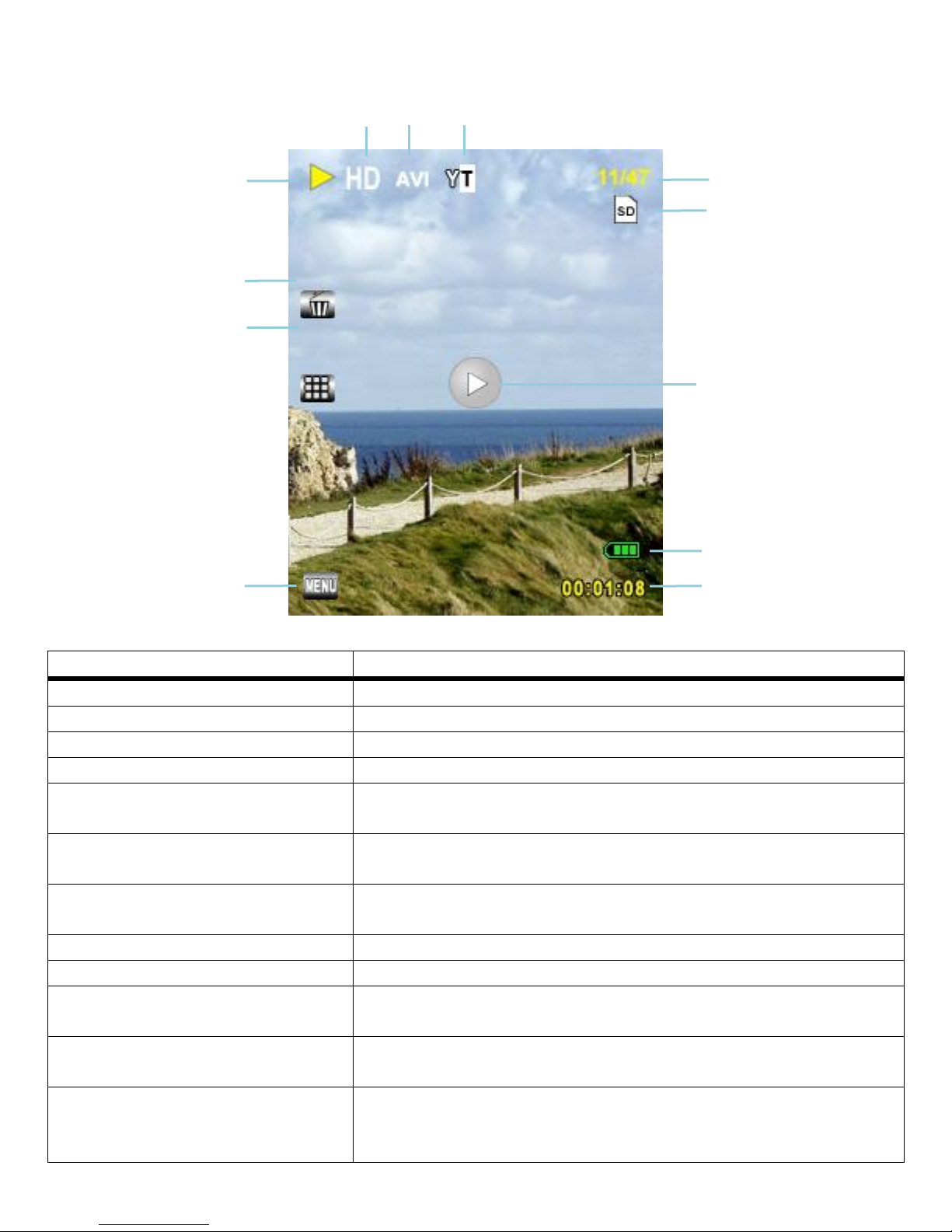

VIDEO PLAYBACK MODE: LCD SCREEN ICONS

ICON

FUNCTION

PLAYBACK MODE

Indicates the Camcorder is in Playback Mode

DELETE (SINGLE IMAGE)

Tap to open the Delete Image Menu options

THUMBNAIL VIEW

Tap to open the Thumbnail View for Videos and Photos

Tap to open the Video Playback Mode Menus

NUMBER OF IMAGES

Indicates the sequence number of the current file / total number of captured images

MEMORY CARD

Indicates the memory card has been properly installed and is recognized by the camcorder

PLAY

Tap to play and pause the selected video Note: To stop the playing video press the Shutter button

BATTERY LEVEL

Indicates the camcorder battery level (Full, Medium, Low)

RECORDED TIME

Indicates the length of the selected video

RESOLUTION

Indicates the resolution in which the video was captured (HD, VGA, QVGA)

FILE TYPE

Indicates the file type of the image Captured Videos are saved as AVI files

VIVILINK

Indicates which ViviLink is assigned to the video (YouTube, Photobucket, Flickr, None) Note: The ViviLink can be changed using the Playback Menu

1 2 3 4 5

7 8 6 9

Page 27

THUMBNAIL VIEW

Delete

ViviLink

Easily navigate and select the video or photo you wish to view by using the Thumbnail View. The images on your camcorder will be displayed in a 3 X 3 matrix where you can scroll and select images from the thumbnails.

1) Press the HOME button and tap the Playback icon to enter the Playback Mode.

2) Tap the Thumbnail View icon on the LCD to open the Thumbnail View. All images (videos and photos) saved on your on your Micro SD Memory card appear in the

Thumbnail View.

- Video thumbnails appear with a ‘VIDEO’ filmstrip icon.

- Photos appear with an ‘IMAGE’ icon.

3) Drag left or right to scroll through the Thumbnail images.

4) Tap a Thumbnail to select and enlarge the image to full screen size.

5) Once the selected video is full size you can play and view the video.

VIDEO PLAYBACK MODE: MENUS

The following are the menus that appear in your digital camcorder’s Video Playback Mode:

REMINDER: For details how to access and select the menu options, please refer to the ‘Navigating the Menus:

CAMCORDER MODE MENUS’ section of the user manual.

Delete (Selected File)

The Delete menu option allows you to delete only the selected image.

1) Press the HOME button and tap the Playback icon to enter the Playback Mode.

2) Select a video.

3) To delete only the selected video:

Page 28

 Tap MENU and tap Delete from the Video Playback Menu options.

YouTube

Photobucket

Flickr

None

Alternatively, tap the Delete icon located on the left side of the LCD screen.

 The ‘Delete Current’ window appears.

- Tap ‘Yes’ to automatically delete the selected video and return to the Playback Mode Menu screen.

- Tap ‘No’ to return to the Playback Mode Menu screen without deleting the selected video.

Note:

 QUICK FUNCTION: The Delete icon appears on the left side of the LCD screen (below the

Playback Mode icon). To quickly access the Delete Menu options simply tap this icon .

 Caution: Please use this Delete feature with care. Once the image is deleted it is permanently

removed from your Micro SD memory card. Please make sure that you only use this feature once you have downloaded and saved the images you wish to your computer.

 To delete all images (both videos and photos) select ‘Format’ from the Setup Menus.

ViviLink for Videos Menu

The ViviLink technology allows you to quickly and easily upload your camcorder’s photos and videos to the social networks of your choice with the accompanying Vivitar Experience Image Manager application. Using the ViviLink menu in the Playback Mode, you can either add a new ViviLink to your captured image or change the existing ViviLink. The ViviLink for Videos Menu Options include:

Page 29

Photo Capture Mode

The Photo Capture Mode allows you to capture pictures with your digital camcorder. After powering on your digital camcorder, by default the Video Capture Mode displays.

To enter Photo Capture Mode:

 Press the HOME button.  Tap the Camera icon to enter Photo Capture Mode.

TAKING A PICTURE

1) While in Photo Capture Mode, use the LCD display to direct the camcorder at the scene you would like to capture.

The zoom indicating bar moves up when you Zoom In (T) and moves down when you Zoom Out (W).

3) Press the Shutter button to take the picture.

4) The picture is automatically saved to the camcorder’s Micro SD memory card.

Page 30

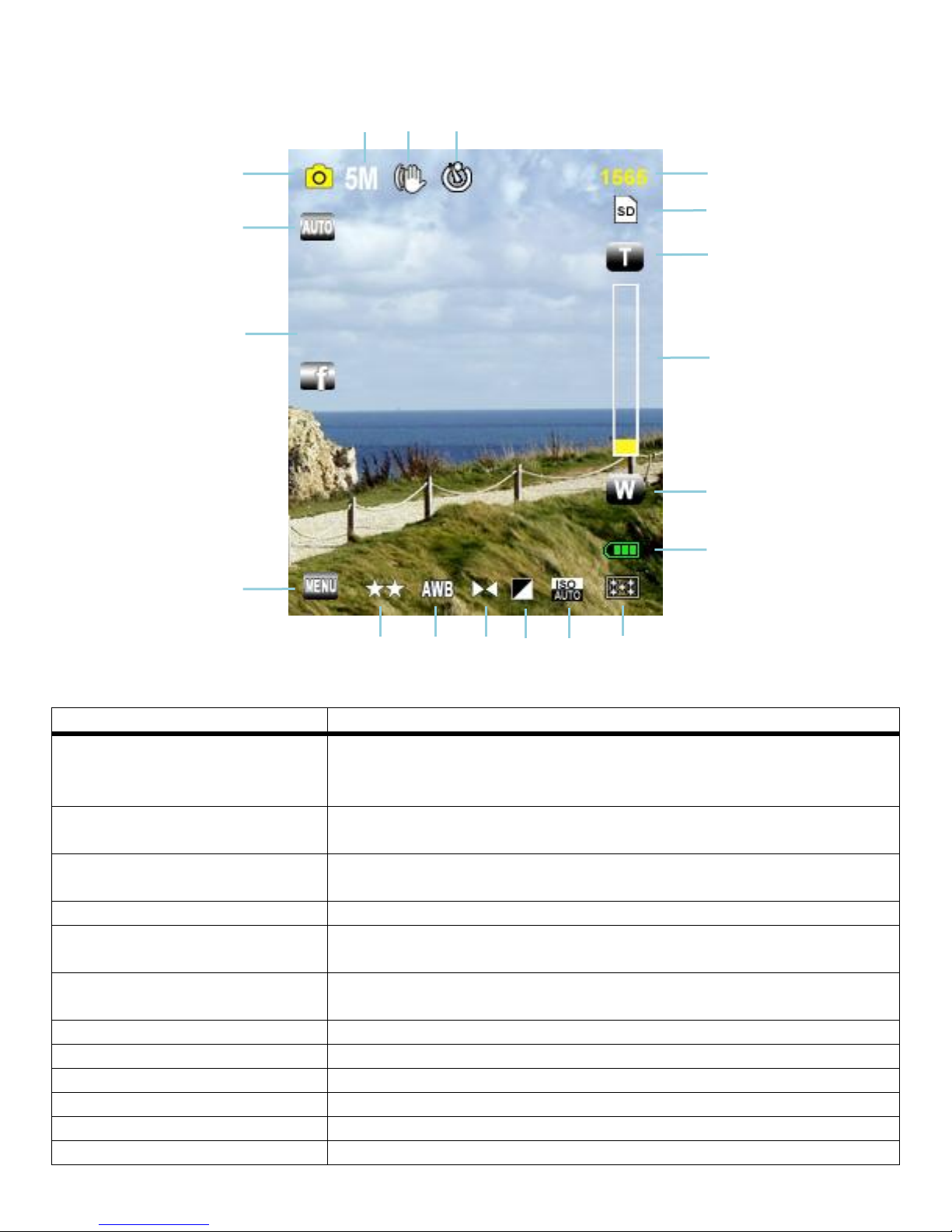

PHOTO CAPTURE MODE: LCD SCREEN ICONS

ICON

FUNCTION

PHOTO CAPTURE MODE

Indicates the Camcorder is in Photo Capture Mode Note: When Multi Shot is selected, the Photo Capture Mode icon changes to the Multi Shot icon

SCENE

Tap to open the Scene Menu options (Auto, Scenery, Portrait, Night Scenery, Night Portrait, High Sensitivity, Beach)

VIVILINK

Tap to open the ViviLink for Photos Menu options (Facebook, Twitgoo, Twitpic, Photobucket, Flickr, MySpace, Picasa Albums, None)

Tap to open the Photo Capture Mode Menus

MEMORY CAPACITY

Indicates the amount of photos available to capture according to the

selected resolution, quality and size of the installed memory card

MEMORY CARD

Indicates the memory card has been properly installed and is recognized by the camcorder

ZOOM IN

Tap to Zoom In

ZOOM INDICATOR

Displays the current, selected zoom (up to 4x Digital Zoom)

ZOOM OUT

Tap to Zoom Out

BATTERY LEVEL

Indicates the camcorder battery level (Full, Medium, Low)

RESOLUTION / IMAGE SIZE

Indicates the selected resolution (8M, 7MHD, 5M, 3M, 2M, 2MHD, VGA)

ANTI-SHAKE

Indicates that the Anti-Shake feature is ON or OFF

1 2 3

6 7 8 11

Page 31

SELF-TIMER

Indicates that the Self-Timer feature has been selected This icon displays the chosen delay time (2 seconds, 5 seconds, or 10 seconds, Off)

IMAGE QUALITY

Indicates the selected Image Quality (Super Fine, Fine, Normal)

WHITE LEVEL

Indicates the selected White Balance (Auto, Daylight, Cloudy, Fluorescent, Incandescent)

IMAGE SHARPNESS

Indicates the selected Image Sharpness (Sharp, Normal, Soft)

LIGHT EXPOSURE

Indicates the selected Light Exposure (-3.0EV ~ +3.0EV)

ISO

Indicates the selected ISO (Auto, 100, 200, 400)

METERING

Indicates the selected Metering (Center, Multi, Spot)

Scene

Color Effect

Image Size

Multi Shot

Quality

Sharpness

ViviLink

Exposure

Self-Timer

ISO

Anti-Shake

Metering

White Level

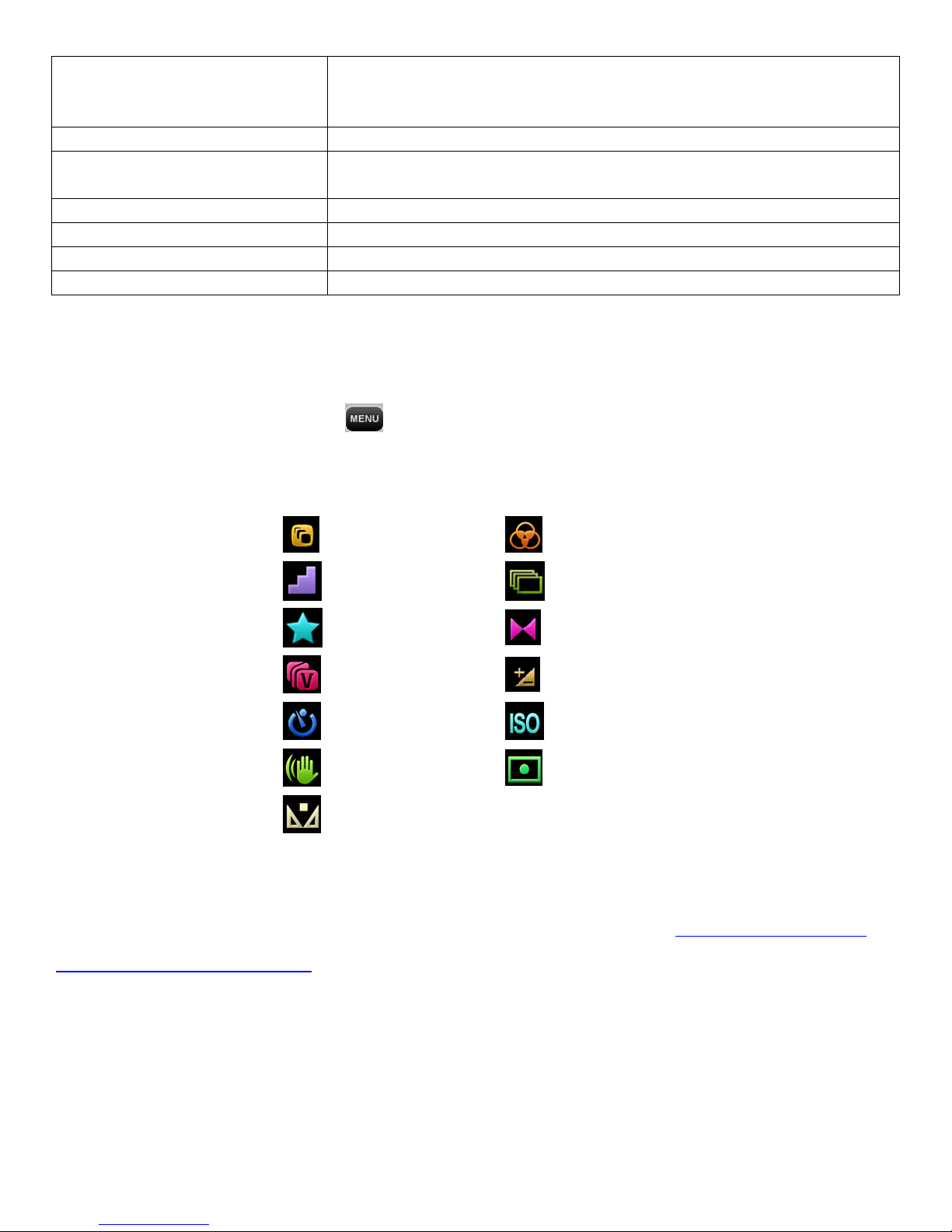

PHOTO CAPTURE MODE: MENUS

While in Photo Capture Mode, tap MENU to view the following Photo Capture Mode Menu options:

REMINDER: For details how to access and select the menu options, please refer to the ‘Navigating the Menus:

CAMCORDER MODE MENUS’ section of the user manual.

Page 32

Scene Menu

Auto (Default)

Night Portrait

Scenery

High Sensitivity

Portrait

Beach

Night Scenery

3264x2448

7MHD

3648x2048

2592x1944

2048x1536 (Default)

1600x1200

2M HD

1920x1080

VGA

640x480

The Scene Menu allows you to choose scene settings that let your camcorder to adapt properly to your current environment. The Scene Menu Options include:

Note: QUICK FUNCTION: The selected Scene menu icon appears on the left side of the LCD screen (below

the Photo Capture Mode icon) during preview/stand-by mode. To quickly access the Scene Menu options and change as desired, simply tap this icon.

Image Size (Resolution) Menu

The Image Size menu allows you to choose the desired size of the images taken by your camcorder. Keep in mind that images with a higher resolution will also take up more of your camcorder’s memory. The Image Size Menu Options include:

Page 33

Quality Menu

Normal

Fine (Default)

Super Fine

Facebook

Flickr

Twitgoo

MySpace

Twitpic

Picasa Albums

Photobucket

None

ViviLink Menu (for Photos)

Note:

 QUICK FUNCTION: The selected ViviLink icon appears on the left side of the LCD screen

(below the LED Light icon) during preview/stand-by mode. To quickly access the ViviLink Menu options and change as desired, simply tap this icon.

 The ViviLink feature is deactivated by default. A ViviLink destination will only be assigned to a

photo or video if you have selected the desired ViviLink prior to capturing the image. The default selection for ViviLink can be set during the initial camcorder setup or manually set from this menu.

 Once you have captured your image, the selected ViviLink destination icon appears on the

captured image when viewed in Playback Mode. The captured image’s selected ViviLink can

be changed using the ViviLink Menu in the Playback Mode.

Page 34

SELF-TIMER MENU

Activates the Anti-Shake feature (Default)

OFF

Disables the Anti-Shake feature

Auto (Default)

Fluorescent

Daylight

Incandescent

Cloudy

The Self-Timer menu allows you to set a delay between the time that the camcorder’s Shutter button is pressed and the actual capture of the picture.

This is an optimal feature if you don’t just want to take the picture but would also like to be in the

picture yourself. Set the desired Self-Timer delay, press the Shutter button on your camcorder and position yourself in front of the camcorder as desired. The Self-Timer Menu Options include:

2 seconds 5 seconds 10 seconds Off (Default)

Anti-Shake Menu

The Anti-Shake feature reduces image corruption that can be caused by movement of the camcorder while capturing the image. The Anti-Shake is ‘On’ by default. The Anti-Shake Menu Options include:

White Level Menu

Page 35

Color Effect Menu

Activates the Continue Shot feature

OFF

Disables the Continue Shot feature (Default)

Soft

Normal (Default)

Sharp

You can choose to add a color effect to the images taken with your camcorder. The Color Effect Menu Options include:

Standard (Default) Sepia Monochrome Vivid

Multi Shot Menu

When enabled, the Multi Shot feature allows you to take five rapid snapshots in a row with a single click of the Shutter button. This feature can be effective when trying to capture a particular moment in a sporting event or other scenes with quick movements. The Multi Shot Menu Options include:

Sharpness Menu

Page 36

Exposure Menu

+3 Lightest

-1 Dark

+2 Lighter

-2 Darker

+1 Light

-3 Darkest

0 Normal (Default)

ISO Auto (Default)

ISO 200

ISO 100

ISO 400

The Light Exposure setting helps you control the amount of light that enters your camcorder’s lens. This setting should be adjusted when the environment is lighter or darker than normal.  When the environment has more light than is needed, reduce the exposure setting (by using the

negative - count) to reduce the amount of light allowed into the lens by your camcorder.

 If the environment has less light (darker) than is needed, increase the exposure setting (by using

the positive + count) to increase the amount of light allowed into the lens by your camcorder.

The Exposure Menu Options include:

ISO Menu

Page 37

Metering Menu

Center

Multi (Default)

Spot

Page 38

Photo Playback Mode

The Playback Mode allows you to review and edit photos and videos that you’ve already taken with

you camcorder.

 When you first turn on the camcorder, the camcorder will be in Video Capture Mode by default.  Press the HOME button to open the Camcorder Mode options.

 Tap the Playback icon to enter the Playback Mode for photos and videos.  The latest captured image appears on the LCD screen.

If there are no images stored, a message (No Image) appears.

VIEWING PHOTOS ON YOUR CAMCORDER

1) Select your Photo:

 Once in Playback Mode, view each of your captured images by sliding your finger across the

LCD touch screen.

- Slide your finger towards the right to see the next image.

- Slide your finger towards the left to see the previous image.

Scroll through the images on your camcorder’s memory card until you find the photo you

would like to view.

 Each captured image (video and photo) is displayed on the LCD screen.

Photos appear with a ‘JPG’ icon on the top left side of the LCD screen.

2) Zooming In/Out of your Selected Photo:

 Tap the Zoom In icon above the Zoom Indicator to Zoom In and magnify the selected

photo. The amount of magnification is shown above the Zoom Indicator. To view parts of the enlarged photo not currently seen on the LCD, screen slide your finger on the LCD screen in the direction you would like to navigate around the magnified photo. When magnifying a photo, most of the icons disappear. The icons reappear on the LCD screen once the photo is in full screen size.

 Tap the Zoom Out icon below the Zoom Indicator to Zoom Out of the selected photo.

Page 39

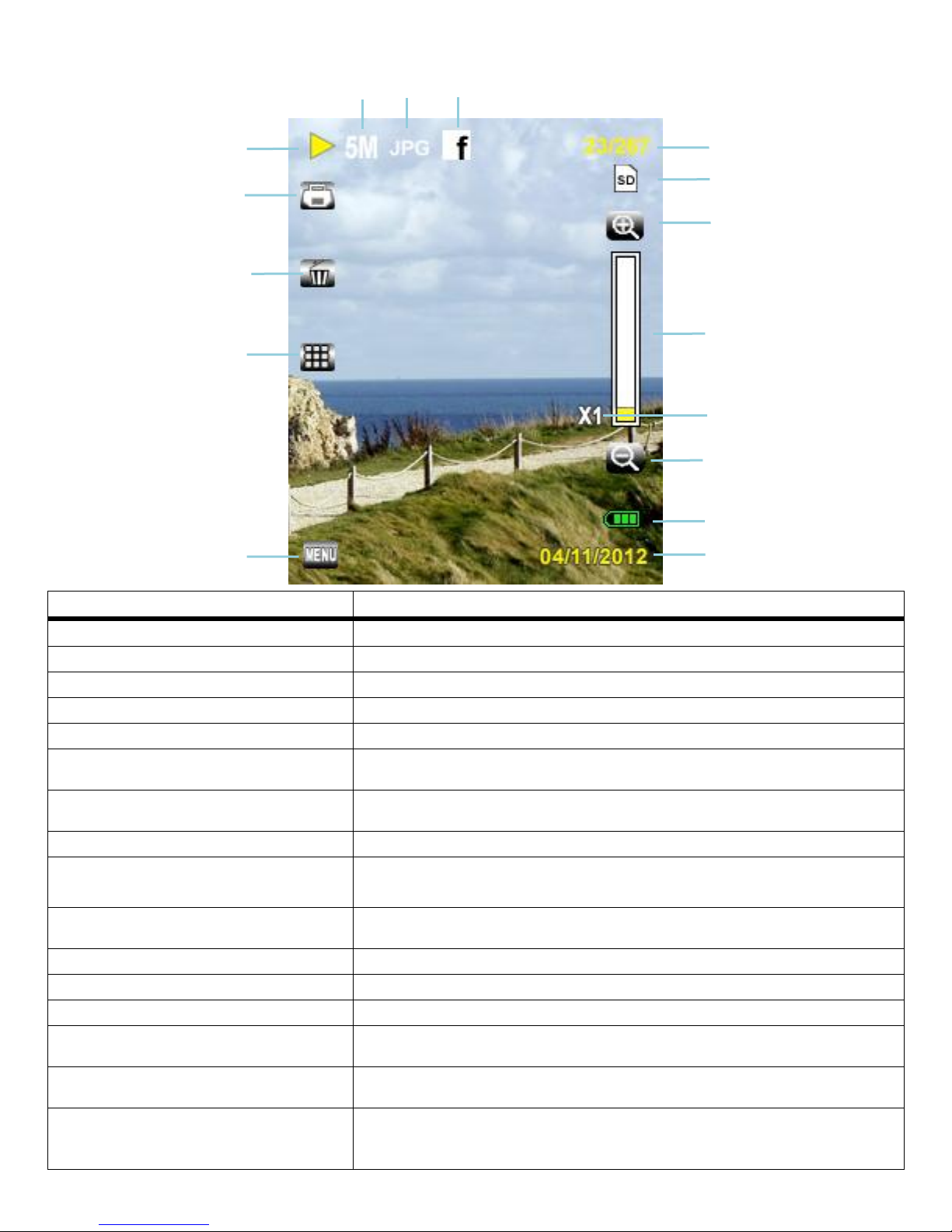

PHOTO PLAYBACK MODE: LCD SCREEN ICONS

ICON

FUNCTION

PLAYBACK MODE

Indicates the Camcorder is in Playback Mode

PRINT IMAGE

Tap and connect to a PictBridge printer to print the selected photo

DELETE (SINGLE IMAGE)

Tap to open the Delete Menu options

THUMBNAIL VIEW

Tap to open the Thumbnail View for Videos and Photos

Tap to open the Photo Playback Mode Menus

NUMBER OF IMAGES

Indicates the sequence number of the current file / total number of captured images

MEMORY CARD

Indicates the memory card has been properly installed and is recognized by the camcorder

ZOOM IN

Tap to Zoom In and magnify the selected photo

ZOOM INDICATOR

Displays the current, selected zoom (up to 4x Digital Zoom – magnification amount shown above the zoom indicator while zooming )

MAGNIFICATION

Indicates the amount the image is magnified (X1 – X4) X1 indicates the photo is full screen

ZOOM OUT

Tap to Zoom Out

BATTERY LEVEL

Indicates the camcorder battery level (Full, Medium, Low)

DATE

Indicates date (as specified via the settings)

RESOLUTION

Indicates the resolution in which the photo was captured (8M, 7M, 5M, 3M, 2M, 2MHD, VGA)

FILE TYPE

Indicates the file type of the image Captured Photos are saved as JPEG files

VIVILINK

Indicates which ViviLink is assigned to the video (Facebook, Twitgoo, Twitpic, Photobucket, Flickr, MySpace, Picasa Albums, None) Note: The ViviLink can be changed using the Playback Menu

3 4 6

14 2 8

5 12 7 10

Page 40

THUMBNAIL VIEW

1) Press the HOME button and tap the Playback icon to enter the Playback Mode.

2) Tap the Thumbnail View icon on the LCD to open the Thumbnail View. All images (videos and photos) saved on your on your Micro SD Memory card appear in the

Thumbnail View.

- Video thumbnails appear with a ‘VIDEO’ filmstrip icon.

- Photos appear with an ‘IMAGE’ icon.

3) Drag left or right to scroll through the Thumbnail images.

4) Tap a Thumbnail to select and enlarge the image to full screen size.

5) Once the selected photo is full size it can be magnified.

PHOTO PLAYBACK MODE: QUICK FUNCTION FEATURES

While in Photo Playback Mode, you can easily control the image settings by touching the following menu icons that appear on the left side of the LCD screen: Print, Delete, Thumbnail

Please see the respective details in the Photo Playback Mode section of this manual for the Print, Delete, and Thumbnail View features.

Print Photo

You can use the Print Photo menu to print the photos that are on your camcorder directly to a Pictbridge compatible printer.

1) Press the HOME button and tap the Playback icon to enter the Playback Mode.

2) Scroll through your pictures and find the one you would like to print.

3) Tap the Print icon located on the left under the Playback icon.

4) You will be asked to connect the camcorder to the Pictbridge printer.

5) Slide the USB switch down to reveal and extend the built-in USB connector.

6) Connect the camcorder to the Pictbridge port of the printer.

7) Once connected, follow the instructions on the printer to proceed with the printing process.

Page 41

PHOTO PLAYBACK MODE: MENUS

Delete

ViviLink

Rotate

The following are the menus that appear in your digital camcorder’s Photo Playback Mode:

REMINDER:

For details how to access and select the menu options, please refer to the ‘Navigating the Menus:

CAMCORDER MODE MENUS’ section of the user manual.

Delete (Selected File)

The Delete menu option allows you to delete only the selected image.

1) Press the HOME button and tap the Playback icon to enter the Playback Mode.

2) Select a photo.

3) To delete only the selected photo:

 Tap MENU and tap Delete from the Photo Playback Menu options.

Alternatively, tap the Delete icon located on the left side of the LCD screen.

 The ‘Delete Current’ window appears.

- Tap ‘Yes’ to automatically delete the selected video and return to the Playback Mode Menu screen.

- Tap ‘No’ to return to the Playback Mode Menu screen without deleting the selected video.

Note:

 QUICK FUNCTION: The Delete icon appears on the left side of the LCD screen (below the

Playback Mode icon). To quickly access the Delete Menu options simply tap this icon .

 Caution: Please use this Delete feature with care. Once the image is deleted it is permanently

removed from your Micro SD memory card. Please make sure that you only use this feature once you have downloaded and saved the images you wish to your computer.

 To delete all images (both videos and photos) select ‘Format’ from the Setup Menus.

Page 42

ViviLink for Photos Menu

Facebook

MySpace

Twitgoo

Picasa Albums

Twitpic

None

Flickr

The ViviLink technology allows you to quickly and easily upload your camcorder’s photos and videos

to the social networks of your choice with the accompanying Vivitar Experience Image Manager application. Using the ViviLink menu in the Playback Mode, you can either add a new ViviLink to your captured image or change the existing ViviLink. The ViviLink for Photos Menu Options include:

Rotate Menu

Use this menu to rotate the pictures that you’ve taken with your camcorder.

1) Press the HOME button and tap the Playback icon to enter the Playback Mode.

2) View the photo you would like to rotate.

3) Tap MENU located at the bottom left corner of the LCD screen to open the Main Menu Screen for the current mode.

4) Tap the Rotate menu icon.

5) Tap the Rotate icon to rotate the photo. Every tap on the Rotate icon rotates the image 90 degrees.

6) Tap the Return icon to confirm and automatically save the selected rotation.

7) The selected picture will now appear rotated in the Playback Mode.

Page 43

Camcorder Setup Menus

Language

Frequency

Date

TV Out

Silent Mode

Format SD

Auto Off

Default

English

Italian

French

Russian

Spanish

Polish

Portuguese

Greek

German

The general settings for your digital camcorder can easily be changed at any time. To enter the Camcorder Setup Menus:

1) Press the HOME button to open the Home screen options.

2) Tap the Setup icon to enter the Main Menu options for your camcorder general settings.

The following are the menus that appear in the Camcorder Setup Menus:

REMINDER: For details how to access and select the menu options, please refer to the ‘Navigating

the Menus: CAMCORDER SETUP MENUS’ section of the user manual.

Language Menu

You can select your camcorder’s language setting by selecting the desired language from the Language menu. The Language Menu Options include:

Page 44

Date Menu

The timestamp appears on captured photos. (Default)

OFF

The date stamp does not appear on captured photos.

Date/Time

Allows the date and time to be set.

The camcorder sound effects are deactivated, except for beeps and Shutter ‘Click’ heard during the Self-Timer countdown and Self-Timer photo capture. Note: The Silent Mode On feature does not affect the sound of your videos while recording.

OFF

The camcorder sound effects are activated and can be heard. (Default) The sounds include: Power On, Power Off, Home button, Photo Capture Mode Shutter ‘Capture Sound’, Photo Capture Mode Self-Timer Countdown, Video Start Recording ‘Click’, Menu Scroll up and Menu Scroll Down

The Date menu allows you to set your camcorder’s date and time as desired. When you capture an image with your camcorder, the image will include a time stamp with the date and time that the image was taken. You can also disable the timestamp for future images taken with your camcorder. The Date Menu Options include:

Silent Mode Menu

You have the option of activating the camcorder’s Silent Mode to disable the sound effects that the camcorder emits when performing camcorder functions. The camcorder features that emit sounds include - Power On/ Off, Shutter ‘Click’ and Self-Timer. The Silent Mode Menu Options include:

Auto Off Menu

You can use the Auto Off feature in order to conserve you camcorder’s battery life. The designated

time represents when your digital camcorder will automatically power off.

Page 45

When the camcorder sits idle for the designated period of time, the camcorder will shut off completely

50HZ

UK, Europe and Australia

60HZ

US, Canada and South America (Default)

NTSC

Television and video standard used in America, Canada (Default)

PAL

Television and video standard used in Europe

and will need to be turned on again with the power button before the next use. The Auto Off Menu Options include:

1 Minute 3 Minutes (Default) 5 Minutes Disable (Off)

Frequency Menu

The options in the Frequency menu represent the frequency of the electrical current in fluorescent lighting sources in your locale. If your camcorder is set to a frequency that does not match your country’s electric current, you may see flickering or waves on the images taken by your camcorder. The Frequency Menu Options include:

TV Out Menu

TV Out allows you to select the TV option appropriate for you to view your captured images on your television. See “Connecting the Digital Camcorder to the TV” for further information on how to connect your digital camcorder to your television. The TV Out Menu Options include:

Format SD Menu

You can use the Format SD menu to automatically delete all of the content that is currently on your camcorder’s memory card.

Keep in mind that formatting the memory card will permanently delete all of the content on your camcorder’s memory card.

This option will delete all of the content at one time. If you would like to delete individual images, use the Delete menu in the camcorder’s Playback Mode.

Page 46

The Format Menu Options include:

YES

Automatically formats Micro SD memory card. All videos and photos are deleted.

Exits and returns to the Setup menus without formatting the Micro SD memory card.

YES

Automatically resets the camcorder settings to Factory Default Settings.

Exits and returns to the Setup menus without resetting to the Factory Default Settings.

Default Menu

Use this menu to reset your camcorder settings to the Factory Default Settings. The Default Menu Options include:

Slide Show

You can play back and view all pictures saved on your Micro SD memory card as a Slide Show.

1) Press the HOME button and tap the Slide Show icon.

2) To set the interval length of time that each picture will display during the Slide Show, tap the MENU icon.

- Drag up or down to scroll and highlight the desired menu option.

The Slide Show Interval Options include:

3 Seconds 5 Seconds 10 Seconds

- Tap SAVE & EXIT to select and confirm the highlighted menu option and then return to the

Slide Show screen.

3) Tap the Play/Pause button in the center of the LCD screen to begin the Slide Show.

4) Press the HOME button to exit the Slide Show and return to the Home Main Menu screen.

Page 47

Connecting the Digital Camcorder to a TV or HDTV

The digital video camera has an AV port and an HD port to use your larger TV screen in place of the camcorder’s LCD screen. On plugging the TV Cable (supplied) or the HDMI Cable (purchased separately) to the digital video camera’s AV or HDMI slot and to the TV, the LCD screen turns blank. Use the digital camcorder normally to capture and playback photos and videos. The images will appear on the TV instead of on the camcorder’s LCD screen.

Note: The only limitation of using the TV screen is that the camcorder is now not portable.

CONNECTING TO A TV WITH THE TV CABLE

1) Connect the TV cable: Connect the black jack into the digital camcorder’s AV slot. Connect the yellow jack into the TV – Video port.

Connect the white jack into the TV – Audio port.

2) Turn On the TV and the digital video camera, and then set the TV to “AV” mode.

3) Set the TV format on the digital video camera to suit the TV format of your TV set (NTSC or PAL). In the Camcorder Setup Menus, use the TV Out Menu to select the appropriate TV format.

4) When the camcorder is set to Video or Photo Capture Mode, you can preview what you would like to record on the TV screen and view the scene as you are recording on the TV.

5) When the camcorder is set to Playback mode, you can review all the captured photos and videos on the TV.

CONNECTING TO AN HDTV WITH THE HDMI CABLE

1) Connect the camcorder to an HDTV with the HDMI cable (purchased separately) by inserting the smaller end of the cable into the HD slot of the camera, and the larger end into the HDMI port on the television.

2) Turn on the HDTV and the camcorder, and select the appropriate HDMI source from your television menu settings.

3) Set the TV format on the digital video camera to suit the TV format of your TV set (NTSC or PAL). In the Video and Photo Capture Menus, use the TV Mode Menu to select the TV format.

4) When the camcorder is set to Video or Photo Capture Mode, you can preview what you would like to record on the HDTV screen and view the scene as you are recording on the HDTV.

5) When the digital video camera is set to Playback mode, you can review all the captured photos and videos on the HDTV.

Page 48

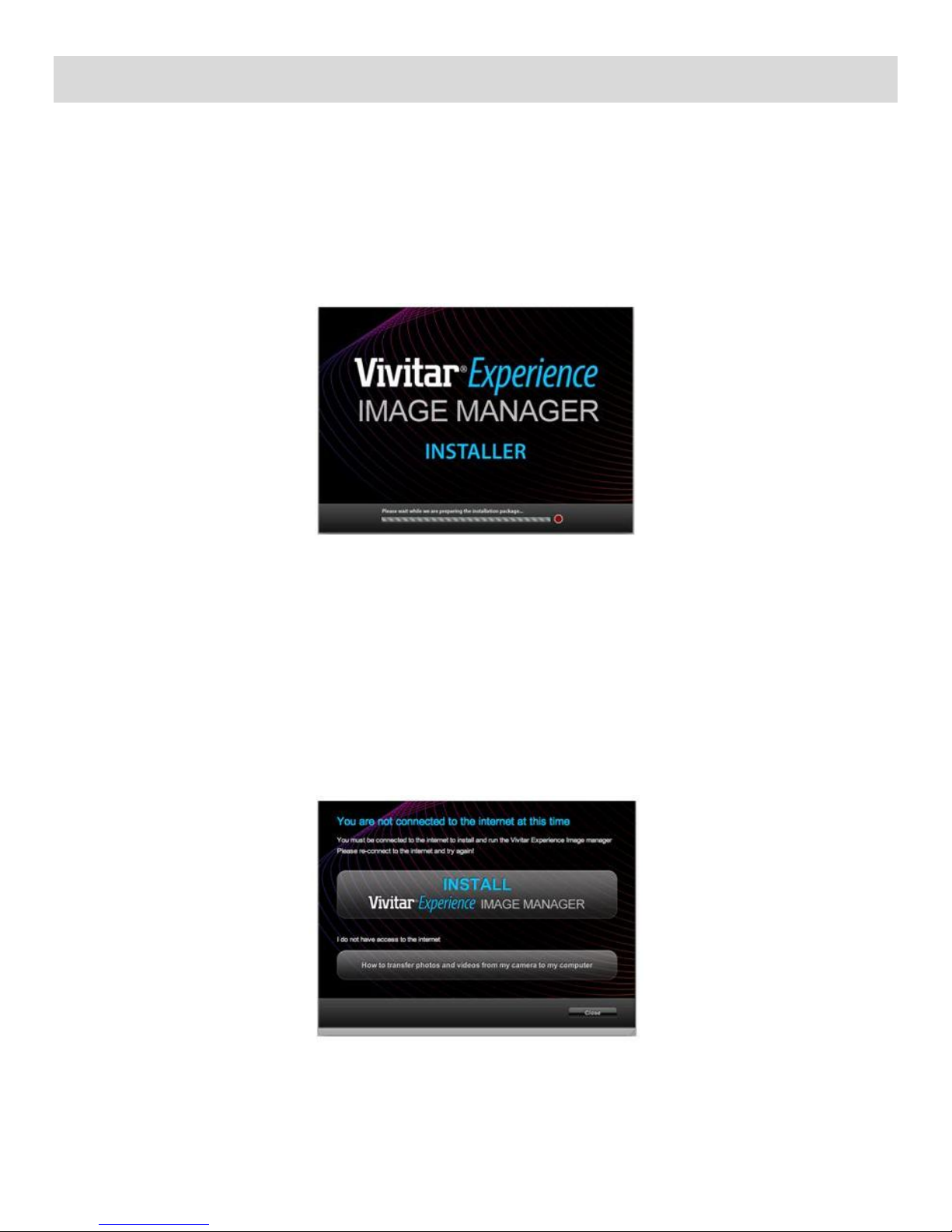

Installing the Software

You must be connected to the Internet to install and run the Vivitar Experience Image Manager software.

1) Insert the installation CD into your CD-ROM drive. The installation screen should automatically

open.

2) On PC: The Vivitar Experience Image Manager Installer window appears. If the window does not

appear, open the application’s CD/DVD drive and click on “Setup.exe” to launch the installer.

3) On Macintosh: Click the icon that appears on the desktop to install the Vivitar Experience Image

Manager.

4) If you do not have internet access at the time of inserting the CD-ROM, connect to the internet

and then click the “Install Vivitar Experience Image Manager” button to begin the installation.

Note: If you do not have internet access, you can still download media from the camcorder. Click the “How to transfer photos and videos from my camcorder to my computer” button for instructions.

Page 49

5) If you have internet access, the “Choose your language” window opens, choose your language

and click “Next” to open the next window.

6) Select your camcorder model from the list and click “Next” to open the next window.

7) Click “Next” to confirm your camcorder model selection and to install the application.

8) Please wait while the application is being installed on your computer.

9) Please review the license terms.

On PC and Macintosh: Click the “I accept the terms of this license agreement” and then click “Next” to continue.

10) On PC only: Let the “Vivitar Experience Image Manager” installer create the folder to where the

program will be installed, and then click “Install”.

11) Please wait while the application continues the installation process on your computer.

On Macintosh: If needed, please follow instructions to install the Adobe® Flash® Player.

12) On PC: Click the “Close” button when the installation is complete.

The application will automatically open.

13) On Macintosh: Click the “Quit” button when the installation is complete.

Click the “Launch Vivitar Experience Image Manager” to open the application

14) If you close the application you can run the Vivitar Experience Image Manager from the

Programs (PC) or Application (Mac) menu on your computer.

Connecting the Camcorder to the Computer

1) Slide the USB switch down to reveal and extend the built-in USB connector.

2) Power the camcorder on.

3) Insert the camcorder’s built-in USB connector to the computer’s USB port to make the connection. The first time you connect the device to the computer you will have to wait a few seconds until the computer recognizes the device.

Page 50

Getting Photos and Videos from the Camcorder to the Computer

A Micro SD Memory Card needs to be inserted. Do not disconnect the cable during transfer. Doing so will cancel the transfer of any files on their way to your computer.

1) Select the “Get Images” button from the Main menu.

2) The “Get media from device” window opens.

3) You can select to download photos, videos or both.

4) Select your camcorder (removable disk) from the device window. If your camcorder is the only USB device connected then it will be selected automatically.

5) Select a location on the computer where to place the new photo and video files.

6) Add the new photo and video files to albums if desired.

7) Select to remove the media files from the selected device (removable disk) after the import.

8) Click the “Get Media” button to transfer the photos and videos from your camcorder to your computer.

9) A media download progress bar appears on the bottom left showing the number of media files downloading to your computer. A message appears when the download is complete.

10) The photo and video files that you selected are now downloaded to your computer to the selected folder and albums ready for your use.

Page 51

Getting Started!

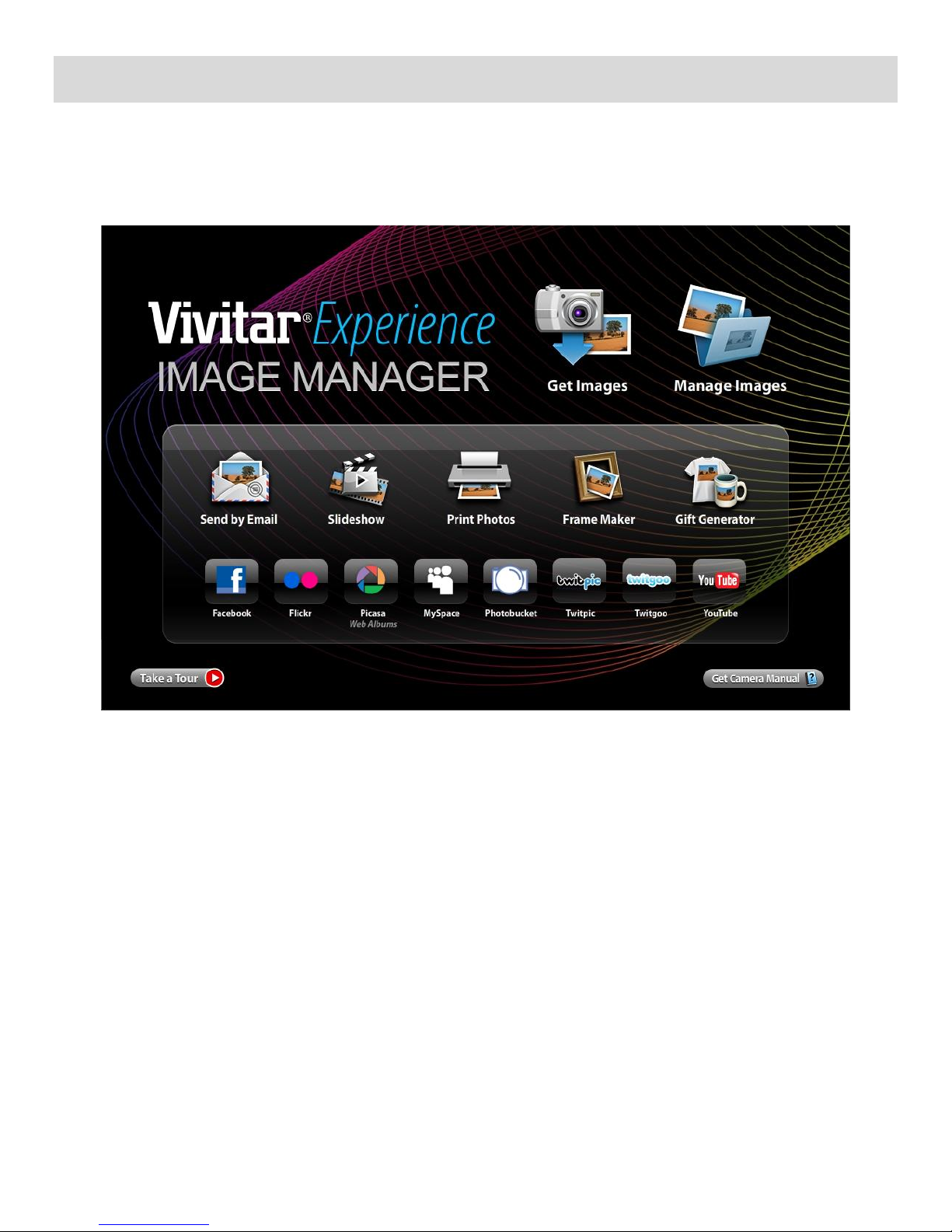

Using the Vivitar Experience Image Manager, you can:  Upload and manage photos and videos to and from the most popular photo sharing and social

networking sites - Facebook, Flickr, Picasa, MySpace, Photobucket, Twitpic, Twitgoo and YouTube

 Seamlessly transfer photos and videos from one social network to another  Organize your images by creating offline and online albums  Edit images using automatic and manual tools  Use automatic “Geotagging” with built in Google Maps

For more details on how to use the Vivitar Experience Image Manager open the ‘Help Guide’

from the Help menu or click the “Take a Tour” button on the application’s Home screen.

Transferring Images from the Camcorder to the Computer Manually

TRANSFERRING PHOTOS AND VIDEOS: WINDOWS OS

1) Connect your digital camcorder to your computer:

- Slide the USB switch down to reveal and extend the built-in USB connector.

- Insert the camcorder’s built-in USB connector to the computer’s USB port to make the connection.

2) Power the camcorder on.

3) ‘MSDC’ appears on the LCD – indicating that your camcorder is now connected to the computer as a Mass Storage Device.

4) A window appears with a list of options, select “Open folder to view files” and click ‘OK’.

5) Open the DCIM folder and the folder inside to view the media files.

6) Select the media and copy the files from this folder into your computer. Alternatively, select the files and choose ‘Copy’ from the Edit menu. Then select a folder and choose ‘Paste’ from the Edit menu.

7) We recommend that you copy the images into the Pictures/My Pictures folder and the videos into the Videos/My Videos folder.

8) Do not disconnect the USB connector during transfer. Doing so will cancel the transfer of any files on their way to your computer.

Page 52

TRANSFERRING PHOTOS AND VIDEOS: MACINTOSH OS

1) Connect your digital camcorder to your computer:

- Slide the USB switch down to reveal and extend the built-in USB connector.

- Insert the camcorder’s built-in USB connector to the computer’s USB port to make the connection.

2) Power the camcorder on.

3) ‘MSDC’ appears on the LCD – indicating that your camcorder is now connected to the computer as a Mass Storage Device.

4) The camcorder’s device icon appears on the desktop.

5) Click on the device icon and open the DCIM folder and the folder inside to view the media files.

6) Select the files and drag them into your computer. Alternatively, select the files and choose ‘Copy’ from the Finder’s Edit menu. Then select a folder and choose ‘Paste’ from the Edit menu.

7) We recommend that you copy the images into the Pictures folder and the videos into the Movies folder.

8) Do not disconnect the USB connector during transfer. Doing so will cancel the transfer of any files on their way to your computer.

TRANSFERRING PHOTOS AND VIDEOS: APPLE IPAD

Note: Please check your device packaging for compatibility with the iPad.

Apple iPad Camera Connection:

For models that are compatible with the iPad, photos and videos can be imported from your digital camcorder to your iPad by following either one of the options below:

1) Connecting your digital camcorder to your iPad using an iPad Camera Connector:

Plug the Camcorder Connector into the dock connector port on your iPad, and then attach your digital camcorder using the built-in USB connector to the Camera Connector. Note: The iPad Camera Connector is not included. This item may be purchased separately.

2) Using an iPad SD Card Reader:

Connect the Micro SD Card Reader to your iPad, then insert your digital camcorder's Micro SD Memory card into the slot to import photos and videos directly from your camcorder's SD card.

Note: The iPad SD Card Reader is not included. This item may be purchased separately. After you make the connection, your iPad automatically opens the ‘Photos’ application. This allows you to choose which photos and videos to import and to organize them into albums.

Page 53

Camcorder Maintenance

Sakar US Sakar International Attention: Service Department 195 Carter Drive Edison, NJ 08817

Sakar UK/Europe Attention: Service Department 2D, Siskin Parkway East 4020 Middlemarch Business Park Coventry, CV3 4PE

Sakar Australia Return faulty camcorder to the Refund Counter at the store where purchased

The digital camcorder is a delicate device. Please handle your digital camcorder with care to avoid damaging it. Do not expose your digital camcorder to heat sources. Do not use you digital camcorder in wet or moist conditions.

Sakar Warranty Card

This warranty covers for the original consumer purchaser only and is not transferable. Products that fail to function properly UNDER NORMAL USAGE, due to defects in material or workmanship will be repaired at no charge for parts or labor for a period of one year.

What Is Not Covered By Warranty:

Damages or malfunctions not resulting from defects in material or workmanship and damages or malfunctions from other than normal use, including but not limited to, repair by unauthorized parties, tampering, modification or accident.

What To Do When Service Is Required:

When returning your defective product (postage pre-paid) for service, your package should include:

1) Copy of original bill of sale.

2) A detailed written description of the problem.

3) Your return address and telephone number (Daytime).

MAIL TO ADDRESS BELOW:

Page 54

Technical Support

For technical support issues please visit our website at www.vivitar.com. You can find manuals,

software and FAQ’s at the website. Can’t find what you are looking for? E-mail us at

support@vivitar.com and one of our technical support team members will answer your questions. For phone support in the US please call 1-800-592-9541, in the UK call 0800 917 4831, in Australia call 1800-006-614. If you would like to call from anywhere else, please visit www.vivitar.com for your local toll free number.

Troubleshooting

Q: I have taken photos and selected the “Get Images” button. I get a message that the images were successfully transferred but the photos do not appear on my computer. What do I do?

First ensure that you have in fact taken photos. Press the Shutter button to take some sample photos and then try downloading them again. With test photos if the camcorder powers off before you upload them to the computer the photos are not stored in the camcorder’s memory. These photos should be uploaded quickly before the camcorder powers off. If the photos are saved to the Micro SD memory card then all the photos should appear.

Q: How do I make sure I don’t lose important pictures?

This camcorder requires a Micro SD card for normal use. If the camcorder powers off nothing will happen to the images stored on the Micro SD memory card. We recommend always downloading your photos to your computer as soon as possible to prevent unintentional data loss.

Q: I deleted images using the Vivitar Experience Image Manager. The images were also deleted from my computer. How do I recover images that I accidently deleted?

All images deleted using the Vivitar Experience Image Manager are sent to your computer’s Recycle or Trash Bin and can be retrieved from there.

DVR896HD_1.2_013113_FW V.2.1.8

Vivitar DVR 896HD, DVR 584HD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
