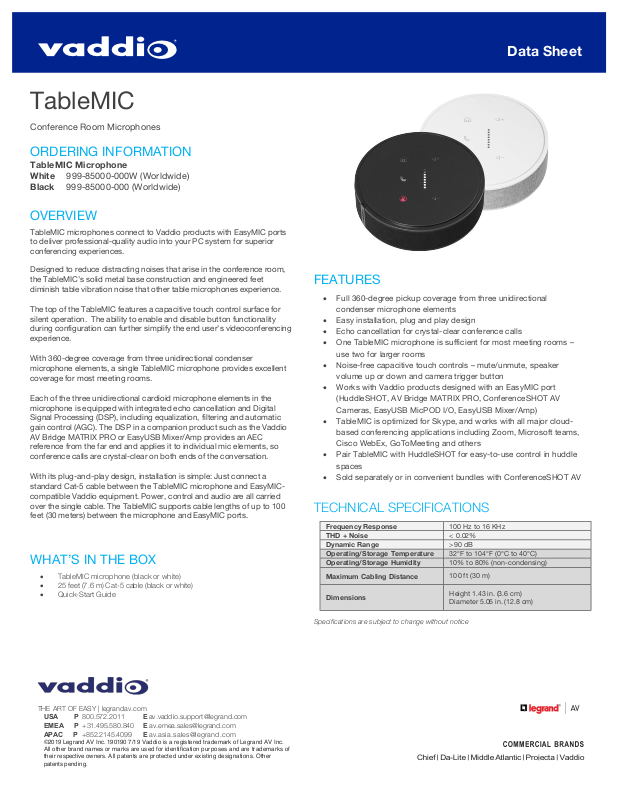

Vaddio TableMIC Datasheet

Data Sheet

TableMIC

FEATURES

TECHNICAL SPECIFICATIONS

Frequency Response

100 Hz to 16 KHz

THD + Noise

< 0.02%

Dynamic Range

>90 dB

Operating/Storage Temperature

32°F to 104°F (0°C to 40°C)

Operating/Storage Humidity

10% to 80% (non-condensing)

Maximum Cabling Distance

Specifications are subject to change without notice

THE ART OF EASY | legrandav.com

USA P 800.572.2011 E [e-mail]

Conference Room Microphones

ORDERING INFORMATION

TableMIC Microphone
White 999-85000-000W (Worldwide)
Black 999-85000-000 (Worldwide)

OVERVIEW

TableMIC microphones connect to Vaddio products with EasyMIC ports
to deliver professional-quality audio into your PC system for superior
conferencing experiences.

Designed to reduce distracting noises that arise in the conference room,
the TableMIC’s solid metal base construction and engineered feet
diminish table vibration noise that other table microphones experience.

The top of the TableMIC features a capacitive touch control surface for
silent operation. The ability to enable and disable button functionality
during configuration can further simplify the end user’s videoconferencing
experience.

With 360-degree coverage from three unidirectional condenser
microphone elements, a single TableMIC microphone provides excellent
coverage for most meeting rooms.

Each of the three unidirectional cardioid microphone elements in the
microphone is equipped with integrated echo cancellation and Digital
Signal Processing (DSP), including equalization, filtering and automatic
gain control (AGC). The DSP in a companion product such as the Vaddio
AV Bridge MATRIX PRO or EasyUSB Mixer/Amp provides an AEC
reference from the far end and applies it to individual mic elements, so
conference calls are crystal-clear on both ends of the conversation.

With its plug-and-play design, installation is simple: Just connect a
standard Cat-5 cable between the TableMIC microphone and EasyMIC­compatible Vaddio equipment. Power, control and audio are all carried
over the single cable. The TableMIC supports cable lengths of up to 100
feet (30 meters) between the microphone and EasyMIC ports.

• Full 360-degree pickup coverage from three unidirectional
condenser microphone elements

• Easy installation, plug and play design

• Echo cancellation for crystal-clear conference calls

• One TableMIC microphone is sufficient for most meeting rooms –

use two for larger rooms

• Noise-free capacitive touch controls – mute/unmute, speaker
volume up or down and camera trigger button

• Works with Vaddio products designed with an EasyMIC port
(HuddleSHOT, AV Bridge MATRIX PRO, ConferenceSHOT AV
Cameras, EasyUSB MicPOD I/O, EasyUSB Mixer/Amp)

• TableMIC is optimized for Skype, and works with all major cloud­based conferencing applications including Zoom, Microsoft teams,
Cisco WebEx, GoToMeeting and others

• Pair TableMIC with HuddleSHOT for easy-to-use control in huddle
spaces

• Sold separately or in convenient bundles with ConferenceSHOT AV

WHAT’S IN THE BO

• TableMIC microphone (black or white)

• 25 feet (7.6 m) Cat-5 cable (black or white)

• Quick-Start Guide

EMEA P +31.495.580.840 E [e-mail]
APAC P +852.2145.4099 E [e-mail]

©2019 Legrand AV Inc. 190190 7/19 Vaddio is a registered trademark of Legrand AV Inc.
All other brand names or marks are used for identification purposes and are trademarks of
their respective owners. All patents are protected under existing designations. Other
patents pending.

X

100 ft (30 m)

Dimensions

Height 1.43 in. (3.6 cm)
Diameter 5.05 in. (12.8 cm)
