VADDIO RoboSHOT 12, RoboSHOT 30, RoboSHOT Installation And User Manual

Installation and User Guide

s

.

A

VADDIO™ ROBOSHOT™ SERIES CAMERAS

RoboSHOT 12 and RoboSHOT 30, HD Robotic PTZ Camera Systems
featuring the Quick-Connect™ SR Interface

High-definition Robotic PTZ Conferencing Camera
Featuring a 12X, 73º Wide Angle Optical Zoom Lens
and Tri-Synchronous Motion

RoboSHOT 12

High-definition Robotic PTZ Camera for Medium to Large Venue
Featuring 30X Optical Zoom Lens and Tri-Synchronous Motion

vailable in Black or White finishes.

System Model and Part Numbers

RoboSHOT 12 QSR System, 999-9905-000 (North America), 999-9905-001 (Int’l)
RoboSHOT 30 QSR System, 999-9915-000 (North America), 999-9915-001 (Int’l)

RoboSHOT 30 QSR System, 999-9915-000W (Nor th America), 999-9915-001W (Int’l)

(Note: The W suffix on the part number indicates white version of the RoboSHOT 30)

RoboSHOT 30

Quick-Connect SR
System Interface

© 2015 Vaddio - All Rights Reserved. RoboSHOT QSR Systems - Document Number 342-0794 Rev C

RoboSHOT HD Cameras

Inside Front Cover Page - Almost Blank

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 2 of 44

RoboSHOT HD Cameras

TABLE OF CONTENTS

Overview ...................................................................................................................................................................................... 4

Unpacking the Camera Systems .................................................................................................................................................. 6

Image: RoboSHOT 12 HD PTZ Camera ............................................................................................................................. 7

Image: RoboSHOT 30 HD PTZ Camera ............................................................................................................................. 8

Image: RoboSHOT 12 and 30 Rear Panel Connections ..................................................................................................... 9

Quick-Connect SR Interface ....................................................................................................................................................... 10

Image: Rear Panel with Feature Call-outs ......................................................................................................................... 10

System Configuration Examples ................................................................................................................................................ 11

Diagram: Basic Connectivity Example of the RoboSHOT and the Quick Connect SR ...................................................... 11

Pre-Installation ........................................................................................................................................................................... 11

Setting the RoboSHOT Camera HD Resolution ..................................................................................................................... 12

Drawing: DIP Switch and Resolution Label on the Bottom of the RoboSHOT ................................................................... 12

Setting the RoboSHOT Switch Gear: ..................................................................................................................................... 12

DIP Switch Settings Further Explained (DSSFE): .................................................................................................................. 12

Installation Basics: .................................................................................................................................................................. 13

Controlling the Camera .............................................................................................................................................................. 14

IR Remote Commander ..................................................................................................................................................... 14

Telnet Control ..................................................................................................................................................................... 14

The Screen Shot Tour ................................................................................................................................................................ 15

Compatible Web Browsers ..................................................................................................................................................... 15

DHCP IP Set-up (Dynamic Host Configuration Protocol) ....................................................................................................... 15

Static IP Set-up: ..................................................................................................................................................................... 15

Screen Shot: Login ............................................................................................................................................................ 15

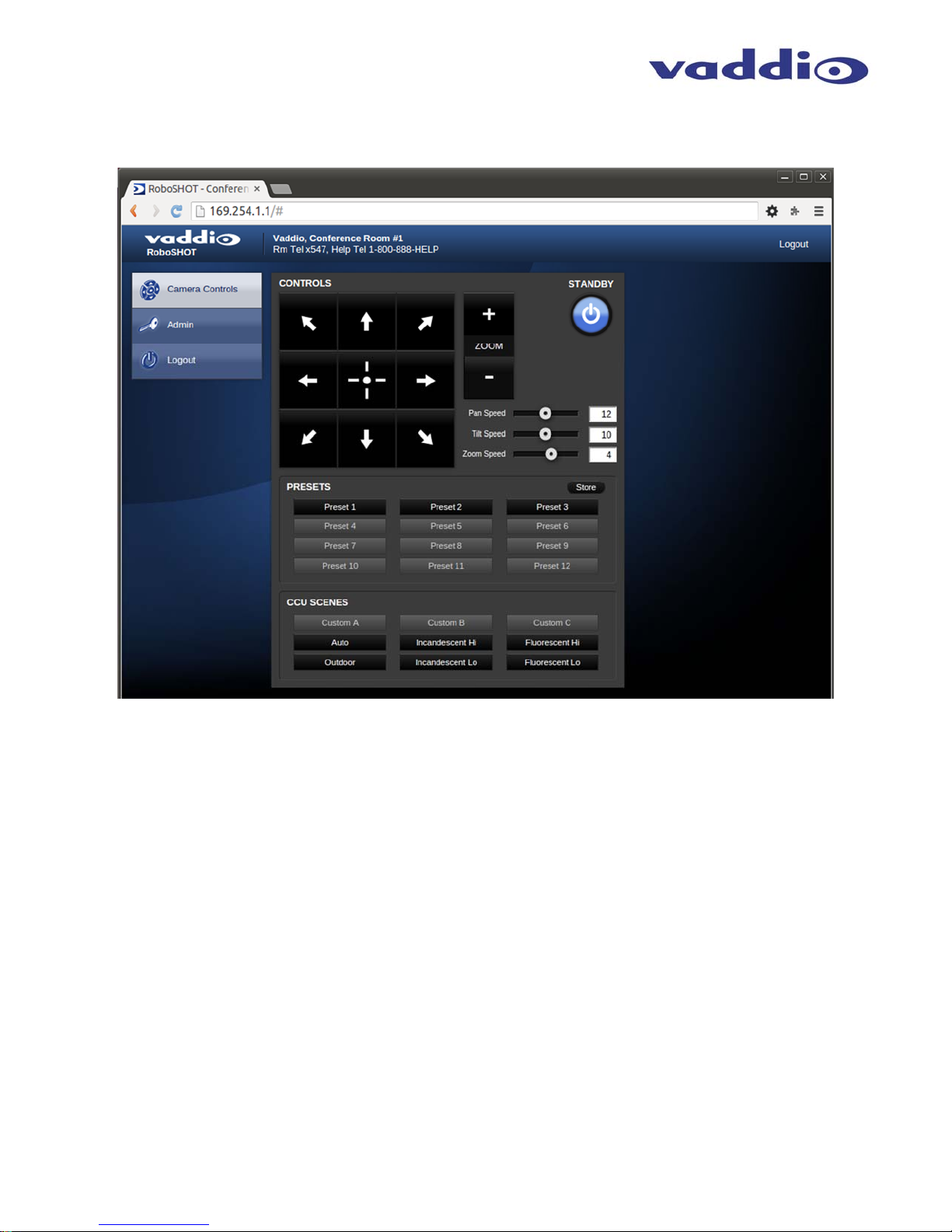

Screen Shot: Camera Control Page .................................................................................................................................. 16

Screen Shot: Storing Presets ............................................................................................................................................ 17

Screen Shot: Admin login from the Camera Control Page ................................................................................................ 18

Screen Shot: Admin Menu - Camera Settings ................................................................................................................... 19

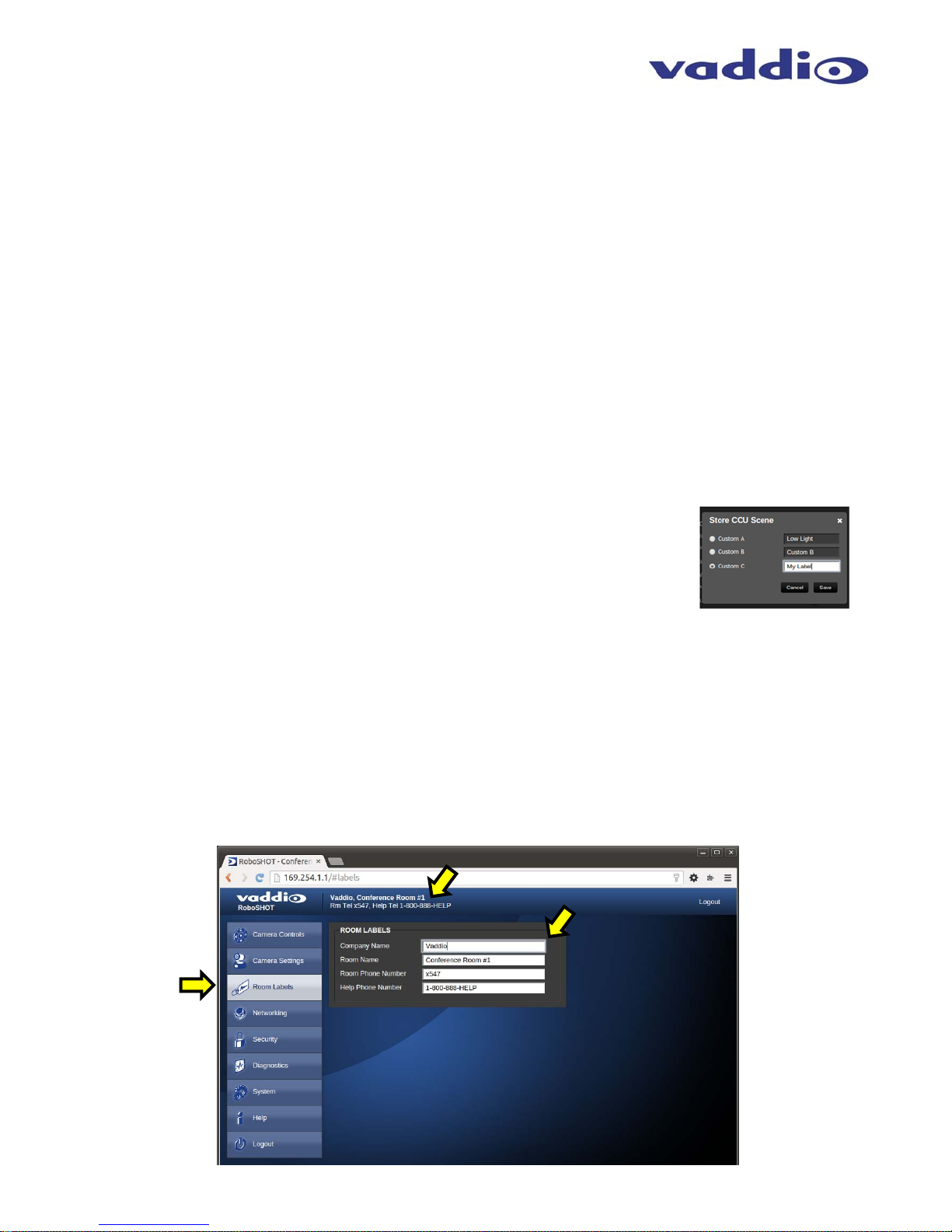

Screen Shot: Admin Menu - Room Labels ........................................................................................................................ 20

Screen Shot: Admin Menu - DHCP Network Configuration ............................................................................................... 21

Screen SHOT: Admin Menu - Static IP Configuration ....................................................................................................... 21

Screen SHOT: Admin Menu - Security .............................................................................................................................. 22

Screen Shot: Admin Menu - Diagnostics ........................................................................................................................... 22

Screen Shot: Admin Menu - System ................................................................................................................................. 23

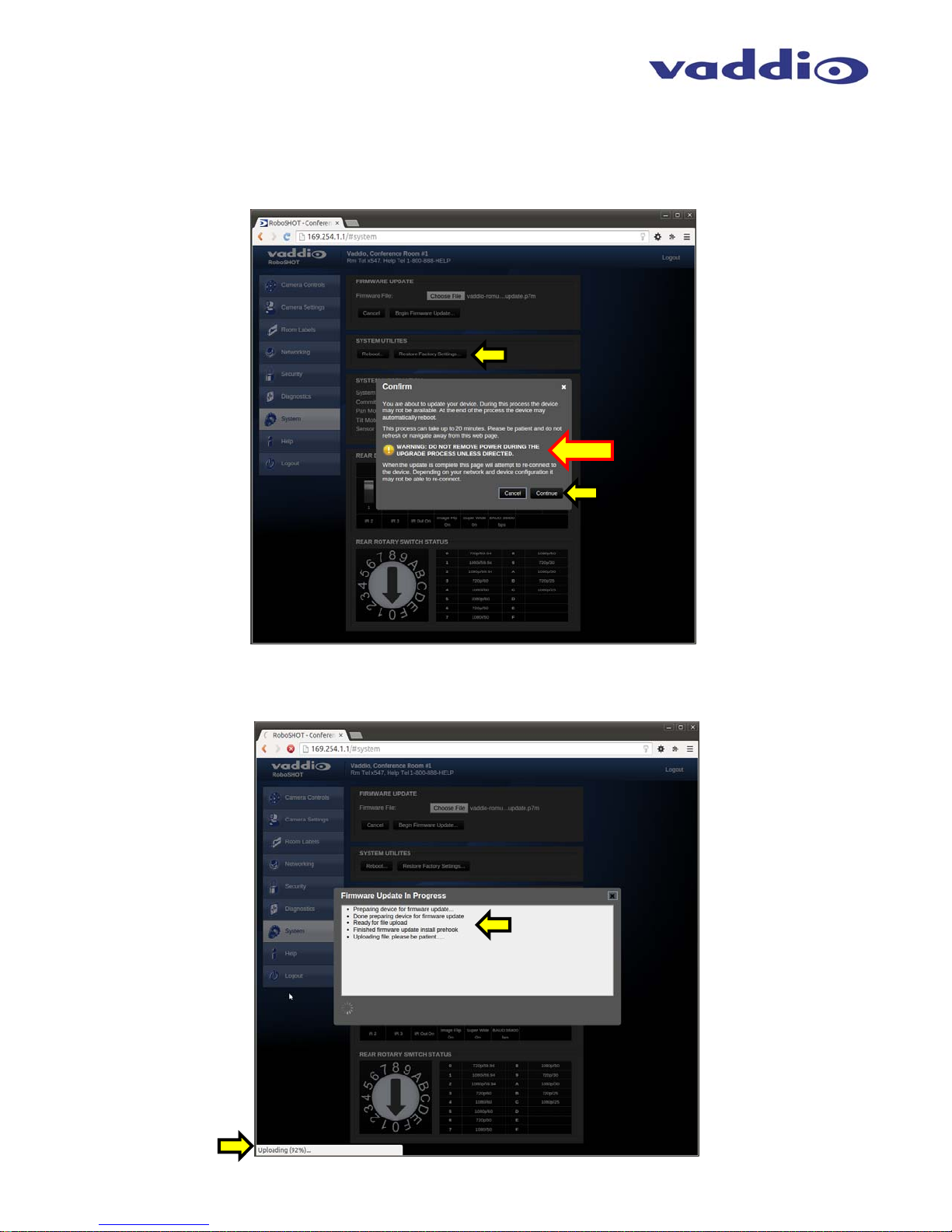

Screen Shot: Admin Menu - Update Confirmation ............................................................................................................. 24

Screen Shot: Admin Menu - Update in Progress ............................................................................................................... 24

Screen Shot - Admin Menu - Help ...................................................................................................................................... 25

General Specifications ............................................................................................................................................................... 26

Communication Specification ..................................................................................................................................................... 27

Command Setting Values ........................................................................................................................................................... 32

Exposure Control.................................................................................................................................................................... 32

Telnet Serial Command API ....................................................................................................................................................... 33

Telnet Command List ............................................................................................................................................................. 33

Compliance and CE Declaration of Conformity - RoboSHOT HD PTZ Cameras ....................................................................... 42

Warranty Information .................................................................................................................................................................. 43



RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 3 of 44

RoboSHOT HD Cameras

Q

O

VERVIEW

The impressive RoboSHOT HD PTZ cameras are professional quality
with very high quality imaging, fine detail and exceptional color
reproduction. This camera offers integrators, dealers and end users an
incredible improvement over other conferencing and large venue
cameras available today. The RoboSHOT Platform consists of two
models; the RoboSHOT 12 and the RoboSHOT 30.

The RoboSHOT 12 is perfect for small to medium sized conference
rooms. This model features a 12X optical zoom and a 73° wide angle
horizontal field of view, which provides incomparable support for
applications including UCC Applications, videoconferencing, distance
learning, lecture capture, telepresence and more!

The RoboSHOT 30 camera performs brilliantly in medium to large

RoboSHOT 12

HD PTZ Camera on Mount

rooms. It features a 30X optical zoom with an impressive 2.3° tele end
to 65° wide end horizontal field of view and provides exceptional
support for applications including House of Worship productions, large
auditorium A/V systems, large distance learning classrooms, live event
theatres with IMAG systems, large lecture theatres with lecture capture
and more!

The key features of both RoboSHOT cameras are Tri-Synchronous
Multi-Axis Motion and the Advanced Image Sensor, lens and ISP
(image signal processor) combination. The Tri-Synchronous Motion
algorithm in the RoboSHOT cameras is capable of moving all three
(pan, tilt and zoom) axes simultaneously. The algorithm calculates the
position and velocity of the smooth, direct-drive motor movements
between the presets so pan, tilt and zoom arrive at the preset subject
simultaneously, which finally allows for smooth and manageable on-air
camera movements. Yep, there’s no more pan/tilt, then zoom like other
PTZ cameras available today.

RoboSHOT 30

HD PTZ Camera on Mount

The lens, image sensor and ISP are the real magic behind the

uick-Connect SR interface

RoboSHOT’s remarkable video performance characteristics. Both
cameras use the latest generation Exmor® 1/2.8”, 2.34 Megapixel, Full
HD (1080p/60) high-speed, low noise CMOS image sensor combined
with a new ISP, produces vivid, realistic and accurate color with
extremely fast, razor sharp automatic focus and auto iris routines.

The RoboSHOT platform, paired with the Quick-Connect SR interface, uses the Vaddio EZCamera™ Cat-5 Cable
System to transport HSDS™ (differential video), power and control to and from the camera over Cat-5 cables. The
QSR system has a single analog component YPbPr output that outputs video resolutions up to and including
1080p/60 and is not limited to 1080i/59.94. The market proven Quick-Connect™ Interfaces immediately provide
integrators with the ultimate in camera configuration flexibility.

All RoboSHOT’s are equipped with an Ethernet port and a built-in web server, which allows the user to control the
camera functions on an internal web page with a browser from anywhere in the world, or in the same room, over
the IP network. Telnet, IR Remote and RS-232 control for the camera are available to satisfy almost any system
control requirements.

The RoboSHOT cameras were designed for the times and represent a new era in specifying and integrating
professional quality cameras into A/V and conferencing system configurations. In short, it has never been easier
to integrate cameras into any environment than with the RoboSHOT HD Cameras.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 4 of 44

RoboSHOT HD Cameras

Intended Use:

Before operating the device, please read the entire manual thoroughly. The system was designed, built and tested
for use indoors with the power supply provided. The use of a power supply other than the one provided or outdoor
operation hasn’t been tested and may damage the device and/or create an unsafe operating condition.

Save These Instructions:

The information contained in this manual will help you install and operate your product. If these instructions are
misplaced, Vaddio keeps copies of Specifications, Installation and User Guides and most pertinent product
drawings (DWG and PDF) for the Vaddio product line on the Vaddio website. These documents can be downloaded
from www.vaddio.com free of charge.

Important Safeguards:

Read and understand all instructions before using. Do not operate any device if it has been dropped or damaged.
In this case, a Vaddio technician must examine the product before operating. To reduce the risk of electric shock,
do not immerse in water or other liquids and avoid extremely humid conditions.

Use only the power supply provided with the system. Use of any unauthorized or
extended DC power supplies will void any and all warranties.

Please do not use “pass-thru” type RJ-45 connectors. These pass-thru type
connectors do not work well for professional installations and can be the cause of
intermittent connections which can result in the RS-232 control line failing and
locking up, and/or compromising the HSDS (high speed differential signals). For
best results please use standard RJ-45 connectors and test all cables for proper
pin-outs prior to use and connection to Vaddio Cat-5e products.

The RoboSHOT HD PTZ camera connectivity for all signals (video, power and control) is over Cat-5 cable

(ubiquitously referred to as Cat-5 or Cat-5e). For best results, please use quality Cat-5e cable and real RJ-45

crimpers. Unlike phone and data lines that use the four center conductors (pairs 3 & 6 and pairs 4 & 5), the Vaddio
EZCamera systems use all of the pins in most configurations. When terminated correctly The Vaddio Cat-5e
solution provides for the utmost in flexibility for HD video system design, integration and ease of installation.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 5 of 44

RoboSHOT HD Cameras

U

NPACKING THE CAMERA SYSTEMS

Carefully remove the product and all of the included parts from the packaging.
Identify the following parts for each camera:

RoboSHOT 12 QSR System

Part Number 999-9905-000 (North America)

One (1) RoboSHOT 12 HD PTZ Camera (998-9900-000)
One (1) Thin Profile Wall Mount (535-2000-240) with Mounting Hardware
One (1) IR Remote Commander (998-2100-000)
One (1) EZCamera Control Adapter (998-1001-232)
One (1) Quick-Connect SR Analog Interface (998-1105-016)
One (1) 24 VDC, 2.08 Amp Switching Power Supply with AC Cord Set
One (1) 3-pin Molex 5.0mm Euro style Connector
One (1) Quick Setup Guide

Full Manuals are downloaded from support.vaddio.com

RoboSHOT 12 QSR System

Part Number 999-9905-001 (International)

One (1) RoboSHOT 12 HD PTZ Camera (998-9900-000)
One (1) Thin Profile Wall Mount (535-2000-240) with Mounting Hardware
One (1) IR Remote Commander (998-2100-000)
One (1) EZCamera Control Adapter (998-1001-232)
One (1) Quick-Connect SR Analog Interface (998-1105-016)
One (1) 24 VDC, 2.08 Amp Switching Power Supply
One (1) 802-2435 Euro Power Cord
One (1) 802-2436 UK Power Cord
One (1) 3-pin Molex 5.0mm Euro style Connector
One (1) Quick Setup Guide

Full Manuals are downloaded from support.vaddio.com

RoboSHOT 30 QSR System (North America)

Part Number 999-9915-000 (black), 999-9915-000W (white)

One (1) RoboSHOT 30 HD PTZ Camera (998-9910-000)
One (1) Thin Profile Wall Mount (535-2000-240) with Mounting Hardware

One (1) IR Remote Commander (998-2100-000)

One (1) EZCamera Control Adapter (998-1001-232)
One (1) Quick-Connect SR Analog Interface (998-1105-016)
One (1) 24 VDC, 2.08 Amp Switching Power Supply with AC Cord Set
One (1) 3-pin Molex 5.0mm Euro style Connector
One (1) Quick Setup Guide

Full Manuals are downloaded from support.vaddio.com

RoboSHOT 30 QSR System (International)

Part Number 999-9915-001 (black), 999-9915-001

One (1) RoboSHOT 30 HD PTZ Camera (998-9910-000)
One (1) Thin Profile Wall Mount (535-2000-240) with Mounting Hardware
One (1) IR Remote Commander (998-2100-000)
One (1) EZCamera Control Adapter (998-1001-232)
One (1) Quick-Connect SR Analog Interface (998-1105-016)
One (1) 24 VDC, 2.08 Amp Switching Power Supply
One (1) 802-2435 Euro Power Cord
One (1) 802-2436 UK Power Cord
One (1) 3-pin Molex 5.0mm Euro style Connector
One (1) Quick Setup Guide

Full Manuals are downloaded from support.vaddio.com

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 6 of 44

RoboSHOT HD Cameras

Image: RoboSHOT 12 HD PTZ Camera

Camera Front View with Feature Call-outs

①

②

③

④

Color: Silver and Black

⑤

⑥

1) Camera and Zoom Lens: This RoboSHOT model features a 12X optical zoom lens (12X in Super-Wide mode

and 10X in normal mode) that is built around an Exmor 1/2.8-Type, high-speed, low noise image sensor with a total
of 2.34 megapixels for exceptionally precise HD video image acquisition in a small to medium sized conference

room.

2) Camera Support Arm: The RoboSHOT cameras use a single control arm for pan and tilt movements. Both

ends of the cast control arm are anchored with silent and smooth BLDC (brushless DC) direct drive motors. These
motors provide ultra-accurate and fast camera positioning and are capable of the slowest of crawls, which are
suitable for on-air use.

3) IR Sensors: IR sensors are built into the front of the RoboSHOT to receive IR signals from the IR Remote
Commander supplied with the camera. The IR sensors sit behind the Makrolon IR Window on the front of the base.

4) Multi-Color LED:

The multi-colored LED indicates the use states of the camera:

 Purple LED is for Boot-up and Standby modes.
 Blue LED is for normal operation and is a power on, ready condition.
 The blue LED will blink when the camera receives a valid IR command.
 Solid red LED is to indicate a tally function illuminating when the camera is on-air.
 Blinking red LED indicates a fault condition.
 Yellow LED illuminates during a firmware update.

5) Logo: Really Cool Logo Badge (RCLB) is located on the IR Window.

6) Camera Base: Cast zinc alloy base for strength and stability, powder coated for toughness with fine texture.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 7 of 44

RoboSHOT HD Cameras

Image: RoboSHOT 30 HD PTZ Camera

The differences between the 12X model and the 30X models center around the power of the optical zoom lens and
overall color of the camera models. The 30X is available in both black and white.

①

②

Available in Black or White Versions

⑤

③

⑥

④

1) Camera and Zoom Lens: This RoboSHOT model has a powerful 30X optical zoom lens that is built around

an Exmor 1/2.8-Typ, high-speed, low noise image sensor with a total of 2.34 megapixels for vibrant, detailed HD

video image acquisition in a large to medium sized room.

2) Camera Support Arm: The RoboSHOT cameras use a single control arm for pan and tilt movements. Both

ends of the cast control arm are anchored with silent and smooth BLDC (brushless DC) direct drive motors. These
motors provide ultra-accurate and fast camera positioning and are capable of the slowest of crawls, which are
suitable for on-air use.

3) IR Sensors: IR sensors are built into the front of the RoboSHOT to receive IR signals from the IR Remote
Commander supplied with the camera. The IR sensors sit behind the Makrolon IR Window on the front of the base.

4) Multi-Color LED:

The multi-colored LED indicates the use states of the camera:

 Purple LED is for Boot-up and Standby modes.
 Blue LED is for normal operation and is a power on, ready condition.
 The blue LED will blink when the camera receives a valid IR command.
 Solid red LED is to indicate a tally function illuminating when the camera is on-air.
 Blinking red LED indicates a fault condition.
 Yellow LED illuminates during a firmware update.

5) Logo: Really Cool Logo Badge (RCLB) is located on the IR Window.

6) Camera Base: Cast zinc alloy base for strength and stability, powder coated for toughness with fine texture.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 8 of 44

RoboSHOT HD Cameras

Image: RoboSHOT 12 and 30 Rear Panel Connections

Rear panel connections are identical for both models (RoboSHOT 12 shown).

1) CAMERA SETTINGS: DIP switch settings for IR remote frequency, baud rate and image flip can be configured

on these switches. See the Switch Settings page for additional information.

2) HD VIDEO SELECT: A rotary switch allows the user to choose the HD video output resolution. See the Switch
Settings page for additional information.

3) NETWORK CONTROL Port: The Ethernet 10/100 port allows the camera to be controlled from embedded

web server with a web browser or through Telnet session.

4) RS-232 Port (Color Coded Blue): The RS-232 port accepts modified VISCA protocol for camera control over

a Cat-5e cable. This port also acts as an IR Forwarding port with the Quick-Connect SR or Quick-Connect
DVI/HDMI interfaces, which allows the user to transmit 3

5) EZ-POWER VIDEO Port (Color Coded Orange and Yellow): The EZ-Power Video port supplies 24 VDC

power to the camera and delivers HD video back to the Quick-Connect interface using high speed differential
signaling over Cat-5e cable. Color coded orange for use with Quick-Connect SR, DVI/HDMI-SR, USB and USB
Mini. Color code yellow is for use with the Quick-Connect Universal CCU.

6) 36 VDC FOR CCU ONLY (Color Coded Red) : The CCU power port is only used with Quick-Connect Universal
CCU and is shipped with a label over the connectors to remind the installer to “Please test and mark the Cat-

5/5e/6 UTP cable and confirm the connectivity prior to termination”. The RoboSHOT QSR systems do not

use this connector.

①

②

③

④
⑤

⑥

rd

party IR signals through camera to the head-end.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 9 of 44

RoboSHOT HD Cameras

Q

UICK-CONNECT SR INTERFACE

Image: Rear Panel with Feature Call-outs

1) Power Input:

5.5mm OD x 2.5mm ID coaxial connector for the provided 24 VDC, 2.0 Amp switching power supply.

2) EZ-POWER VIDEO (Color Coded Orange):

A single Cat-5 connection between the EZCAMERA POWER & HD VIDEO RJ-45 connector and the camera’s EZ
Power HD Video Port on the HD-19 camera extends power and video. Power is fed to the camera and HSDS
video is returned from the camera on the same Cat-5.

3) HD VIDEO OUTPUT:

DE-15 connector outputs the YPbPr analog component HD video, which was extended from the camera over Cat­5 cable. SD video resolutions (Y/C and CVBS formats) are not supported by the Quick-Connect SR Interface,
however analog component SD (high fps format - 480p/59.94 and 576p/50) video is supported.

4) IR OUTPUT:

With the IR pass-thru turned ON (see camera DIP switch settings), IR from third-party IR remote controls can be
sent through the camera to third-party equipment, such as hardware videoconferencing codecs. IR can be used
as either modulated (through the air) or non-modulated (wired) signals.

5) RS-232 INPUT & OUTPUT:

These RJ-45 connectors allow an external controller (watch for upcoming shameless plug) like the
ProductionVIEW™ Precision Camera Controller to route through the Quick-Connect SR for ease of cable routing.
The INPUT is color coded grey and the OUT TO CAMERA in color coded blue.

①

②

③

④

⑤

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 10 of 44

RoboSHOT HD Cameras

pply

S

YSTEM CONFIGURATION EXAMPLES

The Quick-Connect SR interface uses two (2) Cat-5e cables to supply power to the camera, return differential video
from the camera while providing bi-directional control (RS-232) for the camera over a distance of up to 100’
(30.48m).

Diagram: Basic Connectivity Example of the RoboSHOT and the Quick Connect SR

RoboSHOT Camera Connected to Quick-Connect SR Interface, ProductionVIEW™ Precision Camera Controller
and HD Monitor.

Rear View of

HD Monitor

Simulated Video Feeds

ProductionVIEW

Precision Camera Controller

YPbPr - HD Video

RS-232

Not Used with
QSR Systems

24VDC, 2.0 A
Power Su

Quick-Connect
SR Interface

◄ Power to Camera, Video to Interface ►

Cat-5e (orange to orange)

RS-232 Cat-5e

(blue to blue)

Network Connection for Camera
Configuration and Control (web
server built-in to camera for
browser based or Telnet control).

Two (2) Cat-5e cables between the
Camera and the Quick-Connect SR

PRE-I

NSTALLATION

 Choose a camera mounting location while paying close attention to camera viewing angles, lighting conditions,

possible line of site obstructions, and checking for in-wall obstructions where the camera is to be mounted.

Always pick a mounting location that will optimize the performance of the camera.

 The included RoboSHOT wall mount can be mounted directly to a 2-gang wall box or can be mounted to the

wall using dry wall anchors.

RS-232 Cabling Notes:

For RS-232 cabling, use a standard Cat-5 (if you can still find Cat-5) or Cat-5e/6 cable with real RJ-45 connectors
(568B termination) from the RS-232 port on the back of the Quick-Connect interface to the camera’s RS-232 Port.
If the camera is connected to a third-party control system (such as AMX or Crestron), a DE-9F (also called a DB­9F in some circles) to RJ-45F control adapter is supplied.

More Notes: Use of pass-thru type RJ-45 connectors is highly discouraged. The Vaddio Cat-5 wiring

standard uses pins 1, 2, 7 and 8 on both the power/video and the control Cat-5e cables. The pass-through
connectors have proven to provide insufficient connectivity for these important signals. They are OK for
voice and data that use the center pins only, but not for cabling systems that use all the pins.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 11 of 44

RoboSHOT HD Cameras

Setting the RoboSHOT Camera HD Resolution

The RoboSHOT cameras control the resolution of the video signal sent back to the Quick-Connect interface. There
is, as explained on the page 10, a rotary switch to set the HD video resolution and a set of eight (8) DIP switches
that determine certain camera functions. See drawing and Description on how to setup the camera.

Drawing: DIP Switch and Resolution Label on the Bottom of the RoboSHOT

⑦

All Down

with Power

Cycle for

Defaults

②

IR 1

1 & 2 UP

IR 2ONIR 3

ON

21

12

DIP SWITCH SETTINGS

IR


OUT

FLIP

OFF

OF

F

ON

ON

3768

3

4

4

④

③

BAUD

SUPER

9600

WIDE

OFF

ON

5

567

bps

38,400

bps

OFF8OFF

⑤ ⑥

7

8

①

HD VIDEO RESOLUTION SELECT

0
1
2
3
4
5
6
7

720p/59.94

1080i/59.94

1080p/59.94

720p/60

1080i/60

1080p/60

720p/50

1080i/50

8
9
A
B
C
D
E
F

1080p/50

720p/30

1080p/30

720p/25

1080p/25

Setting the RoboSHOT Switch Gear:

① - Set the desired and available HD output resolution for the camera with the Rotary Switch.

② - Set the IR control frequency of the camera if it is to respond to the IR remote control.

③ - If using the IR forwarding features with a 3

rd

party codec remote, set the IR OUT switch to ON (SW3).

④ - If inverting the camera, turn the IMAGE FLIP ON (SW4).

⑤ - For the RoboSHOT 12X model only, set the Super-wide mode to ON for a 12X, 73º horizontal super-wide

angle of view. Normal mode will produce 67.2º horizontal field of view (HFOV). The RoboSHOT 30 does not have
a Super Wide mode.

⑥ - Set the Baud Rate DIP switch (SW6) to 9600bps for most applications. Default is 9600 bps systems.

⑦ - Setting all DIP switches DOWN with a power cycle loads the default camera settings. Return DIPs to

desired operating position after power cycle

Note: Switches 7 & 8 are reserved for future use.

DIP Switch Settings Further Explained (DSSFE):

 IR 1, 2 and 3 (SW 1 &2): A single IR remote has the capability of operating up to three different PTZ cameras

in a room. Use these selector DIP switches and the selector buttons at the top of the IR remote to select the

frequency.

 IR OUT on/off (SW3): The IR output is sent out on the RS-232 RJ-45 jack on the back of the camera. Turning

on the IR output will allow IR signals to be transmitted over the Cat-5 cable to the head end. When using RS­232 control or Vaddio CCU controllers (also via RS-232), turn the IR OUT to OFF (up).

 Image Flip (SW4): To invert the camera, turn the IMAGE FLIP ON (switch down).

 Super-Wide Mode: Super-wide works only with the RoboSHOT 12 model and allows the camera to switch

from 67.3º wide end HFOV to a Super Wide 73º wide end HFOV.

 Baud Rate (SW6): The options for baud rate are either 9600 or 38,400 bps. The 9600 bps works best with

Cat-5e over distance. Use 38,400 bps for short control lines only.

 DIP Switches (SW7 & 8): Not used for operation, please leave these DIP switches up or in the OFF position.

.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 12 of 44

RoboSHOT HD Cameras

Installation Basics:

The RoboSHOT cameras include a Thin Profile Wall Mount for…wall mounting the camera. There
are options for IN-Wall™ mounts and IN-Ceiling™ Half-Recessed as well. The Cat-5 cabling
ideology is especially convenient for camera mounting when the camera location is not anywhere
near an AC outlet. Installation is simplified in that no custom 8-Pin mini-din cables or expensive
plenum coax cables or multi-pin cables or power outlets are required near the camera location. All
Cat-5 cabling is routed to the head-end using with standard straight through RJ-45 connectors

(568B termination). “Pass-thru” type RJ-45 connectors should be avoided, like using a ladder for

a pommel horse, which should be avoided too.

Determine Camera Mount Location and Mount

After determining the optimum location of the camera system, route the required Cat-5e cables from the camera to
the head-end Quick-Connect. Test and mark the Cat-5e cables: EZ-POWER VIDEO and RS-232.

The Cat-5e cables should feed-through the cable management slots provided by
all Vaddio mounting options. If the wall mount is to be mounted on a 2-gang wall

Use a level to
level the mount…

box, use the screws supplied with the wall box cover plate to attach the Thin
Profile Wall Mount Bracket. If mounting to drywall with wall anchors, use the four
(4) quality wall anchors and screws provided.

The mounting holes are slotted and are 90° opposing to provide easy leveling.
Level the mount and place the camera on the mount. Connect the marked and
tested Cat-5e cables to the appropriate RJ-45 jacks. Check the level again to
avoid any of those weird Batman camera angles. Use the provided ¼”-20 x .375
mounting screw to attach the Camera to the mount.

System Wiring

Follow the sample wiring diagram (page 11) for connecting the Cat-5e cables to the camera and Quick-Connect
Interface. Additional diagrams are available on the Vaddio website.

Connect the camera side as follows:

 Connect the EZ-POWER VIDEO Cat-5e to the EZ-POWER VIDEO RJ-45 connector on the RoboSHOT.
 Connect the RS-232 control Cat-5e to the RS-232 RJ-45 on the RoboSHOT camera.

Connect the Quick-Connect side (at the head end) as follows:

With the Quick Connect USB not powered-up.

 Connect the RS-232 Cat-5e cable to the RS-232.
 Connect the EZ-POWER VIDEO Cat-5e to the EZ-POWER VIDEO RJ-45 connector on the Quick-Connect.

Note: Please check all Cat-5 cables for continuity in advance of final connection (568B). Plugging the

EZ-POWER/VIDEO Cat-5 cable into the wrong RJ-45 or using the wrong pin-out may cause damage
to the camera system and void the warranty!

Step 4: Connect the supplied 24 VDC, 2.08 Amp power supply to a power outlet and to the Quick-Connect SR

Interface. The Quick-Connect SR will initialize, power will travel down the EZ-POWER VIDEO Cat-5e cable to the
camera. The camera will boot up and in a few seconds, differential HD video will travel back down the Cat-5e
cable to the Quick-Connect USB. When an image is available, the camera is ready to accept control information
from the IR remote control or RS-232 camera controller, however it is always best to choose either IR or RS-232

and not both concurrently.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 13 of 44

RoboSHOT HD Cameras

C

ONTROLLING THE CAMERA

IR Remote Commander

The following functions are accessible with the Vaddio IR remote:

 Camera Power On/Off (Toggle on/off same button)
 Back Light Compensation (Toggle on/off same button)
 Data Screen: Toggle on/off the OSD for the RoboSHOT’s IP/MAC Address
 Camera Select (the remote can operate 3 cameras (with 3-IR Freq.)
 Pan/Tilt and Home controls with Reverse and Std. Pan direction
 Pan/Tilt Reset
 Auto Focus (Toggle on/off same button)
 Zoom In/Out controls Wide & Telephoto

 Fast speed controls (W & T)

Vaddio
IR Remote
Commander

 Slow speed controls (W & T)

 Manual Focus On/Off control (Toggle on/off same button)

 Near (-) adjustment

 Far (+) adjustment
 Six (6) pan/tilt/zoom positioning presets (1 through 6)
 Preset Set (store)
 Preset Reset (clear)
 Red LED that indicates IR Transmission and battery level

The IR Remote operational characteristics are as follows:

 Preset Activation: IR Remote is limited to executing Presets 1 through 6
 Tri-Sync Speed on Preset: If a global Tri-Sync speed is stored in the preset by the user/admin, then that

speed is used. If no Tri-Sync speed is assigned, then a default (medium) speed will be used.

 Preset Store: IR Remote is limited to positional (PTZ) type presets. To set a preset, position the camera,

hold down the Preset Button and touch the one of the preset numbered buttons 1 through 6.

Telnet Control

*

The following

 Camera Home
 Camera Pan (left, right and speed - real-time operation)
 Camera Tilt (up, down and speed - real-time operation)
 Camera Zoom (zoom in/out/stop and speed - real-time operation)
 Camera Store Preset (Gets or Sets 12 presets with global relative PTZ [Tri-Sync] speed control to destination)
 Camera Image (Gets or sets current image control values, sets in 1 of 3 CCU presets)

(AWB or manual w/Red and Blue gain, BLC on/off, Auto Iris or manual with Iris value and Gain, Detail and Chroma)

 Camera Sleep (Gets or sets standby power mode - camera has to us less power in this mode)
 Exit (ends Telnet session)
 Help (displays CLISH syntax)
 History (command history)
 Network Ping (send ICMP ECHO_REQUEST to network hosts)
 Network Settings (Gets MAC address, IP address, Subnet Mask, Gateway and NTP server address)
 Network (Gets the current network settings or pings an IP address)
 System Factory Reset
 System Reboot
 Version (system version information)

Telnet commands are available through the Ethernet Port.

*

Please see the full Telnet command list at the end of this manual.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 14 of 44

RoboSHOT HD Cameras

T

HE SCREEN SHOT TOUR

The RoboSHOT camera platform uses a Linux OS and has a built-in web server. The internal web pages will allow
control of the attached camera via an Ethernet network connection. These web pages will allow the user or
administrator to control the camera, set PTZ presets, set security passwords, change the IP address, view
diagnostics, access the firmware upgrade page and more!

Compatible Web Browsers

You may ask, “What are the approved web browsers that work with the RoboSHOT’s embedded web server?”
Chrome

®

(latest version), Firefox® (latest version), Internet Explorer® (versions 8 through 11) and Safari® (versions

6 and 7) have been tested thoroughly with RoboSHOT and are compatible.

DHCP IP Set-up (Dynamic Host Configuration Protocol)

DHCP Set-up (skip this section if Static IP). If the LAN has a DHCP (dynamic host configuration protocol) server, then the IP address,
gateway and routing information will automatically be assigned. The software is defaulted to DHCP and will attempt to dynamically obtain an
IP address using DHCP, but it will fall back to the default address of (169.254.1.1) if no DHCP server can be found.

Static IP Set-up:

The static IP can be assigned either through the network or directly to a computer using a cross-over cable. Depending on the age of the
computer, you may not need a cross-over cable. Either way the steps are the same for network or direct connection to a computer. The default
address of the camera is 169.254.1.1 and the Subnet mask is 255.255.0.0. Different computer OS types all have their own way of doing things

(without question), but they are essentially doing the same stuff, changing the IP address so the web pages of the RoboSHOT are accessible

.

Screen Shot: Login

The RoboSHOT webserver is intended as a user’s camera control page at one level, and an administrator’s
management tool at another level, which requires password authentication for access.

The Login Page will appear if there is a user name assigned by the administrator. Assigning a user name can limit
access to the admin menus by a general user.

By default, the User name is: user, and the password for the User account is: password.

The Administrator can set the name and password for the User account.

By default, the Admin user name is: admin, and the password for the admin account is: password.

If a user or an admin logs in through this screen, then the next page shown will be the camera control page.

The user will only have access to the camera control page.

The Admin will have complete access to all web pages.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 15 of 44

RoboSHOT HD Cameras

Screen Shot: Camera Control Page

This web page provides access to the camera controls for the User and the Admin.

1) Pan, Tilt and Home Controls: These intuitive controls use the up/down and diagonal arrows for camera pan and tilt. The

center button will move the camera to the home position.

2) Zoom Control: The camera’s zoom lens can be controlled with the “+” to zoom-in and the “-“to zoom out.

3) Pan/Tilt and Zoom Speed Controls: The speed for both the Pan/Tilt and Zoom controls can be adjusted with the three

(3) sliders in this section. For tighter shots, it is recommended that the slower speed is used. These controls are for real-

time camera movements only.

4) Standby: The Standby control puts the camera in low power mode and effectively puts the RoboSHOT to sleep. The

camera will pan 90º from center and 30º downward (to not collect dust on the lens). When the camera is inverted (ceiling

mounted) the camera will pan 90º from center and 30º downward. If the system is on, then the button will be blue and

controls will be visible. If the button is red, no controls are accessible and the screen states: Device is in standby. Click

to power-up, then you’ll know what to do.

5) Camera Presets: Twelve (12) camera position presets can be recalled simply by clicking a preset number.

6) Store Preset Button: Clicking the Store button opens up a Store Preset pop-up dialog box. To set presets, set up the

camera shot, click on choice of preset number (1 through 12). The preset is stored and the dialog box closes. The Store

Preset dialog bow will prompt the operator to enter the Tri-Sync speed to the stored camera preset and if the current color

settings are to be stored with the preset too (see the next page).

7) CCU Scene s: The user has access to the CCU scenes set and stored on the Admin pages. There are three (3) user

definable presets and six (6) presets preconfigured by the technical folks at Vaddio (really Scott set them all) that are meant

to be used in certain lighting scenarios. These lighting presets included: Automatic, Incandescent Hi, Incandescent Lo,

Fluorescent Hi, Fluorescent Lo and Outdoor.

8)

Administration Menu: By clicking on the Administration menu bar, the Admin Login screen will appear.

➑

➎

➐

➊

➋

➍

➌

➏

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 16 of 44

RoboSHOT HD Cameras

Screen Shot: Storing Presets

1) Store Preset: When the Store Preset button is clicked (point 6 on previous page), the Store Preset dialog pops into

existence. To save the current camera shot, click one of the Preset buttons (1 through 12), the button will be

highlighted and the dialog box will present the Tri-Sync controls and if the CCU setting are to be kept with the preset.

2) Save with Tri-Sync and Setting the Tri-Sync Speed: The Tri-Synchronous Motion algorithm in the RoboSHOT

cameras is capable of moving all three (pan, tilt and zoom) axes simultaneously. The algorithm calculates the PTZ

position so pan, tilt and zoom start at the same time and arrive at the preset subject simultaneously. Tri-Sync speed

is speed at which all other presets will use to get to the preset being stored. All axes will launch at the same time

and if the next preset position is not too close or too far, axes should simultaneously arrive at the preset location.

Storing the preset with Tri-Sync is fairly straight forward. Here’s a quick method to set Tri-Sync:

a) Position the first preset, click on Store Preset and click on Preset 1. Check the Save with Tri-Sync box. Move

the tri-Sync speed slider to about the approximate position above (about 1/3 up the speed scale). This is the
speed that all the other presets will use to get to this Preset 1. The speed is stored with the destination preset.
Click on Save to store the camera location and Tri-Sync speed.

b) Set another camera position, and try a different pan, tilt and zoom position and click on Store Preset. Click on

Preset 2 through 12, click on the Save with Tri-Sync box and set the slider to about ½ way this time and click on
Save. These two presets are stored with different preset destination speeds.

c) Click between these two recently stored presets and note the different speeds applied to the 2 presets.

Tri-Sync Notes: If a preset is very close to the previous preset, like within10º with no change in zoom, it certainly

doesn’t need to be Tri-Sync’d. If a preset is super-fast and off-air, Tri-Sync won’t be of much use either. Tri-Sync
is a cool tool to set for on-air shots, but the process of setting the speeds will need some practice.

3) Store with Current Color Settings: To save the currently assigned CCU scenes settings, check this box.

4) Click Save or Cancel to exit this pop-up dialog box.

➊

➋
➌

➍

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 17 of 44

RoboSHOT HD Cameras

Screen Shot: Admin login from the Camera Control Page

On the security page, which will be reviewed at a bit later in the tour, allows the Admin to set the system to allow
automatic guest access to the main camera control page. If guest access is turned on by the Admin, then system
will open to the camera control page and an additional Admin Login is provided.

The default Admin password is: password.

Admin

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 18 of 44

RoboSHOT HD Cameras

Screen Shot: Admin Menu - Camera Settings

Once the Admin logs in, then all the admin menu buttons appear on the left side of the screen. The first menu
after Camera Controls is Camera Settings.

1) Load Preset at Startup: Check this box to move the camera to a predefined preset location when the camera

powers up. Use the pull down menu to select the Preset 1 through 12 to be loaded when this box is checked.

2) Load CCU Scene at Startup: Check this box to load a CCU Scene into the camera when the camera powers

up. The pull down menu will allow the selection of one of the 6-factory scenes, or one of the 3 custom scenes.

3) CCU Scenes: Click on any of these 9 buttons to load one of the CCU scenes into the camera. These Scenes

can be fine-tuned if changes are needed, and stored into any of the three User defined scenes.

4) Color Settings: When painting or shading camera scenes for specific lighting situations or environments,

these parameters can be adjusted for matching cameras in the same area. The parameters within the Color

Settings section are defined below (top to bottom):

 Auto Iris Check Box: When checked, the camera will operate in Auto Iris mode, when unchecked, the

camera will be in Manual Iris mode and allow adjustment of Iris and Iris Gain levels.

➌

➍

➎

➏

➊

➋

➐

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 19 of 44

RoboSHOT HD Cameras

 Iris: Move adjustment slider as required to adjust the iris opening. A numeric value will be displayed in the

box to the right of the slider.

 Gain: Move adjustment slider as required for amount of iris gain desired. Numeric value will be displayed

in the box to the right of the slider.

 Auto White Balance check box: When checked, camera will operate in Auto White Balance mode, when

unchecked camera will be in Manual White Balance Mode and allow for adjustment of Red and Blue Gain.
 Red Gain: Move the adjustment slider as required for amount of Red Gain desired. A numeric value

will be displayed in the box to the right of the slider.

 Blue Gain: Move the adjustment slider as required for amount of Blue Gain desired. Numeric value

will be displayed in the box to the right of the slider.

 Back Light Compensation: When checked, Back Light Compensation will be applied to the camera if

camera is in Auto White Balance mode.

 Detail: Move the adjustment slider as required for amount of detail (Aperture) desired. A numeric value

will be displayed in the box to the right of the slider. Note: If the detail is too high, the video can look grainy
and appear noisy too.

 Chroma: Move the adjustment slider as required for the amount of Chroma (Color Vibrancy) desired. A

numeric value will be displayed in the box to the right of the slider.

5) Store CCU Scene button: Once the desired scene adjustments have been

made, this button will activate a pop-up menu that can be used to store this scene

into one of the three User Defined Scene locations. These User Defined Scenes

can be named as required for clarity. These User Defined CCU Scenes can be

adjusted and re-saved at any time.

6) Custom CCU Scene Labels: The labels for the (3) User Defined customizable Scenes can be changed as

needed. Mouse the cursor into the appropriate window and edit the text. Press Save to store these changes

or press Cancel to exit this window.

7) Global Preset Non-Tri-Sync Speeds: When Tri-Sync Presets are not being used, then this section governs

the pan, tilt and zoom speeds between the camera presets. These will be defaulted to a nominal level, but can

be tailored to most any application.

Screen Shot: Admin Menu - Room Labels

The Room Labels menu allows the Admin to label the company name, room name, room phone and help phone on
a per RoboSHOT basis. The labels appear on every page at the top/middle of the page. Simply enter the room
information and click Save.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 20 of 44

RoboSHOT HD Cameras

Screen Shot: Admin Menu - DHCP Network Configuration

Under the Networking menu, The Network Configuration and Network Interfaces are displayed. This is where the
Network administrator assigns either DHCP or a Static address and the associated parameters.

Notes: If the LAN has a DHCP (dynamic host configuration protocol) server, then the IP address, gateway and routing information will
automatically be assigned. The software is defaulted to DHCP and will attempt to dynamically obtain an IP address using DHCP, but it will fall
back to the default address of (169.254.1.1) if no DHCP server can be found.

Screen SHOT: Admin Menu - Static IP Configuration

If Static IP is used, the IP Address, Subnet Mask and Gateway are manually entered. Click on Save to keep the
Static IP information.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 21 of 44

RoboSHOT HD Cameras

Screen SHOT: Admin Menu - Security

The Security menu allows the Admin to set the Admin and User account names and passwords. There is only one “user”

password and only one “admin” password at any given time. If changes are made, click on Save to store the change (it’s best
to write down the new names and passwords). A Guest Access check box is provided to let any user access the camera control
page without logging in. An Admin Login is provided on the camera control page if the “Allow Guest Access” box is checked.

Screen Shot: Admin Menu - Diagnostics

Diagnostics menu button will display a set of self-diagnostics. These diagnostics may help the Vaddio technical support team
diagnose a problem with the RoboSHOT camera

.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 22 of 44

RoboSHOT HD Cameras

Screen Shot: Admin Menu - System

The System Menu is where the System Info is displayed and Firmware Updates are performed. There will be
firmware updates and upgrades over the life of the camera. The file for the firmware update is chosen in this menu
and the update is started here too. A remote system Reboot and Restore to Factory Presets is also available.

1) Firmware Update: The file for the firmware update is chosen in this menu and the update is started here.

2) System Utilities: A remote system Reboot and Restore to Factory Presets is also available.

3) System Information: The System version, Pan & Tilt Motor Versions and Sensor version are displayed in this

section.

4) Rear DIP Switch Status: The DIP Switches on the camera are read and displayed for the Admin’s reference.

This information is read only. These switches determine the IR remote frequency, image flip, and baud rate of

the camera and more!

5) Rear Rotary Switch Status: The rotary switch on the back of the RoboSHOT camera determines the video

output resolution of the camera. The status is read from the camera (read only) and displayed for the Admin’s

reference.

Important Note: Anytime a Firmware Update, a System Reboot or a Restore to Factory Settings

button is clicked, then a pop-up dialog box will spring up and ask if the intent is to continue or cancel.
Please read and understand all the information in the presented in the dialog box prior to proceeding
with any unknown procedure.

➊

➋

➌

➍

➎

➏

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 23 of 44

RoboSHOT HD Cameras

Screen Shot: Admin Menu - Update Confirmation

After choosing an update file and clicking on “Begin Firmware Update…” a confirmation pop-up and warning will
be displayed. Please contact Vaddio Tech support for assistance with updates. Please read and completely
understand the pop-up warnings as it is easy to lose patience waiting for updates. Click on continue to start the
update.

Screen Shot: Admin Menu - Update in Progress

After the firmware load has been started, a pop-up screen will advise patience and notify, in terms of percentage
completed, the progress of the firmware update load. Again, please don’t interrupt the firmware load.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 24 of 44

RoboSHOT HD Cameras

Screen Shot - Admin Menu - Help

Service/Help information can be found under the Help menu. Support phone numbers and e-mail, manuals, FAQ’s
and System information is listed on [e-mail].

TECHNICAL SUPPORT NOTE:
Please work with your Network Administrator prior to calling Vaddio for technical support. Please
have on-site network personnel initiate tech support calls with Vaddio only.

This concludes the RoboSHOT Screen Shot Tour. Please enjoy yourself while reading the rest of this RoboSHOT
Camera Manual.

The Next Sections:

The General Specifications, Communication Specifications, API, Telnet Command List, Warranty Information and
Declaration of Compliance are breathtaking, stimulating and provocative as one would expect.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 25 of 44

RoboSHOT HD Cameras

G

ENERAL SPECIFICATIONS

Function Description

Part Numbers

Image Device
Video Resolution/Frequencies
Vaddio Special Features

Video Aspect Ratio
Effective Pixels

RoboSHOT 12

Lens and Horizontal FOV

RoboSHOT 30

Lens and Horizontal FOV
Minimum illumination RoboSHOT 12
Minimum illumination RoboSHOT 30
Minimum working distance RoboSHOT 12
Minimum working distance RoboSHOT 30
S/N ratio
Sync system
White balance
Gain
Back-light compensation
Focusing system
Noise Reduction
Aperture/Detail
Control Interface(s)

Pan & Tilt Angle/Speed

Rear Panel Connectors

Rear Panel Controls

Power Supply
Compatible Joystick and Video Control

Consoles

Operating/Storage Temperature/Humidity
Mass
Dimensions

Quick-Connect SR

Quick-Connect System

Connectors

Power Supply 24 VDC, 2.0 Amp Switching Power Supply
Dimensions (H x W x D) 1-RU, 1/3 Rack Size, 1.6” (40.64mm ) H x 5.5” (139.7mm) W x 3.25” (82.55mm) D
Accessory Rack Mount Adapter: 998-6000-002 - Holds three (3) Quick-Connect SR Interfaces

RoboSHOT 12 QSR System, 999-9905-000 (North America), 999-9905-001 (Int’l)
RoboSHOT 30 QSR System, 999-9915-000 (North America), 999-9915-001 (Int’l)
RoboSHOT 30 QSR System, 999-9915-000W (North America), 999-9915-001W (Int’l), W=White Camera

1/2.8-Type Exmor CMOS Sensor

1080p60/59.94/50/30/25, 1080i/60/59.94i/50, 720p/60/59.94/50/30/25

 Tri-Synchronous Motion: Concurrent PTZ motor movement and simultaneous PTZ arrival at a stored

preset

 Advanced ISP: Vivid and accurate color reproduction with extremely fast, razor sharp automatic focus

and iris routines

16:9 Aspect Ratio for all resolutions

2.14 Million Effective pixels

2.38 Million Total Pixels
12X Optical Zoom, Super Wide Mode: 73.0° (wide) to 6.6° (tele),f=3.91mm to 47.0mm, F1.8 to F3.4

10X Optical Zoom, Normal Mode: 67.3° (wide) to 7.6° (tele), f=3.8mm to 38.0mm, F1.8 to F3.4
NOTE: Default is Normal Mode

30X Optical Zoom
65° (wide end) to 2.3° (tele end), F1.6 to F4.7

1.0 lx (F1.8, 50IRE), recommended illumination >100 lux and <100,000 lux

1.4 lx (F1.6, 50IRE), recommended illumination >100 lux and <100,000 lux

10mm (wide), 800mm (tele)

10mm (wide), 1.2m (tele)

More than 50 dB

Internal

Auto, ATW, Indoor, Outdoor, One-push, Manual (accessible through external control)

Auto / Manual (0 to 28 steps - accessible through external control)

On/Off (IR Remote)

Auto Focus / Manual Focus Mode / One Push Trigger Mode / Infinity Mode / Near Limit Mode

On/Off, 6 Steps, Off through 5 (accessible through external control)

16 Steps (accessible through external control)

 RS-232 API: Modified VISCA Emulation (TTL signal level), Baud rate: 9600 bps and 38,400 bps, 1-Stop

bit. Default to 9.6 Kb/s for Cat-5e Distance

 Telnet Serial Command API
 Internal Web page for Network Set-up, firmware updates and network management
 Vaddio IR Remote Commander

Pan/Tilt Angles: ±160°, Tilt: +90°, -30°,
Pan/Tilt Speeds: Both Axes 0.35°/sec to 120°/sec

 Network: RJ-45 with Green & Yellow LED to show connection and usage
 RS-232: RJ-45, Carries bidirectional control to and from the camera
 EZ Power Video: RJ-45 Shielded, carries power and differential video signals for the Quick-Connect

Cat-5 systems

 16-Position Rotary Switch for Resolution selection
 8-Position DIP Switch for IR Frequency, Image Flip, wide mode and Reset to Default Settings

Powered by Quick-Connect SR Interface

ProductionVIEW Precision Camera Controller
ProductionVIEW HD
ProductionVIEW HD MV with Integrated Multi-viewer,
ProductionVIEW HD-SDI MV with Integrated Multi-viewer
AV Bridge MATRIX PRO

0°C (32°F) to 40°C (104°F), 20% to 80%

4.85 lbs.(2.199923 kg - Roughly 900 peanut M&Ms)

Small (3 dimensions not counting space/time)

6.942” (176.3mm) H x 7.056” (179.2 mm) W x 6.757” (171.6mm) D,

Quick-Connect SR (two Cat-5e) for Video, Power and Control at distance up to 100’ (30.84m)
Analog Component YPbPr output with IR forwarding

 Power Connector: 5.5mm OD, 2.5mm ID coaxial connector
 Power/Video RJ-45: Supplies power to, and differential HD video from the camera
 Video Output: DE-15 connector for HD Analog Component (YPbPr) video only (No SD Support)
 IR Output: Transmits modulated or non-modulated IR signals - from the camera’s IR receiver
 RS-232 IN RJ-45: Accepts RS-232 from ProductionVIEW or other external control systems
 RS-232 OUT RJ-45: Sends RS-232 from Quick-Connect SR to the camera

Notes: Specifications and pricing are subject to change without prior notice or obligation.
For dimensional drawings of the products, go to support.vaddio.com and click on drawings.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 26 of 44

RoboSHOT HD Cameras

COMMUNICATION SPECIFICATION

Communication Speed: 9600 bps (default)
Start bit: 1
Stop bit: 1
Data bits: 8
Parity: None
No Flow control

NOTE: The Vaddio RoboSHOT Control Protocol is similar, but not identical to, the Sony® VISCA™ command set in order to

be compatible with several popular control devices. Not all VISCA commands are supported and there are many Vaddio specific
commands in the following Command and Inquiry Lists.

12345678

Pin # RJ-45 RS-232 and IR Out Pins

1) Unused

2) Unused

3) Unused

4) IR Output (Diff Signal to Quick-Connect SR)

5) IR Ground (Diff Signal to Quick-Connect SR)

6) GND (GND of IR Short Range - Pin 3)

7) RXD (from TXD of control source)

8) TXD (to RXD of control source)

RoboSHOT Command List (1/3)

Command Set Command Command Packet Comments

AddressSet Broadcast 88 30 01 FF Address setting
IF_Clear Broadcast 88 01 00 01 FF I/F Clear
CommandCancel 8x 2p FF p= Socket No.(1-2)
CAM_Power On

CAM_Zoom Stop

CAM_DZoom Not supported
CAM_Focus Stop

CAM_AFSensitivity Normal

CAM_AFMode Normal AF

CAM_IRCorrection

CAM_ZoomFocus Direct 8x 01 04 47 0p 0q 0r 0s

CAM_WB Auto

CAM_RGain Reset

CAM_BGain Reset

CAM_AE Full Auto

Off

Tele(std)
Wide(std)
Tele(variable)
Wide(variable)
Direct

Far(std)
Near(std)
Far(variable)
Near(variable)
Direct
Auto Focus
Manual Focus
Auto/Manual
One Push Trigger
Near Limit

Low

Internal AF
Zoom Trigger AF
Activate/Internal Time
Standard
IR light

Indoor
Outdoor
One Push WB
ATW
Manual
One Push Trigger
Outdoor Auto
Sodium Lamp Auto
Sodium Lamp
Sodium Lamp Outdoor Auto

Up
Down
Direct

Up
Down
Direct

Manual
Shutter Priority
Iris Priority
Bright

8x 01 04 00 02 FF
8x 01 04 00 03 FF
8x 01 04 07 00 FF
8x 01 04 07 02 FF
8x 01 04 07 03 FF
8x 01 04 07 2p FF
8x 01 04 07 3p FF
8x 01 04 47 0p 0q 0r 0s FF

8x 01 04 08 00 FF
8x 01 04 08 02 FF
8x 01 04 08 03 FF
8x 01 04 08 2p FF
8x 01 04 08 3p FF
8x 01 04 48 0p 0q 0r 0s FF
8x 01 04 38 02 FF
8x 01 04 38 03 FF
8x 01 04 08 10 FF
8x 01 04 18 01 FF
8x 01 04 28 0p 0q 0r 0s FF
8x 01 04 58 02 FF
8x 01 04 58 03 FF
8x 01 04 57 00 FF
8x 01 04 57 01 FF
8x 01 04 57 02 FF
8x 01 04 27 0p 0q 0r 0s FF
8x 01 04 11 00 FF
8x 01 04 11 01 FF

0t 0u 0v 0w FF
8x 01 04 35 00 FF
8x 01 04 35 01 FF
8x 01 04 35 02 FF
8x 01 04 35 03 FF
8x 01 04 35 04 FF
8x 01 04 35 05 FF
8x 01 04 10 05 FF
8x 01 04 35 06 FF
8x 01 04 35 07 FF
8x 01 04 35 08 FF
8x 01 04 35 09 FF

8x 01 04 03 00 FF
8x 01 04 03 01 FF
8x 01 04 03 02 FF
8x 01 04 43 00 00 0p 0q FF
8x 01 04 04 00 FF
8x 01 04 04 01 FF
8x 01 04 04 02 FF
8x 01 04 44 00 00 0p 0q FF
8x 01 04 39 00 FF
8x 01 04 39 03 FF
8x 01 04 39 0A FF
8x 01 04 39 0B FF
8x 01 04 39 0D FF

Power on
Power off

p= speed 0:low to 7:high
p= speed 0:low to 7:high
pqrs=Zoom Position (0h-4000h)

p= speed 0:low to 7:high
p= speed 0:low to 7:high
pqrs=Focus Position (1000h – F000h)

One push AF Trigger
pqrs=Near focus Limit***
AF Sensitivity High / Low

AF movement mode

pqrs=movement time, rs=Interval
Focus IR compensation data switching

pqrs=Zoom Position (0h – 7AC0h)
tuvw=Focus Position (1000h – F000h)
Normal Auto
Indoor mode
Outdoor mode
One Push WB mode
Auto Tracing White Balance
Manual Control mode
One Push WB Trigger
Outdoor auto
Auto including sodium lamp source
Sodium lamp source fixed mode
Outdoor auto including sodium lamp
source
Manual control of red gain

pq=Red gain (00h – FFh)
Manual control of blue gain

pq=Blue gain (00h – FFh)
Auto Exposure mode
Manual Control mode
Shutter Priority Auto Exposure mode
Iris Priority Auto Exposure Mode
Bright Mode (modified AE mode)

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 27 of 44

RoboSHOT HD Cameras

RoboSHOT Command List (2/3)

Command Set Command Command Packet Comments

CAM_Shutter Reset

Up
Down
Direct

CAM_Iris Reset

Up
Down
Direct

CAM_Gain Reset

Up
Down
Direct
+Gain Limit

CAM_ExpComp On

Off
Reset
Up
Down
Direct

CAM_BackLight On

Off

CAM_Tally On

Off

CAM_SpotAE On

Off
Position

CAM_WD On

Off
VE On
Set Parameter

CAM_Aperture Reset

Up
Down
Direct

CAM_HR On

Off
CAM_NR -- 8x 01 04 53 0p FF p= Noise Reduction level(0:Off,1-5)
CAM_Gamma -- 8x 01 04 5B 0p FF p= Gamma setting(0:std,1:Straight)
CAM_LR_Reverse On

Off
CAM_Freeze On

Off
CAM_PictureEffect Off

Neg.Art

Black & White
CAM_PictueFlip On

Off
CAM_ICR On

Off
CAM_IDWrite 8x 01 04 22 0p 0q 0r 0s FF pqrs=Camer ID (0h-ffffh)
CAM_Memory Reset

Set standard

Set standard with ‘scene’

Set Tri-sync

Set Tri-Sync with ‘scene’

Recall standard

Recall Tri-sync

8x 01 04 0A 00 FF
8x 01 04 0A 01 FF
8x 01 04 0A 02 FF
8x 01 04 4A 00 00 0p 0q FF
8x 01 04 0B 00 FF
8x 01 04 0B 01 FF
8x 01 04 0B 02 FF
8x 01 04 4B 00 00 0p 0q FF
8x 01 04 0C 00 FF
8x 01 04 0C 01 FF
8x 01 04 0C 02 FF
8x 01 04 4C 00 00 0p 0q FF
8x 01 04 2C 0p FF

8x 01 04 3E 02 FF
8x 01 04 3E 03 FF
8x 01 04 3E 00 FF
8x 01 04 3E 01 FF
8x 01 04 3E 02 FF
8x 01 04 4E 00 00 0p 0q FF
8x 01 04 33 02 FF
8x 01 04 33 03 FF
8x 01 7E 01 0A 00 02 FF
8x 01 7E 01 0A 00 03 FF
8x 01 04 59 02 FF
8x 01 04 59 03 FF
8x 01 04 29 0p 0q 0r 0s FF
8x 01 04 3D 02 FF
8x 01 04 3D 03 FF
8x 01 04 3D 06 FF
8x 01 04 2D 00 0q 0r 0s
00 00 00 00 FF

8x 01 04 02 00 FF
8x 01 04 02 01 FF
8x 01 04 02 02 FF
8x 01 04 42 00 00 0p 0q FF
8x 01 04 52 02 FF
8x 01 04 52 03 FF

8x 01 04 61 02 FF
8x 01 04 61 03 FF
8x 01 04 62 02 FF
8x 01 04 62 03 FF
8x 01 04 63 00 FF
8x 01 04 63 02 FF
8x 01 04 63 04 FF
8x 01 04 66 02 FF
8x 01 04 66 03 FF
8x 01 04 01 02 FF
8x 01 04 01 03 FF

8x 01 04 3F 00 0p FF
8x 01 04 3F 01 0p FF
8x 01 04 3F 21 0p FF
8x 01 04 3F 11 0p 0q 0r FF
8x 01 04 3F 31 0p 0q 0r FF
8x 01 04 3F 02 0p FF
8x 01 04 3F 12 0p 0q 0r FF

Shutter Setting

pq=Shutter Position (00h – 15h)
Iris Setting
pq=Iris Position**
RoboSHOT 12 (0h, 07h-11h)
RoboSHOT 30 (0h, 05h-11h)
Iris Gain Setting

pq=Gain Position (01h – 0Fh)
p= Gain limit (04h-0Fh)

Exposure Compensation On
Exposure Compensation Off

pq=ExpComp Position(0h-0Eh)
Backlight Compensation On/Off

Spot Auto Exposure Setting

pq=X-(0h-0fh), rs=Y-(0h-0fh)
WD On
WD Off
VE On
p=Display brightness level (0Dark –
6Bright)
r=Brightness compensation selection
(0:Very dark,1:Dark,2:std,3:bright)
s=Compensation level
(0:Low,1:Mid,2:High)
Aperture Setting

pq=Aperture Position (0h-ffh)
High Resolution Mode On/Off

LR Reverse On/Off (mirror)

Freeze On/Off

Picture Effect Setting

Image-Flip On/Off

ICR Mode On/Off

p= preset number(0h-0fh)
qr= Speed(01h-18h)

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 28 of 44

RoboSHOT HD Cameras

RoboSHOT Command List (3/3)

Command Set Command Command Packet Comments

Cam_Display On

On(alternate)

Off

Off(alternate)

On/Off

On/Off(alternate)
Cam_Mute On

Off

On/Off
CAM_ColorEnhance Parameter Set

On

Off
CAM_ChromaSuppress 8x 01 04 5F pp FF pp: Chroma Suppress setting level

CAM_ColorGain Direct 8x 01 04 49 00 00 00 0p FF p: Color Gain Setting 0h to 4h
CAM_ColorHue Direct 8x 01 04 4F 00 00 00 0p FF p: Color Hue Setting 0h (-14 degrees) to

CAM_GammaOffset Direct 8x 01 04 1E 00 00 00 0s 0t 0u FF s: Polarity offset (0 is plus, 1 is minus)

8x 01 04 15 02 FF
8x 01 06 06 02 FF
8x 01 04 15 03 FF
8x 01 06 06 03 FF
8x 01 04 15 10 FF
8x 01 06 06 10 FF
8x 01 04 75 02 FF
8x 01 04 75 03 FF
8x 01 04 75 10 FF
8x 01 04 20 mm 00 pp
qq rr ss tt uu FF

8x 01 04 50 02 FF
8x 01 04 50 03 FF

Display On/Off

Mute On/Off

mm: Threshold level
pp: Y fixed color for high-intensity
qq: Cr fixed color for high-intensity
rr: Cb fixed color for high-intensity
ss: Y fixed color for low-intensity
tt: Cr fixed color for low-intensity
uu: Cb fixed color for low-intensity
Each parameter setting 00h to 7Fh
Color Enhancement On/Off

00: Off
01h to 03h: On (3 levels).
Effect increases as the level number
increases.

Eh (+14 degrees)

tu: Offset s=0 (00h to 40h)

Pan-TiltDrive Up

Down

Left

Right

UpLeft

UpRight

DownLeft

DownRight

Stop
Absolute Position 8x 01 06 02 vv ww 0Y 0Y 0Y 0Y

Home 8x 01 06 04 FF
Pan-Tilt-ZoomDrive Up

Down

Left

Right

In

Out

Stop
Absolute Position 8x 01 06 0B vv ww 0Y 0Y 0Y 0Y

Home 8x 01 06 0C FF
CAM_PTZ_PresetSpeed 8x 01 7e 01 0b pp qq rr FF pp:pan speed (01h-18h),

8x 01 06 01 vv ww 03 01 FF
8x 01 06 01 vv ww 03 02 FF
8x 01 06 01 vv ww 01 03 FF
8x 01 06 01 vv ww 02 03 FF
8x 01 06 01 vv ww 01 01 FF
8x 01 06 01 vv ww 02 01 FF
8x 01 06 01 vv ww 01 02 FF
8x 01 06 01 vv ww 02 02 FF
8x 01 06 01 vv ww 03 03 FF

0Z 0Z 0Z 0Z FF

8x 01 06 0A vv ww rr 03 01 03 FF
8x 01 06 0A vv ww rr 03 02 03 FF
8x 01 06 0A vv ww rr 01 03 03 FF
8x 01 06 0A vv ww rr 02 03 03 FF
8x 01 06 0A vv ww rr 03 03 01 FF
8x 01 06 0A vv ww rr 03 03 02 FF
8x 01 06 0A vv ww rr 03 03 03 FF

0Z 0Z 0Z 0Z 0R 0R 0R 0R FF

vv= Pan speed (01h-18h)
ww=Tilt speed (01h-14h)

vv= Pan speed (01h-18h)
ww=Tilt speed (01h-14h)
0Y0Y0Y0Y = Pan position
(90E2h-6BD8h)
0Z0Z0Z0Z = Tilt position
(EB99h-3D59h)

vv= Pan speed (01h-18h)
ww=Tilt speed (01h-14h)
rr=Zoom speed (00h-07h)

vv: Pan speed (01h-18h)
ww: Tilt speed (01h-14h)

0Y0Y0Y0Y = Pan position
(90E2h-6BD8h)
0Z0Z0Z0Z = Tilt position
(EB99h-3D59h)
0R0R0R0R = Zoom position
(0000h-7AC0h)

qq:tilt speed (01h-14h),
rr:zoom speed (0h-07h)

Offset s=1 (00h to 10h)

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 29 of 44

RoboSHOT HD Cameras

RoboSHOT Inquiry List (1/2)

Inquiry Command Command Response Packet Comments

CAM_PowerInq 8x 09 04 00 FF

CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position
CAM_FocusModeInq 8x 09 04 38 FF y0 50 02 FF

CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position
CAM_FocusNearLimitInq 8x 09 04 28 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Near Limit Position
CAM_AFSensitivityInq 8x 09 04 58 FF y0 50 02 FF

CAM_AFModeInq 8x 09 04 57 FF y0 50 00 FF

CAM_AFTimeSettingInq 8x 09 04 27 FF y0 50 0p 0q 0r 0s FF pq: Movement Time, rs: Interval
CAM_IRCorrectionInq 8x 09 04 11 FF y0 50 00 FF

CAM_WBModeInq 8x 09 04 35 FF y0 50 00 FF

CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain
CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain
CAM_AEModeInq 8x 09 04 39 FF y0 50 00 FF

CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq: Shutter Position
CAM_IrisPosInq 8x 09 04 4B FF y0 50 00 00 0p 0q FF pq: Iris Position
CAM_GainPosInq 8x 09 04 4C FF y0 50 00 00 0p 0q FF pq: Gain Position
CAM_GainLimitInq 8x 09 04 2C FF y0 50 0q FF p: Gain Limit
CAM_ExpCompModeInq 8x 09 04 3E FF y0 50 02 FF

CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position
CAM_BackLightModeInq 8x 09 04 33 FF y0 50 02 FF

CAM_TallyInq 8x 01 7E 01 0A FF

CAM_ResolutionInq 8x 09 06 23 FF y0 50 0p 0q FF Pq=Video Resolution
CAM_SpotAEModeInq 8x 09 04 59 FF y0 50 02 FF

CAM_SpotAEPosInq 8x 09 04 29 FF y0 50 0p 0q 0r 0s FF pq: X Position, rs: Y Position
CAM_WDModeInq 8x 09 04 3D FF y0 50 02 FF

CAM_WDParameterInq 8x 09 04 2D FF y0 50 00 0q 0r 0s 0t 0u 00 00 FF q: Display brightness level (0: Dark

CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain
CAM_HRModeInq 8x 09 04 52 FF y0 50 02 FF

CAM_NRInq 8x 09 04 53 FF y0 50 0p FF Noise Reduction p: 00h to 05h
CAM_GammaInq 8x 09 04 5B FF y0 50 0p FF Gamma p: 00h , 01h

y0 50 02 FF
y0 50 03 FF

y0 50 03 FF

y0 50 03 FF

y0 50 01 FF
y0 50 02 FF

y0 50 01 FF

y0 50 01 FF
y0 50 02 FF
y0 50 03 FF
y0 50 04 FF
y0 50 05 FF
y0 50 06 FF
y0 50 07 FF
y0 50 08 FF
y0 50 09 FF

y0 50 03 FF
y0 50 0A FF
y0 50 0B FF
y0 50 0D FF

y0 50 03 FF

y0 50 03 FF
y0 50 02 FF
y0 50 03 FF

y0 50 03 FF

y0 50 03 FF
y0 50 06 FF

y0 50 03 FF

On
Off (Standby)

Auto Focus
Manual Focus

AF Sensitivity Normal
AF Sensitivity Low
Normal AF
Interval AF
Zoom Trigger AF

Standard
IR Light
Auto
Indoor
Outdoor
One Push WB
ATW
Manual
Outdoor Auto
Sodium Lamp Auto
Sodium Lamp
Sodium Lamp Outdoor Auto

Full Auto
Manual
Shutter Priority
Iris Priority
Bright

On
Off

On
Off
On
Off

On
Off

On
Off
VE On

to 6: Bright)
r: Brightness compensation
selection (0: Very dark,
1: Dark, 2: Standard, 3: Bright)
s: Compensation level (00h: Low,
01h: Mid, 02h: High)
tu: Always 0

On
Off

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 30 of 44

RoboSHOT HD Cameras

RoboSHOT Inquiry List (2/2)

Inquiry Command Command Response Packet Comments

CAM_LR_ReverseModeInq 8x 09 04 61 FF y0 50 02 FF

CAM_FreezeModeInq 8x 09 04 62 FF y0 50 02 FF

CAM_PictureEffectModeInq 8x 09 04 63 FF y0 50 00 FF

CAM_PictureFlipModeInq 8x 09 04 66 FF y0 50 02 FF

CAM_ICRModeInq 8x 09 04 01 FF y0 50 02 FF

CAM_MemoryInq 8x 09 04 3F FF y0 50 pp FF pp: Memory number recalled last
CAM_MemoryStatusInq 8x 09 04 3F 0p FF y0 50 0p 0q 0r 0s FF p: Memory number

CAM_MemSaveInq 8x 09 04 23 0X FF y0 50 0p 0q 0r 0s FF X: 00h to 07h (Address)

CAM_DisplayModeInq 8x 09 04 15 FF

(8x 09 06 06 FF)
CAM_MuteModeInq 8x 09 04 75 FF y0 50 02 FF

CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs: Camera ID
CAM_VersionInq 8x 09 00 02 FF y0 50 00 10

Vaddio_ModelInq 8x 09 08 0e FF y0 50 05 00 00 00 00 FF

CAM_RegisterValueInq 8x 09 04 24 mm FF y0 50 0p 0p FF mm: Register No. (=00h to 7Fh)

CAM_ColorEnhanceInq 8x 09 04 20 FF

8x 09 04 50 FF

CAM_ChromaSuppressInq 8x 09 04 5F FF y0 50 pp FF pp: Chroma Suppress setting level
CAM_ColorGainInq 8x 09 04 49 FF y0 50 00 00 00 0p FF p: Color Gain Setting 0h to 4h
CAM_ColorHueInq 8x 09 04 4F FF y0 50 00 00 00 0p FF p: Color Hue Setting 0h (− 14

CAM_TempInq 8x 09 04 68 FF Y0 50 00 00 0p 0q FF pq: Lens Temperature
CAM_GammaOffsetInq 8x 09 04 1E FF y0 50 00 00 00 0s 0t 0u FF s: Polarity offset (0 is plus, 1 is

Pan-tiltPosInq 8x 09 06 12 FF y0 50 0w 0w 0w 0w

y0 50 03 FF

y0 50 03 FF

y0 50 02 FF
y0 50 04 FF

y0 50 03 FF

y0 50 03 FF

y0 50 02 FF
y0 50 03 FF

y0 50 03 FF

mn pq 0E 0E 02 FF

y0 50 05 01 00 00 00 FF

y0 50 mm 00 pp qq rr ss tt uu FF

y0 50 02 FF
y0 50 03 FF

0z 0z 0z 0z FF

On (mirror)
Off
On
Off
Off
Neg. Art
Black & White
On
Off
On
Off

q: mode (00-std, 10-std /w ccu,
01-trisync,11-trisyc /w
ccu)
rs: speed (0x1-0x18) 1 - 24

pqrs: 0000h to FFFFh (Data)
On
Off
On
Off

mnpq: Model Code

RoboSHOT-12
RoboSHOT-30

pp: Register Value (=00h to FFh)
mm: Threshold level
pp: Y fixed color for high-intensity
qq: Cr fixed color for high-intensity
rr: Cb fixed color for high-intensity
ss: Y fixed color for low-intensity
tt: Cr fixed color for low-intensity
uu: Cb fixed color for low-intensity
On
Off

degrees) to Eh (+ 14degrees)

minus)
tu: Offset s=0 (00h to 40h)
Offset s=1 (00h to 10h)
wwww= Pan position
zzzz=Tilt Position

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 31 of 44

RoboSHOT HD Cameras

COMMAND SETTING VALUES

Exposure Control

Shutter

Speed

Iris Value RoboSHOT

Value 60/59.94/30/29.97 50/25

0x15 1/10000 1/10000

0x14 1/6000 1/6000
0x13 1/4000 1/3500
0x12 1/3000 1/2500
0x11 1/2000 1/1750
0x10 1/1500 1/1250

0x0F 1/1000 1/1000
0x0E 1/725 1/600
0x0D 1/500 1/425
0x0C 1/350 1/300
0x0B 1/250 1/215
0x0A 1/180 1/150
0x09 1/125 1/120
0x08 1/100 1/100
0x07 1/90 1/75
0x06 1/60 1/50
0x05 1/30 1/25
0x04 1/15 1/12
0x03 1/8 1/6
0x02 1/4 1/3
0x01 1/2 1/2
0x00 1/1 1/1

RoboSHOT

12

30

0x11 F1.8 F1.6
0x10 F2 F2
0x0F F2.4 F2.4
0x0E F2.8 F2.8
0x0D F3.3 F3.4
0x0C F4 F4
0x0B F4.8 F4.8
0x0A F5.6 F5.6
0x09 F6.8 F6.8
0x08 F8 F8
0x07 F9.6 F9.6
0x06 N/A F11
0x05 N/A F14
0x00 CLOSE CLOSE

Iris

Gain

Iris
Gain
Limit

Exposure

Comp.

Value Steps

0x0F 28
0x0E 26
0x0D 24
0x0C 22
0x0B 20
0x0A 18
0x09 16
0x08 14
0x07 12
0x06 10
0x05 8
0x04 6
0x03 4
0x02 2
0x01 0

Value Steps

0x0F 28
0x0E 26
0x0D 24
0x0C 22
0x0B 20
0x0A 18

0x09 16

0x08 14

0x07 12

0x06 10

0x05 8

0x04 6

Value Iris Gain

0x0E +7 +10.5 dB
0x0D +6 +9 dB
0x0C +5 +7.5 dB
0x0B +4 +6 dB
0x0A +3 +4.5 dB
0x09 +2 +3 dB
0x08 +1 +1.5 dB
0x07 0 0 dB
0x06 -1 -1.5 dB
0x05 -2 -3 dB
0x04 -3 -4.5 dB
0x03 -4 -6 dB
0x02 -5 -7.5 dB
0x01 -6 -9 dB
0x00 -7 -10.5 dB

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 32 of 44

RoboSHOT HD Cameras

T

ELNET SERIAL COMMAND

API

The Vaddio Serial Command protocol is a high level text based command line interface supported via telnet session
on the RoboSHOT. The command application protocol interface is intended to allow external device such as AMX
or Crestron to control the camera. The protocol is based upon ASCII format following the VT100 terminal emulation
standard and uses an intuitive text command nomenclature for ease of use. The API is accessed by a telnet client

on the Ethernet port. All ASCII characters will be echoed to terminal program and appended with VT100 string ­ESC[J (HEX- 1B 5B 4A). Vaddio Command lines are terminated on carriage return. After the carriage return, the
VT100 appends with –ESC[J. (Note: Most terminal programs automatically strip the VT100 string.) General
format usage follows a get/set structure. Usage examples for each type are:

Set Example

COMMAND: > camera pan right
RESPONSE: > OK

Get Example
COMMAND: > camera home get
RESPONSE: > OK

Syntax Error Example

COMMAND: > camera right pan
RESPONSE: > ERROR

Additional programming controls associated with the terminal protocol includes:

 CTRL 5 - Clears the current serial buffer on the device.

Telnet sessions will require access verification and uses the same username and password associated with the
Administrator account on the embedded web server. The default Telnet Port is 23. Command lines are terminated
with a carriage return.

Telnet Command List


CameraHome

 NAME
camera home - Move the camera to the home position
 SYNOPSIS
camera home

 DESCRIPTION
Method used to move the camera to the home position

 EXAMPLES
camera home
Move the camera back to the home position

CameraPan

 NAME
camera pan - Pans the camera left or right
 SYNOPSIS
camera pan {left|right|stop} [1-24]

 DESCRIPTION
Method used to pan the camera

 OPTIONS
left Move the camera left
right Move the camera right
stop Stop the camera movement
speed Optional integer from 1-24 that represents the speed (Default: 12)
 EXAMPLES
camera pan left
Pans the camera left at the default speed
camera pan right 20
Pans the camera right using a speed of 20
camera pan stop

Image: Invigorating simulated Telnet session.

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 33 of 44

RoboSHOT HD Cameras

CameraPreset

 NAME
camera preset - Recall and storing of camera presets
 SYNOPSIS
camera preset {recall|store} [1-6]

 DESCRIPTION
Method used to recall and store camera presets

 OPTIONS
recall

Recall preset

store

Store preset

preset

Required value from 1-6 used to indicate the preset number

 EXAMPLES
camera recall 3
Move camera to preset position 3
camera store 1
Store current camera position as preset 1

camera preset store 2 tri-sync 10 save-ccu
Store current camera position and CCU settings as preset 2, will recall using tri-sync at speed 10
camera preset store 4 tri-sync 15
Store current camera position as preset 4, will recall using tri-sync at speed 15

CameraTilt

 NAME
camera tilt - Tilts the camera up or down
 SYNOPSIS
camera tilt {up|down|stop} [1-20]

 DESCRIPTION
Method used to tilt the camera

 OPTIONS
up Move the camera up
down Move the camera down
stop Stop the camera movement
speed Optional integer from 1-20 that represents the speed (Default: 10)
 EXAMPLES
camera tilt up
Tilts the camera up at the default speed
camera tilt down 20
Tilts the camera up using a speed of 20
camera tilt stop
Stops the tilt movement of the camera



CameraZoom

 NAME
camera zoom - Zoom the camera in or out
 SYNOPSIS
camera zoom {in|out|stop} [1-7]

 DESCRIPTION
Method used to zoom the camera

 OPTIONS
in Zoom in
out Zoom out
stop Stop the camera movement
speed Optional integer from 1-7 that represents the speed (Default: 3)
 EXAMPLES
camera zoom in
Zooms the camera in at the default speed
camera zoom out 7
Zooms the camera out using a speed of 7
camera zoom stop

Stops the zoom movement of the camera

RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 34 of 44

RoboSHOT HD Cameras

Camera

 NAME
camera - Base command for camera control command.

Used in conjunction with control arguments to include home,
pan, tilt, zoom, preset etc...

 SYNOPSIS
camera {ccu|home|pan|preset|standby|tilt|zoom}

 DESCRIPTION
The camera command is the base command used to control the camera movement

 OPTIONS
ccu
home Return camera to home position
pan
preset Recall or set camera presets
standby Turn standby mode on/off
tilt
zoom Zoom the camera in or out
 EXAMPLES
camera pan left 5
Pans the camera left at a speed of 5
camera tilt up 10
Tilts the camera up at a speed of 10
camera pan stop
Stops the camera from panning
camera home
Move camera to home position
camera standby toggle

Toggle standby modes

camera preset store 1
Store current camera position as preset 1

Various commands for getting/setting CCU values and scenes

Pans the camera left or right

Tilt the camera up or down

CameraCCU

 NAME

camera ccu get - Gets the ccu settings
SYNOPSIS
camera ccu get {auto_white_balance|red_gain|blue_gain|backlight_compensation|auto

 DESCRIPTION

Method used to get the ccu values

 OPTIONS
auto_white_balance
Gets auto_white_balance
red gain
Gets red gain value
blue gain
Gets blue gain value
backlight_compensation
Gets backlight compensation
auto iris
Gets auto-iris mode
iris

Gets iris value gain

gain

Gets gain value detail

detail

Gets detail value chroma

chroma

Gets chroma value

 EXAMPLES

camera ccu get iris Gets the iris value
camera ccu get red_gain Gets the red_gain



RoboSHOT HD Cameras- Document Number 342-0794 Rev C Page 35 of 44

RoboSHOT Camera Systems

CCUCameraScene



NAME

camera ccu scene - Stores or recalls the ccu scene

 SYNOPSIS
camera ccu scene {recall {factory [1-6]|custom [1-3]} | store [1-3]}

 DESCRIPTION
Method used to get or set the ccu scene

 OPTIONS
recall

Recalls a ccu scene

store

Stores a custom ccu scene

custom

A custom scene (can be stored or recalled)

factory

A factory scene (can be recalled)

index

Integer from 1-6 (factory) or 1-3 (custom) that represents the scene index

 EXAMPLES
camera ccu scene recall factory 2

Recalls the factory scene stored at index 2

CameraCCUSet



NAME

camera ccu set - Sets and gets the CCU Settings

 SYNOPSIS
camera ccu set {auto_white_balance {on/off} I red_gain [0-255] | blue_gain [0-255]

 DESCRIPTION
Method used to sets the ccu values

 OPTIONS

auto_white_balance

Sets auto white balance to auto/manual

red_gain

Sets red gain value

blue_gain

Sets blue gain value

Backlight_compensation

Sets backlight compensation on or off

auto_iris

Sets auto iris on or off

iris

Sets iris value

gain

Sets gain value

detail

Sets detail value

chroma

Sets chroma value

 EXAMPLES
camera ccu set auto_iris off
Sets the auto_iris off
camera ccu set red_gain 10

Sets the red gain to be 10

RoboSHOT HD Cameras, Document Number 342-0794 Rev C Page 36 of 44

RoboSHOT Camera Systems

CameraCCU



NAME
camera ccu - Stores and recalls scenes and gets and sets CCU settings
 SYNOPSIS
camera ccu

 DESCRIPTION
Method used to get or set the ccu scene or ccu setting

 OPTIONS
scene

Used for storing/recalling scenes

get

Used for getting CCU settings

set

Used for setting CCU settings

 EXAMPLES
camera ccu scene recall factory 2

Recalls the factory scene stored at index 2

camera ccu get all

Gets all current CCU settings


CameraFocus

 NAME
camera focus - Moves the focus near or far
 SYNOPSIS
camera focus {{near|far|stop} [1-8] | mode {auto|manual}}

 DESCRIPTION
Method used to focus the camera

 OPTIONS
near

Move the camera focus near (with optional speed)

far

Move the camera focus far (with optional speed)

stop

Stop the camera focus

mode

Set the focus mode to auto or manual

speed

Optional integer from 1-8 that represents the speed

 EXAMPLES
camera focus near

Focuses the camera near at the default speed

camera focus far 8

Focuses the camera far using a speed of 8

camera focus stop

Stops the focus movement of the camera

RoboSHOT HD Cameras, Document Number 342-0794 Rev C Page 37 of 44

RoboSHOT Camera Systems

Exit

 NAME
exit - ends the current API command session
 SYNOPSIS
exit

 DESCRIPTION

Exit ends the current API command session. If the session is over telnet, the session is ended and the socket is closed. If the
session is over serial, a new session is started.

Help

 NAME
help - display an overview of the CLI syntax
 SYNOPSIS
help

 DESCRIPTION
Display an overview of the command line syntax

History

 NAME
history - command history
 SYNOPSIS
history [limit]

 DESCRIPTION
Since many of the programs read user input a line at a time, the command history is used to keep track of these lines and also

recall historic information

 HISTORY NAVIGATION
The command history can be navigated using the up and down arrow keys. The up arrow will move up a single entry in the
command history while the down arrow moves down in the command history.
 HISTORY EXPANSION
The command history supports the expansion functionality from which previous commands can be recalled from within a single

session. History expansion is performed immediately after a complete line is read.

Listed below are examples of history expansion:

* !! Substitute the last command line.
* !N Substitute the Nth command line (absolute as per ’history’ command)
* !-N Substitute the command line entered N lines before (relative)
 EXAMPLES
history

Displays the current command buffer

history 5
Sets the history command buffer to remember the last 5 unique entries

NetworkPing

 NAME
network ping - send ICMP ECHO_REQUEST to network hosts
 SYNOPSIS
network ping [count <count>] [size <size>] <destination-ip>

 DESCRIPTION

Use the ICMP protocol’s mandatory ECHO_REQUEST datagram to elicit an ICMP ECHO_RESPONSE
from a host or gateway. ECHO_REQUEST datagrams have an IP and ICMP header, followed by a struct
timeval and then an arbitrary number of pad bytes used to fill out the packet.

 OPTIONS
count Stop after sending count ECHO_REQUEST packets. With deadline option, ping waits for count

ECHO_REPLY packets, until the timeout expires. The default is 5.

destination

The destination IP address where the ECHO_REQUESTS are sent

size The data size of the ICMP packet to send. The default is 56 bytes

 EXAMPLES
network ping 192.168.1.1

Attempt to send 5 ICMP ECHO_REQUESTs with data size 56 to the host at 192.168.1.1
network ping count 10 size 100 192.168.1.1

Attempt to send 10 ICMP ECHO_REQUESTs with data size of 100 to the host at 192.168.1.1

RoboSHOT HD Cameras, Document Number 342-0794 Rev C Page 38 of 44

RoboSHOT Camera Systems

NetworkSettings

 NAME
network settings - get current network settings
 SYNOPSIS
network settings {get}

 DESCRIPTION
Method used to get the current network settings of the device

 OPTIONS
get Get the current network settings for the machine
 EXAMPLES
network settings get
MAC Address:

00:04:a3:85:0a:ee

IP Address:

10.10.8.116

Netmask:

255.255.255.0

Gateway:

10.10.8.100

Returns the current network settings for mac addres, ip address, netmask, and gateway

Network

 NAME
network - Gets the current network settings or pings an IP address
 SYNOPSIS
network {settings get | ping [count <count>] [size <size>] <destination-ip>}

 DESCRIPTION
Method used to get the current network settings or check network

 OPTIONS
settings
Get the current network settings
ping Send ICMP ECHO_REQUEST to network host
 EXAMPLES
network settings get

Gets the current network settings

----

network ping count 1 10.10.10.100

Pings 10.10.10.100 once and displays results



















RoboSHOT HD Cameras, Document Number 342-0794 Rev C Page 39 of 44

RoboSHOT Camera Systems

SystemFactory‐Reset

 NAME
system factory-reset - Gets or sets factory reset status

 SYNOPSIS

system factory-reset {get|on|off}

 DESCRIPTION

Method used to get or set the factory reset status

 OPTIONS
get

Get the current factory reset status

on

Enable factory reset on reboot

off

Disable factory reset on reboot

 EXAMPLES

system factory-reset get
factory-reset (software):
off
factory-reset (hardware): [Hardware reset is designated by rear panel DIP switches in down position]
off
Returns the factory reset status

--­system factory-reset on
factory-reset (software): on
factory-reset (hardware): off
Enables factory reset upon reboot

SystemReboot

 NAME

system reboot - Reboots system

 SYNOPSIS

system reboot [<seconds>]

 DESCRIPTION

Method used to reboot system

 OPTIONS
seconds

The number of seconds to delay the reboot

 EXAMPLES
reboot

Reboot system immediately

reboot 30

Reboot the system in 30 seconds














RoboSHOT HD Cameras, Document Number 342-0794 Rev C Page 40 of 44

RoboSHOT Camera Systems

System

 NAME
system - gets or Sets the Current System Settings
 SYNOPSIS
system {factory-reset {get|on|off} | reboot [ <seconds>]}

 DESCRIPTION
Method used to get/set the current system settings or execute system commands
 OPTIONS
factory-reset

Get or set the factory reset status

reboot

Reboot the system

 EXAMPLES
system factory-reset get

factory-reset (software):

off

factory-reset (hardware):

off

----

system factory-reset on
factory-reset (software):

on

factory-reset (hardware):

off

----

system reboot
Broadcast message from root (Thu Jan

1 03:27:40 2266):

The system is going down for a reboot NOW!

----

system reboot 30
OK
> The system is going down for a reboot NOW!

Version

 NAME
version - display the system version information
 SYNOPSIS
version

 DESCRIPTION
Display an overview of the command line syntax

 EXAMPLES
Version

Returns the current software version

RoboSHOT HD Cameras, Document Number 342-0794 Rev C Page 41 of 44

RoboSHOT Camera Systems

C

OMPLIANCE AND CE DECLARATION OF CONFORMITY - ROBO

Compliance testing was performed to the following regulations:

 FCC Part 15 (15.107, 15.109), Subpart B Class A
 ICES-003, Issue 4: 2004 Class A
 EN 55022 A: 2006 + A1: 2007 Class A
 KN24 2008 (CISPR 24: 1997 + A1: 2000 + A2: 2002) Class A
 KN22 2008 (CISPR 22: 2006) Class A
 EMC Directive 2004/108/EC Class A
 EN 55024: A2: 2003 Class A
 IEC 60950-1:2005 (2nd Edition); Am 1:2009 Safety
 EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Safety

SHOT HD PTZ C

AMERAS

FCC Part 15 Compliance

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15, Subpart
B, of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his/her own expense.

Operation is subject to the following two conditions: (1) This device may not cause interference, and (2) This device must accept
any interference including interference that may cause undesired operation of the device.
Changes or modifications not expressly approved by Vaddio can affect emission compliance and could void the user’s authority
to operate this equipment.

ICES-003 Compliance

This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the Radio
Interference Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux appareils numeriques
de la classe A préscrites dans le Règlement sur le brouillage radioélectrique édicte par le ministère des Communications du
Canada.

European Compliance

This product has been evaluated for Electromagnetic Compatibility under the EMC Directive for Emissions and Immunity and
meets the requirements for a Class A digital device. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.

Standard(s) To Which Conformity Is Declared:
EMC Directive 2004/108/EC
EN 55022 A: 2006 + A1: 2007(CISPR 22:2005/A1:2005) Conducted and Radiated Emissions
EN 55024: 1998 + Amendments A1: 2001 + A2: 2003 Immunity

 EN 61000-4-2: 1995 + Amendments A1: 1998 + A2: 2001 Electrostatic Discharge
 EN 61000-4-3: 2006 + A1: 2008 Radiated Immunity
 EN 61000-4-4: 2004 + Corrigendum 2006 Electrical Fast Transients
 EN 61000-4-5: 2006 Surge Immunity
 EN 61000-4-6: 2009 Conducted Immunity
 EN 61000-4-8: 2010 Power Frequency Magnetic Field
 EN 61000-4-11: 2004 Voltage Dips, Interrupts and Fluctuations

KN24 2008 (CISPR 24: 1997 + A1: 2000 + A2: 2002) IT Immunity Characteristics

 EN 61000-4-2 Electrostatic Discharge
 EN 61000-4-3 Radiated Immunity
 EN 61000-4-4 Electrical Fast Transients
 EN 61000-4-5 Surge Immunity
 EN 61000-4-6 Conducted Immunity
 EN 61000-4-8 Power Frequency Magnetic Field
 EN 61000-4-11 Voltage Dips, Interrupts and Fluctuations

IEC 60950-1:2005 (2nd Edition); Am 1:2009 Safety
EN 60950-1:2006+A11:2009+A1:2010+A12:2011 Safety

RoboSHOT HD Cameras, Document Number 342-0794 Rev C Page 42 of 44

RoboSHOT Camera Systems

WARRANTY INFORMATION

(See Vaddio Warranty, Service and Return Policies posted on vaddio.com for complete details):

Hardware* Warranty: Two (2) year limited warranty on all parts and labor for Vaddio manufactured products. Vaddio warrants

its manufactured products against defects in materials and workmanship for a period of two years from the day of purchase, to
the original purchaser, if Vaddio receives notice of such defects during the warranty. Vaddio, at its option, will repair or replace
products that prove to be defective. Vaddio manufactures its hardware products from parts and components that are new or
equivalent to new in accordance with industry standard practices.

Exclusions: The above warranty shall not apply to defects resulting from improper or inadequate maintenance by the customer,

customers applied software or interfacing, unauthorized modifications or misuse, mishandling, operation outside the normal
environmental specifications for the product, use of the incorrect power supply, modified power supply or improper site operation
and maintenance. OEM and Special Order products manufactured by other companies are excluded and are covered by the
manufacturer’s warranty.

Vaddio Customer Service: Vaddio will test, repair, or replace the product or products without charge if the unit is under

warranty. If the product is out of warranty, Vaddio will test then repair the product or products. The cost of parts and labor
charge will be estimated by a technician and confirmed by the customer prior to repair. All components must be returned for
testing as a complete unit. Vaddio will not accept responsibility for shipment after it has left the premises.

Vaddio Technical Support: Vaddio technicians will determine and discuss with the customer the criteria for repair costs and/or

replacement. Vaddio Technical Support can be contacted through one of the following resources: e-mail support at

[e-mail] or online at vaddio.com.

Return Material Authorization (RMA) Number: Before returning a product for repair or replacement request an RMA from

Vaddio’s technical support. Provide the technician with a return phone number, e-mail address, shipping address, product serial
numbers and original purchase order number. Describe the reason for repairs or returns as well as the date of purchase. See
the General RMA Terms and Procedures section for more information. RMA’s are valid for 30 days and will be issued to Vaddio
dealers only. End users must return products through Vaddio dealers. Include the assigned RMA number in all correspondence
with Vaddio. Write the assigned RMA number clearly on the shipping label of the box when returning the product. All products
returned for credit are subject to a restocking charge without exception. Special Order product are not returnable.

Voided Warranty: The warranty does not apply if the original serial number has been removed or if the product has been

disassembled or damaged through misuse, accident, modifications, use of incorrect power supply, use of a modified power
supply or unauthorized repair.

Shipping and Handling: Vaddio will not pay for inbound shipping transportation or insurance charges or accept any

responsibility for laws and ordinances from inbound transit. Vaddio will pay for outbound shipping, transportation, and insurance
charges for all items under warranty but will not assume responsibility for loss and/or damage by the outbound freight carrier.

If the return shipment appears damaged, retain the original boxes and packing material for inspection by the carrier. Contact

your carrier immediately.
Products not under Warranty: Payment arrangements are required before outbound shipment for all out of warranty products.

Other General Information:
Care and Cleaning

Do not attempt to take this product apart at any time. There are no user-serviceable components inside.

 Do not spill liquids in the product

 Keep this device away from food and liquid

 For smears or smudges on the product, wipe with a clean, soft cloth

 Use a lens cleaner on the lens…

 Do not use any abrasive chemicals.

Operating and Storage Conditions:

Do not store or operate the device under the following conditions:

 Temperatures above 40°C (104°F) or temperatures below 0°C (32°F)

 High humidity, condensing or wet environments

 In inclement weather

 In swimming pools or drainage culverts

 Dry environments with an excess of static discharge

 Inside a particle accelerator

 Under severe vibration

RoboSHOT HD Cameras, Document Number 342-0794 Rev C Page 43 of 44

RoboSHOT Camera Systems

Toll Free: 800-572-2011 ▪ Phone: [phone] ▪ FAX: [phone]

©2015 Vaddio - All Rights Reserved. Reproduction in whole or in part without written permission is prohibited. Specifications and pricing are subject to change without
notice or obligation. Vaddio, RoboSHOT, ProductionVIEW, EZCamera, Quick-Connect and HSDS are trademarks of Vaddio. All other trademarks are property of

RoboSHOT HD Cameras, Document Number 342-0794 Rev C Page 44 of 44

their respective owners. Document Number 342-0794 Rev C, SD: 68788.3

www.vaddio.com
