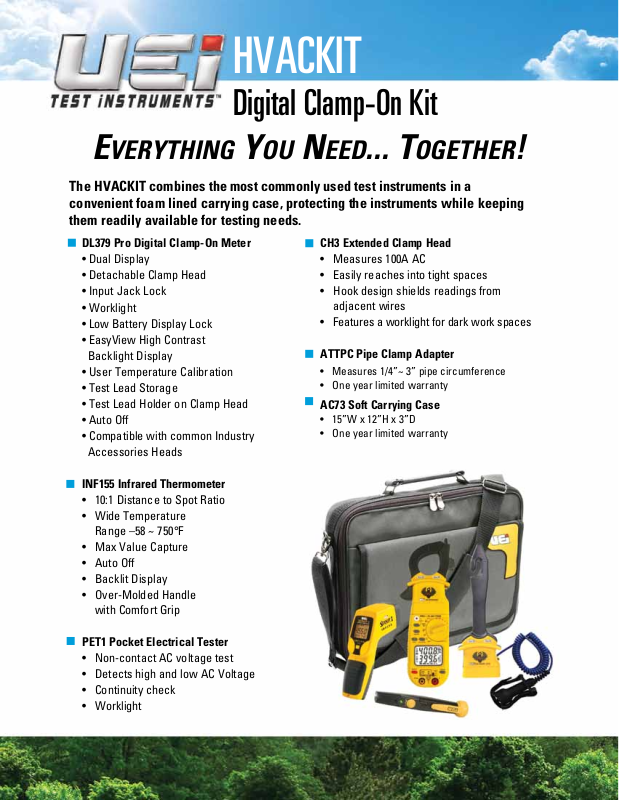

HVACKIT

Digital Clamp-On Kit

EvErything you nEEd... togEthEr!

The HVACKIT combines the most commonly used test instruments in a
convenient foam lined carrying case, protecting the instruments while keeping
them readily available for testing needs.

DL379 Pro Digital Clamp-On Meter

• Dual Display

• Detachable Clamp Head

• Input Jack Lock

• Worklight

• Low Battery Display Lock

• EasyView High Contrast
Backlight Display

• User Temperature Calibration

• Test Lead Storage

• Test Lead Holder on Clamp Head

• Auto Off

• Compatible with common Industry
Accessories Heads

INF155 Infrared Thermometer

• 10:1 Distance to Spot Ratio

• Wide Temperature
Range –58 ~ 750°F

• Max Value Capture

• Auto Off

• Backlit Display

• Over-Molded Handle
with Comfort Grip

CH3 Extended Clamp Head

• Measures 100A AC

• Easily reaches into tight spaces

• Hook design shields readings from
adjacent wires

• Features a worklight for dark work spaces

ATTPC Pipe Clamp Adapter

• Measures 1/4”~ 3” pipe circumference

• One year limited warranty

AC73 Soft Carrying Case

• 15”W x 12”H x 3”D

• One year limited warranty

PET1 Pocket Electrical Tester

• Non-contact AC voltage test

• Detects high and low AC Voltage

• Continuity check

• Worklight

HVACKIT • Digital Clamp-ON Kit

The HVACKIT combines the most commonly used test instruments in a convenient foam lined carrying
case, protecting the instruments while keeping them readily available for testing needs.

Kit Includes

DL379 Pro Digital Clamp-On Meter

Functions

• 4000µF Capacitance

• 2000µA AC/DC

• Non-Contact Voltage 24~600V AC

• 750V AC/1000V DC

• 400A AC

• MIN/MAX

• -22° ~ 752°F Temperature (K type)
Features

• Dual Display

• Detachable Clamp Head

• Input Jack Lock

• Worklight

• Low Battery Display Lock

• EasyView High Contrast
Backlight Display

• Magnetic Mount

• User Temperature Calibration

• Test Lead Storage

• Test Lead Holder on Clamp Head

• Auto Off

• Compatible with common Industry
Accessories Heads

• Three Year Limited Warranty

Specifications (CH3)

• Range: 0 – 100A

• Resolution: 0.1A

• Accuracy: 2.0% ±20 dgts

• Interference from adjacent wires: 0.03 – 1.0A

INF155 Infrared Thermometer

• 10:1 Distance to Spot Ratio

• Wide Temperature Range –58 ~ 750°F

• Max Value Capture

• Auto Off

• Backlit Display

• Over-Molded Handle with Comfort Grip

• Low Battery Indicator

• Holster

• Three year limited warranty

PET1 Pocket Electrical Tester

• Non-contact AC voltage test: from 12 – 600 V AC
(with adjustable sensitivity)

• Detects high and low AC Voltage

• Continuity check: 0 – 80 MΩ

• Worklight

• Three year limited warranty

CH3 Extended Clamp Head

• Measures 100A AC

• Non-Contact Voltage in tip

• Worklight

• Patented Virtual Closed Core Accuracy

• Three year limited warranty

ATTPC Pipe Clamp Adapter

• Measures 1/4”~ 3” pipe circumference

• One year limited warranty

AC73 Soft Carrying Case

• 15”W x 12”H x 3”D

• One year limited warranty

Distributed By:

1-800-547-5740 • Fax: [phone]
www.ueitest.com • Email: [e-mail]

IN CANADA

Phone: [phone] • Fax: [phone]
www.ueitest.com • Email: [e-mail]

IN EUROPE

Phone: [phone] • Fax: [phone]

Copyright © 2009 UEi Specifications are subject to change without notice. L521 1.5K PRIN109 1/09
