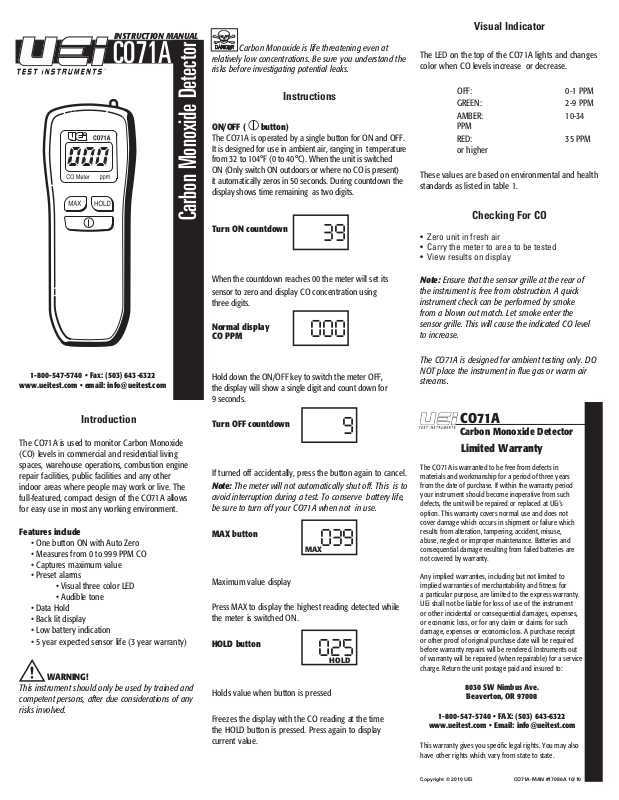

Universal Enterprise CO71A Installation Manual

INSTRUCTION MANUAL

CO71A

Carbon Monoxide is life threatening even at
relatively low concentrations. Be sure you understand the
risks before investigating potential leaks.

Visual Indicator

The LED on the top of the CO71A lights and changes
color when CO levels increase or decrease.

1-800-547-5740 • Fax: [phone]

www.ueitest.com • email: [e-mail]

Instructions

ON/OFF ( button)

The CO71A is operated by a single button for ON and OFF.
It is designed for use in ambient air, ranging in temperature
from 32 to 104°F (0 to 40°C). When the unit is switched
ON (Only switch ON outdoors or where no CO is present)
it automatically zeros in 50 seconds. During countdown the
display shows time remaining as two digits.

Carbon Monoxide Detector

Turn ON countdown

When the countdown reaches 00 the meter will set its
sensor to zero and display CO concentration using

three digits.

Normal display

CO PPM

Hold down the ON/OFF key to switch the meter OFF,
the display will show a single digit and count down for
9 seconds.

39

000

OFF: 0-1 PPM
GREEN: 2-9 PPM
AMBER: 10-34

PPM
RED: 35 PPM

or higher

These values are based on environmental and health
standards as listed in table 1.

Checking For CO

• Zero unit in fresh air

• Carry the meter to area to be tested

• View results on display

Note: Ensure that the sensor grille at the rear of
the instrument is free from obstruction. A quick
instrument check can be performed by smoke
from a blown out match. Let smoke enter the
sensor grille. This will cause the indicated CO level
to increase.

The CO71A is designed for ambient testing only. DO
NOT place the instrument in flue gas or warm air
streams.

Introduction

The CO71A is used to monitor Carbon Monoxide
(CO) levels in commercial and residential living
spaces, warehouse operations, combustion engine
repair facilities, public facilities and any other
indoor areas where people may work or live. The
full-featured, compact design of the CO71A allows
for easy use in most any working environment.

Features include

• One button ON with Auto Zero

• Measures from 0 to 999 PPM CO

• Captures maximum value

• Preset alarms

• Visual three color LED

• Audible tone

• Data Hold

• Back lit display

• Low battery indication

• 5 year expected sensor life (3 year warranty)

WARNING!

This instrument should only be used by trained and
competent persons, after due considerations of any
risks involved.

Turn OFF countdown

If turned off accidentally, press the button again to cancel.

Note: The meter will not automatically shut off. This is to
avoid interruption during a test. To conserve battery life,
be sure to turn off your CO71A when not in use.

MAX button

MAX

Maximum value display

Press MAX to display the highest reading detected while
the meter is switched ON.

HOLD button

Holds value when button is pressed

Freezes the display with the CO reading at the time
the HOLD button is pressed. Press again to display
current value.

9

039

025

HOLD

CO71A

Carbon Monoxide Detector

Limited Warranty

The CO71A is warranted to be free from defects in
materials and workmanship for a period of three years
from the date of purchase. If within the warranty period
your instrument should become inoperative from such
defects, the unit will be repaired or replaced at UEi’s
option. This warranty covers normal use and does not
cover damage which occurs in shipment or failure which
results from alteration, tampering, accident, misuse,
abuse, neglect or improper maintenance. Batteries and
consequential damage resulting from failed batteries are
not covered by warranty.

Any implied warranties, including but not limited to
implied warranties of merchantability and fitness for
a particular purpose, are limited to the express warranty.
UEi shall not be liable for loss of use of the instrument
or other incidental or consequential damages, expenses,
or economic loss, or for any claim or claims for such
damage, expenses or economic loss. A purchase receipt
or other proof of original purchase date will be required
before warranty repairs will be rendered. Instruments out
of warranty will be repaired (when repairable) for a service
charge. Return the unit postage paid and insured to:

8030 SW Nimbus Ave.

Beaverton, OR 97008

1-800-547-5740 • FAX: [phone]

www.ueitest.com • Email: [e-mail]

This warranty gives you specific legal rights. You may also
have other rights which vary from state to state.

Copyright © 2010 UEi CO71A-MAN #17086A 10/10

Concentration
of CO in Air

9 ppm

Inhalation Times and Toxic
Symptoms*

The maximum allowable
concentration for short term
exposure in a living area
according to ASHRAE.

35 ppm

The maximum allowable
concentration for
continuous exposure in any
eight hour period industry
according to MIOSHA.

200 ppm

Maximum concentration
allowable in any 15 minute
period according to OSHA.
Slight headaches, fatigue,
dizziness, nausea after 2 to
3 hours.

400 ppm

Frontal headaches within 1
to 2 hours, life threatening
after 3 hours. Maximum
allowable limit in flue gas
according to EPA and AGA.

800 ppm

Dizziness, nausea and
convulsions within 45
minutes. Unconsciousness
within 2 hours. Death within
2 to 3 hours.

Headache, dizziness and

1,600 ppm

nausea within 20 minutes.
Death within 1 hour.

Headache, dizziness and

3,200 ppm

nausea within 5 to 10
minutes. Death within 30
minutes.

Headache, dizziness and

6,400 ppm

nausea within 1 to 3
minutes. Death within 10 to
15 minutes.

12,800 ppm

*The effects can vary depending on size, age, sex and health. UEi
is not liable for the accuracy of this information.

Death within 1 to 3 minutes.

(Table 1)

LOW BATTERY INDICATION

Low battery indicator

If the battery voltage falls below a pre-set level the
symbol “BAT” appears in the display. Do not use the
instrument when this symbol is present. Replace the
battery immediately.

Troubleshooting

If the display fails to stabilize at around zero within a
few minutes this may indicate an expired sensor or a
sensor that has been exposed to excessive levels of CO.
If the symptom persists seek advice from an approved
service center.

Always check for correct operation before each use. Use
a known source of CO (e.g. a smoking match stick or a
recently extinguished flame) taking care to act in a safe
manner and not to expose the CO71A sensor to extreme
temperatures or CO concentration. If the unit does not
change as expected, return the unit to UEi or an approved
service center. DO NOT test using automotive exhaust as
the level may exceed the instrument range. This will poison
the sensor or decrease sensor life span.

If during use, you detect CO leaks, be sure you know the
appropriate actions to take to protect yourself and others.
Before switching off the instrument always expose it to
fresh air until the reading falls below 5 PPM. Note that the
readings fall much more slowly than they rise so you may
need to wait three minutes or longer.

Maintenance
Calibration

The CO71A must be calibrated annually at a certified
sevice location to maintain accuracy. Electrochemical

sensors are subject to long term drift that is corrected
during calibration. Refer to troubleshooting section of this

manual to check responce to CO. THIS DOES NOT verify
accuracy.

BAT

039

Specifications

Range: 0-999 ppm

Resolution: 1 ppm

Accuracy: ±(3% of reading + 1 ppm)

Audible Alarm: Preset at 35 ppm

Visual Indication: LCD and LED

Battery: 9V alkaline (NEDA 1604)

Ambient
Temperature: 32 - 104˚F (0 - 40˚C)

Warranty: 3 year

No user serviceable parts. Re-calibrate every 12
months. Check for correct operation as described in
this manual before every use.

Audible alarm

An audible alarm will sound if 35 PPM CO (or great­er) is detected. The alarm frequency will increase
with higher concentrations. Check the LCD display
for actual level. While the alarm is sounding the unit
can not be turned off.

Back-Light

To activate the back-light press the ON/OFF key
quickly once. Do not hold down the key or the unit
will switch off.To turn off the back-light press the
ON/OFF key quickly again.

Note: Using the back-light decreases battery life.
