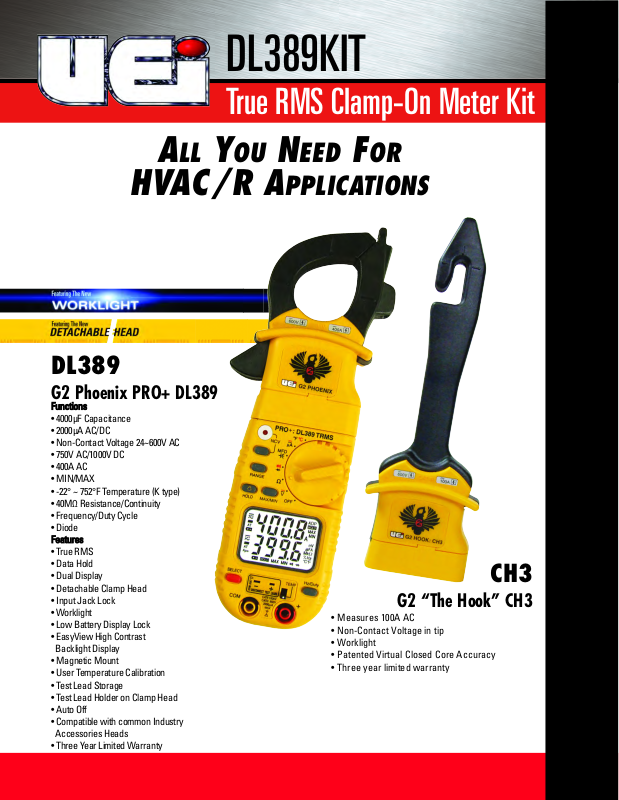

DL389KIT

True RMS Clamp-On Meter Kit

ALL YOU NEED FOR

HVAC/R APPLICATIONS

DL389

G2 Phoenix PRO+ DL389

FFuunnccttiioonns

• 4000µF Capacitance

• 2000µA AC/DC

• Non-Contact Voltage 24~600V AC

• 750V AC/1000V DC

• 400A AC

• MIN/MAX

• -22° ~ 752°F Temperature (K type)

• 40MΩ Resistance/Continuity

• Frequency/Duty Cycle

• Diode
FFeeaattuurrees

• True RMS

• Data Hold

• Dual Display

• Detachable Clamp Head

• Input Jack Lock

• Worklight

• Low Battery Display Lock

• EasyView High Contrast

• Magnetic Mount

• User Temperature Calibration

• Test Lead Storage

• Test Lead Holder on Clamp Head

• Auto Off

• Compatible with common Industry

• Three Year Limited Warranty

s

s

Backlight Display

Accessories Heads

G2 “The Hook” CH3

• Measures 100A AC

• Non-Contact V

• Worklight

• Patented V

• Three year limited warranty

oltage in tip

irtual Closed Core Accuracy

CH3

DL389KIT • True RMS Clamp-On Meter Kit

The PRO+ offers contractors better features, functions and safety making it the most complete clamp
meter available with True-RMS precision. Don’t spend money on a True-RMS meter until you compare it to the
PRO+ and ensure it provides all the functionality your job requires.

DL389 Specifications

AC Amps Measurement - Jaw Input (45Hz to 400Hz)

Range Resolution Accuracy Overload Protection

40A 0.01A ±2.9% +15 dgts 600V
400A 0.1A ±1.9% +8 dgts

DC Low Amps Measurement (test lead input)

Range Resolution Accuracy Overload Protection

400µA 0.01µA ±1.2% +3 dgts 2000µA / 600V
2000µA 0.1µA

AC Low Amps Measurement (test lead input)

Range Resolution Accuracy Overload Protection

400µA 0.01µA ±2.0% +5 dgts 2000µA / 600V
2000µA 0.1µA ±1.5% +5 dgts

*DL389 45Hz to 400Hz True RMS (Crest factor <3:1)

DC Volts Measurement

Range Resolution Accuracy Overload Protection

400mV 0.1mV ±0.5% +4 dgts 600V
4V 1mV
40V 10mV
400V 100mV
1000V 1V ±0.8% +10 dgts

AC Volts Measurement (45Hz to 400Hz)

Range Resolution Accuracy Overload Protection

4V 1mV ±2.0% +5 dgts 600V
40V 10mV
400V 100mV
750V 1V

*DL389 45Hz to 400Hz True RMS (Crest factor <3:1)

Ohms Measurement

Range Resolution Accuracy Overload Protection

400Ω 100mΩ ±1.0% +4 dgts 600V

Ω 1Ω

4k
40kΩ 10 Ω
400kΩ 100Ω
4MΩ

40MΩ

1kΩ
10kΩ

±

2.0% +4 dgts

*Hook does not measure True-RMS when used with the PRO+
(DL389)

Distributed By:

Diode Test

Range Open Circuit Voltage Test Current (typical) Overload Protection

2.0V < 3.0V DC 0.25mA 600V

Capacitance Measurement

Range Resolution Accuracy Overload Protection

40nF 0.01nF ±3.5% +6 dgts 600V
400nF 0.1nF
4µF 0.001µF
40µF 0.01µF
400µF 0.1µF
4000µF 1µF

Temperature Measurement

Range Resolution Accuracy Overload Protection

-22˚ to 14˚F 0.1˚F ±5.4˚F 30V
(-30˚ to -10˚C) (0.1˚C) (±3.0˚C)
15˚ to 752˚F 0.1˚F ±1.0% +3.6˚F
(-9˚ to 400˚C) (0.1˚C) (±1.0% +2.0˚C)

Frequency Measurement

Range Resolution Accuracy Overload Protection

9.999Hz 0.001Hz ±0.1% +4 dgts 600V

99.99Hz 0.01Hz

999.9Hz 0.1Hz

9.999kHz 1Hz

99.99kHz 10Hz

Minimum frequency: 0.5Hz, DC V offset should be zero

Sensitivity: > 1.0V rms

Duty (%) Cycle Measurement

Range

01. to 99.9% ±(0.2% per kHz +0.1%) +5 count 600V

0.5Hz to 100KHz (pulswidth > 2µ sec)

Accuracy Overload Protection

Continuity Measurement

Open Circuit voltage <2.7V Overload Protection

Threshold Approximately <20Ω 600V
