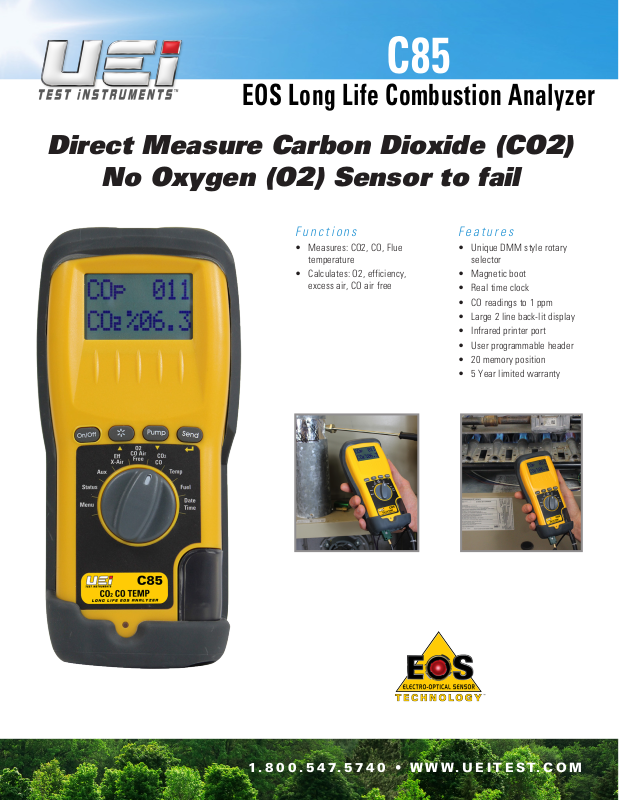

C85
EOS Long Life Combustion Analyzer
Direct Measure Carbon Dioxide (CO2)
No Oxygen (O2) Sensor to fail
Functions
• Measures: CO2, CO, Flue
temperature
• Calculates: O2, efficiency,
excess air, CO air free
Features
• Unique DMM style rotary
selector
• Magnetic boot
• Real time clock
• CO readings to 1 ppm
• Large 2 line back-lit display
• Infrared printer port
• User programmable header
• 20 memory position
• 5 Year limited warranty
1.800.547.5740 • WWW.UEITEST.COM
C85 • EOS LONG LIFE COMBUSTION ANALYZER
C85KIT Includes
C85 Includes
• Combustion Analyzer (C85)
• Combustion Analyzer (C85)
• Flue Probe (KMCP2)
• Hard Carrying Case (AC509)
• Inlet Tube/Probe Connecter (SM11103)
• Particle Filter (17631)
• Owners Manual
SPECIFICATIONS
Parameter Range Resolution Accuracy
Temperature Measurements
Flue Temperature 32 - 1112˚F (0 - 600˚C) 1.0 ˚F/˚C ±(0.3% reading+3.6˚F(2.0˚C))
Inlet Temperature (Internal sensor) 32 ~ 122 ˚F (0-50˚C) 1.0 ˚F/˚C ±(0.3% reading+1.8˚F(1.0˚C))
Inlet Temperature (External sensor) 32 - 1112˚F (0 - 600˚C) 1.0 ˚F/˚C ±(0.3% reading+3.6˚F(2.0˚C))
Gas Measurements
Carbon Monoxide (CO)
Carbon Dioxide (CO2)
Calculations
Oxygen (O2)
Efficiency
Excess Air
CO/CO2 ratio
*2
*2
*2
*2
Pre-programmed Fuels Natural gas, Propane, Butane, LPG, Light Oils (28/35 sec), Wood Pellets
Storage Capacity 20 Combustion tests
*1
Using dry gases at standard temperature and pressure (STP)
*2
Calculated
*1
0 - 60 ppm 1ppm ±3ppm
61 - 2,000ppm nom 1ppm ±5% of reading
4,000ppm max for 15 mins 1ppm Not Specified
*1
0 - 20% 0.1% ±0.3% volume
0 - 21% 0.1% ±0.3%
0 - 99.9% 0.1% ±1.0% of reading
0 - 250% 0.1% ±0.2% of reading
0 - 0.999 0.0001 ±5% of reading
• Infrared Thermal Printer (KMIRP2)
• Flue Probe (KMCP2)
• Hard Carrying Case (AC509)
• Inlet Tube/Probe Connecter (SM11103)
• Particle Filter (17631)
• AC Adapter (AACA4)
• Thermal printer paper roll (16646)
• Owners Manual
GENERAL SPECIFICATIONS
• Operating Altitude: 2000m (6,561 ft.)
• Storage Altitude: 10,000m (32,808 ft.)
• Operating Temperature: 32°F to 104°F (0°C to 40°C) at 10 - 90% R.H
• Pollution Degree: 2
• Dimensions: Handset: 7.9” (200mm) x 3.5” (90mm) x 1.8” (45mm)
Probe: (L) 11.8” (300mm) x (D) 0.25” (6mm) with 7.8” (200mm)
6ft (3m) neoprene hose.
WWW.UEITEST.COM
PORTLAND, OR
Headquarters & Recertification Center
1-800-547-5740 • info@ueitest.com
Copyright © 2015 UEi. All Rights Reserved.
INDIANAPOLIS, IN
Recertification Center
1-800-547-5740 • info@ueitest.com
• Weight: 2.2lbs (1kg)
• Certifications: EMC EN 50081-1, EN 50082-1, CE
• Battery Type: 4 x 1.5V AA
• Battery Life: >8Hrs using AA Alkaline
• Power Supply: Input: 110V AC Output: 9V DC Regulated
VANCOUVER, BC
Recertification Center
ISO/IEC 17025:2005 • NIST Certification
1-877-475-0648 • infocanada@ueitest.com
