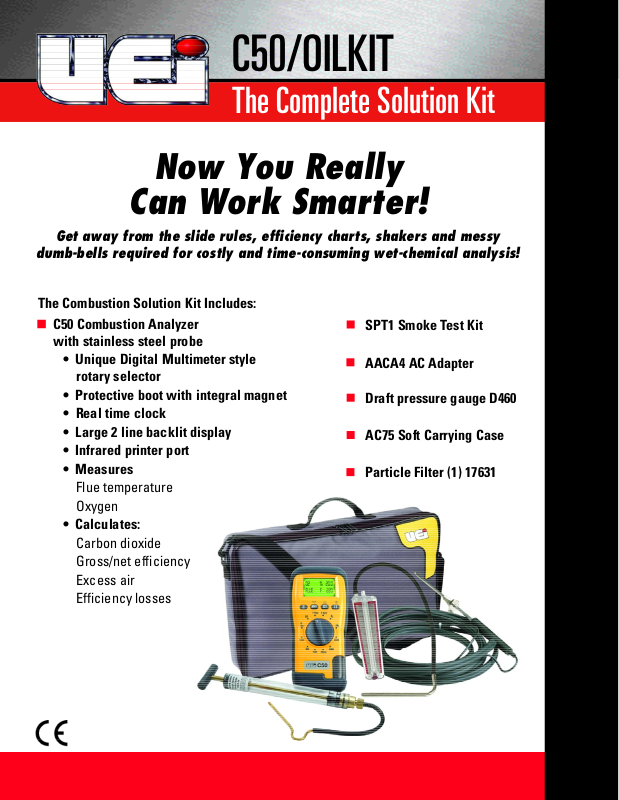

C50/OILKIT

The Complete Solution Kit

C50 Combustion Analyzer
with stainless steel probe

• Unique Digital Multimeter style
rotary selector

• Protective boot with integral magnet

• Real time clock

• Large 2 line backlit display

• Infrared printer port

• Measures

Flue temperature
Oxygen

• Calculates:

Carbon dioxide
Gross/net efficiency
Excess air
Efficiency losses

The Combustion Solution Kit Includes:

SPT1 Smoke Test Kit

AACA4 AC Adapter

Draft pressure gauge D460

AC75 Soft Carrying Case

Particle Filter (1) 17631

Get away from the slide rules, efficiency charts, shakers and messy

dumb-bells required for costly and time-consuming wet-chemical analysis!

C50/OILKIT • The Complete Solution Kit

Copyright © 2007 UEi Specifications are subject to change without notice. L658 Z 1/07

Distributed By:

1-800-547-5740 • Fax: [phone]
www.ueitest.com • Email: [e-mail]

IN CANADA

Vancouver: Phone: [phone] • [phone] • Fax: [phone]
Toronto: Phone: [phone] • Fax: [phone]

IN EUROPE

Phone: [phone] • Fax: [phone]

C50 Specifications C50/OILKIT Comparison to Wet Chemical Analyzer

The C50/OILKIT is an effective and affordable way to measure combustion efficiency when installing or
maintaining oil-burning combustion appliances. This kit combines the innovative and feature packed C50
Combustion Analyzer and the SPT1 Smoke Test Kit. Equipped with smart and useful features like the digital
multimeter style rotary selector, a real time clock and a magnet built-in to the boot. The C50 captures and
calculates data with professional accuracy and ease. The SPT1 Smoke Test Kit determines efficient
combustion from distillate fuels. This kit also includes a professional grade flue probe with a stainless steel
shaft, an AC power adapter, an extra particle filter all packed in a compact and convenient soft carrying case.

Parameter Resolution Accuracy Range

Temperature

Flue Temperature 1°F/°C ±5°F (2°C) 32-1112°F

±0.3% reading (0-600°C)

Gas Measurement

Oxygen 0.1% ±0.2%

*1

0-21%

Carbon Dioxide

*2

0.1% ±0.3% reading 0-30%

Efficiency

*2

0.1% ±1.0% reading 0-99.9%

Excess Air

*2

0.1% ±0.2% 0-250%

Pre-programmed Fuels Natural Gas, Light Oil, Propane, Butane, LPG

Dimensions

Weight 2.2lb (1kg)
Handset 8" (200mm) x 2" (45mm) x 3.5" (90mm)
Probe L 12" (300mm) x Dia 0.25" (6mm)

with 8" (200mm)
long stainless steel shaft, type K
thermocouple and 9ft

(3m) long neoprene hose
Ambient Operating 32-104°F (0°C to 40°C)
Range 10% to 90% RH non-condensing
Battery Life Standard "AA" (x4)

>8 hours continuous use
AC adapter (optional) Input: 110V AC nominal

Output: 9V DC regulated 500mA minimum

No efficiency

chart required

No chemicals required

Continuously updated

efficency analysis

True net temperature

readings provided

Built-in electronic

sample pump

Magnetic mount to keep

analyzer near controls

9’ sample hose and probe

Carrying case included

*1Optional day and time

stamped print capability

Manometer included

Smoke-pump included

Analyzes efficiency

Analyzes losses

*2Affordable analysis

system

Feature C50/OILKIT Wet Chemical

✔

✔

✔

✔

✔

✔

✔

✔

✔

✔

Manual draft gauge

✔

✔

✔

✔

Requires charts

Requires chemicals

• Each sample

takes 20 minutes

• Thermometer for

stack gas

temperature only

• Bulb-type

hand pump

• Requires flat and

level surface

• Approxemately 4’

✔

No printer

capabilities

✔

Manual draft gauge

✔

✔

•

Requires charts

Requires constant

supply of chemicals

*1- Printout with optional printer includes area to write-in smoke scale results
*2- Initial investment using listed trade prices are approximately the same (typically within 10%)
Cost of ownership (replacement chemicals, parts, etc.) will typically be higher with a Wet Chemical Kit than with a digital analyzer

• - No

PLEASE

RECYCLE
