Unimac UX100PVQU7-Extractor Parts Diagram

Washer-Extractor

CFD8C_9001007

Cabinet Freestanding

Refer to Page 3 for Model Numbers

Parts

www.alliancelaundry.com

Part No. 9001007R22

January 2017

Model Identification

Information in this manual is applicable to these washer-extractor models:

HX100PVNU6 HX100PVNU7 HX100PVQU6 HX100PVQU7 HX100PVPU7 HX100_WE-8

SX100PVNU6 SX100PVNU7 SX100PVQU6 SX100PVQU7 SX100PVPU7 SX100_WE-8

UX100PVNU6 UX100PVNU7 UX100PVPU6 UX100PVPU7 UX100PVQU6 UX100PVQU7 UX100_WE-8

9001007

3

Cabinet Freestanding Washer-Extractor Product Overview

CFD266P_9001007

WASH

ADD

BLEACH

RINSE

SPIN

DOOR

NORMAL

QUICK AS QUICK WASH

HEAVY SOIL

DELICATE

RM RESS

PERM PRESS

HOT

WARM

HOT

WARM

COLD

WARM

COLD

START

PE P

WH

B Computer (Domestic)

60C 60C

40C 40C

95C 95C

<

30C

B Computer (International)

WE-8 Micro

X55PVXM60001

12

55

25

50 60

15

2/3+PE 1/3

1000

*

4

9001007

Cabinet Freestanding Washer-Extractor Product Overview

REF PART NO. DESCRIPTION COMMENTS

1 -Product Family HX

NX SX UX

2 - Capacity 18 pounds

25 pounds 30 pounds 35 pounds 55 pounds 75 pounds 100 pounds 135 pounds 165 pounds

3 - Control B (B Computer)

P (WE-8 Micro)

4 - Speed V (Variable)

5 - Voltage N; 440-480/50-60/3/3

P; 380-415/50-60/3/3 Q; 200-240/50-60/3/3 X; 200-240/50-60/1/3

6 - OEM A

F M U

7 - Design 6 and 7

9001007

5

Frame

CFD112P_9001007

6

9001007

Frame

REF PART NO. DESCRIPTION COMMENTS

1 253/10111/00 Upper Support

2 153/10009/12 Rear Shipping Brace

3 153/10009/11 Front Shipping Brace

4 253/10011/00 Lower Support

5 253/10009/00 Frame

9001007

7

Shock and Spring Assembly

CFD451P_9001007

8

9001007

Shock and Spring Assembly

REF PART NO. DESCRIPTION COMMENTS

1 206/00071/00 Bolt

2 204/00012/00 Nut

3 201/00001/00 Washer

4 247/00008/00 Shock Absorber

5 204/00113/00 Nut

6 B12456301 Suspension Spring

7 204/00016/00 Nut

8 224/00046/00 Bolt

9001007

9

Shell and Front Panel (Drawing 1 of 2)

CFD85P_9001007

Models HX100PVNU6, HX100PVQU6, SX100PVNU6, SX100PVQU6, UX100PVNU6, UX100PVPU6 and UX100PVQU6

10

9001007

Shell and Front Panel (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 9001198 Bearing Housing Assembly

1 N/A Bearing Housing

2 153/00076/10 Tub Back Plate Standard and steam heat models

2 153/00075/10 Tub Back Plate Electric and steam heat models

3 205/00102/00 Bolt

4 202/00105/00 Washer

5 223/00168/00 Tub Gasket

6 9001184 Tub Standard and steam heat models

6 153/00077/00 Tub Electric and steam heat models

7 206/00122/00 Bolt

8 201/00001/00 Washer

9 204/00113/00 Nut

10 153/10013/00 Tub Front Panel

11 253/10013/00 Counterweight

12 153/10118/00 Door Front Panel

13 229/00282/00 Door Handle Decal

14 208/00123/00 Screw

15 252/00006/00 Leveling Leg

N/A = Part no longer available

9001007

11

Shell and Front Panel (Drawing 2 of 2)

CFD214P_9001007

H

I

GH

S

P

I

N

S

P

E

D

Models HX100PVNU7, HX100PVQU7, HX100PVPU7, HX100_WE-8, SX100PVNU7,

SX100PVQU7, SX100PVPU7, SX100_WE-8, UX100PVNU7, UX100PVPU7,

UX100PVQU7 and UX100_WE-8

12

9001007

Shell and Front Panel (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 9001198 Bearing Housing Assembly

1 N/A Bearing Housing

2 153/00076/10 Tub Back Plate Standard and steam heat models

2 153/00075/10 Tub Back Plate Electric and steam heat models

3 205/00102/00 Bolt

4 202/00105/00 Washer

5 223/00168/00 Tub Gasket

6 9001184 Tub Standard and steam heat models

6 153/00077/00 Tub Electric and steam heat models

7 206/00122/00 Bolt

8 201/00001/00 Washer

9 204/00113/00 Nut

10 153/10013/00 Tub Front Panel

11 253/10013/00 Counterweight

12 153/10113/00 Door Front Panel

13 229/00282/00 Door Handle Decal

14 208/00123/00 Screw

15 252/00006/00 Leveling Leg

N/A = Part no longer available

9001007

13

Bearing Assembly (Drawing 1 of 3) - Models Through 1/30/11

CFD54P_9001007

14

9001007

Bearing Assembly (Drawing 1 of 3) - Models Through 1/30/11

REF PART NO. DESCRIPTION COMMENTS

NA 245/00054/00 Bearing Replacement Tool Kit

NA 894P3 Bearing Replacement Kit Includes items 2, 5, 11 and 14, 223/00168/00 Tub

Gasket, 253/00151/00 V-Ring Seal (VL220), 253/00152/00 V-Ring Seal (VL200), 253/00153/00 V-Ring (VL170) and 253/00154/00 V-Ring Seal (VA100)

1 205/00102/00 Bolt

2 201/00202/00 Washer

3 253/10127/00 Bearing Housing Cover

4 253/00157/00 Retaining Ring

5 253/00155/00 Roller Bearing

6 253/10120/00 Spacer

7 210/00075/00 Speed Detector

8 153/00041/01 Speed Sensor Bracket Models through 10/29/06

8 153/00041/11 Speed Sensor Bracket Models starting 10/30/06

9 203/00002/00 Washer

10 153/00069/00 Bearing Cover Plate

11 253/00156/00 Roller Bearing

12 B12360807 Bearing Spacer

13 9001198 Bearing Housing Assembly

13 N/A Bearing Housing

14 212/00002/00 Lubricator FAG manufactured bearings

N/A = Part no longer available

9001007

15

Bearing Assembly (Drawing 2 of 3) - Models Through 1/30/11

CFD62P_9001007

16

9001007

Bearing Assembly (Drawing 2 of 3) - Models Through 1/30/11

REF PART NO. DESCRIPTION COMMENTS

1 205/00102/00 Bolt

2 201/00202/00 Washer

3 253/10127/00 Bearing Housing Cover

4 253/00157/00 Retaining Ring

5 N/A Seal

6 153/00069/00 Bearing Cover Plate

7 253/00156/00 Roller Bearing

8 N/A Bearing Housing

9 N/A Seal

10 253/00155/00 Roller Bearing

N/A = Part no longer available

9001007

17

Bearing Assembly (Drawing 3 of 3) - Models Through 1/30/11

CFD63P_9001007

18

9001007

Bearing Assembly (Drawing 3 of 3) - Models Through 1/30/11

REF PART NO. DESCRIPTION COMMENTS

1 B12374401 Drum Assembly

2 253/00154/00 V-Ring Seal Loctite 480 required for installation

3 253/00126/00 Bushing

4 253/00026/00 Pulley Models before Serial No. 10110440133

4 253/00078/00 Pulley Models starting Serial No. 10110440133

5 253/00124/00 Bushing Bearing cover plate bushing

6 253/00125/00 Spacer

7 253/00151/00 V-Ring Seal VL220; Loctite 480 required for installation

8 253/00152/00 V-Ring Seal VL200; Loctite 480 required for installation

9 253/00153/00 V-Ring Seal VL170; Loctite 480 required for installation

9001007

19

Bearing Assembly - Models Starting 1/31/11

CFD780K_9001007

20

9001007

Bearing Assembly - Models Starting 1/31/11

REF PART NO. DESCRIPTION COMMENTS

NA 245/00054/00 Bearing Replacement Tool Kit

NA 3885P Bearing Kit Includes items 2, 3, 5-7, 9, 15, B12378901 Seal

(VL200), B12378801 Seal (VL180), 253/00154/00 Seal (VA100), 204/00113/00 Nut and 223/00168/00 Tub Gasket

1 205/00102/00 Bolt

2 201/00202/00 Washer

3 153/00121/00 Seal Wear Plate

4 253/00157/00 Retaining Ring

5 253/00131/00 Grease Ring Holder

6 253/00182/00 Lip Seal

7 253/00155/00 Roller Bearing

8 253/10120/00 Spacer

9 212/00002/00 Lubricator FAG manufactured bearings

10 9001198 Bearing Housing Assembly

11 210/00075/00 Speed Detector

12 153/00041/01 Speed Sensor Bracket Models through 10/29/06

12 153/00041/11 Speed Sensor Bracket Models starting 10/30/06

13 203/00002/00 Washer

14 153/00069/00 Bearing Cover Plate

15 253/00156/00 Roller Bearing

16 B12360807 Bearing Spacer

9001007

21

Basket, Pulley and Belt - Models Through 1/30/11

CFD55P_9001007

22

9001007

Basket, Pulley and Belt - Models Through 1/30/11

REF PART NO. DESCRIPTION COMMENTS

1 B12472401 Basket

1 B12543301 Basket Kit For replacement of 9001169 Cylinder and Trunnion

Assembly; Includes B12472401 Basket and 3885P Bearing Kit

2 253/00033/00 Key

3 253/00151/00 V-Ring Seal VL220; Loctite 480 required for installation

4 253/00152/00 V-Ring Seal VL200; Loctite 480 required for installation

5 253/00153/00 V-Ring Seal VL170; Loctite 480 required for installation

6 253/00125/00 Spacer

7 253/00124/00 Bushing Bearing cover plate bushing

8 253/00154/00 V-Ring Seal VA100; Loctite 480 required for installation

9 206/00053/00 Screw

10 206/00147/00 Bolt

11 201/00025/00 Washer

12 253/00026/00 Pulley Models before Serial No. 10110440133; Includes

9001635 Bushing, which is not available separately

12 253/00078/00 Pulley Models starting Serial No. 10110440133

13 253/00148/00 Belt Models before Serial No. 10110440133; 3 used

13 226/00155/00 Belt Models starting Serial No. 10110440133

9001007

23

Basket, Pulley and Belt - Models Starting 1/31/11

CFD781K_9001007

24

9001007

Basket, Pulley and Belt - Models Starting 1/31/11

REF PART NO. DESCRIPTION COMMENTS

1 B12472401 Basket

2 B12378901 Seal VL200

3 B12378801 Seal VL180

4 253/00125/00 Spacer

5 253/00124/00 Bushing Bearing cover plate bushing

6 253/00154/00 V-Ring Seal VA100; Loctite 480 required for installation

7 206/00053/00 Screw

8 203/00016/00 Washer

9 206/00147/00 Bolt

10 201/00025/00 Washer

11 253/00026/00 Pulley Models before Serial No. 10110440133; Includes

9001635 Bushing, which is not available separately

11 253/00078/00 Pulley Models starting Serial No. 10110440133

12 253/00148/00 Belt Models before Serial No. 10110440133; 3 used

12 226/00155/00 Belt Models starting Serial No. 10110440133

13 253/00033/00 Key

9001007

25

Motor

CFD56P_9001007

26

9001007

Motor

REF PART NO. DESCRIPTION COMMENTS

1 206/00004/00 Bolt

2 203/00001/00 Washer

3 201/00011/00 Washer

4 206/00031/00 Screw

5 253/00147/00 Pulley Models before Serial No. 10110440133

5 253/00079/00 Pulley Models starting Serial No. 10110440133

6 B12510801 Motor

7 207/00003/00 Screw

8 201/00008/00 Washer

9 203/00006/00 Washer

10 204/00007/00 Nut

11 204/00114/00 Nut

12 209/00287/00 Cooling Fan

13 248/00114/00 Bolt

14 201/00001/00 Washer

15 204/00113/00 Nut

16 206/00003/00 Bolt

17 201/00004/00 Washer

18 204/00111/00 Nut

19 B12369701 Motor Plate

20 204/00012/00 Nut

21 206/00125/00 Screw

9001007

27

Single Drain Assembly

CFD57P_9001007

28

9001007

Single Drain Assembly

REF PART NO. DESCRIPTION COMMENTS

NA 210/01575/18 Drain Valve Harness

1 223/00184/00 Overflow Hose

2 223/00013/00 Hose Clamp

3 223/00106/00 Drain Pipe

4 223/00071/00 Hose Clamp

5 223/00141/00 Drain Valve to Drain Pipe Hose

6 223/00133/00 Drain Tub to Drain Valve Hose

7 206/00009/00 Bolt

8 203/00003/00 Washer

9 202/00002/00 Washer

10 204/00004/00 Nut

11 N/A Drain Valve Plate Assembly

12 223/00086/00 Drain Valve Overflow Plug

13 223/00223/00 Hose Clamp

14 B12630701 Drain Valve Kit

N/A = Part no longer available

9001007

29

Dual Drain Assembly

CFD114P_9001007

30

9001007

Dual Drain Assembly

REF PART NO. DESCRIPTION COMMENTS

NA 210/01575/18 Drain Valve Harness

NA 831P3 Drain Kit Includes items 6-18, C0064 2-Drain Harness

1 223/00184/00 Overflow Hose

2 223/00013/00 Hose Clamp

3 223/00106/00 Drain Pipe

4 223/00071/00 Hose Clamp

5 223/00141/00 Drain Valve to Drain Pipe Hose

6 206/00009/00 Bolt

7 203/00003/00 Washer

8 204/00004/00 Nut

9 223/00086/00 Drain Valve Overflow Plug

10 223/00012/00 Hose Clamp

11 209/00171/00 Drain Valve

12 F8619001 Drain Valve Bracket

13 202/00002/00 Washer

14 253/00006/00 T-Piece

15 223/00170/00 Exhaust Valve Hose

16 B12630701 Drain Valve Kit

17 223/00223/00 Hose Clamp

9001007

31

Door Lock

CFD492P_9001007

32

9001007

Door Lock

REF PART NO. DESCRIPTION COMMENTS

NA C000867P Door Lock Harness Models starting 7/15/11

1 C000614 Screw

2 C000684 Door Lock Plate

3 253/00158/567 Screw

4 C000571 Washer

5 205/00123/00 Bolt

6 C000612 Screw

7 C001036M Door Lock Kit Includes items 1-6 and 8-25, F8390801 Magnet,

C002994 Door Magnet Mounting Bracket and F431223 Pop Rivet

8 C000694 Door Release Decal

9 253/01580/47 Screw

10 C000688 Door Lock Cover

11 C003022 Door Lock Solenoid Bracket

12 201/00007/00 Washer

13 C000430 Bolt

14 C000687 Door Lock Spring Cover

15 C000185 Door Lock Catch

16 C000276 Door Lock Slide Spring

17 C000271 Door Lock Switch Slide

18 C000578 Nut

19 C000278 Door Lock Microswitch

20 C000431 Spring

21 C001244 Door Latch

22 C000184P Door Lock Solenoid

23 207/00135/00 Screw

24 C003000 Reed Switch Assembly Models starting 7/15/11

25 F8245101 Blind Rivet Models starting 7/15/11

9001007

33

Door (Drawing 1 of 2)

CFD65P_9001007

Models HX100PVNU6, HX100PVQU6, SX100PVNU6, SX100PVQU6, UX100PVNU6, UX100PVPU6 and UX100PVQU6

34

9001007

Door (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

NA 253/00158/00 Door Assembly

1 C000470 Door Handle Hinge Weldment

2 253/00162/01 Door Gasket Includes F200001600 Shell Band Gasket

3 153/00079/00 Door

4 F8549301 Bolt

5 C000175 Hinge Block

6 C000177 Washer

7 223/00244/00 O-Ring

8 205/00122/00 Bolt

9 C000561 Bolt

10 C000560 Nut

11 253/00176/50 Hinge Plate

12 685844 Nut

13 C001679P Door Handle

14 F8549401 Nut

15 253/00158/607 Door Glass Retainer

16 C000140P Door Glass Gasket

17 C000139 Door Glass

18 C000192 Door Handle Spring Bushing

19 C001786 Door Handle Torsion Spring

20 C000180 Bolt

21 C000181 Door Handle Bushing

22 F431024 Nut

9001007

35

Door (Drawing 2 of 2)

CFD493P_9001007

Models HX100PVNU7, HX100PVQU7, HX100PVPU7, HX100_WE-8, SX100PVNU7,

SX100PVQU7, SX100PVPU7, SX100_WE-8, UX100PVNU7, UX100PVPU7,

UX100PVQU7 and UX100_WE-8

36

9001007

Door (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

NA 253/00158/00 Door Assembly

1 C000470 Door Handle Hinge Weldment

2 253/00162/01 Door Gasket Includes F200001600 Shell Band Gasket

3 153/00082/00 Door Includes item 15

4 C001785 Bolt

5 C000175 Hinge Block

6 C000177 Washer

7 223/00244/00 O-Ring

8 205/00122/00 Bolt

9 C000561 Bolt

10 C000560 Nut

11 253/00176/50 Hinge Plate

12 685844 Nut

13 C001679P Door Handle

14 F8549401 Nut

15 253/10128/00 Door Glass Retainer

16 223/00346/00 Door Glass Seal

17 217/00102/00 Door Glass

18 C000192 Door Handle Spring Bushing

19 C001786 Door Handle Torsion Spring

20 C000180 Bolt

21 C000181 Door Handle Bushing

22 F431024 Nut

23 F431223 Pop Rivet Models starting 7/15/11

24 F8390801 Magnet Models starting 7/15/11

25 C002994 Door Magnet Mounting Bracket Models starting 7/15/11

9001007

37

Control Panel

CFD190P_9001007

1

4

7

St

o

p

2

5

8

0

3

6

9

St

art

38

9001007

Control Panel

REF PART NO. DESCRIPTION COMMENTS

1 209/00580/03 Display

2 B12388302 Ribbon Assembly

3 B12388303 Programming Cable

4 204/00008/00 Nut

5 203/00007/00 Washer

6 153/10107/40 Control Panel

7 F8435601 Overlay Models UX100PVNU6, UX100PVNU7, UX100PVPU6,

UX100PVPU7, UX100PVQU6, UX100PVQU7 and UX100_WE-8

7 225/00392/00 Overlay Models SX100PVNU6, SX100PVNU7, SX100PVQU6,

SX100PVQU7, SX100PVPU7 and SX100_WE-8

7 9001890 Overlay Models HX100PVNU6, HX100PVNU7, HX100PVQU6,

HX100PVQU7, HX100PVPU7 and HX100_WE-8

8 44018901 Contact Block

9 209/00099/25 Switch Base

10 209/00099/29 Switch Knob Steam and electric heat models

11 44018701 Contact Block

12 44018801 Pushbutton

13 209/00326/21 Programming Key Key code 455

14 209/00326/20 Programming Key Contact Switch

15 F9001561 Overlay

16 211/00140/00 Spacer

17 223/00123/00 Washer

18 204/00116/00 Nut

9001007

39

Control Module

CFD125P_9001007

FUSE

40

9001007

Control Module

REF PART NO. DESCRIPTION COMMENTS

1 206/00027/00 Bolt

2 203/00006/00 Washer

3 204/00007/00 Nut

4 209/00468/00 Fuse

5 209/00202/01 Fuse Holder

6 209/00218/13 Soap Injection PCB with Fuse Includes item 7

7 209/00996/00 Connector

8 210/01304/16 Thermostat

9 225/10004/00 Thermostat Grommet

10 246/00149/00 Gasket

11 153/00111/01 Top Cover Plate

12 204/00116/00 Nut

13 223/00123/00 Washer

14 N/A Spacer

15 203/00007/00 Washer

16 207/00135/00 Screw

17 209/00580/00 Main Control

17 210/01304/07 Soap Harness Main control to soap box

18 206/00101/00 Nut

19 206/00099/00 Bolt

20 153/00111/10 Electrical Plate Assembly

21 223/00174/00 Grommet

22 223/00210/00 Pressure Switch Elbow

23 223/00011/00 Hose Clamp

24 246/00092/00 Gasket

25 223/00016/00 Hose Barb

26 B12700018 Pressure Hose

27 223/00035/01 Hose Tee Water level switch

28 209/06148/02 Heating Contactor

29 209/00007/50 Pressure Switch Models through 7/8/08

29 B12548601 Water Level Switch Models starting 7/9/08

30 201/00007/00 Washer

31 203/00004/00 Washer

32 205/00105/00 Bolt

33 209/00124/00 Contactor

34 209/00356/00 Noise Suppressor

35 207/00003/00 Screw

36 211/00120/00 Standoff

N/A = Part no longer available

9001007

41

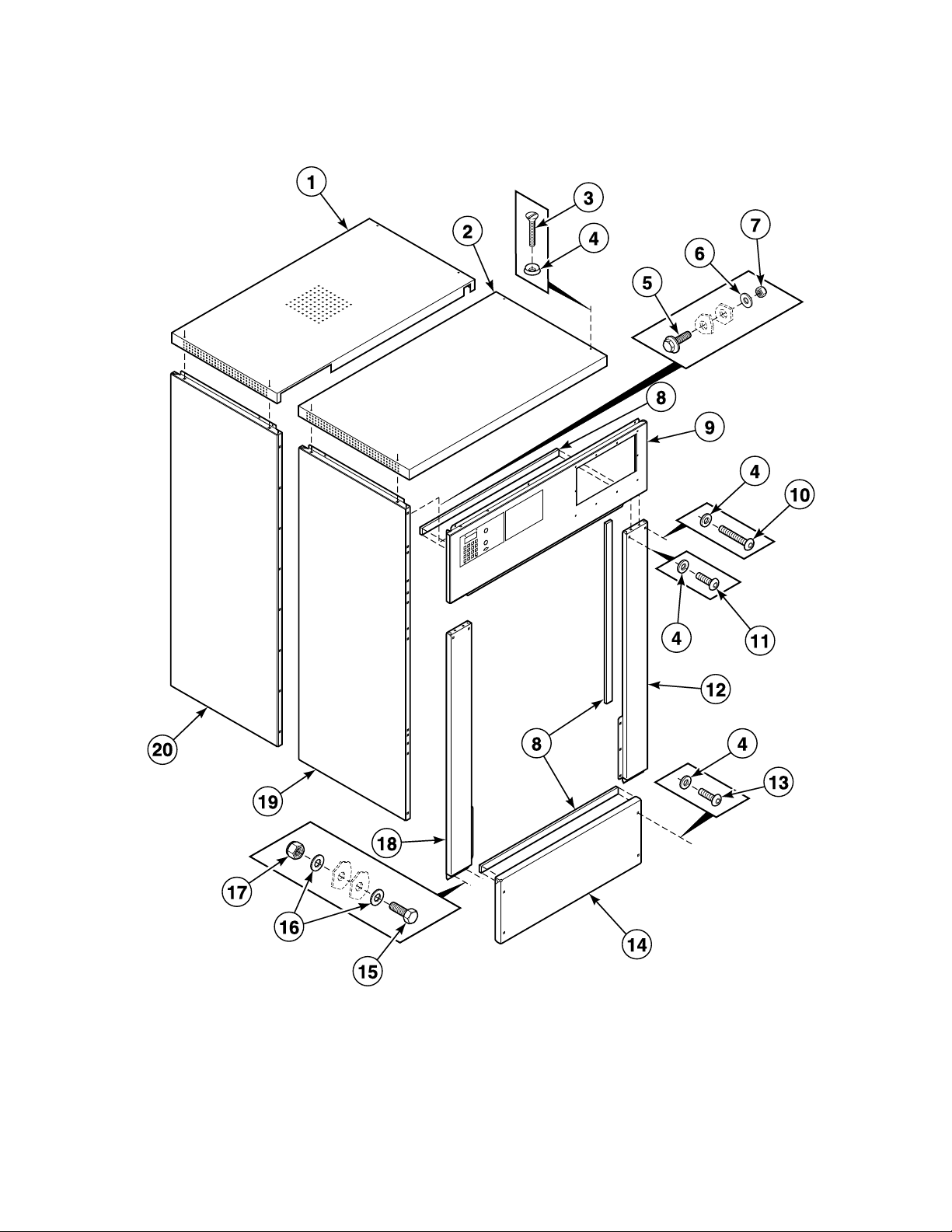

Top, Left Side and Front Panels

CFD66P_9001007

42

9001007

Top, Left Side and Front Panels

REF PART NO. DESCRIPTION COMMENTS

1 153/00033/02 Rear Cabinet Top

2 153/00033/01 Front Cabinet Top

3 207/00123/00 Screw

4 208/00009/00 Washer

5 206/00099/00 Bolt

6 202/00106/00 Washer

7 204/00106/00 Nut

8 246/00149/00 Gasket

9 N/A Control Panel

10 208/00121/00 Screw

11 208/00125/00 Screw

12 153/10116/50 Front Right Panel

13 207/00101/00 Screw

14 153/10117/00 Kickplate

15 206/00042/00 Bolt

16 202/00002/00 Washer

17 204/00109/00 Nut

18 153/10115/50 Front Left Panel

19 153/00104/00 Side Panel Front left and rear right

20 153/00103/00 Side Panel Front right and rear left

N/A = Part no longer available

9001007

43

Back and Right Side Panels

CFD67P_9001007

44

9001007

Back and Right Side Panels

REF PART NO. DESCRIPTION COMMENTS

1 153/00103/01 Side Panel Support Assembly

2 205/00104/00 Bolt

3 203/00004/00 Washer

4 202/00110/00 Washer

5 204/00106/00 Nut

6 153/00103/00 Side Panel Front right and rear left

7 205/00105/00 Bolt

8 204/00009/00 Nut

9 153/00104/00 Side Panel Front left and rear right

10 246/00079/00 Side Panel Gasket

11 153/00114/C0 Back Panel Support Assembly Lower

12 153/00114/HD Back Panel Middle

13 206/00099/00 Bolt

14 153/00114/A1 Back Panel Support Assembly

15 153/10027/90 Backbridge

9001007

45

Upper Back Panel (Drawing 1 of 4)

CFD68P_9001007

46

9001007

Upper Back Panel (Drawing 1 of 4)

REF PART NO. DESCRIPTION COMMENTS

1 153/10027/90 Backbridge

2 223/00179/10 Pressure Hose

3 208/00130/00 Screw

4 211/00087/00 Plug

5 223/00249/00 Liquid Soap Manifold

6 211/00097/00 Cordlock PE29

7 211/00097/01 Cordlock PG29

8 211/00117/00 Cordlock PE16

9 211/00118/00 Cordlock PG16

9001007

47

Upper Back Panel (Drawing 2 of 4)

CFD229P_9001007

48

9001007

Upper Back Panel (Drawing 2 of 4)

REF PART NO. DESCRIPTION COMMENTS

1 202/00102/00 Washer

2 207/00110/00 Screw

3 N/A Electrical Connection Sticker

4 140/00010/01 Electrical Connection Cover

5 204/00007/00 Nut

6 202/00004/00 Washer

7 203/00006/00 Washer

8 206/00027/00 Bolt

9 223/00102/07 Hose Vent

10 223/00050/01 Water Valve Adapter Converts from metric to standard thread

11 209/00385/01 Filter

12 209/00385/00 Filter

13 803615 Washer

14 F200164 Water Hose Standard thread

14 F200166 Water Hose Metric thread

15 20290 Washer

16 153/10027/90 Backbridge

17 209/00137/00 Inlet Valve 1-Way

18 223/00011/00 Hose Clamp

19 223/00059/00 Water Hose

20 209/00090/01 Inlet Valve Solenoid

21 209/00137/01 Diaphragm Kit

22 F200205 Hose Clamp No. 10

23 223/00044/00 Water Hose

24 209/00277/00 3-Way Inlet Valve

25 223/00211/00 Vent Hose

26 223/00014/00 Hose Clamp

27 N/A Nut

28 9001280 Bolt

29 202/00101/00 Washer

30 203/00004/00 Washer

31 205/00104/00 Bolt

32 209/00526/00 Main Switch 80A

32 209/00672/00 Main Switch 40A

32 209/00532/00 Main Switch 125A

33 153/00027/03 Switch Bracket 25A

33 153/00027/04 Switch Bracket 80A

34 209/00527/00 Terminal Block 63/80A; Neutral

34 209/00530/00 Terminal Block 25A; Neutral

35 209/00528/00 Terminal Block 63/80A; Ground

35 209/00531/00 Terminal Block 25A; Ground

35 209/00533/00 Terminal Block 125A; Ground

N/A = Part no longer available

9001007

49

Upper Back Panel (Drawing 3 of 4)

CFD456P_9001007

50

9001007

Upper Back Panel (Drawing 3 of 4)

REF PART NO. DESCRIPTION COMMENTS

NA 227/00171/00 Parameter Unit Assembly Includes 227/00171/00 Parameter Unit Assembly and

9001895 Parameter Unit Program Cable; Hand held

NA F8410901 Parameter Unit Assembly Used with 500-series inverters; Inverter mounted

1 9001329 Screw

2 204/00114/00 Nut

3 206/00099/00 Bolt

4 153/10027/20 Backbridge

5 111/01147/00 Inverter Drive Box

6 210/30570/15 Inverter to Motor Harness

7 223/00199/00 Grommet

8 223/00174/00 Grommet

9 205/00108/00 Bolt

10 203/00005/00 Washer

11 204/00107/00 Nut

12 227/00163/00 Noise Filter

13 210/00027/UL00 Filter 16A1; Standard models; Models starting 1/8/04

13 227/00180/00 Filter 45A1; 220 Volt/1 Phase models with electric heat;

Models starting 1/8/04

13 227/00242/00 Noise Filter 16A3; 220 Volt/3 Phase, 4.2 and 6 kW models with

electric heat; 400 Volt/3 Phase, 4.2, 6 and 9 kW models with electric heat; Models starting 1/8/04

13 227/00179/00 Filter 40A3; 220 Volt/3 Phase, 9 kW models with electric heat;

400 Volt/3 Phase, 12 kW models with electric heat; Models starting 1/8/04

14 111/00180/00 Electrical Connection Plate

15 206/00027/00 Bolt

16 203/00006/00 Washer

17 209/00406/00 Transformer Models HX100PVNU6, HX100PVNU7, HX100_WE-8,

SX100PVNU6, SX100PVNU7, SX100_WE-8, UX100PVNU6, UX100PVNU7 and UX100_WE-8

18 210/01304/15 Micro to Connector Harness From the main control to the inverter drive; Models

HX100PVNU6, HX100PVNU7, HX100PVPU7, HX100_WE-8, SX100PVNU6, SX100PVNU7, SX100PVPU7, SX100_WE-8, UX100PVNU6, UX100PVNU7, UX100PVPU6, UX100PVPU7 and UX100_WE-8; Requires inverter jumper to be in ‘source’ position

18 B12371101 Micro to Connector Harness Models HX100PVQU6, HX100PVQU7, SX100PVQU6,

SX100PVQU7, UX100PVQU6 and UX100PVQU7; Requires inverter jumper to be in the ‘sink’ position; From the main control to the inverter drive

19 210/01064/14 Connector to Inverter Harness From the main control to the inverter drive

20 209/00287/00 Cooling Fan

21 153/00027/02 Fan Cover

22 9001383 Fan Grill Models through 10/5/08

22 209/00287/11 AC Drive Filter Models starting 10/6/08

23 B12355001 Voltage Discharge Decal

9001007

51

Upper Back Panel (Drawing 4 of 4)

CFD456PA_9001007

52

9001007

Upper Back Panel (Drawing 4 of 4)

REF PART NO. DESCRIPTION COMMENTS

1 227/00130/00 Inverter 500-series; Models HX100PVQU6, HX100PVQU7,

HX100_WE-8, SX100PVQU6, SX100PVQU7, SX100_WE-8, UX100PVQU6, UX100PVQU7 and UX100_WE-8; 240 Volt

1 227/00232/00 Inverter 500-series; Models HX100PVNU6, HX100PVNU7,

HX100PVPU7, HX100_WE-8, SX100PVNU6, SX100PVNU7, SX100PVPU7, SX100_WE-8, UX100PVNU6, UX100PVNU7, UX100PVPU6, UX100PVPU7 and UX100_WE-8; 380-480 Volt

1 F8421113 Inverter Drive 700-series; Models HX100PVQU6, HX100PVQU7,

HX100_WE-8, SX100PVQU6, SX100PVQU7, SX100_WE-8, UX100PVQU6, UX100PVQU7 and UX100_WE-8; Models with a 3.5 inch motor pulley

1 F8421115 Inverter Drive 700-series; Models HX100PVQU6, HX100PVQU7,

HX100_WE-8, SX100PVQU6, SX100PVQU7, SX100_WE-8, UX100PVQU6, UX100PVQU7 and UX100_WE-8; Models with a 3.3 inch motor pulley

1 F8421114 Inverter Drive 700-series; Models HX100PVNU6, HX100PVNU7,

HX100PVPU7, HX100_WE-8, SX100PVNU6, SX100PVNU7, SX100PVPU7, SX100_WE-8, UX100PVNU6, UX100PVNU7, UX100PVPU6, UX100PVPU7 and UX100_WE-8; Models with a 3.5 inch motor pulley

1 F8421116 Inverter Drive 700-series; Models HX100PVNU6, HX100PVNU7,

HX100PVPU7, HX100_WE-8, SX100PVNU6, SX100PVNU7, SX100PVPU7, SX100_WE-8, UX100PVNU6, UX100PVNU7, UX100PVPU6, UX100PVPU7 and UX100_WE-8; Models with a 3.3 inch motor pulley

1 F8421013 Inverter Drive Retrofit Kit Used to convert from 500-series to 700-series inverter

drive; Models HX100PVQU6, HX100PVQU7, HX100_WE-8, SX100PVQU6, SX100PVQU7, SX100_WE-8, UX100PVQU6, UX100PVQU7 and UX100_WE-8; Models with 3.5 inch motor pulley

1 F8421015 Inverter Drive Retrofit Kit Used to convert from 500-series to 700-series inverter

drive; Models HX100PVQU6, HX100PVQU7, HX100_WE-8, SX100PVQU6, SX100PVQU7, SX100_WE-8, UX100PVQU6, UX100PVQU7 and UX100_WE-8; Models with 3.3 inch motor pulley

1 F8421014 Inverter Drive Retrofit Kit Used to convert from 500-series to 700-series inverter

drive; Models HX100PVNU6, HX100PVNU7, HX100PVPU7, HX100_WE-8, SX100PVNU6, SX100PVNU7, SX100PVPU7, SX100_WE-8, UX100PVNU6, UX100PVNU7, UX100PVPU6, UX100PVPU7 and UX100_WE-8; Models with 3.5 inch motor pulley

1 F8421016 Inverter Drive Retrofit Kit Used to convert from 500-series to 700-series inverter

drive; Models HX100PVNU6, HX100PVNU7, HX100PVPU7, HX100_WE-8, SX100PVNU6, SX100PVNU7, SX100PVPU7, SX100_WE-8, UX100PVNU6, UX100PVNU7, UX100PVPU6, UX100PVPU7 and UX100_WE-8; Models with 3.3 inch motor pulley

1 227/00125/06 Inverter Fan

9001007

53

Supply Dispenser - Models Through 4/26/2009

CFD61P_9001007

54

9001007

Supply Dispenser - Models Through 4/26/2009

REF PART NO. DESCRIPTION COMMENTS

1 9001178 Soap Dispenser

2 153/00071/00 Soap Dispenser Cover Plate

3 206/00101/00 Nut

4 202/00101/00 Washer

5 205/00105/00 Bolt

6 153/00070/00 Soap Dispenser Cover

7 204/00009/00 Nut

8 223/00008/05 Soap Dispenser Cover Handle

9 202/00102/00 Washer

10 207/00110/00 Screw

11 223/00008/01 Handle Grommet Soap dispenser cover

12 207/00126/00 Screw

13 204/00301/00 Bushing

14 253/00012/02 Soap Dispenser Cup

15 223/00001/04 Prewash and Mainwash Nozzle

16 223/00001/07 Washer

17 201/00002/00 Washer

18 204/00201/00 Nut

19 F200205 Hose Clamp No. 10

20 223/00044/00 Water Hose

9001007

55

Supply Dispenser - Models Starting 4/27/2009

BE000920P_9001007

56

9001007

Supply Dispenser - Models Starting 4/27/2009

REF PART NO. DESCRIPTION COMMENTS

1 206/00101/00 Nut

2 202/00101/00 Washer

3 205/00104/00 Bolt

4 223/00392/00 Supply Dispenser Handle

5 153/00089/00 Supply Dispenser Cover

6 223/00001/04 Prewash and Mainwash Nozzle

7 204/00009/00 Nut

8 204/00301/00 Bushing

9 223/00001/07 Washer

10 201/00002/00 Washer

11 204/00201/00 Nut

12 223/00010/00 Hose Clamp

13 223/00044/00 Water Hose

14 223/00345/01 Supply Dispenser Box

9001007

57

Plumbing (Drawing 1 of 2)

CFD71P_9001007

Models Through Serial No. 11050440026

58

9001007

Plumbing (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 223/00071/00 Hose Clamp

2 223/00141/00 Drain Valve to Drain Pipe Hose

3 253/00021/01 Y Pipe

4 223/00289/00 Water Inlet Grid

5 223/00011/00 Hose Clamp

6 223/00059/00 Water Hose

7 205/00105/00 Bolt

8 203/00004/00 Washer

9 253/00019/00 Clamp

10 202/00110/00 Washer

11 204/00106/00 Nut

12 223/00014/00 Hose Clamp

13 223/00107/03 Vent Hose

14 N/A Y Pipe

15 223/00249/00 Liquid Soap Manifold

16 253/00030/00 Y Pipe

17 223/00187/00 Soap Dispenser to Tub Hose

N/A = Part no longer available

9001007

59

Plumbing (Drawing 2 of 2)

CFD423P_9001007

Models Starting Serial No. 11050440027

60

9001007

Plumbing (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 223/00404/00 Elbow

2 B12374001 Plumbing Assembly

3 223/00187/00 Soap Dispenser to Tub Hose

4 223/00289/00 Water Inlet Grid

9001007

61

Balance Switch

CFD64P_9001007

62

9001007

Balance Switch

REF PART NO. DESCRIPTION COMMENTS

1 N/A Out-of-Balance Detector Plate

2 223/00246/00 Out-of-Balance Switch Boot

3 207/00018/00 Screw

4 203/00006/00 Washer

5 209/00255/00 Out-of-Balance Switch

6 111/00107/00 Tilt Switch Bracket

7 206/00099/00 Bolt

8 206/00101/00 Nut

9 N/A Out-of-Balance Switch Plate

10 204/00007/00 Nut

11 205/00107/00 Bolt

12 202/00101/00 Washer

13 204/00009/00 Nut

N/A = Part no longer available

9001007

63

Electric Heating Option

CFD84P_9001007

64

9001007

Electric Heating Option

REF PART NO. DESCRIPTION COMMENTS

1 209/00562/20 Heating Element

2 F360202 Heating Element Plug

9001007

65

Steam Heating Option

CFD208P_9001007

66

9001007

Steam Heating Option

REF PART NO. DESCRIPTION COMMENTS

NA 809P3 Steam Kit Includes items 1, 2 and 8-13

1 206/00099/00 Bolt

2 153/00051/11 Steam Injector Plate

3 206/00047/00 Bolt Models starting 1/26/06

4 201/00001/00 Washer Models starting 1/26/06

5 223/00349/00 O-Ring Models starting 1/26/06

6 B12365603 Connecting Piece Models starting 1/26/06; 246/00301/00 Sealant is

required for installation

7 204/00113/00 Nut Models starting 1/26/06

8 153/00051/50 Steam Injector

9 206/00101/00 Nut

10 153/00051/10 Bracket Steam injector

11 F8521501 DIN Valve Kit

12 F605220 Steam Valve Harness

13 210/01304/03 Main Control Heat Harness

9001007

67

Notes

68

9001007

A

AC Drive Filter

209/00287/11 .......................................................... 51

B

Back Panel

153/00114/HD ......................................................... 45

Back Panel Support Assembly

153/00114/A1.......................................................... 45

153/00114/C0.......................................................... 45

Backbridge

153/10027/20.......................................................... 51

153/10027/90.............................................. 45, 47, 49

Basket

B12472401........................................................ 23, 25

Basket Kit

B12543301.............................................................. 23

Bearing Cover Plate

153/00069/00.............................................. 15, 17, 21

Bearing Housing Assembly

9001198 ................................................ 11, 13, 15, 21

Bearing Housing Cover

253/10127/00.................................................... 15, 17

Bearing Kit

3885P...................................................................... 21

Bearing Replacement Kit

894P3...................................................................... 15

Bearing Replacement Tool Kit

245/00054/00.................................................... 15, 21

Bearing Spacer

B12360807........................................................ 15, 21

Belt

226/00155/00.................................................... 23, 25

253/00148/00.................................................... 23, 25

Blind Rivet

F8245101................................................................ 33

Bolt

C000180 ........................................................... 35, 37

C000430 ................................................................. 33

C000561 ........................................................... 35, 37

C001785 ................................................................. 37

F8549301................................................................ 35

205/00102/00.................................. 11, 13, 15, 17, 21

205/00104/00.............................................. 45, 49, 57

205/00105/00........................................ 41, 45, 55, 59

205/00107/00.......................................................... 63

205/00108/00.......................................................... 51

205/00122/00.................................................... 35, 37

205/00123/00.......................................................... 33

206/00003/00.......................................................... 27

206/00004/00.......................................................... 27

206/00009/00.................................................... 29, 31

206/00027/00.............................................. 41, 49, 51

206/00042/00.......................................................... 43

206/00047/00.......................................................... 67

206/00071/00............................................................ 9

206/00099/00............................ 41, 43, 45, 51, 63, 67

206/00122/00.................................................... 11, 13

Parts Index

206/00147/00 .................................................... 23, 25

224/00046/00 ............................................................9

248/00114/00...........................................................27

9001280 ..................................................................49

Bracket

153/00051/10 ..........................................................67

Bushing

204/00301/00 .................................................... 55, 57

253/00124/00 ..............................................19, 23, 25

253/00126/00 ..........................................................19

C

Clamp

253/00019/00 ..........................................................59

Connecting Piece

B12365603 ..............................................................67

Connector

209/00996/00 ..........................................................41

Connector to Inverter Harness

210/01064/14 ..........................................................51

Contact Block

44018701 ................................................................39

44018901 ................................................................39

Contactor

209/00124/00 ..........................................................41

Control Panel

153/10107/40 ..........................................................39

Cooling Fan

209/00287/00 .................................................... 27, 51

Cordlock

211/00097/00...........................................................47

211/00097/01...........................................................47

211/00117/00 ...........................................................47

211/00118/00 ...........................................................47

Counterweight

253/10013/00 .................................................... 11, 13

D

Diaphragm Kit

209/00137/01 ..........................................................49

DIN Valve Kit

F8521501 ................................................................67

Display

209/00580/03 ..........................................................39

Door

153/00079/00 ..........................................................35

153/00082/00 ..........................................................37

Door Assembly

253/00158/00 .................................................... 35, 37

Door Front Panel

153/10113/00...........................................................13

153/10118/00...........................................................11

Door Gasket

253/00162/01 .................................................... 35, 37

Door Glass

C000139..................................................................35

217/00102/00 ..........................................................37

9001007

N/A items do not appear in index.

69

Door Glass Gasket

C000140P ............................................................... 35

Door Glass Retainer

253/00158/607........................................................ 35

253/10128/00.......................................................... 37

Door Glass Seal

223/00346/00.......................................................... 37

Door Handle

C001679P ......................................................... 35, 37

Door Handle Bushing

C000181 ........................................................... 35, 37

Door Handle Decal

229/00282/00.................................................... 11, 13

Door Handle Hinge Weldment

C000470 ........................................................... 35, 37

Door Handle Spring Bushing

C000192 ........................................................... 35, 37

Door Handle Torsion Spring

C001786 ........................................................... 35, 37

Door Latch

C001244 ................................................................. 33

Door Lock Catch

C000185 ................................................................. 33

Door Lock Cover

C000688 ................................................................. 33

Door Lock Harness

C000867P ............................................................... 33

Door Lock Kit

C001036M .............................................................. 33

Door Lock Microswitch

C000278 ................................................................. 33

Door Lock Plate

C000684 ................................................................. 33

Door Lock Slide Spring

C000276 ................................................................. 33

Door Lock Solenoid

C000184P ............................................................... 33

Door Lock Solenoid Bracket

C003022 ................................................................. 33

Door Lock Spring Cover

C000687 ................................................................. 33

Door Lock Switch Slide

C000271 ................................................................. 33

Door Magnet Mounting Bracket

C002994 ................................................................. 37

Door Release Decal

C000694 ................................................................. 33

Drain Kit

831P3...................................................................... 31

Drain Pipe

223/00106/00.................................................... 29, 31

Drain Tub to Drain Valve Hose

223/00133/00.......................................................... 29

Drain Valve

209/00171/00.......................................................... 31

Drain Valve Bracket

F8619001................................................................ 31

Drain Valve Harness

210/01575/18.................................................... 29, 31

Drain Valve Kit

B12630701........................................................ 29, 31

Drain Valve Overflow Plug

223/00086/00.................................................... 29, 31

Drain Valve to Drain Pipe Hose

223/00141/00 ..............................................29, 31, 59

Drum Assembly

B12374401 ..............................................................19

E

Elbow

223/00404/00 ..........................................................61

Electrical Connection Cover

140/00010/01 ..........................................................49

Electrical Connection Plate

111/00180/00 ...........................................................51

Electrical Plate Assembly

153/00111/10 ...........................................................41

Exhaust Valve Hose

223/00170/00 ..........................................................31

F

Fan Grill

9001383 ..................................................................51

Filter

209/00385/00 ..........................................................49

209/00385/01 ..........................................................49

210/00027/UL00......................................................51

227/00179/00 ..........................................................51

227/00180/00 ..........................................................51

Frame

253/10009/00 ............................................................7

Front Cabinet Top

153/00033/01 ..........................................................43

Front Left Panel

153/10115/50...........................................................43

Front Right Panel

153/10116/50...........................................................43

Front Shipping Brace

153/10009/11.............................................................7

Fuse

209/00468/00 ..........................................................41

Fuse Holder

209/00202/01 ..........................................................41

G

Gasket

246/00092/00 ..........................................................41

246/00149/00 .................................................... 41, 43

Grease Ring Holder

253/00131/00 ..........................................................21

Grommet

223/00174/00 .................................................... 41, 51

223/00199/00 ..........................................................51

H

Handle Grommet

223/00008/01 ..........................................................55

N/A items do not appear in index.

70

9001007

Heating Contactor

209/06148/02.......................................................... 41

Heating Element

209/00562/20.......................................................... 65

Heating Element Plug

F360202.................................................................. 65

Hinge Block

C000175 ........................................................... 35, 37

Hinge Plate

253/00176/50.................................................... 35, 37

Hose Barb

223/00016/00.......................................................... 41

Hose Clamp

F200205............................................................ 49, 55

223/00010/00.......................................................... 57

223/00011/00 .............................................. 41, 49, 59

223/00012/00.......................................................... 31

223/00013/00.................................................... 29, 31

223/00014/00.................................................... 49, 59

223/00071/00.............................................. 29, 31, 59

223/00223/00.................................................... 29, 31

Hose Tee

223/00035/01.......................................................... 41

Hose Vent

223/00102/07.......................................................... 49

I

Inlet Valve

209/00137/00.......................................................... 49

Inlet Valve Solenoid

209/00090/01.......................................................... 49

Inlet Valve, 3-Way

209/00277/00.......................................................... 49

Inverter

227/00130/00.......................................................... 53

227/00232/00.......................................................... 53

Inverter Drive

F8421113 ................................................................ 53

F8421114 ................................................................ 53

F8421115 ................................................................ 53

F8421116 ................................................................ 53

Inverter Drive Box

111/01147/00 ........................................................... 51

Inverter Drive Retrofit Kit

F8421013................................................................ 53

F8421014................................................................ 53

F8421015................................................................ 53

F8421016................................................................ 53

Inverter Fan

227/00125/06.......................................................... 53

Inverter Fan Cover

153/00027/02.......................................................... 51

Inverter to Motor Harness

210/30570/15.......................................................... 51

K

Key

253/00033/00.................................................... 23, 25

Kickplate

153/10117/00 .......................................................... 43

L

Leveling Leg

252/00006/00 .................................................... 11, 13

Lip Seal

253/00182/00 ..........................................................21

Liquid Soap Manifold

223/00249/00 .................................................... 47, 59

Lower Support

253/10011/00.............................................................7

Lubricator

212/00002/00 .................................................... 15, 21

M

Magnet

F8390801 ................................................................37

Main Control

209/00580/00 ..........................................................41

Main Control Heat Harness

210/01304/03 ..........................................................67

Main Switch

209/00526/00 ..........................................................49

209/00532/00 ..........................................................49

209/00672/00 ..........................................................49

Micro to Connector Harness

B12371101 ..............................................................51

210/01304/15 ..........................................................51

Motor

B12510801 ..............................................................27

Motor Plate

B12369701 ..............................................................27

N

Noise Filter

227/00163/00 ..........................................................51

227/00242/00 ..........................................................51

Noise Suppressor

209/00356/00 ..........................................................41

Nut

C000560............................................................35, 37

C000578..................................................................33

F431024 ............................................................35, 37

F8549401 ..........................................................35, 37

204/00004/00 .................................................... 29, 31

204/00007/00 ........................................27, 41, 49, 63

204/00008/00 ..........................................................39

204/00009/00 ........................................45, 55, 57, 63

204/00012/00 ...................................................... 9, 27

204/00016/00 ............................................................9

204/00106/00 ..............................................43, 45, 59

204/00107/00 ..........................................................51

204/00109/00 ..........................................................43

204/00111/00 ...........................................................27

204/00113/00.....................................9, 11, 13, 27, 67

204/00114/00..................................................... 27, 51

204/00116/00..................................................... 39, 41

204/00201/00 .................................................... 55, 57

206/00101/00 ..................................41, 55, 57, 63, 67

685844 .............................................................. 35, 37

9001007

N/A items do not appear in index.

71

O

O-Ring

223/00244/00.................................................... 35, 37

223/00349/00.......................................................... 67

Out-of-Balance Switch

209/00255/00.......................................................... 63

Out-of-Balance Switch Boot

223/00246/00.......................................................... 63

Overflow Hose

223/00184/00.................................................... 29, 31

Overlay

F8435601................................................................ 39

F9001561................................................................ 39

225/00392/00.......................................................... 39

9001890 .................................................................. 39

P

Parameter Unit Assembly

F8410901................................................................ 51

227/00171/00.......................................................... 51

Plug

211/00087/00 .......................................................... 47

Plumbing Assembly

B12374001.............................................................. 61

Pop Rivet

F431223.................................................................. 37

Pressure Hose

B12700018.............................................................. 41

223/00179/10.......................................................... 47

Pressure Switch

209/00007/50.......................................................... 41

Pressure Switch Elbow

223/00210/00.......................................................... 41

Prewash and Mainwash Nozzle

223/00001/04.................................................... 55, 57

Programming Cable

B12388303.............................................................. 39

Programming Key

209/00326/21.......................................................... 39

Programming Key Contact Switch

209/00326/20.......................................................... 39

Pulley

253/00026/00.............................................. 19, 23, 25

253/00078/00.............................................. 19, 23, 25

253/00079/00.......................................................... 27

253/00147/00.......................................................... 27

Pushbutton

44018801 ................................................................ 39

R

Rear Cabinet Top

153/00033/02.......................................................... 43

Rear Shipping Brace

153/10009/12............................................................ 7

Reed Switch Assembly

C003000 ................................................................. 33

Retaining Ring

253/00157/00.............................................. 15, 17, 21

N/A items do not appear in index.

72

Ribbon Assembly

B12388302 ..............................................................39

Roller Bearing

253/00155/00 ..............................................15, 17, 21

253/00156/00 ..............................................15, 17, 21

S

Screw

C000612..................................................................33

C000614..................................................................33

206/00031/00 ..........................................................27

206/00053/00 .................................................... 23, 25

206/00125/00 ..........................................................27

207/00003/00 .................................................... 27, 41

207/00018/00 ..........................................................63

207/00101/00 ..........................................................43

207/00110/00..................................................... 49, 55

207/00123/00 ..........................................................43

207/00126/00 ..........................................................55

207/00135/00 .................................................... 33, 41

208/00121/00 ..........................................................43

208/00123/00 .................................................... 11, 13

208/00125/00 ..........................................................43

253/00158/567 ........................................................33

253/01580/47 ..........................................................33

280/00130/00 ..........................................................47

9001329 ..................................................................51

Seal

B12378801 ..............................................................25

B12378901 ..............................................................25

Seal Wear Plate

153/00121/00 ..........................................................21

Shock Absorber

247/00008/00 ............................................................9

Side Panel

153/00103/00 .................................................... 43, 45

153/00104/00 .................................................... 43, 45

Side Panel Gasket

246/00079/00 ..........................................................45

Side Panel Support Assembly

153/00103/01 ..........................................................45

Soap Dispenser

9001178...................................................................55

Soap Dispenser Cover

153/00070/00 ..........................................................55

Soap Dispenser Cover Handle

223/00008/05 ..........................................................55

Soap Dispenser Cover Plate

153/00071/00 ..........................................................55

Soap Dispenser Cup

253/00012/02 ..........................................................55

Soap Dispenser to Tub Hose

223/00187/00 .................................................... 59, 61

Soap Harness

210/01304/07 ..........................................................41

Soap Injection PCB with Fuse

209/00218/13 ..........................................................41

Spacer

211/00140/00...........................................................39

253/00125/00 ..............................................19, 23, 25

253/10120/00 .................................................... 15, 21

Speed Detector

210/00075/00 .................................................... 15, 21

9001007

Speed Sensor Bracket

153/00041/01.................................................... 15, 21

153/00041/11 .................................................... 15, 21

Spring

C000431 ................................................................. 33

Standoff

211/00120/00 .......................................................... 41

Steam Injector

153/00051/50.......................................................... 67

Steam Injector Plate

153/00051/11 .......................................................... 67

Steam Kit

809P3...................................................................... 67

Steam Valve Harness

F605220.................................................................. 67

Supply Dispenser Box

223/00345/01.......................................................... 57

Supply Dispenser Cover

153/00089/00.......................................................... 57

Supply Dispenser Handle

223/00392/00.......................................................... 57

Suspension Spring

B12456301................................................................ 9

Switch Base

209/00099/25.......................................................... 39

Switch Bracket

153/00027/03.......................................................... 49

153/00027/04.......................................................... 49

Switch Knob

209/00099/29.......................................................... 39

T

Terminal Block

209/00527/00.......................................................... 49

209/00528/00.......................................................... 49

209/00530/00.......................................................... 49

209/00531/00.......................................................... 49

209/00533/00.......................................................... 49

Thermostat

210/01304/16.......................................................... 41

Thermostat Grommet

225/10004/00.......................................................... 41

Tilt Switch Bracket

111/00107/00........................................................... 63

Top Cover Plate

153/00111/01........................................................... 41

T-P i ece

253/00006/00.......................................................... 31

Transformer

209/00406/00.......................................................... 51

Tub

153/00077/00.................................................... 11, 13

9001184 ............................................................ 11, 13

Tub Back Plate

153/00075/10.......................................................... 13

153/00076/10.................................................... 11, 13

9001180 .................................................................. 11

Tub Front Panel

153/10013/00.................................................... 11, 13

Tub Gasket

223/00168/00.................................................... 11, 13

U

Upper Support

253/10111/00 .............................................................7

V

Vent Hose

223/00107/03 ..........................................................59

223/00211/00...........................................................49

Voltage Discharge Decal

B12355001 ..............................................................51

V-Ring Seal

253/00151/00 .................................................... 19, 23

253/00152/00 .................................................... 19, 23

253/00153/00 .................................................... 19, 23

253/00154/00 ..............................................19, 23, 25

W

Washer

C000177............................................................35, 37

C000571..................................................................33

201/00001/00 ....................................9, 11, 13, 27, 67

201/00002/00 .................................................... 55, 57

201/00004/00 ..........................................................27

201/00007/00 .................................................... 33, 41

201/00008/00 ..........................................................27

201/00011/00...........................................................27

201/00025/00 .................................................... 23, 25

201/00202/00 ..............................................15, 17, 21

20290 ......................................................................49

202/00002/00 ..............................................29, 31, 43

202/00004/00 ..........................................................49

202/00101/00 ........................................49, 55, 57, 63

202/00102/00 .................................................... 49, 55

202/00105/00 .................................................... 11, 13

202/00106/00 ..........................................................43

202/00110/00..................................................... 45, 59

203/00001/00 ..........................................................27

203/00002/00 .................................................... 15, 21

203/00003/00 .................................................... 29, 31

203/00004/00 ........................................41, 45, 49, 59

203/00005/00 ..........................................................51

203/00006/00 ..................................27, 41, 49, 51, 63

203/00007/00 .................................................... 39, 41

203/00016/00 ..........................................................25

208/00009/00 ..........................................................43

223/00001/07 .................................................... 55, 57

223/00123/00 .................................................... 39, 41

803615 ....................................................................49

Water Hose

F200164 ..................................................................49

F200166 ..................................................................49

223/00044/00 ..............................................49, 55, 57

223/00059/00 .................................................... 49, 59

Water Inlet Grid

223/00289/00 .................................................... 59, 61

Water Level Switch

B12548601 ..............................................................41

Water Valve Adapter

223/00050/01 ..........................................................49

9001007

N/A items do not appear in index.

73

Y

Y Pipe

253/00021/01.......................................................... 59

253/00030/00.......................................................... 59

N/A items do not appear in index.

74

9001007

Unimac UX100PVQU7-Extractor Parts Diagram

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Parts Ordering Information

Serial Plate Location

Model Identification

Cabinet Freestanding Washer-Extractor Product Overview

Frame

Shock and Spring Assembly

Shell and Front Panel (Drawing 1 of 2)

Shell and Front Panel (Drawing 2 of 2)

Bearing Assembly (Drawing 1 of 3) - Models Through 1/30/11

Bearing Assembly (Drawing 2 of 3) - Models Through 1/30/11

Bearing Assembly (Drawing 3 of 3) - Models Through 1/30/11

Bearing Assembly - Models Starting 1/31/11

Basket, Pulley and Belt - Models Through 1/30/11

Basket, Pulley and Belt - Models Starting 1/31/11

Motor

Single Drain Assembly

Dual Drain Assembly

Door Lock

Door (Drawing 1 of 2)

Door (Drawing 2 of 2)

Control Panel

Control Module

Top, Left Side and Front Panels

Back and Right Side Panels

Upper Back Panel (Drawing 1 of 4)

Upper Back Panel (Drawing 2 of 4)

Upper Back Panel (Drawing 3 of 4)

Upper Back Panel (Drawing 4 of 4)

Supply Dispenser - Models Through 4/26/2009

Supply Dispenser - Models Starting 4/27/2009

Plumbing (Drawing 1 of 2)

Plumbing (Drawing 2 of 2)

Balance Switch

Electric Heating Option

Steam Heating Option

Parts Index
