Unimac UW35S3-Extractor Parts Diagram

Washer-Extractor

P005C_F232116

Pocket Hardmount

UW35

2 Speed, 3 Speed and 4 Speed

Parts

www.alliancelaundry.com

Part No. F232116R18

August 2017

Model Identification

Information in this manual is applicable to these washer-extractor models:

UW35M2 UW35M3 UW35P2 UW35P3 UW35P4 UW35S2 UW35S3

NOTE: This manual applies to models with either 1, 2, 3 or 4 in the 8th position in the model number (e.g. UW35M2U10001)

F232116 3

Pocket Hardmount Washer-Extractor Product Overview

<

12

34

56

A-Control

NORMAL

LIGHT SOIL

UNIFORMS

HEAVY SOIL

STAINED

DELICATE

HOT

HOT HOT

HOT

WARM

COLD

START

PERM PRESS

VISA

TM

WASH

ADD

BLEACH

RINSE

SPIN

DOOR

B-Control (Domestic)

60C 60C

40C 40C

95C 95C

<

30C

B-Control (International)

Mechanical Timer

S-Computer

V-Computer

UniLinc Control

WE-6 Control

PHM2979P_F232116

UW60AVXU80001

00000000000

200 – 240

50 – 60 2/3

S 3

15

60 27

594

N/A

0.0

10

ETL Listed Conforms To ANSI/UL Std. 1206, 3rd Ed Certified To CAN/CSA Std. C22.2 No.53-1968

Drawings:

4 F232116

Pocket Hardmount Washer-Extractor Product Overview

REF PART NO. DESCRIPTION COMMENTS

1 -Product Family UW

2 - Capacity (Pounds) 35

60 80 100 125 150

3 - Control A (A-Control)

B (B-Control) M (Mechanical Timer) P (WE-6 Control) S (S-Computer) V (V-Computer) T (UniLinc Control)

4 - Speed 2 (2-Speed)

3 (3-Speed) 4 (4-Speed) V (Variable-Speed)

5 - Voltage F (440-480/60/3/3)

N (440-480/50-60/3/3) O (208-240/60/3/3) P (380-415/60-60/3/3) Q (200-208/220-240/50/60/3ph) R (380-415/440-480/50/60/3ph) X (200-220/220-240/50/60/1-3) Y (208-240/60/1/2)

6 - OEM U (Standard Specs)

7 - Design Series 1-8

F232116 5

Decals

PHM2892P_F232116

CONDUCTORS ONLY

COPPER

P/N 231146

6 F232116

Decals

REF PART NO. DESCRIPTION COMMENTS

1 D505281 Disconnect Power Warning Label

2 F230301 This Machine Must Be Protected Decal

3 F231146 Conductor Decal

4 F230917-1 External Supply Connection Decal

5 F231380 Hot Surface Warning Decal

6 F231368 Cold Water Valve Decal

7 F231367 Hot Water Valve Decal

8 F230302 Do Not Push Decal

9 F231436 Supply Dispenser Hazard Caution Decal

10 F230501 Before Power Is Connected Tag

11 F230652 Clockwise Spin Rotation Decal

12 F200085000 Hot Surface Warning Decal

13 F231065 Personal Injury Warning Decal

F232116 7

Control Module - UW35P Models (Drawing 1 of 2)

PHM2545P_F232116

8 F232116

Control Module - UW35P Models (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 F0340345-10P Water Level Switch

2 F422404P Tubing

3 F606826 Computer Cover

4 F630242 Water Level Switch Bracket

5 F431113 Washer

6 F422500 Connector

7 F340800P Keymode Run/Program Switch

7 F370709 Program Key A153

8 F140575P Connector Gray

9 F140576P Connector Blue

10 F350210 Circuit Breaker 2 Amp

11 F604713 Cable Assembly

12 F430903 Screw

13 N/A Switch Mode Decal

14 F350412 Light Red; 120 VAC

14 F350404 Signal Light Red; 220 VAC

15 F430916 Screw 1 Phase

16 F430311 Washer 1 Phase

17 F340704 Motor Switch Bracket 1 Phase

18 F340001 Motor Switch 1 Phase; Use with Century motors only

18 F340002 Motor Switch 1 Phase; Use with Elmo motors only

19 F140734 Ground Terminal Lug

20 F230677 Input Power Connector Decal

21 F140746 Input Power Block

22 F140527 Plug

23 F140309 Connector

24 F140909 Insulator Bushing

25 F140738 Terminal Strip

26 F430995 Screw

27 F430928 Screw

28 F300203P Buzzer 120 Volt

28 N/A Buzzer 220 Volt

N/A = Part no longer available

F232116 9

Control Module - UW35P Models (Drawing 2 of 2)

PHM2546P_F232116

10 F232116

Control Module - UW35P Models (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 F330175P Contactor 120 Volt; C16; See note

1 F330178P Contactor 120 Volt; C23; See note

1 F330177P Contactor 220 Volt; C16; See note

1 F330179P Contactor 220 Volt; C23; See note

2 F330186P Interlock Contactor 100-NCA-00; See note

3 F8344101P Overload Contactor 1 Phase; 193-TAC-16; See note

4 F330185P Auxiliary Contactor 100-FA11; See note

5 F330227 Flange Relay 120 Volt

5 F330230 Flange Relay 220 Volt

6 F0430165-00 Screw

7 F0370444-10P Output CCA 120 Volt

7 F8321901P Output CCA 220 Volt

7 F350108 Fuse 1/8 Amp

7 F350109 Fuse 1/2 Amp

7 F350110 Fuse 1 Amp

8 N/A Dust Cover

9 F330217P RC Network Filter Includes F140627 Connector and F141022 Connector

10 F431022 Nut

11 F141870P Harness Kit Replaces old style terminal block and ribbon cable;

Connects WE-6 computer to components

12 F370534-00P WE-6 Computer

13 F140219P Ribbon Cable 26 pin; 15 inch; Connects WE-6 computer to output cca

14 F191101 Battery 9 Volt

15 F340412 Momentary Switch

16 F8069501 Contact Switch

16 F8538101 Contact Base

16 F340445 Contact Block Switch 800E-series; Includes F200299500 Contact Block

Switch

16 F200299500 Contact Block Switch 800E-series

16 F200233401P Contact Block Switch 800F-series; Includes F8069501 Contact Switch and

F8538101 Contact Base

17 F231083 Emergency Stop Decal

18 N/A Emergency Stop Pushbutton 800E-series; Order F200233700P Emergency Stop

Button Kit

18 F200233700P Emergency Stop Button Kit Used to convert from 800E-series to 800F-series;

Includes F200233500 Emergency Stop Pushbutton and F200233401 Contact Block Switch

18 F200233500 Emergency Stop Pushbutton 800F-series

19 F230724P Keypad Decal

20 F230721 Control Module Decal

N/A = Part no longer available

NOTE: On 1 Phase models, when replacing the old style spin contactor, the contactor overload and auxiliary contactor must also be replaced.

F232116 11

Control Module - UW35S Models (Drawing 1 of 2)

PHM2752P_F232116

12 F232116

Control Module - UW35S Models (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 F630242 Water Level Switch Bracket

2 F0340345-10P Water Level Switch

3 F431022 Nut

4 F431113 Washer

5 F430916 Screw 1 Phase

6 F430311 Washer 1 Phase

7 F340704 Motor Switch Bracket 1 Phase

8 F340001 Motor Switch 1 Phase; Use with Century motors only

8 F340002 Motor Switch 1 Phase; Use with Elmo motors only

9 F230678 Keymode Decal

10 F350304P Fuse Holder

11 F350104 Fuse 2 Amp; Fast blo

12 F350412 Light 120 Volt; Red

12 F350404 Signal Light 220 Volt; Red

13 F140746 Input Power Block

14 F230677 Input Power Connector Decal

15 F430231 Nut 1 Phase

16 F140311 Squeeze Connector

17 F430916 Screw

18 F140527 Plug

19 F140309 Connector

20 F140909 Insulator Bushing

21 F200302 Hose Connector

22 F430995 Screw

23 F140738 Terminal Strip

24 F430903 Screw

25 F140734 Ground Terminal Lug

F232116 13

Control Module - UW35S Models (Drawing 2 of 2)

PHM2753P_F232116

14 F232116

Control Module - UW35S Models (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 F330175P Contactor 120 Volt; C16; See note

1 F330178P Contactor 120 Volt; C23; See note

1 F330177P Contactor 220 Volt; C16; See note

1 F330179P Contactor 220 Volt; C23; See note

2 F330186P Interlock Contactor 100-MCA-00; See note

3 F8344101P Overload Contactor 1 Phase; 193-TAC-16; See note

4 F330185P Auxiliary Contactor 100-FA11; See note

5 F330227 Flange Relay 120 Volt

5 F330230 Flange Relay 220 Volt

6 F140423 Cover

7 F350110 Fuse 1 Amp; Slo

7 F350109 Fuse 1/2 Amp; Fast

7 F350108 Fuse 1/8 Amp; Slo

8 F330217P RC Network Filter Includes F140627 Connector and F141022 Connector

9 F370449P Output Board CCA 120 Volt

9 F370450P Output Board CCA 220 Volt

10 F370529P Battery Adapter Board

11 F430231 Nut

12 F140249 Battery Backup Wire Harness 3 pin

13 F191101 Battery

14 F230764-7 External Supply Connection Decal

15 F140738 Terminal Strip

16 F430928 Screw

17 F350115 Fuse 3 Amp; Fast

18 F0350312-10 Fuse Holder

19 F340412 Momentary Switch

20 F230795 Control Module Decal

21 F370576P Keypad

22 F370555-00P Computer

22 F140219P Ribbon Cable

23 F370437P Relay CCA

NOTE: On 1 Phase models, when replacing the old style spin contactor, the contactor overload and auxiliary contactor must also be replaced.

F232116 15

Control Module - UW35M Models (Drawing 1 of 2)

PHM2172P_F232116

16 F232116

Control Module - UW35M Models (Drawing 1 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 F140746 Input Power Block

2 F430903 Screw

3 F431113 Washer

4 F140734 Ground Terminal Lug

5 F430231 Nut

6 F430916 Screw 1 Phase

7 F430311 Washer 1 Phase

8 F340704 Motor Switch Bracket 1 Phase

9 F340001 Motor Switch 1 Phase; Use with Century motors only

9 F340002 Motor Switch 1 Phase; Use with Elmo motors only

10 F330203 Relay Door unlock time delay; 30 second; 120 Volt

10 F330235 Delay Relay Door unlock time delay; 30 second; 220 Volt

10 N/A Delay Relay Spin-coast time delay; 45 second; 120 Volt

10 N/A Delay Relay Spin-coast time delay; 45 second; 240 Volt

10 F370413P Relay CCA Spin-coast time delay; 50 second; 120 Volt

10 F370414P Relay CCA Spin-coast time delay; 50 second; 240 Volt

10 F370437P Relay CCA Medium-to-high spin time delay; 15 second; 120 Volt

10 F370438P Relay CCA Medium-to-high spin time delay; 15 second; 240 Volt

11 F160301P Cycle Timer 120 Volt

11 F160304P Cycle Timer 220 Volt

12 N/A Motor 120 Volt

12 N/A Motor 220 Volt

13 F430928 Screw

14 F604214 Mounting Bracket

15 F350304P Fuse Holder

16 F350104 Fuse 2 Amp; Fast

17 F340413 Cycle Selector Switch Models through 9/97

17 F340442 Cycle Selector Switch Models starting 10/97

18 F604213 Switch Mounting Bracket

19 F630242 Water Level Switch Bracket

20 N/A Water Level Switch

21 F422404P Tubing

22 F430311 Washer

23 F431022 Nut

24 F430916 Screw

25 F140738 Terminal Strip

26 F430922 Screw

27 F350412 Light Red; 120 VAC

27 F350404 Signal Light Red; 220 VAC

28 F350411 Light Amber; 120 VAC

28 F350413 Light Amber; 220 VAC

29 F230687 Control Module Decal

30 F340411 Rocker Switch Red

31 F340412 Momentary Switch White

32 F330227 Flange Relay 120 Volt

32 F330230 Flange Relay 220 Volt

33 F140738 Terminal Strip

N/A = Part no longer available

F232116 17

Control Module - UW35M Models (Drawing 2 of 2)

PHM2173P_F232116

18 F232116

Control Module - UW35M Models (Drawing 2 of 2)

REF PART NO. DESCRIPTION COMMENTS

1 F330175P Contactor 120 Volt; C16; See note

1 F330178P Contactor 120 Volt; C23; See note

1 F330177P Contactor 220 Volt; C16; See note

1 F330179P Contactor 220 Volt; C23; See note

2 F330186P Interlock Contactor 100-NCA-00; See note

3 F330185P Auxiliary Contactor 100-FA11

4 F8344101P Overload Contactor 1 Phase

5 F150310 Timer Glass

6 F150378 Timer Cycle Indicator

NOTE: On 1 Phase models, when replacing the old style spin contactor, the contactor overload and auxiliary contactor must also be replaced.

F232116 19

Water Supply Valve and Hoses to Supply Dispenser -

PHM2215P_F232116

Mueller Valves

20 F232116

Water Supply Valve and Hoses to Supply Dispenser -

Mueller Valves

REF PART NO. DESCRIPTION COMMENTS

1 F380900 Coil 120 Volt/50 or 60 Hertz

1 F380917 Coil 220 Volt

2 N/A Valve Repair Kit 10 mm

3 F270200 Strainer

4 N/A Flow Restrictor 8 liter

5 F430948 Screw

6 F380715P 4-Way Valve 120 Volt

6 F380725P 4-Way Valve 220 Volt

7 F200302 Hose Connector

8 F230754 Water Valve Assembly Decal

9 36801 Hose Clamp No. 6

10 F200110P Water Hose

11 F422816 Y Connector

N/A = Part no longer available

F232116 21

Water Supply Valve and Hoses to Supply Dispenser - Elbi Valves

PHM2602P_F232116

22 F232116

Water Supply Valve and Hoses to Supply Dispenser - Elbi Valves

REF PART NO. DESCRIPTION COMMENTS

1 F381724P 4-Way Valve 120 Volt

1 F381723P 4-Way Valve 220 Volt

1 G582P3 Diaphragm and Guide Kit

2 F270200 Strainer

3 N/A Flow Restrictor 8 liter

4 F430948 Screw

5 F200302 Hose Connector

6 36801 Hose Clamp No. 6

7 F200110P Water Hose

8 F422816 Y Connector

N/A = Part no longer available

F232116 23

Supply Dispenser

PHM3243P_F232116

24 F232116

Supply Dispenser

REF PART NO. DESCRIPTION COMMENTS

1 F430917 Screw

2 F8195301 Washer

3 F0150514-00 Dispenser Lid

4 F190304 Plug Cap

5 F749802 Strain Relief Adapter Kit Includes items 6 and 7

6 F170215 O-Ring

7 F140340P Strain Relief Connector

8 F150385 Chemical Supply Cup 20 ounce; 3 required

9 F0150525-00 Supply Dispenser Spacer

10 F150386 Chemical Supply Cup 32 ounce; 2 required

11 F200213 Hose Clamp No. 40

12 F150478 Chemical Supply Hose

13 F431042 Nut Loctite 262 required for installation

14 F431147 Washer

15 F231436 Supply Dispenser Hazard Caution Decal

16 F8024302 Soap Dispenser Shroud Weldment

17 F170158P Gasket

18 F170400RP Trim

19 F0150512-00P Dispenser Assembly Includes items 3 and 8-10

20 F8322001 Injection Nozzle

21 F170208 O-Ring

22 802292 Nut

23 F730168 Injection Nozzle Kit Includes items 20-22

F232116 25

Spray and Fill Plumbing - Hays Valves

PHM886P_F232116

26 F232116

Spray and Fill Plumbing - Hays Valves

REF PART NO. DESCRIPTION COMMENTS

1 F380801P Antisiphon Valve 1/2 inch; F380964 Repair Kit

2 F422106 Tube Connector

3 F420101 Nipple

4 F420500 Street Elbow

5 F420400 Tee

6 F200401P U-Bolt Clamp Includes plate, washers and nuts

7 F420103 Nipple

8 F380901P Coil Round; 120 Volt

8 F380975 Coil Rectangular; Plug type; 120 Volt; DIN

8 F380902P Coil Round; 220 Volt

8 F380976 Coil Rectangular; Plug type; 220 Volt; DIN

9 F421908 Hose Adapter Standard thread

9 F421949 Nipple Metric thread

10 F380700P Solenoid Valve 1/2 inch; 120 Volt

10 F380701P Solenoid Valve 1/2 inch; 220 Volt

10 F380780P Valve 220 Volt; Includes harness

10 F380914P Repair Kit 1/2 inch

11 803615 Washer

12 F200164 Water Hose Standard thread

12 F200166 Water Hose Metric thread

13 20290 Washer

14 F421930 Hose Barb

15 F200199P Water Hose

16 F420401 Tee

17 F420502 Street Elbow

18 F420105 Nipple

19 F380800P Vacuum Breaker Valve 3/4 inch; F280965 Repair Kit

F232116 27

Spray Plumbing - Parker Valves

PHM887P_F232116

Not on all machines

28 F232116

Spray Plumbing - Parker Valves

REF PART NO. DESCRIPTION COMMENTS

NA F141901P DIN Harness Assembly Use with F381702P Valve and F381703P Valve

NA F380986P DIN Coil 120 Volt; Use with F381702P Valve

NA F380987P DIN Coil 220 Volt; Use with F381703P Valve

NA F380993P Valve Repair Kit 1/2 inch; Use with F381702P Valve and F381703P

Val ve

NA F8382301 DIN Valve Adapter Kit Use with F8322806 Valve and F8322803 Valve

NA F8456201P Valve Transition Kit Use with F8322806 Valve and F8322803 Valve

NA F8514601P Coil Use with F8322803 Valve

NA F8514701 Coil Use with F8322806 Valve

1 F420502 Street Elbow

2 F420105 Nipple

3 F422106 Tube Connector

4 F380800P Vacuum Breaker Valve 3/4 inch; F380965P Repair Kit

5 F420401 Tee

6 F420101 Nipple

7 F8322803P Valve Replaces F381702P Valve; Includes F8514701 Coil

7 F8322806 Valve Replaces F381702P Valve; Includes F8322806 Valve,

F8382301 DIN Valve Adapter Kit and F8514701 Coil

8 F421908 Hose Adapter Standard thread

8 F421949 Nipple Metric thread

9 803615 Washer

10 20290 Washer

11 F200164 Water Hose Standard thread

11 F200166 Water Hose Metric thread

12 F420103 Nipple

13 F420500 Street Elbow

14 F200401P U-Bolt Clamp Includes plate, washers and nuts

F232116 29

Fill Plumbing - Parker Valves

PHM597P_F232116

30 F232116

Fill Plumbing - Parker Valves

REF PART NO. DESCRIPTION COMMENTS

NA F141901P DIN Harness Assembly Use with F381702P Valve and F381703P Valve

NA F380993P Valve Repair Kit 1/2 inch; Use with F381702P Valve and F381703P Valve

NA F8382301 DIN Valve Adapter Kit Use with F8322806 Valve and F8322803 Valve

NA F8456201P Valve Transition Kit Use with F8322806 Valve and F8322803 Valve

1 F420500 Street Elbow

2 F420101 Nipple

3 F8322806 Valve Replaces F381702P Valve; Includes F8322806 Valve,

F8382301 DIN Valve Adapter Kit and F8514701 Coil

3 F8322803P Valve Replaces F381703P Valve; Includes F8514601 Coil

4 F380986P DIN Coil 120 Volt; Use with F381702P Valve

4 F380987P DIN Coil 220 Volt; Use with F381703P Valve

4 F8514601P Coil Use with F8322803 Valve

4 F8514701 Coil Use with F8322806 Valve

5 F420400 Tee

6 F420408 Plug

7 20290 Washer

8 F200164 Water Hose Standard thread

8 F200166 Water Hose Metric thread

9 F421951 Hose Barb

10 F380500 Gate Valve

11 803615 Washer

12 F421908 Hose Adapter Standard thread

12 F421949 Nipple Metric thread

13 F420103 Nipple

14 F200108P Water Hose

15 F200206 Hose Clamp No. 4

16 F200401P U-Bolt Clamp Includes plate, washers and nuts

17 F200222 Hose Clamp No. 12

18 F200104P Hose

19 F421930 Hose Barb

20 F380801P Antisiphon Valve 1/2 inch; F380964P Repair Kit

F232116 31

Vacuum Breaker Assembly with Leak Containment Kit

PHM2208P_F232116

32 F232116

Vacuum Breaker Assembly with Leak Containment Kit

REF PART NO. DESCRIPTION COMMENTS

1 F430938 Screw

2 F0380808-00 Vacuum Breaker Cap

3 F0380809-00 Containment Device

4 F0170221-00 O-Ring

5 F380800P Vacuum Breaker Valve 3/4 inch; F380965 Repair Kit; Includes item 6

6 F0798922-00 Vacuum Breaker Kit Includes items 1-4

F232116 33

Drain Valve and Hoses

PHM2628P_F232116

34 F232116

Drain Valve and Hoses

REF PART NO. DESCRIPTION COMMENTS

1 F020014200 Air Trap Hose

2 F200205 Hose Clamp No. 10

3 F150353 Overflow Hose

4 F200215 Hose Clamp No. 28

5 F8017101 Drain Connector Tee

6 F200201 Hose Clamp No. 56

7 F150308 Overflow Hose

8 F431005 Nut

9 F430103 Screw

10 F431147 Washer

11 F200213 Hose Clamp No. 40

12 F8106501 Drain Hose Rear

13 F430211 Nut

14 803293 Drain Valve 2 inch; 120 Volt

14 803292 Gravity Drain Valve 2 inch; 220 Volt

14 F380918 Main Drive Kit

15 F8105901 Drain Hose

16 M400014 Washer

F232116 35

Basket and Shell

PHM2547P_F232116

36 F232116

Basket and Shell

REF PART NO. DESCRIPTION COMMENTS

1 F741305 Shell Front Kit New style; Single door box; Includes F200085000 Hot Surface

Warning Decal and F8058701 Shell Front

1 F8058701 Shell Front

1 N/A Shell Front Kit Old style; Dual door box

1 F200119800 Shell Front Assembly New style; Single door box; Includes door bumper moulding,

warning decal, door latch shim, top latch bracket casting, lower door latch bracket casting, door butt, door bumper bushing, shell front weldment, door butt shim and door bracket latch shim

2 F792000 Shell Front Gasket Kit Includes F170125P Shell Band Seal, F410102 Clear Sealant

and items 7-9

3 F741701 Shell Band Kit Includes items 7-9

4 N/A Screw

5 F603225-1 Basket Assembly Models UW35M2, UW35P2 and UW35S2; Includes item 6

5 F604129 Basket Assembly Models UW35M3, UW35P3 and UW35S3; Includes item 6

5 F604377 Basket Assembly Model UW35P4

6 F8312003P Shaft Seal Sleeve Models UW35M2, UW35P2 and UW35S2

6 F8312008P Shaft Seal Sleeve Models UW35M3, UW35P3 and UW35S3

7 F430518 Screw

8 F430317 Washer

9 F430215 Nut

10 F634508 Shell Assembly Models UW35M2, UW35P2 and UW35S2; Standard

10 N/A Shell Assembly Models UW35M2, UW35P2 and UW35S2; With starch

10 F634510 Shell Assembly Models UW35M3, UW35P3 and UW35S3; Standard

10 F634510-1 Shell Weldment Models UW35M3, UW35P3 and UW35S3; With starch

10 N/A Shell Assembly Model UW35P4; Standard

11 F601806 Shell Mounting Bracket

12 M400081 Washer

13 20274 Nut

14 C000203 Transformer

15 F430935 Screw

16 F140425 Control Transformer Cover

N/A = Part no longer available

F232116 37

Door and Spray Rinse

PHM2705P_F232116

38 F232116

Door and Spray Rinse

REF PART NO. DESCRIPTION COMMENTS

1 F430917 Screw

2 F602880 Spray Rinse Strap

3 F603696-7 Spray Rinse Tube Assembly

4 F310206 Ring Retainer

5 F422108 Swivel Coupling Includes items 4 and 8

6 F602901P Spray Rinse Bracket Assembly Includes items 1 and 7

7 F431022 Nut

8 F170200 O-Ring

9 F320100 Retainer Ring Spinning

10 F290202P Glass Kit For models with spray rinse

10 F290203P Glass For models without spray rinse

11 F170112 Door Glass Gasket

12 F730077 Spray Rinse Nozzle Kit

13 F430103 Screw

14 F150366 Door Bumper Moulding

15 F430416 Door Bumper Bushing

16 F200030600P Door Hinge Strap Kit Includes F200030700 Door Hinge

17 F601815 Door Hinge Pin

18 F0610695-00 Door Butt Shim

19 F630315 Stud Weldment

19 F200119500P Door Assembly For models with spray rinse; Includes items 9, 10, 12,

18, magnet, door spinning, door push handle, door push brace and door hinge

19 F200119400 Door Assembly For models without spray rinse; Includes items 9, 10,

12, 18, magnet, door spinning, door push handle and door push brace

20 F8549401 Nut

21 F631989 Door Bracket Latch Shim

22 F602058 Door Latch Bracket Shim

23 F431100 Washer

24 F150201P Top Latch Bracket Casting

25 F170143 Door Gasket

26 F150202 Lower Door Latch Bracket Casting

27 F431002 Nut

28 F150204 Lower Door Latch Casting

29 F430168 Screw

30 F430927 Screw

31 F746800 Extension Arm Kit Single door box; Includes items 27, 30 and 32

31 F746801 Extension Arm Kit Dual door box

32 F431118 Washer

33 F150203 Door Handle Casting

34 F422319 Elbow

35 F422109 No-Swivel Coupling

36 F730025 Spray Rinse Hose Kit Includes items 4, 5, 8 and 35

37 F421938 Extension

F232116 39

Dual Door Box

PHM2178P_F232116

40 F232116

Dual Door Box

REF PART NO. DESCRIPTION COMMENTS

1 F430988 Screw

2 F170135 Door Lock Gasket

3 F601081 Door Lock Plunger

4 N/A Left Door Box

5 F340901 Switch

6 F340913 Switch Extension Includes nuts and screw

7 F430211 Nut

8 F190300 Cap

9 F310119 Door Lock Solenoid Spring

10 F150288 Door Lock Collar

11 F430502 Screw

12 F431201 Cotter Pin

13 F330217P RC Network Filter Includes F140627 Connector and F141022 Connector

14 F430917 Screw

15 F300101P Door Solenoid 120 Volt

15 F300105 Door Solenoid 220 Volt

16 F601129 Door Box Mounting Bracket

17 F605525 Door Box Mounting Plate Assembly

18 F340900 Interlock Switch

19 F601055 Interlock Switch Spacer

20 F601523 Right Door Box

N/A = Part no longer available

F232116 41

Single Door Box

PHM2053P_F232116

42 F232116

Single Door Box

REF PART NO. DESCRIPTION COMMENTS

1 F430917 Screw

2 F430996 Screw

3 F340900 Interlock Switch

4 F430215 Nut

5 F431100 Washer

6 F431142 Washer

7 F200321200 Magnetic Switch Assembly

8 F430231 Nut

9 F605525 Door Box Mounting Plate Assembly

10 F300118P Door Lock Solenoid 120 Volt

10 F300129P Door Lock Solenoid 220 Volt

11 F330217P RC Network Filter Includes F140627 Connector and F141022 Connector

12 F609728 Solenoid Spacer

13 F0605466-00 Door Box

14 F601055 Interlock Switch Spacer

15 F431104 Washer

16 F431021 Nut

17 N/A Door Box Assembly 120 Volt

17 F604191 Door Box Assembly 220 Volt

18 F8390801 Magnet

19 F430232 Nut

20 F746201-1 Push Handle Kit

21 F430909 Screw

22 F230303 Push Decal

N/A = Part no longer available

F232116 43

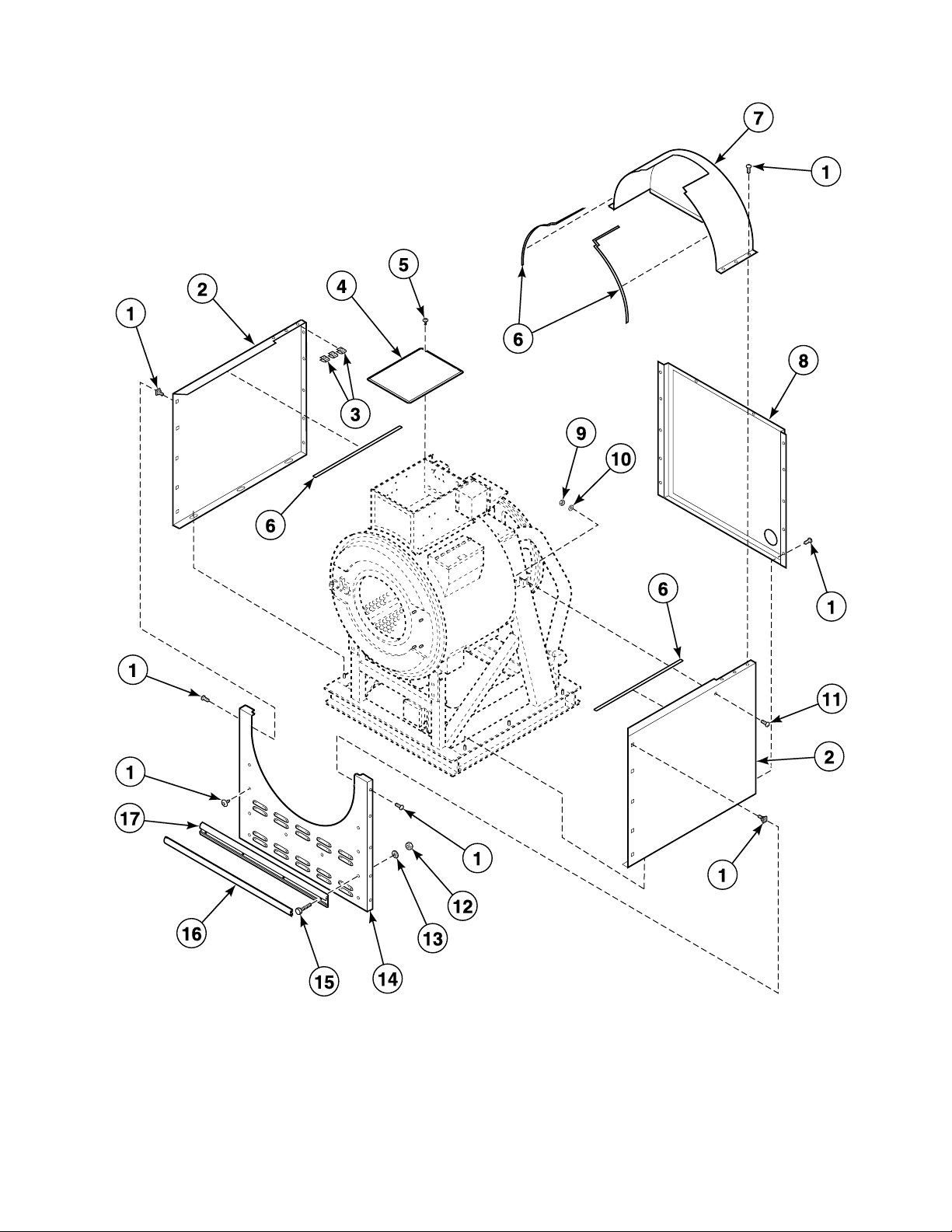

Cabinet

PHM614P_F232116

44 F232116

Cabinet

REF PART NO. DESCRIPTION COMMENTS

1 F430956 Screw

2 F632342 Side Panel Reversible

3 F430264 Nut

4 F634558 Control Module Cover

5 70240301 Screw

6 F170400RP Trim

7 F634147 Cage Wrap Assembly

8 F632347 Rear Panel

9 F430215 Nut

10 F430317 Washer

11 F432234 Screw

12 F430211 Nut

13 F431100 Washer

14 F630356 Front Panel

15 F430921 Screw

16 F150397 Extrusion Insert Order 3 feet

17 F150407 Rub Rail

F232116 45

Frame

PHM890P_F232116

46 F232116

Frame

REF PART NO. DESCRIPTION COMMENTS

1 M400081 Washer

2 F430116 Screw

3 F603330 Frame Assembly Models UW35M2, UW35P2 and UW35S2

3 F606219 Frame Assembly Models UW35M3, UW35P3 and UW35S3

3 N/A Frame Assembly Model UW35P4

4 20274 Nut

5 M400014 Washer

6 70142 Nut

7 F601806 Shell Mounting Bracket

8 F430924 Screw

N/A = Part no longer available

F232116 47

Pulley and 2 and 3 Speed Trunnion Assembly

P035P_F232116

48 F232116

Pulley and 2 and 3 Speed Trunnion Assembly

REF PART NO. DESCRIPTION COMMENTS

1 F430987 Screw Models UW35M2, UW35M3, UW35P2, UW35P3, UW35S2

and UW35S3

2 F8203802 Triple Lip Seal Models UW35M2, UW35P2 and UW35S2

2 F8203805 Triple Lip Seal Models UW35M3, UW35P3 and UW35S3

3 F100123P Bearing Models UW35M2, UW35P2 and UW35S2; 6309 2RS

3 F100122 Bearing Models UW35M3, UW35P3 and UW35S3; 6312 2RS C3

4 F747002 Trunnion Kit Models UW35M2, UW35P2 and UW35S2; Includes F792000

Shell Front Gasket Kit

4 F747004 Trunnion Kit Models UW35M3, UW35P3 and UW35S3; Includes F792000

Shell Front Gasket Kit

5 F431131 Washer Models UW35M2, UW35M3, UW35P2, UW35P3, UW35S2

and UW35S3

6 F430240 Nut Models UW35M2, UW35M3, UW35P2, UW35P3, UW35S2

and UW35S3

7 F100108 Bearing Models UW35M2, UW35P2 and UW35S2; 6208 2RS

7 F100123P Bearing Models UW35M3, UW35P3 and UW35S3; 6309 2RS C3

8 F430801 Key

9 F280172 Sheave Pulley Models UW35M2, UW35P2 and UW35S2

9 F280173 Pulley Models UW35M3, UW35P3 and UW35S3

9 N/A Pulley Model UW35P4

10 F280341 Belt Models UW35M2, UW35P2 and UW35S2; 1 required; 3V-850

10 F280304 Belt Models UW35M3, UW35P3 and UW35S3; 2 required; 3V-900

10 F280327 Belt Model UW35P4

11 F430927 Screw Models through 12/31/04

11 F430100 Screw Models starting 1/1/05

12 F0431159-00 Washer

F232116 49

Bearings and Seal - Model UW35P4

PHM2577P_F232116

50 F232116

Bearings and Seal - Model UW35P4

REF PART NO. DESCRIPTION COMMENTS

1 F430200 Nut

2 F430327 Washer

3 F745010 Rear Bearing Kit Includes items 1, 2, 5 and F704854 Key

4 F430136 Screw

5 F430201 Nut

6 F798824-00 Front Bearing Kit Includes item 9, F100150 Bearing, F100203 Slinger,

F170120R Shell Band Gasket, F170125 Shell Band Seal, F200001600 Shell Band Gasket, F410102 Clear Sealant, F430137 Screw, F430201 Nut, F430211 Nut, F430317 Washer, F430325 Washer, F430500 Screw, F430935 Screw, F431005 Nut, F431100 Washer, F431112 Washer, F431210 Pop Rivet and F704853 Key

7 F430137 Screw

8 F170205 O-Ring

9 F8162101 Face Seal

10 F601359 Shell Reinforcement Plate

11 F430917 Screw

F232116 51

Balance Switch - UW35P4 Models

PHM2578P_F232116

52 F232116

Balance Switch - UW35P4 Models

REF PART NO. DESCRIPTION COMMENTS

1 H88412101 Nut

2 F430124 Screw

3 M400081 Washer

4 M400014 Washer

5 20274 Nut

6 F430900 Screw

7 F340900 Interlock Switch

8 F601750 Balance Switch Bracket

F232116 53

Motor - 2 Speed Models

PHM2690P_F232116

54 F232116

Motor - 2 Speed Models

REF PART NO. DESCRIPTION COMMENTS

1 F430401 Cotter Pin

2 901690 Washer

3 F200216900 Motor Drip Shield 8 inch

3 F200280700 Motor Drip Shield 10 inch

4 F603897 Motor Support Rod

5 F730344P Capacitor Kit 160 MFD and 15K resistor

6 F8411901 Capacitor 50 MFD

7 F8411801 Capacitor 25 MFD

8 F8411701 Capacitor 20 MFD

9 F200186100 Motor Support Bushing

10 F430802 Key

11 F280186P Pulley Includes screw; 50 Hertz; 2-3.650DX7/8; 2 groove;

3.65 inch OD

11 F280281 Motor Pulley Includes screw; 60 Hertz; 1 DP-GR3V300X.875; 1

groove; 3.24 inch OD

12 F310124 Extension Spring

13 F601515 Clip

14 F8330001P Motor 208-240 Volt/60 Hertz/3 Phase; Includes item 9

14 F220353 Motor 220-240 Volt/50 Hertz/3 Phase

14 F8597902P Motor Replaces F8353601P Motor; 208-240 Volt/60 Hertz/1

Phase

14 F8330101P Motor 380-415 Volt/50 Hertz; 440-480 Volt/60 Hertz; Includes

item 9

F232116 55

Motor - 3 Speed Models

PHM2691P_F232116

56 F232116

Motor - 3 Speed Models

REF PART NO. DESCRIPTION COMMENTS

1 F430927 Screw

2 F0431159-00 Washer

3 F280304 Belt

4 F430802 Key

5 F280173 Pulley 2G3V2400

6 F220410P Motor 208-240 Volt/60 Hertz/3 Phase; Wash

6 N/A Motor 220-240 Volt/50 Hertz/3 Phase; Wash

6 F220420 Motor 380-415 Volt/50 Hertz/3 Phase; 440-480 Volt/60 Hertz/3

Phase; Wash

7 F430300 Washer

8 M400014 Washer

9 800461 Screw

10 F220411 Motor 208-240 Volt/60 Hertz/3 Phase; Extract

10 N/A Motor 220-240 Volt/50 Hertz/3 Phase; Extract

10 F220421 Motor 380-415 Volt/50 Hertz/3 Phase; 440-480 Volt/60 Hertz/3

Phase; Extract

11 M400081 Washer

12 F430116 Screw

13 F280236 Pulley Includes screw; 60 Hertz; 4P3V41; Extract

13 N/A Pulley Includes screw; 50 Hertz; 4P3V50; Extract

14 F280238 Bushing P1-1-1/8; Extract

15 F280214 Motor Bushing H-7/8; Wash

16 F280319 Belt 50 Hertz; 3V-335

16 F280352 Belt 60 Hertz; 3VX315

17 N/A Pulley 60 Hertz; 2H3V31; Wash

17 F280178 Pulley 50 Hertz; 2H3V36; Wash

18 F140605 Cable Tie 50 Hertz; 3V-335

19 F200216900 Motor Drip Shield 50 Hertz; 3V-335

N/A = Part no longer available

F232116 57

Motor - Model UW35P4

PHM2579P_F232116

58 F232116

Motor - Model UW35P4

REF PART NO. DESCRIPTION COMMENTS

1 F430804 Key

2 N/A Bushing Includes screws

3 F280327 Belt

4 N/A Pulley

5 F220410P Motor 208-240 Volt/60 Hertz/3 Phase; Uses F100124 Motor

Bearing

5 F220420 Motor 380-415 Volt/50 Hertz/3 Phase; 440-480 Volt/60 Hertz;

Uses F100124 Motor Bearing

6 F430300 Washer

7 M400014 Washer

8 800461 Screw

9 F280211P Motor Pulley Bushing Includes hardware

10 F430803 Key

11 F280160 Motor Pulley

12 N/A Motor 208-240 Volt/60 Hertz/3 Phase

12 N/A Motor 380-415 Volt/50 Hertz/3 Phase; 440-480 Volt/60 Hertz

13 M400081 Washer

14 F430116 Screw

15 F280128 Motor Pulley

16 F280212 Motor Pulley Bushing

17 F280349 Belt

N/A = Part no longer available

F232116 59

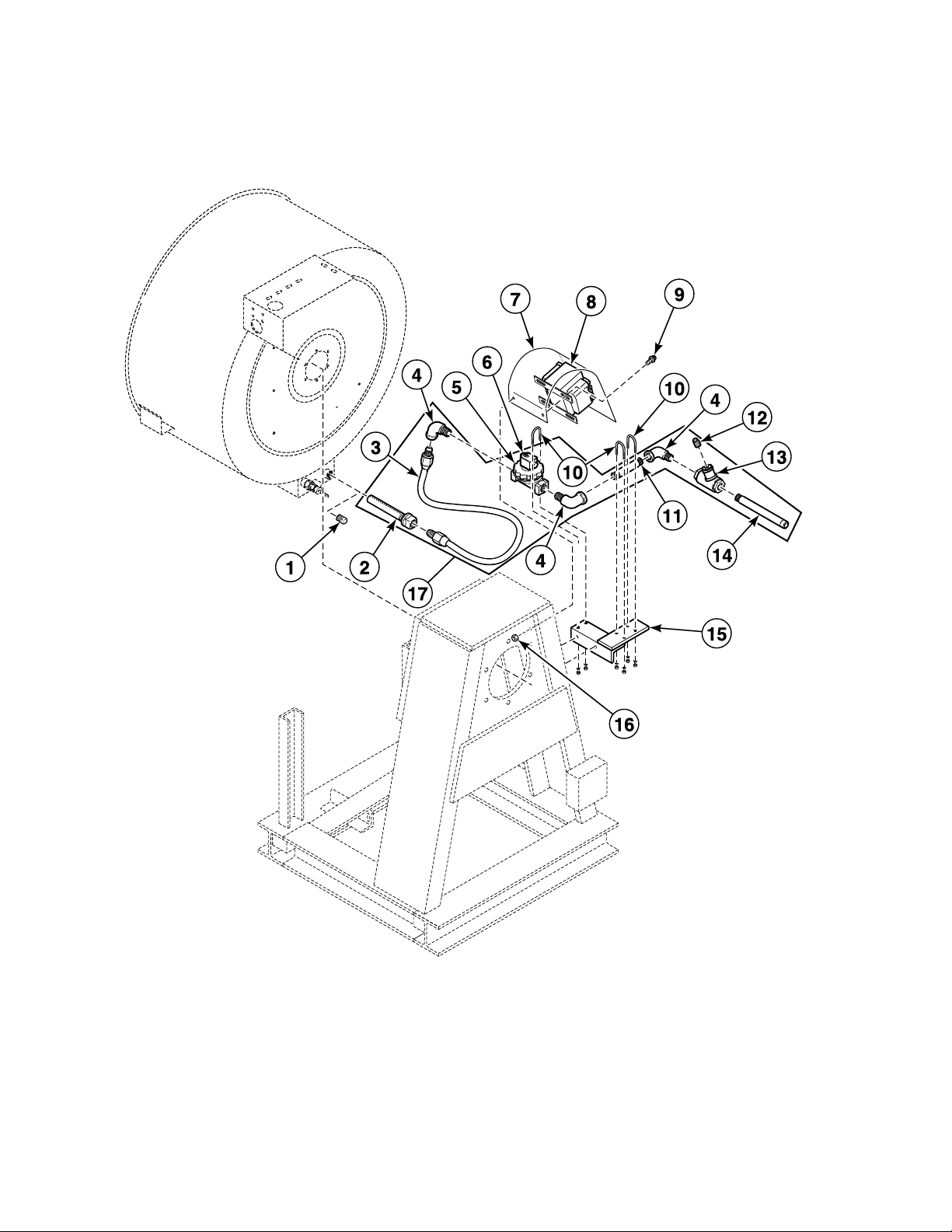

Steam Heat Option - Model UW35P4

PHM2067P_F232116

60 F232116

Steam Heat Option - Model UW35P4

REF PART NO. DESCRIPTION COMMENTS

NA F410300 Pipe Insulation

NA F8382301 DIN Valve Adapter Kit Use with F8322801 Valve

NA F8379501P Valve Kit Use with F8322801 Valve

NA F8514601P Coil Use with F8322801 Valve

NA F380984P Steam Valve Repair Kit Use with F380787P Steam Valve

1 F200202600 Plug

2 F8368201 Steam Injector Tube Assembly Includes item 1

3 F200517 Steam Hose

4 F421108 Elbow

5 F8322801P Valve Replaces F380787P Valve; Includes F8514601 Coil; For

models that have been upgraded with F8521801 DIN Val ve Kit

5 F8521801 DIN Valve Kit Replaces F380787P Valve; Includes F8322801 Valve,

F8382301 DIN Valve Adapter Kit and F8514601 Coil

6 F380987P DIN Coil 220 Volt

7 F140425 Control Transformer Cover Mylar

8 F360156P Transformer Control; F-voltage

9 F430935 Screw

10 F200401P U-Bolt Clamp Includes washers and nuts

11 F420709 Nipple

12 F420409 Plug

13 F270307 Steam Filter

14 F420711 Nipple

15 F0635785-00 Steam Bracket Weldment

16 F430215 Nut

17 F635782-1 Steam Kit 220 Volt; Includes items 2-6 and 11-14

F232116 61

Steam Heat Option - 3 Speed Models

PHM2068P_F232116

62 F232116

Steam Heat Option - 3 Speed Models

REF PART NO. DESCRIPTION COMMENTS

NA F410300 Pipe Insulation

NA F8382301 DIN Valve Adapter Kit Use with F8322801 Valve

NA F8379501P Valve Kit Use with F8322801 Valve

NA F8514601P Coil Use with F8322801 Valve

NA F380984P Steam Valve Repair Kit Use with F380787P Steam Valve

1 F200202600 Plug

2 F8368201 Steam Injector Tube Assembly Includes item 1

3 F200517 Steam Hose

4 F421108 Elbow

5 F8322801P Valve Replaces F380787P Valve; Includes F8514601 Coil; For

models that have been upgraded with F8521801 DIN Val ve Kit

5 F8521801 DIN Valve Kit Replaces F380787P Valve; Includes F8322801 Valve,

F8382301 DIN Valve Adapter Kit and F8514601 Coil

6 F380987P DIN Coil 220 Volt

7 F140425 Control Transformer Cover Mylar

8 F360156P Transformer Control; F-voltage

9 F430935 Screw

10 F200401P U-Bolt Clamp Includes screws and nuts

11 F420708 Nipple

12 F420409 Plug

13 F270307 Steam Filter

14 F420711 Nipple

15 F0635785-00 Steam Bracket Weldment

16 F430215 Nut

17 F635782 Steam Kit 220 Volt; Includes items 2-6 and 11-14

F232116 63

Electric Heat Option

PHM2218P_F232116

64 F232116

Electric Heat Option

REF PART NO. DESCRIPTION COMMENTS

1 F360205P Element 6 required

2 F370606P Temperature Probe

3 F430215 Nut

4 F430231 Nut

5 F430938 Screw

6 F140413 Box

7 M413865 Terminal Block Q-voltage

7 F140747 Input Power Block N and P-voltage

8 F430916 Screw Q-voltage

8 F430938 Screw N and P-voltage

9 F330182 Contactor 220 Volt

10 F430311 Washer

11 F430910 Screw

F232116 65

Security Fasteners

PHM2181P_F232116

Option One

Option Two

66 F232116

Security Fasteners

REF PART NO. DESCRIPTION COMMENTS

1 F0430275-00 Screw No. 8; 32 x 1/2 inch; Used in place of F430956 Screw;

Typical location is the side panels and module cover

1 F430960 Screw No. 10; 32 x 3/8 inch; Used in place of F430904 Screw;

Typical location is the module to the shell

1 F704906 Hex Bit

2 F0430273-00 Screw 1/4 inch; 20 x 2-1/2 inch; Used in place of F430996

Screw; Typical location is the door box to the bracket

2 F0430272-00 Screw 1/4 inch; 20 x 1-1/2 inch; Used in place of F430921

Screw; Typical location is the side panel to the bracket

2 F0430274-00 Screw 1/4 inch; 20 x 1/2 inch; Used in place of F430925 Screw;

Typical location is the drive box or the cover

2 F704907 Spanner Bit

3 F432260 Screw 1/4 inch; 20 x 2-1/2 inch; Used in place of F430996

Screw; Typical location is the door box to the bracket

3 N/A Phillips Bit

4 N/A Screw 1/4 inch; 20 x 1/2 inch; Used in place of F430925 Screw;

Typical location is the drive box or the cover

4 N/A Hex Bit

5 F432259 Screw No. 8; 32 x 1/2 inch; Used in place of F430956 Screw;

Typical location is the side panels and the module cover

5 281P4 Torx Bit

N/A = Part no longer available

F232116 67

Special Tools

PHM2978P_F232116

68 F232116

Special Tools

REF PART NO. DESCRIPTION COMMENTS

NA 1113P Concrete Hardware Kit

1 F633426 Alignment Shaft Assembly

2 F0100312-00 Shaft Seal Alignment Fixture

3 F460130 Bearing Removal Tool

4 F604501 Rebar Frame Template Model UW35P4

4 F604226 Rebar Frame Template Models UW35M2, UW35M3, UW35P2, UW35P3,

UW35S2 and UW35S3

5 F798700 Grease Gun Kit Includes items 6 and 7

6 F210206P Bearing Grease

7 F210207P Grease Gun

F232116 69

Notes

70 F232116

A

Air Trap Hose

F020014200............................................................ 35

Alignment Shaft Assembly

F633426.................................................................. 69

Antisiphon Valve

F380801P ......................................................... 27, 31

Auxiliary Contactor

F330185P ................................................... 11, 15, 19

B

Balance Switch Bracket

F601750.................................................................. 53

Basket Assembly

F603225-1............................................................... 37

F604129.................................................................. 37

F604377.................................................................. 37

Battery

F191101 ............................................................ 11, 15

Battery Adapter Board

F370529P ............................................................... 15

Battery Backup Wire Harness

F140249.................................................................. 15

Bearing

F100108.................................................................. 49

F100122.................................................................. 49

F100123P ............................................................... 49

Bearing Grease

F210206P ............................................................... 69

Bearing Removal Tool

F460130.................................................................. 69

Before Power Is Connected Tag

F230501.................................................................... 7

Belt

F280304............................................................ 49, 57

F280319.................................................................. 57

F280327............................................................ 49, 59

F280341.................................................................. 49

F280349.................................................................. 59

F280352.................................................................. 57

Box

F140413.................................................................. 65

Bushing

F280238.................................................................. 57

Buzzer

F300203P ................................................................. 9

C

Cable Assembly

F604713.................................................................... 9

Cable Tie

F140605.................................................................. 57

Cage Wrap Assembly

F634147.................................................................. 45

Parts Index

Cap

F190300 ..................................................................41

Capacitor

F8411701.................................................................55

F8411801.................................................................55

F8411901.................................................................55

Capacitor Kit

F730344P................................................................ 55

Chemical Supply Cup

F150385 ..................................................................25

F150386 ..................................................................25

Chemical Supply Hose

F150478 ..................................................................25

Circuit Breaker

F350210 ....................................................................9

Clip

F601515 ..................................................................55

Clockwise Spin Rotation Decal

F230652 ....................................................................7

Coil

F380900 ..................................................................21

F380901P................................................................ 27

F380902P................................................................ 27

F380917 ..................................................................21

F380975 ..................................................................27

F380976 ..................................................................27

F8514601P............................................29, 31, 61, 63

F8514701 ..........................................................29, 31

Cold Water Valve Decal

F231368 ....................................................................7

Computer

F370555-00P...........................................................15

Computer Cover

F606826 ....................................................................9

Concrete Hardware Kit

1113P.......................................................................69

Conductor Decal

F231146.....................................................................7

Connector

F140309 ..............................................................9, 13

F140575P..................................................................9

F140576P..................................................................9

F422500 ....................................................................9

Contact Base

F8538101 ................................................................11

Contact Block Switch

F200233401P.......................................................... 11

F200299500 ............................................................11

F340445 ..................................................................11

Contact Switch

F8069501 ................................................................11

Contactor

F330175P....................................................11, 15, 19

F330177P....................................................11, 15, 19

F330178P....................................................11, 15, 19

F330179P....................................................11, 15, 19

F330182 ..................................................................65

Containment Device

F0380809-00...........................................................33

Control Module Cover

F634558 ..................................................................45

N/A items do not appear in index.

F232116 71

Control Module Decal

F230687.................................................................. 17

F230721.................................................................. 11

F230795.................................................................. 15

Control Transformer Cover

F140425...................................................... 37, 61, 63

Cotter Pin

F430401.................................................................. 55

F431201.................................................................. 41

Cover

F140423.................................................................. 15

Cycle Selector Switch

F340413.................................................................. 17

F340442.................................................................. 17

Cycle Timer

F160301P ............................................................... 17

F160304P ............................................................... 17

D

Delay Relay

F330235.................................................................. 17

Diaphragm and Guide Kit

G582P3................................................................... 23

DIN Coil

F380986P ......................................................... 29, 31

F380987P ............................................. 29, 31, 61, 63

DIN Harness Assembly

F141901P ......................................................... 29, 31

DIN Valve Adapter Kit

F8382301.............................................. 29, 31, 61, 63

DIN Valve Kit

F8521801.......................................................... 61, 63

Disconnect Power Warning Label

D505281 ................................................................... 7

Dispenser Assembly

F0150512-00P ........................................................ 25

Dispenser Lid

F0150514-00........................................................... 25

Do Not Push Decal

F230302.................................................................... 7

Door Assembly

F200119400 ............................................................ 39

F200119500P.......................................................... 39

Door Box

F0605466-00........................................................... 43

Door Box Assembly

F604191.................................................................. 43

Door Box Mounting Bracket

F601129 .................................................................. 41

Door Box Mounting Plate Assembly

F605525............................................................ 41, 43

Door Bracket Latch Shim

F631989.................................................................. 39

Door Bumper Bushing

F430416.................................................................. 39

Door Bumper Moulding

F150366.................................................................. 39

Door Butt Shim

F0610695-00........................................................... 39

Door Gasket

F170143.................................................................. 39

N/A items do not appear in index.

72 F232116

Door Glass Gasket

F170112...................................................................39

Door Handle Casting

F150203 ..................................................................39

Door Hinge Pin

F601815 ..................................................................39

Door Hinge Strap Kit

F200030600P.......................................................... 39

Door Latch Bracket Shim

F602058 ..................................................................39

Door Lock Collar

F150288 ..................................................................41

Door Lock Gasket

F170135 ..................................................................41

Door Lock Plunger

F601081 ..................................................................41

Door Lock Solenoid

F300118P ................................................................43

F300129P................................................................ 43

Door Lock Solenoid Spring

F310119...................................................................41

Door Solenoid

F300101P................................................................ 41

F300105 ..................................................................41

Drain Connector Tee

F8017101 ................................................................35

Drain Hose

F8105901 ................................................................35

F8106501 ................................................................35

Drain Valve

803293 ....................................................................35

E

Elbow

F421108.............................................................61, 63

F422319 ..................................................................39

Element

F360205P................................................................ 65

Emergency Stop Button Kit

F200233700P.......................................................... 11

Emergency Stop Decal

F231083 ..................................................................11

Emergency Stop Pushbutton

F200233500 ............................................................11

Extension

F421938 ..................................................................39

Extension Arm Kit

F746800 ..................................................................39

F746801 ..................................................................39

Extension Spring

F310124 ..................................................................55

External Supply Connection Decal

F230764-7 ...............................................................15

F230917-1 .................................................................7

Extrusion Insert

F150397 ..................................................................45

F

Face Seal

F8162101 ................................................................51

Flange Relay

F330227...................................................... 11, 15, 17

F330230...................................................... 11, 15, 17

Frame Assembly

F603330.................................................................. 47

F606219.................................................................. 47

Front Bearing Kit

F798824-00............................................................. 51

Front Panel

F630356.................................................................. 45

Fuse

F350104............................................................ 13, 17

F350108............................................................ 11, 15

F350109............................................................ 11, 15

F350110 ............................................................ 11, 15

F350115 .................................................................. 15

Fuse Holder

F0350312-10........................................................... 15

F350304P ......................................................... 13, 17

G

Gasket

F170158P ............................................................... 25

Gate Valve

F380500.................................................................. 31

Glass

F290203P ............................................................... 39

Glass Kit

F290202P ............................................................... 39

Gravity Drain Valve

803292 .................................................................... 35

Grease Gun

F210207P ............................................................... 69

Grease Gun Kit

F798700.................................................................. 69

Ground Terminal Lug

F140734........................................................ 9, 13, 17

H

Harness Kit

F141870P ............................................................... 11

Hex Bit

F704906.................................................................. 67

Hose

F200104P ............................................................... 31

Hose Adapter

F421908...................................................... 27, 29, 31

Hose Barb

F421930............................................................ 27, 31

F421951.................................................................. 31

Hose Clamp

F200201.................................................................. 35

F200205.................................................................. 35

F200206.................................................................. 31

F200213............................................................ 25, 35

F200215.................................................................. 35

F200222.................................................................. 31

36801 ................................................................ 21, 23

Hose Connector

F200302...................................................... 13, 21, 23

Hot Surface Warning Decal

F200085000 ..............................................................7

F231380 ....................................................................7

Hot Water Valve Decal

F231367 ....................................................................7

I

Injection Nozzle

F8322001 ................................................................25

Injection Nozzle Kit

F730168 ..................................................................25

Input Power Block

F140746 ........................................................9, 13, 17

F140747 ..................................................................65

Input Power Connector Decal

F230677 ..............................................................9, 13

Insulator Bushing

F140909 ..............................................................9, 13

Interlock Contactor

F330186P....................................................11, 15, 19

Interlock Switch

F340900 ......................................................41, 43, 53

Interlock Switch Spacer

F601055 ............................................................41, 43

K

Key

F430801 ..................................................................49

F430802 ............................................................55, 57

F430803 ..................................................................59

F430804 ..................................................................59

Keymode Decal

F230678 ..................................................................13

Keymode Run/Program Switch

F340800P..................................................................9

Keypad

F370576P................................................................ 15

Keypad Decal

F230724P................................................................ 11

L

Light

F350411...................................................................17

F350412 ........................................................9, 13, 17

F350413 ..................................................................17

Lower Door Latch Bracket Casting

F150202 ..................................................................39

Lower Door Latch Casting

F150204 ..................................................................39

M

Magnet

F8390801 ................................................................43

Magnetic Switch Assembly

F200321200 ............................................................43

N/A items do not appear in index.

F232116 73

Main Drive Kit

F380918.................................................................. 35

Momentary Switch

F340412...................................................... 11, 15, 17

Motor

F220353.................................................................. 55

F220410P ......................................................... 57, 59

F220411 .................................................................. 57

F220420............................................................ 57, 59

F220421.................................................................. 57

F8330001P ............................................................. 55

F8330101P ............................................................. 55

F8597902P ............................................................. 55

Motor Bushing

F280214.................................................................. 57

Motor Drip Shield

F200216900...................................................... 55, 57

F200280700............................................................ 55

Motor Pulley

F280128.................................................................. 59

F280160.................................................................. 59

F280281.................................................................. 55

Motor Pulley Bushing

F280211P................................................................ 59

F280212.................................................................. 59

Motor Support Bushing

F200186100............................................................ 55

Motor Support Rod

F603897.................................................................. 55

Motor Switch

F340001........................................................ 9, 13, 17

F340002........................................................ 9, 13, 17

Motor Switch Bracket

F340704........................................................ 9, 13, 17

Mounting Bracket

F604214.................................................................. 17

N

Nipple

F420101...................................................... 27, 29, 31

F420103...................................................... 27, 29, 31

F420105............................................................ 27, 29

F420708.................................................................. 63

F420709.................................................................. 61

F420711 ............................................................ 61, 63

F421949...................................................... 27, 29, 31

No-Swivel Coupling

F422109.................................................................. 39

Nut

F430200.................................................................. 51

F430201.................................................................. 51

F430211 ...................................................... 35, 41, 45

F430215....................................37, 43, 45, 61, 63, 65

F430231.......................................... 13, 15, 17, 43, 65

F430232.................................................................. 43

F430240.................................................................. 49

F430264.................................................................. 45

F431002.................................................................. 39

F431005.................................................................. 35

F431021.................................................................. 43

F431022................................................ 11, 13, 17, 39

F431042.................................................................. 25

F8549401................................................................ 39

H88412101 ............................................................. 53

N/A items do not appear in index.

74 F232116

20274 ..........................................................37, 47, 53

70142 ......................................................................47

802292 ....................................................................25

O

O-Ring

F0170221-00...........................................................33

F170200 ..................................................................39

F170205 ..................................................................51

F170208 ..................................................................25

F170215 ..................................................................25

Output Board CCA

F370449P................................................................ 15

F370450P................................................................ 15

Output CCA

F0370444-10P.........................................................11

F8321901P.............................................................. 11

Overflow Hose

F150308 ..................................................................35

F150353 ..................................................................35

Overload Contactor

F8344101P..................................................11, 15, 19

P

Personal Injury Warning Decal

F231065 ....................................................................7

Pipe Insulation

F410300 ............................................................61, 63

Plug

F140527 ..............................................................9, 13

F200202600 ......................................................61, 63

F420408 ..................................................................31

F420409 ............................................................61, 63

Plug Cap

F190304 ..................................................................25

Program Key

F370709 ....................................................................9

Pulley

F280173 ............................................................49, 57

F280178 ..................................................................57

F280186P................................................................ 55

F280236 ..................................................................57

Push Decal

F230303 ..................................................................43

Push Handle Kit

F746201-1 ...............................................................43

R

RC Network Filter

F330217P..............................................11, 15, 41, 43

Rear Bearing Kit

F745010 ..................................................................51

Rear Panel

F632347 ..................................................................45

Rebar Frame Template

F604226 ..................................................................69

F604501 ..................................................................69

Relay

F330203.................................................................. 17

Relay CCA

F370413P ............................................................... 17

F370414P ............................................................... 17

F370437P ......................................................... 15, 17

F370438P ............................................................... 17

Repair Kit

F380914P ............................................................... 27

Retainer Ring Spinning

F320100.................................................................. 39

Ribbon Cable

F140219P ......................................................... 11, 15

Right Door Box

F601523.................................................................. 41

Ring Retainer

F310206.................................................................. 39

Rocker Switch

F340411 .................................................................. 17

Rub Rail

F150407.................................................................. 45

S

Screw

F0430165-00........................................................... 11

F0430272-00........................................................... 67

F0430273-00........................................................... 67

F0430274-00........................................................... 67

F0430275-00........................................................... 67

F430100.................................................................. 49

F430103............................................................ 35, 39

F430116 ...................................................... 47, 57, 59

F430124.................................................................. 53

F430136.................................................................. 51

F430137.................................................................. 51

F430168.................................................................. 39

F430502.................................................................. 41

F430518.................................................................. 37

F430900.................................................................. 53

F430903........................................................ 9, 13, 17

F430909.................................................................. 43

F430910.................................................................. 65

F430916.................................................. 9, 13, 17, 65

F430917.......................................... 25, 39, 41, 43, 51

F430921.................................................................. 45

F430922.................................................................. 17

F430924.................................................................. 47

F430927...................................................... 39, 49, 57

F430928........................................................ 9, 15, 17

F430935...................................................... 37, 61, 63

F430938............................................................ 33, 65

F430948............................................................ 21, 23

F430956.................................................................. 45

F430960.................................................................. 67

F430987.................................................................. 49

F430988.................................................................. 41

F430995.............................................................. 9, 13

F430996.................................................................. 43

F432234.................................................................. 45

F432259.................................................................. 67

F432260.................................................................. 67

70240301 ................................................................ 45

800461 .............................................................. 57, 59

Shaft Seal Alignment Fixture

F0100312-00........................................................... 69

F232116 75

Shaft Seal Sleeve

F8312003P.............................................................. 37

F8312008P.............................................................. 37

Sheave Pulley

F280172 ..................................................................49

Shell Assembly

F634508 ..................................................................37

F634510 ..................................................................37

Shell Band Kit

F741701 ..................................................................37

Shell Front

F8058701 ................................................................37

Shell Front Assembly

F200119800.............................................................37

Shell Front Gasket Kit

F792000 ..................................................................37

Shell Front Kit

F741305 ..................................................................37

Shell Mounting Bracket

F601806 ............................................................37, 47

Shell Reinforcement Plate

F601359 ..................................................................51

Shell Weldment

F634510-1 ...............................................................37

Side Panel

F632342 ..................................................................45

Signal Light

F350404 ........................................................9, 13, 17

Soap Dispenser Shroud Weldment

F8024302 ................................................................25

Solenoid Spacer

F609728 ..................................................................43

Solenoid Valve

F380700P................................................................ 27

F380701P................................................................ 27

Spanner Bit

F704907 ..................................................................67

Spray Rinse Bracket Assembly

F602901P................................................................ 39

Spray Rinse Hose Kit

F730025 ..................................................................39

Spray Rinse Nozzle Kit

F730077 ..................................................................39

Spray R ins e Stra p

F602880 ..................................................................39

Spray Rinse Tube Assembly

F603696-7 ...............................................................39

Squeeze Connector

F140311...................................................................13

Steam Bracket Weldment

F0635785-00.....................................................61, 63

Steam Filter

F270307 ............................................................61, 63

Steam H ose

F200517 ............................................................61, 63

Steam Injector Tube Assembly

F8368201 ..........................................................61, 63

Steam Kit

F635782 ..................................................................63

F635782-1 ...............................................................61

Steam Valv e Repair Kit l

F380984P..........................................................61, 63

N/A items do not appear in index.

Strain Relief Adapter Kit

F749802.................................................................. 25

Strain Relief Connector

F140340P ............................................................... 25

Strain er

F270200............................................................ 21, 23

Street Elbow

F420500...................................................... 27, 29, 31

F420502............................................................ 27, 29

Stud Weldment

F630315.................................................................. 39

Supply Dispenser Hazard Caution Decal

F231436.............................................................. 7, 25

Supply Dispenser Spacer

F0150525-00........................................................... 25

Switch

F340901.................................................................. 41

Switch Extension

F340913.................................................................. 41

Switch Mounting Bracket

F604213.................................................................. 17

Swivel Coupling

F422108.................................................................. 39

T

Te e

F420400............................................................ 27, 31

F420401............................................................ 27, 29

Temperature Probe

F370606P ............................................................... 65

Terminal Block

M413865 ................................................................. 65

Terminal Strip

F140738.................................................. 9, 13, 15, 17

This Machine Must Be Protected Decal

F230301.................................................................... 7

Timer Cycle Indicator

F150378.................................................................. 19

Timer Glass

F150310.................................................................. 19

Top Latch Bracket Casting

F150201P ............................................................... 39

To r x B i t

281P4...................................................................... 67

Transformer

C000203 ................................................................. 37

F360156P ......................................................... 61, 63

Trim

F170400RP....................................................... 25, 45

Triple Lip Seal

F8203802................................................................ 49

F8203805................................................................ 49

Trunnion Kit

F747002.................................................................. 49

F747004.................................................................. 49

Tube Connector

F422106............................................................ 27, 29

Tubing

F422404P ........................................................... 9, 17

U

U-Bolt Clamp

F200401P........................................27, 29, 31, 61, 63

V

Vacuum Breaker Cap

F0380808-00...........................................................33

Vacuum Breaker Kit

F0798922-00...........................................................33

Vacuum Brea k e r Va l ve

F380800P....................................................27, 29, 33

Valve

F380780P................................................................ 27

F8322801P........................................................61, 63

F8322803P........................................................29, 31

F8322806 ..........................................................29, 31

Valve Ki t

F8379501P........................................................61, 63

Valve Repair Kit

F380993P..........................................................29, 31

Valve Transition Kit

F8456201P........................................................29, 31

Valve, 4-Way

F380715P................................................................ 21

F380725P................................................................ 21

F381723P................................................................ 23

F381724P................................................................ 23

W

Washer

F0431159-00 ..................................................... 49, 57

F430300 ............................................................57, 59

F430311...................................................9, 13, 17, 65

F430317 ............................................................37, 45

F430327 ..................................................................51

F431100.......................................................39, 43, 45

F431104...................................................................43

F431113.........................................................9, 13, 17

F431118...................................................................39

F431131...................................................................49

F431142...................................................................43

F431147.............................................................25, 35

F8195301 ................................................................25

M400014 .........................................35, 47, 53, 57, 59

M400081 .........................................37, 47, 53, 57, 59

20290 ..........................................................27, 29, 31

803615 ........................................................27, 29, 31

901690 ....................................................................55

Water Hose

F200108P................................................................ 31

F200110P ..........................................................21, 23

F200164 ......................................................27, 29, 31

F200166 ......................................................27, 29, 31

F200199P................................................................ 27

Water Level Switch

F0340345-10P.....................................................9, 13

Water Level Switch Bracket

F630242 ........................................................9, 13, 17

N/A items do not appear in index.

76 F232116

Water Valve Assembly Decal

F230754.................................................................. 21

WE-6 Computer

F370534-00P .......................................................... 11

Y

Y Connector

F422816............................................................ 21, 23

N/A items do not appear in index.

F232116 77

Notes

78 F232116

Unimac UW35S3-Extractor Parts Diagram

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

Parts Ordering Information

Serial Plate Location

Model Identification

Pocket Hardmount Washer-Extractor Product Overview

Decals

Control Module - UW35P Models (Drawing 1 of 2)

Control Module - UW35P Models (Drawing 2 of 2)

Control Module - UW35S Models (Drawing 1 of 2)

Control Module - UW35S Models (Drawing 2 of 2)

Control Module - UW35M Models (Drawing 1 of 2)

Control Module - UW35M Models (Drawing 2 of 2)

Water Supply Valve and Hoses to Supply Dispenser - Elbi Valves

Supply Dispenser

Spray and Fill Plumbing - Hays Valves

Spray Plumbing - Parker Valves

Fill Plumbing - Parker Valves

Vacuum Breaker Assembly with Leak Containment Kit

Drain Valve and Hoses

Basket and Shell

Door and Spray Rinse

Dual Door Box

Single Door Box

Cabinet

Frame

Pulley and 2 and 3 Speed Trunnion Assembly

Bearings and Seal - Model UW35P4

Balance Switch - UW35P4 Models

Motor - 2 Speed Models

Motor - 3 Speed Models

Motor - Model UW35P4

Steam Heat Option - Model UW35P4

Steam Heat Option - 3 Speed Models

Electric Heat Option

Security Fasteners

Special Tools

Parts Index
