Ubiquiti US-8-60W Data sheet

Datasheet

Fully Managed Gigabit Switches

Models: US-8, US-8-60W

Non-Blocking Throughput Switching Performance

Gigabit Ethernet RJ45 Ports

Robust Performance for Enterprise Networks

Overview

UniFi Controller

Datasheet

Build and expand your network with
Ubiquiti Networks® UniFi® Switch, part
of the UniFi line of products.

The new 8-port models feature
Gigabit Ethernet ports in a compact
form factor. The switches are fully
manageable, delivering robust
performance and intelligent switching
for your networks.

UniFi Cloud Key

(UniFi Controller)

UniFi Video

Camera G3 Dome

UniFi AC Pro AP

Switching Performance

The UniFi Switch offers the forwarding
capacity to simultaneously process

trafc on all ports at line rate without

any packet loss.

For its total, non-blocking throughput,
each UniFi Switch supports up to

8Gbps with a switching capacity of
16Gbps.

PoE

The US-8 can be powered by

802.3af/at, 48V passive PoE, or the
included power adapter. When the
US-8 is powered by 802.3at PoE or
the included power supply, port 8
supports 48V (2-pair) PoE passthrough
to deliver up to 12W of power.

The following table displays the PoE
passthrough options for the US-8:

Power Input PoE Passthrough

802.3af In No PoE Out

802.3at In 802.3af Out

Power Supply
(Included)

48V Passive Out

Wired Client

UniFi Security
Gateway Pro
(DHCP Server)

Wired Clients

UniFi AC In-Wall AP

UniFi Switch 8 60W

LAN

WAN

Internet

Remote Access to

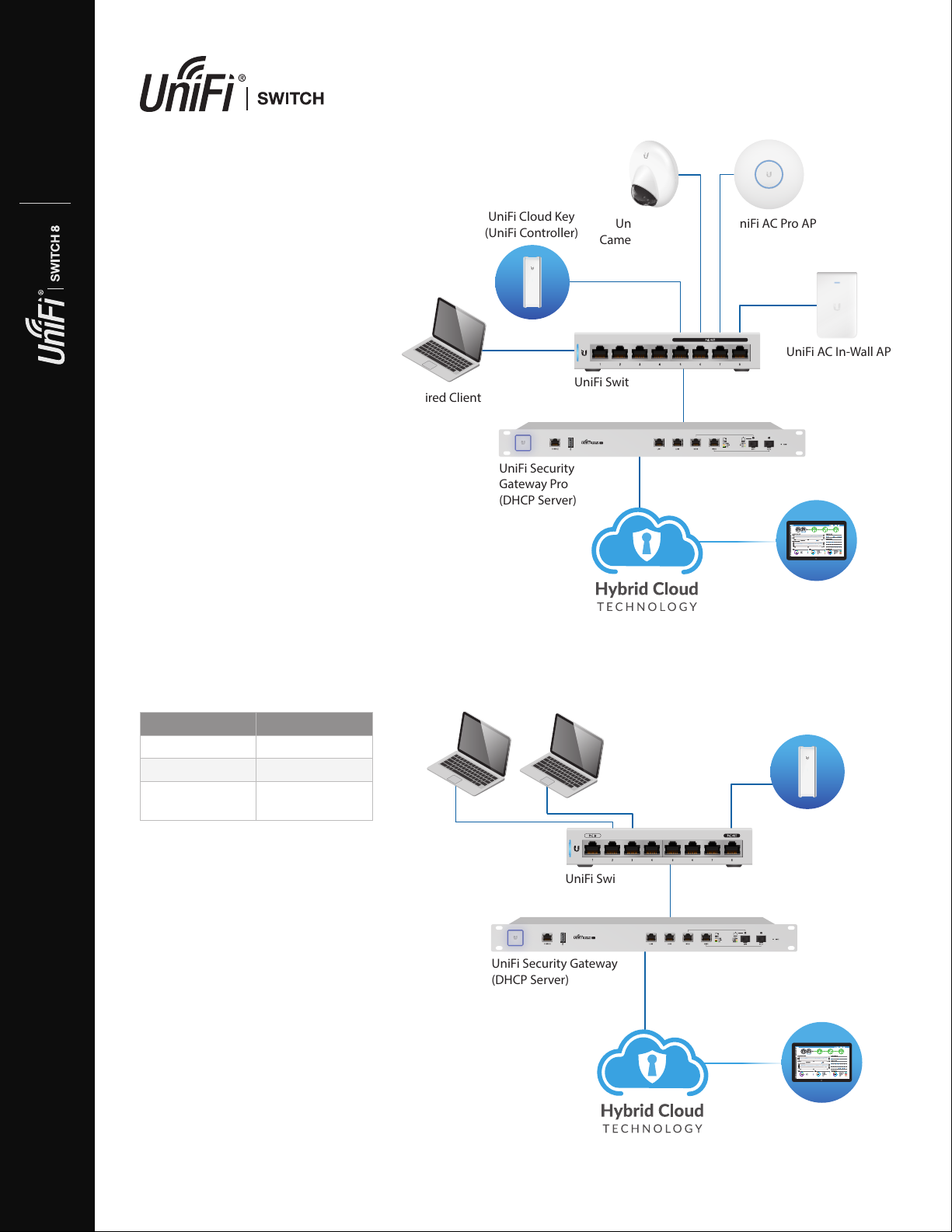

US-8-60W Sample Network Diagram

UniFi Cloud Key

(UniFi Controller)

The US-8-60W is powered by its
included power adapter. It has four
auto-sensing PoE ports delivering up
to 15.4W of power per port.

UniFi Security Gateway
(DHCP Server)

2

UniFi Switch 8

LAN

WAN

Internet

Remote Access to

UniFi Controller

US-8 Sample Network Diagram

UniFi Controller

Designed for convenient
management, the UniFi Controller

software allows admins to congure

and monitor the UniFi Switch and
other UniFi devices using a graphical
user interface. You can download
it from www.ubnt.com at no extra
charge – there is no separate software,
licensing, or support fee.

Multi-Site Management

A single instance of the UniFi
Controller running in the cloud can
manage multiple UniFi sites within
a centralized interface. Each site is
logically separated and has its own

network monitoring, conguration,

maps, statistics, and admin accounts.

Switch Conguration

You can access any managed UniFi
Switch through the UniFi Controller to

congure a variety of features:

• Operation mode (switching,
mirroring, or aggregate) per port

• Network/VLAN conguration

• Jumbo frame and ow control
services

• Network settings

• Storm control setting per port

• Spanning tree conguration

• 802.1x control and RADIUS VLAN

• Debug terminal option for
command-line interface

Datasheet

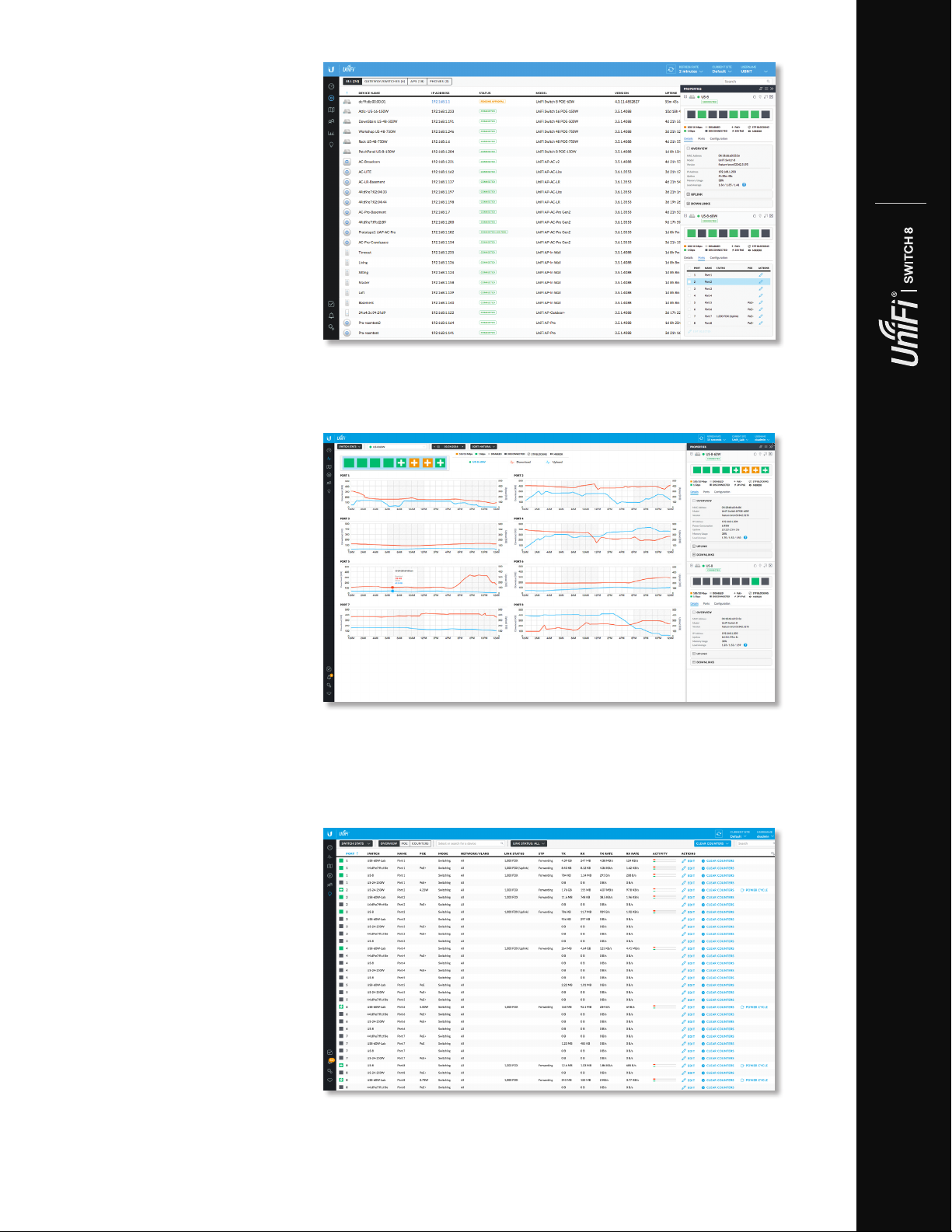

Device Conguration

The Devices screen displays the UniFi devices discovered by the UniFi Controller.

You can access each managed device for device details and conguration.

Switch Port Status

You can also view status information
for each port:

• Connection speed and duplexmode

• TX/RX data rates

• Network/VLAN setting

Statistics

The Switch Statistics screen displays a graphical overview of all LAN throughput
for each port on the selected switch. Under the same pane of glass, it also shows

LAN, WLAN, and Internet trafc, including the breakdown of protocols being

used (requires a UniFi Security Gateway).

Insights

On the Insights screen, the Switch Stats lter displays information about the
status, ports, PoE, and trafc activity of the UniFi Switches.

3

Models

Datasheet

Model: US-8

• (8) Gigabit RJ45 Ports

• (1) PoE Passthrough Port

• Non-Blocking Throughput: 8 Gbps

• Switching Capacity: 16 Gbps

• Forwarding Rate: 11.9 Mpps

• Maximum Power Consumption: 12W

• PoE or DC Input Option

• Available in Single-Pack and 5-Pack
(Power Supply Not Included with 5-Pack)

Model: US-8-60W

• (8) Gigabit RJ45 Ports

• (4) Auto-Sensing IEEE 802.3af PoE Ports

• Non-Blocking Throughput: 8 Gbps

• Switching Capacity: 16 Gbps

• Forwarding Rate: 11.9 Mpps

• Maximum Power Consumption: 12W

• Available in Single-Pack and 5-Pack

4

Mounting
Versatility

The UniFi Switch offers the following
mounting options:

• Wall Mounting You can attach the

UniFi Switch to a vertical surface
using the included wall-mounting
hardware. You can position the
switch so that the ports face in any
of four directions: up, down, left, or
right.

Datasheet

• Desktop Placement You can place

the UniFi Switch on a level, horizontal
surface such as a table or desktop.
The built-in, non-skid rubber feet

help hold the switch rmly in place.

Security Slot

To help deter theft, you can attach a
lock to the security slot on the side of
the UniFi Switch.

2 3 41 2 3 4 5 6 7 8

PoE OUT

Security Slot

5

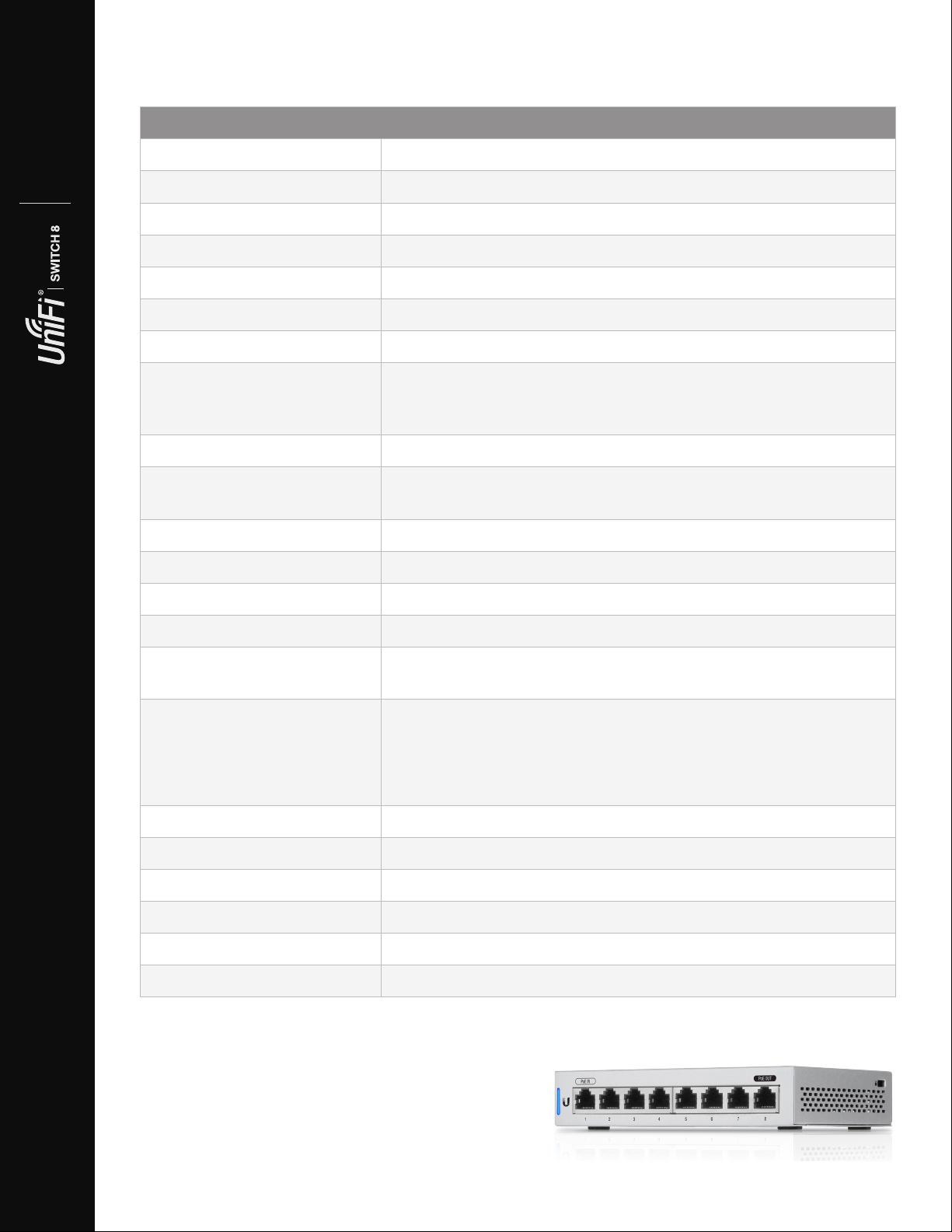

Specications

US-8

Dimensions 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")

Datasheet

Weight 432 g (15.24 oz)

Enclosure Characteristics SGCC Steel

Total Non-Blocking Throughput 8 Gbps

Switching Capacity 16 Gbps

Forwarding Rate 11.9 Mpps

Max. Power Consumption 12W (Excluding PoE Output)

Max. Passive PoE Wattage per Port PoE Mode 1: 12W @ 802.3at

PoE Mode 2: 12W @ 48V

DC Input Mode: 12W @ 48V

Passive PoE Voltage Range Depends on Power Source

Power Method (1) DC 48V, Max. 1.25A

(1) PoE Input, 802.3 af/at (Pins +1, 2; -3, 6)

Supported Voltage Range DC: 48V; 48V Mode: 56V to 40V

Power Supply External AC/DC Adapter, 48V, 0.5A

LEDs PoE (Port 8), Speed/Link/Activity (All Ports)

Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports

PoE In Interface (Port 1) PoE Mode 1: 802.3af/at (Pins +1, 2; -3, 6)

PoE Mode 2: 48V (2-Pair Pins +4, 5; -7, 8)

PoE Out Interface (Port 8) PoE Mode 1: 48V (Pins +1, 2; -3, 6)

PoE Mode 2: Passive 48V

(2-Pair Pins +4, 5; -7, 8)

DC Input Mode: DC Passthrough

(Pins +1, 2; -3, 6)

Management Interface Ethernet In-Band Management

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature -5 to 45° C (23 to 113° F)

Operating Humidity 5 to 95% Noncondensing

Shock and Vibration ETSI300-019-1.4 Standard

Certications CE, FCC, IC

6

Specications

US-8-60W

Dimensions 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")

Weight 432 g (15.24 oz)

Enclosure Characteristics SGCC Steel

Total Non-Blocking Throughput 8 Gbps

Switching Capacity 16 Gbps

Forwarding Rate 11.9 Mpps

Max. Power Consumption 12W (Excluding PoE Output)

Max. PoE Wattage per Port 15.4W

Power Method 48VDC, Max. 2A

Supported Voltage Range 57VDC to 44VDC

Power Supply External AC/DC Adapter, 48V, 1.25A

LEDs PoE (Port 8), Speed/Link/Activity (All Ports)

Datasheet

Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports

PoE Interfaces (4) Ports 5, 6, 7, 8; IEEE802.3af

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature -5 to 45° C (23 to 113° F)

Operating Humidity 5 to 95% Noncondensing

Shock and Vibration ETSI300-019-1.4 Standard

Certications CE, FCC, IC

7

UniFi AP and Video Camera Compatibility

The UniFi Switch is compatible with UniFi Access Points and UniFi G3 Video Cameras, as detailed below.

Camera or AP

Model

US-8 US-8-60W US-8-150W US-16-150W US-24-250W US-24-500W US-48-500W US-48-750W

Datasheet

UVC-G3

UVC-G3-DOME

Datasheet

Switch

UAP

UAP-LR

UAP-PRO

UAP-AC-LITE

UAP-AC-LR

UAP-AC-PRO

UAP-AC-M

UAP-AC-M-PRO

UAP-AC-IW

UAP-AC-HD

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

✓ ✓ ✓ ✓ ✓ ✓

✓

Compatible with the UniFi switch

Requires Instant 802.3af Gigabit PoE Converter: INS-3AF-I-G or INS-3AF-O-G

Requires 802.3at power; switch provides 802.3af only

Related Product Datasheets

UniFi PoE Switches:

dl.ubnt.com/datasheets/uni/UniFi_PoE_Switch.pdf

UniFi AC APs:

dl.ubnt.com/datasheets/uni/UniFi_AC_APs_DS.pdf

UniFi G3 Video Cameras:

dl.ubnt.com/datasheets/uni/UniFi_Video_G3_DS.pdf

AINB041917

8
