Advanced Gigabit
Ethernet Router
Model: ER-X
Introduction
Thank you for purchasing the Ubiquiti Networks® EdgeRouter™ X. This Quick Start Guide is designed to guide you through installation and also includes warranty terms.
Package Contents
|
|
Advanced Gigabit |
|
|
Ethernet Router |
EdgeRouter X |
Power Adapter |
Quick Start Guide |
|
(12V, 0.5A) |
|
Installation Requirements
•For indoor applications, use Category 5 (or above) UTP cabling approved for indoor use.
•For outdoor applications, shielded Category 5 (or above) cabling should be used for all wired Ethernet connections. To enhance ESD protection, attach a ground wire (not included) to the back panel of the EdgeRouter X.
We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit: www.ubnt.com/toughcable
WARNING: To reduce the risk of fire or electric shock, do not expose the EdgeRouter X to rain or moisture.
Note: Although the cabling can be located outdoors, the EdgeRouter X itself should be housed inside a protective enclosure.
TERMS OF USE: All Ethernet cabling runs must use CAT5 (or above). It is the professional installer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, indoor cabling requirements, and Dynamic Frequency Selection (DFS) requirements.
Hardware Overview
Top Panel
Power |
Ethernet (eth0-eth4) |
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
LED |
State |
|
Power |
Off |
|
Green |
||
|
||
eth4- |
Off |
|
|
||
eth0 |
Green |
|
|
||
|
|
Front Panel
Ethernet (eth0/PoE In)
Status
Power Off
Power On
No Link
Link Established at 10/100/1000 Mbps
Flashing Indicates Activity
|
Ethernet (eth1-eth3) |
|
Ethernet (eth4/PoE Out) |
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Port |
Description |
||||||
|
|
|
|
|
|
RJ45 port accepts 24V passive PoE |
||
eth0/PoE In |
and supports a 10/100/1000 Ethernet |
|||||||
|
|
|
|
|
|
connection. |
||
|
eth1-3 |
RJ45 ports support 10/100/1000 Ethernet |
||||||
|
connections. |
|||||||
|
|
|
|
|
|
|||
eth4/PoE Out |
RJ45 port supports passive PoE passthrough |
|||||||
and a 10/100/1000 Ethernet connection. |
Passive PoE Passthrough
The EdgeRouter X can be powered by either method:
•Power adapter
•24V passive PoE on the eth0/PoE In port
Passive PoE output on port eth4/PoE Out works as a passthrough and depends on the input power source.
If the included Power Adapter (12V, 0.5A) is used, there may not be sufficient passthrough to power another device because the EdgeRouter X can consume up to 5 watts on its own.
We recommend using a more powerful input power source
(not included); here are a few examples of viable power input options for passive PoE passthrough:
Power Input |
Passive PoE Passthrough |
|
|
|
|
24V passive PoE (on eth0/PoE In)* |
≈23V, 5W |
|
12V, 1A |
≈11V, 5W |
|
(ERLite-3 Power Adapter) |
||
|
||
24V, 2.5A |
≈23V, 11W |
|
(ERPoe-5 Power Adapter) |
||
|
||
* Not compatible with 24V, 1A Gigabit PoE Adapter. |
Back Panel
Reset |
Ground Power |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Button Description
There are two methods to reset the
EdgeRouter X to factory defaults:
Runtime Reset (Recommended)
The EdgeRouter X should be running after bootup is complete. Press and hold the Reset button for about 10 seconds until the eth4
LED starts flashing and then becomes solidly lit. After a few seconds, the LED will turn off,
and the EdgeRouter X will automatically Reset reboot.
Power-on Reset
1.Disconnect the Power Adapter from the EdgeRouter X.
2.Press and hold the Reset button while connecting the Power Adapter to the
EdgeRouter X. Keep holding the button until the eth4 LED starts flashing and then stops flashing after a few seconds.
Detail Description
ESD grounding for enhanced ESD protection.
Ground The ground wire and screw with washer are not included (recommended screw size:
M3 0.5 x 4 mm).
Power |
Connect the Power Adapter. |
|
|
Hardware Installation
Place the EdgeRouter X on a flat, horizontal surface or mount it on a wall (mounting screws not included).
WARNING: FAILURE TO PROVIDE PROPER VENTILATION MAY CAUSE FIRE HAZARD. KEEP AT LEAST 20 MM OF CLEARANCE NEXT TO THE VENTILATION HOLES FOR ADEQUATE AIRFLOW.
Connecting Power
Follow the appropriate instructions for your installation:
Connecting Power Using the Power Adapter
Connect the Power Adapter to the Power port of the
EdgeRouter X. Then plug the Power Adapter into a power outlet.

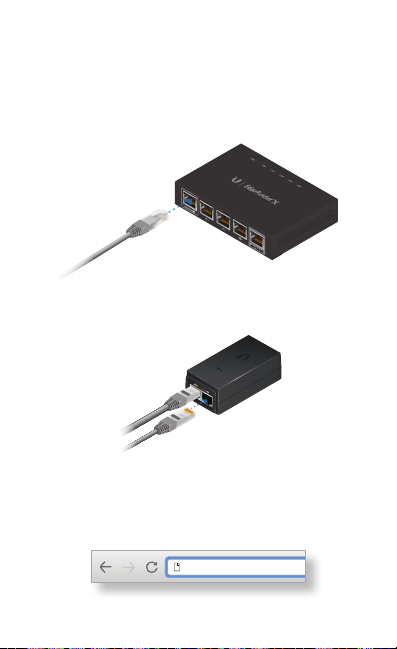

Connecting Power Using PoE
Connect the PoE cable of a PoE switch or adapter to the eth0/PoE In port of the EdgeRouter X.
