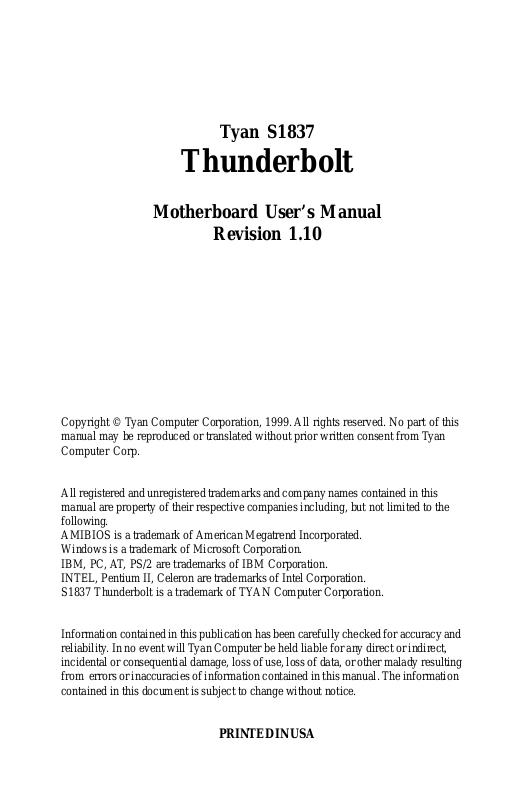

Tyan THUNDERBOLT User Manual
Tyan S1837
Thunderbolt
Motherboard User’s Manual
Revision 1.10
Copyright © Tyan Computer Corporation, 1999. All rights reserved. No part of this
manual may be reproduced or translated without prior written consent from Tyan
Computer Corp.
All registered and unregistered trademarks and company names contained in this
manual are property of their respective companies including, but not limited to the
following.
AMIBIOS is a trademark of American Megatrend Incorporated.
Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
INTEL, Pentium II, Celeron are trademarks of Intel Corporation.
S1837 Thunderbolt is a trademark of TYAN Computer Corporation.
Information contained in this publication has been carefully checked for accuracy and
reliability. In no event will Tyan Computer be held liable for any direct or indirect,
incidental or consequential damage, loss of use, loss of data, or other malady resulting
from errors or inaccuracies of information contained in this manual. The information
contained in this document is subject to change without notice.
PRINTED IN USA
T able of Contents
1. Introduction....................................................................... 4
Overview............................................................................................... 4
Icons..................................................................................................... 5
Hardware Specifications/Features....................................................6
Software Specifications......................................................................8
T echnical Support...............................................................................8
Returning Merchandise for Service................................................. 9
2. Board Installation.............................................................. 11
Unpacking............................................................................................11
Installation........................................................................................... 11
Quick Reference for Jumpers.............................................................1 3
Map of Motherboard Jumpers..........................................................1 4
Setting Jumpers...................................................................................1 6
Server Management Connector (External SMI)..............................1 8
Chassis Intrusion Alarm Connector ................................................. 1 8
Audio Connectors.............................................................................. 19
Clear CMOS & Reset Password........................................................1 9
Soft Power Connector.........................................................................20
Hardware Reset Switch Connector Installation..............................2 0
CMOS RTC...........................................................................................20
Flash EEPROM....................................................................................2 0
Mounting the Motherboard in the Chassis....................................2 1
Installing Memory ............................................................................... 2 1
Cache Memory .....................................................................................24
Installing the CPU and Cooling Fan.................................................2 5
Connecting IDE and Floppy Drives.................................................3 3
Connecting the Power Supply ...........................................................35
Installing Add-on Cards.....................................................................3 6
Connecting PS/2, USB, Serial & Parallel Drivers............................3 7
Intel Ethernet Setup and Use............................................................ 38
Creative Labs Sound Drivers Installation Note..............................5 1
Frequently Asked Questions............................................................ 51
3. BIOS Configuration........................................................... 55
Main Setup...........................................................................................5 6
Advanced CMOS Setup.................................................................... 61
Chipset Setup...................................................................................... 6 6
Power Management Setup.................................................................7 2
Plug and Play Setup............................................................................7 6
Peripheral Setup.................................................................................. 8 1
Supervisor and User Security ............................................................85
Language Utility..................................................................................86
Flash Writer Utility ..............................................................................8 6
4. System Resources............................................................. 8 7
Beep Codes..........................................................................................8 7
Troubleshooting System Problems..................................................8 8
Displayed Error Messages................................................................ 89
Appendix 1 - CPU Retention Module Options............................................... 91
Appendix 2 - Adaptec Ultra2 L VD SCSI......................................................... 93
Appendix 3 - Glossary .......................................................................................102
Chapter 1
Introduction
chapter 1
Introduction
Overview
The Thunderbolt family is a quality , high performance motherboard designed
for Intel Pentium II and Pentium III microprocessors. This motherboard utilizes
the Intel 440BX or 440GX AGPsets and can support CPU speeds of 233MHz
through 550MHz and host bus speeds of 66MHz to 100MHz (please see
T yan’ s website for up-to-date CPU support information).
The motherboard, with built-in AGP slot, provides high performance capabilities that are ideal for a wide range of demanding applications such as CAD,
CAM, CAE, desktop publishing, 3D animation, and video production.
This integrated high-performance system board is supported in an Extended
A TX form factor . Some of the features included are onboard UltraDMA/33,
onboard dual channel Ultra2 SCSI (Adaptec 7896 chip), onboard Creative
ES1373 Audio, onboard Intel Ethernet 82559, and onboard high speed I/O.
With I/O and drive controller support built onboard, the one AGP slot, six PCI
and one ISA slots (one shared, seven usable) are free for numerous add-on
expansion cards.
http://www.tyan.com
4
Remember to take a look at TY AN Computer’ s web site located at
http://www.tyan.com. There you can find information on all of TYAN’ s
products along with F AQs, distributors list, drivers, and BIOS setting explanations.
Icons
In order to help you navigate this manual and set up your system, we have
added several icons to our format.
This icon alerts you to particularly important details regarding
the setup or maintenance of your system. This icon often
appears next to information that may keep you from damaging
!!
!
!!
important!
in the text. Failing to do so can lead to exasperation and expense.
1.
2.
3.
procedure
motherboard.
your board or system. While we will often point out the most
vital paragraphs in a chapter, you should always read every word
Wherever possible, we have included step-by-step instructions
for setting up your system, which are indicated by this icon.
However, it is in your best interest to read an entire section (and
perhaps the entire manual) before you begin to fiddle with your
INTRO
warning
While we have alerted you to potential dangers in several places
in the manual with this icon, these warnings should not be
regarded as the whole of your safety regimen. Never forget that
computers are electrical devices, and are capable of delivering a shock. Prevent
damage to yourself and to your board: always ensure that your system is
turned off and unplugged whenever you are working with it, and that you are
equipped with a static safety device.
S1837 Thunderbolt
5
Chapter 1
Introduction
Hardware Specifications/Features
Processor Information • Two SEC slots (Slot One type)
• 66MHz to 100MHz bus support
• Pentium II or Pentium III 233-600MHz*
• Supports Celeron CPUs in single
mode
Chipset Information • Intel 440GX (or BX) AGPset
• Intel PIIX4e controller
• National 82351 Super I/O chipset
BIOS Information • AMI Plug and Play flash BIOS
• Deep Green, Energy Star, ACPI, Year 2000,
and PC98 compliant (Adaptec AIC-7896
SCSI chip is NOT PC98 compliant at this
time
• Yellow LED for sleep mode
Main Memory • Up to 2048MB onboard (for GX model)
• Up to 1024MB onboard (for BX models)
• Four 168-pin DIMM sockets
• Supports PC100 SDRAM with
SPD, and SDRAM+ECC
• Supports 66MHz SDRAM with SPD
with 66MHz CPU clock only
Expansion Slots • One 32-bit AGP slot
• Six 32-bit PCI Bus Master slots
• One 16-bit ISA slot
• One shared, seven usable
Disk Drive & System I/O• Two PCI bus mastering EIDE
channels
• Supports EIDE CD-ROMs
• PIO Mode 3 & 4 (up to 16.6MB/sec DTR)
• UltraDMA/33 bus mastering mode
(up to 33MB/sec DTR)
* See TYAN website for CPU Compatibility List
6
http://www.tyan.com
• Support for one floppy drive (Mode
1.44MB supported)
• T wo serial ports (16550 UAR T s)
• One ECP/EPP parallel port
• One IR (InfraRed) I/O interface port (shared
with Com2)
• T wo USB rev 1.1 ports
• One PS/2 mouse port
• One PS/2 keyboard port
Onboard Ultra2 SCSI • Adaptec AIC-7896 dual channel Ultra2
L VD SCSI
• T wo 68-pin high density Ultra2 SCSI ports
• One 50-pin legacy connector
• Adaptec Ultra SCSI BIOS
Onboard Ethernet • Intel 82559 10/100 Ethernet onboard
• Full W ake-on functionality (Requires ATX
2.01 power supply)
• One RJ-45 ATX connector
Creative Labs Sound • 32-bit PCI ES1373 audio chip
(Optional) • A TX Joystick, Audio in, Speaker , Micro
phone connectors
INTRO
System Hardware
• •
• Onboard hardware for monitoring
• •
Management temperature, supply voltages, and fan
speed
••
• Intel LANDesk Client Manager
••
software
••
• Chassis intrusion detection capable
••
Voltage and Power • ATX power supply connector
Information • +12V power source for DC fan onboard
• 3.3V DRAM support
• Utilizes GTL+ bus to reduce power
consumption and EMI
S1837 Thunderbolt
7
Chapter 1
Introduction
Physical Dimensions • Extended ATX design
• 13 inches x 12 inches
• IO shield compatible with Intel
Marlinspike (included)
Software Specifications
OS • Operates with W indows 98, W indows
NT 4.0, OS/2, Novell Netware, and
SCO Unix
T echnical Support
If a problem arises with your system, you should turn to your dealer for help
first. Your system has most likely been configured by them, and they should
have the best idea of what hardware and software your system contains.
Hence, they should be of the most assistance. Further, if you purchased your
system from a dealer near you, you can actually bring your system to them to
have it serviced, instead of attempting to do so yourself (which can have
expensive consequences).
If your dealer is unable to assist you,
try our web page, http:// www.tyan.com
technical support phone line, (510) 440-8808
or e-mail address techsupport@tyan.com
http://www.tyan.com
8
Returning Merchandise for Service
During the warranty period, contact your distributor or system vendor FIRST
for any product problems. This warranty only covers normal customer use and
does not cover damages incurred during shipping or failure due to the
alteration, misuse, abuse, or improper maintenance of products.
For Resellers Only:
A receipt or copy of your invoice marked with the date of purchase is required
before any warranty service can be rendered. You can obtain service by calling
the manufacturer for a Return Merchandise Authorization (RMA) number . The
RMA number should be prominently displayed on the outside of the shipping
carton and the package should be mailed prepaid, or hand-carried to the
manufacturer. TYAN will pay to have the board ground-shipped back to you.
INTRO
S1837 Thunderbolt
9
Chapter 1
Introduction
This page is intentionally left blank.
10
http://www.tyan.com
chapter 2
Board Installation
Unpacking
The retail motherboard package should contain the following:
• S1837 motherboard
• One 40-pin IDE and 34-pin floppy cable pack
• User’s manual
• One 3-head Ultra2 SCSI cable (cables with 4 heads or longer must be
ordered separately)
• One 3-head regular SCSI cable
• T wo CPU retention modules
• One ATX I/O Shield
• One System Management & Driver CD; includes complete drivers for
SCSI, LAN and audio controllers
• One gameport cable
• Three Driver Diskettes for Adaptec 7896
Installation
You are now ready to install your motherboard. The mounting hole pattern of
the Thunderbolt matches the ATX system board specifications. Your chassis
S1837 Thunderbolt
11
Chapter 2
Board Installation
should be that of an extended ATX motherboard form factor.
How to install our products right...the first time.
1.
2.
What’s the first thing I should do?
3.
The first thing you should do is read this user’s manual. It contains important
procedure
information which will make configuration and setup much easier.
Here are some precautions you should follow when installing your motherboard:
(1) Ground yourself properly before removing your motherboard
from the antistatic bag. Unplug the power from your computer
and then touch any metal part on the computer case. (Or wear a
grounded wrist strap.)
!!
!
!!
important!
(2) Hold the motherboard by its edges and do not touch the bottom of
the board.
(3) A void touching motherboard components, IC chips, connectors,
and leads.
(4) A void touching pins of memory modules and chips.
(5) Place motherboard on a grounded antistatic surface or on the
antistatic bag.
Having reviewed the precautions above, the next step is to take the motherboard out of the cardboard box and static bag, hold it by its edges, and place it
on a grounded antistatic surface, component side up. Inspect the board for
damage.
DO NOT APPL Y POWER T O THE BOARD IF IT HAS BEEN DAMAGED!
Press down on any of the socket ICs if it appears that they are not properly
seated (the board should still be on an antistatic mat). Do not touch the bottom
of the board. Remember, don’t take any electronic device out of its protective
bag until you are ready to actually install it into the computer case. If you do
not ground yourself, you risk zapping the motherboard or adapter card.
Subsequent problems may not arise immediately because electrostatic discharge damage, unlike physical damage, causes the device to fail over time.
*Power Supply Requirement: A TX Power Supply should be 2.01 compliant.
Standby curr ent must be 750mA or higher (SB5V = 0.75A)
http://www.tyan.com
12
Installation Steps
1. Set Jumpers / Dip Switch
2. Mount Motherboard in Chassis
3. Install Memory
4. Install CPU & Cooling Fan
5. Connect IDE and Floppy Drives
6. Connect Power Supply
7. Install Add-on Cards
8. Connect PS/2, USB, Serial and Parallel Devices
Quick References for Jumpers
In this manual, the terms “closed” and “on” are used when referring to jumpers
(or jumper pins) that are active; “open” and “off” are used when referring to
jumpers (or jumper pins) that are inactive. See the Figure 2-1 for examples of
“on” and “off” pins and jumpers. The square pin in the diagram is Pin 1.
Jumpers and pins are connected by slipping the blue plastic jumper connector
overtop of two adjacent jumper pins (indicated by 1-2 or 2-3). The metal rod
INST ALL
2 pin jumpers
off on
Figure 2-1
3 (or more) pin jumpers
1-2 2-3 open
1
2
3
1
2
3
Figure 2-2
1
2
3
inside the plastic shell bridges the gap between the two pins, completing the
circuit. See Figure 2-2 for more examples of pin connections.
The tables and maps on the following pages will help you set the jumpers for CPU
speed, Infrared, and external connector pin assignments, among others. The
miniature motherboard maps will help you locate the jumpers on your board. A
full-page map of the motherboard can be found on the next two pages.
S1837 Thunderbolt
13
Chapter 2
Board Installation

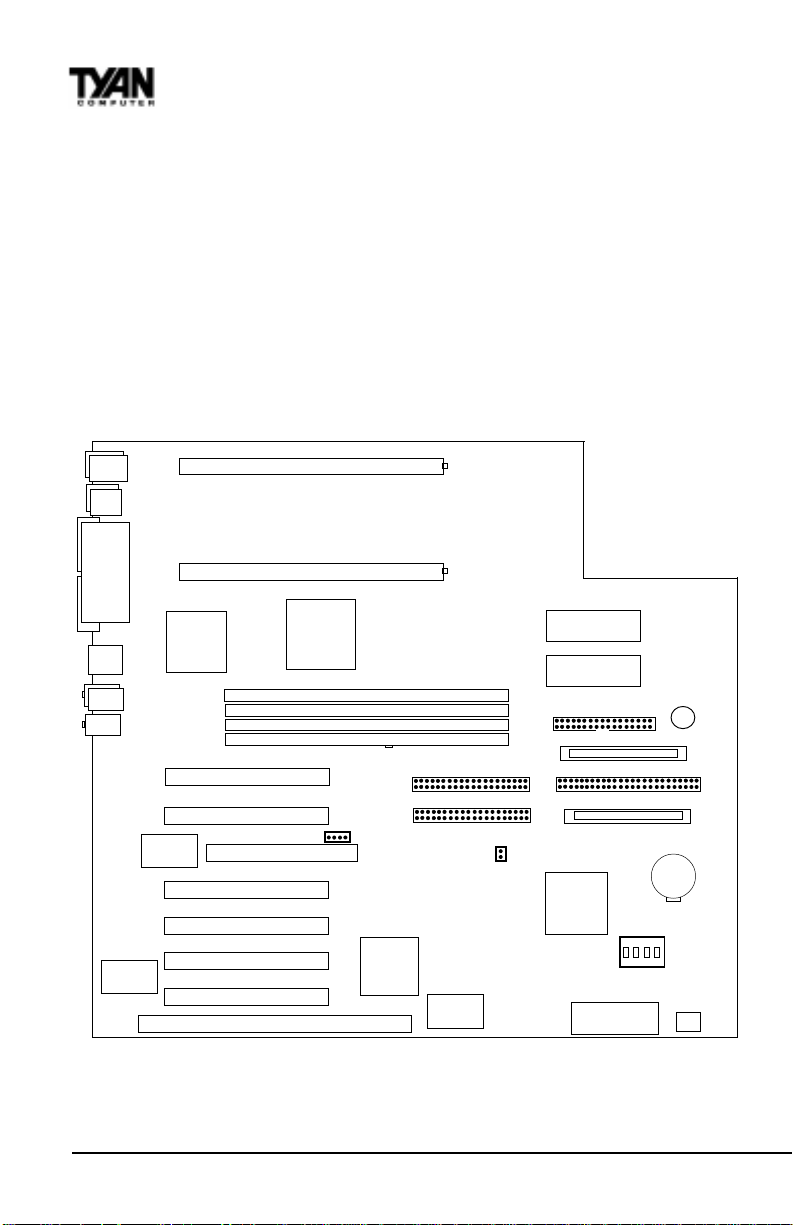

Map of Motherboard Jumpers
Keyboard
COM1
COM2
Speaker
USB1
Mouse
USB2
Ethernet
Line In
Printer Port
1
1
MIC
1
1
JP24
11
JP34
JP33
Nat’l ‘351
FAN3
1
J11
J12
J10
J9
Creative
ES1373
Intel
82559
JP25
J13
CPU slot 2 (Slot One type)
CPU slot 1 (Slot One type)
Intel
GX (or BX)
Chipset
Game Port
PCI slot 1
PCI slot 2
AGP port
PCI slot 3
PCI slot 4
PCI slot 5
PCI slot 6
ISA slot 1
DIMM bank 1
DIMM bank 2
DIMM bank 3
DIMM bank 4
JP23
1
Primary IDE connector
Secondary IDE connector
Intel
PIIx4e
1
1
JP35
Intel I/O
APIC
FAN2
FAN1
J16
J19
ATX power supply
ATX power supply
Floppy connector
Ultra2 SCSI Channel A
Narrow SCSI Channel B
Ultra2 SCSI Channel B
Adaptec
7896
1
JP31
AMIBIOS
Internal Speaker
S4
ON
1 2 3 4
3 volt
FAN4
JP9
J21
1
FAN5
J15
1
1
J22
1
1
JP32
The tiny “1”s next to jumpers of 3 pins or more indicate the position of pin 1 for
that jumper.
http://www.tyan.com
14
Intel 443GX (or BX)
2 SEC slots
4 DIMM slots
Double row ATX connectors
Ethernet
Speaker/
Line In
AGP port
6 PCI slots
1 ISA slot
Adaptec AIC-7896
AMIBIOS
IDE and Floppy
connectors
ATX Power supply
connectors
INST ALL
2 Wide SCSI channels
1 Narrow SCSI channel
S1837 Thunderbolt
15
Chapter 2
Board Installation
1. Setting Jumpers
1-A. CPU Speed Settings (Switch S4)
There are two steps to set the CPU speed. First, set the clock multiplier with
jumpers S4 according to the specification of your Pentium II CPU using the
chart below. There is no need to set the bus speed. The motherboard autodetects the bus speed of the CPU. Pentium III and newer CPUs have their
clock multiplier preset - as a result, those CPUs will ignore the S4 setting.
Presently all Celeron CPUs use a 66MHz bus speed. Tyan does not recom-
!!
!
!!
mend operating CPUs, memory , or PCI Bus at higher than rated speed. Tyan
important!
takes no responsibility for any problems related to overclocking any bus or
component on the system board.
MultiplierBusSpeedCPUspeed1234
(set Jmprs
on board)
3.5 100 350 ON OFF OFF ON
4.0 100 400 OFF ON ON ON
4.5
5.0
5.5
6.0
6.5 66 433 ON ON OFF OFF
7.0 66 466 ON OFF ON OFF
66 300 OFF ON OFF ON
100 450 OFF ON OFF ON
66 333 OFF OFF ON ON
100 500 OFF OFF ON ON
66 366 OFF OFF OFF ON
100 550 OFF OFF OFF ON
66 400 ON ON ON OFF
100 600 ON ON ON OFF
1-B. Front Panel Assignment (Jumper J15)
sniP2-101-661-3102-8132-2272-42
noitcnuF
tnemngissA
rewoP
ffO/nO
ffO/nO
DNG=2
RI
rotcennoC
rewoP=1
CCV=6
XRRI=8
DNG=9
XTRI=01
edoM=11
DELDDHDELrewoP
-=51
edohtac
+=61
edona
16
teseR
hctiwS
DNG=81
+=02
DNG=22
teseR=32
http://www.tyan.com
rekaepS
CCV=42
lanretnI=62
rekaepS
-=72
1-C. Speaker Connector (Jumper J15)
The speaker should be connected to pins 24-27 of jumper J15. As default, pins
26-27 of jumper J15 are connected to enable the internal buzzer.
1-D. Connector Pinout (JP32)
VCC
HDD LED
Ground
Reset
VCC
IR R e c e i v e
Ground
IR T ransm it
No Connect
12
34
56
78
910
11 12
13 14
15 16
17 18
PowerLED
Sleep LED
PowerOn/Off
Gro und
No C onnect
VCC
No C onnect
VCC
No C onnect
*Power LED: For 2-pin: bicolor/single color LED - Use pins 2-4
For 3-pin: bicolor LED - Use pins 2-4 and GND pin 13
JP32
12
Top
Bottom
34
56
78
901
1121
3141
5161
7181
Top Pin
Pin17
JP32 Side View
Pin1
Bottom Pin
Pin2
INST ALL
1-E. Wake-On Ring Connector (JP33)
Pin 1 2 3
+5 VSB Ground WOR
S1837 Thunderbolt
17
Chapter 2
Board Installation
1-G. Wake-On LAN Connector (JP34)
Pin 1 2 3
5VSB Ground WOL
1-H. Server Management Connector (JP31)
The EXTSMI (External System Management Interface) connector, jumper JP31,
is used by some plug-in cards. Certain applications associated with these
plug-in cards use the interface for hardware control and queries.
1-I. Chassis Intrusion Alarm Connector (J16)
The J16 connector is an intrusion alarm, that can be connected to the system
chassis. When active (J16 is connected to the chassis), this alarm will alert the
system administrator anytime someone opens the system’s case.
1-J. Fan1, Fan2, Fan3, Fan4, Fan5 - Pinout
Pin 1 2 3
Ground + 12V Speed
- Fan1 connector corresponds to CPU 1 slot.
- Fan2 connector corresponds to CPU 2 slot.
- Fan3 / Fan4 are Chassis Fan
- Fan5 = connector header
Note: W ith Intel’s LANDesk system monitoring software, only 3 fans can be
monitored at one time.
1-K. Fan3 Speed Detect (J21) and Fan4 Detect (J22)
J21 and J22 are 2-pin jumpers that control the monitoring of Fan3 or Fan4
respectively . If J21 is set to the ON (closed) position, Fan3 can be monitored
by LANDesk. If set to the OFF (open) position, the Fan will NOT be moni-
tored by LANDesk.
When using Intel’s LANDesk system management software, you may monitor
the status of the CPU Fans by connecting them to the Fan1 and/or Fan2
connectors. You will NOT be able to monitor your CPU fan with the other Fan
connectors.
http://www.tyan.com
18
1-L. Audio / Video Connector Pinouts - J9, J10, J11, J12
1234
J9- MPEG Input
J10- Modem A udio
J11- TV Card Audio
J12- CDAudio Connector
MPEG LRCLK MPEG BCLK MPEG Data In Ground
P ho ne G round G round M onoOut
In -Left Ground G round I n-R ight
C D _IN -Left G round Ground C D _IN -R ight
Audio Connectors
There are four black 4-pin connectors onboard which are used for various
peripherals’ audio signals. The digital signal that comes in through these
connectors is directed through the Ensoniq 1373 PCI sound chip, and the
digital signal is turned into an audio signal which goes out through the
speaker. The TDA connector (J10) is for modem audio; the MPEG connector
(J9) is for DVD and TV cards; the VIDEO connector is (J11); the CD connector
(J12) is for CD-ROMs.
1-M. Onboard Sound Enable/Disable (JP24) ***
Enable Disable
JP24 OFF ON
1-N. Onboard SCSI Enable/Disable (J19) ***
Enable Disable
J19 OFF ON
INST ALL
1-O. SCSI LED Pinout (JP23)*
Pin 1 2 3 4
VCC SC SI LED SCSILE D VCC
* Default setting is 1-2
1-P. Onboard LAN Enable/Disable (JP25) ***
Enable Disable
JP25 OFF ON
1-Q. Clear CMOS and Reset Password (Jumper JP9)
Default Reset
JP9 1-2 2-3
*** Plastic Jumper connectors are not provided. Setting is OFF or “Enabled”
by default.
S1837 Thunderbolt
19
Chapter 2
Board Installation
If you have been locked out of your system because you forgot your password or set the CMOS incorrectly , follow the instructions below .
1. Power off the system
2. Set jumper JP9 to pins 2 and 3 (see page 14 for location of JP9).
3. Wait for at least 2 seconds, then return jumper JP9 to pins 1 and 2.
4. Power on the system again.
By following this procedure, you will erase your password and reset the
CMOS to the BIOS defaults.
Soft Power Connector
The Soft Power Connector is part of jumper block J15. The Thunderbolt uses
the chipset for power management, including turning on and off the system. If
the Power Button Function option in the BIOS Power Management Menu is
set to On/Off (which is the default), pressing the power button once after the
BIOS has booted up will turn the system on and off. If the Power Button
Function option is set to Suspend, pressing the power button once will wake
the system or send it to Suspend mode. In this case, you cannot turn the
system off unless you shut down through the Windows operating system or
you hold the power button down for at least four seconds.
Hardware Reset Switch Connector Installation
The Reset switch on your case’s display panel provides you with the Hardware Reset function, which is the same as power on/off. The system will do a
cold start after the Reset button is pushed.
CMOS RTC
The Real Time Clock (R TC) circuit, which provides the date and time for the
system is integrated into the 440BX/GX AGPset. If the external battery for the
RTC is low, you will most likely lose your BIOS settings. Normally the life span
of an external battery is 2 years. If yours is running low, you will need to
replace it with a new 3V lithium battery (CR2032).
Flash EEPROM
The Thunderbolt uses flash memory to store BIOS firmware. It can be updated
as new versions of the BIOS become available. You can upgrade your BIOS
easily using the flash utility (see page 86).
http://www.tyan.com
20
2. Mounting the Motherboard in the Chassis
Follow the instructions provided by the case manufacturer for proper installation guidelines. TYAN recommends that you make use of all mounting holes to
screw down the motherboard. The adapter cards and the screws holding them
down will keep your board flat. The fastening screw should not short any of
the traces on the motherboard. Make certain that you do not overtighten the
screw , as it will damage the motherboard and possibly break internal traces in
the surrounding area. The hole you should use is located at the top-center of
the board where the adapter cards are fastened to the case.
3. Installing Memory
Since TYAN boards are manufactured with performance in mind, you should
use add-in components that match. Some DIMM modules may seem to be high
quality because of name or feel but that does not guarantee real-world
usability. Some cheaper or OEM memory may have brand-name components,
but they may contain inferior or substandard parts which do not meet the
critical tolerances our products require. Because of this, your memory may not
work correctly in a TYAN board though it may work well in a competitor’s
board. This is because many of our competitors do not adhere to the strict
tolerances required for high performance. If you buy a TYAN board, you are
getting the best system available. To make installation easy and trouble free,
get high quality parts. For a list of recommended memory vendors, please visit
T yan’s website at www.tyan.com - go to the “Memory Support” area in the
Support Section. The website memory compatibility lists include DIMMs that
have proven to be very stable on our boards and perform extremely well.
INST ALL
S1837 Thunderbolt
21
Chapter 2
Board Installation
Figure 2-3
T o install your DIMMs, line your module up so that the pins fit into the slot.
There is only one way that your DIMM can fit properly . Make sure that the
short row of pins is lined up with the short gap in the DIMM slot. Figure 2-3
above shows how to sit the DIMM into its slot. To insert the DIMM, push
down vertically on the module with even force, as shown in the photo. Do not
!!
!
!!
shove one end in first; doing so will bend the DIMM pins.
important!
T o lock the DIMM into place, push the plastic clips on either end of the slot
onto the notches in the ends of the DIMM (see Figure 2-4 on the next page).
In some cases, pushing the memory module into the DIMM slot will move the
plastic clips inward, automatically locking the module into place. T o remove
your DIMM, simply pull the clips back, and pull up on the module.
Place the DIMMs in an antistatic bag as soon as you remove them to avoid
static damage.
22
http://www.tyan.com
Figure 2-4
The Thunderbolt uses a 64-bit data path from memory to CPU and can
accommodate up to 2 GB of SDRAM. The 168-pin DIMMs (Dual In-line
Memory Modules) must be of the 3.3V, unbuffered variety . The position of the
notch in the SDRAM key position will tell you whether or not a DIMM is

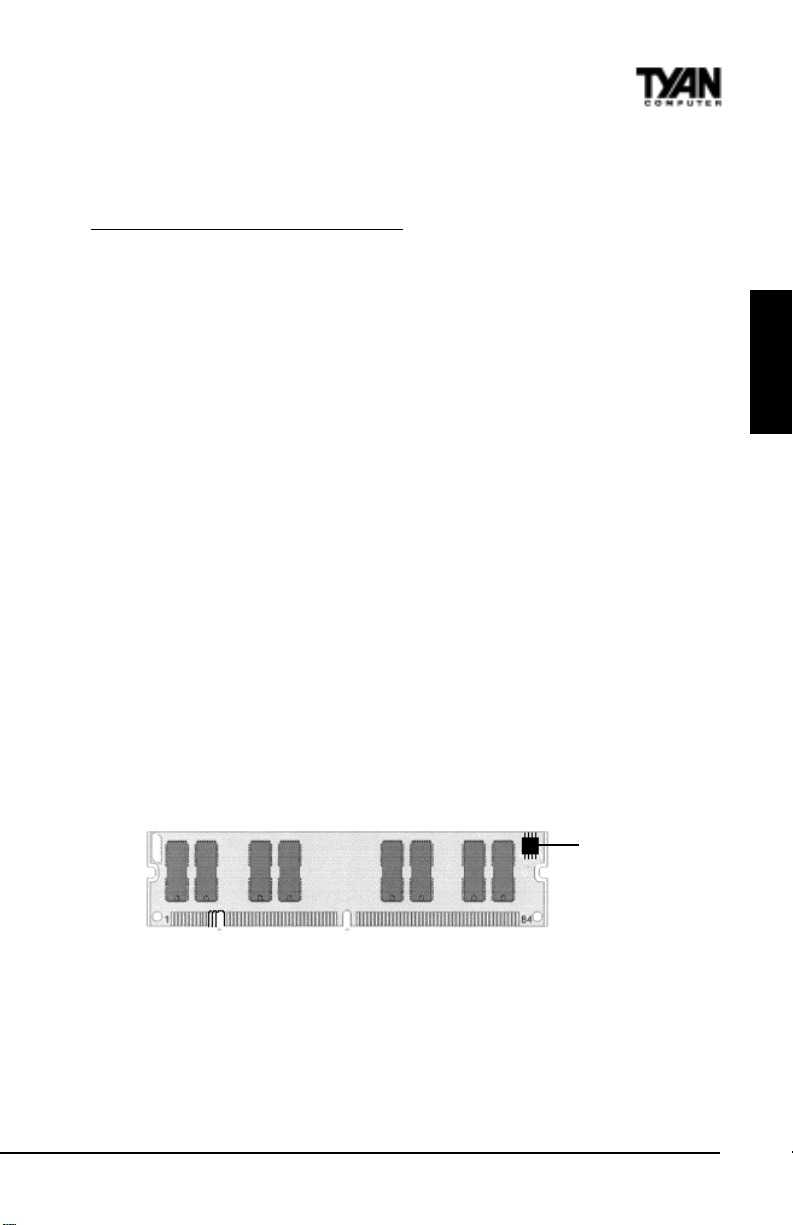

unbuffered (see the Figure 2-5 below). All installed memory will be automatically detected, so there is no need to set any jumpers.
EEPROM
INST ALL
RFU
Some details of memory installation:
• The mainboard supports 32MB, 64MB, 128MB SDRAM; and supports
!!
!
!!
256MB registered SDRAM DIMM modules. *
important!
• PC-100 DIMM is required if CPU bus speed is at 100MHz
S1837 Thunderbolt
Unbuffered
Buffered
Figure 2-5
23
Chapter 2
Board Installation
• The board supports registered or nonregistered memory chips. DO NOT
mix registered and nonregistered memory chips on the motherboard.
The table below shows some of the possible memory configurations. Not all
possible configurations are listed.
1knaBMMID2knaBMMID3knaBMMID4knaBMMIDlatoT
1xBM81xBM81xBM81xBM8BM23
1xBM611xBM611xBM8
1xBM611xBM611xBM611xBM61BM46
1xBM231xBM611xBM611xBM61BM08
1xBM231xBM231xBM611xBM61BM69
1xBM461xBM231xBM611xBM61BM821
1xBM461xBM461xBM231xBM23BM291
1xBM461xBM461xBM461xBM46BM652
1xBM8211xBM461xBM461xBM46BM023
1xBM8211xBM8211xBM461xBM46BM483
1xBM8211xBM8211xBM8210BM483
1xBM8211xBM8211xBM8211xBM821BM215
1xBM652000BM652
1xBM6521xBM65200BM215
1xBM6521xBM6521xBM6520BM867
1xBM6521xBM6521xBM6521xBM652BM4201
1xBM215*1xBM215*1xBM215*1xBM215*BM8402*
0
BM04
!!
!
!!
Warning! The 256MB DIMMs represented in the table are REGISTERED
memory chips. DO NOT use registered and nonregistered memory chips
important!
simultaneously! (Check with your memory dealer for more information).
See www .tyan.com for latest memory compatibility information.
Cache Memory
Celeron processors have the L2 (Level 2) cache built into their architecture, so
there is no need for an L2 cache on the motherboard. The Celeron processor
has a physical L2 cache size of 128KB and a cacheable memory area of 512MB.
24
http://www.tyan.com
4. Installing the CPU and Cooling Fan
Pentium II or Pentium III processors can be used on the Thunderbolt. Please refer
to pages 16-20 for the correct CPU jumper settings for your board. Remember:
• The CPU is a sensitive electronic component and it can easily be damaged
by static electricity. Do not touch the CPU pins with your fingers.
• Before the CPU is installed, the motherboard must be placed on a
!!
!
!!
important!
flat surface. You should be able to insert the CPU with minimal, but
firm, pressure. Do not press down hard on the CPU.
Currently, two types of cooling mechanisms are produced for Pentium II
processors: active (figure 2-6a) and passive (figure 2-6b). These two types of
cooling methods essentially perform the same function. The active cooler is
equipped with a cooling fan and heat sink, while the passive cooler is simply a
larger heat sink with no fan. The type of cooler used has no effect on performance, and both types can be installed in the CPU slot on the Thunderbolt
board.
Figure 2-6a Figure 2-6b
INSTALL
Figure 2-7
Installing CPU Retention Modules
Installation of a Pentium II / III processor requires a CPU retention module,
which is first secured onto the motherboard. Tyan offers a variety of retention
mechanisms for the different CPU types. See Appendix 1 for options.
Installation of SECC2 CPUs (Figure 2-7 above) with the retention modules
require a little more attention and care. Instructions for SECC2 CPU installation
can be found on pages 27-32.
S1837 Thunderbolt
25
Chapter 2
Board Installation

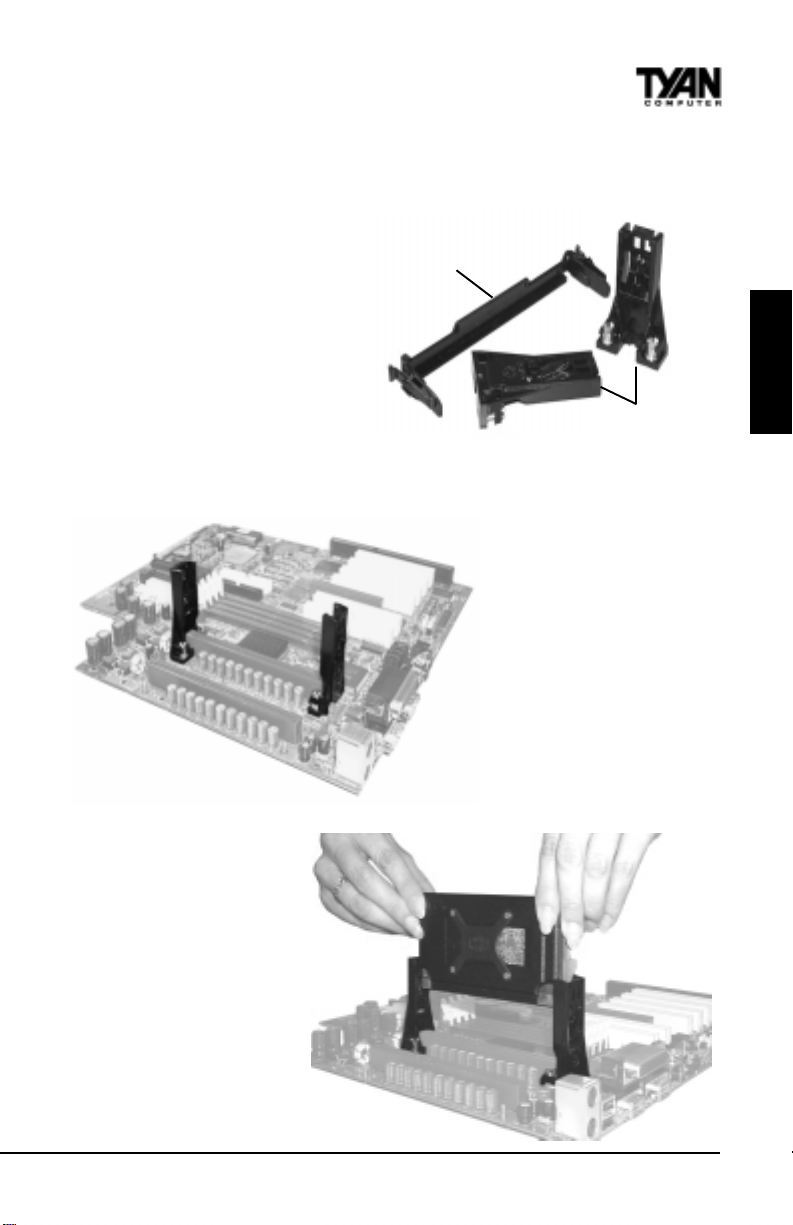

T o attach the retention module, place
the motherboard on a flat surface.
Locate the key pin on one end of the
CPU slot on the board. Then carefully
line up the key notch on the retention
module with the key pin on the CPU slot
(the key pin on the CPU slot indicates
the correct orientation of the CPU) See
Figure 2-8.

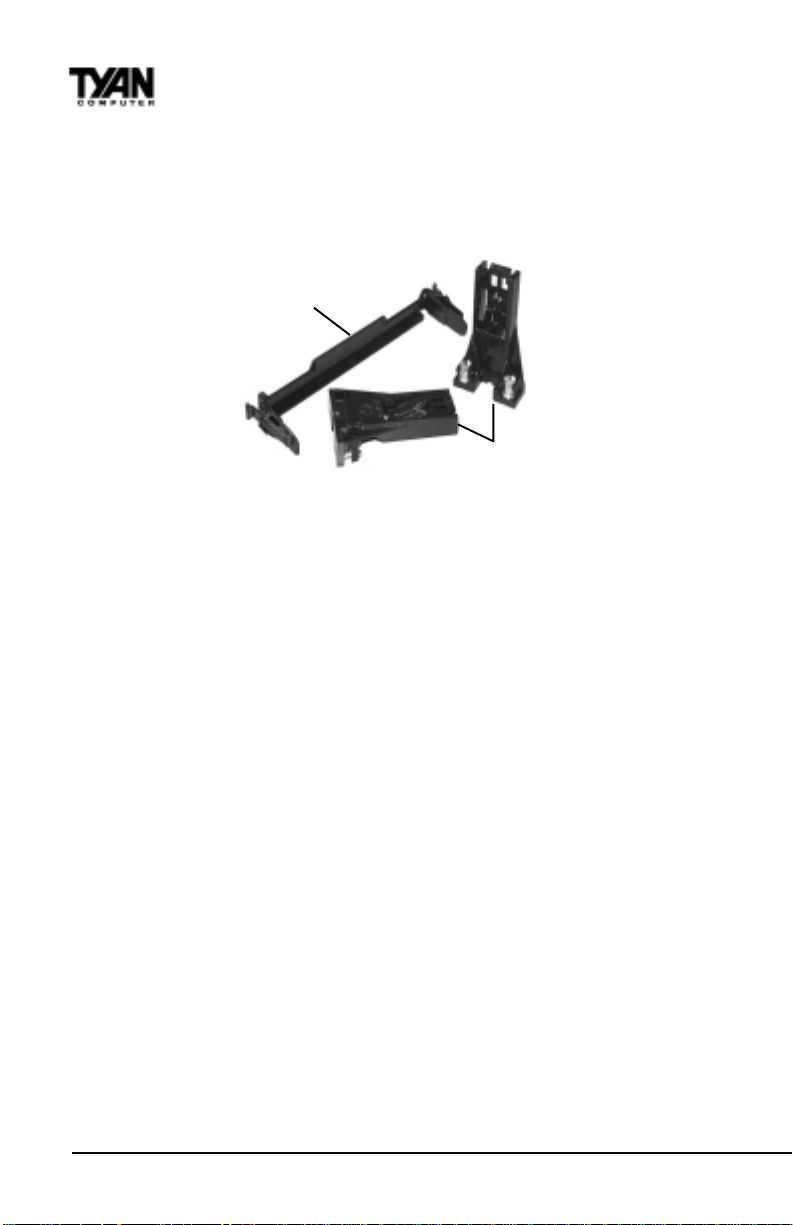

Drop the retention module (Figure 2-9) down over
the CPU slot so that the retention module sits flat
against the motherboard. Tighten the screws in a
clockwise manner to secure the module to the
board. Warning: Do not overtighten the screws as
Figure 2-9
you may damage the module and/or the motherboard.
Figure 2-8 - Pentium II Slot Connector and Key Pin
Installing the CPU with Active Cooling
When the retention module is securely installed, you are ready
to plug in the CPU. Press down firmly on the CPU until you
hear a “click” (see Figure 2-10). This clicking sound indicates
that the CPU is fully locked into the retention module. If you
have an active cooler, you will also need to connect the CPU’s
cooling fan cable to the cooling fan power connector on the
board.
Locate the cooling fan connector (e.g. F AN1) on the mother board. Plug the CPU’s cooling fan cable into the cooling fan
connector on the board. There will be a plastic clip assembly
similar to that of the ATX power connector that will force you
to connect the fan cable correctly (see Figure 2-11 on the following page).
26
Figure 2-10
http://www.tyan.com
Figure 2-1 1
Removing the CPU.
T o remove the CPU, move the locks to the center of the CPU. A click will be
heard when the CPU has been unlocked. Gently pull up on the CPU, taking care
not to bend the motherboard or the CPU retention module.
T o remove the lock from the retention module, gently press the ends of the locks
inward and pull.
INSTALL
Installing SECC2 CPUs - Option 1
The major physical difference between regular Pentium II’s and Pentium SECC2 is
the plastic CPU enclosure. As Figure 2-12 indicates, the plastic CPU enclosure
covers the entire CPU card of regular Pentium II’s. On the other hand, the plastic
CPU enclosure covers only the side faces of the SECC2 Pentium II / III card.
Due to the physical differences in the SECC2 CPU, installing the retention
modules requires a different technique than the ones previously discussed.
S1837 Thunderbolt
27
Chapter 2
Board Installation
Pentium II SECC2 Pentium II
Figure 2-12
On both sides of the SECC2 CPU reside the lower tabs of the aluminum heat
sink and the bottom corners of the plastic CPU enclosure (see Figure 2-13).
These tabs and corners should fit into the retention braces.
Lower T abs
Enclosure
Corners
Figure 2-13
Warning: DO NOT first screw the retention braces onto the motherboard by
!!
!
!!
themselves. If you do, you will have difficulties inserting the CPU into the
retention braces and CPU slot.
important!
28
http://www.tyan.com
Currently , the retention module recommended for securing the SECC2 CPU is
included in the motherboard package. The retention braces consist of two
small components that resemble ‘bookends’. (See Figure 2-14 )
The first installation step is to set the retention braces properly against the
sides of the CPU. The lower tabs of the
aluminum heat sink and the bottom Slits
corners of the plastic enclosure should
loosely fit within the two slits of the braces.
Figure 2-14
Figures 2-15 below show a top view and side view of a retention brace
positioned against one side of the SECC2 CPU.
Top View
Side View
INSTALL
Figure 2-15
When both braces are properly positioned, press both braces against the sides
of the CPU and carefully lift them over the CPU slot on the motherboard.
Warning - Because the braces ar e loosely held against the CPU, they can
easily fall off. You must hold both braces against the CPU while lifting all
three components above the motherboard. (See Figure 2-16 on the following
page.)
S1837 Thunderbolt
29
Chapter 2
Board Installation
Figure 2-16
Be sure to line up the holes of the retention brace with the screws protruding
from the motherboard. At the same time, make sure the CPU is lined up with
the CPU slot. Lower the three components onto the motherboard. The screws
on the motherboard should fit through the holes of the retention braces and
the CPU should fit into the slot. Secure the retention braces with the nuts
provided in the package. The end result should look like Figure 2-17.
!!
!
!!
important!
Figure 2-17
When removing the CPU, unscrew the nuts on the retention braces and
remove all three components at once. This may require careful firm tugs to pull

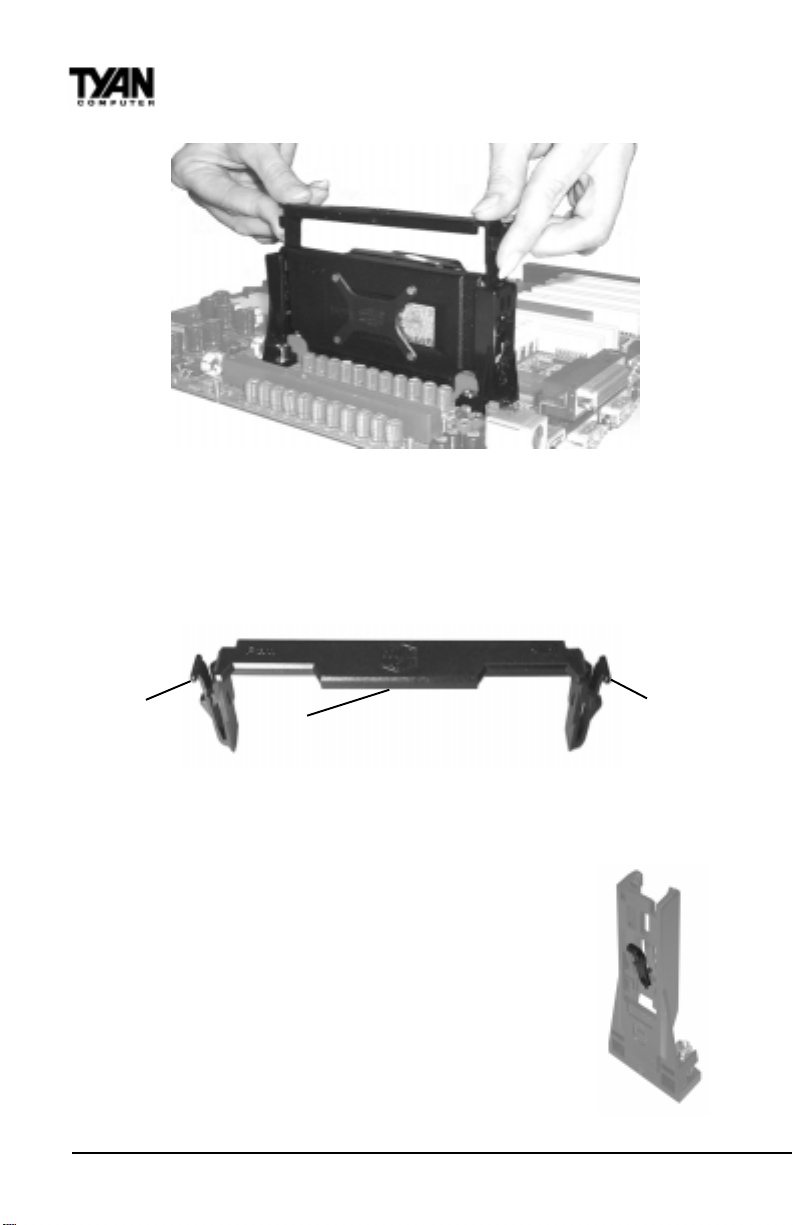

the CPU out of its slot.
30
http://www.tyan.com
Loading...
