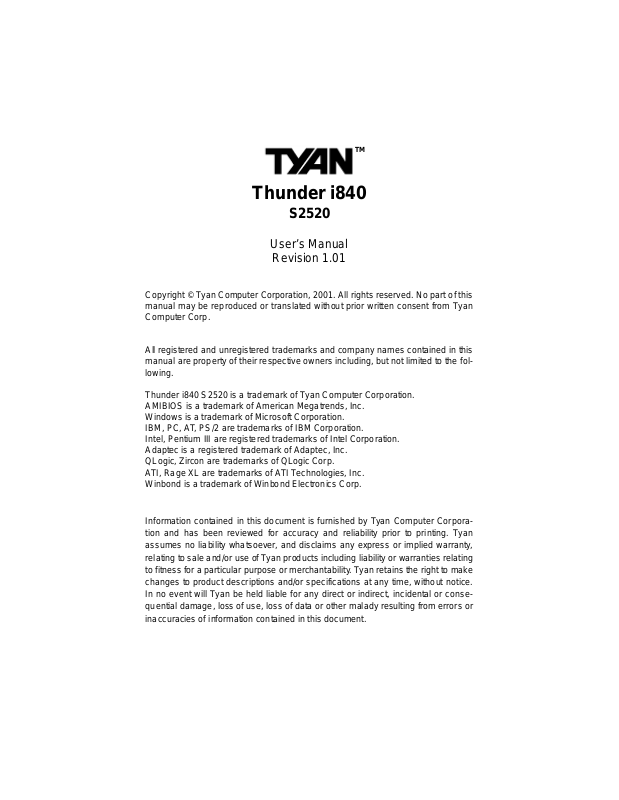

TM
Thunder i840
S2520
User’s Manual
Revision 1.01
Copyright © Tyan Computer Corporation, 2001. All rights reserved. No part of this
manual may be reproduced or translated without prior written consent from Tyan
Computer Corp.
All registered and unregistered trademarks and company names contained in this
manual are property of their respective owners including, but not limited to the following.
Thunder i840 S2520 is a trademark of Tyan Computer Corporation.
AMIBIOS is a trademark of American Megatrends, Inc.
Windows is a trademark of Microsoft Corporation.
IBM, PC, AT, PS/2 are trademarks of IBM Corporation.
Intel, Pentium III are registered trademarks of Intel Corporation.
Adaptec is a registered trademark of Adaptec, Inc.
QLogic, Zircon are trademarks of QLogic Corp.
ATI, Rage XL are trademarks of ATI Technologies, Inc.
Winbond is a trademark of Winbond Electronics Corp.
Information contained in this document is furnished by Tyan Computer Corporation and has been reviewed for accuracy and reliability prior to printing. Tyan
assumes no liability whatsoever, and disclaims any express or implied warranty,
relating to sale and/or use of Tyan products including liability or warranties relating
to fitness for a part icula r purpose o r me rchan tabili ty. T yan retain s the ri ght to m ake
changes to product descriptions and/or specifications at any time, without notice.
In no event will Tyan be held liable for any direct or indirect, incidental or consequential damage, loss of use, loss of data or other malady resulting from errors or
inaccuracies of information contained in this document.
Page 2
Table of Contents
Chapter 1: Introduction
Overview ....................................................................................................................4
1.1
Hardware Specifications ............................................................................................5
1.2
Software Specifications ..............................................................................................6
1.3
Technical Support ......................................................................................................7
1.4
Returning Merchandise for Service ............................................................................7
1.5
.............................................................
Chapter 2: Board Installation
2.1
Unpacking ..................................................................................................................8
2.2
Installation ..................................................................................................................8
2.3
How to install our products right... the first time ..........................................................8
2.4
Quick Reference for Jumpers ..................................................................................10
2.5
Map of Motherboard Jumpers ..................................................................................11
2.6
Setting Jumpers .......................................................................................................12
2.6-A
Front Panel Connector .............................................................................................12
2.6-B
CMOS Reset ............................................................................................................12
2.6-C
BIOS Boot Block ......................................................................................................12
2.6-D
Onboard VGA Enable/Disable ............... ...... ............................... ..... ...... ..... ..... ..... ...12
2.6-E
Onboard SCSI Enable/Disable .................................................................................13
2.6-F
Onboard LAN Enable/Disable ..................................................................................13
2.6-G
PCI Speed Jumper ...................................................................................................13
2.6-H
FAN Headers ...........................................................................................................13
2.6-I
Chassis Intrusion Header .........................................................................................13
2.6-J
USB/Serial Connector ..............................................................................................13
2.6-K
Speaker Connector ........... ...... ............................... ..... ...... ..... ..... ..... ........................14
2.6-L
SMB/IPMB Connector ..............................................................................................14
2.6-M
External HDD LED ...................................................................................................14
2.6-N
Soft Power Connector ..............................................................................................14
2.6-O
Hardware Reset Switch Connector Installation ........................................................14
2.6-P
J13, J14 ...................................................................................................................14
2.7
Mounting the Motherboard in the Chassis ................................................................15
2.8
Installing Memory .....................................................................................................16
2.9
Installing the CPU and Cooling Fan ....................... ..... ................................ ..... ..... ...19
2.10
Connecting IDE and Floppy Drives ..........................................................................21
2.11
Installing Add-on Cards ............................................................................................23
2.12
Connecting PS/2, USB, and Serial Port 1 ................................................................24
2.13
Connecting the Power Supply ..................................................................................24
2.14
Frequently Asked Questions (FAQ) .........................................................................25
Page 4
.............................................................
8
Chapter 3: BIOS Setup
Main Setup ........................ ...... ..... ..... ..... ...... ............................... ..... ...... ..... ..... ..... ...28
3.1
Advanced Setup .......................................................................................................28
3.2
3.2-A
Configure SuperIO Configuration .............................................................................29
3.2-B
IDE Configuration .....................................................................................................29
3.2-C
Floppy Configuration ................................................................................................30
3.2-D
Boot Settings Configuration .....................................................................................31
3.2-E
Onboard Device Configuration .................................................................................32
3.2-F
Event Log Configuration ...........................................................................................32
....................................................................
26
Page 3
Chipset Setup ......................... ..... ..... ..... ...... ............................... ..... ...... ..... ..... ..... ...333.3
[MCH] .......................................................................................................................34
3.3-A
[ICH] .........................................................................................................................34
3.3-B
Multi-Processor Support Options .............................................................................34
3.3-C
PCI/PnP Menu .........................................................................................................35
3.4
Power Menu .............................................................................................................36
3.5
Boot Menu ................................................................................................................37
3.6
Security Menu ..........................................................................................................37
3.7
Exit Menu .................................................................................................................37
3.8
Chapter 4: System Resources
Beep Codes .............................................................................................................38
4.1
Displayed Error Messages .......................................................................................38
4.2
Flash Utility ............................. ..... ..... ..... ...... ..... ............................... ...... ..... ..... ..... ...41
4.3
.......................................................
Appendix I: SCSI Installation and LAN Information 42......................
Introduction ..............................................................................................................42
Support for Older SCSI Devices ...............................................................................42
Setting up SCSI Devices ..........................................................................................42
Check the SCSI IDs .................................................................................................43
T erminate the ends ...................................................................................................43
Connecting SCSI Devices ........................................................................................43
Connecting Internal Ultra160 and Ultra2 Devices ....................................................43
Connecting Wide SCSI Devices ...............................................................................43
More Information about Termination ........................................................................46
Configuring the Adaptec 7899W SCSI with SCSISelect ......................................... 47
Using SCSISelect .................................................................................................... 49
SCSI Bus Interface Definitions ................................................................................ 49
Boot Device Options ................................................................................................49
SCSI Device Configuration Options .........................................................................49
Advanced Configuration Options .............................................................................50
LAN Information .......................................................................................................51
38
Appendix II: Glossary
.......................................................................
52
Page 4
Chapter 1: Introduction
1.1 Overview
The Thunder i84 0™ is d esigned fo r high-en d serve r applicati ons req uiring the power of dual Socket370
Pentium III processors. This motherboard utilizes the Intel i840™ chipset and can support CPU
speeds of 500 MHz th rough 1 GHz and host bus speeds o f 100 MHz to 133 MHz. Please s ee Tyan’s
website for updates and information concerning CPU information and support:
http://www.tyan.com
This integrated high-performance system board is supported in an extended ATX form factor. Some of the
features included are onboard UltraDMA support, onboard Adaptec Ultra160 LVD SCSI technology, and
onboard dual 10/100 Mbps LAN controllers.
With I/O and drive controller support onboard, four 64-bit PCI slots are free for numerous types of add-on
expansion cards. The (4) RIMM sockets can support up to 1GB* PC800 ECC Registered RDRAM.
Remember to visit Tyan’s website at http://www.tyan.com. T here you can find information on all of
Tyan’s products with FAQs, distributors list, and BIOS settings explanations.
* not verified at time of print, check the Tyan website for updates: http://www.tyan.com
4
http://www.tyan.com
Page 5
1.2 Hardware Specifications
Processor Informat ion
Expansion Slots
Chipset Information
Hardware Monit oring
Memory
Integrated PCI IDE
Integrated I/O
Integrated PCI LAN
Dual ZIF PGA370 Sockets
Intel Pentium III FC-PGA
Onboard VRM
Front Side Bus support for 100/133 MHz
One 2x/4x mode AGP Pro slot
Two 32-bit PCI v2.2 slots
Two 64-bit 5.0V PCI slots @ 66 MHz
Two 64-bit 3.3V PCI slots @ 66 MHz
Total seven usable slots
Intel i840 + ICH2 AGPSet
MCH + ICH2 + P64H + FWH (4 Mb)
Intel P64H to support 64-bit/66 MHz slots
National PC87366 LPC Super I/O chip
WinBond W83782 hardware monitoring chip
3-pin Fan Monitoring headers
2-pin Chassis Intrusion header
Temperature and Voltage Sensing
Dual Channel Memory Bus
Four RIMM sockets
Up to 1GB* PC800 ECC Registered RDRAM
Dual channel master mode
Up to four Enhanced IDE devices
Support for UDMA-33/66/100 IDE drives and ATAPI
compliant devices
One floppy connector for up to two drives
Two 9-pin UART serial ports (one port via cable optional)
One 25-pin ECP/EPP parallel port
PS/2 mouse and keyboard ports
Four USB ports (two ports via cable - optional)
Two LAN controllers:
One Intel ICH2 w/ 82562ET “Kinnereth” controller
One Intel 82559 LAN controller
10/100 Mbps data transfer rate per controller
INTRO
Integrated SCSI
(manufacturin g op tio n )
BIOS
* not verified at time of print, check the Tyan website for updates: http://www.tyan.com
Adaptec 7899W controller
Dual Channel Ultra160 LVD SCSI support
160 Mbps thoroughput and up to 15 devices per ch.
Channel A and B: 68-pin connectors
AMIBIOS 4 Mbit Flash (FWH)
Supports APM 1.2 & ACPI 1.0
User settings of HW monitoring
Auto-configuration of IDE hard disk types
User settings of hardware monitoring
Multiple boot options
DMI 2.0 compliant
Thunder i840 S2520
5
Page 6
Form Factor
Regulatory
1.3 Software Specifications
Ext. ATX 12” x 13” (304.8 x 330.2 mm)
Two 20-pin ATX power connectors
Stacked mouse & keyboard ports
Stacked two USB ports
Two RJ-45 ports w/ LEDs
Stacked one serial/video/parallel ports
FCC Class B (Declaration of Conformity)
European Community CE (Declaration of Conformity)
OS
Operates with Windows NT/ 2000
6
http://www.tyan.com
Page 7
1.4 Technical Support
If a problem arises with your system , you should turn to your dealer for he lp first. Your system has most
likely been configure d by t hem, a nd the y should have the best ide a of wh at har dware and so ftwa re your
system contains. Hence, they shou ld be of the mo st assist anc e. F urt her more, if you p urch ase d you r system from a dealer near you, you can actual ly bring your system t o them to have it service d, instead of
attempting to do so yourself (which can have expensive consequences).
Help Resources:
1. See the FAQ and beep codes section of this manual.
2. See the Tyan website for FAQ, bulletins, driver updates, and other
information: http://www.tyan.com
3. Contact your dealer for help BEFORE calling Tyan.
4. Check the Tyan user group: alt.comp.periphs.mainboard.tyan
1.5 Returning Merchandise for Service
During the warranty pe riod, contact your d istributor or system ve ndor FIRST for any product prob lems.
This warranty only covers no rm al cust ome r use and does n ot cove r da mag es i ncu rr ed du ring shipp i ng or
failure due to the alteration, misuse, abuse, or improper maintenance of products.
NOTE: A receipt or cop y of your invo ice ma rked with t he da te of pur chas e is re quir ed be fore any
warranty service can be rendered. You can obtain service by calling the manufacturer for a Return
Merchandise Au th or i za ti o n ( RMA ) n um b er. The RM A n u mb er sh o uld b e p r omi n en tly displayed on
the outside of the sh ipping carton and the p ackage should be mailed prepaid. Tyan will pay to
have the board shipped back to you.
INTRO
Thunder i840 S2520
7
Page 8
Chapter 2: Board Installation
2.1 Unpacking
The retail motherboard package should contain the following:
Thunder i840 motherboard
34-pin floppy cable
ATA-66/100 IDE cable (with blue connector)
68-pin Ultra160 LVD SCSI cable (optional)
Thunder i840 I/O shield*
(2) Continuity RIMMs
Thunder i840 user’s manual
Tyan driver CD
Adaptec 7899W SCSI Driver Diskette (optional)
2.2 Installation
You are now ready to install your motherboard. Th e mounting hole patte rn of the Thu nder i840 ma tches
the Extended ATX system board specifications, so your chassis must be capable of supporting an
Extended ATX system board (check the motherboard dimensions provided on p. 6).
2.3 How to install our products right.. the first time.
Question: what’s the first thing I should do?
The first thing you should do is read the user’s manual. It contains important information wh ich will make
configuration and setup much easier, as well as provide information on device installation and component
set up.. By reading through the manual completely before installing your motherboard, you will have a
complete overview on the installation.
* if you require a different I/O shield solution, please contact your chassis vendor
8
http://www.tyan.com
Page 9
Here are some safety tips:
(1) Ground yourself properly before removing your motherboard from the antistatic bag. Unplug
the power from your computer power supply and touch any metal part on the computer case. (You
might also want to wear a grounded wrist strap.)
(2) Hold the motherboard by its edges and do not touch the bottom of the board.
(3) Avoid touching motherboard components, IC chips, connectors, and leads.
(4) Avoid touching pins of memory modules and chips.
(5) Place motherboard on a grounded antistatic surface or on the antistatic bag.
Having reviewed the precautions above, the next step is to take the motherboard out of the cardboard box
and static bag, hold it by its edges, and pl ace it on a grounded a ntistatic surface, com ponent side up.
Inspect the board for damage.
NOTE: DO NOT APPLY POWER T O THE BOARD IF IT HAS BEEN DAMAGED!
Press down on any of the socketed ICs if it appear s that they are no t properly sea ted (the boa rd should
still be on an antistatic mat). Do not touc h the bottom of the boa rd. Remember, don’t take any elect ronic
device out o f it s p ro t ect i v e ba g un t i l y o u a r e r e ad y t o a c t ual l y i n s tal l i t int o t he c o mp ute r ca s e . If y o u do n ot
ground yourself, you r isk zappi ng the mothe rboard o r adap ter card . Sub sequen t prob lems may not arise
immediately because electrostatic discharge, unlike physical damage, causes the device to fail over time.
INSTALL
Installation Steps
1. Set jumper s (if necessary)
2. Mount motherboard in chassis
3. Install me mory
4. Install CPU and cooling fan(s)
5. Connect IDE and floppy drives
6. Install add-on cards
7. Connect PS/2, USB, serial, and parallel devices
Thunder i840 S2520
9
Page 10
2.4 Quick References for Jumpers
In this manual, the term “close d” and “on” are used wh en referring to jumpers (or jumper pins) that are
active; “open” and “off” a re u s ed whe n re fer ring to j u mp ers (or j um per pin s) that are inactive. See Figure
2.0a and Figure 2.0c for examples of “on” and “off ” pins and jumpers.
Jumpers and pins are connec ted by slipping the plastic jum per connector over the top of tw o adjacent
jumper pins (indica ted b y 1-2 or 2-3 ). Th e met al r od insid e the plast ic shell bridg es the gap b etween the
two pins, completing the circ uit. See Figure 2.0b and Figure 2.0d for more examples of 3-pin jumper
connections. NOTE: The small number “1” indicates pin 1.
The tables and maps on the following pages will help you set the jumpers for CPU speed, infrared, and
external connector pin assignments, among others. The miniature motherboard maps will help you locate
the jumpers on your board. Full page maps of the motherboard can be found on the next two pages.

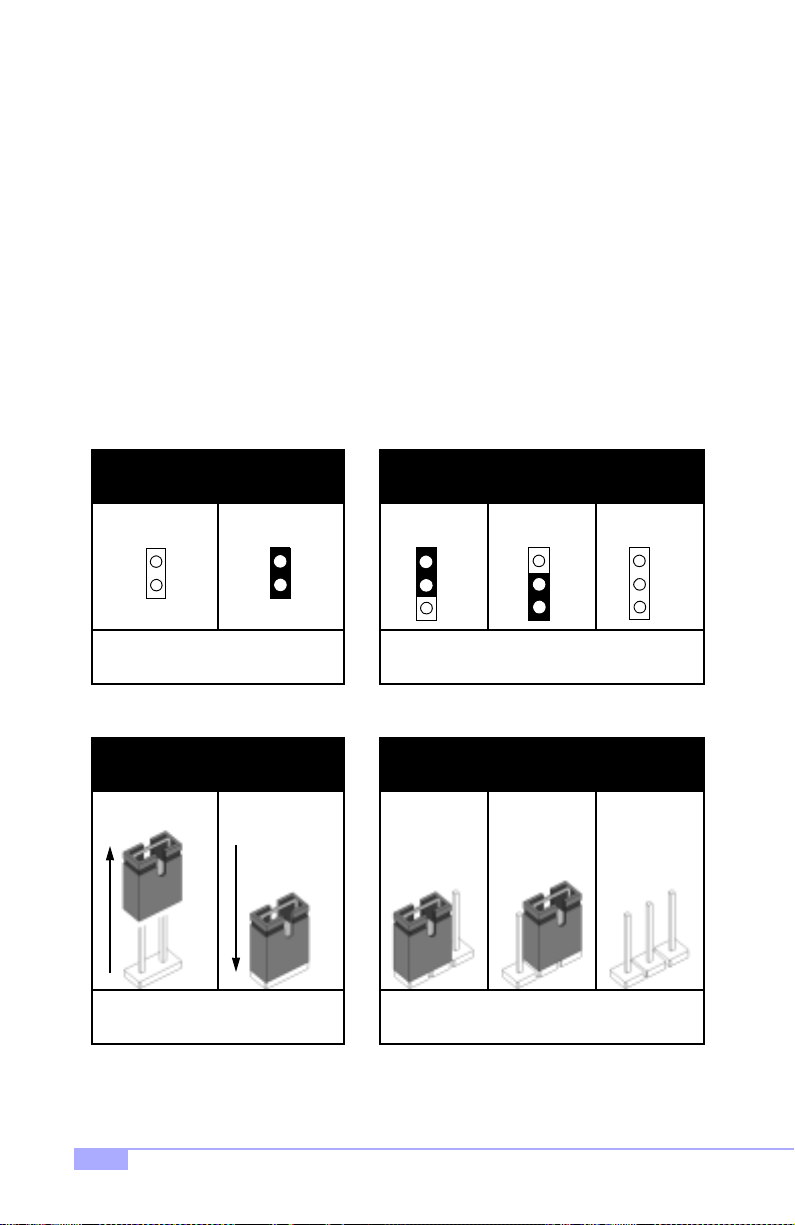

2-pin jumpers
off on
Figure 2.0a
(overhead view)
1-2 2-3 open
3-pin jumpers
Figure 2. 0b
(overhead view)
2-pin jumpers 3-pin jumpers
1-2 2-3 openoff on
11
Figure 2. 0c
(front angle view)
Figure 2. 0d
(front angle view)
10
http://www.tyan.com
Page 11

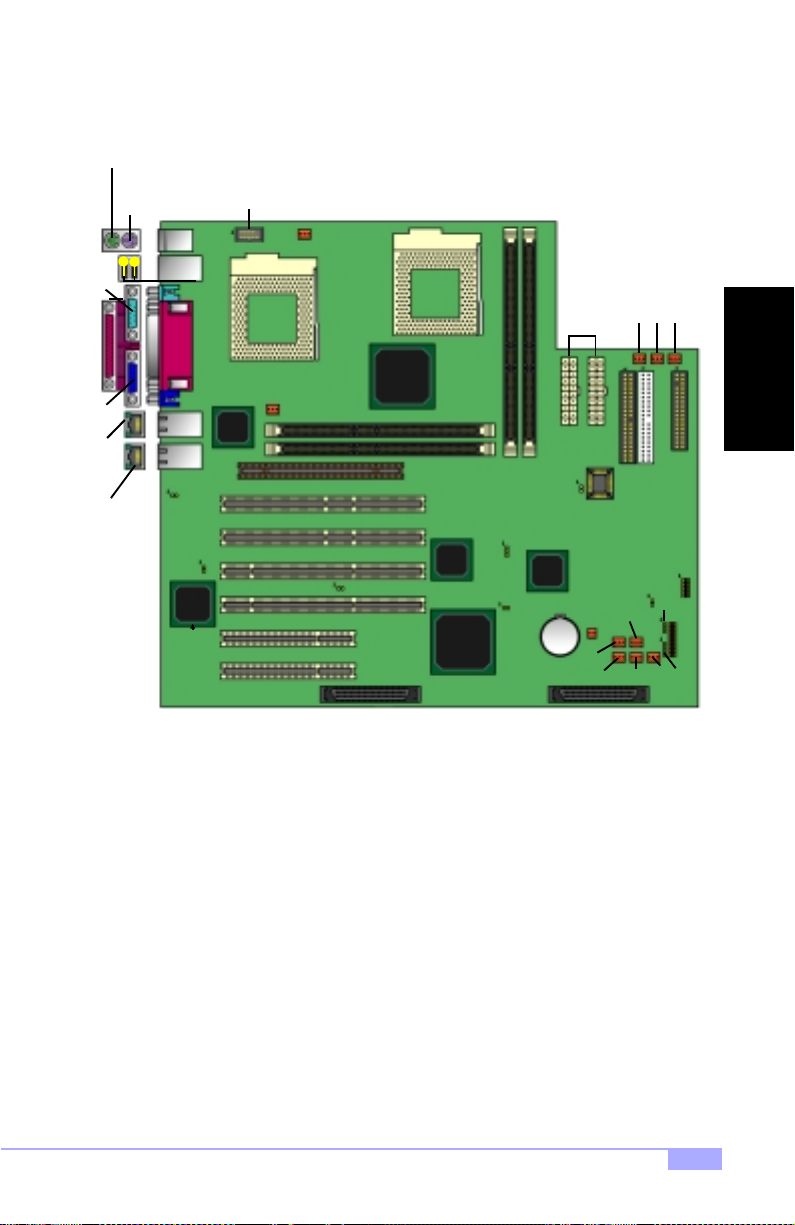

2.5 Map of Motherboard Jumpers
Keyboard port (lower port)
Mouse port
(upper port)
Serial
Port 2
CPU1
FAN
Serial
port 1
port
Parallel
Port
Video
Port
LAN
82559
Port
LAN
ICH2
USB
Ports
J32
J39
ATI®
RageXL™
CPU1
CPU2
FAN
J34
Channel A
Intel®
i840
chipset
CPU2
Adaptec®
SCSI
J41A*
J41B*
ATX Power
Connectors
J6
J2
J43
J56B*
J4
J56A*
J38A*
Channel B
J38B*
J41C*
Primary IDE
Secondary IDE
J24
J13**
J38C*
INSTALL
FDD Connector
J9
J14**
* fan numberings on map shown above may differ from actual board markings
** indicates an optional feature
Thunder i840 S2520
11
Page 12
2.6 Setting Jumpers

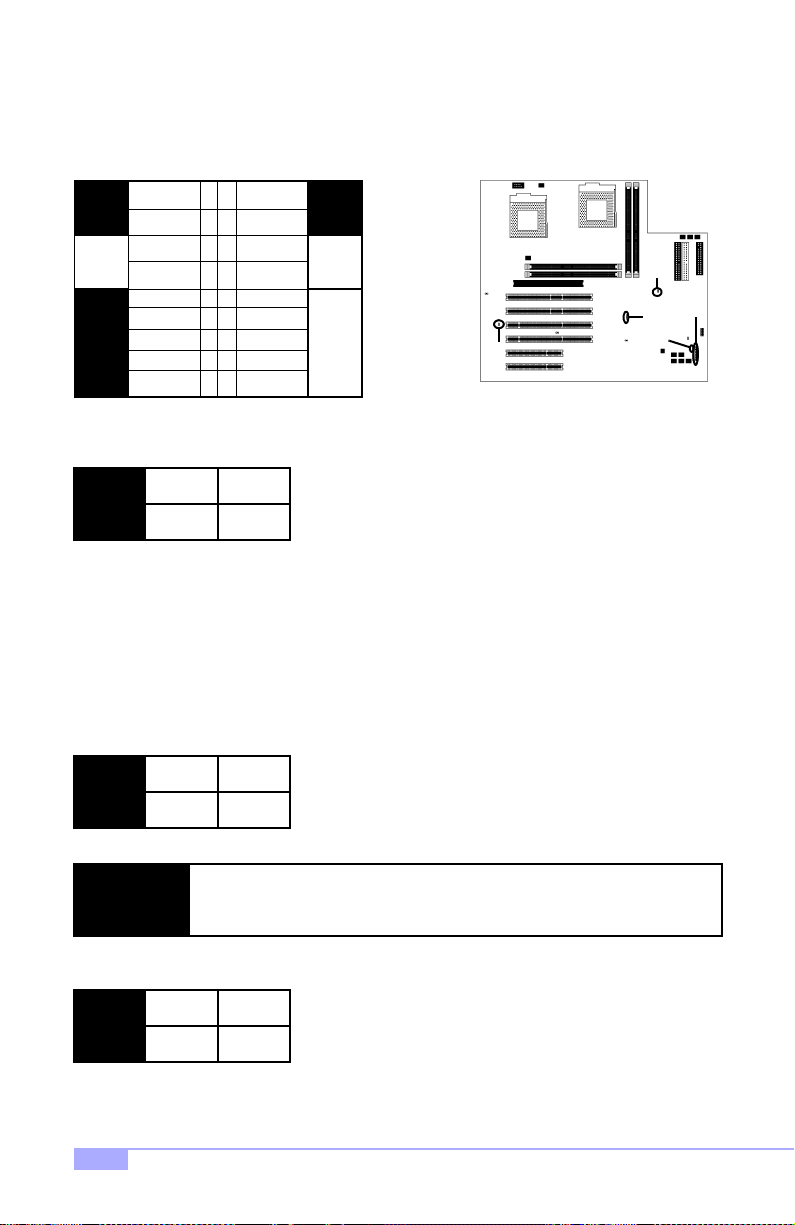

2.6-A. Front Pane l Conn ector (J12)
VCC
LED
HDD
LED
Ground Switch
Switch
Reset
Switch
IR +5V
IR RX
Ground
IR TX
Infrared
CHIN2
2.6-B. CMOS Reset (J2)
12
34
56
78
910
11 12
1314
1516
1718
Pwr LED+
Slp LED+
Ground
SN_NMI
Ground
no connect
no connect
no connect
*Power
LED: for
LEDs
Pwr/Slp
3-pin
(bi-color/
single-color) LED, use jumper J13* (see
Power
Switch
mini-map)
use J13*
J39
J6
J2
J13*
J12
1-2
2-3
J2
Normal
If you have been lo cked out of your system because you forgot your password or set the CMOS incorrectly, or have just finished flashing your BIOS, follow the instructions below.
By following this procedure, you will erase your password and reset the CMOS.
2.6-C. BIOS Boot Block (J6)
open
Clear
1. Power off the system, and disconnect the power supply
2. Close pins 2-3 on J2 (see mini-map for location of J2)
3. Wait about three seconds
4. Move jumper back to 1-2, then power on the system again
close
J6
locked
This jumper allows for the BIOS Boot Block to either be written to or write-protected.
NOTE:
2.6-D. Onboard VGA Enable/Disable (J39)
open
unlocked
If the jumper J6 is unlocked an d failure occurs du ring a BIOS flash, you ru n the
risk of rendering your enti re system unbootable. The backup protectio n of the
Boot Block will be lost. Tyan will not be held responsible in such related events.
close
J39
enable
You can enable or disable the onboard VGA capability with this option.
disable
* indicates an optional feature
12
http://www.tyan.com
Page 13

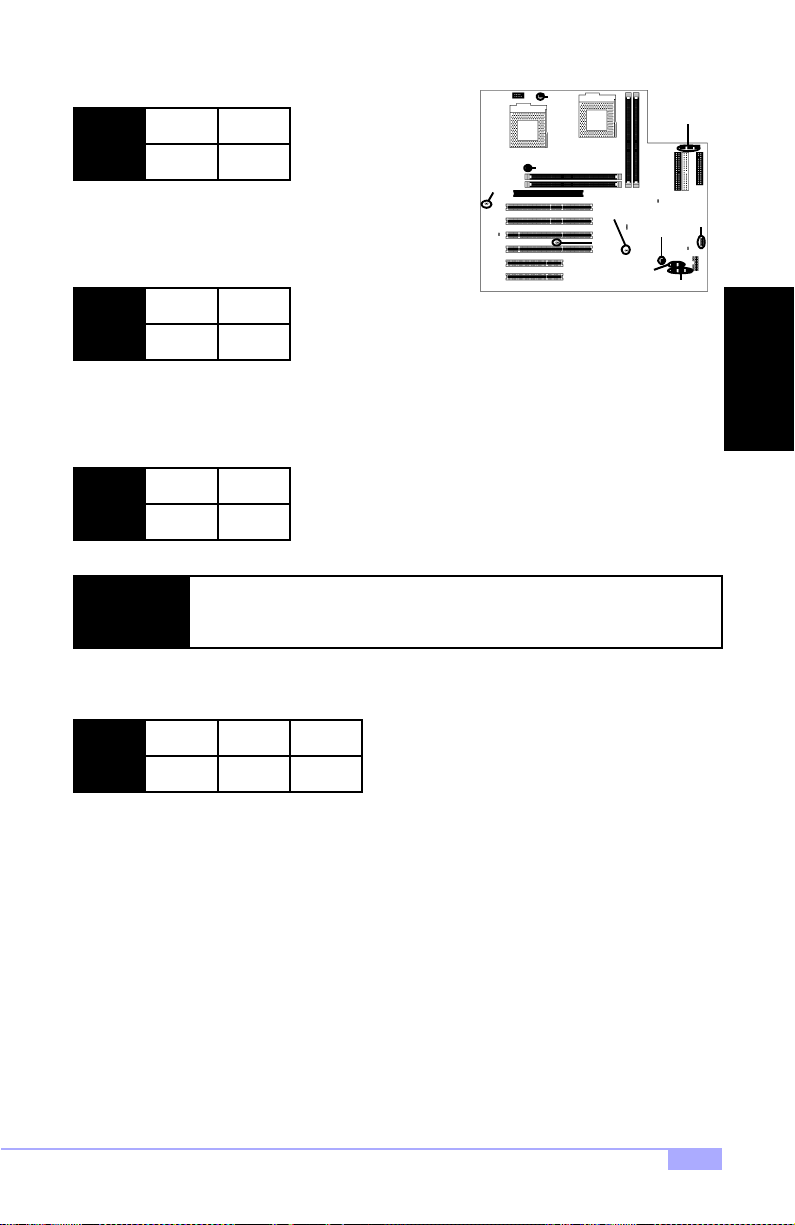

2.6-E. Onboard SCSI Enable/Disable (J43)
open
close
J43
enable
Y ou can enable or disable the onboard SCSI cap ability with
this option.
2.6-F. Onboard LAN Enable/Disable (J32)
open
disable
J32
close
J32
enable
You can enable or disable the onboard 82559 LAN controller with this jumper.
2.6-G. PCI Speed Jumper (J34)
open
disable
close
J34
66 MHz
This jumper allows for the PCI speed to be set to either 66 MHz or 33 MHz.
NOTE:
33 MHz
Tyan takes no responsibility and will not be held liable for damage related to the
alteration of J34 from the correct setting corresponding to your PCI card manufacturer’s designated operating speed.
J36
J35
J34
J43
J56
J41
J9
J4
J38
INSTALL
2.6-H. FAN Headers* (CPU FAN’s [J35 for CPU1, J36 for CPU2], J38[A,B,C], J41[A,B,C], J56[A,B])
1
FAN
Ground2+12V3Speed
In addition to installing your CPU, Tyan highly recommends that you install a CPU fan/heatsink combination, and if needed , additi onal chassis fans. To this end Tyan has provided seve ral conne ctors to p ower
the fan(s), as well as the fan pinout (shown above). Here is some information you may find useful:
- The connectors labeled “CPU FAN” (J35 & J36)* correspond to CPU1 and 2, respectively
- J38/J41/J56 are for the optional chassis fan(s) (should you decide to add one/several)
- All other fan connectors are left to the user’s discretion
2.6-I. Chassis Intrusion Head er (J4)
This header for the chassis intrusion connector (if your chassis has one).
2.6-J. USB/Serial Connector (J9)
This is the connector for a USB or Serial external connector.
* fan numberings listed may differ from actual board markings
Thunder i840 S2520
13
Page 14
2.6-K. Speaker Connector (J14*)
1
4
J14
Power in2no connect3no connect Speaker
This is the connector for an external speaker.
2.6-L. SMB/IPMB Connector* (J55)
This is the connector reserved for server management
functions.
2.6-M. External HDD LED (J24)
This is the connector for display of status of an external HDD device. Should you decide to connect it, the
LED output will be shown using the chassis’ external HDD LED, alongside with the board’s own LED output.
2.6-N. Serial Port 2 (COM2)
This is the header for a optional Serial Port 2.
2.6-N. Soft Power Connector
The soft power con nector is part of j umper block J12 (pins 6 to 8, see section 2.6 -A, p.12). This board
uses the chipset for power management, including turning on and off the system. If the power button function option in the BIOS Power Management menu is set to On/Off (which is the default) , pressing the
power button once after the BIOS has booted up will turn the system on and off. If the power button function is set to Suspend, pressing the power button once will wake up the system or send it to Suspend
mode. In this case, you can not tu rn the syste m o ff unles s you sh ut d own thr oug h t he Windo ws op er ating
system or you hold the power button down for four seconds.
J24
J55
J14
2.6-O. Hardware Reset Switch Connector Installation
The reset switch on your chassis case provides you with the Hardware Reset function, which is the same
as power on/off, except that the system will immediately execute a cold start afte r the reset button is
pushed.
2.6-P. J13*, J14*
These jumpers are reserved. Check the Tyan website for updates: http://www.tyan.com
* indicates an optional feature
14
http://www.tyan.com
Page 15
2.7 Mounting the Motherboard into the Chassis
Your chassis may or may not include mounting hardwa re. If mounting h ardware was included, yo u can
use the following examples to help you in installing your motherboard into the chassis.
The chassis may have com e wit h th e stud s int egr ate d in to t he cha ssis wa ll, so in t hose ca ses you wou ld
only need to use scre ws (p ossibly i nclude d with you r chass is) to instal l the m other board . See the ex amples (Figure 2.0, shown below) for more details.
If the chassis includes mounting hardware without the studs pre-installed, then you will need to install the
motherboard using the mounting hardware as shown in the exam ples below. Remember not to overtighten any of the sc rews, or you might risk breaking i nternal tr aces in the su rroundi ng area, or damage
the motherboard in some other way.
Other examples of how to install your motherboard using other hardware (that may or may not have been
included with your chassis) are shown below.

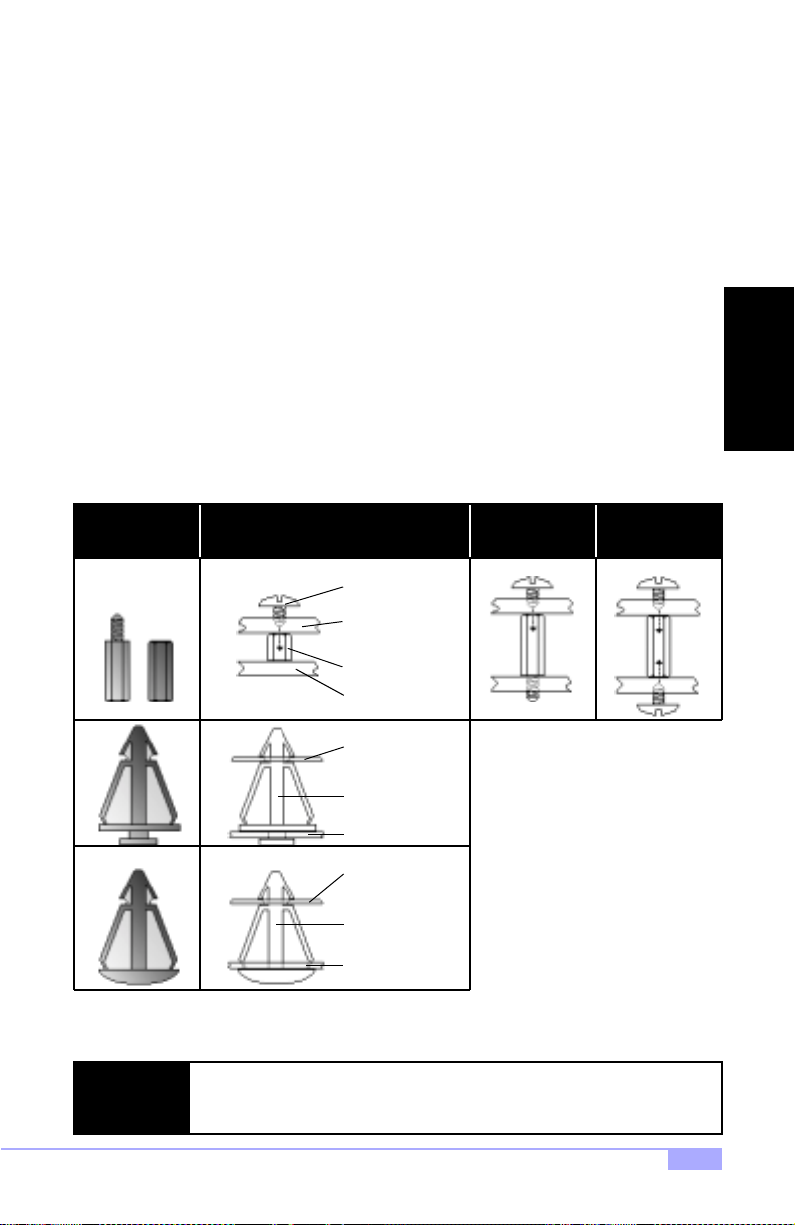

One solution for installing motherboardType of hardware Another solution Another solution
screw
motherboard
base
stud
chassis wall
motherboard
base
standoff
chassis wall
motherboard
base
INSTALL
The diagrams above are only representative of a few solu tions for installing a
NOTE:
motherboard into the chassis. The installation procedure fo r installing your motherboard may differ. If you require assistance, contact your chassis vendor.
Thunder i840 S2520
standoff
chassis wall
Figure 2.0
15
Page 16
2.8 Installing Memory
Please keep in mind that although some memory modules may appear to be high-quality, they may contain inferior or substandard parts. The type of memory you choose to install should be checked against
the memory compatibility list, which is available from Tyan’s website at http://www.tyan.com
Memory Installation Procedure
Step
Step
Step
Line up your module so that the pins fit in to the slot. There is only one way your memory
1
module can fit properly. Make sure that the short row of pins is line d up with the short gap in
the RDRAM socket. See Figure 2.1 (on p.17) for graphic det ail s o n h ow the memory shou ld
be installed.
Insert the memo ry module by pushin g it into t he socket w ith even force. Do not insert one
2
end and then the other: inst all the wh ole modul e at once or you m ight damag e the mem ory
module and/or the socket.
Lock the memory into place by pus hing the clips back on either en d of the socket onto the
3
notches in the ends of the memory module, as shown below.
1 2
Memory Uninstallation Procedure
Removing the RIMM is just the reverse: simply pull back the clips from the memory module (as shown
below), and carefully pull the module straight out. Place the memory modules in an anti-static bag as
soon as you remove them to avoid static damage.
16
NOTE:
21
Also take care that you do not cause yourself injury if you are removing the
memory modules after using the motherboard, since the module(s) may be hot.
http://www.tyan.com
Page 17
Here are some details of memory installation for this board:
Inner and outer RIMM sockets must be matching (e.g. if you have one RIMM module in the inner
socket, another RIMM module must be installed in the other inner socket, and so on).
See p. 18 and Figure 2.1 (below) for an example.

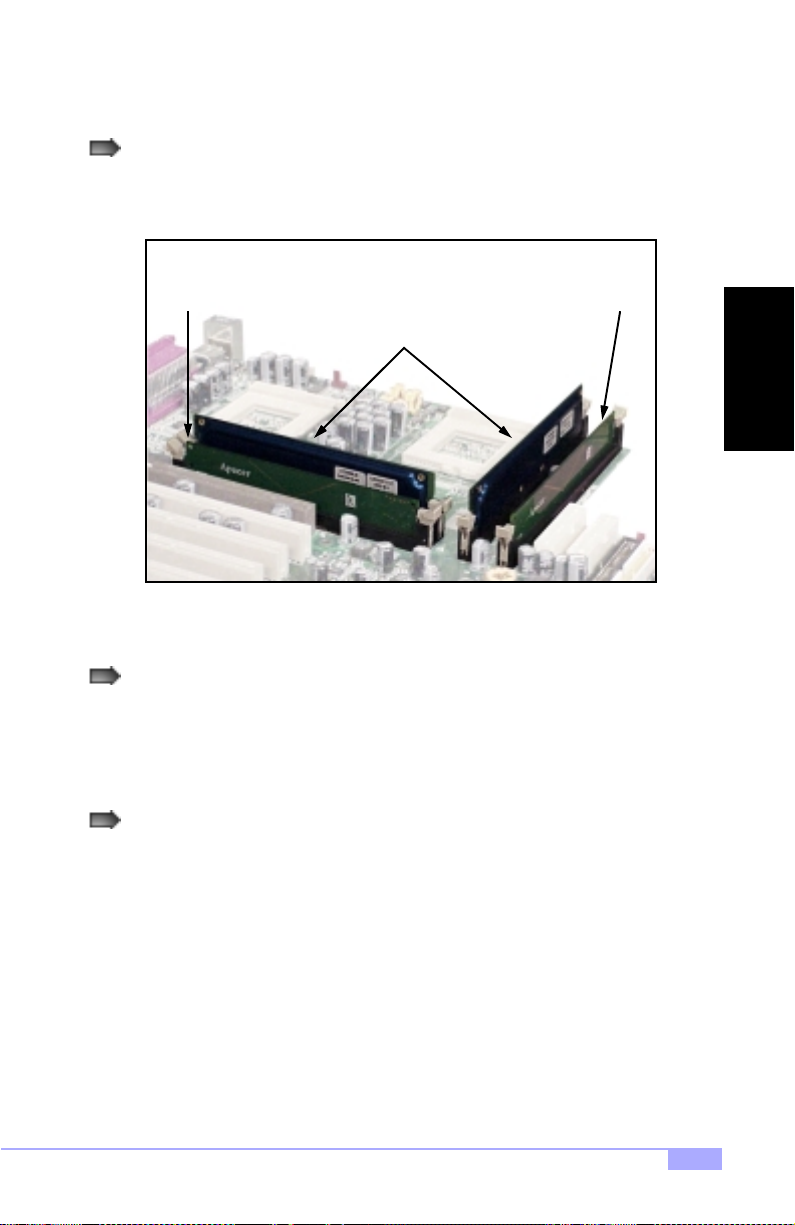

Outer Module Outer Module
Inner Modules
are matching
Figure 2.1
Any empty slots must be filled with C-RIMM Continuity modules. Tyan has included (2) C-RIMM
modules for your convenience (examples** are shown above in Figure 2.1).
This motherboard supports up to 2GB* PC800 ECC Registered RDRAM. Check the Tyan memory compatibility section of the website for more details: http://www.tyan.com
INSTALL
* not verified at time of print, check the Tyan website for updates: http://www.tyan.com
** note: the examples may not necessarily represent the actual C-RIMMs included with the board.
Thunder i840 S2520
17
Page 18
Memory Configuration Examples
Figure 2.2 and the table below should be used in conjunction to determine possible memory configura-
tions. Not all possible configurations are listed. (NOTE: C-RIMM means Continuity RIMM)
CPU2
CPU1
RIMM 3
RIMM 4
RIMM 1
RIMM 2

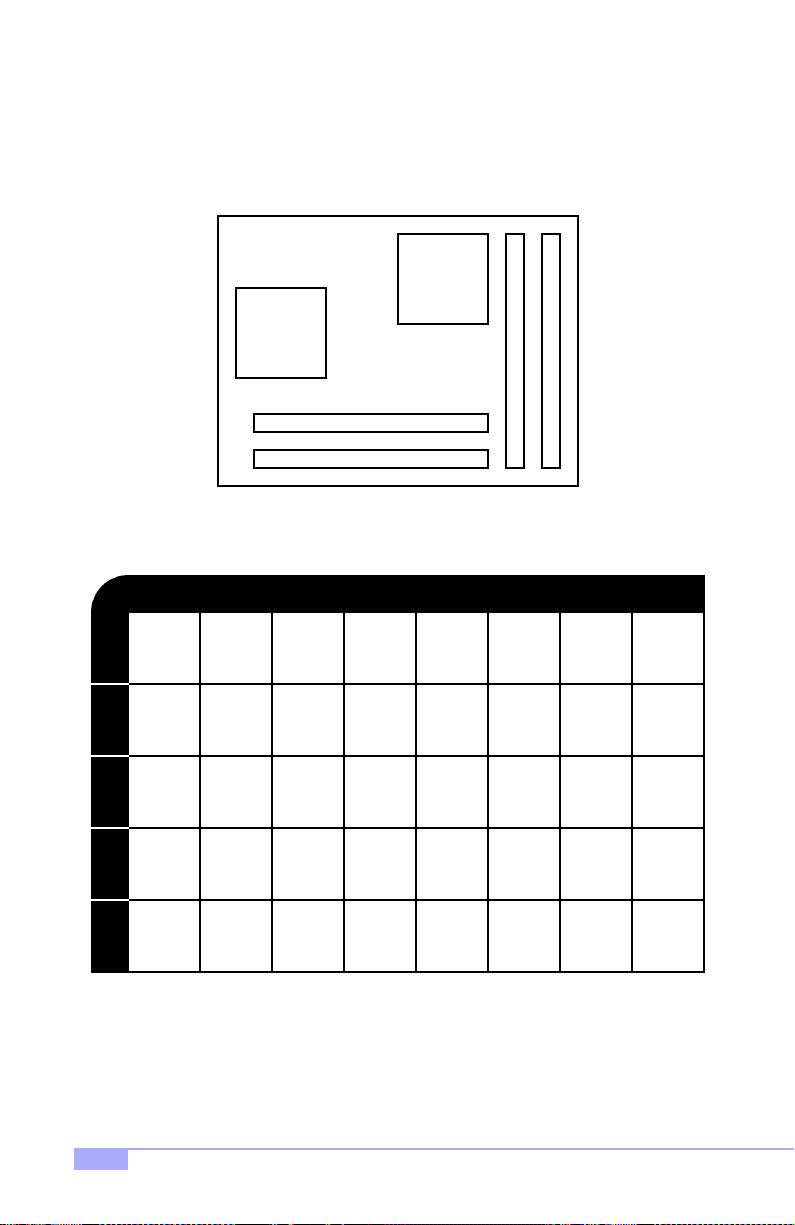

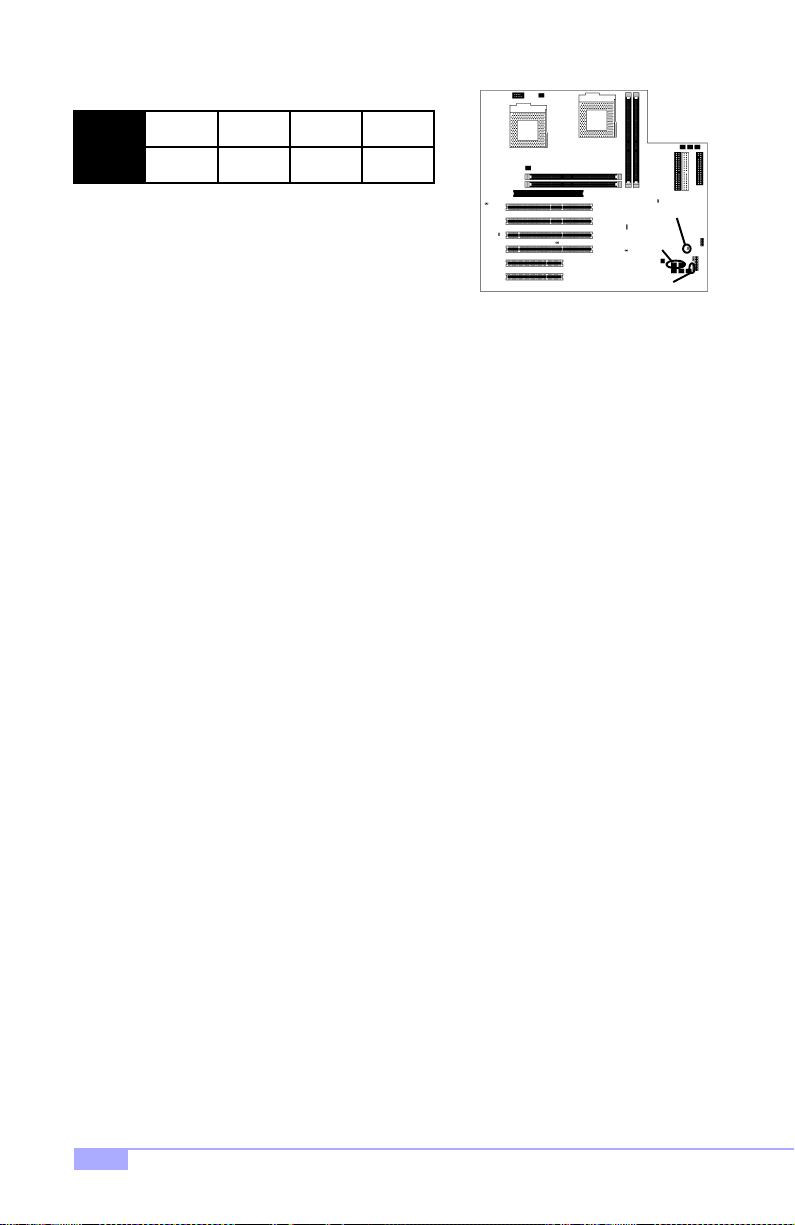

Figure 2.2 - Overhead view of memory banks*
Total of 2GB PC800 RDRAM possible
64MBx1
RIMM 1RIMM 2RIMM 3RIMM 4
C-RIMM
64MBx1
C-RIMM
128MB
TOTAL
* RIMM sockets are numbered in the diagram only, as an aid to proper memory installation
** not verified at time of print, check the Tyan website for updates: http://www.tyan.com
C-RIMM
128MBx1
C-RIMM
128MBx1
18
128MBx1
128MBx1
128MBx1
128MBx1
512MB 256MB
128MBx1
C-RIMM
128MBx1
C-RIMM
C-RIMM
256MBx1
C-RIMM
256MBx1
512MB
256MBx1
256MBx1
256MBx1
256MBx1
1024MB
512MBx1
C-RIMM
512MBx1
C-RIMM
1024MB
http://www.tyan.com
512MBx1
512MBx1
512MBx1
512MBx1
2048MB**256MB
Page 19

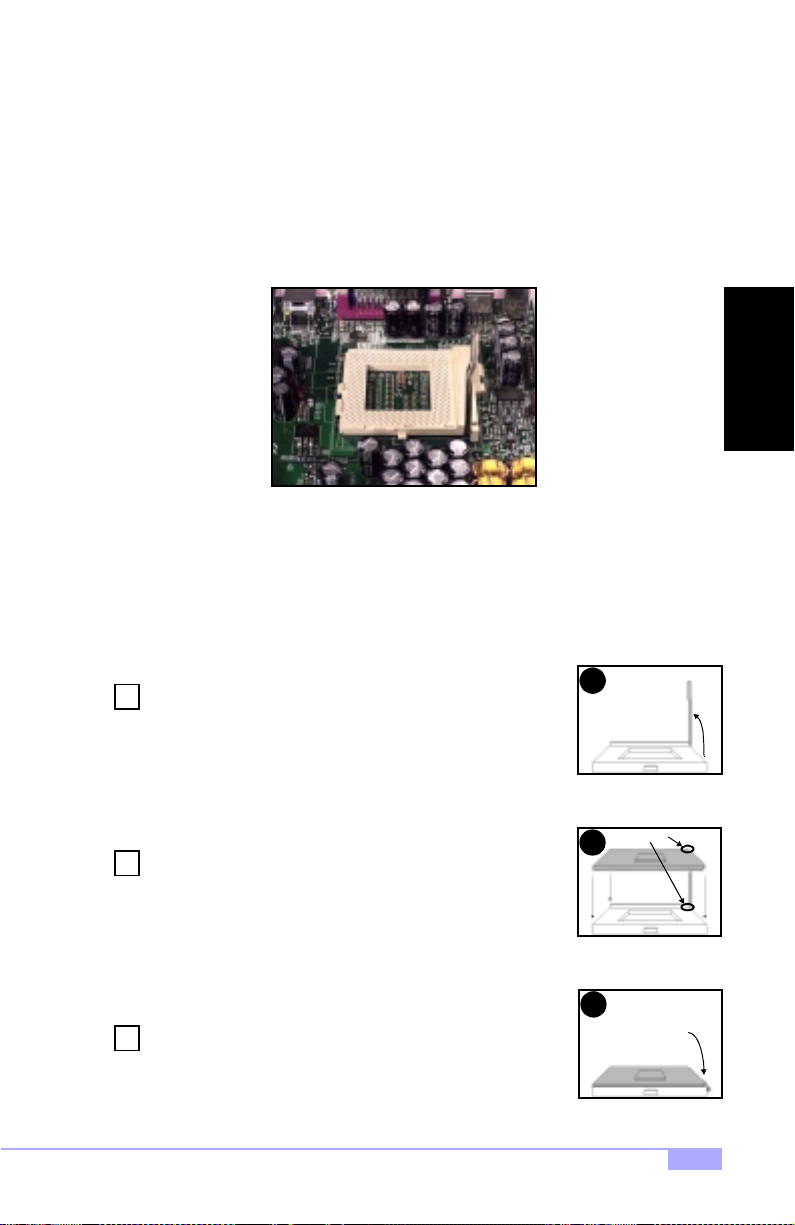

2.9 Installing the CPU and Cooling Fan
Socket370 type Pentium III processors ONLY (500 MHz through 1 GHz) can be used on the Thunder
i840. For more information on CPU compatibility, check Tyan’s website: http://www.tyan.com.
Remember the following: The CPU is a sensitive electronic component and it can easily be damaged by
static electricity. Do not touch the CPU pins with your fingers. You should be able to insert the CPU into
the socket with virtually no force. Do not press down hard on the CPU as you might bend or break the
pins.
Socket370 CPU socket
Installing the Socket370 type CPU
Before installing the CPU, check it for damaged. Make sure that none of the pins are bent. Pin 1 on the
CPU is denoted by a small dot on one of the corners, and Pin 1 on the ZIF socket is denoted by one of the
angled corners (left bottom-most angle from the Intel logo).
INSTALL
Step
Step
Step
Carefully lift the arm of the ZIF socket until it is at a 90-degree angle
1
pointing away from the motherboard. be very careful not to damage
any components that might be next to the CPU socket. Please note
that each picture for this section (see right) corresponds to the
step.
There are two beveled corners on the CPU pin group, which will
2
match the two an gled corners on the socket face. Carefully install
the CPU by lining both Pin 1 on the CPU and Pin 1 o n the socket
(see right), making sure the pins actually fit into the socket face. Do
not force the CPU into the socke t if it does not fit: check the pin
alignment of CPU pins to socket holes.
Push down lightly on the CPU while lowering the arm of the socket
3
to secure the CPU (see right). A squeakin g noise may be hard
while lowering the arm, or the socket may make a ‘click’ noise when
the arm is locked into position: these noises are normal.
Thunder i840 S2520
1
Pin 1
2
Arm moves down
3
to lock CPU
19
Page 20

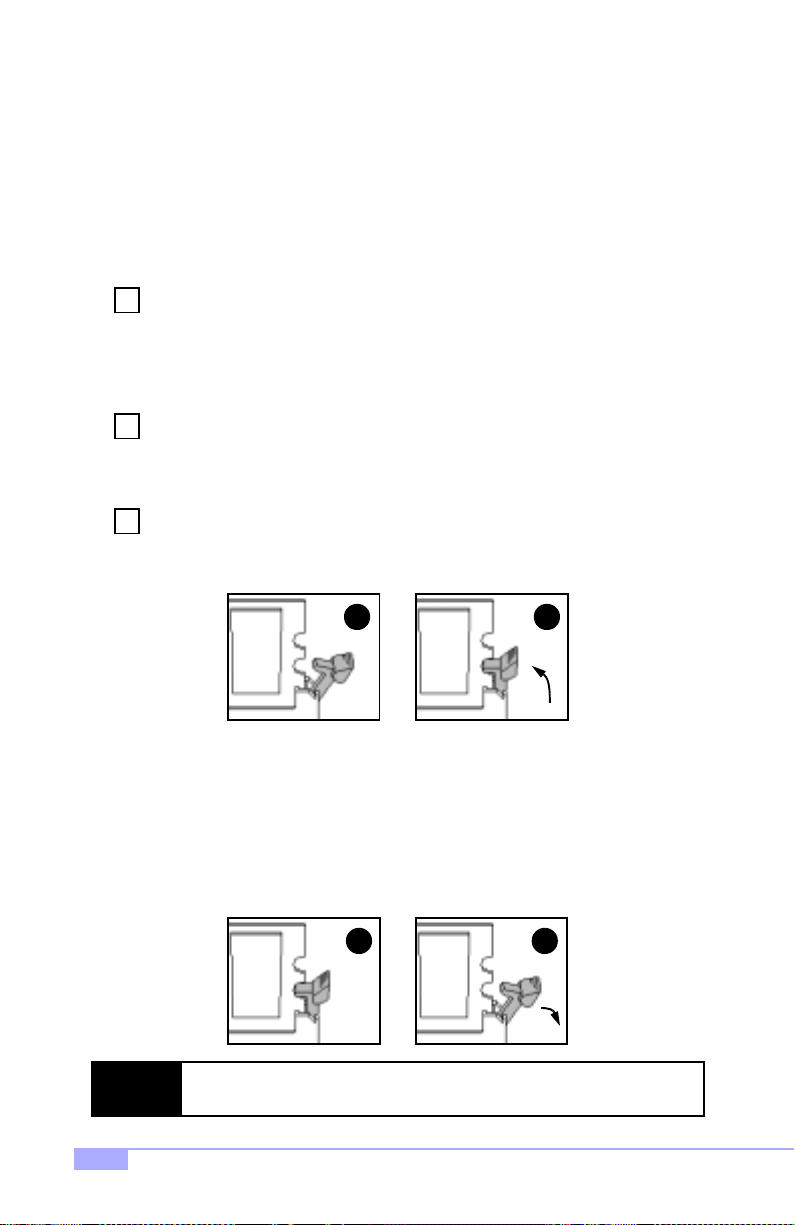

Installing the Cooling Fan
After the CPU has been installed, you will need to install the proper cooling device for the CPU. This
device, a heatsink/cooling fan combination, can be purchased from many computer technology vendors.
Connection of the cooling device may vary depending on the fan manufacturer’s design. You should take
space into consideration when installing a cooling device into the CPU1 and/or CPU2 socket(s). Tyan
highly recommends that you use some type of thermal compound between the CPU and heatsink, to
maximize cooling. Please take extra caution when installing any kind of clamp-style fan, or else damage

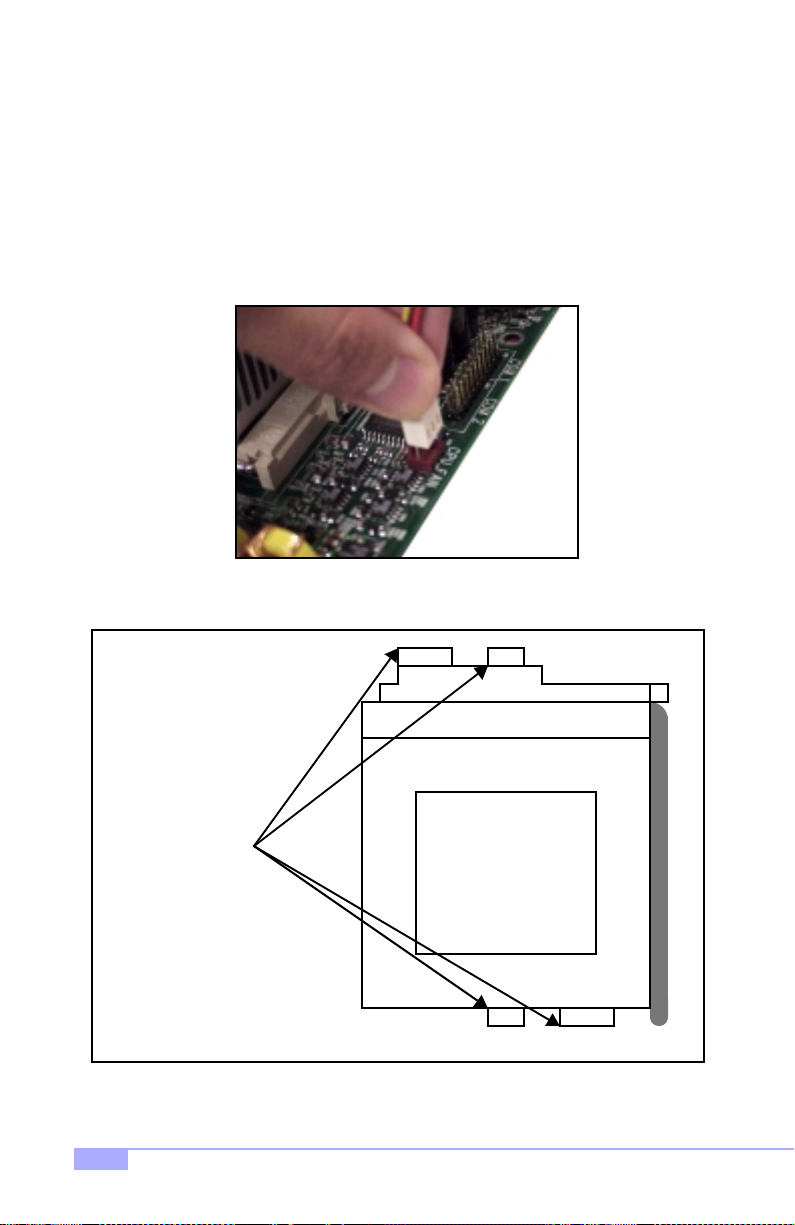

may occur to the CPU socket. See Figure 2.3 for an example of how the fan power connector is installed.
Installing the Cooling Fan
Can be used to install
a cooling device
20
Mounting points on the CPU socket
http://www.tyan.com
Page 21

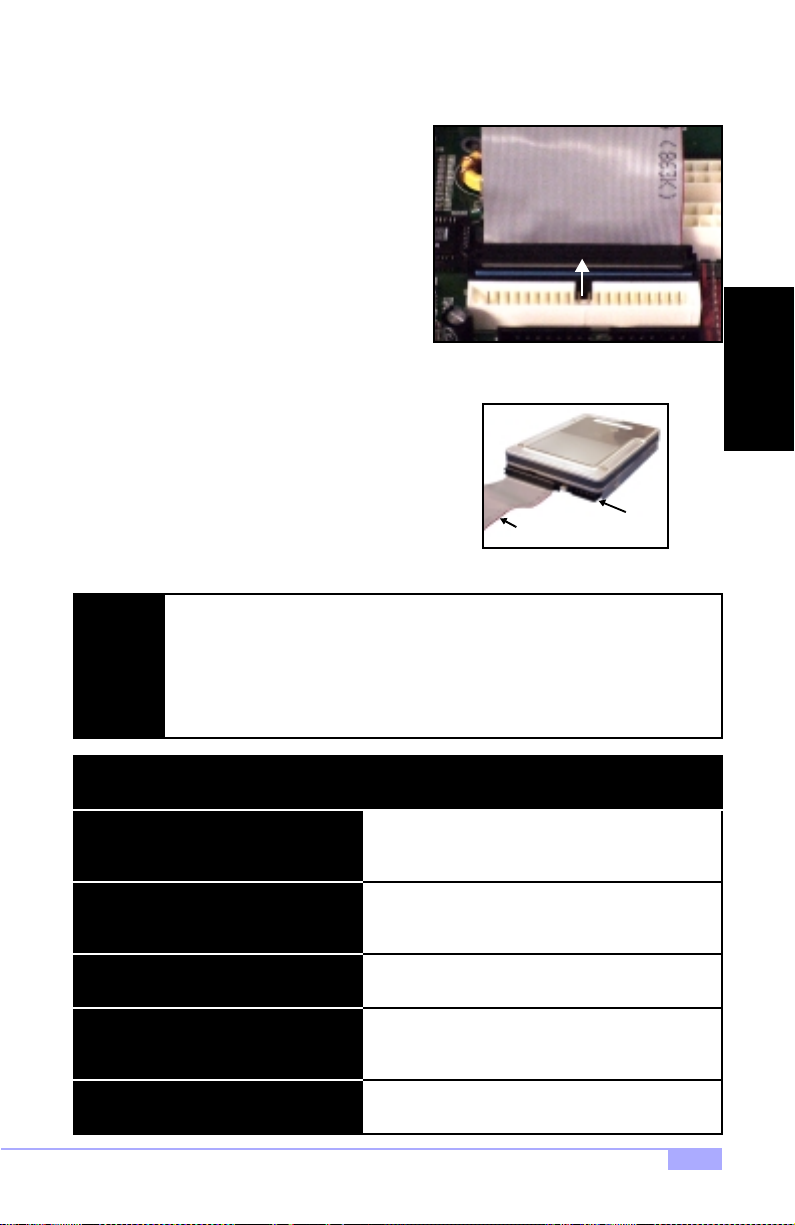

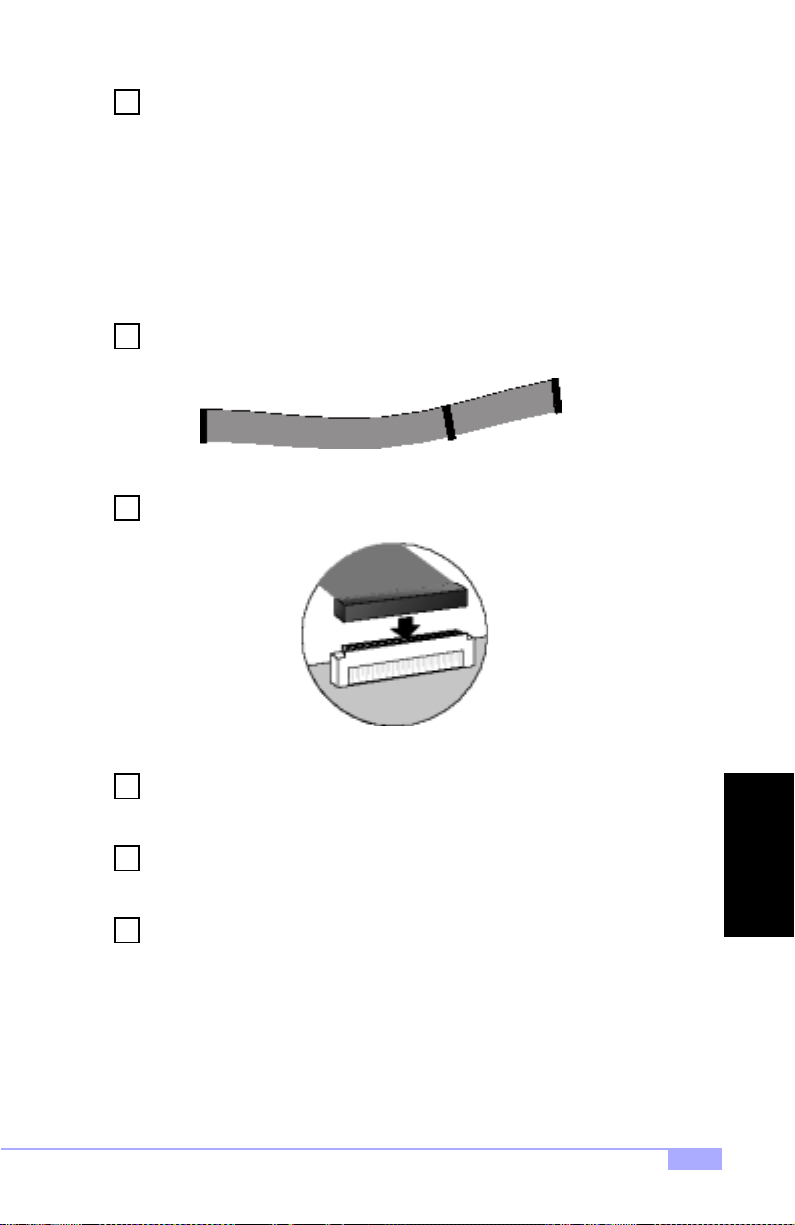

2.10 Connecting IDE and Floppy Drives
A variety of IDE and ATAPI-compliant devices can be
installed on this motherboard, such as hard disk drives
(HDDs) and CD-ROMs.
Please keep in mind that on this motherboard, the primary IDE connector i s BLACK, and the secondary IDE
connector is WHITE. Figure 2.4 (see right) shows the
IDE cable properly connected to the motherboard. Consult the documentation that came with your device, or
contact the device’s manu fact ure r for de tail s on i ts in stallation. Also see Figure 2.5 (see picture to the right) for
an example of an H DD w ith th e IDE cable install e d. ATA66 IDE HDDs require a special 80-wire, 40-pin IDE cable
which has additiona l grounding wires, and may or may
not have a notch near the blue conne ctor. The cable is
included in the Thunde r i840 motherbo ard packa ge. The
ATA-66 cable is also upwards comp atible with ATA-100
devices, and backwards compatible with ATA-33 and
Legacy IDE HDDs.
The BLUE end of the ATA-66 cable must connect to the motherboard. The black connector on the ATA-66 cable is for the master HDD, and the g rey connec tor is for the
NOTE
slave HDD. See Figure 2.4 for an example of cable installation on the motherboard.
Only Tyan-approved cables are recommended for this mo the rbo ard . If you a re usi ng
an existing configuration with older cables, your system might not function pro perly.
Use only Tyan-approved ca bles (i.e. t he ones tha t were inclu ded with y our motherboard).

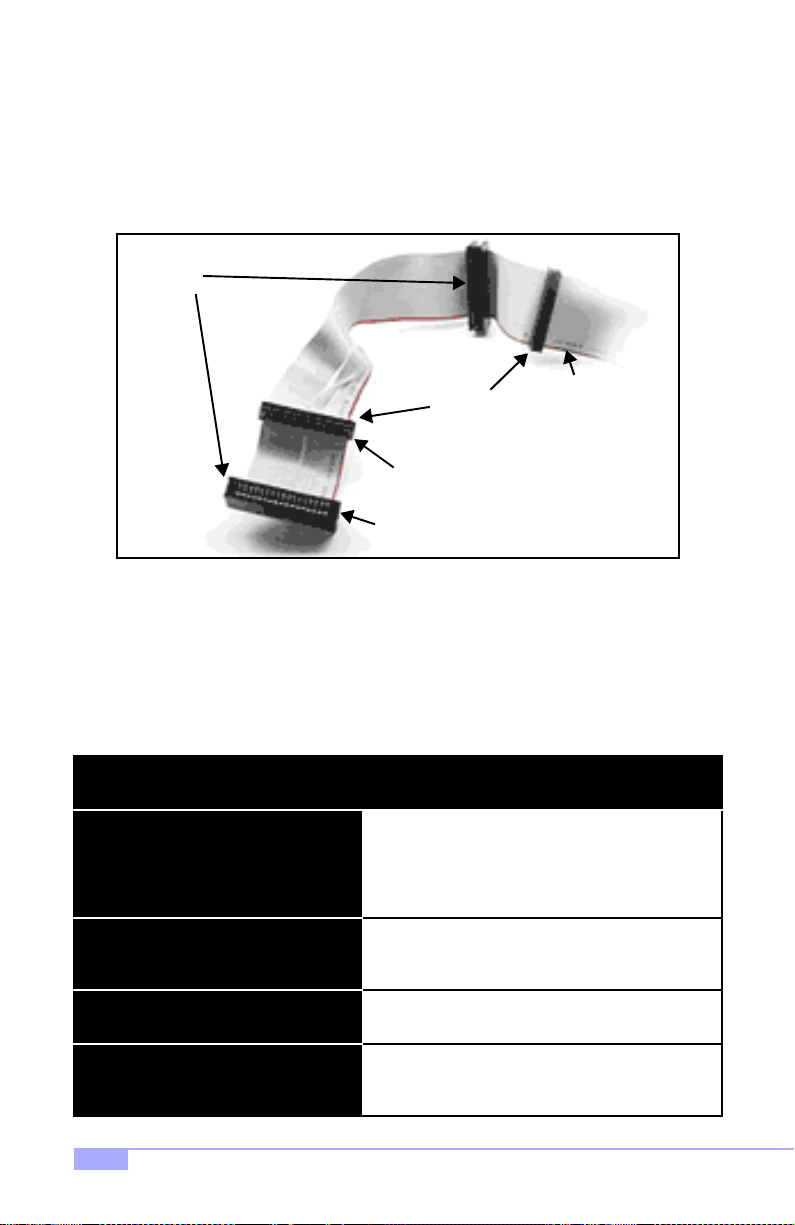

Blue end of ATA-66 cable
Figure 2.4
Colored stripe
indicates Pin 1
Power
Figure 2.5
INSTALL
Some symptoms of incorrectly installed HDDs are...
HDDs are not auto-detected
Hard Disk Drive Fail message at bootup
No video or beeps during bootup
HDD lights are constantly on
HDD does not power on
Thunder i840 S2520
May be a Master/Slave configuration problem, bad
IDE cable, or BIOS mis-configuration. Consult the
HDD documentation or contact your HDD vendor.
May be a bad cable or lack of power going to the
drive. Check the cables for damage and bad connections.
Usually means the cable has been installed backwards.
Bad IDE cable or defective drives/motherboard. Try
another HDD, or contact your HDD vendor.
Check power cables and cabling. May be a bad
power supply or IDE drive problem.
21
Page 22
Connecting Floppy Drives
Pin 1 on the floppy cable is usually denoted by a red or colored stripe down one side of the cable (see
Figure 2.6 below), Most of the current floppy drives on the market require that the cable be installed with
the colored stripe positioned next to the power connector. In most cases, there will be a key pin on the
cable which will force you to connect the cable properly.
Drive B:
Colored stripe
Drive A:
3.5” connector
5.25” connector
indicates Pin 1
Figure 2.6
The first floppy drive (denoted as A:) is usually attached to the end of the cable with the twist in it (see Figure 2.6 above). Drive B: is usually connected to the middle of the cable. Refer to your installation instruc-
tions or call your dealer if you are unsure about attaching floppy drives. Remember you can only have 2
floppy drives connected at any given time.
Some symptoms of incorrectly installed FDDs are...
Usually caused by faulty cables, cabl es put in back-
FDDs are not auto-detected
Floppy Drive Fail mes sag e at bo otup
FDD does not pow er on
FDD light is constantly on
wards, or a bad floppy or motherboard. Try another
floppy drive to verify the problem or try another
cable. Also check to see if the onboard floppy is
enabled in the BIOS.
The cable, floppy, or motherboard may be faulty. Try
another cable or floppy drive to verify.
Check power cables and cabling. May be a bad
power supply or IDE drive problem.
Usually signifies that the cable is on backwards.
Reverse the cable at the floppy drive end and try
again.
22
http://www.tyan.com
Page 23
2.11 Installing Add-on Cards
There are a few rules you need to follow when plugging in a card. In order to assure proper operation and
a quick installation, adhere to the following guidelines:
If you are going to install a PCI-bus interface card on your system, be aware that any one of
the PCI slots can support a Master or Slave device.
NEVER force a card into a slot. If it doesn’t fit, look at the socket on the motherboard to make
sure there are no wires or other obstructions to the slot.
NEVER plug an ISA card into a PCI slot. You will void your warranty and damage your system
board if to you do this.
When plugging the card in, especially when installing long cards, try to push the entire card in
at one time. Don’t force one end of the card into the socket first and then the other, or a rocking
motion between the card and the slot might occur, and could damage the pins within the
socket.
Check speed of your PCI add-on card and check p. 13 for details on setting the PCI speed.
Before turning on the system, make sure the cards are seated securely into their slots, and that
no cards are touching.
If you follow these ba sic g uid eli ne s, th er e s hou l dn’t be an y p ro blem s w it h in stal la tion. However, if you do
encounter any problems with yo ur add- on cards, co nsult thei r documen tatio n, or have a qualified pro fessional install/troubl eshoot your cards for you, otherwise con tact the card’s manufacturer. Remember,
always read the manuals and insta ll ation note s tha t come wit h the adap ter card s. Th ey con tain im por tan t
information which will help you install the components right, the first time.
INSTALL
1
2
Thunder i840 S2520

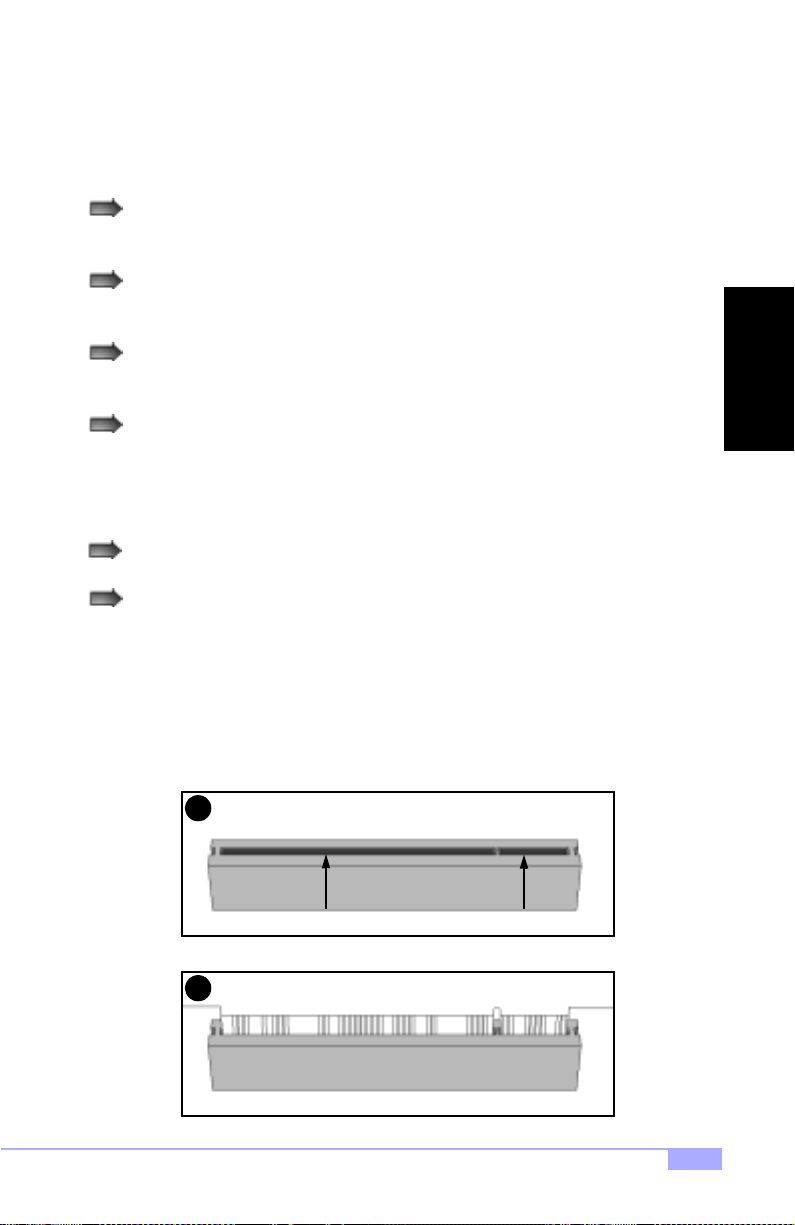

Check orientation of card when installing
Figure 2.6a
Push card down with even force
Figure 2.6b
23
Page 24
2.12 Connecting PS/2, USB, Video, Serial and Parallel Ports
This board includes ports for PS/2 mouse and keyboard, USB, video, serial and parallel ports. Please
note that the upper PS/2 por t is the m ouse port, and the lowe r PS/2 po rt is for th e keyboa rd (see Figure
2.7 below).
The PS/2 connectors are probably quite familiar to you, while the USB connectors may not be. A USB
port can function as a serial, p arall el, mo use, key board , or j oystick port. I t is capable of sup porting up to
127 daisy-chained pe ripher al device s. Figure 2.7 (below) shows the ATX double row connectors on this
board. Serial Port 1, as well as the other ports, are labeled in the image below.

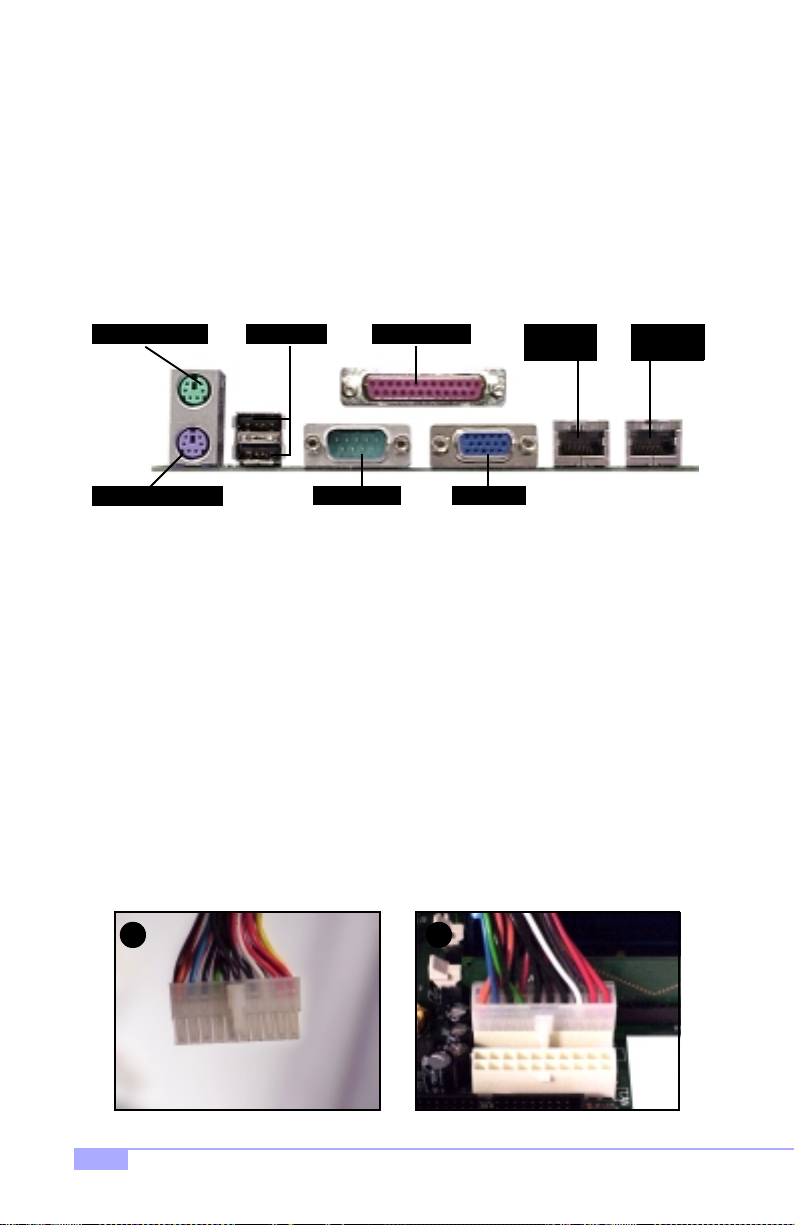

PS/2 Mouse Port USB Ports
Parallel Port
82559
LAN Port
ICH2
LAN Port
PS/2 Keyboard Port
Serial Port 1 VGA Port
Figure 2.7
A note of caution about installing external devices
When plugging in th e ke ybo ard an d m ou s e, o r w hen pl u ggin g a nyth ing into any external port, make sure
that the power is off. Connecting these de vices and ports while the power is on is called “hot plugging”,
and may damage your system.
2.13 Connecting the power supply
This motherboard req uires an ATX power supply. Tyan recommends using one that conform s to industr y
standard Revision 2.01, an d is 300 watt s or higher. The photos be low show the ATX power connector
before (Figure 2.8a) and after (Figure 2.8b) it has been plugged in. The clip on the power connector
should lock over the tab on the onboa rd conne ctor. You shouldn’t be able to plug the power connector in
more than one way, but just to be safe, make sure it looks like Figure 2.8b. Make certain you do not miss
connecting any of the pins because if you do, you will void your warranty and possible cause damage to
yourself and/or your m otherboard. A fter conn ecting the po wer, make sure the conne ctor is sea ted firmly
into its socket so it will not become loose or fall off when the computer is jostled or moved.
1 2
24
Figure 2.8bFigure 2.8a
http://www.tyan.com
Page 25
You are done!
Other than checking the jumpe r settings and cable connec tions, and putting the case ba ck on, you are
done. Installing a new motherboard may seem difficult, but by following these directions, you should have
a fairly uneventful time installing our p roducts. If yo u do encounter pr oblems, your dealer will be able to
help you, or you can consult one of our many technical support resources (see p. 7).
2.14 Frequently Asked Questions (FAQ)
Q: My system sometimes becomes unstable. How should I check the system?
A: The first thing to do is check and see if you have any device conflicts related to the IRQ, or DMA. If you
are using Microsoft Windows NT/2000, the Control Panel is a good place to start investigating the conflict.
Please consult your op erating system ’s documentation for details. Secondly, slowing down the memory
timing in the BIOS’ chipset setup section will help the situation as well. Many memory modules are not
suitable for high perf orman ce system s and are pr obabl y the main so urce o f your problem . Also check to
make sure you are using a 300W or higher power supply (ATX 2.01 specification or better). Lastly, make
sure the motherboard is receiving adequete cooling.
Q: I have a question about memory compatibility...
A: Memory compatibility information can be found on Tyan’s website at: http://www.tyan.com.
Q: Where can I get additional accessories for my Tyan motherboard?
A: You can purchase additional accessories such as USB cables*, as well as other Tyan-approved acces-
sories at the Tyan Computer Online Store: http://www.etyan.com
Q: Where can I get pinout information for my motherboard?
A: Pinouts of certain headers are available on t he Tyan website: http://www.tyan.com
INSTALL
Q: My motherboard is dead, how do I return it?
A: Contact the place of purchase or your distributor for assistance to return the motherboard for service.
RMA issues will not be handled vi a e-mail by Tyan Tech Support. Ple ase refer to the URL link here for
more details: http://www.tyan.com/support/rma_faq.html
Q: How do I upgrade my BIOS?
A: Check the section about the Flash Utility (see p. 41) for information on upgrading you r BIOS. BIOS
update files, flash utilities, and instructions on how to install them are also available from the Tyan website
at: http://www.tyan.com
Q: Why do I get a “CMOS checksum invalid” er ror message during POST?
A: If you get the above error mess age or “Invalid conf iguration, run Setu p” message, it is an indic ation
that the CMOS battery ne eds to be chan ged. Contact you r dealer for a ssistance. Once you ’re replaced
your battery, dont forget to check the Clear CMOS section (see p. 41 ) so that you reset your CMOS.
* If your chassis supports frontside USB connectors, it will usually come with the necessary cables.
Check that your chassis is frontside USB capable. Please check with your chassis vendor for details.
Thunder i840 S2520
25
Page 26
Chapter 3: BIOS Setup
Introduction to the BIOS setup
The BIOS is the basic input/output system, required by the computer to perform functions such as CPU
and hard drive support. This chapter describes different settings for AMIBIOS that can be used to configure your system.
The BIOS section of the manual is subject to change without notice and is provided here for reference purposes only. The settings and configurations of the BIOS are current at the time of print,
and therefore they may not be exactly the same as that displayed on your screen.
The manual describes the AMIBIOS setup program. The setup program lets you modify basic configuration settings. The settings are then stored in a dedicated battery-backed memory, called NVRAM, that
retains the information when the power is turned off.
The AMIBIOS in your computer is a customized version of an industry-standard BIOS for IBM PC
AT-compatible personal computers. It supports Intel x86 and compatible processors. The BIOS
provides critical low-level support for the system central processing, memory, and I/O subsystems.
The BIOS has been customized by adding important, but non-standard, features such as virus and
password protection, power mangement, and detailed fine-tuning of the chipset controlling the
system. The rest of this manual is intended to guide you through the process of configuring your
system using the AMIBIOS setup program.
Starting Setup
The BIOS is immediately activated when you first turn on the computer. The BIOS reads system configuration information in CMOS RAM and begins the process of checking out the system and configuring it
through the Power-On Self Test (POST).
When these preliminaries are finished, the BIOS seeks an operating system on one of the data storage
devices (HDD, FDD, etc.) and if one is found, the BIOS will launch that operating system and hand control
of system operations to it. During POST, you can start the setup program by pressing the [DEL] key when
the “Press DEL key to enter BIOS setup” message appears on the screen.
26
http://www.tyan.com
Page 27
Setup Keys
The table below shows how to navigate in the setup program using the keyboard.
Key Function
Tab
Left/Right Arrow Keys
Up/Down Arrow Keys Move between selections
Enter
PgUp/PgDn Keys
Getting Help
Press [F1] to display a small help win dow that describ es the appropr iate keys to use and the possib le
selections for the highlighted item. To exit the Help Window press [ESC] or the [F1] key aga in.
In Case of Problems
If you discover that you have trouble booting the com puter after making and saving changes with the
BIOS setup program, you can restart the computer by either:
Pressing [CTRL]+[ALT]+[DEL] (all three keys at the same time)
Holding the power button down until the computer shuts off
The best advice is to alte r only sett ings th at you th oroughl y under stand. I n particu lar, do not change settings in the Chipset scr een un less you ab solutely sure that you ne ed to. Th e C hipse t d efa ults w ere ca refully chosen by AMI or your system manufacturer for the best performance and reliability. Even a
seemingly small change to the Chipset setup may cause the system to become unstable.
Moves from one selection to the next
Change from one menu to the next
Opens highlighted section
Change setting
BIOS
Setup V ariations
Not all systems have the same setup program. While th e basic look and functio n of the setup program
remains more or less the same for all sys tem, the ap pearance of you r Setup scree n may differ from the
screens shown here. Each sy stem design and chipset combination requ ire custom configurations. In
addition, the final appearance of the setup program depends on your system designer. You system
designer can decide tha t certain item s should not be available for use r configurati on, and remove t hem
from the BIOS setup program.
Thunder i840 S2520
27
Page 28
3.1 Main Setup
The AMIBIOS allows you to select from several setup functions and two exit choices.
System Date/Time
You can type in the date and time directly, or select the portion of the date or time that you want to modify
and adjust it using the cursor keys. The clock runs on a 24-hour cycle (i.e 1:00 PM is 13:00).
General Help
At any time, you can pres s [F1] to bring up a Gen era l Hel p scre en in ca se yo u wa nt to l ea rn the sho rtcu t
commands. There are two settings you should be aware of (listed below).
Setting Function
Load Failsafe Defaults
Load Optimal Defaults
3.2 Advanced Setup
In the Advanced setup, you can setup your system de vices, boot options, and more. Each option has a
configuration sub-screen (denoted by the symbol).
Main
Setup Warning
Setting items on this screen to incorrect values
may cause the system to malfunction!
Advanced
SuperIO Configuration
IDE Configuration
Floppy Configuration
Boot Settings Configuration
Onboard Device Configuration
Event Log Configuration
If your system is experiencing configuration problems, you can choose
this option to reset all settings.
This will load preset options that are designed for maximum system
performance, but may not work for all computer applications. You
should not use this option if you are experiencing configuration problems.
Chipset
BIOS SETUP UTILITY
PCIPnP
Power
Boot
Select Screen
Select Item
Go to Sub Screen
Enter
General Help
F1
Save and Exit
F10
Exit
ESC
Security
Exit
28
v02.02 (C) Copyright 1985-2000, Americ an Megatrends, Inc.
http://www.tyan.com
Page 29
3.2-A. Configure SuperIO Configuration
In this sub screen you can confi gure the d ifferent hardwar e ports av ailab le, and cha nge the status of the
floppy controller.
Onboard Floppy Controller
Serial Port Address
Serial Port 2 Mode
3.2-B. IDE Configuration
On bootup, the BIOS will auto-detect the existence of IDE devices such as hard drives and CD-ROMs.
You can also check the status of those IDE devices and change other IDE-related options. There are also
configuration sub screens for each IDE device (de noted by the symbol). Depending on what devices
you set up, some options may or may not be available. In m ost cases, the default set tings that appear
when the device is detected by the BIOS will be sufficient. To absolutely sure that your settings are correct, always check the documentation for each device you set up.
Onboard PCI IDE Controller
Hard Disk Protect
ATA(PI) Detect Time Out
ATA(PI) 80Pin Cable Detection
This device handles communication between the floppy drive and
the motherboard. [Default setting is Enabled]
The address of Serial Port 1 can be changed if a hardware conflict
occurs. [Default setting is Normal]
Depending on your needs, the mode of Serial Port 2 can be
altered. [Default is Normal]
The PCI IDE controller is essential for communication between
the IDE devices and the motherboard. [Default setting is Both]
This option disables or enables write protection to the IDE
devices. This option is only effective if the devices are being
accessed through the BIOS. [Default setting is Auto]
The BIOS will spend a preset amount of time to detect any IDE
devices before it continues to the next stage of bootup. The
amount of time can be changed using this option. [Default is 0]
Selects the process that the BIOS will use to detect 80Pin
ATA(PI) cables. [Default is Normal]
BIOS
An explanation of possible options in the IDE configuration sub-screens is shown on the next page.
Thunder i840 S2520
29
Page 30
Type
LBA/Large Mode
The type of IDE device installed can be configured using this
option. [Default setting is Auto for auto-dete ct]
These modules make it possible for the BIOS to take advantage
of the additional space on drives which are larger than 504MB.
This can be auto-detected (when you select Auto for Type), or
you can manually set this mode to Disabled. [Default setting is
Auto]
Block (Multi-sector Transfer)
PIO Mode
DMA Mode
S.M.A.R.T. (Self-Monitoring
Analysis and Repo rt in g Tech-
nology)
32Bit Data Transfer
ARMD Emulation Type
3.2-C. Floppy Configuration
In this configuration sub-scre en you can change op tions for your floppy dr ive(s). If you are unsure what
kind of floppy drive you have, you should consult the documentation that came with your drive, or consult
your vendor.
When set to Auto, the block mode auto-detects the optimal number of block read/writes per section that the drive supports.
[Default is 0]
Programming input/output is a method of transmitting data
between devices that use the system’s CPU as part of the data
path. There are 6 modes: 5 with their own transmission speed
and 1 auto mode. To use modes 3 and 4, you must use an
Enhanced IDE drive. [Default is Auto]
This option secifies the Direct Memory Access mode for the IDE
device. If set to Auto, the BIOS will determine the DMA mode.
[Default is Auto]
This option allows the S.M.A.R.T. protocol to report server system information over a network. [Default is Auto]
If set to On, this option allows for the transmission of 32-bits in
parallel (e.g. at the same time). If set to Off, only 16-bits will be
transmitted in parallel. [Default is Enabled]
Specifies the type of emulation used for a non-disk device
attached as the primary master IDE device. If set to Auto, the
BIOS will determine the emulation type. [Default is Auto]
Floppy A
Floppy B
Diskette Write Protect
Floppy Drive Seek
30
The settings are 360KB 5.25”, 1.2MB 5.25”, 720KB 3.5”, 1.44MB
3.5”, or 2.88MB 3.5”.
The options are the same as listed for Floppy A. [Default setting
is Disabled]
Sets whether or not the drive can be written to. [Default is Dis-
abled]
Sets whether or not the BIOS should check for the drive at
bootup. [Default is Disabled]
http://www.tyan.com
Page 31
3.2-D. Boot Settings Configuration
In the Boot Settings Configurat ion sub-screen, severa l options are available to cha nge how the system
boots up.
Quick Boot
Quiet Boot
AddOn ROM Display Mode
Bootup Num-Lock
Bootup CPU Speed
PS/2 Mouse Support
Typematic R ate Sets how fast the keyboard will accept input. [Default is Fast]
System Keyboard
Primary Display
Parity Check
When Enabled, the BIOS will save time during bootup by skipping certain items. [Default is Enabled]
When Disabled, the normal POST messages are displayed.
[Default setting is Disabled]
Specifies the system display mode that is set at the time that
AMIBIOS post initializes an optional ROM. If set to Force BIOS,
the current mode used by AMIBIOS is used. If set to Keep Current, the current display mode is used. [Defau lt is FORCEBIOS]
Sets whether or not the NumLock key should be turned on at
bootup. [Default is On]
Sets the initial CPU speed to high or low at bootup. [Defau lt is
High]
Sets whether or not the PS/2 ports should support a mouse
device. If set to Enabled, IRQ12 will be reserved for the mouse
device. [Default is Enabled]
Sets whether or not the keyboard exists. [Default is Present]
Sets the type of monitor that is being used. [Default is VGA/
EGA]
Sets whether or not the memory will be checked for parity.
[Default is Disabled]
BIOS
Boot to OS/2
Wait for ‘F1’ if error
Hit ‘DEL’ Message Display
Internal Cache
System BIOS Cacheable
Thunder i840 S2520
Set this option to ‘Yes’ if you are using OS/2 and are using more
than 64MB of system memory. [Default is No]
If an error occurs during bootup, the BIOS will ask the user to
press ‘F1’ to enter the BIOS Setup Utility to repair the problem.
[Default is Enabled]
If Enabled, the BIOS will display an option to enter the BIOS
Setup Utility at bootup. [Default is Enabled]
Sets the type of caching algorithm that will be used for the L1
internal cache memory. [Default is Write-Back]
Sets the type of caching algorithm that will be used for the L2
external cache memory. [Default is Enabled]
31
Page 32
3.2-E. Onboard Device Configuration
In this sub-screen, you can enable or disable certain devices as your needs require.
Onboard SCSI
Onboard SCSI Option ROM
3.2-F. Event Log Configuration
In this sub-screen you can access the log that is created when bootup errors occur. This log will help you
troubleshoot any configu rati on probl ems you might exp erience . The st atus of th e Even t Log i s shown on
the top half of the screen.
Event Logging
ECC Event Logging
Clear All Event Logs
View Event Log Shows you the Event Log.
Mark All Events As Read
Enable or disable the integrated SCSI controller. [Default setting
is Enabled]
Allow for optional ROM features. [Default is Enabled]
If set to Enabled, bootup error events will be logged. [Default is
Enabled]
If set to Enabled, ECC events will be logged. [Default setting is
Disabled]
If set to Yes, the event log will be cleared on saving of BIOS
settings followed by reboot. [Defaul t is No]
By using this option, the events in the Event Log can be
organized to help troubleshoot configuration problems.
32
http://www.tyan.com
Page 33
3.3 Chipset Setup
The Chipset Setup is for advanced configuration of the motherboard attributes.
Processor Serial Number Reserved function. [Default is Disabled]
C000 - C400, 16k Shadow
C800 - DC00, 16k Shadow [Default is Disabled]
Act to Deact [Default is 6Clks]
Act to Read/Write [Default is 3Clks]
RAS Precharge Time
RA Cycle Time [Default is 10Clks]
Write to Deact [Default is 3Clks]
Specifies how the 16k of video ROM is treated at the listed
address.
Disabled: contents of video ROM are not copied to RAM
Enabled: contents of video ROM at listed address segment is
copied (shadowed) from ROM to RAM for faster execution.
Cached/WP: contents of video ROM from listed address seg-
ment are copied from ROM to RAM and can be written to or read
from cache memory.
[Default is Cached]
Sets length of RAS precharge part of DRAM system memory
access cycle when SDRAM system memory is installed. [Default
is 3Clks]
BIOS
SDRAM CAS Latency [Default is CAS Latency 3]
ISA IO Cycle Delay [Default is 1.5 Bclk]
MPS 1.4 Support [Default is Enabled]
Thunder i840 S2520
33
Page 34
3.3-A. [MCH]
RAMBUS
Graphics
Search for MDA Resources
Memory Hole Enable or disable memory hole. [Default is Disabled]
Memory ECC Mode Engage memory’s ECC capabilities. [Default is Disabled]
3.3-B. [ICH]
CPU Frequency
LPC 4Eh-4Fh Decode
LPC 2Eh-2Fh Decode
ICH Positive Decode Reserved function. [Default is Disabled]
ICH Dev31 Func3 Enable Reserved function. [Default is Enabled]
ICH Dev31 Func5 Enable Reserved function. [Default is Enabled]
ICH Dev31 Func6 Enable Reserved function. [Default is Enabled]
Sets clock speed of Rambus memory. [Default is 400 MHz]
Sets memory aperture for onboard graphics. [Default is 64MB]
Reserved memory function. [Default is Yes]
Sets CPU frequency ratio. [Default is 1:2]
Reserved function. [Default is Enabled]
Reserved function. [Default is Enabled]
CPU BIST Enable Reserved function. [Default is Disabled]
ICH DCB Enable Reserved function. [Default is Disabled]
DMA-0... 7 Set DMA status. [Default is LPCDMA]
PC/PCIB Select Enable Reserved function. [Default is Disabled]
BIOS Write Protect Enable or disable BIOS write access. [Default is Disabled]
3.3-C. Multi-Processor Support Options
ICH IOAPIC
P64H IOAPIC
APIC Operation in ACPI
34
Reserved function. [Default is Disabled]
Reserved function. [Default is Disabled]
Reserved function. [Default is Disabled]
http://www.tyan.com
Page 35
3.4 PCI/PnP Menu
The PCI/PnP Setup lets you configure the onboard PCI Plug-n-Play (PnP) devices available.
Plug & Play O/S Indicates if you are using a PnP O/S. [Default is No]
Reset Config Data
PCI Latency Timer
Allocate IRQ to PCI VGA
Palette Snooping
PCI IDE Bus Master
Offboard PCI/ISA IDE Card
USB Function
Legacy USB Support
IRQ (3,4,5,7,9,10,11,14,15)
DMA Channel (0,1,3,5,7)
Reserved Memory Size
If set to Yes, PCI/PnP data will be stored in Flash on next boot.
[Default setting is No]
Specifies latency timings for PCI devices. [Default is 64]
Informs PCI devices that an ISA graphics device is installed in
the system so the card will function correctly. [Default is Yes]
If set to Enabled, multiple VGA devices operating on different
buses can handle data from the CPU on each set of palette registers on every video device. [Default is Disabled]
Specifies that the IDE controller on the PCI bus has bus mastering capability. [Default is Disabled]
Specifies if an offboard PCI or ISA IDE controller car d is
installed. [Default is Auto]
Enables USB. [Default is Disabled]
Enables legacy USB device support. [Default is Disabled]
Allows listed IRQ to be used by PCI/PnP devices. [Default is
Available]
Allows listed DMA to be used by PCI/PnP devices. [Default is
Available]
Specifies size of memory area reserved for legacy ISA adapter
cards. [Default is Disabled]
BIOS
Thunder i840 S2520
35
Page 36
3.5 Power Menu
The Power Setup lets you configure how the BIOS handles power management.
Power Management Enables Power functions on this screen. [Default is Disabled]
Power Button Mode
Sleep Button Enable
Green PC Monitor Power State
Video Power Down
Hard Disk Power Down Mode
Inactivity Timer
Suspend Time Out (Minutes)
IRQ (3,4,5,7,9,10,11,14,15)
USB Controller Resume
PME Resume
RI Resume
Changes how the power button will function. [Default setting is
On/Off]
Changes the function of the sleep button. [Default is Suspend]
Changes option for the Green PC compatible monitors. [Default
is StandBy]
Changes the event that occurs when the video powers down.
[Default is Suspend]
Changes the event that occurs when the HDD powers down.
[Default is Disabled]
Changes the amount of time the BIOS will wait before activating
system power functions as set by the user. [Default is Off]
Changes the amount of time the BIOS will wait before activating
the suspend mode. [Default is Off]
Changes how the BIOS will treat each IRQ in terms of power
management.
Changes how the BIOS will handle the USB controller power
function. [Default is Disabled]
Changes the PME power function. [Default is Disabled]
Changes the RI power function. [Default is Disabled]
36
http://www.tyan.com
Page 37
3.6 Boot Menu
The Boot Setup lets you configure options set for each device during boot. The options available will
depend on what devices you have installed in your computer.
Boot Device Priority Sets the order of devices that BIOS will attempt to boot from.
Hard Disk Drives
Removeable Drives
ATAPI CDROM Drives
3.7 Securi ty Menu
The Security Setup lets you configure security options such as passwords and boot sector virus protection. The status of the Supervisor and User Passwords are shown at the top, and options can be set
through the rest of the configuration sub-screen.
Change Supervisor Password Install or change the password.
Change User Password
Clear User Password
Boot Sector Virus Protection Protect against boot sector viruses. [Default is Disabled]
A password screen (such as the example screen below) will appear when you select one of the Change
Password functions. To set a password, enter a unique set of 6 letters and/or numbers.
Shows the available HDDs and allows changes to the order in
which each in booted (e.g. which boot firsts, second, and so on).
Shows the available removable drives and allows changes to
the order in which each in booted (e.g. which boot firsts, second,
and so on).
Shows the available CD-ROM drives and allows changes to the
order in which each in booted (e.g. which boot firsts, second,
and so on).
Install or change the password.
Immediately clears the User password.
BIOS
Enter New Password:
3.8 Exit Menu
Before you exit the BIOS, a set of options will be presented to you.
Exit Saving Changes Save changes and exit setup.
Exit Discarding Changes
Load Optimal Defaults
Load Failsafe Defaults Lo ad fail saf e setting s. Note: May not work with all applica-
Discard Changes Disregard all changes you made.
Do not save changes and exit setup.
Load optimal settings. Note: May not work with all applica-
tions.
tions.
Thunder i840 S2520
37
Page 38
Chapter 4: System Resources
First things to check when theres an error: memory, video, and CPU. Since this board has built-in
video, you will only need to check memory and CPU if there is a problem.
4.1 Beep Codes
Fatal errors, which halt the boot process, are communicated through a series of audible beeps. If AMIBIOS POST can initialize the system video display, it displays the error message. Displayed error messages, in most cases, allow the system to continue to boot. Displayed error messages are described on
p. 39-41. See below for the beep code explanations.
Troubleshooting System Problems
If the computer beeps... then...
5 times...*
6 times...*
4.2 Displayed Error Messages
If an error occurs after the system display has been initialized, the error message will be displayed in the
following format:
and the system will halt. The system will not half of the “Wait for <F1> If Any Error” option in Advanced
Setup is set to Disabled.
may also appear. Press [F1] to run WINBIOS Setup if this message appears.
re-seat the memory. If the system still beeps, replace the memory.
try a different keyboard. If the error occurs again, return the board to your
dealer for a replacement.
ERROR Message Line 1
ERROR Message Line 2
Press <F1> to continue
RUN SETUP UTILITY
* beep codes subject to change without notice
38
http://www.tyan.com
Page 39
The table below can be used to troubleshoot error messages.
Error Message Possible Reason For Error Possible Solution
8042 Gate-A20 Error Gate A20 on the keyboard controller
Address Line Short!
C: Drive Error
C: Drive Failure No response from hard disk drive C:
Cache Memory Bad, Do
Not Enable Cache!
CH-2 Timer Error An AT system has two timers. There is
CMOS Battery State Low CMOS RAM is powered by a battery.
CMOS Checksum Failure
CMOS System Opt ions Not
CMOS Display Type Mis-
CMOS Memory Size Mis-
Set
match
match
(8042) is not working.
Error in the address decoding circuitry.
No response from drive C:
Cache memory is defective.
an error in timer 2.
This error message indicates low battery
power.
CMOS RAM checksum is different than
the previous value.
The values stored in the CMOS RAM
have been destroyed.
The video type set in CMOS RAM does
not match the type detected.
The amount of memory found by AMIBIOS is different than the amount in
CMOS RAM.
Replace the 8042
Return the board to dealer
for a repla cement.
Check the C: hard disk type
in CMOS Setup.
Replace the drive
Return the board to dealer
for a repla cement.
Return the board to dealer
for a repla cement.
Replace the battery
Run CMOS Setup
Run CMOS Setup
Run CMOS Setup
Run CMOS Setup
SYSTEM
CMOS Time and Date Not
Display Switch Not Proper Some systems require a video switch to
Set
D: Drive Error No response from drive D:
D: Drive Failure No response from drive D:
Diskette Boot Failure The boot diskette in drive A: cannot be
The date and time need to be set.
used to boot the system.
be set to either color or monochrome.
Thunder i840 S2520
Run CMOS Setup
Check the hard disk type in
CMOS Setup
Check the hard disk type in
CMOS Setup
Use another boot disk
Turn system off, set switch
properly, then power back on
39
Page 40
Error Message Possible Reason For Error Possible Solution
DMA Error Error in the DMA controller.
DMA 1 Error Error in first DMA channel.
DMA 2 Error Error in second DMA channel.
FDD Controller Failure AMIBIOS cannot communicate with the
HDD Controller Failure
INTR1 Error
INTR2 Error
Invalid Boot Diskette
Keyboard is locked...
Unlock it
floppy disk drive controller.
AMBIOS cannot communicate with the
hard disk drive controller.
Interrupt channel 1 fai led POST.
Interrupt channel 2 fai led POST.
AMIBIOS can read the diskette in floppy
drive A:, but it cannot boot the system
with it.
The keyboard lock on the system is
engaged.
Return the board to dealer
for a repla cement.
Return the board to dealer
for a repla cement.
Return the board to dealer
for a repla cement.
Check all appropriate con-
nections after the system is
powered down.
Check all appropriate con-
nections after the system is
powered down.
Return the board to dealer
for a repla cement.
Return the board to dealer
for a repla cement.
Use another boot disk
The system must be
unlocked to continue the
boot sequence
Keyboard Error
KB/Interface Error
No ROM BASIC
Off Board Parity Error Check memory in adapter
40
The keyboard has a timing problem. Make sure a keyboard con-
There is an error in the keyboard connector.
Cannot find a proper bootable sector on
either drive A: or C:.
Parity error in memory installed on an
adapter card in an expansion slot.
The format is:
OFF BOARD PARITY ERROR ADDR =
(XXXX)
XXXX is the hex address where the error
occurred.
troller is installed. Set Key-
board in Advanced Setup to
Not Installed to skip the key-
board POST routines.
Check the keyboard connec-
tor when the system has
powered down
Check the disks for boot files
card
http://www.tyan.com
Page 41
Error Message Possible Reason For Error Possible Solution
On Board Parity Error
Parity Error ????
4.3 Flash Utility
Every BIOS file is unique for the motherboard it was designed for. For Flash Utilities, BIOS downloads,
and information on how to properly use the Flash Utility with your motherboard, you must check the Tyan
website: http://www.tyan.com
Please be aware that by flash ing your BIOS, you a gree that in the eve nt of a BIOS
flash failure, you must contact your dealer fo r a replacement BIOS. T here are no
NOTE:
exceptions. Tyan does not have a policy of replacing B IOS chips directly with end
users. In no event will Tyan be held responsible for damage done to the BIOS by the
end user.
Parity error in motherboard memory.
The format is:
OFF BOARD PARITY ERROR ADDR =
(XXXX)
XXXX is the hex address where the error
occurred.
Parity error in system memory at an
unknown address.
Check memory onboard
Reseat memory; if error
occurs again change mem-
ory
SYSTEM
Thunder i840 S2520
41
Page 42
Appendix I: SCSI Installation and LAN Information
Introduction
The Adaptec 7899W enables you to connect up to 30 SCSI devices—such as very large arrays of highperformance HDDs, external storage subsystems, clustered configurations, Ultra160 hard disk drives,
scanners, and CD-ROM drives.
The Adaptec 7899W can support up to two independent SCSI channels, each with a maximum throughput of 160 MBytes/sec. SCSI Channel A (marked* either as “CH 1” or “CH A” on the board) has one internal connector. SCSI Channel B (marked* either as “CH 2” or “CH B” on the board) has one internal
connector.
You can connect Ultra160 and Ultra2 SCSI devices to the 68-pin Low Voltage Differential/Single-Ended
(LVD/SE) connectors on both SCSI channels. Or you can operate the newer Ultra160 and Ultra2 devices
at their maximum speed on Channel B while at the same time using legacy SCSI devices on Channel A.
This installation guide explains how to
• Set up SCSI devices
• Connect SCSI devices
Support for Older SCSI Devices
We recommend that if you have single-ended Ultra SCSI and earlier SCSI devices you connect them to
Channel A of the Adaptec 7899W SCSI and that you connect newer Ultra2 and Ultra160 SCSI devices to
Channel B. This allows the Adaptec 7899W to support newer Ultra160 and Ultra2 SCSI devices at speeds
up to 160 MBytes/sec while at the same time supporting Ultra (legacy) devices at speeds up to 40
MBytes/sec. It also allows you to use longer cable lengths for the newer SCSI devices.
If you connect Wide Ultra/Ultra SCSI devices to the same SCSI channel as
Ultra160 and Ultra2 SCS I devices, the data transfer rate for the Ultra160 and
NOTE:
Setting up SCSI devices
There are several things you may need to do to your SCSI devices before you connect them to the
Adaptec 7899W SCSI:
• Check the SCSI IDs
• Set the termination
• Connect the power cables
* subject to change without notice
42
Ultra2 SCSI devices will drop to Ultra SCSI per formance leve ls. To achieve maximum data transfer rate s for the ne wer SCSI de vices, be sure to conne ct them on
their own SCSI channel.
http://www.tyan.com
Page 43
Since setup can vary from device to device, always refer to the device’s documentation for specific
instructions. Below are some guidelines for setting SCSI IDs and termination on your devices.
Check the SCSI IDs
The Adaptec 7899W and each device you connect to it must have a unique SCSI ID number ranging from
0 to 15 on each channel. No two devices on the same SCSI channel can have the same SCSI ID.
The Adaptec 7899W is preset to ID 7 for each channel and should not be changed. If you boot from a
SCSI hard disk, make sure the hard disk SCSI ID is set to 0. (Most SCSI hard disks are preset to SCSI ID
0 at the factory.) The SCSI IDs for internal devices are usually set with jumpers; SCSI IDs for external
devices are usually set with a switch on the back of the device.
Terminate the Ends
To ensure reliable communication on the SCSI bus, the device at the end of each cable, or the end of the
cable itself, must have a terminator installed (or enabled). Terminators must be removed, or termination
must be disabled, on devices between the ends of each cable.
When connecting Ultra160 or Ultra2 SCSI devices, the SCSI bus must be terminated either on the end of the cable (w ith a pe rma ne nt ter mi na tor ) or with a separate terminating connector. Ultra SCSI and earlier single-ended devices can
NOTE:
terminate the bus directly from th e device. If y ou use an Ultra SC SI termi nator on
an LVD Ultra160 and Ultra2 SCSI bus you will force the bus to Single-ended
mode, limiting the spee d and cable distance. For this reason b e sure that you
have the necessary Ultra160 or Ultra2 cable or terminator befo re installing the
Ultra160 SCSI devices.
Connecting SCSI Devices
You can connect a total of 30 SCSI devices to the Adaptec 7899W,with up to 15 devices on each SCSI
channel. Before connecting devices, be sure to review Setting up SCSI Devices on p. 42.
Connecting Internal Ultra160 and Ultra2 Devices
A special 68-pin internal LVD cable is needed to connect internal Ultra160 or Ultra2 SCSI devices. If your
cables are not marked, you can identify most LVD cables as having twisted pairs of the flat ribbon cable
between the device connectors. Some cables are laminated so that they lay flat. Internal LVD cables usually have a terminator built into the end of the cable.
The Adaptec 7899W has two separate Ultra160 SCSI channels, as shown on the board map on p. 11.
Each channel has an internal LVD/SE connector to which you can connect internal SCSI devices. Follow
these steps to connect your internal Ultra160 and Ultra2 devices:
Thunder i840 S2520
43
SCSI & LAN
Page 44

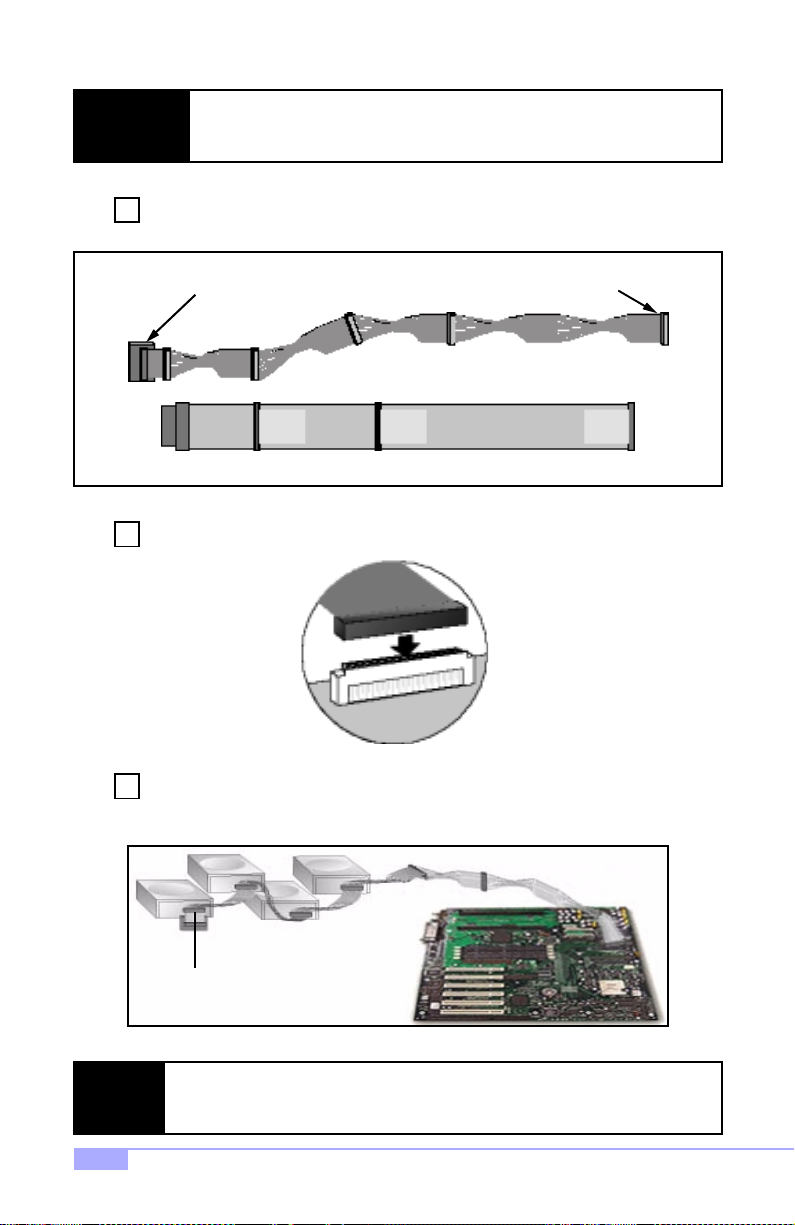

NOTE:
We recommend that yo u k eep your Ultra160 a nd Ul tr a2 SC SI d evi ce s o n a se parate SCSI channel from your Ultra SCSI devices. This allows the newer Ultra160
and Ultra2 SCSI devices to transfer data at their maximum speed.
Step
Step
Step
Locate a 68-pin internal LVD SCSI cable, which may have either twisted wires or flat wires,
1
as shown here.
Terminated end
Plug the non-terminated end of the cable(s) to the LVD/SE SCSI connector(s) (shown below).
2
Plug the internal Ultra160 and Ultra2 SCSI devices to the other cable connectors, starting
3
with the co nnector at the terminated end of the cable (note: example installation belo w may
not identically represent installation).
Non-terminated end
NOTE:
44
Terminator device
Internal Ultra160 SCSI peripherals come from the factory without termination. Proper
termination is pro vided by the built-in termina tor at the end of the Ult ra160 internal
SCSI cable.
http://www.tyan.com
Page 45
Step
Connecting Wide SCSI Devices
You can connect Wide SCSI devices to the internal LVD/SE connectors. If you do this, we recommend
that you connect them to the SCSI Channel A LVD/SE connector and that you connect all Ultra160 and
Ultra2 devices to the SCSI Channel B connector. Follow these steps to connect Wide SCSI devices:
Connect a power cable from your computer’s internal power supply to ea ch internal SCS I
4
device.
Step
Step
Step
Step
Locate a 68-pin internal Wide SCSI cable.
1
Plug one end of the cable to one of the SCSI connectors.
2
Plug the other end of the cable to a terminated Ultra/Fast Wide SCSI device.
3
If you have other Ultra/Fast Wide SCSI devices, attach them to the connectors between the
4
two ends of the cable. Be sure these other devices are unterminated.
SCSI & LAN
Step
Connect a power cable from your computer’s internal power supply to ea ch internal device.
5
Thunder i840 S2520
45
Page 46
More information about termination
The last SCSI device on the end of each SCSI bus cable must be terminated, and termination must be
disabled for all other devices in the middle of the cables. Ultra160 and Ultra2 SCSI devices are automatically un-terminated, but Ultra SCSI and Fast/Wide SCSI devices do have termination that you must
check. For more information, refer to the documentation for each SCSI device. If you are using external
Ultra2 or Ultra160 devices, be sure to use an LVD terminator to terminate the last device in the chain. If
you use a single-ended, active terminator (sometimes called an Ultra terminator) the SCSI devices will
not operate at their maximum speed.
If you have any problems while setting up SCSI devices, check the following items first:
• Are all SCSI devices powered on?
• Are all SCSI cables and power cables properly connected?
• Does each device on each SCSI bus have a unique SCSI ID?
• Does the total SCSI cable length exceed the maximum allowable length? (See table below.)
• Is the SCSI bus properly terminated?
If you are still unable to resolve a problem, contact your vendor for help.
Maximum Cable Lengths
Data Transfer RateMaximum Cable Length
25 m (82.0 ft)
12 m (39.4 ft)
3 m (9.8 ft)
3 m (9.8 ft)
3 m (9.8 ft)
1.5 m (4.9 ft)
* Mixing Fast/Ultra devices with Ultra160 and Ultra2 SCSI devices causes the entire SCSI bus to default
to Ultra SCSI speeds and cable length requirements.
** Ultra SCSI data transfer rates do not currently support more than seven devices connected to the
SCSI card.
Ultra160 SCSI (160 MBytes/sec)
and Ultra2 SCSI (80 MBytes/sec)
Ultra160 SCSI (160 MBytes/sec)*
and Ultra2 SCSI (80 MBytes/sec)
Fast Wide SCSI (20 MBytes/sec)
Ultra SCSI (40 MByes/sec for 16-
bit, 20 MBytes/sec for 8-bit)
Ultra SCSI (40 MByes/sec for 16-
bit, 20 MBytes/sec for 8-bit)
Maximum Devices Supported
1
15
15
7Fast SCSI (10 MBytes/sec)
4
5-7**
46
http://www.tyan.com
Page 47
Configuring the Adaptec 7899W SCSI with SCSISelect
SCSISelect enables you to change SCSI settings without opening the computer or handling the card.
SCSISelect also enables you to low-level format or verify the disk media of your SCSI hard disk drives.
The following table lists the available and default settings for each SCSISelect option. The settings that
are marked as “Auto-sync” are automatically synchronized for both SCSI channels—for example, if you
change the Boot Channel option to B First on Channel A, the change will apply to Channel B as well. All
other options can be set separately for each of the two SCSI channels.
The default settings are appropriate for most systems and should not be changed. Run SCSISelect if you
need to change or view current settings, or if you need to use the SCSI disk utilities.
SCSISelect Options Available Settings Default Setting
SCSI Bus Interface Definitions:
Host Adapter SCSI ID 0-15 7
SCSI Parity Checking Enabled
Host Adapter SCSI Termination: Ch. A
Ch. B
Boot Device Options:
Boot Channel [Auto-sync] A First, B First A First
Boot SCSI ID 0-15 0
Boot LUN Number
SCSI Device Co nfiguration:
Sync Transfer Rate (MBytes/sec) 160, 80.0, 53.4, 40.0,
Initiate Wide Negotiation Yes, No Yes (Enabled)
Enable Disconnection Yes, No Yes (Enabled)
Send Start Unit Command Yes, No Yes (Enabled)
Enable Write Back Cache
BIOS Multiple LUN Support
Include in BIOS Scan
Advanced Configuration Options:
Reset SCSI Bus at IC Initialization Enabled, Disabled Enabled
Display <Ctrl> <A> Messages during BIOS Initial-
ization
[Auto-sync]
Extended BIOS Translation for
DOS Drives > 1 GByte
Verbose/Silent Mode [Auto-sync] Verbose, Silent Verbose
a
b
b
b
Disabled
Automatic
Low On/High On
Low Off/High Off
Low Off/High On
Automatic, Enabled, Disabled
0-7 0
32.0, 26.8, 20.0, 16.0,
13.4, 10.0, ASYN
Yes, No,
N/C (No Change)
Yes, No No (Disabled)
Yes, No Yes (Enabled)
Enabled, Disabled Enabled
Enabled, Disabled Enabled
Enabled
Automatic
Automatic
160
N/C (No Change)
SCSI & LAN
Thunder i840 S2520
47
Page 48
SCSISelect Options Available Settings Default Setting
Host Adapter BIOS [Auto-sync] Enabled
b
Domain Validation
Support Removable Disks Under BIOS as Fixed
b
Disks
BIOS Support for Bootable CD-ROM
BIOS Support for Int 13 Extensions
a.Setting is valid only if Multiple LUN Support is enabled.
b.Settings are valid only if host adapter BIOS is enabled.
Follow these steps to start SCSISelect:
[Auto-sync] Enabled, Disabled Enabled
b
b
Disabled: Scan Bus Disabled: Not Scan
Disabled,
Boot Only,
All Disks
Enabled, Disabled Enabled
Enabled, Disabled Enabled
Enabled
Disabled
Step
Step
Step
Step
Exiting SCSISelect
Follow these steps to exit SCSISelect:
Step
Turn on or restart your system.
1
During the startup process, pay careful attention to the messages that appear on your
2
screen.
When the following message appears on your screen, press the [Ctrl]+[A] keys simultaneously (this message appears for only a few seconds):
Press <Ctrl><A> for SCSISelect (TM) Utility!
Select SCSI Channel A or B. Most SCSISelect options can be set separately for each SCSI
3
channel.
From the menu that appears, use the arrow keys to move the cursor to the option you want to
4
select, then press [Enter].
Note: If you have difficulty viewing the display, press F5 to toggle between color and monochrome modes. (This feature may not work on some monitors.)
Press Esc until a message prompts you to exit (if you changed any settings, you are
1
prompted to save the changes before you exit).
Step
48
At the prompt, select Yes to exit, then press any key to reboot the computer. Any changes
2
you made in SCSISelect take effect after the computer boots.
http://www.tyan.com
Page 49
Using SCSISelect Settings
To select an option, use the arrow keys to move the cursor to the option, then press [Enter].
In some cases, selecting an option displays another menu. You can return to the previous menu at any
time by pressing [Esc].
To restore the original SCSISelect default values, press [F6] from the main SCSISelect screen.
SCSI Bus Interface Definitions
• Host Adapter SCSI ID—(Default: 7) Sets the SCSI ID for the SCSI controller. The Adaptec 7899W
is set at 7, which gives it the highest priority on the SCSI bus. We recommend that you do not
change this setting.
• SCSI Parity Checking—(Default: Enabled) When set to Enabled, verifies the accuracy of data
transfer on the SCSI bus. Leave this setting enabled unless any SCSI device connected to the
Adaptec 7899W does not support SCSI parity.
• Host Adapter SCSI Termination—(Default: Automatic) Determines the termination setting for the
SCSI controller. The default setting is Automatic, which allows the SCSI controller to adjust the termination as needed depending on the configuration of the connected SCSI devices. We recommend that you do not change this setting.
Boot Device Options
• Boot Channel—(Default: A First) Specifies which of the two SCSI channels the boot device is con-
nected to (if the computer boots from a SCSI device). If you change this setting, the change automatically applies to both SCSI channels.
• Boot SCSI ID—(Default: 0) Specifies the SCSI ID of your boot device. We recommend that you do
not change the default setting.
• Boot LUN Number—(Default: 0) Specifies which LUN (Logical Unit Number) to boot from on your
boot device. This setting is not valid unless Multiple LUN Support is Enabled
SCSI Device Configuration Options
SCSI Device Configuration options can be set individually for each connected SCSI device.
Note: To configure settings for a SCSI device, you must know its SCSI ID.
• Sync Transfer Rate—(Default: 160) Determines the maximum synchronous data transfer rate that
the SCSI controller supports. We recommend that you leave the maximum (default) value of 160
MBytes/sec.
• Initiate Wide Nego ti ati on—(Default: Yes) When set to Yes, the SCSI controller attempts 16-bit
data transfer (wide negotiation). When set to No, the SCSI controller uses 8-bit data transfer unless
the SCSI device requests wide negotiation.
Note: Set Initiate Wide Negotiation to No if you are using an 8-bit SCSI device that
hangs or exhibits other performance problems with 16-bit data transfer rate enabled.
• Enable Disconnection—(Default: Yes) When set to Yes, allows the SCSI device to disconnect
from the SCSI bus. Leave the setting at Yes if two or more SCSI devices are connected to the SCSI
chip. If only one SCSI device is connected, changing the setting to No results in slightly better performance.
• Send Start Unit Command—(Default: Yes) When set to Yes, the Start Unit Command is sent to
the SCSI device at bootup.
Thunder i840 S2520
49
SCSI & LAN
Page 50
The following three options have no effect if the SCSI BIOS is disabled. (The SCSI BIOS is normally
enabled by default.)
• Enable Write Back Cache—(Default: N/C) Can be used to enable or disable the write-back cache
on SCSI disk drives connected to the host adapter. Leave this option at its default setting of N/C (no
change), which usually allows for optimum drive performance.
• BIOS Multiple LUN Support—(Default: No) Leave this setting at No if the device does not have
multiple Logical Unit Numbers (LUNs). When set to Yes, the SCSI controller BIOS provides boot
support for a SCSI device with multiple LUNs (for example, a CD “juke box” device in which multiple
CDs can be accessed simultaneously).
• Include in BIOS Scan—(Default: Yes) When set to Yes, the SCSI controller BIOS includes the
device as part of its BIOS scan at bootup.
Advanced Configuration Options
Note: Do not change the Advanced Configuration Options unless absolutely necessary.
• Reset SCSI Bus at IC Initialization—(Default: Enabled) When set to Enabled, the SCSI controller
generates a SCSI bus reset during its power-on initialization and after a hard reset.
• Display <Ctrl> <A> Messages during BIOS Initialization—(Default: Enabled) When set to
Enabled, the SCSI BIOS displays the Press <Ctrl> <A> for SCSISelect (TM) Utility! message on
your screen during system bootup. If this setting is disabled, you can still invoke the SCSISelect utility by pressing <Ctrl> <A> after the SCSI BIOS banner appears. If you change this setting, the
change automatically applies to both SCSI channels.
• Extended BIOS Translation for DOS Drives > 1 GByte—(Default: Enabled) When set to
Enabled, provides an extended translation scheme for SCSI hard disks with capacities greater than
1 GByte. This setting is necessary only for MS-DOS 5.0 or above; it is not required for other operating systems.
Caution: Changing the translation scheme destroys all data on the drive. Be sure to
back up your disk drives before changing the translation scheme.
Use the MS-DOS Fdisk command to partition a disk larger than 1 GByte controlled by the SCSI
BIOS, when using DOS.
• Verbose/Silent Mode—(Default: Verbose) When set to Verbose, the SCSI BIOS displays the host
adapter model on the screen during system buildup. When set to Silent, the message will not be
displayed during bootup. If you change this setting, the change automatically applies to both SCSI
channels.
• Host Adapter BIOS (Configuration Utility Reserves BIOS Space)—(Default: Enabled) Enables
or disables the SCSI BIOS. If you change this setting, the change automatically applies to both
SCSI channels.
• Leave at Enabled to allow the SCSI BIOS to scan and initialize all SCSI devices at initial bootup.
• Set to Disabled: Not scan if the devices on the SCSI bus (e.g. CD-ROM drives) are controlled by
software drivers and do not need the BIOS, and you do not want the BIOS to scan the SCSI bus.
• Set to Disabled: Scan Bus if you don’t need the BIOS, but want to scan SCSI devices on the bus.
The following four options on the next page have no effect when the SCSI BIOS is disabled. (The SCSI
BIOS is normally enabled by default.)
50
http://www.tyan.com
Page 51
• Domain Validation—(Default: Enabled) Determines what kinds of SCSI devices are connected and
reduces data transfer speed if it detects older legacy SCSI devices. Displays the resulting data
transfer rate. If you change this setting, the change automatically applies to both SCSI channels.
• Support Removable Disks Under BIOS as Fixed Disks—(Default: Disabled) Determines which
removable-media drives are supported by the SCSI controller BIOS. The options are as follows:
- Disabled— No removable media drives are treated as hard disk drives. Software drivers are then
required from the vendor, because the drives themselves are not controlled at all by the BIOS.
NOTE: You may lose data if you remove a removable-media cartridge from a SCSI drive con-
trolled by the SCSI controller BIOS while the drive is on. If you want to be able to remove the
media while the drive is on, install the removable-media software driver and set Support
Removable Disks Under BIOS as Fixed Disks to Disabled.
- Boot Only—Only the removable media drive designated as the boot device is treated as an
HDD
- All Disks—All removable media drives supported by the BIOS are treated as HDDs
- BIOS Support for Bootable CD-ROMs—(Default: Enabled) When set to Enabled the SCSI
controller BIOS allows the computer to boot from a CD-ROM drive.
- BIOS Support for Int 13 Extensions—(Default: Enabled) When set to Enabled, the SCSI
controller BIOS supports Int 13h extensions as required by Plug-and-Play. The setting can
be either enabled or disabled if your system is not Plug-and-Play
LAN Information
Your motherboard has (1) onboard Intel 82559 LAN controller and (1) ICH2 82562ET LAN controller. LAN
capabilities including 10/100 MBits/s transfer speed. For more information regarding the onboard LAN
controllers, check the Intel website: http://www.intel.com
1

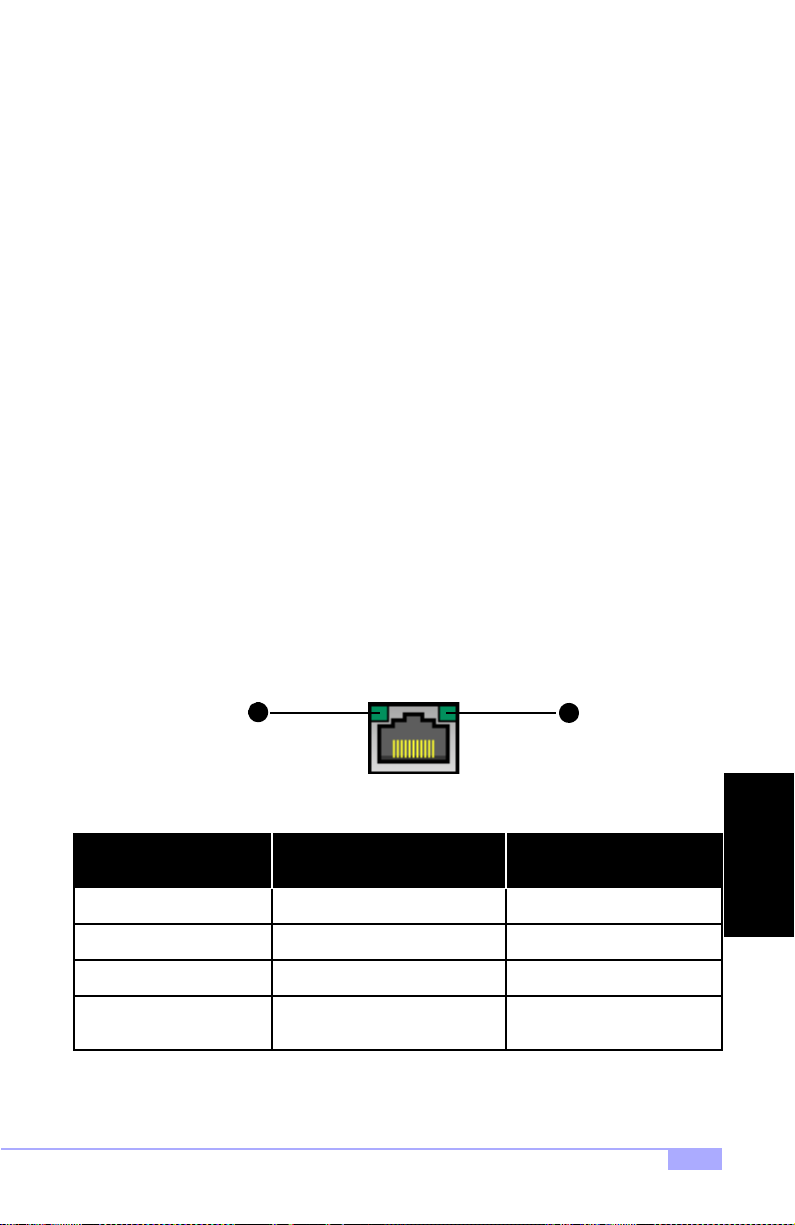

Below are some explanations of what the LEDs mean, and how they display the LAN’s status.
LAN Status
Good connection @ 10 Mbps
Good connection @ 100 Mbps LED (1) is ORANGE ON
No connection
Data being transferred
* Depends on last connection made. For example, if the last connection was 100 Mbps and then the
connection was broken, the light may stay orange.
LED (1) - Orange/Green Light LED (2) - Yellow Light
LED (1) is GREEN
Orange (10Mbps) or
Green (100Mbps)
2
ON
OFFOrange or green*
LED is blinking
Thunder i840 S2520
SCSI & LAN
51
Page 52
Appendix II: Glossary
ACPI (Advanced Configuration an d Power Interface): a pow er m anage ment s pecific ation th at al lows the
operating system to control the amount of power distributed to the computer’s devices. Devices not in use
can be turned off, reducing unnecessary power expenditure.
AGP (A
ccelerated Graphics Port): a PCI-base d inte rfa ce whic h was de sign ed spe ci fical ly for dem and s of
3D graphics applications. Th e 32-bi t AGP chann el directl y links the grap hics con troller to the main memory. While the channel runs at only 66 MHz, it supports data transmission during both the rising and falling
ends of the clock cycle, yielding an effective speed of 133 MHz.
AMR (A
udio Modem Riser) : a mod em tha t can b e used on Intel Refe rence Mothe rboard platfor ms using
Intel’s core logic chipsets supporting AC-link 2.1. It supports fax and all data feedback modes. It provides
high speed communications between your personal computer and a remove lcoation, such as an Internet
Service Provider (ISP).
AT: the original form factor of IBM’s PC.
ATAPI (AT
the disk controller on the dev ice itsel f. It all ows CD -ROMs an d tape dr ives to be co nfigure d as maste r or
slave devices, just like HDDs.
ATX: the form factor designed to repl ace the AT form factor. It improves on the AT design by rotating the
board 90 degrees, so tha t the IDE connecto rs are close r to the drive b ays, and the CPU is closer to the
power supply and cooling fan. The keyboard, mouse, USB, serial, and parallel ports are built-in.
Bandwidth: refers to carrying cap aci ty. The greater the ban dw idt h, th e m ore dat a the bus, phone line, or
other electrical path, can carry. Greater bandwidth, then, also results in greater speed.
BBS (B
center for users to post messages and access information.
BIOS (B
instructions for controlling your computer’s hardware. Both the operating system and application software
use BIOS routines to ensure compatibility.
Buffer: a portion of RAM which is u sed to te mp ora ril y sto re d ata , usu all y fr om an a pplic a tion , tho ugh i t is
also used when printing, and in most keyboard dr ivers. The CPU can manipulat e data in a buffer before
copying it, all at once, to a disk drive. While this improves syst em performance --- readin g to or writing
from a disk drive a single time is much fa ster than doing so repeatedly --- there is also the possi bility of
losing your data should the system cr ash. Inf ormatio n sto re d in a bu ffer is te mp orarily st ore d, n ot p ermanently saved.
Attachment Packet Interface): also known as IDE or ATA; a drive implementation that includes
ulletin Board System): a computer system with a number of modems hooked up to it which acts a
asic Input/Output System): the program that resides in the ROM chip, an d provides the basic
52
http://www.tyan.com
Page 53
Bus: a data pathway. The term is used especially t o refer to the connec tion bet ween the pr ocessor and
system memory, and between the processor and PCI or ISA local buses.
Bus mastering: allows peripheral devices and IDEs to access the system memory without going through
the CPU (similar to DMA channels).
Cache: a temporary storage area for data that will be needed often by an application. Using a cache lowers data access times, since th e ne ed ed i n for mat ion is stored in the SRAM instea d o f in the sl ow DR AM .
Note that the cache is also mu ch sm al le r th an your re gu lar m em or y: a typi ca l cach e size i s 51 2KB , wh ile
you may have as much as 1GB of regular memory.
Cache size: refers to the physical size of the cache onboard. This should not be confused with the cacheable area, which is the total amoun t of m emory wh ich ca n be sc anned by the syste m in se arch of da ta to
put into the cache. A ty pical setup would b e a ca che si ze o f 512KB , an d a ca cheable area of 5 12MB. In
this case, up to 512KB of the main memory onboard is capable of being cached. However, only 512KB of
this memory will be in the cache at any given moment. Any main memory above 512MB could never be
cached.
Closed and open jumpers: jumpers and jumper pins are active when they are “on” or “closed”, and inactive when they are “off” or “open”.
CMOS (C
the BIOS.
COM port: another name fo r t he seri a l po rt, whi ch is ca l led as su ch beca use i t tr an smits the eig ht b i ts o f
a byte of data along one w ire , an d re cei ve s da ta on another single w ire ( tha t i s, th e da ta is t ran smit ted in
serial form, one bit after another) . Parallel ports tran smit the bits of a byte on eight different w ires at the
same time (that is, in parallel form, eight bits at the same time).
DDR (D
and falling edge of the system clock rather than on just the rising edge, potentially doubling output.
DIMM (D
need to be installed in pairs.
DIMM bank: sometim es called DIMM sockets, because the physical slot and th e logical unit are the
same. That is, one DIMM module fits into one DI MM socket, which is capable o f acting as a memory
bank.
DMA (D
(like soundcards or keyboards) to access the main memory without involving the CPU. This frees up CPU
resources for other tasks. As with IRQs, it is vital that you do not double up devices on a single line. Plugn-Play devices will take care of this for you.
Thunder i840 S2520
omplementary Metal-Oxide Semiconductors): chips that hold the basic startup information for
ouble Data Rate): improves RAM speed to at least 200 MHz. It activates output on both the rising
ual In-line Memory Modul e): faster and m ore capacious form of R AM than SIMM s, and do not
irect Memory Access): channels that are similar to IRQs. DMA chann els allow hardware devices
53
GLOSSARY
Page 54
Doze mode: in this mode, only the CPU’s speed is slowed.
DRAM (D
dency to lose data if it is not recharged regularly (every few milliseconds). This refresh requirement
makes DRAM three to ten times slower than non-recharged RAM such as SRAM.
EDO RAM (E
addresses are static; the next time it looks for a bit of data, it will be at the same spot, or one nearby.
EEPROM (E
unlike normal ROM, be upd ated. T his allow s you to keep up with ch anges in th e BIOS pro gram s withou t
having to buy a new chip. Tyan’s BIOS updates can be found at http://www.tyan.com
ESCD (E
in the system BIOS. This information helps properly configure the system each time it boots.
Fault-tolerance: a term describin g a sy stem w her e one com pon ent can qu ick ly be re plac ed w itho ut ca using a loss of service, such as in a RAID system.
Firmware: low-level software that controls the system hardware.
Form factor: an i nd ust ry t erm fo r the size, sh ape , p ow er su ppl y typ e, a nd ext ern al c onn ecto r type of the
Personal Computer Board (PCB) or motherboard. The standard form factors are the AT and ATX,
although Tyan also makes some Baby-AT and ATX Footprint boards.
Global timer: onboard hardware timer, such as the Real-Time Clock (RTC).
ynamic RAM): widely a vailable, very affordable for m of RAM which has t he unfortunate ten-
xtended Data-Out RAM ): speeds access to memory loca tions by assuming that memor y
lectrically Erasable Programmable ROM): also called Flash BIOS, is a ROM chip which can,
xtended System Configuration Data): a format fo r stori ng infor ma tion a bou t P lug- n-Pl a y device s
Handshaking: a form of encryp tion. One system, typically the server, sends an encryption scheme to
another agent, typically a client. Thus, the client’s data is protected during transmittal to the server.
HDD: stands for H
H-SYNC: controls the horizontal synchronization/properties of the monitor.
ntegrate d Circuit): the formal name for the computer chip.
IC (I
ntegrated Device/Drive Electronics): a simple, self-contained HDD interface. It can handle drives up
IDE (I
to 8.4 GB in size. Almost all IDE s sold now are in fact Enhanced IDEs (EIDEs), with maximum capa city
determined by the hardware controller.
IDE INT (IDE Interrupt): a hardware interrupt signal that goes to the IDE.
54
ard Disk Drive, a type of fixed drive.
http://www.tyan.com
Page 55
I/O (Input/Output): the connection between your computer and another piece of hardware (mouse, keyboard, etc.)
IRQ (Interrupt Request): an electronic request that runs from a hardware device to the CPU. The interrupt
controller assigns priorities to incoming requests and delivers them to the CPU. It is important that there is
only one device hooked up t o each IRQ line; d oubling u p devices o n IRQ lin es can lock u p your sys tem.
Plug-n-Play operating systems can take care of these details for you.
ISA (I
ndustry Standard Architecture): a slower 8- or 16-bit bus (data pathway).
Latency: the amount of time that one part of a system spends waiting for another part to catch up. This is
most common when the syste m s end s da ta o ut t o a per iphe ra l device, and it waiting for th e p erip her al to
send some data back (peripherals tend to be slower than onboard system components).
Mirroring: see RAID.
NVRAM: ROM and EEPROM are both examples of Non-Volatile RAM, memory that holds its data without
power. DRAM, in contrast, is volatile.
OEMs (O
riginal Equipm ent Manufacturers): Compaq or IBM package other companies’ mother boards
and hardware inside their case and sell them.
Parallel port: transmits the bits of a byte on eight different wires at the same time (that is, in parallel form,
eight bits at the same time).
PCI (P
eripheral Comp onent Int erconn ect): a 32-b it loc al bus ( data pathw ay) wh ich is faster than the IS A
bus. Local buses are those which operate within a single system (as opposed to a ne twork bus, which
connects multiple systems).
PCI PIO (PCI P
modes use the C PU for dat a transfer ( in contrast, D MA channel s do not). PCI refers to the type of bus
used by these modes to communicate with the CPU.
PCI-to-PCI bridge: allows you to connect multiple PCI devices onto one PCI slot.
Pipeline burst SRAM: a fast secondary cache. It is used as a secondary cache because SRAM is slower
than SDRAM, but usually large r. Data is cached first to the fa ster prim ary cache, and then, when the pr imary cache is full, to the slower secondary cache.
Pipelining: improves system perform ance by allowing the CPU to begin exe cuting a second instru ction
before the first i s com pleted. A pipeline can be l ike ned to an assembly li ne , with a given part of th e p i peline repeatedly executing a set part of an operation on a series of instructions.
Thunder i840 S2520
rogrammable Input/Output) modes: the da ta transfer modes used by IDE drives. These
55
GLOSSARY
Page 56
PM timers (Pow e r M ana gem en t time rs) : software timers that count down the number of seconds or min-
utes until the system times out and enters sleep, suspend, or doze mode.
PnP (P
lug-n-Play): a design standard that has become ascendant in the industry. Plug-n-Play devices
require little set-up to use. Novice end use rs can simply plu g them into a compu ter that is run ning on a
Plug-n-Play aware operatin g system ( such as Win dows 98), and go to wo rk. Devices a nd oper ating systems that are not Plug-n-Play require you to reconfigu re your system each time you ad d or change any
part of your hardware.
Striping: see RAID.
RAID (R
edundant Array of Independ ent Disks): a way for the same dat a to be stor ed in different places
on many hard drives. B y using this m ethod, the data is sto red redundan tly, also the multiple hard drives
willl appear as a single drive to the operating system. RAID level 0 is is known as striping, where data is
striped (or overlapped) across multiple hard d r ives, but offers no fault-tolerance. RAID level 1 is known as
mirroring, which stores th e data within at least two hard dr ives, but does not stripe. RAID level 1 also
allows for faster access time and fault-toleranc e, since either hard dr ive can be read at the s ame time.
RAID level 0+1 is both str iping and mir roring, providing fault-toler ance, striping, an d faster access all at
the same time.
RAM (R
andom Access Memory): technically refers to a type of memory where any byte can be accessed
without touching the adjacent data, is ofte n used to refer to the system’s main memory. This memory is
available to any program running on the computer.
ROM (R
ead-Only Memory): a storage chip wh ich contains the BIOS ; the basic instructions req uired to
boot the computer and start up the operating system.
SCSI (S
mall Computer Systems Interface) : prono unce d “scu zzy” . SCSI is an indu stry -sta nda rd comp uter
interface for connecting SCSI devices such as HDDs, CD-ROMs, e tc. to a co mmon SCSI b us. There are
several variations of SCS I, including UltraSCSI, Ultra2 SCSI, Ultra Wide, and so on.
SDRAM (S
addresses open simultaneo usly. By transferring data alternat ely from one set of ad dresses and th en the
other, SDRAM cuts down on the delays associated with non -synchronous RAM, which mus t close one
address bank before opening the next.
Serial port: called as such because it tran smits the eight bits of a byte of data along one wire, and
receives data on another single wire (that is, the data is transmitted in serial form, one bit after another).
SIMM (S
must be installed in pairs, and do not have the carrying capacity or the speed of DIMMs.
56
ynchronous Dynamic RAM): called as such because it can keep two sets of memory
ingle In-line Memory Module): formerly the most common form of RAM f or motherboa rds. They
http://www.tyan.com
Page 57
SIMM bank/socket : SIMM s ockets are the physical slots into which you install SIM M modules. A pair o f
SIMM sockets form a SIMM bank, and act as one unit. If only one socket is filled, the bank will not op erate.
Sleep/Suspend mode: in this mode, all devices except the CPU shut down.
SRAM (S
tatic RAM): unlike DRAM, th is type of RAM does not need t o be refreshed in order to pre vent
data loss. Thus, it is faster, and more expensive.
Standby mode: in this mode, the video and fixed disk drive (usually the HDD) shuts down; all other
devices continue to operate normally.
UltraDMA/33/66/100: a fast version of the old DMA channel. UltraDMA is also called UltraATA. Without
the proper UltraDMA controller, your system cannot take advantage of the higher data transmission rates
of the new UltraDMA/UltraATA HDDs.
USB (U
niversal Serial Bus): a ver satile port. T his one po rt type ca n functi on as a serial, pa ral lel, mouse ,
keyboard, or joystick port. It is fas t enough to supp ort video transfer, and is capable of supp orting up to
127 daisy-chained peripheral devices.
VGA (V
ideo Graphics Array): the PC video display standard.
V-SYNC: controls the vertical properties of the monitor.
ZIF socket (Z
ing the sensitive CPU pins. The CPU is lightly placed in an open ZIF socket, and the metal level is pulled
down. This shifts the processor over and down, guiding it into place on the board.
Thunder i840 S2520
ero Insertion Force socke t): these sockets make it poss ible to inse rt CPUs wit hout damag-
57
GLOSSARY
Page 58
Notice for the USA
Compliance Information Statement (Declaration of Conformity Procedure) DoC
FCC Part 15: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following cond itions:
1)
this device may not cause harmful interference, and
2)
this device must accept any interference received including
interference that may cause undesired operation. If this
equipment does cause harmful interference to radio or television reception, which can be determined by turning the equiipment off and on, the user is encouraged to try one or more
of the following measures:
Reorient or relocate the receivin g
antenna.
Increase the separation between the
equipment and receiver.
Plug the equipment into an outlet on
a circuit different from that of the
receiver.
Consult the dealer or an experienced
radio/television technician for help.
Notice for Canada
This apparatus complies with the Class B limits for radio interference as specified in the Canadian Department of Communicat ions Radio Interference Regulations . (Cet appareil est conforme aux norm es de
Classe B d’interference ra dio tel que spécifié par le Mini stére Candien des Communicati ons dans les
réglements d’inteférence radio.)
Notice for Europe (CE Mar k)
This product is in conformity with the Council Directive 89/336/EEC, 92/31/EEC (EMC).
CAUTION: Lithium battery i ncluded with t his board. Do no t puncture, multi late, or dispose of battery in
fire. Danger of explos ion if ba ttery is incorr ectly repla ced. R eplace only wit h the sa me or e quivalen t type
recommended by ma nufacturer. Dispose of used batter y according to man ufacturer instructions a nd in
accordance with your local regulations.
58
Document # D1427-101
http://www.tyan.com
Loading...
