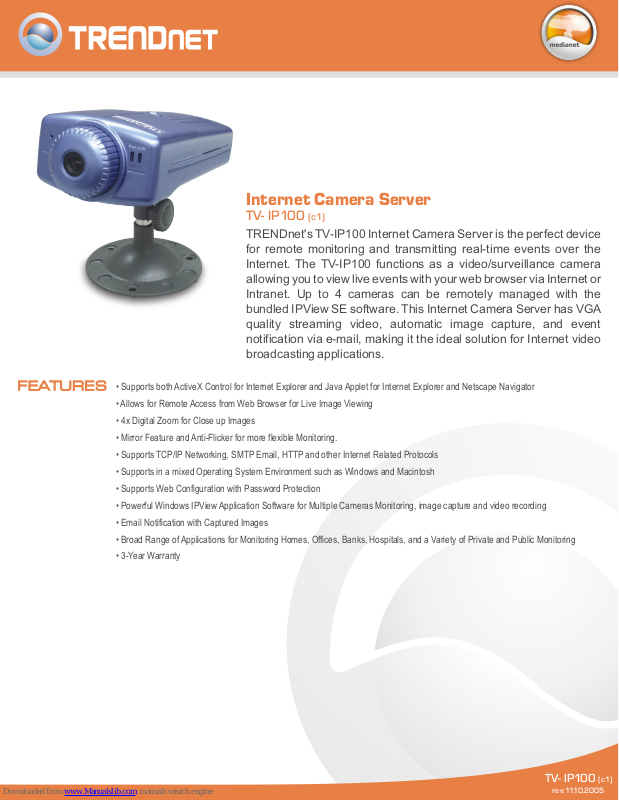

Internet Camera Server
TV- IP100 (c1)
TRENDnet's TV-IP100 Internet Camera Server is the perfect device
for remote monitoring and transmitting real-time events over the
Internet. The TV-IP100 functions as a video/surveillance camera
allowing you to view live events with your web browser via Internet or
Intranet. Up to 4 cameras can be remotely managed with the
bundled IPView SE software. This Internet Camera Server has VGA
quality streaming video, automatic image capture, and event
notification via e-mail, making it the ideal solution for Internet video
broadcasting applications.
FEATURESFEATURES
• Supports both ActiveX Control for Internet Explorer and Java Applet for Internet Explorer and Netscape Navigator
• Allows for Remote Access from Web Browser for Live Image Viewing
• 4x Digital Zoom for Close up Images
• Mirror Feature and Anti-Flicker for more flexible Monitoring.
• Supports TCP/IP Networking, SMTP Email, HTTP and other Internet Related Protocols
• Supports in a mixed Operating System Environment such as Windows and Macintosh
• Supports Web Configuration with Password Protection
• Powerful Windows IPView Application Software for Multiple Cameras Monitoring, image capture and video recording
• Email Notification with Captured Images
• Broad Range of Applications for Monitoring Homes, Offices, Banks, Hospitals, and a Variety of Private and Public Monitoring
• 3-Year Warranty
TEW-503PI (07-28-2005)
TV- IP100 (c1)
rev:11.10.2005
Internet Camera Server
TV- IP100 (c1)
SpecificationsSpecifications
Camera Specifications
Sensor
Resolution
Lens
• ¼” Color CMOS Sensor
• 640 x 480 pixel
• Built-in f: 6.0mm F:1.8
Video/Image
• 30fps@QCIF
Frame Rate
Compression
Resolution
Frame Rate Setting
Control
Gain/Exposure/
White Balance / Flicker Control
Digital Zoom
Mirror / Anti-Flicker
• 25fps@CIF
• 10fps@VGA
• 5 levels selection
• 160 x 120, 320 x 240, 640 x 480
• 1,5,7,15,20,auto(Depends on video format)
• Yes (Brightness/ Contrast/ Saturation)
• Automatic
• 4X
• Yes
Communication
LAN
Protocol
• 10/100Mbps Ethernet, Auto-Sensing
• HTTP, SMTP, FTP, UDP, ARP, ICMP
BOOTP, DNS, DHCP, TCP/IP, DDNS,
UPnP, PPPoE
Hardware SpecificationsHardware Specifications
System
CPU
RAM/Flash ROM
OS
• RDC R2880
• 8MB / 2MB
• RTOS (Real Time Operating System)
Requirements
Memory Size
Pentium III, 266 MHz or above; VGA card resolution: 800 x 600 or above
• 128M (256 Recommended
Physical/Environmental
Dimension
Weight
Stand Height
Power
Consumption
Temperature
LED
Humidity
Certifications
• 130 x 70 x 35mm (5 x 2.75 x 1.3 in.)
• 280g (10 oz)
• 65mm (2.6 in.)
• 5V DC, 2.5A External Adapter
• 3.5 watt ( 700mA x 5V), max
• Operating: 5°C ~ 40°C (41°F ~ 104°F)
• Storage: -25°C ~ 50°C (-13°F ~ 122°F)
• Power: Blue
• Link/Active: Orange
• 5% ~ 95% Non-Condensing
• FCC. CE, VCCI Classe B
Software
Browser
Application
OS Support
• IE 5.0 or above
• IPView SE Software
• Windows 98SE, ME, NT4, 2000, XP
NETWORKING SOLUTIONSNETWORKING SOLUTIONS
Internet
Parking Monitoring
(TV-IP100W)
54Mbps Wireless
Access Point
(TEW-430APB)
Warehouse Monitoring
(TV-IP100W)
Workstation with
(TE100-PCIWN)
PCI Adapter
Cable/DSL
Modem
Cable/DSL 4-Port
Broadband Router
(TW100-S4W1CA)
Office Monitoring
(TV-IP100)
Front Gate Monitoring
(TV-IP100)
54Mbps Wireless
100Mbps
PACKAGE CONTENTSPACKAGE CONTENTS
• TV-IP100
• Multi-Language Quick Installation Guide
• CD-ROM (UG & Utility)
• Power Adapter (5V DC, 2.5 A)
• 1 x RJ-45 Network Cable
• Camera Mounting Bracket
RELATED PRODUCTSRELATED PRODUCTS
TV-IP100W
TV-IP200
TV-IP200W
Wireless Internet Camera Server
Internet Camera Server
Wireless Internet Camera Server
ORDERING INFORMATIONORDERING INFORMATION
3135 Kashiwa Street,Torrance, CA 90505 USA
Tel: 1-888-777-1550
Fax: 310-891-1111
www.trendnet.com
Web:
Email: sales@trendnet.com
To Order Please Call:
1-888-326-6061
