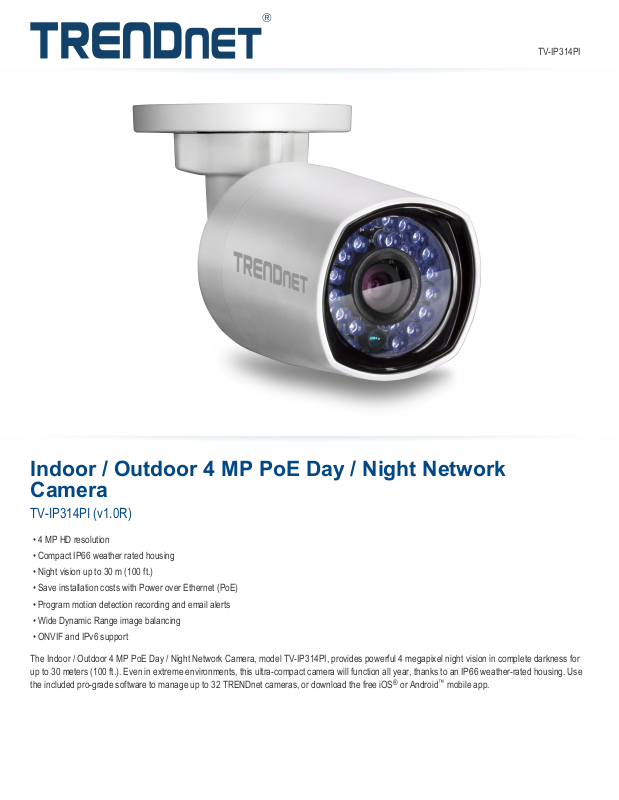

TV-IP314PI
Indoor / Outdoor 4 MP PoE Day / Night Network
Camera
TV-IP314PI (v1.0R)
• 4 MP HD resolution
• Compact IP66 weather rated housing
• Night vision up to 30 m (100 ft.)
• Save installation costs with Power over Ethernet (PoE)
• Program motion detection recording and email alerts
• Wide Dynamic Range image balancing
• ONVIF and IPv6 support
The Indoor / Outdoor 4 MP PoE Day / Night Network Camera, model TV-IP314PI, provides powerful 4 megapixel night vision in complete darkness for
up to 30 meters (100 ft.). Even in extreme environments, this ultra-compact camera will function all year, thanks to an IP66 weather-rated housing. Use
the included pro-grade software to manage up to 32 TRENDnet cameras, or download the free iOS®or Android™mobile app.
Page 2
TV-IP314PI
Power over Ethernet (PoE)
PoE offers cost savings and the flexibility to
install this compact bullet camera in the
desired location.
Networking Solution
Day/Night HD Surveillance
Powerful 4 MP video at 20 fps in H.264+
compression (2 MP 1080p at 30 fps) and
30 m night vision provide 24-hour surveillance.
Outdoor Ready
Built for extreme environments with an IP66
weather rating and an operating temperature
range of -30 – 60 °C (-22 – 140 °F).
Page 3
TV-IP314PI
Hardware
Adjustable Bracket
Fully adjustable integrated mounting bracket provides
installation flexibility
PoE
Save installation costs with Power over Ethernet
(IEEE 802.3af)
Outdoor Ready
Outdoor IP66 weather rated and an operating
temperature range of -30 – 60 °C (-22 – 140 °F)
Performance
4 Megapixel
Record 2688 x 1520 pixel video at 20 fps in H.264+
compression
Night Vision
Night vision up to 30 m (100 ft.) in complete darkness
Advanced Playback
Advanced in-camera archived video review
functionality
Storage
SMB / CIFS support with notification if storage drive is
full
Motion Detection
Create motion detection windows with separate
sensitivity settings and event triggers
Recording Schedule
Define a weekly recording schedule
Tamper Detection
Receive tamper detection video clips via email
IPv6
IPv6 support
Smart IR
Dynamic IR adjustment optimizes night visibility
WDR
120 dB Wide Dynamic Range improves video quality
in high contrast lighting environments
Camera Management
Multi-Language Interface
Support for English, French, Spanish, German, and
Portuguese
ONVIF / PSIA
ONVIF (Profile S, Profile G) and PSIA compliant
Free Apps
See live video on a mobile device with free iOS®and
Android™apps
Complimentary Software
Complimentary pro-grade software to manage up to
TRENDnet 32 cameras
Page 4
Specifications
Lens
• Focal length: 4 mm, F2.0
• Focal depth: 20 cm +
• Lens: fixed focus
• Sensor: 1/3” progressive scan CMOS
• DNR: 3D DNR
• WDR: 120 dB
• Zoom: user define zoom area
Viewing Angle
• Horizontal: 83°
• Vertical: 45°
• Diagonal: 98°
Minimum Illumination
• IR off: 0.01 lux
• IR on: 0 lux
• Built-in IR cut filter
• 30 m IR illumination distance
• Smart IR
Video Resolution
• H.264/H.264+: 2688 x 1520 up to 20 fps (1920 x
1080 up to 30 fps)
• H.264/MJPEG: 640 x 360 up to 30 fps
Hardware Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3x
• IEEE 802.3af
Device Interface
• 10/100 Mbps PoE port
• Power port (for non-PoE installations, adapter sold
separately)
• Grounding point
• Integrated articulated mounting base
• Reset button
Network Protocol
• IPv4, IPv6, UDP, TCP, ICMP, ONVIF Profile S and
Profile G, PSIA
• DHCP, NTP, DNS, DDNS, SMTP, FTP, SNMP (v1,
v2c, v3)
• NFS, SMB/CIFS
• HTTP, HTTPS
• PPPoE
• UPnP, Bonjour, RTSP, RTP, RTCP, SSL
Operating Temperature
• -30 – 60 °C (-22 – 140 °F)
Operating Humidity
• Max. 95% non-condensing
Certifications
• CE
• FCC
Dimensions
• 55 x 55 x 80 mm (2.2 x 2.2 x 3.15 in.)
Weight
• 362 g (0.8 lb.)
Power
• Input: PoE (802.3af)
• Consumption: 5 Watts max.
Optional Power Supply (Sold separately)
• Input: 100 – 240 V AC 50/60 Hz 0.5 A
• Output: 12 V DC 1 A
• 5.5 mm barrel connector
• TRENDnet power adapter, model 12VDC1A (not
included)
Management Interface
• Multi-language support: English, French, German,
Spanish and Portuguese
• IP address filter
• QoS traffic prioritization
• Time, date, and text overlay
• Image settings: brightness, contrast, hue,
sharpness, Denoise 3D, Shutter time, sense-up,
Saturation, AGC (automatic gain control), flip, day/
night mode, white balance
• WDR enhances video quality in high contrast
daytime lighting
• 2D Digital Noise Reduction enhances night vision
quality
• Recording: to computer, NAS, SAMBA, or through
software
• Video Recording: scheduled, motion detection,
sound detection, and tamper detection
TV-IP314PI
• Motion detection: define up to three motion
detection areas and motion sensitivity
• Privacy masks: define custom privacy mask up to 3
areas
• Tamper detection function: email notification, FTP,
SD card, or Samba server if the viewing field
darkens suddenly
• Network disconnection fallback: set to automatically
save video to Micro SD card (sold separately) if
connection to network is broken
• Snapshot: real time snapshot, sound detection, and
motion detection
• Supported dynamic DNS services: dyn.com, noip.com, and iptecno.com
• Management setting: maximum 21 user accounts
• Supports remote management
• Compatible browsers: Chrome™or Firefox®(live
view resolution up to 640 x 360), Internet Explorer
or Safari®(live view resolution up to 1920 x 1080)
TRENDnetVIEW EVO Software
• Supports up to 32 TRENDnet cameras
• Multiple language support
• Set recording options (motion detection, schedule,
event trigger)
• Search and playback
• Custom viewing modes and options
• Compatibility: Windows®10, 8.1, Windows Server
2012, 2008
TRENDnet IPView App
• Free iOS®and Android™app
• View live camera video on a mobile device
• Take snapshots
• Zoom
Warranty
• 3 year limited
Package Contents
• TV-IP314PI
• CD-ROM (Utility Software & User’s Guide)
• Quick Installation Guide
• Camera mounting hardware
®
®
20675 Manhattan Place • Torrance • CA 90501 • USA • T: 1-888-326-6061 • F: 1-310-961-5511 • [email protected] • www.TRENDnet.com
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice. For the most
recent product information please visit http://www.trendnet.com. Copyright © TRENDnet. All Rights Reserved.
Updated: 1/19/2018
