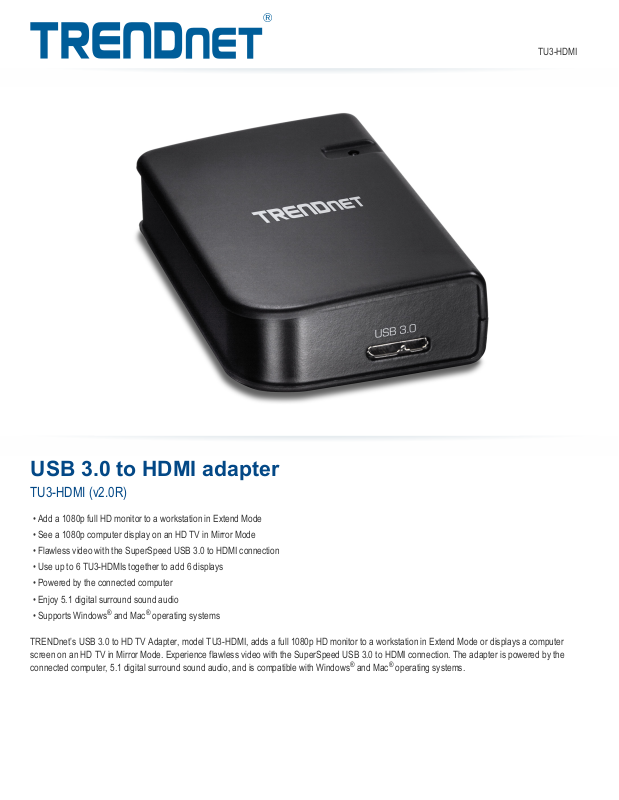

TU3-HDMI
USB 3.0 to HDMI adapter
TU3-HDMI (v2.0R)
• Add a 1080p full HD monitor to a workstation in Extend Mode
• See a 1080p computer display on an HD TV in Mirror Mode
• Flawless video with the SuperSpeed USB 3.0 to HDMI connection
• Use up to 6 TU3-HDMIs together to add 6 displays
• Powered by the connected computer
• Enjoy 5.1 digital surround sound audio
• Supports Windows®and Mac®operating systems
TRENDnet’s USB 3.0 to HD TV Adapter, model TU3-HDMI, adds a full 1080p HD monitor to a workstation in Extend Mode or displays a computer
screen on an HD TV in Mirror Mode. Experience flawless video with the SuperSpeed USB 3.0 to HDMI connection. The adapter is powered by the
connected computer, 5.1 digital surround sound audio, and is compatible with Windows®and Mac®operating systems.
Page 2
Page 3
TU3-HDMI
Full 1080p HD
HDMI 1.3 supports full 1080p HD resolution (1920 x 1080) and
resolutions up to 2048 x 1536
Extend Mode
Add a 1080p full HD monitor, with an available HDMI port, to a
workstation in Extend Mode
Mirror Mode
See a 1080p computer display on an HD TV in Mirror Mode
Multiple Displays
Use up to 6 TU3-HDMI adapters to add 6 displays (requires 6 free USB
ports on a computer)
Surround Sound
Experience 5.1 digital surround sound audio
Video Refresh
Supports a 60 Hz video refresh rate
Flexible Connector
A 50 cm (20 in.) USB 3.0 cable provides installation flexibility
USB Port
Compatible with USB 3.0 and 2.0 ports
Power
Powered by computer’s USB port
LED Indicator
LED indicator conveys device status
Operating Systems
Compatible with Windows®and Mac®operating systems
Page 4
Specifications
Standards
• HDMI 1.3
• USB 3.0
• USB 2.0
Interface
• 1 x HDMI 1.3 port
• 1 x USB 3.0 micro Type B port
• LED indicator
Monitor
• Full 1080p HD resolution support with a 60 Hz refresh rate
• Max. QXGA 2048 x 1536 resolution support
• 48-bit true color support
Audio
• 2.0 Channel
• 5.1 Channel (HDMI)
Modes
• Extend (left, right, above, below)
• Mirror
Display Controls
• Define screen resolution
• Rotate display left, right, upside down
• Set as Main Monitor function transfers operating system controls to the display
viewing field
• Notebook Monitor Off function turns off the computer’s primary display
Supported OS
• Windows®8.1, 8, 7, Vista, XP (32-bit only)
• Mac®10.6 - 10.9
TU3-HDMI
Special feature
• Compatible with monitors, televisions, and projectors with an HDMI port
• Connect up to 6 TU3-HDMI adapters (requires 6 free USB ports)
• Supports High-Bandwidth Digital Content Protection (HDCP) 2.0
Operating Temperature
• 0 – 40 °C (32 – 104 °F)
Operating Humidity
• Max. 85% non-condensing
Power
• USB bus powered
• Current: 400 mA
• Consumption: 2 Watts (max.)
Dimensions
• 87 x 54 x 22 mm (3.4 x 2.2 x 0.9 in.)
Weight
• 58 g (2.0 oz.)
Warranty
• 2 year limited
Certifications
• CE
• FCC
Package Contents
• TU3-HDMI
• Quick Installation Guide
• CD-ROM (Drivers & User’s Guide)
• USB 3.0 micro Type-B to Type-A cable (50 cm/20 in.)
20675 Manhattan Place • Torrance • CA 90501 • USA • T: 1-888-326-6061 • F: 1-310-961-5511 • [email protected] • www.TRENDnet.com
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at any time, without notice. For the most
recent product information please visit http://www.trendnet.com. Copyright © TRENDnet. All Rights Reserved.
Updated: 2/17/2015
