TRENDnet TV-IP100 User Manual

HARDWARE INSTALLATION..................................................20

TABLE OF CONTENTS

ABOUT THIS GUIDE .....................................................................5

INTRODUCTION .............................................................................6

SYSTEM REQUIREMENT............................................................7

INTERNET CAMERA .............................................................................7

Network:.........................................................................................7

Recommended PC or Notebook to Access the Internet Camera.... 7

FEATURES AND BENEFITS......................................................9

SIMPLE TO USE ................................................................................... 9

SUPPORT VARIETY OF PLATFORMS ...................................................10

WEB CONFIGURATION....................................................................... 10

REMOTE UTILITY ..............................................................................10

BROAD RANGE OF APPLICATIONS ..................................................... 11

PHYSICAL DESCRIPTION........................................................12

FRONT PANEL....................................................................................12

Power LED ..................................................................................13

Link LED......................................................................................13

REAR PANEL .....................................................................................14

Network Cable Connector ...........................................................14

DC Power Connector...................................................................14

Reset Button.................................................................................15

TOP PANEL ........................................................................................16

Screw Hole................................................................................... 16

BOTTOM PANEL................................................................................. 17

Screw Hole................................................................................... 17

UNPACKING THE INTERNET CAMERA............................18

CONNECTING THE INTERNET CAMERA TO THE CAMERA STAND........ 19

1 CONNECT AN ETHERNET CABLE .....................................................20

2 ATTACH THE EXTERNAL POWER SUPPLY......................................... 21

SECURITY ........................................................................................22

SOFTWARE INSTALLATION...................................................23

WEB CONFIGURATION....................................................................... 23

MAIN MENU IMAGE ..........................................................................25

SYSTEM ADMINISTRATION ................................................................26

System Administration – System .................................................. 26

System Administration - Image.................................................... 33

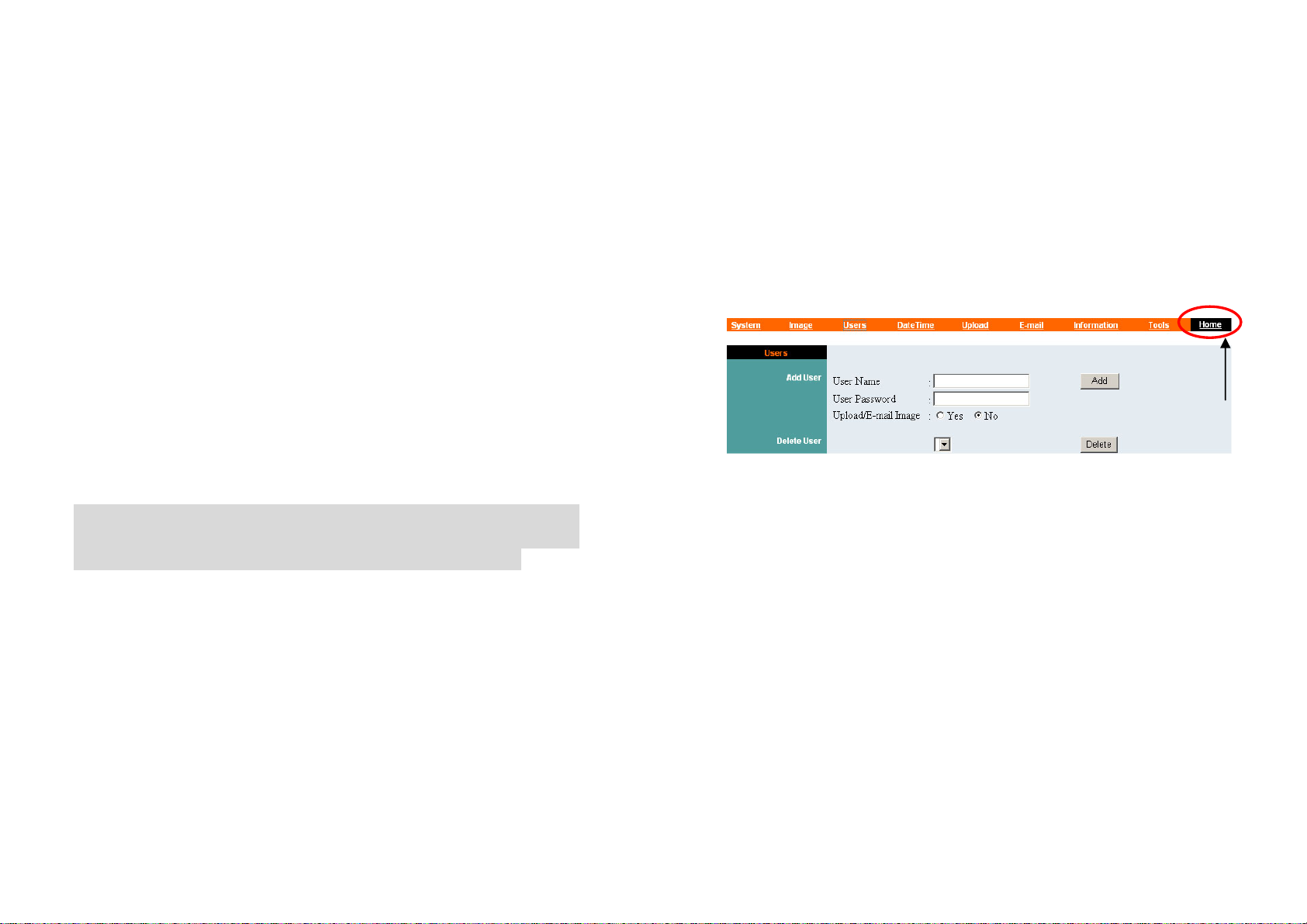

System Administration - Users.....................................................35

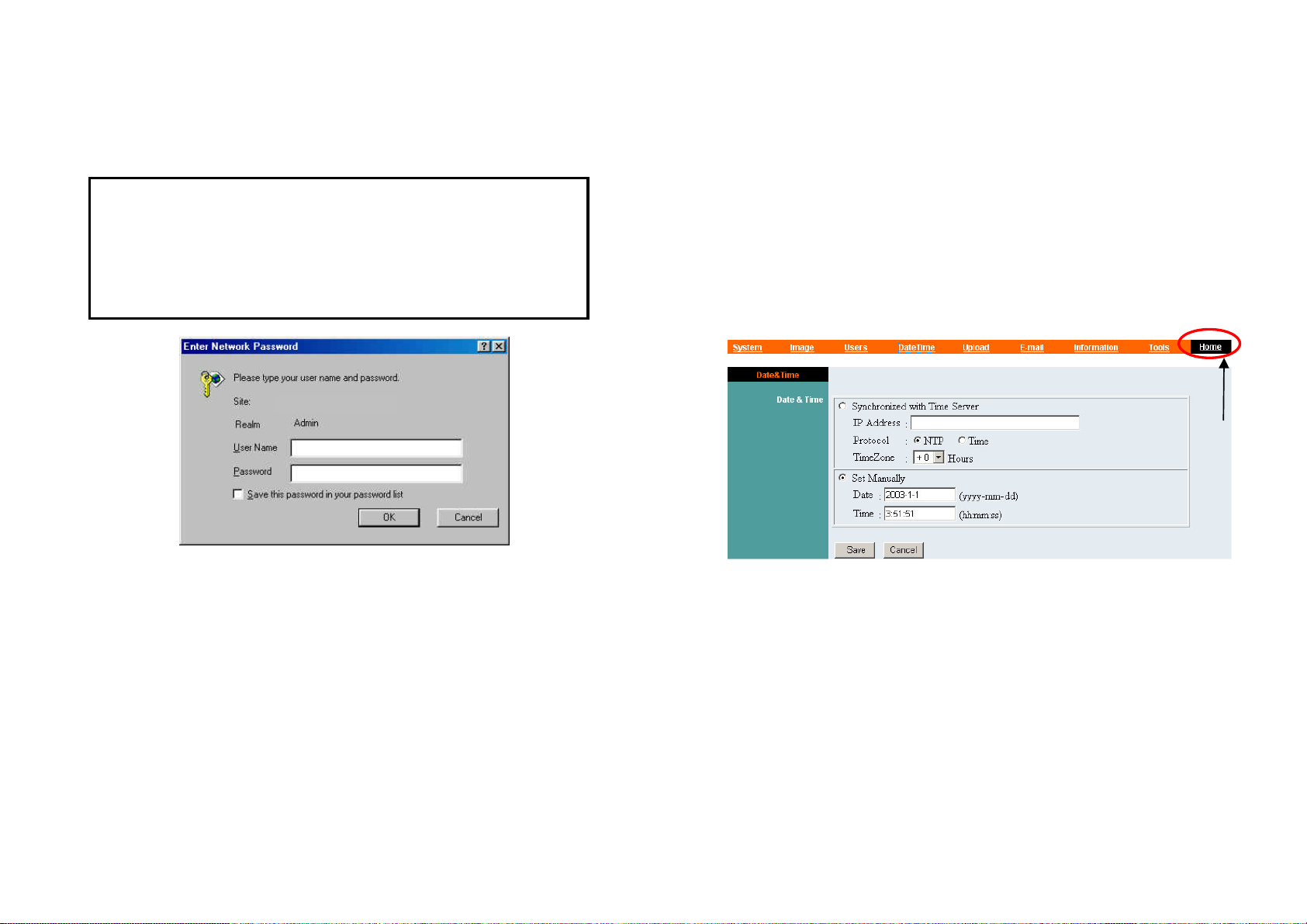

System Administration – DateTime.............................................. 37

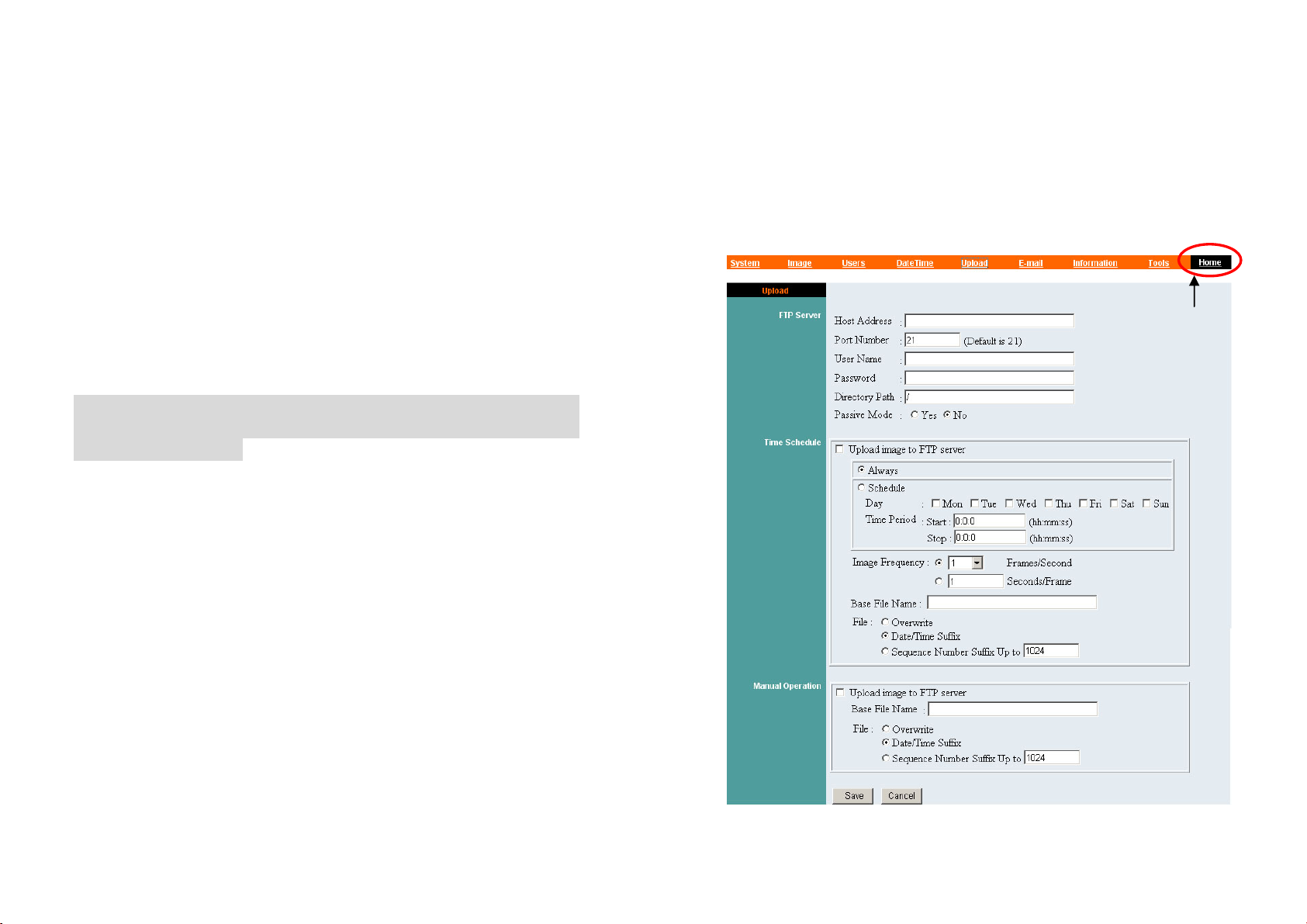

System Administration – Upload.................................................39

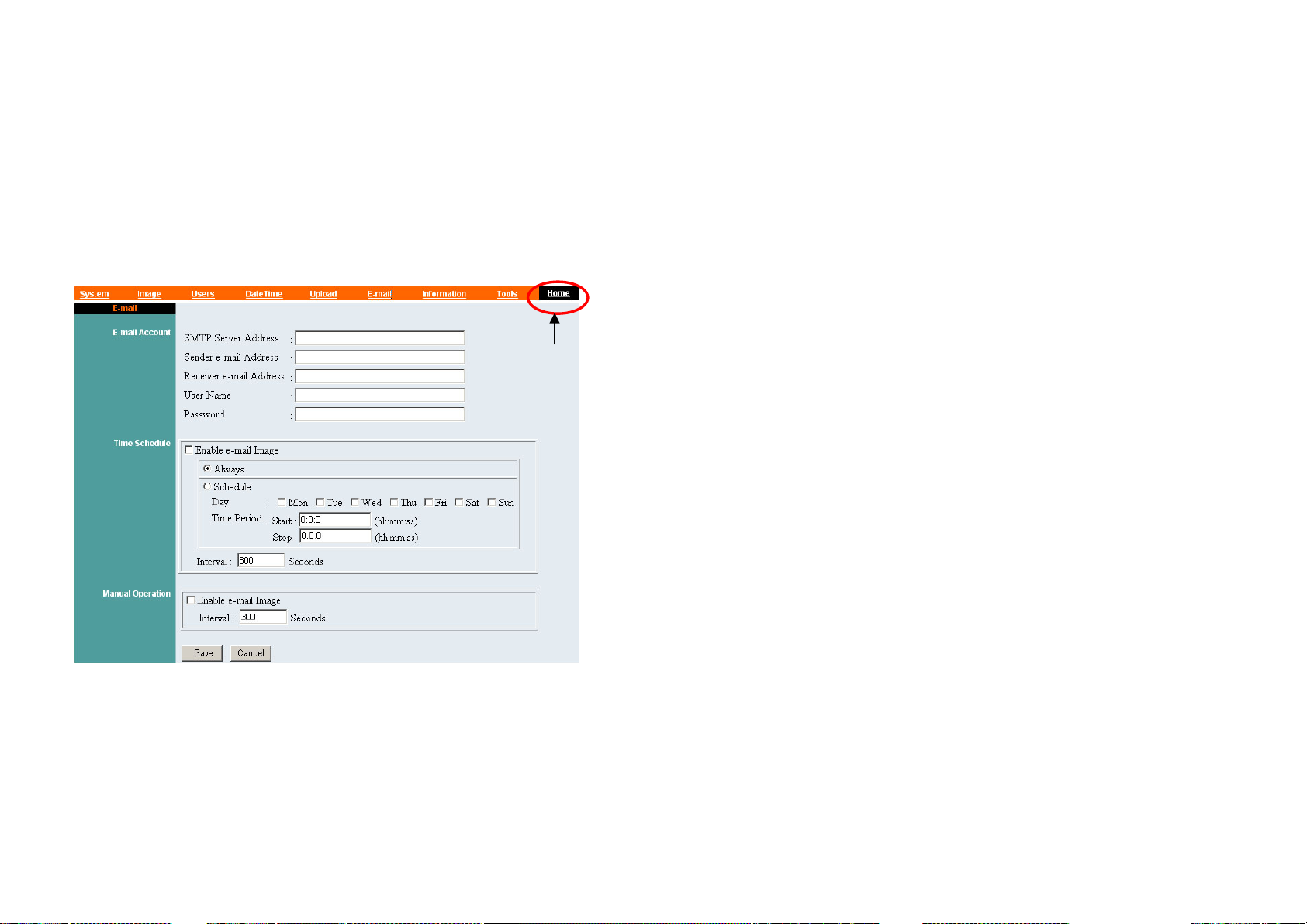

System Administration – E-mail...................................................42

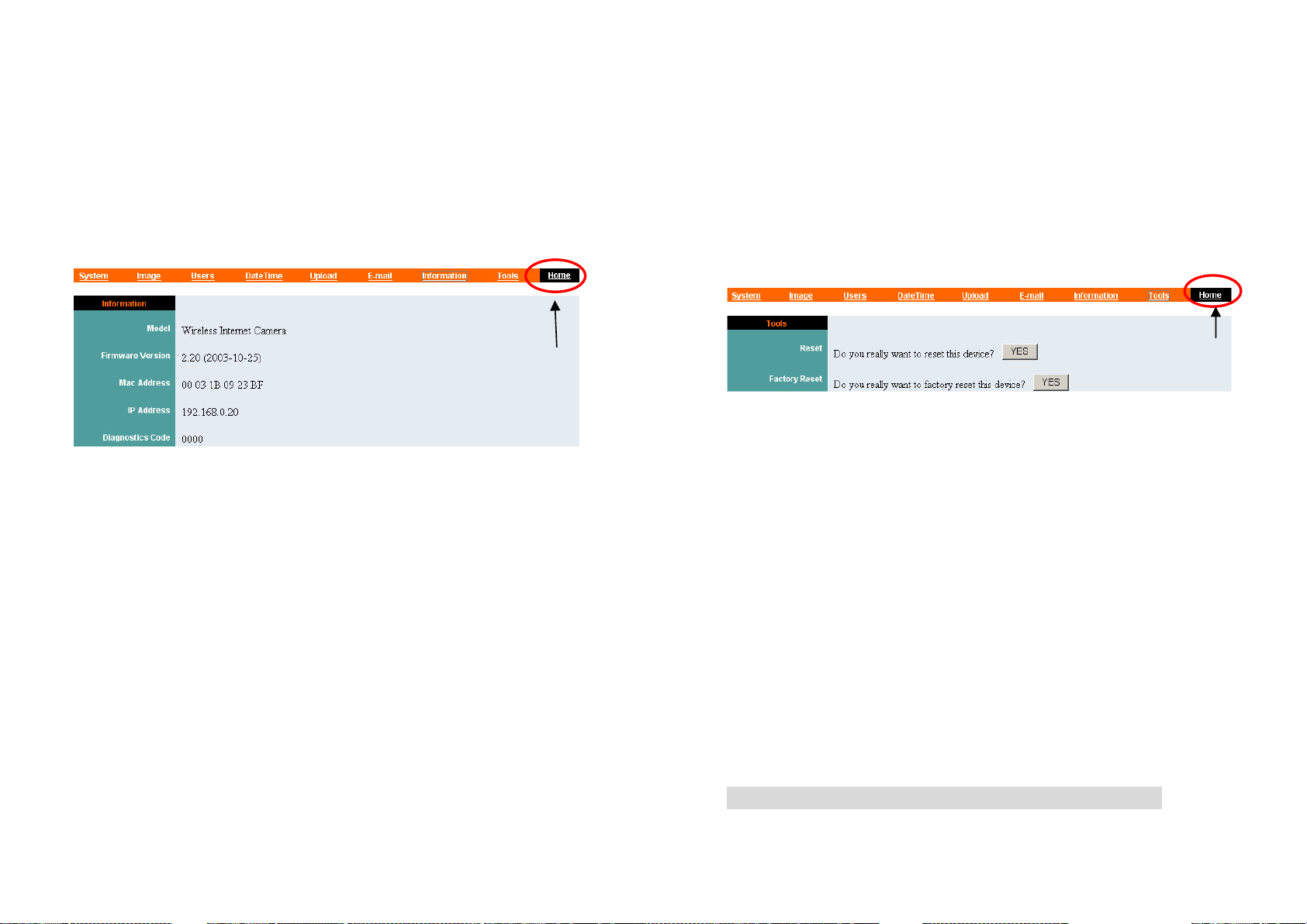

System Administration - Information........................................... 44

System Administration - Tools..................................................... 45

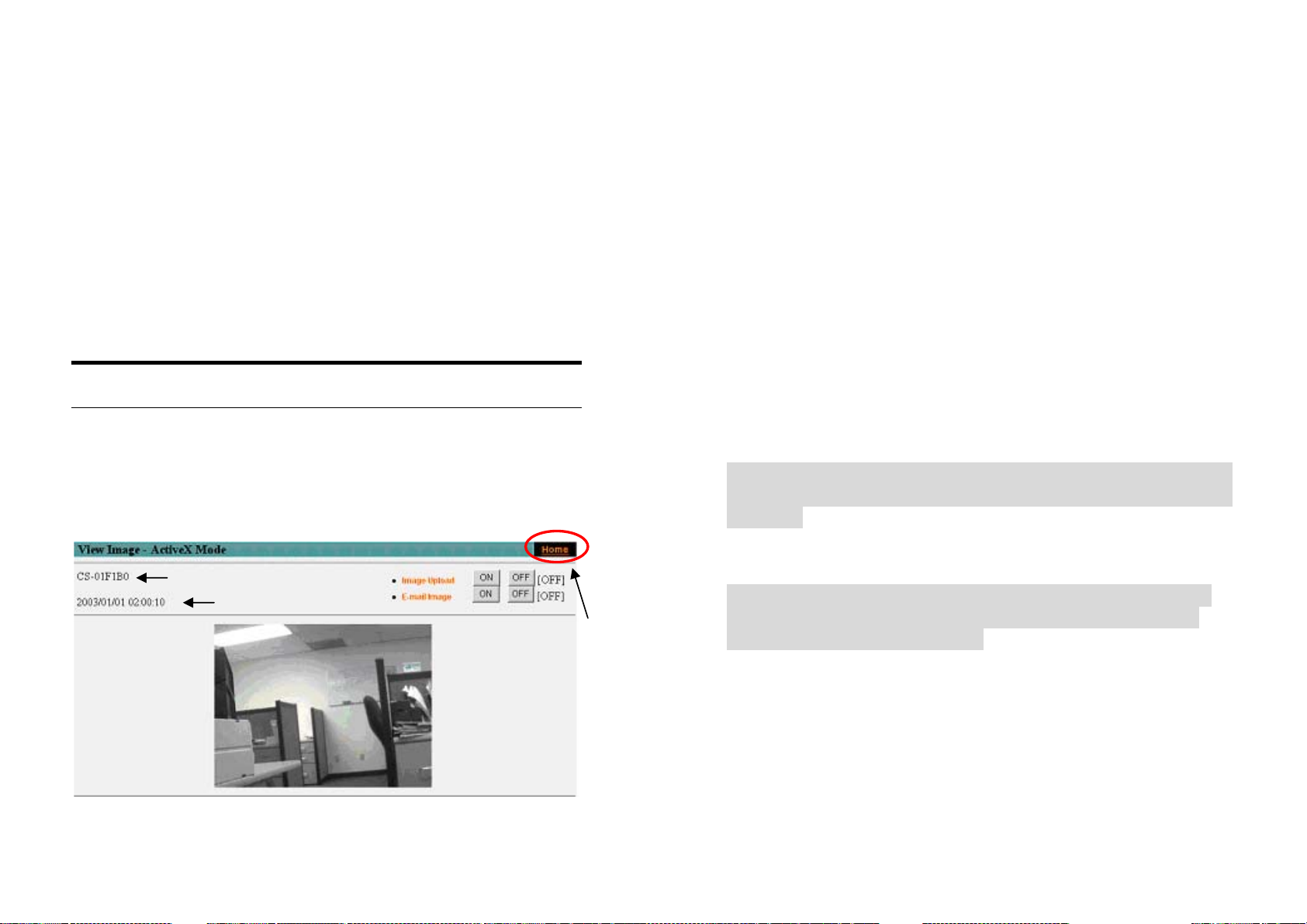

VIEW IMAGE – ACTIVEX MODE ........................................................46

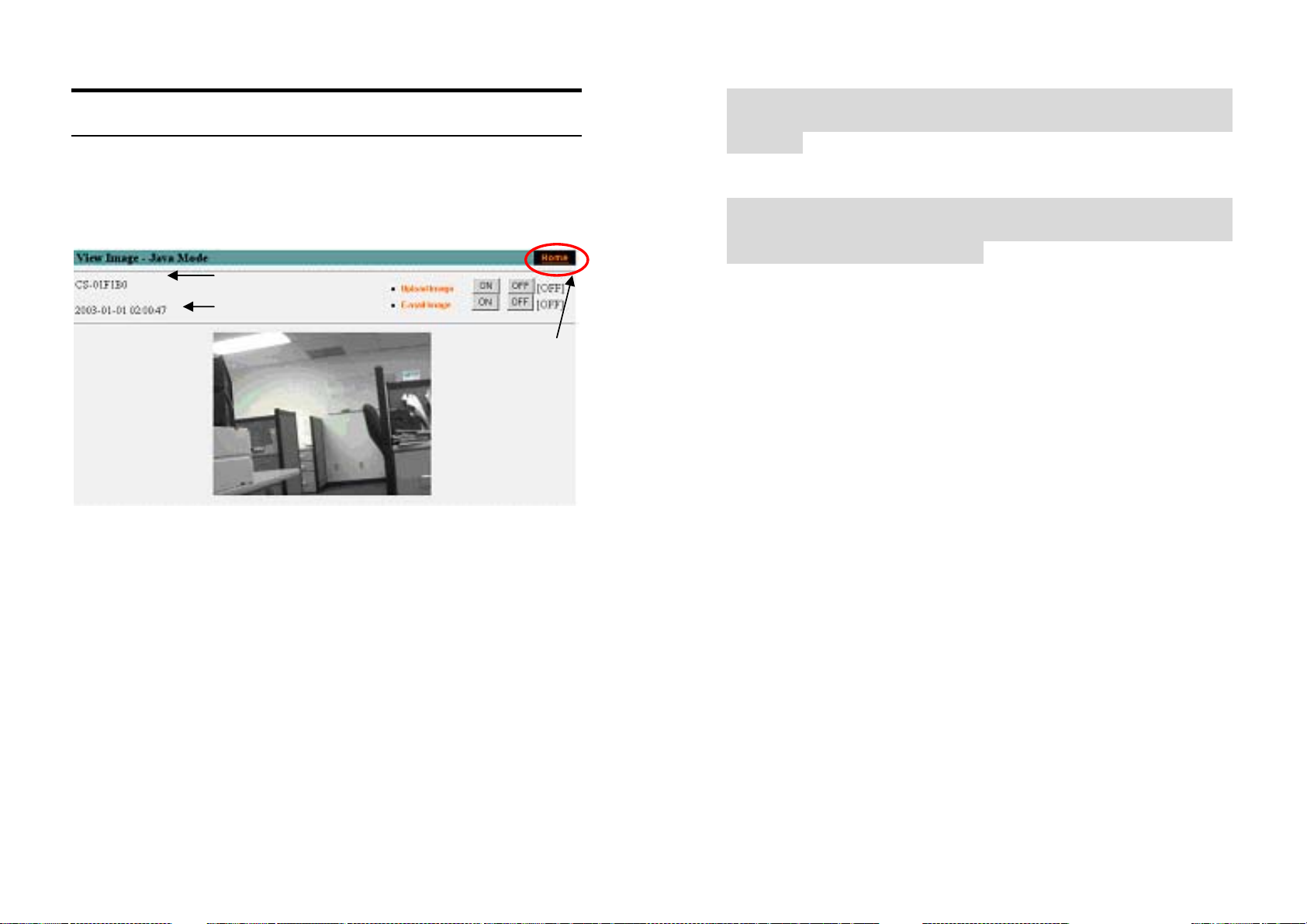

VIEW IMAGE – JAVA MODE ...............................................................48

INTERNET CAMERA APPLICATION...................................50

APPLICATIONS................................................................................... 51

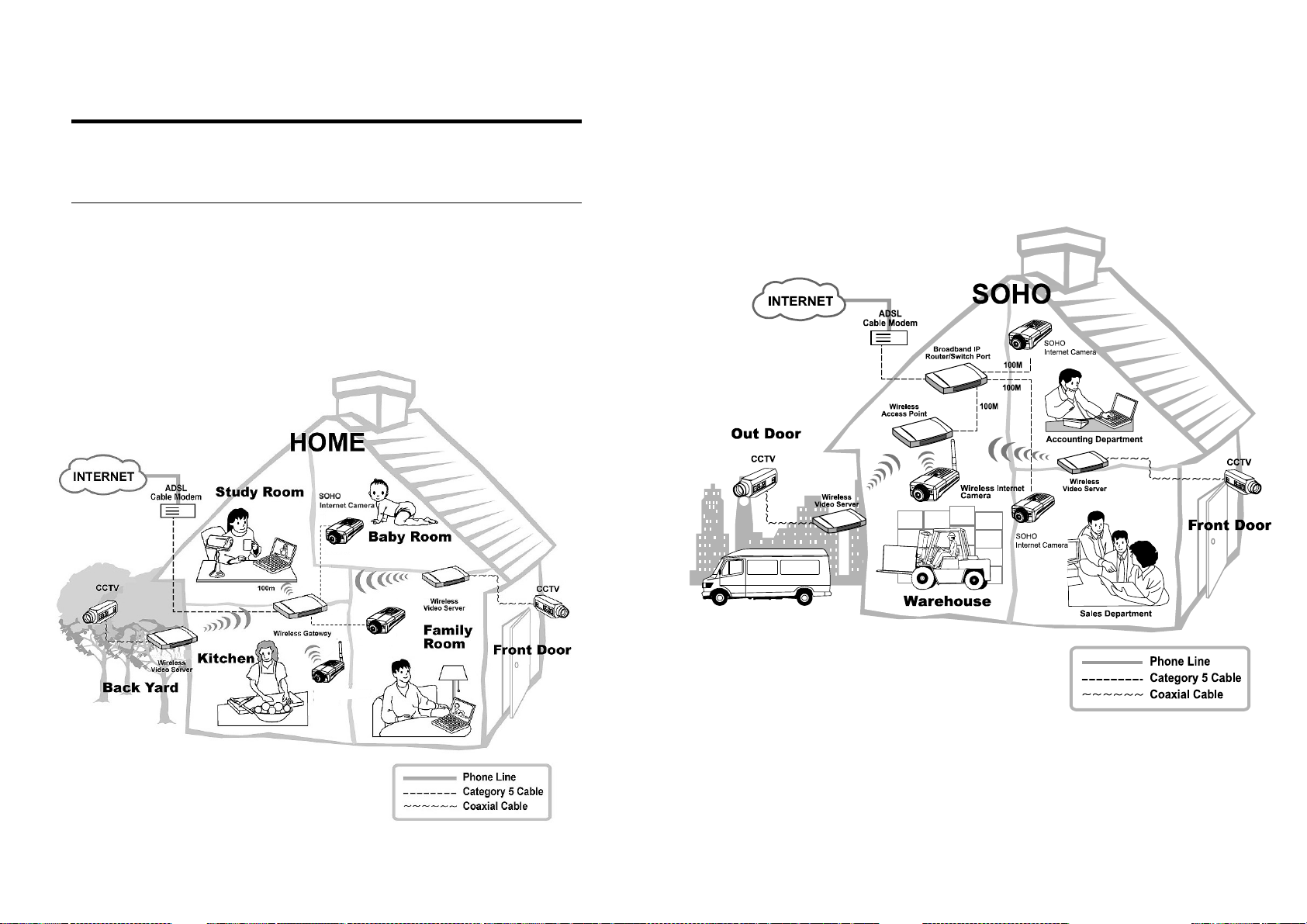

INTERNET CAMERA APPLICATION DIAGRAMS ................................... 52

Home Applications.......................................................................52

SOHO Applications......................................................................53

IPVIEW SE APPLICATION.......................................................54

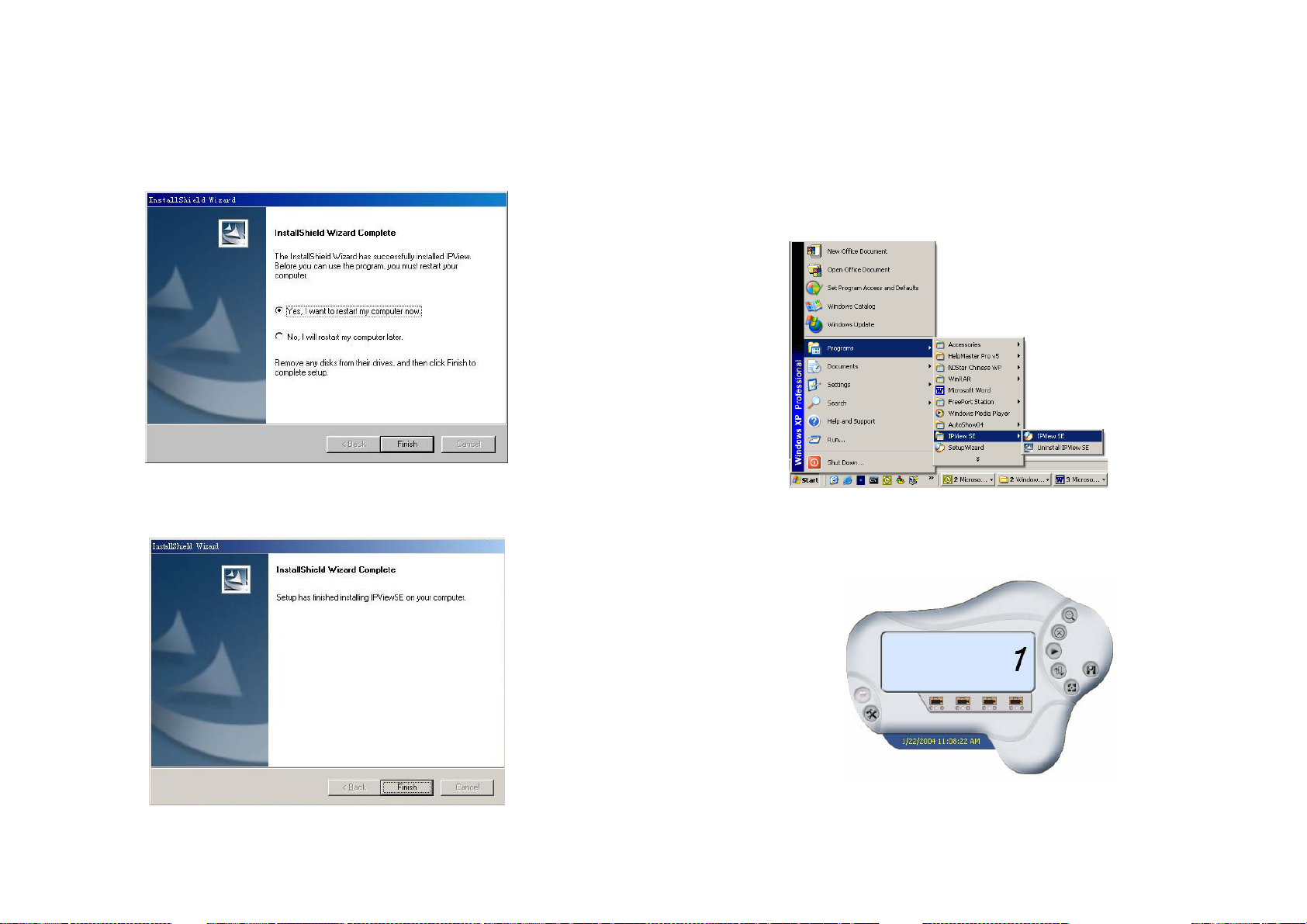

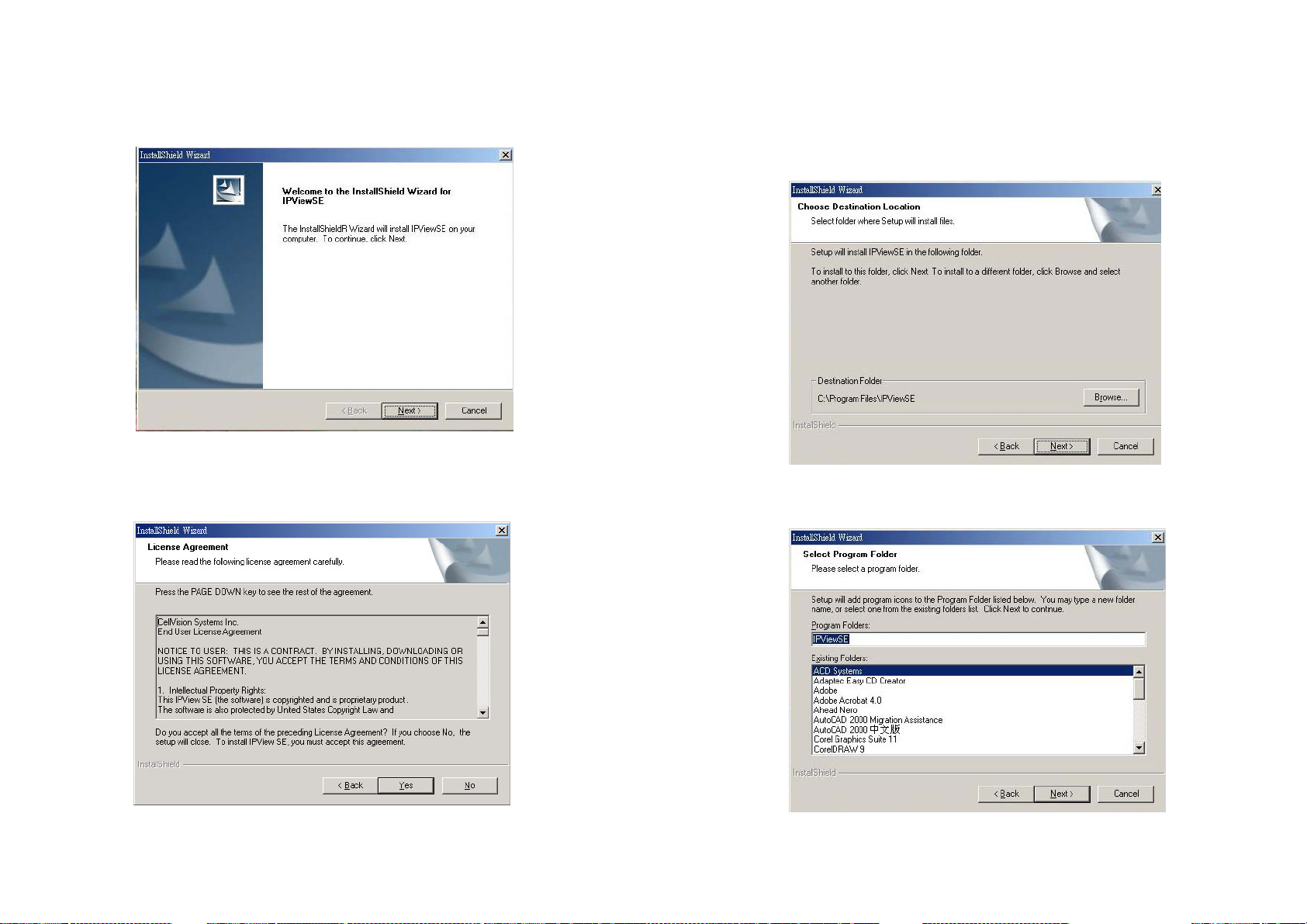

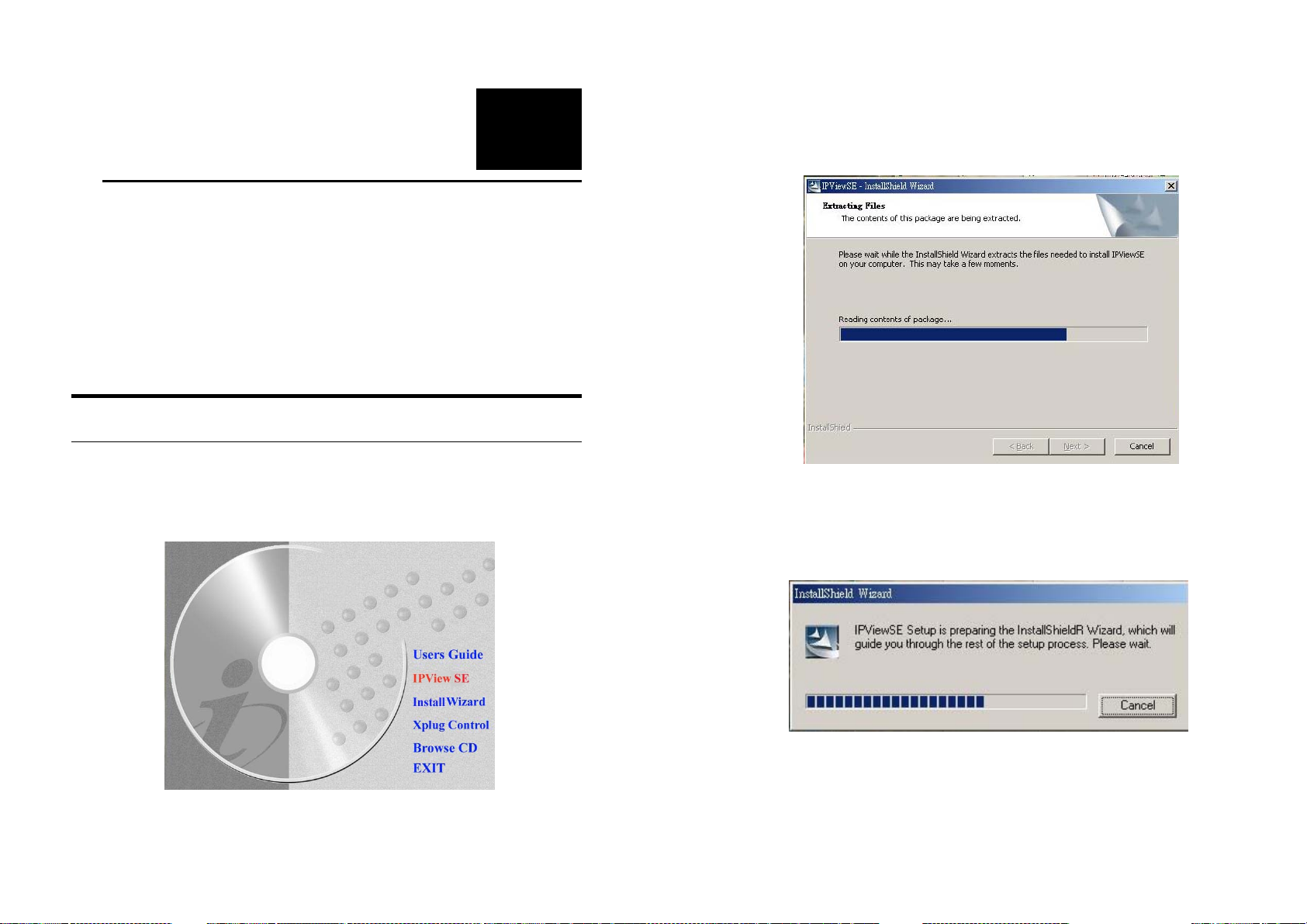

INSTALLATION...................................................................................54

GETTING STARTED....................................................................60

IPVIEW SE ........................................................................................60

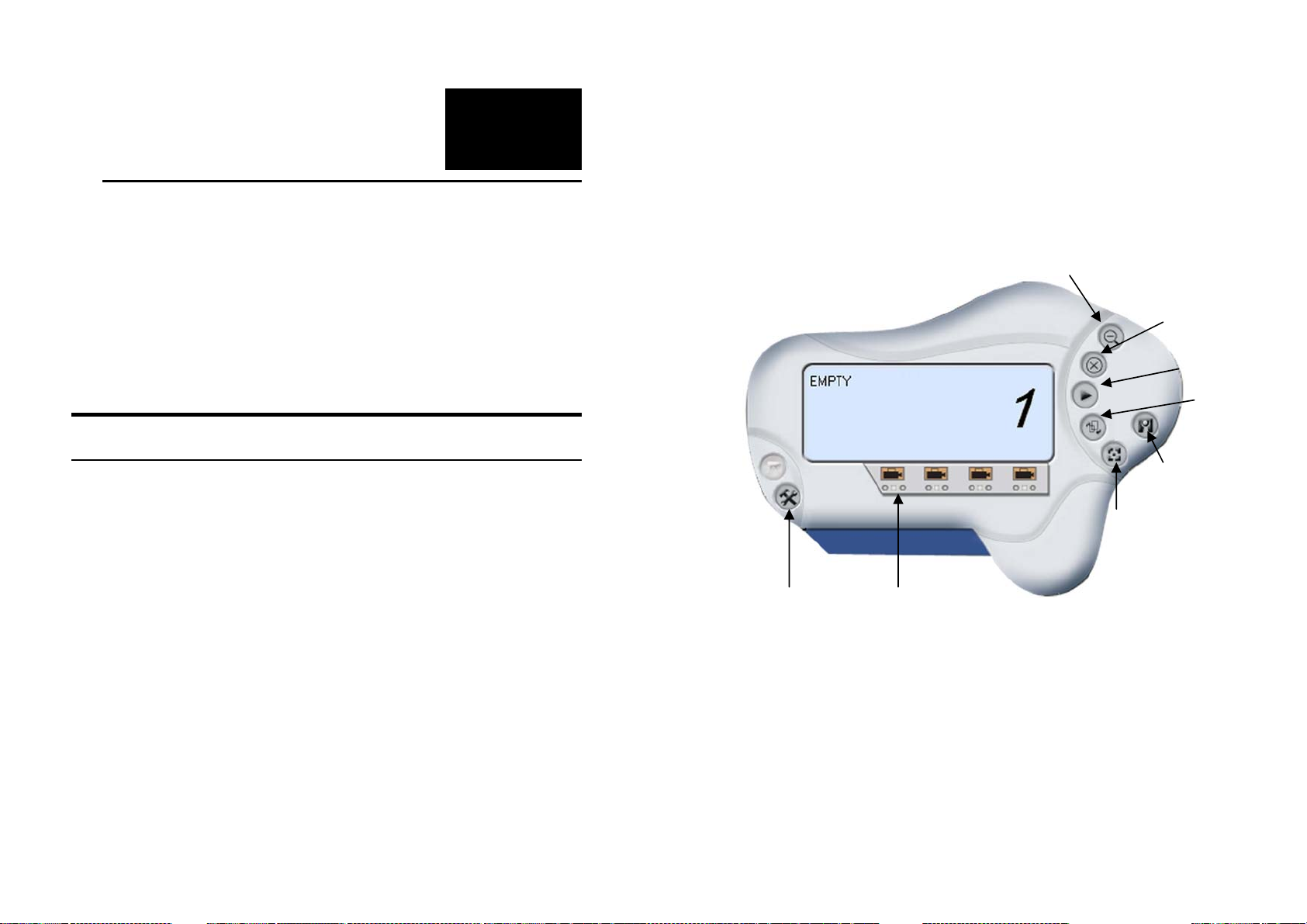

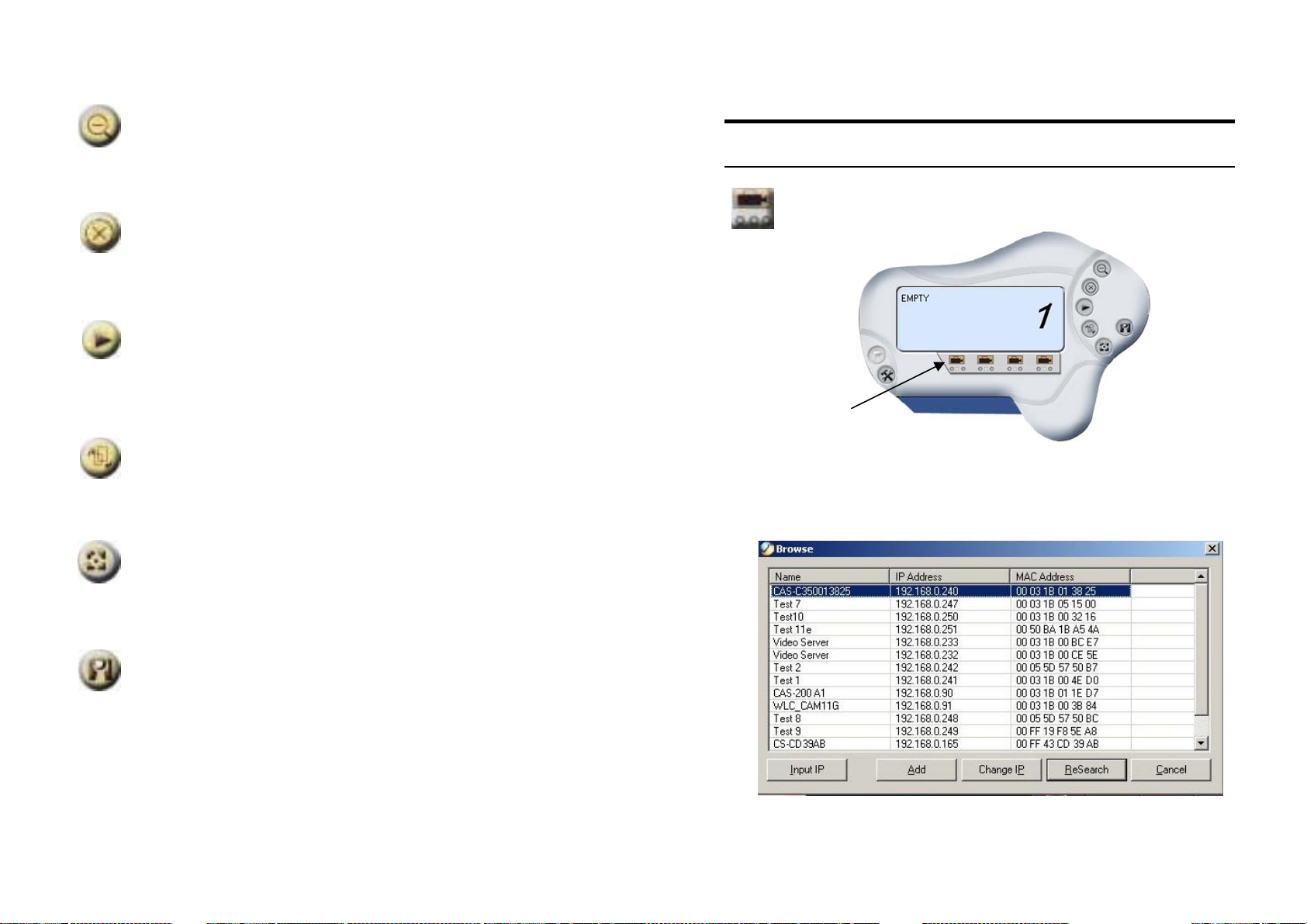

IPView SE control panel..............................................................61

Minimize ...................................................................................... 62

Exit............................................................................................... 62

Play.............................................................................................. 62

Scan ............................................................................................. 62

Combine.......................................................................................62

About............................................................................................62

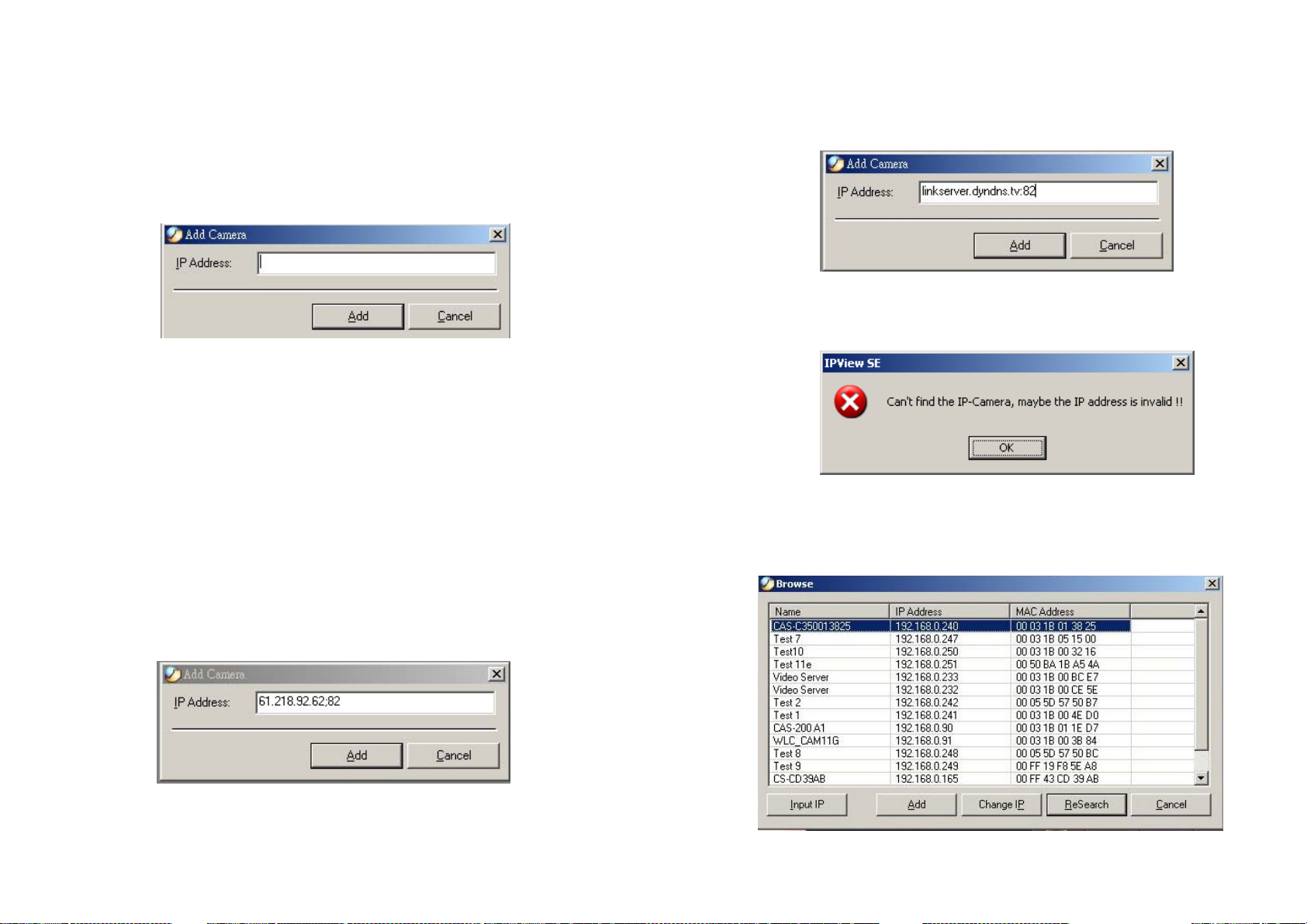

HOW TO ADD A CAMERA...................................................................63

Add Camera.................................................................................63

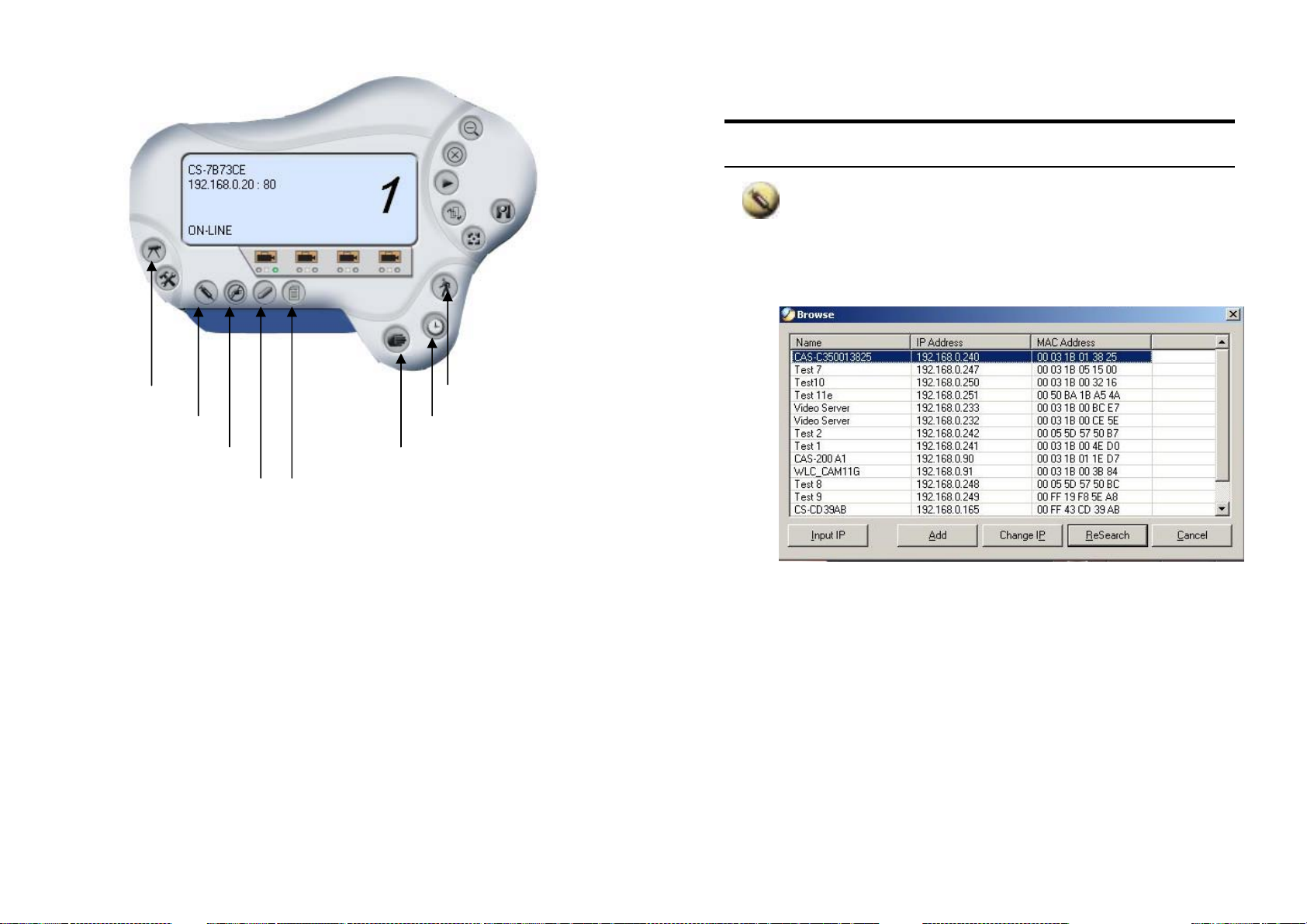

HOW TO CHANGE CAMERA ...............................................................69

Assign IP of New Camera............................................................69

HOW TO CONNECT / DISCONNECT THE IMAGE................................... 70

Connect the Ima ge ....................................................................... 70

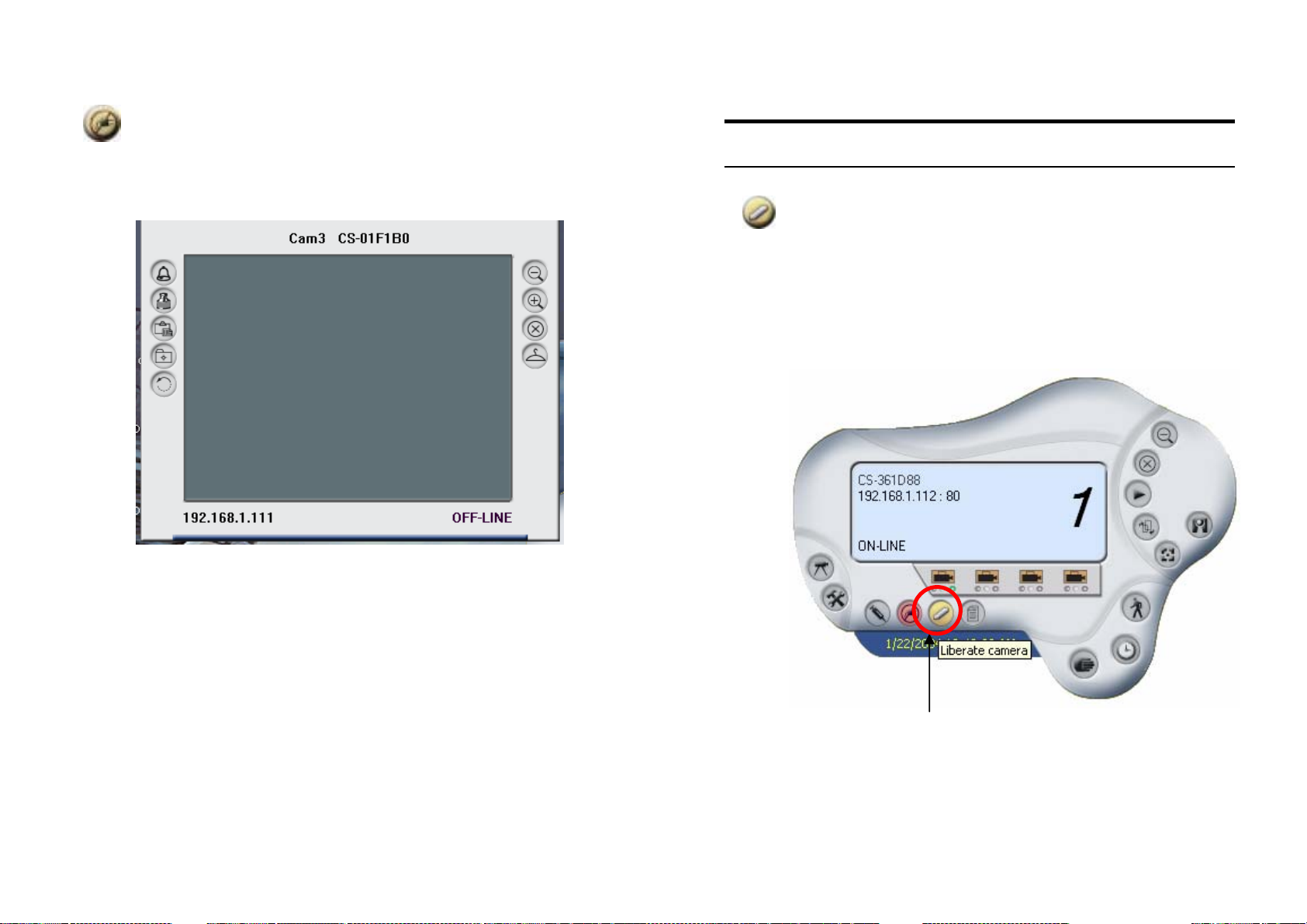

Disconnect the Image...................................................................72

HOW TO DELETE A CAMERA .............................................................73

Erase Camera.............................................................................. 73

EXTRA INFORMATION........................................................................ 74

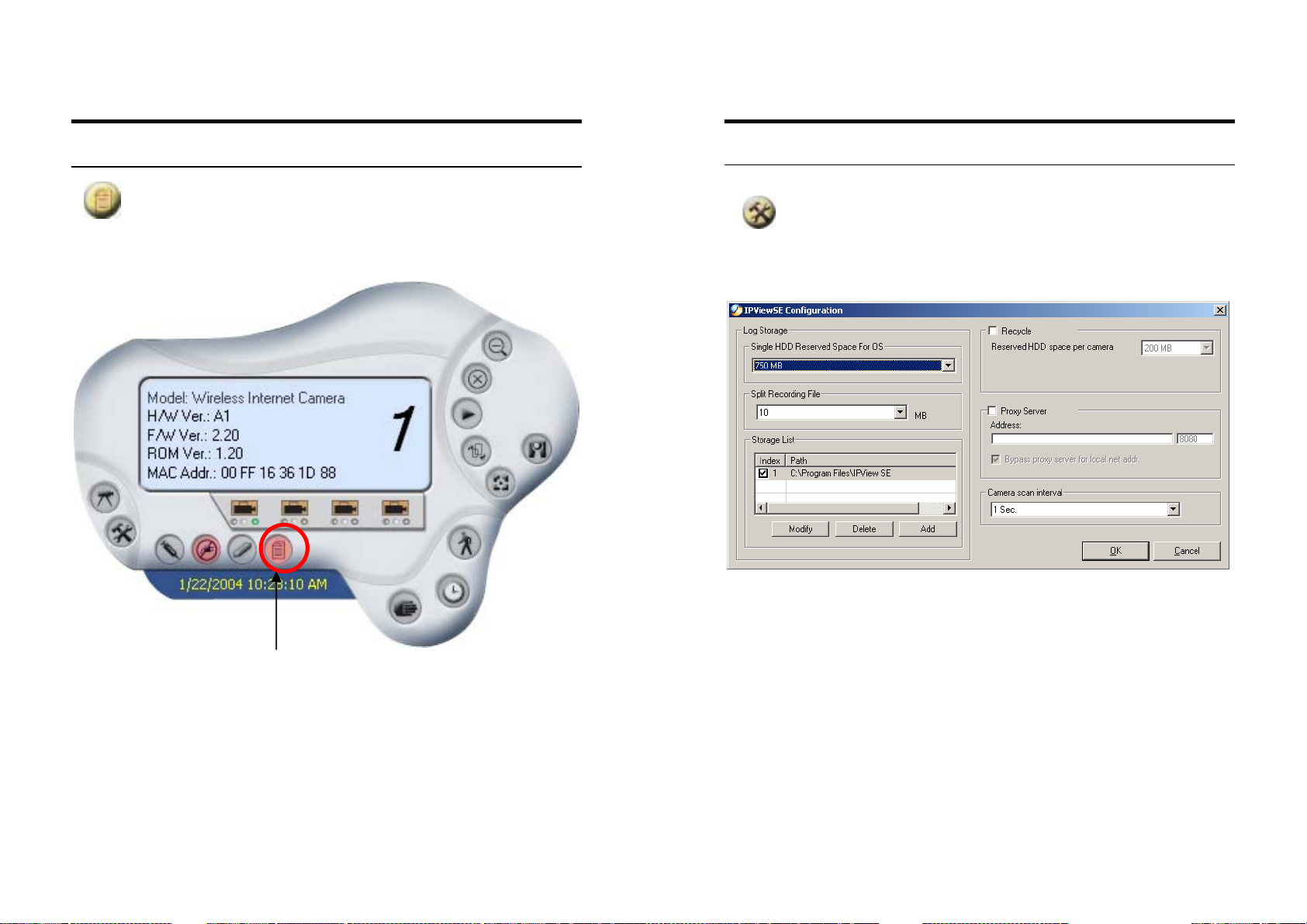

Extra Information ........................................................................ 74

HOW TO ADJUST THE PROPERTY SETTING.........................................75

System Configure.........................................................................75

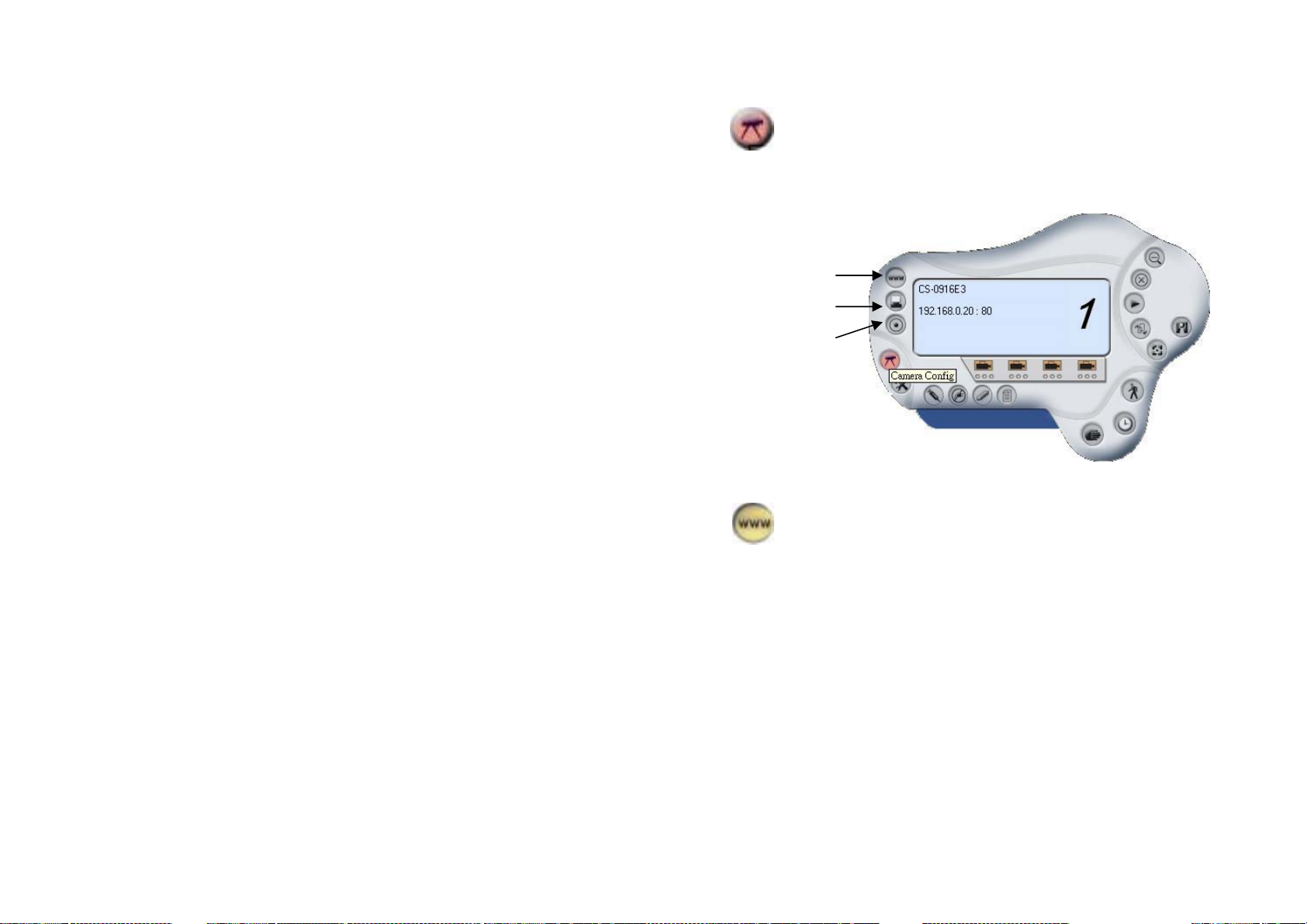

Camera Configure ....................................................................... 77

Camera Setting ............................................................................77

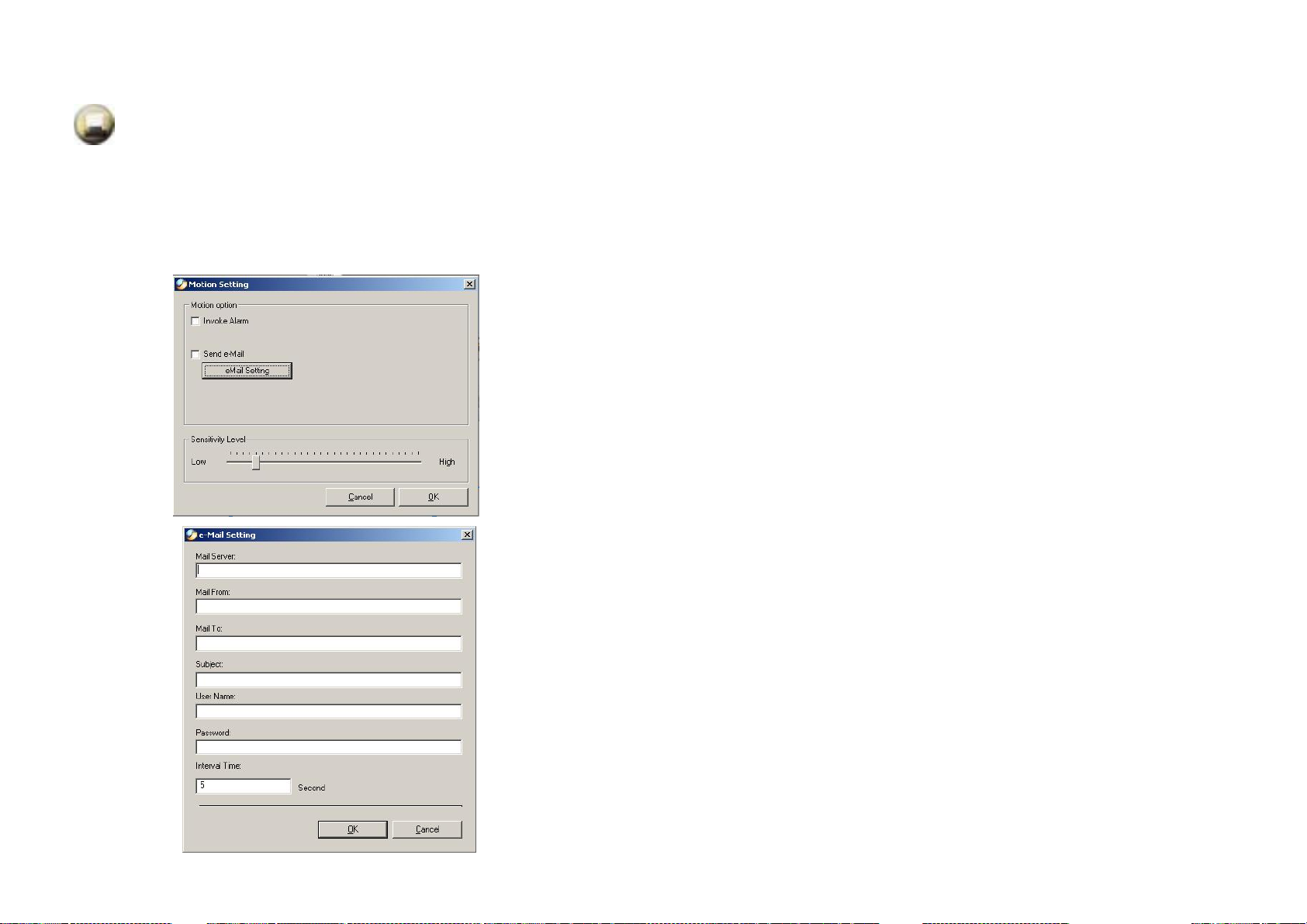

Motion Setting..............................................................................78

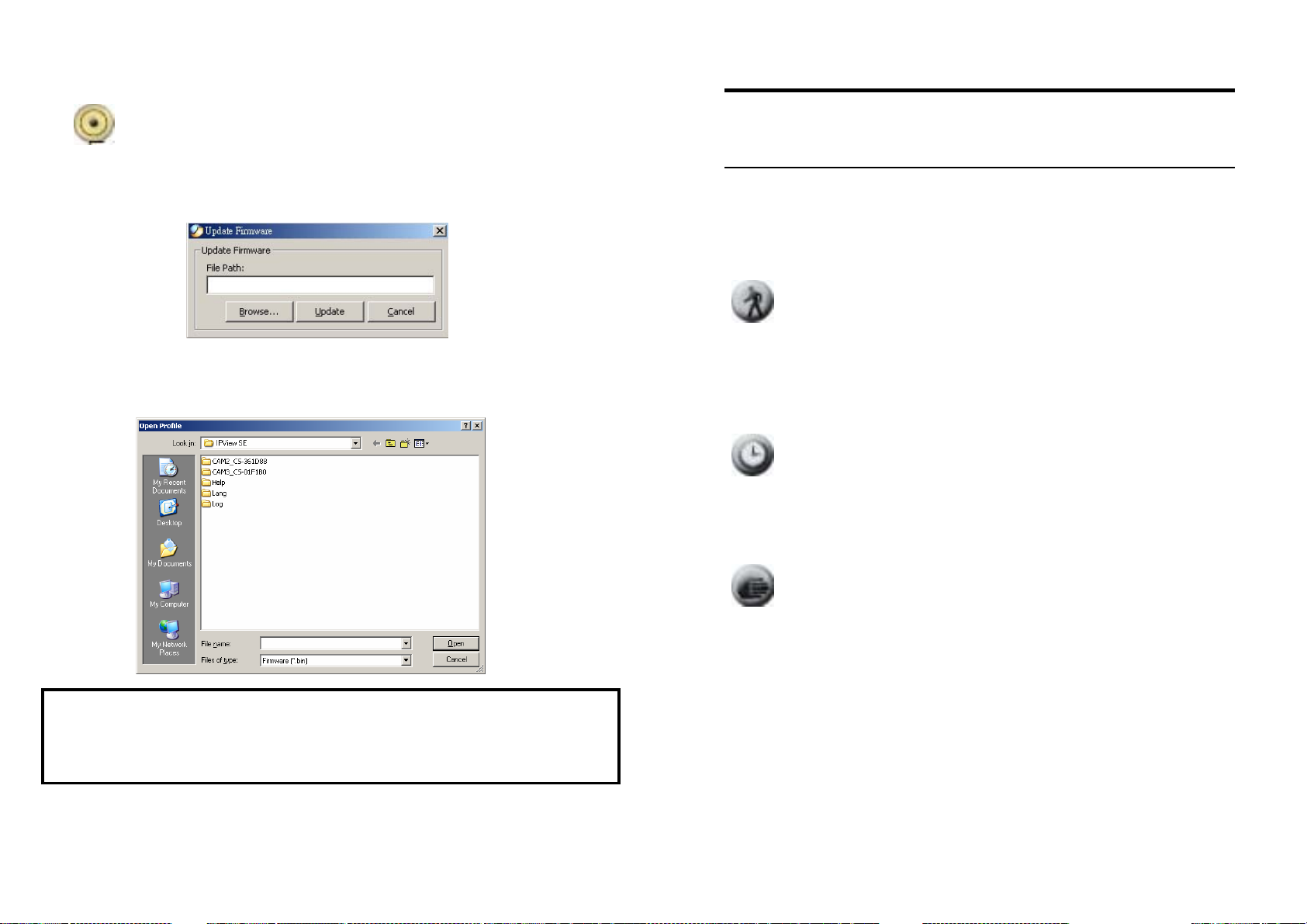

Update Firmware......................................................................... 80

HOW TO ADJUST THE RECORDING SETTING ...................................... 81

Motion Record.............................................................................81

Schedule Record .......................................................................... 81

Manual Record ............................................................................ 81

ABOUT THIS GUIDE

This manual describes Internet Camera, including a description of the features, as well as the installation procedures and web configuration. Included in the manual are the operating procedures for the IPView SE application.

APPENDIX .......................................................................................82

A FREQUENTLY ASKED QUESTIONS .................................................. 82

B PING YOUR IP ADDRESS............................................................... 85

C TROUBLE SHOOTING ......................................................................86

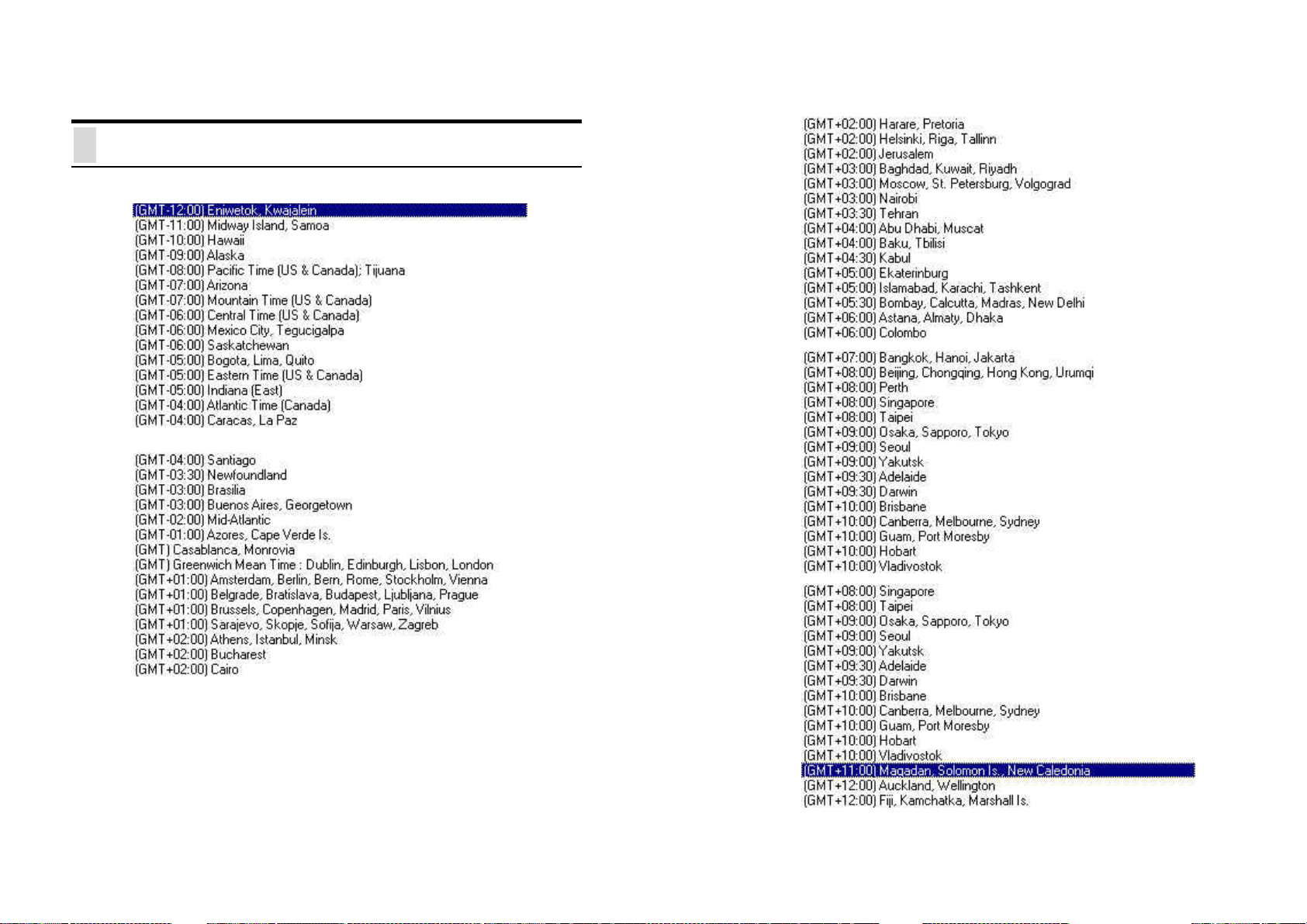

D TIME ZONE TABLE......................................................................... 90

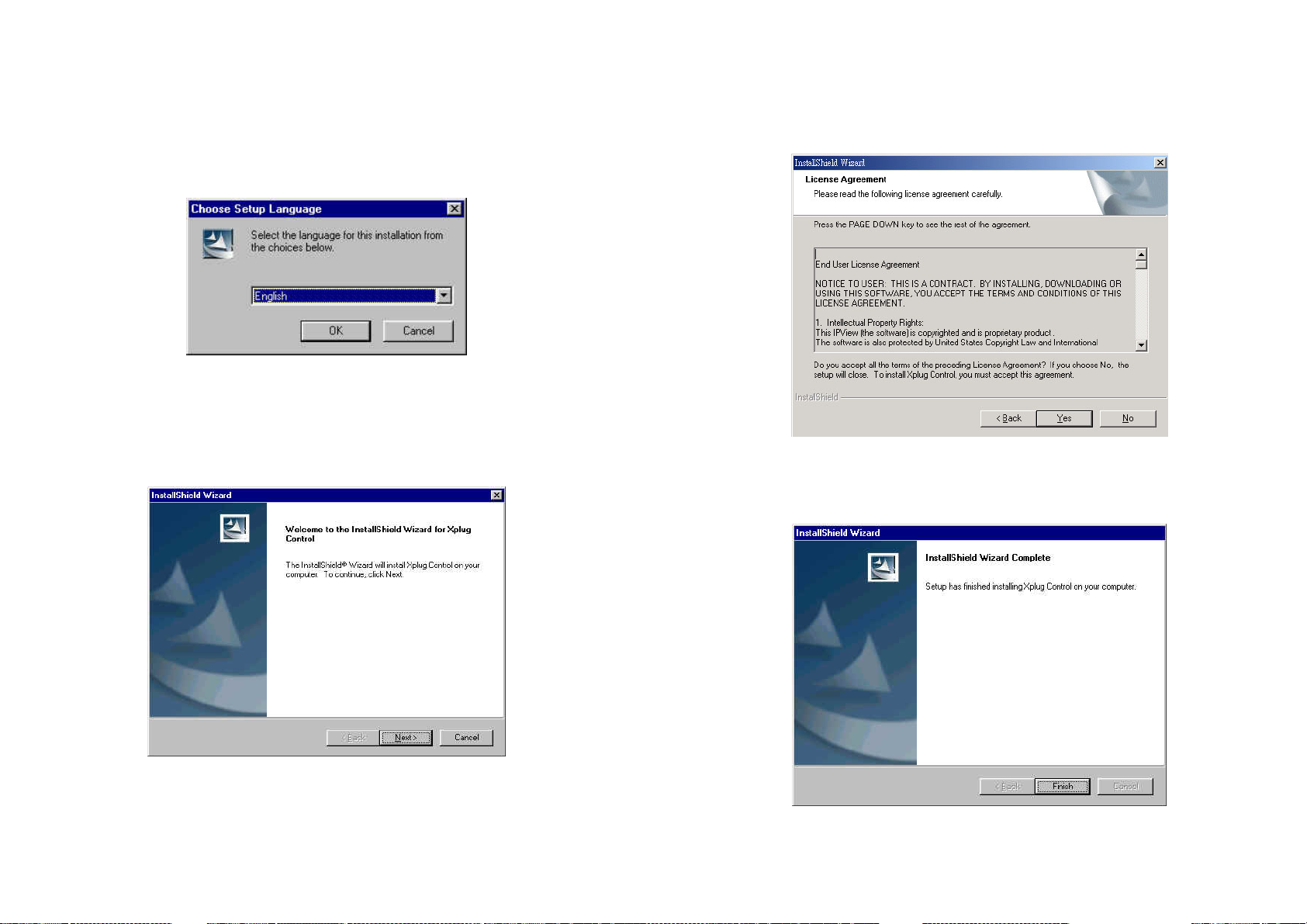

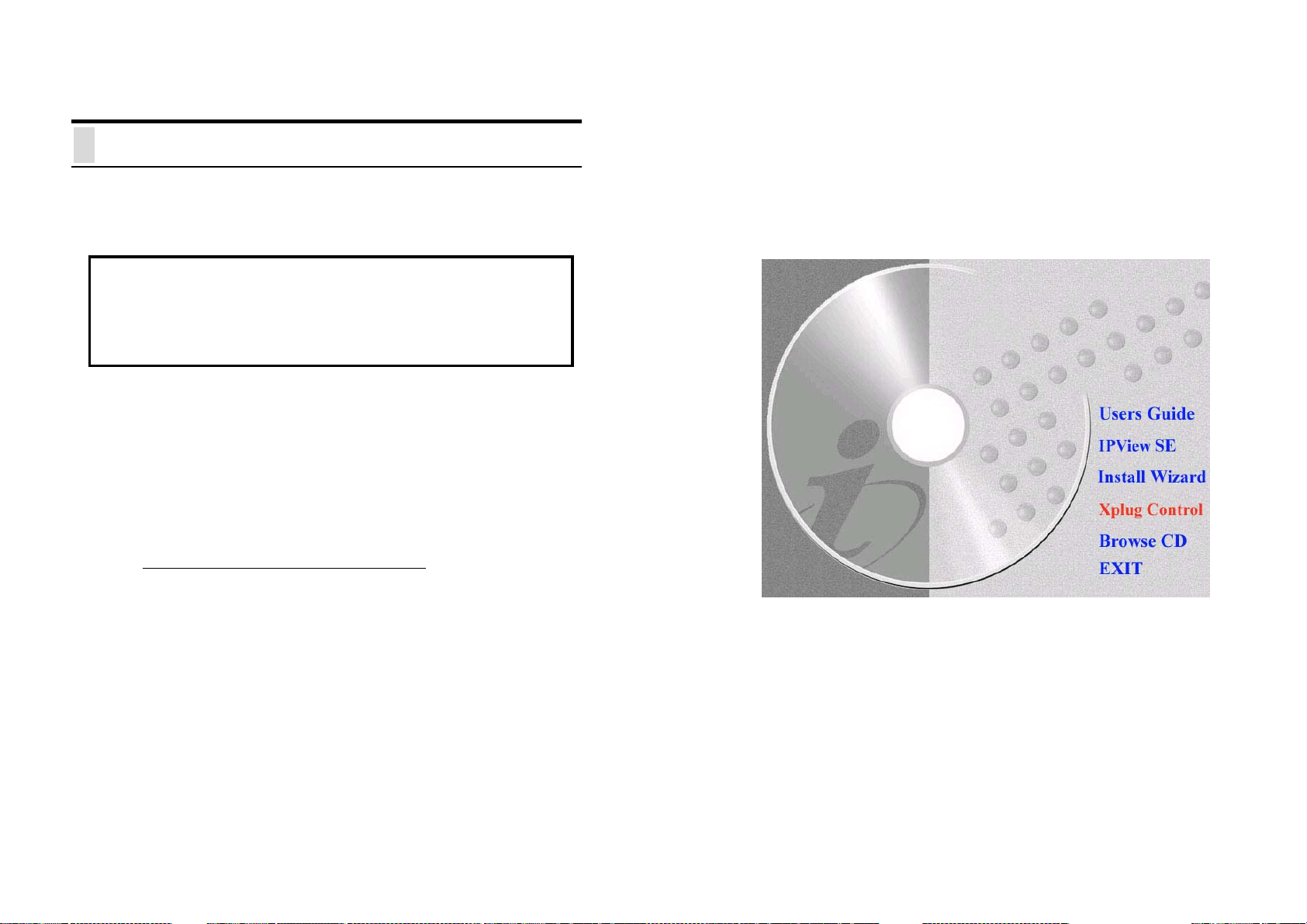

E XPLUG CONTROL INSTALLATION ................................................... 92

F ADJUST INTERNET CAMERA FOCUS................................................ 96

G SPECIFICATION ..............................................................................97

HGLOSSARY OF TERMS ...................................................................100

INTRODUCTION

Thank you for the purchase of the Internet Camera connecting directly to an Ethernet or Fast Ethernet. It is different from the conventional PC Camera, the Internet Camera is a standalone system with built-in CPU and web-based solutions providing a low cost solution that can transmit high quality video images for monitoring. The Internet Camera can be managed remotely, accessed and controlled from any PC/Notebook over the Intranet or Internet via a web browser. The simple installation procedures and web-based interface offers easy integration to your network application environments coupled with many applications such as remote monitoring for a cost-effective solution.

SYSTEM

REQUIREMENT

Internet Camera

Network:

Local Area Network: 10Base-T Ethernet or 100Base

TX Fast Ethernet

Recommended PC or Notebook to Access the Internet Camera

Web Browser:

System requirement:

CPU: Pentium II, 266 MHz or above Memory Size: 32 MB (64 MB recommended) VGA card resolution: 800x600 or above

• Internet Explorer 5.0 or above (ActiveX & JAVA Mode –

Image View for Windows OS and JAVA Mode – Image View for other OS)

• Netscape 6.0 or above (JAVA Mode – Image View)

IPView SE Application:

Support OS: Win 98 SE, Win 2000, Win Me, Win XP System requirement for IPView SE:

CPU: Pentium III, 450 MHz or above Memory Size: 128 MB (256 MB recommended) VGA card resolution: 800x600 or above

FEATURES AND

BENEFITS

This section describes the features and benefits of the Internet Camera

Simple To Use

The Internet Camera is a standalone system with built-in CPU requiring no special hardware or software such as PC frame grabber cards. The Internet Camera supports both ActiveX mode (for Internet Explorer users) and Java mode (for Internet Explorer and Netscape Navigator users). Therefore, all that is required is a web browser software such as Internet Explorer 5.0 or above or Netscape 6.0 or above. Just plug and view the picture from your Internet Camera with a valid IP Address.

Support Variety of Platforms

Broad Range of Applications

The Internet Camera supports TCP/IP networking, SMTP e-mail, HTTP and other Internet related protocols, and can be utilized in a mixed operating system environment such as Windows, Unix, and Mac. It can be integrated easily into other www/Intranet applications.

Web Configuration

Applying a standard web browser, the administrator can configure and manage the Internet Camera directly from its own web page via the Intranet or Internet. Up to 64 users name and password are permitted with privilege setting controlled by the administrator.

Remote Utility

With today’s high-speed Internet services, the Internet Camera can provide the ideal solution for live video images over the Intranet and Internet for remote monitoring. The Internet Camera allows remote access from a web browser for live image viewing and allows administrator to manage and control the Internet Camera anywhere and any time in the world. Apply the Internet Camera to monitor various objects and places such as homes, offices, banks, hospitals, child-care centers, amusement parks and other varieties of industrial and public monitoring. The Internet Camera can also be used for intruder detection; in addition, it can capture still images for archiving and many more applications.

The powerful IPView SE application assigns the administrator with a pre-defined user ID and password, allowing the administrator to modify the Internet Camera settings from the remote site via Intranet or Internet. When new firmware is available, you can also upgrade remotely over the network for added convenience. Users are also allowed to monitor the image, and take snapshots.

Power LED

PHYSICAL

DESCRIPTION

This section describes the externally visible features of the Internet Camera.

Front Panel

Link LED

Power LED

The Power LED is positioned on the right side of the Internet Camera’s lens while facing the Internet Camera.

A steady blue light confirms that the Internet Camera is powered on.

Link LED

The Link LED is positioned on the right side of the Internet Camera’s lens while facing the Internet Camera. It is located right of the Power LED

A steady orange light confirms that the camera has good connection to LAN connectivity.

Dependent on the data traffic the LED will begin to flash to indicate that the Internet Camera is receiving/sending data from/to the network.

Reset Button

Rear Panel

Network Cable Connector

The Internet Camera’s rear panel features an RJ-45 connector for connections to 10Base-T Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5 twisted-pair cable). The port supports the Auto MDI-X type, allowing the Internet Camera to automatically detect or negotiate the transmission speed of the network.

10/100 Ethernet

Network Cable

Connector

Reset

DC 5V

Reset Button

DC Power Connector

Reset will be initiated when the reset button is pressed once, and Power LED begins to flash.

Factory Reset will be initiated when the reset button is pressed continuously for three seconds or when Power LED begins to light up. Release the reset button and the Power LED will begin to flash, indicating the Internet Camera is changing to factory reset. The IP address will also return to the default setting as

192.168.0.20.

DC Power Connector

The DC power input connector is located on the Internet Camera’s rear panel, and is labeled DC 5V with a single jack socket to supply power to the Internet Camera. Power will be generated when the power supply is connected to a wall outlet.

Top Panel

Bottom Panel

Screw Hole

Located on the top panel of the Internet Camera, the screw hole is used to connect the camera stand onto the Internet Camera by attaching the screw head on the camera stand into the screw hole of the Internet Camera.

Screw Hole

Located on the bottom panel of the Internet Camera, the screw hole is used to connect the camera stand onto the Internet Camera by attaching the screw head on the camera stand into the screw hole of the Internet Camera.

UNPACKING THE

INTERNET CAMERA

Carefully remove all items from the package. In addition to this User’s Guide, be certain that you have:

• One Internet Camera

• One Utility CD-ROM

• One Quick Installation Guide

• One Camera Metal Stand

• One RJ-45 Ethernet Cable

• One Power Adapter

If any item is missing, or if you find any damage or mismatch, promptly contact your dealer for assistance.

Connecting the Internet Camera to the Camera Stand

The Internet Camera comes with a camera stand (optional) with a swivel ball screw head that can be attached to the Internet Camera's bottom screw hole. Attach the camera stand to the Internet Camera and station it for your application. There are three holes located in the base of the camera stand allowing the Internet Camera to be mounted on the ceiling or any wall securely.

HARDWARE

INSTALLATION

This section describes the Hardware installation procedure for the Internet Camera.

1 Connect an Ethernet cable

Connect an Ethernet cable to the network cable connector located on the Internet Camera’s rear panel, and then attach it to the network.

10/10 0Eth ernet

Reset

DC 5V

2 Attach the external power supply

Attach the external power supply to the DC power input connector located on Internet Camera’s rear panel, and then connect it to your local power supply.

Note:

Confirm power source is supplied from the LED indicators label Power on the Internet Camera Is illuminated.

10/100 Ether net

Reset

DC5V

SECURITY

To ensure the highest security and prevent unauthorized usage of the Internet Camera the Administrator has the exclusive privilege to access the System Administration for settings and control requirements to allow users the level of entry and authorize the privileges for all users. The Internet Camera supports multi-level password protection and access to the Internet Camera is strictly restricted to define the user who has a "User Name" and "User Password" that is assigned by the Administrator.

Administrator can release a public user name and password so when remote users access the Internet Camera they will have the right to view the image transmitted by the Internet Camera.

Note:

Since the default settings are Null String, it is highly recommended to set the "Admin ID" and "Admin Password" when you are the first time to use the Internet Camera. Once the ID and Password are defined, only the administrator has the access to management the Internet Camera. This procedure should be done as soon as possible since the security features with the Internet Camera will not be enabled until the "Admin ID" and "Admin Password" is defined.

SOFTWARE

INSTALLATION

This section describes the Software installation procedure of the Internet Camera for Web Configuration and IPView SE application.

Web Configuration

The Internet Camera must be configured through its built-in Webbased Configuration.

Extensive knowledge of LAN will be helpful in setting up the Internet Camera

From the web browser, enter the default IP address to access the Welcome screen of the Internet Camera. To configure your Internet Camera, type http://192.168.0.20 in the address box. The

number is the default IP address of your Internet Camera. Then, press [Enter]

Note:

The PC’s IP address must correspond with the Internet Camera’s IP address in the same segment for the two devices to communicate.

Main Menu Image

After the default IP address is entered from the browser, the Internet Camera Welcome screen will appear with a still image. There will be three options to choose from to set-up and view your Internet Camera, including:

z View Image – ActiveX Mode z View Image – Java Mode z System Administration

Click "System" in the system administration menu bar, and the

System screen will appear as illustrated below:

System Administration

Click “System Administration” from the Welcome screen to

access the settings required for the Internet Camera.

There will be several options in the System menu bar to choose from to set your Internet Camera, including:

z System z Image z Users z Date Time z Upload z E-mail z Information z Tools

System Administration

Click “Home” to

return to Welcome

Screen

System Administration – System

The System menu contains commands for settings that are required for inputting key details to set-up the Internet Camera for operation.

Camera Name:

This field is used to enter a descriptive name for the device.

The default setting for the Camera Name is CS-xxxxxx, where xxxxxx is the last six digit of the MAC Address. The maximum length is 32 (Printable ASCII).

Location:

This field is used to enter a descriptive name for the location used by the Internet Camera.

Admin:

This field is used to enter the Administrator ID along with the password to access the System Administration settings. Be sure to enter the password twice to confirm the details once in the Admin Password field and again in the Confirm Password field.

The default setting for Admin is blank space (Null String), and you need to key in the Admin ID with a maximum length of 12 (Printable ASCII) characters and enter the Admin Password with a maximum length of 8 (Printable ASCII) characters.

It is highly recommended to set the Admin ID and Admin Password as soon as possible to enable security option for the Internet Camera to function.

IP Assignment:

Access to the Internet Camera is done through assigning a proper IP address. Please make sure to use a vacant IP address when you assign the IP address for the Internet Camera. This will prevent errors from occurring if the IP address is overlapped.

Important Information

There are two options to select from the IP Assignment:

Manually Assign or Assign Automatically Using.

Manually Assign

You can click “Manually Assign” and directly enter the IP

address.

The default settings are as follows:

• Default IP – 192.168.0.20

• Subnet Mask – 255.255.255.0

• Default Gateway – 0.0.0.0

Assign Automatically Using

If your network is using RARP, BOOTP or DHCP server, you

can click “Assign Automatically Using” and then click “RARP”, “BOOTP” or “DHCP”. Under this setting the

Internet Camera will automatically assign an IP address from RARP, BOOTP or DHCP server. Every time when the camera starts up, please make sure that the DHCP server is set to assign a static IP address to your camera.

If your application requires direct connection from an ADSL modem through the Internet Camera’s RJ-45 LAN port, and you

also have an ISP PPPoE account, click “PPPoE” option and enter

the Service Name, User ID and Password into the respective fields. The Internet Camera will get an IP address from the ISP as starting up.

DNS IP Address:

DNS (Domain Name System) server is an Internet service that translates domain names into IP addresses. Enter at least one DNS IP Address.

Dynamic DNS:

The Dynamic DNS service allows you to alias a dynamic IP address to a static hostname in any of the domains, allowing your computer to be more easily accessed from various locations on the Internet.

LED Control:

The LED control allows user to setup the LED illumination as desired. This feature provides the flexibility when surveillance activity is ON.

There are three options as follows:

z Normal –

Power - Steady On of the LED indicator. Link - Steady On of the LED indicator. When

LAN activity is present the LED indicator will flash steadily.

z OFF –

Power - LED indicator is off Link – LED indicator is off

z Dummy –

Power - Steady On of the LED indicator.

Link -

Steady On of the LED indicator with

random flashing.

The default setting for the LED control is at Normal. When you have configured the LED control, the correct illumination will be set after 1 minute.

Note:

This function is built-in to the LED indicators to add extra capabilities. The three options allow the Administrator to configure and camouflage the illumination for the LED indicator to falsify the monitoring status. In Normal Mode, the LED indicator functions normally. Under Off Mode, the LED indicators are both off; however, it is still monitoring the activity. In Dummy Mode, the LED indicators operate in monitoring condition but monitoring activity is off or on.

Loading ActiveX From:

This field is used to specify the location of Xplug Control (ActiveX) plug-in program. Enter the information as required in .ocx format, for example:

http://www.<your company>.com/xplug.ocx, where <your company> must be replaced with your company’s DNS server.

Or it can be installed from the CD come with the internet camera.

Open Second Port:

The Web Server field allows settings to open a second port for the Internet Camera. This will permit users IP Sharing Gateways to support multiple Internet Cameras. By default, Port 80 is always

opened for the Internet Camera Web Server access. Select “Yes”

and input the second port value.

For example: If you have 5 Internet Camera to be installed, each with an IP address from

192.168.0.101

192.168.0.102

192.168.0.103

192.168.0.104

192.168.0.105

You can open the second port for each Internet Camera from port 81 to Port 85 as illustrated below:

Internet Camera 1 – IP 192.168.0.101, second web port 81 Internet Camera 2 – IP 192.168.0.102, second web port 82 Internet Camera 3 – IP 192.168.0.103, second web port 83 Internet Camera 4 – IP 192.168.0.104, second web port 84 Internet Camera 5 – IP 192.168.0.105, second web port 85

You also need to setup your DSL gateway for Port Mapping.

Port 81 map to 192.168.0.101 Port 82 map to 192.168.0.102 Port 83 map to 192.168.0.103 Port 84 map to 192.168.0.104 Port 85 map to 192.168.0.105

The Transfer Image field allows settings to open a second port for the Internet Camera to transfer images. The default Port 8481 is open image transfer and you can define a second port similar to the above.

Save/Cancel:

After making sure all settings in the System are correct, click the

“Save” button to store the settings for the Internet Camera. You can alternatively click the “Cancel” button to restore all settings

to the values last saved to or retrieved from the Internet Camera.

System Administration - Image

Image menu in the system administration contains commands to provide the settings for the images captured by the Internet Camera.

Click “Image” in the system administration menu bar and the

Image screen will appear as illustrated below:

Click “Home” to

return to Welcome

Screen

Video Resolution:

Select the desired video resolution format ranging from 320x240 (default) to 640x480

Compression Rate:

Select the desired compression rate with five levels from very low to very high. Higher video compression rate will generate more compact file size with less video quality and vise-versa. The default setting is Medium.

+ 38 hidden pages
