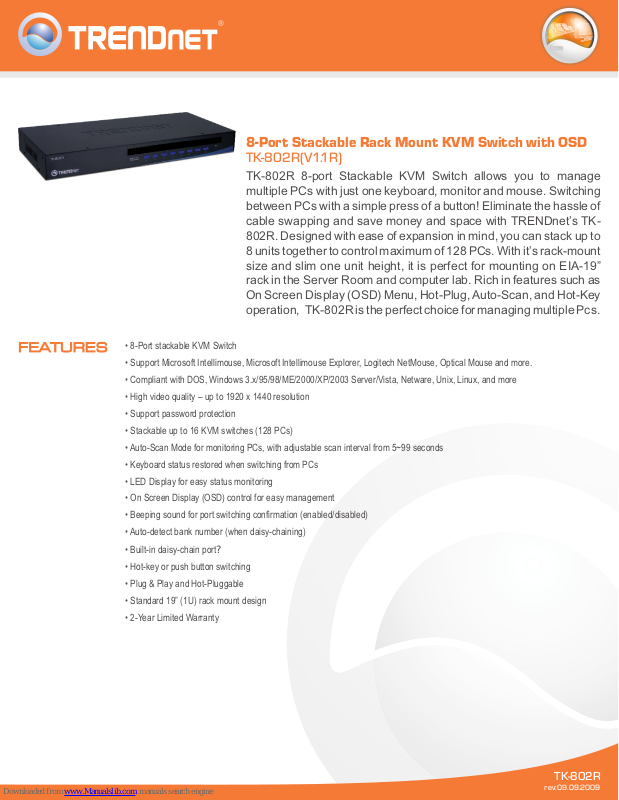

8-Port Stackable Rack Mount KVM Switch with OSD

TK-802R(V1.1R)

TK-802R 8-port Stackable KVM Switch allows you to manage multiple PCs with just one keyboard, monitor and mouse. Switching between PCs with a simple press of a button! Eliminate the hassle of cable swapping and save money and space with TRENDnet’s TK802R. Designed with ease of expansion in mind, you can stack up to 8 units together to control maximum of 128 PCs. With it’s rack-mount size and slim one unit height, it is perfect for mounting on EIA-19” rack in the Server Room and computer lab. Rich in features such as On Screen Display (OSD) Menu, Hot-Plug, Auto-Scan, and Hot-Key operation, TK-802R is the perfect choice for managing multiple Pcs.

FEATURES

• 8-Port stackable KVM Switch

• Support Microsoft Intellimouse, Microsoft Intellimouse Explorer, Logitech NetMouse, Optical Mouse and more.

• Compliant with DOS, Windows 3.x/95/98/ME/2000/XP/2003 Server/Vista, Netware, Unix, Linux, and more

• High video quality – up to 1920 x 1440 resolution

• Support password protection

• Stackable up to 16 KVM switches (128 PCs)

• Auto-Scan Mode for monitoring PCs, with adjustable scan interval from 5~99 seconds

• Keyboard status restored when switching from PCs

• LED Display for easy status monitoring

• On Screen Display (OSD) control for easy management

• Beeping sound for port switching confirmation (enabled/disabled)

• Auto-detect bank number (when daisy-chaining)

• Built-in daisy-chain port？

• Hot-key or push button switching

• Plug & Play and Hot-Pluggable

• Standard 19” (1U) rack mount design

• 2-Year Limited Warranty

TK-802R

rev:09.09.2009

8-Port Stackable Rack Mount KVM Switch with OSD

TK-802R

SPECIFICATIONS

Hardware

Management

PC Port (all female)

Console Port (all female)

Daisy Chain Port (all female)

Cable

Supported OS

PC Selection

Daisy Chain Level

Auto-Scan Interval

LED

Keyboard Status

Power Adapter

Dimensions

Weight

Temperature

Operating Humidity

Certifications

• 8 computers

• 8 x PS/2 Mouse 6-pin Mini Din

• 1 x PS/2 Mouse 6-pin Mini Din

• 8 x PS/2 Keyboard 6-pin Mini Din • 8 x VGA HDB 15-pin

• 1 x PS/2 Keyboard 6-pin Mini Din • 1 x VGA HDB 15-pin

• 1 x PS/2 Keyboard 6-pin Mini Din

• 1 x VGA HDB 15-pin

• 1 x Daisy-Chain Cable (male to male)

• DOS, Windows 3.x/95/98/ME/2000/XP/2003 Server/Vista, Linux, Unix and more

• On Screen Display (OSD) Control, Hot-Key or Push Button

• Up to 16 KVM Switches (128 PCs)

• 5-100 seconds (Programmable through Hot-Key)

• Unit: Bank (Red) Port: Link (Red) and Select (Green)

• Saved & Restored

• 9V DC 1A External Power Adapter

• 407 x 165 x 45mm (16 x 6.5 x 1.8in.)

• 1.97kg (4.33lb)

• Operating: 0°C~40°C (32°F~104°F) Storage: -20°C~60°C (-4°F~140°F)

• 0 ~ 80%RH (non-Condensing)

• CE, FCC

NETWORKING SOLUTIONS

Stand Alone

PC 2

Monitor

Keyboard

Mouse

Daisy-Chain

Monitor

MouseKeyboard

PC 4PC 6PC 8

PC 5PC 7

Daisy-Chain

8-Port PS/2 Rack Mount

PC 3

PC 1

8-Port PS/2 Rack Mount

PC 1PC 3PC 5PC 7

KVM Switch with OSD

(TK-802R)

PC 2PC 4PC 6PC 8

KVM Switch with OSD

(TK-802R)
