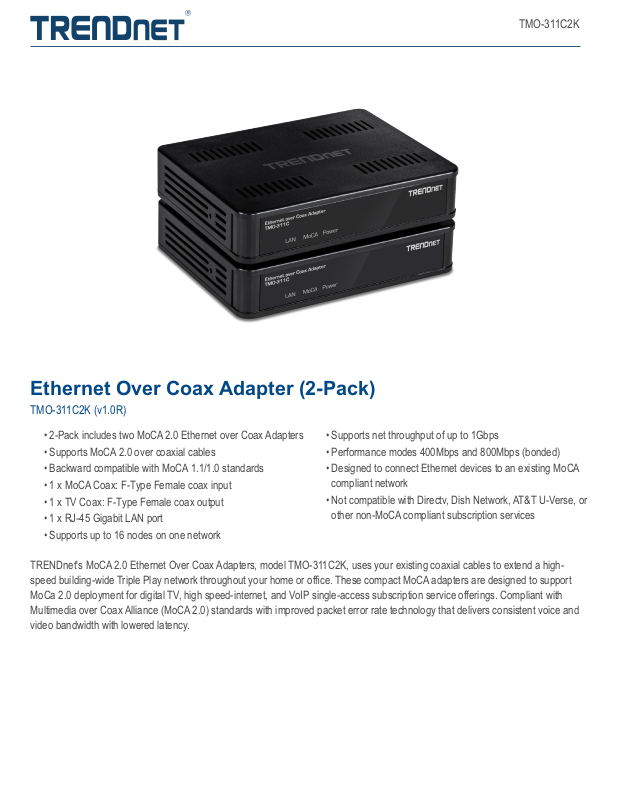

Page 1
TMO-311C2K
Ethernet Over Coax Adapter (2-Pack)
TMO-311C2K (v1.0R)
• 2-Pack includes two MoCA 2.0 Ethernet over Coax Adapters
• Supports MoCA 2.0 over coaxial cables
• Backward compatible with MoCA 1.1/1.0 standards
• 1 x MoCA Coax: F-Type Female coax input
• 1 x TV Coax: F-Type Female coax output
• 1 x RJ-45 Gigabit LAN port
• Supports up to 16 nodes on one network
TRENDnet's MoCA 2.0 Ethernet Over Coax Adapters, model TMO-311C2K, uses your existing coaxial cables to extend a highspeed building-wide Triple Play network throughout your home or office. These compact MoCA adapters are designed to support
MoCa 2.0 deployment for digital TV, high speed-internet, and VoIP single-access subscription service offerings. Compliant with
Multimedia over Coax Alliance (MoCA 2.0) standards with improved packet error rate technology that delivers consistent voice and
video bandwidth with lowered latency.
• Supports net throughput of up to 1Gbps
• Performance modes 400Mbps and 800Mbps (bonded)
• Designed to connect Ethernet devices to an existing MoCA
compliant network
• Not compatible with Directv, Dish Network, AT&T U-Verse, or
other non-MoCA compliant subscription services
Page 2
TMO-311C2K
MoCA 2.0
Supports Multimedia over Coaxial Alliance 2.0
with improved packet error rate technology that
delivers consistent voice and video bandwidth
with lowered latency.
NETWORKING SOLUTION
Compact Design
With a compact and lightweight housing
design, our MoCA adapters are well-suited for
a variety of installations, such as your desktop
or entertainment center.
Easy Installation
No configuration needed, simply connect the
adapters to the MoCA network to extend your
network over existing coaxial cabling.
Page 3
FEATURES
TMO-311C2K
Easy Installation
These MoCA coax to Ethernet
adapters require no configuration,
simply connect the adapters to the
MoCA network to extend your network
over existing coaxial cabling
Gigabit
These MoCA to Ethernet converters
each feature a Gigabit LAN port that
allows MoCA traffic to flow smoothly,
reducing traffic bottlenecks
SPECIFICATIONS
Standards
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• MoCA 1.1/1.0
• MoCA 2.0
Device Interface
• 1 x Coax cable in port (female)
• 1 x Coax cable out to TV port (female)
• 1 x Gigabit LAN port
• Reset button
• LED indicators
• Power jack
MoCA 2.0
Supports Multimedia over Coaxial
Alliance 2.0 with improved packet
error rate technology, delivering
consistent voice and video bandwidth
with lowered latency
LED Indicators
LED indicators on the MoCA adapters
convey MoCA, LAN, and Power status
Data Transfer Rate
• Ethernet: 10Mbps (half duplex), 20Mbps (full
duplex)
• Fast Ethernet: 100Mbps (half duplex),
200Mbps (full duplex)
• Gigabit: 2000Mbps (full duplex)
• MoCA 1.1: 225Mbps (50dB attenuation)
• MoCA 2.0: Multi-node: 600Mbps @ -2 –
43dBm
• MoCA MAC rate:
◦ 16-node single channel: up to 400Mbps
◦ 16-node 2 channel bonding: up to 1Gbps
MoCA Radio
• Max. 16 MoCA 1.1 or 2.0 devices
• Max. 8 MoCA 1.0 devices
• Max. transmit power: +0 dBm @ 1150MHz
• 1.1/1.0 channels: 8 with 50Mhz bandwidth
• 2.0 channels: 10 with 100Mhz single channel,
225Mhz bonded channel
• 2.0 Edge-to-edge frequency: 1125-1675Mhz
• Default channel: 1150Mhz
Compact Design
With a compact and lightweight
housing design, our MoCA adapters
are well-suited for a variety of
installations, such as your desktop or
entertainment center
Power
• Input: 100 – 240V AC, 50/60Hz, 0.5A
• Output: 12V DC, 1A external power adapter
• Max. consumption: 7W
Operating Temperature
• 0° – 40° C (32° – 104° F)
Operating Humidity
• Max. 85% non-condensing
Dimensions (single unit)
• 112 x 88 x 25mm (4.4 x 3.5 x 1 in.)
Weight (single unit)
• 124g (4.4 oz.)
Certifications
• FCC
Warranty
• 3-year
Package Contents
• 2 x TMO-311C
• Quick Installation Guide
• 2 x Power adapter (12V, 1A)
All references to speed are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
20675 Manhattan Place • Torrance • CA 90501 • USA • T: 1-888-326-6061 • F: 1-310-961-5511 • [email protected] • www.TRENDnet.com
TRENDnet is a registered trademark. Other Brands and product names are trademarks of their respective holders. Information provided in this document pertain to TRENDnet products and is subject to change at
any time, without notice. For the most recent product information please visit http://www.trendnet.com. Copyright © TRENDnet. All Rights Reserved.
Updated: 10/8/2020
