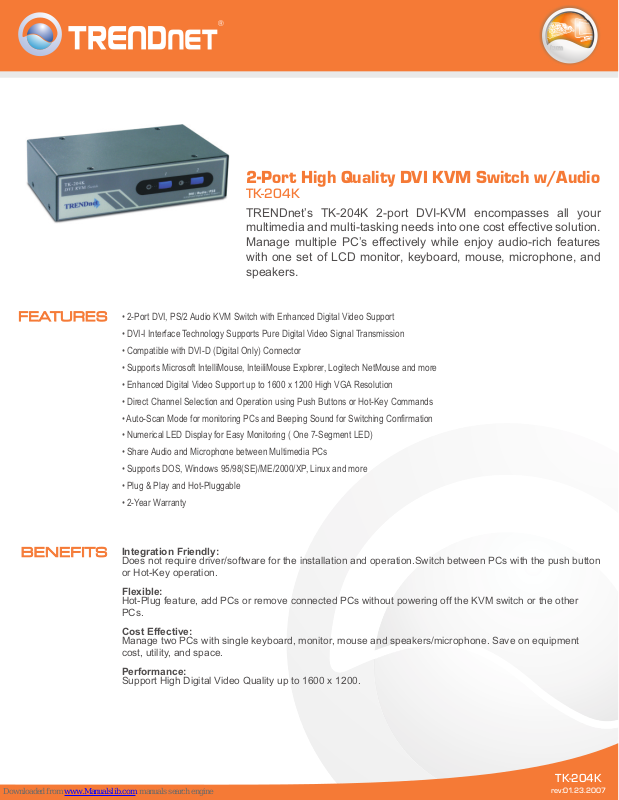

2-Port High Quality DVI KVM Switch w/Audio
TK-204K
TRENDnet’s TK-204K 2-port DVI-KVM encompasses all your
multimedia and multi-tasking needs into one cost effective solution.
Manage multiple PC’s effectively while enjoy audio-rich features
with one set of LCD monitor, keyboard, mouse, microphone, and
speakers.
FEATURES
BENEFITS
• 2-Port DVI, PS/2 Audio KVM Switch with Enhanced Digital Video Support
• DVI-I Interface Technology Supports Pure Digital Video Signal Transmission
• Compatible with DVI-D (Digital Only) Connector
• Supports Microsoft IntelliMouse, InteiliMouse Explorer, Logitech NetMouse and more
• Enhanced Digital Video Support up to 1600 x 1200 High VGA Resolution
• Direct Channel Selection and Operation using Push Buttons or Hot-Key Commands
• Auto-Scan Mode for monitoring PCs and Beeping Sound for Switching Confirmation
• Numerical LED Display for Easy Monitoring ( One 7-Segment LED)
• Share Audio and Microphone between Multimedia PCs
• Supports DOS, Windows 95/98(SE)/ME/2000/XP, Linux and more
• Plug & Play and Hot-Pluggable
• 2-Year Warranty
Integration Friendly:
Does not require driver/software for the installation and operation.Switch between PCs with the push button
or Hot-Key operation.
Flexible:
Hot-Plug feature, add PCs or remove connected PCs without powering off the KVM switch or the other
PCs.
Cost Effective:
Manage two PCs with single keyboard, monitor, mouse and speakers/microphone. Save on equipment
cost, utility, and space.
Performance:
Support High Digital Video Quality up to 1600 x 1200.
TK-204K
rev:01.23.2007
2-Port High Quality DVI KVM Switch w/Audio
TK-204K
SPECIFICATIONS
Hardware
Interface
PC Port Connector
Console Port Connector
Cable 2 sets of DVI-I Dual Link
KVM Cable (1.2m/4ft)
PC Selection
Keyboard/Mouse Emulation
Digital Display Resolution
Power
Dimensions
Weight
Temperature
Humidity
Certifications
• DVI-I & DVI-D Compliant
• PS/2 Keyboard 6-pin Mini Din (Female)
• 2 x PS/2 Mouse 6-pin Mini Din (Female)
• 2 x DVI-I Single Link (Female)
• 1 x PS/2 Keyboard 6-pin Mini Din (Female)
• 1 x PS/2 Mouse 6-pin Mini Din (Female)
• 1 x DVI-I Single Link (Female)
• 1 x 3.5mm Audio in/out jack
• 1 x 3.5mm Microphone in/out jack
• To KVM: PS/2 Keyboard 6-pin Mini Din (Male), PS/2 Mouse 6-pin Mini Din (Male), DVI-I Dual Link (Male)
• To PC: PS/2 Keyboard 6-pin Mini Din (Male), PS/2 Mouse 6-pin Mini Din (Male), DVI-I Dual Link (Male),
Audio connector (Male), Microphone connector (Male)
• Push Buttons or Hot-Key Commands
• PS/2
• 1600 x 1200
• 9V DC, 1A External Power Adapter
• 140 x 86 x 45mm (5.5 x 3.4 x 1.8 inches)
• 520g (18.4 oz.)
• Operating: 0°~ 40°C (32°~ 104°F) • Storage: -20°~ 60°C (-4°~ 140°F)
• 0 ~ 90%RH, Non-Condensing
• FCC, CE
NETWORKING SOLUTIONS
2-Port High Quality DVI
KVM Switch with Audio
(TK-204K)
Microphone
Microphone
Audio
PS/2
DVI
Speaker
LCD Monitor
Audio/Microphone Cable
DVI Cable
PS/2 Cable
DVI
PS/2
Keyboard Mouse
PS/2
Audio/Microphone
DVI
PC 2
PACKAGE CONTENTS
• 2-Port DVI Audio KVM Switch
• 2 sets of DVI-I Dual Link Cables
• Multi-Language User’s Guide
• Power Adapter (9V DC, 1A)
