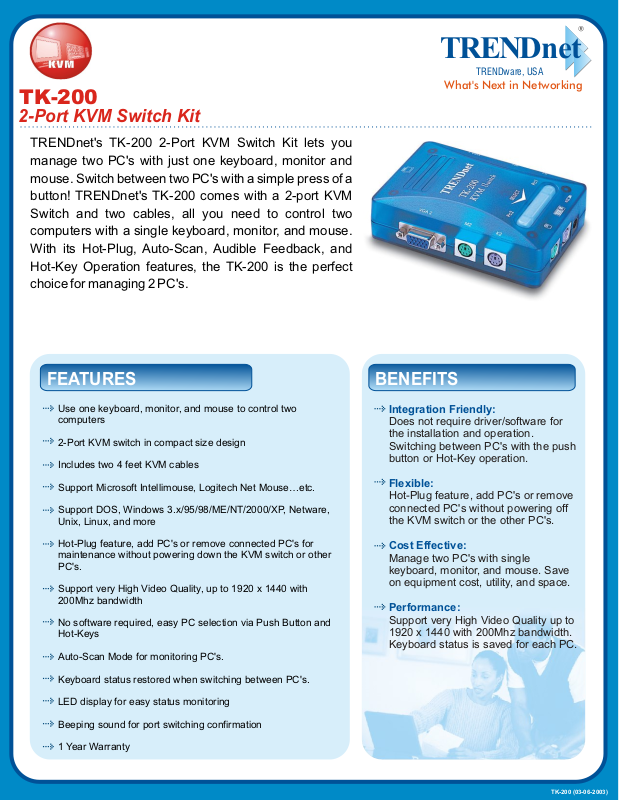

Trendnet TK-200 User Manual
TK-200
2-Port KVM Switch Kit
TRENDnet's TK-200 2-Port KVM Switch Kit lets you
manage two PC's with just one keyboard, monitor and
mouse. Switch between two PC's with a simple press of a
button! TRENDnet's TK-200 comes with a 2-port KVM
Switch and two cables, all you need to control two
computers with a single keyboard, monitor, and mouse.
With its Hot-Plug, Auto-Scan, Audible Feedback, and
Hot-Key Operation features, the TK-200 is the perfect
choice for managing 2 PC's.
TRENDnet
TRENDware, USA
What's Next in Networking
Use one keyboard, monitor, and mouse to control two
computers
2-Port KVM switch in compact size design
Includes two 4 feet KVM cables
Support Microsoft Intellimouse, Logitech Net Mouse…etc.
Support DOS, Windows 3.x/95/98/ME/NT/2000/XP, Netware,
Unix, Linux, and more
Hot-Plug feature, add PC's or remove connected PC's for
maintenance without powering down the KVM switch or other
PC's.
Support very High Video Quality, up to 1920 x 1440 with
200Mhz bandwidth
No software required, easy PC selection via Push Button and
Hot-Keys
Auto-Scan Mode for monitoring PC's.
BENEFITSFEATURES
Integration Friendly:
Does not require driver/software for
the installation and operation.
Switching between PC's with the push
button or Hot-Key operation.
Flexible:
Hot-Plug feature, add PC's or remove
connected PC's without powering off
the KVM switch or the other PC's.
Cost Effective:
Manage two PC's with single
keyboard, monitor, and mouse. Save
on equipment cost, utility, and space.
Performance:
Support very High Video Quality up to
1920 x 1440 with 200Mhz bandwidth.
Keyboard status is saved for each PC.
Keyboard status restored when switching between PC's.
LED display for easy status monitoring
Beeping sound for port switching confirmation
1 Year Warranty
TK-200 (03-06-2003)
TK-200
TK-200
2-Port KVM Switch Kit
2-Port KVM Switch Kit
SPECIFICATIONS
Computer Connections:
•
2
Port Connectors:
• Keyboard & Mouse: PS/2 type 6-pin
mini
• Din. Monitor: 15-pin HDDB type
KVM Cable:
• 2 sets of high-grade KVM cables
(UL2919 for VGA monitor).
• Length: 1.2 meters (4 feet)
Console Port:
• 1
Manual Selection:
• Push Button
Port Selection:
• Push Button and Hot-Keys
Auto-Scan Intervals:
• 4 seconds
Switching Confirmation:
• Beeping sound
Keyboard State:
• Saved and restored
Power Supply:
• Draw power from computer's
keyboard port.
• Optional external power supply
(for battery powered PC): 5V~9V DC,
500mA~1A (connector jack center
positive)
Dimensions:
• 113 x 84 x 31 mm
(4.45 x 3.31 x 1.22 inches)
Weight:
• Appro. 155 g. (5.5 Oz.)
Temperature:
• Operating: 0° ~ 40°C (32° ~104° F)
• Storage: -20° ~ 60°C (-4° ~ 140° F)
Humidity:
• 0%~80%, Non-Condensing
Certifications:
• FCC, CE
NETWORKING SOLUTIONS
To Order Please Call:
1-888-326-6061
PRODUCT INFORMATION
TK-801R: 8-Port KVM Rack-Mountable Switch
TK-200: 2-Port KVM Switch Kit
TK-400: 4-Port KVM Switch
TK-800R: 8-Port Rack Mountable KVM Switch
TK-C06: 6 feet KVM Cable
TK-C10: 10 feet KVM Cable
ORDERING INFORMATION
TRENDware International, Inc.
3135 Kashiwa Street
Torrance, CA. 90505. USA
Tel: 310-891-1100
Fax: 310-891-1111
www.TRENDNET.com
Web:
Email: sales@trendware.com
TRENDnet
TRENDware, USA
R
TRENDnet is a registered treademark of TRENDware International, Inc. Other Brands and product names are trademarks of their respective holders. Information provided in this
document pertain to TRENDware products and is subject to change at any time, without notice. For the most recent product information please visit
Copyright TRENDware International, Inc. 2004. All Rights Reserved.
©
http://www.TRENDNET.com.
