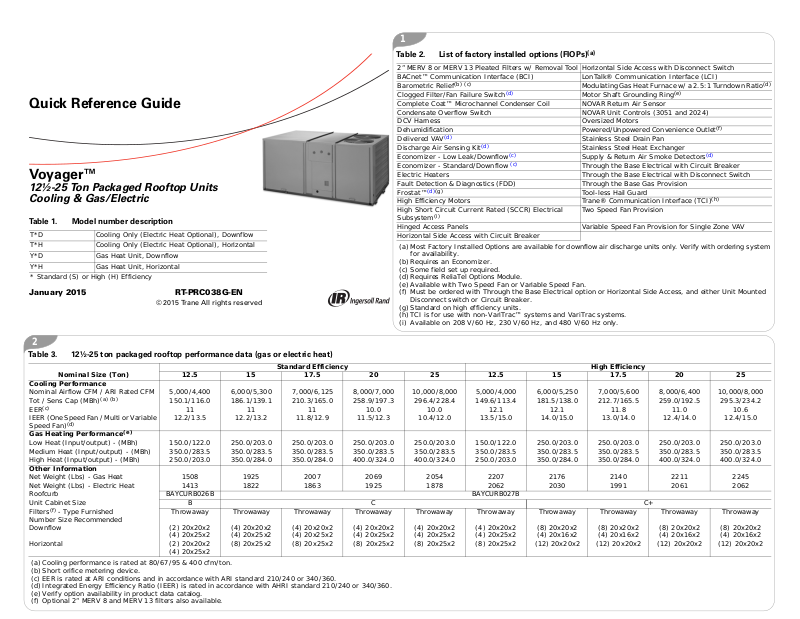

Trane Voyager 12.5 to 25 Tons Reference Guide

Quick Reference Guide

Voyager™

12½-25 Ton Packaged Rooftop Units
Cooling & Gas/Electric

Table 1. Model number description

T*D Cooling Only (Electric Heat Optional), Downflow
T*H Cooling Only (Electric Heat Optional), Horizontal
Y*D Gas Heat Unit, Downflow
Y*H Gas Heat Unit, Horizontal
* Standard (S) or High (H) Efficiency

January 2015 RT-PRC038G-EN

© 2015 Trane All rights reserved

1

Table 2. List of factory installed options (FIOPs)

2” MERV 8 or MERV 13 Pleated Filters w/ Removal Tool Horizontal Side Access with Disconnect Switch
BACnet™ Communication Interface (BCI) LonTalk® Communication Interface (LCI)
Barometric Relief
Clogged Filter/Fan Failure Switch
Complete Coat™ Microchannel Condenser Coil NOVAR Return Air Sensor
Condensate Overflow Switch NOVAR Unit Controls (3051 and 2024)
DCV Harness Oversized Motors
Dehumidification Powered/Unpowered Convenience Outlet
Delivered VAV
Discharge Air Sensing Kit
Economizer - Low Leak/Downflow
Economizer - Standard/Downflow
Electric Heaters Through the Base Electrical with Disconnect Switch
Fault Detection & Diagnostics (FDD) Through the Base Gas Provision
Frostat™
High Efficiency Motors Trane® Communication Interface (TCI)
High Short Circuit Current Rated (SCCR) Electrical

Subsystem
Hinged Access Panels Variable Speed Fan Provision for Single Zone VAV
Horizontal Side Access with Circuit Breaker

(a) Most Factory Installed Options are available for downflow air discharge units only. Verify with ordering system

for availability.
(b)Requires an Economizer.
(c) Some field set up required.
(d)Requires ReliaTel Options Module.
(e) Available with Two Speed Fan or Variable Speed Fan.
(f) Must be ordered with Through the Base Electrical option or Horizontal Side Access, and either Unit Mounted

Disconnect switch or Circuit Breaker.
(g)Standard on high efficiency units.
(h)TCI is for use with non-VariTrac™ systems and VariTrac systems.
(i) Available on 208 V/60 Hz, 230 V/60 Hz, and 480 V/60 Hz only.

(d)(g)

(i)

(b) (c)

(d)

(d)

(d)

(c)

Supply & Return Air Smoke Detectors

(c)

(a)

Modulating Gas Heat Furnace w/ a 2.5:1 T urndown Ratio
Motor Shaft Grounding Ring

Stainless Steel Drain Pan
Stainless Steel Heat Exchanger

Through the Base Electrical with Circuit Breaker

Tool-less Hail Guard

Two Speed Fan Provision

(e)

(f)

(d)

(h)

(d)

2

Table 3. 12½-25 ton packaged rooftop performance data (gas or electric heat)

Nominal Size (Ton) 12.51517.520 2512.51517.520 25

Cooling Performance

Nominal Airflow CFM / ARI Rated CFM 5,000/4,400 6,000/5,300 7,000/6,125 8,000/7,000 10,000/8,000 5,000/4,000 6,000/5,250 7,000/5,600 8,000/6,400 10,000/8,000
Tot / Sens Cap (MBh)

(c)

EER
IEER (One Speed Fan / Multi or Variable

Speed Fan)

Gas Heating Performance

Low Heat (Input/output) - (MBh) 150.0/122.0 250.0/203.0 250.0/203.0 250.0/203.0 250.0/203.0 150.0/122.0 250.0/203.0 250.0/203.0 250.0/203.0 250.0/203.0
Medium Heat (Input/output) - (MBh) 350.0/283.5 350.0/283.5 350.0/283.5 350.0/283.5 350.0/283.5 350.0/283.5 350.0/283.5 350.0/283.5 350.0/283.5 350.0/283.5
High Heat (Input/output) - (MBh) 250.0/203.0 350.0/284.0 350.0/284.0 400.0/324.0 400.0/324.0 250.0/203.0 350.0/284.0 350.0/284.0 400.0/324.0 400.0/324.0

Other Information

Net Weight (Lbs) - Gas Heat 1508 1925 2007 2069 2054 2207 2176 2140 2211 2245
Net Weight (Lbs) - Electric Heat 1413 1822 1863 1925 1878 2062 2030 1991 2061 2062
Roofcurb BAYCURB026B BAYCURB027B
Unit Cabinet Size B C C+
Filters
Number Size Recommended
Downflow (2) 20x20x2

Horizontal (2) 20x20x2

(a)Cooling performance is rated at 80/67/95 & 400 cfm/ton.
(b)Short orifice metering device.
(c) EER is rated at ARI conditions and in accordance with ARI standard 210/240 or 340/360.
(d)Integrated Energy Efficiency Ratio (IEER) is rated in accordance with AHRI standard 210/240 or 340/360.
(e) Verify option availability in product data catalog.
(f) Optional 2” MERV 8 and MERV 13 filters also available.

(d)

(f)

- Type Furnished

(a) (b)

(e)

150.1/116.0 186.1/139.1 210.3/165.0 258.9/197.3 296.4/228.4 149.6/113.4 181.5/138.0 212.7/165.5 259.0/192.5 295.3/234.2
11 11 11 10.010.012.112.111.811.010.6

12.2/13.5 12.2/13.2 11.8/12.9 11.5/12.3 10.4/12.0 13.5/15.0 14.0/15.0 13.0/14.0 12.4/14.0 12.4/15.0

Throwaway Throwaway Throwaway Throwaway Throwaway Throwaway Throwaway Throwaway Throwaway Throwaway

(4) 20x25x2

(4) 20x25x2

(4) 20x20x2
(4) 20x25x2

(8) 20x25x2 (8) 20x25x2 (8) 20x25x2 (8) 20x25x2 (8) 20x25x2 (12) 20x20x2 (12) 20x20x2 (12) 20x20x2 (12) 20x20x2

Standard Efficiency High Efficiency

(4) 20x20x2
(4) 20x25x2

(4) 20x20x2
(4) 20x25x2

(4) 20x20x2
(4) 20x25x2

(4) 20x20x2
(4) 20x25x2

(8) 20x20x2
(4) 20x16x2

(8) 20x20x2
(4) 20x16x2

(8) 20x20x2
(4) 20x16x2

(8) 20x20x2
(4) 20x16x2

3

UL

UW

UH

Table 4. Unit MCA & MOP electrical data (standard indoor fan motor)

T/YS* Volts MCA MOP T/YH* Volts MCA MOP

150 208-230/3 64 80 150 208-230/3 65 90

460/3 31 40 460/3 30 40
575/3 23 30 575/3 24 30
380/3 37 45 180 208-230/3 68 90

180 208-230/3 75 100 460/3 33 45

460/3 38 50 575/3 26 35
575/3 31 40 210 208-230/3 86 110
380/3 45 60 460/3 43 60

210 208-230/3 93 125 575/3 33 45

460/3 44 60 240 208-230/3 99 125
575/3 35 50 460/3 46 60
380/3 55 70 575/3 38 50

240 208-230/3 108 12 5 300 208-230/3 121 150

460/3 52 70 460/3 57 70
575/3 44 60 575/3 44 50
380/3 63 80

300

208-230/3 124 150

460/3 59 70
575/3 48 60
380/3 71 90

4

Table 5. Unit indoor fan data

Standard
HP - RPM

208-230/3 208-230/3

150

460/3 3 - 1740 5 - 3450
575/3 575/3
380/3 5 - 3450 N/A 208-230/3

180 208-230/3

460/3 3 - 1740 5 - 3450 575/3
575/3 208-230/3
380/3 5 - 3450 N/A

210 208-230/3 575/3

460/3 5 - 3450 7.5 - 3470 208-230/3
575/3
380/3 7.5 - 3470 N/A 575/3

208-230/3 208-230/3

240

460/3 5 - 3450 7.5 - 3470
575/3 575/3
380/3 7.5 - 3470 N/A

208-230/3

300

460/3 7.5 - 3470 N/A
575/3
380/3

Oversize

HP - RPM T/YH* Volts

150

180

210

240

300

Standard
HP - RPM

460/3 3 - 1740 5 - 3450

460/3 3 - 1740 5 - 3450

460/3 5 - 3450 7.5 - 3470

460/3 5 - 3450 7.5 - 3470

460/3 7.5 - 3470 N/A

Oversize

HP - RPMT/YS* Volts

5

Table 6. Unit dimensional data

Unit Length UL 106 11/16 122 5/16 122 5/16
Unit Width UW 70 13/16 84 3/16 84 3/16
Unit Height UH 50 1/8 54 64 1/8
Clearance C1 60 60 60
Clearance C2 48 48 48
Clearance C3 36 1/8 36 1/8 36 1/8
Clearance C4 38 38 38
Clearance C5 72 72 72
Curb Length CL 102 1/2 116 7/8 116 7/8
Curb Width CW 67 81 81
Supply Length SL
Supply Width SW
Return Length RL
Return Width RW

(a) Dimensions are for curb openings and not duct inserts.

Reference the product catalog for duct insert dimensions.

(a)

(a)
(a)
(a)

BCC+

28 1/2 28 9/16 28 9/16
55 1/2 69 1/2 69 1/2
20 7/8 22 1/4 22 1/4

63 77 77

6

RL

RW

CL

The manufacturer optimizes the performance of homes and buildings around the world. A business of Ingersoll Rand, the leader
in creating and sustaining safe, comfortable and energy efficient environments, the manufacturer offers a broad portfolio of
advanced controls and HVAC systems, comprehensive building services, and parts. For more information, visit www.IRCO.com.

The manufacturer has a policy of continuous product and product data improvement and reserves the right to change design and
specifications without notice.

© 2015 Trane All rights reserved
RT-PRC038G-EN 20 Jan 2015
Supersedes RT-PRC038F-EN (13 May 2014)
