TP-LINK TL-WR840ND User Manual
REV1.0.0
1910010
TL-WR840N
300Mbps Wireless N Router
811
COPYRIGHT & TRADEMARKS
Specifications are subject to change without notice. is a
registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names
are trademarks or registered trademarks of their respective holders.
No part of the specifications may be reproduced in any form or by any means or used to make any
derivative such as translation, transformation, or adaptation without permission from TP-LINK
TECHNOLOGIES CO., LTD. Copyright © 2013 TP-LINK TECHNOLOGIES CO., LTD. All rights
reserved.
http://www.tp-link.com
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1） This device may not cause harmful interference.
2） This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s authority
to operate the equipment.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment. This device and its antenna must not be co-located or operating in conjunction with
any other antenna or transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only
Mobile Configurations. The antennas used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be co-located or operating in
conjunction with any other antenna or transmitter.”
CE Mark Warning
This is a class B product. In a domestic environment, this product may cause radio interference, in
which case the user may be required to take adequate measures.
Canadian Compliance Statement
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions:
(1)This device may not cause interference, and
(2)This device must accept any interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme aux norms CNR exemptes de licence d’Industrie Canada. Le
fonctionnement est soumis aux deux conditions suivantes:
(1)cet appareil ne doit pas provoquer d’interférences et
(2)cet appareil doit accepter toute interférence, y compris celles susceptibles de provoquer un
fonctionnement non souhaité de l’appareil.
Industry Canada Statement
Complies with the Canadian ICES-003 Class B specifications.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
This device complies with RSS 210 of Industry Canada. This Class B device meets all the
requirements of the Canadian interference-causing equipment regulations.
Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
Korea Warning Statements
당해 무선설비는 운용중 전파혼신 가능성이 있음.
NCC Notice & BSMI Notice
注意！
依據 低功率電波輻射性電機管理辦法
第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、
加大功率或變更原設計之特性或功能。
第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立即
停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射
頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。
安全諮詢及注意事項
●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。
●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。
●注意防潮，請勿將水或其他液體潑灑到本產品上。
●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。
●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。
●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。
Продукт сертифіковано згідно с правилами системи УкрСЕПРО на відповідність вимогам
нормативних документів та вимогам, що передбачені чинними законодавчими актами
України.
Safety Information
When product has power button, the power button is one of the way to shut off the product;
when there is no power button, the only way to completely shut off power is to disconnect the
product or the power adapter from the power source.
Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and
voiding the limited warranty. If you need service, please contact us.
Avoid water and wet locations.
This product can be used in the following countries:
AT BG BY CA CZ DE DK EE
ES FI FR GB GR HU IE IT
LT LV MT NL NO PL PT RO
RU SE SK TR UA
TP-LINK TECHNOLOGIES CO., LTD
DECLARATION OF CONFORMITY
For the following equipment:
Product Description: 300Mbps Wireless N Router
Model No.: TL-WR840N
Trademark: TP-LINK
We declare under our own responsibility that the above products satisfy all the technical
regulations applicable to the product within the scope of Council Directives:
Directives 1999/5/EC, Directives 2004/108/EC, Directives 2006/95/EC, Directives 1999/519/EC,
Directives 2011/65/EU
The above product is in conformity with the following standards or other normative documents
ETSI EN 300 328 V1.7.1: 2006
ETSI EN 301 489-1 V1.9.2:2011& ETSI EN 301 489-17 V2.1.1:2009
EN 55022:2010
EN 55024:2010
EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008
EN 60950-1:2006+A11：2009+A1:2010+A12:2011
EN 62311:2008
The product carries the CE Mark:
Person responsible for marking this declaration:
Yang Hongliang
Product Manager of International Business
Date of issue: 2013
TP-LINK TECHNOLOGIES CO., LTD.
Building 24 (floors 1, 3, 4, 5), and 28 (floors 1-4) Central Science and Technology Park,
Shennan Rd, Nanshan, Shenzhen, China
CONTENTS
Package Contents ..................................................................................................... 1
Chapter 1. Introduction ......................................................................................... 2
1.1 Overview of the Router ............................................................................................... 2
1.2 Conventions ............................................................................................................... 3
1.3 Main Features ............................................................................................................ 3
1.4 Panel Layout .............................................................................................................. 4
1.4.1 The Front Panel .............................................................................................. 4
1.4.2 The Rear Panel .............................................................................................. 5
Chapter 2. Connecting the Router ....................................................................... 6
2.1 System Requirements ................................................................................................ 6
2.2 Installation Environment Requirements ...................................................................... 6
2.3 Connecting the Router ............................................................................................... 6
Chapter 3. Quick Installation Guide ..................................................................... 8
3.1 TCP/IP Configuration ................................................................................................. 8
3.2 Quick Installation Guide ........................................................................................... 10
Chapter 4. Configuring the Router .................................................................... 18
4.1 Login ........................................................................................................................ 18
4.2 Status ....................................................................................................................... 18
4.3 Quick Setup .............................................................................................................. 19
4.4 WPS ......................................................................................................................... 19
4.5 Network .................................................................................................................... 22
4.5.1 WAN ............................................................................................................. 22
4.5.2 MAC Clone ................................................................................................... 29
4.5.3 LAN .............................................................................................................. 30
4.6 Wireless ................................................................................................................... 31
4.6.1 Wireless Settings .......................................................................................... 31
4.6.2 Wireless Security .......................................................................................... 33
4.6.3 Wireless MAC Filtering ................................................................................. 36
4.6.4 Wireless Advanced ....................................................................................... 38
4.6.5 Wireless Statistics ......................................................................................... 39
4.7 DHCP ....................................................................................................................... 40
4.7.1 DHCP Settings ............................................................................................. 40
- I -
4.7.2 DHCP Client List ........................................................................................... 41
4.7.3 Address Reservation .................................................................................... 42
4.8 Forwarding ............................................................................................................... 43
4.8.1 Virtual Servers .............................................................................................. 43
4.8.2 Port Triggering .............................................................................................. 44
4.8.3 DMZ .............................................................................................................. 46
4.8.4 UPnP ............................................................................................................ 47
4.9 Security .................................................................................................................... 48
4.9.1 Basic Security ............................................................................................... 48
4.9.2 Advanced Security ........................................................................................ 49
4.9.3 Local Management ....................................................................................... 51
4.9.4 Remote Management ................................................................................... 52
4.10 Parental Control ....................................................................................................... 53
4.11 Access Control ......................................................................................................... 55
4.11.1 Rule .............................................................................................................. 55
4.11.2 Host .............................................................................................................. 61
4.11.3 Target............................................................................................................ 62
4.11.4 Schedule ....................................................................................................... 64
4.12 Advanced Routing .................................................................................................... 66
4.12.1 Static Routing ............................................................................................... 66

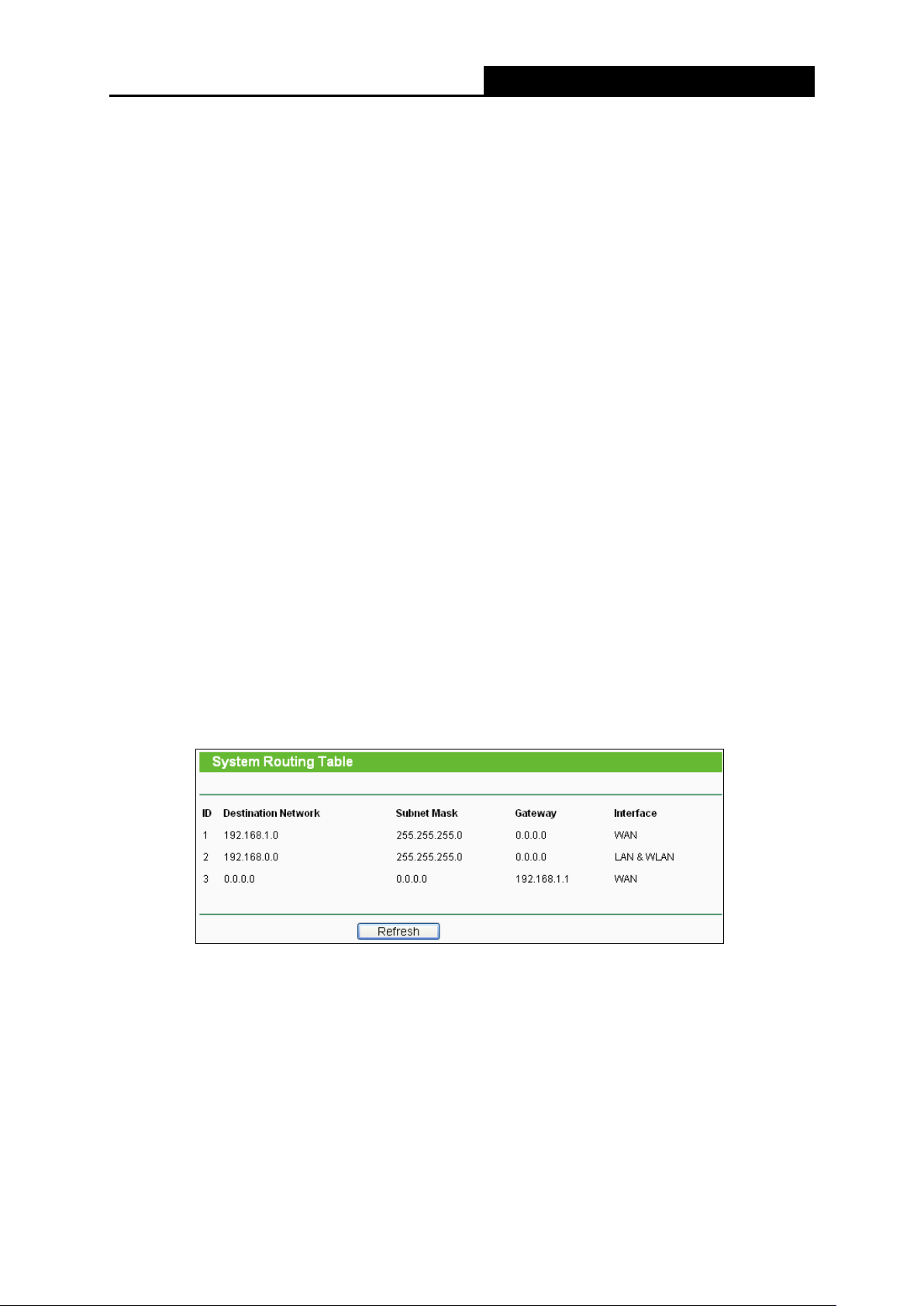

4.12.2 System Routing Table ................................................................................... 67
4.13 Bandwidth Control .................................................................................................... 68
4.13.1 Control Settings ............................................................................................ 68
4.13.2 Rules List ...................................................................................................... 68
4.14 IP & MAC Binding Setting ........................................................................................ 70
4.14.1 Binding Settings ............................................................................................ 70
4.14.2 ARP List ........................................................................................................ 71
4.15 Dynamic DNS ........................................................................................................... 72
4.15.1 Comexe.cn DDNS ........................................................................................ 72
4.15.2 Dyndns.org DDNS ........................................................................................ 73
4.15.3 No-ip.com DDNS .......................................................................................... 74
4.16 System Tools ............................................................................................................ 75
4.16.1 Time Settings ................................................................................................ 75
4.16.2 Diagnostic ..................................................................................................... 77
4.16.3 Firmware Upgrade ........................................................................................ 78
4.16.4 Factory Defaults ........................................................................................... 79
- II -
4.16.5 Backup & Restore ......................................................................................... 79
4.16.6 Reboot .......................................................................................................... 80
4.16.7 Password ...................................................................................................... 81
4.16.8 System Log ................................................................................................... 81
4.16.9 Statistics ....................................................................................................... 83
Appendix A: FAQ .................................................................................................... 85
Appendix B: Configuring the PC ........................................................................... 90
Appendix C: Specifications ................................................................................... 93
Appendix D: Glossary ............................................................................................ 94
- III -
TL-WR840N
300Mbps Wireless N Router User Guide
Package Contents
The following items should be found in your package:
TL-WR840N 300Mbps Wireless N Router
Power Adapter for TL-WR840N 300Mbps Wireless N Router
Quick Installation Guide
Resource CD for TL-WR840N 300Mbps Wireless N Router, including:
• This Guide
• Other Helpful Information
Note:
Make sure that the package contains the above items. If any of the listed items are damaged or
missing, please contact your distributor.
- 1 -
TL-WR840N
300Mbps Wireless N Router User Guide
Simple Installation
Flexible Access Control
Multiple Security Protections
Incredible Speed
Chapter 1. Introduction
1.1 Overview of the Router
The TL-WR840N 300Mbps Wireless N Router integrates 4-port Switch, Firewall, NAT-Router and
Wireless AP. Powered by 2x2 MIMO technology, the 300Mbps Wireless N Router delivers
exceptional range and speed, which can fully meet the need of Small Office/Home Office (SOHO)
networks and the users demanding higher networking performance.
The TL-WR840N 300Mbps Wireless N Router provides up to 300Mbps wireless connection with
other 802.11n wireless clients. The incredible speed makes it ideal for handling multiple data streams
at the same time, which ensures your network stable and smooth. The performance of this 802.11n
wireless Router will give you the unexpected networking experience at speed much faster than
802.11g. It is also compatible with all IEEE 802.11g and IEEE 802.11b products.
With multiple protection measures, including SSID broadcast control and wireless LAN
64/128/152-bit WEP encryption, WiFi protected Access (WPA2- PSK, WPA- PSK), as well as
advanced Firewall protections, the TL-WR840N 300Mbps Wireless N Router provides complete
data privacy.
The TL-WR840N 300Mbps Wireless N Router provides flexible access control, so that parents or
network administrators can establish restricted access policies for children or staff. It also supports
Virtual Server and DMZ host for Port Triggering, and then the network administrators can manage and
monitor the network in real time with the remote management function.
Since the Router is compatible with virtually all the major operating systems, it is very easy to
manage. Quick Setup Wizard is supported and detailed instructions are provided step by step in
this user guide. Before installing the Router, please look through this guide to know all the
Router’s functions.
- 2 -
TL-WR840N
300Mbps Wireless N Router User Guide
1.2 Conventions
The Router or TL-WR840N mentioned in this guide stands for TL-WR840N 300Mbps Wireless N
Router without any explanation.
1.3 Main Features
Complies with IEEE 802.11n to provide a wireless data rate of up to 300Mbps.
One 10/100M Auto-Negotiation RJ45 WAN port, four 10/100M Auto-Negotiation RJ45 LAN
ports, supporting Auto MDI/MDIX.
Provides WPA/WPA2, WPA-PSK/WPA2-PSK authentication, TKIP/AES encryption security.
Shares data and Internet access for users, supporting Dynamic IP/Static IP/PPPoE Internet
access.
Supports Virtual Server, Special Application and DMZ host.
Supports UPnP, Dynamic DNS, Static Routing.
Provides Automatic-connection and Scheduled Connection on certain time to the Internet.
Built-in NAT and DHCP server supporting static IP address distributing.
Supports Parental Control and Access Control.
Connects Internet on demand and disconnects from the Internet when idle for PPPoE.
Provides 64/128/152-bit WEP encryption security and wireless LAN ACL (Access Control
List).
Supports Flow Statistics.
Supports firmware upgrade and Web management.
- 3 -
TL-WR840N
300Mbps Wireless N Router User Guide
On
Power is on.
On/Off
The Router has a system error.
between the Router and the
wireless device(s) connected to it.
There is a device linked to the corresponding port but
Flashing
There is an active device linked to the corresponding port.
successfully added to the
WPS
to the network by
WPS function.
1.4 Panel Layout
1.4.1 The Front Panel
Figure 1-1 Front Panel sketch
The Router’s LEDs are located on the front panel (View from left to right).
Name Status Indication
（Power）
(System)
(WLAN)
(WAN),
(LAN 1-4)
(WPS)
Off Power is off.
Flashing The Router is working properly.
Off The Router isn’t connected to any wireless device.
On The Router is connected to some wireless device(s).
Flashing
Off There is no device linked to the corresponding port.
On
Slow Flash
On
Quick Flash
Data is being transferred
there is no activity.
A wireless device is connecting to the network by WPS
function. This process will last in the first 2 minutes.
A wireless device has been
network by
A wireless device failed to be added
function.
Table 1-1 The LEDs Description
Note:
After a device is successfully added to the network by WPS function, the WPS LED will keep on
for about 5 minutes and then turn off.
- 4 -
TL-WR840N
300Mbps Wireless N Router User Guide
1.4.2 The Rear Panel
Figure 1-2 Rear Panel sketch
The following parts are located on the rear panel (View from left to right).
WIFI: This button is used to enable/disable the Router’s wireless function.
WPS/RESET: This button is used for both WPS and Reset function. To use the WPS
function, press it for less than five seconds; to use the RESET function, press it for more
than five seconds.
Used as RESET button:
There are two ways to reset to the Router's factory defaults:
1) Use the Factory Defaults function on System Tools -> Factory Defaults page in the
Router's Web-based Utility.
2) Use the WPS/RESET button: With the Router powered on, press and hold the
WPS/RESET button (more than 5 seconds) until the SYS LED becomes quick-flash from
slow-flash. Then release the button and wait the Router to reboot to its factory default
settings.
Used as WPS button:
If you have client devices, such as wireless adapters, that support Wi-Fi Protected Setup,
then you can press this button to quickly establish a connection between the Router and
client devices and automatically configure wireless security for your wireless network.
INTERNET: This INTERNET port is where you will connect the DSL/cable Modem.
4,3,2,1 (LAN): These ports (4,3,2,1) connect the Router to the local PC(s).
ON/OFF: The switch for the power.
POWER: The Power socket is where you will connect the power adapter. Please use the
power adapter provided with this TL-WR840N 300Mbps Wireless N Router.
- 5 -
TL-WR840N
300Mbps Wireless N Router User Guide
Chapter 2. Connecting the Router
2.1 System Requirements
Broadband Internet Access Service (DSL/Cable/Ethernet)
One DSL/Cable Modem that has an RJ45 connector (which is not necessary if the Router is
connected directly to the Ethernet.)
PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors
TCP/IP protocol on each PC
Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari
2.2 Installation Environment Requirements
Place the Router in a well ventilated place far from any heater or heating vent
Avoid direct irradiation of any strong light (such as sunlight)
Keep at least 2 inches (5 cm) of clear space around the Router
Operating Temperature: 0℃~40℃ (32℉~104℉)
Operating Humidity: 10%~90%RH, Non-condensing
2.3 Connecting the Router
Before installing the Router, make sure your PC is connected to the Internet through the
broadband service successfully. If there is any problem, please contact your ISP. After that, please
install the Router according to the following steps. Don't forget to pull out the power plug and keep
your hands dry.
1. Power off your PC, Cable/DSL Modem, and the Router.
2. Locate an optimum location for the Router. The best place is usually at the center of your
wireless network.
3. Connect the PC(s) and each Switch/Hub in your LAN to the LAN Ports on the Router, shown
in Figure 2-1. (If you have the wireless NIC and want to use the wireless function, you can
skip this step.)
4. Connect the DSL/Cable Modem to the WAN port on the Router, shown in Figure 2-1.
- 6 -
TL-WR840N
300Mbps Wireless N Router User Guide
5. Connect the power adapter to the power socket on the Router, and the other end into an
electrical outlet. The Router will start to work automatically.
6. Power on your PC and Cable/DSL Modem.
Figure 2-1 Hardware Installation of the TL-WR840N 300Mbps Wireless N Router
Figure 2-2 Wall-mount Install
Note:
The diameter of the screw, 3.5mm<D<8mm, and the distance of two screws is 118mm. The screw
that project from the wall need around 4.5mm based, and the length of the screw need to be at
least 20mm to withstand the weight of the product.
- 7 -
TL-WR840N
300Mbps Wireless N Router User Guide
Chapter 3. Quick Installation Guide
This chapter will show you how to configure the basic functions of your TL-WR840N 300Mbps
Wireless N Router using Quick Setup Wizard within minutes.
3.1 TCP/IP Configuration
The default domain name of the TL-WR840N 300Mbps Wireless N Router is http://tplinklogin.net,
the default IP address is 192.168.0.1, and the default Subnet Mask is 255.255.255.0. These
values can be changed as you desire. In this guide, we use all the default values for description.
Connect the local PC to the LAN ports of the Router. And then you can configure the IP address
for your PC in the following two ways.
Configure the IP address manually
1) Set up the TCP/IP Protocol for your PC. If you need instructions as to how to do this,
please refer to Appendix B: "Configuring the PC"
2) Configure the network parameters. The IP address is 192.168.0.xxx ("xxx" is any number
from 2 to 254), Subnet Mask is 255.255.255.0, and Gateway is 192.168.0.1 (The
Router's default IP address)
Obtain an IP address automatically
1) Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC.
If you need instructions as to how to do this, please refer to
PC”.
2) Then the built-in DHCP server will assign IP address for the PC.
Now, you can run the Ping command in the command prompt to verify the network connection
between your PC and the Router. The following example is in Windows 2000 OS.
Open a command prompt, and type ping 192.168.0.1, and then press Enter.
If the result displayed is similar to the Figure 3-1, it means the connection between your PC
and the Router has been established well.
.
Appendix B: "Configuring the
- 8 -
TL-WR840N
300Mbps Wireless N Router User Guide
Figure 3-1 Success result of Ping command
If the result displayed is similar to the Figure 3-2, it means the connection between your PC
and the Router is failed.
Please check the connection following these steps:
1. Is the connection between your PC and the Router correct?
Note:
The 1/2/3/4 LEDs of LAN ports which you link to on the Router and LEDs on your PC's adapter
should be lit.
2. Is the TCP/IP configuration for your PC correct?
If the Router's IP address is 192.168.0.1, your PC's IP address must be within the range of
192.168.0.2 ~ 192.168.0.254.
Note:
Figure 3-2 Failure result of Ping command
- 9 -
TL-WR840N
300Mbps Wireless N Router User Guide
3. Is the default LAN IP of the Router correct?
Note:
If the LAN IP of the modem connected with your router is 192.168.0.x, the default LAN IP of the
Router will automatically switch from 192.168.0.1 to 192.168.1.1 to avoid IP conflict. Therefore, in
order to verify the network connection between your PC and the Router, you can open a
command prompt, and type ping 192.168.1.1, and then press Enter.
3.2 Quick Installation Guide
With a Web-based utility, it is easy to configure and manage the TL-WR840N 300Mbps Wireless
N Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web
browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.
1. To access the configuration utility, open a web-browser and type in the default domain name
http://tplinklogin.net
in the address field of the browser.
Figure 3-3 Log in the Router
After a moment, a login window will appear, similar to the Figure 3-4. Enter admin for the
User Name and Password, both in lower case letters. Then click the OK button or press the
Enter key.
Note:
If the above screen does not pop-up, it means that your Web-browser has been set to a proxy.
Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears,
cancel the Using Proxy checkbox, and click OK to finish it.
Figure 3-4 Login Windows
- 10 -
TL-WR840N
300Mbps Wireless N Router User Guide
1. After successful log in, you can click the Quick Setup menu to quickly configure your Router.
Figure 3-5 Quick Setup
2. Click Next, and then WAN Connection Type page will appear, shown in Figure 3-6.
Figure 3-6 WAN Connection Type
The Router provides Auto-Detect function and supports three popular ways PPPoE,
Dynamic IP and Static IP to connect to the Internet. It’s recommended that you make use of
the Auto-Detect function. If you are sure of what kind of connection type your ISP provides,
you can select the very type and click Next to go on configuring.
3. If you select Auto-Detect, the Router will automatically detect the connection type your ISP
provides. Make sure the cable is securely plugged into the WAN port before detection. The
appropriate configuration page will be displayed when an active Internet service is
successfully detected by the Router.
1) If the connection type detected is L2TP, the next screen will appear as shown in Figure
3-7. Configure the following parameters and then click Next to continue.
- 11 -
TL-WR840N
300Mbps Wireless N Router User Guide
Figure 3-7 Quick Setup – L2TP/Russia L2TP
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive. If you have difficulty with this process, please contact
your ISP.
Select Static IP if IP Address/ Subnet Mask/ Gateway and DNS server address have been
provided by your ISP. Then please enter server IP address or domain name provided by your
ISP, and also enter the corresponding parameters.
Select Dynamic IP if none of the above parameters are provided. Then you just need to enter
server IP address or domain name provided by your ISP.
2) If the connection type detected is PPTP, the next screen will appear as shown in Figure
3-8.Configure the following parameters and then click Next to continue.
- 12 -
TL-WR840N
300Mbps Wireless N Router User Guide
Figure 3-8 Quick Setup – PPTP/Russia PPTP
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case-sensitive. If you have difficulty with this process, please contact
your ISP.
Select Static IP if IP Address/ Subnet Mask/ Gateway and DNS server address have been
provided by your ISP. Then please enter server IP address or domain name provided by your
ISP, and also enter the corresponding parameters.
Select Dynamic IP if none of the above parameters are provided. Then you just need to enter
server IP address or domain name provided by your ISP.
3) If the connection type detected is PPPoE, the next screen will appear as shown in Figure
3-9.
Figure 3-9 Quick Setup - PPPoE
- 13 -
TL-WR840N
300Mbps Wireless N Router User Guide
User Name/Password - Enter the User Name and Password provided by your ISP.
These fields are case sensitive. If you have difficulty with this process, please contact your
ISP.
Confirm Password - Re-enter the password provided by your ISP to ensure the
Password you entered is correct. If the Password is different from the Confirm Password,
the screen will appear as shown below. Click OK, and re-enter the Password and
Confirm Password.
4) If the connection type detected is Dynamic IP, the next screen will appear as shown in
Figure 3-10.
If you are visiting the Router from the main computer, please select Yes, and then
click Clone MAC Address.
Figure 3-10 Quick Setup – MAC Clone
If you are visiting the Router from another computer, rather than the main computer,
please select No, and then enter the main computer’s MAC in the field WAN MAC
Address.
Figure 3-11 Quick Setup – MAC Clone
- 14 -
TL-WR840N
300Mbps Wireless N Router User Guide
5) If the connection type detected is Static IP, the next screen will appear as shown in
Figure 3-12.
Figure 3-12 Quick Setup - Static IP
IP Address - This is the WAN IP address as seen by external users on the Internet
(including your ISP). Enter the IP address into the field.
Subnet Mask - The Subnet Mask is used for the WAN IP address, it is usually
255.255.255.0.
Default Gateway - Enter the gateway IP address into the box if required.
Primary DNS - Enter the DNS Server IP address into the box if required.
Secondary DNS - If your ISP provides another DNS server, enter it into this field.
4. Click Next to continue, the Wireless settings page will appear as shown in Figure 3-13.
Figure 3-13 Quick Setup – Wireless
- 15 -
TL-WR840N
300Mbps Wireless N Router User Guide
Wireless Radio - The wireless radio can only be enabled/disabled by using the WIFI
ON/OFF switch on the device.
Wireless Network Name - Enter a value of up to 32 characters. The same name of
SSID (Service Set Identification) must be assigned to all wireless devices in your
network. Considering your wireless network security, the default SSID is set to be
TP-LINK_XXXXXX (XXXXXX indicates the last unique six numbers of each Router’s
MAC address). This value is case-sensitive. For example, TEST is NOT the same as
test.
Region - Select your region from the drop-down list. This field specifies the region
where the wireless function of the Router can be used. It may be illegal to use the
wireless function of the Router in a region other than one of those specified in this field.
If your country or region is not listed, please contact your local government agency for
assistance.
Note:
Limited by local law regulations, version for North America does not have region
selection option.
Mode - This field determines the wireless mode which the Router works on.
Channel Width - Select any channel width from the drop-down list. The default setting
is automatic, which can adjust the channel width for your clients automatically.
Channel - This field determines which operating frequency will be used. The default
channel is set to Auto, so the AP will choose the best channel automatically. It is not
necessary to change the wireless channel unless you notice interference problems with
another nearby access point.
Disable Security - The wireless security function can be enabled or disabled. If
disabled, the wireless stations will be able to connect the Router without encryption. It is
recommended strongly that you choose one of following options to enable security.
WPA-PSK/WPA2-PSK - Select WPA based on pre-shared passphrase.
PSK Password - You can enter ASCII or Hexadecimal characters.
For ASCII, the key can be made up of any numbers 0 to 9 and any letters A to Z, the
length should be between 8 and 63 characters.
For Hexadecimal, the key can be made up of any numbers 0 to 9 and letters A to F,
the length should be between 8 and 64 characters.
Please also note the key is case sensitive, this means that upper and lower case
keys will affect the outcome. It would also be a good idea to write down the key and
all related wireless security settings.
No Change - If you chose this option, wireless security configuration will not change!
- 16 -
TL-WR840N
300Mbps Wireless N Router User Guide
These settings are only for basic wireless parameters. For advanced settings, please refer to
4.6 Wireless
.
5. Then you will see the Finish page.
If you don’t make any change on the Wireless page, you will see the Finish page as
shown in Figure 3-14. Click the Finish button to finish the Quick Setup.
Figure 3-14 Quick Setup - Finish
If there is anything changed on the Wireless page, you will see the Finish page as
shown in Figure 3-15. Click the Reboot button to make your wireless configuration take
effect and finish the Quick Setup.
Figure 3-15 Quick Setup – Finish
- 17 -
TL-WR840N
300Mbps Wireless N Router User Guide
Chapter 4. Configuring the Router
This chapter will show each Web page's key functions and the configuration way.
4.1 Login
After your successful login, you will see the fifteen main menus on the left of the Web-based utility.
On the right, there are the corresponding explanations and instructions.
The detailed explanations for each Web page’s key function are listed below.
4.2 Status
The Status page provides the current status information about the Router. All information is
read-only.
- 18 -
TL-WR840N
300Mbps Wireless N Router User Guide
Figure 4-1 Router Status
4.3 Quick Setup
Please refer to 3.2 Quick Installation Guide.
4.4 WPS
This section will guide you to add a new wireless device to an existing network quickly by WPS
(Wi-Fi Protected Setup) function.
a). Choose menu “WPS”, and you will see the next screen (shown in Figure 4-2 ).
- 19 -
TL-WR840N
300Mbps Wireless N Router User Guide
Figure 4-2 WPS
WPS Status - Enable or disable the WPS function here.
Current PIN - The current value of the Router's PIN is displayed here. The default PIN of the
Router can be found in the label attached on the router.
Restore PIN - Restore the PIN of the Router to its default.
Gen New PIN - Click this button, and then you can get a new random value for the Router's
PIN. You can ensure the network security by generating a new PIN.
Add Device - You can add a new device to the existing network manually by clicking this
button.
b). To add a new device:
If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless
connection between wireless adapter and Router using either Push Button Configuration (PBC)
method or PIN method.
Note:
To build a successful connection by WPS, you should also do the corresponding configuration of
the new device for WPS function meanwhile.
I. Use the Wi-Fi Protected Setup Button
Use this method if your client device has a Wi-Fi Protected Setup button.
Step 1: Press the WPS/RESET button on the back panel of the Router for one second.
You can also keep the default WPS Status as Enabled and click the Add Device button
in Figure 4-2, then Choose “Press the button of the new device in two minutes” and
click Connect. (Shown in the following figure)
Figure 4-3 Add A New Device
- 20 -
TL-WR840N
300Mbps Wireless N Router User Guide
Step 2: Press and hold the WPS button of the client device directly.
Step 3: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected Setup
process.
Step 4: When the WPS LED is on, the client device has successfully connected to the Router.
Step 5: Refer back to your client device or its documentation for further instructions.
II. Enter the client device’s PIN on the Router
Use this method if your client device has a Wi-Fi Protected Setup PIN number.
Step 1: Keep the default WPS Status as Enabled and click the Add Device button in Figure 4-2,
then the following screen will appear.
Figure 4-4 Add A New Device
Step 2: Enter the PIN number from the client device in the field on the above WPS screen. Then
click Connect button.
Step 3: “Connect successfully” will appear on the screen of Figure 4-4, which means the client
device has successfully connected to the Router.
III. Enter the Router’s PIN on your client device
Use this method if your client device asks for the Router’s PIN number.
Step 1: On the client device, enter the PIN number listed on the Router’s Wi-Fi Protected Setup
screen. (It is also labeled on the bottom of the Router.)
Step 2: The Wi-Fi Protected Setup LED flashes for two minutes during the Wi-Fi Protected
Setup process.
Step 3: When the WPS LED is on, the client device has successfully connected to the Router.
Step 4: Refer back to your client device or its documentation for further instructions.
Note:
1) The WPS LED on the Router will light blue for five minutes if the device has been successfully
added to the network.
2) The WPS function cannot be configured if the Wireless Function of the Router is disabled.
Please make sure the Wireless Function is enabled before configuring the WPS.
- 21 -
