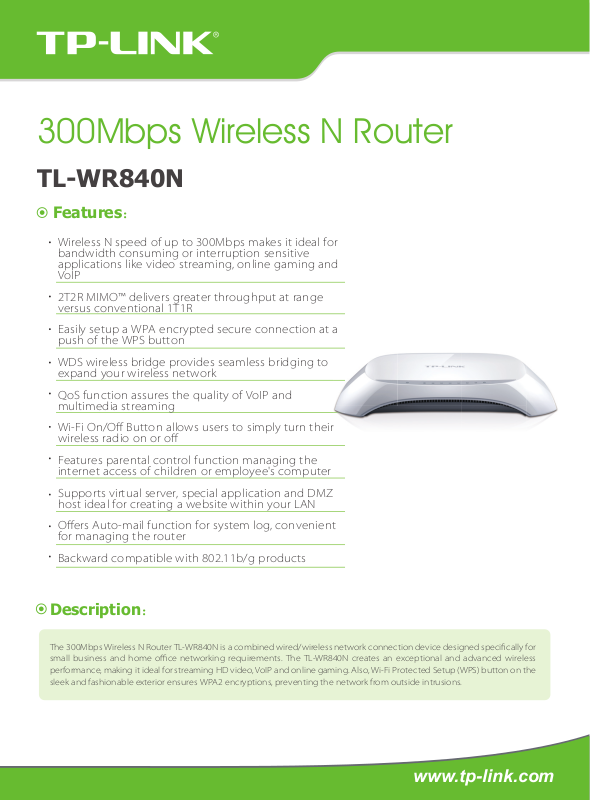

TP-Link TL-WR840N Data Sheet
300Mbps Wireless N Router
TL-WR840N
Features：
Wireless N speed of up to 300Mbps makes it ideal for
bandwidth consuming or interruption sensitive
applications like video streaming, online gaming and
VoIP
2T2R MIMO™ delivers greater throughput at range
versus conventional 1T1R
Easily setup a WPA encrypted secure connection at a
push of the WPS button
WDS wireless bridge provides seamless bridging to
expand your wireless network
QoS function assures the quality of VoIP and
multimedia streaming
Wi-Fi On/O Button allows users to simply turn their
wireless radio on or o
Features parental control function managing the
internet access of children or employee's computer
Supports virtual server, special application and DMZ
host ideal for creating a website within your LAN
Oers Auto-mail function for system log, convenient
for managing the router
Backward compatible with 802.11b/g products
Description：
The 300Mbps Wireless N Router TL-WR840N is a combined wired/wireless network connection device designed specically for
small business and home oce networking requirements. The TL-WR840N creates an exceptional and advanced wireless
performance, making it ideal for streaming HD video, VoIP and online gaming. Also, Wi-Fi Protected Setup (WPS) button on the
sleek and fashionable exterior ensures WPA2 encryptions, preventing the network from outside intrusions.
www.tp-link.com
300Mbps Wireless N Router
Specifications：
HARDWARE FEATURES
Interface
Button
External Power Supply
Wireless Standards
Antenna
WIRELESS FEATURES
Frequency
Signal Rate
EIRP
Reception Sensitivity
Wireless Functions
Wireless
SOFTWARE FEATURES
WAN Type
DHCP
Quality of Service
Port Forwarding
Dynamic DNS
VPN Pass-Through
Access Control
Firewall Security
Management
TL-WR840N
4 10/100Mbps LAN PORTS
1 10/100Mbps WAN PORT
WPS/Reset Button
Wireless On/O Button
Power On/O Button
9VDC / 0.6A
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
2 Internal Antennas
2.4-2.4835GHz
11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
<20dBm(EIRP)
270M: -68dBm@10% PER
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
64/128-bit WEP, WPA / WPA2,WPA-PSK / WPA2-PSK
Dynamic IP/Static IP/PPPoE/PPTP/L2TP
Server, Client, DHCP Client List, Address Reservation
WMM, Bandwidth Control
Virtual Server,Port Triggering, UPnP, DMZ
DynDns, Comexe, NO-IP
PPTP, L2TP, IPSec (ESP Head)
Parental Control, Local Management Control, Host List, Access Schedule, Rule
Management
DoS, SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding
Access Control
Local Management
Remote Management
Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are
trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from TP-LINK Technologies Co., Ltd.
