TP Link CR700V2 Users Manual

Download

Rev: 1.0.1

1910011

Archer CR700

AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router

488

Specifications are subject to change without notice. of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.

http://www.tp-link.com

is a registered trademark

This equipment has been tested and found to comply with the limits for a Class B dig

ital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not inst

alled and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to r

adio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separati

on between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

•

Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the F

CC Rules. Operation is subject to the following two

conditions:

This device may not cause harmful interference.

This device must accept any interference received, including interference that may cause

undesired operation.

Any changes or modifications not e

xpressly approved by the party responsible for compliance

could void the user’s authority to operate the equipment.

Note: T

he manufacturer is not responsible for any radio or

interference caused by

unauthorized modifications to this equipment.

Such modi

fications could void the user’s authority to

operate the equipment.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled

environment. This device and its antenna must not be co

loca

ted or operating in conjunction with

any other antenna or transmitter.

“To comply with FCC RF exposure compliance requirements, this grant is applicable to only

Mobile Configurations. The antennas used for this transmitter must be installed to provide a

paration distance of at least 20 cm from all persons and must not be co

located or operating in

conjunction with any other antenna or transmitter.”

This device is restricted in indoor environment only.

Canadian Compliance Statement

This device complies wit

h Industry Canada license

exempt RSS

. Operation is subject to the

following two conditions:

1）

This device may not cause interference, and

paration distance of at least 28 cm from all persons and must not be co

FCC STATEMENT

2） This device must accept any interference, including interference that may cause undesired

operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes :

1） l’appareil ne doit pas produire de brouillage;

2） l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, meme si le

brouillage est susceptible d’en compromettre le fonctionnement.

Caution:

The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems;

The high-power MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.

radars are allocated as primary users (i.e. priority users) of the bands 5250-5350

Avertissement:

Le dispositif fonctionnant dans la bande 5150-5250 MHz est réservé uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux;

En outre, les utilisateurs devraient aussi être avisés que les utilisateurs de radars de haute puissance sont désignés utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient causer du brouillage et/ou des dommages aux dispositifs LAN-EL.

Radiation Exposure Statement:

This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

Déclaration d'exposition aux radiations:

Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.

Industry Canada Statement

CAN ICES-3 (B)/NMB-3(B)

NCC Notice& BSMI Notice:

注意！

依據低功率電波輻射性電機管理辦法

第十二條經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加大功率或變更原設計之特性或功能。

第十四條低功率射頻電機之使用不得影響飛航安全及干擾合法通行；經發現有干擾現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信規定作業之無線電信。低功率射頻電機需忍受合法通信或工業、科學以及醫療用電波輻射性電機設備之干擾。

equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize

減少電磁波影響，請妥適使用。

安全諮詢及注意事項

●請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。

●清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。

●注意防潮，請勿將水或其他液體潑灑到本產品上。

●插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。

●請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。

●請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。

Safety Information

 When product has power button, the power button is one of the way to shut off the product;

when there is no power button, the only way to completely shut off power is to disconnect the product or the power adapter from the power source.

 Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock

and voiding the limited warranty. If you need service, please contact us.

 Avoid water and wet locations.  Adapter shall be installed near the equipment and shall be easily accessible.  The plug considered as disconnect device of adapter.

 Use only power supplies which are provided by manufacturer and in the original

packing of this product.

Explanation of the symbols on the product label

Symbol Explanation

DC voltage

RECYCLING

This product bears the selective sorting symbol for Waste electrical and electronic

its impact on the environment.

User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment.

CONTENTS

Package Contents .................................................................................................... 1

Chapter 1. Product Overview ................................................................................... 2

1.1 Overview of the Modem Router ..................................................................................... 2

1.2 Main Features ............................................................................................................... 2

1.3 Panel Layout ................................................................................................................. 4

1.3.1 The Front Panel ................................................................................................................... 4

1.3.2 The Back Panel .................................................................................................................... 6

Chapter 2. Install the Modem Router ...................................................................... 7

2.1 System Requirements ................................................................................................... 7

2.2 Installation Environment Requirements ......................................................................... 7

2.3 Connect the Hardware .................................................................................................. 7

2.4 Activate the Modem Router ........................................................................................... 8

2.5 Enjoy the Internet .......................................................................................................... 8

Chapter 3. Log into the Modem Router ................................................................. 10

Chapter 4. Basic ...................................................................................................... 11

4.1 Network Map ............................................................................................................... 11

4.2 Internet ....................................................................................................................... 11

4.3 Wireless ...................................................................................................................... 14

4.4 Guest Network ............................................................................................................ 15

4.5 USB Settings .............................................................................................................. 17

4.5.1 Folder Sharing.................................................................................................................... 17

4.5.2 Print Server ........................................................................................................................ 20

4.6 Parental Control .......................................................................................................... 20

Chapter 5. Advanced .............................................................................................. 24

5.1 Status ......................................................................................................................... 24

5.2 Operation Mode .......................................................................................................... 24

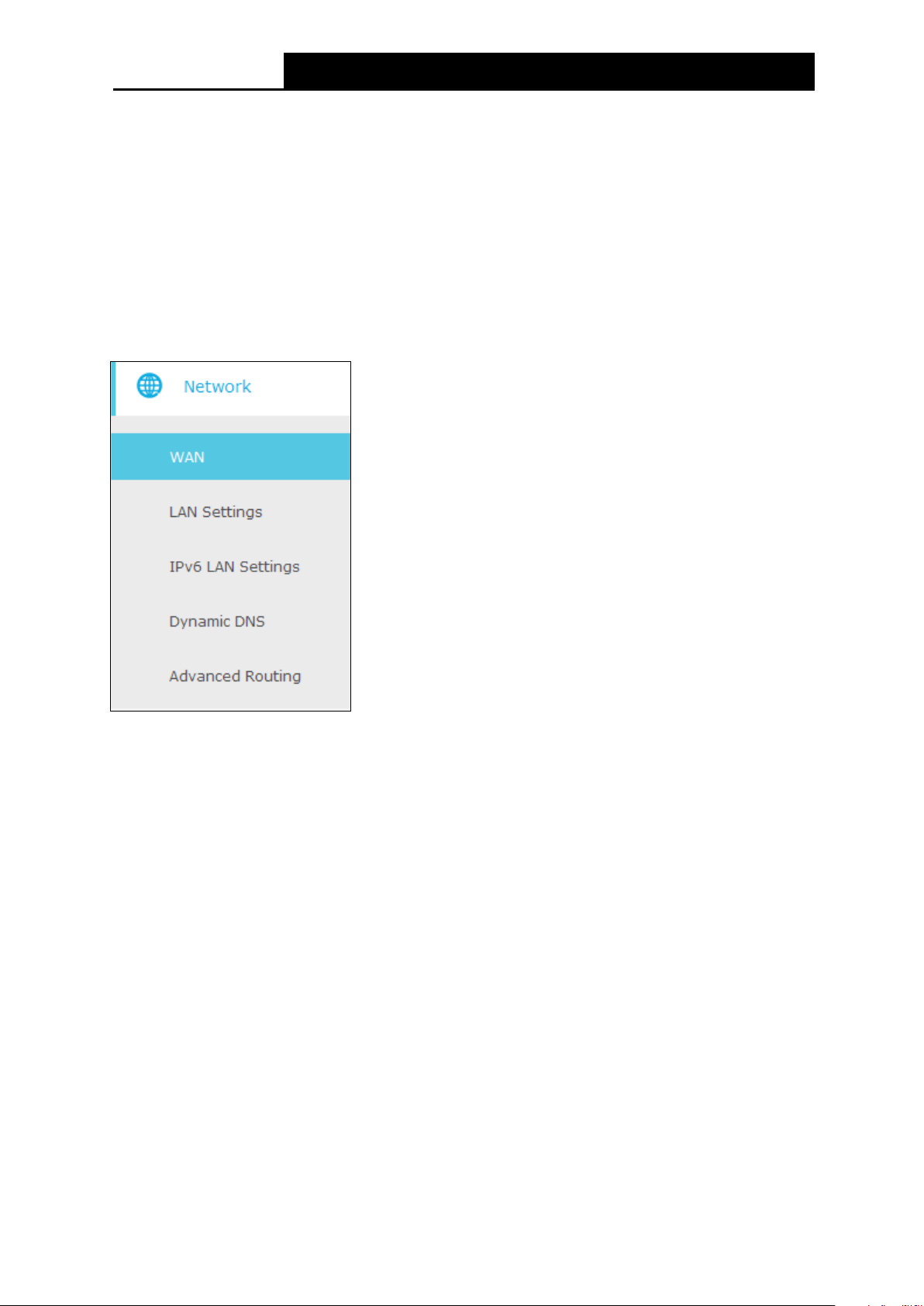

5.3 Network ...................................................................................................................... 25

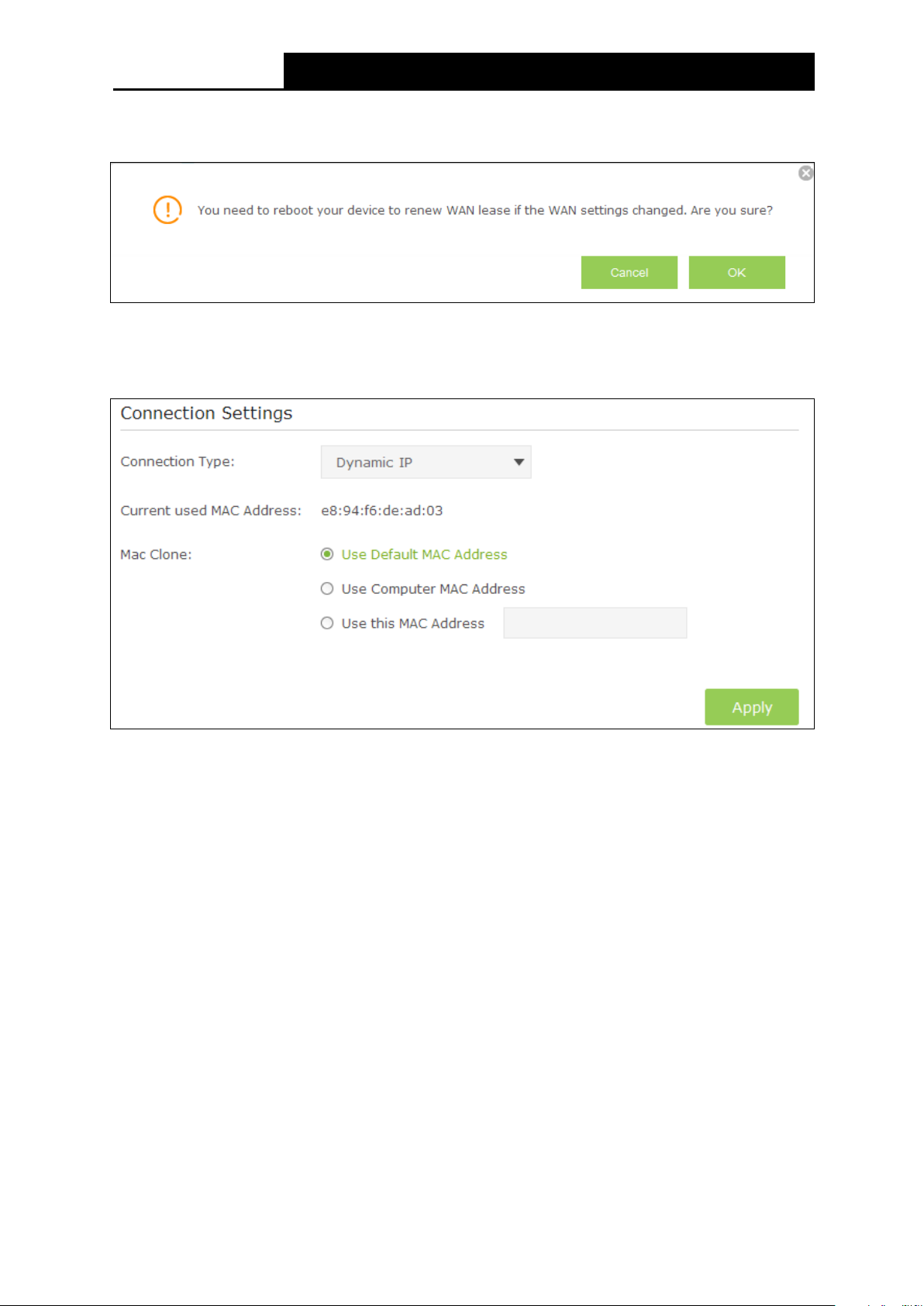

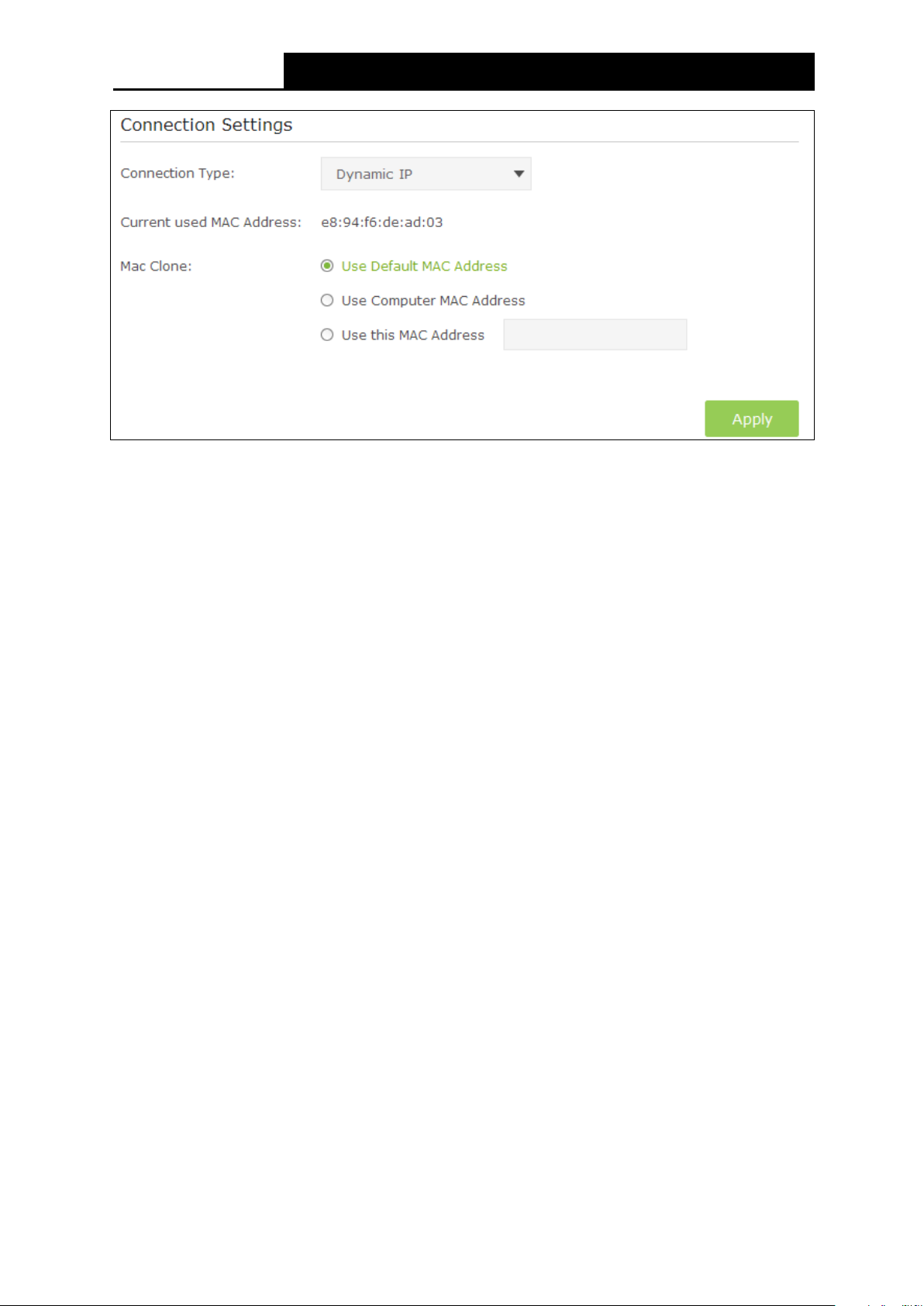

5.3.1 WAN ................................................................................................................................... 25

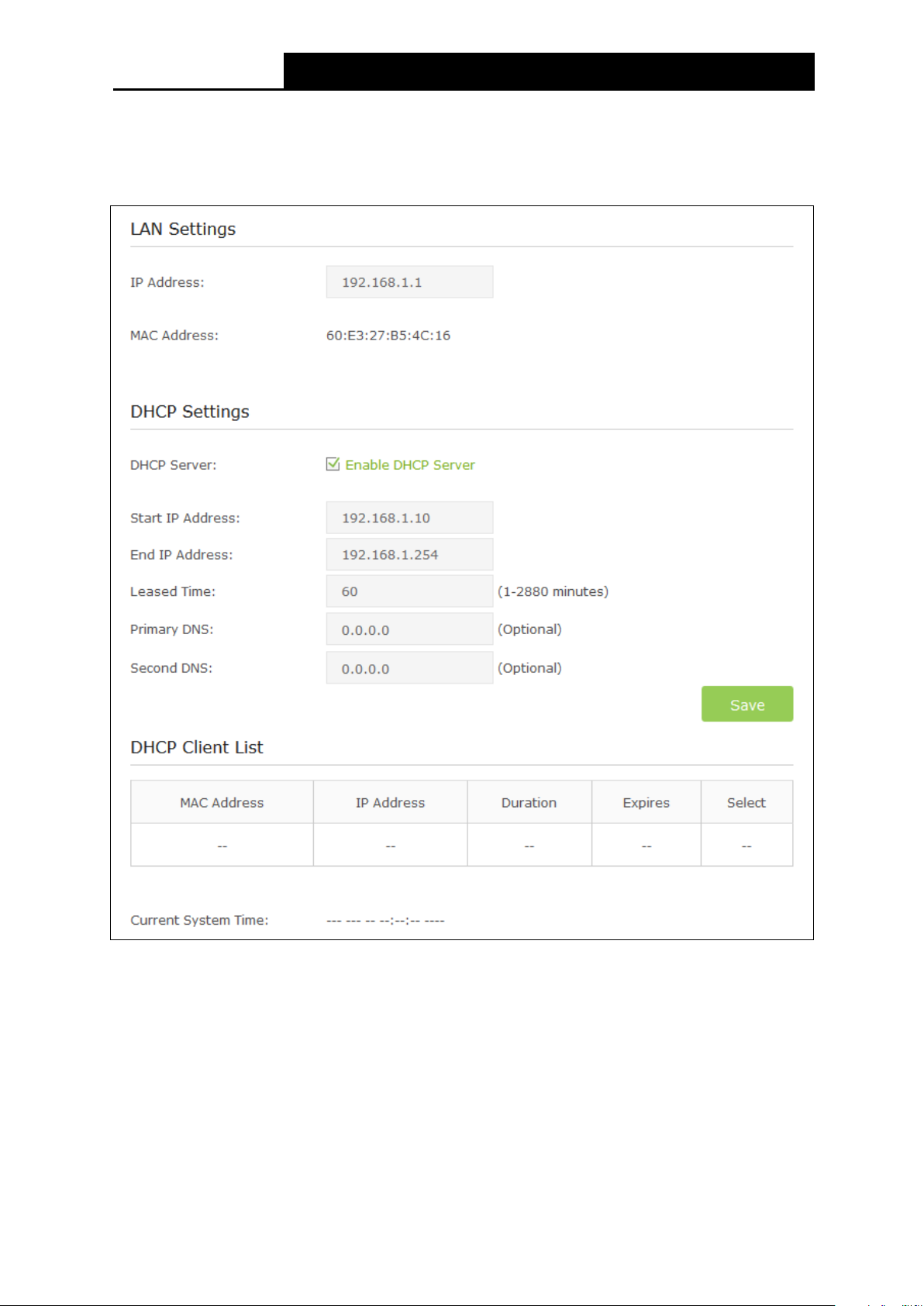

5.3.2 LAN Settings ...................................................................................................................... 32

5.3.3 IPv6 LAN Settings .............................................................................................................. 33

5.3.4 Dynamic DNS ..................................................................................................................... 35

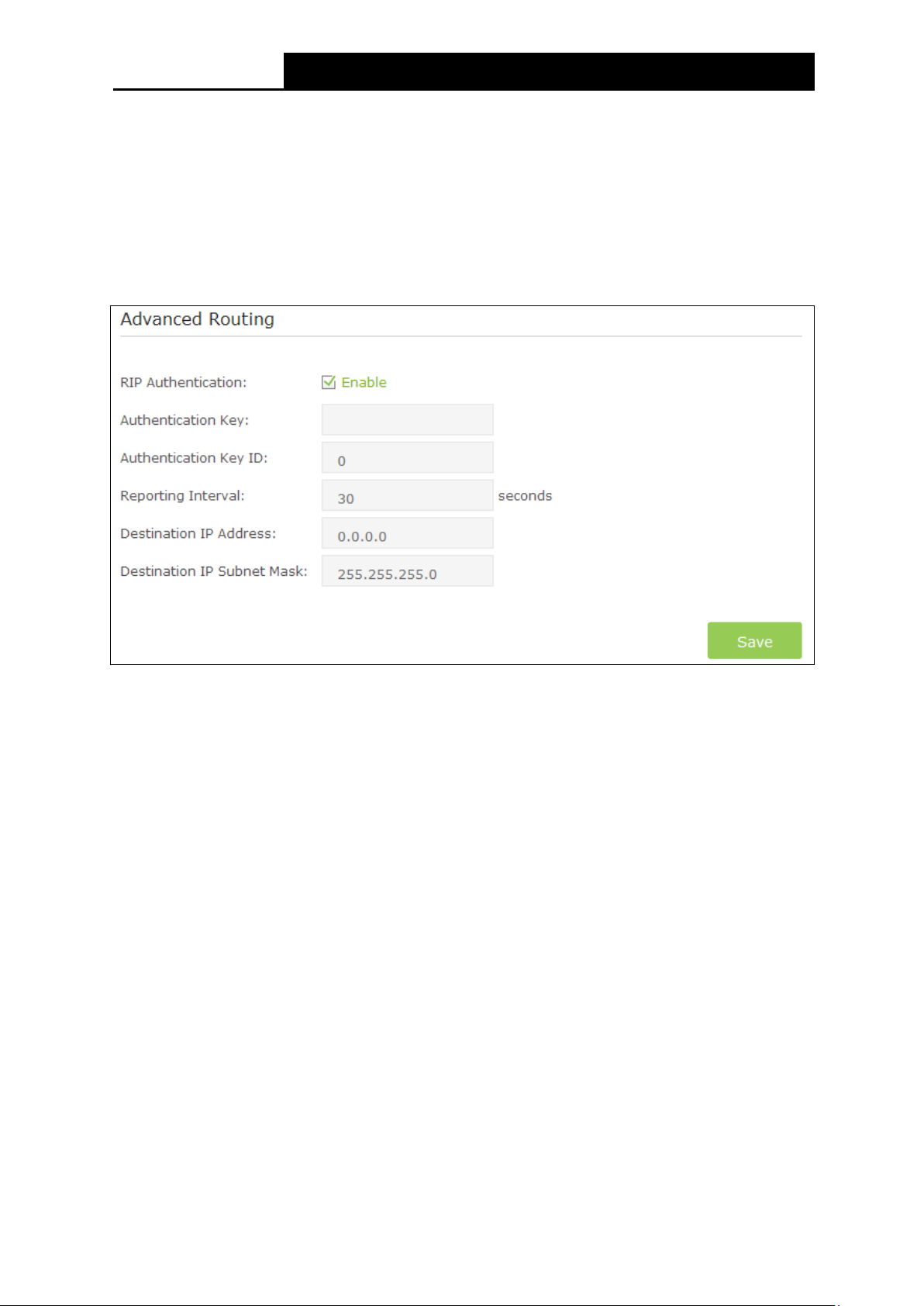

5.3.5 Advanced Routing .............................................................................................................. 36

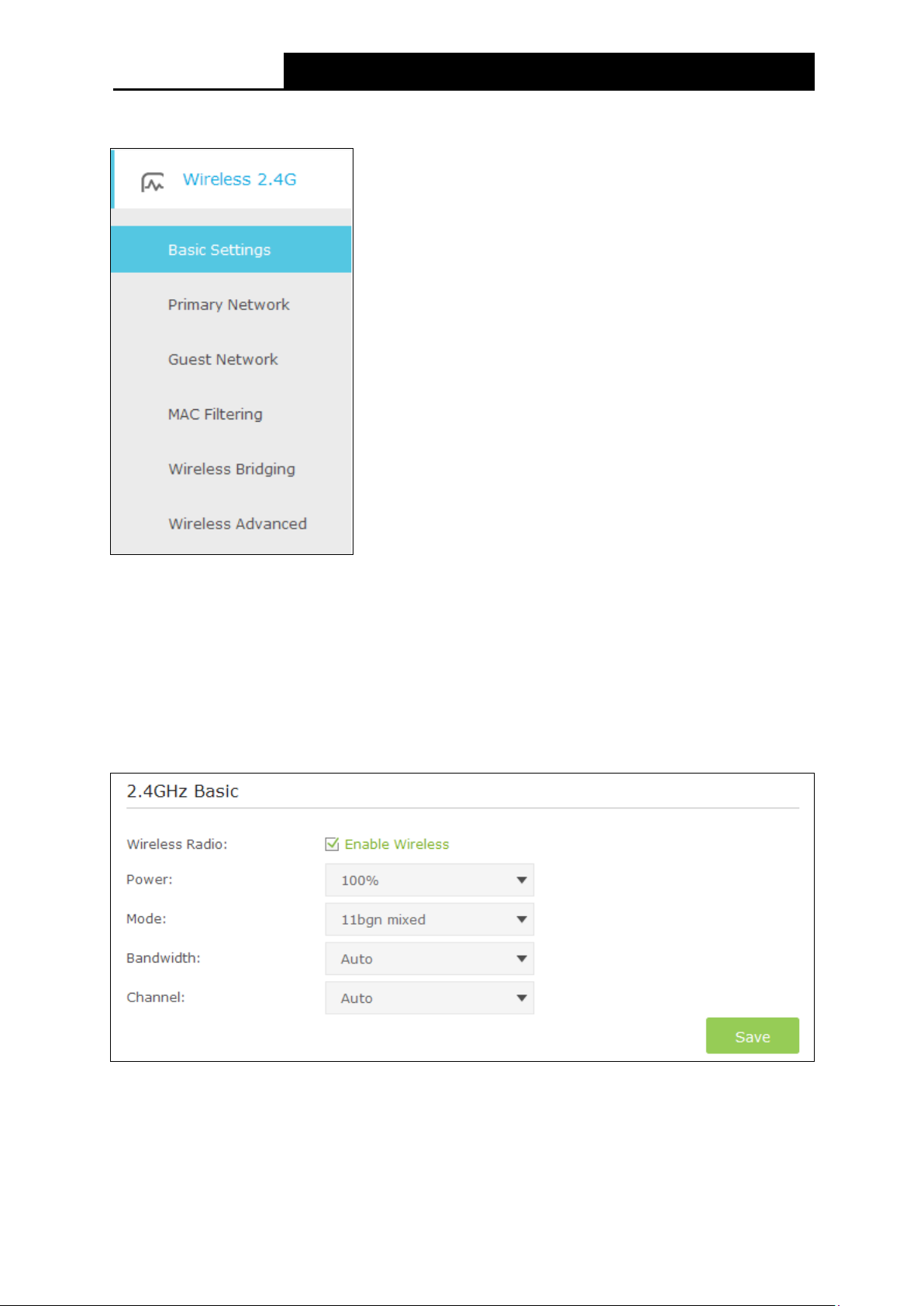

5.4 Wireless 2.4G ............................................................................................................. 37

5.4.1 Basic Settings .................................................................................................................... 37

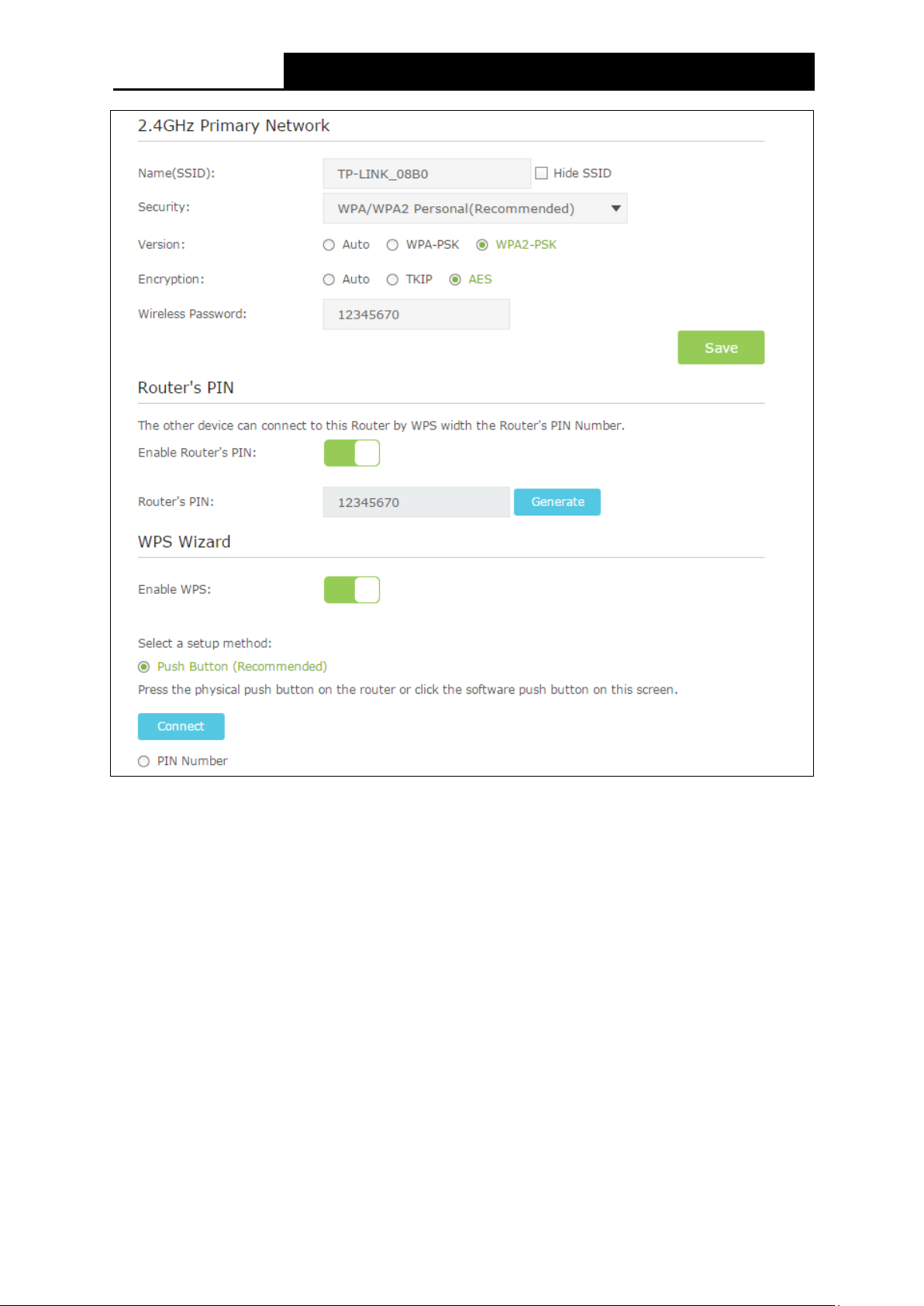

5.4.2 Primary Network................................................................................................................. 38

5.4.3 Guest Network ................................................................................................................... 42

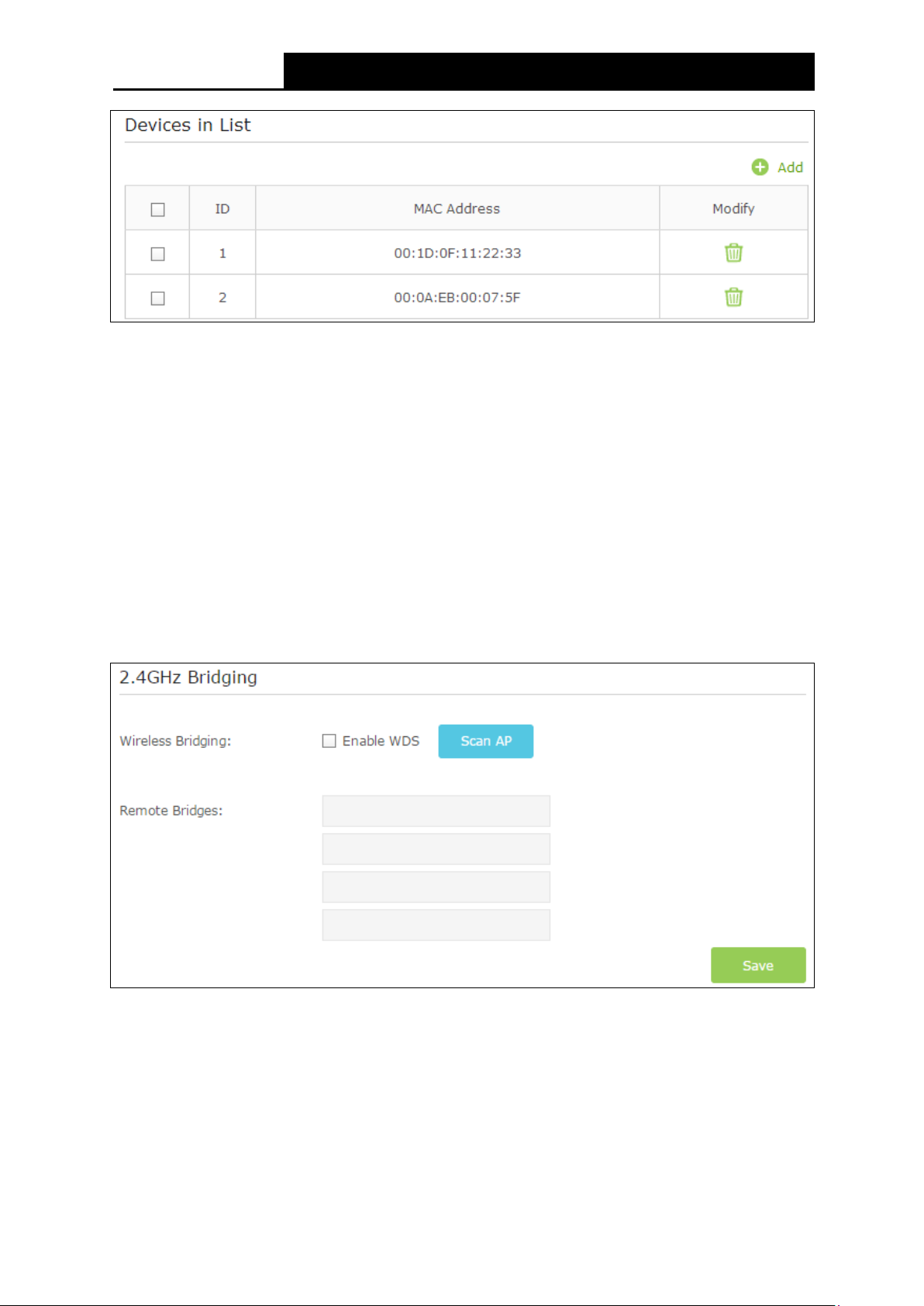

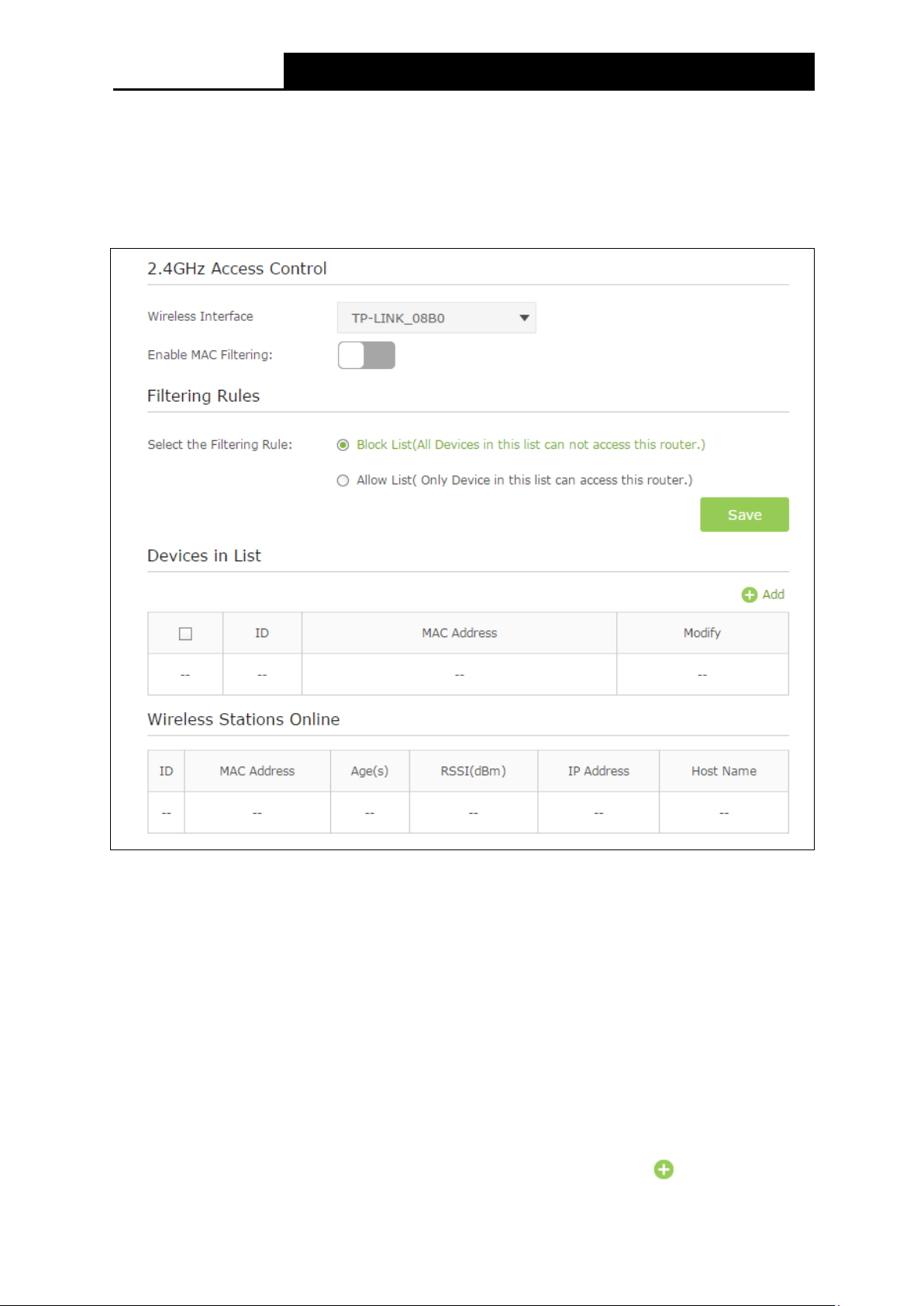

5.4.4 MAC Filtering ..................................................................................................................... 44

5.4.5 Wireless Bridging ............................................................................................................... 46

5.4.6 Wireless Advanced ............................................................................................................ 47

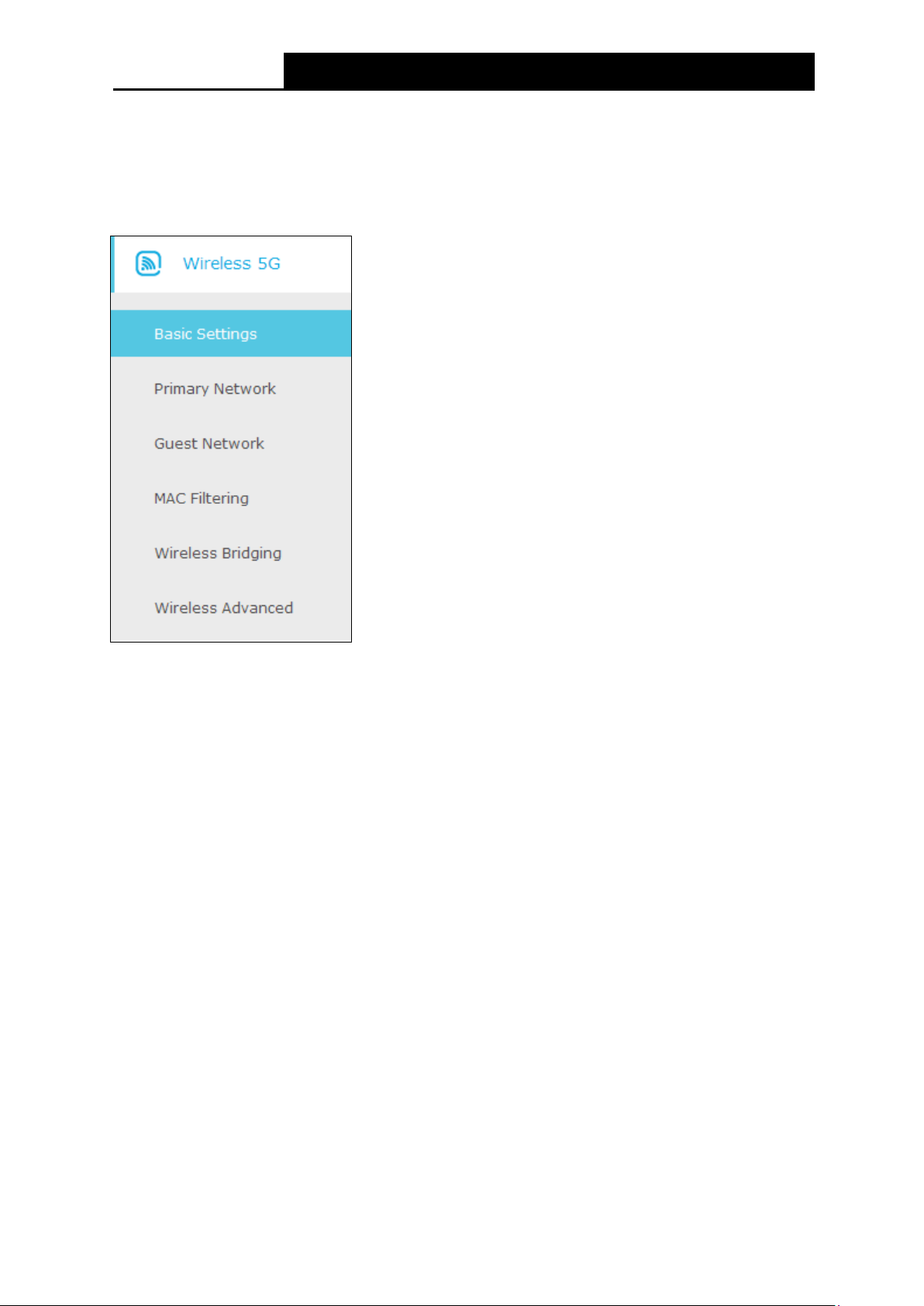

5.5 Wireless 5G ................................................................................................................ 48

5.5.1 Basic Settings .................................................................................................................... 48

5.5.2 Primary Network................................................................................................................. 49

5.5.3 Guest Network ................................................................................................................... 54

5.5.4 MAC Filtering ..................................................................................................................... 56

5.5.5 Wireless Bridging ............................................................................................................... 58

5.5.6 Wireless Advanced ............................................................................................................ 59

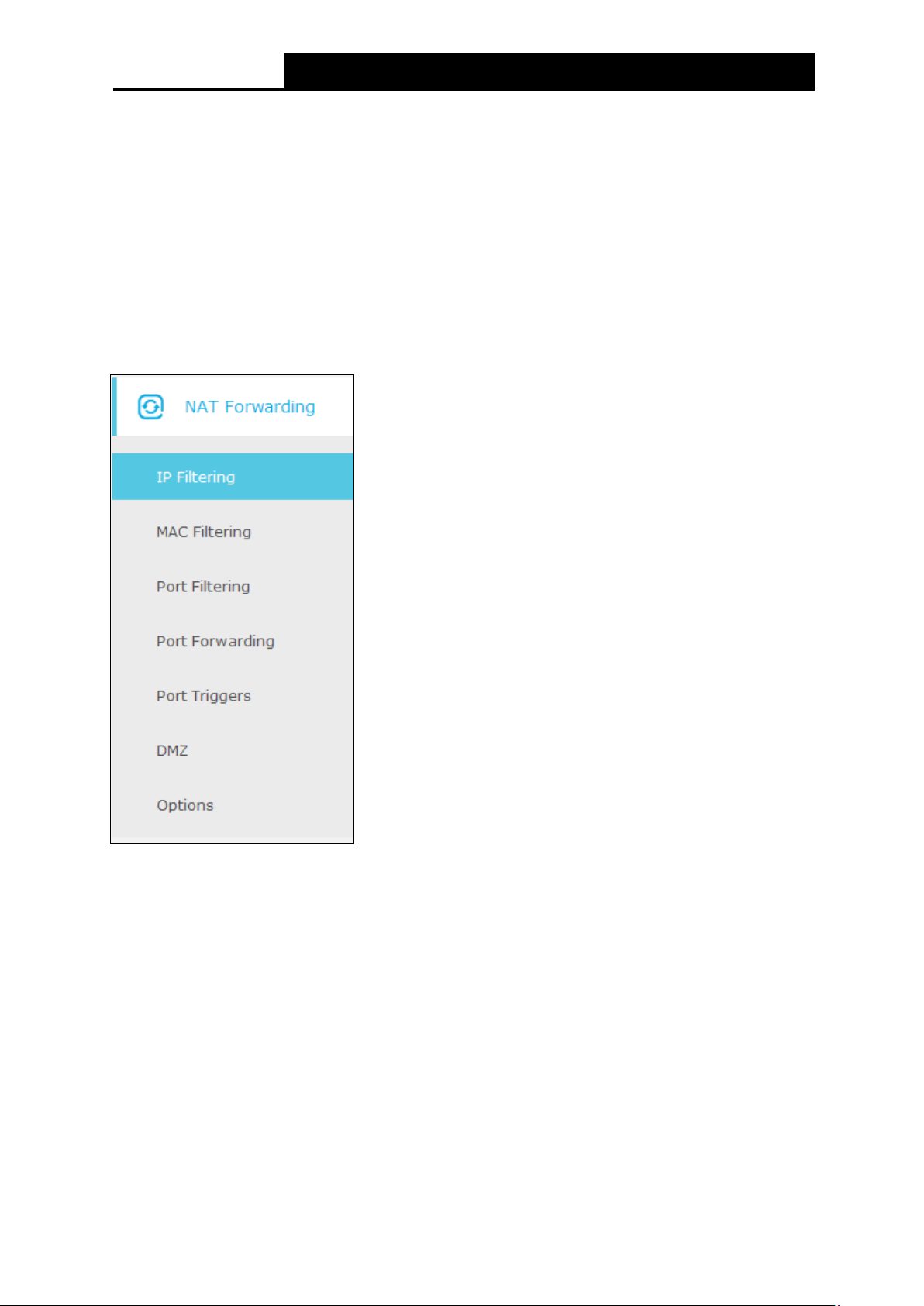

5.6 NAT Forwarding .......................................................................................................... 60

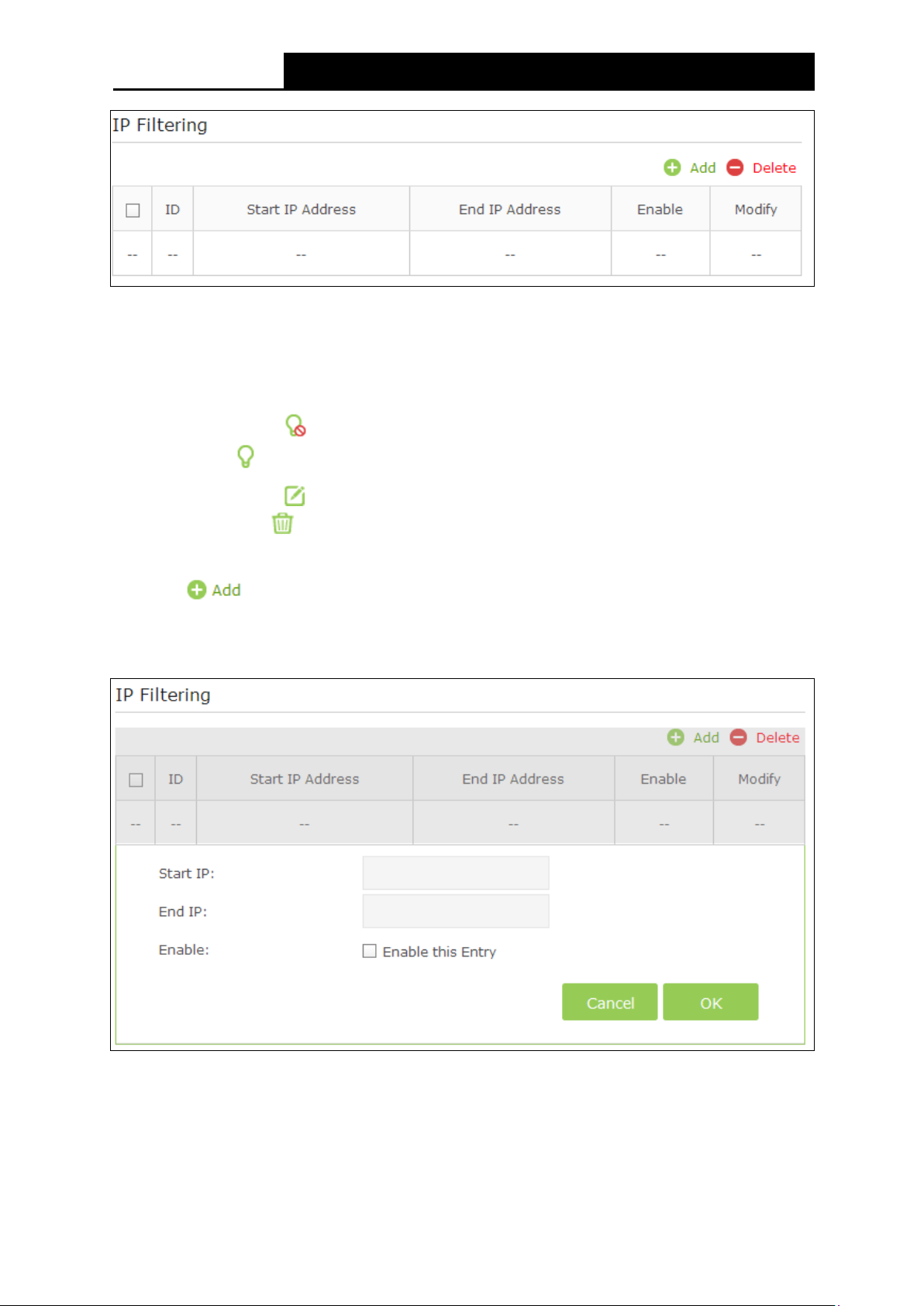

5.6.1 IP Filtering .......................................................................................................................... 60

5.6.2 MAC Filtering ..................................................................................................................... 62

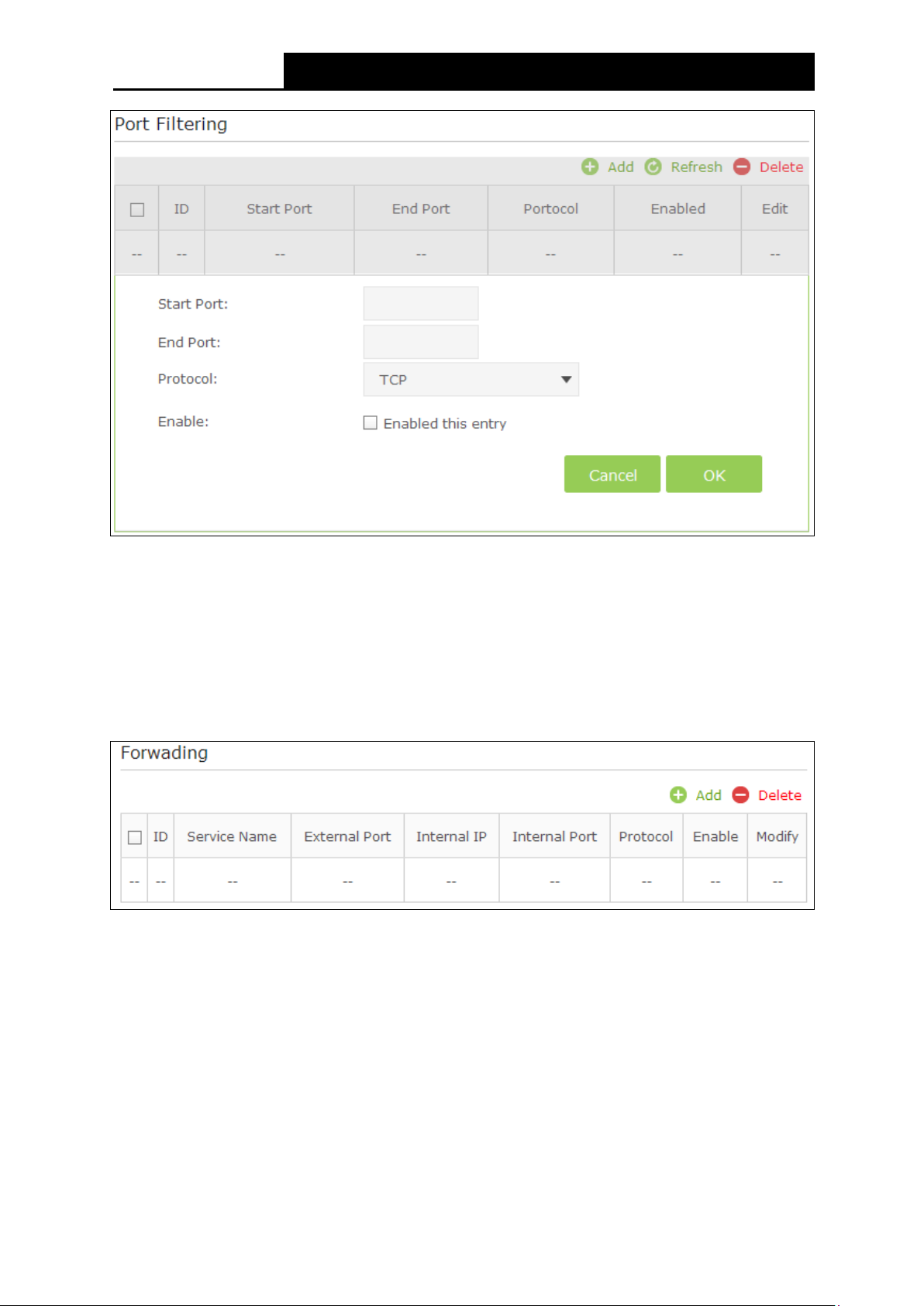

5.6.3 Port Filtering ....................................................................................................................... 63

5.6.4 Port Forwarding.................................................................................................................. 64

5.6.5 Port Triggers ...................................................................................................................... 65

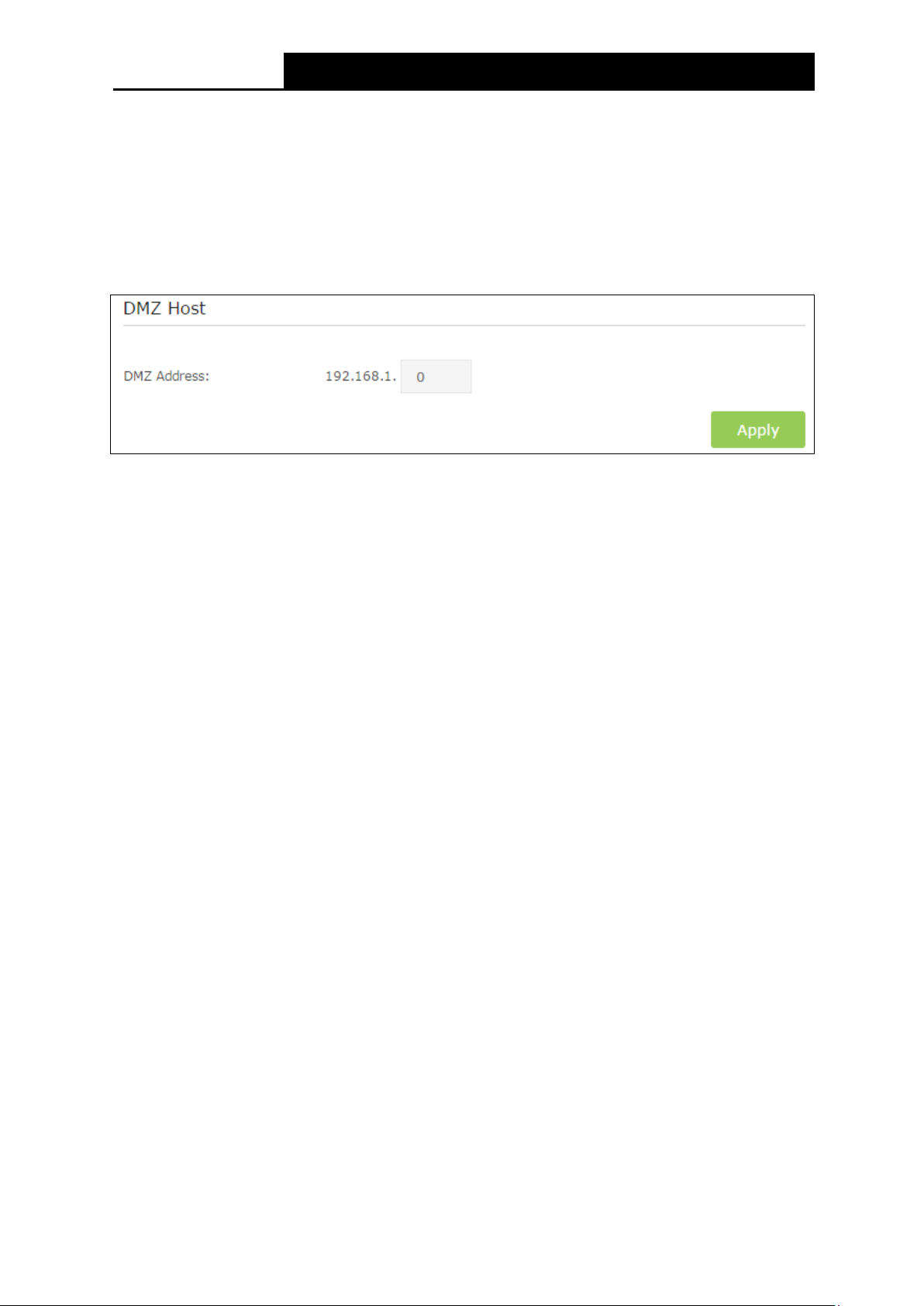

5.6.6 DMZ ................................................................................................................................... 68

5.6.7 Options ............................................................................................................................... 68

5.7 USB Settings .............................................................................................................. 70

5.7.1 Disk Settings ...................................................................................................................... 70

5.7.2 Folder Sharing.................................................................................................................... 71

5.7.3 Print Server ........................................................................................................................ 74

5.8 Parental Control .......................................................................................................... 75

5.9 Firewall ....................................................................................................................... 77

5.9.1 Basic .................................................................................................................................. 77

5.9.2 Local Log ............................................................................................................................ 78

5.9.3 Remote Log ........................................................................................................................ 79

5.10 System Tools .............................................................................................................. 81

5.10.1 System Information ........................................................................................................... 81

5.10.2 Device Information ............................................................................................................ 82

5.10.3 Connection Status ............................................................................................................ 82

5.10.4 Diagnostic ......................................................................................................................... 84

5.10.5 Time Settings .................................................................................................................... 86

5.10.6 Backup & Restore ............................................................................................................. 87

5.10.7 Administrator ..................................................................................................................... 88

5.10.8 Event Log .......................................................................................................................... 90

Appendix A: Specifications ................................................................................... 91

Appendix B: Troubleshooting ............................................................................... 95

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Package Contents

The following contents should be found in your package:

 One Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router

 One Power Adapter for Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable

Modem Router

 Quick Installation Guide

 One RJ45 cable

Note:



Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact your distributor.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Chapter 1. Product Overview

Thank you for choosing the Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router.

1.1 Overview of the Modem Router

The Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router integrates DOCSIS 3.0 modem, NAT router, 4-port switch and wireless access point in one device provides a one-stop networking solution.

The modem router provides up to 450Mbps (2.4GHz) + 1300Mbps (5GHz) wireless connection with other wireless clients. The incredible speed makes it ideal for handling multiple data streams at the same time, which ensures your network stable and smooth. The performance of this 802.11ac wireless modem router will give you the unexpected networking experience at speed much faster than

802.11n. It is also compatible with all IEEE 802.11a, IEEE 802.11b, IEEE 802.11g and IEEE 802.11n, products.

With multiple protection measures, including SSID broadcast control and wireless LAN 64/128 WEP encryption, Wi-Fi protected Access (WPA2-PSK, WPA-PSK), as well as advanced Firewall protections, the Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router provides complete data privacy.

The modem router provides flexible access control, so that parents or network administrators can establish restricted access policies for children or staffs. It also supports Virtual Server and DMZ host for Port Triggering, and then the network administrators can manage and monitor the network in real time with the remote management function.

Since the modem router is compatible with virtually all the major operating systems, it is very easy to manage. Detailed instructions are provided step by step in this user guide. Before installing the modem router, please look through this guide to know all the modem router’s functions.

1.2 Main Features

 Supports 802.11ac - The next generation of Wi-Fi

 Dual band – for combined wireless speeds of up to 1.75Gbps at 2.4GHz and 5GHz band

concurrently

 DOCSIS 3.0, Compatible with DOCSIS 2.0/1.1/1.0

 16 Downstream Channel bonding, Up to 680Mbps Downstream for DOCSIS

 4 Upstream Channel bonding, Up to 143Mbps Upstream

 Full Band Capture windows - Utilize any channels in the downstream spectrum.

 Dual-core processor –for wonderful performance with Internet, Wi-Fi, Ethernet and USB

devices

 6 internal antennas provide maximum Omni-directional wireless coverage and reliability

 Full gigabit ports ensure ultra fast data transfer speeds

 Dual USB Ports - easily share printers, files or media with your friends or family locally or over

the Internet

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Guest Network Access provides secure Wi-Fi access for guests sharing your home or office

network

 IPv6 supported, meeting the demands for the next generation of Internet

 Wi-Fi On/Off Button allows users to turn their wireless radio on or off

 Easy one-touch WPA wireless security encryption with the WPS button

 WPA-PSK/WPA2-PSK encryptions provide user networks with active defense against

security threats

 Parental Controls allow parents or administrators to establish restricted access policies for

children or staff

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

1.3 Panel Layout

Power is on.

Off

Power is off.

1.3.1 The Front Panel

Figure 1-1

The modem router’s LEDs are located on the side panel (View from top to bottom). They indicate the device’s working status. For details, please refer to LED Explanation.

LED Explanation:

Name Status Indication

(Power)

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Green

The modem router is synchronized with more than one channel.

White

The modem router is synchronized with one channel.

Flashing

The modem router is scanning for downstream channels.

Off

The initialization is not started, or has failed.

Green

The modem router is synchronized with more than one channel.

White

The modem router is synchronized with one channel.

The modem router is ranging or registering for upstream

Off

The initialization is not started, or has failed.

Internet service is available.

Off

Internet service is not available.

Flashing

The modem router is initializing.

At least one LAN port is connected.

Off

No LAN port is connected.

The LED stays on for 5 minutes when a WPS connection is

Flashing

WPS connection is in progress. This may take up to 2 minutes.

Off

No USB device is plugged in to the USB port.

The USB device is detected and ready to use.

Flashing

A USB device is being detected.

(Downstream)

(Upstream)

(Internet)

(LAN)

Flashing

channels.

(Wireless)

(WPS)

(USB on the

back panel)

On The wireless network is enabled.

Off The wireless network is disabled.

On/Off

established before it turns off.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

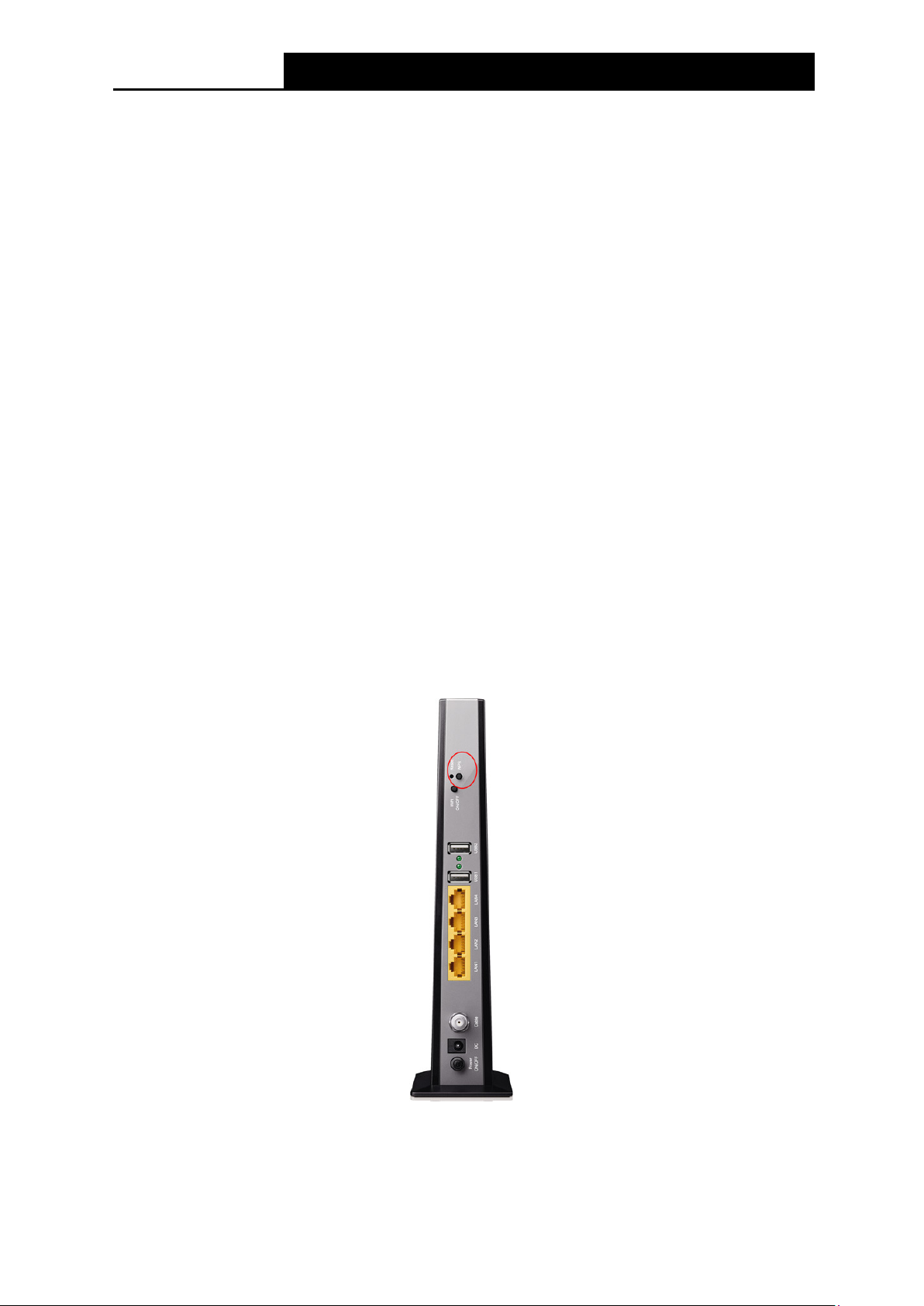

1.3.2 The Back Panel

Figure 1-2

 RESET: There are two ways to reset the modem router's factory defaults.

Method one: With the modem router powered on, use a pin to press and hold the Reset

button for at least 8-10 seconds. And the modem router will reboot to its factory default settings.

Method two: Restore the default setting from “

5.10.6 Backup & Restore

” of the modem

router's Web-based Management.

 WPS: The switch for the WPS function.

 WiFi ON/OFF: The switch for the WiFi function. Press it to enable/disable the WiFi function.

 USB2, USB1: The USB port connects to a USB storage device or a USB printer.

 LAN4, LAN3, LAN2, LAN1: Through these ports, you can connect the modem router to your

PC or the other Ethernet network devices.

 Cable: Through this port, you can connect the modem router to coaxial cable.

 DC: The power plug where you will connect the power adapter.

 Power ON/OFF: The switch for the power.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Internet

Coaxial cablePower adapter

Chapter 2. Install the Modem Router

2.1 System Requirements

 Broadband Internet Access Service (Cable).

 PCs with a working Ethernet Adapter and an Ethernet cable with RJ45 connectors.

 TCP/IP protocol on each PC.

 Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.

2.2 Installation Environment Requirements

 The Product should not be located where it will be exposed to moisture or excessive heat.  Place the Router in a location where it can be connected to the various devices as well as to a

power source.

 Make sure the cables and power cord are safely placed out of the way so they do not create a

tripping hazard.

 The Router can be placed on a shelf or desktop.  Keep away from the strong electromagnetic radiation and the device of electromagnetic

sensitive.

2.3 Connect the Hardware

Before installing the device, please make sure your broadband cable service provided by your ISP is available. If there is any problem, please contact your ISP. Before cable connection, cut off the power supply and keep your hands dry. You can follow the steps below to install it.

Step 1: Connect the coaxial cable and power adapter to the modem router, then power on your

modem router.

Figure 2-1

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

MAC:XX-XX-XX-XX-XX-XX

Wireless Password/ PIN:XXXXXXXXX

SSID:TP-LINK_XXXX SSID:TP-LINK_XXXX_5G

Model:Archer CR700 ver:1.0

S/N:XXXXXXXXXXXXX

Serial Number

MAC Address

SSID

Wi-Fi Password/PIN

Step 2: Wait for about 1 minute until the following LEDs are solid on.

Step 3: Connect your computer to the modem router via a wired or wireless connection.

Wired: Connect the computer to the modem router’s LAN port via an Ethernet cable.

Wireless: On your computer, select and connect to the modem router’s wireless network.

The default wireless network name (SSID) and password are printed on the product label at the bottom of the modem router.

Or you can set up a connection via the WPS button, which is on the back panel of the modem router. For more information about WPS, refer to

5.4.2 Primary Network

2.4 Activate the Modem Router

Step 1: Get your Internet service account information and the modem router’s product label ready

for activating your modem router. To access the Internet, the modem router needs to be activated.

Figure 2-2

Step 2: If your computer is configured with a fixed IP, change it to “obtain an IP address

dynamically”.

Launch a web browser, and visit any website. You will be automatically redirected to your service provider’s self-activation page.

Follow the on-screen self-activation instructions to activate the modem router. If the self-activation page does not show up, please call your service provider’s customer service to activate the modem router.

Note:



For Comcast and Time Warner Cable (TWC):

Comcast Xfinity 1-800-934-6489 www.comcast.com

Time Warner Cable 1-855-704-4503 www.timewarnercable.com

The contact information listed might change. You can also find the contact number in your monthly Internet service billing statement.

2.5 Enjoy the Internet

After activating your modem router successfully, wait for about 10 minutes till these LEDs

become solid on, then you can enjoy the Internet.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Note:



If the Internet is not accessible, contact your Internet service provider and make sure that the modem router is activated.

Safety Information

The product should be connected to cable distribution system that grounded (earthed) in accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93 - Grounding of Outer Conductive Shield of a Coaxial Cable.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Chapter 3. Log into the Modem Router

With a Web-based management page, it is easy to configure and manage the Archer CR700 AC1750 Wireless Dual Band DOCSIS 3.0 Cable Modem Router. The Web-based management page can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.

Set up the TCP/IP Protocol in "Obtain an IP address automatically" mode on your PC. If you need instructions as to how to do this, please refer to

To access the configuration utility, open a web-browser and type the default address

http://tplinkmodem.net/ or 192.168.1.1

After a moment, a login window will appear. Enter admin for the Username and Password, both in lower case letters. Then click the Login button or press the Enter key.

in the address field of the browser.

Figure 3-1

Appendix B: Trouble shooting

Figure 3-2

After your successful login, you will see the screen as shown below.

Figure 3-3

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Chapter 4. Basic

4.1 Network Map

Network Map provides

a dashboard that lets you see the status of your Internet connection and network at a glance. You can click any of the eight sections of the dashboard to view the d

etail information. All the information is read-only.

Figure 4-1

 Internet - View Check the ISP settings of your modem router.

 Router - View Check the Wireless and Guest Network settings.



Wireless Clients - Click to view the wireless devices connected to your network.

Wired Clients - Click to view the wired devices connected to your network.



 Printer - Click to view the information of the printer connected to your network.

 USB Disk - Click to view the information of the USB storage device connected to your

network.

4.2 Internet

Choose “Basic  Internet”, and you can configure the basic settings of the ISP Configuration and the Internet on this page.

There are four different connection types, Dynamic IP, Static IP, L2TP(Dynamic IP) and L2TP(Static). You can select the corresponding type according to your needs.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 4-2

1) Dynamic IP

Choose Dynamic IP in the drop-down list, the modem router will be able to obtain IP network information dynamically from a DHCP server provided by your ISP.

Figure 4-3

Click the Apply button to save the settings.

2) Static IP

Choose Static IP in the drop-down list if your ISP provides static IP information to you. You should set static IP address, Subnet mask, and gateway address in the screen below.

Figure 4-4

 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.

 Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,

usually is 255.255.255.0.

 Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your

ISP.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Primary DNS/ Secondary DNS - Here you can set DNS Server (at least one) manually. The

Route will use this DNS Server for priority.

Click the Apply button to save the settings.

3) L2TP(Dynamic IP)

Choose L2TP (Dynamic IP) in the drop-down list if your ISP provides L2TP (Dynamic IP) information to you. You should set User name, Password and Server IP Address/Name in the screen below.

Figure 4-5

 User name/Password - Enter the User name and Password provided by your ISP. These

fields are case-sensitive. If you have difficulty with this process, please contact your ISP.

 Server IP Address/Name - Enter the server IP address or domain name provided by your

ISP. If you have difficulty with this process, please contact your ISP.

Click the Apply button to save the settings.

4) L2TP(Static)

Choose L2TP (Static) in the drop-down list if your ISP provides L2TP (Static) information to you. You should set User name, Password, Server IP Address/Name, IP Address, Subnet Mask and Default Gateway in the screen below.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 4-6

 User name/Password - Enter the User name and Password provided by your ISP. These

fields are case-sensitive. If you have difficulty with this process, please contact your ISP.

 Server IP Address/Name - Enter the server IP address or domain name provided by your

ISP. If you have difficulty with this process, please contact your ISP.

 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.

 Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,

usually is 255.255.255.0.

 Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your

ISP.

Click the Apply button to save the settings.

4.3 Wireless

Choose menu “Basic” networks of 2.4GHz and 5GHz on this page.

→ “Wireless”, you can configure the basic settings for the wireless

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 4-7

 Enable Wireless Radio – Check the box to enable the Wireless Radio.

 Name (SSID) – Create a name (up to 32 characters) for your 2.4GHz/5GHz wireless network.

The default SSID is set to be TP-LINK_XXXX for the wireless network of 2.4GHz and TP-LINK_XXXX _5G for the wireless network of 5GHz.

 Hide SSID – If you want to hide the SSID of your wireless network from the Wi-Fi network,

you should check the box.

 Password –You can enter ASCII characters between 8 and 63 characters or 8 to 64

Hexadecimal characters. The default password is the same with the default PIN code, which is labeled on the bottom of the modem router.

Click the Save button to save the settings.

4.4 Guest Network

Choose menu “Basic feature allows you to create a separate network for your guests without allowing them to access your main network and the computers connected to it.

→ Guest Network”, and you will see the screen as shown below. This

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 4-8

 2.4GHz - If Enable Wireless Radio is selected, please complete the following parameters.

Figure 4-9

 Name (SSID) - Create a name for the guest network. When setting up a Guest network, it

is strongly recommended to use a name that easily distinguishes it from your primary network. The default name is TP-LINK_Guest_2.4GHz. If you want to hide the guest network from the Wi-Fi network, check the Hide SSID.

 Password - Create a password for the guest network. The password must have a

minimum of 8 characters in length.

 Allow guests to see each other - If Allow guests to see each other is selected,

anyone who connects to the guest network can access each other.

 Allow guests to access my local network - If Allow guests to access my local

network is selected, anyone who connects to the guest network has access to your local

network, not just Internet access.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 5GHz - If Enable Wireless Radio is selected, please complete the following parameters.

Figure 4-10

 Name (SSID) - Create a name for the guest network. When setting up a Guest network, it

is strongly recommended to use a name that easily distinguishes it from your primary network. The default name is TP-LINK_Guest_XXXX_5G. If you want to hide the guest network from the Wi-Fi network, check the Hide SSID.

 Password - Create a password for the guest network. The password must have a

minimum of 8 characters in length.

 Allow guests to see each other - If Allow guests to see each other is selected,

anyone who connects to the guest network can access each other.

 Allow guests to access my local network - If Allow guests to access my local

network is selected, anyone who connects to the guest network has access to your local

network, not just Internet access.

Click the Save button to save the settings.

4.5 USB Settings

There are two submenus under the USB Settings menu, Folder Sharing and Print Server. Click any of them, and you will be able to configure the corresponding function.

4.5.1 Folder Sharing

Choose menu “Basic about the connected USB mass storage, and configure Sharing Folders(Media file, Document files, Compress files and so on.)

→ USB Settings → Folder Sharing”, you can view the basic information

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 4-11

Disk Settings:

 Scan - Click the button to display the information of the USB storage device connected to the

modem router.

 Volume - The volume name of the USB drive the users have access to.

 Capacity - The storage capacity of the USB driver.

 Free Space - The available capacity of the USB driver.

 Enable - When the volume is shared, you can click the

when volume is non-shared, you can click the

Click

Safely Remove button to remove the USB storage device that is connected to USB port.

icon to share the volume.

icon to stop sharing the volume;

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide



Note:

Before removing the USB storage device, you should click “ all your data have been saved completely. Removing device directly may cause your USB storage device crashed.

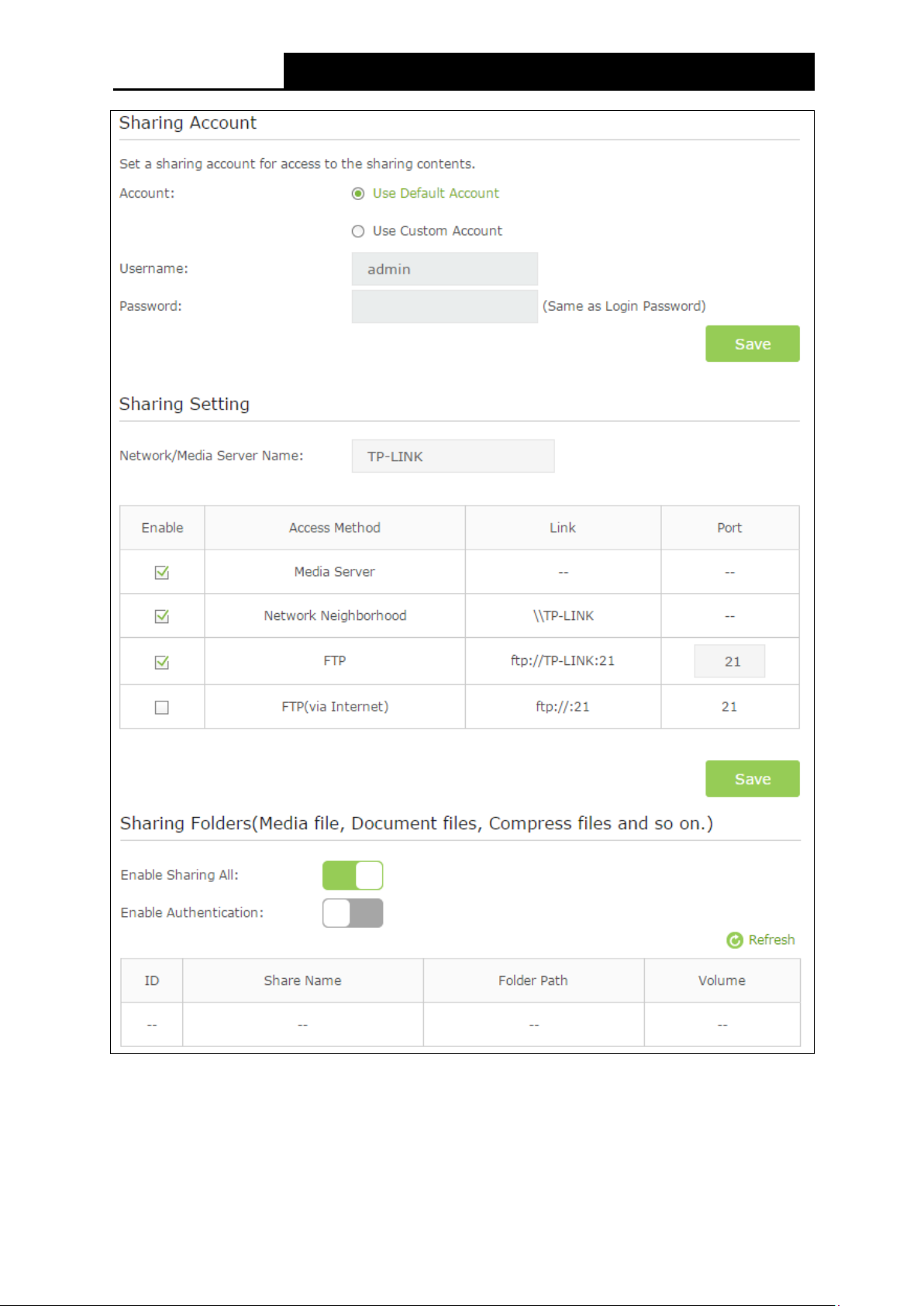

Sharing Settings:

 Network/Media Server Name - Show the name of the network/media server.

name used to access the USB device connected to the modem router.

Sharing Folders (Media file, Document files, Compress files and so on.):

 Enable Sharing All - The switch for sharing all the folders. If turn on the switch, the field will

become green and all the folders in the USB drive will be shared.

 Enable Authentication - If turn on this switch, the folder sharing is need authentication. The

default setting is off.

To share the folders you specified, please follow the steps below.

1. Turn off the Enable Sharing All switch and the next screen will pop-up as shown in Figure

4-12.

Safely Remove” to make sure that

This is the

2. Click the

Figure 4-12

Add button and the next screen will pop-up as shown in Figure 4-13.

Figure 4-13

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

3. Select the volume desired to share from the Volume drop-down list. Then click the Browse

button to select the folder path. You can create a share name, e.g. music.

4. Select the checkboxes in Figure 4-13.according to your needs.

 Enable Authentication - If this checkbox is selected, then the folder sharing is need

authentication.

 Write Access - If this checkbox is selected, then the sharing folder is allowed write

access.

 Enable Media Sharing - Select this checkbox to enable media sharing.

Click OK to complete the settings.

4.5.2 Print Server

Choose menu “Basic→USB Settings→Print Server”, you can enable or disable the print server.

Figure 4-14

4.6 Parental Control

Choose menu “Basic

→Parental Control”, and then you can configure the parental control. The

Parental Control function can be used to control the internet activities of the child, limit the child to access certain websites and restrict the time of surfing.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

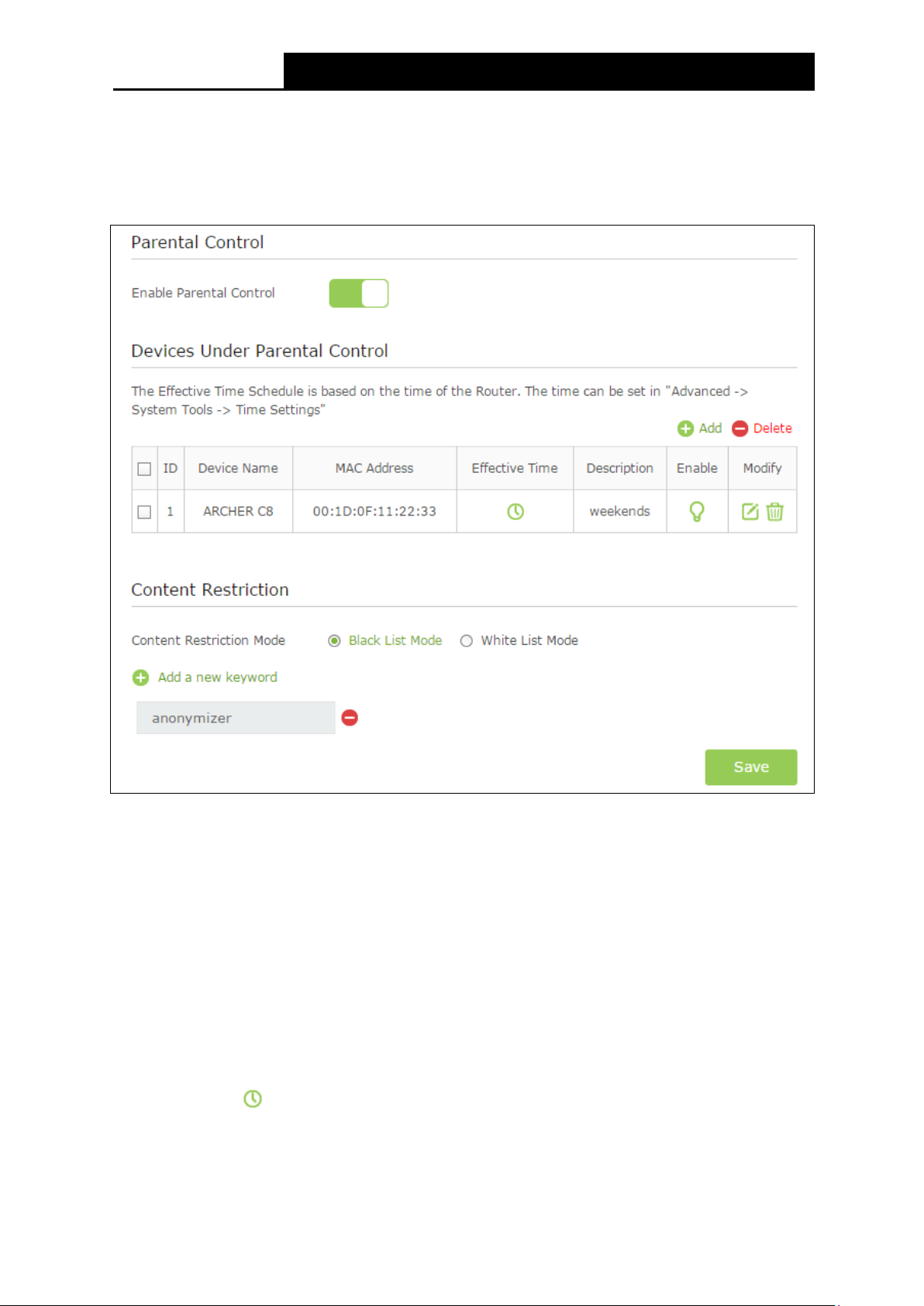

Figure 4-15

Parental Control:

 Enable Parental Control - The switch for the parental control. If turn on the switch, the field

will become green.

Devices Under Parental Control:

 Add - You can add a new device for the parental control by clicking this button.

 Delete - You can click the button to delete the selected entries.

 Device Name -The name used for identifying a device.

 MAC Address - This field displays the MAC address of the PC that is managing this modem

router.

 Effective Time - The time period allowed for the PC controlled to access the Internet. You

can click the

 Description - Here displays the description about the parental control and this description is

icon to configure the time period.

unique.

 Enable – Click the icon to enable the function. If this function has taken effect, the icon

will become

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Modify – Click the icon to edit the corresponding entry. If you want to delete this entry,

you can click the

icon.

To add a new entry, please follow the steps below.

1. Click the

Add button and the next screen will pop-up.

Figure 4-16

2. Click View Device button and the next screen will pop-up. You’d like to click the

select a device.

icon to

Figure 4-17

3. Click

to create a new schedule. You’d like to click the Schedule in green below to go to the Advance Schedule Settings page and create the schedule you need. Then enter the Description.

4. Check the box Enable this Entry to enable this function.

5. Click OK to complete the settings.

Content Restriction:

 Content Restriction Mode – Select the Black List Mode or White List Mode for this

account.

 Black List Mode - All webs entered within the Black List will be denied to access. Check the

box to enable this mode. You’d like to click

Add a new keyword button and input the net

addresses which the child is denied to access.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 White List Mode - Only the web entered within the White List will be allowed. Check the box

to enable this mode. You’d like to click

Add a new keyword button and input the net

addresses which the child is allowed to access.

Click Save to complete the settings.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Chapter 5. Advanced

5.1 Status

Choose menu “Advanced router.

→Status”, you can see the current status information about the modem

Figure 5-1

5.2 Operation Mode

Choose menu “Advanced 5-2.Select your desired mode and then click Save.

→Operation Mode”, and you will see the screen as shown in Figure

Figure 5-2

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Router Mode - The device enables multi-users to share Internet via cable using its Cable port

and share it wirelessly at 450Mbps wireless speeds over the crystal clear 5GHz band and 1300Mbps over the 2.4GHz band.

 Bridge Mode – In this mode, the modem router can be configured to act as a bridging device

between your LAN and your ISP. Bridges are devices that enable two or more networks to communicate as if they are two segments of the same physical LAN. If you were in Bridge Mode, you could log in the web-based management at 192.168.100.1, and then change the setting to obtain an IP address automatically.

After you click the Save button, the modem router will reboot. Please wait.

5.3 Network

Figure 5-3

There are five submenus under the Network menu: WAN, LAN Settings, IPv6 LAN Settings, Dynamic DNS and Advanced Routing. Click any of them, and you will be able to configure the corresponding function.

5.3.1 WAN

Choose “Advanced screen below.

Network  WAN”, you can configure the IP parameters of the WAN on the

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-4

Connection Status:

 Connection Type – Display the connection type for WAN.

 IP/MAC Address - This field displays the current IP/MAC address of the Internet port.

 Duration – Display the total connection time.

 Expires – Display the expiration time of the DHCP servers leases an IP address to a new

device.

 DisConnect - Click the DisConnect button to release WAN lease, then the Note Dialog will

appear. You can click the OK button to disconnect immediately.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 ReConnect –Click the ReConnect button to renew WAN lease, then the Note Dialog will

appear. You can click the OK button to disconnect immediately.

Connection settings:

There are four different connection types, Dynamic IP, Static IP, L2TP(Dynamic IP) and L2TP(Static). You can select the corresponding type according to your needs.

Figure 5-5

1) Dynamic IP

Choose Dynamic IP in the drop-down list, the modem router will be able to obtain IP network information dynamically from a DHCP server provided by your ISP.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-6

 Current used MAC Address - This field displays the current MAC address of the Internet

port.

 MAC Clone - You can select one of below methods to change MAC address for this WAN

Interface depend on your needs. If you select Use this MAC Address, you can enter the MAC Address you want to change.

Click the Apply button to save the settings.

2) Static IP

Choose Static IP in the drop-down list if your ISP provides static IP information to you. You should set static IP address, Subnet mask, and gateway address in the screen below.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-7

 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.

 Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,

usually is 255.255.255.0.

 Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your

ISP.

 Primary DNS/ Secondary DNS - Here you can set DNS Server (at least one) manually. The

Route will use this DNS Server for priority.

 Current used MAC Address - This field displays the current MAC address of the Internet

port.

 MAC Clone - You can select one of below methods to change MAC address for this WAN

Interface depend on your needs. If you select Use this MAC Address, you can enter the MAC Address you want to change.

Click the Apply button to save the settings.

3) L2TP(Dynamic IP)

Choose L2TP(Dynamic IP) in the drop-down list if your ISP provides L2TP(Dynamic IP) information to you. You should set User name, Password and Server IP Address/Name in the screen below.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-8

 User name/Password - Enter the User name and Password provided by your ISP. These

fields are case-sensitive. If you have difficulty with this process, please contact your ISP.

 Server IP Address/Name - Enter the server IP address or domain name provided by your

ISP. If you have difficulty with this process, please contact your ISP.

 Current used MAC Address - This field displays the current MAC address of the Internet

port.

 MAC Clone - You can select one of below methods to change MAC address for this WAN

Interface depend on your needs. If you select Use this MAC Address, you can enter the MAC Address you want to change.

Click the Apply button to save the settings.

4) L2TP(Static)

Choose L2TP (Static) in the drop-down list if your ISP provides L2TP (Static IP) information to you. You should set User name, Password, Server IP Address/Name, IP Address, Subnet Mask and Default Gateway in the screen below.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-9

 User name/Password - Enter the User name and Password provided by your ISP. These

fields are case-sensitive. If you have difficulty with this process, please contact your ISP.

 Server IP Address/Name - Enter the server IP address or domain name provided by your

ISP. If you have difficulty with this process, please contact your ISP.

 IP Address - Enter the IP address in dotted-decimal notation provided by your ISP.

 Subnet Mask - Enter the subnet Mask in dotted-decimal notation provided by your ISP,

usually is 255.255.255.0.

 Default Gateway - Enter the gateway IP address in dotted-decimal notation provided by your

ISP.

 Current used MAC Address - This field displays the current MAC address of the Internet

port.

 MAC Clone - You can select one of below methods to change MAC address for this WAN

Interface depend on your needs. If you select Use this MAC Address, you can enter the MAC Address you want to change.

Click the Apply button to save the settings.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.3.2 LAN Settings

Choose “AdvancedNetworkLAN Settings” menu, and you will see the LAN screen shown below. Please configure the parameters for LAN ports according to the descriptions below.

Figure 5-10

LAN Settings:

 IP Address - Enter the modem router’s local IP Address, then you can access to the

Web-based management page via the IP Address, the default value is 192.168.1.1.

 MAC Address - The physical address of the modem router, as seen from the LAN. The

value can't be changed.

DHCP Settings:

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 DHCP Sever – Check the box to enable this function. If DHCP Server is enabled, the modem

router will work as a DHCP server, which provides the TCP/IP configuration for all the PC(s) that are connected to it on the LAN.

 MAC Address

- The MAC address of the DHCP client

 Start IP Address - Enter a value for the DHCP server to start with when issuing IP addresses.

 End IP Address - Enter a value for the DHCP server to end with when issuing IP addresses.

 Leased Time - The Leased Time is the amount of time in which a network user will be allowed

connection to the modem router with their current dynamic IP address. Enter the amount of time, in hours, then the user will be “leased” this dynamic IP address. After the dynamic IP address has expired, the user will be automatically assigned a new dynamic IP address. The default is 60 minutes.

 Primary DNS/Second DNS - The Domain Name System (DNS) translates host names and

Internet domains to IP addresses. The information of these DNS servers is assigned by the Internet Service Provider (ISP). Enter the DNS server address(es) in dotted decimal notation provided by your ISP.

Click the Save button to save the settings.

DHCP Client List:

 MAC Address - The MAC address of the DHCP client  IP Address - The IP address that the modem router has allocated to the DHCP client  Duration - Display the total connection time.  Expires- Display the expiration time of the DHCP client leased.

 Select – Click the

icon to delete this entry.

5.3.3 IPv6 LAN Settings

Choose “AdvancedNetworkIPv6 LAN Settings” menu, and you will see the IPv6 LAN screen. Please configure the parameters for IPv6 LAN ports according to the descriptions below.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-11

IPv6 LAN Settings:

 IPv6 Address - Display the modem router’s local IPv6 Address.

 IPv6 Prefix – Display the IPv6 prefix address.

 System Delegated Prefix – Display the prefix address used for the tunnel.

DHCPv6 Server Settings:

 DHCPv6 Server – Check the box to enable DHCPv6 server.

 LAN Delegated Prefix – Display the LAN prefix address.

 Start address - Enter a value for the DHCPv6 server to start with when issuing IP addresses.

 Number of addresses – Enter a value between 0-255 for DHCPv6 server preference. The

default value is 255.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Valid Lifetime - The Valid Lifetime is the amount of time in which a network user will be

allowed connection to the modem router with their current dynamic IP address. Enter the amount of time, in seconds, then the user will be assigned this dynamic IP address. After the dynamic IP address has expired, the user will be automatically assigned a new dynamic IP address. The default is 3600 seconds.

 Rapid Commit

 Unicast  Stateless Dhcpv6 - Stateless DHCPv6 is a combination of “stateless Address

Autoconfiguration” and “Dynamic Host Configuration Protocol for IPv6” and is specified by RFC3736. Check the box to enable this function.

Client Status:

 IP Address  MAC Address - The MAC address of the DHCP client

 Reachability State – Display the reachability of network.

–

– Check the box to enable prefix fast distribution function.

Select the checkbox to enable unicast function. The default setting is disabled.

- The IP address of the DHCP client

5.3.4 Dynamic DNS

Choose menu “Advanced DNS function.

The modem router offers the DDNS (Dynamic Domain Name System) feature, which allows the hosting of a website, FTP server, or e-mail server with a fixed domain name (named by yourself) and a dynamic IP address, and then your friends can connect to your server by entering your domain name no matter what your IP address is. Before using this feature, you need to sign up for DDNS service providers such as you a password or key.

 Network  Dynamic DNS”, and you can configure the Dynamic

dyn.com/dns/

. The Dynamic DNS client service provider will give

Figure 5-12

 DDNS Service - The service provider of DDNS. In this field you could select Disabled,

dyn.com/dns/ or www.noip.com . If you have selected dyn.com/dns/ or www.noip.com

need to sign up for DDNS service providers.

 User Name & Password - Type the “User Name” and “Password” for your DDNS account.

, you

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Host Name - Enter the Domain name you want to set.

 IP Address – Display the WAN IP address.

Click the Save button to save your settings.

5.3.5 Advanced Routing

Choose “Advanced  Network  Advanced Routing”, you can view all the current groups on this page.

Figure 5-13

 RIP Authentication – Check the box to enable the RIP Authentication function.

 Authentication Key – Create a key（up to 16 characters）for the RIP authentication.

 Authentication Key ID - Create a ID（up to 3 characters） for identity a authentication key.

 Reporting Interval – Refer to the update interval for routing information.

 Destination IP Address –The Destination IP Address is the address of the network or host

that you want to assign to a static route.

 Destination IP Subnet Mask –The Destination IP Subnet Mask determines which portion

of an IP Address is the network portion, and which portion is the host portion.

Click Save button to save the settings.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.4 Wireless 2.4G

Choose menu “Advanced Basic Settings, Primary Network, Guest Network, MAC Filtering, Wireless Bridging and Wireless Advanced. Click any of them, and you will be able to configure the corresponding

function.

→Wireless 2.4G”, you will see six submenus under the Wireless menu:

5.4.1 Basic Settings

Choose menu “Advanced → Wireless 2.4G → Basic Settings”, you can configure the advanced wireless settings for the wireless 2.4G network.

Figure 5-14

 Wireless Radio – Check the box to enable the Wireless Radio.

 Power – Here you can specify the transmit power of the modem router. You can select 25%,

50%, 75% and 100% which you would like. 100% is the default setting and is recommended.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Mode – Select the desired mode.

11bgn mixed: Select if you are using a mix of 802.11b, 11g, and 11n wireless clients.

11gn mixed: Select if you are using both 802.11g and 802.11n wireless clients.

11n only: Select if you are using 802.11n wireless clients only.

Select the desired wireless mode. It is strongly recommended that you set the Mode to 11bgn mixed, and all of 802.11b, 802.11g, and 802.11n wireless stations can connect to the modem

router.

 BandWidth - Select the channel width from the drop-down list. The default setting is Auto,

which can adjust the channel width for your clients automatically.

 Channel - Select the channel you want to use from the drop-down list of Channel. This field

determines which operating frequency will be used. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point.

Click the Save button to save the settings.

5.4.2 Primary Network

Choose menu “Advanced

→ Wireless 2.4G → Primary Network”, You can configure the

wireless 2.4GHz primary network.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-15

2.4GHz Primary Network:

 Name (SSID) – Create a name (up to 32 characters) for your 2.4GHz wireless network. The

default SSID is set to be TP-LINK_XXXX.

 Hide SSID – If you want to hide the SSID of your wireless network from the Wi-Fi network,

you should check the box.

 Security – There are four wireless security modes supported by the modem router: No

Security, WPA/WPA2 Personal (Recommended), WPA/WPA2 Enterprise, WEP. You can

choose one of them from the drop-down list.

1) No Security: If you do not want to use wireless security, choose No Security. But it’s recommended to use wireless security.

2) WPA-PSK/WPA2-PSK Personal(Recommended):

 Version –You can choose the version of the WPA-PSK/WPA2-PSK security by selecting

Auto, WPA-PSK or WPA2-PSK. The default setting is WPA2-PSK.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Encryption – You can choose the encryption by selecting Auto, TKIP or AES. The default

setting is AES.

 Wireless Password – You can enter ASCII characters between 8 and 63 characters or 8 to

64 Hexadecimal characters. The default password is the same with the default PIN code, which is labeled on the bottom of the modem router.

3) WPA/WPA2 Enterprise:

 Version –You can choose the version of the WPA/WPA2 Enterprise security by selecting

Auto, WPA or WPA2. The default setting is WPA2.

 Encryption – You can select Auto, TKIP or AES as Encryption. The default setting is AES.

 RADIUS Server IP: Enter the IP address of the Radius Server.

 RADIUS Port: Enter the port that radius service used.

 RADIUS Password: Enter the password for the Radius Server.

4) WEP:

 Key Selected – Select one of the four keys from the drop-down list.

 Key Type –You can select the WEP key length (64-bit, or 128-bit.) for encryption.

64-bit: You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not

promoted) or 5 ASCII characters.

128-bit: You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 13 ASCII characters.

 Key Format – ASCII and Hexadecimal formats are provided here. ASCII format stands for

any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.

 Key Value - Enter the WEP key that you create. Make sure these values are identical on all

wireless stations in your network.

Note:



If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key.

Router’s PIN:

 Enable Router’s PIN - The switch for the Router’s PIN. If you turn on this button, the field will

become green and other device can connect to this Router by WPS with the Router's PIN Number.

 Router’s PIN - The current value of the modem router's PIN is displayed here. The default

PIN of the modem router can be found in the label.

 Generate - Click this button, and then you can get a new random value for the modem

router's PIN. You can ensure the network security by generating a new PIN.

Note:



You cannot connect other device to this modem router by entering the router’s PIN on your client device if you haven’t switch on Enable Router’s PIN.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

WPS Wizard:

 Enable WPS - The switch for the WPS. If you turn on this button, the field will become green

and you can add a new wireless device to an existing network quickly by WPS (also called QSS) function.

 Select a setup method – You can select either of Push Button (Recommended) or PIN

Number as the WPS setup method.

 Push Button (Recommended) – When you select this method, you can add a new device by

pressing the physical button on the router or by clicking the software push Connect button on this screen.

 PIN Number - When you select this method, you can add a new device by entering the

client’s PIN in the field and then click Connect button.

To add a new device:

If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and modem router using either Push Button method or PIN Number method.

Note:



To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function meanwhile.

I. Use the WPS Button

Use this method if your client device has a Wi-Fi Protected Setup (WPS) button.

Step 1: Press the physical button on the router (as shown in Figure 5-16) or click the software

push button: Connect (as shown in Figure 5-17).

Figure 5-16

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-17

Step 2: Press and hold the WPS button of the client device directly.

Step 3: The WPS LED flashes for two minutes during the Wi-Fi Protected Setup process.

Step 4: When the WPS LED is on, the client device has successfully connected to the modem

router.

Refer back to your client device or its documentation for further instructions.

II. Enter the client device’s PIN on the modem router

Use this method if your client device has a Wi-Fi Protected Setup PIN number.

Step 1: Enter the PIN number from the client device in the field, as shown in the following figure.

Then click Connect button.

Figure 5-18

Step 2: “Device has been added successfully!”

client device has successfully connected to the modem router.

Note:



1) The WPS LED on the modem router will light green for five minutes if the device has been

2) The WPS function cannot be configured if the Enable Router’s PIN switch is off. Please

successfully added to the network.

make sure the Enable Router’s PIN switch is on before configuring the WPS.

will appear on the screen, which means the

5.4.3 Guest Network

Choose menu “Advanced advanced settings of your guest network.

→ Wireless 2.4G → Guest Network”, you can configure the

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-19

Settings:

 See each other - If Allow guests to see each other is selected, anyone who connects to the

guest network can access each other.

 Access my local network - If Allow guests to access my local network is selected,

anyone who connects to the guest network has access to your local network, not just Internet access.

Wireless:

 Wireless radio – Check the box to enable this function. The guest network function is

disabled by default.

 Name (SSID) - Create a name for the guest network. When setting up a Guest network, it is

strongly recommended to use a name that easily distinguishes it from your primary network. The default name is TP-LINK_Guest_2.4GHz. If you want to hide the guest network from the Wi-Fi network, check the Hide SSID.

 Security - It’s strongly recommended to select WPA/WPA2 Personal. If you do not want to

use wireless security, choose No Security.

 Version

Auto, WPA-PSK or WPA2-PSK. The default setting is WPA2-PSK.

 Encryption

 Wireless Password - Create a password for the guest network. The password must have a

minimum of 8 characters in length.

-You can choose the version of the WPA-PSK/WPA2-PSK security by selecting

- You can choose the encryption by selecting Auto, TKIP or AES.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Click Save button to save the settings.

5.4.4 MAC Filtering

Choose menu “Advanced

→ Wireless 2.4GHz → MAC Filtering”, you can control the wireless

access by configuring the MAC Filtering function.

Figure 5-20

2.4GHz Access Control:

 Wireless Interface - Select an available wireless interface from the drop-down list.

 Enable MAC Filtering- The switch for the MAC Filtering. If you turn on this button, the field

will become green and you can filter wireless users by MAC Address.

Filtering Rules:

 Select the Filtering Rule - You can select either of Block List or Allow List as the MAC

filtering rule.

Click the Save button to save the settings.

Devices in List:

 Add - You can add a new device for the MAC Filtering rule by clicking Add button.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 MAC Address - This field displays the MAC address of the wireless station that cannot

access this router/can access this router.

 Modify - Click the

icon to delete this entry.

To add a MAC Address Filtering entry:

1. Click

Add button, then you will see a setting page.

2. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-1D-0F-11-22-33.

Figure 5-21

3. Click the OK button to save this entry. If you do not want to save this entry, click the Cancel button.

For example: If you desire that the wireless station A with MAC address 00-1D-0F-11-22-33 and the wireless station B with MAC address 00-0A-EB-00-07-5F are able to access the modem router, but all the other wireless stations cannot access the modem router, you can configure the MAC Filtering settings by following these steps:

1. Switch on the Enable MAC Filtering button to enable this function.

2. Select the White List for Filtering Rules.

3. Delete all or disable all entries if there are any entries already.

4. Click the

1) Enter the MAC address

Add button.

00-1D-0F-11-22-33/00-0A-EB-00-07-5F in the MAC Address

field.

2) Click the OK button.

The filtering rules that configured should be similar to the following figure:

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-22

Wireless Stations Online:

 MAC Address - The MAC address of the wireless station online.

 Age(s) – Display the duration time of wireless station online.

 RSSI(dBm) – Refers to the Received Signal Strength Indication.

 IP Address- The IP address of the wireless station online.

 Host Name – Display the host name of the wireless station.

5.4.5 Wireless Bridging

Choose menu “Advanced modem router can bridge more WLANs.

→ Wireless 2.4G → Wireless Bridging”. With this function, the

Figure 5-23

 WDS Bridging - With this function, the modem router can bridge more WLANs. If you check

the Enable WDS, you can click the Scan AP button to scan the nearby wireless access points.

 Remote Bridges – Enter the MAC address of the access point which you choose to be

bridged.

Click the Save button to save the settings.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.4.6 Wireless Advanced

Choose menu “Advanced

→ Wireless 2.4G → Wireless Advanced”, you can configure the

advanced settings of your wireless network.

Figure 5-24

2.4GHz Advanced:

 Beacon Interval - Enter a value between 25-1000 milliseconds for Beacon Interval here.

The beacons are the packets sent by the modem router to synchronize a wireless network. Beacon Interval value determines the time interval of the beacons. The default value is 100.

 DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message

(DTIM). A DTIM field is a countdown field informing clients of the next window for listening to broadcast and multicast messages. When the modem router has buffered broadcast or multicast messages for associated clients, it sends the next DTIM with a DTIM Interval value. You can specify the value between 1-255 Beacon Intervals. The default value is 1, which indicates the DTIM Interval is the same as Beacon Interval.

 Fragmentation Threshold - This value is the maximum size determining whether packets

will be fragmented. Setting the Fragmentation Threshold too low may result in poor network performance because of excessive packets. 2346 is the default setting and is recommended.

 RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the packet

is larger than the specified RTS Threshold size, the modem router will send RTS frames to a particular receiving station and negotiate the sending of a data frame. The default value is

2347.

 Short GI - This function is recommended for it will increase the data capacity by reducing the

guard interval time

. Short GI is enabled by default.

 Enable WMM – Check the box to enable this function. WMM function can guarantee the

packets with high-priority messages being transmitted preferentially, which is strongly recommended. It is enabled by default.

 Enable Power Save Support - Check the box to enable this function. This function can

make the wireless client has only antenna is in working condition, and the remaining

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

antennas are dormant, so as to achieve the purpose of saving power.

Click the Save button to save the settings.

5.5 Wireless 5G

Choose menu “Advanced Basic Settings, Primary Network, Guest Network, MAC Filtering, Wireless Bridging and Wireless Advanced. Click any of them, and you will be able to configure the corresponding

function.

→Wireless 5G”, you will see six submenus under the Wireless menu:

5.5.1 Basic Settings

Choose menu “Advanced wireless settings for the wireless 5G network.

→ Wireless 5G → Basic Settings”, you can configure the advanced

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-25

 Wireless Radio – Check the box to enable the Wireless Radio.

 Power – Here you can specify the transmit power of the modem router. You can select 25%,

50%, 75% and 100% which you would like. 100% is the default setting and is recommended.

 Mode – Select the desired mode.

11a/n/ac mixed: Select if you are using a mix of 802.11a, 11n and 11ac wireless clients.

11ac/n mixed: Select if you are using a mix of 802.11ac and 11n wireless clients.

11ac only: Select if you are using 802.11a wireless clients.

Select the desired wireless mode. It is strongly recommended that you set the Mode to 11a/n/ac mixed, and all of 802.11a, 802.11n, and 802.11ac wireless stations can connect to the modem router.

 BandWidth - Select the channel width from the drop-down list. The default setting is Auto,

which can adjust the channel width for your clients automatically.

 Channel - Select the channel you want to use from the drop-down list of Channel. This field

determines which operating frequency will be used. It is not necessary to change the wireless channel unless you notice interference problems with another nearby access point.

Click the Save button to save the settings.

5.5.2 Primary Network

Choose menu “Advanced → Wireless 5G → Primary Network”, You can configure the wireless 5G primary network.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-26

2.4GHz Primary Network:

 Wireless Radio – Check the box to enable the Wireless Radio.

 Name (SSID) – Create a name (up to 32 characters) for your 5GHz wireless network. The

default SSID is set to be TP-LINK_XXXX _5GHz.

 Hide SSID – If you want to hide the SSID of your wireless network from the Wi-Fi network,

you should check the box.

 Security – There are four wireless security modes supported by the modem router: No

Security, WPA/WPA2 Personal (Recommended), WPA/WPA2 Enterprise, WEP. You can

choose one of them from the drop-down list.

5) No Security: If you do not want to use wireless security, choose No Security. But it’s recommended to use wireless security.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

6) WPA-PSK/WPA2-PSK Personal(Recommended):

 Version –You can choose the version of the WPA-PSK/WPA2-PSK security by selecting

Auto, WPA-PSK or WPA2-PSK. The default setting is WPA2-PSK.

 Encryption – You can choose the encryption by selecting Auto, TKIP or AES. The default

setting is AES.

 Wireless Password – You can enter ASCII characters between 8 and 63 characters or 8 to

64 Hexadecimal characters. The default password is the same with the default PIN code, which is labeled on the bottom of the modem router.

7) WPA/WPA2 Enterprise:

 Version –You can choose the version of the WPA/WPA2 Enterprise security by selecting

Auto, WPA or WPA2. The default setting is WPA2.

 Encryption – You can select Auto, TKIP or AES as Encryption. The default setting is AES.

 RADIUS Server IP: Enter the IP address of the Radius Server.

 RADIUS Port: Enter the port that radius service used.

 RADIUS Password: Enter the password for the Radius Server.

8) WEP:

 Key Selected – Select one of the four keys from the drop-down list.

 Key Type –You can select the WEP key length (64-bit, or 128-bit.) for encryption.

64-bit:

You can enter 10 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not

promoted) or 5 ASCII characters.

128-bit: You can enter 26 hexadecimal digits (any combination of 0-9, a-f, A-F, zero key is not promoted) or 13 ASCII characters.

 Key Format – ASCII and Hexadecimal formats are provided here. ASCII format stands for

any combination of keyboard characters in the specified length. Hexadecimal format stands for any combination of hexadecimal digits (0-9, a-f, A-F) in the specified length.

 Key Value - Enter the WEP key that you create. Make sure these values are identical on all

wireless stations in your network.

Note:



If you do not set the key, the wireless security function is still disabled even if you have selected Shared Key.

Router’s PIN:

 Enable Router’s PIN - The switch for the Router’s PIN. If you turn on this button, the field will

become green and other device can connect to this Router by WPS with the Router's PIN Number.

 Router’s PIN - The current value of the modem router's PIN is displayed here. The default

PIN of the modem router can be found in the label.

 Generate - Click this button, and then you can get a new random value for the modem

router's PIN. You can ensure the network security by generating a new PIN.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Note:



You cannot connect other device to this modem router by entering the router’s PIN on your client device if you haven’t switch on Enable Router’s PIN.

WPS Wizard:

 Enable WPS - The switch for the WPS. If you turn on this button, the field will become green

 Select a setup method – You can select either of Push Button (Recommended) or PIN

 Push Button (Recommended) – When you select this method, you can add a new device by

 PIN Number - When you select this method, you can add a new device by entering the

To add a new device:

If the wireless adapter supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless adapter and modem router using either Push Button method or PIN Number method.

and you can add a new wireless device to an existing network quickly by WPS (also called

QSS) function.

Number as the WPS setup method.

pressing the physical button on the router or by clicking the software push Connect button on this screen.

client’s PIN in the field and then click Connect button.

Note:



To build a successful connection by WPS, you should also do the corresponding configuration of the new device for WPS function meanwhile.

III. Use the WPS Button

Use this method if your client device has a Wi-Fi Protected Setup (WPS) button.

Step 5: Press the physical button on the router (as shown in Figure 5-27) or click the software

push button: Connect (as shown in Figure 5-28).

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-27

Figure 5-28

Step 6: Press and hold the WPS button of the client device directly.

Step 7: The WPS LED flashes for two minutes during the Wi-Fi Protected Setup process.

Step 8: When the WPS LED is on, the client device has successfully connected to the modem

router.

Refer back to your client device or its documentation for further instructions.

IV. Enter the client device’s PIN on the modem router

Use this method if your client device has a Wi-Fi Protected Setup PIN number.

Step 3: Enter the PIN number from the client device in the field, as shown in the following figure.

Then click Connect button.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-29

Step 4: “Device has been added successfully!”

client device has successfully connected to the modem router.

Note:



1) The WPS LED on the modem router will light green for five minutes if the device has been

2) The WPS function cannot be configured if the Enable Router’s PIN switch is off. Please

successfully added to the network.

make sure the Enable Router’s PIN switch is on before configuring the WPS.

will appear on the screen, which means the

5.5.3 Guest Network

Choose menu “Advanced settings of your guest network.

→ Wireless 5G → Guest Network”, you can configure the advanced

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-30

Settings:

 See each other - If Allow guests to see each other is selected, anyone who connects to the

guest network can access each other.

 Access my local network - If Allow guests to access my local network is selected,

anyone who connects to the guest network has access to your local network, not just Internet access.

Wireless:

 Wireless radio – Check the box to enable this function. The guest network function is

disabled by default.

 Name (SSID) - Create a name for the guest network. When setting up a Guest network, it is

strongly recommended to use a name that easily distinguishes it from your primary network. The default name is TP-LINK_Guest_5GHz. If you want to hide the guest network from the Wi-Fi network, check the Hide SSID.

 Security - It’s strongly recommended to select WPA/WPA2 Personal. If you do not want to

use wireless security, choose No Security.

 Version

Auto, WPA-PSK or WPA2-PSK. The default setting is WPA2-PSK.

 Encryption

 Wireless Password - Create a password for the guest network. The password must have a

minimum of 8 characters in length.

Click Save button to save the settings.

-You can choose the version of the WPA-PSK/WPA2-PSK security by selecting

- You can choose the encryption by selecting Auto, TKIP or AES.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.5.4 MAC Filtering

Choose menu “Advanced

→ Wireless 5GHz → MAC Filtering”, you can control the wireless

access by configuring the MAC Filtering function.

Figure 5-31

5GHz Access Control:

 Wireless Interface - Select an available wireless interface from the drop-down list.

 Enable MAC Filtering- The switch for the MAC Filtering. If you turn on this button, the field

will become green and you can filter wireless users by MAC Address.

Filtering Rules:

 Select the Filtering Rule - You can select either of White List or Black List as the MAC

filtering rule.

Click the Save button to save the settings.

Devices in List:

 Add - You can add a new device for the MAC Filtering rule by clicking

 MAC Address - This field displays the MAC address of the wireless station that cannot

Add button.

access this router/can access this router.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Modify - Click the icon to delete this entry.

To add a MAC Address Filtering entry:

1. Click

Add button, then you will see a setting page.

2. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX-XX-XX-XX-XX-XX (X is any hexadecimal digit). For example: 00-1D-0F-11-22-33.

Figure 5-32

3. Click the OK button to save this entry. If you do not want to save this entry, click the Cancel button.

1. Switch on the Enable MAC Filtering button to enable this function.

2. Select the White List for Filtering Rules.

3. Delete all or disable all entries if there are any entries already.

4. Click the

1) Enter the MAC address

Add button.

00-1D-0F-11-22-33/00-0A-EB-00-07-5F in the MAC Address

field.

2) Click the OK button.

The filtering rules that configured should be similar to the following figure:

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Wireless Stations Online:

Figure 5-33

 MAC Address - The MAC address of the wireless station online.

 Age(s) – Display the duration time of wireless station online.

 RSSI(dBm) – Refers to the Received Signal Strength Indication.

 IP Address- The IP address of the wireless station online.

 Host Name – Display the host name of the wireless station.

5.5.5 Wireless Bridging

Choose menu “Advanced modem router can bridge more WLANs.

→ Wireless 5G → Wireless Bridging”. With this function, the

Figure 5-34

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 WDS Bridging - With this function, the modem router can bridge more WLANs. If you check

the Enable WDS, you can click the Scan AP button to scan the nearby wireless access points.

 Remote Bridges – Enter the MAC address of the access point which you choose to be

bridged.

Click the Save button to save the settings.

5.5.6 Wireless Advanced

Choose menu “Advanced

→ Wireless 5G → Wireless Advanced”, you can configure the

advanced settings of your wireless network.

Figure 5-35

5GHz Advanced:

 Beacon Interval - Enter a value between 25-1000 milliseconds for Beacon Interval here.

The beacons are the packets sent by the modem router to synchronize a wireless network. Beacon Interval value determines the time interval of the beacons. The default value is 100.

 DTIM Interval - This value determines the interval of the Delivery Traffic Indication Message

 Fragmentation Threshold - This value is the maximum size determining whether packets

will be fragmented. Setting the Fragmentation Threshold too low may result in poor network performance because of excessive packets. 2346 is the default setting and is recommended.

 RTS Threshold - Here you can specify the RTS (Request to Send) Threshold. If the packet

is larger than the specified RTS Threshold size, the modem router will send RTS frames to a particular receiving station and negotiate the sending of a data frame. The default value is

2347.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Short GI - This function is recommended for it will increase the data capacity by reducing the

guard interval time

 Enable WMM – Check the box to enable this function. WMM function can guarantee the

. Short GI is enabled by default.

packets with high-priority messages being transmitted preferentially, which is strongly recommended. It is enabled by default.

 Enable Power Save Support - Check the box to enable this function. This function can

make the wireless client has only antenna is in working condition, and the remaining antennas are dormant, so as to achieve the purpose of saving power.

Click the Save button to save the settings.

5.6 NAT Forwarding

Figure 5-36 The Forwarding menu

There are seven submenus under the Forwarding menu: IP Filtering, MAC Filtering, Port Filtering, Port Forwarding, Port Triggers, DMZ and Options. Click any of them, and you will be able to configure the corresponding function.

5.6.1 IP Filtering

Choose menu “Advanced  NAT Forwarding  IP Filtering”, and then you can control the client’s access by configuring the IP Filtering function.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-37

IP Filtering:

 Start/End IP Address –Display the start IP Address/end IP Address of the client that cannot

access this router.

 Enable - Click the

will become

 Modify - Click the icon to edit the corresponding entry. If you want to delete this entry,

you can click the

icon to enable the function. If this function has taken effect, the icon

icon.

To add a IP Address Filtering entry:

1. Click

button, then you will see a setting page.

2. Enter the Start IP Address and the End IP Address.

3. Check Enable this Entry for this entry, as shown in the following figure.

Figure 5-38

4. Click the OK button to save this entry. If you do not want to save this entry, click the Cancel button.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.6.2 MAC Filtering

Choose menu “Advanced  NAT Forwarding  MAC Filtering”, and then then you can control the client’s access by configuring the MAC Filtering function.

Figure 5-39

MAC Filtering:

 MAC Address - This field displays the MAC address of the station that cannot access this

router.

 Modify - Click the

you can click the

icon to edit the corresponding entry. If you want to delete this entry,

icon.

To add a MAC Address Filtering entry:

1. Click

button, then you will see a setting page.

2. Enter the appropriate MAC Address into the MAC Address field. The format of the MAC Address is XX:XX:XX:XX:XX:XX (X is any hexadecimal digit). For example: 00:1D:0F:11:22:33.

Figure 5-40

3. Click the Add button to save this entry. If you do not want to save this entry, click the Cancel button.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.6.3 Port Filtering

Choose menu “Advanced  NAT Forwarding  Port Filtering”, and then you can control the client’s access by configuring the Port Filtering function.

Figure 5-41

Port Filtering:

 Add - You can add a new device for the MAC Filtering rule by clicking

 Delete - You can click

 Start/End Port - Display the start port/end port that cannot access this router.

 Protocol - The protocol used for this application, either TCP, UDP, or BOTH (all protocols

button to delete the selected entries.

button.

supported by the modem router).

 Modify - Click the

you can click the

icon to edit the corresponding entry. If you want to delete this entry,

icon.

To add an IP Address Filtering entry:

1. Click

button, then you will see a setting page.

2. Enter the Start Port and the End Port.

3. Select the Protocol which you want.

4. Check Enable this Entry for this entry, as shown in the following figure.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-42

5. Click the OK button to save this entry. If you do not want to save this entry, click the Cancel button.

5.6.4 Port Forwarding

Choose menu “Advanced  NAT Forwarding  Port Forwarding”, and then you will see the screen as shown below.

 Service Name - The port forwarding you want to use.

 External Port - The numbers of External Service Ports. You can enter a service port (the

value between 1-65535).

 Internal IP - The IP address of the PC running the service application (which is in the same

subnet with LAN IP).

 Internal Port - The Internal Service Port number of the PC running the service application.

You can enter a service port (the value between 1-65535).

 Protocol - The protocol used for this application, either TCP, UDP, or BOTH (all protocols

supported by the modem router).

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Enable – Click the icon to enable the function. If this function has taken effect, the icon

will become

 Modify – Click the icon to edit the corresponding entry. If you want to delete this entry,

you can click the

icon.

To setup a port forwarding entry:

1. Click the

Add button.

2. Enter the Service Name.

3. Enter the external port of the computer running the service application in the External Port field.

4. Enter the IP address of the computer running the service application in the Internal IP field.

5. Enter the internal port of the computer running the service application in the Internal Port field.

6. Select the protocol used for this application in the Protocol drop-down list, either TCP, UDP, or BOTH.

7. Enable the Enabled this entry checkbox.

8. Click the OK button.

Figure 5-43

5.6.5 Port Triggers

Choose menu “Advanced triggering in the next screen shown below. Some applications require multiple connections, like

→ NAT Forwarding→Port Triggering”, you can view and add port

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Internet games, video conferencing, Internet telephoning and so on. Port Triggering is used for some of these applications that cannot work with a pure NAT modem router.

Figure 5-44

 Triggering Start/End Port - The start port/end port for outgoing traffic. An outgoing

connection using this port will trigger this rule.

 External Start/End Port - The port used by the remote system when it responds to the

outgoing request. A response using one of these ports will be forwarded to the PC which triggered this rule.

 Protocol - The protocol used for External Port, either TCP, UDP, or ALL (all protocols

supported by the router).

 Enable – Click the

will become

 Modify – Click the icon to edit the corresponding entry. If you want to delete this entry,

you can click the

icon to enable the function. If this function has taken effect, the icon

icon.

To add a new rule, follow the steps below.

1. Click the

Add button.

2. Enter the number of the Triggering Start/End and External Start/End Port.

3. Select the protocol used for this application in the Protocol drop-down list, either TCP, UDP, or Both.

4. Enable the Enable this entry checkbox.

5. Click the OK button.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-45

 Note:

1. When the trigger connection is released, the corresponding opened ports will be closed.

2. Each rule can only be used by one host on the LAN at a time. The trigger connection of other hosts on the LAN will be refused.

3. External Port ranges cannot overlap each other.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.6.6 DMZ

Choose menu “Advanced DMZ host in the screen shown below. The DMZ host feature allows one local host to be exposed to the Internet for a special-purpose service such as Internet gaming or videoconferencing. The router forwards packets of all services to the DMZ host. Any PC whose port is being forwarded must have its DHCP client function disabled and should have a new static IP Address assigned to it because its IP Address may be changed when using the DHCP function.

To assign a computer or server to be a DMZ server:

1. Enter the IP address of a local PC that is set to be DMZ host in the DMZ Host IP Address field.

2. Click the Apply button.

→ NAT Forwarding → DMZ”, and then you can view and configure

Figure 5-46

5.6.7 Options

Choose menu “Advanced → NAT Forwarding → Options”, and then you can view the information in the screen shown below.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-47

 IPSec Passthrough - Internet Protocol security (IPSec) is a suite of protocols for ensuring

private, secure communications over Internet Protocol (IP) networks, through the use of cryptographic security services. To allow IPSec tunnels to pass through the modem router, turn on the switch.

 PPTP Passthrough - Point-to-Point Tunneling Protocol (PPTP) allows the Point-to-Point

Protocol (PPP) to be tunneled through an IP network. To allow PPTP tunnels to pass through the modem router, turn on the switch.

 Multicast Enable - Multicasting allows a single transmission to simultaneously reach specific

within your local network. Check the box to enable multicasting.

 UPnP Enable – Check the box to enable UPnP. This feature is enabled by default.

 FTP ALG Enable - To allow FTP clients and servers to transfer data across NAT, turn on the

switch.

 TFTP ALG Enable - To allow TFTP clients and servers to transfer data across NAT, turn on

the switch.

 H225 ALG Enable - To allow H225 clients and servers to transfer data across NAT, turn on

the switch.

 PPTP ALG Enable - To allow PPTP clients and servers to transfer data across NAT, turn on

the switch.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 SIP ALG Enable- To allow SIP clients and servers to transfer data across NAT, turn on the

switch.

Click Save button to save these settings.

PassThrough MAC Address

 MAC Address –This field displays the MAC address which is allowed to pass through the

modem router

 Modify – Delete this entry, you can click the icon.

To add a new entry, please follow the steps below.

1. Click the

Add button and the next screen will pop-up as shown below.

2. Enter the MAC Address.

3. Click OK button to save these settings.

5.7 USB Settings

Figure 5-48

There are three submenus under the USB Settings menu: Disk Settings, Folder Sharing and

Print Server. Click any of them, and you will be able to configure the corresponding functions.

5.7.1 Disk Settings

Choose menu “Advanced drive attached to the modem router and view the information.

→USB Settings→Disk Settings”, you can configure the USB disk

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-49

Click the Scan button to scan the USB drive connected to the router.

 Volume - The volume name of the USB drive the users have access to.

 Capacity - The storage capacity of the USB driver.

 Free Space- The available space of the USB driver.

 Status: When the volume is shared, you can click the

when volume is non-shared, you can click to

Click

Safely Remove button to remove the USB storage device that is connected to USB port.

icon share the volume.

5.7.2 Folder Sharing

Choose menu “Advanced account and sharing settings.

→USB Settings→Folder Sharing”, you can configure the sharing

icon to stop sharing the volume;

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-50

Sharing Account

 Account – You can select Use Default Account or Use Custom Account to log in sharing

Folders.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Use Default Account - Select this radio button, and the sharing account username is

admin, and password is the same as Login Password.

 Use Custom Account - Select this radio button, then you have to specify the new

username and password in the Username and Password fields for sharing account.

Click Save button to save these settings.

Sharing Settings

 Network/Media Server Name - Show the name of the network/media server.

This is the

name used to access the USB device connected to the router.

 Access Method - Select the check boxes for the access methods that you want.

1) Network Neighborhood: This method is enabled by default. To access the USB drive

for example from a Windows computer:

i. Select Start > Run.

ii. Enter \\TP-LINK

in the dialog box and click the OK button.

2) FTP: This method is enabled by default. If you select this check box and click the Save

button, the LAN users can access the USB drive through FTP. To access the USB drive for example from a Windows computer:

i. Select Start > Run.

iii. Enter ftp://TP-LINK:21

in the dialog box and click the OK button.

3) FTP (via Internet): This method is disabled by default. If you select this check box,

remote users can access the USB drive through FTP over the Internet. This feature supports both downloading and uploading of files. To access the USB drive for example from a Windows computer:

i. Select Start > Run.



ii. Enter ftp://:21

Note:

in the dialog box and click the OK button.

If the port for FTP is changed, the port for FTP (via Internet) will be changed to the same port.

Sharing Folders (Media file, Document files, Compress files and so on.)

 Enable Sharing All - The switch for sharing all the folders. If you turn on the switch, the field

will become green and all the folders in the USB drive will be shared.

 Enable Authentication - If you turn on this switch, the folder sharing needs authentication.

The default setting is off.

To share the folders you specified, please follow the steps below.

1. Turn off the Enable Sharing All switch and the next screen will pop-up as shown in Figure 5-51.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-51

2. Click the

Add button and the next screen will pop-up as shown below.

Figure 5-52

3. Select the volume desired to share from the Volume drop-down list. Then click the Browse button to select the folder path. You can create a share name, e.g. image.

4. Select the checkboxes in Figure 5-52.according to your needs.

 Enable Authentication - If this checkbox is selected, then the folder sharing needs

authentication.

 Write Access - If this checkbox is selected, then the sharing folder is allowed write access.

 Enable Media Sharing - Select this checkbox to enable media sharing.

5. Click OK to complete the settings.

5.7.3 Print Server

Please refer to Section

4.5.2 Print Server.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.8 Parental Control

Choose menu “Advanced

→Parental Control”, and then you can configure the parental control in

the screen as shown below. The Parental Control function can be used to control the internet activities of the child, limit the child to access certain websites and restrict the time of surfing.

Figure 5-53

 Enable Parental Control - The switch for the parental control. If turn on the switch, the field

will become green

Devices Under Parental Control:

 Add - You can add a new device for the parental control by clicking this button.

 Delete - You can click the button to delete the selected entries.

 Device Name -The name used for identifying a device.

 MAC Address - This field displays the MAC address of the PC that is managing this modem

router.

 Effective Time - The time period allowed for the PC controlled to access the Internet. You

can click the

 Description - Here displays the description about the parental control and this description is

icon to configure the time period.

unique.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Enable – Click the icon to enable the function. If this function has taken effect, the icon

will become

 Modify – Click the icon to edit the corresponding entry. If you want to delete this entry,

you can click the

icon.

To add a new entry, please follow the steps below.

4. Click the

Add button and the next screen will pop-up as shown below.

Figure 5-54

5. Click View Device button and the next screen will pop-up as shown below. You’d like to click

the

icon to select a device.

Figure 5-55

6. Enter the Device Name in Figure 5-54.

7. Click

to create a new schedule. You’d like to click the Schedule in green below to go to the Advance Schedule Settings page and create the schedule you need. Then enter the Description.

8. Check the box Enable this Entry to enable this function.

9. Click OK to complete the settings.

Content Restriction:

 Content Restriction Mode – Select the Black List Mode or White List Mode for this

account.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 Black List Mode - All webs entered within the Black List will be denied to access. Check the

box to enable this mode. You’d like to click addresses which the child is denied to access.

 White List Mode - Only the web entered within the White List will be allowed. Check the box

to enable this mode. You’d like to click addresses which the child is allowed to access.

Add a new keyword button and input the net

Click Save to complete the settings.

5.9 Firewall

Figure 5-56

There are three submenus under the Security menu: Basic, Local Log, and Remote Log. Click any of them, and you will be able to configure the corresponding functions.

5.9.1 Basic

Choose menu “Advanced

 Firewall  Basic”, and you can configure the basic firewall function.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

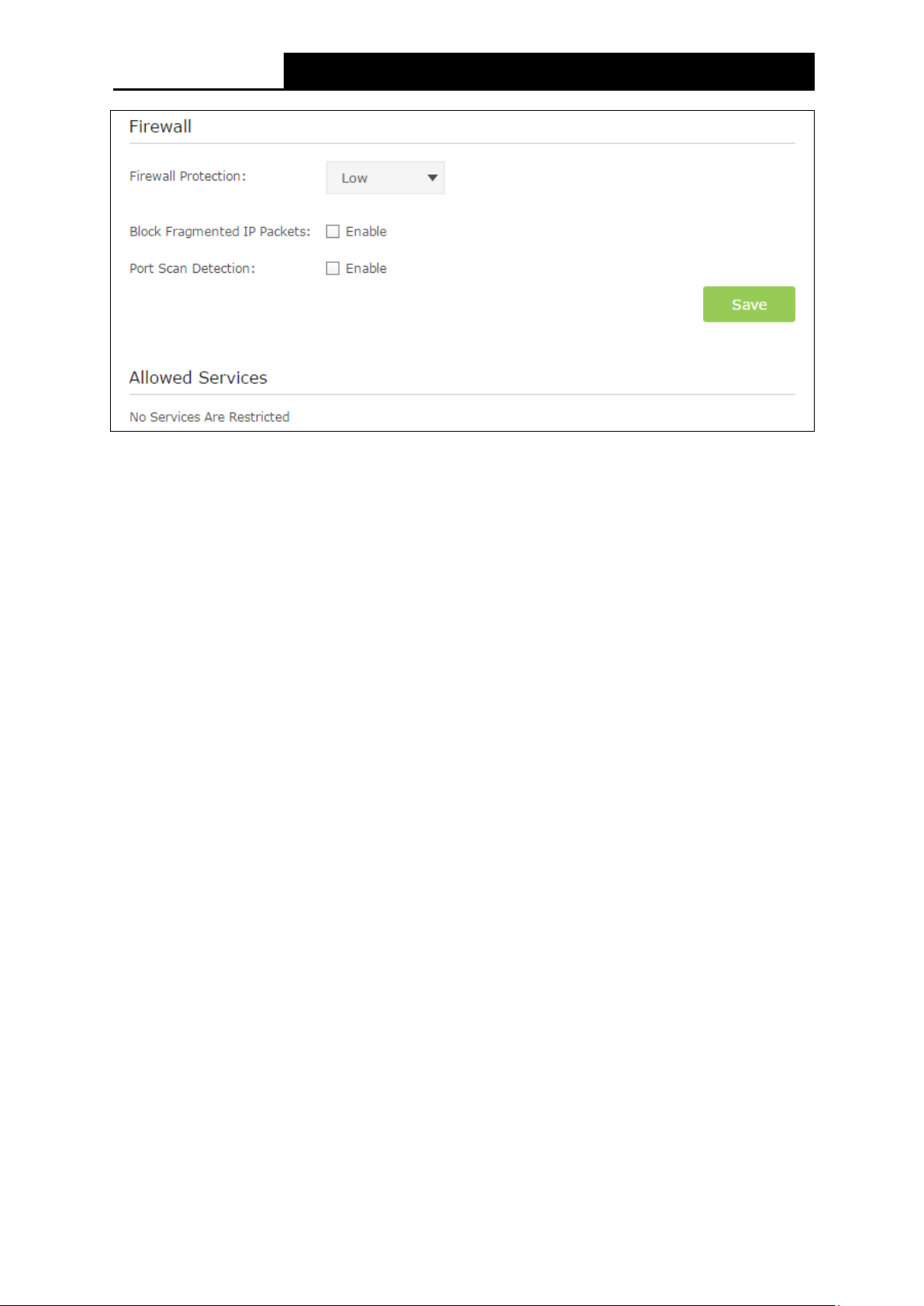

Figure 5-57

Firewall:

 Firewall Protection - You can select Off, Low, Medium or High which you would like.

 Block Fragmented IP Packets - This feature helps protect your private local network from

Internet based denial of service attacks. Check the box to enable this function.

 Port Scan Detection - This feature can protect your private local network from Internet based

hackers who attempt to gain unsolicited access your network by detecting open IP ports on your gateway Check the box to enable this function.

Click the Save button to save your settings.

5.9.2 Local Log

Choose menu “Advanced the screen as shown below

→ Firewall  Local Log”, and then you can configure the function in

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-58

 Contact Email Address – The modem router can email you its logs. Enter your email

address here.

 SMTP Server Name - Enter the name of your SMTP sever.

 SMTP User Name/Password – The default User Name/Password is admin/admin. You can

also specify the new username/password.

 Email Alerts – Check the box to enable this function. This feature can send alerts when

someone attempts to visit a blocked site.

Click the Save button to save your settings.

 Email Log – Click to email the log immediately.

 Clear Log – Click to delete all the logs.

5.9.3 Remote Log

Choose menu “Advanced in the screen as shown below.

→ Firewall  Remote Log”, and then you can configure the function

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-59

Select the Log checkbox to view the corresponding events.

 Server Address - The specified IP address of the remote system log server.

Click Save button to save these settings.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

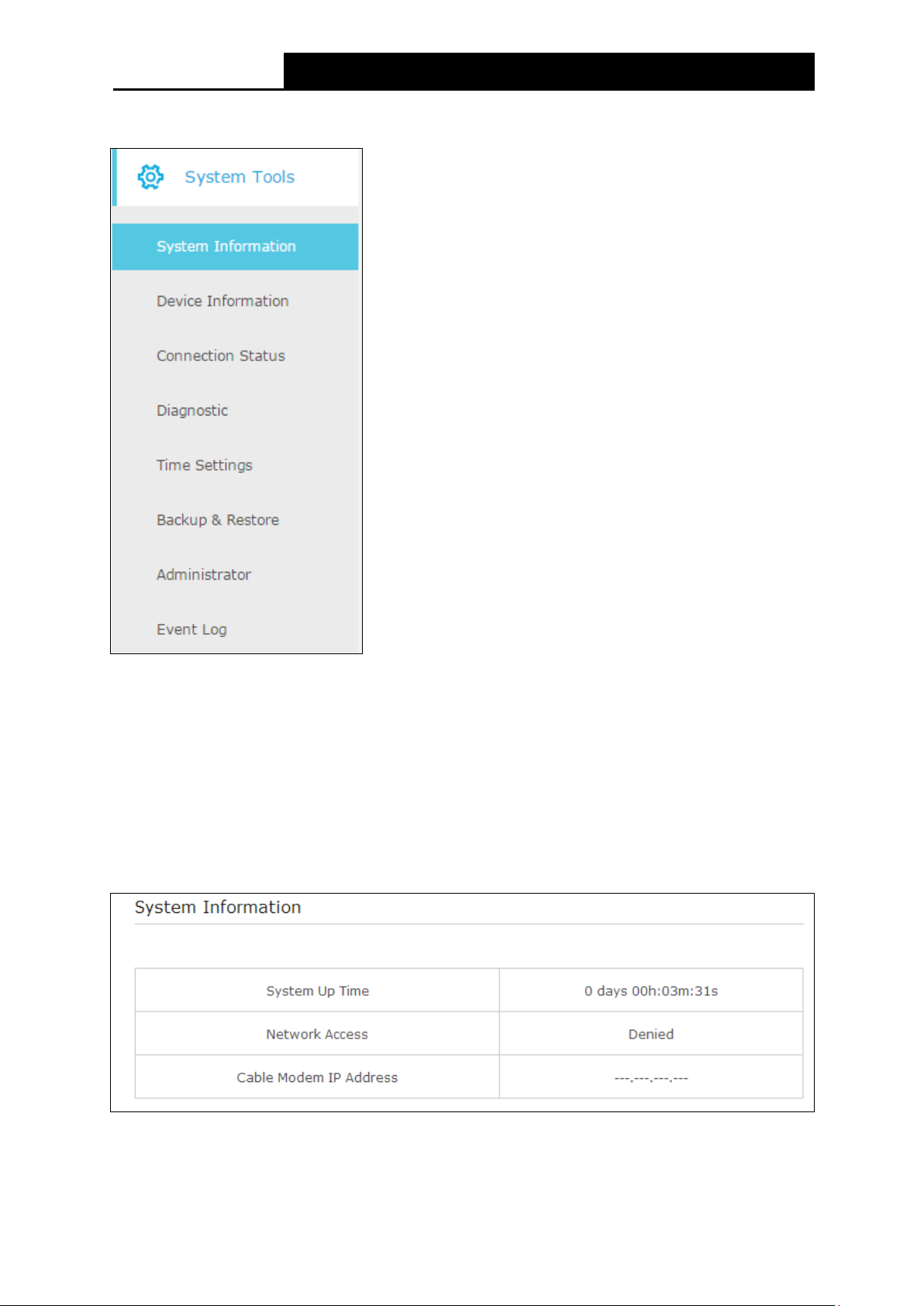

5.10 System Tools

Choose menu “Advanced menu: System Information, Device Information, Connection Status, Diagnostic, Time Settings, Backup & Restore, Administrator and Event Log. Click any of them, and you will be able to configure the corresponding function. The detailed explanations for each submenu are provided below.

→System Tools”, you will see eight submenus under the System Tools

5.10.1 System Information

Choose menu “Advanced→System Tools→System Information”, you can see the current status information about the modem router.

Figure 5-60

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

5.10.2 Device Information

Choose menu “Advanced information about the modem router.

→System Tools→Device Information”, you can see the current

Figure 5-61

5.10.3 Connection Status

Choose menu “Advanced connection status about the modem router.

→System Tools→Connection Status”, you can see the current

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

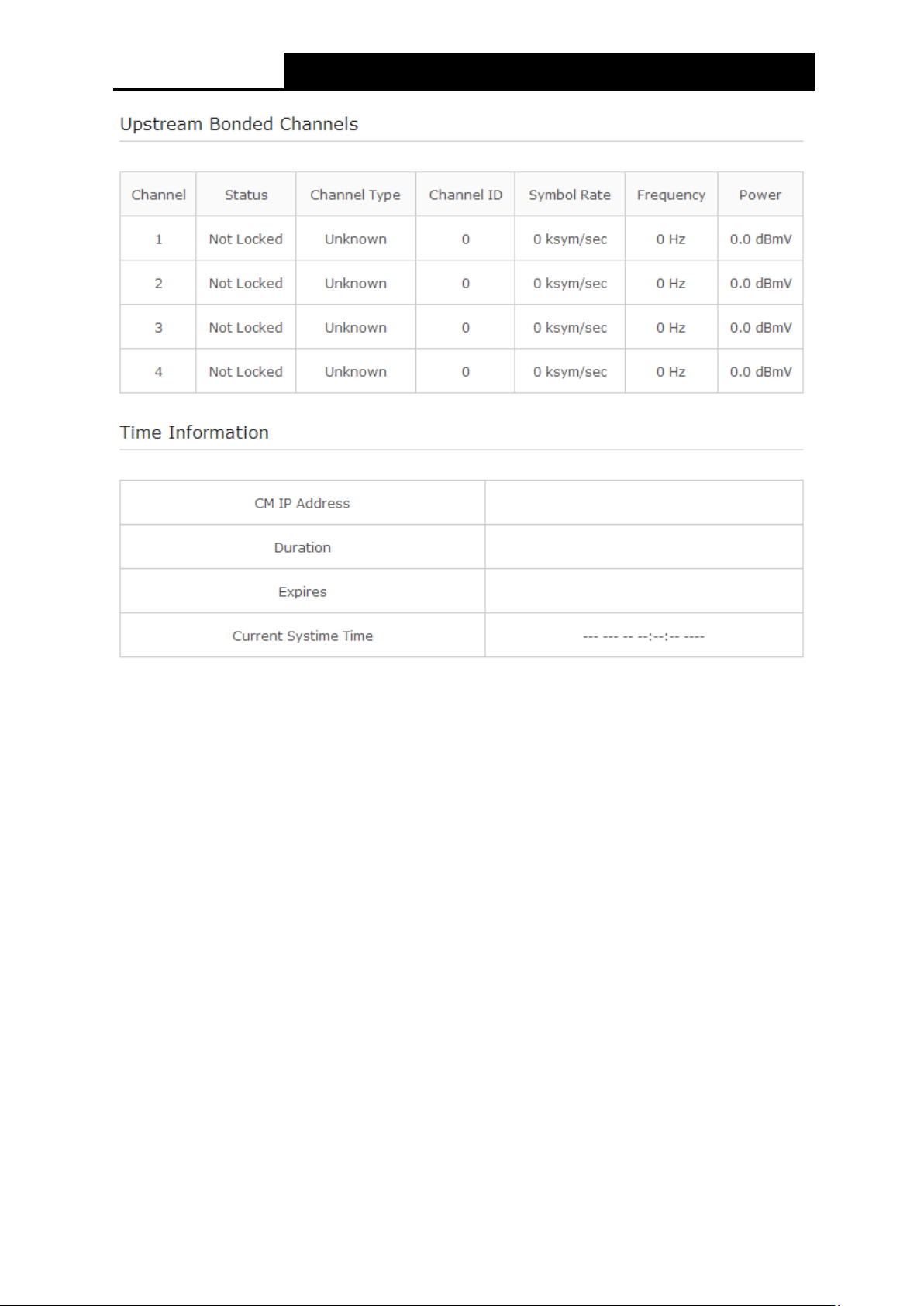

Figure 5-62

 Startup Procedure - Display the initialization progress.

 Downstream/Upstream Bonded Channels - Display the status of each channel.

 Time Information –The time information will display when the modem router is initialized.

5.10.4 Diagnostic

Choose menu “Advanced→System Tools→Diagnostic”, you can test the connectivity of the Internet on the following screen.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-63

 Diagnostic tool - There are two tools to diagnose, which is PING and Traceroute. You can

select the corresponding type according to your needs.

1) PING: If you select this option, you could check the status of the Internet connection.

 IP Address – Enter the IP address that you want to PING.  PING Packet Size – Enter the size of the PING packet you want to use.  PING Count – Enter the number of times you want to ping the target device.  PING Interval – Enter the time period between each ping.

Click Start Test to check the connectivity of the Internet. The page will display the result of diagnosis.

Click Abort Test to end the connectivity of the Internet.

Click Clear Results to delete the logs.

2) Traceroute: If you select this option, all the anonymous calls would be blocked.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

 IP Address/ Domain Name – Enter the IP Address or Domain Name you want to

trace.

 Max Hops – Enter the max number of hops.  Data Size – Enter the size of data you want to use.  Base Port – Enter the port number to send packets.  Resolve Host – To resolve the host name to the IP address you can select ON from

the drop-down list. The default status is OFF.

Click Start Test to check the connectivity of the Internet. The page will display the result of diagnosis.

Click Clear Results to delete the logs.

 Note:

Only one user can use the diagnostic tools at one time.

5.10.5 Time Settings

Choose menu “Advanced on the following screen.

→System Tools→Time Settings”, you can configure the time settings

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Time Settings:

Figure 5-64

 Enable SNTP - The switch for SNTP function. If you turn on the switch, the field will become

green.

 Current Time – Display the current time.

 System Start Time – Display the system start time.

 Time Server 1 / Time Server 2 / Time Server 3- Enter the address or domain of the Server 1

or Server 2, and then the modem router will get the time from the Server preferentially. In addition, the modem router built-in some common Servers, so it can get time automatically once it connects the Internet.

 Time Zone - Select your local time zone from the pull down list.

Click Save button to save these settings.

 Note:

1. This setting will be used for some time-based functions such as parental control and firewall. You must specify your time zone once you login to the router successfully; otherwise, these functions will not take effect.

2. The time will be lost if the router is turned off.

3. The router will automatically obtain GMT from the Internet if it is configured accordingly.

4. The Daylight Saving will take effect one minute after the configurations are completed.

5.10.6 Backup & Restore

Choose menu “Advanced current configuration of the modem router as a backup file and restore the configuration via a backup file as shown in the following figure.

→System Tools→Backup & Restore”, and then you can save the

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

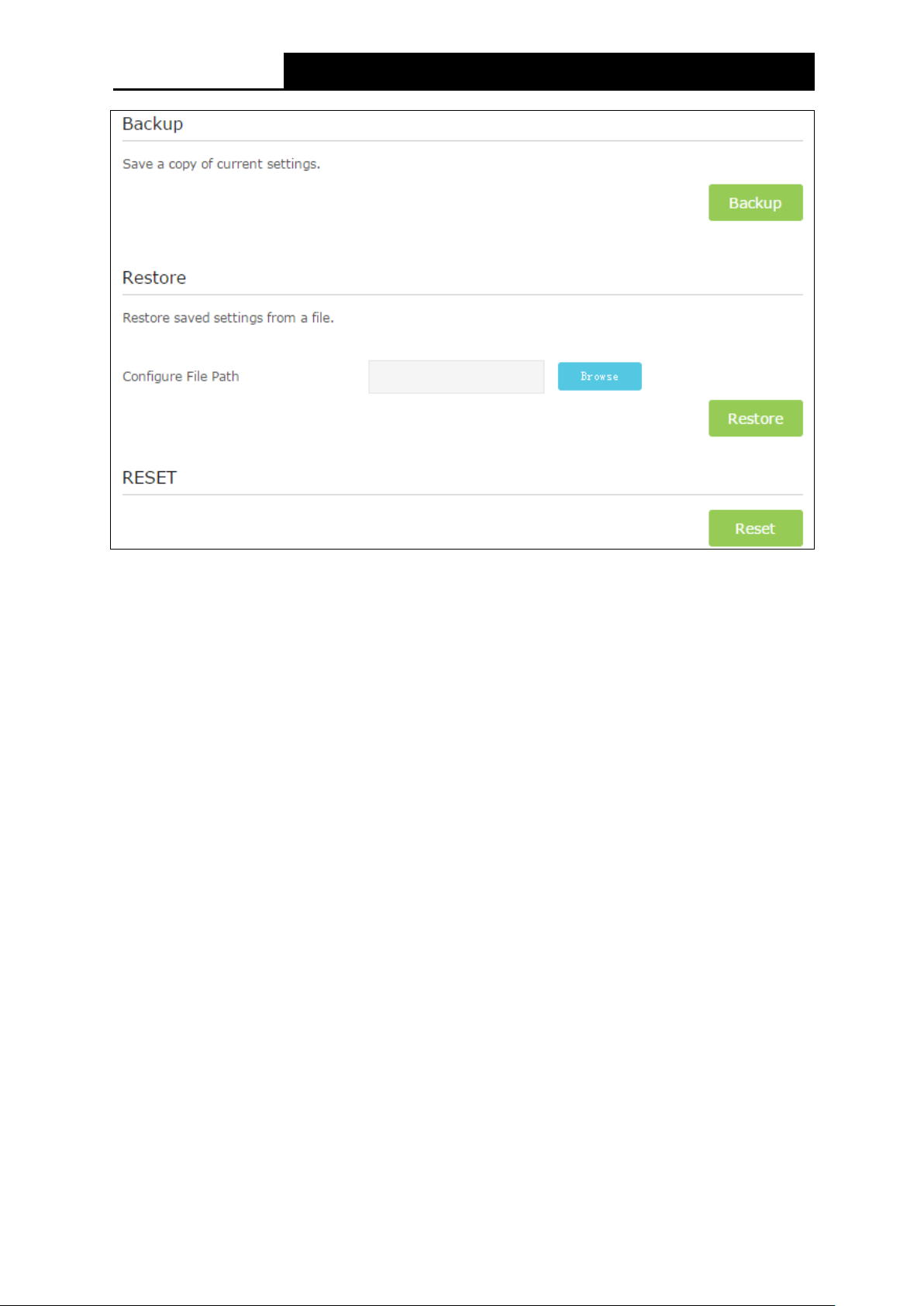

Figure 5-65

Backup:

Click the Backup button to save all configuration settings as a backup file in your local computer.

Restore:

To restore the modem router's configuration, follow these instructions.

• Click the Browse button to find the configuration file which you want to restore.

• Click the Restore button to restore the configuration with the file whose path is the one

you have input or selected in the blank.

Reset:

Click the Reset button to reset all configuration settings to their default values.

 Note:

1. The current configuration will be covered with the uploading configuration file. Wrong process will lead the device unmanaged. The restoring process lasts for 20 seconds and the modem router will restart automatically then. Keep the power of the modem router on during the process, in case of any damage.

2. All changed settings will be lost when defaults are restored.

5.10.7 Administrator

Choose menu “Advanced

→System Tools→Administrator”, you will see the following screen.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Figure 5-66

Account Management:

Here you can set the account user information about Old Password, New Password and Confirm Password.

It is strongly recommended that you should change the factory default password of the router, because all users who try to access the router's Web-based utility or Quick Setup will be prompted for the router's default username and password.

 Note:

Enter the new Password twice to confirm it. The level of the new password’s security will be shown on the screen as Low, Middle or High.

Click the Save button to save the settings.

Remote Config Management:

 Remote Config Management – Check the Enable to enable the remote management.

Click the Save button to save the settings.

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Note:



To access the router, you should type your router's WAN IP address into your browser's address (in IE) or Location (in Navigator) box, followed by a colon and the custom port number. For example, if your router's WAN address is 202.96.12.8, and the port number used is 8080, please enter http://202.96.12.8:8080 in your browser. Later, you may be asked for the router's password. After successfully entering the username and password, you will be able to access the router's web-based utility.

WAN Blocking:

 WAN Blocking – Check the Enable to block anonymous Internet requests.

Click the Save button to save the settings.

5.10.8 Event Log

Choose menu “Advanced logs of the modem router.

 Clear Log – Click to delete all the logs.

→System Tools→Event Log”, and then you can view and clear the

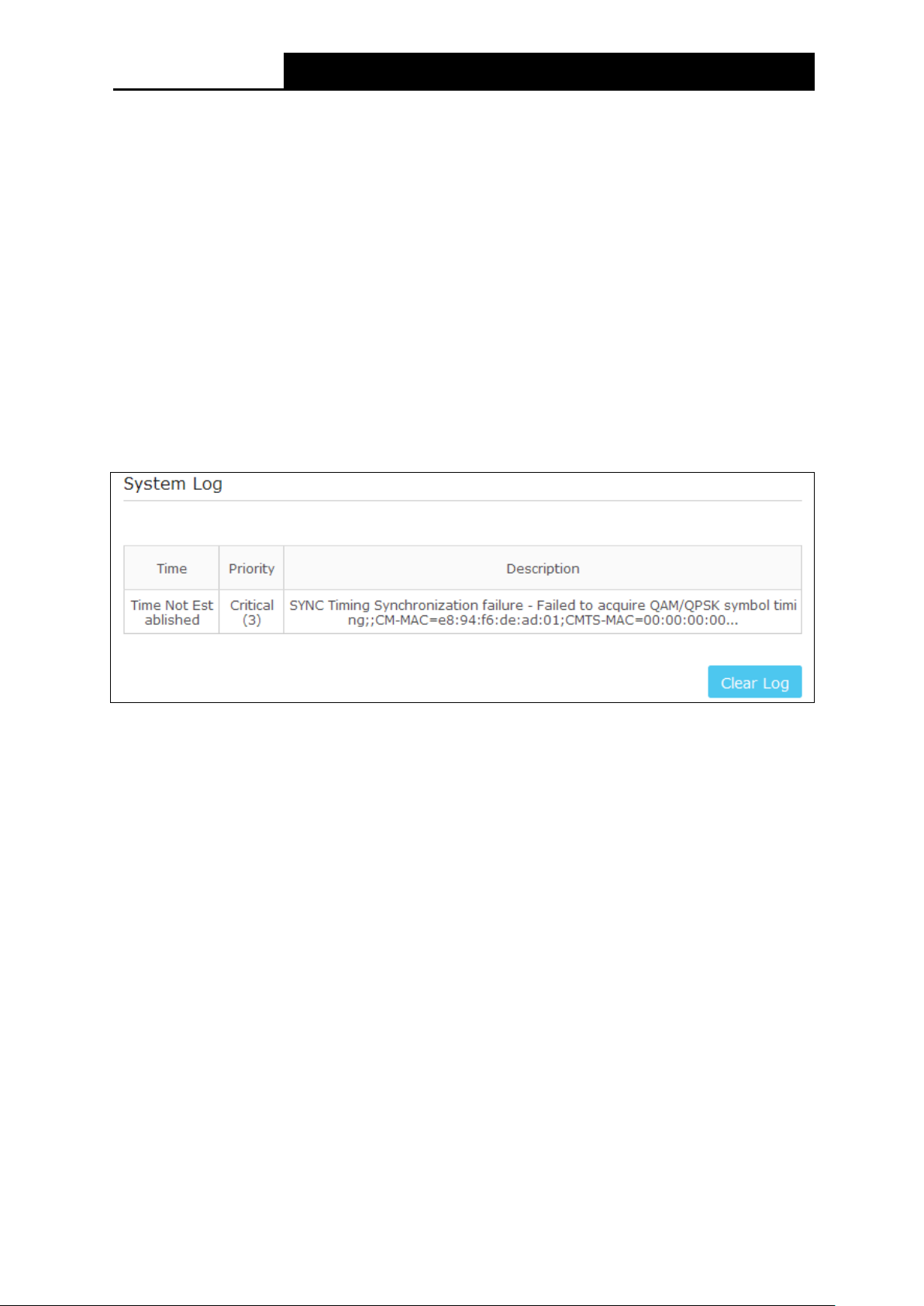

Figure 5-67

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

Appendix A: Specifications

HARDWARE FEATURES

1 F-Connector, female 75 Ω

Interface

Button

External Power Supply

IEEE Standards

DOCSIS Standards

4 10/100/1000Mbps RJ45 LAN Ports

2 USB 2.0 Ports

1 Power Jack

1 Power On/Off Button

1 Wi-Fi On/Off Button

1 WPS Button

1 Reset Button

12VDC/3.3A

IEEE 802.3/3u/3ab, IEEE 802.11a/b/g/n/ac

DOCSIS 3.0

DOCSIS 2.0

DOCSIS 1.1

DOCSIS 1.0

Dimensions ( W x D x H )

Antenna Type

Antenna Gain

DOCSIS Downstream

Channel Binding

Modulation

Maximum PHY Rate

2.5 x 7.6 x 9.7 in. (63 x 193 x 246mm)

Omni directional, Internal

2.4GHz: Ant1: 3.2 dBi, Ant2: 2.1 dBi, Ant3: 1.6 dBi

5GHz B1: Ant1: 2.6 dBi, Ant2: 2.5 dBi, Ant3: 2.5 dBi

5GHz B4: Ant1: 4.4 dBi, Ant2: 2.8 dBi, Ant3: 5.0 dBi

Up to 16

64 /256 / 1024 QAM

DOCSIS Up to 680 Mbps

Archer CR700

AC1750 Wireless Dual Band DOCSIS Cable Modem Router User Guide

HARDWARE FEATURES

Pmin to +57 dBmV (32 QAM, 64 QAM)

Pmin to +58 dBmV (8 QAM, 16 QAM)

Pmin to +61 dBmV

Pmin

Pmin = +17 dBmV, 1280 kHz modulation rate

Pmin = +20 dB

Pmin = +23 dBmV, 5120 kHz modulation rate

Bandwidth

Frequency Range

Frequency Plan

Symbol Rate

Operating Level Range

Security

DOCSIS UPSTREAM

Channel Binding

Modulation

Maximum PHY Rate

DOCSIS 96 MHz(16 channels) / 6MHz (single channel)

108 to 1002 MHz (edge to edge)

DOCSIS Annex B

DOCSIS 64 QAM 5.057 Msym/s; 256 QAM 5.361 Msym/s

–15 to 15 dBmV (DOCSIS)

DOCSIS 3.0 Security (BPI+, EAE, SSD)

Up to 4

QPSK and 8, 16, 32, 64, 128, 256 QAM

Up to 143Mbps

Channel Bandwidth

Frequency Range

Symbol Rate

Level range

200 kHz, 400 kHz, 800 kHz, 1.6 MHz,3.2 MHz, 6.4 MHz

DOCSIS 5-42 MHz (edge to edge),

160, 320, 640, 1280, 2560, 5120 ksym/s

TDMA

(QPSK)

Note: TDMA max output power reduced 3dB when transmitting two

channels and 6dB when transmitting 3 or 4 channels

to +56 dBmV (all modulations)

S-CDMA

mV, 2560 kHz modulation rate

Note: S-CDMA max output reduced 3dB when transmitting 2 or more

channels

TP Link CR700V2 Users Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Package Contents

Chapter 1. Product Overview

1.1 Overview of the Modem Router

1.2 Main Features

1.3 Panel Layout

1.3.1 The Front Panel

1.3.2 The Back Panel

Chapter 2. Install the Modem Router

2.1 System Requirements

2.2 Installation Environment Requirements

2.3 Connect the Hardware

2.4 Activate the Modem Router

2.5 Enjoy the Internet

Chapter 3. Log into the Modem Router

Chapter 4. Basic

4.1 Network Map

4.2 Internet

4.3 Wireless

4.4 Guest Network

4.5 USB Settings

4.5.1 Folder Sharing

4.5.2 Print Server

4.6 Parental Control

Chapter 5. Advanced

5.1 Status

5.2 Operation Mode

5.3 Network

5.3.1 WAN

5.3.2 LAN Settings

5.3.3 IPv6 LAN Settings

5.3.4 Dynamic DNS

5.3.5 Advanced Routing

5.4 Wireless 2.4G

5.4.1 Basic Settings

5.4.2 Primary Network

5.4.3 Guest Network

5.4.4 MAC Filtering

5.4.5 Wireless Bridging

5.4.6 Wireless Advanced

5.5 Wireless 5G

5.5.1 Basic Settings

5.5.2 Primary Network

5.5.3 Guest Network

5.5.4 MAC Filtering

5.5.5 Wireless Bridging

5.5.6 Wireless Advanced

5.6 NAT Forwarding

5.6.1 IP Filtering

5.6.2 MAC Filtering

5.6.3 Port Filtering

5.6.4 Port Forwarding

5.6.5 Port Triggers

5.6.6 DMZ

5.6.7 Options

5.7 USB Settings

5.7.1 Disk Settings

5.7.2 Folder Sharing

5.7.3 Print Server

5.8 Parental Control

5.9 Firewall

5.9.1 Basic

5.9.2 Local Log

5.9.3 Remote Log

5.10 System Tools

5.10.1 System Information

5.10.2 Device Information

5.10.3 Connection Status

5.10.4 Diagnostic

5.10.5 Time Settings

5.10.6 Backup & Restore

5.10.7 Administrator

5.10.8 Event Log

Appendix A: Specifications
